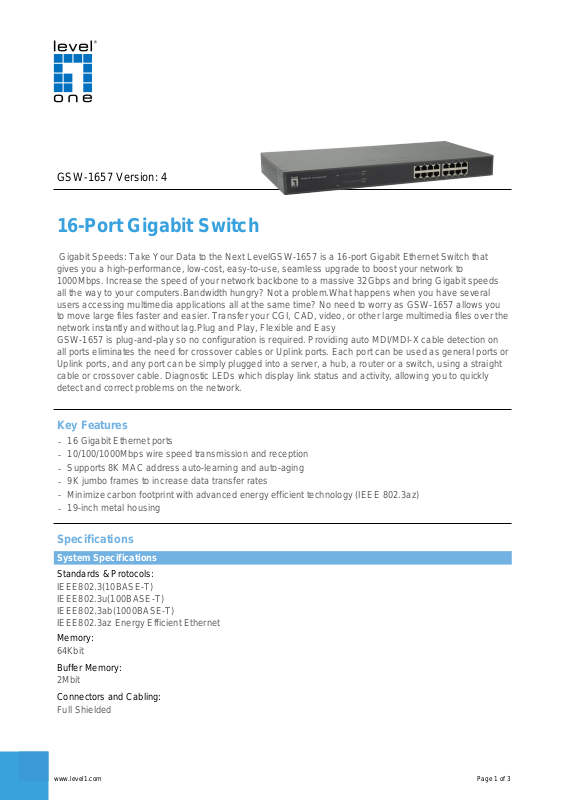

Level One GSW-1657 User Manual

GSW-1657 Version: 4

16-Port Gigabit Switch

Gigabit Speeds: Take Your Data to the Next LevelGSW-1657 is a 16-port Gigabit Ethernet Switch that
gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to
1000Mbps. Increase the speed of your network backbone to a massive 32Gbps and bring Gigabit speeds
all the way to your computers.Bandwidth hungry? Not a problem.What happens when you have several
users accessing multimedia applications all at the same time? No need to worry as GSW-1657 allows you
to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the
network instantly and without lag.Plug and Play, Flexible and Easy
GSW-1657 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on
all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or
Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight
cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly
detect and correct problems on the network.

Key Features

16 Gigabit Ethernet ports

­10/100/1000Mbps wire speed transmission and reception

­Supports 8K MAC address auto-learning and auto-aging

­9K jumbo frames to increase data transfer rates

­Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

­19-inch metal housing

-

Specifications

System Specifications

Standards & Protocols:

IEEE802.3(10BASE-T)
IEEE802.3u(100BASE-T)
IEEE802.3ab(1000BASE-T)
IEEE802.3az Energy Efficient Ethernet

Memory:

64Kbit

Buffer Memory:

2Mbit

Connectors and Cabling:

Full Shielded

www.level1.com Page 1 of 3

Indicator:

Power
LINK/ACT
1000M
loop detection

Transmission Method:

Store- froward

Power Input:

AC100-240V

Power Output:

12V/2A

Power Consumption:

15W

Features

General:

16 x 10/100/1000Mbps

Performance

Backplane (Gbps):

32Gbps

MAC Address Table:

8K

Packet Forwarding Rate:

1488000pps

Jumbo Frame (K):

9KB

Environment

Power Saving:

IEEE802.3az Energy Efficient Ethernet

Temperature (°C):

0-40°C

Humidity (Non-condensing):

10%~90%

Physical Specifications

Dimensions (W x D x H mm):

440*220*44 (mm)

Weight (g):

1kg
