LevelOne GSW-0840T, GSW-0440T User Manual

LevelOne

GSW-0440T

GSW-0840T

4/8-Port 10/100/1000Mbps 11" Gigabit Ethernet Smart Switch

User’s Guide

Version: 1.0

TABLE OF CONTENTS

1 UNPACKING INFORMATION................................................... 4

2 PRODUCT INTRODUCTION....................................................5

2.1 Models .......................................................................................... 5

2.2 Key Features................................................................................. 5

2.3 The Front Panel ............................................................................ 5

2.3.1 1000BASE-T ........................................................................ 5

2.3.2 Cabling ................................................................................. 5

2.3.3 Status LEDs.......................................................................... 6

2.4 The Rear Panel............................................................................. 6

2.4.1 Power Socket ....................................................................... 7

2.4.2 Network Ports....................................................................... 7

2.4.3 Console Port......................................................................... 7

3 INSTALLATION ........................................................................8

3.1 To locate the switch on a rackmount:............................................ 8

3.2 Rackmount placement .................................................................. 8

4 HELPFUL SUGGESTIONS ......................................................9

4.1 Prior to Installation ........................................................................ 9

4.2 Half- and Full-Duplex .................................................................... 9

4.3 Auto-Negotiation ........................................................................... 9

4.4 MAC Address Table ...................................................................... 9

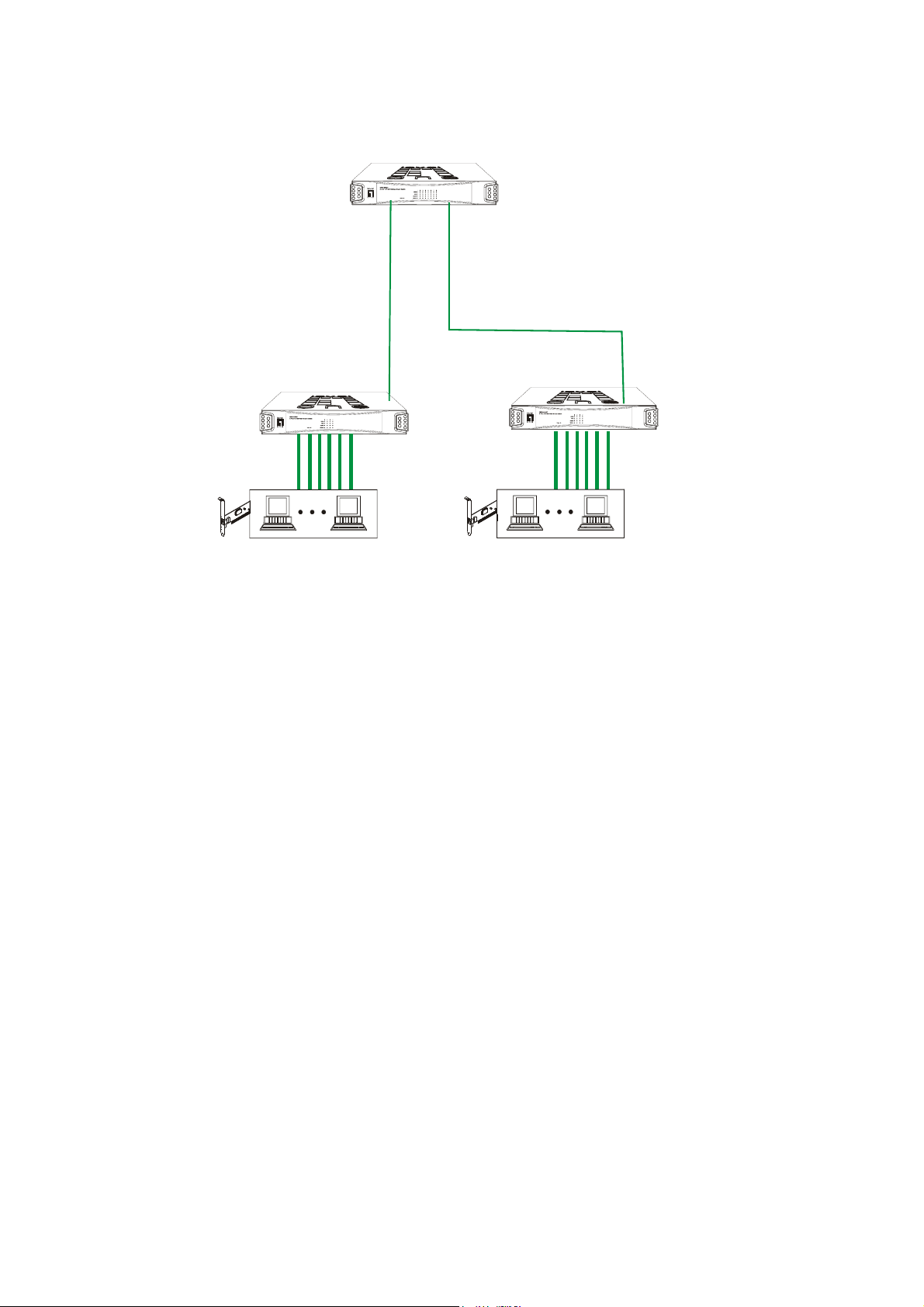

5 SAMPLE APPLICATION ........................................................ 11

6 SMART FUNCTION CONFIGURATION .................................12

6.1 HyperTerminal............................................................................. 12

7 CONFIGURATION MENU.......................................................13

7.1 Main Menu .................................................................................. 13

Port Status .................................................................................. 13

7.2

7.3 Port Config .................................................................................. 14

7.4 Mirror Config ............................................................................... 14

7.5 VLAN Config ............................................................................... 15

7.6 Misc Config ................................................................................. 16

7.7 Save Config ................................................................................ 17

7.8 Load Default................................................................................ 17

8 PRODUCT SPECIFICATIONS................................................19

1 UNPACKING INFORMATION

Thank you for purchasing this LevelOne 11" Smart Switch. Before continuing, please check the contents of the product package. This product package should contain the following items: One (1) Gigabit Ethernet Switch. One (1) Power Cord. One (1) Console Cable Four (4) Rubber Feet. Rackmount Kit. This User’s Guide. If anything is missing, please contact your place of purchase immediately.

Power Cord Console Cable

Rackmount Kit Four (4) Rubber Feet

GSW-0440T

GSW-0840T

User’s Guide

2 PRODUCT INTRODUCTION

2.1 Models

These LevelOne 11" smart switches provide Four (4) / Eight (8) Gigabit copper ports. Each port is equipped with 2000 Mbps, Full-Duplex, Collision Free Bandwidth. It’s a multi-speed, versatile network device that combines Gigabit, Fast Ethernet, and Ethernet ports in a single device.

2.2 Key Features

Provides four (4) or eight (8) ports 1000Base-T/100Base-TX/10Base-T. Supports 8K MAC address entries. Provides 256K Bytes Packet Memory Buffer. Supports up to 4 or 8 Port-Based VLANs. Provides Port-Mirroring function. Asymmetric Flow-Control supported for Full-Duplex operation. Backpressure Flow-Control supported for Half-Duplex operation. Provides Store-and-Forward forwarding scheme. Auto-Negotiation and Auto-MDIX supported. Broadcast Storm Control. Aging function supported. Supports Tag-Based VLAN as in IEEE 802.1Q.

2.3 The Front Panel

GSW-0440T

GSW-0840T

2.3.1 1000BASE-T The switch is primarily used for network backbone connections. For the 1000BASE-T TP port, it provides an Auto-Negotiation function that senses for the attached device's maximum operating speed and automatically sets the Switch to operate at that speed. Users only need to connect a network cable into any TP port, and the Auto-Negotiation function will do the rest.

2.3.2 Cabling 1000Mbps - To transmit at 1000Mbps requires Category 5 TP cabling that must use all Four (4)

pairs twisted-pair wire for RJ-45 connector.

100Mbps - To transmit at 100Mbps requires Category 5 TP cabling. 10Mbps - When transmitting at 10Mbps Category 3, 4 or 5 TP cabling with RJ-45 sockets can be

used.

Port Type Cable Type Connector 1000BASE-T Cat.5 TP RJ-45 100BASE-TX Cat.5 TP RJ-45 10BASE-T Category 3, 4 or 5 TP RJ-45

Note: Category 5 TP cable recommended whenever installing new cabling. To transmit at 1000Mbps requires Category 5 TP cable using Four (4) pairs Twisted-Pair wire.

2.3.3 Status LEDs The Switch comes with a complete range of LEDs. The table below lists each LEDs name, color and a brief description of its function.

GSW-0440T

Name Color Function Pwr Green Lit: Power "On" 1000 Green Lit: Link on 1000Mbps speed 100 Green Lit: Link on 100Mbps speed LNK/ACT Green Lit: Link on

FDX/COL Amber Lit: Full-Duplex operation

GSW-0840T

Name Color Function

Green Power on, normal operation Power Off Power off

Link/Act

Full Green Full-duplex mode Collision Blinking Collision Half Off Half-duplex mode

Green Link On Blink Activity Off Link Off Green 1000M Speed 1000M Off Not 1000M Speed Green 100M Speed 10M/100M Off 10M speed

Blink: Sending or receiving packets

Blink: Collision occurs in Half-Duplex operation

2.4 The Rear Panel

GSW-0440T

GSW-0840T

2.4.1 Power Socket The Power Socket is designed to be used with the power cord included in the product package. Attach the female end of the power cord to the male power connector on the back panel. Attach the male end of the power cord to a grounded power outlet.

2.4.2 Network Ports The Switch provides Four (4) / Eight (8) 1000Base-T/100Base-TX/10Base-T (RJ-45 connector) ports.

2.4.3 Console Port The console port interface conforms to the RS-232 electrical specification. This interface supports asynchronous data of Eight (8) data bits, One (1) stop bit, and no parity bit. The unit only operates at 9600bps rates for 4-Port’s and 9600bps rates for 8-Port’s with RS-232 cable in system configure.
