Leuze Hyperion 1300g User’s Guide

Hyperion 1300g

General Purpose Handheld Linear Scanner

User’s Guide

™

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in speci­fications and other information contained in this document without prior notice,
and the reader should in all cases consult HII to determine whether any such
changes have been made. The information in this publication does not repre­sent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained
herein; nor for incidental or consequential damages resulting from the furnish­ing, performance, or use of this material.

This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied, repro­duced, or translated into another language without the prior written consent of
HII.

© 2010 Honeywell International Inc. All rights reserved.
Other product names or marks mentioned in this document may be trademarks

or registered trademarks of other companies and are the property of their
respective owners.

Table of Contents

Chapter 1 - Getting Started

About This Manual ...................................................... 1-1

Unpacking the Scanner............................................... 1-1

Connecting with USB .................................................. 1-1

Connecting with Keyboard Wedge.............................. 1-2

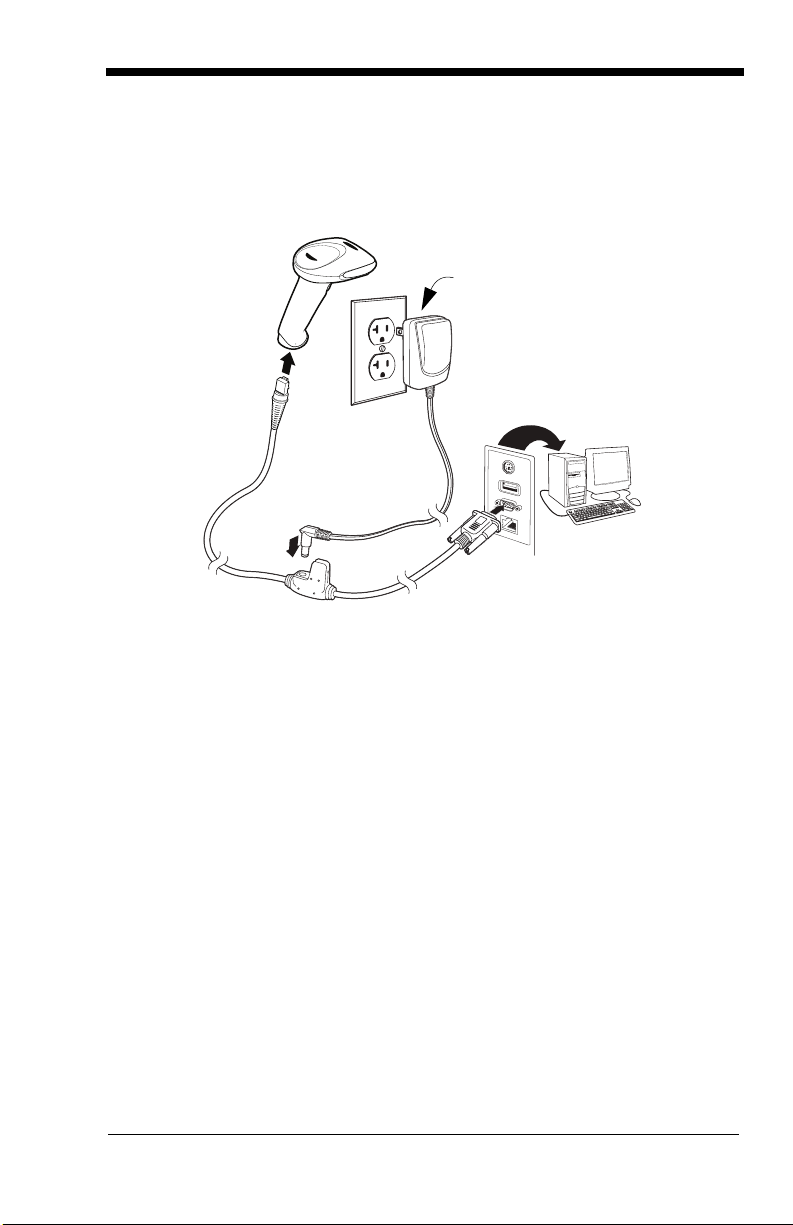

Connecting with RS-232 Serial Port............................ 1-3

Connecting with RS485............................................... 1-3

Reading Techniques ................................................... 1-4

Menu Bar Code Security Settings ............................... 1-5

Resetting the Standard Product Defaults.................... 1-5

Chapter 2 - Programming the Interface

Introduction ................................................................. 2-1

Programming the Interface - Plug and Play ................ 2-1

Keyboard Wedge................................................... 2-1

Laptop Direct Connect........................................... 2-1

IBM PS2 Keyboard................................................ 2-2

RS232 Serial Port.................................................. 2-2

RS485 ................................................................... 2-3

OPOS Mode.......................................................... 2-4

USB IBM SurePos................................................. 2-5

USB PC or Macintosh Keyboard........................... 2-5

USB HID................................................................ 2-6

USB Serial Commands ............................................... 2-6

USB Serial Emulation............................................ 2-6

CTS/RTS Emulation.............................................. 2-6

ACK/NAK Mode..................................................... 2-7

Keyboard Country Layout ........................................... 2-8

Keyboard Wedge Modifiers......................................... 2-9

Keyboard Style...................................................... 2-9

Keyboard Modifiers ............................................. 2-11

i

RS232 Modifiers ........................................................2-13

RS-232 Baud Rate............................................... 2-13

RS-232 Word Length: Data Bits, Stop Bits, and Parity

2-14

RS-232 Handshaking.................................................2-16

RTS/CTS .............................................................2-16

XON/XOFF ..........................................................2-16

ACK/NAK ............................................................. 2-16

Chapter 3 - Input/Output Settings

Good Read Indicators..................................................3-1

Beeper – Good Read.............................................3-1

Beeper Volume – Good Read................................ 3-1

Beeper Pitch – Good Read....................................3-2

Beeper Duration – Good Read ..............................3-2

Beeper Pitch – Error ..............................................3-3

LED – Good Read .................................................3-3

Number of Beeps – Good Read ............................3-3

Good Read Delay ........................................................3-4

User-Specified Good Read Delay.......................... 3-4

Trigger Modes..............................................................3-5

Manual/Serial Trigger ............................................3-5

Automatic Trigger ..................................................3-5

Presentation Mode................................................. 3-6

Continuous Illumination Mode ...............................3-6

Hands Free Time-Out..................................................3-6

Reread Delay...............................................................3-7

User-Specified Reread Delay ................................3-8

Centering .....................................................................3-8

Output Sequence Overview.......................................3-10

To Add an Output Sequence ...............................3-10

Other Programming Selections............................ 3-11

Output Sequence Editor ......................................3-11

Require Output Sequence ...................................3-11

Output Sequence Editor ......................................3-13

Require Output Sequence ...................................3-13

ii

Multiple Symbols ....................................................... 3-14

No Read .................................................................... 3-15

Video Reverse........................................................... 3-15

Chapter 4 - Data Editing

Prefix/Suffix Overview ................................................. 4-1

To Add a Prefix or Suffix ....................................... 4-1

To Clear One or All Prefixes or Suffixes................ 4-2

To Add a Carriage Return Suffix to All Symbologies4-

3

Prefix Selections.................................................... 4-3

Suffix Selections.................................................... 4-4

Function Code Transmit........................................ 4-4

Intercharacter, Interfunction, and Intermessage Delays 4-

4

Intercharacter Delay.............................................. 4-5

User Specified Intercharacter Delay...................... 4-5

Interfunction Delay ................................................ 4-6

Intermessage Delay .............................................. 4-6

Chapter 5 - Data Formatting

Data Format Editor Introduction .................................. 5-1

To Add a Data Format........................................... 5-1

Other Programming Selections ............................. 5-3

Terminal ID Table........................................................ 5-4

Data Format Editor Commands .................................. 5-4

Send Commands................................................... 5-4

Move Commands .................................................. 5-5

Search Commands................................................ 5-5

Miscellaneous Commands .................................... 5-6

Data Format Editor................................................ 5-8

Data Formatter ...................................................... 5-8

.............................................................................. 5-9

iii

Chapter 6 - Symbologies

Introduction..................................................................6-1

All Symbologies ...........................................................6-2

Message Length ..........................................................6-2

Codabar.......................................................................6-3

Codabar Start/Stop Characters ............................. 6-3

Codabar Check Character ..................................... 6-3

Codabar Concatenation.........................................6-4

Codabar Message Length .....................................6-5

Code 39 .......................................................................6-6

Code 39 Start/Stop Characters .............................6-6

Code 39 Check Character .....................................6-6

Code 39 Message Length...................................... 6-7

Code 39 Append....................................................6-7

Code 32 Pharmaceutical (PARAF)..............................6-8

Full ASCII............................................................... 6-9

Code 39 Code Page ..............................................6-9

Interleaved 2 of 5.......................................................6-10

Check Digit ..........................................................6-10

Interleaved 2 of 5 Message Length .....................6-11

Code 93 .....................................................................6-12

Code 93 Message Length.................................... 6-12

Code 93 Code Page ............................................6-12

Straight 2 of 5 Industrial (three-bar start/stop)...........6-14

Straight 2 of 5 Industrial Message Length ...........6-14

Straight 2 of 5 IATA (two-bar start/stop) ....................6-15

Straight 2 of 5 IATA Message Length..................6-15

Matrix 2 of 5...............................................................6-16

Matrix 2 of 5 Message Length .............................6-16

Code 11 .....................................................................6-17

Check Digits Required ......................................... 6-17

Code 11 Message Length.................................... 6-18

iv

Code 128................................................................... 6-18

ISBT 128 Concatenation ..................................... 6-18

Code 128 Message Length ................................. 6-19

Code 128 Code Page.......................................... 6-19

Code 128 Function Code Transmit ..................... 6-20

Telepen ..................................................................... 6-20

Telepen Output.................................................... 6-21

Telepen Message Length.................................... 6-22

UPC A ....................................................................... 6-23

UPC A Check Digit.............................................. 6-23

UPC A Number System....................................... 6-24

UPC A Addenda.................................................. 6-24

UPC A Addenda Required .................................. 6-25

UPC A Addenda Separator ................................. 6-25

UPC-A/EAN-13

with Extended Coupon Code .................................. 6-26

UPC E ....................................................................... 6-27

UPC E0 and UPC E1 .......................................... 6-27

UPC E0 and UPC E1 Expand ............................. 6-28

UPC E0 and UPC E1 Addenda Required ........... 6-28

UPC E0 and UPC E1 Addenda Separator .......... 6-29

UPC E0 Check Digit............................................ 6-29

UPC E0 Number System..................................... 6-30

UPC E0 Addenda................................................ 6-30

EAN/JAN 13 .............................................................. 6-31

EAN/JAN 13 Check Digit..................................... 6-31

EAN/JAN 13 Addenda......................................... 6-32

EAN/JAN 13 Addenda Required ......................... 6-32

EAN/JAN 13 Addenda Separator........................ 6-33

ISBN Translate.................................................... 6-33

EAN/JAN 8 ................................................................ 6-33

EAN/JAN 8 Check Digit....................................... 6-34

EAN/JAN 8 Addenda........................................... 6-35

EAN/JAN 8 Addenda Required ........................... 6-35

EAN/JAN 8 Addenda Separator.......................... 6-36

v

MSI ............................................................................6-36

MSI Check Character ..........................................6-36

MSI Message Length...........................................6-37

Plessey Code.............................................................6-37

Plessey Message Length..................................... 6-38

GS1 DataBar Omnidirectional ...................................6-38

GS1 DataBar Limited.................................................6-39

GS1 DataBar Expanded ............................................6-39

GS1 DataBar Expanded Message Length........... 6-40

China Post Code........................................................6-40

Korea Post Code .......................................................6-42

Korea Post Message Length ...............................6-42

Codablock F...............................................................6-43

Codablock F Message Length ............................. 6-43

Code 49 .....................................................................6-44

Code 49 Message Length.................................... 6-44

Trioptic Code .............................................................6-45

GS1 Emulation...........................................................6-45

Label Code ................................................................6-46

Chapter 7 - Interface Keys

Keyboard Function Relationships................................7-1

Supported Interface Keys ...........................................7-3

Chapter 8 - Utilities

To Add a Test Code I.D. Prefix to All Symbologies .....8-1

Show Software Revision..............................................8-1

Show Data Format.......................................................8-1

Resetting the Standard Product Defaults ....................8-2

Chapter 9 - Serial Programming Commands

Conventions.................................................................9-1

vi

Menu Command Syntax.............................................. 9-1

Query Commands ................................................. 9-2

Concatenation of Multiple Commands .................. 9-2

Responses ............................................................ 9-2

Examples of Query Commands ............................ 9-3

Trigger Commands ..................................................... 9-4

Resetting the Standard Product Defaults.................... 9-4

Menu Commands........................................................ 9-5

Chapter 10 - Product Specifications

Hyperion 1300g Product Specifications .................... 10-1

Chapter 11 - Maintenance

Repairs...................................................................... 11-1

Maintenance.............................................................. 11-1

Cleaning the Device ............................................ 11-1

Inspecting Cords and Connectors....................... 11-1

Replacing the Interface Cable............................. 11-2

Troubleshooting ........................................................ 11-2

Chapter 12 - Customer Support

Technical Assistance ................................................ 12-1

Online Technical Assistance ............................... 12-2

Product Service and Repair ...................................... 12-2

Online Product Service and Repair Assistance... 12-3

Limited Warranty ....................................................... 12-3

Appendix A - Appendix A

Symbology Chart......................................................... A-1

ASCII Conversion Chart (Code Page 1252) ...............A-2

Code Page Mapping of Printed Bar Codes ................. A-5

vii

viii

Product Agency Compliance

USA

FCC Part 15 Subpart B Class B

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference
that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for
help.

Caution: Any changes or modifications made to this equipment not

expressly approved by Honeywell International Inc. may void the
FCC authorization to operate this equipment.

Note: To maintain compliance with EMC Regulations, cables connected to

this device must be shielded cables. This unit has been tested with
cables less than 3 meters. Cables greater than 3 meters may not
meet class B performance.

UL Statement

UL listed: UL60950-1, 2nd Edition for I.T.E. product safety.

Note: Use only a Listed Limited Power Source (LPS) or Class 2 type power

supply with output rated 5 to 5.2Vdc, 1A.

Canada

Industry Canada ICES-003

This Class B digital apparatus complies with Canadian ICES-003. Operation
is subject to the following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including
interference that may cause undesired operation.

Note: To maintain compliance with EMC Regulations, cables connected to

this device must be shielded cables. This unit has been tested with
cables less than 3 meters. Cables greater than 3 meters may not
meet class B performance.

Note: Use only a Listed Limited Power Source (LPS) or Class 2 type power

supply with output rated 5 to 5.2Vdc, 1A.

Conformité à la règlementation canadienne

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du
Canada. Son fonctionnement est assujetti aux conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le
brouillage pouvant causer un fonctionnement indésirable.

C-UL Statement

C-UL listed: CSA C22.2 No.60950-1-07, 2nd Edition for I.T.E. product safety.

Europe

The CE marking indicates compliance to 2004/108/EC EMC Directive
with Standards EN55022 CLASS B, EN55024, EN61000-3-2,
EN61000-3-3. In addition, complies to 2006/95/EC Low Voltage
Directive, when shipped with recommended power supply.

For CE-related inquiries, please contact:

Honeywell Imaging & Mobility Europe BV
Nijverheidsweg 9
5627 BT Eindhoven
The Netherlands

Honeywell shall not be liable for use of our product with equipment (i.e.,
power supplies, personal computers, etc.) that is not CE marked and does
not comply with the Low Voltage Directive.

Waste Electrical and Electronic Equipment
Information

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN
PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on waste
electrical and electronic equipment (WEEE).

This product has required the extraction and use of natural resources for its
production. It may contain hazardous substances that could impact health
and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment
and to diminish the pressure on the natural resources, we encourage you to
use the appropriate take-back systems for product disposal. Those systems
will reuse or recycle most of the materials of the product you are disposing in
a sound way.

The crossed out wheeled bin symbol informs you that the product
should not be disposed of along with municipal waste and invites you to use
the appropriate separate take-back systems for product disposal.

If you need more information on the collection, reuse, and recycling systems,
please contact your local or regional waste administration.

You may also contact your supplier for more information on the
environmental performances of this product.

Germany

meeting geprufte Sicherheit approval.

GS Mark Applicable if GS logo is marked on product to indicate

Russia

Australia/NZ

C-Tick Statement

Conforms to AS/NZS 3548 EMC requirements.

Mexico

NOM-019.

Applicable if NOM logo is marked on product. Conforms to

South Korea

Taiwan

BSMI Standard: CNS13438, CNS14336
依據標準 : CNS13438, CNS14336

International

LED Safety Statement

LEDs have been tested and classified as “EXEMPT RISK GROUP” to the
standard: IEC 62471:2006.

CB Scheme

Certified to IEC60950-1 Second Edition I.T.E. Product Safety.

Solids and Water Protection

The devices have a rating of IP41, immunity of foreign particles and dripping
water tested to Standard EN60259.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Required Safety Label Locations

Light Source

Item
Number,
Serial
Number
and
Revision

Compliance
Label location

1

Getting Started

About This Manual

This User’s Guide provides installation and programming instructions for the
Hyperion 1300g. Product specifications, dimensions, warranty, and customer
support information are also included.

Honeywell bar code scanners are factory programmed for the most common
terminal and communications settings. If you need to change these settings,
programming is accomplished by scanning the bar codes in this guide.

An asterisk (*) next to an option indicates the default setting.

Unpacking the Scanner

After you open the shipping carton containing the product, take the following
steps:

• Check for damage during shipment. Report damage immediately to the
carrier who delivered the carton.

• Make sure the items in the carton match your order.

• Save the shipping container for later storage or shipping.

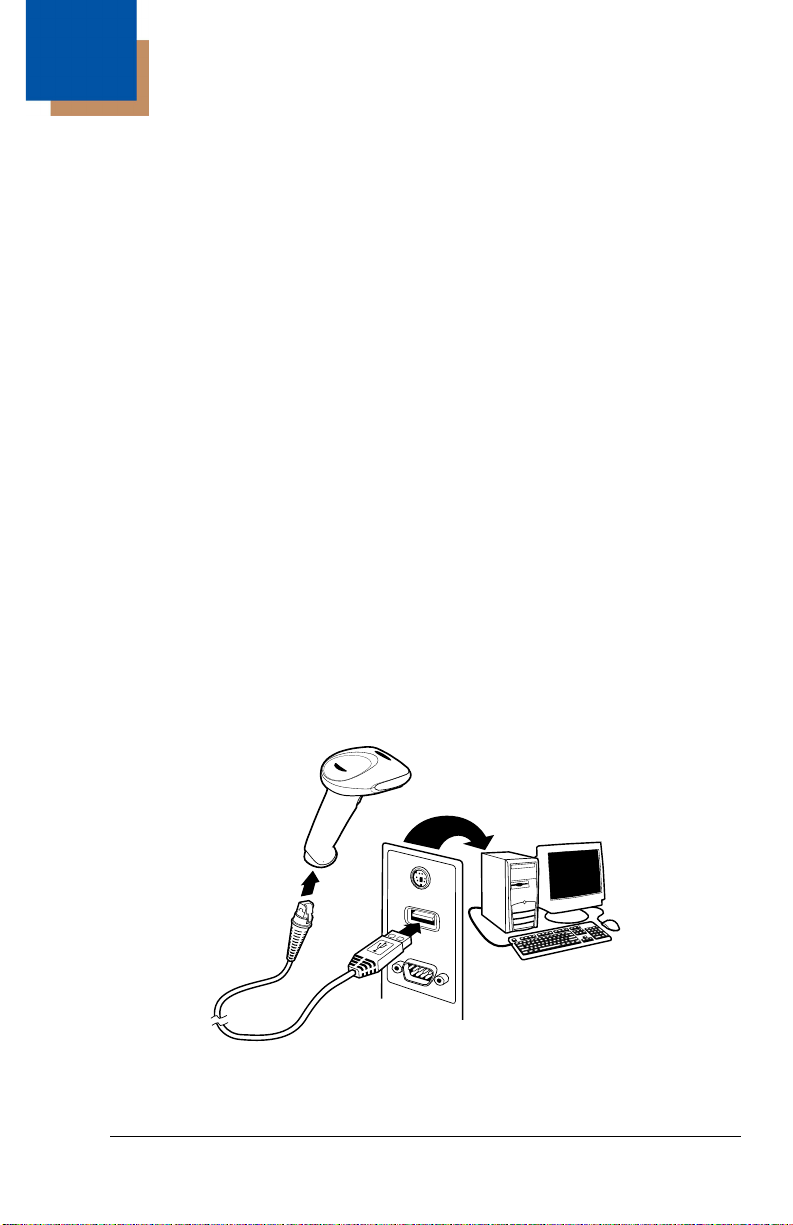

Connecting with USB

A scanner can be connected to the USB port of a computer.

1. Connect the appropriate interface cable to the scanner first, then to the com-

puter.

2. The scanner beeps.

1 - 1

3. Verify the scanner operation by scanning a bar code from the Sample

only if
power
supply is
included

Symbols in the back of this manual.

For additional USB programming and technical information, refer to the Honey­well “USB Application Note,” available at www.honeywellaidc.com.

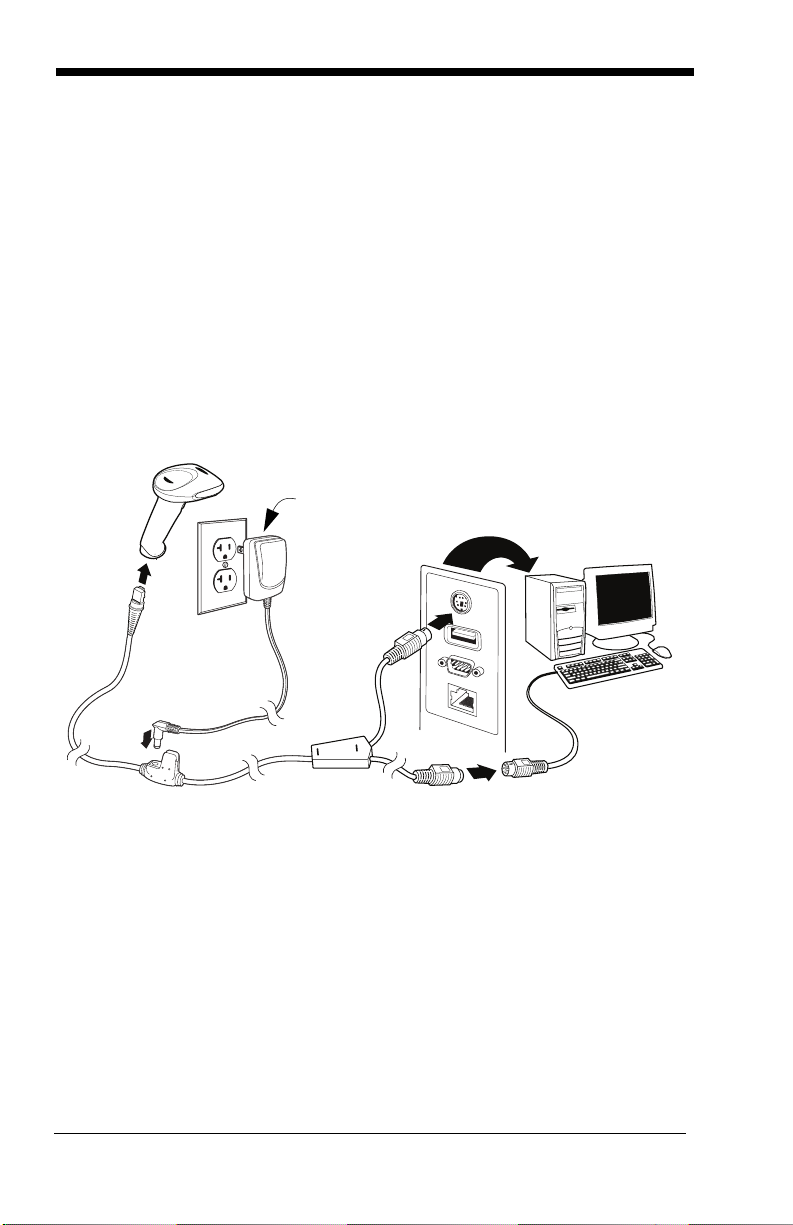

Connecting with Keyboard Wedge

A scanner can be connected between the keyboard and PC as a “keyboard
wedge,” plugged into the serial port or connected to a portable data terminal.
The following is an example of a keyboard wedge connection:

1. Turn off power and disconnect the keyboard cables from the back of the ter­minal/computer.

2. Connect the appropriate interface cable to the scanner and to the terminal/
computer.

3. Turn the terminal/computer power back on. The scanner beeps.

4. Verify the scanner operation by scanning a bar code from the Sample

Symbols in the back of this manual. The scanner beeps once.

The unit defaults to an IBM PC AT and compatibles keyboard wedge interface
with a USA keyboard. A carriage return (CR) suffix is added to bar code data.

1 - 2

Connecting with RS-232 Serial Port

only if
power
supply is
included

1. Turn off power to the terminal/computer.

2. Connect the appropriate interface cable to the scanner.

3. Plug the serial connector into the serial port on your computer. Tighten the
two screws to secure the connector to the port.

4. Once the scanner has been completely connected, power up the computer.

5. This interface programs 38,400 baud, 8 data bits, no parity, and 1 stop bit.

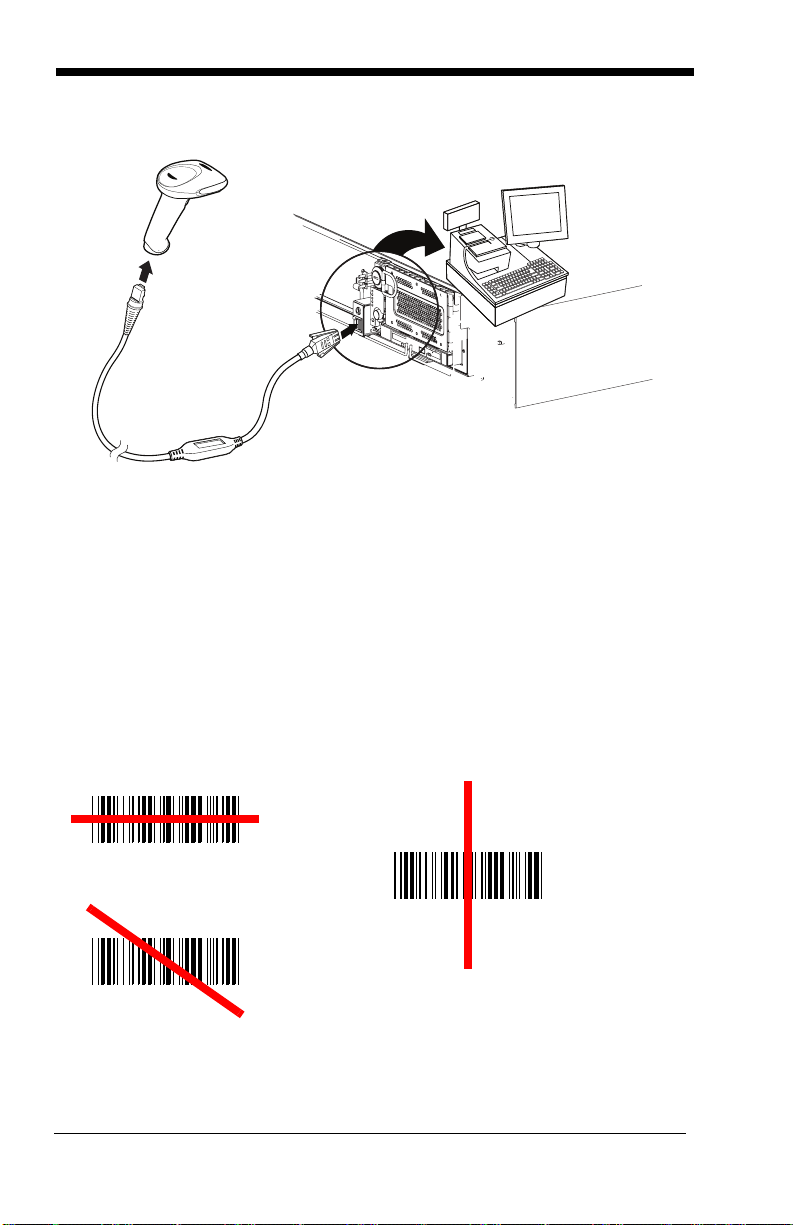

Connecting with RS485

A scanner can be connected for an IBM POS terminal interface.

1 - 3

1. Connect the appropriate interface cable to the device, then to the computer.

Good Technique

Bad Technique

Bad Technique

2. Turn the terminal/computer power back on. The scanner beeps.

3. Verify the scanner operation by scanning a bar code from the Sample

Symbols in the back of this manual. The scanner beeps once.

4. For further RS485 settings, refer to RS485 on page 2-3.

Reading Techniques

The scanner has a bright red aiming beam that corresponds to its horizontal
field of view. The aiming beam should be centered horizontally over the bar
code; it will not read if the aiming beam is in any other direction.

1 - 4

The best focus point for reading most code densities is about 5 inches (12.7 cm)

Standard Product Default

Settings

from the unit. To read a single bar code or multiple bar codes (on a page or on
an object), hold the scanner at an appropriate distance from the target, pull the
trigger, and center the aiming beam on the bar code.

Menu Bar Code Security Settings

Honeywell scanners are programmed by scanning menu bar codes or by send­ing serial commands to the scanner. If you want to restrict the ability to scan
menu codes, you can use the Menu Bar Code Security settings. Please contact
the nearest technical support office (seeTechnical Assistance on page 12-1) for
further information.

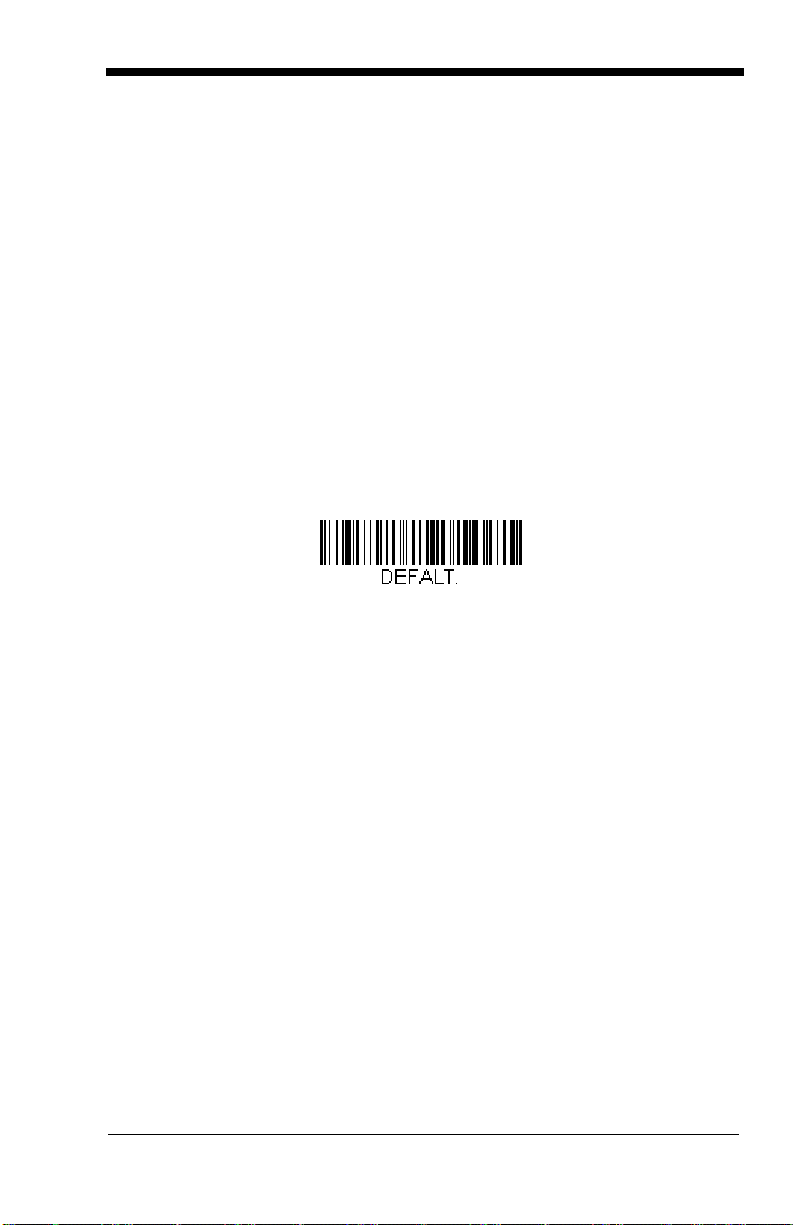

Resetting the Standard Product Defaults

If you aren’t sure what programming options are in your scanner, or you’ve
changed some options and want the factory settings restored, scan the

dard Product Default Settings

The Menu Commands starting on page 9-5 lists the factory default settings for
each of the commands (indicated by an asterisk (*) on the programming pages).

bar code below.

Stan-

1 - 5

1 - 6

2

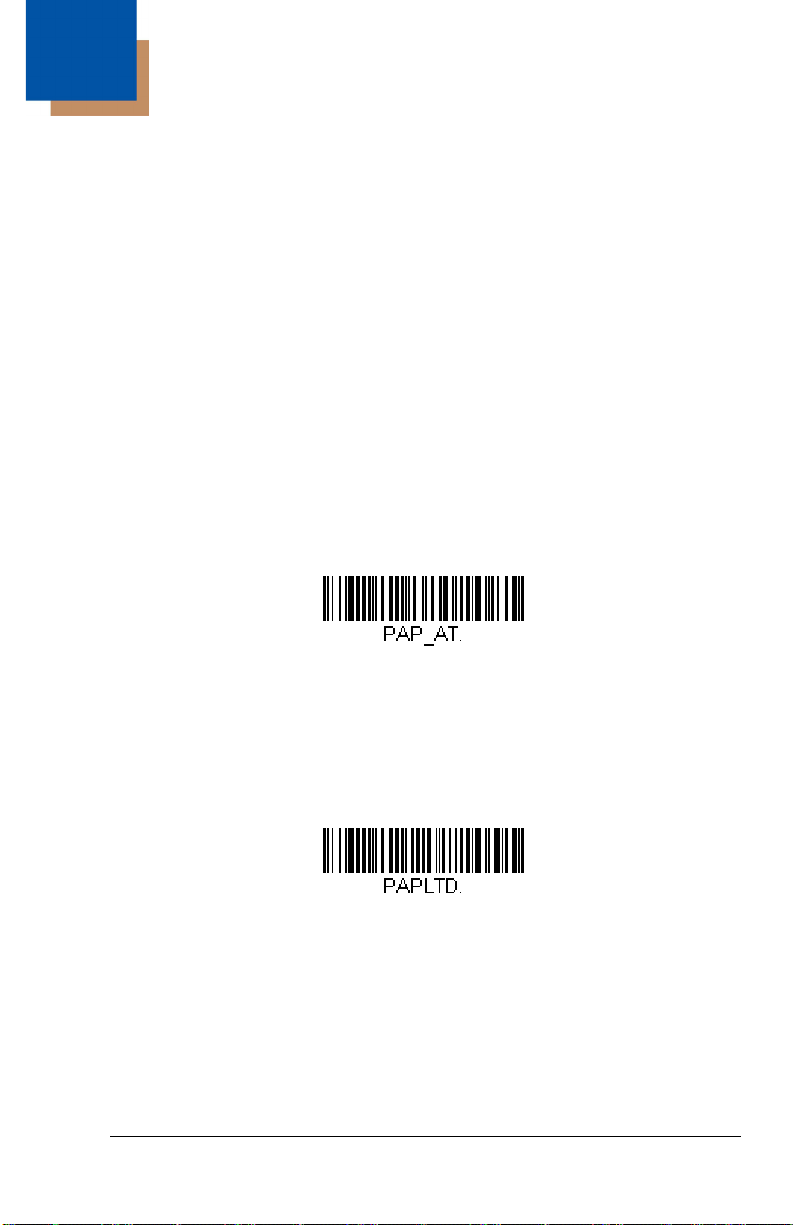

IBM PC AT and Compatibles with CR Suffix

Laptop Direct Connect

with CR suffix

Programming the Interface

Introduction

This chapter describes how to program your system for the desired interface.

Programming the Interface - Plug and Play

Plug and Play bar codes provide instant scanner set up for commonly used
interfaces.

Note: After you scan one of the codes, power cycle the host terminal to have

the interface in effect.

Keyboard Wedge

If you want your system programmed for an IBM PC AT and compatibles key­board wedge interface with a USA keyboard, scan the bar code below. Key­board wedge is the default interface.

Note: The following bar code also programs a carriage return (CR) suffix.

Laptop Direct Connect

For most laptops, scanning the Laptop Direct Connect bar code allows opera­tion of the scanner in parallel with the integral keyboard. The following Laptop
Direct Connect bar code selects terminal ID 03, programs a carriage return
(CR) suffix and turns on Emulate External Keyboard (page 2-10).

2 - 1

IBM PS2 Keyboard

IBM PS2 with CR Suffix

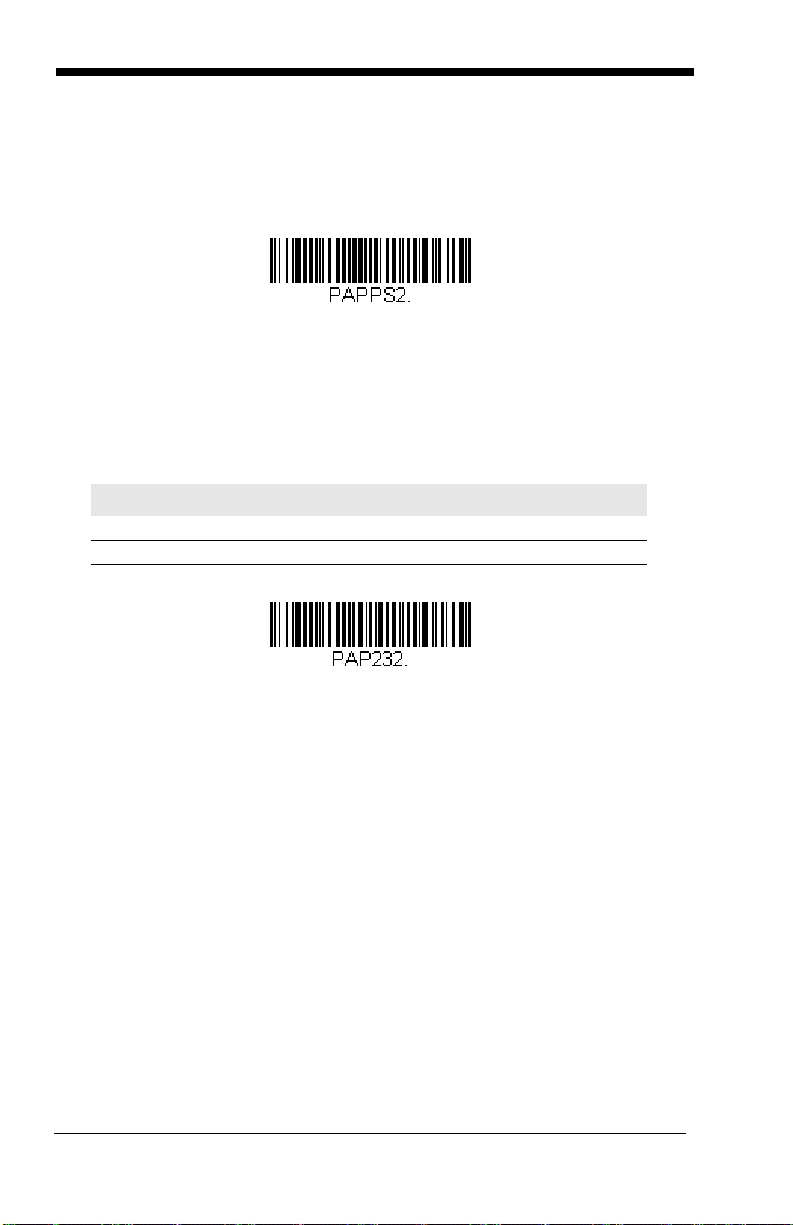

RS232 Interface

The following bar code programs you scanner for an IBM PS2 keyboard wedge
interface with a USA keyboard.

Note: The following bar code also programs a carriage return (CR) suffix.

RS232 Serial Port

The RS232 Interface bar code is used when connecting to the serial port of a
PC or terminal. The following RS232 Interface bar code also programs a car­riage return (CR) and a line feed (LF) suffix, baud rate, and data format as indi-

cated below.

Option Setting

Baud Rate 38,400 bps
Data Format 8 data bits, no parity bit, 1 stop bit

2 - 2

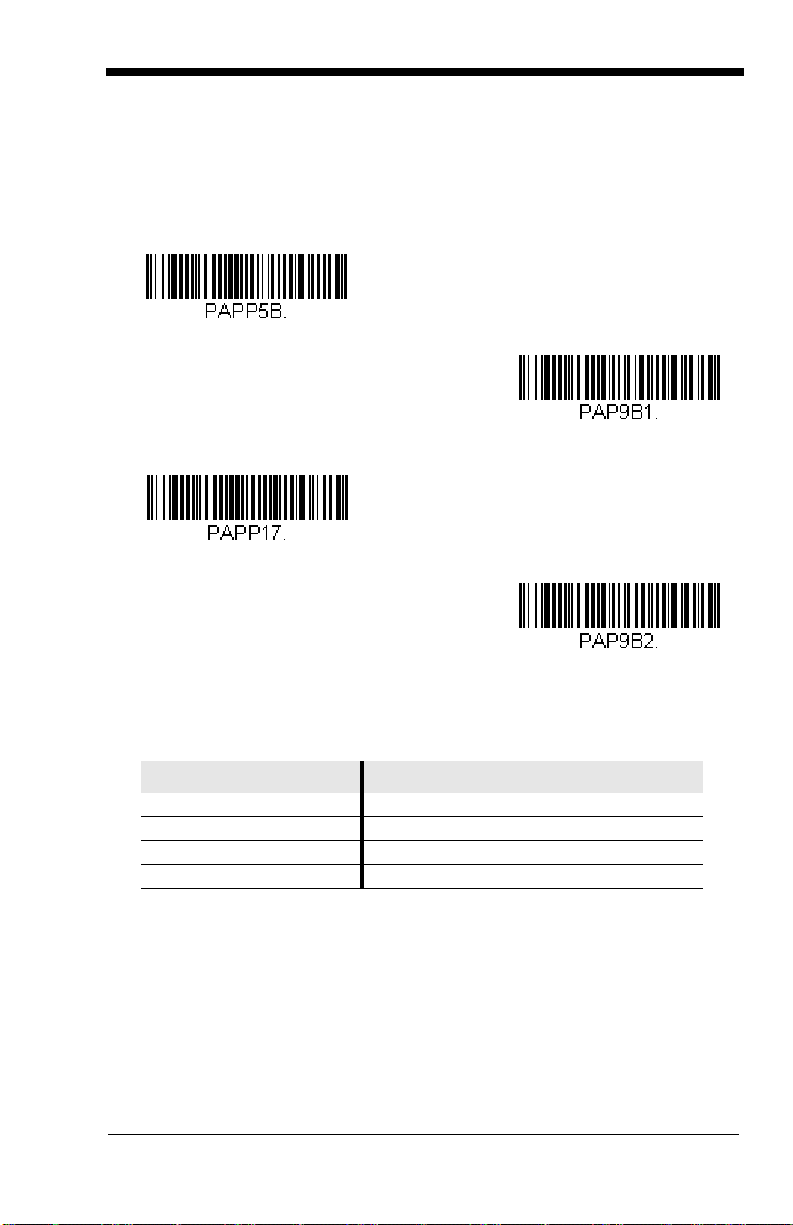

RS485

IBM Port 5B Interface

IBM Port 9B

HHBCR-1 Interface

IBM Port 17 Interface

IBM Port 9B

HHBCR-2 Interface

Scan one of the following “Plug and Play” codes to program the scanner for an
IBM POS terminal interface.

Note: After scanning one of these codes, you must power cycle the cash

register.

Each bar code above also programs the following suffixes for each symbology:

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B
EAN 13 16 Interleaved 2 of 5 00 0D 0B
UPC A 0D Code 128 * 00 0A 0B
UPC E 0A Code 128 ** 00 18 0B

* Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B

HHBCR-1, and IBM 4683 Port 17 Interfaces

**Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface

2 - 3

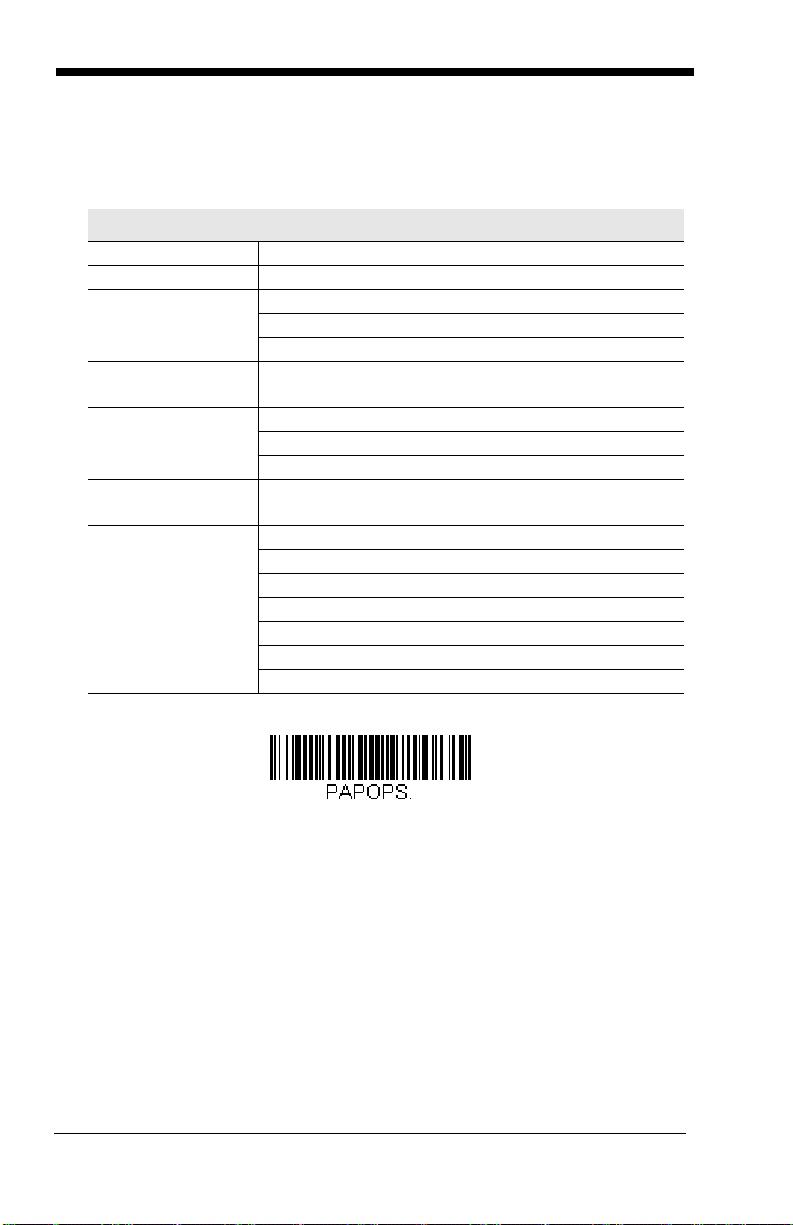

OPOS Mode

OPOS Mode

The following bar code configures your scanner for OPOS (OLE for Retail Point
of Sale) by modifying the following OPOS-related settings:

Option Setting

Interface RS232
Baud Rate 38400
RS232
Handshaking

Data Bits, Stop
Bits, and Parity
Prefix/Suffix

Intercharacter
Delay
Symbologies Enable UPC-A with check digit and number system

Flow Control, No Timeout
XON/XOFF Off
ACK/NAK Off
8 Data, 1 Stop, Parity None

Clear All Prefixes and Suffixes
Add Code ID and AIM ID Prefix
Add CR Suffix
Off

Enable UPC-E0 with check digit
Enable EAN/JAN-8 with check digit
Enable EAN/JAN-13 with check digit
Enable Code 128
Enable Code 39
Enable OPOS with automatic disable off

2 - 4

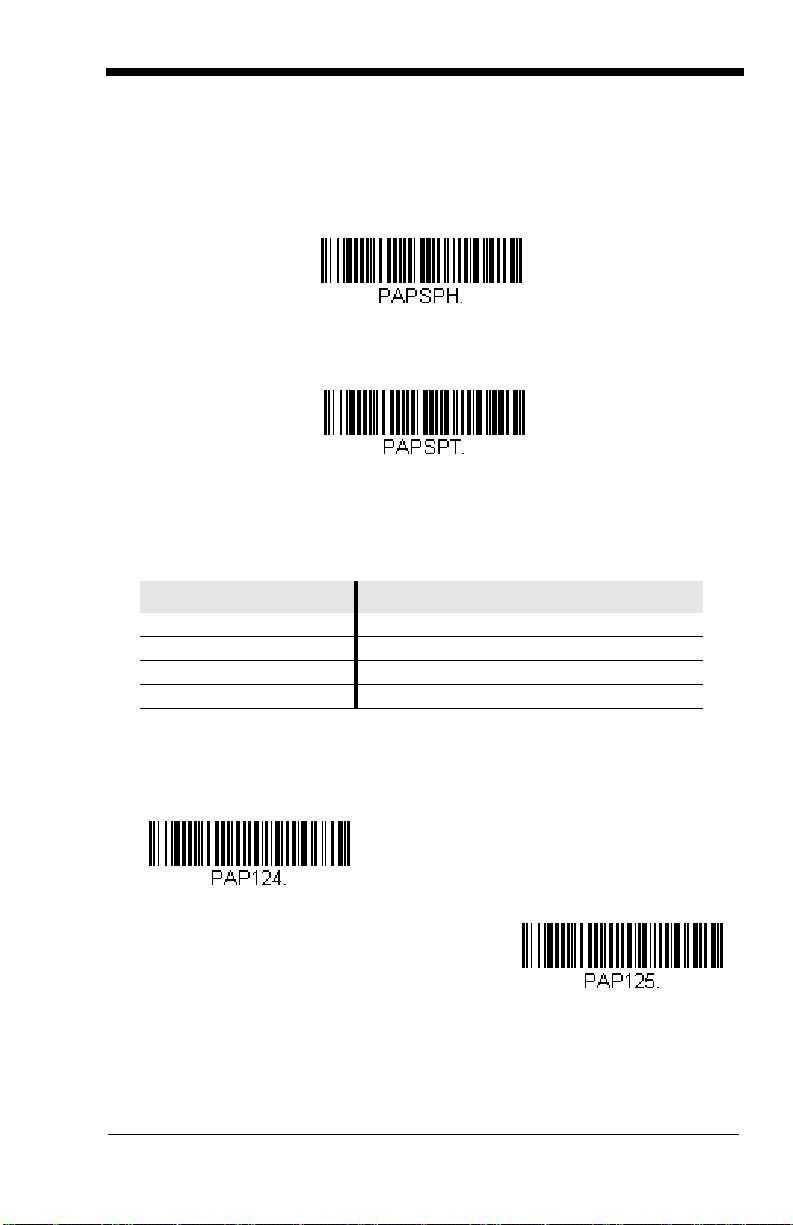

USB IBM SurePos

USB IBM SurePos

(USB Handheld Scanner)

Interface

USB IBM SurePos

(USB Tabletop Scanner)

Interface

U

S

B

K

e

y

b

o

a

r

d

(

P

C

)

USB Keyboard (Mac)

Scan the following “Plug and Play” codes to program the scanner for an IBM
SurePos (USB handheld scanner) interface.

Note: After scanning the code below, you must power cycle the cash register.

The bar code above also programs the following suffixes for each symbology:

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B
EAN 13 16 Interleaved 2 of 5 00 0D 0B
UPC A 0D Code 128 00 18 0B
UPC E 0A Code 39 00 0A 0B

USB PC or Macintosh Keyboard

Scan one of the following codes to program the scanner for USB PC Keyboard
or USB Macintosh Keyboard. Scanning these codes also adds a CR and LF.

2 - 5

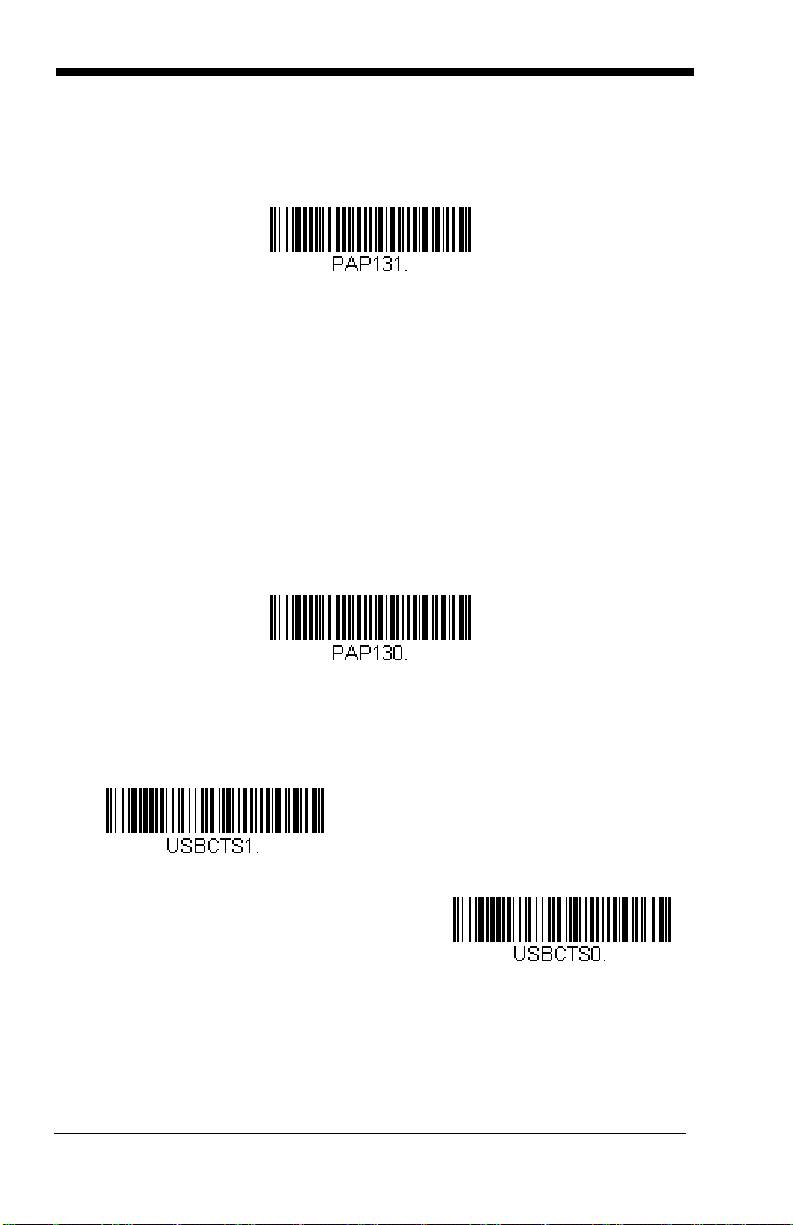

USB HID

USB HID Bar Code Scanner

USB Serial Emulation

CTS/RTS Emulation On

* CTS/RTS Emulation Off

Scan the following code to program the scanner for USB HID bar code scan­ners.

USB Serial Commands

USB Serial Emulation

Scan the following code to program the scanner to emulate a regular RS232­based COM Port. If you are using a Microsoft® Windows® PC, you will need to
download a driver from the Honeywell website (www.honeywellaidc.com). The
driver will use the next available COM Port number. Apple® Macintosh comput­ers recognize the scanner as a USB CDC class device and automatically uses
a class driver.

Scanning this code also adds a CR and LF.

Note: No extra configuration (e.g., baud rate) is necessary.

CTS/RTS Emulation

2 - 6

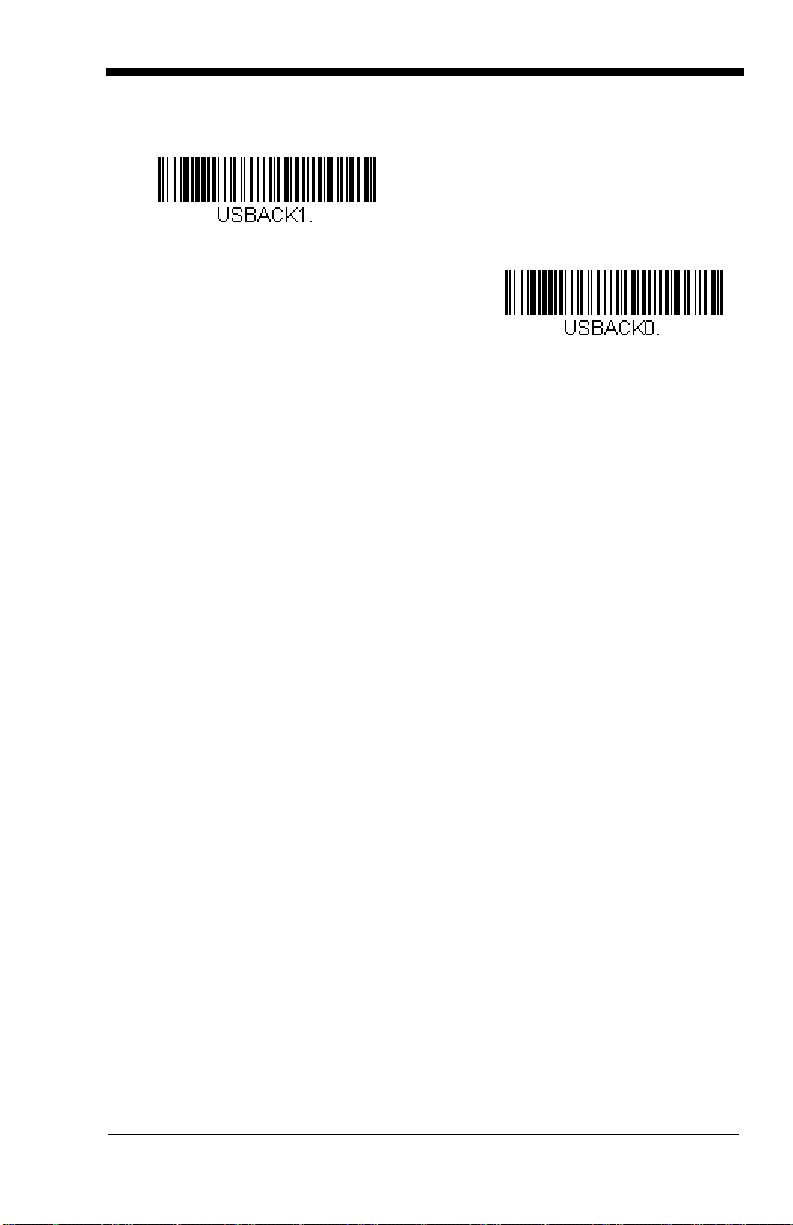

ACK/NAK Mode

ACK/NAK Mode On

* ACK/NAK Mode Off

2 - 7

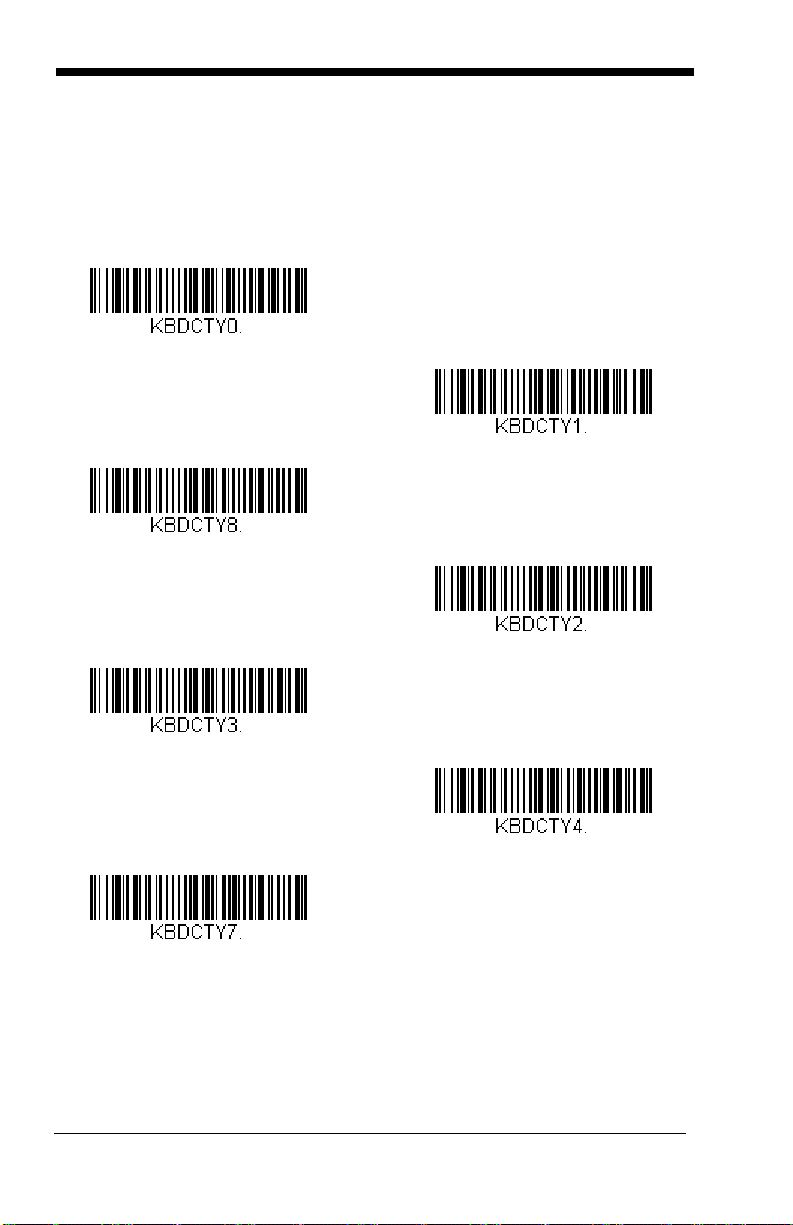

Keyboard Country Layout

* United States

Denmark

France

Germany/Austria

Great Britain

Belgium

Finland

Scan the appropriate country code below to program the keyboard layout for
your country. As a general rule, the following characters are supported, but
need special care for countries other than the United States:
@ | $ # { } [ ] = / ‘ \ < > ~

2 - 8

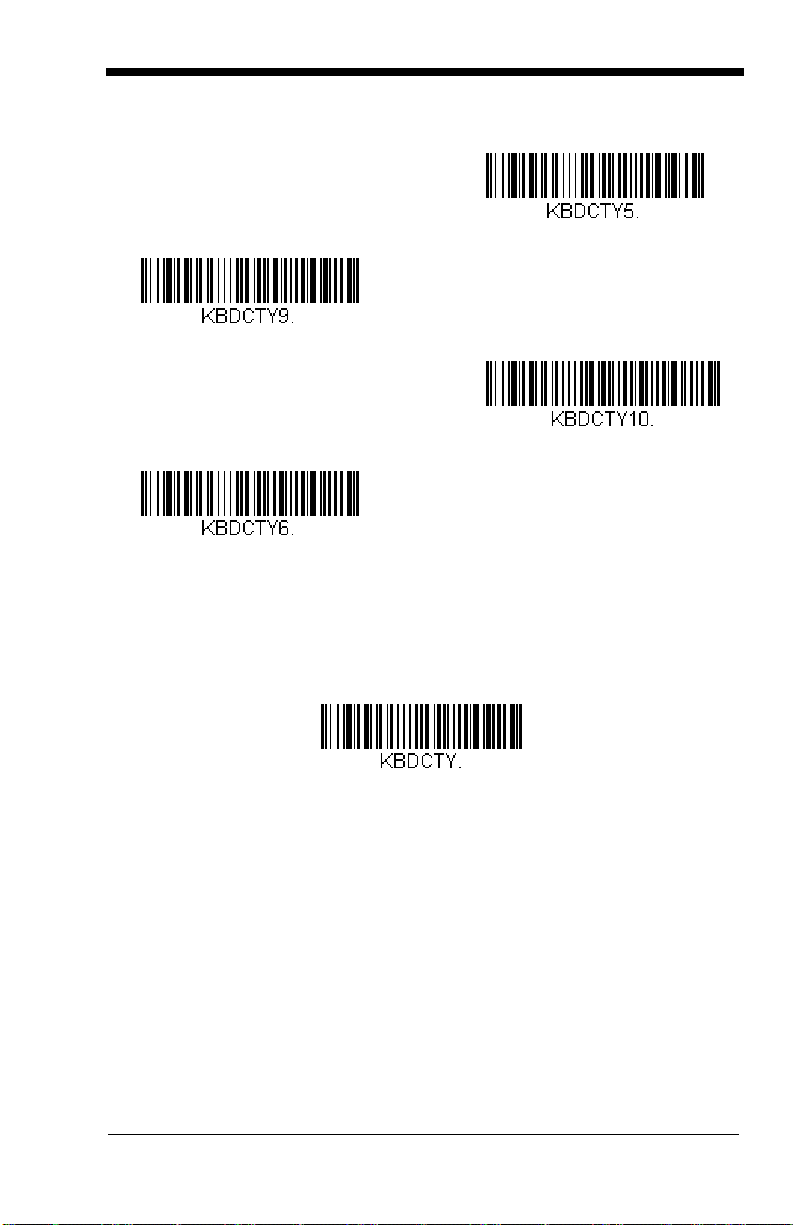

Italy

Norway

Spain

Switzerland

Program Keyboard Country

Please refer to Honeywell website (www.honeywellaidc.com) for complete key­board country support information and applicable interfaces. If you need to pro­gram a keyboard for a country other than one listed above, scan the Program
Keyboard Country bar code below, then scan the numeric bar code(s) for the
appropriate country from the inside back cover, then the Save bar code.

Keyboard Wedge Modifiers

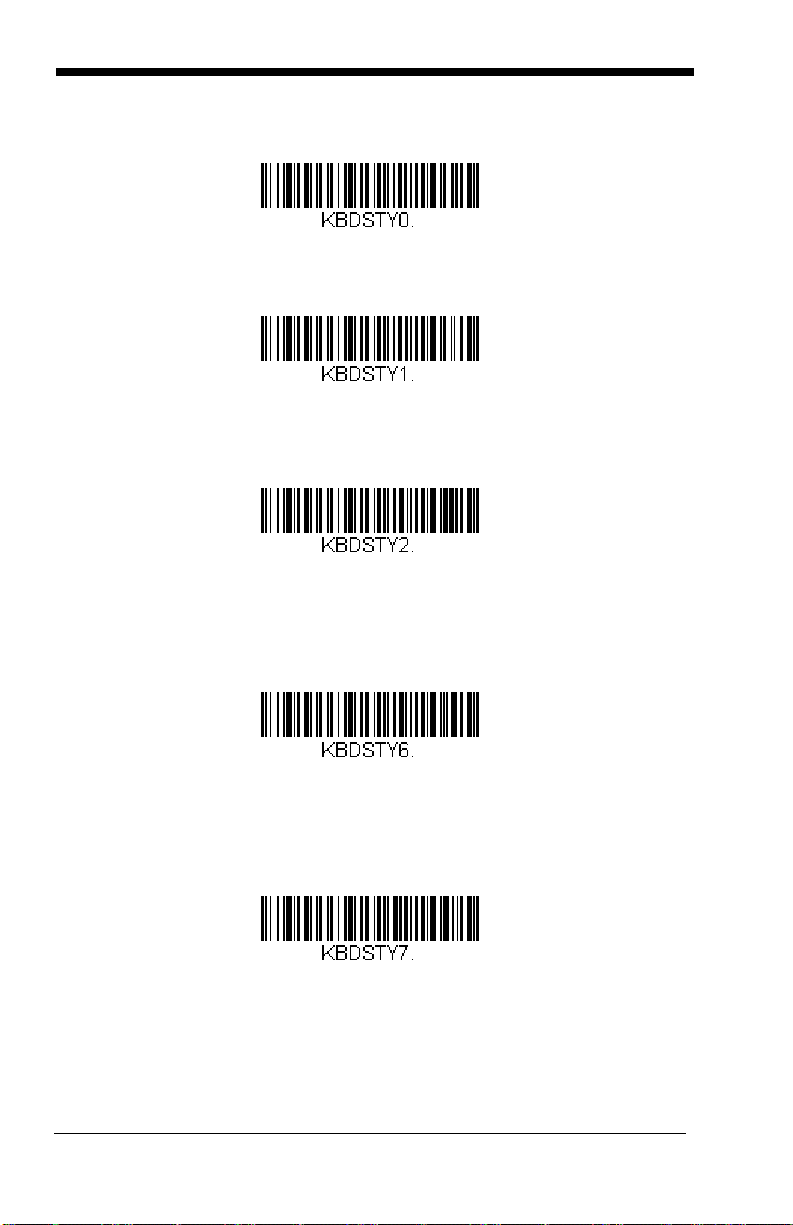

Keyboard Style

This programs keyboard styles, such as Caps Lock and Shift Lock.

Regular.

Default =

2 - 9

Regular

* Regular

Caps Lock

Shift Lock

Automatic Caps Lock

Autocaps via NumLock

is used when you normally have the Caps Lock key off.

Caps Lock

Shift Lock

to U.S. keyboards).

Automatic Caps Lock

The software tracks and reflects if you have Caps Lock on or off (AT and PS/2
only). This selection can only be used with systems that have an LED, which
notes the Caps Lock status.

Autocaps via NumLock

many, France) where the Caps Lock key cannot be used to toggle Caps Lock.
The NumLock option works similarly to the regular Auotcaps, but uses the Num­Lock key to retrieve the current state of the Caps Lock.

is used when you normally have the Caps Lock key on.

is used when you normally have the Shift Lock key on (not common

is used if you change the Caps Lock key on and off.

bar code should be scanned in countries (e.g., Ger-

2 - 10

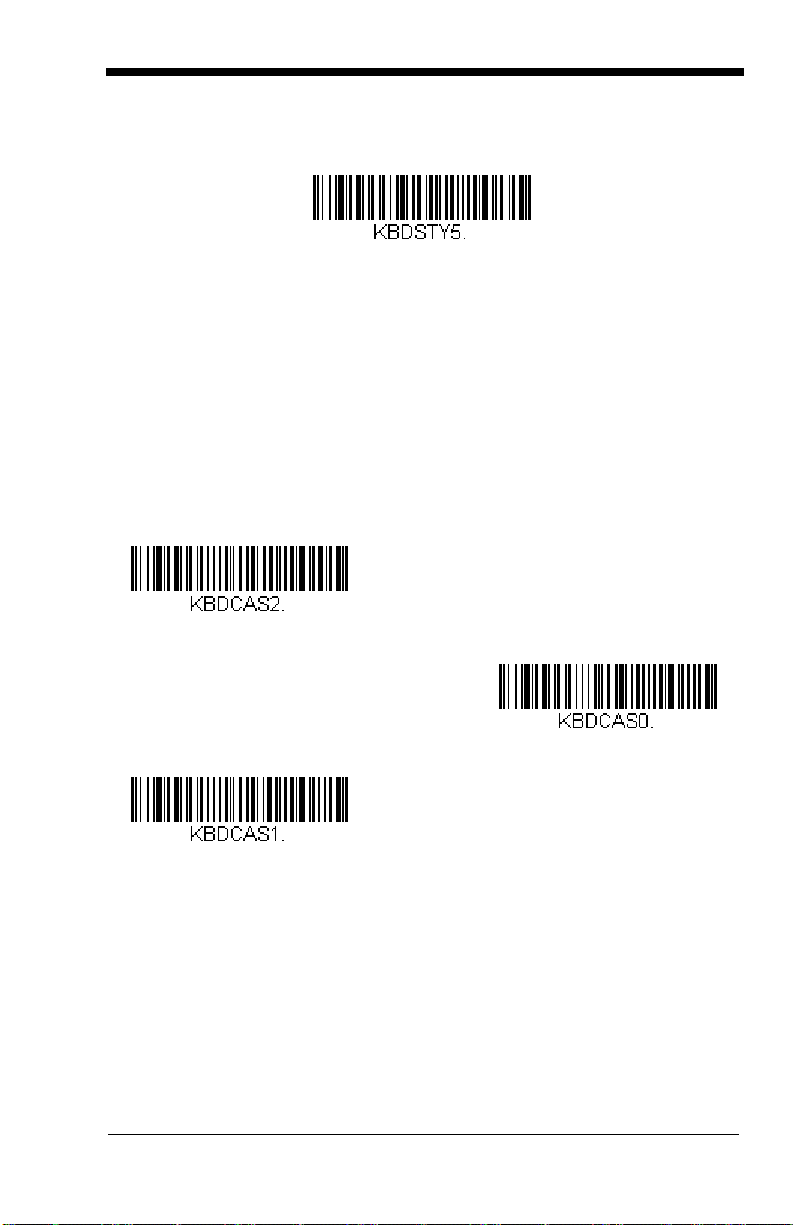

Emulate External Keyboard

Emulate External Keyboard

Windows Mode Control + ASCII

Mode On

* Control + ASCII Mode Off

DOS Mode Control + ASCII

Mode On

keyboard (IBM AT or equivalent).

should be scanned if you do not have an external

Note: After scanning the Emulate External Keyboard bar code, you must power

cycle your computer.

Keyboard Modifiers

This modifies special keyboard features, such as CTRL+ ASCII codes.

Control + ASCII Mode On:

control characters for values 00-1F. Windows is the preferred mode. All key­board country codes are supported. DOS mode is a legacy mode, and it does
not support all keyboard country codes. New users should use the Windows
mode. Refer to Keyboard Function Relationships, page 7-1 for CTRL+ ASCII

Default = Off

Val ues.

The scanner sends key combinations for ASCII

2 - 11

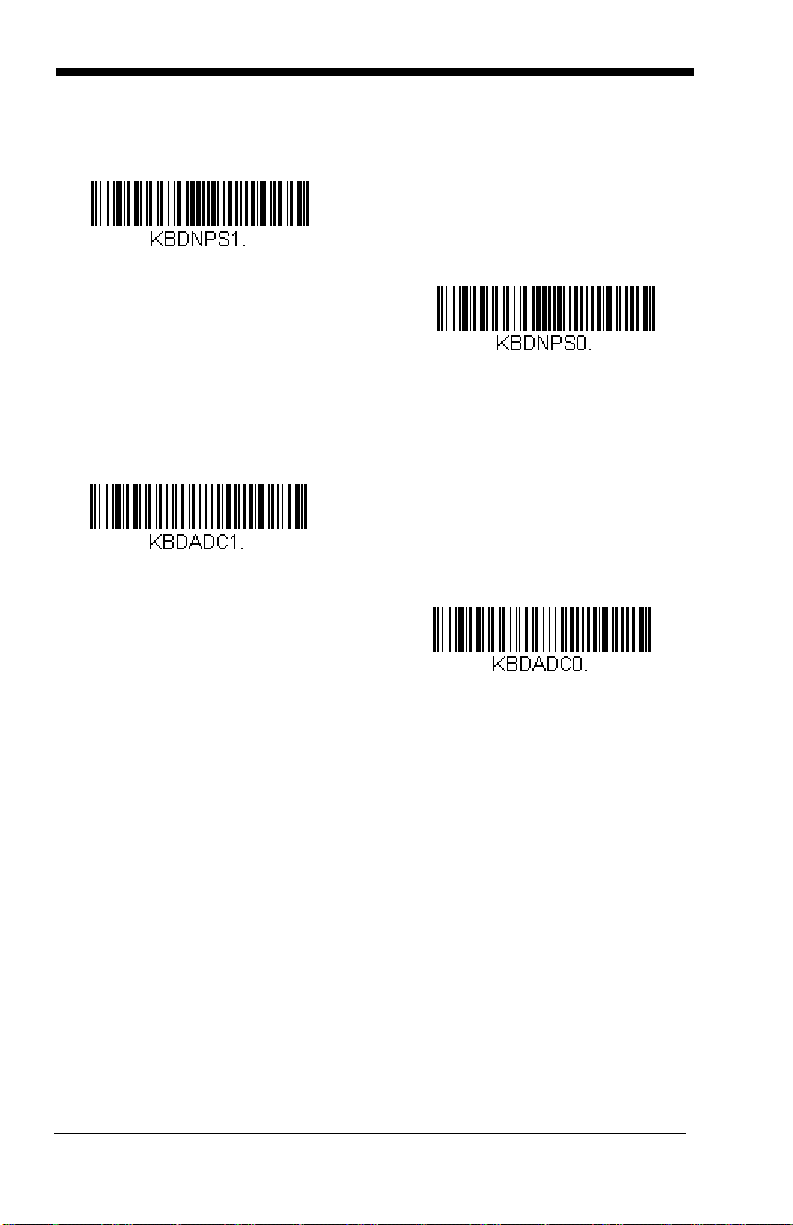

Numeric Keypad Mode:

Numeric Keypad Mode On

* Numeric Keypad Mode Off

Automatic Direct

Connect Mode On

* Automatic Direct Connect

Mode Off

numeric keypad.

Default = Off

Sends numeric characters as if entered from a

Automatic Direct Connect Mode:

IBM AT style terminal and the system is dropping characters.

This selection can be used if you have an

Default = Off

2 - 12

RS232 Modifiers

300

2400

600

1200

4800

9600

19200

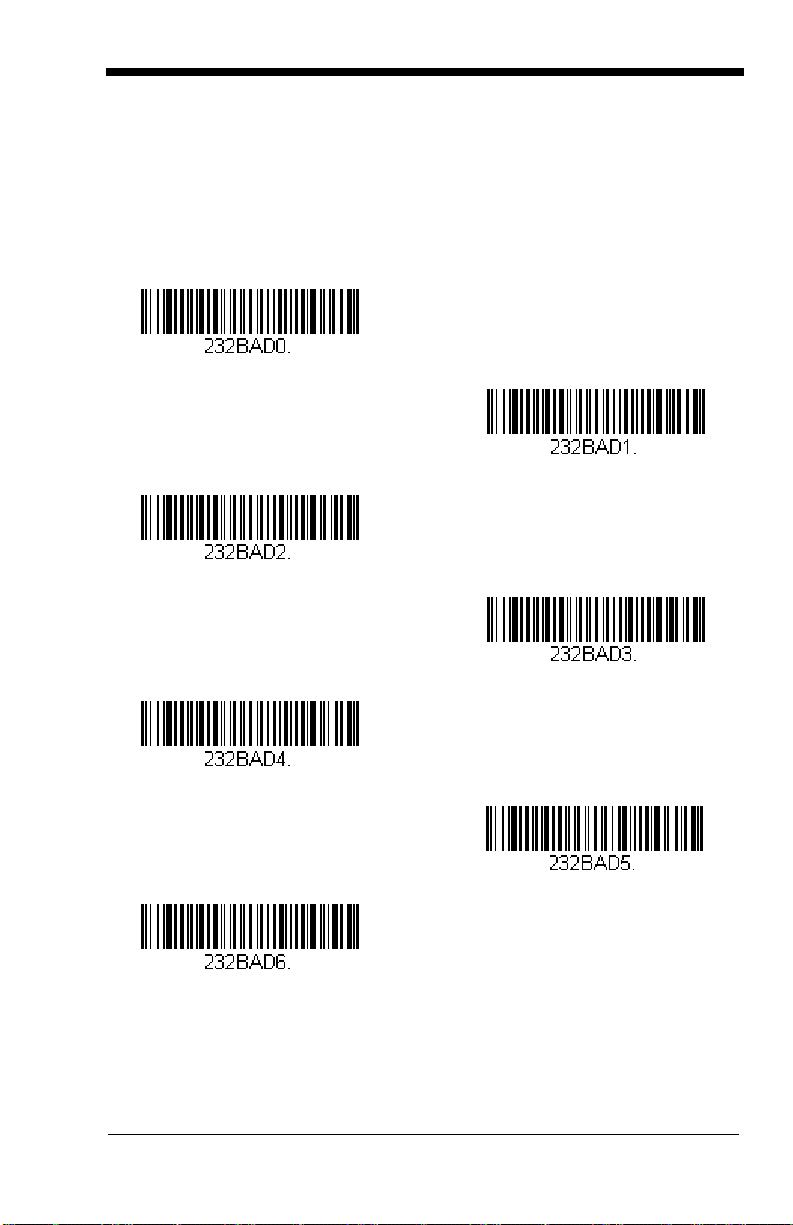

RS-232 Baud Rate

Baud Rate sends the data from the scanner to the terminal at the specified rate.
The host terminal must be set for the same baud rate as the scanner.

Default = 38,400

.

2 - 13

RS-232 Word Length: Data Bits, Stop Bits, and Parity

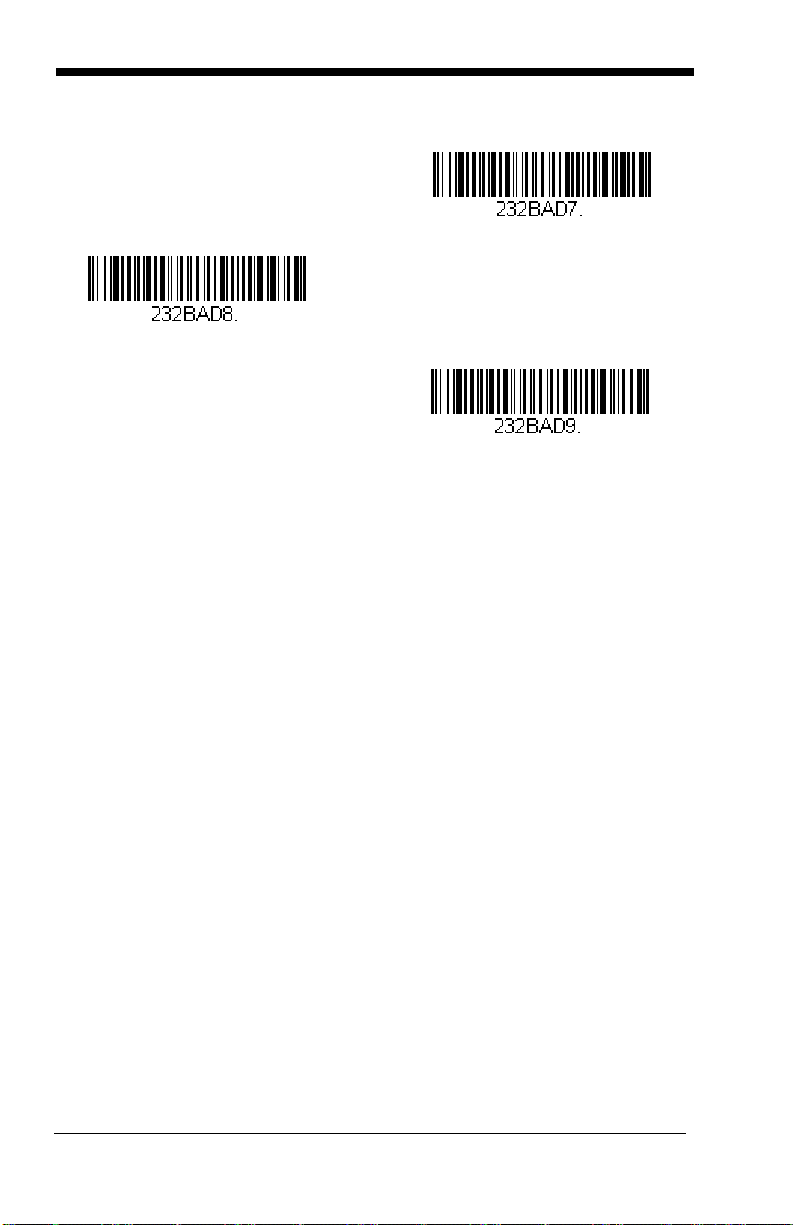

* 38400

115,200

57,600

Data Bits

tion requires only ASCII Hex characters 0 through 7F decimal (text, digits, and
punctuation), select 7 data bits. For applications which require use of the full
ASCII set, select 8 data bits per character.

Stop Bits

sets the word length at 7 or 8 bits of data per character. If an applica-

Default = 8.

sets the stop bits at 1 or 2.

Default = 1.

2 - 14

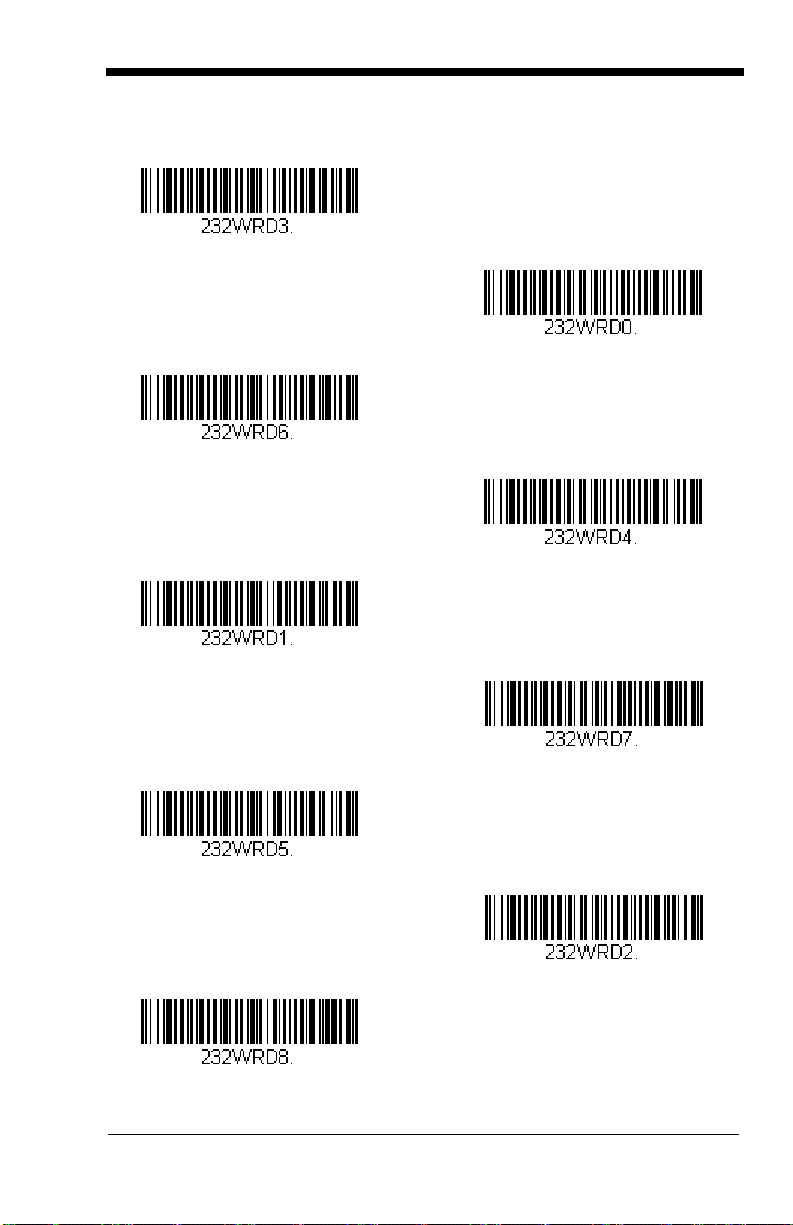

Parity

7 Data, 1 Stop, Parity Even

7 Data, 1 Stop, Parity None

7 Data, 1 Stop, Parity Odd

7 Data, 2 Stop, Parity Odd

7 Data, 2 Stop, Parity Even

7 Data, 2 Stop Parity None

* 8 Data, 1 Stop, Parity None

8 Data, 1 Stop, Parity Even

8 Data, 1 Stop, Parity Odd

provides a means of checking character bit patterns for validity.

Default = None.

2 - 15

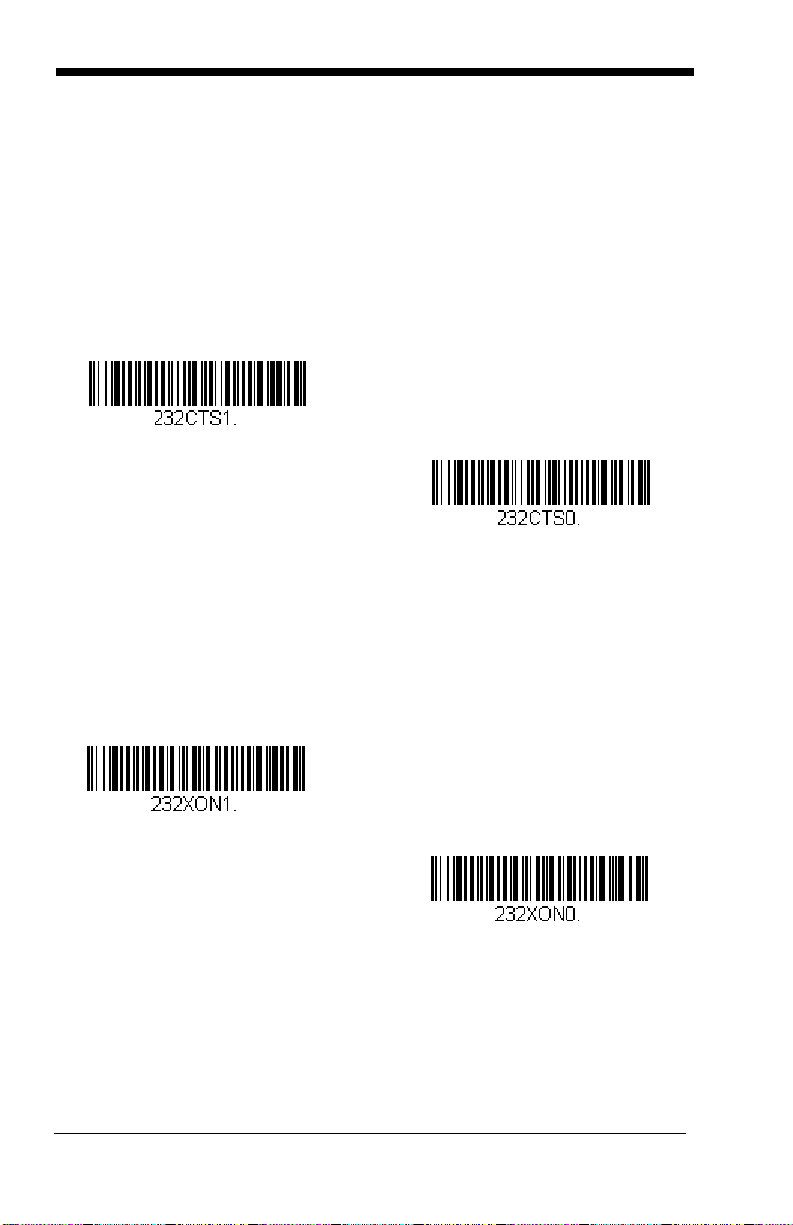

RS-232 Handshaking

RTS/CTS On

* RTS/CTS Off

* XON/OFF Off

XON/XOFF On

RS232 Handshaking allows control of data transmission from the scanner using
software commands from the host device. When RTS/CTS is turned Off, no
data flow control is used.

RTS/CTS

The scanner asserts RTS when it has data to send, and waits indefinitely for
CTS to be asserted by the host.

Default = RTS/CTS Off.

XON/XOFF

Standard ASCII control characters can be used to tell the scanner to start send­ing data (XON/XOFF On) or to stop sending data (XON/XOFF Off). When the
host sends the XOFF character (DC3, hex 13) to the scanner, data transmission
stops. To resume transmission, the host sends the XON character (DC1, hex

11). Data transmission continues where it left off when XOFF was sent.

Default = XON/XOFF Off

.

ACK/NAK

After transmitting data, the scanner waits for an ACK character (hex 06) or a
NAK character (hex 15) response from the host. If ACK is received, the commu­nications cycle is completed and the scanner looks for more bar codes. If NAK
is received, the last set of bar code data is retransmitted and the scanner waits

2 - 16

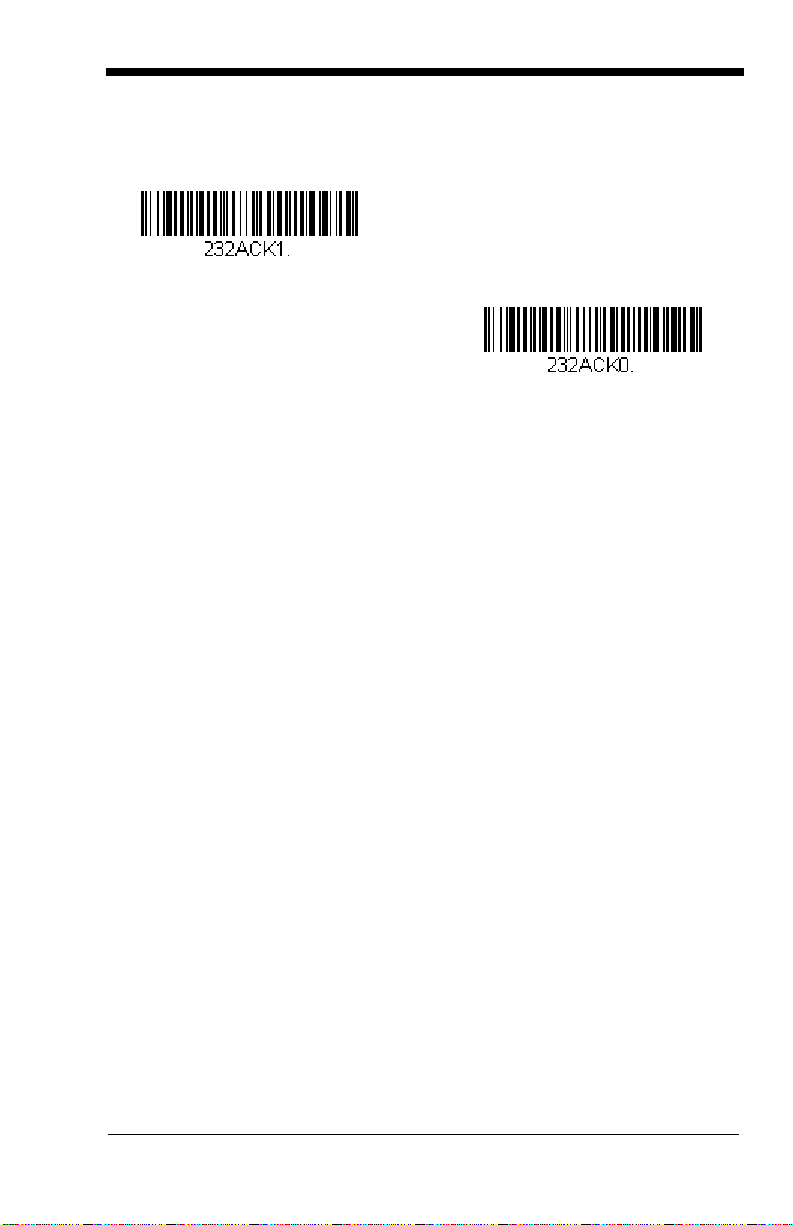

for ACK/NAK again. Turn on the ACK/NAK protocol by scanning the ACK/NAK

ACK/NAK On

* ACK/NAK Off

On bar code below. To turn off the protocol, scan ACK/NAK Off.

ACK/NAK Off.

Default =

2 - 17

2 - 18

3

* On

Off

*High

Medium

Off

Low

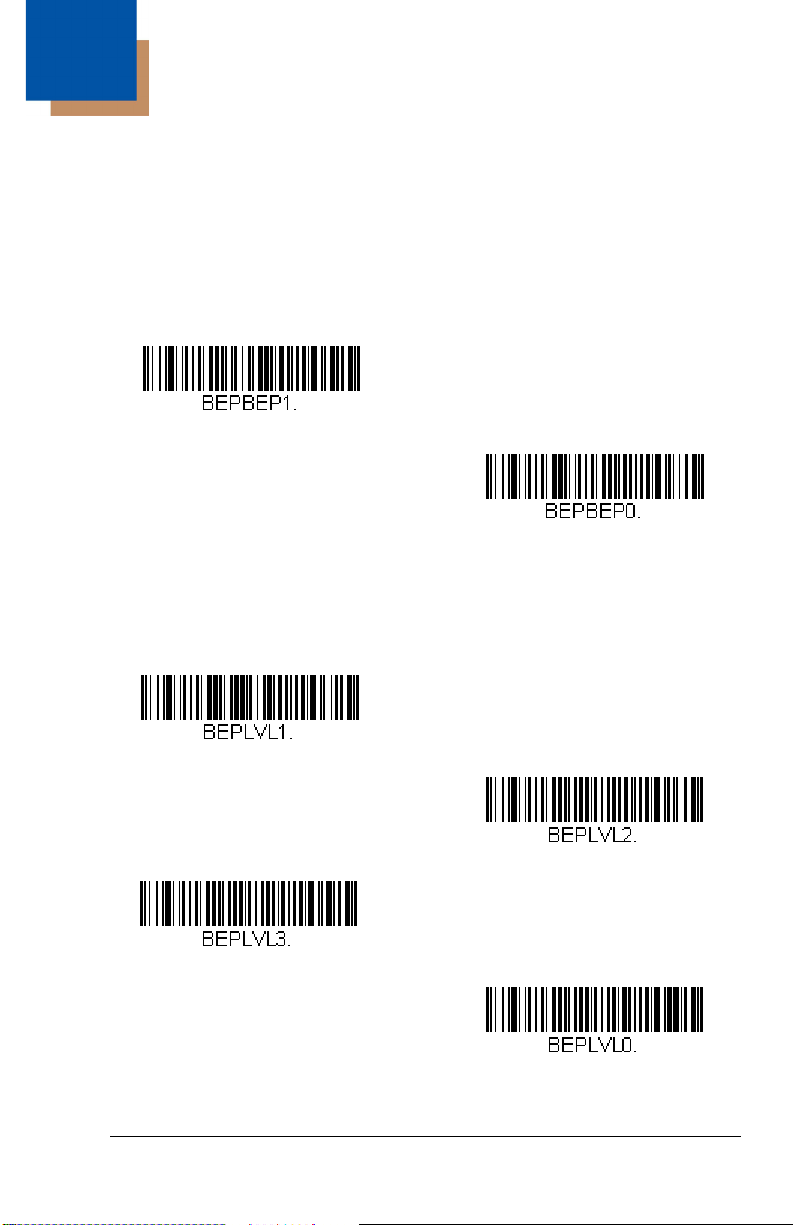

Input/Output Settings

Good Read Indicators

Beeper – Good Read

The beeper may be programmed On or Off in response to a good read. Turning
this option off, only turns off the beeper response to a good read indication. All
error and menu beeps are still audible.

Beeper Volume – Good Read

The beeper volume codes modify the volume of the beep the scanner emits on
a good read.

Default = High.

Default = On.

3 - 1

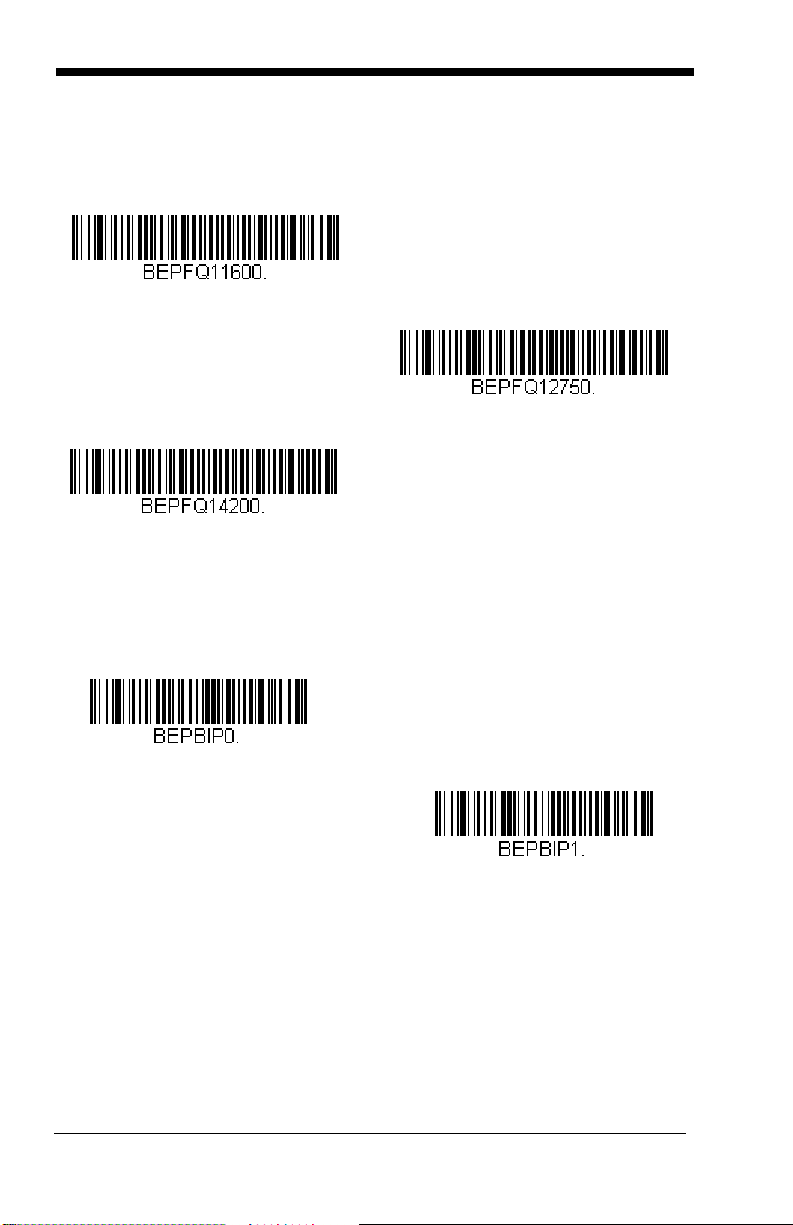

Beeper Pitch – Good Read

Low (1600 Hz)

* Medium (2750 Hz)

High (4200 Hz)

* Normal Beep

Short Beep

The beeper pitch codes modify the pitch (frequency) of the beep the scanner
emits on a good read.

Default = Medium

Beeper Duration – Good Read

The beeper duration codes modify the length of the beep the scanner emits on
a good read.

Default = Normal.

3 - 2

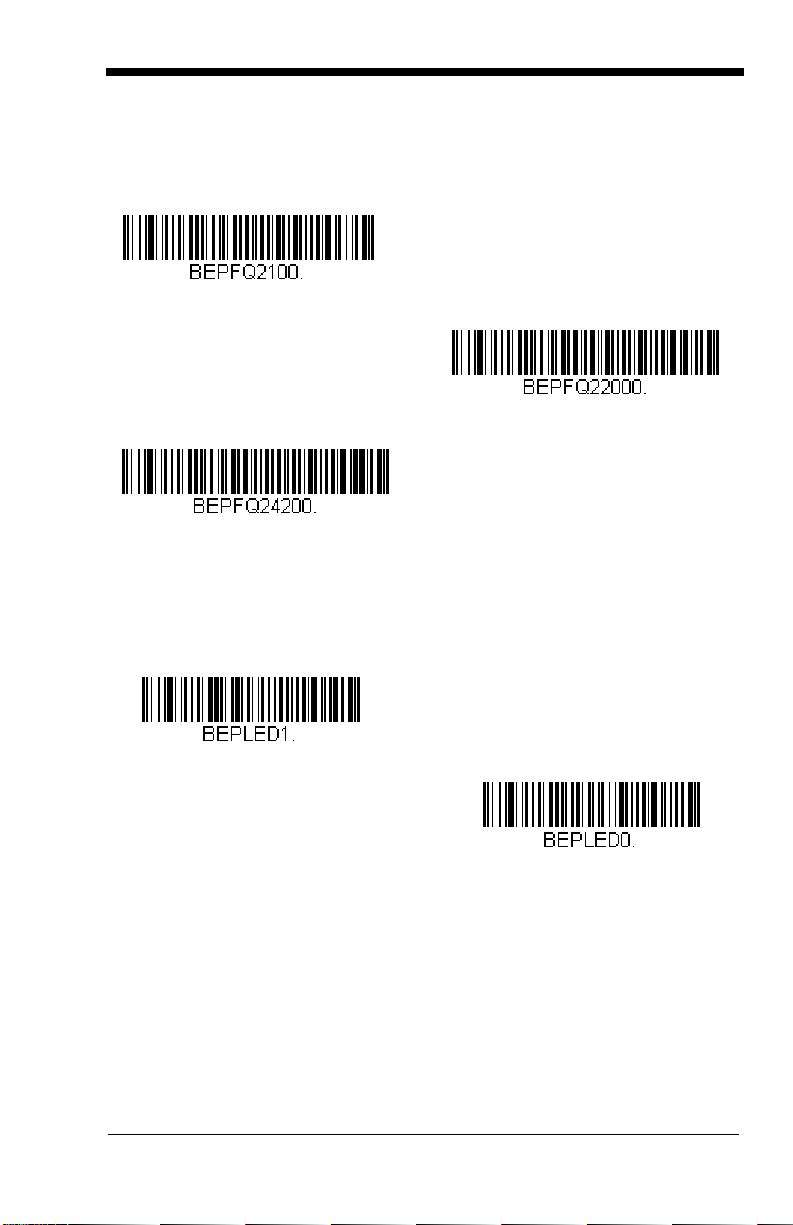

Beeper Pitch – Error

* Razz (100 Hz)

* Medium (2000 Hz)

High (4200 Hz)

* On

Off

The beeper pitch codes modify the pitch (frequency) of the sound the scanner
emits when there is a bad read or error.

Default = 100 Hz.

LED – Good Read

The LED indicator can be programmed On or Off in response to a good read.

Default = On.

Number of Beeps – Good Read

The number of beeps of a good read can be programmed from 1 - 9. The same
number of beeps will be applied to the beeper and LED in response to a good
read. For example, if you program this option to have five beeps, there will be
five beeps and five LED flashes in response to a good read. The beeps and
LED flashes are in sync with one another. To change the number of beeps,

3 - 3

scan the bar code below and then scan a digit (1-9) bar code and the Save bar

Number of Pulses

* No Delay

Short Delay (500 ms)

Medium Delay (1000 ms)

Long Delay (1500 ms)

User-Specified Good Read Delay

code on the Programming Chart inside the back cover of this manual.

One.

Default =

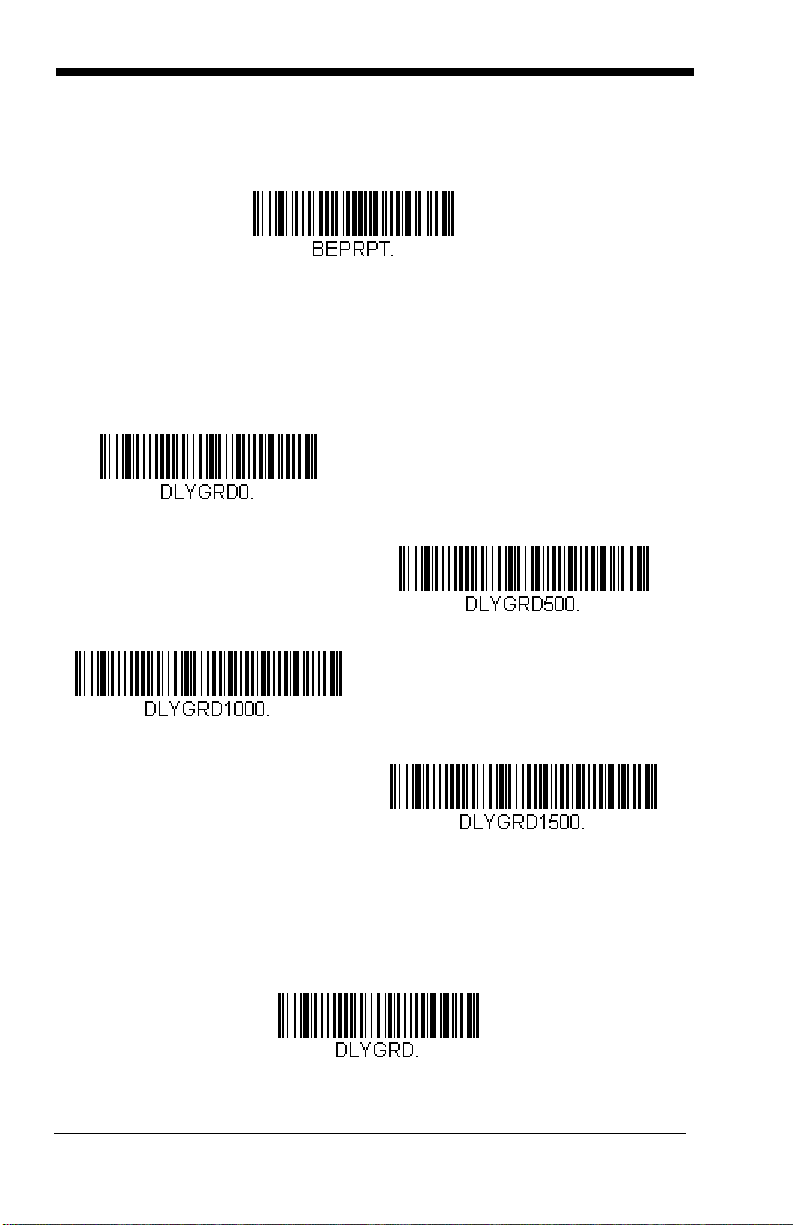

Good Read Delay

This sets the minimum amount of time before the scanner can read another bar

Default = No Delay.

code.

User-Specified Good Read Delay

If you want to set your own length for the good read delay, scan the bar code
below, then set the delay (from 0-30,000 milliseconds) by scanning digits from
the inside back cover, then scanning

Save

.

3 - 4

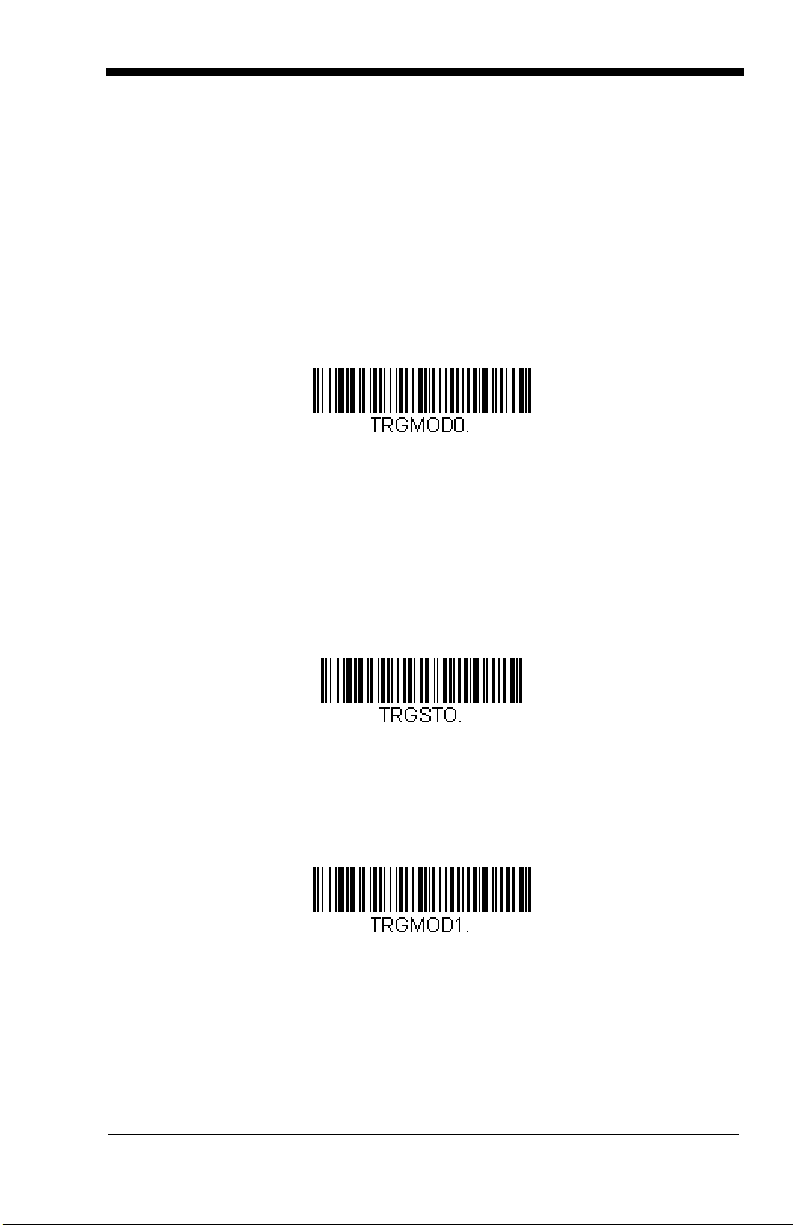

Trigger M odes

* Manual/Serial Trigger

Read Time-Out

Automatic Trigger

Manual/Serial Trigger

You can activate the scanner either by pressing the trigger, or using a serial trig­ger command (see Trigger Commands on page 9-4). When in manual trigger
mode, the scanner scans until a bar code is read, or until the trigger is released.

When in serial mode, the scanner scans until a bar code has been read or until
the deactivate command is sent. In serial mode, the scanner can also be set to
turn itself off after a specified time has elapsed (see Read Time-Out, which fol­lows).

Read Time-Out

Use this selection to set a time-out (in milliseconds) of the scanner’s trigger
when using serial commands to trigger the scanner. Once the scanner has
timed out, you can activate the scanner either by pressing the trigger or using a
serial trigger command. After scanning the Read Time-Out bar code, set the
time-out duration (from 0-300,000 milliseconds) by scanning digits from the
inside back cover, then scanning Save.

Default = 30,000.

Automatic Trigger

The scanner scans continuously using internal LEDs to detect bar codes.

3 - 5

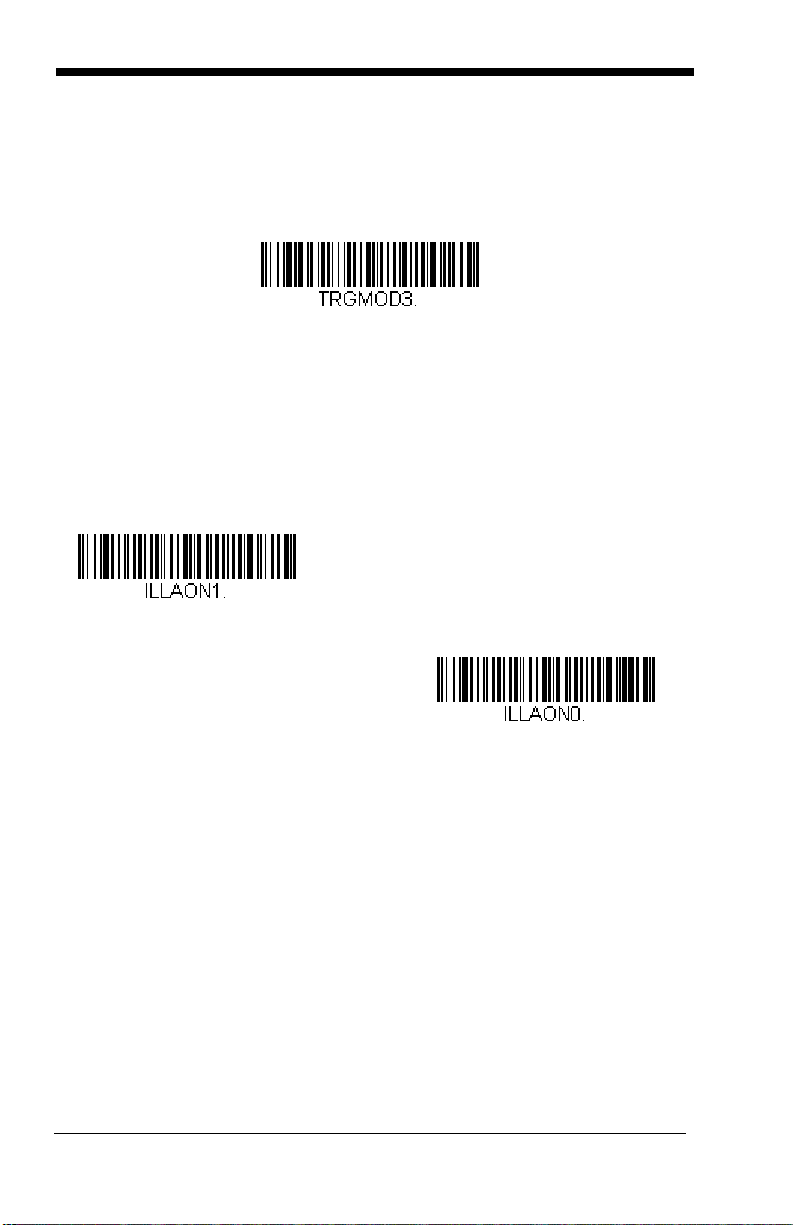

Presentation Mode

Presentation Mode

Continuous Illumination

Mode On

* Continuous Illumination

Mode Off

Presentation Mode uses ambient light to detect bar codes. The LEDs are off for
ambient conditions until a change occurs in the scanner’s field of view. Then
the LEDS turn on automatically to read the code. If the light level in the room is
not high enough, Presentation Mode may not work properly.

Continuous Illumination Mode

If you have several bar codes that are close together, you may wish to have a
continuous aiming beam on in order to properly aim the scanner at one bar
code. Scan the Continuous Illumination On bar code to program the scanner
for this capability. Once you have the aiming beam over the correct bar code,
pull the trigger to read the code. Scan the Continuous Illumination Off bar
code to turn off this feature.

Hands Free Time-Out

The Automatic Trigger and Presentation Modes are referred to as “hands free”
modes. If the scanner’s trigger is pulled when using a hands free mode, the
scanner changes to manual trigger mode. You can set the time the scanner
should remain in manual trigger mode by setting the Hands Free Time-Out.
Once the time-out value is reached, (if there have been no further trigger pulls)
the scanner reverts to the original hands free mode.

3 - 6

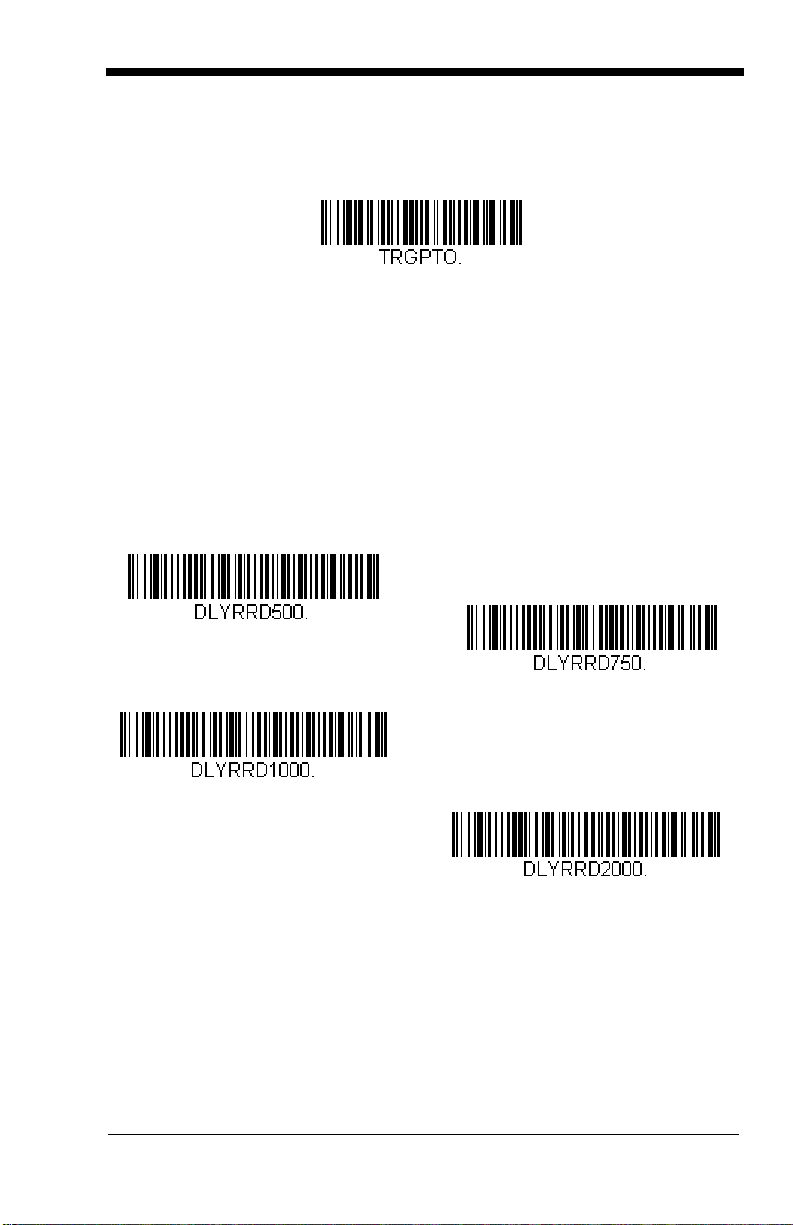

Scan the

Hands Free Time-Out

Short (500 ms)

* Medium (750 ms)

Long (1000 ms)

Extra Long (2000 ms)

(from 0-300,000 milliseconds) from the inside back cover, and

5,000 ms.

Hands Free Time-Out

bar code, then scan the time-out duration

Reread Delay

Save

.

Default =

This sets the time period before the scanner can read the
ond time. Setting a reread delay protects against accidental rereads of the
same bar code. Longer delays are effective in minimizing accidental rereads at
POS (point of sale). Use shorter delays in applications where repetitive bar
code scanning is required.

Reread Delay only works when in automatic trigger mode or presentation mode
(see page 3-5).

Default = Medium.

same

bar code a sec-

3 - 7

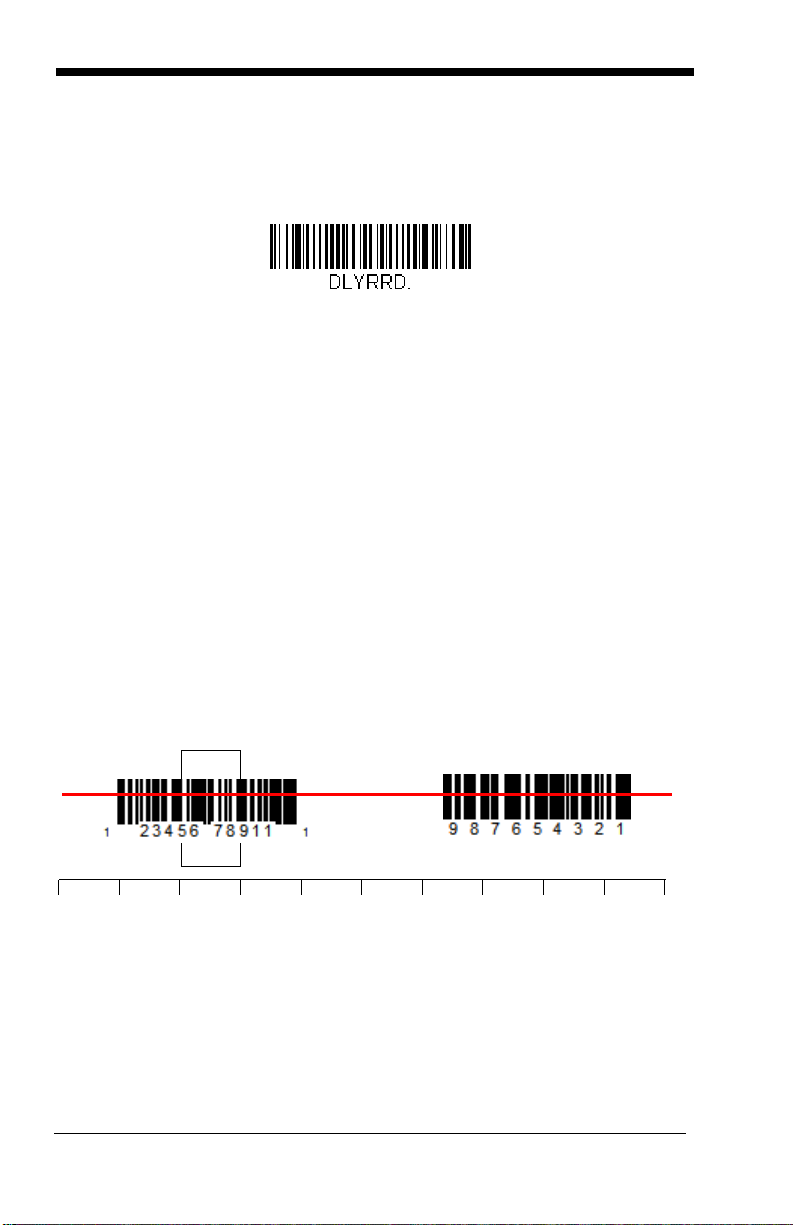

User-Specified Reread Delay

User-Specified Reread Delay

0% 10 % 20% 30% 40 % 50% 60% 70 % 80% 90% 100%

Bar Code 1 Bar Code 2

If you want to set your own length for the reread delay, scan the bar code below,
then set the delay (from 0-30,000 milliseconds) by scanning digits from the
inside back cover, then scanning

Save

.

Centering

Use Centering to narrow the scanner’s field of view to make sure the scanner
reads only those bar codes intended by the user. For instance, if multiple codes
are placed closely together, centering will insure that only the desired codes are
read.

If a bar code is not touched by a predefined window, it will not be decoded or
output by the scanner. If centering is turned on by scanning Centering On, the
scanner only reads codes that pass through the centering window you specify
using the Left of Centering Window, or Right of Centering Window bar
codes.

In the example below, the red line is the full scanner field of view and the white
boxed area is the centering window. The centering window has been set to
20% left and 30% right, as shown in the legend at the bottom. Since Bar Code
1 passes through the centering window, it will be read. Bar Code 2 does not
pass through the centering window, so it will not be read.

Scan Centering On, then scan one of the following bar codes to change the left
or right of the centering window. Then scan the percent you want to shift the
centering window using digits on the inside back cover of this manual. Scan
Save.

Default Centering = 40% for Left, 60% for Right.

3 - 8

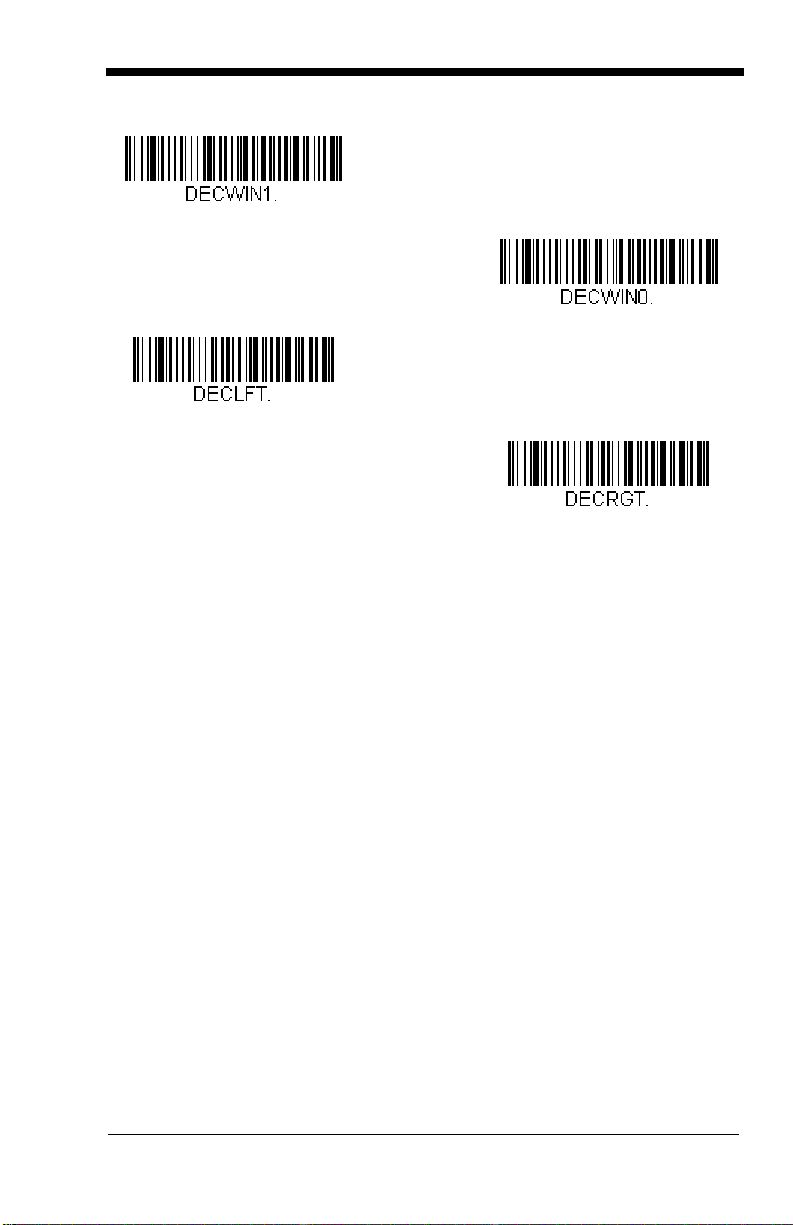

Left of Centering Window

Right of Centering Window

* Centering Off

Centering On

3 - 9

Output Sequence Overview

Require Output Sequence

When turned off, the bar code data will be output to the host as the scanner
decodes it. When turned on, all output data must conform to an edited
sequence or the scanner will not transmit the output data to the host device.

Note: This selection is unavailable when the Multiple Symbols Selection is

turned on.

Output Sequence Editor

This programming selection allows you to program the scanner to output data
(when scanning more than one symbol) in whatever order your application
requires, regardless of the order in which the bar codes are scanned. Reading

Default Sequence

the
shown below. These are the defaults. Be certain you want to delete or clear all
formats before you read the

Note: To make Output Sequence Editor selections, you’ll need to know the

code I.D., code length, and character match(es) your application
requires. Use the Alphanumeric symbols (inside back cover) to read
these options.

Note: You must hold the trigger while reading each bar code in a sequence.

To Add an Output Sequence

1. Scan the

11).

2. Code I.D.
On the Symbology Chart on page A-1, find the symbology to which you want
to apply the output sequence format. Locate the Hex value for that symbol­ogy and scan the 2 digit hex value from the Programming Chart (inside back
cover).

3. Length
Specify what length (up to 9999 characters) of data output will be acceptable
for this symbology. Scan the four digit data length from the Programming
Chart. (Note: 50 characters is entered as 0050. 9999 is a universal num­ber, indicating all lengths.) When calculating the length, you must count any
programmed prefixes, suffixes, or formatted characters as part of the length
(unless using 9999).

4. Character Match Sequences
On the ASCII Conversion Chart (Code Page 1252), page A-2, find the Hex
value that represents the character(s) you want to match. Use the Program­ming Chart to read the alphanumeric combination that represents the ASCII
characters. (99 is the Universal number, indicating all characters.)

5. End Output Sequence Editor
Scan
to save your entries.

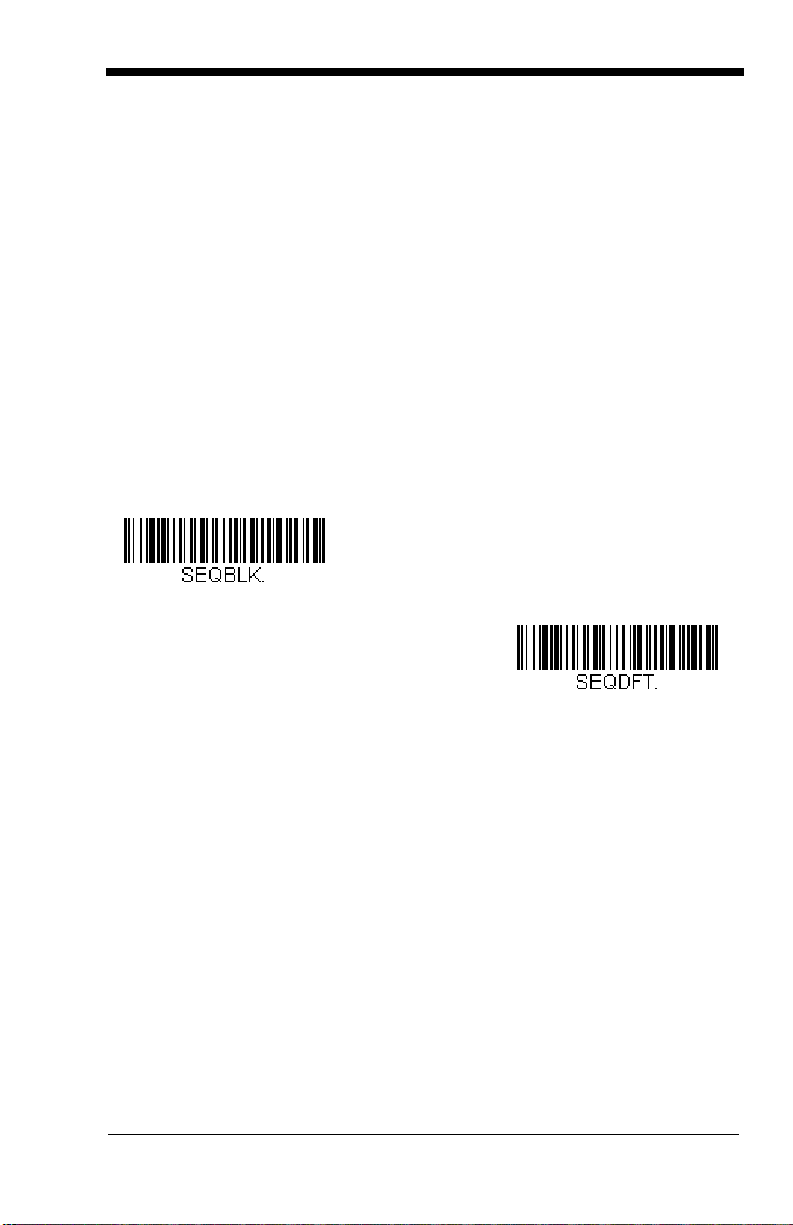

Enter Sequence

F F

to enter an Output Sequence for an additional symbology, or

symbol programs the scanner to the Universal values,

Default Sequence

symbol (see Require Output Sequence, page 3-

symbol.

Save

3 - 10

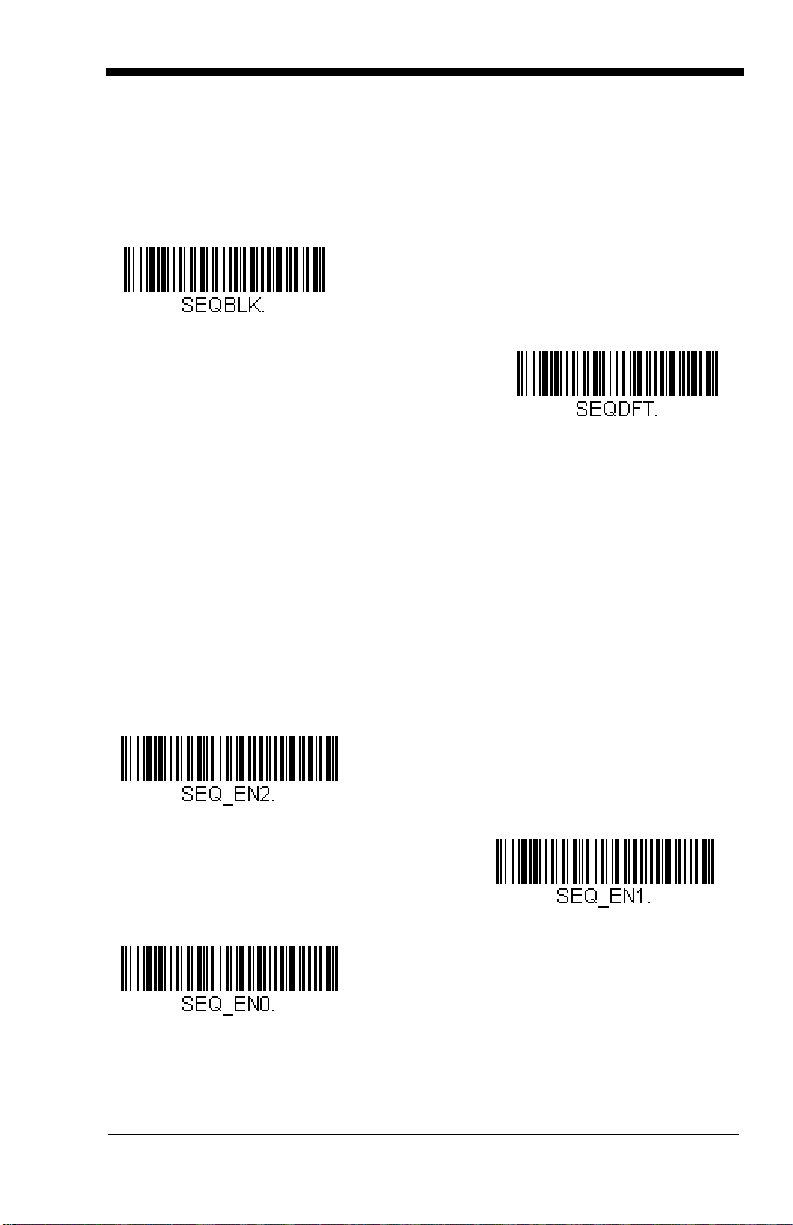

Other Programming Selections

Enter Sequence

Default Sequence

Required

On/Not Required

* Off

•

Discard

This exits without saving any Output Sequence changes.

Output Sequence Editor

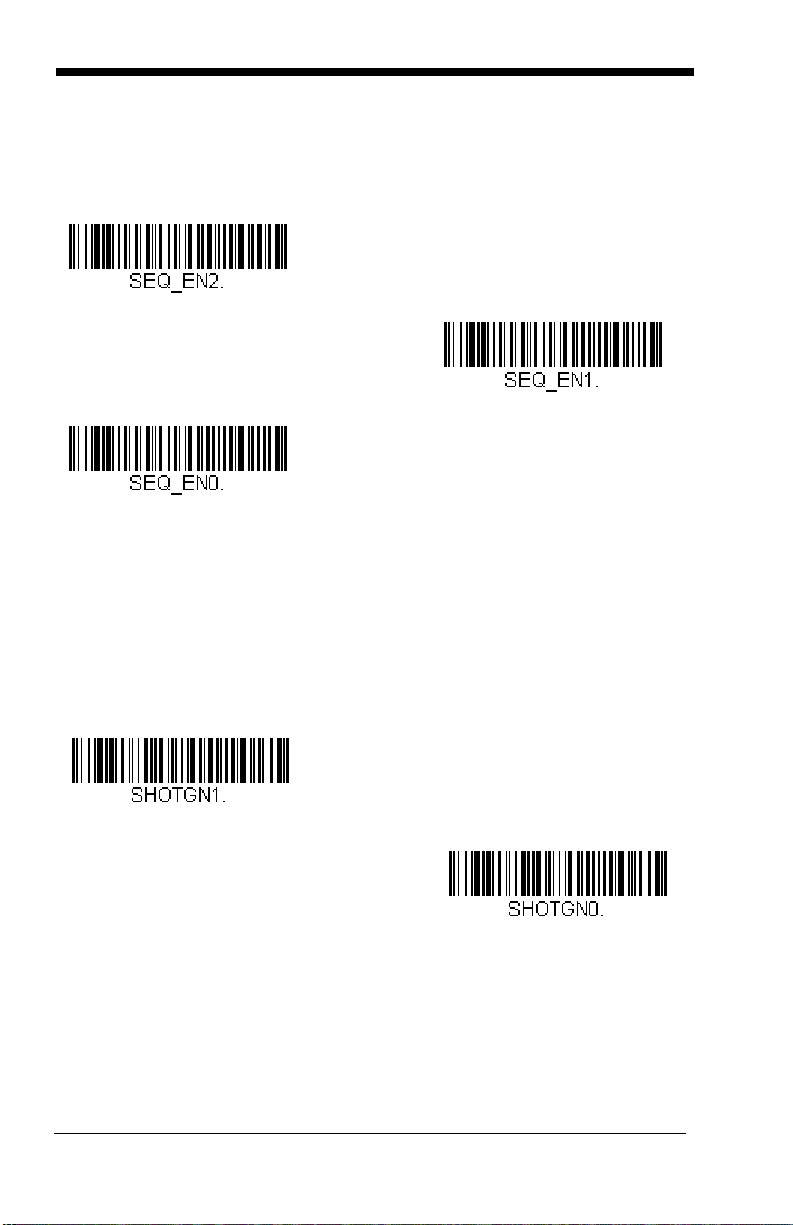

Require Output Sequence

When an output sequence is
edited sequence or the scanner will not transmit the output data to the host
device. When it’s
data to conform to an edited sequence, but if it cannot, the scanner transmits all
output data to the host device as is.

When the output sequence is
scanner decodes it.

Note: This selection is unavailable when the Multiple Symbols Selection is

turned on.

On/Not Required

Required

Off

, all output data must conform to an

, the scanner will attempt to get the output

, the bar code data is output to the host as the

3 - 11

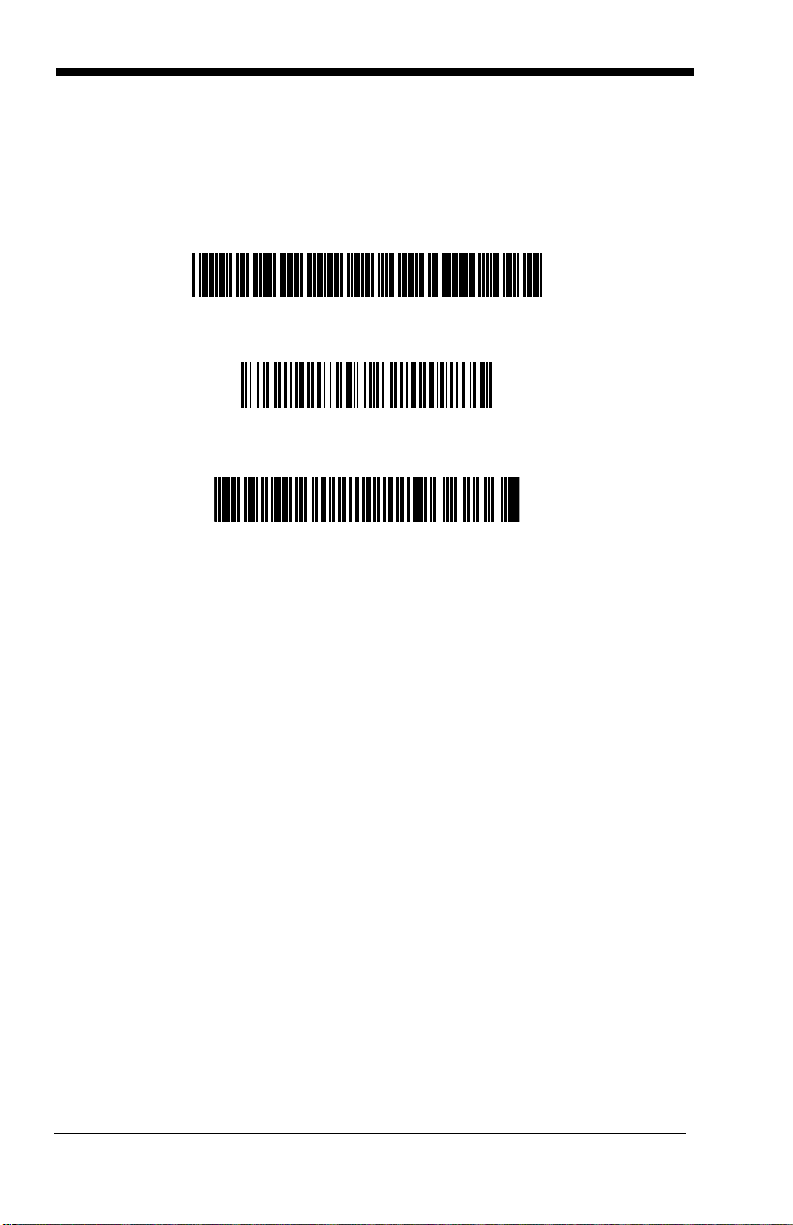

Output Sequence Example

A - Code 39

B - Code 128

C - Code 93

In this example, you are scanning Code 93, Code 128, and Code 39 barcodes,
but you want the image scanner to output Code 39 1st, Code 128 2nd, and
Code 93 3rd, as shown below.

Note: Code 93 must be enabled to use this example.

You would set up the sequence editor with the following command line:
SEQBLK62999941FF6A999942FF69999943FF
The breakdown of the command line is shown below:
SEQBLKsequence editor start command

62 code identifier for Code 39
9999 code length that must match for Code 39, 9999 = all lengths
41 start character match for Code 39, 41h = “A”
FF termination string for first code
6A code identifier for Code 128
9999 code length that must match for Code 128, 9999 = all lengths
42 start character match for Code 128, 42h = “B”
FF termination string for second code
69 code identifier for Code 93
9999 code length that must match for Code 93, 9999 = all lengths
43 start character match for Code 93, 43h = “C”
FF termination string for third code

To program the previous example using specific lengths, you would have to
count any programmed prefixes, suffixes, or formatted characters as part of the
length. If you use the example on page 3-12, but assume a <CR> suffix and
specific code lengths, you would use the following command line:

SEQBLK62001241FF6A001342FF69001243FF

3 - 12

The breakdown of the command line is shown below:

Enter Sequence

Default Sequence

SEQBLK sequence editor start command
62 code identifier for Code 39
0012 A - Code 39 sample length (11) plus CR suffix (1) = 12
41 start character match for Code 39, 41h = “A”
FF termination string for first code
6A code identifier for Code 128
0013 B - Code 128 sample length (12) plus CR suffix (1) = 13
42 start character match for Code 128, 42h = “B”
FF termination string for second code
69 code identifier for Code 93
0012 C - Code 93 sample length (11) plus CR suffix (1) = 12
43 start character match for Code 93, 43h = “C”
FF termination string for third code

Output Sequence Editor

Require Output Sequence

When an output sequence is
edited sequence or the image scanner will not transmit the output data to the
host device. When it’s
the output data to conform to an edited sequence, but if it cannot, the image
scanner transmits all output data to the host device as is.

Required

, all output data must conform to an

On/Not Required

, the image scanner will attempt to get

3 - 13

When the output sequence is

Required

On/Not Required

*Off

On

* Off

image scanner decodes it.

Note: This selection is unavailable when the Multiple Symbols Selection is

turned on.

Off

, the barcode data is output to the host as the

Multiple Symbols

When this programming selection is turned On, it allows you to read multiple
symbols with a single pull of the scanner’s trigger. If you press and hold the trig­ger, aiming the scanner at a series of symbols, it reads unique symbols once,
beeping (if turned on) for each read. The scanner attempts to find and decode
new symbols as long as the trigger is pulled. When this programming selection
is turned

Off

, the scanner will only read the symbol closest to the aiming beam.

3 - 14

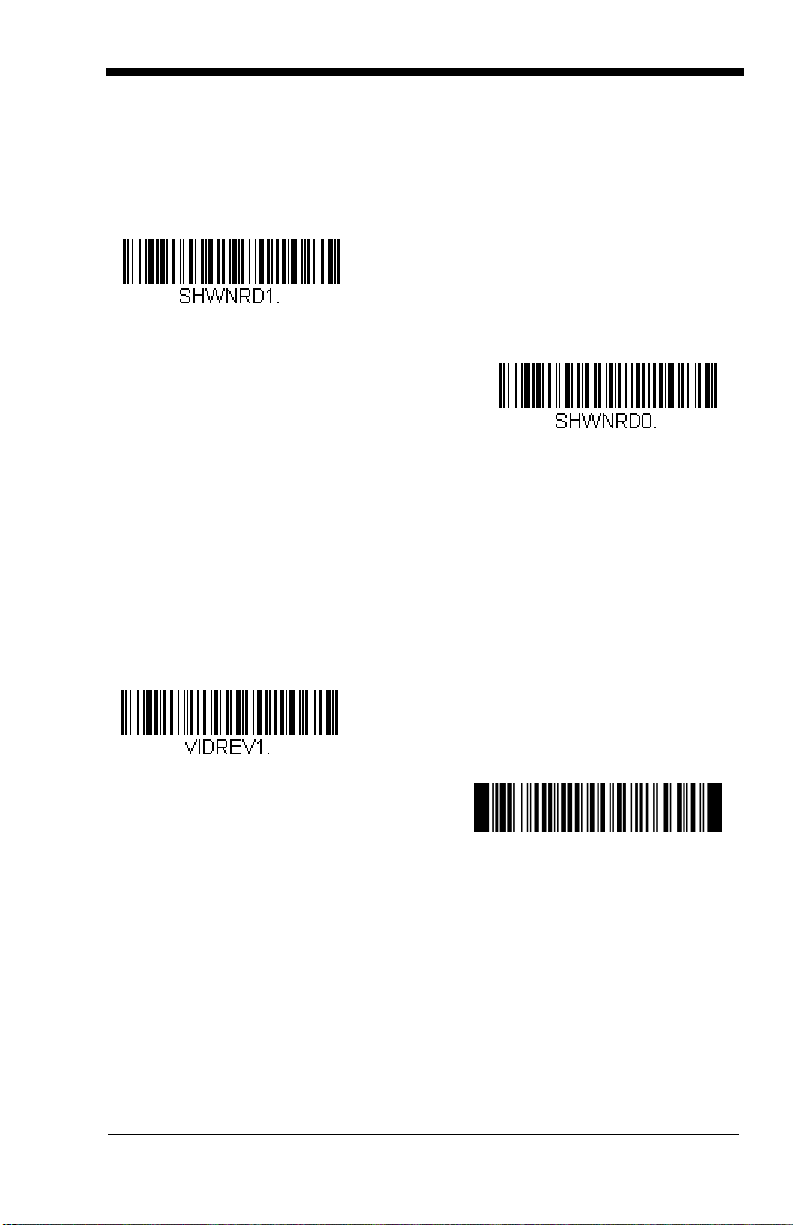

No Read

On

* Off

On

VIDREV0REV.

* Off

With No Read turned On, the scanner sends an “NR” to the host if you pull and
release the trigger without reading a code (e.g., bad bar code). If No Read is

Off

turned

If you want a different notation than “NR,” for example, “Error,” or “Bad Code,”
you can edit the output message using the Data Formatter (page 5-8). The hex
code for the No Read symbol is 9C.

, the “NR” will not be sent to the host.

Video Reverse

Video Reverse is used to allow the scanner to read bar codes that are inverted.
The “Off” bar code below is an example of this type of bar code.

Note: If additional menuing is required, Video Reverse must be disabled to read

the menu bar codes and then re-enabled after menuing is completed.

3 - 15

3 - 16

4

Data Editing

Prefix/Suffix Overview

When a bar code is scanned, additional information is sent to the host computer
along with the bar code data. This group of bar code data and additional,
user-defined data is called a “message string.” The selections in this section
are used to build the user-defined data into the message string.

Prefix and Suffix characters are data characters that can be sent before and
after scanned data. You can specify if they should be sent with all symbologies,
or only with specific symbologies. The following illustration shows the break­down of a message string:

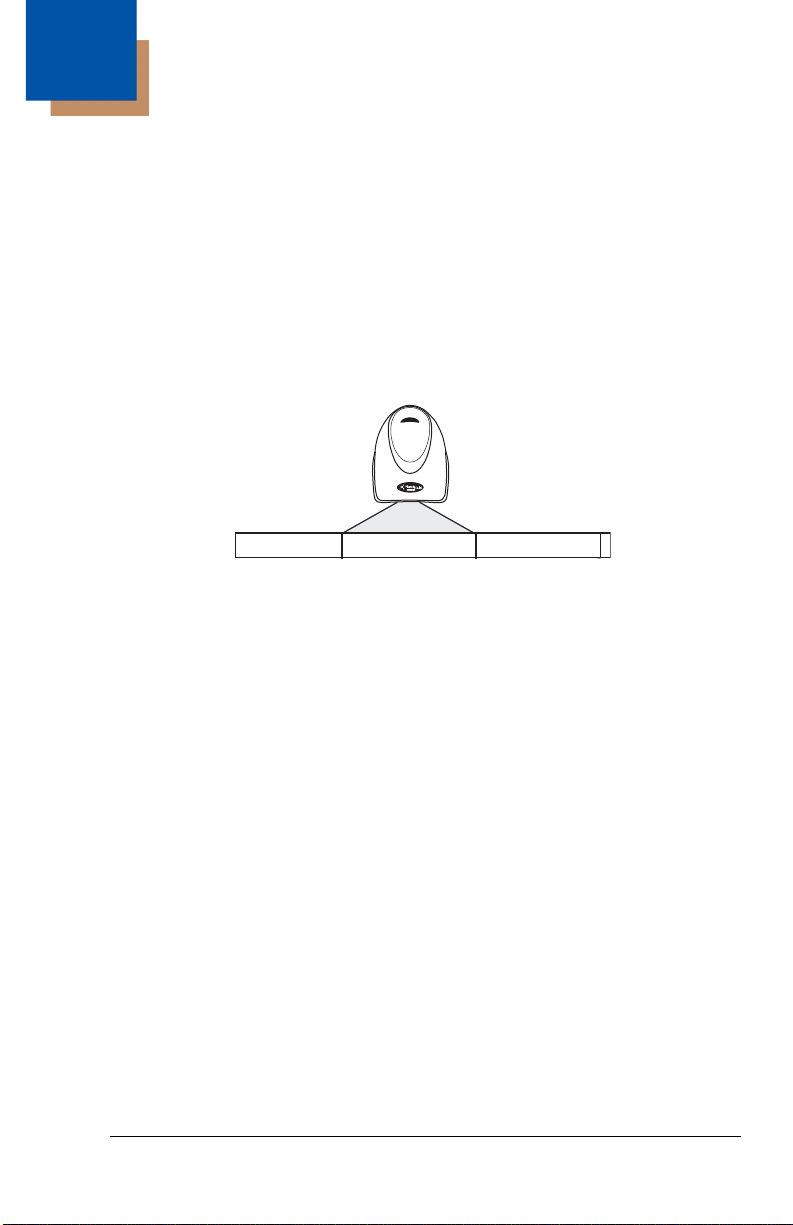

Prefix

alpha numeric
characters

Scanned Data

variable length1-11

Suffix

1-11
alpha numeric
characters

Points to Keep In Mind

• It is not necessary to build a message string. The selections in this chapter
are only used if you wish to alter the default settings.

Default suffix = None

• A prefix or suffix may be added or cleared from one symbology or all
symbologies.

• You can add any prefix or suffix from the ASCII Conversion Chart (Code Page

1252) on page A-2, plus Code I.D. and AIM I.D.

• You can string together several entries for several symbologies at one time.

• Enter prefixes and suffixes in the order in which you want them to appear on
the output.

• When setting up for specific symbologies (as opposed to all symbologies), the
specific symbology ID value counts as an added prefix or suffix character.

• The maximum size of a prefix or suffix configuration is 200 characters, which
includes header information

.

Default prefix = None.

To Add a Prefix or Suffix

Step 1. Scan the Add Prefix or Add Suffix symbol (page 4-3).

Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in

Appendix A) for the symbology to which you want to apply the prefix or

suffix. For example, for Code 128, Code ID is “j” and Hex ID is “6A”.

4 - 1

Step 3. Scan the 2 hex digits from the Programming Chart inside the back

cover of this manual or scan 9, 9 for all symbologies.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code Page

1252) on page A-2, for the prefix or suffix you wish to enter.

Step 5. Scan the 2 digit hex value from the Programming Chart inside the back

cover of this manual.

Step 6. Repeat Steps 4 and 5 for every prefix or suffix character.

Step 7. To add the Code I.D., scan 5, C, 8, 0.

To add AIM I.D., scan 5, C, 8, 1.
To add a backslash (\), scan 5, C, 5, C.

Note: To add a backslash (\) as in Step 7, you must scan 5C twice – once to

create the leading backslash and then to create the backslash itself.

Step 8. Scan Save to exit and save, or scan Discard to exit without saving.
Repeat Steps 1-6 to add a prefix or suffix for another symbology.

Example: Add a Suffix to a specific symbology

To send a CR (carriage return)Suffix for UPC only:

Step 1. Scan Add Suffix.

Step 2. Determine the 2 digit hex value from the Symbology Chart (included in

the ASCII Conversion Chart (Code Page 1252) on page A-2) for UPC.

Step 3. Scan 6, 3 from the Programming Chart inside the back cover of this

manual.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code Page

1252) on page A-2, for the CR (carriage return).

Step 5. Scan 0, D from the Programming Chart inside the back cover of this

manual.

Step 6. Scan Save, or scan Discard to exit without saving.

To Clear One or All Prefixes or Suffixes

You can clear a single prefix or suffix, or clear all prefixes/suffixes for a symbol­ogy. When you Clear One Prefix (Suffix), the specific character you select is
deleted from the symbology you want. When you Clear All Prefixes (Suffixes),
all the prefixes or suffixes for a symbology are deleted.

4 - 2

Step 1. Scan the Clear One Prefix or Clear One Suffix symbol.

Add CR Suffix

All Symbologies

Add Prefix

Clear One Prefix

Clear All Prefixes

Step 2. Determine the 2 digit Hex value from the Symbology Chart (included in

Appendix A) for the symbology from which you want to clear the prefix

or suffix.

Step 3. Scan the 2 digit hex value from the Programming Chart inside the back

cover of this manual or scan 9, 9 for all symbologies.

Your change is automatically saved.

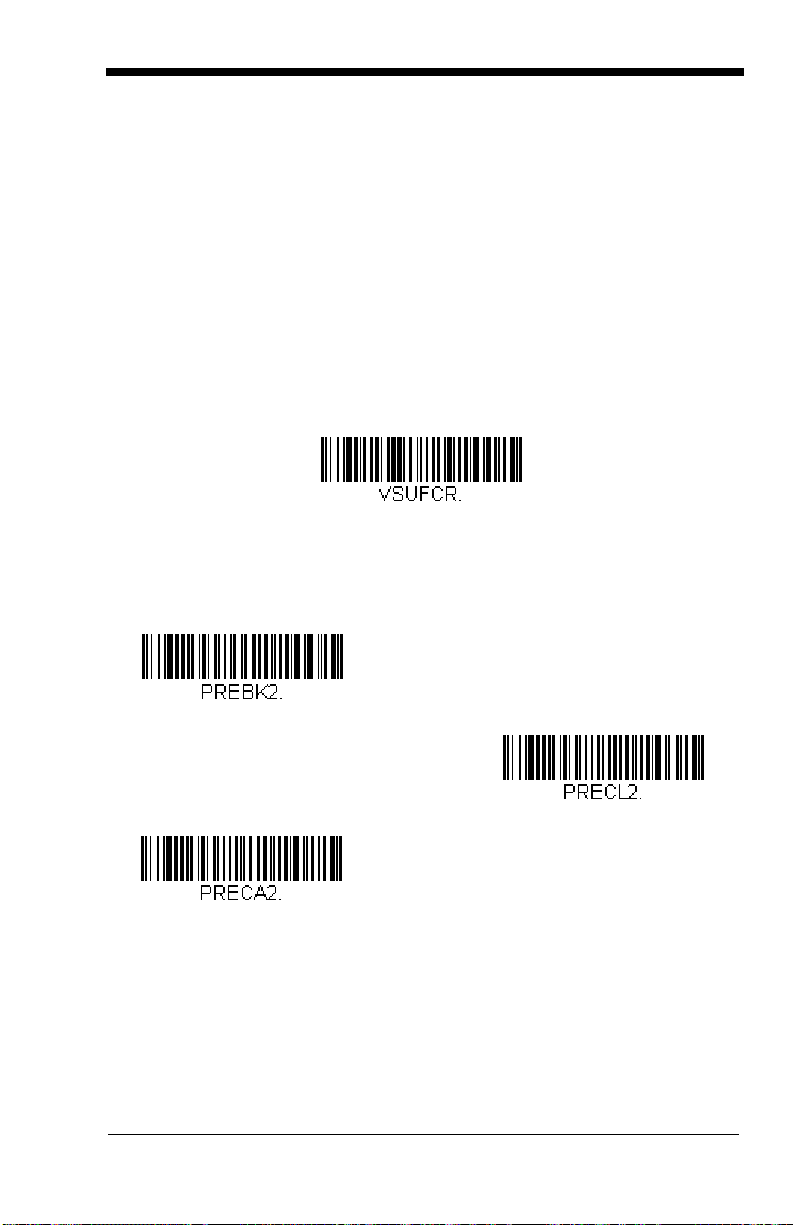

To Add a Carriage Return Suffix to All Symbologies

Scan the following bar code if you wish to add a carriage return suffix to all sym­bologies at once. This action first clears all current suffixes, then programs a
carriage return suffix for all symbologies.

Prefix Selections

4 - 3

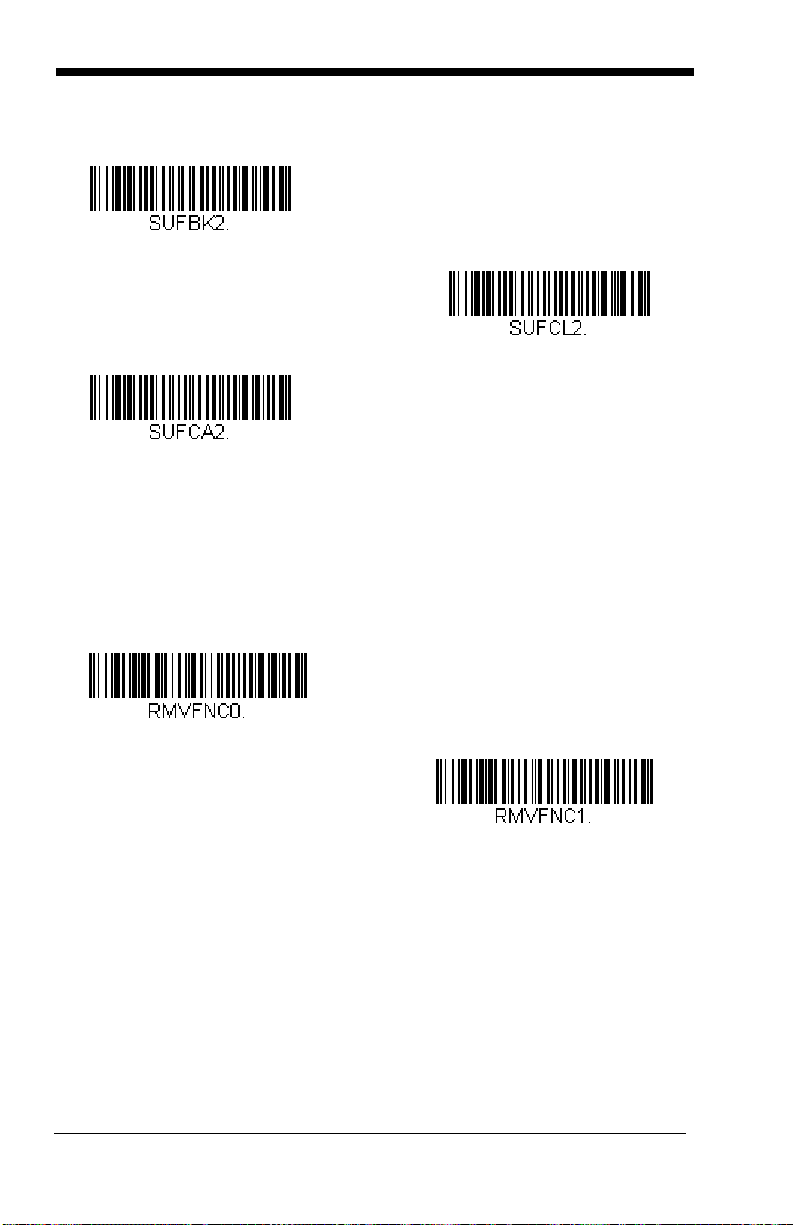

Suffix Selections

Add Suffix

Clear One Suffix

Clear All Suffixes

* Enable

Disable

Function Code Transmit

When this selection is enabled and function codes are contained within the
scanned data, the scanner transmits the function code to the terminal. Charts
of these function codes are provided in Supported Interface Keys starting on

page 7-3. When the scanner is in keyboard wedge mode, the scan code is con-

verted to a key code before it is transmitted.

Default = Enable.

Intercharacter, Interfunction, and Intermessage
Delays

Some terminals drop information (characters) if data comes through too quickly.
Intercharacter, interfunction, and intermessage delays slow the transmission of
data, increasing data integrity.

Each delay is composed of a 5 millisecond step. You can program up to 99
steps (of 5 ms each) for a range of 0-495 ms.

4 - 4

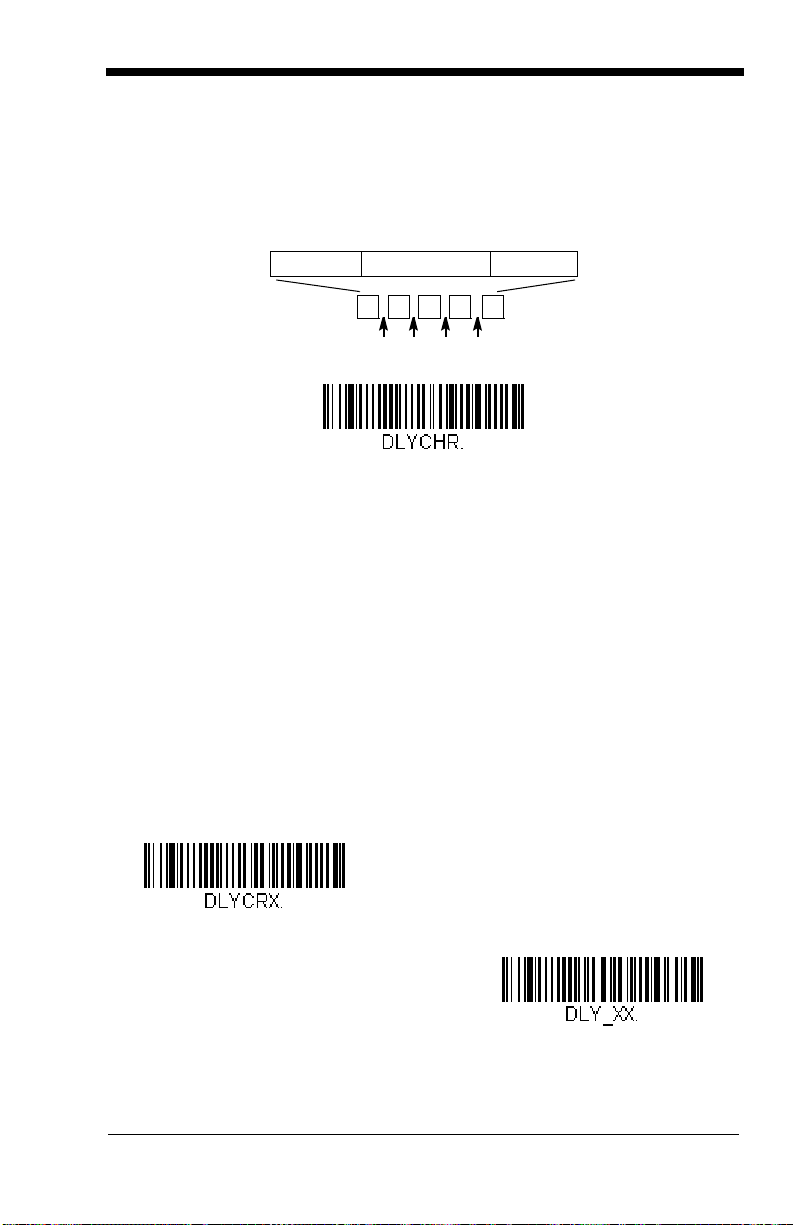

Intercharacter Delay

1 2345

Intercharacter Delay

Prefix Scanned Data Suffix

Intercharacter Delay

Delay Length

Character to Trigger Delay

An intercharacter delay of up to 495 milliseconds may be placed between the
transmission of each character of scanned data. Scan the Intercharacter
Delay bar code below, then scan the number of milliseconds and the Save bar
code using the Programming Chart inside the back cover of this manual.

To remove this delay, scan the Intercharacter Delay bar code, then set the
number of steps to 0. Scan the Save bar code using the Programming Chart
inside the back cover of this manual.

Note: Intercharacter delays are not supported in USB serial emulation.

User Specified Intercharacter Delay

An intercharacter delay of up to 495 milliseconds may be placed after the trans­mission of a particular character of scanned data. Scan the Delay Length bar
code below, then scan the number of milliseconds and the Save bar code using
the Programming Chart inside the back cover of this manual.

Next, scan the Character to Trigger Delay bar code, then the 2-digit hex value
for the ASCII character that will trigger the delay ASCII Conversion Chart (Code

Page 1252) on page A-2.

4 - 5

To remove this delay, scan the Delay Length bar code, and set the number of

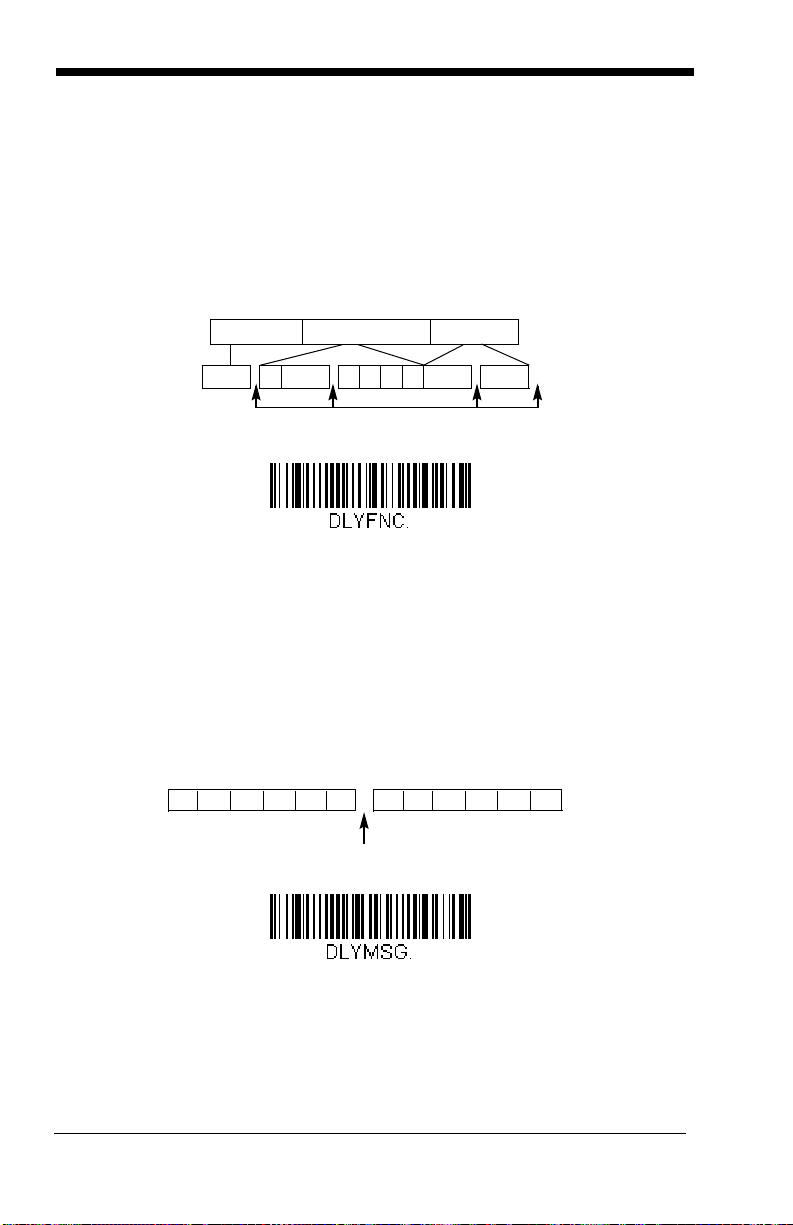

Interfunction Delays

Prefix Scanned Data Suffix

1 2345STX HT CR LF

Interfunction Delay

2nd Scan Transmission1st Scan Transmission

Intermessage Delay

Intermessage Delay

steps to 0. Scan the Save bar code using the Programming Chart inside the
back cover of this manual.

Interfunction Delay

An interfunction delay of up to 495 milliseconds may be placed between the
transmission of each segment of the message string. Scan the Interfunction
Delay bar code below, then scan the number of milliseconds and the Save bar
code using the Programming Chart inside the back cover of this manual.

To remove this delay, scan the Interfunction Delay bar code, then set the num-
ber of steps to 0. Scan the Save bar code using the Programming Chart inside
the back cover of this manual.

Intermessage Delay

An intermessage delay of up to 495 milliseconds may be placed between each
scan transmission. Scan the Intermessage Delay bar code below, then scan
the number of milliseconds and the Save bar code using the Programming

Chart inside the back cover of this manual.

To remove this delay, scan the Intermessage Delay bar code, then set the
number of steps to 0. Scan the Save bar code using the Programming Chart
inside the back cover of this manual.

4 - 6

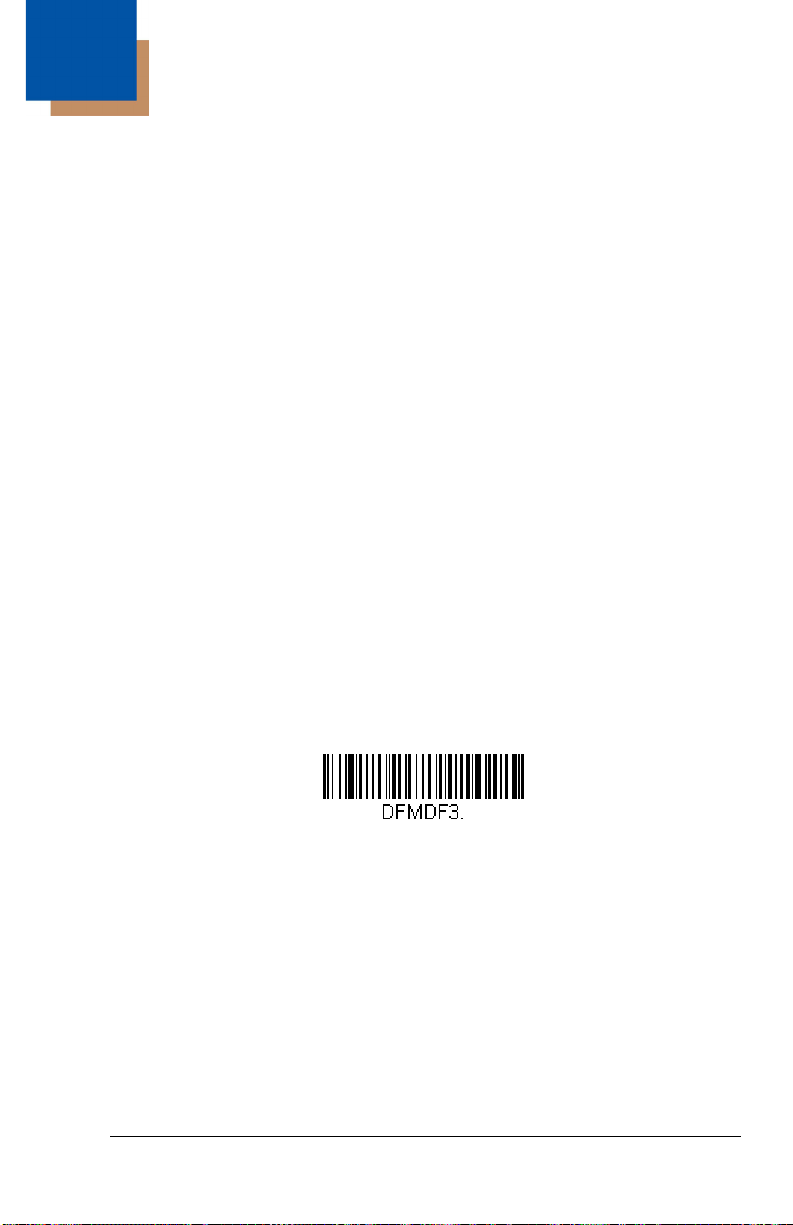

5

* Default Data Format

Data Formatting

Data Format Editor Introduction

You may use the Data Format Editor to change the scanner’s output. For exam­ple, you can use the Data Format Editor to insert characters at certain points in
bar code data as it is scanned. The selections in the following pages are used
only if you wish to alter the output.

Normally, when you scan a bar code, it gets outputted automatically; however
when you do a format, you must use a “send” command (see Send Commands
on page 5-4) within the format program to output data.

Multiple formats may be programmed into the scanner. They are stacked in the
order in which they are entered. However, the following list presents the order
in which formats are applied:

1. Specific Term ID, Actual Code ID, Actual Length

2. Specific Term ID, Actual Code ID, Universal Length

3. Specific Term ID, Universal Code ID, Actual Length

4. Specific Term ID, Universal Code ID, Universal Length

5. Universal Term ID, Actual Code ID, Actual Length

6. Universal Term ID, Actual Code ID, Universal Length

7. Universal Term ID, Universal Code ID, Actual Length

8. Universal Term ID, Universal Code ID, Universal Length

Default Data Format setting = None.

The maximum size of a data format configuration is 256 bytes, which includes
header information. No format can contain more than 50 bytes.

If you have changed data format settings, and wish to clear all formats and
return to the factory defaults, scan the Default Data Format code below.

To Add a Data Format

Step 1. Scan the Enter Data Format symbol (page 5-8).

Step 2. Select Primary/Alternate Format

Determine if this will be your primary data format or one of 3 alternate
formats. This allows you to save a total of 4 different data formats. To
program your primary format scan 0 using the Programming Chart
inside the back cover of this manual. If you are programming an alter-

5 - 1

nate format, scan 1, 2, or 3, depending on which alternate format you

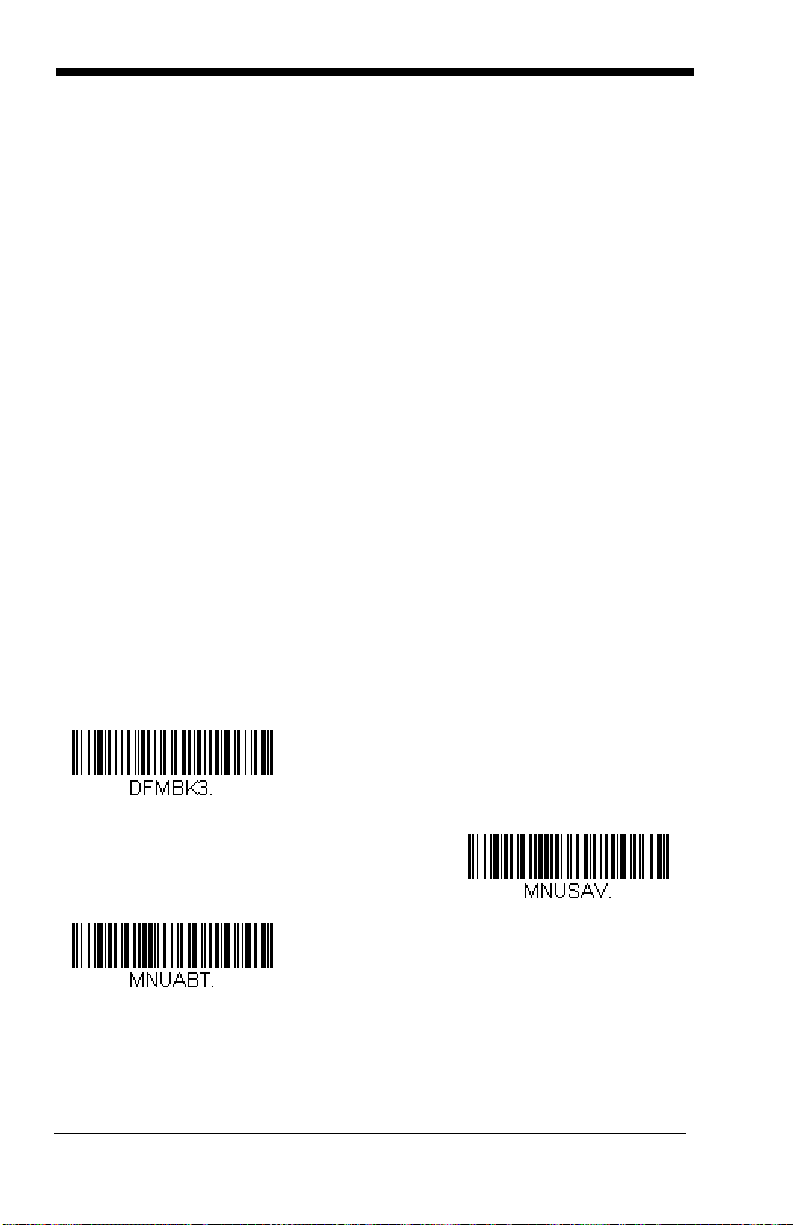

Enter Data Format

Save

Discard

are programming.

Step 3. Terminal Type

Refer to the Supported Terminals Chart (page 5-4) and locate the Ter­minal ID number for your PC. Scan three numeric bar codes on the
inside back cover to program the scanner for your terminal ID (you must
enter 3 digits). For example, scan 0 0 3 for an AT wedge.

Note: The wildcard for all terminal types is 099.

Step 4. Code I.D.

In Appendix A find the symbology to which you want to apply the data
format. Locate the Hex value for that symbology and scan the 2 digit
hex value from the Programming Chart inside the back cover of this
manual.

Step 5. Length

Specify what length (up to 9999 characters) of data will be acceptable
for this symbology. Scan the four digit data length from the Program-

ming Chart inside the back cover of this manual. (Note: 50 characters

is entered as 0050. 9999 is a universal number, indicating all lengths.)

Step 6. Editor Commands

Refer to the Format Editor Commands Chart (page 5-4). Scan the
symbols that represent the command you want to enter. 94 alphanu­meric characters may be entered for each symbology data format.

Step 7. Scan Save from the Programming Chart inside the back cover of this

manual to save your entries.

5 - 2

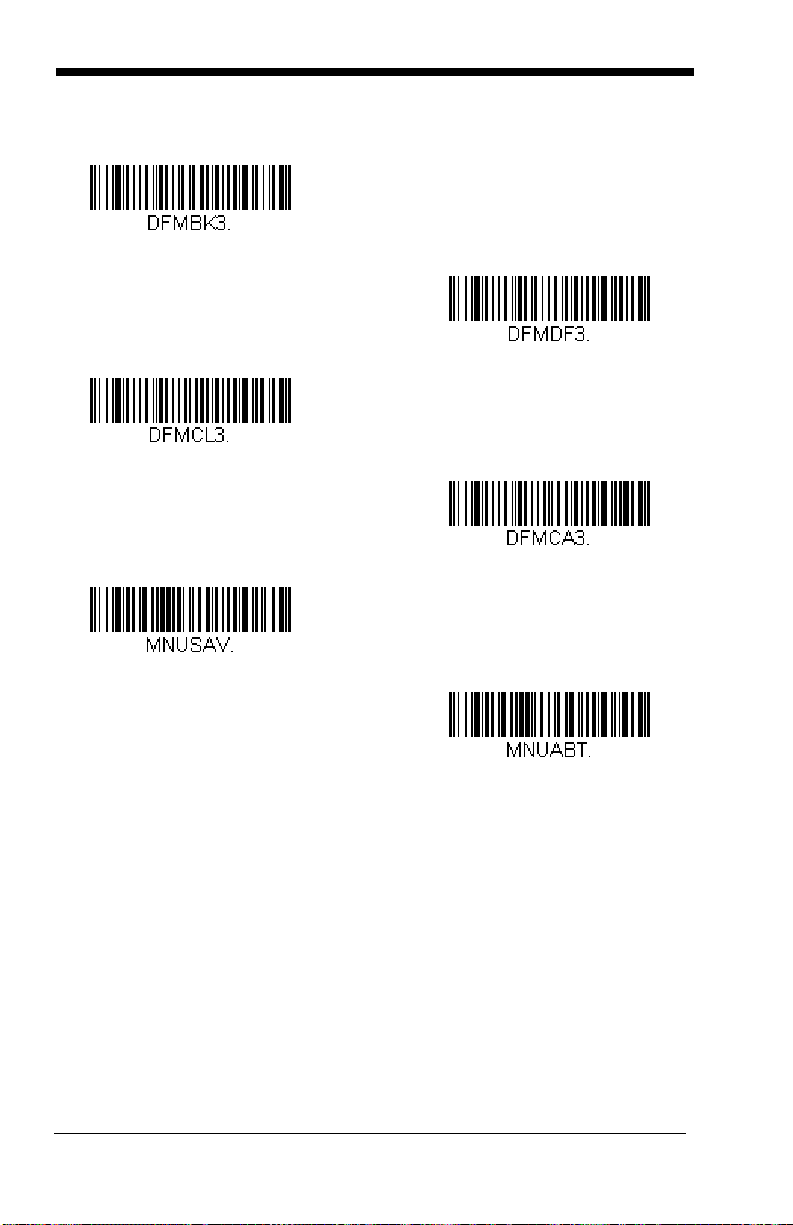

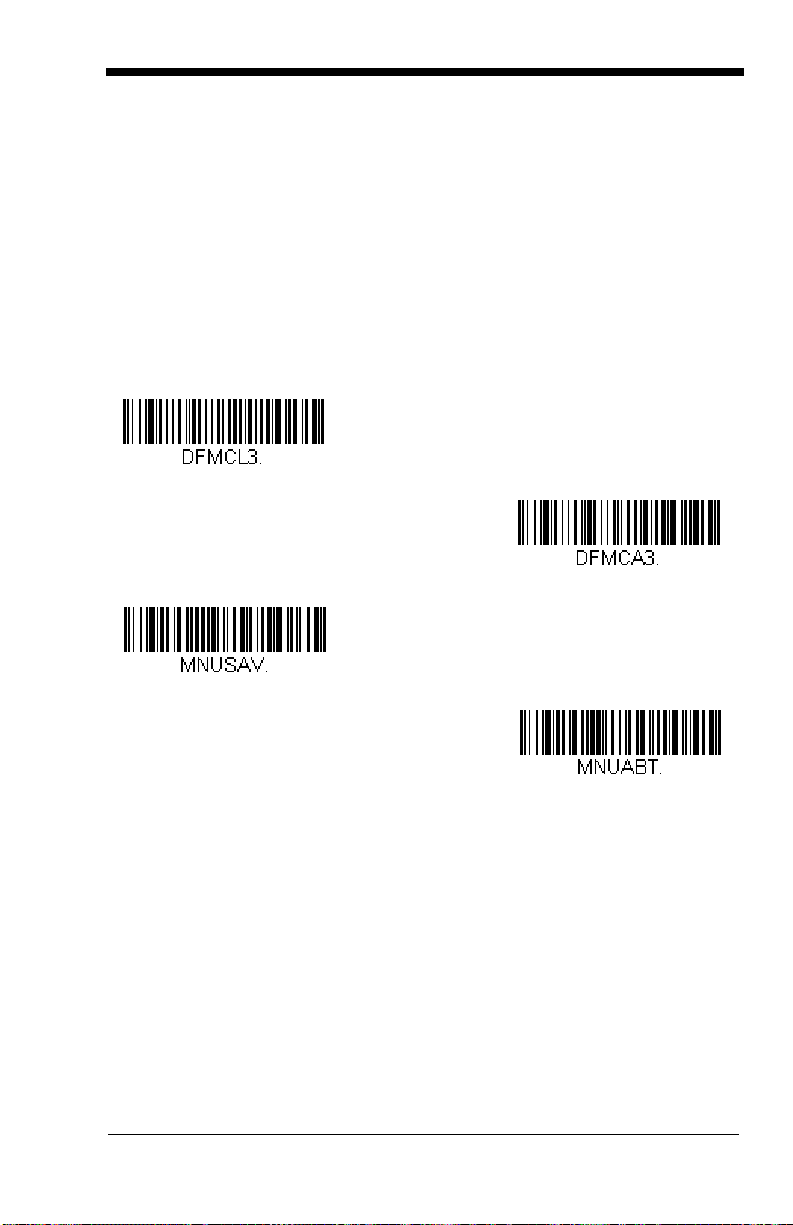

Other Programming Selections

Clear One Data Format

Clear All Data Formats

Save

Discard

• Clear One Data Format
This deletes one data format for one symbology. If you are clearing the
primary format, scan 0 from the Programming Chart inside the back cover of
this manual. If you are clearing an alternate format, scan 1, 2, or 3, depending
on the alternate format you are clearing. Scan the Terminal Type (refer to the
Supported Terminals Chart on page 5-4), Code I.D. (refer to the Symbology

Chart on page A-1), and the bar code data length for the specific data format

that you want to delete. All other formats remain unaffected.

• Save from the Programming Chart inside the back cover of this manual
This exits, saving any Data Format changes.

• Discard from the Programming Chart inside the back cover of this manual
This exits without saving any Data Format changes.

5 - 3

Terminal ID Table

Terminal

IBM AT, PS/2 30–286, 50, 55SX, 60,

RS232 TTL
RS485 IBM Tailgate 4682
USB Com Port

* Factory default setting

Model(s)

70, 70–061, 70–121, 80
USB SurePOS Handheld

Scanner
USB SurePOS Tabletop

Scanner

PC Keyboard
Mac Keyboard
HID POS

Terminal

ID

003

128

129

000
051
130
124*
125
131

Data Format Editor Commands

Send Commands

Send all Characters

F1 Include in the output message all of the characters from the input message,

starting from current cursor position, followed by an insert character.

tax = F1xx

code. Refer to ASCII Conversion Chart (Code Page 1252) on page A-2 for
decimal, hex and character codes.

F2 Include in the output message a number of characters followed by an insert

character. Start from the current cursor position and continue for “nn” char­acters or through the last character in the input message, followed by char­acter “xx.”
for the number of characters, and xx stands for the insert character’s hex
value for its ASCII code.
Refer to ASCII Conversion Chart (Code Page 1252) on page A-2 for deci­mal, hex and character codes.

where xx stands for the insert character’s hex value for its ASCII

Syntax = F2nnxx

where nn stands for the numeric value (00-99)

Syn-

Send all characters up to a particular character

F3 Include in the output message all characters from the input message, start-

ing with the character at the current cursor position and continuing to, but
not including, the search character “ss,” followed by an insert character.
The cursor is moved forward to the “ss” character.
ss stands for the search character’s hex value for its ASCII code, and xx
stands for the insert character’s hex value for its ASCII code.

Syntax = F3ssxx

where

5 - 4

Refer to ASCII Conversion Chart (Code Page 1252) on page A-2 for deci-

mal, hex and character codes.

Send all but the last characters

E9 Include in the output message all but the last “nn” characters, starting from

the current cursor position. The cursor is moved forward to one position
past the last input message character included.
stands for the numeric value (00-99) for the number of characters that will
not be sent at the end of the message.

Syntax = E9nn

where nn

Insert a character multiple times

F4 Send “xx” character “nn” times in the output message, leaving the cursor in

the current position. Syntax = F4xxnn where xx stands for the insert char­acter’s hex value for its ASCII code, and nn is the numeric value (00-99) for
the number of times it should be sent.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.

Move Commands

Move the cursor forward a number of characters

F5 Move the cursor ahead “nn” characters from current cursor position.

Syntax = F5nn

characters the cursor should be moved ahead.

Move the cursor backward a number of characters

F6 Move the cursor back “nn” characters from current cursor position.

Syntax = F6nn

characters the cursor should be moved back.

where nn is the numeric value (00-99) for the number of

where nn is the numeric value (00-99) for the number of

Move the cursor to the beginning

F7 Move the cursor to the first character in the input message.

Syntax = F7.

Move the cursor to the end

EA Move the cursor to the last character in the input message.

Syntax = EA

Search Commands

Search forward for a character

F8 Search the input message forward for “xx” character from the current cursor

position, leaving the cursor pointing to the “xx” character.
where xx stands for the search character’s hex value for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.

Syntax = F8xx

5 - 5

Search backward for a character

F9 Search the input message backward for “xx” character from the current cur-

sor position, leaving the cursor pointing to the “xx” character.

where xx stands for the search character’s hex value for its ASCII

F9xx

code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.

Syntax =

Search forward for a non-matching character

E6 Search the input message forward for the first non-“xx” character from the

current cursor position, leaving the cursor pointing to the non-“xx” charac-

Syntax = E6xx

ter.
for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.

where xx stands for the search character’s hex value

Search backward for a non-matching character

E7 Search the input message backward for the first non-“xx” character from the

current cursor position, leaving the cursor pointing to the non-“xx” charac-

Syntax = E7xx

ter.
for its ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.

where xx stands for the search character’s hex value

Miscellaneous Commands

Suppress characters

FB Suppress all occurrences of up to 15 different characters, starting at the

current cursor position, as the cursor is advanced by other commands.
When the FC command is encountered, the suppress function is termi­nated. The cursor is not moved by the FB command.
Syntax = FBnnxxyy . .zz where nn is a count of the number of suppressed
characters in the list, and xxyy .. zz is the list of characters to be sup­pressed.

Stop suppressing characters

FC Disables suppress filter and clear all suppressed characters.

Syntax = FC.

Replace characters

E4 Replaces up to 15 characters in the output message, without moving the

cursor. Replacement continues until the E5 command is encountered.

Syntax = E4nnxx1xx2yy1yy2...zz1zz

ber of characters in the list (characters to be replaced plus replacement
characters); xx

ment characters, continuing through zz

defines characters to be replaced and xx2 defines replace-

1

where nn is the total count of the num-

2

and zz2.

1

5 - 6

Stop replacing characters

E5 Terminates character replacement.

Syntax = E5.

Compare characters

FE Compare the character in the current cursor position to the character “xx.”

If characters are equal, move the cursor forward one position.

where xx stands for the comparison character’s hex value for its

FExx

ASCII code.
Refer to the ASCII Conversion Chart (Code Page 1252) on page A-4 for
decimal, hex and character codes.

Syntax =

Check for a number

EC Check to make sure there is an ASCII number at the current cursor position.

The format is aborted if the character is not numeric.

Check for non-numeric character

ED Check to make sure there is a non-numeric ASCII character at the current

cursor position. The format is aborted if the character is not numeric.

5 - 7

Data Format Editor

Enter Data Format

* Default Data Format

Clear One Data Format

Save

Discard

Clear All Data Formats

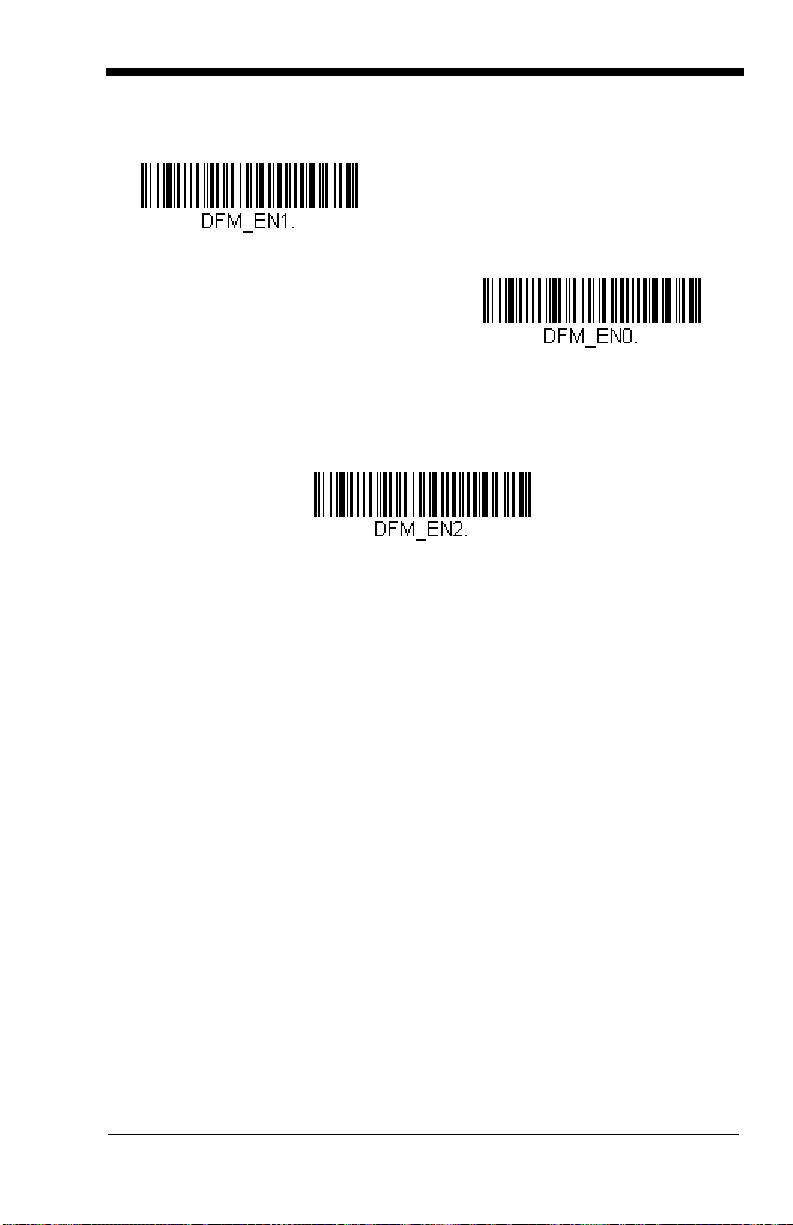

Data Formatter

When Data Formatter is turned off, the bar code data is output to the host as
read (including prefixes and suffixes). Choose one of the following options.

5 - 8

Default = Data Formatter On.

Data Formatter Off

* Data Formatter On,

but Not Required

Data Format On, Format Required

When Data Formatter is required, all input data must conform to an edited for­mat or the scanner does not transmit the input data to the host device.

5 - 9

5 - 10

6

Symbologies

Introduction

This programming section contains the following menu selections. Refer to

Chapter 9 for settings and defaults.

• All Symbologies • GS1 DataBar Expanded

• China Post Code • Interleaved 2 of 5

• Codabar • Label Code

• Codablock F • Matrix 2 of 5

• Code 11 • MSI

• Code 39 • Plessey Code

• Code 32 Pharmaceutical (PARAF)

• Code 49

• Code 93 • Telepen

• Code 128 • Trioptic Code

• UPC-A/EAN-13 with Extended

Coupon Code

• EAN/JAN 8 • UPC E

• GS1 DataBar Omnidirectional

• GS1 DataBar Limited

• Straight 2 of 5 IATA (two-bar

start/stop)

• Straight 2 of 5 Industrial

(three-bar start/stop)

• UPC A

• Straight 2 of 5 IATA (two-bar

start/stop)

• Straight 2 of 5 Industrial

(three-bar start/stop)

6 - 1

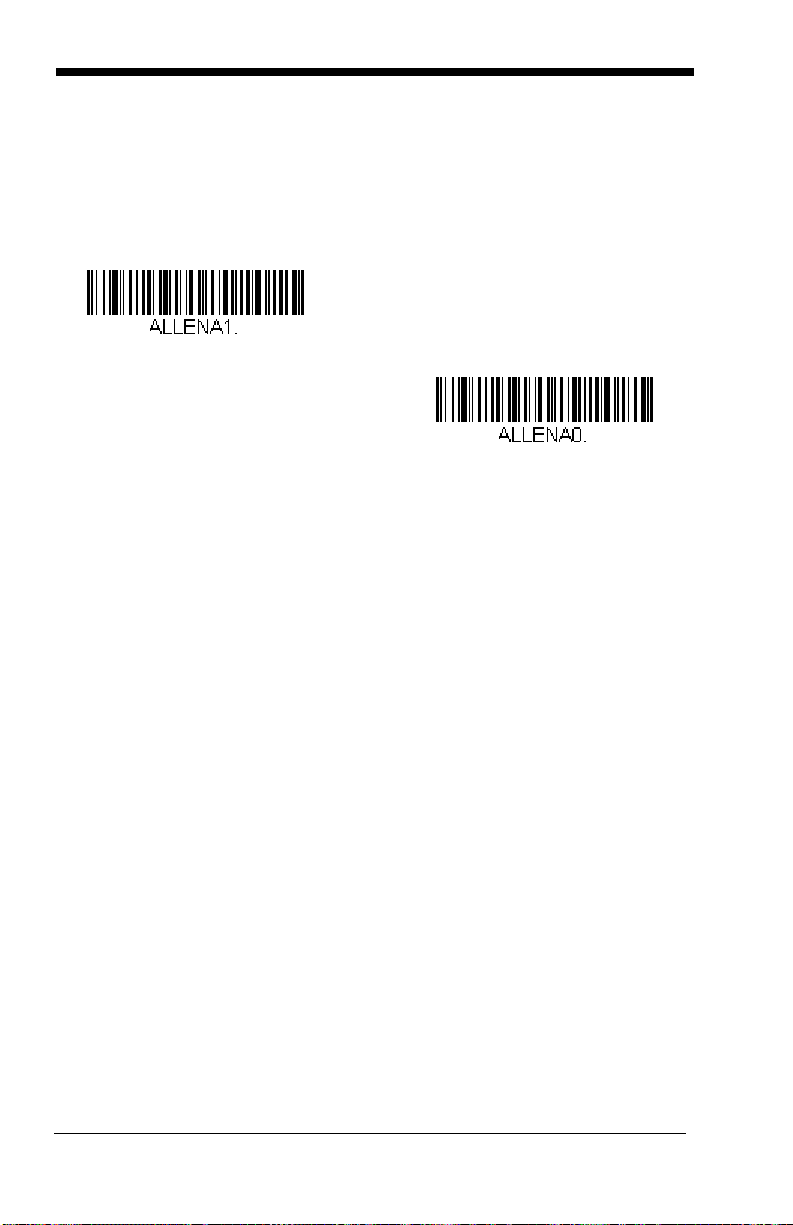

All Symbologies

All Symbologies On

All Symbologies Off

If you want to decode all the symbologies allowable for your scanner, scan the

All Symbologies On

particular symbology, scan All Symbologies Off followed by the On symbol for
that particular symbology.

code. If on the other hand, you want to decode only a

Message Length

You are able to set the valid reading length of some of the bar code symbologies.
If the data length of the scanned bar code doesn’t match the valid reading length,
the scanner will issue an error beep. You may wish to set the same value for
minimum and maximum length to force the scanner to read fixed length bar code
data. This helps reduce the chances of a misread.

EXAMPLE: Decode only those bar codes with a count of 9-20 characters.

EXAMPLE: Decode only those bar codes with a count of 15 characters.

For a value other than the minimum and maximum message length defaults,
scan the bar codes included in the explanation of the symbology, then scan the
digit value of the message length and Save bar codes on the Programming Chart
inside the back cover of this manual. The minimum and maximum lengths and
the defaults are included with the respective symbologies.

Min. length = 09 Max. length = 20

Min. length = 15 Max. length = 15

6 - 2

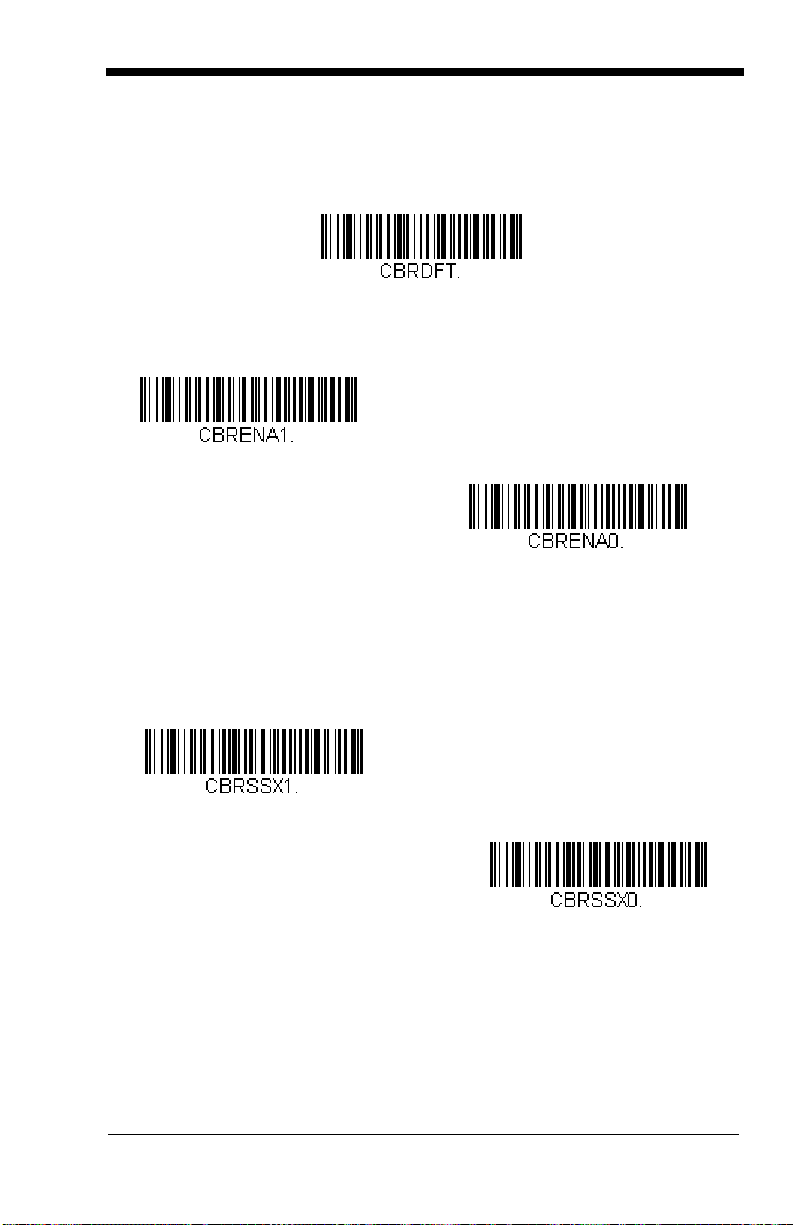

Codabar

*On

Off

Transmit

* Don’t Transmit

<Default All Codabar Settings>

Codabar

Codabar Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code. You
may either transmit, or not transmit Start/Stop characters.

Default = Don’t Transmit

.

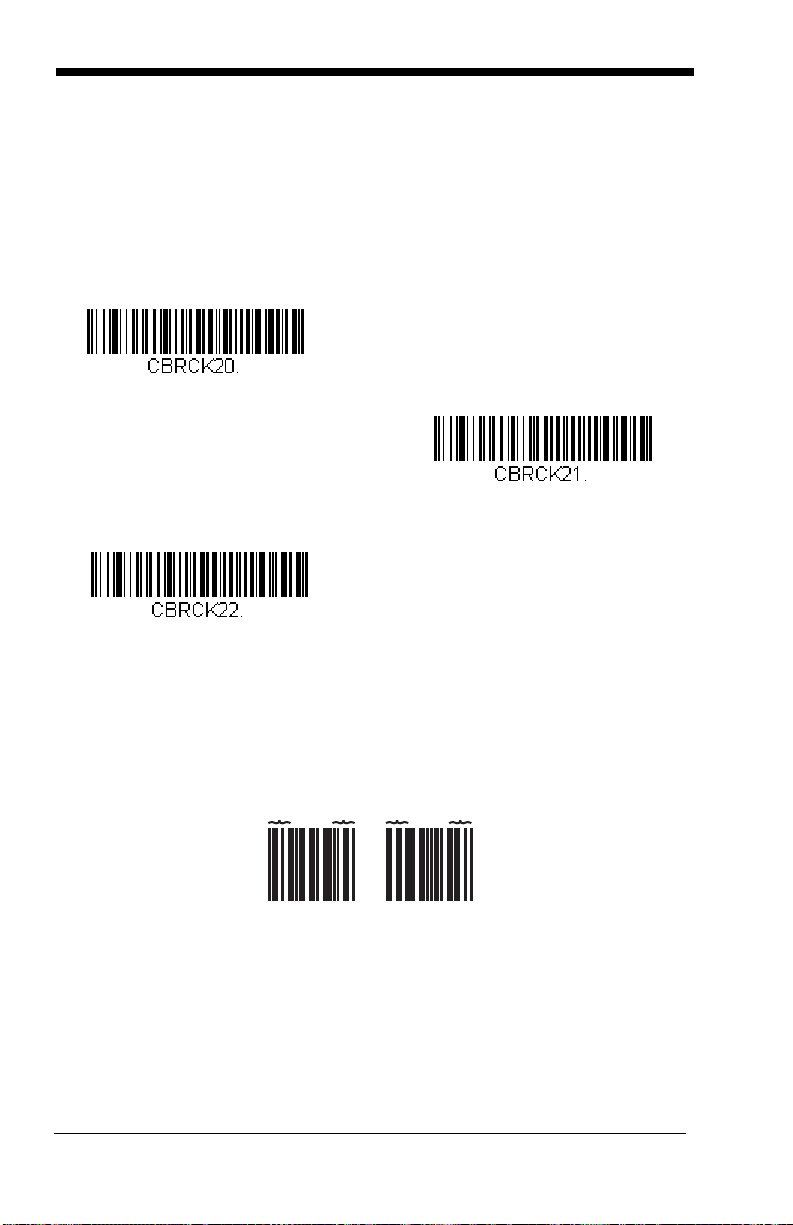

Codabar Check Character

Codabar check characters are created using different “modulos.” You can pro­gram the scanner to read only Codabar bar codes with Modulo 16 check char-

Default = No Check Character.

acters.

6 - 3

No Check Character

* No Check Character

Validate Modulo 16 and Transmit

Validate Modulo 16, but

Don’t Transmit

A12D D34A

Codabar

Character

Stop Start StopStart

indicates that the scanner reads and transmits bar code

data with or without a check character.
When Check Character is set to

Validate and Transmit

, the scanner will only
read Codabar bar codes printed with a check character, and will transmit this
character at the end of the scanned data.

When Check Character is set to
read Codabar bar codes printed

Validate, but Don’t Transmit

with

a check character, but will not transmit the

, the unit will only

check character with the scanned data.

Codabar Concatenation

Codabar supports symbol concatenation. When you enable concatenation, the
scanner looks for a Codabar symbol having a “D” start character, adjacent to a
symbol having a “D” stop character. In this case the two messages are concat­enated into one with the “D” characters omitted.

Select Require to prevent the scanner from decoding a single “D” Codabar sym­bol without its companion. This selection has no effect on Codabar symbols
without Stop/Start D characters.

6 - 4

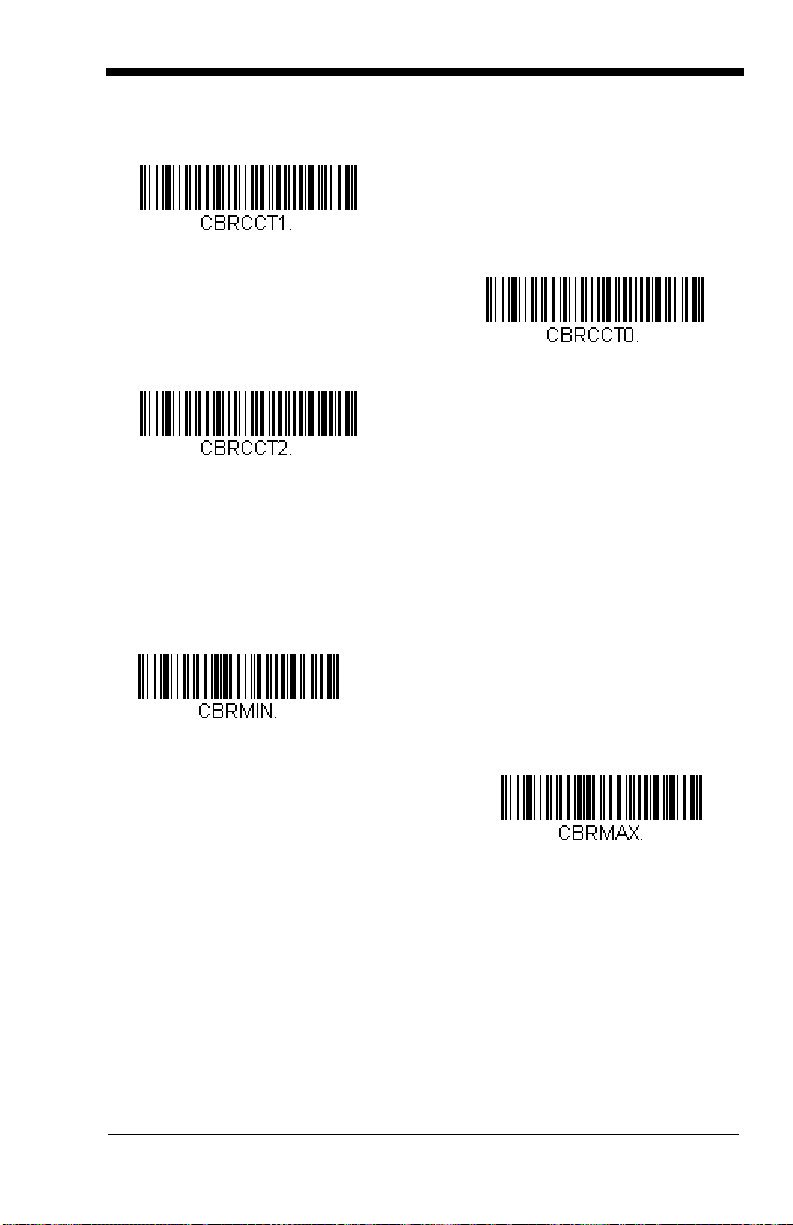

Codabar Message Length

On

* Off

Require

Minimum Message Length

Maximum Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 2-60. Minimum Default = 4, Maximum Default = 60.

6 - 5

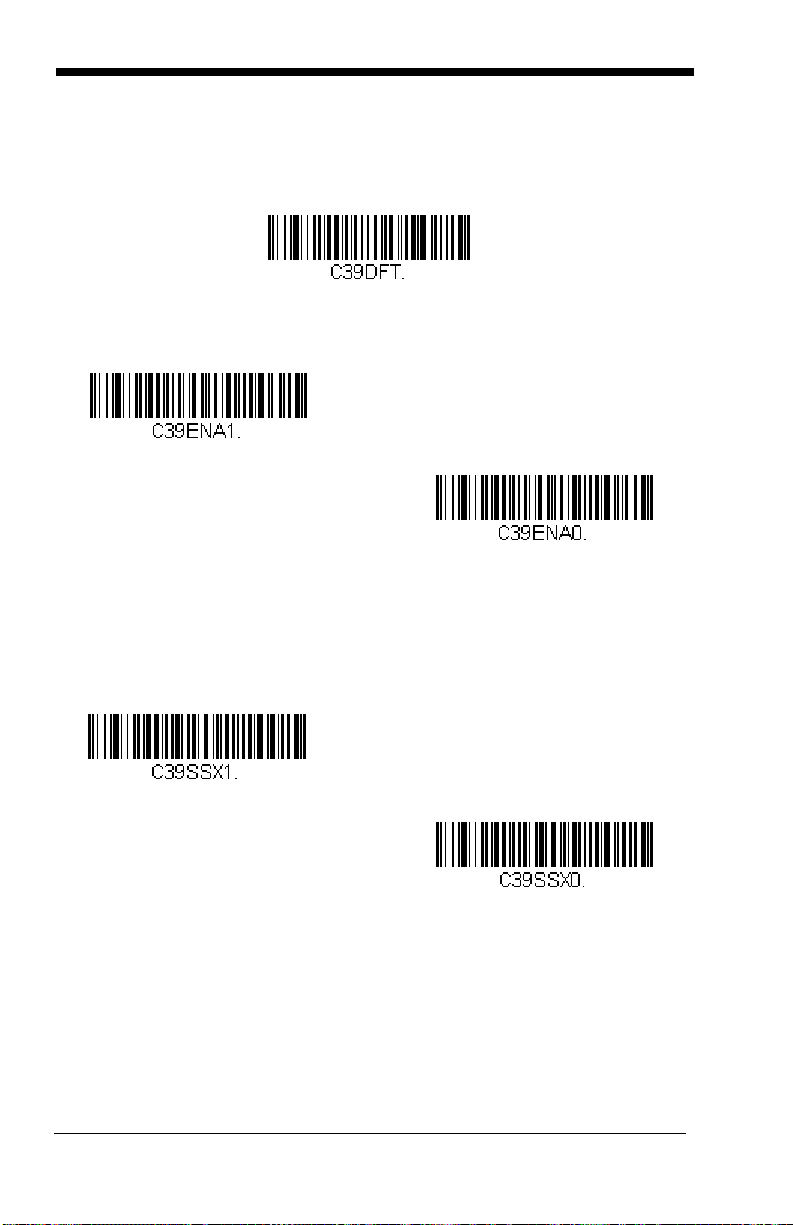

Code 39

*On

Off

Transmit

* Don’t Transmit

< Default All Code 39 Settings >

Code 39

Code 39 Start/Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code. You
may either transmit, or not transmit Start/Stop characters.

Transmit.

Default = Don’t

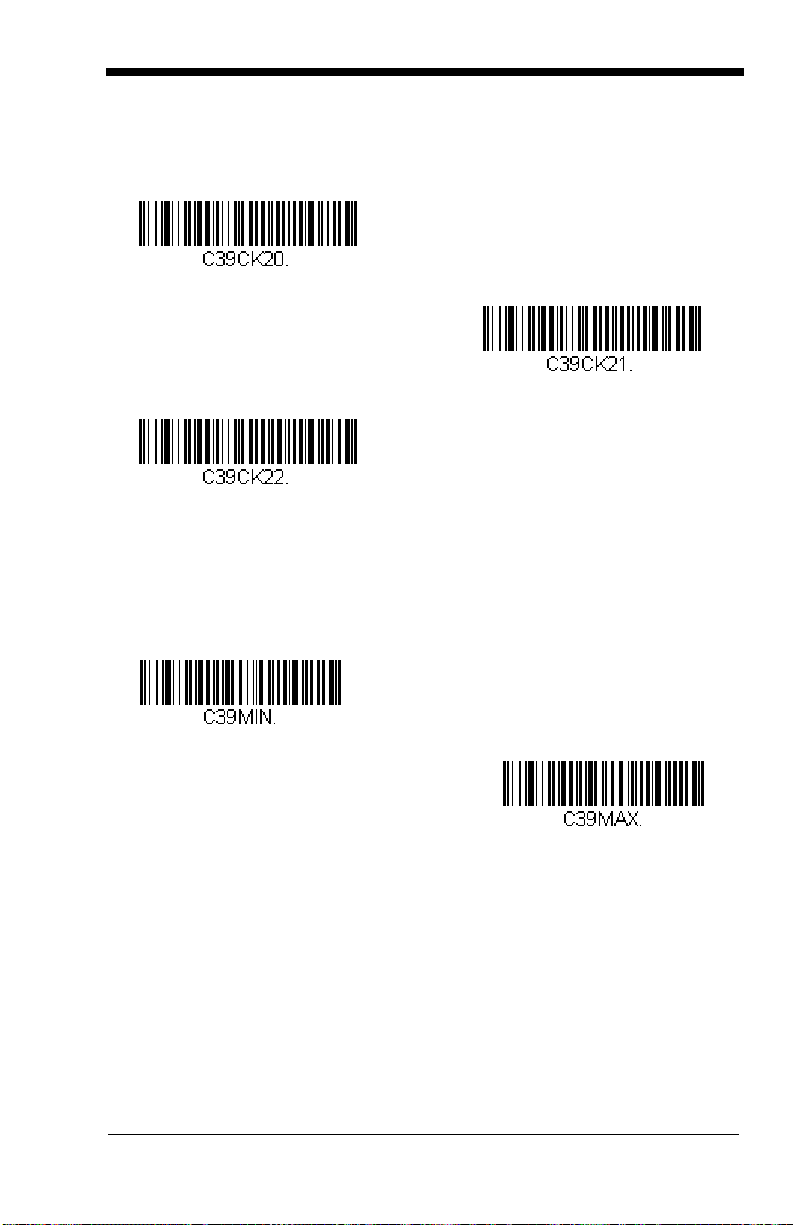

Code 39 Check Character

No Check Character indicates that the scanner reads and transmits bar code

data with or without a check character.
When Check Character is set to Validate, but Don’t Transmit, the unit only

reads Code 39 bar codes printed with a check character, but will not transmit
the check character with the scanned data.

6 - 6

When Check Character is set to Validate and Transmit, the scanner only reads

Validate, but Don’t Transmit

* No Check Character

Validate and Transmit

Minimum Message Length

Maximum Message Length

Code 39 bar codes printed with a check character, and will transmit this charac­ter at the end of the scanned data.

Default = No Check Character.

Code 39 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 0-48. Minimum Default = 0, Maximum Default = 48.

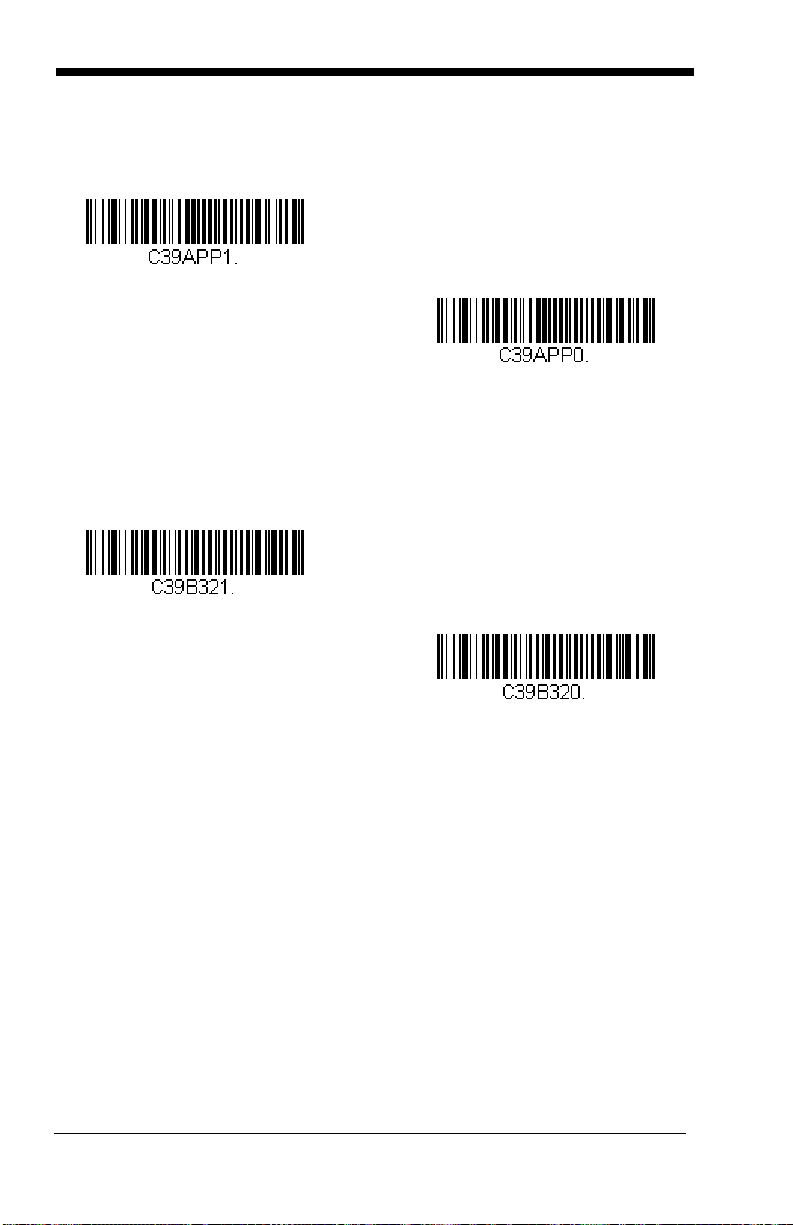

Code 39 Append

This function allows the scanner to append the data from several Code 39 bar
codes together before transmitting them to the host computer. When this func­tion is enabled, the scanner stores those Code 39 bar codes that start with a
space (excluding the start and stop symbols), and does not immediately trans­mit the data. The scanner stores the data in the order in which the bar codes

6 - 7

are read, deleting the first space from each. The scanner transmits the

*Off

On

* Off

On

appended data when it reads a Code 39 bar code that starts with a character
other than a space.

Default = Off.

Code 32 Pharmaceutical (PARAF)

Code 32 Pharmaceutical is a form of the Code 39 symbology used by Italian
pharmacies. This symbology is also known as PARAF.

Default = Off.

6 - 8

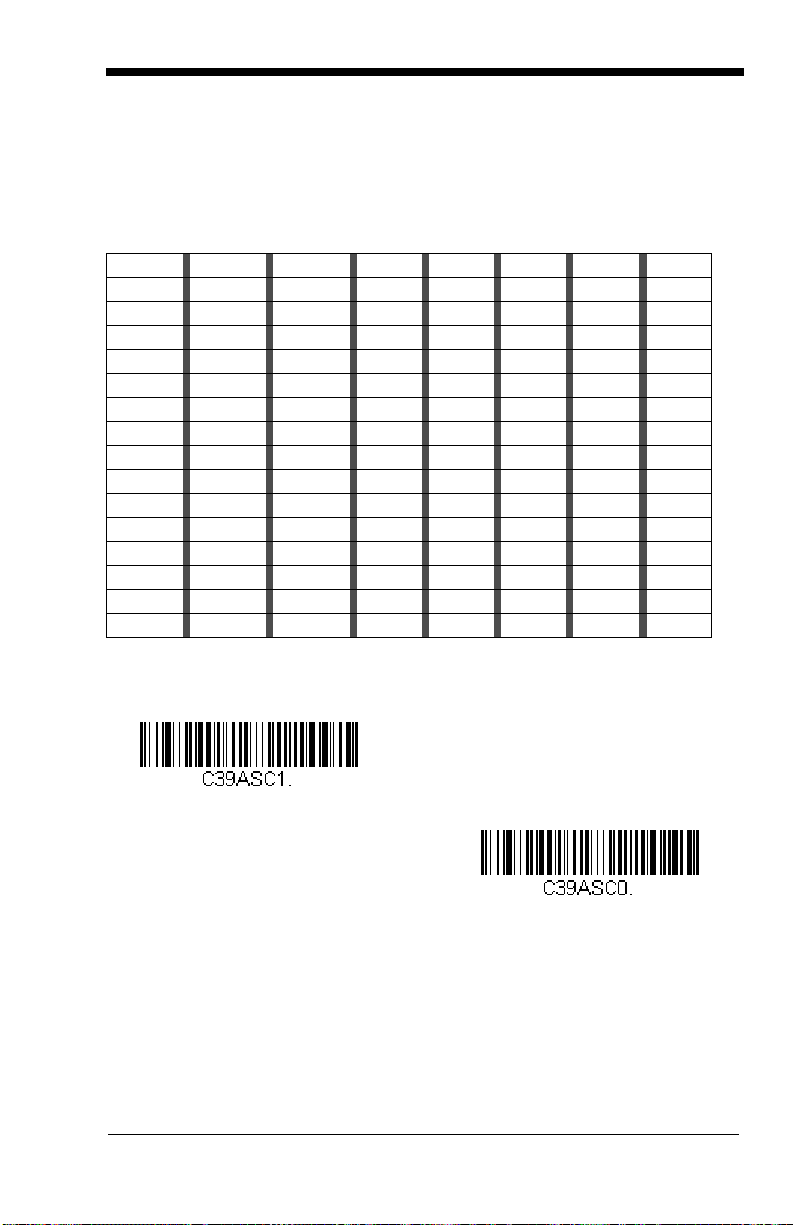

Full ASCII

* Full ASCII Off

Full ASCII On

If Full ASCII Code 39 decoding is enabled, certain character pairs within the bar
code symbol will be interpreted as a single character. For example: $V will be
decoded as the ASCII character SYN, and /C will be decoded as the ASCII
character #.

Default = Off

.

NUL %U DLE $P
SOH $A
STX $B
ETX $C
EOT $D
ENQ $E
ACK $F
BEL $G
BS $H
HT $I
LF $J
VT $K
FF $L
CR $M
SO $N
SI $O

DC1 $Q !/A 11 AAQQa+Aq+Q
DC2 $R “/B 22BBRRb+Br+R
DC3 $S #/C 33CCSSc+Cs+S
DC4 $T $/D 44 DDTT d+Dt+T
NAK $U %/E 55 EEUUe+Eu+U
SYN $V &/F 66 FFVVf+Fv+V
ETB $W ‘/G77GGWW g+Gw+W
CAN $X (/H 88HHXXh+Hx+X
EM $Y )/I 99IIYY i+Iy+Y
SUB $Z */J :/ZJJZZ j+Jz+Z
ESC %A +/K ;%FKK[%Kk+K{%P
FS %B ,/L <%GLL\%Ll+L|%Q
GS %C -- =%HMM ]%Mm+M}%R
RS %D .. >%INN ^%Nn+N~%S
US %E //O ?%JOO_%Oo+ODEL %T

SP SPACE

00@%VPP‘%Wp+P

Character pairs /M and /N decode as a minus sign and period respectively.
Character pairs /P through /Y decode as 0 through 9.

Code 39 Code Page

Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the bar
code being scanned was created using a code page that is different from the
one the host program is expecting. If this is the case, scan the bar code below,
select the code page with which the bar codes were created from the chart,

6 - 9

Code Page Mapping of Printed Bar Codes on page A-5, and scan the value and

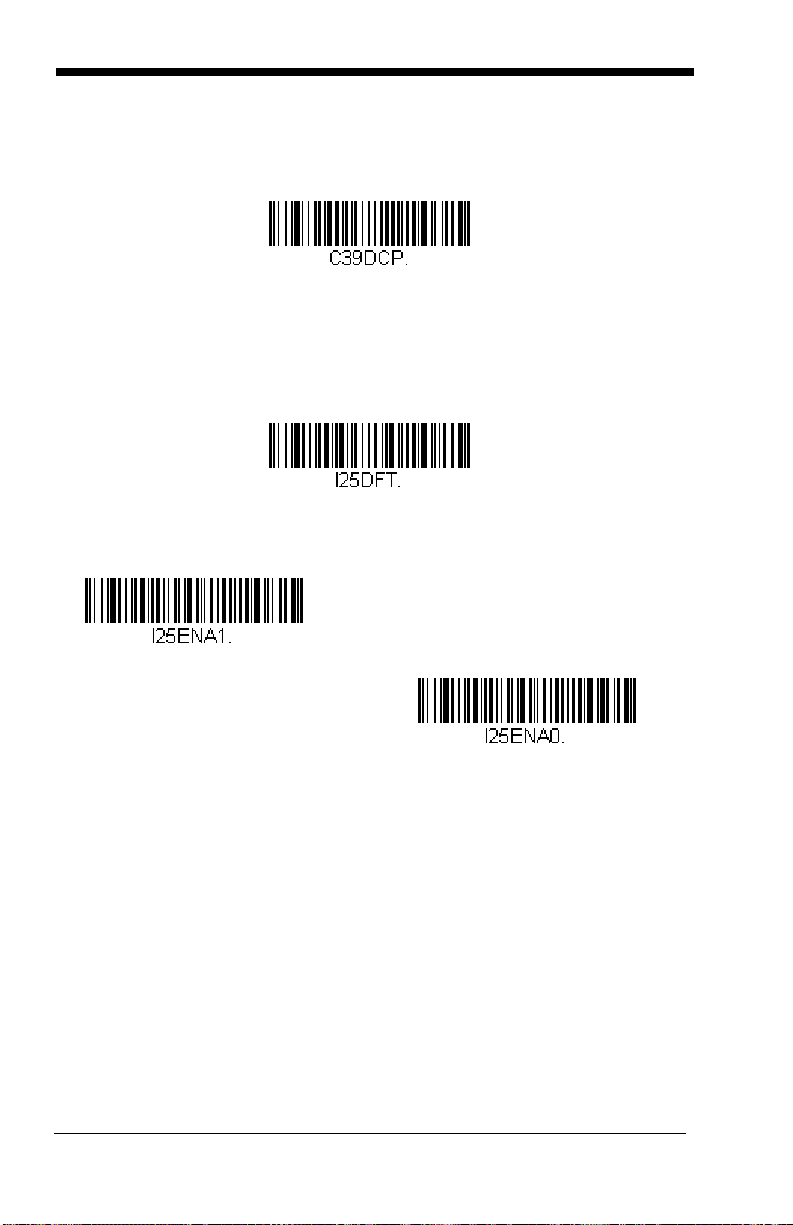

Code 39 Code Page

* On

Off

the Save bar code from the Programming Chart inside the back cover of this
manual. The data characters should then appear properly.

Interleaved 2 of 5

< Default All Interleaved 2 of 5 Settings >

Interleaved 2 of 5

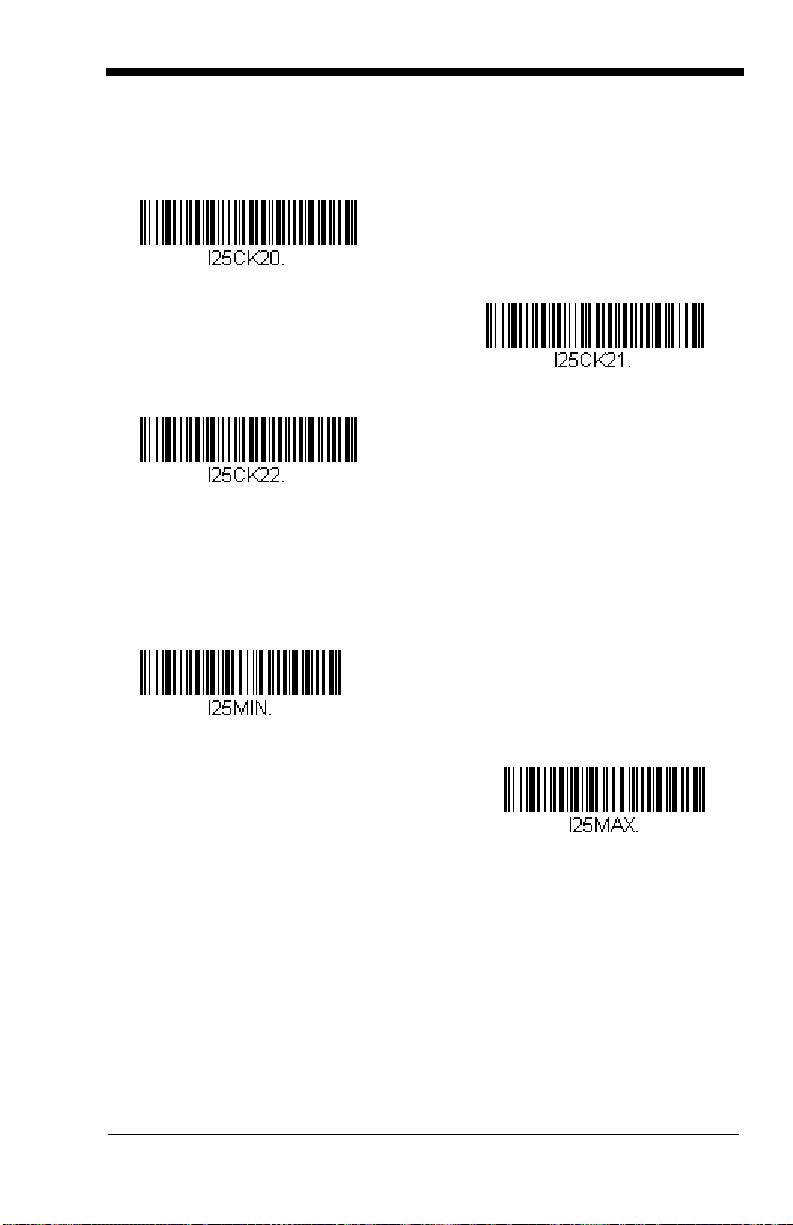

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code data

with or without a check digit.
When Check Digit is set to Validate, but Don’t Transmit, the unit only reads

Interleaved 2 of 5 bar codes printed with a check digit, but will not transmit the
check digit with the scanned data.

6 - 10

When Check Digit is set to Validate and Transmit, the scanner only reads

Validate, but Don’t Transmit

* No Check Digit

Validate and Transmit

Minimum Message Length

Maximum Message Length

Interleaved 2 of 5 bar codes printed with a check digit, and will transmit this digit
at the end of the scanned data.

Default = No Check Digit.

Interleaved 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

6 - 11

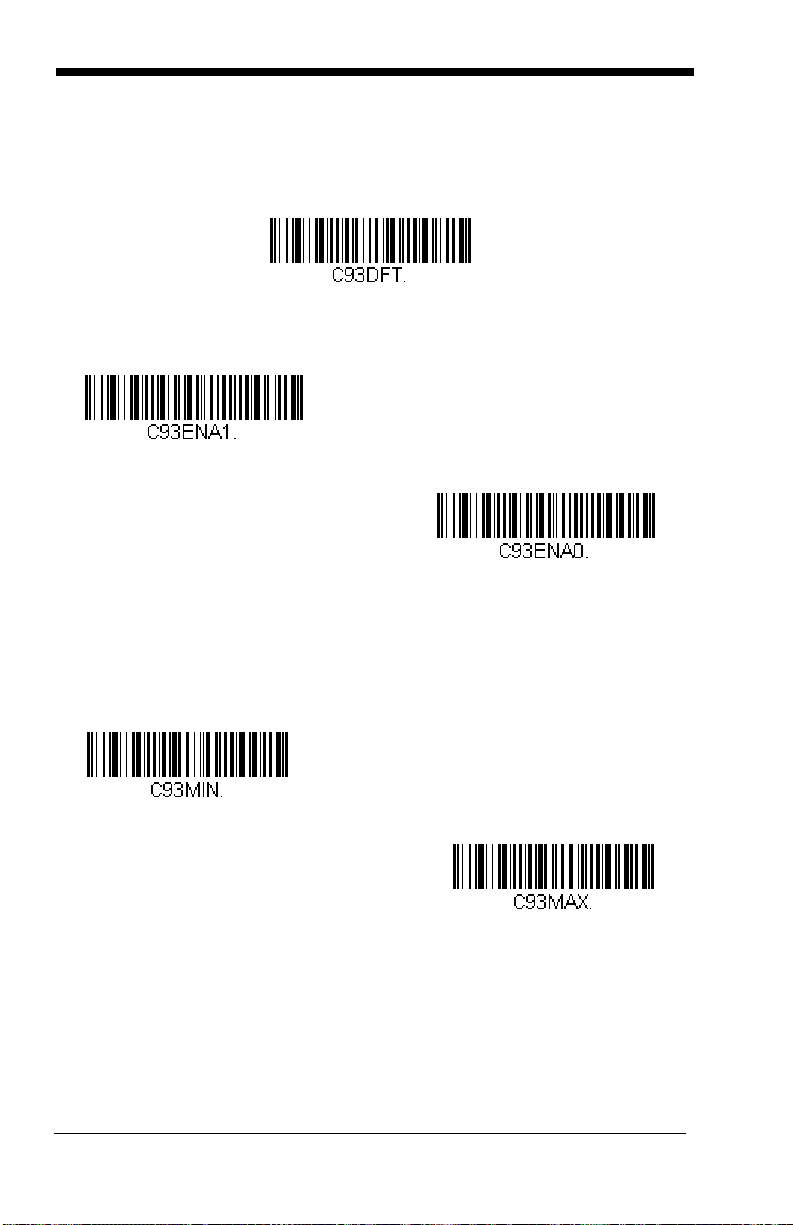

Code 93

* On

Off

Minimum Message Length

Maximum Message Length

< Default All Code 93 Settings >

Code 93

Code 93 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 0-80. Minimum Default = 0, Maximum Default = 80.

Code 93 Code Page

Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the bar
code being scanned was created using a code page that is different from the
one the host program is expecting. If this is the case, scan the bar code below,

6 - 12

select the code page with which the bar codes were created from the chart,

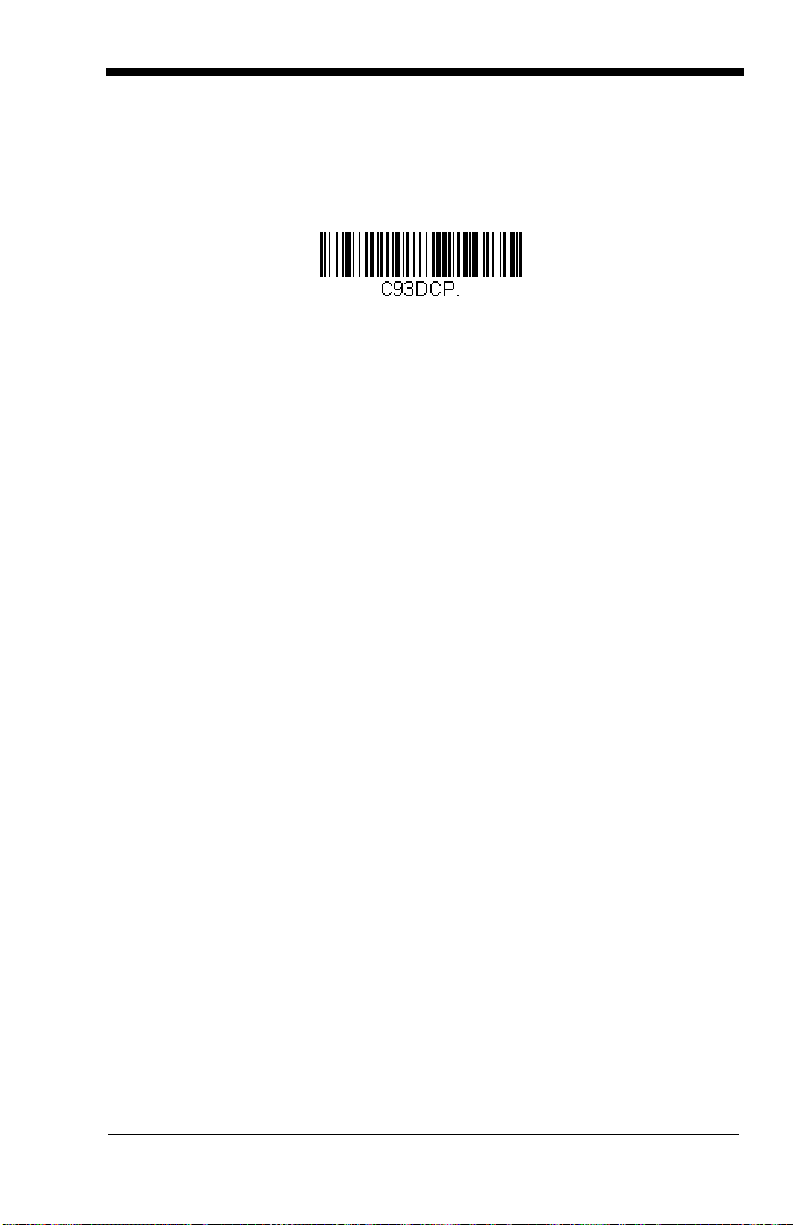

Code 93 Code Page

Code Page Mapping of Printed Bar Codes on page A-5, and scan the value and

the Save bar code from the Programming Chart inside the back cover of this
manual. The data characters should then appear properly.

6 - 13

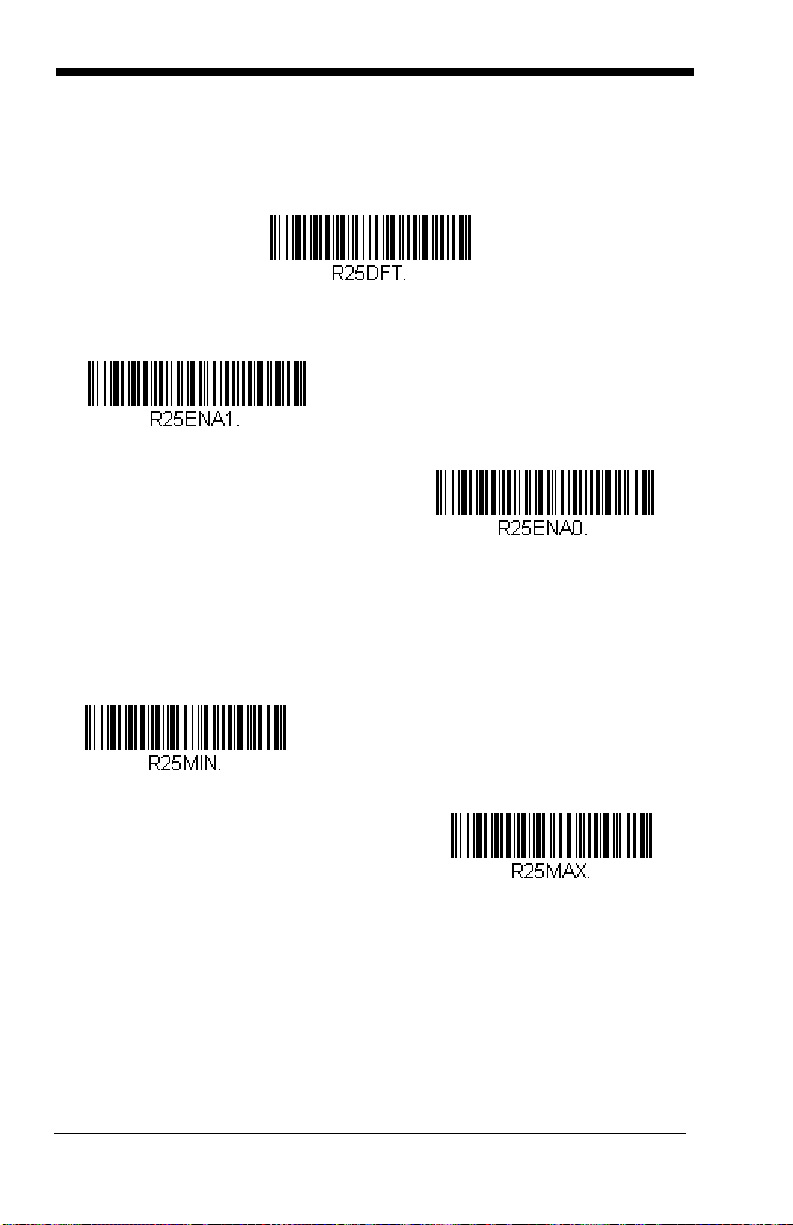

Straight 2 of 5 Industrial (three-bar start/stop)

* On

Off

Minimum Message Length

Maximum Message Length

<Default All Straight 2 of 5 Settings>

Straight 2 of 5 Industrial

Straight 2 of 5 Industrial Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-48. Minimum Default = 4, Maximum Default = 48.

6 - 14

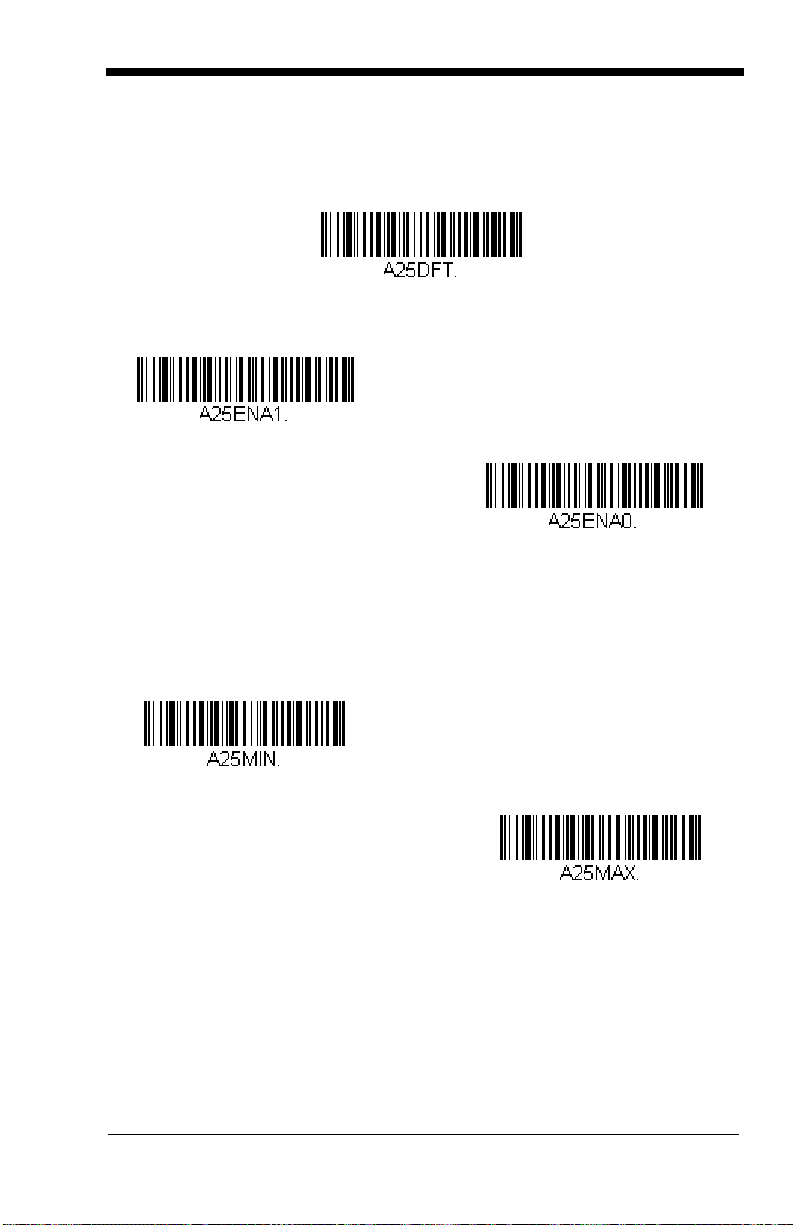

Straight 2 of 5 IATA (two-bar start/stop)

On

Off

Minimum Message Length

Maximum Message Length

<Default All Code IATA 2 of 5 Settings>

Straight 2 of 5 IATA

Straight 2 of 5 IATA Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-48. Minimum Default = 4, Maximum Default = 48.

6 - 15

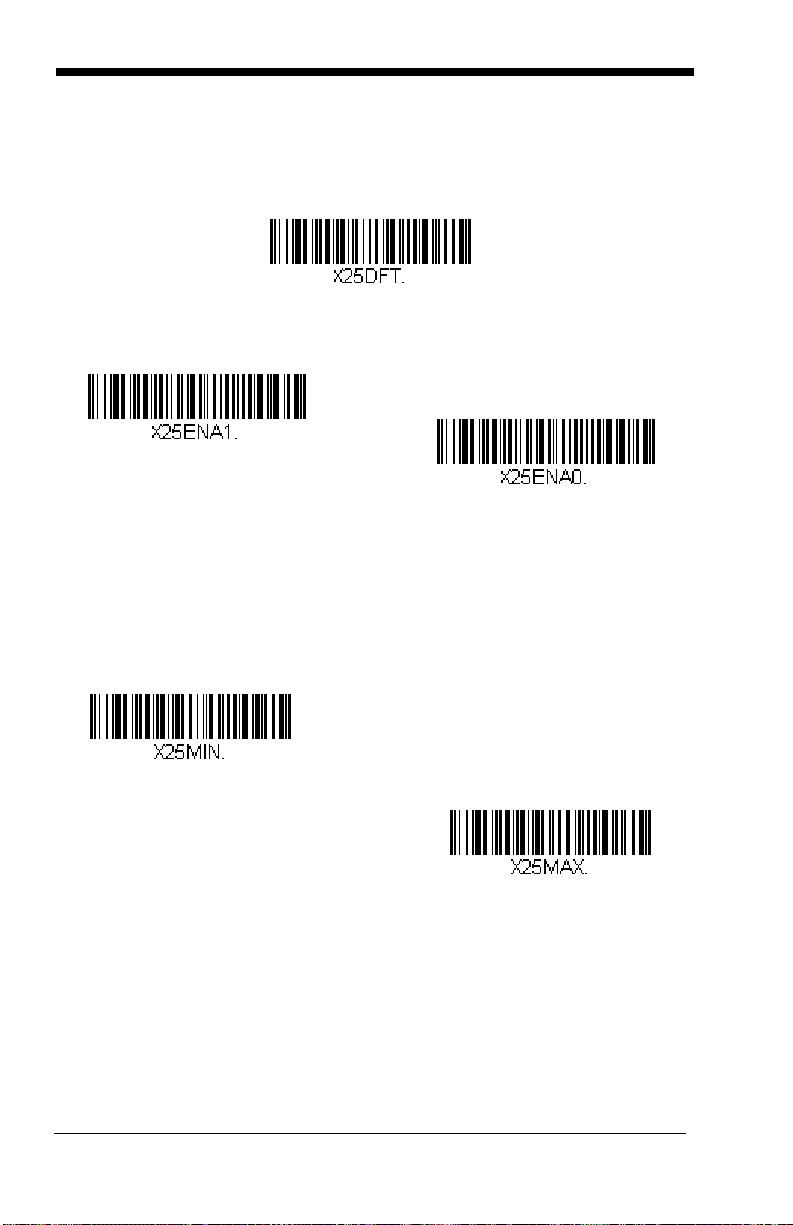

Matrix 2 of 5

On

* Off

Minimum Message Length

Maximum Message Length

<Default All Matrix 2 of 5 Settings>

Matrix 2 of 5

Matrix 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-80. Minimum Default = 4, Maximum Default = 80.

6 - 16

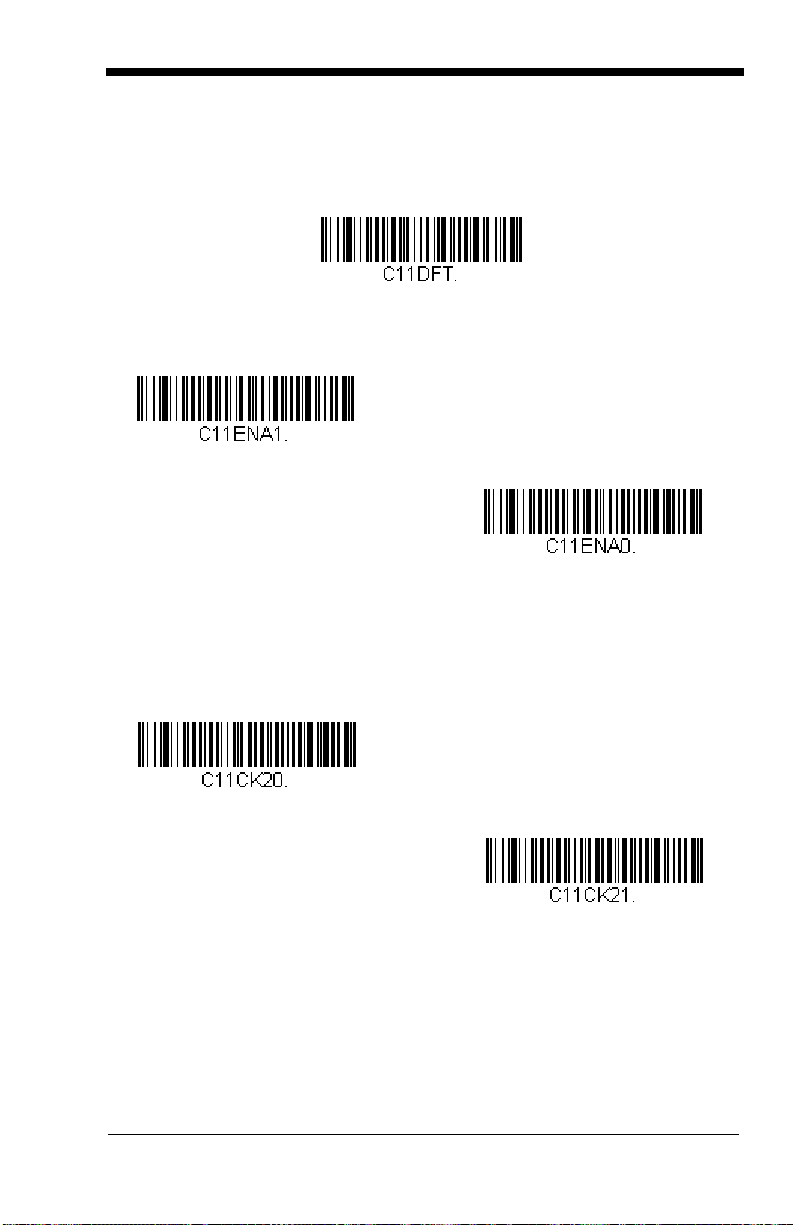

Code 11

On

* Off

One Check Digit

* Two Check Digits

<Default All Code 11 Settings>

Code 11

Check Digits Required

This option sets whether 1 or 2 check digits are required with Code 11 bar
codes.

Default = Two Check Digits.

6 - 17

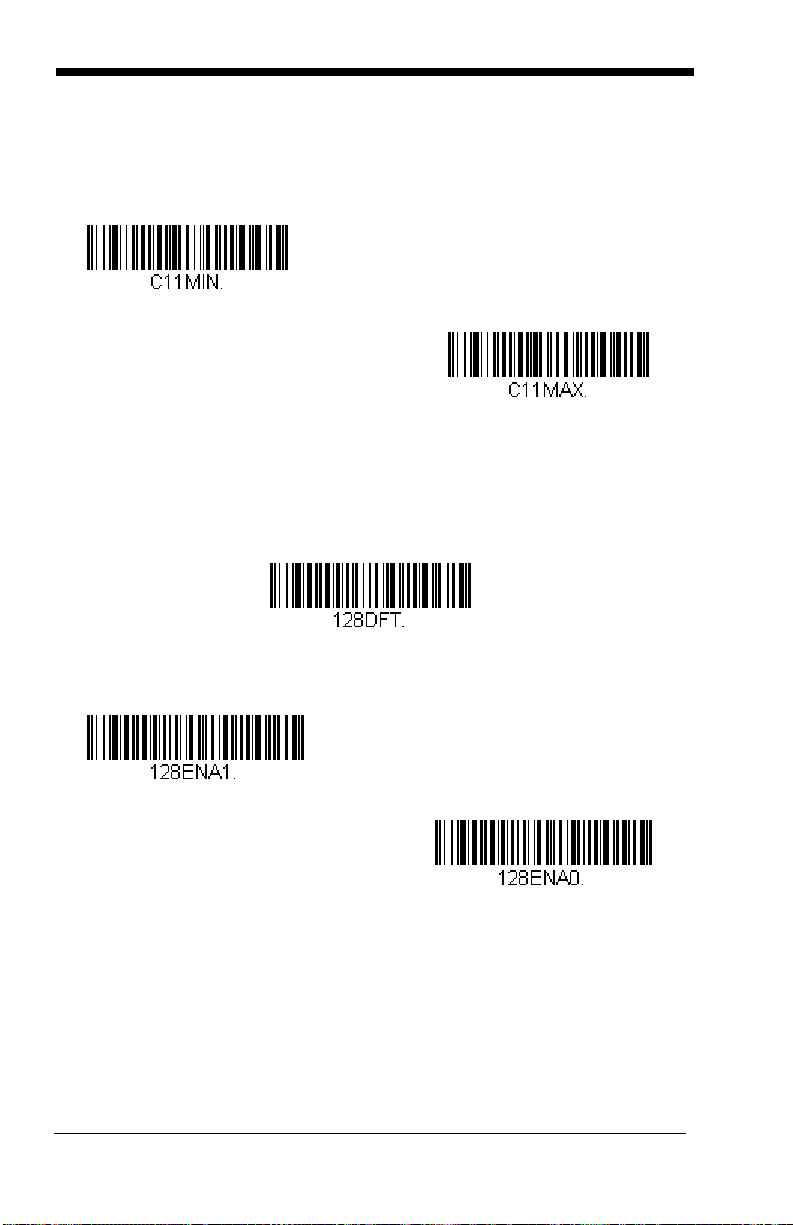

Code 11 Message Length

Minimum Message Length

Maximum Message Length

* On

Off

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-80. Minimum Default = 4, Maximum Default = 80.

Code 128

<Default All Code 128 Settings>

Code 128

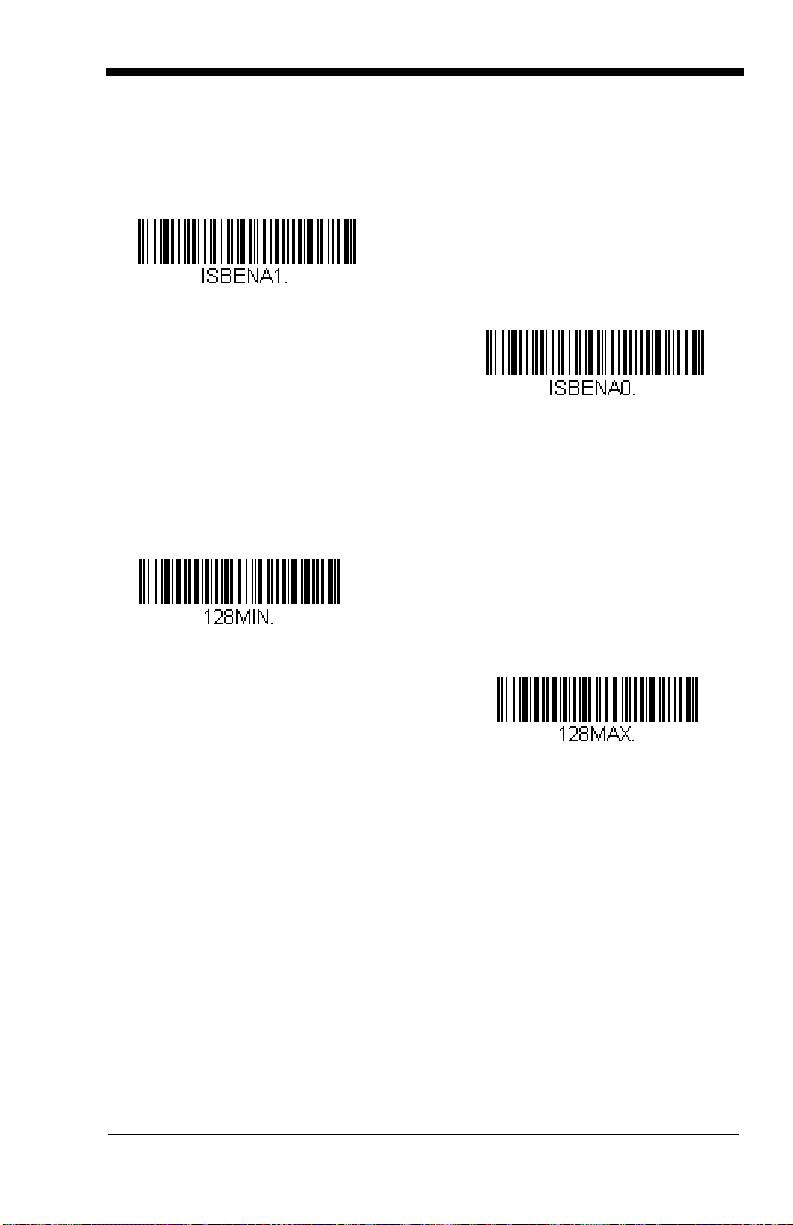

ISBT 128 Concatenation

In 1994 the International Society of Blood Transfusion (ISBT) ratified a standard
for communicating critical blood information in a uniform manner. The use of
ISBT formats requires a paid license. The ISBT 128 Application Specification
describes 1) the critical data elements for labeling blood products, 2) the current
recommendation to use Code 128 due to its high degree of security and its

6 - 18

space-efficient design, 3) a variation of Code 128 that supports concatenation

* Off

On

Minimum Message Length

Maximum Message Length

of neighboring symbols, and 4) the standard layout for bar codes on a blood
product label. Use the bar codes below to turn concatenation on or off.

Default

=Off.

Code 128 Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 0-80. Minimum Default = 0, Maximum Default = 80.

Code 128 Code Page

Code pages define the mapping of character codes to characters. If the data
received does not display with the proper characters, it may be because the bar
code being scanned was created using a code page that is different from the
one the host program is expecting. If this is the case, scan the bar code below,
select the code page with which the bar codes were created from the chart,

Code Page Mapping of Printed Bar Codes on page A-5, and scan the value and

the Save bar code from the Programming Chart inside the back cover of this
manual. The data characters should then appear properly.

6 - 19

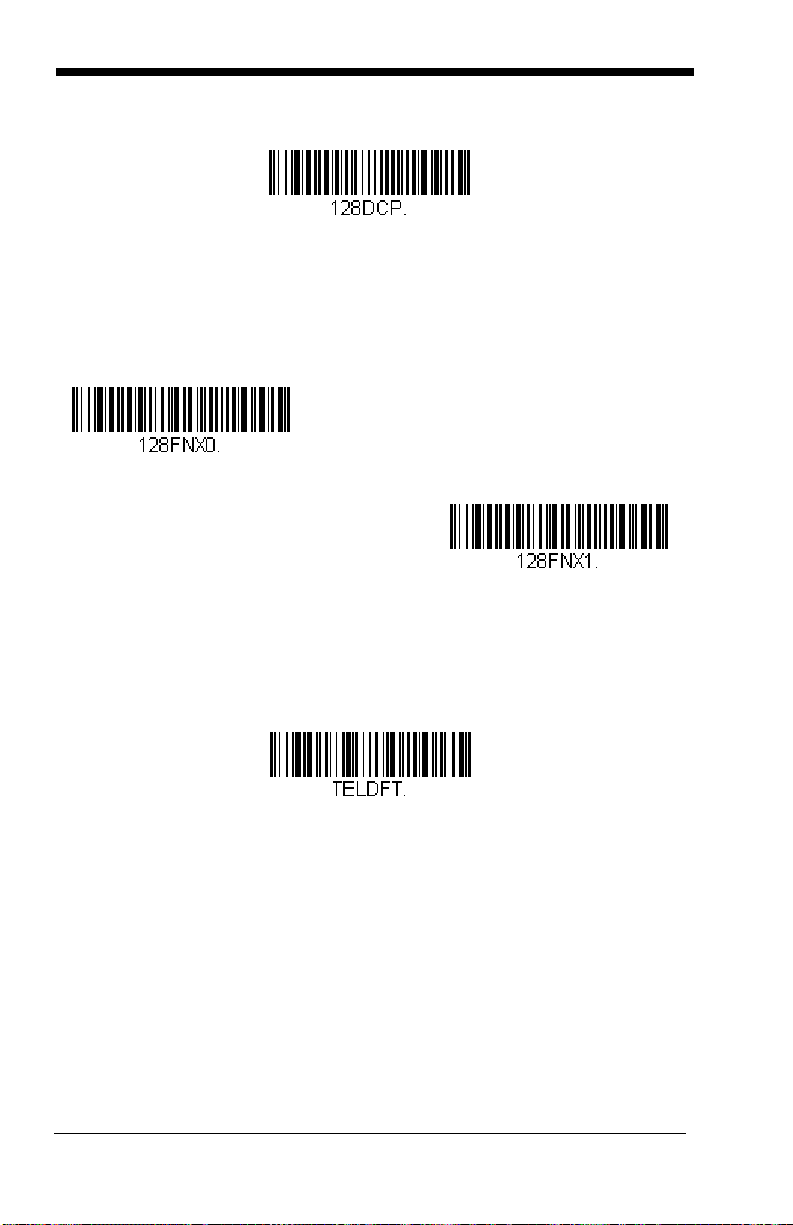

Code 128 Function Code Transmit

Code 128 Code Page

* Function Codes Off

Function Codes On

By default, Code 128 function codes are not transmitted with Code 128 bar
code data. However, if you wish to transmit Code 128 function codes with the
bar code data, scan the Function Codes On bar code, below.

Default = Off

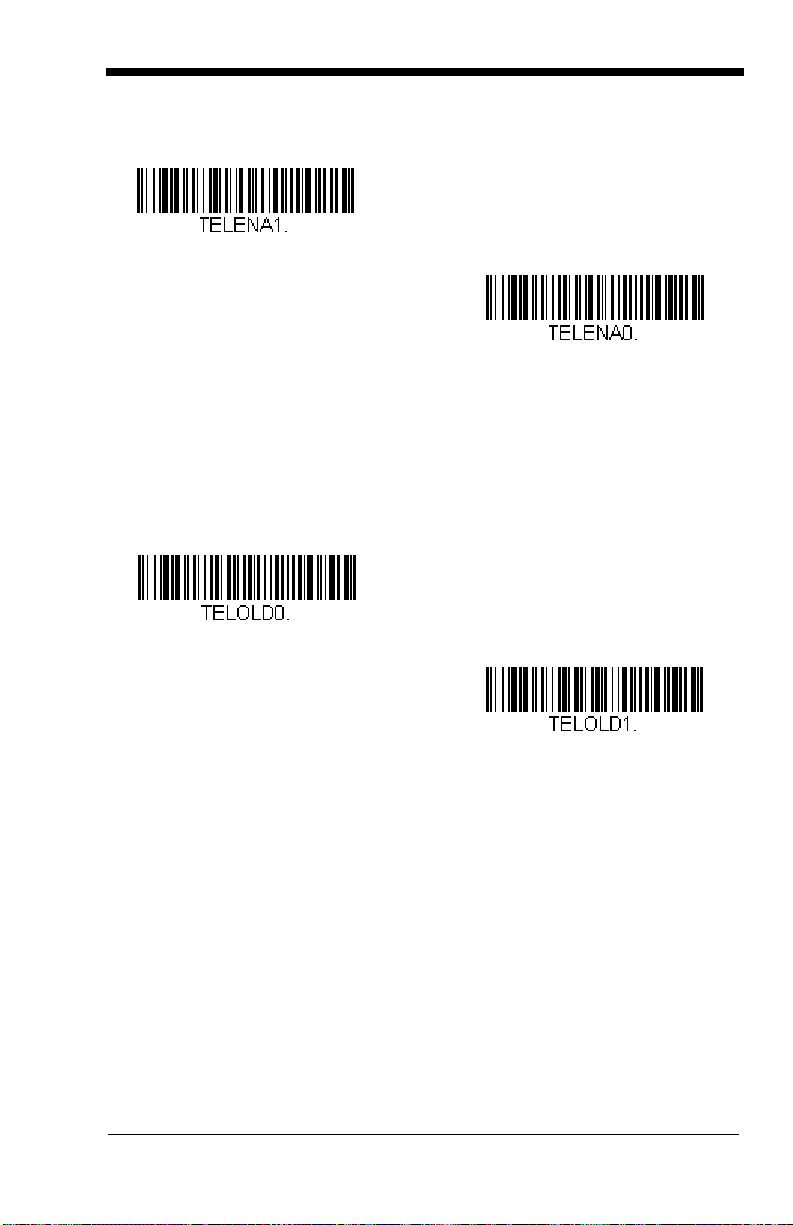

Telepen

<Default All Telepen Settings>

6 - 20

Tel epen

On

* Off

Original Telepen Output

*AIM Telepen Output

Telepen Output

Using AIM Telepen Output, the scanner reads symbols with start/stop pattern 1
and decodes them as standard full ASCII (start/stop pattern 1). When Original
Telepen Output is selected, the scanner reads symbols with start/stop pattern 1
and decodes them as compressed numeric with optional full ASCII (start/stop
pattern 2).

Default = AIM Telepen Output.

6 - 21

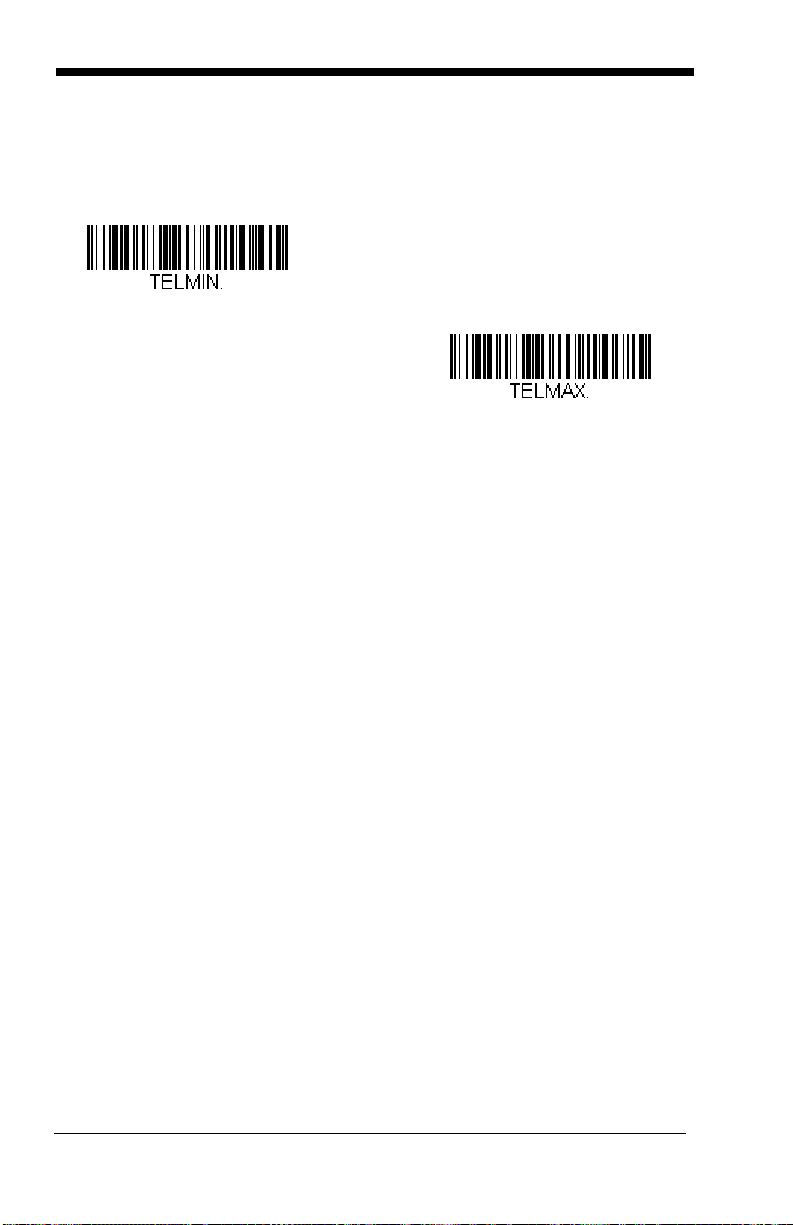

Telepen Message Length

Minimum Message Length

Maximum Message Length

Scan the bar codes below to change the message length. Refer to Message

Length on page 6-2 for additional information. Minimum and Maximum

lengths = 1-60. Minimum Default = 1, Maximum Default = 60.

6 - 22

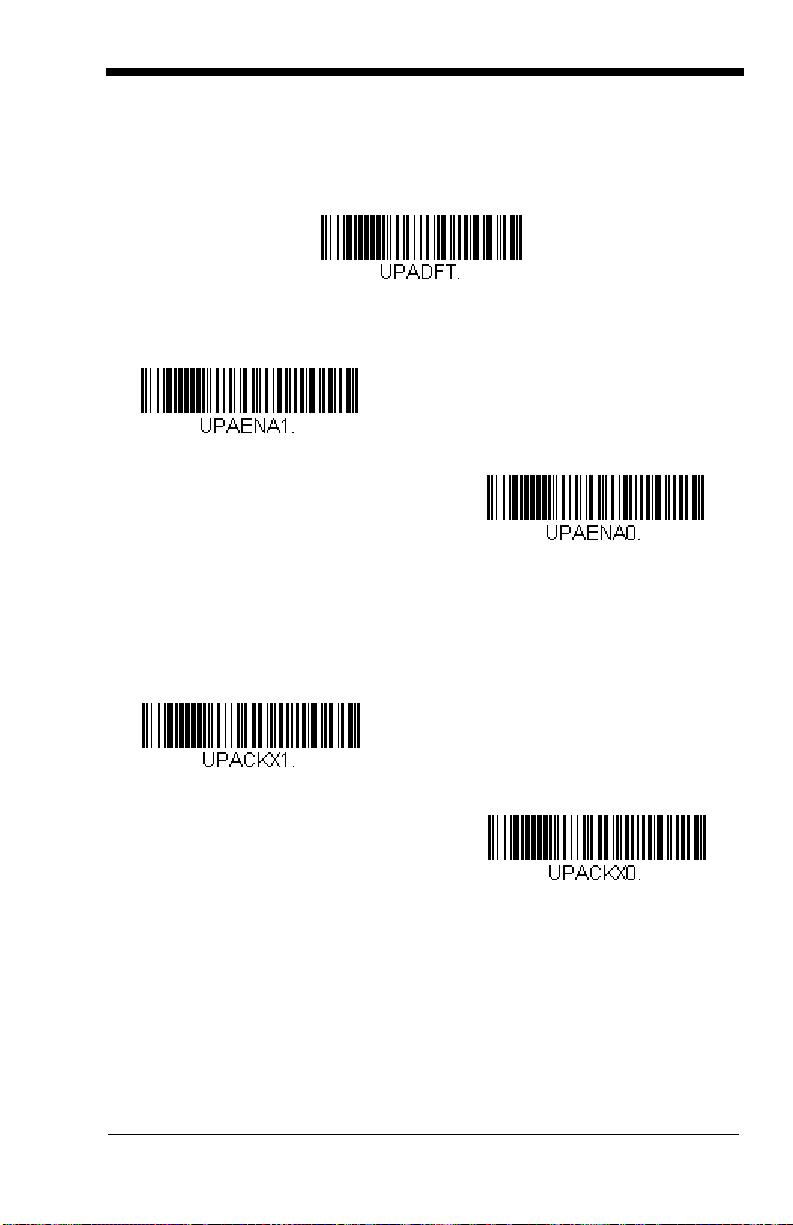

UPC A

* On

Off

* On

Off

<Default All UPC A Settings>

UPC A

UPC A Check Digit

This selection allows you to specify whether the check digit should be transmit­ted at the end of the scanned data or not.

Default = On

.

6 - 23

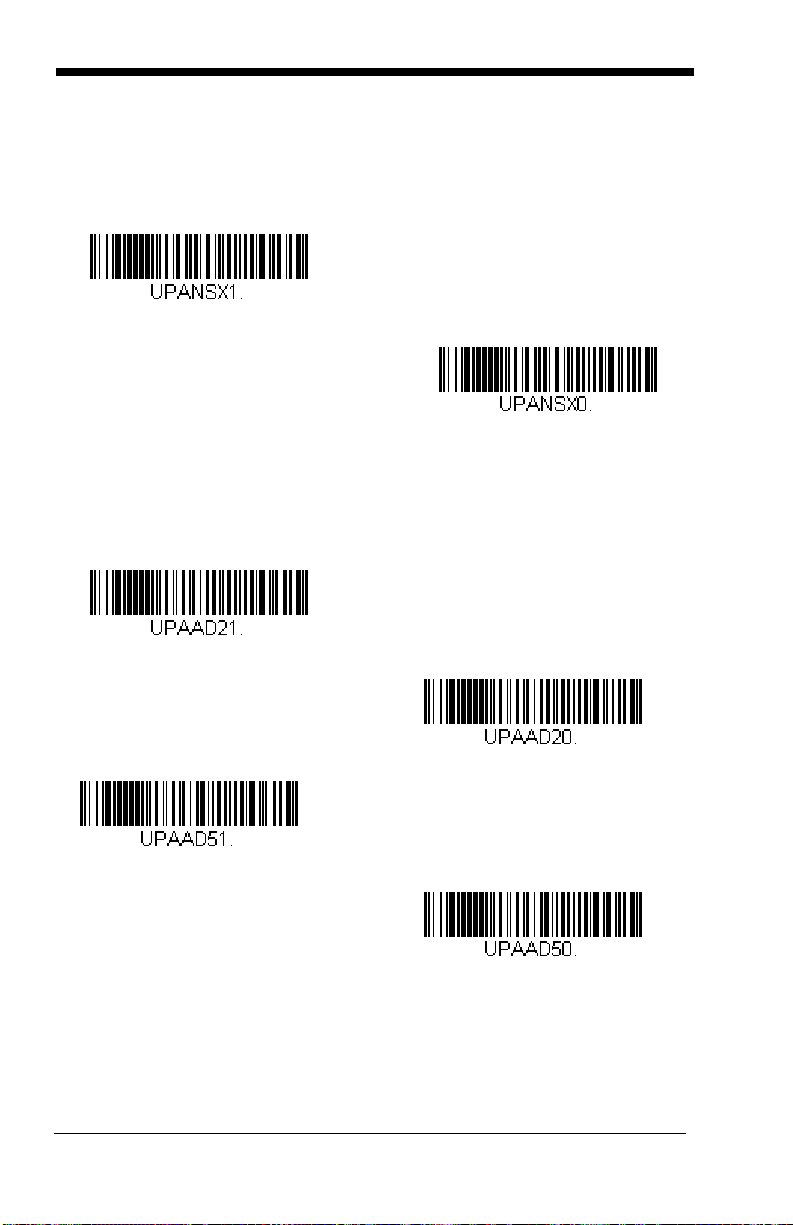

UPC A Number System

Off

* On

* 5 Digit Addenda Off

5 Digit Addenda On

* 2 Digit Addenda Off

2 Digit Addenda On

The numeric system digit of a U.P.C. symbol is normally transmitted at the
beginning of the scanned data, but the unit can be programmed so it will not
transmit it.

Default = On.

UPC A Addenda

This selection adds 2 or 5 digits to the end of all scanned UPC A data.

Default = Off for both 2 Digit and 5 Digit Addenda.

6 - 24

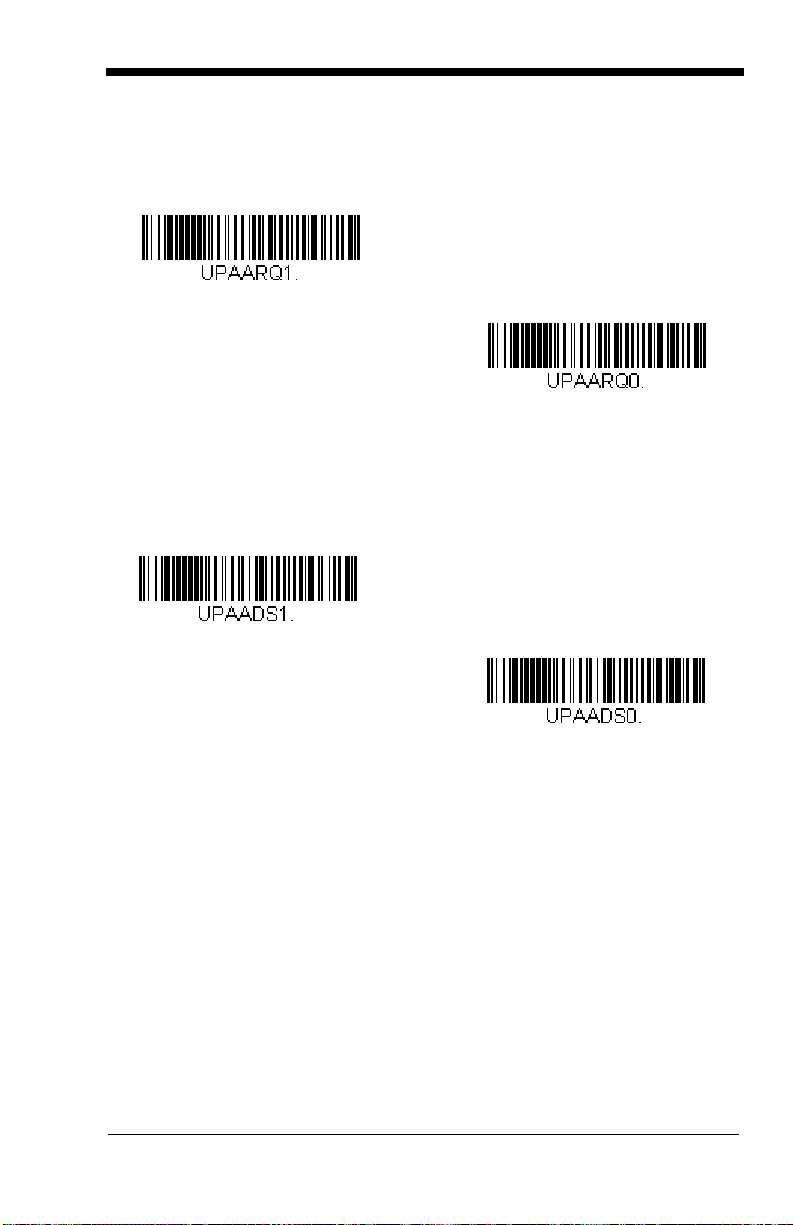

UPC A Addenda Required

* Not Required

Required

Off

* On

When Addenda Required is set to on, the scanner will only read UPC A bar
codes that have addenda.

Default = Not Required.

UPC A Addenda Separator

When this feature is on, there is a space between the data from the bar code
and the data from the addenda. When turned off, there is no space.

Default = On.

6 - 25

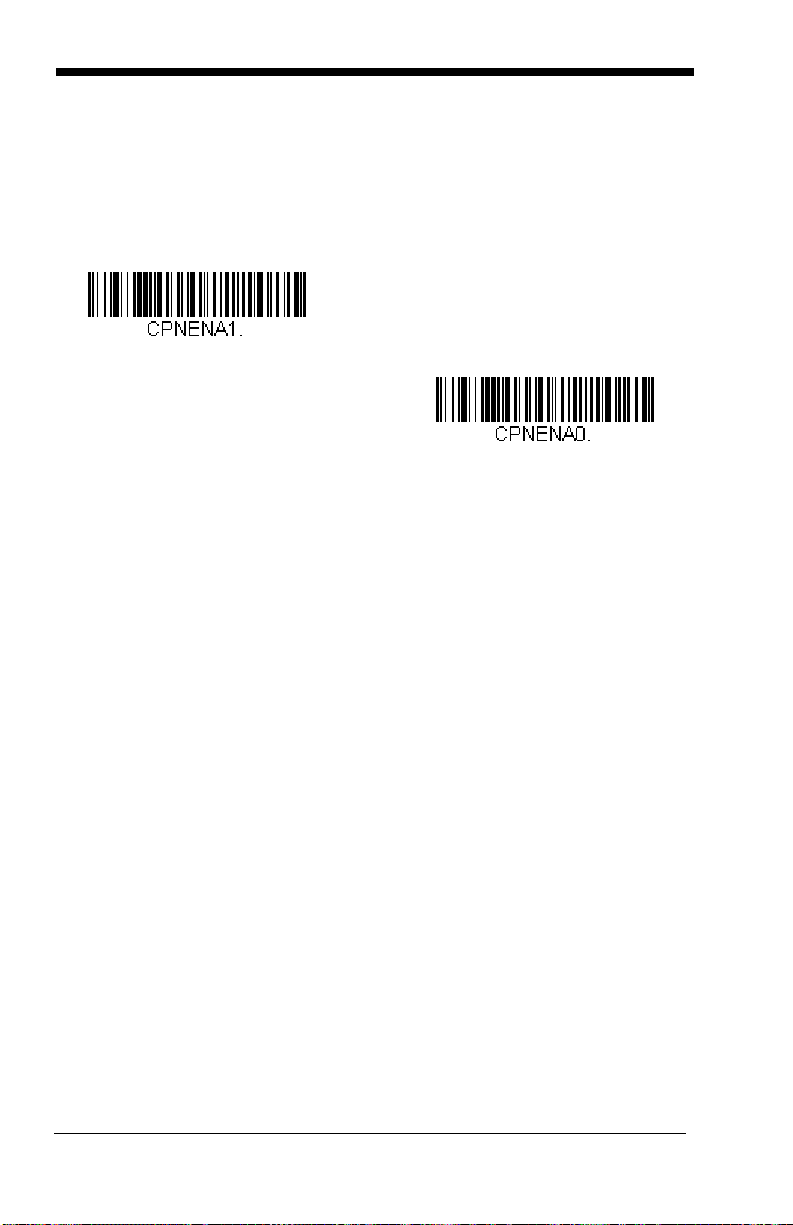

UPC-A/EAN-13

On

* Off

with Extended Coupon Code

Use the following codes to enable or disable UPC-A and EAN-13 with Extended
Coupon Code.

Default = On.

6 - 26

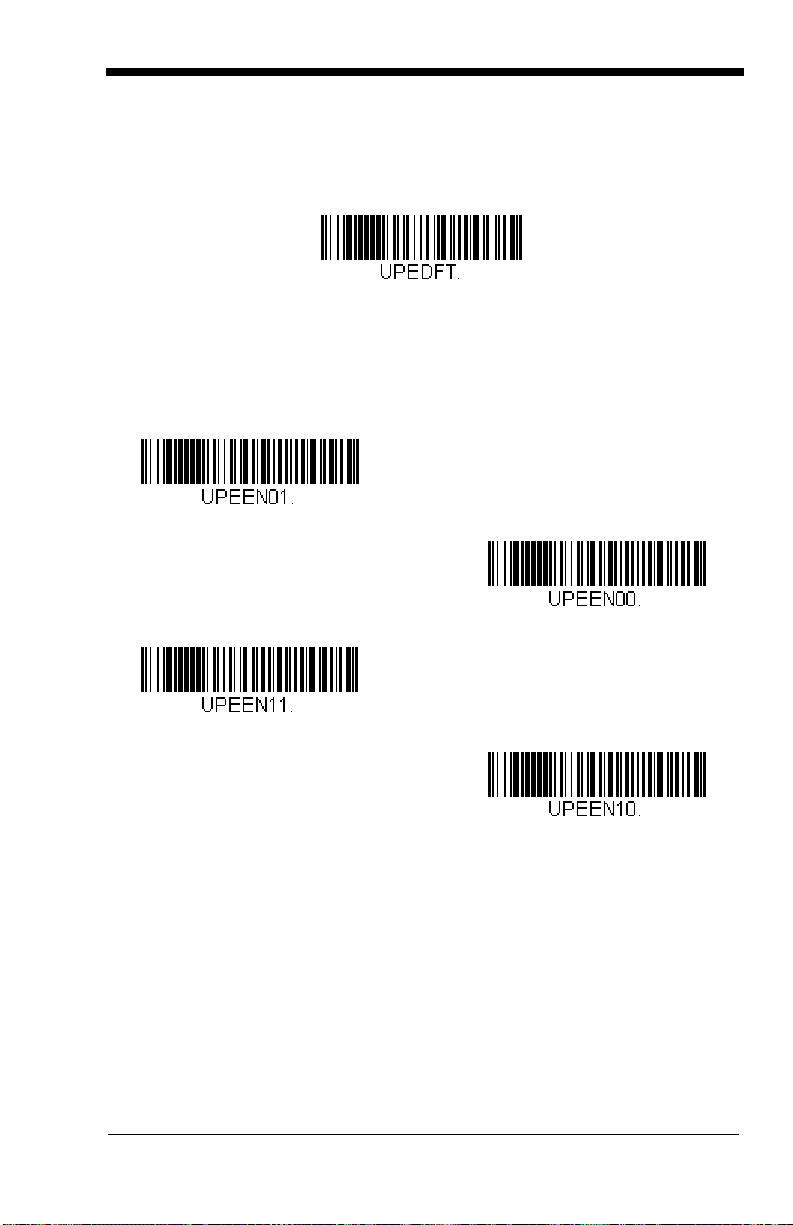

UPC E

* UPC E0 On

UPC E0 Off

UPC E1 On

* UPC E1 Off

<Default All UPC E Settings>

UPC E0 and UPC E1

Most U.P.C. bar codes lead with the 0 number system. For these codes, use the
UPC E0 selection. If you need to read codes that lead with the 1 number sys­tem, use the UPC E1 selection.

Default = On (UPC E0) and Off (UPC E1).

6 - 27

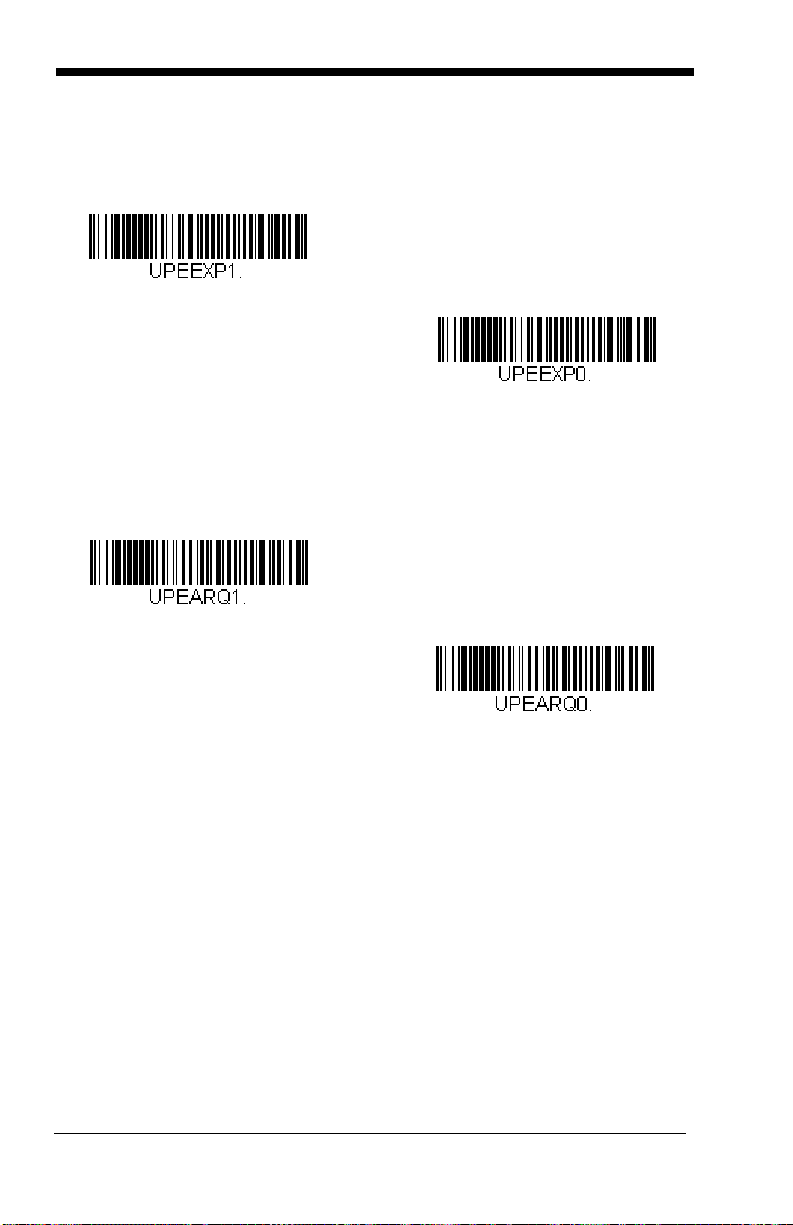

UPC E0 and UPC E1 Expand

* Off

On

* Not Required

Required

UPC E Expand expands the UPC E code to the 12 digit, UPC A format.

Default = Off.

UPC E0 and UPC E1 Addenda Required

When Addenda Required is set to on, the scanner will only read UPC E bar
codes that have addenda.

Default = Not Required.

6 - 28
