Leuze HTU430B Data Sheet

15 - 30 V

DC

IP 67

IEC 60947...

IEC 60947...

IPIP 6868

Factory setting for pin 2 multi funct: teach input

HTU430B ADVANCED ultrasonic sensors with 2 switching outputs

Dimensioned drawing

en 03-2017/02 50125024

300 … 3000mm

 Function largely independent of surface

properties, ideal for detection of liquids,
bulk materials, transparent media, …

 Small design at long scanning range
 Temperature-compensated scanning range
 2 independent PNP switching outputs
 NEW – Both outputs can easily be taught

using a button

 NEW – Stable, all-metal design
 NEW – Process data and configuration via

IO-Link interface

 NEW – Five operating modes:

scanning, synchronous, multiplex, activa­tion and throughbeam operation

Accessories:

(available separately)

 Mounting systems
 Cables with M12 connector

(K-D …)

 Teach adapter PA1/XTSX-M12

(Part no. 50124709)

 USB IO-Link master 2.0

(Part no. 50121098)

We reserve the right to make changes • PAL_HTU430BX3LT4_en_50125024.fm

A Control button 2
B Control button 1
C Indicator diodes
D Active sensor surface

Electrical connection

Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. [phone]

HTU430B-…X3/LT4-M12 - 03

-600

-400

-200

0

200

400

600

0 500 1000 1500 2000 2500 3000

y1

y2

Object distance x [mm]

Width y of the sound cone [mm]

Typ. response behavior (plate 100x 100mm)

-600

-400

-200

0

200

400

600

0 500 1000 1500 2000 2500 3000

y1

y2

Object distance x [mm]

Width y of the sound cone [mm]

Typ. response behavior (rod Ø 27 mm)

Object distance [mm]

Target (fixed):

plate or rod

Sound cone

= f (α,x)

HTU430B

Specifications

Ultrasonic specifications HTU430B-3000.X3/…

Scanning range
Adjustment range 300 … 3000mm
Ultrasonic frequency 120kHz
Typ. opening angle 15°
Resolution switching output 1mm
Direction of beam axial
Accuracy ± 0.5% of end value
Reproducibility ± 0.15% of end value 1)
Switching hysteresis 25mm
Temperature drift ± 1.5% of end value

Sensor operating modes

IO-Link COM2 (38.4kBaud)
SIO is supported

Timing

Switching frequency 4Hz
Response time 125ms
Delay before start-up < 300ms

Electrical data

Operating voltage U

Residual ripple ± 10% of U
Open-circuit current ≤ 50mA
Switching output OUT1: 1 x PNP transistor, IO-Link SIO mode

Function (PNP) 2 x NO contact, reversible
Output current SIO mode: max. 150mA per contact,

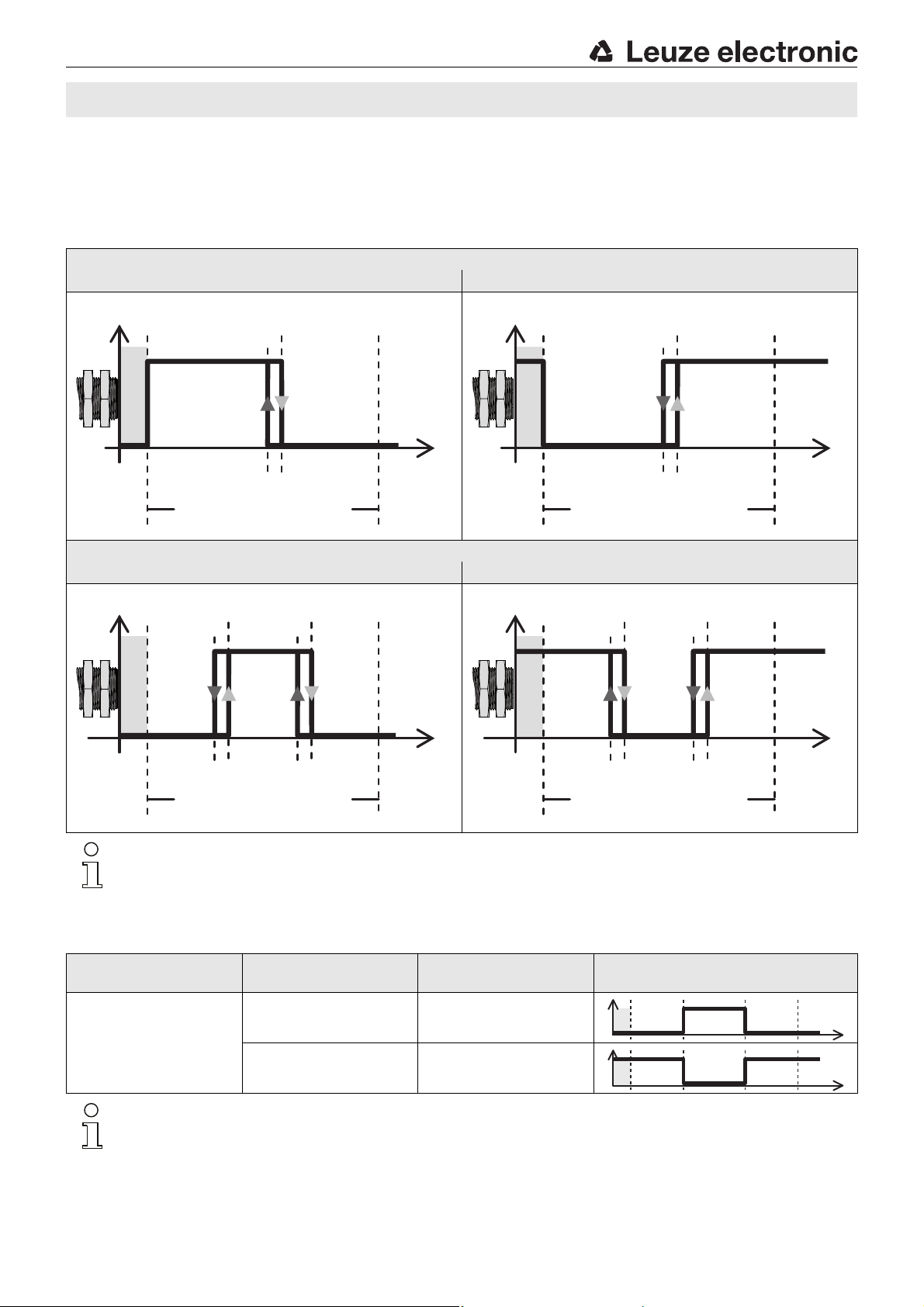

Switching range adjustment OUT1: control button 1 or teach input

Changeover NO/NC OUT1: control button 1 or teach input

Indicators

Yellow LED OUT1: object detected
Yellow LED, flashing teach-in / teaching error / cable short circuit
Green LED object within the scanning range
Green LED flashing IO-Link communication

Mechanical data

Housing all metal - brass, nickel-plated
Weight 110g

Ultrasonic transducer piezoceramic

Connection type M 12 connector, 5-pin
Fitting position any

Environmental data

Ambient temp. (operation/storage) -25°C … +70°C/-30°C … +85°C
Protective circuit
VDE safety class III
Degree of protection IP 67 and IP 68
Standards applied EN 60947-5-2
Certifications UL 508, C22.2 No.14-13

1) At 20°C

2) Target: 100mm x 100 mm plate

3) For UL applications: for use in class 2 circuits according to NEC only

4) The ceramic material of the ultrasonic transducer contains lead zirconium titanate (PZT)

5) 1=short-circuit and overload protection, 2=polarity reversal protection, 3=wire break and inductive protection

6) These proximity switches shall be used with UL Listed Cable assemblies rated 30V, 0.5 A min,
in the field installation, or equivalent (categories: CYJV/CYJV7 or PVVA/PVVA7);
Use tool for buttons

7) Ambient temperature 85°C. Use same voltage supply for all circuits.

1)

3)

B

300 … 3000mm

SIO mode: 15 … 30V DC (incl. ± 10% residual ripple),
COM2 mode: 18 … 30V DC (incl. ± 10% residual ripple)

2)

1)

1)

B

OUT2: 1 x PNP transistor, configurable

COM2 mode: max. 100mA per contact

OUT2: control button 2 or teach input

OUT2: control button 2 or teach input

4)

5)

1, 2, 3

3) 6) 7)

Diagrams

HTU430B-3000…-M12

Remarks

Operate in accordance with
intended use!

 This product is not a safety sensor

and is not intended as personnel
protection.

 The product may only be put into

operation by competent persons.

 Only use the product in accor-

dance with the intended use.

HTU430B-…X3/LT4-M12 - 03 2017/02

HTU430B ADVANCED ultrasonic sensors with 2 switching outputs

Part number code

HTU430B-3000 .X3/LT4-M12

Operating principle
HTU Ultrasonic sensor, scanning principle, with background suppression
DMU Ultrasonic sensor, distance measurement

Series
430B 430B Series, cylindrical M30 construction

Scanning range in mm
3000 300 … 3000

Equipment (optional)
X "Advanced" design
3 Teach button on the sensor

Pin assignment of connector pin 4 / black cable wire (OUT1)
4 PNP output, NO contact preset
P PNP output, NC contact preset
L IO-Link communication or push-pull (SIO)

Pin assignment of connector pin 2 / white cable wire (Teach-IN)
T Teach input

Pin assignment of connector pin 5 / gray cable wire (OUT2)
4 PNP output, NO contact preset
P PNP output, NC contact preset
V Analog voltage output 0 … 10V
C Analog current output 4 … 20mA
X Connection not assigned (n. c.- not connected)

Connection technology
M12 M12 connector, 5-pin

Order guide

The sensors listed here are preferred types; current information at www.leuze.com.

Designation Part no.

Scanning range

300 … 3000mm HTU430B-3000.X3/LT4-M12 50124273
