Leuze GSU 710/22.4 Data Sheet

IP 40

IEC 68...

IEC 801...

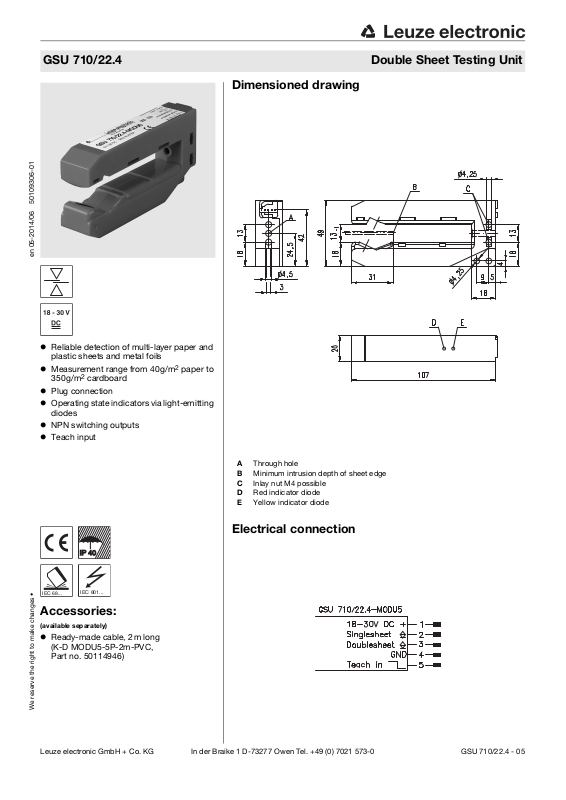

GSU 710/22.4 Double Sheet Testing Unit

Dimensioned drawing

en 05-2014/06 50109306-01

 Reliable detection of multi-layer paper and

plastic sheets and metal foils

 Measurement range from 40g/m2 paper to

350g/m

2

cardboard

 Plug connection
 Operating state indicators via light-emitting

diodes

 NPN switching outputs
 Teach input

Accessories:

(available separately)

 Ready-made cable, 2m long

(K-D MODU5-5P-2m-PVC,
Part no. 50114946)

A Through hole
B Minimum intrusion depth of sheet edge
C Inlay nut M4 possible
D Red indicator diode
E Yellow indicator diode

Electrical connection

We reserve the right to make changes •

Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. [phone]

GSU 710/22.4 - 05

GSU 710/22.4

Specifications

Physical data

Mouth width 13mm
Mouth depth 89mm
Minimum intrusion depth 31mm
Converter frequency approx. 330kHz

Timing

Switching frequency 200Hz
Response time 5ms
Delay before start-up ≤ 300 ms acc. to IEC 60947-5-2

Electrical data

Operating voltage UB 18 … 30VDC (incl. residual ripple)
Residual ripple ≤ 15 % of U
Open-circuit current ≤ 40mA
Switching outputs 2 NPN transistor outputs
Function characteristics single sheet detected, or ≥ 1 sheet

Signal voltage high/low ≥ (U
Output current max. 100mA per output

double sheet detected, or ≥ 2 sheets

Indicators

Yellow LED single sheet detected
Red LED double sheet detected

Mechanical data

Housing plastic
Color red
Weight approx. 100g
Connection type AMP-Modu, 5-pin

Environmental data

Ambient temp. (operation/storage) 0°C … +50°C/-40°C … +70°C
Protective circuit
VDE safety class II, all-insulated
Protection class IP 40
Standards applied IEC 60947-5-2

1)

1, 2, 3

Options

Teach-in input

Teach-in input resistance Rin: 10kΩ
Teach-in active/not active ≤ 2V/≥ 10V or not connected
Teach-in duration max. 100ms
Teach-in delay approx.. 300 ms

1) 1=transient protection, 2=polarity reversal protection, 3=short circuit protection for all outputs

-2V)/≤ 2V

B

B

Mode of operation

The "singlesheet" output
signals that an object is
within the detection range.
This output may be used to
check for presence. A
detected double sheet is
signalled at the
"doublesheet" output.

By applying a low signal to
the teach-in input, the
calibration process is
started. If a sheet is then
transported through the
detection range, a calibration
to this medium takes place.
The calibration process is
completed after approx. 100
ms. The additional teach-in
allows the measurement
range limits to be extended
somewhat.

When switched back on, the
sensor again functions in
standard mode
40-350g/m².

Order guide

Designation Part No.

GSU 710/22.4-MODU5 50108700

Remarks

 Intended use:

The GSU 710 double sheet
testing unit is a monitoring
unit predominately designed
for single sheet checking in
paper processing machines.

Operate in accordance with
intended use!

 This product is not a safety sensor

and is not intended as personnel
protection.

 The product may only be put into

operation by competent persons.

 Only use the product in accor-

dance with the intended use.

GSU 710/22.4 - 05 2014/06
