Leuze BPS 37 Operating Instructions
BPS 37
Bar code positioning system - SSI interface
en 02-2016/10 50124376
We reserve the right to
make technical changes
Original operating instructions
Table of contents
1 General information ........................................................................................................... 3
1.1 Explanation of symbols ........................................................................................................ 3
1.2 Declaration of Conformity ....................................................................................................3
2 Safety .................................................................................................................................. 4
2.1 Intended use ........................................................................................................................ 4
2.2 Foreseeable misuse............................................................................................................. 5
2.3 Competent persons.............................................................................................................. 5
2.4 Exemption of liability ............................................................................................................ 6
2.5 Laser safety notices ............................................................................................................. 6
3 Description ......................................................................................................................... 8
3.1 Device construction of the BPS 37 ...................................................................................... 8
3.2 Application ........................................................................................................................... 8
3.3 Function ............................................................................................................................... 8
3.4 Advantages .......................................................................................................................... 9
3.5 Stand-alone operation.......................................................................................................... 9
4 Technical data .................................................................................................................. 12
4.1 General specifications BPS 37 .......................................................................................... 12
4.2 LED indicators.................................................................................................................... 13
4.3 Dimensioned drawings....................................................................................................... 13
4.4 BPS 37 reading field curve ................................................................................................ 15
5 Accessories/order codes ................................................................................................ 16
5.1 Accessories........................................................................................................................ 16
5.1.1 Connection units / connector hood..............................................................................................16
5.1.2 Mounting accessories.................................................................................................................. 18
5.1.3 Interconnection cable...................................................................................................................18
6 Installation ........................................................................................................................ 19
6.1 Storage, transportation ......................................................................................................19
6.2 Mount ................................................................................................................................. 19
6.2.1 Device arrangement ....................................................................................................................21
6.3 Connect.............................................................................................................................. 24
6.3.1 Connecting the BPS 37 (SSI) ......................................................................................................24
6.3.2 Connecting the SSI interface.......................................................................................................25
6.3.3 Connecting the switching input and switching output ..................................................................27
6.3.4 Connection with MS 37 103 modular connector hood.................................................................28
6.3.5 Cable lengths and shielding.........................................................................................................31
6.4 Disassembling, packing, disposing .................................................................................... 31
Leuze electronic BPS 37 1
Table of contents
7 Commissioning ................................................................................................................ 32
7.1 Measures to be performed prior to the initial commissioning............................................. 32
7.2 Function Test ..................................................................................................................... 32
7.3 Setting the parameters.......................................................................................................32
7.3.1 Parameter sets.............................................................................................................................33
7.3.2 Service operating mode ...............................................................................................................33
8 Operation .......................................................................................................................... 35
8.1 BPS 37 display elements ................................................................................................... 35
8.2 MS 37 103 display elements.............................................................................................. 35
9 Communication with the device ..................................................................................... 36
9.1 Installing the "BPSConfig" software ................................................................................... 36
9.2 Overview of commands and parameters ........................................................................... 38
9.2.1 General online commands ...........................................................................................................38
9.2.2 General parameter structure........................................................................................................39
10 Maintenance .....................................................................................................................40
10.1 General maintenance information...................................................................................... 40
10.2 Repairs, servicing .............................................................................................................. 40
2 BPS 37 Leuze electronic
1 General information
U
L
US
C
LISTED
1.1 Explanation of symbols
The symbols used in this technical description are explained below.
Attention!
This symbol precedes text messages which must strictly be observed. Failure to observe the
provided instructions could lead to personal injury or damage to equipment.
Attention Laser!
This symbol warns of possible danger through hazardous laser radiation.
Note!
This symbol indicates text passages containing important information.
1.2 Declaration of Conformity
The bar code positioning system BPS 37, the modular connector hood MS 37 103, and the
optional connection units MA 4.7/MA 4D.7 have been developed and manufactured in
accordance with the applicable European standards and directives.
The devices of the BPS 37 series also fulfill the cUL requirements (Underwriters Laboratory
Inc.) for the USA and Canada.
General information
Note!
The corresponding declaration of conformity can be requested from the manufacturer.
The manufacturer of the product, Leuze electronic GmbH & Co. KG in D-73277 Owen,
possesses a certified quality assurance system in accordance with ISO 9001.
Leuze electronic BPS 37 3
TNT 35/7-24V
Safety
2 Safety
The bar code positioning systems of the BPS 37 series, the MS 37 103 modular connector
hoods and the optional MA 4.7/MA 4D.7 connection units have been developed, produced
and tested subject to the applicable safety standards. They correspond to the state of the art.
2.1 Intended use
Bar code positioning systems of the BPS 37 series are optical measuring systems which use
visible red laser light to determine the position of the BPS relative to a permanently mounted
bar code tape.
The modular connector hood MS 37 103 is intended for the easy connection of bar code
positioning systems of type BPS 37 with M12 connection technology.
The modular service display MSD 1 101, which is optionally available, displays operational
data of the BPS 37 and is used as a simple means of access to the service interface of the
MS 37 103.
Areas of application
The BPS 37 bar code positioning systems are designed for the following areas of application:
• High-bay storage devices: Positioning in the travel and lifting axes
•Crane bridges and trolleys
• Side-tracking skates
•Telpher lines
•Elevators
CAUTION
Observe intended use!
Only operate the device in accordance with its intended use. The protection of per-
sonnel and the device cannot be guaranteed if the device is operated in a manner not
complying with its intended use.
Leuze electronic GmbH + Co. KG is not liable for damages caused by improper use.
Read the technical description before commissioning the device. Knowledge of this
technical description is an element of proper use.
NOTE
Comply with conditions and regulations!
Observe the locally applicable legal regulations and the rules of the employer's liability
insurance association.
Attention
For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC
(National Electric Code).
4 BPS 37 Leuze electronic
2.2 Foreseeable misuse
Any use other than that defined under "Intended use" or which goes beyond that use is
considered improper use.
In particular, use of the device is not permitted in the following cases:
• in rooms with explosive atmospheres
• as stand-alone safety component in accordance with the machinery directive
• for medical purposes
NOTE
Do not modify or otherwise interfere with the device!
Do not carry out modifications or otherwise interfere with the device.
The device must not be tampered with and must not be changed in any way.
The device must not be opened. There are no user-serviceable parts inside.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.
2.3 Competent persons
Connection, mounting, commissioning and adjustment of the device must only be carried
out by competent persons.
Prerequisites for competent persons:
• They have a suitable technical education.
• They are familiar with the rules and regulations for occupational safety and safety at
work.
• They are familiar with the technical description of the device.
• They have been instructed by the responsible person on the mounting and operation
of the device.
Safety
1)
Certified electricians
Electrical work must be carried out by a certified electrician.
Due to their technical training, knowledge and experience as well as their familiarity with
relevant standards and regulations, certified electricians are able to perform work on electrical systems and independently detect possible dangers.
In Germany, certified electricians must fulfill the requirements of accident-prevention regulations BGV A3 (e.g. electrician foreman). In other countries, there are respective regulations that must be observed.
1) Use as safety-related component within the safety function is possible, if the component combination is designed
correspondingly by the machine manufacturer.
Leuze electronic BPS 37 5
TNT 35/7-24V
Safety
2.4 Exemption of liability
Leuze electronic GmbH + Co. KG is not liable in the following cases:
• The device is not being used properly.
• Reasonably foreseeable misuse is not taken into account.
• Mounting and electrical connection are not properly performed.
• Changes (e.g., constructional) are made to the device.
2.5 Laser safety notices
ATTENTION, LASER RADIATION – LASER CLASS 2
Never look directly into the beam!
The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety
regulations for a product of laser class 2 as well as the U.S. 21 CFR 1040.10 regulations
with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.
Never look directly into the laser beam or in the direction of reflected laser beams!
If you look into the beam path over a longer time period, there is a risk of injury to the
retina.
Do not point the laser beam of the device at persons!
Interrupt the laser beam using a non-transparent, non-reflective object if the laser
beam is accidentally directed towards a person.
When mounting and aligning the device, avoid reflections of the laser beam off reflec-
tive surfaces!
CAUTION! The use of operating or adjusting devices other than those specified here
or carrying out of differing procedures may lead to dangerous exposure to radiation.
Observe the applicable statutory and local laser protection regulations.
The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.
6 BPS 37 Leuze electronic
NOTE
A Laser aperture
B Laser warning sign
C Laser information sign with laser parameters
B
B
C
A
Affix laser information and warning signs!
Laser information and warning signs are attached to the device (see Figure 2.1):
Safety
Figure 2.1: Laser apertures, laser warning and information signs
Leuze electronic BPS 37 7
TNT 35/7-24V
Description

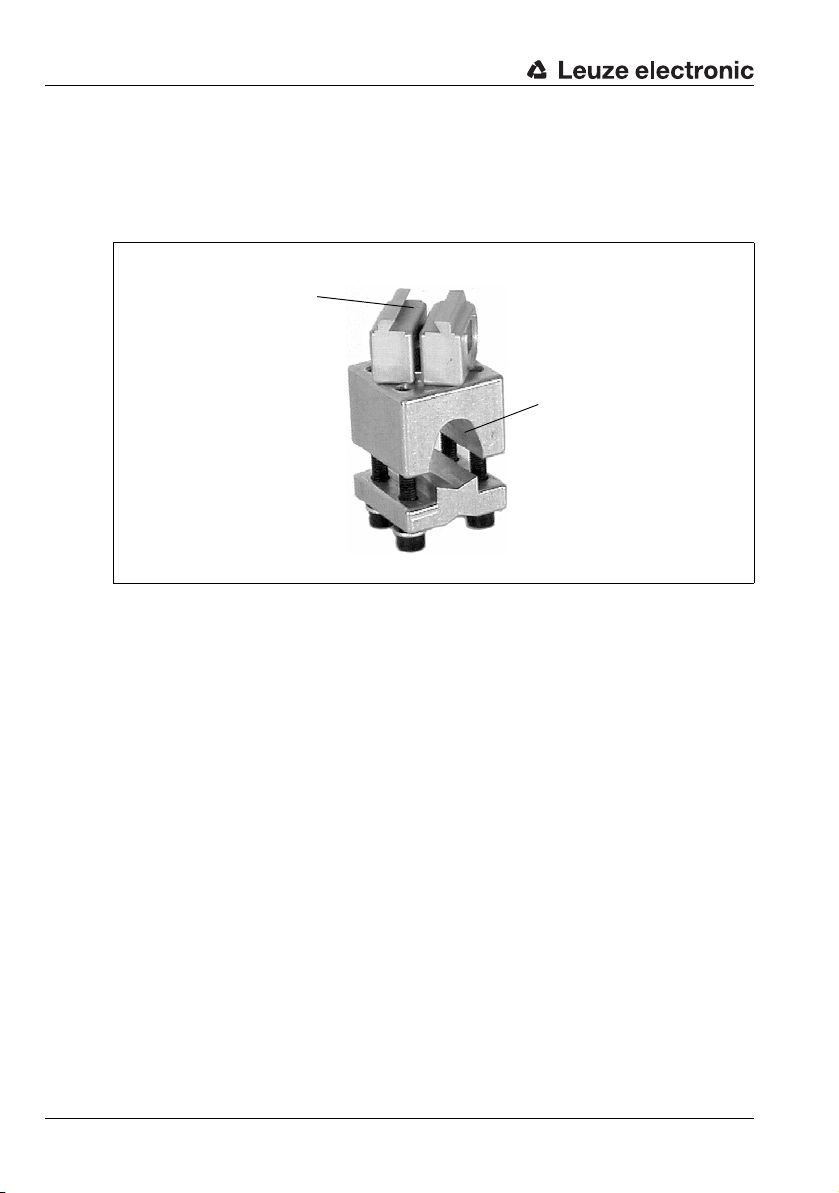

Laser-beam exit
window
4x M3 mounting threads on the
rear of the device
15-pin sub-D
connector on the
bottom of the
device
Dovetail
fastening grooves
3 Description
For information on technical data and characteristics, refer to Chapter 4.
3.1 Device construction of the BPS 37
Figure 3.1: Device construction of the BPS 37
3.2 Application

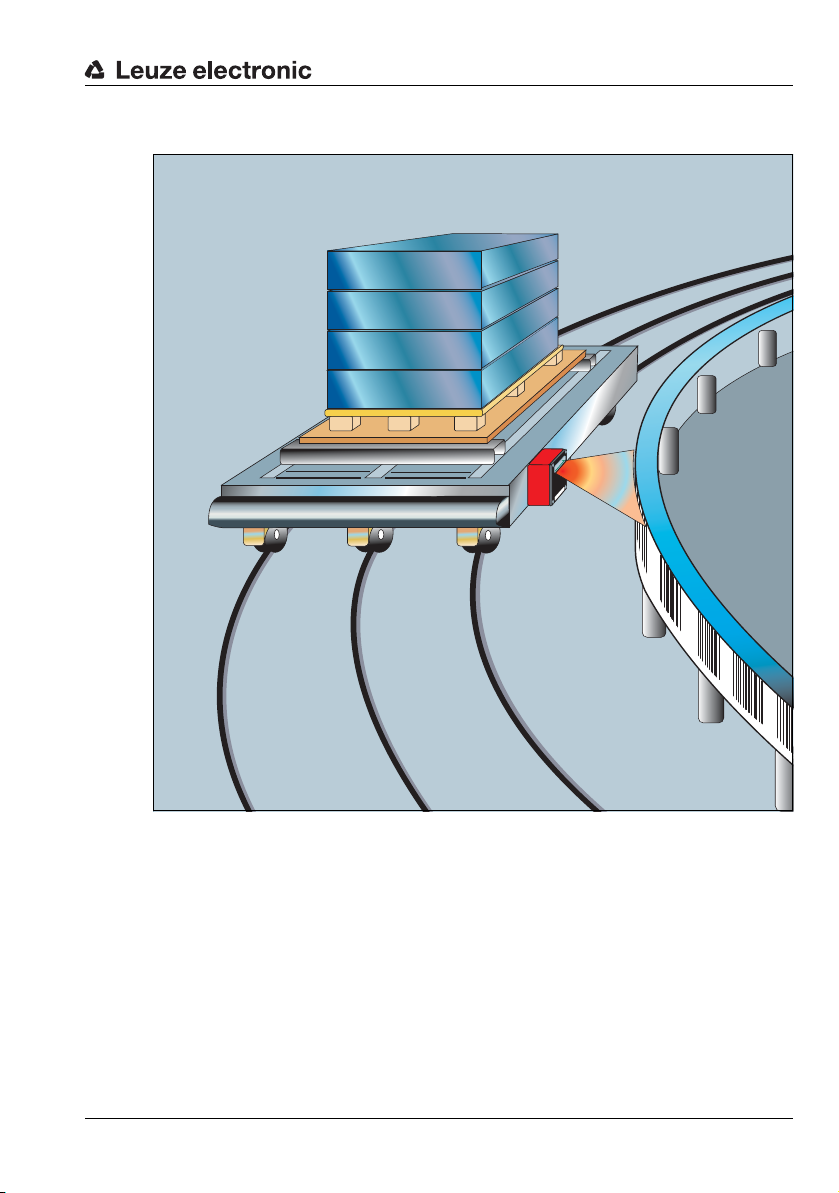

Wherever systems are moved automatically, it is necessary to uniquely determine their
respective positions. This is achieved using various measurement procedures. In addition
to mechanical measurement sensors, optical methods are particularly well suited for determining positions as they operate without mechanical wear and slippage.
Unlike other optical measurement methods, the bar code positioning system is not restricted
to linear movements. It can also be used flexibly in curved systems. Anywhere the longwearing bar code tape can be attached, it is possible to use the BPS to determine the position to within a millimeter.
Guide tolerances of the system play no roll as the permitted distance range between tape
and BPS allows for large deviations in distance.
3.3 Function
The BPS uses visible red laser light to determine its position relative to the bar code tape.
This essentially takes place in three steps:
8 BPS 37 Leuze electronic
1. Reading a code on the bar code tape
2. Determining the position of the read code in the scanning area of the laser beam
3. Calculating the position to within a millimeter using the code information and code
position
The position value is then passed on via the standardized SSI interface (synchronous serial
interface) to the drive system of the vehicle for which the position is to be determined.
3.4 Advantages
• Easy mounting and commissioning
• Teach function for the "zero point", i.e. it is not necessary to exactly affix the bar code
tape.
• Data output via SSI interface; BPS can be connected instead of a conventional rotation encoder.
• The function of the BPS makes it possible to attach the bar code tape only at those
locations where it is necessary that the position be known exactly.
• Positioning of non-linear movements as well
• No referencing necessary following a voltage drop
• Thanks to the large scanning depth, it is possible to compensate for mechanical tolerances.
• It is possible to exactly determine positions from distances of 10000 meters
3.5 Stand-alone operation
The bar code positioning system BPS 37 is operated as individual "stand alone" device. The
BPS features a 15-pin sub-D connector for the electrical connection of the supply voltage,
the interface and the switching inputs.
Description

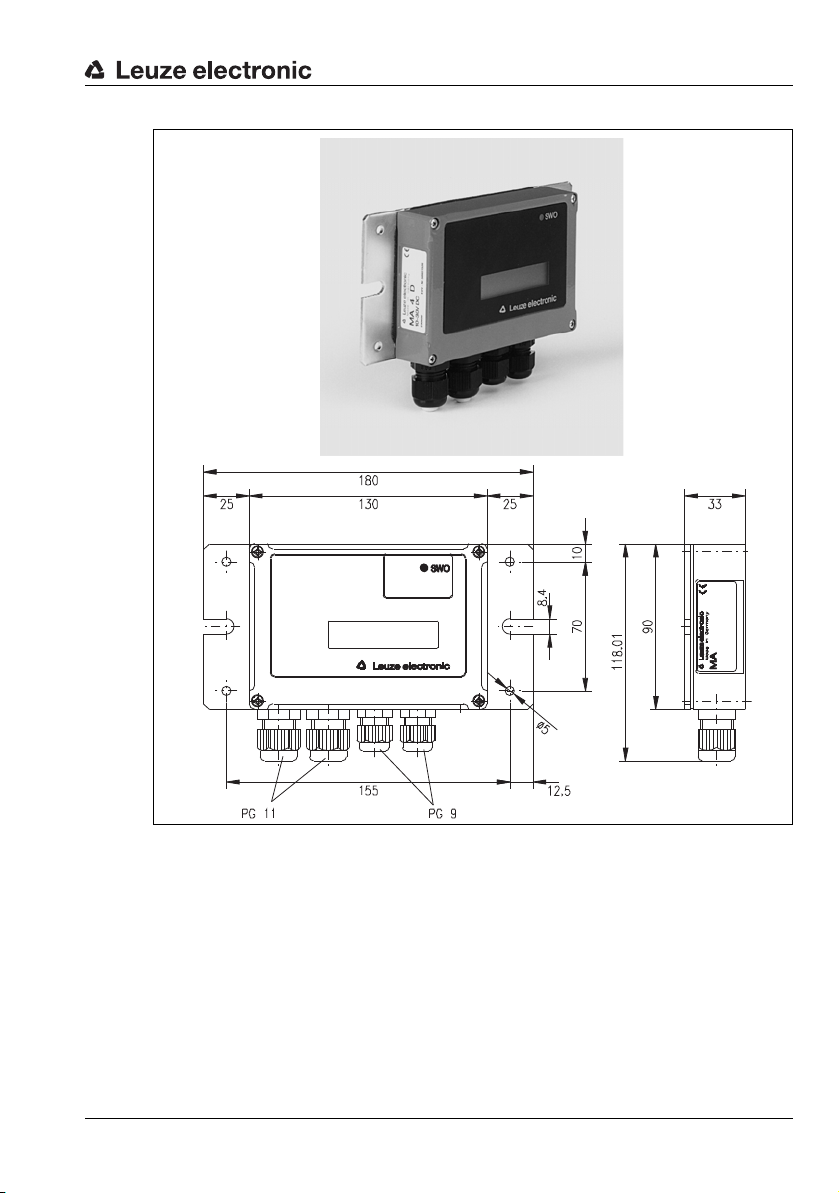

With connection units
The connection units simplify the electrical installation of the bar code positioning systems
in stand-alone operation.
Moreover, they store the operating parameters so that the configuration data are retained
even if the BPS is replaced and can show parameters and operating data on a display
(MA 4D.7).
A listing of the available connection units and associated short descriptions can be found in
Chapter 5. Separate data sheets are available that contain further details about the connection units.
With MS 37 103 connector hood
The modular connector hood MS 37 103 is intended for the easy connection of the BPS 37
with M12 connection technology.
Leuze electronic BPS 37 9
TNT 35/7-24V
Description
Voltage supply
10 … 30 V DC
SI SO
SSI
15 pin sub-D
connector,
socket
version
BPS 37
MA 4.7/MA 4D.7
SO
SI
Power
SSI
SSI
Interconnection
cable KB031-3000
Without connection unit/connector hood
Figure 3.2: Connection BPS "Stand alone"
With MA 4.7/MA4D.7 connection unit
Figure 3.3: BPS connection with MA 4.7 connection unit
10 BPS 37 Leuze electronic
With MS 37 103 modular connector hood
BPS 37
MS 37 103
SSI
PWR
Service
Figure 3.4: BPS connection with MS 37 103 modular connector hood
Description
Leuze electronic BPS 37 11
TNT 35/7-24V
Technical data
4 Technical data
4.1 General specifications BPS 37
Optical data
Light source Laser diode
Laser class 2 acc. to IEC 60825-1:2007
Wavelength 655nm
Max. output power (peak) 1.8mW
Impulse duration 120µs
Scanning rate 1000 scans/s
Measurement data
Reproducibility (3 sigma) -1 mm
Response time 16ms (configurable)
Output time 2 ms
Basis for contouring error calculation
Working range 90 … 170 mm
Electrical data
Interface type
(Standard setting)
Service interface RS 232 with fixed data format,
Ports 1 switching output, 1 switching input
Green LED Device ready (power on)
Operating voltage 10 … 30 V
Power consumption 3.2W
Mechanical data
Degree of protection IP 65
Weight 400 g
Dimensions (H x W x D) 120 x 90 x 43 mm
Housing Diecast aluminum
Environmental data
Operating temperature range Without optics heating: 0 °C … +40 °C
Storage temperature range -30°C … +60°C
Air humidity Max. 90% rel. humidity, non-condensing
7ms
SSI (RS422)
Electrically isolated
Bits 0 … 24: data bits with position value
Bit 25: error bit
Resolution: 1mm
800 kHz max. clock frequency
Output of positive and negative position values
Gray coded
9600Bd, 8 data bits, no parity, 1 stop bit
With optics heating: -30°C … +40 °C
12 BPS 37 Leuze electronic
Loading...
