Leuze 63000308 Data Sheet

Part no.: 63000308 – S300-P13C1-M20-SB – Safety position switch

Technical data

Basic data

Series S300

Functions

Functions Integration in control circuits up to category 4 in accordance with EN

Characteristic parameters

Mission time T

B10

d

Electrical data

Usage category at DC 13 Ue / Ie: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A, EN 60947-5-1

Usage category at AC 15 Ue / Ie: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A, EN 60947-5-1

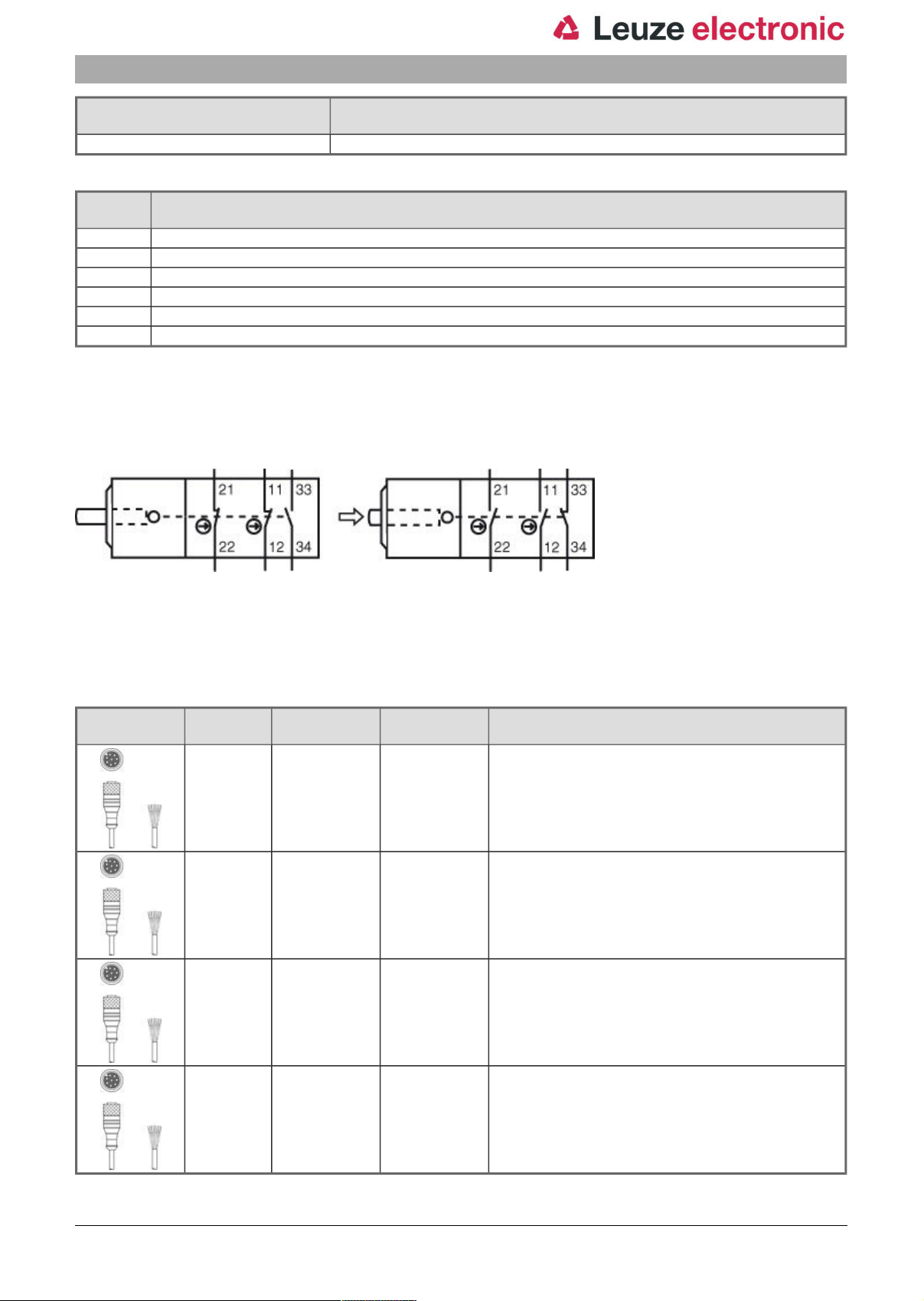

Contact allocation 2NC + 1NO

Contact opening Force-fit

Short circuit protected 500 V, 10 A, type aM, IEC 60269-1

Contact protection Protective insulation O

Performance data

Rated insulation voltage 400 V AC, 500 V DC

Conventional thermal current, max. 10 A

M

ISO 13849
Locking device without guard interlocking according to ISO 14119

20 years, EN ISO 13849-1

40,000,000 number of cycles

Connection

Number of connections 1 Piece(s)

Number of cable entries 1 Piece(s)

Connection 1

Type of connection Terminal

Function Contact connection

Type of terminal Screw terminal

No. of pins 6 -pin

Cable properties

Connection cross sections 1 x 0.34 mm² to 2 x 1.5 mm², wire

Mechanical data

Design Cubic

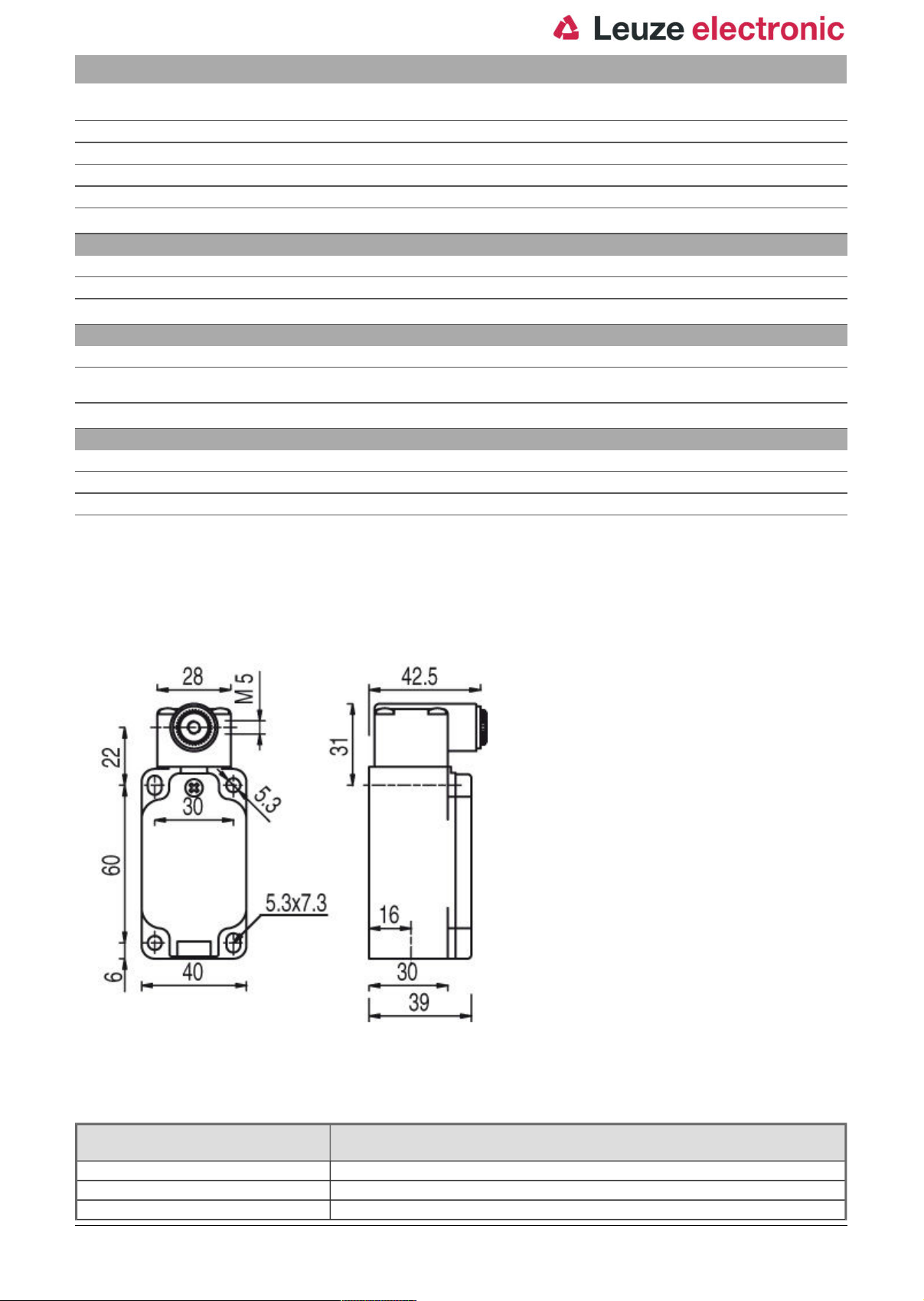

Dimension (W x H x L) 40 mm x 39 mm x 97 mm

Housing material Plastic, Glass fiber reinforced (PPS), self-extinguishing

Electrical contact material Silver alloy

Net weight 155 g

Housing color Black

Type of fastening Through-hole mounting

Type of cable entry M20 x 1.5

Switch type Interlock device without guard interlocking, ISO 14119

Switching principle Slow-action contact

Switching direction One side

Approach actuation directions 360°

Both sides

4 x side (90°)
