Part no.: 63000307 – S300-P13C1-M12-CB – Safety position switch
Technical data
Basic data
Series S300
Functions
Functions Locking device without guard interlocking according to ISO 14119
Characteristic parameters
Mission time T
B10
d
Electrical data
Usage category at DC 13 Ue 24 V, Ie 2 A, EN 60947-5-1
Usage category at AC 15 Ue 24 V, Ie 2 A, EN 60947-5-1
Contact allocation 2NC + 1NO
Contact opening Force-fit
Short circuit protected 500 V, 2 A, type gG, IEC 60269-1
Contact protection Protective insulation O
Performance data
Rated insulation voltage 30 V AC, 36 V DC
Conventional thermal current, max. 2 A
M
Integration in control circuits up to category 4 in accordance with EN
ISO 13849
20 years, EN ISO 13849-1
40,000,000 number of cycles
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Connector
Function Contact connection
Thread size M12
Material Plastic
No. of pins 8 -pin
Mechanical data
Design Cubic
Dimension (W x H x L) 40 mm x 39 mm x 97 mm
Housing material Plastic, Glass fiber reinforced (PPS), self-extinguishing
Electrical contact material Silver alloy
Net weight 155 g
Housing color Black
Type of fastening Through-hole mounting
Switch type Interlock device without guard interlocking, ISO 14119
Switching principle Slow-action contact
Switching direction One side
Approach actuation directions 4 x side (90°)
Approach speed Depending on actuator used
Mechanical life time 20,000,000 actuation cycles, IEC 60947-5-1 switching cycles
Actuation frequency, max. 3,600 per hour, IEC 60947-5-1
Both sides
360°
eng 2018-04-03
2 / 5
Page 3
Part no.: 63000307 – S300-P13C1-M12-CB – Safety position switch
Actuator mount Short
Environmental data
Ambient temperature, operation -25 ... 80 °C
Degree of contamination 3, EN 60947-1
Certifications
Degree of protection IP 67
Certifications IMQ
Classification
eCl@ss 8.0 27272601
eCl@ss 9.0 27272601
ETIM 5.0 EC000030
c UL US

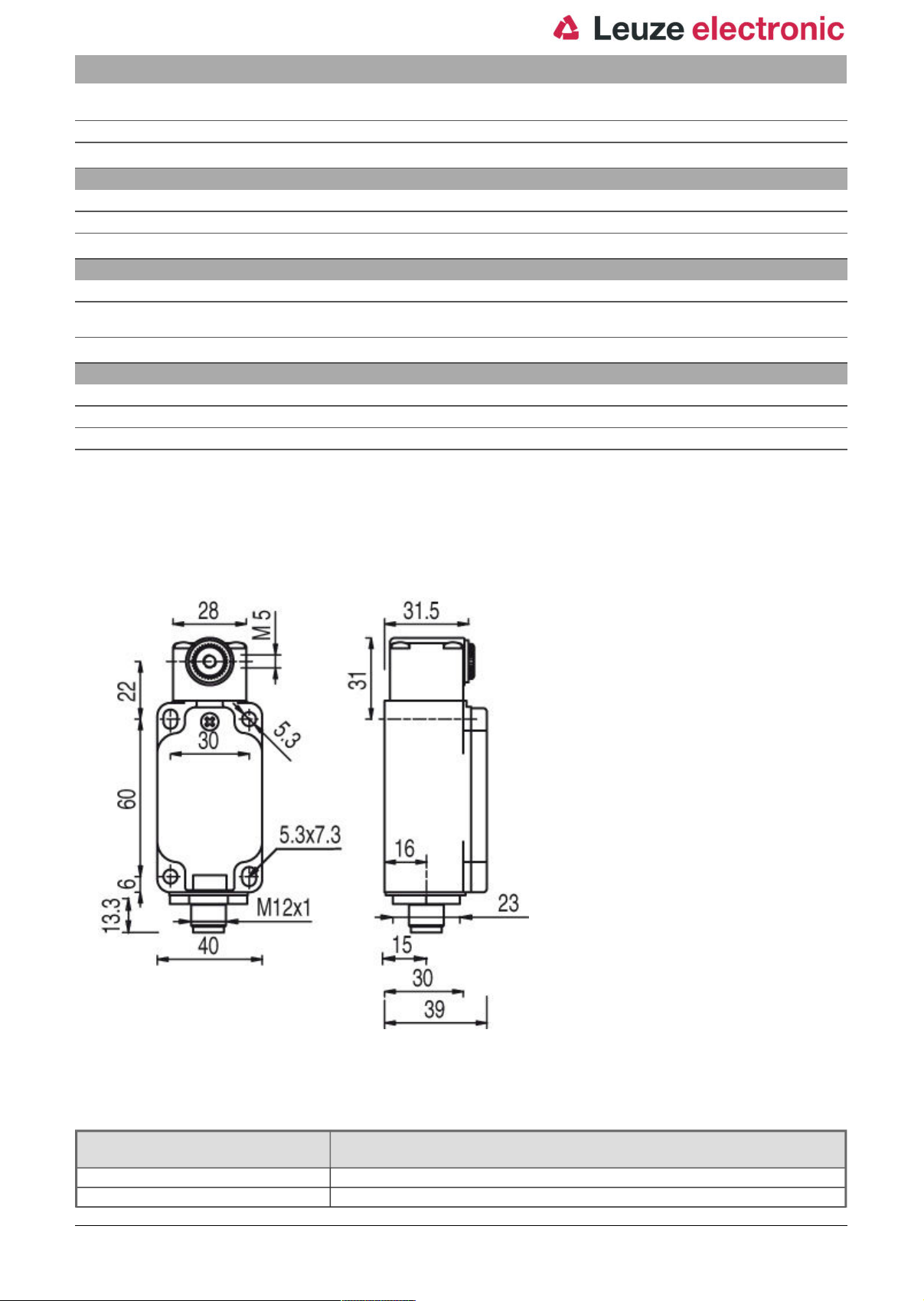

Dimensioned drawings
All dimensions in millimeters
Electrical connection
Connection 1
Type of connection Connector
Function Contact connection
eng 2018-04-03
3 / 5
Page 4
Part no.: 63000307 – S300-P13C1-M12-CB – Safety position switch

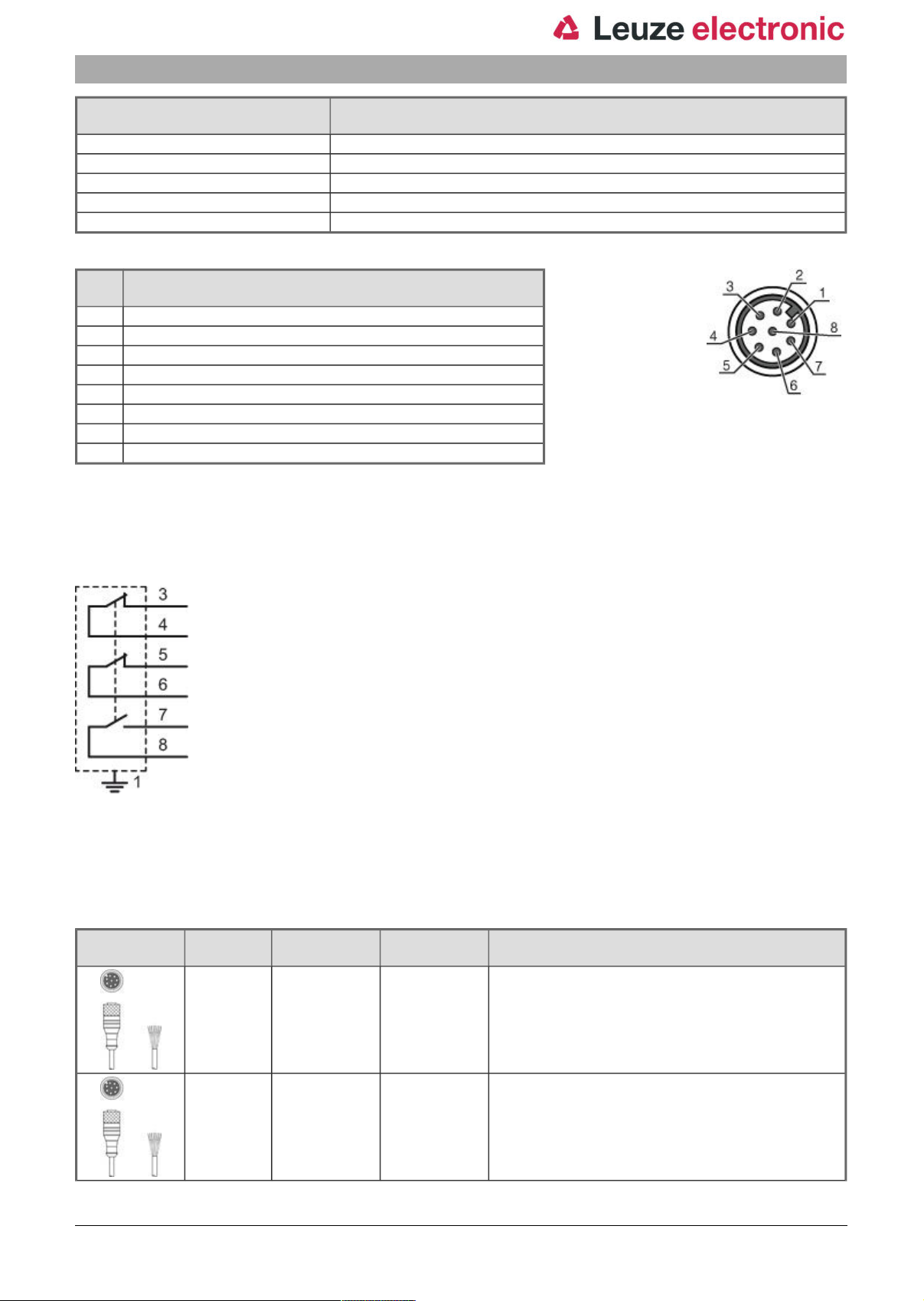

Connection 1
Thread size M12
Type Male
Material Plastic
No. of pins 8 -pin
Encoding A-coded
Pin Pin assignment
1 n.c.
2 n.c.
3 NC(1)
4 NC(1)
5 NC(2)
6 NC(2)
7 NO(1)
8 NO(1)
Circuit diagrams
Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50135128 KD S-M12-8A-
P1-050
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
50135129 KD S-M12-8A-
P1-100
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
eng 2018-04-03
4 / 5
Page 5
Part no.: 63000307 – S300-P13C1-M12-CB – Safety position switch

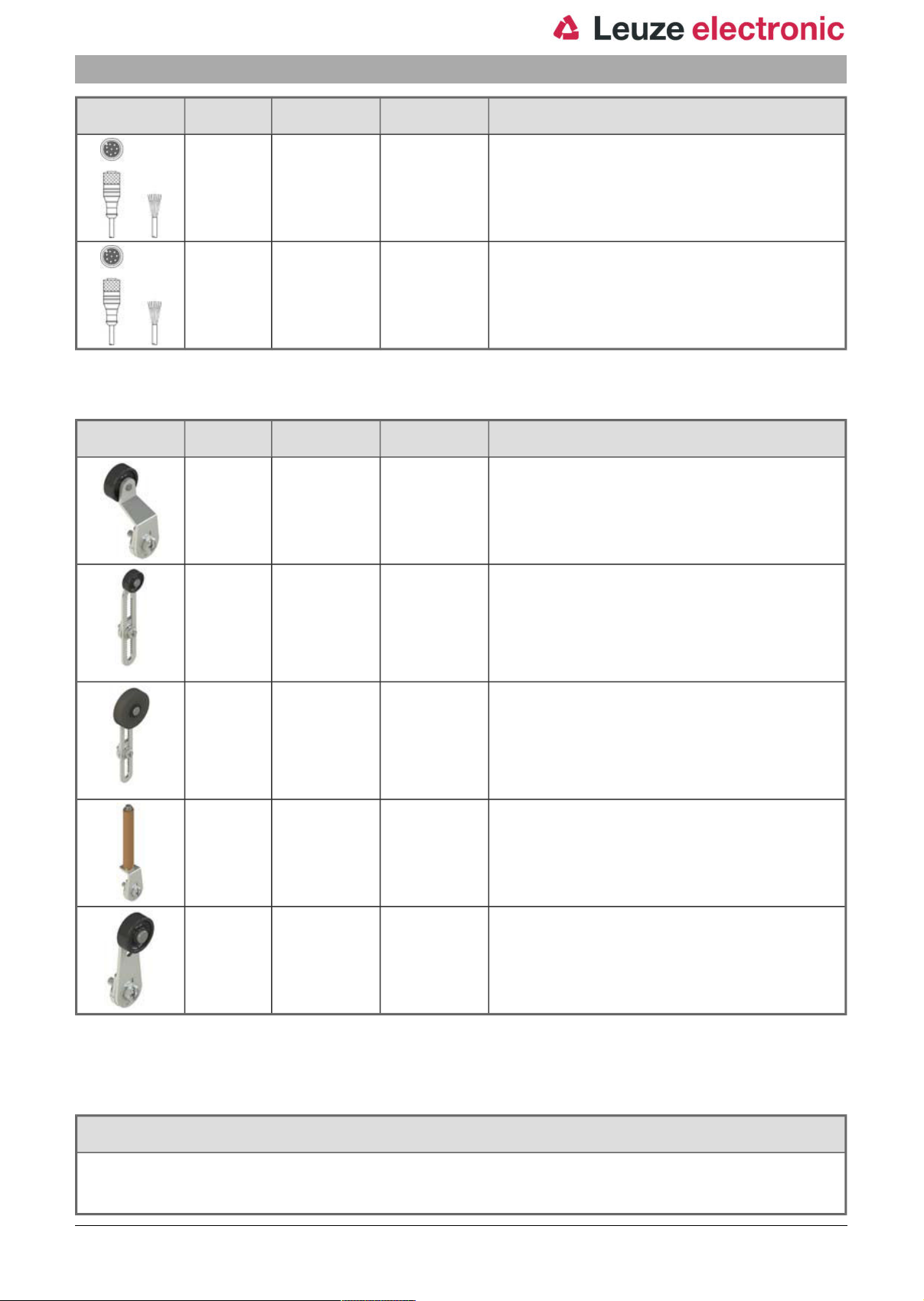

Part no. Designation Article Description
Actuator
50135130 KD S-M12-8A-
P1-150
50135131 KD S-M12-8A-
P1-250
Part no. Designation Article Description
63000881 AC-AL-R Actuator Dimensions: 27.5 mm x 20 mm x 40 mm
63000882 AC-LL-R Actuator Dimensions: 14.5 mm x 20 mm
63000884 AC-LL-R40 Actuator Dimensions: 14.5 mm x 40 mm
63000883 AC-PL Actuator Dimensions: 9 mm x 14 mm x 80 mm
63000880 AC-SL-R Actuator Dimensions: 14.5 mm x 20 mm x 49 mm
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 25,000 mm
Sheathing material: PUR
Type of fastening: Through-hole mounting
Design: Angled
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Steel, galvanized, Plastic
Functions: Easy installation, quick vertical and axial alignment in
just a few steps, Linkage via roller
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Steel, galvanized, Plastic
Length: 34 mm ... 93 mm
Functions: Easy installation, quick vertical and axial alignment in
just a few steps, Linkage via roller
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Steel, galvanized, Rubber
Length: 50 mm ... 103 mm
Functions: Easy installation, quick vertical and axial alignment in
just a few steps, Linkage via roller
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Steel, Porcellan
Functions: Easy installation, quick vertical and axial alignment in
just a few steps, Linkage via sleeve
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Steel, galvanized, Plastic
Functions: Easy installation, quick vertical and axial alignment in
just a few steps, Linkage via roller
Notes
Observe intended use!
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
