Leuze 63000304 Data Sheet

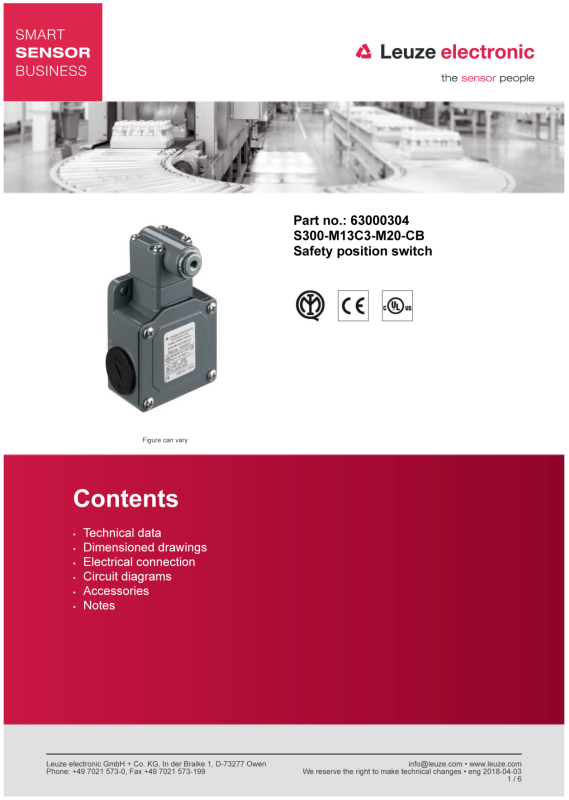

Part no.: 63000304 – S300-M13C3-M20-CB – Safety position switch

Technical data

Basic data
Series S300
Functions
Functions Integration in control circuits up to category 4 in accordance with EN
Characteristic parameters
B10
d
Electrical data
Usage category at DC 13 Ue / Ie: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A, EN 60947-5-1
Usage category at AC 15 Ue / Ie: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A, EN 60947-5-1

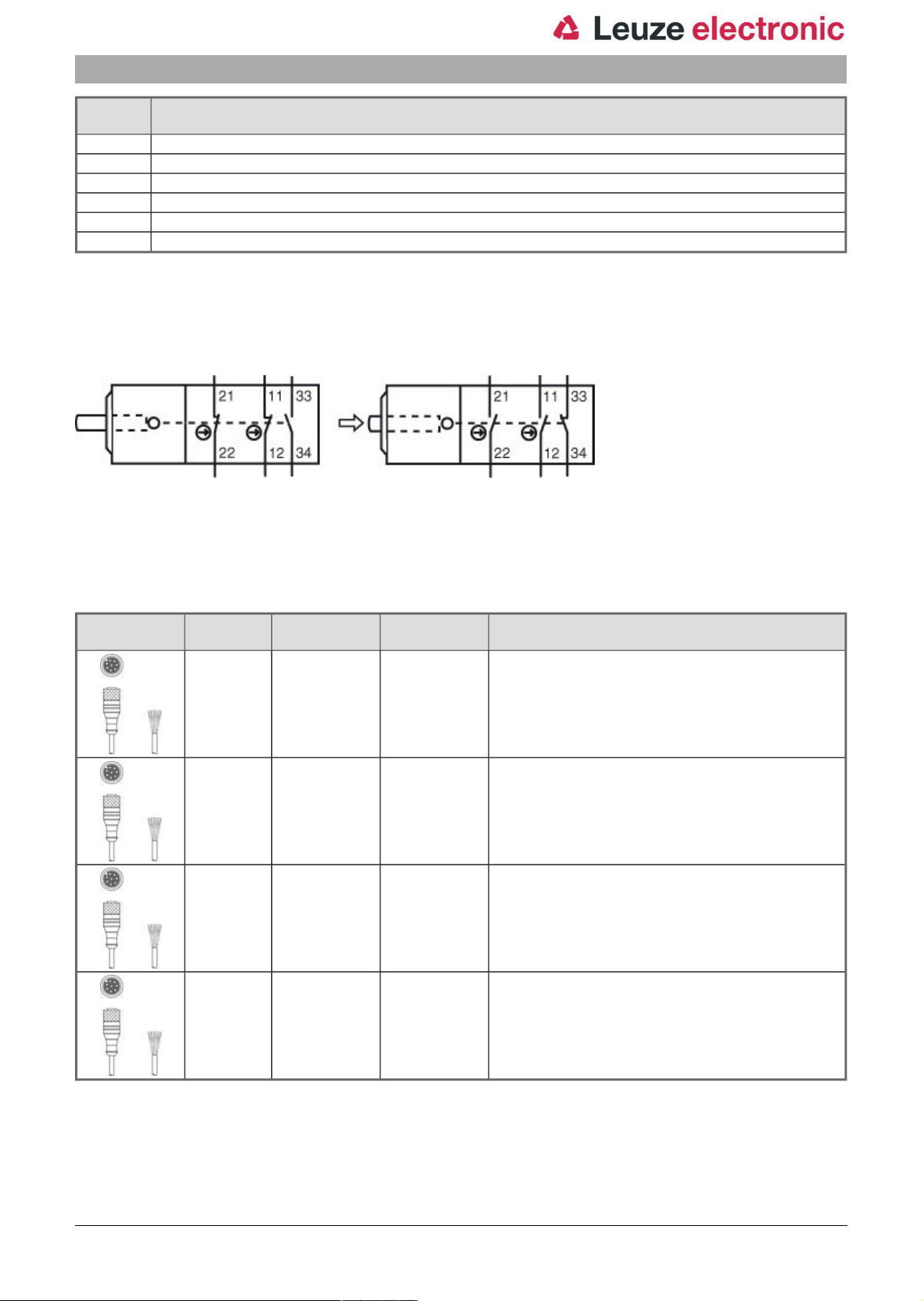

Contact allocation 2NC + 1NO
Contact opening Force-fit
Short circuit protected 500 V, 10 A, type aM, IEC 60269-1
Contact protection Earthing
Performance data
Rated insulation voltage 400 V AC, 500 V DC
Conventional thermal current, max. 10 A
M
ISO 13849 Locking device without guard interlocking according to ISO 14119
20 years, EN ISO 13849-1
40,000,000 number of cycles
Connection
Number of connections 1 Piece(s)
Number of cable entries 3 Piece(s)
Connection 1
Type of connection Terminal
Function Contact connection
Type of terminal Screw terminal
No. of pins 6 -pin
Cable properties
Connection cross sections 1 x 0.34 mm² to 2 x 1.5 mm², wire
Mechanical data
Design Cubic

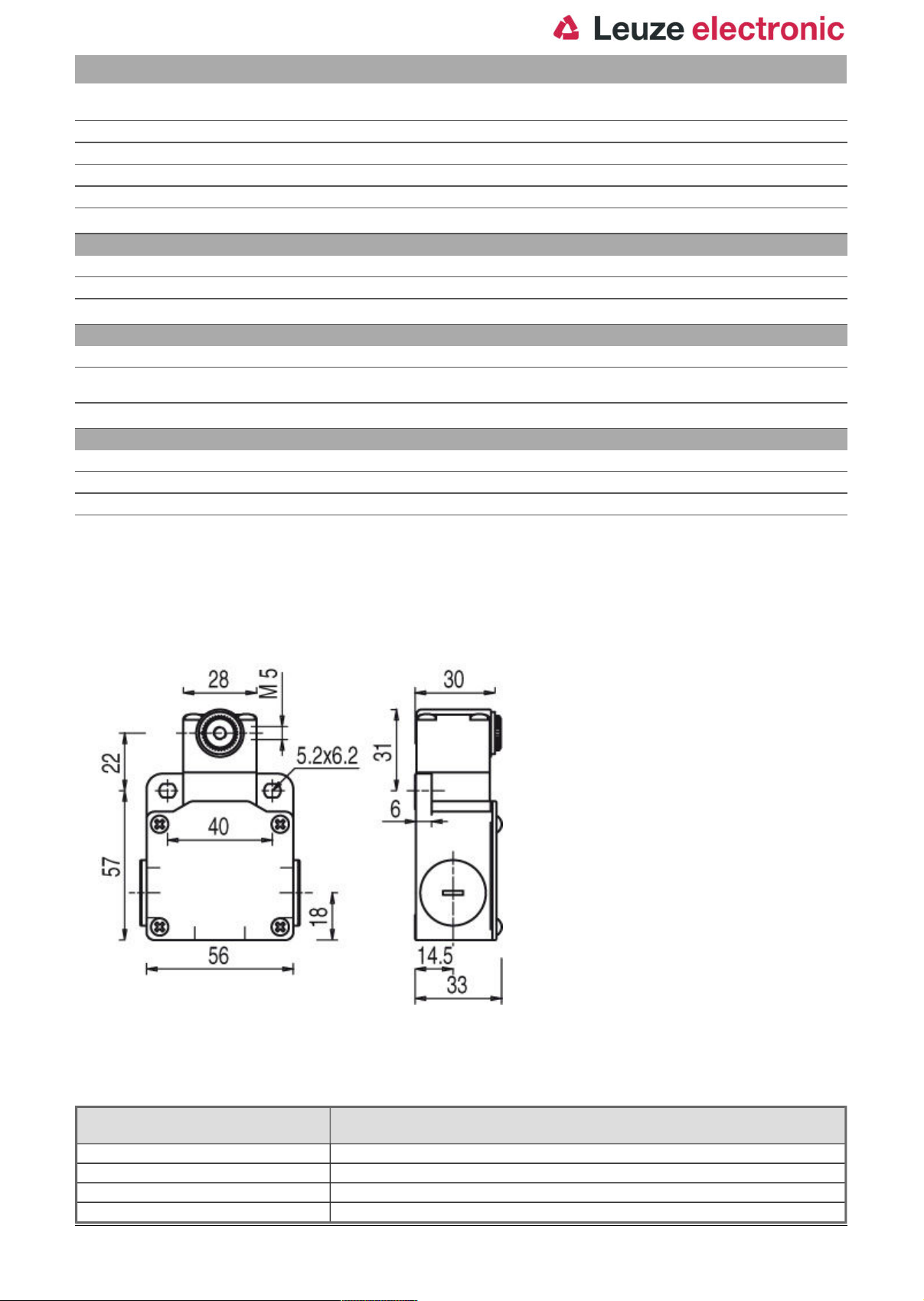

Dimension (W x H x L) 56 mm x 33 mm x 88 mm
Housing material Metal, ZAMAK
Electrical contact material Silver alloy
Net weight 263 g
Housing color Gray
Type of fastening Through-hole mounting
Type of cable entry M20 x 1.5
Switch type Interlock device without guard interlocking, ISO 14119
Switching principle Slow-action contact
Switching direction One side

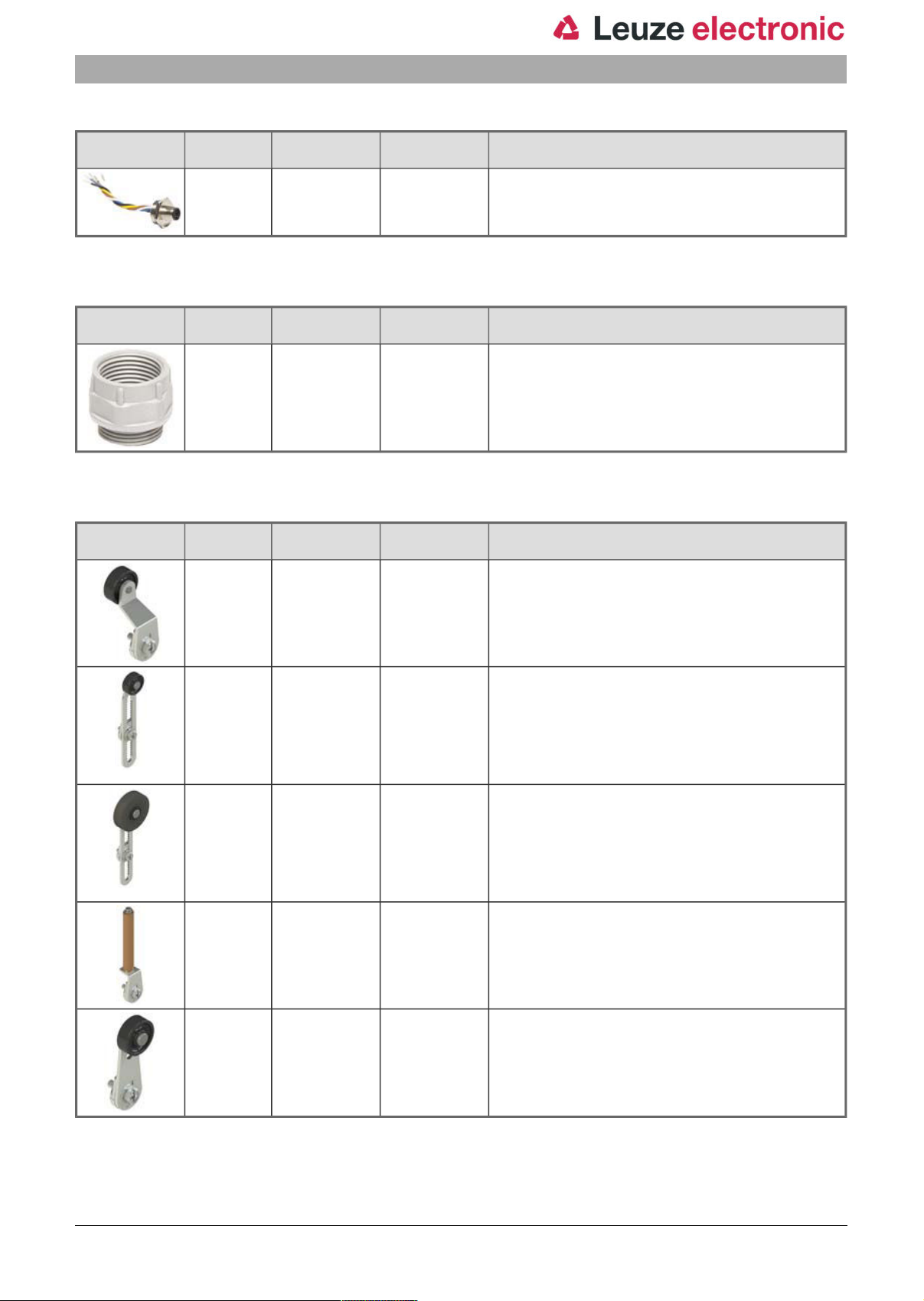

Approach actuation directions 4 x side (90°)
Both sides
360°
eng 2018-04-03
2 / 6
