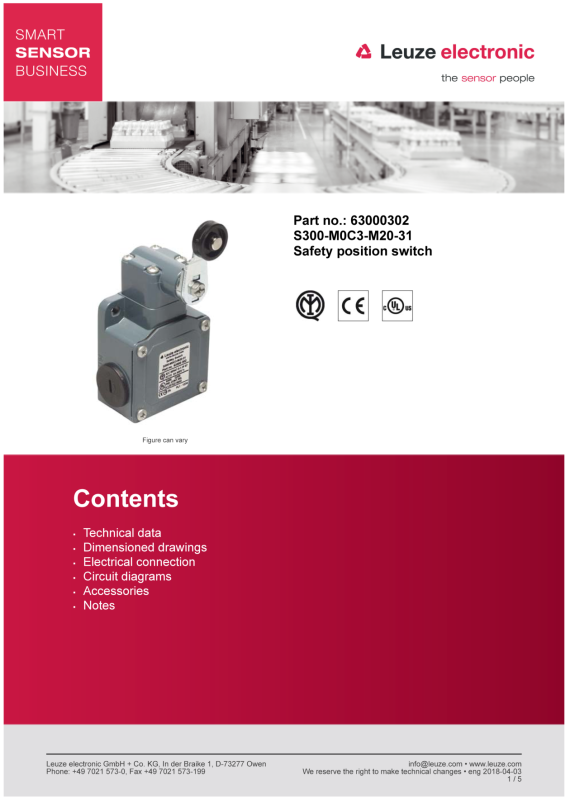

Part no.: 63000302 – S300-M0C3-M20-31 – Safety position switch
Technical data
Basic data
Series S300
Functions
Functions Integration in control circuits up to category 4 in accordance with EN
Characteristic parameters
Mission time T
B10
d
Electrical data
Usage category at DC 13 Ue / Ie: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A, EN 60947-5-1
Usage category at AC 15 Ue / Ie: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A, EN 60947-5-1
Contact allocation 1NC + 1NO
Contact opening Force-fit
Short circuit protected 500 V, 10 A, type aM, IEC 60269-1
Contact protection Earthing
Performance data
Rated insulation voltage 500 V AC, 600 V DC
Conventional thermal current, max. 10 A
M
ISO 13849
Locking device without guard interlocking according to ISO 14119
20 years, EN ISO 13849-1
40,000,000 number of cycles
Connection
Number of connections 1 Piece(s)
Number of cable entries 3 Piece(s)
Connection 1
Type of connection Terminal
Function Contact connection
Type of terminal Screw terminal
No. of pins 4 -pin
Cable properties
Connection cross sections 1 x 0.5 mm² to 2 x 2.5 mm², wire
Mechanical data
Design Cubic
Dimension (W x H x L) 56 mm x 33 mm x 88 mm
Housing material Metal, ZAMAK
Electrical contact material Silver alloy
Net weight 300 g
Housing color Gray
Type of fastening Through-hole mounting
Type of cable entry M20 x 1.5
Switch type Interlock device without guard interlocking, ISO 14119
Switching principle Snap-action contact
Switching direction Both sides
Approach actuation directions 4 x side (90°)
One side
360°
eng 2018-04-03
2 / 5
Page 3
Part no.: 63000302 – S300-M0C3-M20-31 – Safety position switch
Approach speed with angle of approach of 15° 0.00007 ... 2.5 m/s
Approach speed with angle of approach of 30° 0.00007 ... 1.5 m/s
Approach speed with angle of approach of 45° 0.00007 ... 1 m/s
Approach speed with angle of approach of 60° 0.00007 ... 0.75 m/s
Mechanical life time 20,000,000 actuation cycles, IEC 6047-5-1 switching cycles
Actuation frequency, max. 3,600 per hour, IEC 6047-5-1
Actuator Roll actuator with lever
Actuator width 20 mm
Actuator length 40 mm
Actuation force, min. (torque) 0.1 N·m
Actuator mount Long
Environmental data
Ambient temperature, operation -25 ... 80 °C
Degree of contamination 3, EN 60947-1
Certifications
Degree of protection IP 67
Certifications IMQ
c UL US
Classification
eCl@ss 8.0 27272601
eCl@ss 9.0 27272601
ETIM 5.0 EC000030

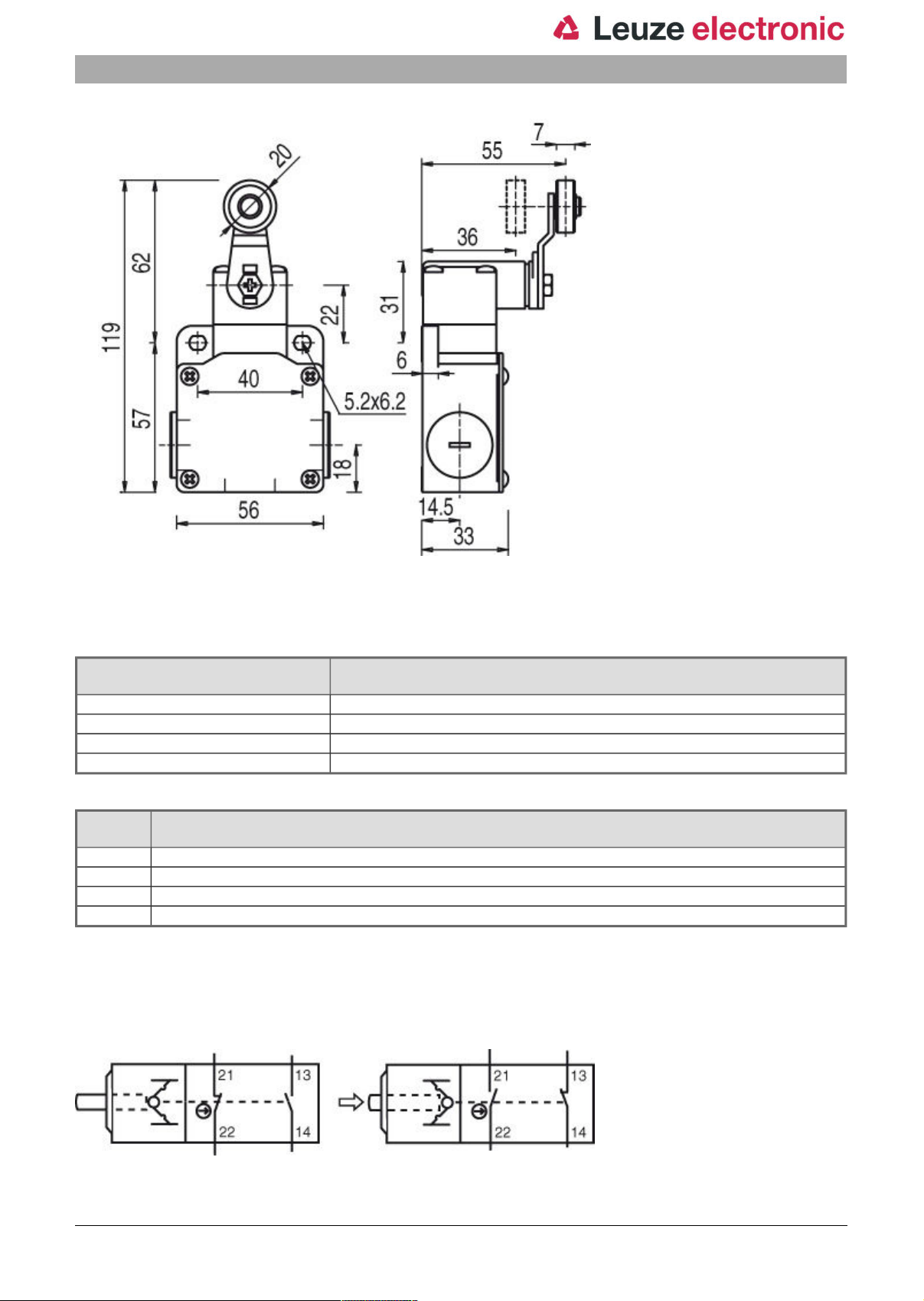

Dimensioned drawings
All dimensions in millimeters
eng 2018-04-03
3 / 5
Page 4
Part no.: 63000302 – S300-M0C3-M20-31 – Safety position switch
Electrical connection
Connection 1
Type of connection Terminal
Function Contact connection
Type of terminal Screw terminal
No. of pins 4 -pin
Terminal Assignment
21 NC
22 NC
13 NO
14 NO
Circuit diagrams
eng 2018-04-03
4 / 5
Page 5
Part no.: 63000302 – S300-M0C3-M20-31 – Safety position switch

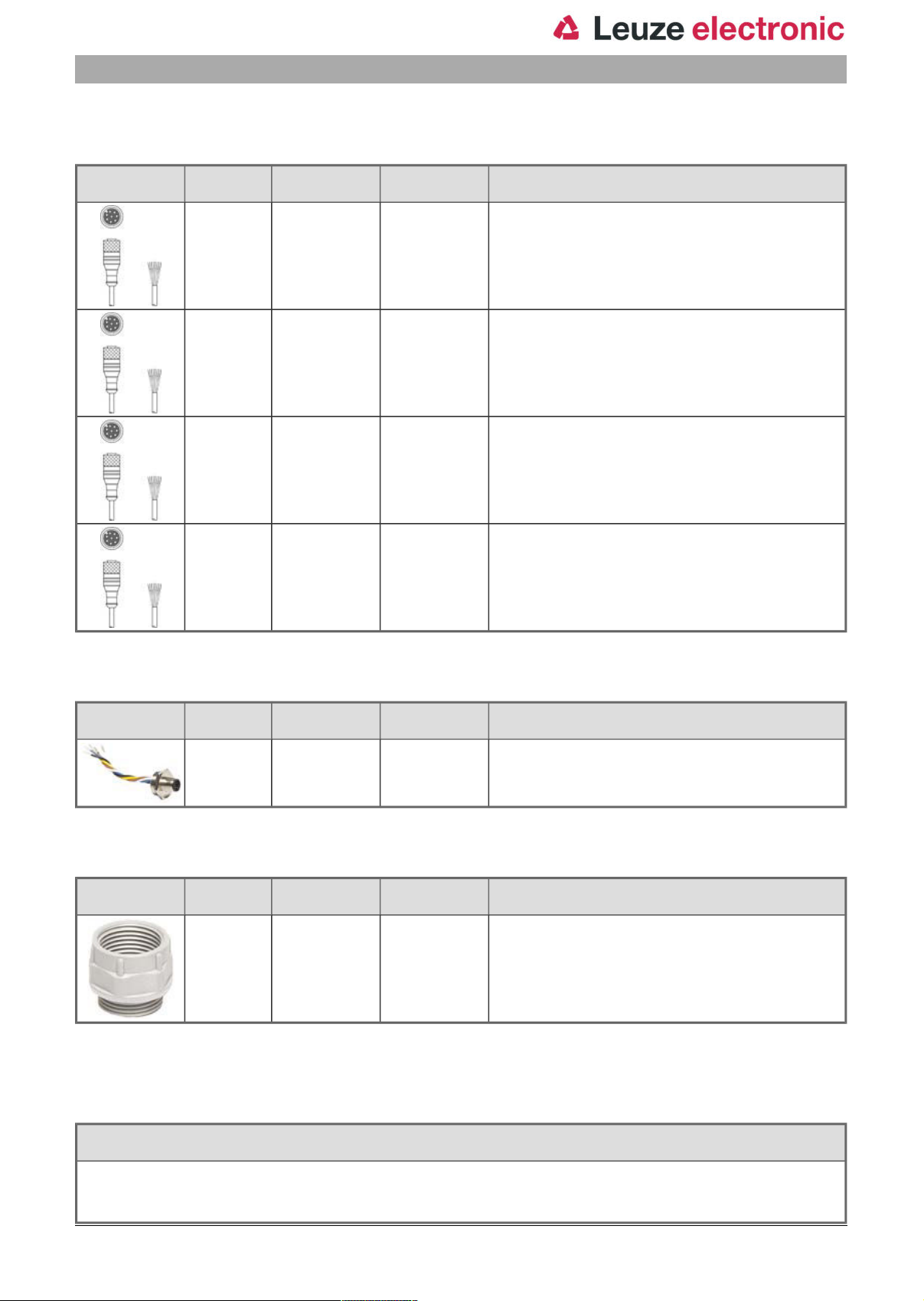

Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50135128 KD S-M12-8A-
P1-050
50135129 KD S-M12-8A-
P1-100
50135130 KD S-M12-8A-
P1-150
50135131 KD S-M12-8A-
P1-250
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 25,000 mm
Sheathing material: PUR
Connection technology - Connectors
Part no. Designation Article Description
63000845 AC-PLM-8 Built-in plug Number of conductors: 8 Piece(s)
Connection technology - Adapters
Part no. Designation Article Description
63000843 AC-A-M20-12NPT Adapter Design: M20 x 1.5 on 1/2 NPT
Notes
Connection: Connector, M12, Metal, Axial, 8 -pin
Observe intended use!
The product may only be put into operation by competent persons.
•
• Only use the product in accordance with its intended use.
