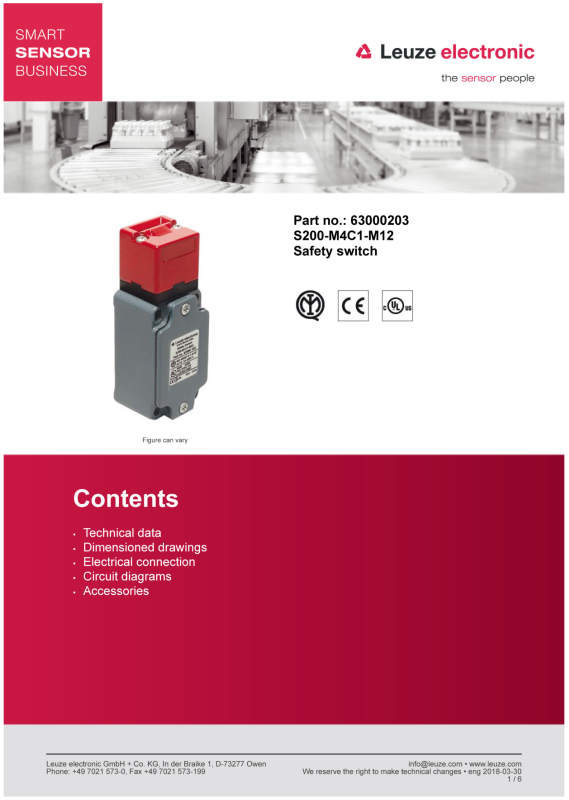

Part no.: 63000203 – S200-M4C1-M12 – Safety switch
Technical data
Basic data
Series S200
Functions
Functions Locking device without guard interlocking according to ISO 14119
Characteristic parameters
Mission time T
B10
d
Electrical data
Usage category at DC 13 Ue 24 V, Ie 2 A, EN 60947-5-1
Usage category at AC 15 Ue 24 V, Ie 2 A, EN 60947-5-1
Contact allocation 2NC + 1NO
Contact opening Force-fit
Short circuit protected 500 V, 2 A, type gG, IEC 60269-1
Contact protection Earthing
Performance data
Rated insulation voltage 30 V AC, 36 V DC
Conventional thermal current, max. 2 A
M
Integration in control circuits up to category 4 in accordance with EN
ISO 13849
20 years, EN ISO 13849-1
2,000,000 number of cycles
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Connector
Function Contact connection
Thread size M12
Material Metal
No. of pins 8 -pin
Mechanical data
Design Cubic
Dimension (W x H x L) 40 mm x 38 mm x 109.5 mm
Housing material Metal, ZAMAK
Electrical contact material Silver alloy
Net weight 310 g
Housing color Gray
Type of fastening Through-hole mounting
Switch type Interlock device without guard interlocking, ISO 14119
Switching principle Slow-action contact
Approach actuation directions 4 x side (90°)
Approach speed 0 ... 0.5 m/s
Mechanical life time 1,000,000 actuation cycles, IEC 6047-5-1
Actuation frequency, max. 3,600 per hour, IEC 6047-5-1
External actuator AC-AHxx, series, straight, angled, resilient, alignable
Red
1 x top
eng 2018-03-30
2 / 6
Page 3
Part no.: 63000203 – S200-M4C1-M12 – Safety switch
Actuation force (pull-out) 10 N
Actuating path with forced separation 8.8 mm
Recoil tolerance 4.5 mm
Environmental data
Ambient temperature, operation -25 ... 80 °C
Degree of contamination, external 3, EN 60947-1
Certifications
Degree of protection IP 67
Certifications c UL US
Classification
eCl@ss 8.0 27272602
eCl@ss 9.0 27272602
ETIM 5.0 EC002592
IMQ

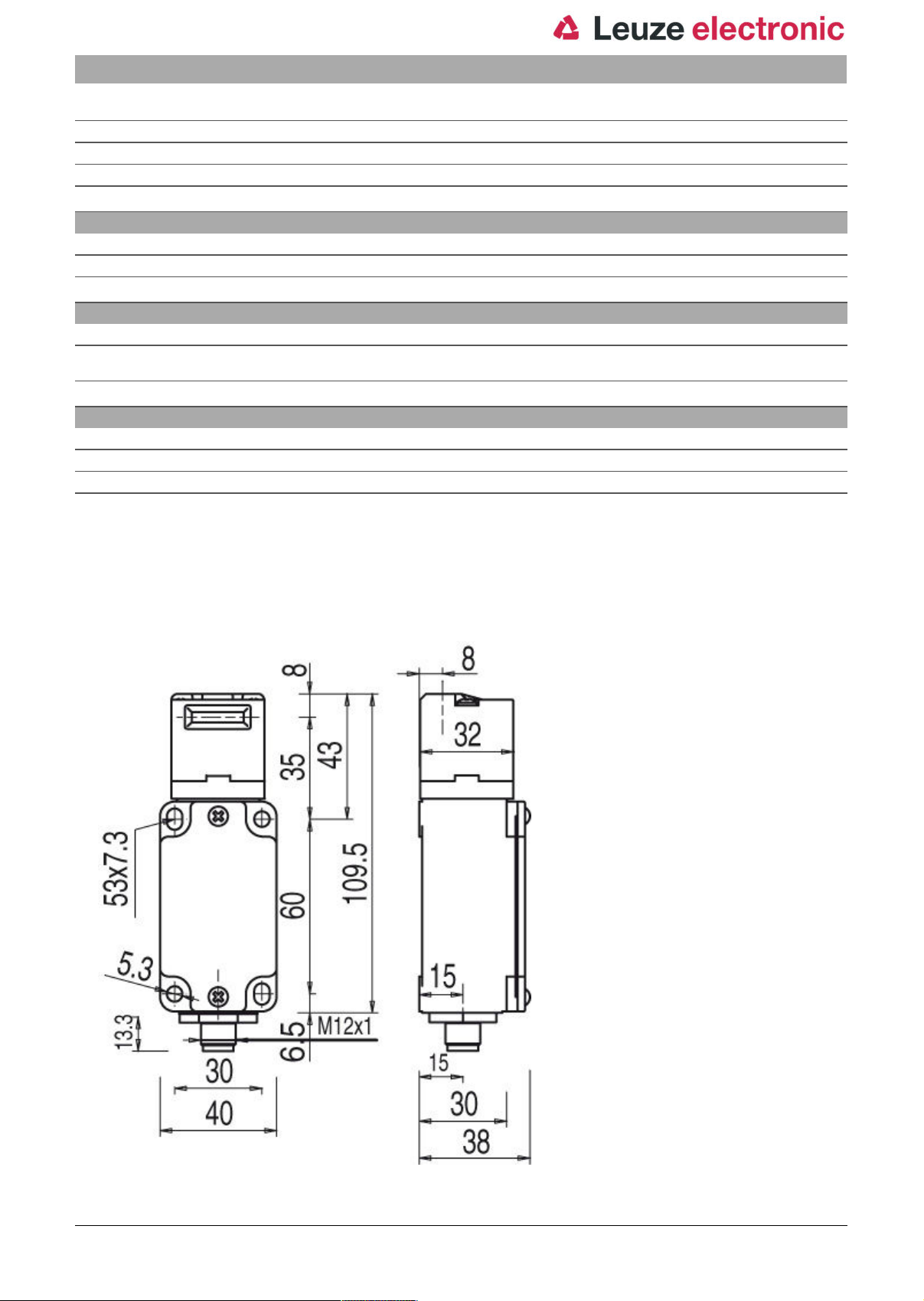

Dimensioned drawings
All dimensions in millimeters
eng 2018-03-30
3 / 6
Page 4
Part no.: 63000203 – S200-M4C1-M12 – Safety switch

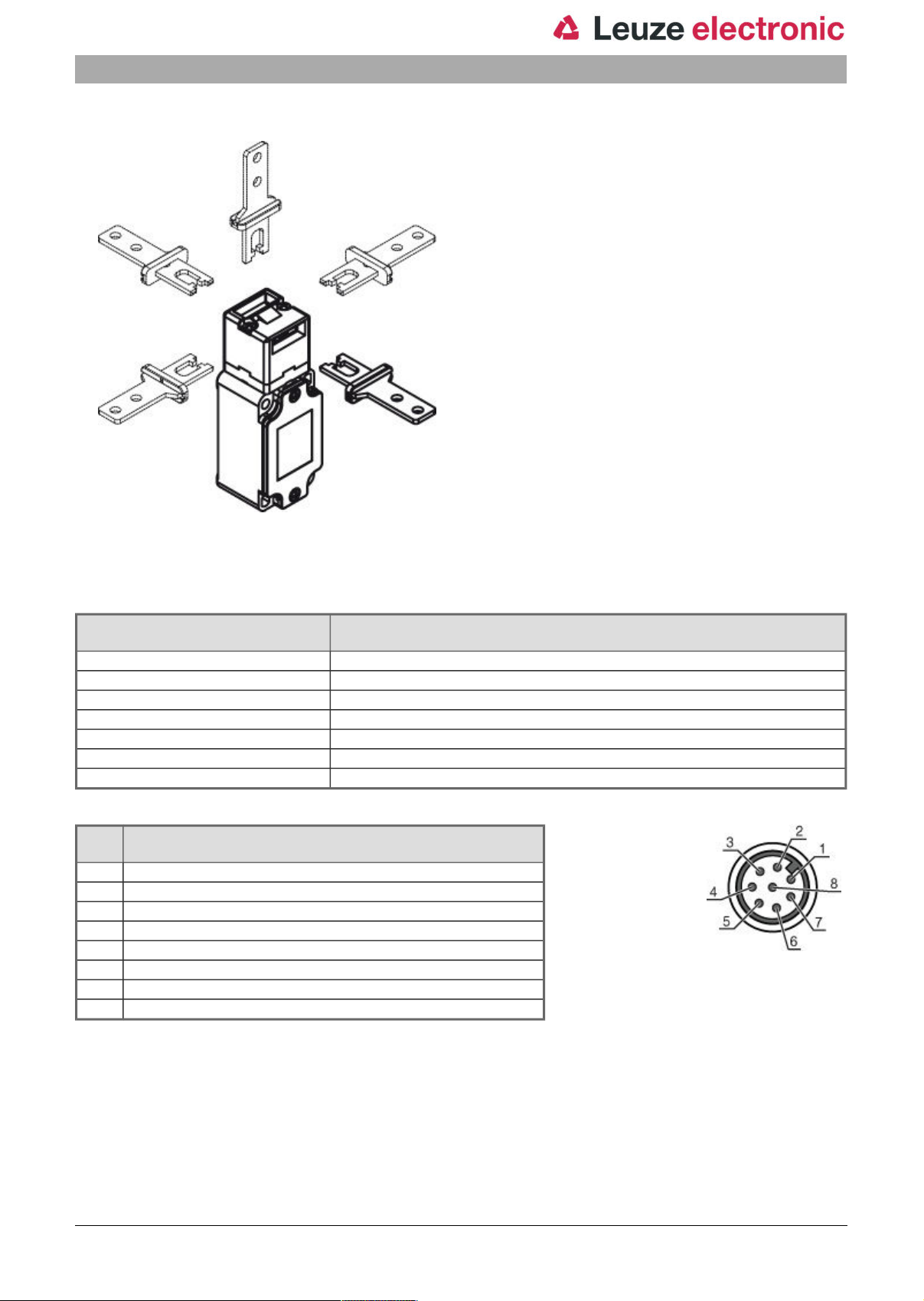

Approach directions
Electrical connection
Connection 1
Type of connection Connector
Function Contact connection
Thread size M12
Type Male
Material Metal
No. of pins 8 -pin
Encoding A-coded
Pin Pin assignment
1 GND
2 n.c.
3 NC(1)
4 NC(1)
5 NC(2)
6 NC(2)
7 NO(1)
8 NO(1)
eng 2018-03-30
4 / 6
Page 5
Part no.: 63000203 – S200-M4C1-M12 – Safety switch

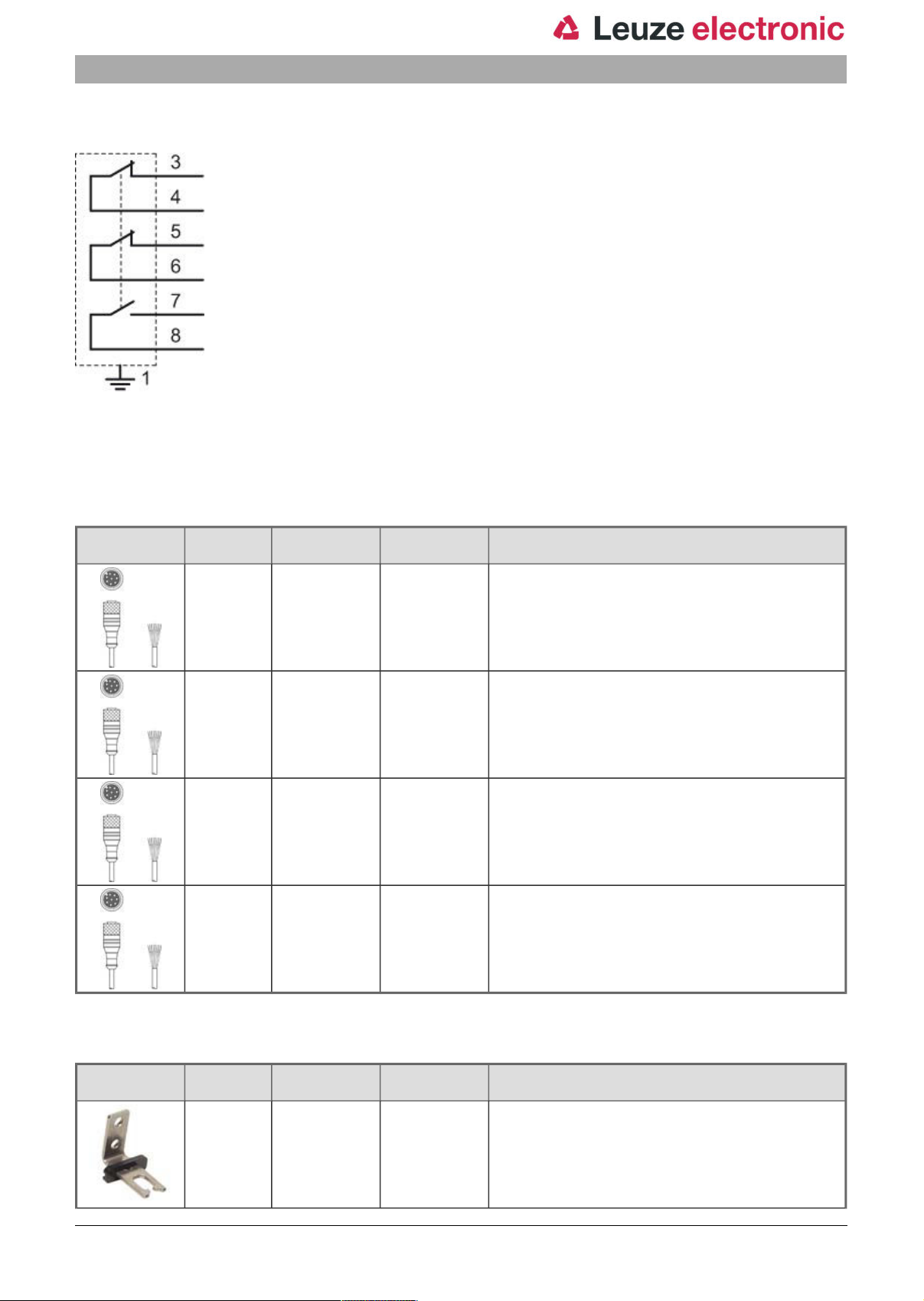

Circuit diagrams
Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50135128 KD S-M12-8A-
P1-050
50135129 KD S-M12-8A-
P1-100
50135130 KD S-M12-8A-
P1-150
50135131 KD S-M12-8A-
P1-250
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 25,000 mm
Sheathing material: PUR
Actuator
Part no. Designation Article Description
63000721 AC-AH-A Actuator Dimensions: 30 mm x 32.3 mm x 41.3 mm
Type of fastening: Through-hole mounting
Design: Angled
Area of application: Heavy duty
Mounting bore holes: In key direction
Material: Stainless steel
eng 2018-03-30
5 / 6
Page 6
Part no.: 63000203 – S200-M4C1-M12 – Safety switch

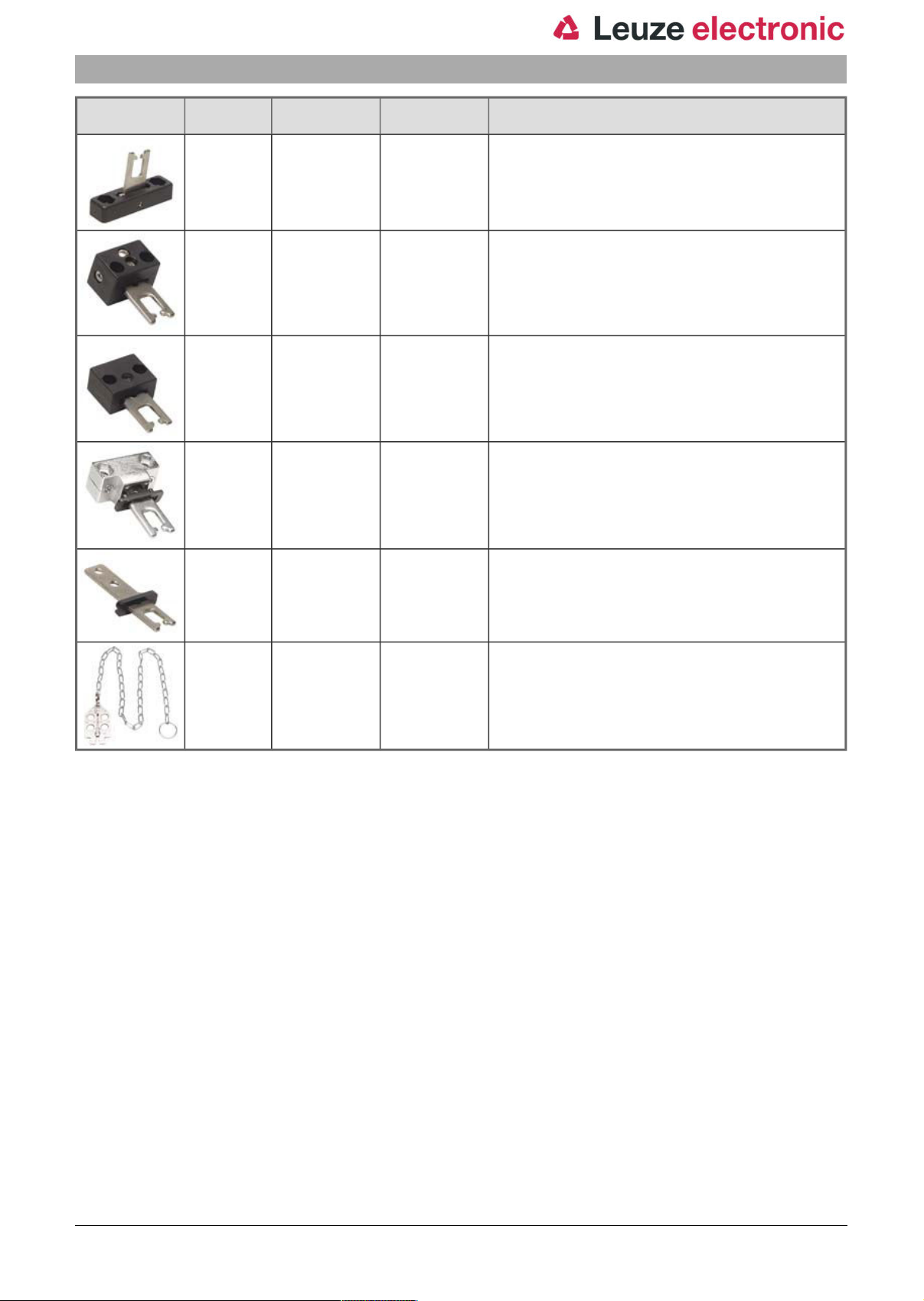

Part no. Designation Article Description
63000724 AC-AH-F1J2 Actuator Dimensions: 56 mm x 16 mm x 37 mm
63000723 AC-AH-F2J2 Actuator Dimensions: 30 mm x 22 mm x 46 mm
63000722 AC-AH-F4 Actuator Dimensions: 30 mm x 16 mm x 50 mm
63000725 AC-AH-F4J2-TK Actuator Dimensions: 39 mm x 20 mm x 49.8 mm
63000720 AC-AH-S Actuator Dimensions: 30 mm x 10 mm x 69 mm
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: In key direction
Material: Plastic, Stainless steel
Functions: Flexible, 1 direction, Adjustable, 2 directions
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Plastic, Stainless steel
Functions: Flexible, 2 directions, Adjustable, 2 directions
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Plastic, Stainless steel
Functions: Flexible, 4 directions
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: In key direction, 90° to key direction
Material: Stainless steel
Functions: Flexible, 4 directions, Rotatable head, Key,
Adjustable, 4 directions
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Stainless steel
63000846 AC-KL-AH Actuator interlock Material: Metal
eng 2018-03-30
6 / 6
