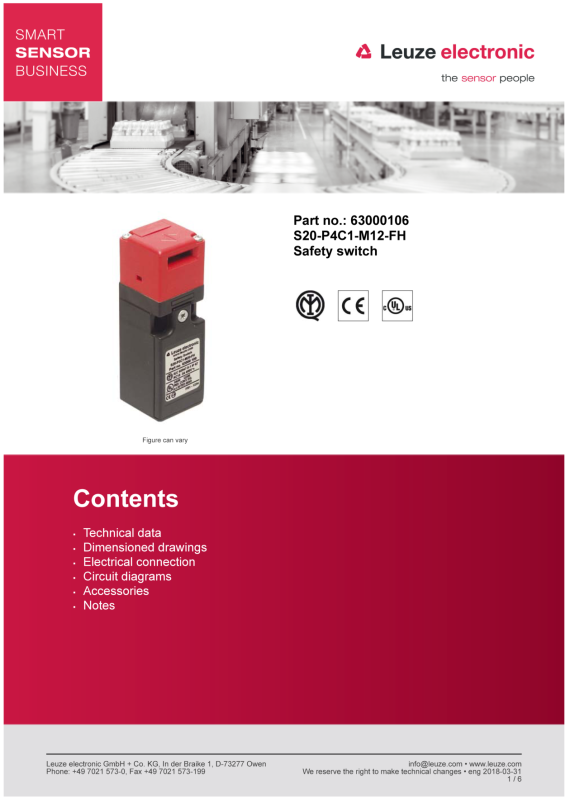

Part no.: 63000106 – S20-P4C1-M12-FH – Safety switch
Technical data
Basic data
Series S20
Functions
Functions Type 2 interlock device with mechanically actuated position switch
Characteristic parameters
Mission time T
B10
d
Electrical data
Usage category at DC 13 Ue 24 V, Ie 2 A, EN 60947-5-1
Usage category at AC 15 Ue 24 V, Ie 2 A, EN 60947-5-1
Contact allocation 2NC + 1NO
Contact opening Force-fit
Short circuit protected 500 V, 2 A, type gG, IEC 60269-1
Contact protection Protective insulation O
Performance data
Rated insulation voltage 30 V AC, 36 V DC
Conventional thermal current, max. 2 A
M
with low-coded actuator acc. to DIN EN ISO 14119
20 years, EN ISO 13849-1
2,000,000 number of cycles
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Connector
Function Contact connection
Thread size M12
Material Plastic
No. of pins 8 -pin
Mechanical data
Design Cubic
Dimension (W x H x L) 30.8 mm x 30.8 mm x 93 mm
Housing material Plastic, Glass fiber reinforced (PPS), self-extinguishing
Electrical contact material Silver alloy
Net weight 112 g
Housing color Red
Type of fastening Through-hole mounting
Switch type Interlock device without guard interlocking, ISO 14119
Switching principle Slow-action contact
Approach actuation directions 1 x top
Approach speed 0 ... 0.5 m/s
Mechanical life time 1,000,000 actuation cycles, IEC 6047-5-1
Actuation frequency, max. 3,600 per hour, IEC 6047-5-1
External actuator AC-ANxx series: straight, angled, resilient, alignable
Actuation force (pull-out) 10 N
Black
4 x side (90°)
eng 2018-03-31
2 / 6
Page 3
Part no.: 63000106 – S20-P4C1-M12-FH – Safety switch
Actuating path with forced separation 7.8 mm
Recoil tolerance 4.5 mm
Environmental data
Ambient temperature, operation -25 ... 80 °C
Degree of contamination, external 3, EN 60947-1
Certifications
Degree of protection IP 67
Certifications c UL US
Classification
eCl@ss 8.0 27272602
eCl@ss 9.0 27272602
ETIM 5.0 EC002592
IMQ

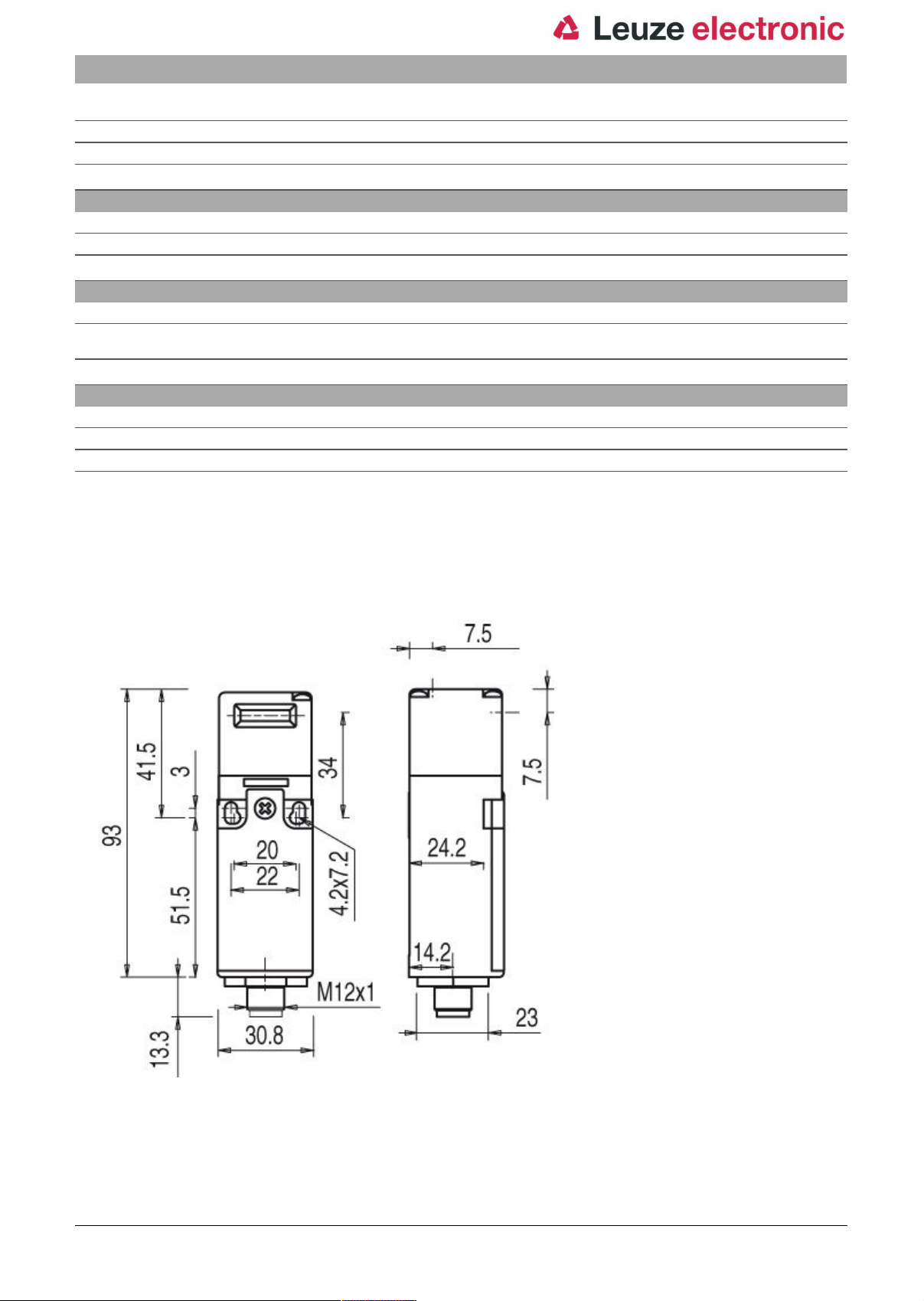

Dimensioned drawings
All dimensions in millimeters
eng 2018-03-31
3 / 6
Page 4
Part no.: 63000106 – S20-P4C1-M12-FH – Safety switch

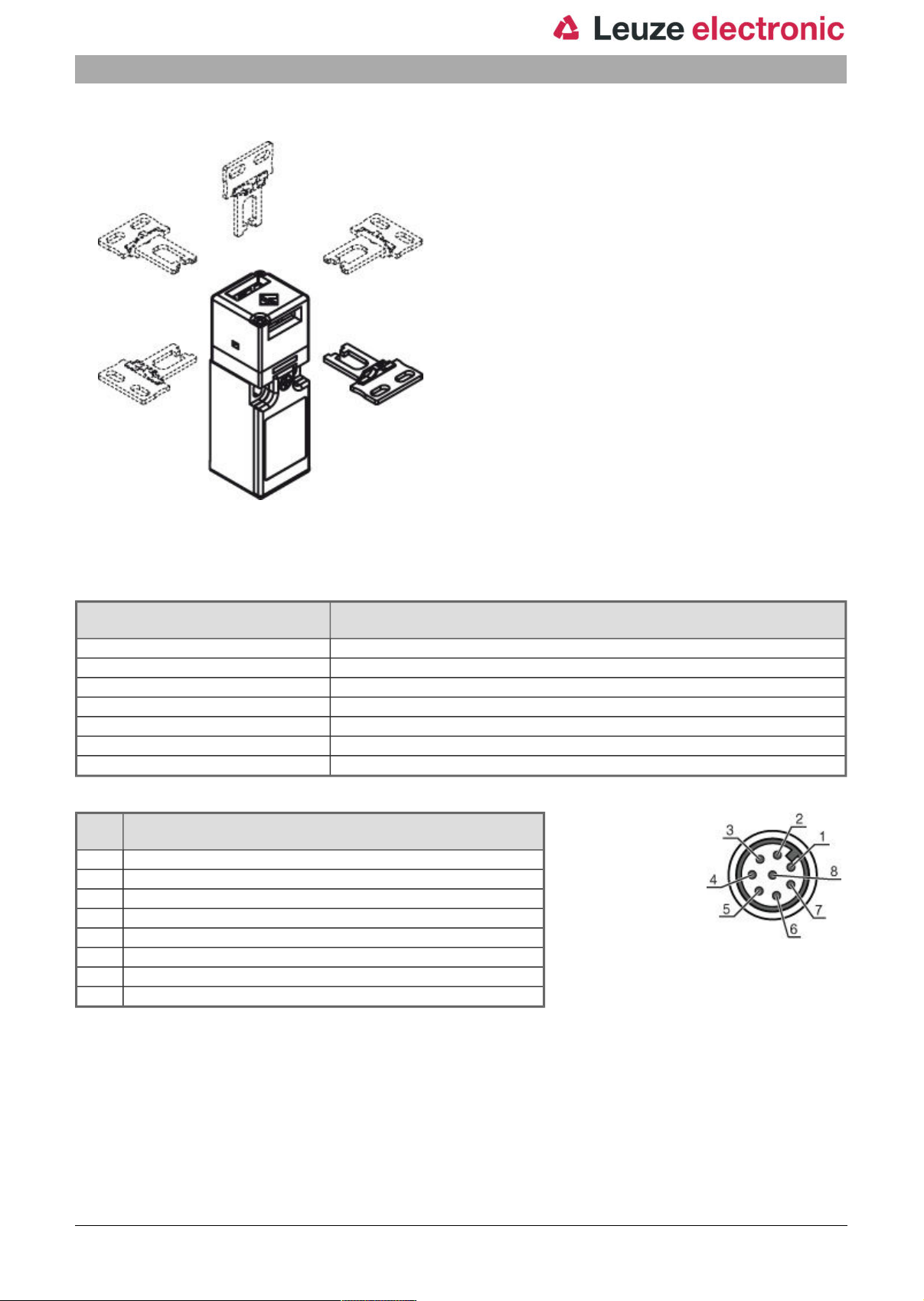

Approach directions
Electrical connection
Connection 1
Type of connection Connector
Function Contact connection
Thread size M12
Type Male
Material Plastic
No. of pins 8 -pin
Encoding A-coded
Pin Pin assignment
1 n.c.
2 n.c.
3 NC(1)
4 NC(1)
5 NC(2)
6 NC(2)
7 NO(1)
8 NO(1)
eng 2018-03-31
4 / 6
Page 5
Part no.: 63000106 – S20-P4C1-M12-FH – Safety switch

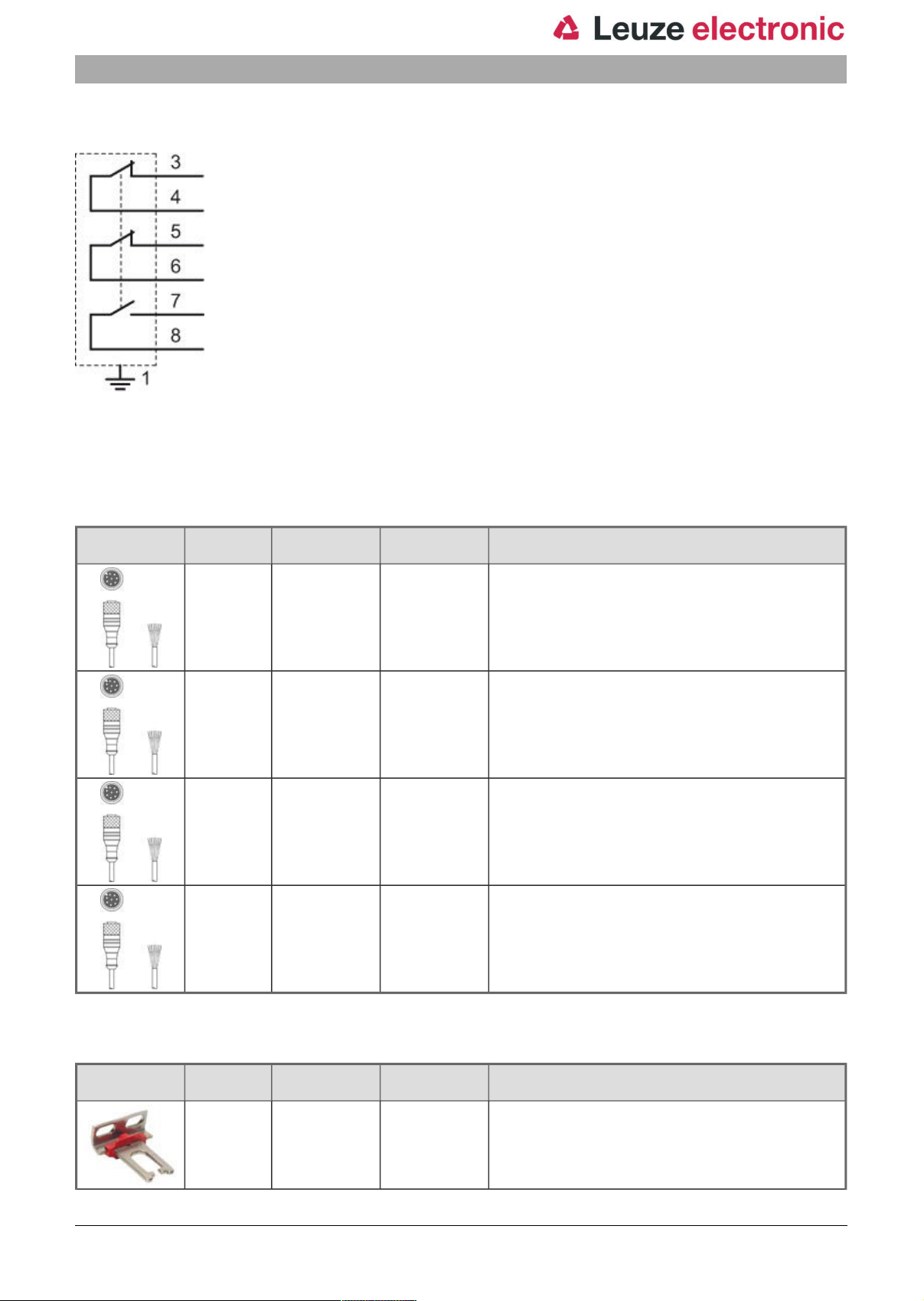

Circuit diagrams
Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50135128 KD S-M12-8A-
P1-050
50135129 KD S-M12-8A-
P1-100
50135130 KD S-M12-8A-
P1-150
50135131 KD S-M12-8A-
P1-250
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 25,000 mm
Sheathing material: PUR

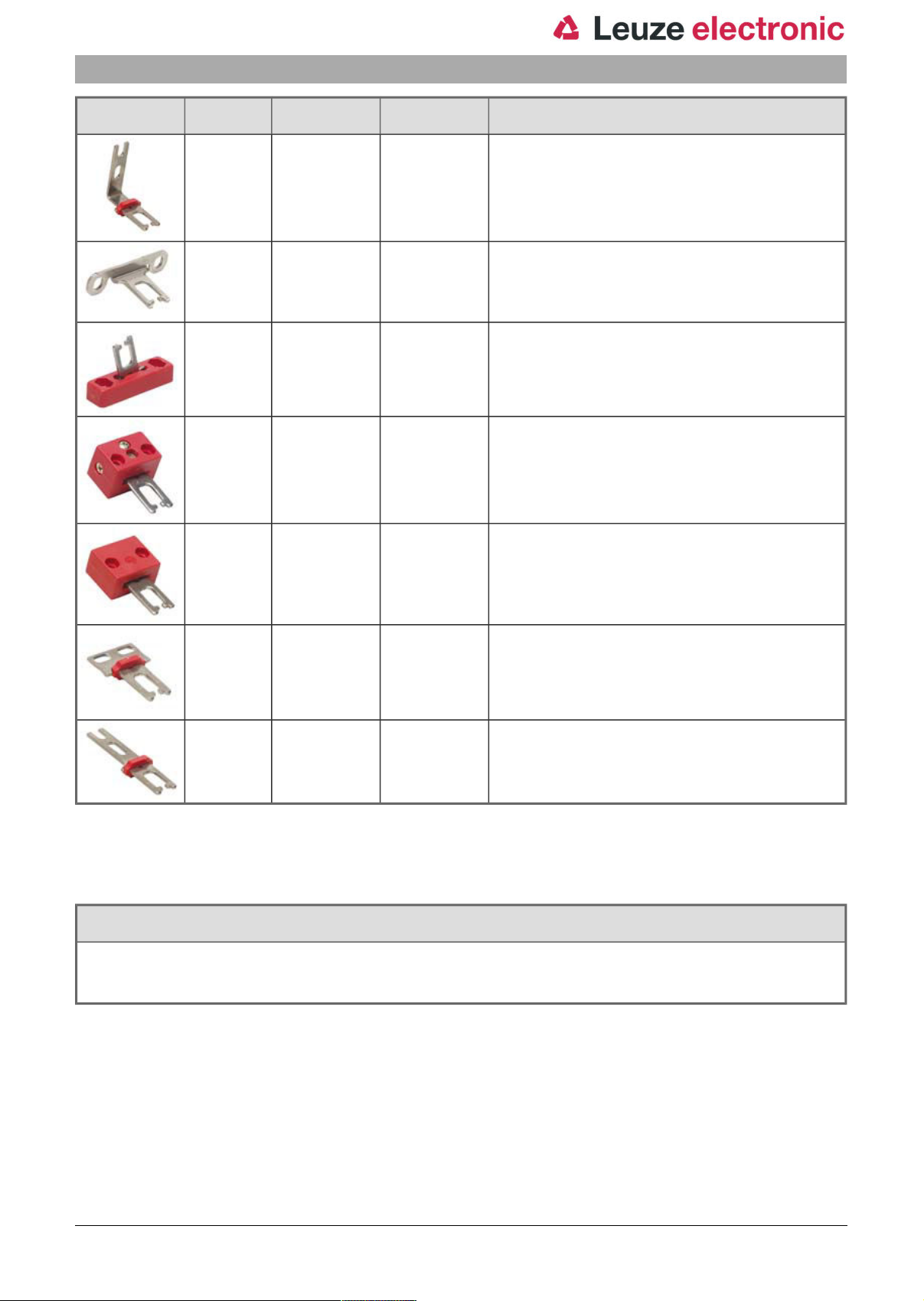

Actuator
Part no. Designation Article Description
63000701 AC-AN-A Actuator Dimensions: 28 mm x 11.8 mm x 30.7 mm
Type of fastening: Through-hole mounting
Design: Angled
Area of application: Normal duty
Mounting bore holes: In key direction
Material: Stainless steel
eng 2018-03-31
5 / 6
Page 6
Part no.: 63000106 – S20-P4C1-M12-FH – Safety switch
Part no. Designation Article Description
63000705 AC-AN-AL Actuator Dimensions: 20.6 mm x 41.7 mm x 42.7 mm
63000707 AC-AN-ASH Actuator Dimensions: 53 mm x 14 mm x 29 mm
63000706 AC-AN-F1J2 Actuator Dimensions: 56 mm x 16 mm x 35 mm
63000703 AC-AN-F2J2 Actuator Dimensions: 30 mm x 22 mm x 44 mm
63000702 AC-AN-F4 Actuator Dimensions: 30 mm x 16 mm x 48 mm
Type of fastening: Through-hole mounting
Design: Angled
Area of application: Normal duty
Mounting bore holes: In key direction
Material: Stainless steel
Type of fastening: Through-hole mounting
Design: Angled
Area of application: Normal duty
Mounting bore holes: In key direction
Material: Stainless steel
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Normal duty
Mounting bore holes: In key direction
Material: Plastic, Stainless steel
Functions: Flexible, 1 direction, Adjustable, 2 directions
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Normal duty
Mounting bore holes: 90° to key direction
Material: Plastic, Stainless steel
Functions: Flexible, 2 directions, Adjustable, 2 directions
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Normal duty
Mounting bore holes: 90° to key direction
Material: Plastic, Stainless steel
Functions: Flexible, 4 directions
63000700 AC-AN-S Actuator Dimensions: 28 mm x 9 mm x 39.8 mm
63000704 AC-AN-SL Actuator Dimensions: 20.6 mm x 9 mm x 64 mm
Notes
Observe intended use!
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Normal duty
Mounting bore holes: 90° to key direction
Material: Stainless steel
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Normal duty
Mounting bore holes: 90° to key direction
Material: Stainless steel
eng 2018-03-31
6 / 6
