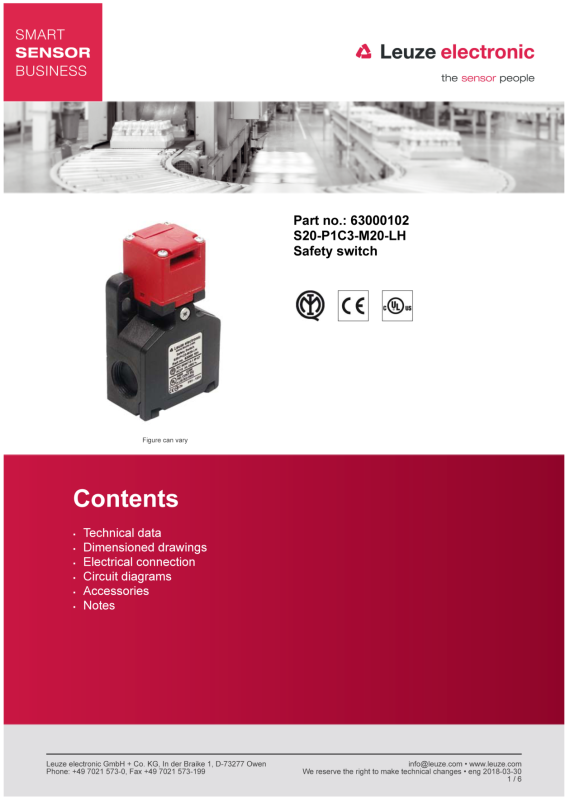

Leuze 63000102 Data Sheet

Part no.: 63000102 – S20-P1C3-M20-LH – Safety switch

Technical data

Basic data

Series S20

Functions

Functions Type 2 interlock device with mechanically actuated position switch

Characteristic parameters

Mission time T

B10

d

Electrical data

Usage category at DC 13 Ue / Ie: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A, EN 60947-5-1

Usage category at AC 15 Ue / Ie: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A, EN 60947-5-1

Contact allocation 1NC + 1NO

Contact opening Force-fit

Short circuit protected 500 V, 10 A, type aM, IEC 60269-1

Contact protection Protective insulation O

Performance data

Rated insulation voltage 500 V AC, 600 V DC

Conventional thermal current, max. 10 A

M

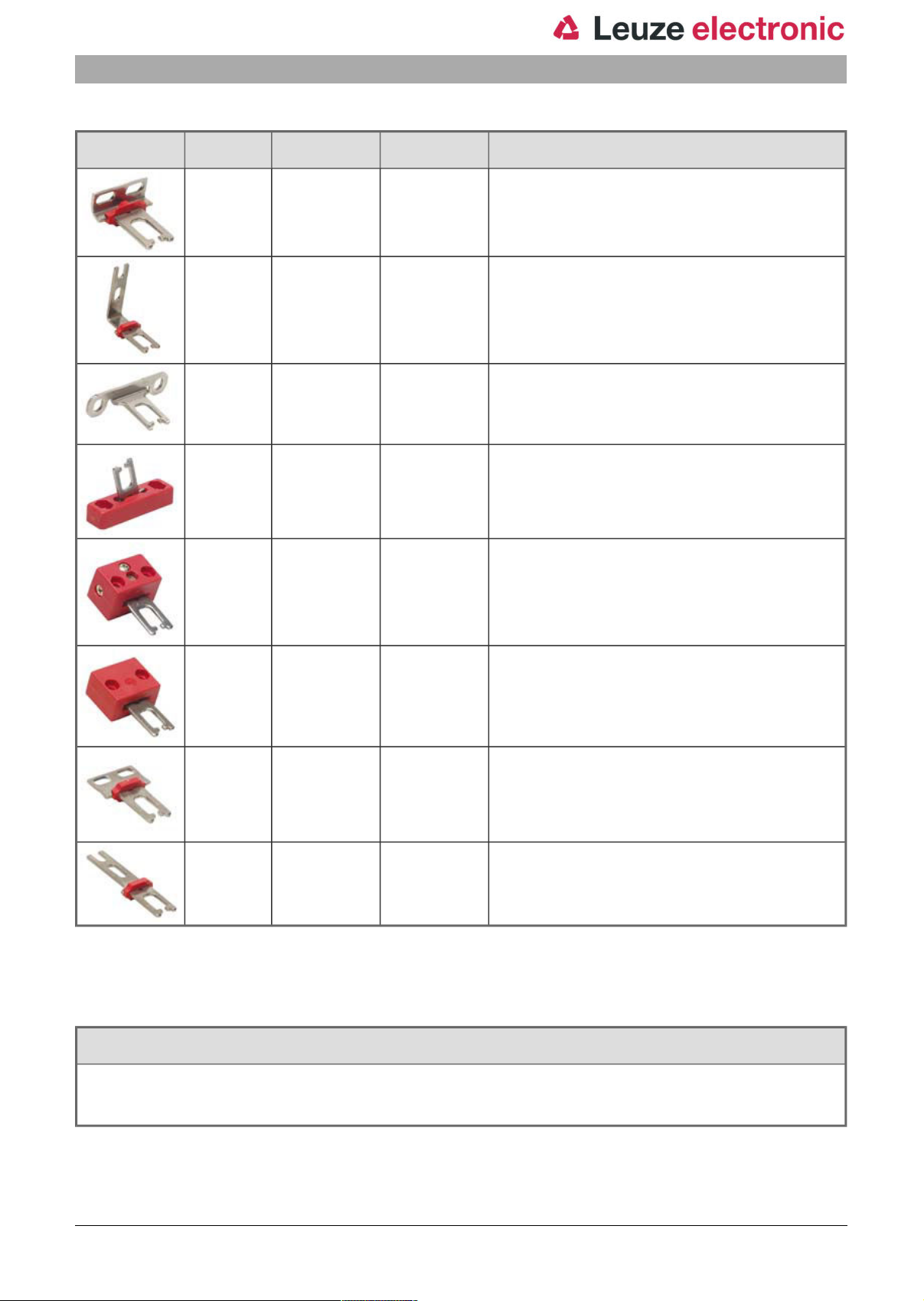

with low-coded actuator acc. to DIN EN ISO 14119

20 years, EN ISO 13849-1

2,000,000 number of cycles

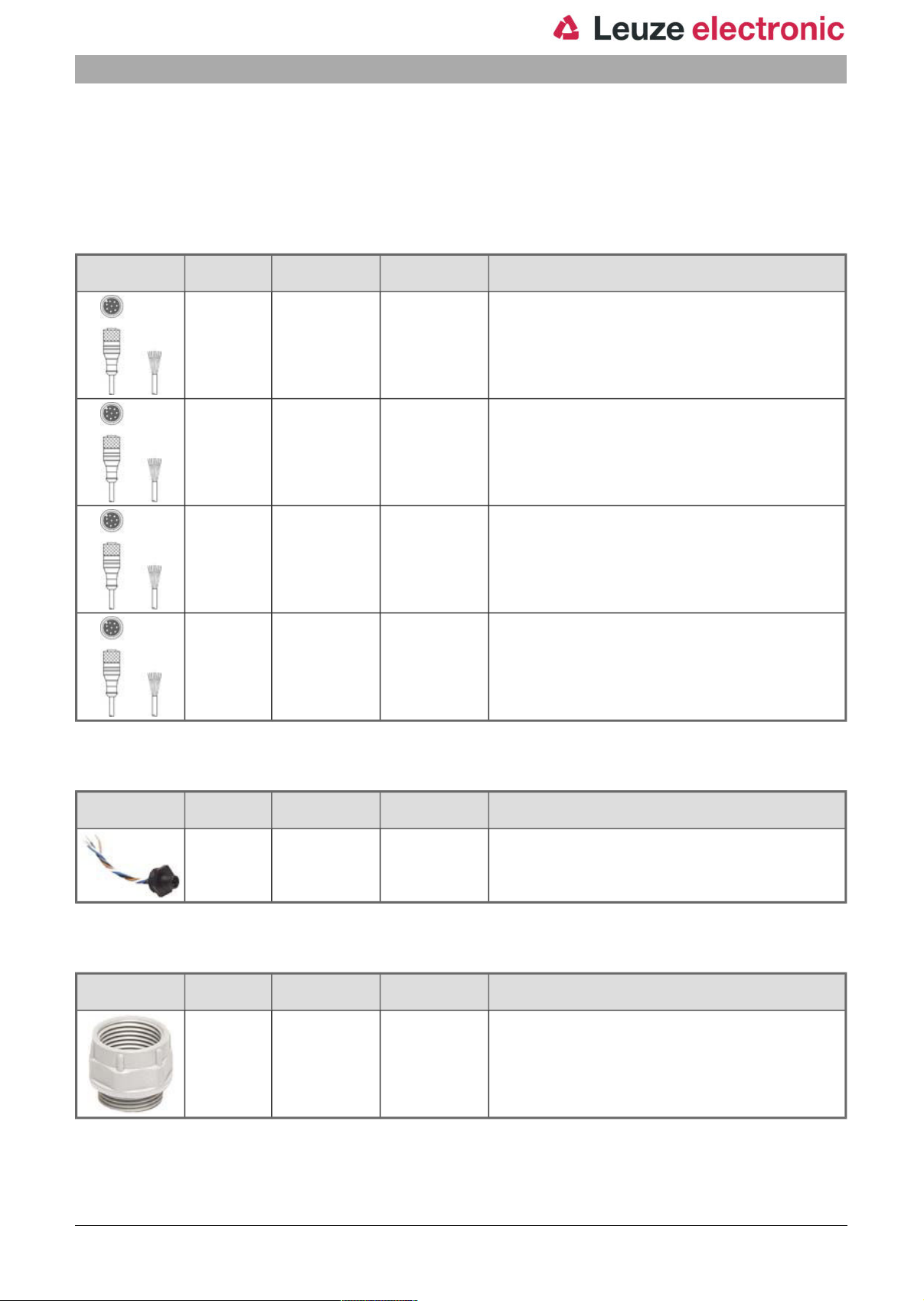

Connection

Number of connections 1 Piece(s)

Number of cable entries 3 Piece(s)

Connection 1

Type of connection Terminal

Function Contact connection

Type of terminal Screw terminal

No. of pins 4 -pin

Cable properties

Connection cross sections 1 x 0.5 mm² to 2 x 2.5 mm², wire

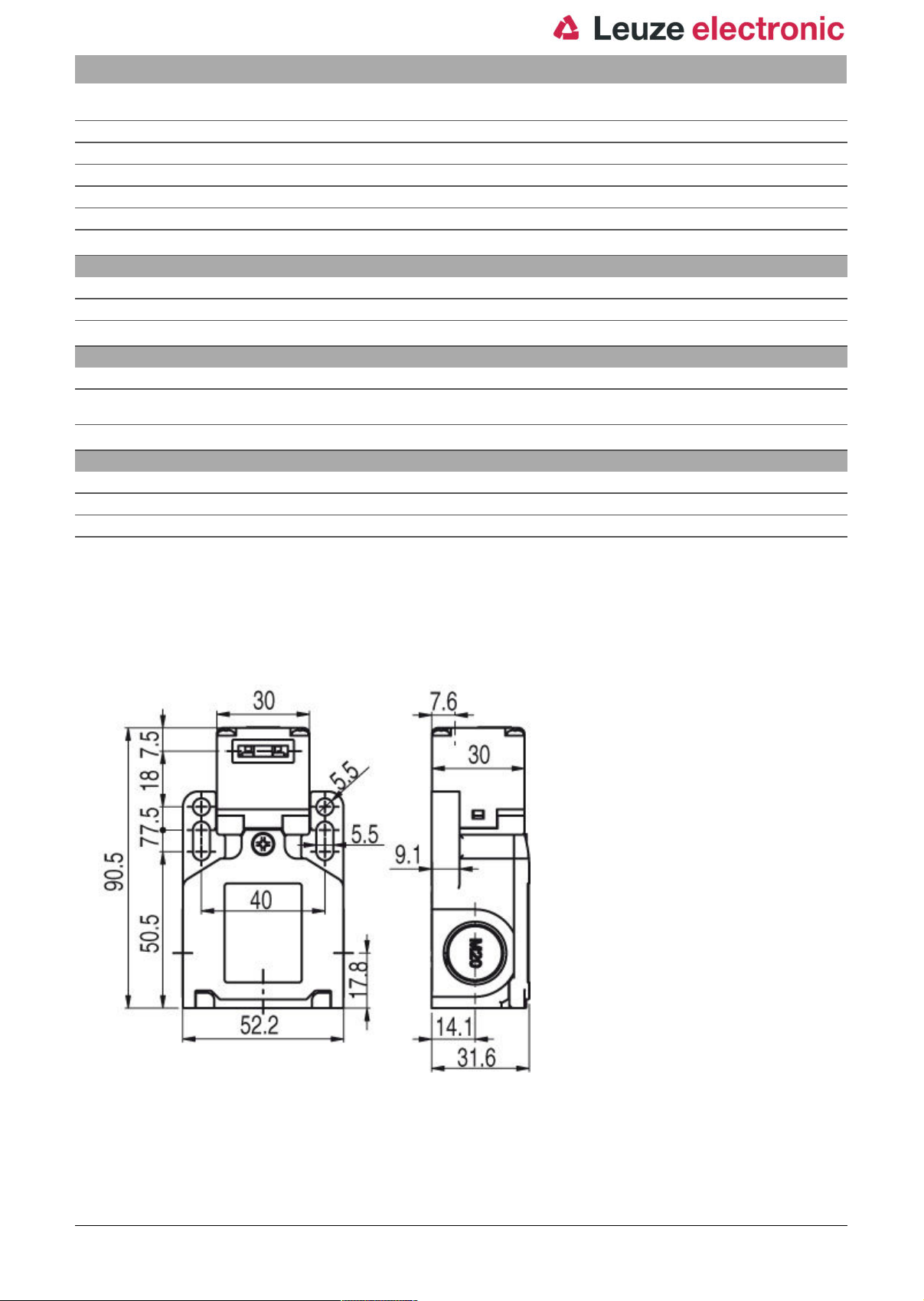

Mechanical data

Design Cubic

Dimension (W x H x L) 52.2 mm x 31.6 mm x 90.5 mm

Housing material Plastic, Glass fiber reinforced (PPS), self-extinguishing

Electrical contact material Silver alloy

Net weight 112 g

Housing color Black

Type of fastening Through-hole mounting

Type of cable entry M20 x 1.5

Switch type Interlock device without guard interlocking, ISO 14119

Switching principle Slow-action contact

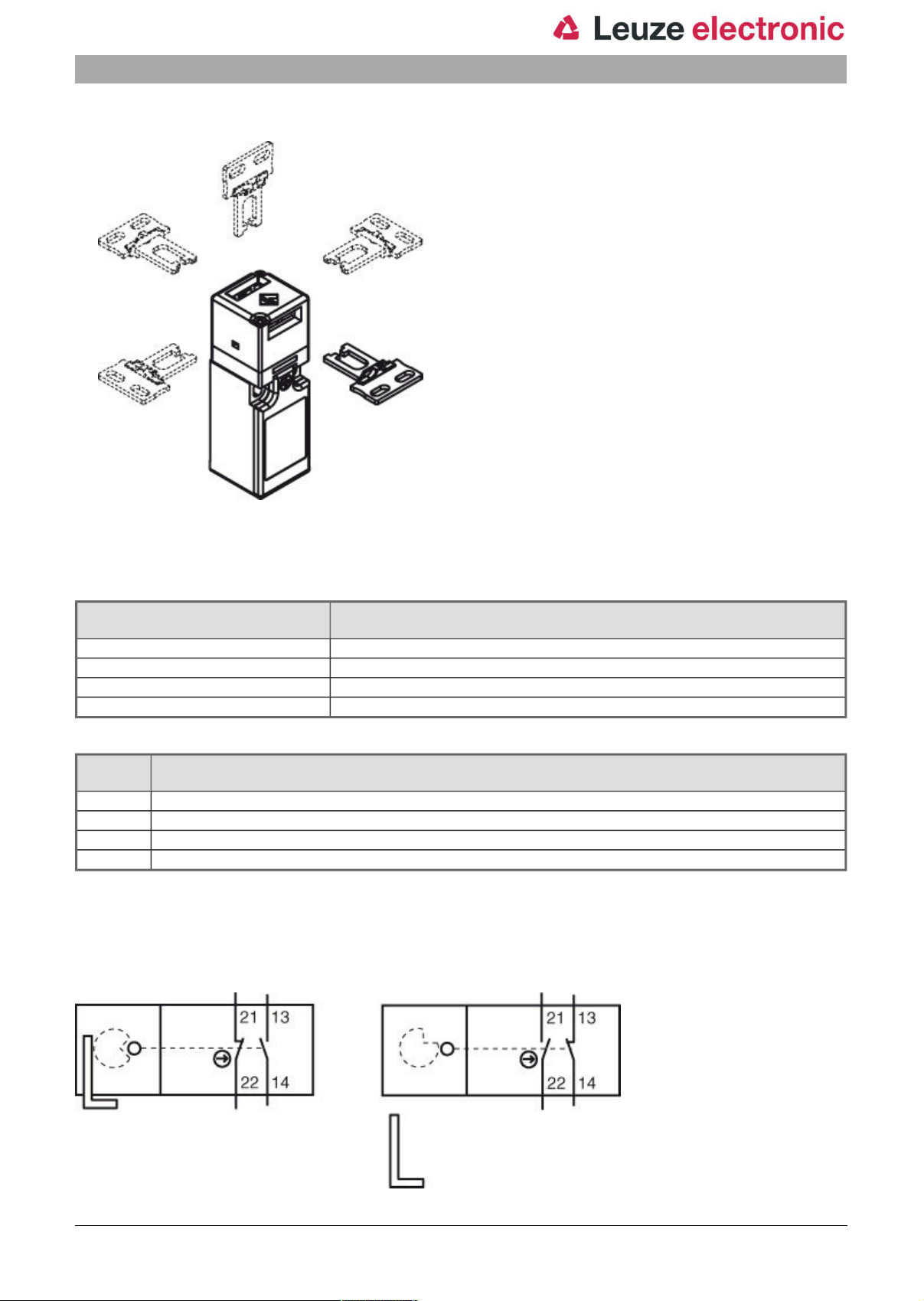

Approach actuation directions 1 x top

Approach speed 0 ... 0.5 m/s

Mechanical life time 1,000,000 actuation cycles, IEC 6047-5-1

Red

4 x side (90°)

eng 2018-03-30

2 / 6
