Leuze 53800203 Data Sheet

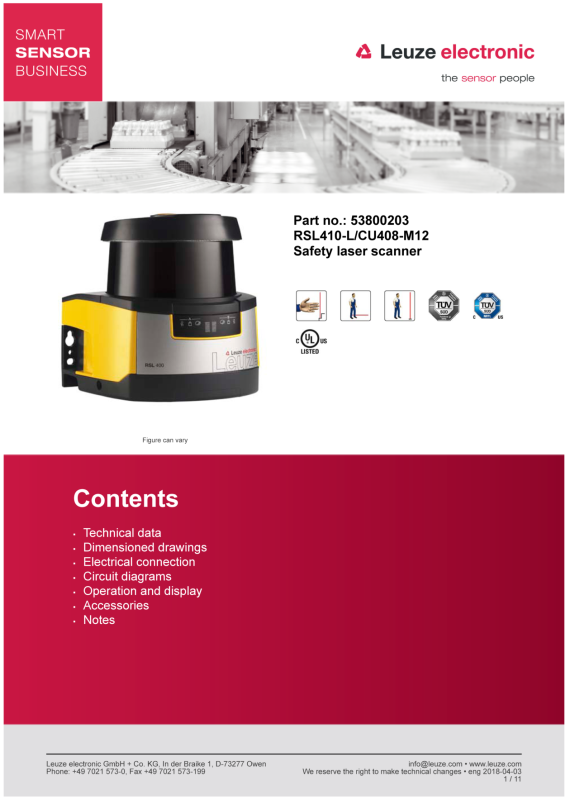

Part no.: 53800203 – RSL410-L/CU408-M12 – Safety laser scanner

Technical data

Basic data

Series RSL 400

Functions

Functions Dynamic contactor monitoring (EDM), selectable

Characteristic parameters

Type 3, IEC/EN 61496

SIL 2, IEC 61508

SILCL 2, IEC/EN 62061

Performance Level (PL) d, EN ISO 13849-1

PFH

D

Mission time T

Category 3, EN ISO 13849

M

Resolution, selectable Four-field mode

9E-08 per hour

20 years, EN ISO 13849-1

Protective field data

Scanning angle 270 °

Minimum adjustable range 200 mm

Number of field pairs, reversible 1

Number of quads, reversible 1

Number of protective functions 1 Piece(s)

Number of independent sensor configurations 1

Diffuse reflection, min. 1.8 %

Operating range 0 ... 6.25 m

Warning field data

Number of field pairs 1

Operating range 0 ... 20 m

Object size 150 mm x 150 mm

Diffuse reflection, min. 1.8 %

Optical data

Light source Laser, Infrared

Laser light wavelength 905 nm

Laser class 1, IEC/EN 60825-1:2007

Transmitted-signal shape Pulsed

Repetition frequency 90 kHz

Measurement data

Radial resolution 5 mm

Detection range 0 ... 50 m

Angular resolution 0.1 °

Electrical data

Protective circuit Overvoltage protection

eng 2018-04-03

2 / 11

Part no.: 53800203 – RSL410-L/CU408-M12 – Safety laser scanner

Performance data

Supply voltage 24 V, DC, -30 ... 20 %

Current consumption (without load), max. 700 mA, (use power supply unit with 3 A)

Power consumption, max. 17 W, For 24 V, plus output load

Outputs

Number of safety-related switching outputs (OSSDs) 2 Piece(s)

Safety-related switching outputs

Type Safety-related switching output OSSD

Switching voltage high, min. 20.8 V

Switching voltage low, max. 2 V

Voltage type DC

Safety-related switching output 1

Assignment Connection 1, pin 5

Switching element Transistor, PNP

Safety-related switching output 2

Assignment Connection 1, pin 6

Switching element Transistor, PNP

Interface

Type Bluetooth

Bluetooth

Function Configuration/parametering

Frequency band 2,400 ... 2,483.5 MHz

Radiated transmitting power Max. 4.5 dBm (2.82 mW), class 2

Connection

Number of connections 2 Piece(s)

Connection 1

Type of connection Connector

Function Machine interface

Thread size M12

Type Male

Material Metal

No. of pins 8 -pin

Encoding A-coded

Connection 2

Type of connection Connector

Function Data interface

Thread size M12

Type Female

Material Metal

No. of pins 4 -pin

Encoding D-coded

Cable properties

Cable resistance, max. 15 Ω

Mechanical data

Dimension (W x H x L) 140 mm x 149 mm x 140 mm

Housing material Metal

Plastic, Diecast zinc,

eng 2018-04-03

3 / 11

Part no.: 53800203 – RSL410-L/CU408-M12 – Safety laser scanner

Lens cover material Plastic/PC

Net weight 3,000 g

Housing color Yellow, RAL 1021

Type of fastening Through-hole mounting

Operation and display

Type of display LED indicator

Number of LEDs 3 Piece(s)

Type of configuration Software Sensor Studio

Operational controls Software Sensor Studio

Environmental data

Ambient temperature, operation 0 ... 50 °C

Ambient temperature, storage -20 ... 60 °C

Certifications

Degree of protection IP 65

Protection class III, EN 61140

Certifications c UL US

US patents US 7,656,917 B

Mounting plate Via optional mounting device

Alphanumerical display

TÜV Süd c TÜV Süd US

US 8,520,221 B US 2016/0086469 A US 7,696,468 B

Classification

eCl@ss 8.0 27272705

eCl@ss 9.0 27272705

ETIM 5.0 EC002550

Dimensioned drawings

All dimensions in millimeters

eng 2018-04-03

4 / 11

Part no.: 53800203 – RSL410-L/CU408-M12 – Safety laser scanner

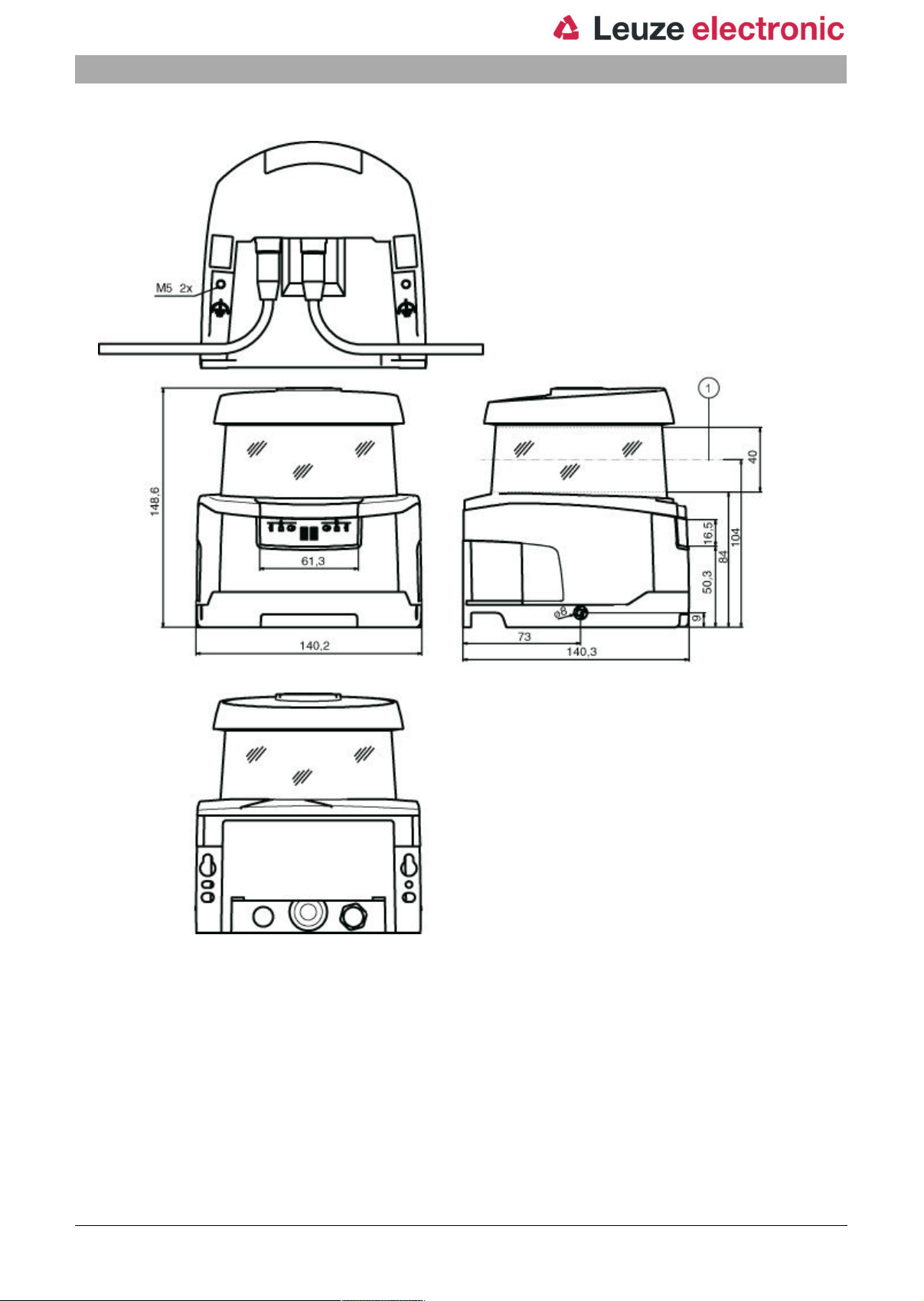

Dimensions safety laser scanner with connection unit

1 Scan level

eng 2018-04-03

5 / 11

Part no.: 53800203 – RSL410-L/CU408-M12 – Safety laser scanner

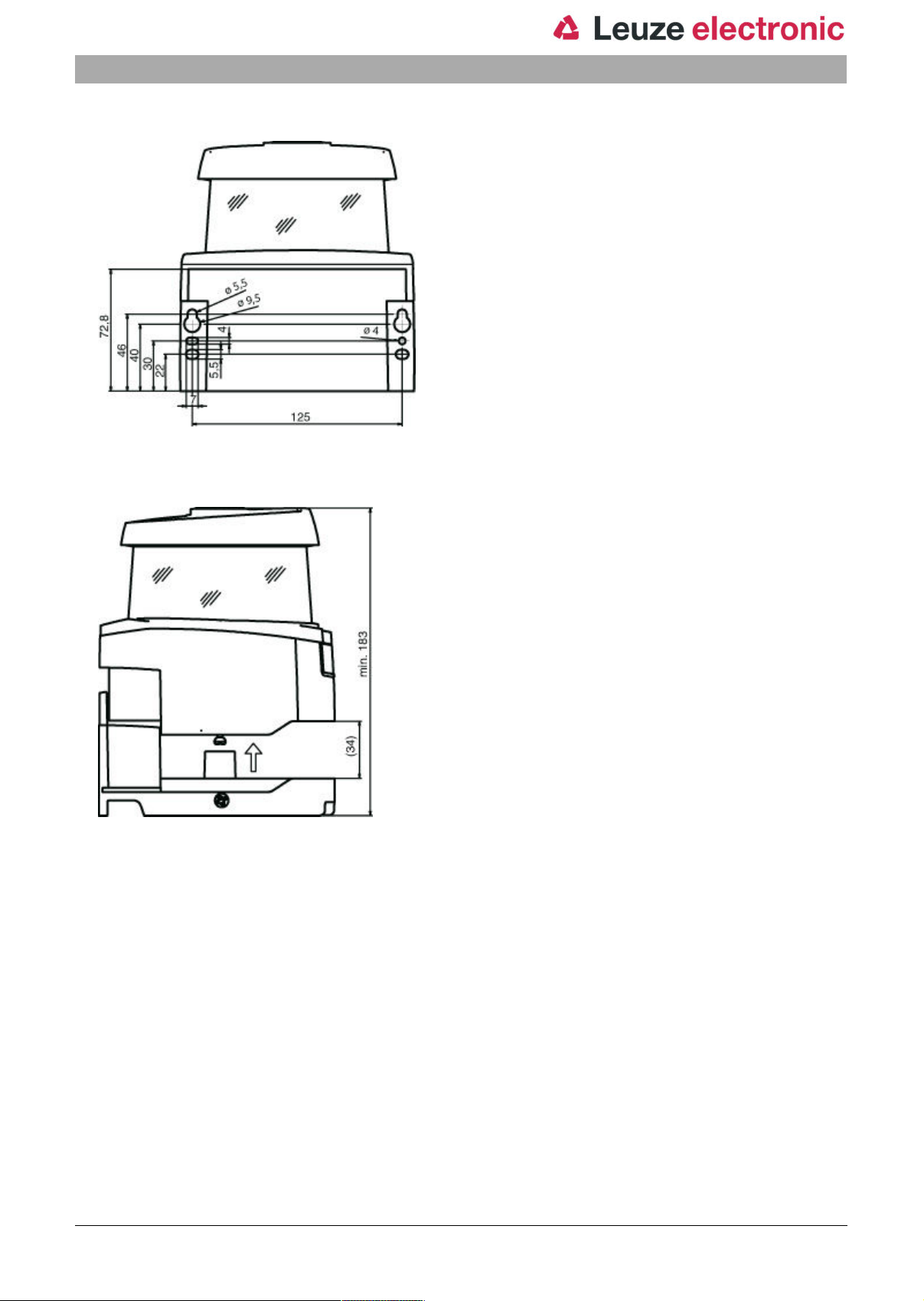

Mounting dimensions safety laser scanner with connection unit

Minimum space requirements for installation and replacement of scanner unit

eng 2018-04-03

6 / 11

Part no.: 53800203 – RSL410-L/CU408-M12 – Safety laser scanner

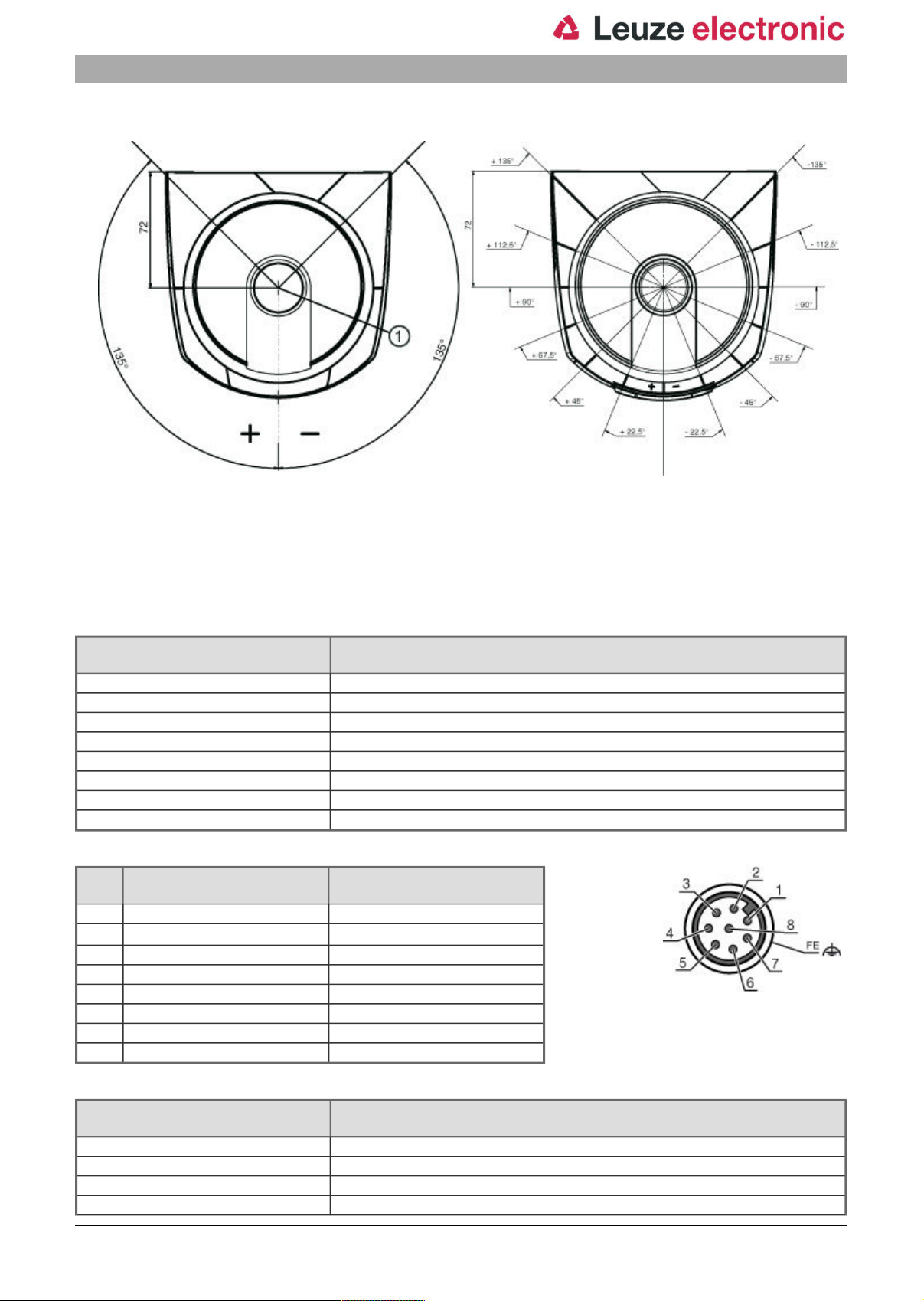

Dimensions of scanning range

1 Reference point for distance measurement and protective field radius

Electrical connection

Connection 1

Type of connection Connector Function Machine interface Thread size M12 Type Male Material Metal No. of pins 8 -pin Encoding A-coded Connector housing FE/SHIELD

Pin Pin assignment Conductor color

1 RES1 White 2 U

3 EA1 Green 4 A1 Yellow 5 OSSDA1 Gray 6 OSSDA2 Pink 7 GND / Ground Blue 8 MELD Red

B

Brown

Connection 2

Type of connection Connector Function Data interface Thread size M12 Type Female

eng 2018-04-03

7 / 11

Part no.: 53800203 – RSL410-L/CU408-M12 – Safety laser scanner

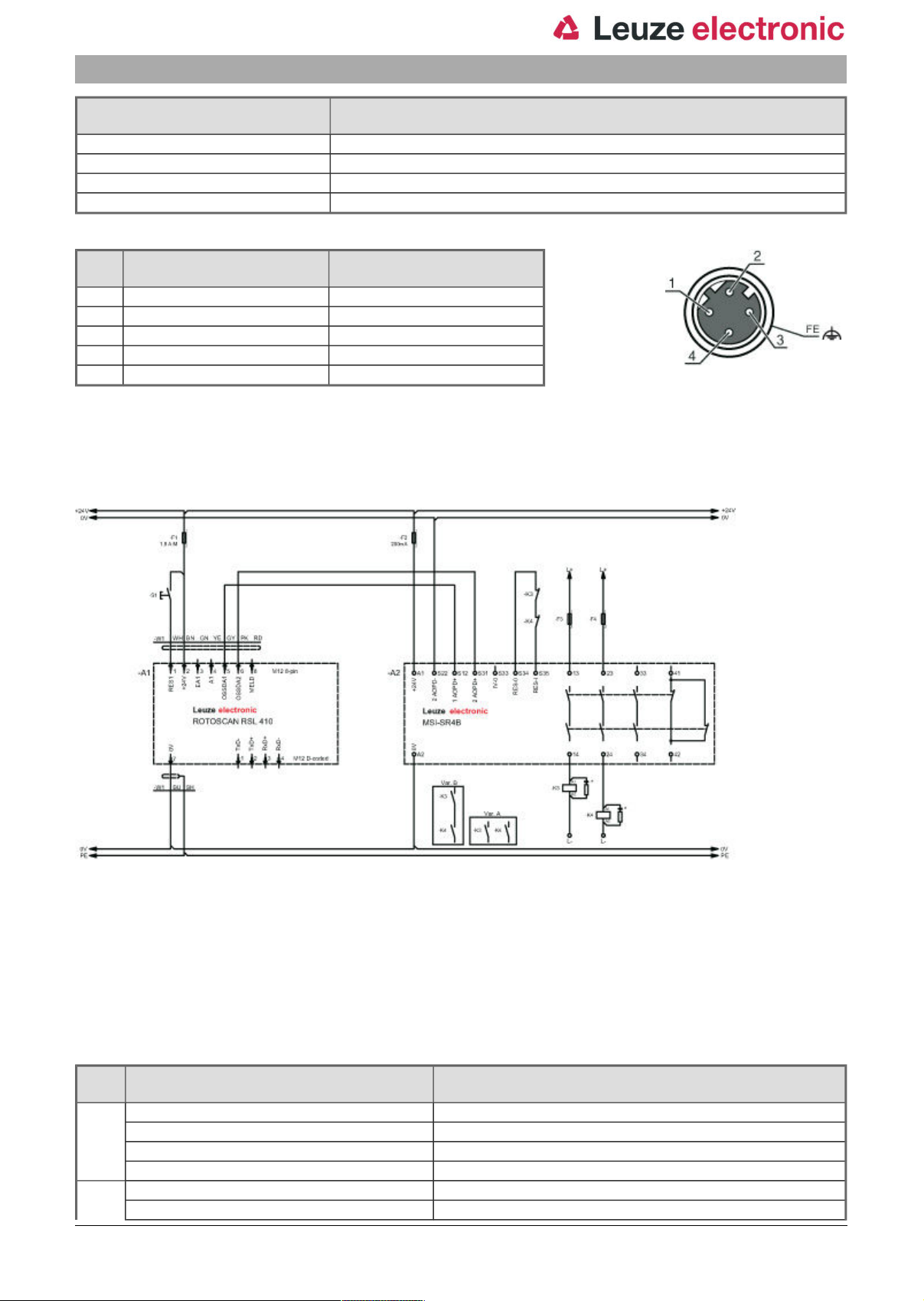

Connection 2

Material Metal No. of pins 4 -pin Encoding D-coded Connector housing FE/SHIELD

Pin Pin assignment Conductor color

1 TD+ Yellow 2 RD+ White 3 TD- Orange 4 RD- Blue 5

Circuit diagrams

* Spark extinction circuit, suitable spark extinction provided

Operation and display

LEDs

LED Display Meaning

1 Off Device switched off

Red, continuous light OSSD off Red, flashing Error Green, continuous light OSSD on

2 Off RES deactivated or RES activated and released

Yellow, flashing Protective field occupied

eng 2018-04-03

8 / 11

Part no.: 53800203 – RSL410-L/CU408-M12 – Safety laser scanner

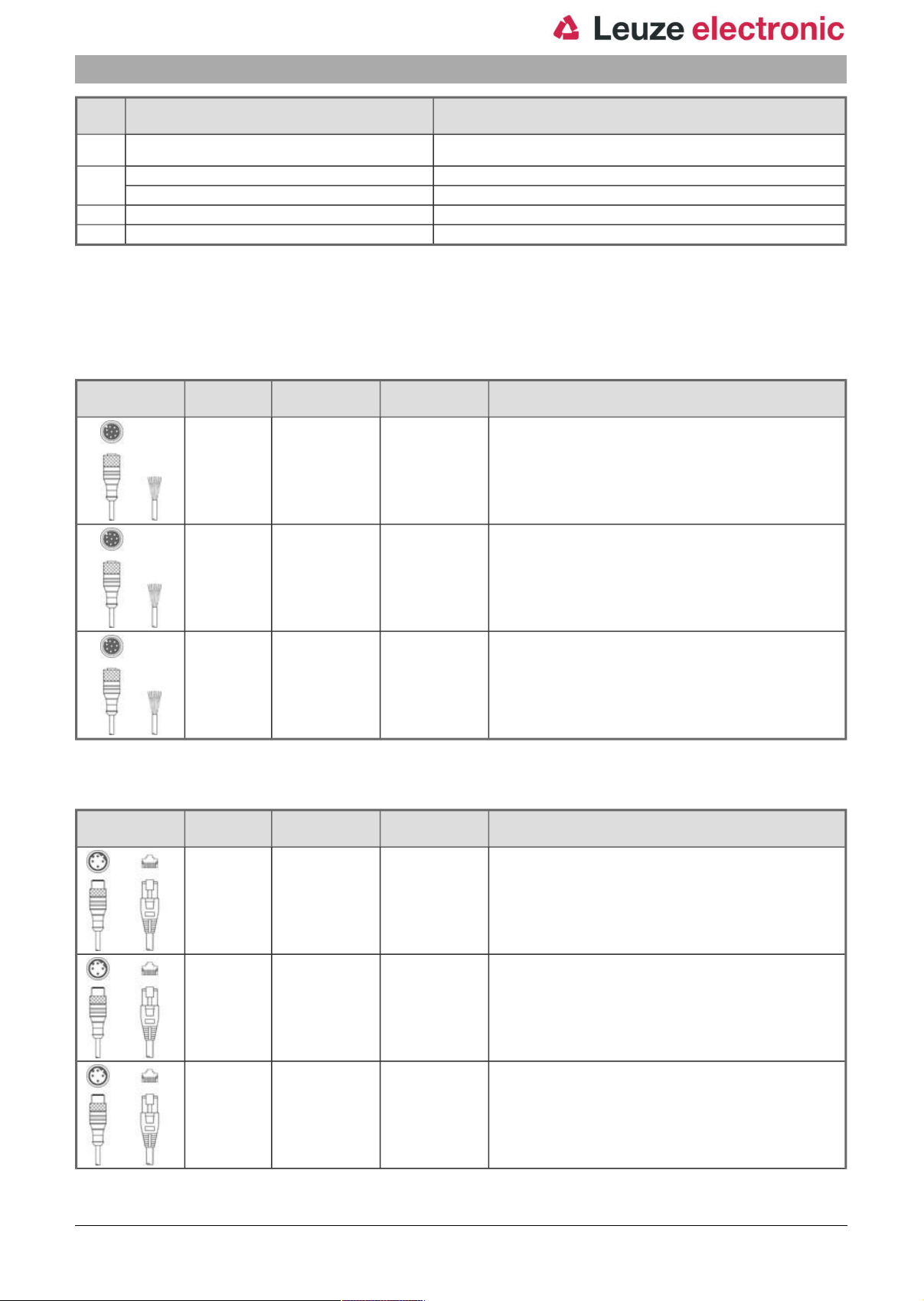

LED Display Meaning

Yellow, continuous light RES activated and blocked but ready to be unlocked - protective field free

3 Off Free warning field

Blue, continuous light Warning field interrupted 4 Off 5 Yellow, flashing

and linked sensor is enabled if applicable

Accessories

Connection technology - Connection cables

Part no. Designation Article Description

50135128 KD S-M12-8A-

P1-050

50135129 KD S-M12-8A-

P1-100

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin

Connection 2: Open end Shielded: Yes Cable length: 5,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin

Connection 2: Open end Shielded: Yes Cable length: 10,000 mm Sheathing material: PUR

50135130 KD S-M12-8A-

P1-150

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin

Connection 2: Open end Shielded: Yes Cable length: 15,000 mm Sheathing material: PUR

Connection technology - Interconnection cables

Part no. Designation Article Description

50135080 KSS ET-M12-4A-

RJ45-A-P7-020

50135081 KSS ET-M12-4A-

RJ45-A-P7-050

50135082 KSS ET-M12-4A-

RJ45-A-P7-100

Interconnection cable

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 2,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 5,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 10,000 mm Sheathing material: PUR

eng 2018-04-03

9 / 11

Part no.: 53800203 – RSL410-L/CU408-M12 – Safety laser scanner

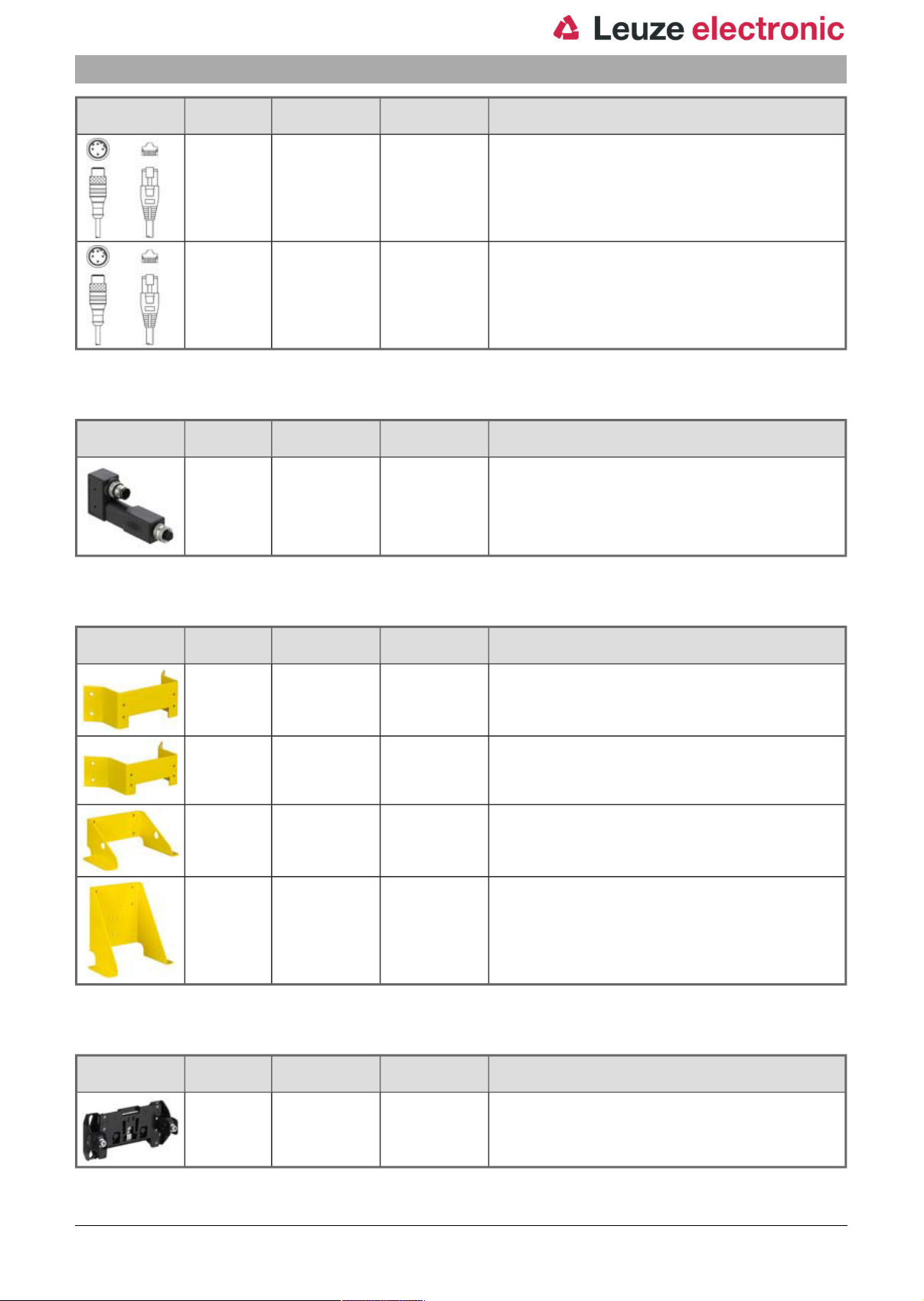

Part no. Designation Article Description

50135083 KSS ET-M12-4A-

RJ45-A-P7-150

50135084 KSS ET-M12-4A-

RJ45-A-P7-300

Interconnection cable

Connection technology - Adapters

Part no. Designation Article Description

50134656 RSL400 M12

Adapter

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 15,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 30,000 mm Sheathing material: PUR

Number of connections: 2 Piece(s) Connection 1: Connector, M12, D-coded, 4 -pin Connection 2: Connector, M12, D-coded, 4 -pin Dimensions: 20 mm x 90.5 mm x 40 mm Color: Black

Mounting technology - Mounting brackets

Part no. Designation Article Description

53800134 BT840M Mounting bracket Dimensions: 84.9 mm x 72 mm x 205.2 mm

53800135 BT856M Mounting bracket Dimensions: 119 mm x 72 mm x 233.5 mm

53800132 BTF815M Mounting bracket Dimensions: 186 mm x 120 mm x 288 mm

53800133 BTF830M Mounting bracket Dimensions: 186 mm x 275 mm x 288 mm

Mounting technology - Other

Color: Yellow, RAL 1021 Type of fastening, at system: Through-hole mounting Type of fastening, at device: Screw type Material: Metal

Part no. Designation Article Description

53800130 BTU800M Mounting system Dimensions: 54.5 mm x 90 mm x 192 mm

Color: Black Type of fastening, at system: Through-hole mounting Type of fastening, at device: Screw type Material: Metal

eng 2018-04-03

10 / 11

Part no.: 53800203 – RSL410-L/CU408-M12 – Safety laser scanner

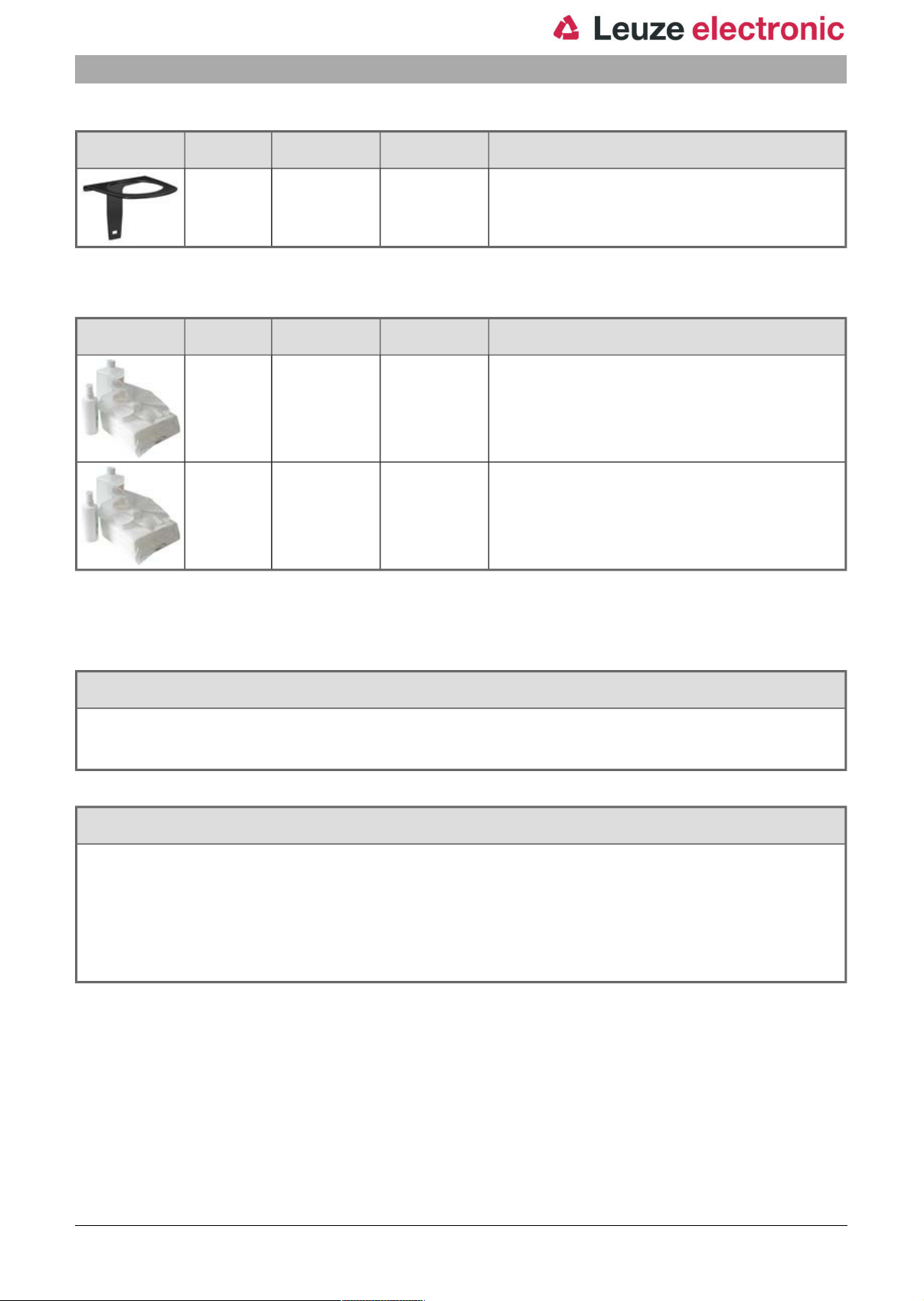

Mounting

Part no. Designation Article Description

General

53800131 BTP800M Loop guard Dimensions: 160 mm x 169 mm

Color: Black Material: Metal

Part no. Designation Article Description

430400 RS4-clean-Set1 Cleaning set Number of cleaning cloths: 40 Piece(s)

Content of cleaning fluid: 150 ml

430410 RS4-clean-Set2 Cleaning set Number of cleaning cloths: 120 Piece(s)

Content of cleaning fluid: 1,000 ml

Notes

Observe intended use!

• The product may only be put into operation by competent persons.

• Only use the product in accordance with its intended use.

WARNING! INVISIBLE LASER RADIATION – LASER CLASS 1

The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 1 as well as the U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.

• Observe the applicable statutory and local laser protection regulations.

• The device must not be tampered with and must not be changed in any way. There are no user-serviceable parts inside the device. Repairs must only be performed by Leuze electronic GmbH + Co. KG.
