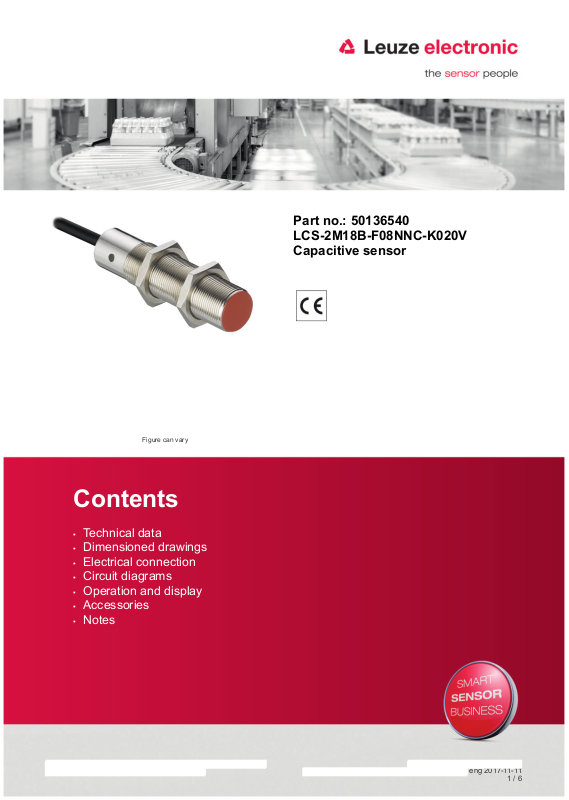

Leuze 50136540 Data Sheet

Figure can vary

Part no.: 50136540
LCS-2M18B-F08NNC-K020V
Capacitive sensor

Contents

▪ Technical data

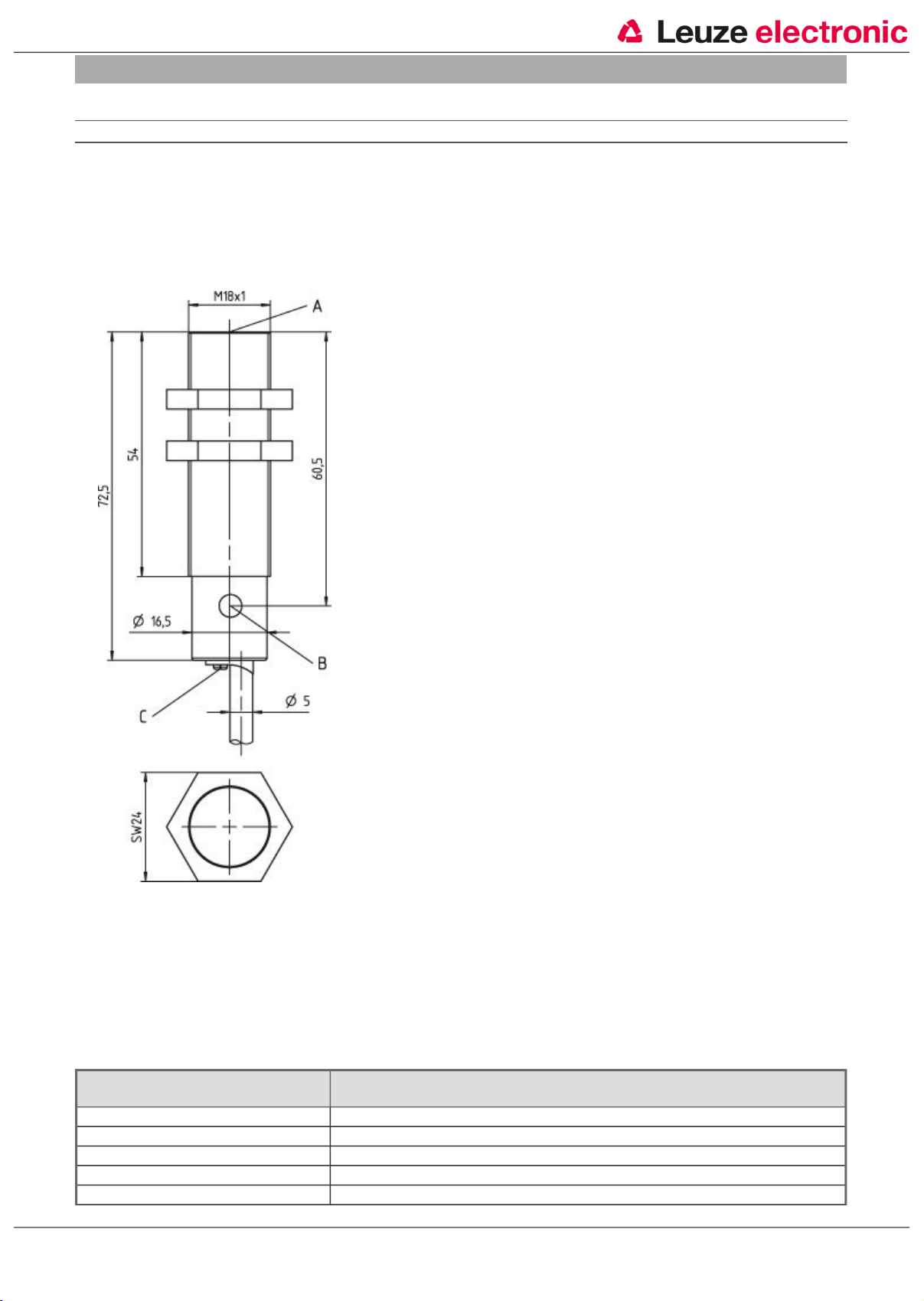

▪ Dimensioned drawings
▪ Electrical connection

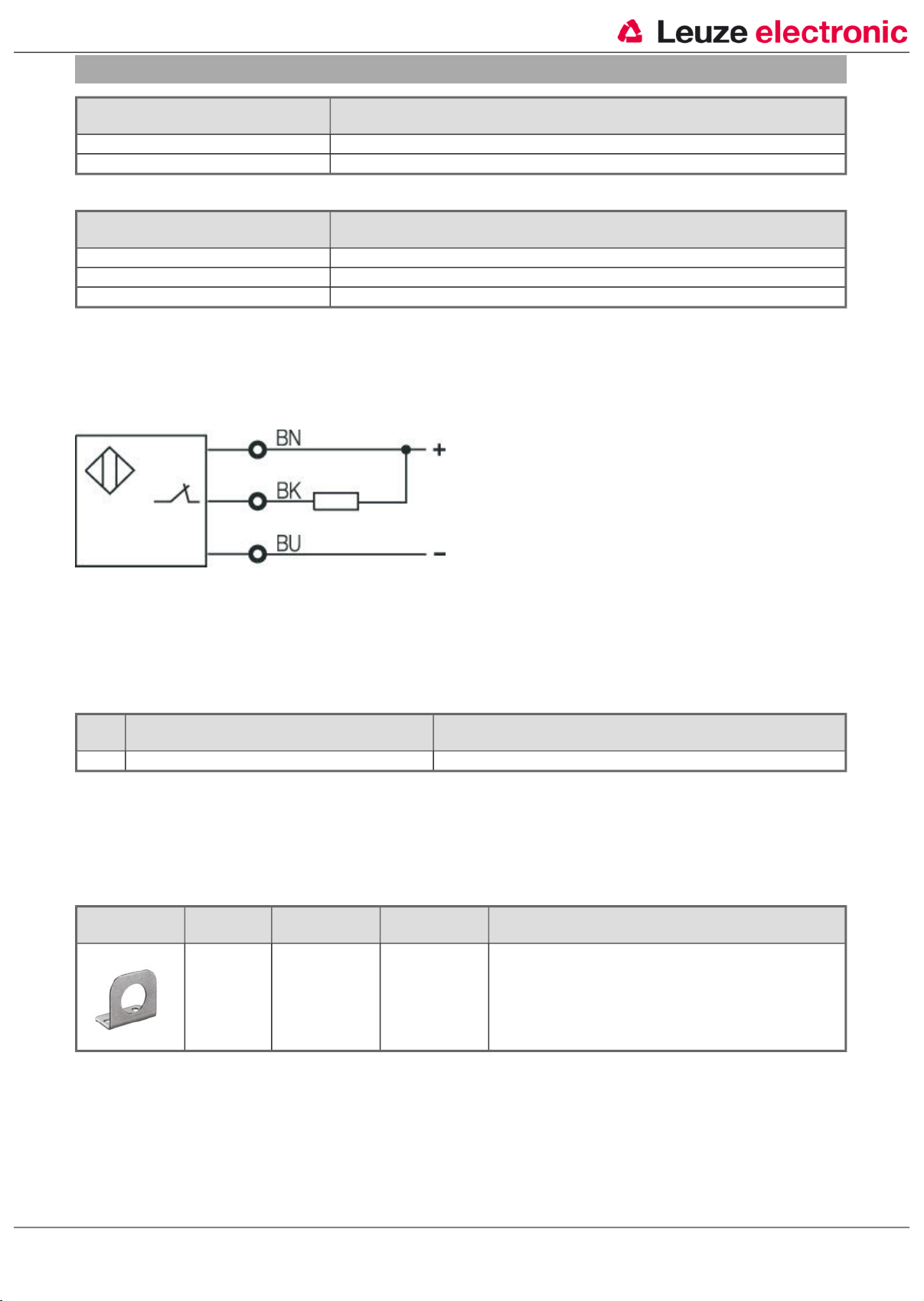

▪ Circuit diagrams
▪ Operation and display

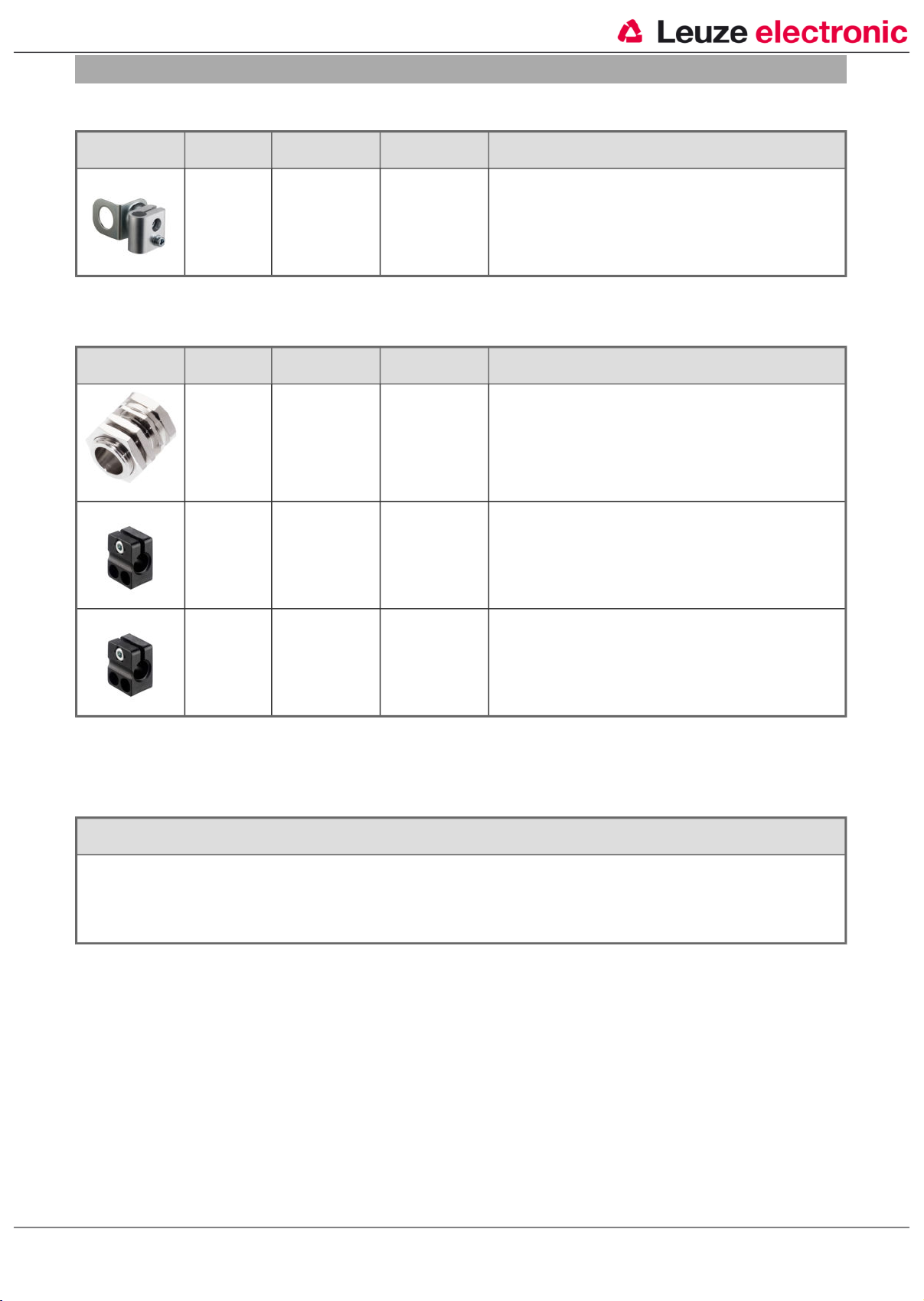

▪ Accessories
▪ Notes

Part no.: 50136540 – LCS-2M18B-F08NNC-K020V – Capacitive sensor

Technical data

Basic data

Series LCS-2

Switching distance S

Assured switching distance 6.5 mm

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage 10 ... 30 V, DC

Residual ripple 0 ... 10 %

Open-circuit current 10 mA

Rated operating current 300 mA

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Type Digital switching output

Voltage type DC

Switching output 1

Assignment Connection 1, conductor 2

Switching element Transistor, NPN

Switching principle NC (normally closed)

n

2 ... 8 mm

Polarity reversal protection

Timing

Switching frequency 100 Hz

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Cable

Cable length 2,000 mm

Sheathing material PVC

Number of conductors 3 -wire

Wire cross section 0.35 mm²

Mechanical data

Design Cylindrical

Thread size M18 x 1 mm

Dimension (Ø x L) 18 mm x 70 mm

Type of installation Embedded

Housing material Metal

Sensing face material Plastic, Polybutylene (PBT)

Cover material Plastic, Polybutylene (PBT)

Operation and display

Type of display LED

Number of LEDs 1 Piece(s)

Switching distance, adjustable Yes
