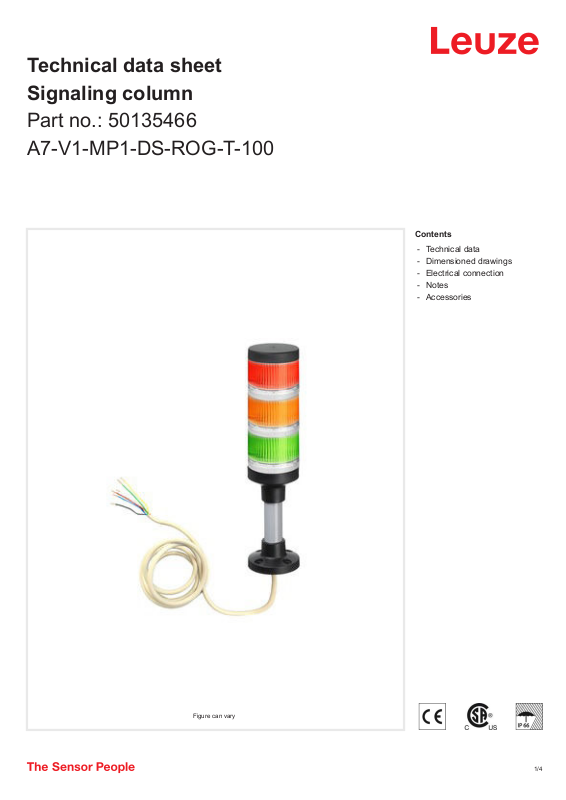

Technical data sheet
Signaling column
Part no.: 50135466
A7-V1-MP1-DS-ROG-T-100
Contents
-
Technical data
-
Dimensioned drawings
-
Electrical connection
-
Notes
-
Accessories
Figure can vary
1 /4
Page 2
Signaling column • Part no.: 50135466 • A7-V1-MP1-DS-ROG-T-100
Technical data
Basic data
Series A7
Type of signaling Optical
Electrical data
Life expectancy > 100,000 h
Performance data
Supply voltage U
Current consumption, max. 130 mA
B
24 V, DC, 10 %
Connection
Number of connections 1 Piece(s)
Connection 1
Function Voltage supply
Type of connection Terminal
Cable length 1,500 mm
Number of conductors 6 -wire
Connection 2
Type of connection Open end
Mechanical data
Design Cylindrical
Dimension (Ø x L) 70 mm x 297 mm
Housing material Metal
Plastic
Net weight 535 g
Housing color Black
Gray
Type of fastening, at system Screw type / horizontal
Type of illuminant LED/24V
Lens modules 3 pieces, ready-made
Signal image Continuous light
Angle of radiation 360°
Sequence of the modules (ascending) Green, orange, red
Certifications
Degree of protection IP 66, Only when mounted on a housing
with the same degree of protection
Certifications CE
CSA
Classification
Customs tariff number 85318070
eCl@ss 8.0 27371220
eCl@ss 9.0 27371220
ETIM 5.0 EC000232
ETIM 6.0 EC000232
2 /4
Page 3
Signaling column • Part no.: 50135466 • A7-V1-MP1-DS-ROG-T-100
297

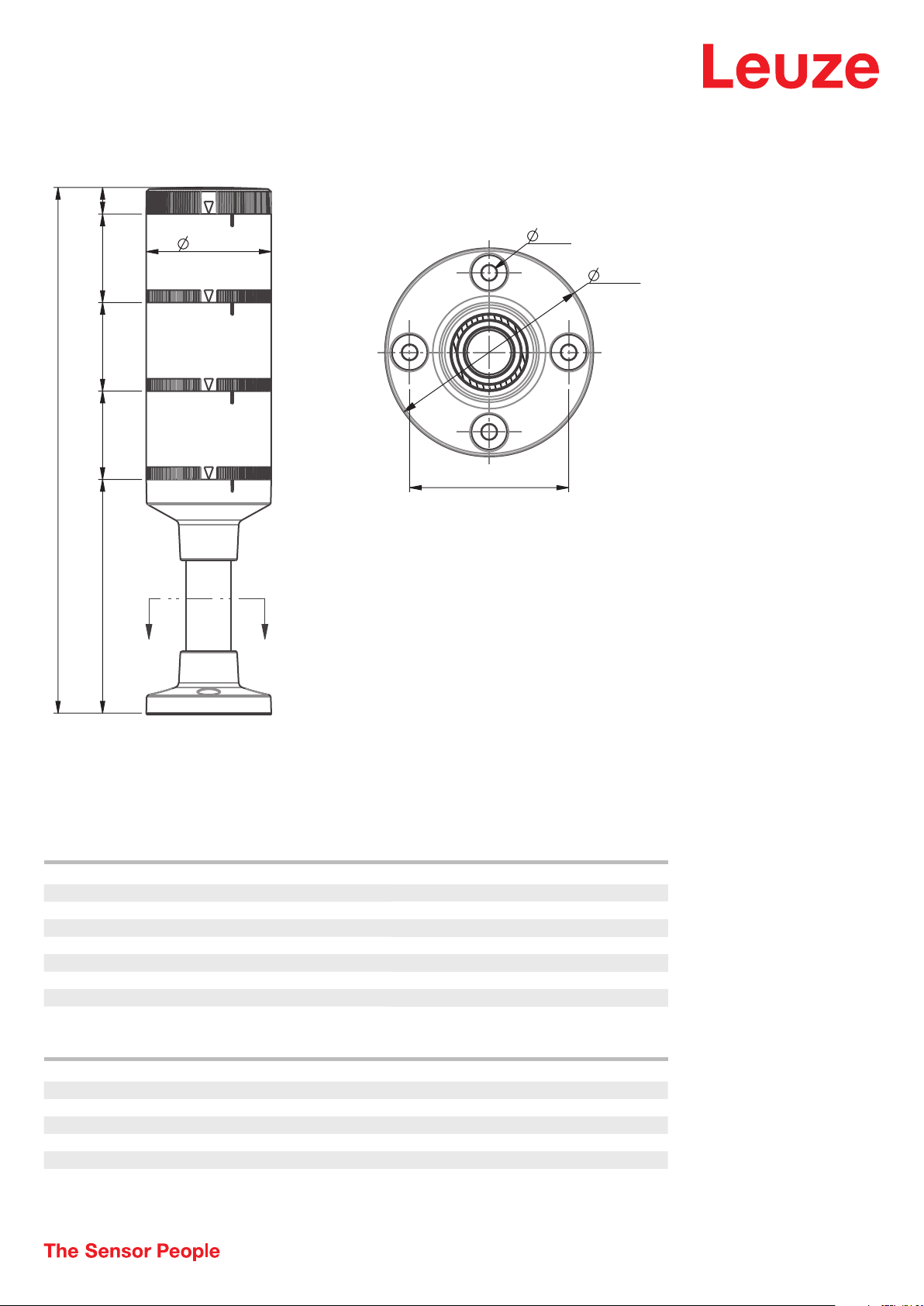

Dimensioned drawings
All dimensions in millimeters
15
70.6
50
50
50
5.2
70.6
PCD 53.9
SECTION A-A
132
AA
Electrical connection
Connection 1
Function Voltage supply
Type of connection Terminal
Type of terminal Tension spring technology
Cable length
Sheathing material
Cable color
Number of conductors 6 -wire
Wire cross section 0.34 mm²
1,500 mm
PVC
Gray
Conductor color Conductor assignment
Black GND
Green Light color: green
Yellow Light color: orange
Red Light color: red
Blue Light color: blue
White Light color: white / buzzer
3 /4
Page 4
Signaling column • Part no.: 50135466 • A7-V1-MP1-DS-ROG-T-100
Electrical connection
Connection 2
Type of connection Open end

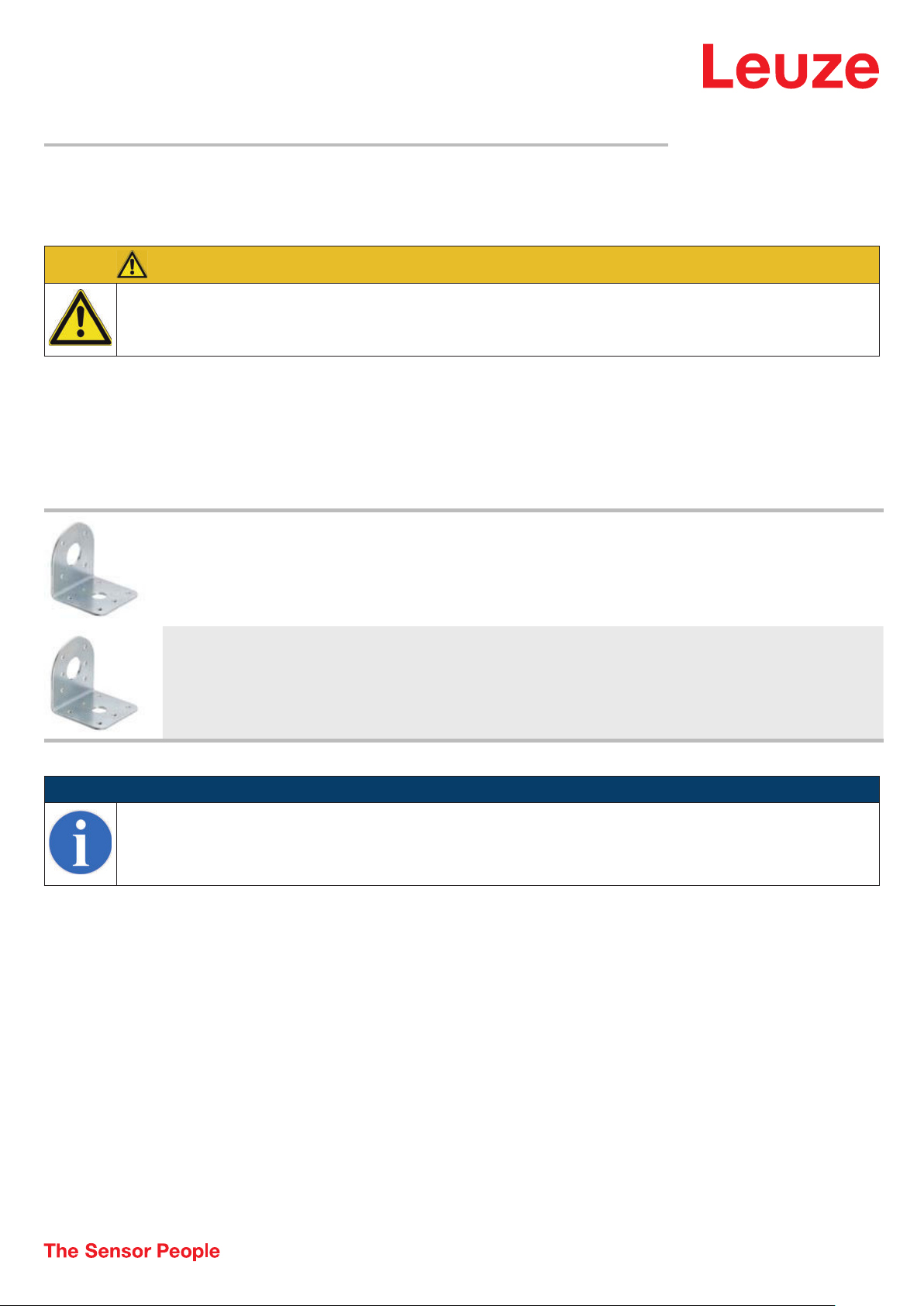

Notes
Observe intended use!
ª This product is not a safety sensor and is not intended as personnel protection.
ª The product may only be put into operation by competent persons.
ª Only use the product in accordance with its intended use.
Accessories
Mounting technology - Mounting brackets
Part no. Designation Article Description
50137729 A7-MW1 Signaling column
element
50142896 A7-MW2 Signaling column
element
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
Design: Angle, L-shapeL shape
Fastening, at system: Through-hole mounting
Design: Angle, L-shapeL shape
Fastening, at system: Through-hole mounting
