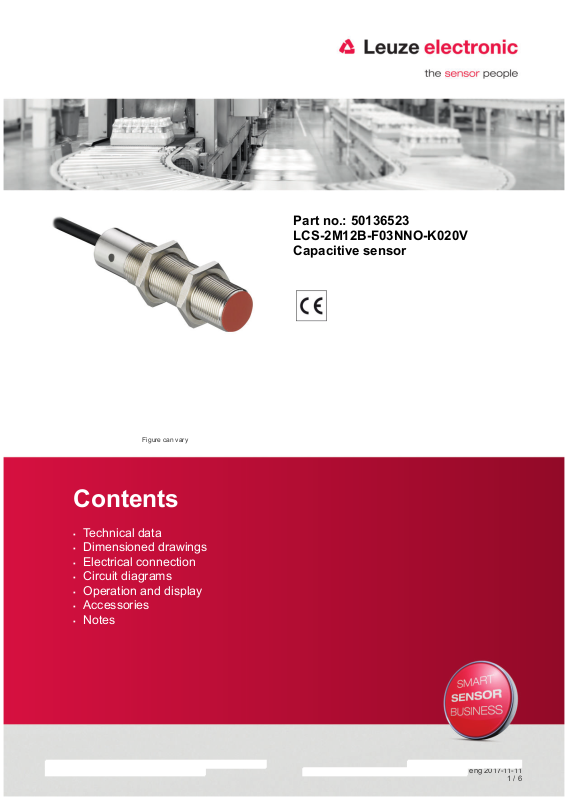

Figure can vary
Part no.: 50136523
LCS-2M12B-F03NNO-K020V
Capacitive sensor
Contents
▪ Technical data
▪ Dimensioned drawings
▪ Electrical connection
▪ Circuit diagrams
▪ Operation and display
▪ Accessories
▪ Notes
Part no.: 50136523 – LCS-2M12B-F03NNO-K020V – Capacitive sensor
Technical data
Basic data
Series LCS-2
Switching distance S
Assured switching distance 2.4 mm
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage 10 ... 30 V, DC
Residual ripple 0 ... 10 %
Open-circuit current 10 mA
Rated operating current 200 mA
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Type Digital switching output
Voltage type DC
Switching output 1
Assignment Connection 1, conductor 2
Switching element Transistor, NPN
Switching principle NO (normally open)
n
1 ... 3 mm
Polarity reversal protection
Timing
Switching frequency 100 Hz
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Cable
Cable length 2,000 mm
Sheathing material PVC
Number of conductors 3 -wire
Wire cross section 0.35 mm²
Mechanical data
Design Cylindrical
Thread size M12 x 1 mm
Dimension (Ø x L) 12 mm x 55 mm
Type of installation Embedded
Housing material Metal
Sensing face material Plastic, Polybutylene (PBT)
Cover material Plastic, Polybutylene (PBT)
Operation and display
Type of display LED
Number of LEDs 1 Piece(s)
Switching distance, adjustable Yes
eng 2017-11-11
2 / 6
Part no.: 50136523 – LCS-2M12B-F03NNO-K020V – Capacitive sensor
Environmental data
Ambient temperature, operation -25 ... 70 °C
Certifications
Degree of protection IP 67
Protection class III
Standards applied IEC 60947-5-2
Correction factors
Acetone 0.75
Acrylic resin 0.1 ... 0.25
Alcohol 0.85
Ammonia 0.7 ... 0.85
Aniline 0.4
Gasoline 0.1
Celluloid 0.15
Liquid chlorine 0.1
Ebonite 0.15
Epoxy resin 0.15 ... 0.35
Crude oil 0.05
Ethanol 0.85
Ethylene glycol 0.93
Freon R22 and 502 (liquid) 0.35
Grain 0.15 ... 0.3
Glass 0.2 ... 0.55
Glycerin 0.98
Rubber 0.15 ... 0.9
Wood, wet 0.6 ... 0.85
Wood, dry 0.1 ... 0.4
Marble 0.5
Flour 0.05
Melamine resin 0.25 ... 0.55
Milk powder 0.2
Nylon 0.2 ... 0.3
Oil-containing paper 0.25
Paper 0.1
Polyamide 0.3
Polyester resin 0.15 ... 0.5
Pressboard 0.1 ... 0.3
PTFE 0.1
Quartz glass 0.2
Salt 0.35
Sand 0.15 ... 0.3
Water 1
Cement dust 0.25
Sugar 0.15
Classification
eCl@ss 8.0 27270102
eCl@ss 9.0 27270102
eng 2017-11-11
3 / 6
Part no.: 50136523 – LCS-2M12B-F03NNO-K020V – Capacitive sensor
ETIM 5.0 EC002715

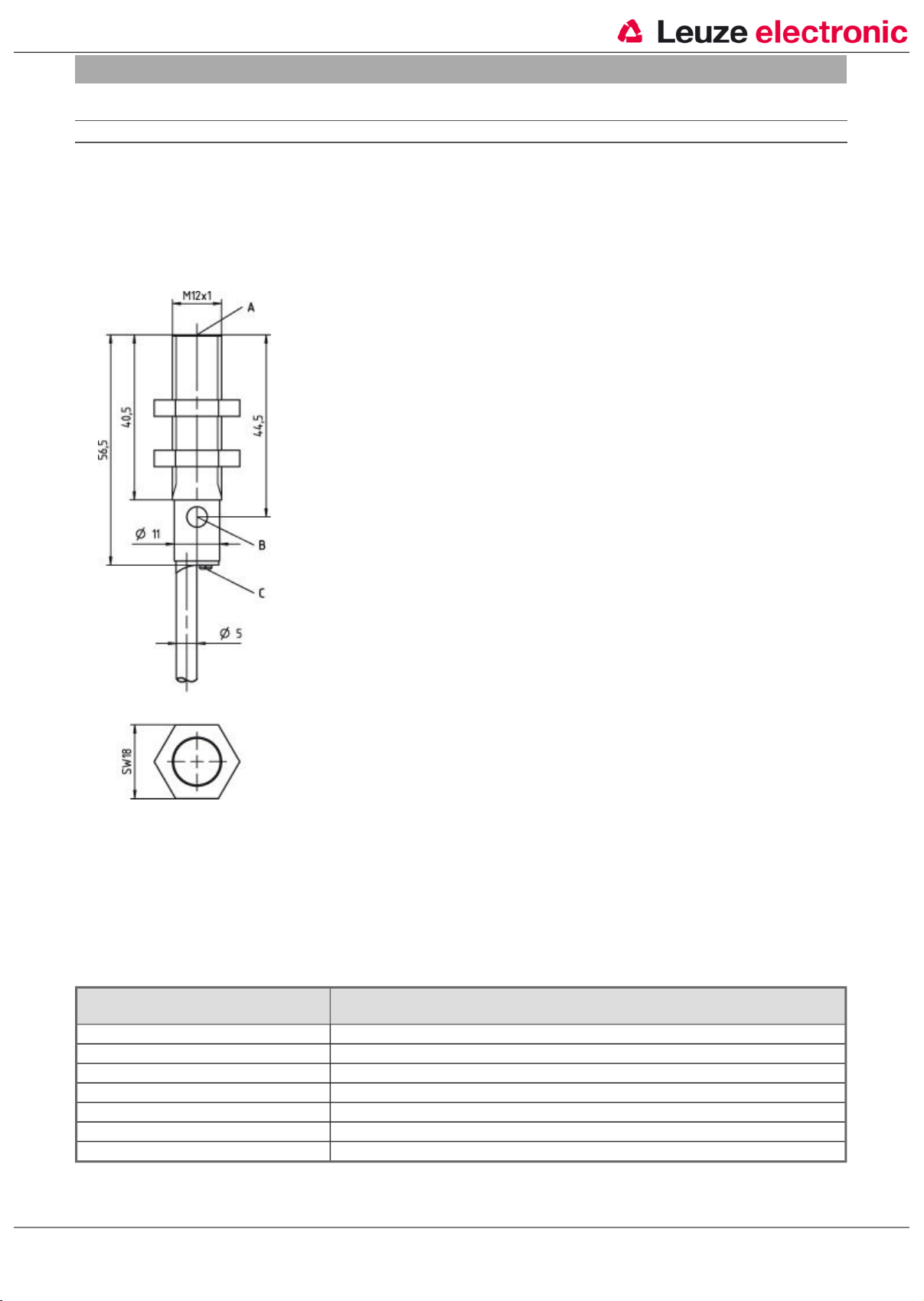

Dimensioned drawings
All dimensions in millimeters
A Active surface
B Yellow LED
C Potentiometer
Electrical connection
Connection 1
Type of connection Cable
Function
Cable length 2,000 mm
Sheathing material PVC
Cable color
Number of conductors 3 -wire
Wire cross section 0.35 mm²
eng 2017-11-11
4 / 6
Part no.: 50136523 – LCS-2M12B-F03NNO-K020V – Capacitive sensor
Conductor color Conductor assignment
Brown 10 - 30 V DC
Black OUT
Blue GND

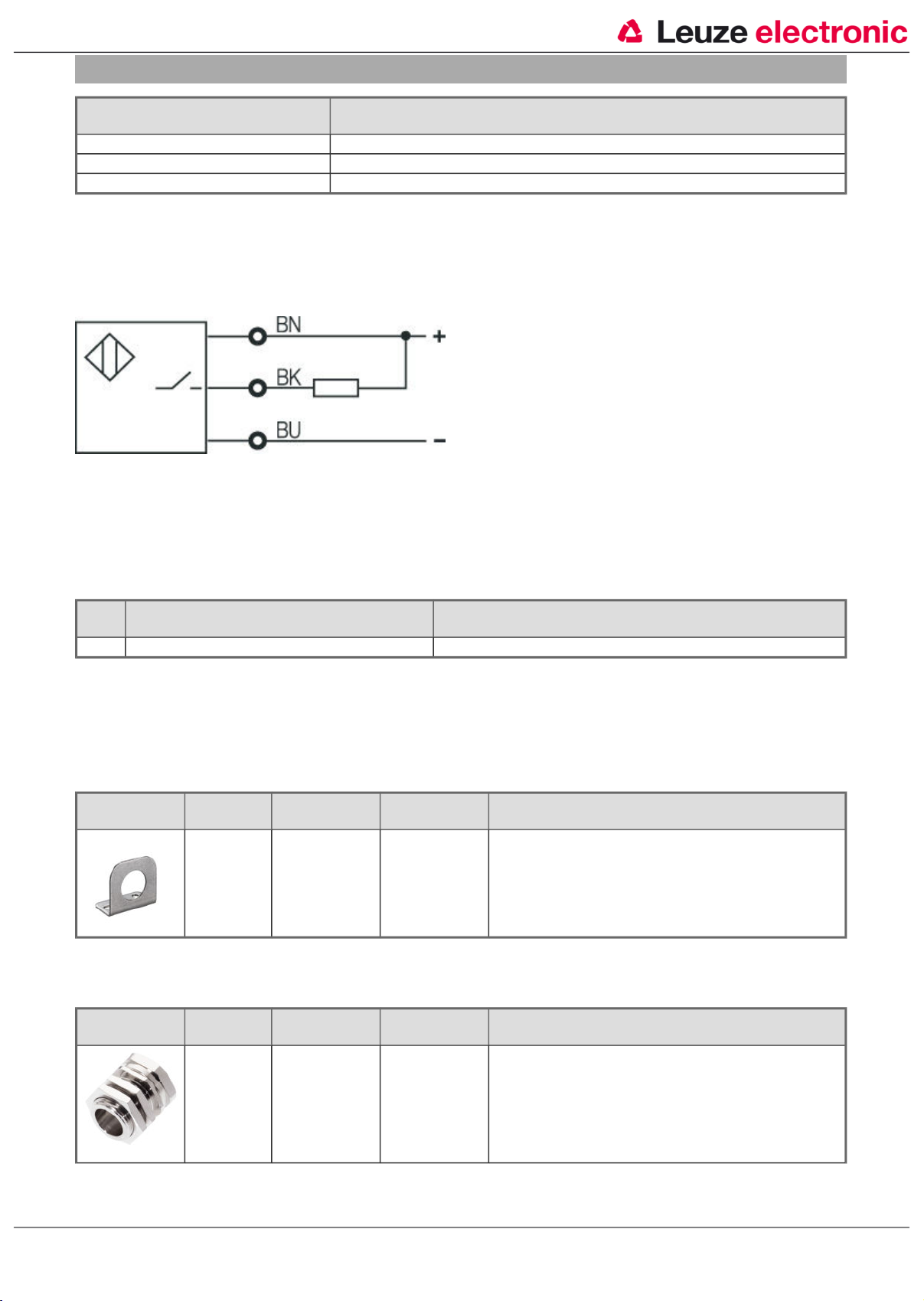

Circuit diagrams
Operation and display
LEDs
LED Display Meaning
1 Yellow, continuous light Switching output/switching state
Accessories
Mounting technology - Mounting brackets
Part no. Designation Article Description
50113549 BT D12M.5 Mounting bracket Diameter, inner: 12 mm
Design of mounting device: Angle, L-shape
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Rigid
Material: Stainless steel
Mounting technology - Other
Part no. Designation Article Description
50132729 AC D18M-CS Clamp Contains: 2x M24 mounting nut
Diameter, inner: 18 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Screw type, Through-hole
mounting
Mounting bracket, at device: Insertable, Clampable with limit
stop
Type of mounting device: Clampable, With limit stop
Material: Metal
eng 2017-11-11
5 / 6
Part no.: 50136523 – LCS-2M12B-F03NNO-K020V – Capacitive sensor

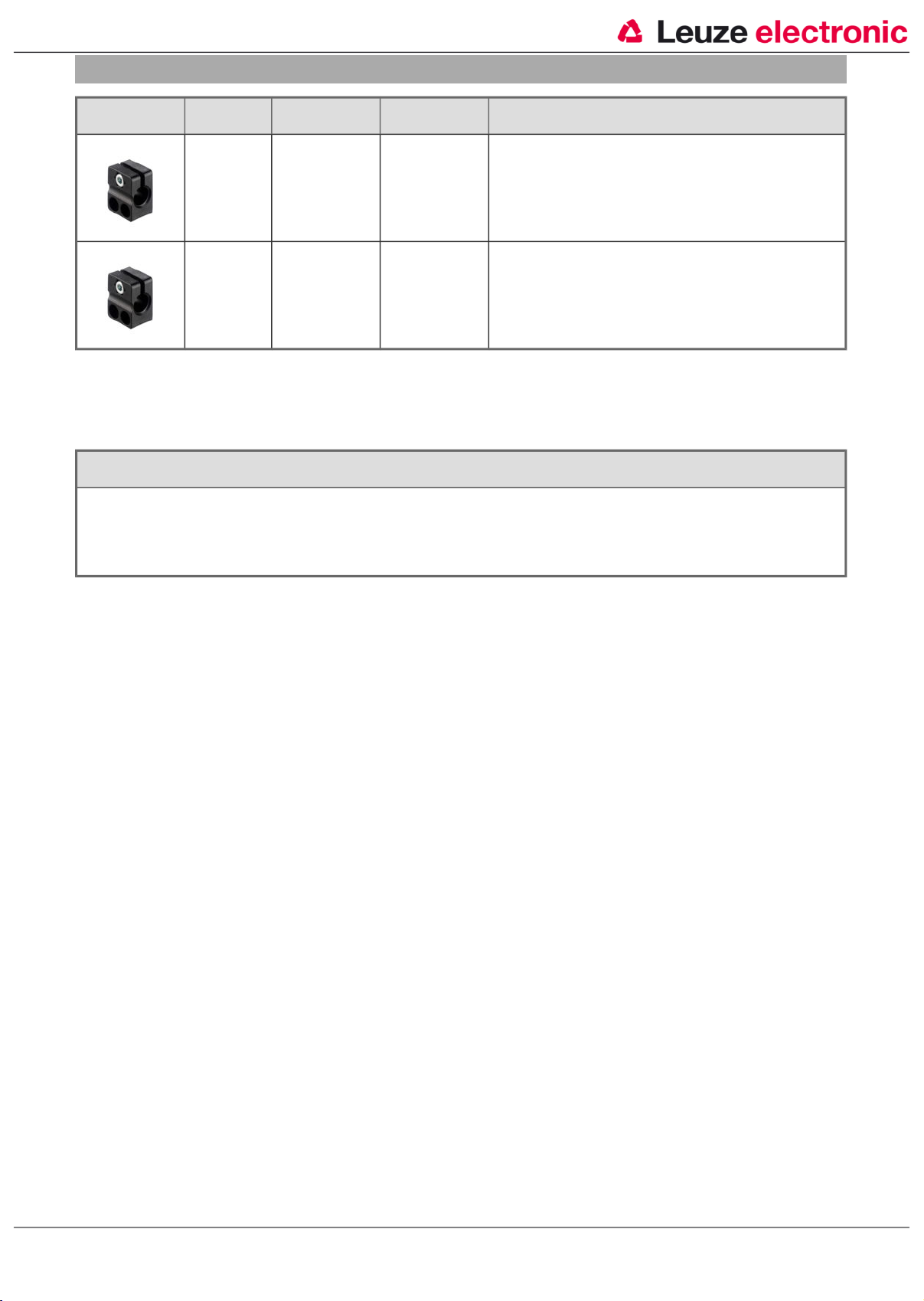

Part no. Designation Article Description
50111499 MC 012K Clamp Diameter, inner: 12 mm
50111500 MC 012K-LS Clamp Diameter, inner: 12 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable
Type of mounting device: Rigid
Material: Plastic
Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable with limit stop
Type of mounting device: Rigid
Material: Plastic
Notes
Observe intended use!
• This product is not a safety sensor and is not intended as personnel protection.
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
eng 2017-11-11
6 / 6
