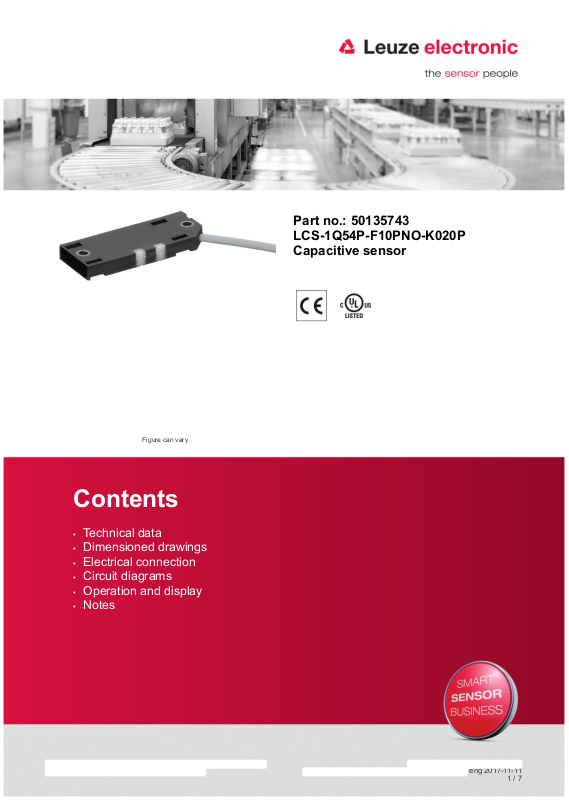

Leuze 50135743 Data Sheet

Figure can vary

Part no.: 50135743
LCS-1Q54P-F10PNO-K020P
Capacitive sensor

Contents

▪ Technical data

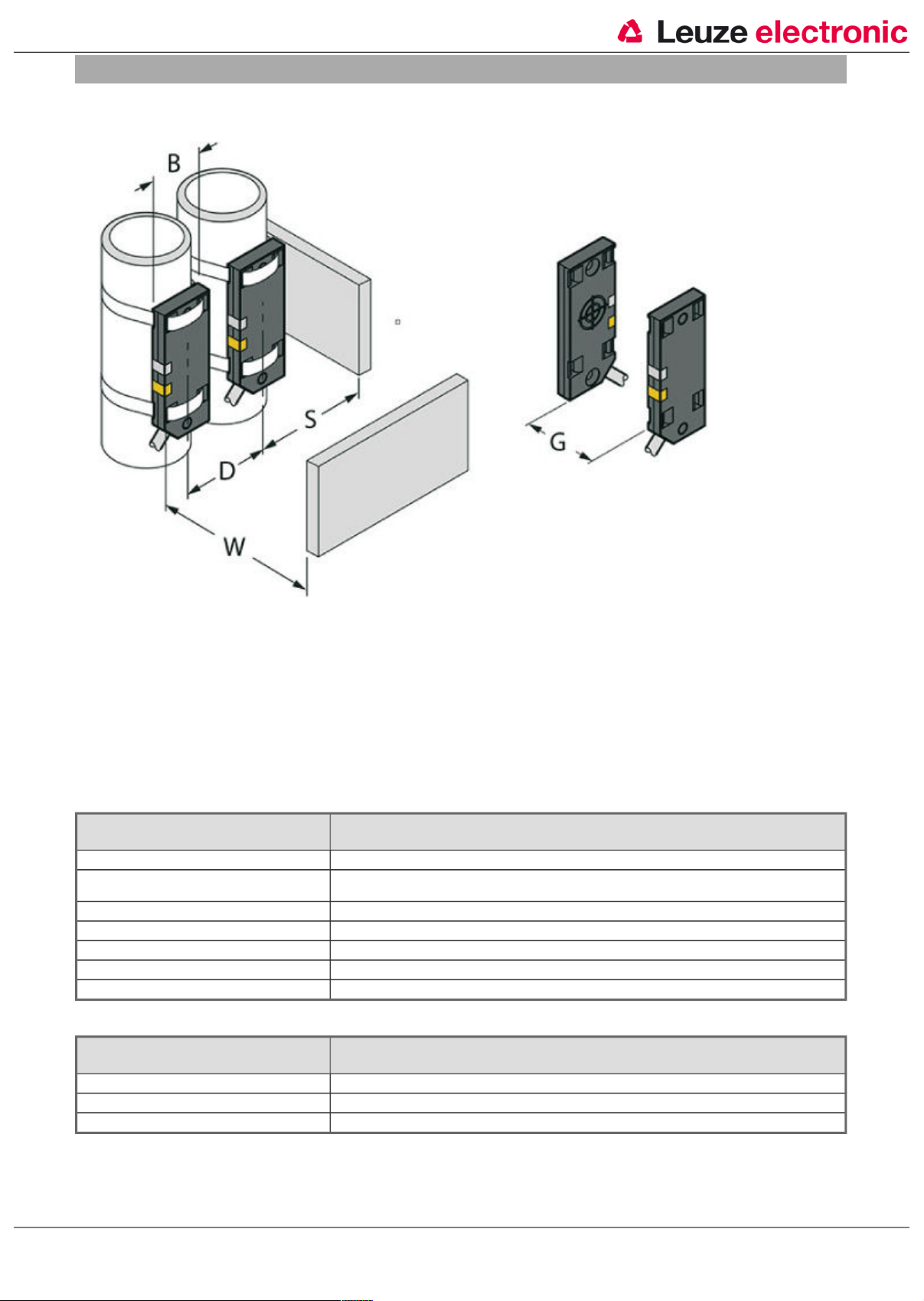

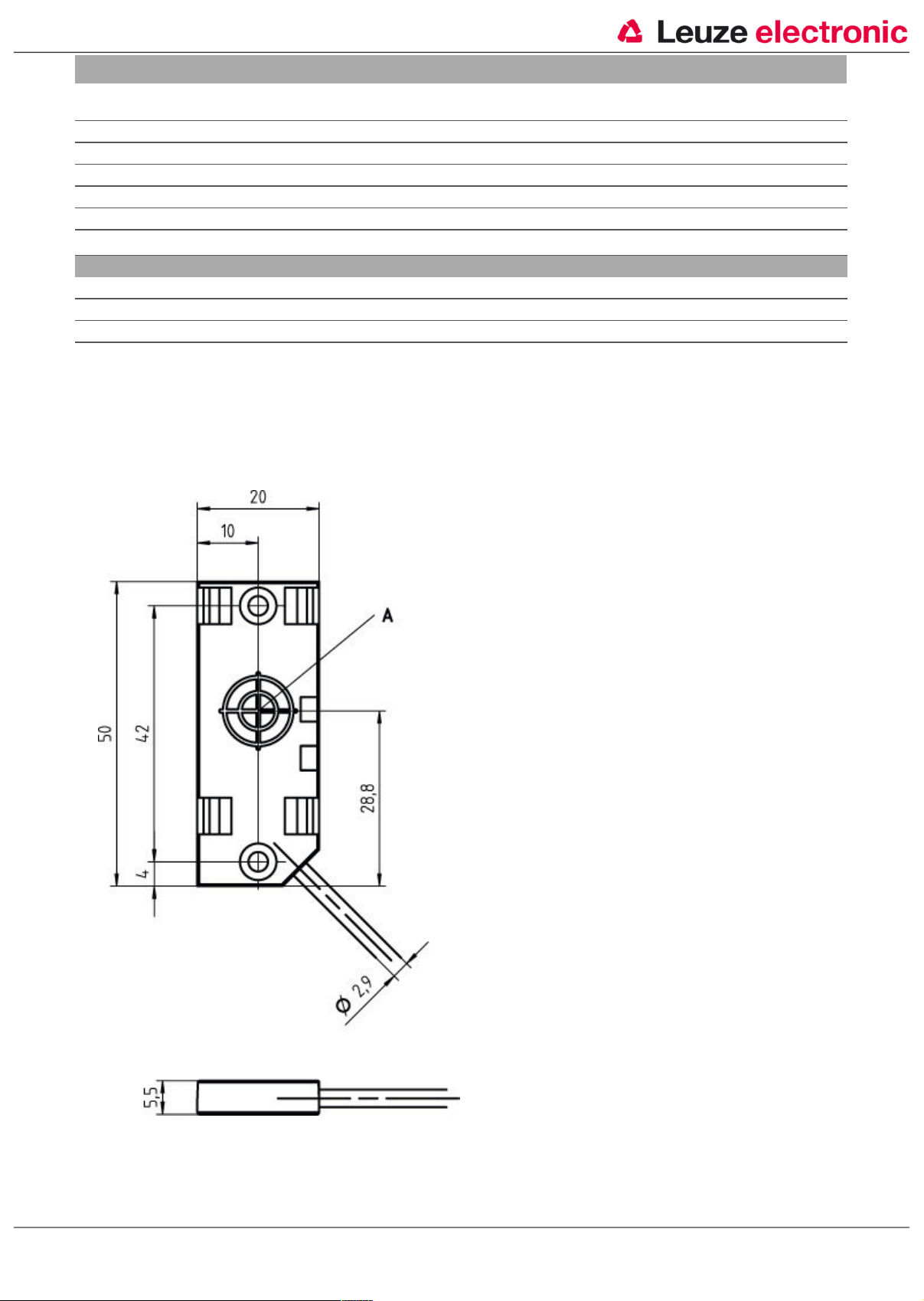

▪ Dimensioned drawings
▪ Electrical connection

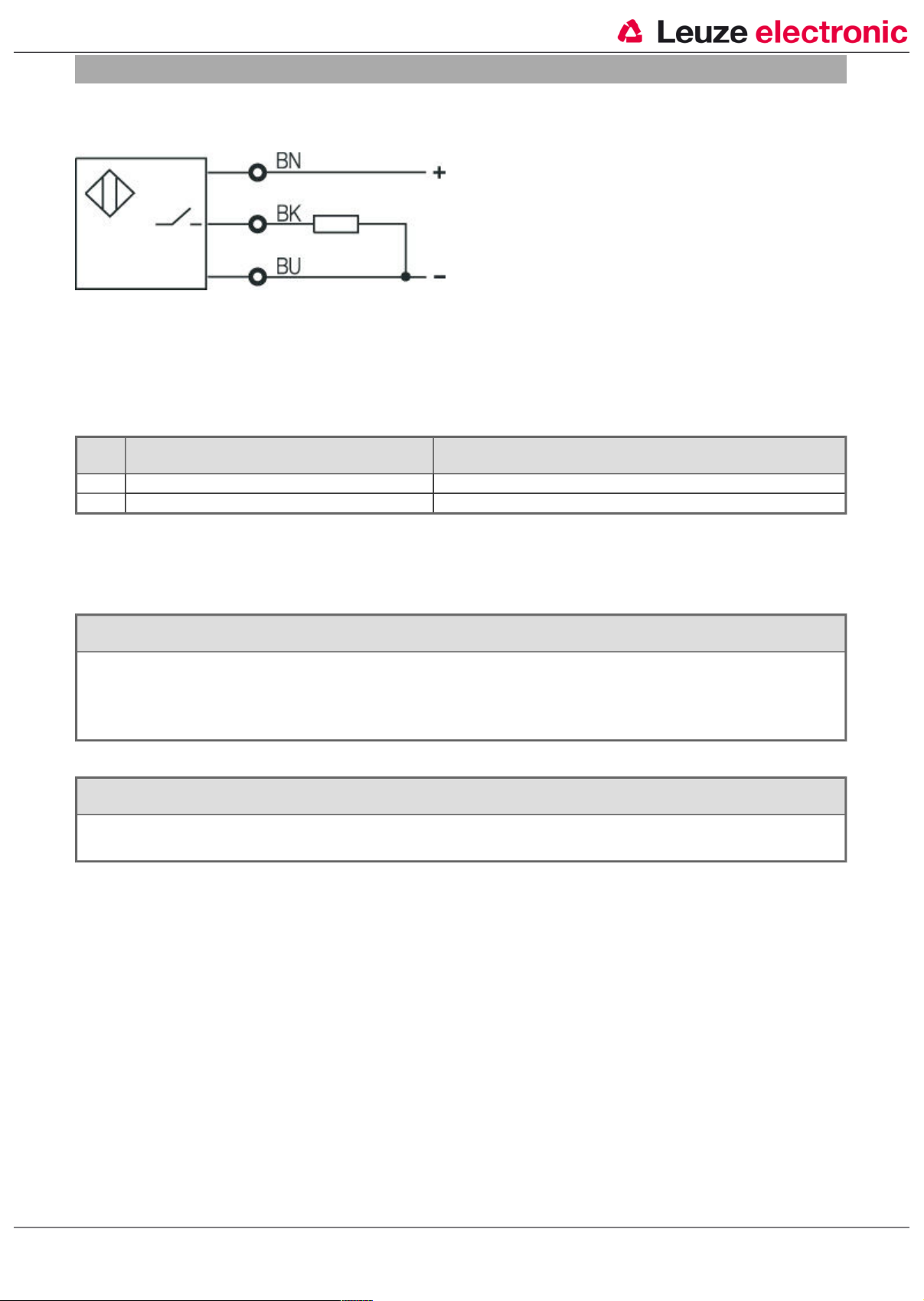

▪ Circuit diagrams
▪ Operation and display
▪ Notes

eng 2017-11-11

1 / 7

Part no.: 50135743 – LCS-1Q54P-F10PNO-K020P – Capacitive sensor

Technical data

Basic data

Series LCS-1

Switching distance S

Characteristic parameters

MTTF 1,080 years

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage 10 ... 30 V, DC

Residual ripple 0 ... 10 %, From U

Open-circuit current 15 mA

Temperature drift, max. (in % of Sr) 20 %

Repeatability, max. (in % of Sr) 2 %

Rated operating current 200 mA

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Type Digital switching output

Voltage type DC

Switching output 1

Assignment Connection 1, conductor 2

Switching element Transistor, PNP

Switching principle NO (normally open)

n

1 ... 10 mm

Polarity reversal protection

B

Timing

Switching frequency 100 Hz

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Cable

Function Voltage supply

Cable length 2,000 mm

Sheathing material PUR

Number of conductors 3 -wire

Wire cross section 0.14 mm²

Mechanical data

Design Cubic

Dimension (W x H x L) 54 mm x 20.3 mm x 5.5 mm

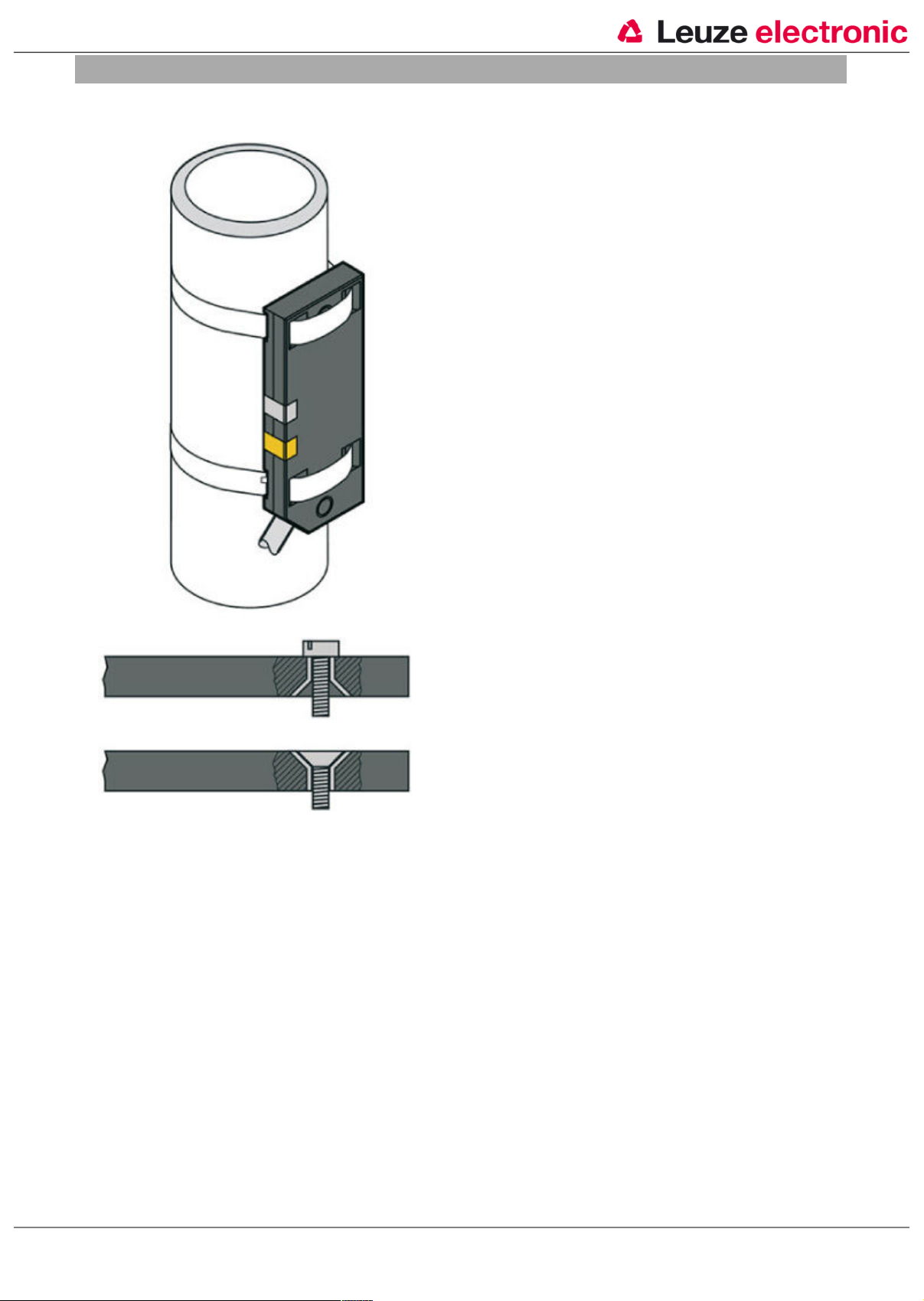

Type of installation Embedded

Housing material Plastic, Polypropylene (PP)

Sensing face material Plastic, Polypropylene (PP)

Cover material Plastic,

Signal OUT

eng 2017-11-11

2 / 7

Part no.: 50135743 – LCS-1Q54P-F10PNO-K020P – Capacitive sensor

Net weight 40 g

Operation and display

Type of display LED

Number of LEDs 2 Piece(s)

Switching distance, adjustable Yes

Environmental data

Ambient temperature, operation -25 ... 70 °C

Certifications

Degree of protection IP 67

Protection class III

Certifications c UL US

Standards applied IEC 60947-5-2

Correction factors

Acetone 0.75

Acrylic resin 0.1 ... 0.25

Alcohol 0.85

Ammonia 0.7 ... 0.85

Aniline 0.4

Gasoline 0.1

Celluloid 0.15

Liquid chlorine 0.1

Ebonite 0.15

Epoxy resin 0.15 ... 0.35

Crude oil 0.05

Ethanol 0.85

Ethylene glycol 0.93

Freon R22 and 502 (liquid) 0.35

Grain 0.15 ... 0.3

Glass 0.2 ... 0.55

Glycerin 0.98

Rubber 0.15 ... 0.9

Wood, wet 0.6 ... 0.85

Wood, dry 0.1 ... 0.4

Marble 0.5

Flour 0.05

Melamine resin 0.25 ... 0.55

Milk powder 0.2

Nylon 0.2 ... 0.3

Oil-containing paper 0.25

Paper 0.1

Polyamide 0.3

Polyester resin 0.15 ... 0.5

Pressboard 0.1 ... 0.3

PTFE 0.1

Quartz glass 0.2

eng 2017-11-11

3 / 7
