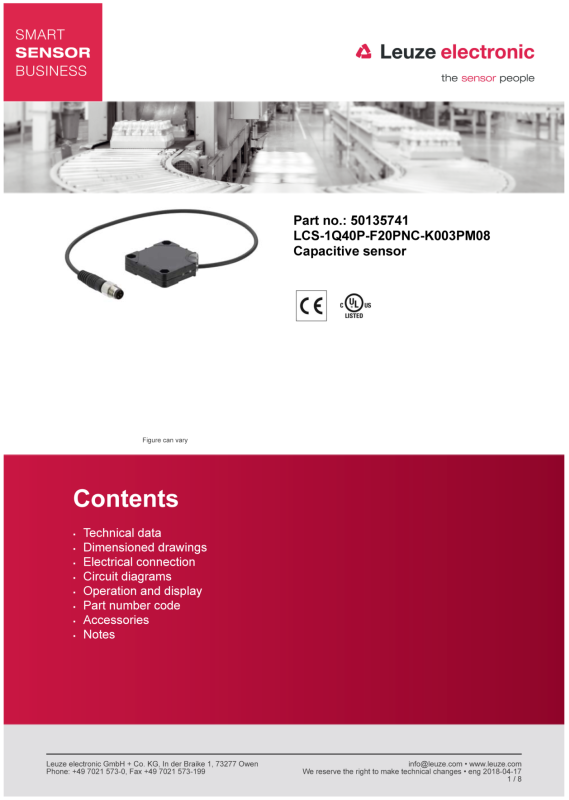

Part no.: 50135741 – LCS-1Q40P-F20PNC-K003PM08 – Capacitive sensor
Technical data
Basic data
Series LCS-1
Switching distance S
Assured switching distance 20 mm
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage 10 ... 30 V, DC
Residual ripple 0 ... 10 %, From U
Open-circuit current 15 mA
Temperature drift, max. (in % of Sr) 20 %
Repeatability, max. (in % of Sr) 5 %
Rated operating current 100 mA
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Type Digital switching output
Voltage type DC
Switching output 1
Assignment Connection 1, pin 4
Switching element Transistor, PNP
Switching principle NC (normally closed)
n
1 ... 20 mm
Polarity reversal protection
B
Timing
Switching frequency 100 Hz
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Connector
Function Signal OUT
Cable length 300 mm
Sheathing material PUR
Cable color Black
Thread size M8
Type Male
Material Plastic
No. of pins 3 -pin
Mechanical data
Design Cubic
Dimension (W x H x L) 40 mm x 40 mm x 10 mm
Type of installation Embedded
Housing material Plastic, Polybutylene (PBT)
Sensing face material Plastic, Polybutylene (PBT)
Voltage supply
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-17
2 / 8
Page 3
Part no.: 50135741 – LCS-1Q40P-F20PNC-K003PM08 – Capacitive sensor
Cover material Plastic, Polybutylene (PBT)
Net weight 33 g
Housing color Black
Operation and display
Type of display LED
Number of LEDs 2 Piece(s)
Operational controls Multiturn potentiometer (20 turns)
Switching distance, adjustable Yes
Environmental data
Ambient temperature, operation -5 ... 85 °C
Certifications
Degree of protection IP 67
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2
Correction factors
Acetone 0.75
Acrylic resin 0.1 ... 0.25
Alcohol 0.85
Ammonia 0.7 ... 0.85
Aniline 0.4
Gasoline 0.1
Celluloid 0.15
Liquid chlorine 0.1
Ebonite 0.15
Epoxy resin 0.15 ... 0.35
Crude oil 0.05
Ethanol 0.85
Ethylene glycol 0.93
Freon R22 and 502 (liquid) 0.35
Grain 0.15 ... 0.3
Glass 0.2 ... 0.55
Glycerin 0.98
Rubber 0.15 ... 0.9
Wood, wet 0.6 ... 0.85
Wood, dry 0.1 ... 0.4
Carbon dioxide 0
Air 0
Marble 0.5
Flour 0.05
Melamine resin 0.25 ... 0.55
Milk powder 0.2
Nylon 0.2 ... 0.3
Oil-containing paper 0.25
Paper 0.1
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-17
3 / 8
Page 4
Part no.: 50135741 – LCS-1Q40P-F20PNC-K003PM08 – Capacitive sensor
Polyamide 0.3
Polyester resin 0.15 ... 0.5
Pressboard 0.1 ... 0.3
PTFE 0.1
Quartz glass 0.2
Salt 0.35
Sand 0.15 ... 0.3
Water 1
Cement dust 0.25
Sugar 0.15
Classification
eCl@ss 8.0 27270102
eCl@ss 9.0 27270102
ETIM 5.0 EC002715

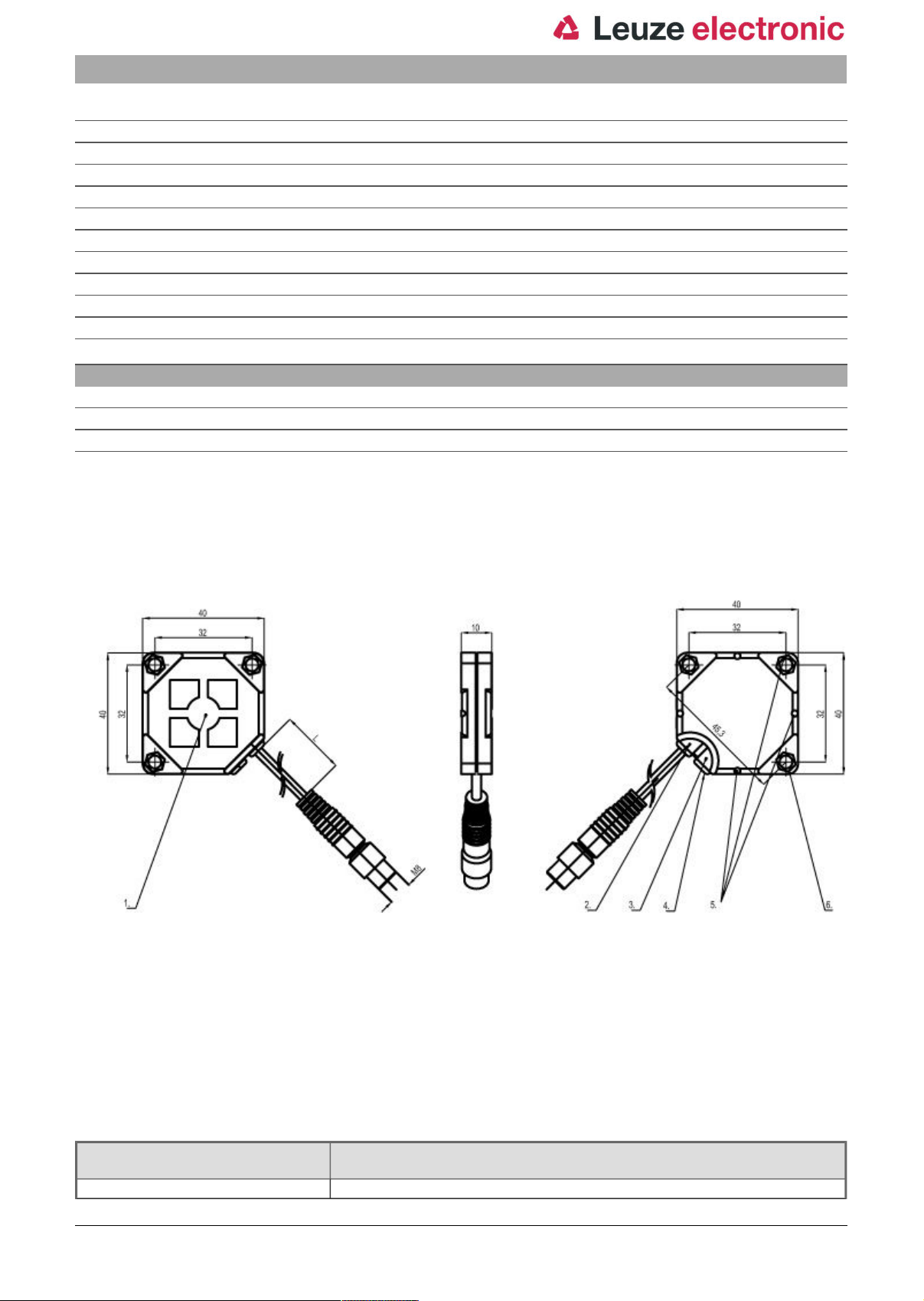

Dimensioned drawings
All dimensions in millimeters
1 Active surface
2 Green LED, operating voltage display
3 Yellow LED, function indicator
4 Potentiometer
5 Mounting: cable tie
6 Mounting: 3xM3 screw
Electrical connection
Connection 1
Type of connection Connector
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-17
4 / 8
Page 5
Part no.: 50135741 – LCS-1Q40P-F20PNC-K003PM08 – Capacitive sensor

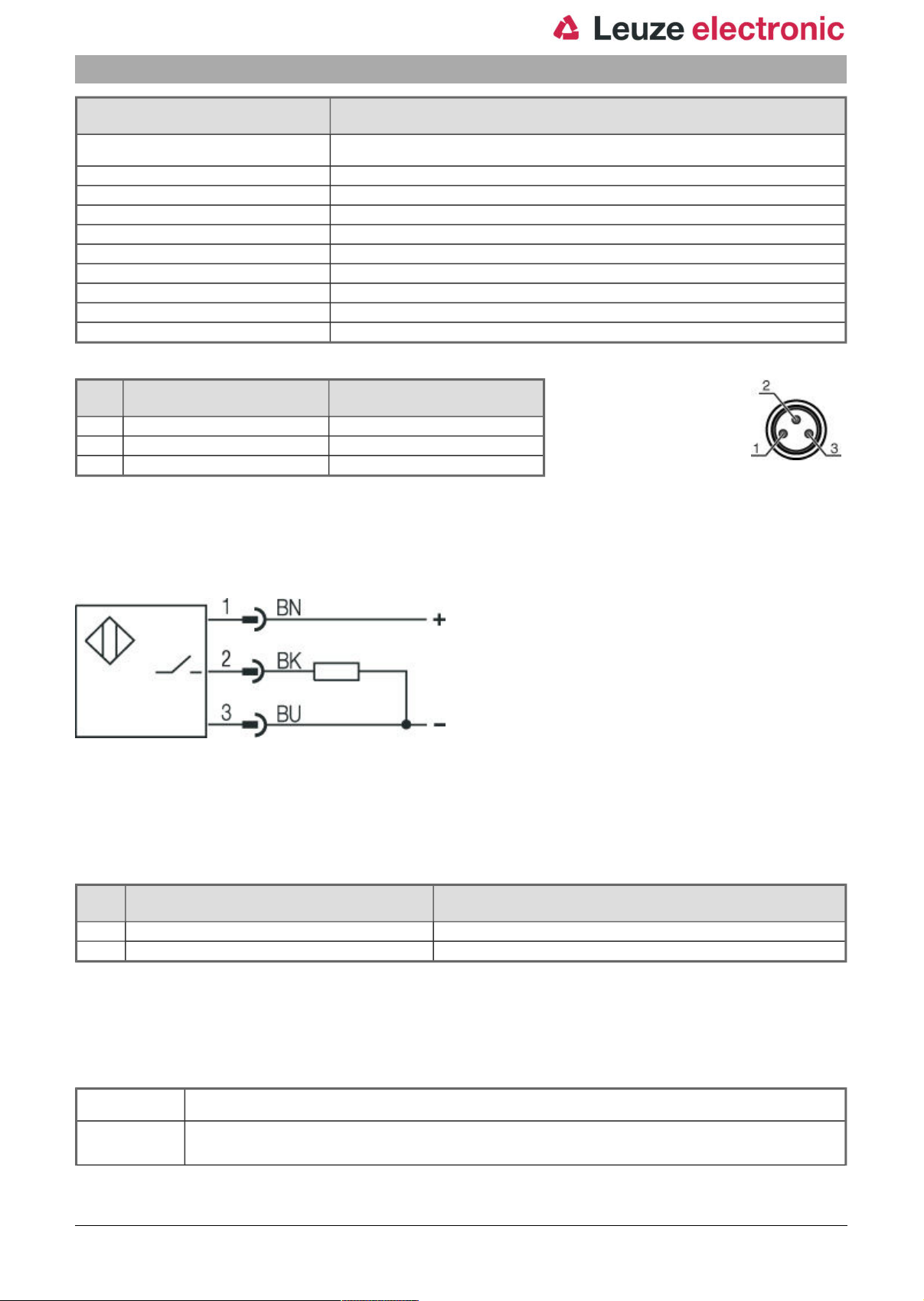

Connection 1
Function Signal OUT
Cable length 300 mm
Sheathing material PUR
Cable color Black
Wire cross section
Thread size M8
Type Male
Material Plastic
No. of pins 3 -pin
Encoding
Pin Pin assignment Conductor color
1 +10...30 V DC Brown
2 OUT White
3 GND Blue
Voltage supply
Circuit diagrams
Operation and display
LEDs
LED Display Meaning
1 Green, continuous light Ready
2 Yellow, continuous light Switching output/switching state
Part number code
Part designation: LCS-ABBBC-DDDEFF-GHHHIJJJ KK
LCS Operating principle:
LCS: capacitive sensor
A Series:
1: 1 series "Extended"
2: 2 series "Advanced"
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-17
5 / 8
Page 6
Part no.: 50135741 – LCS-1Q40P-F20PNC-K003PM08 – Capacitive sensor

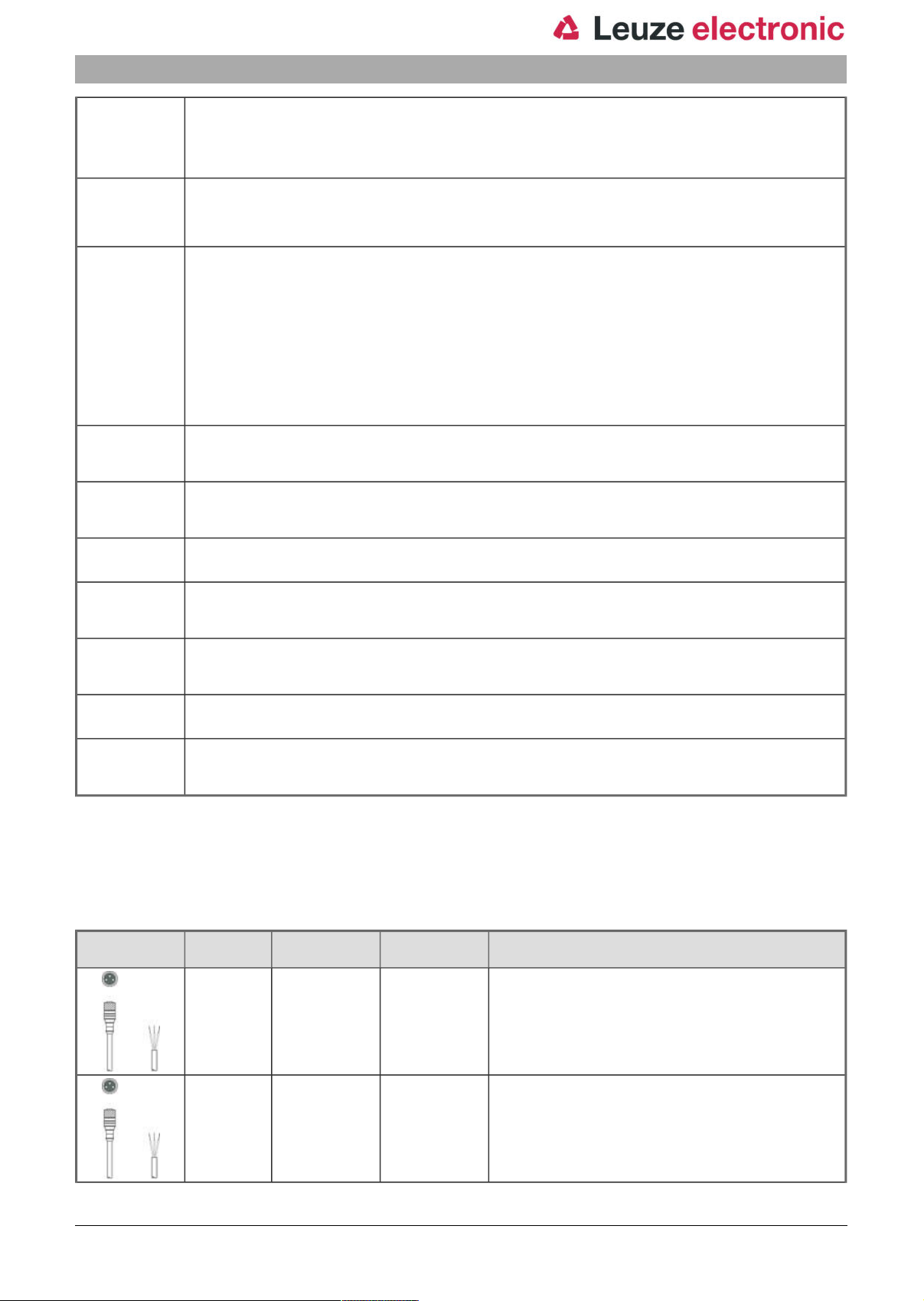

BBB Design:
C Housing material:
DDD Measurement range / type of installation:
E Output function:
FF Switching:
G Connection cable:
HHH Cable length:
I Cable material:
JJJ Electrical connection:
KK Special equipment:
M12: series with M12 x 1 external thread
M18: series with M18 x 1 external thread
M30: series with M30 x 1.5 external thread
Q40: series in cubic design, length 40 mm
Q54: series in cubic design, length 54 mm
B: brass
M: metal
P: plastic/PBT
T: PTFE
F03: typ. range limit 3.0 mm / embedded installation
F04: typ. range limit 4.0 mm / embedded installation
F05: typ. range limit 5.0 mm / embedded installation
F06: typ. range limit 6.0 mm / embedded installation
F08: typ. range limit 8.0 mm / embedded installation
F10: typ. range limit 10.0 mm / embedded installation
F15: typ. range limit 15.0 mm / embedded installation
F20: typ. range limit 20.0 mm / embedded installation
N06: typ. range limit 6.0 mm / non-embedded installation
N08: typ. range limit 8.0 mm / non-embedded installation
N15: typ. range limit 15.0 mm / non-embedded installation
N25: typ. range limit 25.0 mm / non-embedded installation
N30: typ. range limit 30.0 mm / non-embedded installation
B: NC and NO contact
N: NPN
P: PNP
NC: normally closed contact
NO: normally open contact
NP: programmable
K: cable
n/a: no cable
020: length 2,000 mm
003: length 300 mm
n/a: no cable
P: PUR
T: PTFE
V: PVC
M08: M8 connector, 3-pin
M12: M12 connector, 4-pin (plug)
L: IO-Link interface
T: teach-in
n/a: no special equipment
Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50130842 KD U-M8-3A-
P1-020
50130886 KD U-M8-3A-
P1-020-DP
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PUR
eng 2018-04-17
6 / 8
Page 7
Part no.: 50135741 – LCS-1Q40P-F20PNC-K003PM08 – Capacitive sensor

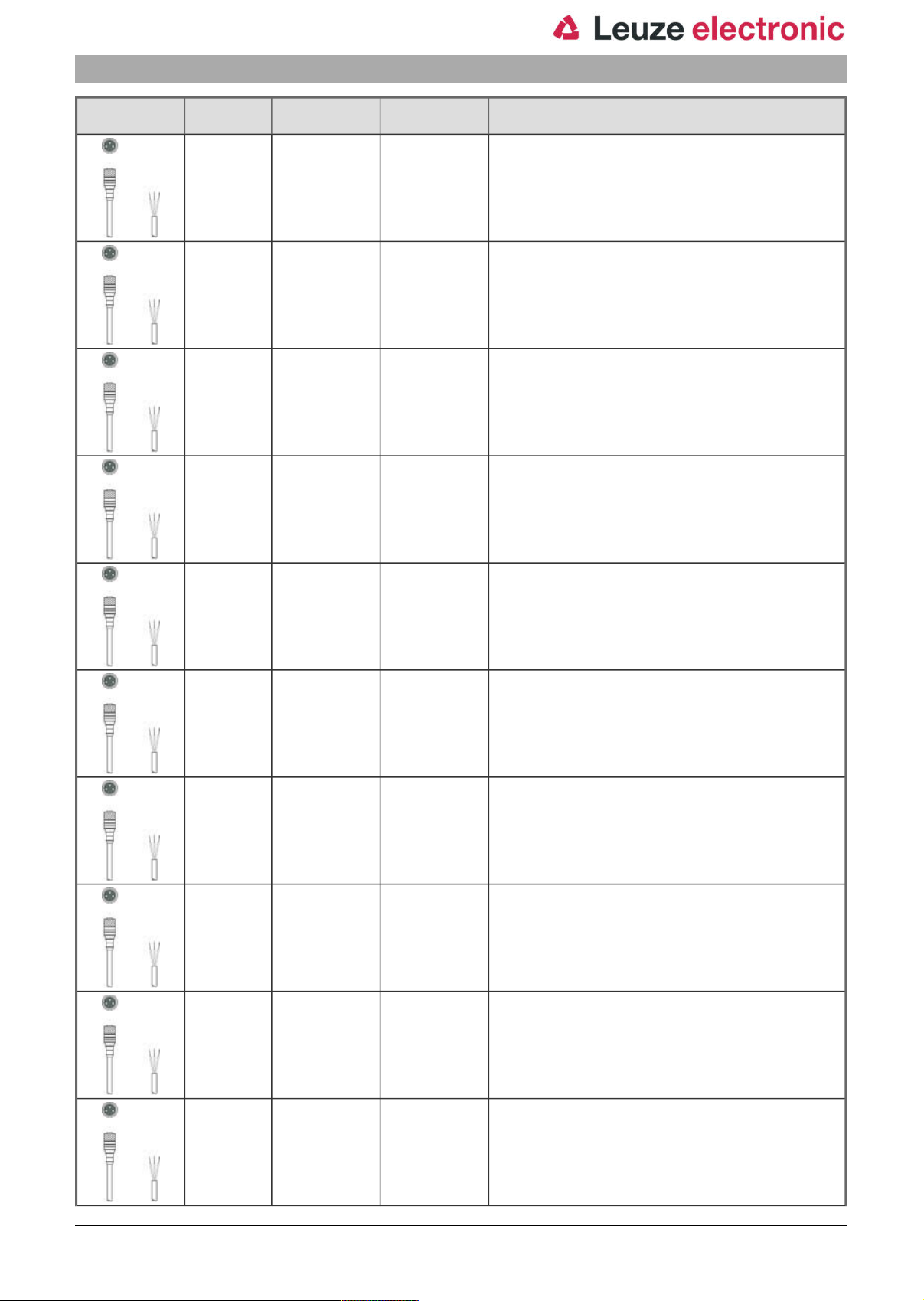

Part no. Designation Article Description
50130843 KD U-M8-3A-
P1-030
50130844 KD U-M8-3A-
P1-050
50130887 KD U-M8-3A-
P1-050-DP
50130845 KD U-M8-3A-
P1-100
50130888 KD U-M8-3A-
P1-100-DP
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 3,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PUR
50130846 KD U-M8-3A-
P1-150
50130847 KD U-M8-3A-
P1-200
50130837 KD U-M8-3A-
V1-020
50130883 KD U-M8-3A-
V1-020-DP
50130838 KD U-M8-3A-
V1-030
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 15,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 20,000 mm
Sheathing material: PUR
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 3,000 mm
Sheathing material: PVC
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-17
7 / 8
Page 8
Part no.: 50135741 – LCS-1Q40P-F20PNC-K003PM08 – Capacitive sensor

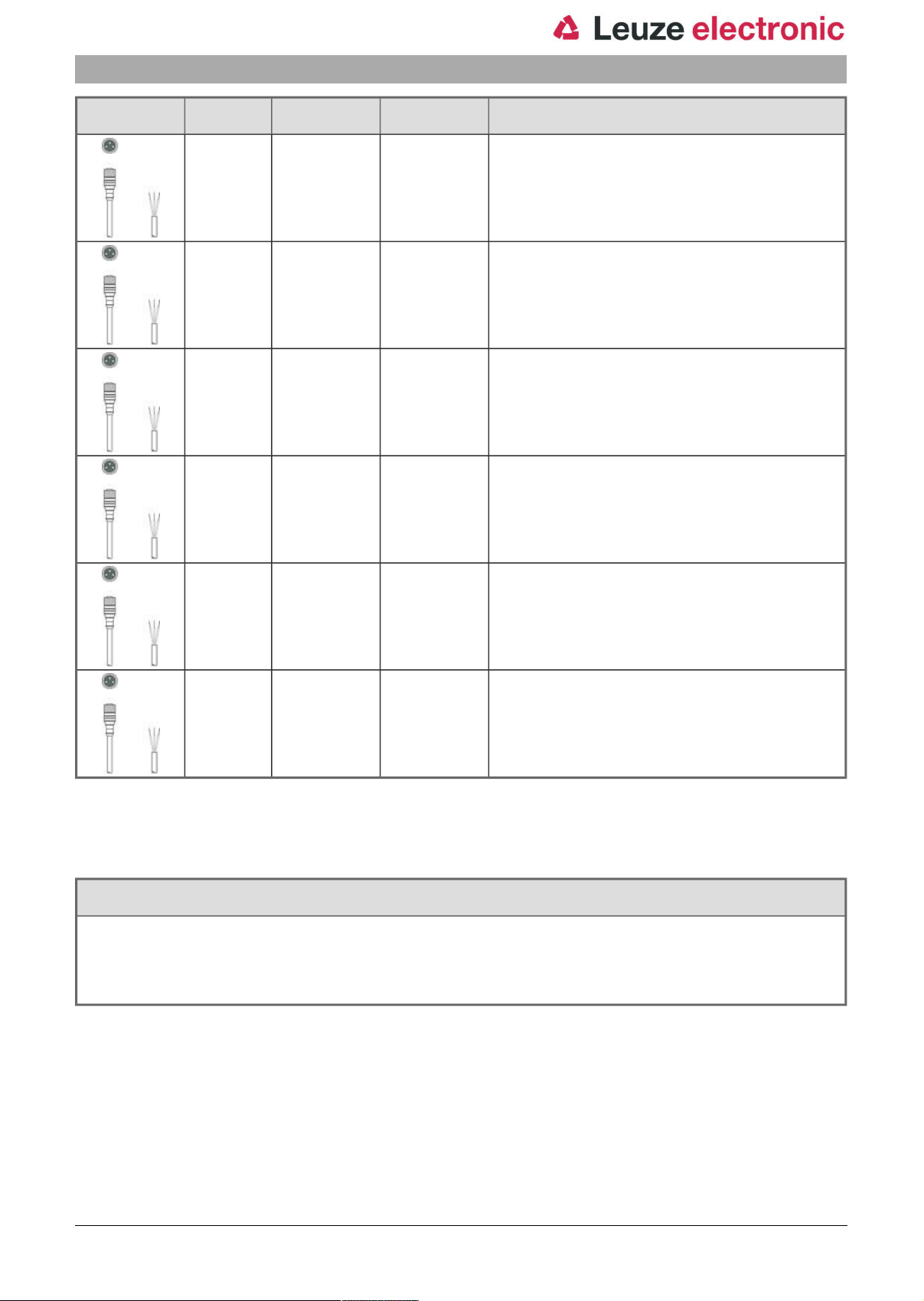

Part no. Designation Article Description
50130832 KD U-M8-3A-
V1-050
50130884 KD U-M8-3A-
V1-050-DP
50130839 KD U-M8-3A-
V1-100
50130885 KD U-M8-3A-
V1-100-DP
50130840 KD U-M8-3A-
V1-150
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connector, LED: Yes, 1 Piece(s)
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 15,000 mm
Sheathing material: PVC
50130841 KD U-M8-3A-
V1-200
Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin
Connection 2: Open end
Shielded: No
Cable length: 20,000 mm
Sheathing material: PVC
Notes
Observe intended use!
• This product is not a safety sensor and is not intended as personnel protection.
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
