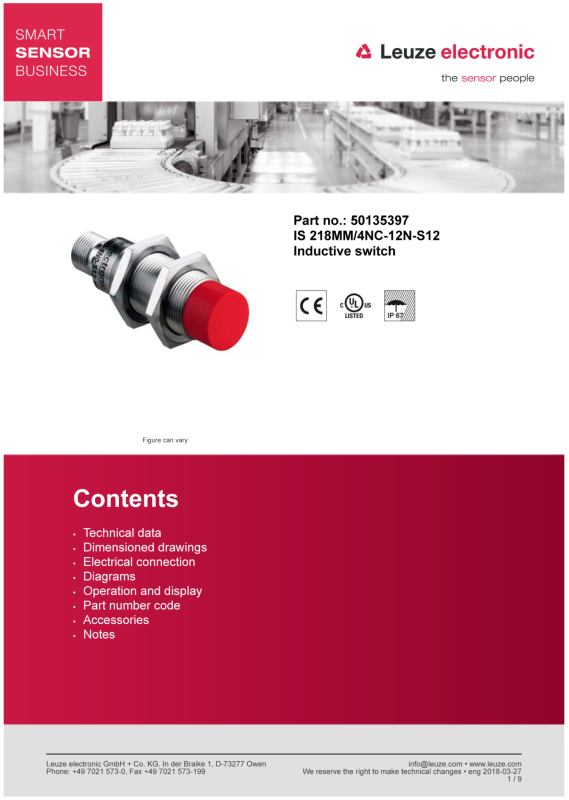

Leuze 50135397 Data Sheet
Part no.: 50135397 – IS 218MM/4NC-12N-S12 – Inductive switch
Technical data
Basic data
Series 218
Typ. operating range limit S
Operating range S
Characteristic parameters
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage 10 ... 30 V, DC
Residual ripple 0 ... 20 %, From U
Open-circuit current 0 ... 10 mA
Temperature drift, max. (in % of Sr) 10 %, Over the entire operating temperature range
Repeatability, max. (in % of Sr) 5 %, For UB= 20 … 30 V DC, ambient temperature
Switching hysteresis 10 %
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Voltage type DC
Switching current, max. 200 mA
Switching voltage Low: ≤2V
Residual current, max. 0.1 mA
Voltage drop 2 V
Switching output 1
Switching element Transistor, PNP
Switching principle NC (normally closed)
a
n
12 mm
0 ... 9.7 mm
Polarity reversal protection
Inductive protection
B
Ta= 23 °C ± 5 °C
Timing
Switching frequency 5,000 Hz
Readiness delay 60 ms
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Connector
Function Signal OUT
Voltage supply
Thread size M12
Type Male
Material Metal
No. of pins 4 -pin
Encoding A-coded
Mechanical data
Design Cylindrical
eng 2018-03-27
2 / 9
Part no.: 50135397 – IS 218MM/4NC-12N-S12 – Inductive switch
Thread size M18 x 1 mm
Dimension (Ø x L) 18 mm x 52 mm
Type of installation Non-embedded
Housing material Metal, Chromed brass
Sensing face material Plastic, Polybutylene (PBT)
Net weight 120 g
Housing color Silver
Type of fastening Mounting thread
Standard measuring plate 36 x 36 mm², Fe360
Operation and display
Type of display LED
Number of LEDs 1 Piece(s)
Environmental data
Ambient temperature, operation -25 ... 70 °C
Ambient temperature, storage -25 ... 70 °C
Red, RAL 3000
Via optional mounting device
Certifications
Degree of protection IP 67
Protection class II
Certifications c UL US
Test procedure for EMC in accordance with standard IEC 61000-4-4
Standards applied IEC 60947-5-2
Correction factors
Aluminum 0.45
Stainless steel 0.75
Copper 0.4
Brass 0.55
Fe360 steel 1
Classification
eCl@ss 8.0 27270101
eCl@ss 9.0 27270101
ETIM 5.0 EC002714
IEC 61000-4-3
IEC 61000-4-2

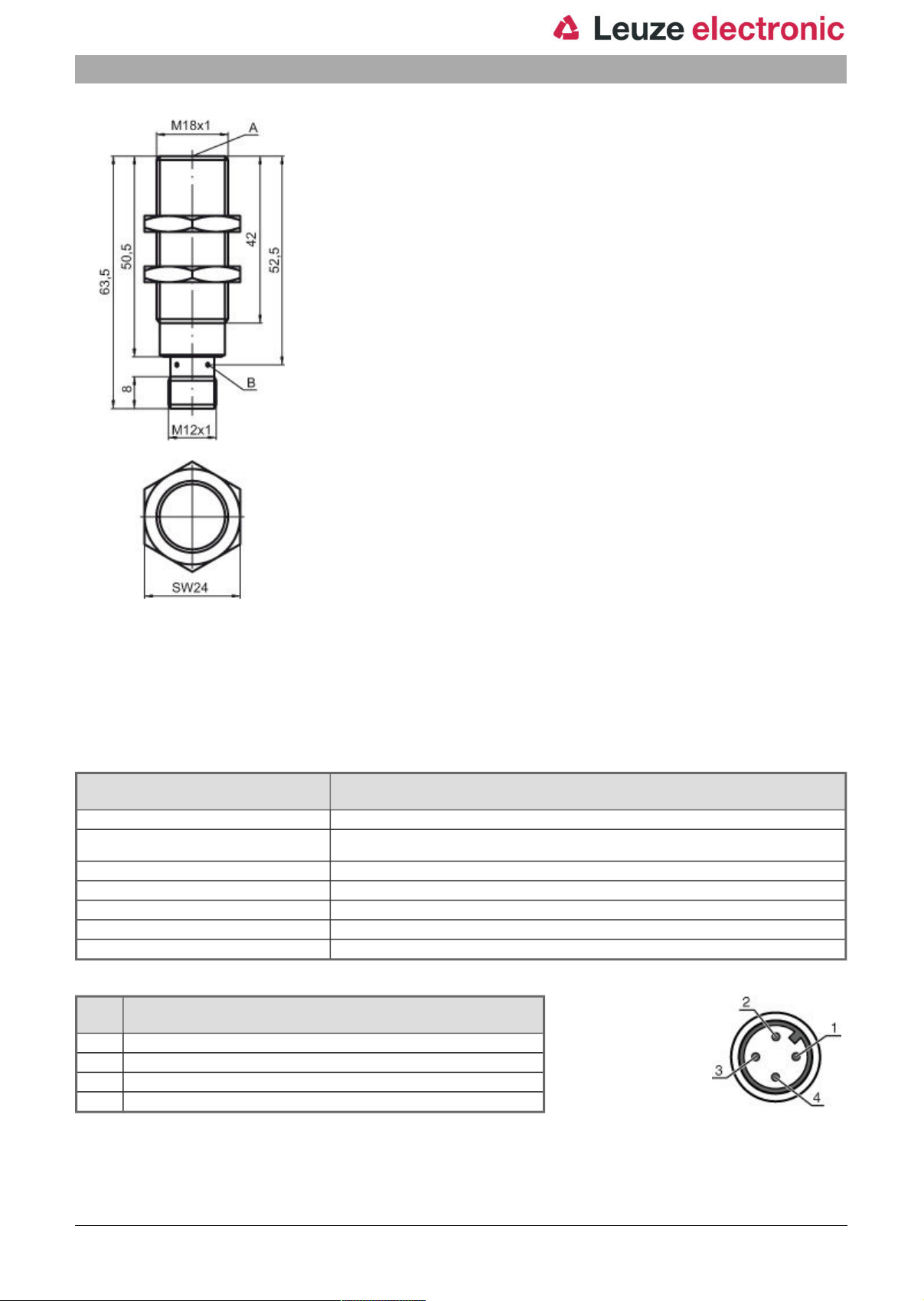

Dimensioned drawings
All dimensions in millimeters
eng 2018-03-27
3 / 9
