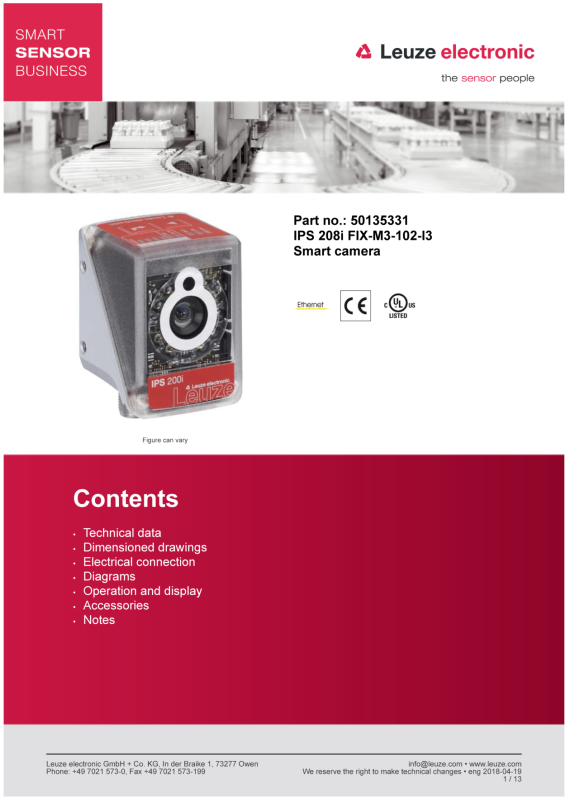

Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera
Technical data
Basic data
Series IPS 200i
Functions
Software functions Compartment fine positioning
Optical data
Working range 100 ... 600 mm
Light source LED, Infrared
Transmitted-signal shape Pulsed
Camera resolution, horizontal 1,280 px
Camera resolution, vertical 960 px
Chip CMOS
Marker size 5 ... 20 mm
Electronic shutter speed 0.068 ... 5 ms
Camera type Monochrome
Measurement data
Reproducibility (1 sigma) 0.1 mm, depending on the application
Electrical data
Protective circuit Polarity reversal protection
Performance data
Supply voltage 18 ... 30 V, DC
Average power consumption 8 W
Inputs
Number of digital switching inputs 3 Piece(s)
Switching inputs
Type Digital switching input
Voltage type DC
Outputs
Number of digital switching outputs 5 Piece(s)
Switching outputs
Type Digital switching output
Voltage type DC
Switching current, max. 100 mA
Switching output 1
Switching principle +24 V switching
Switching output 2
Switching principle +24 V switching
Switching output 3
Switching principle +24 V switching
Switching output 4
Switching principle +24 V switching
Switching output 5
Switching principle +24 V switching
Short circuit protected
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
2 / 13
Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera
Interface
Type Ethernet
Ethernet
Architecture Server
Address assignment DHCP
Transmission speed 100 Mbit/s
Function Process
Switch functionality None
Transmission protocol TCP/IP , UDP
Service interface
Type Ethernet
Ethernet
Function Service
Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Connector
Function Signal IN
Thread size M12
Type Male
Material Metal
No. of pins 12 -pin
Encoding A-coded
Connection 2
Type of connection Connector
Function Configuration interface
Thread size M12
Type Female
Material Metal
No. of pins 4 -pin
Encoding D-coded
Client
Manual address assignment
10 Mbit/s
Signal OUT
Voltage supply
Data interface
Mechanical data
Design Cubic
Dimension (W x H x L) 43 mm x 61 mm x 44 mm
Housing material Metal
Plastic, Diecast aluminum, PC
Lens cover material Plastic
Net weight 120 g
Housing color Silver
Type of fastening Mounting thread
Via optional mounting device
Operation and display
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
3 / 13
Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera
Type of display LED
Number of LEDs 9 Piece(s)
Type of configuration Configuration codes
Operational controls Buttons
Function of the operational control Auto-setup
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -20 ... 70 °C
Relative humidity (non-condensing) 90 %
Certifications
Degree of protection IP 65
Protection class III
Certifications c UL US
Test procedure for EMC in accordance with standard EN 61000-6-2
Test procedure for continuous shock in accordance with standard IEC 60068-2-29, test Eb
Test procedure for vibration in accordance with standard IEC 60068-2-6, test Fc
Teach-in
Via web browser
Adjustment mode
EN 61000-6-4
Classification
eCl@ss 8.0 27310201
eCl@ss 9.0 27310201
Dimensioned drawings
All dimensions in millimeters
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
4 / 13
Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera

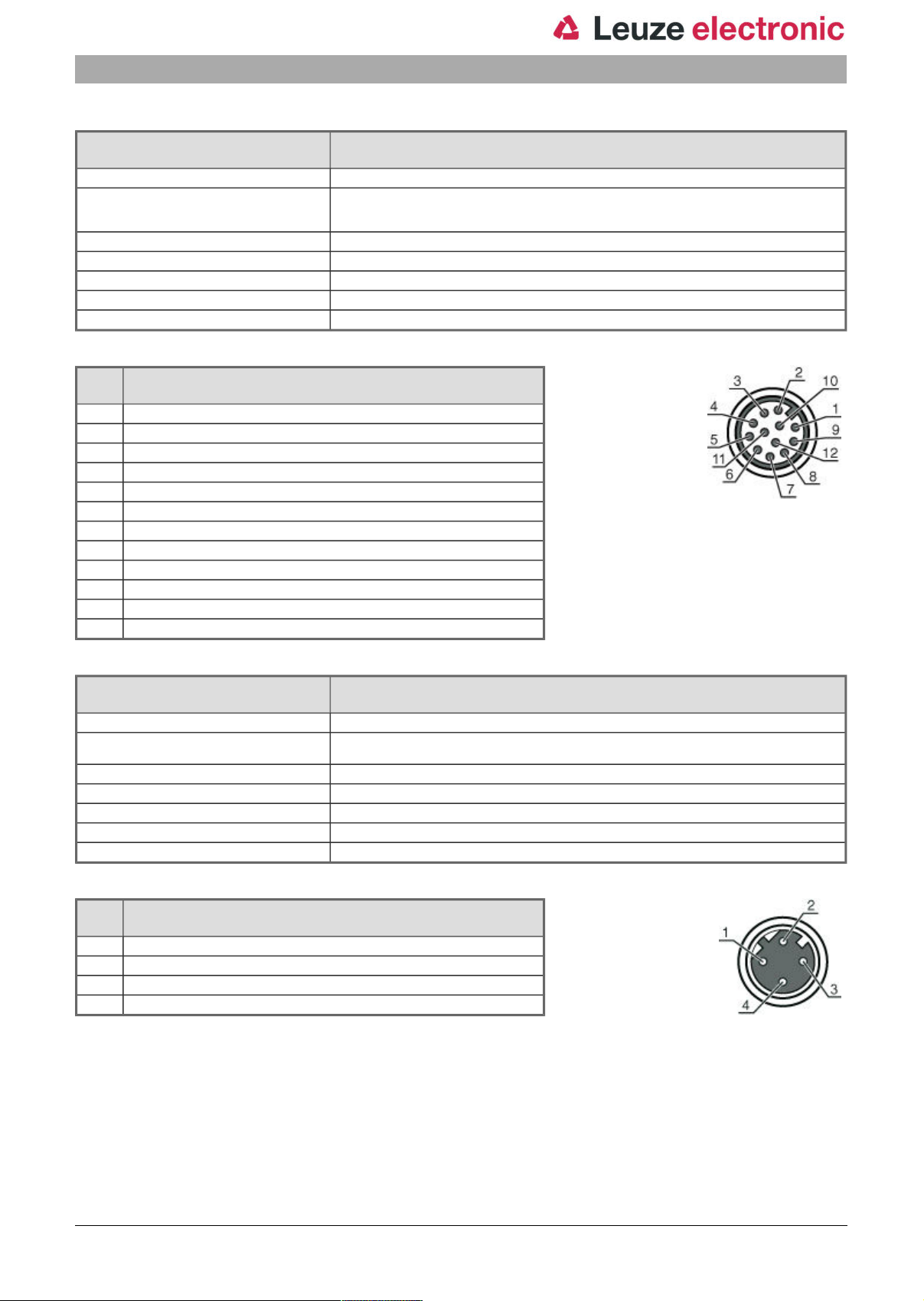

Electrical connection
Connection 1 PWR / SWI / SWO
Type of connection Connector
Function Signal IN
Thread size M12
Type Male
Material Metal
No. of pins 12 -pin
Encoding A-coded
Pin Pin assignment
1 VIN
2 GND
3 SWIN 1
4 SWOUT 2
5 FE
6 n.c.
7 SWOUT 5
8 SWOUT 6
9 SWOUT 7
10 SWOUT 8
11 SWIO 3
12 SWIO 4
Signal OUT
Voltage supply
Connection 2 HOST
Type of connection Connector
Function Configuration interface
Thread size M12
Type Female
Material Metal
No. of pins 4 -pin
Encoding D-coded
Pin Pin assignment
1 TD+
2 RD+
3 TD-
4 RD-
Data interface
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
5 / 13
Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera
Diagrams

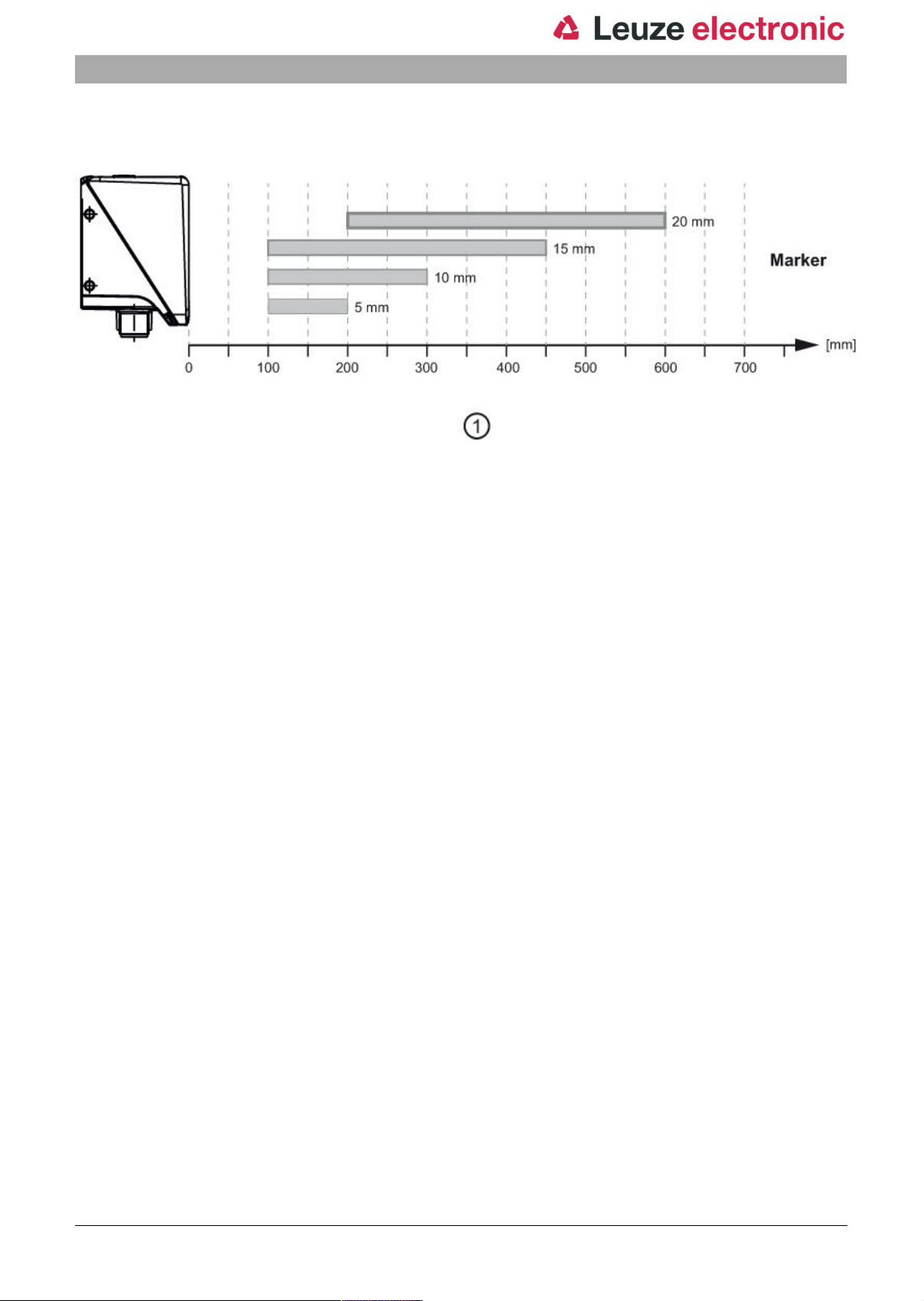

Typical working distances for markers with different marker diameters
1 Distance [mm]
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
6 / 13
Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera

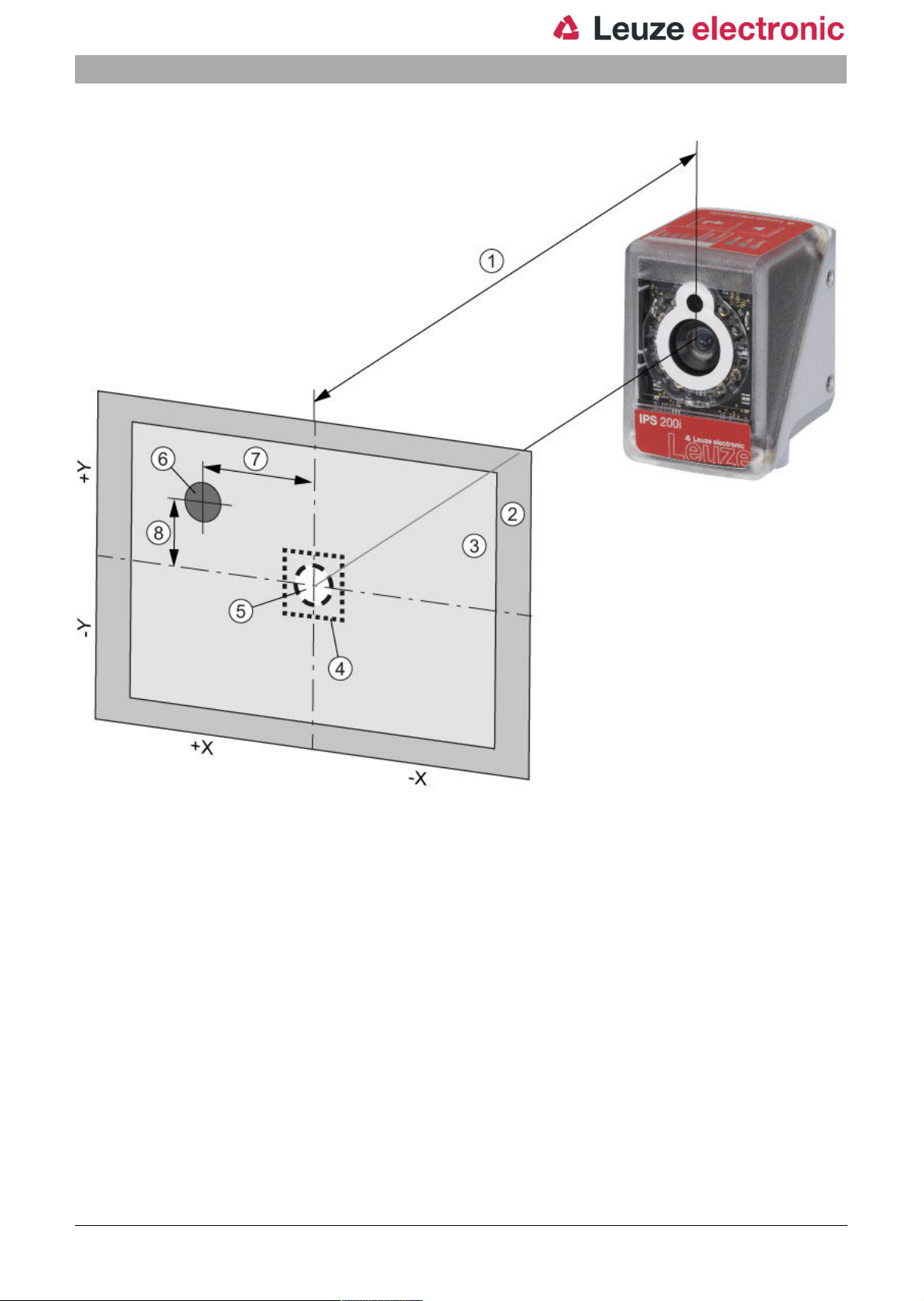

Mode of operation of the positioning sensor
1 Working distance
2 Field of view (FOV)
3 Region of interest (ROI)
4 Tolerance range
5 Nominal position (marker)
6 Actual position (marker)
7 X deviation
8 Y deviation
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
7 / 13
Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera

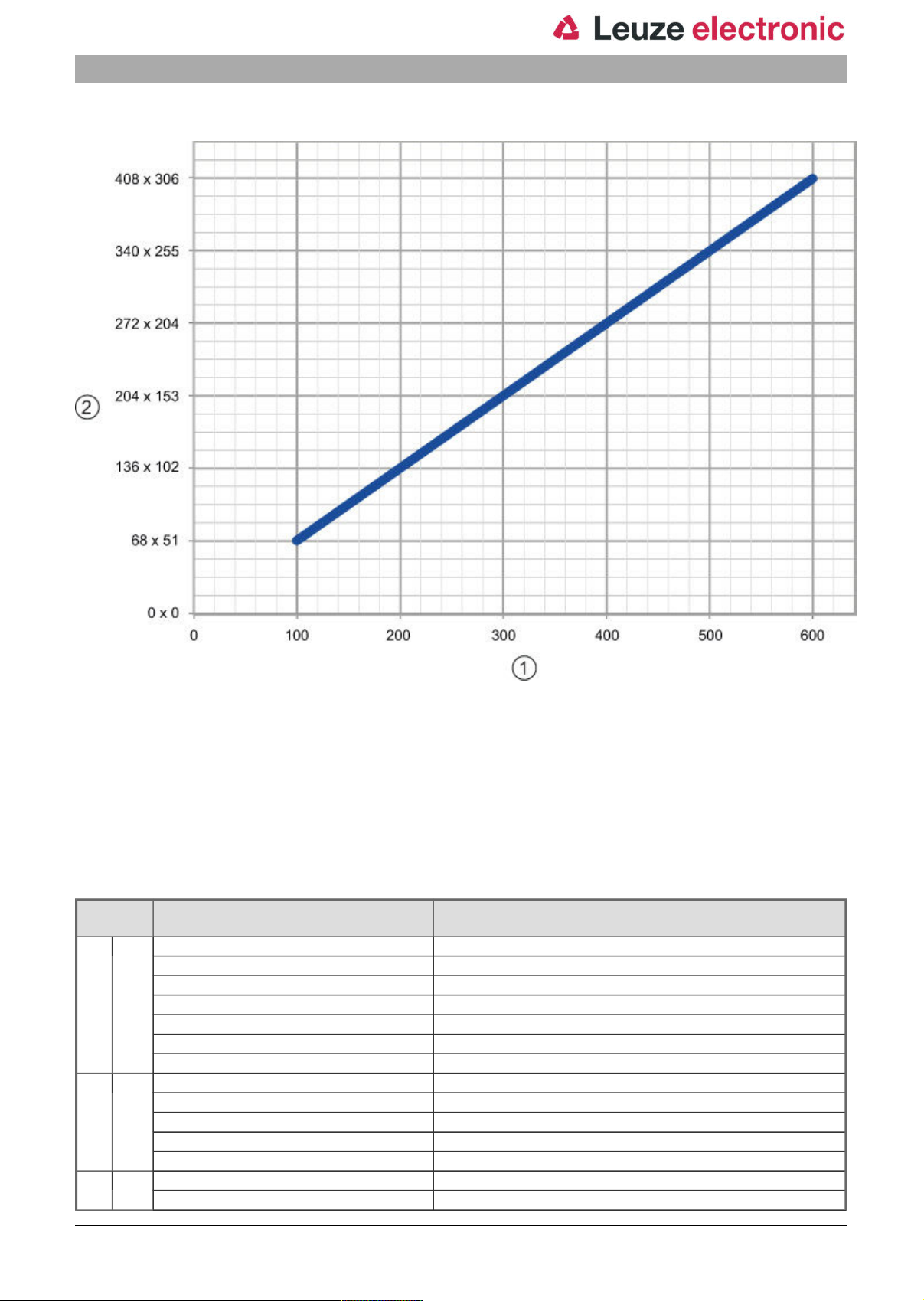

Relationship between working distance and field of view size
1 Distance [mm]
2 Field of view: width x height [mm]
Operation and display
LEDs
LED Display Meaning
1 PWR Off No supply voltage
Green, flashing Initialization
Green, continuous light Operational readiness
Orange, continuous light Service operation
Orange, flashing Wave function
Red, flashing Device OK, warning set
Red, continuous light Device error
2 NET Off No supply voltage
Green, flashing Initialization
Green, continuous light Operational readiness
Red, flashing Communication error
Red, continuous light Network error
3 LINK Green, continuous light Ethernet connection is established
Yellow, flashing Data exchange active
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
8 / 13
Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera
LED Display Meaning
4 AUTO Green, flashing Auto setup and teach-in of position
5 ADJ Green, flashing Alignment mode and teach-in of position
6 --- Green, flashing Flashing frequency signals the marker distance to the nominal position
Green, continuous light Marker is in nominal position
7 --- Green, flashing Flashing frequency signals the marker distance to the nominal position
Green, continuous light Marker is in nominal position
8 --- Green, flashing Flashing frequency signals the marker distance to the nominal position
Green, continuous light Marker is in nominal position
9 --- Green, flashing Flashing frequency signals the marker distance to the nominal position
Green, continuous light Marker is in nominal position

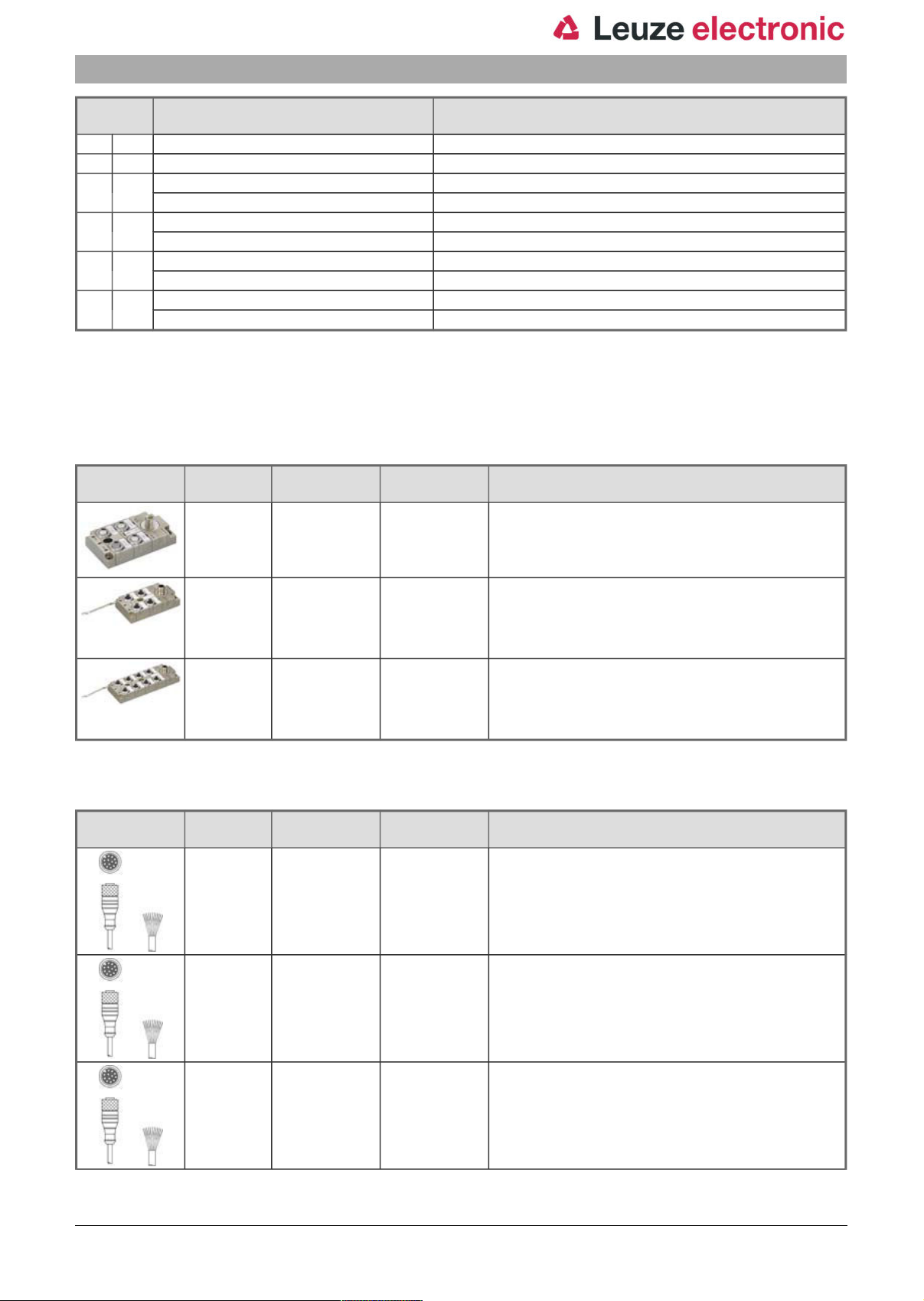

Accessories
Connection technology - Connection unit
Part no. Designation Article Description
50130109 MA 150 Modular
50135196 MD 708-21-42/
D4-12
50135197 MD 708-21-82/
D4-12
connection unit
Ethernet switch Supply voltage: 18 ... 30 V
Ethernet switch Supply voltage: 18 ... 30 V
Supply voltage: 18 ... 30 V
Current consumption, max.: 150 mA
Connections: 5 Piece(s)
Degree of protection: IP 67
Interface: Ethernet
Connections: 5 Piece(s)
Connections for voltage supply: 1 Piece(s)
Interface connections: 4 Piece(s)
Degree of protection: IP 67
Interface: Ethernet
Connections: 9 Piece(s)
Connections for voltage supply: 1 Piece(s)
Interface connections: 8 Piece(s)
Degree of protection: IP 67
Connection technology - Connection cables
Part no. Designation Article Description
50130281 KD S-M12-CA-
P1-020
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PUR
50130282 KD S-M12-CA-
P1-050
50130283 KD S-M12-CA-
P1-100
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
eng 2018-04-19
9 / 13

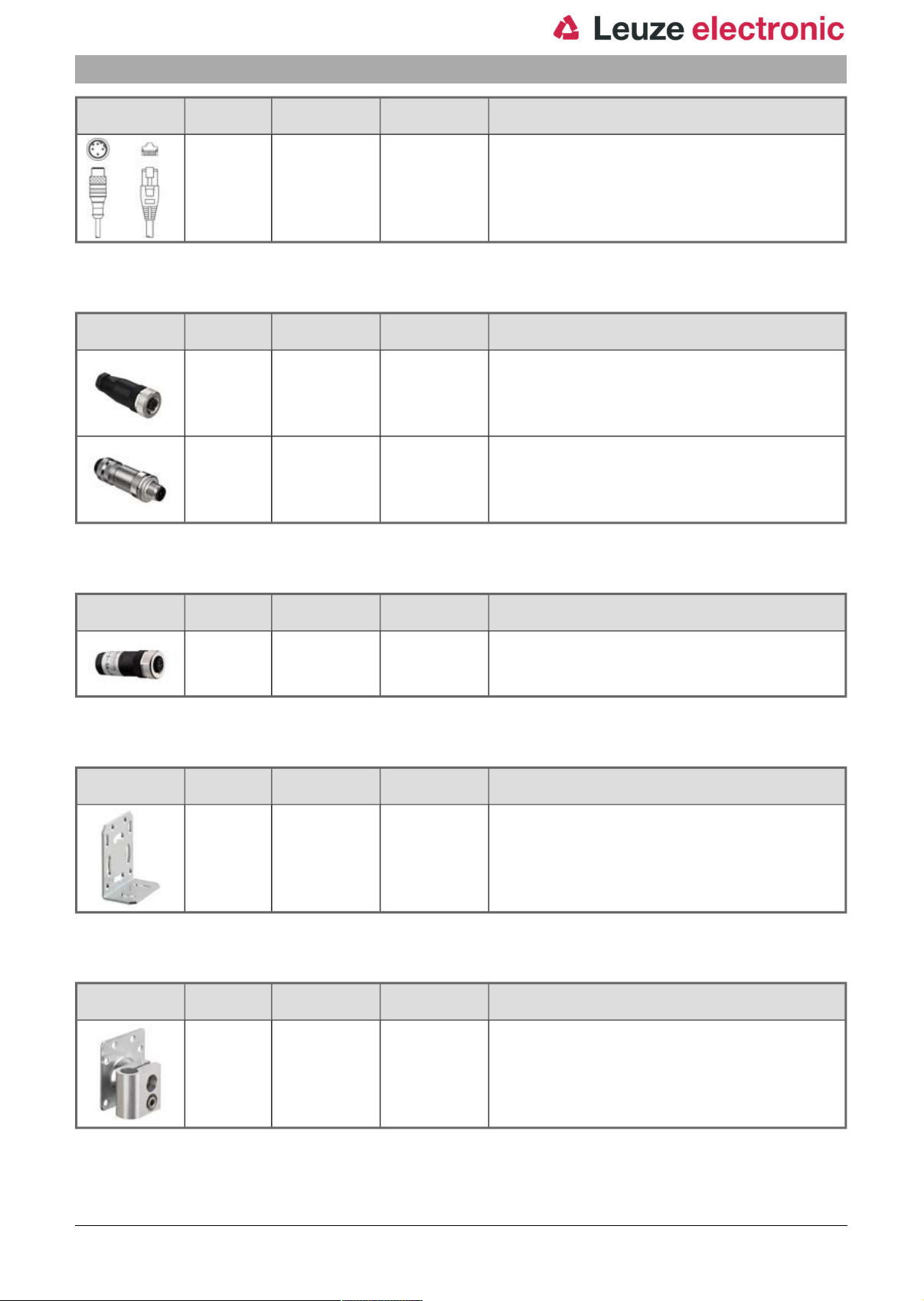

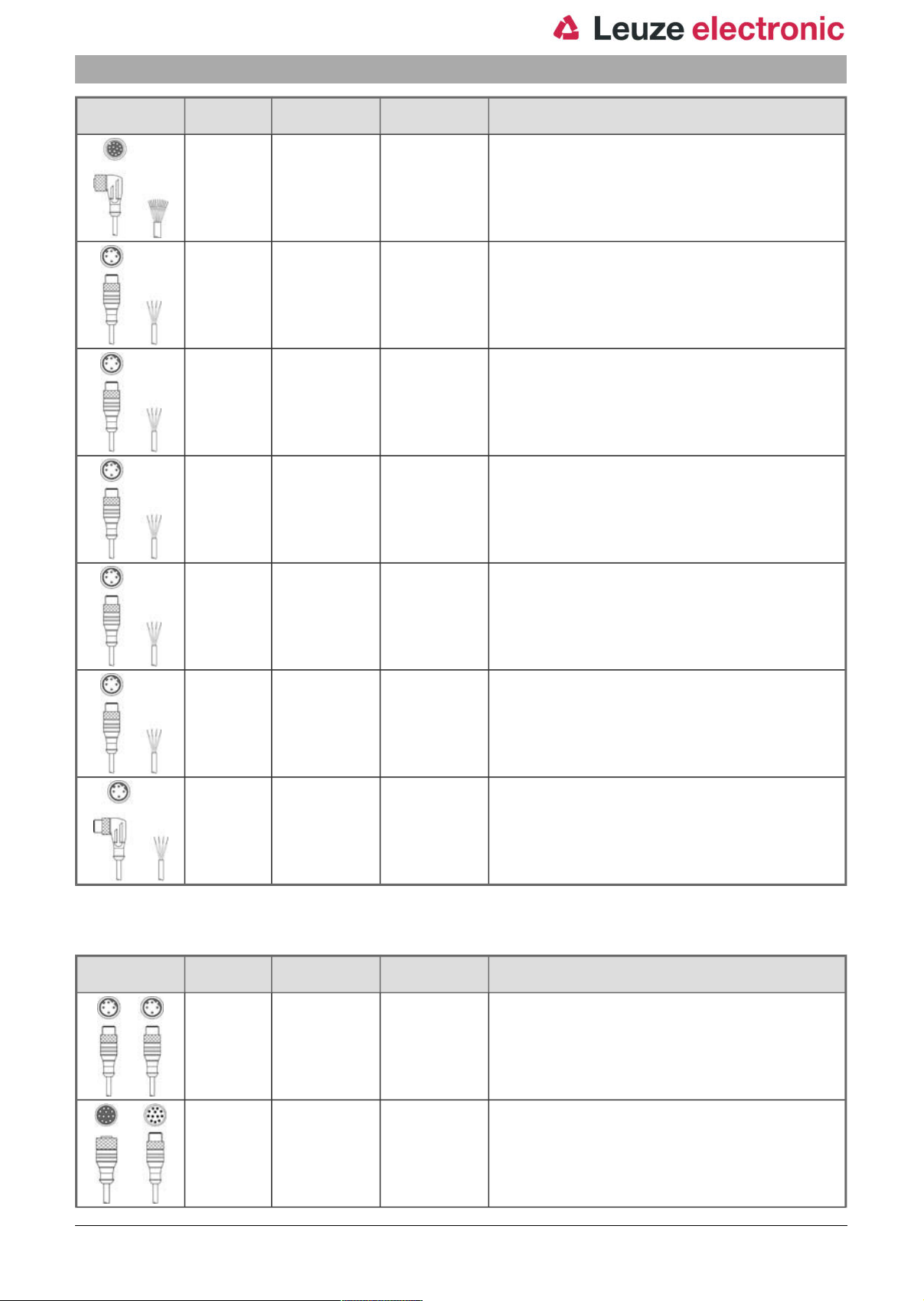

Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera
Part no. Designation Article Description
50134943 KD S-M12-CW-
P1-050
50135073 KS ET-M12-4A-
P7-020
50135074 KS ET-M12-4A-
P7-050
50135075 KS ET-M12-4A-
P7-100
50135076 KS ET-M12-4A-
P7-150
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 12 -
pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
50135077 KS ET-M12-4A-
P7-300
50134942 KS ET-M12-4W-
P7-050
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 30,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Angled, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection technology - Interconnection cables
Part no. Designation Article Description
50106905 KB
ET-30000-SSA
50130284 KDS S-M12-CA-
M12-CA-P1-020
Interconnection
cable
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 30,000 mm
Sheathing material: PUR
Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Connector, M12, Axial, Male, A-coded, 12 -pin
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PUR
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
10 / 13
Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera

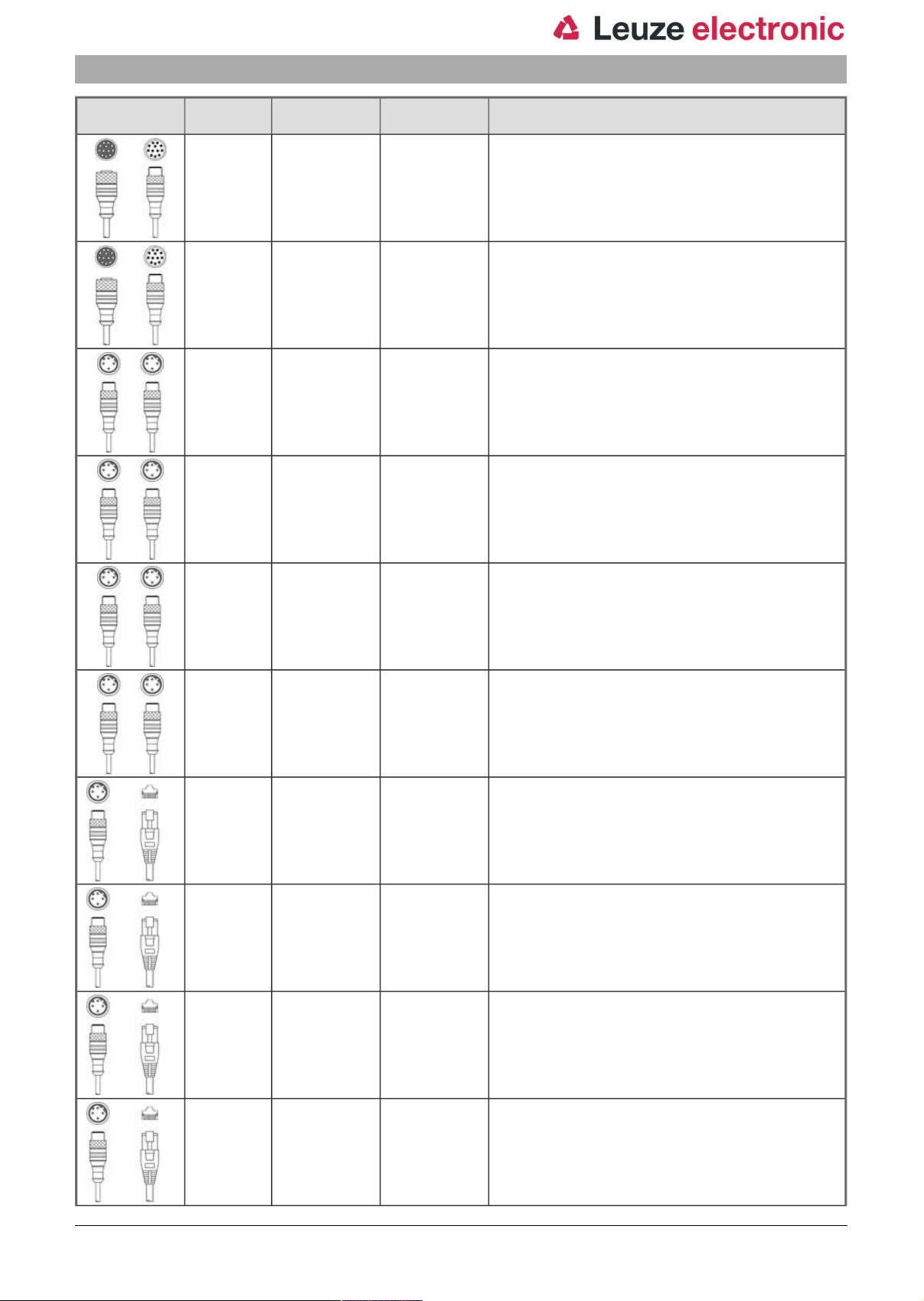

Part no. Designation Article Description
50130285 KDS S-M12-CA-
M12-CA-P1-050
50130286 KDS S-M12-CA-
M12-CA-P1-100
50137077 KSS ET-M12-4A-
M12-4A-P7-020
50137078 KSS ET-M12-4A-
M12-4A-P7-050
50137079 KSS ET-M12-4A-
M12-4A-P7-100
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Connector, M12, Axial, Male, A-coded, 12 -pin
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Connector, M12, Axial, Male, A-coded, 12 -pin
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 1,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 1,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
50137080 KSS ET-M12-4A-
M12-4A-P7-150
50135080 KSS ET-M12-4A-
RJ45-A-P7-020
50135081 KSS ET-M12-4A-
RJ45-A-P7-050
50135082 KSS ET-M12-4A-
RJ45-A-P7-100
50135083 KSS ET-M12-4A-
RJ45-A-P7-150
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 2,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 5,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 10,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 15,000 mm
Sheathing material: PUR
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
11 / 13
Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera
Part no. Designation Article Description
50135084 KSS ET-M12-4A-
RJ45-A-P7-300
Interconnection
cable
Connection technology - Connectors
Part no. Designation Article Description
50132254 D M12A-12P Connector Connection: Connector with solder connection, M12, Axial,
50112155 S-M12A-ET Connector Suitable for interface: Ethernet
Connection technology - Adapters
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 30,000 mm
Sheathing material: PUR
Female, A-coded, 12 -pin
Connection: Connector, M12, Axial, Male, D-coded, 4 -pin
Part no. Designation Article Description
50132255 D M12A-12P-
PWR
Adapter Number of connections: 2 Piece(s)
Mounting technology - Mounting brackets
Part no. Designation Article Description
50132151 BT 320M Mounting bracket Design of mounting device: Angle, L-shape
Mounting technology - Rod mounts
Part no. Designation Article Description
50132150 BTU 320M-D12 Mounting system Contains: 4x M4 x 6 screws
Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin
Connection 2: Jack socket
Fastening, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Rigid
Material: Metal
Design of mounting device: Mounting system
Fastening, at system: For 12 mm rod
Mounting bracket, at device: Screw type
Type of mounting device: Clampable, Adjustable, Turning, 360°
Material: Metal
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
12 / 13

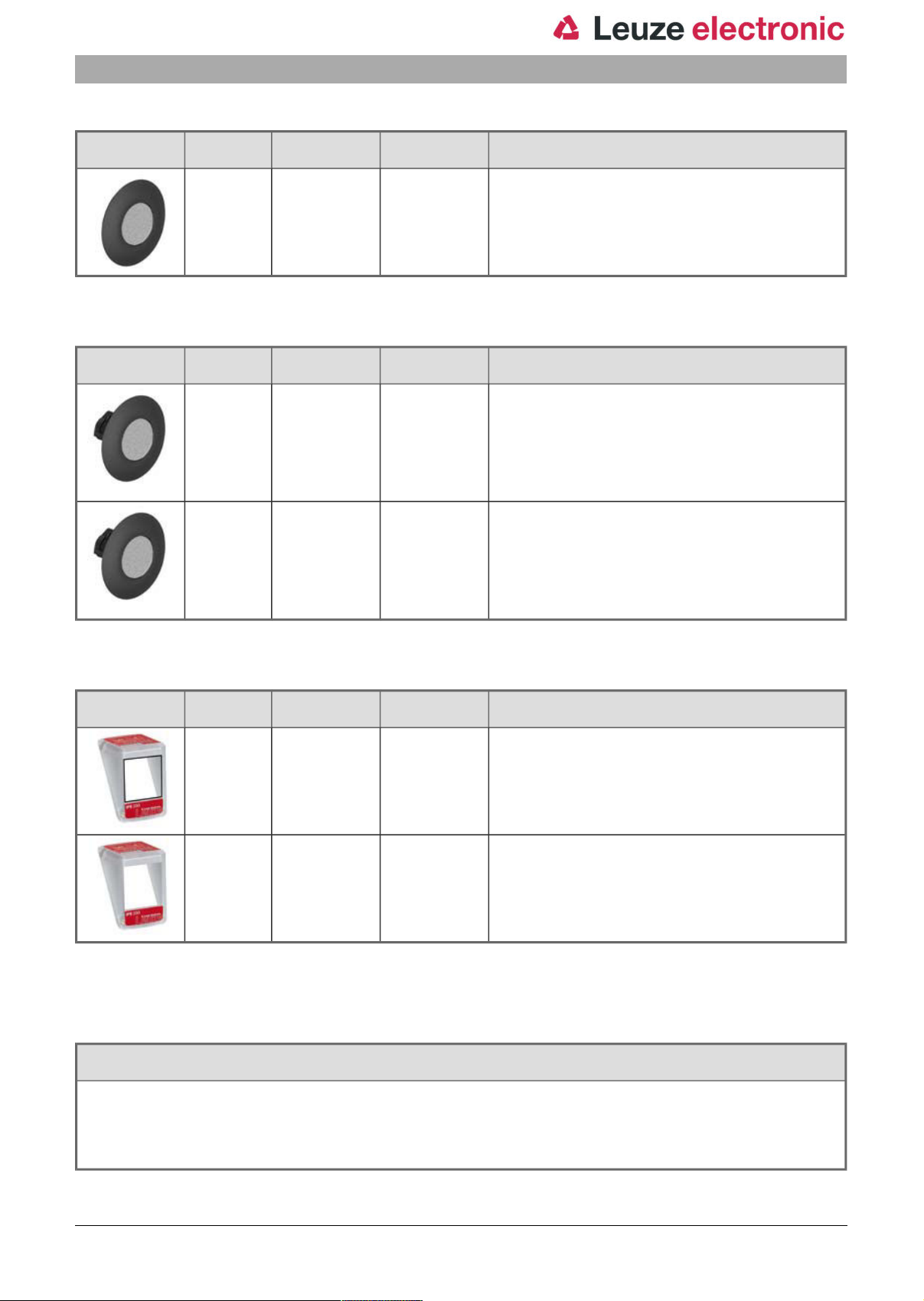

Part no.: 50135331 – IPS 208i FIX-M3-102-I3 – Smart camera
Standard reflectors
Part no. Designation Article Description
50132911 REF 7-A-15-30
SET
Micro-triad-type reflectors
Part no. Designation Article Description
50130343 MTKZ 13-30 SET Reflector Design: Round
50129092 MTKZ 15-30 SET Reflector Design: Round
Reflective tape Design: Round
Reflection surface diameter: 15 mm
Fastening: Self-adhesive
Reflection surface diameter: 15 mm
Material: Plastic
Base material: Plastic
Chemical designation of the material: PA
Fastening: Clip
Suitable for bore hole diameter: 12.5 ... 13.5 mm
Suitable for material thickness: 0.8 ... 5 mm
Processing temperature: 5 ... 45 °C
Reflection surface diameter: 15 mm
Material: Plastic
Base material: Plastic
Chemical designation of the material: PA
Fastening: Clip
Suitable for bore hole diameter: 14.5 ... 15.5 mm
Suitable for material thickness: 0.8 ... 5 mm
Processing temperature: 5 ... 45 °C
General
Part no. Designation Article Description
50137680 Cover IPS 200i Cover hood Housing material: Plastic
50137681 Cover IPS 200i-G Cover hood Housing material: Plastic
Notes
Observe intended use!
• This product is not a safety sensor and is not intended as personnel protection.
Optics cover: Plastic
Optics cover: Glass
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-19
13 / 13
Loading...
