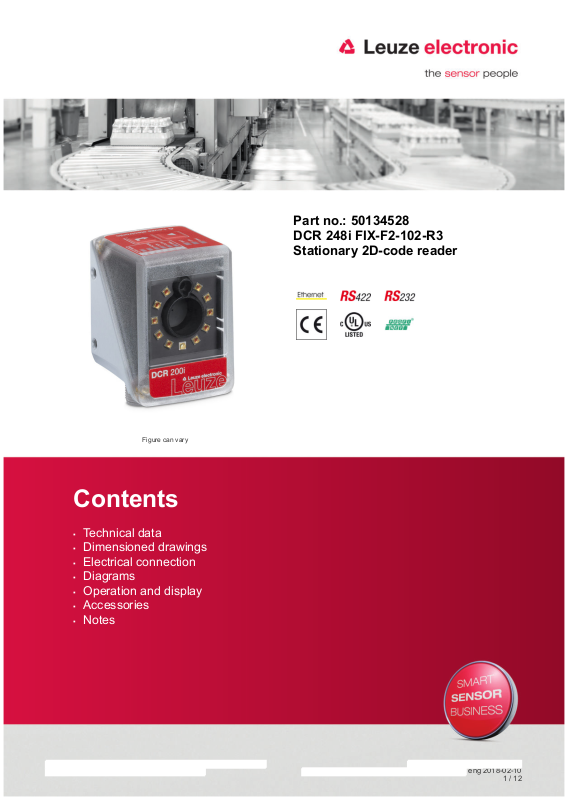

Leuze 50134528 Data Sheet
Figure can vary
Part no.: 50134528
DCR 248i FIX-F2-102-R3
Stationary 2D-code reader
Contents
▪ Technical data

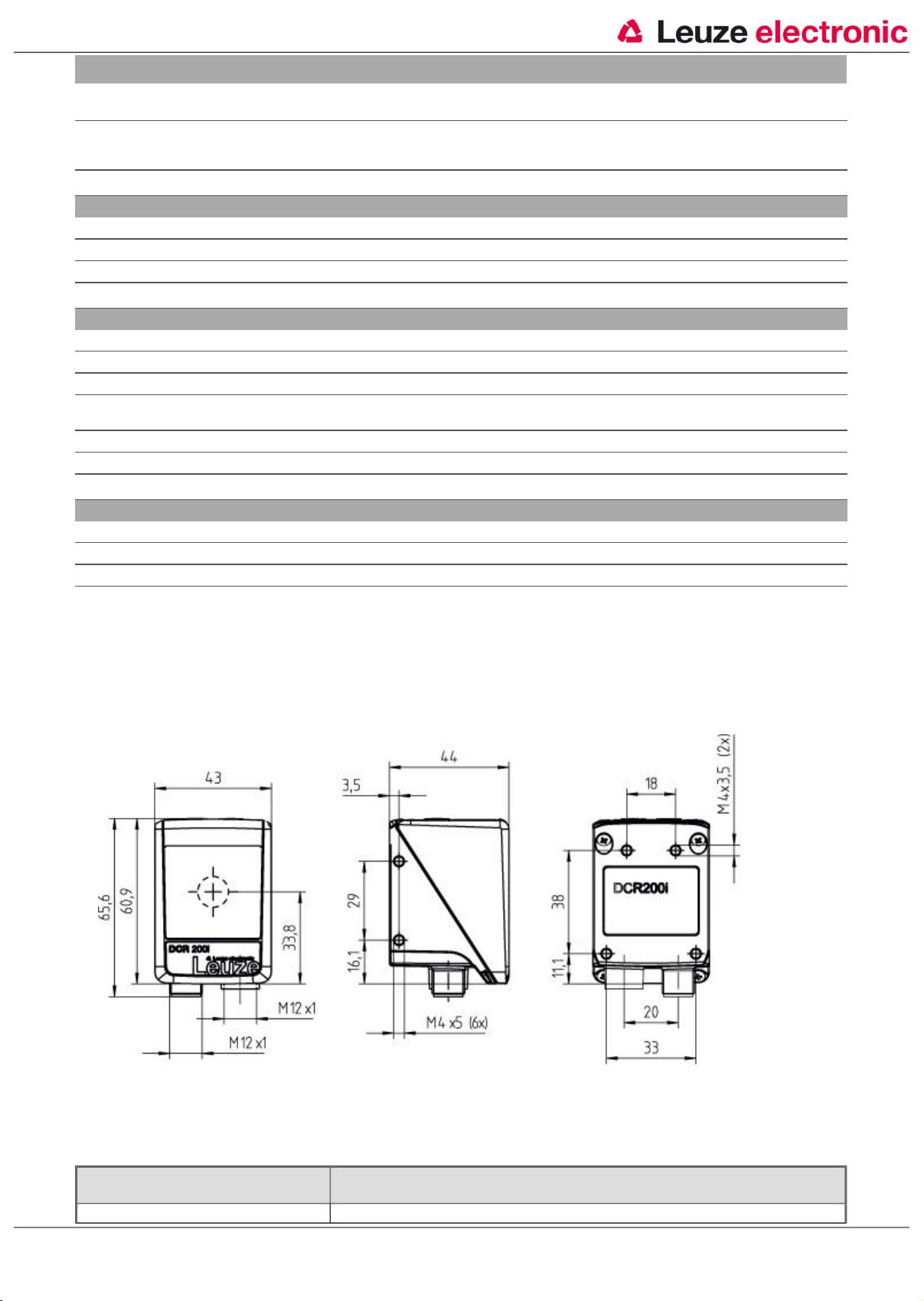

▪ Dimensioned drawings

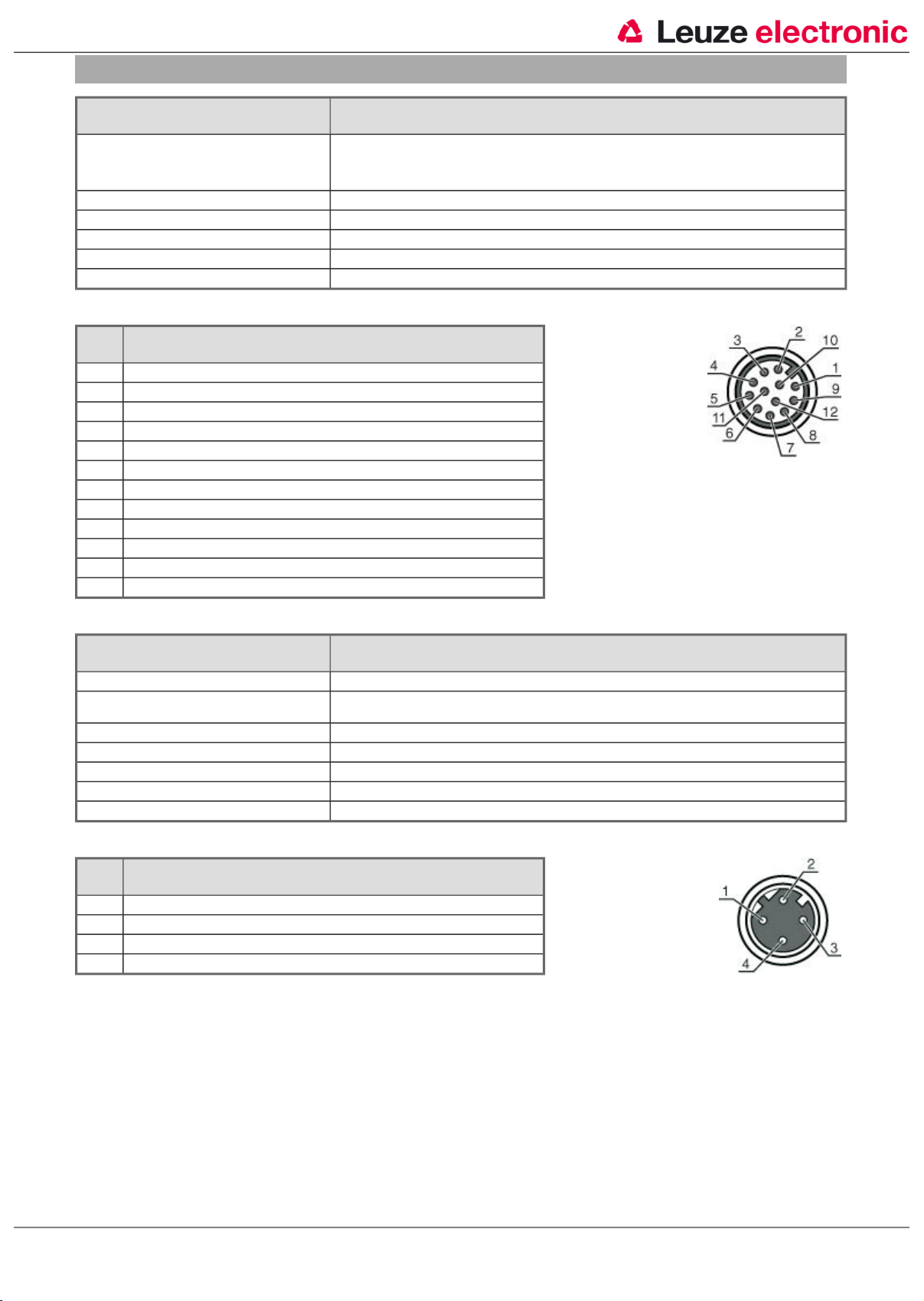

▪ Electrical connection

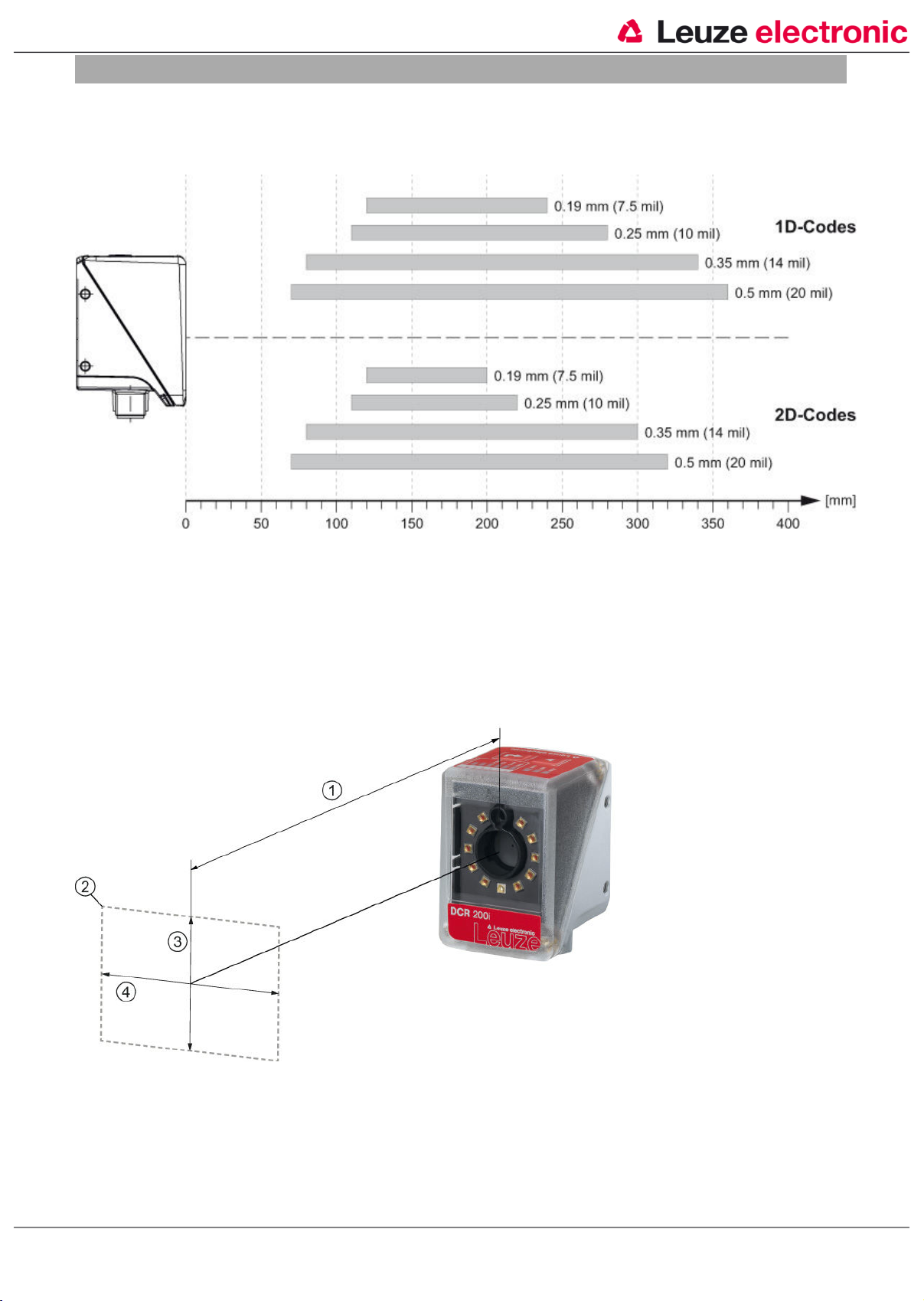

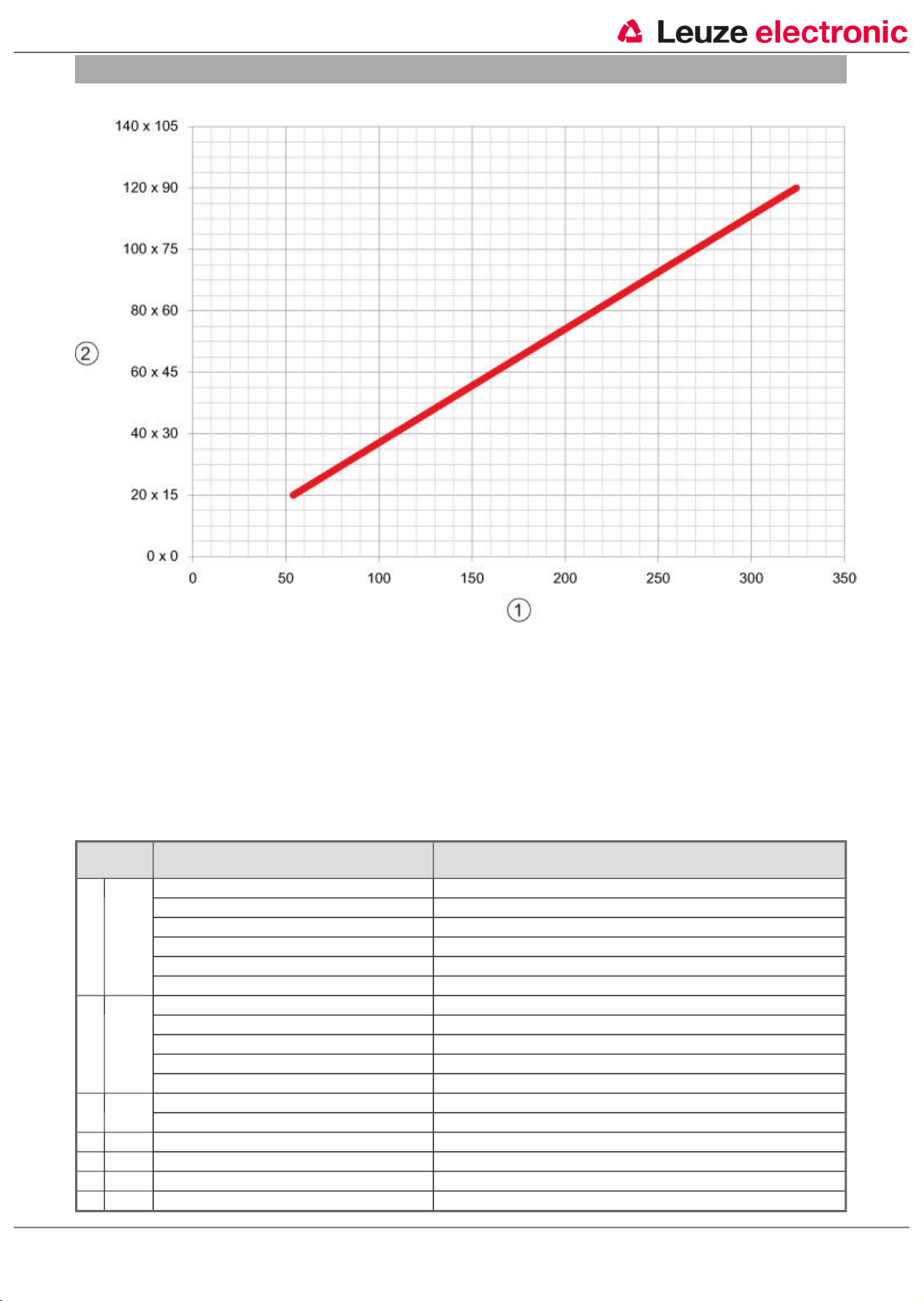

▪ Diagrams
▪ Operation and display

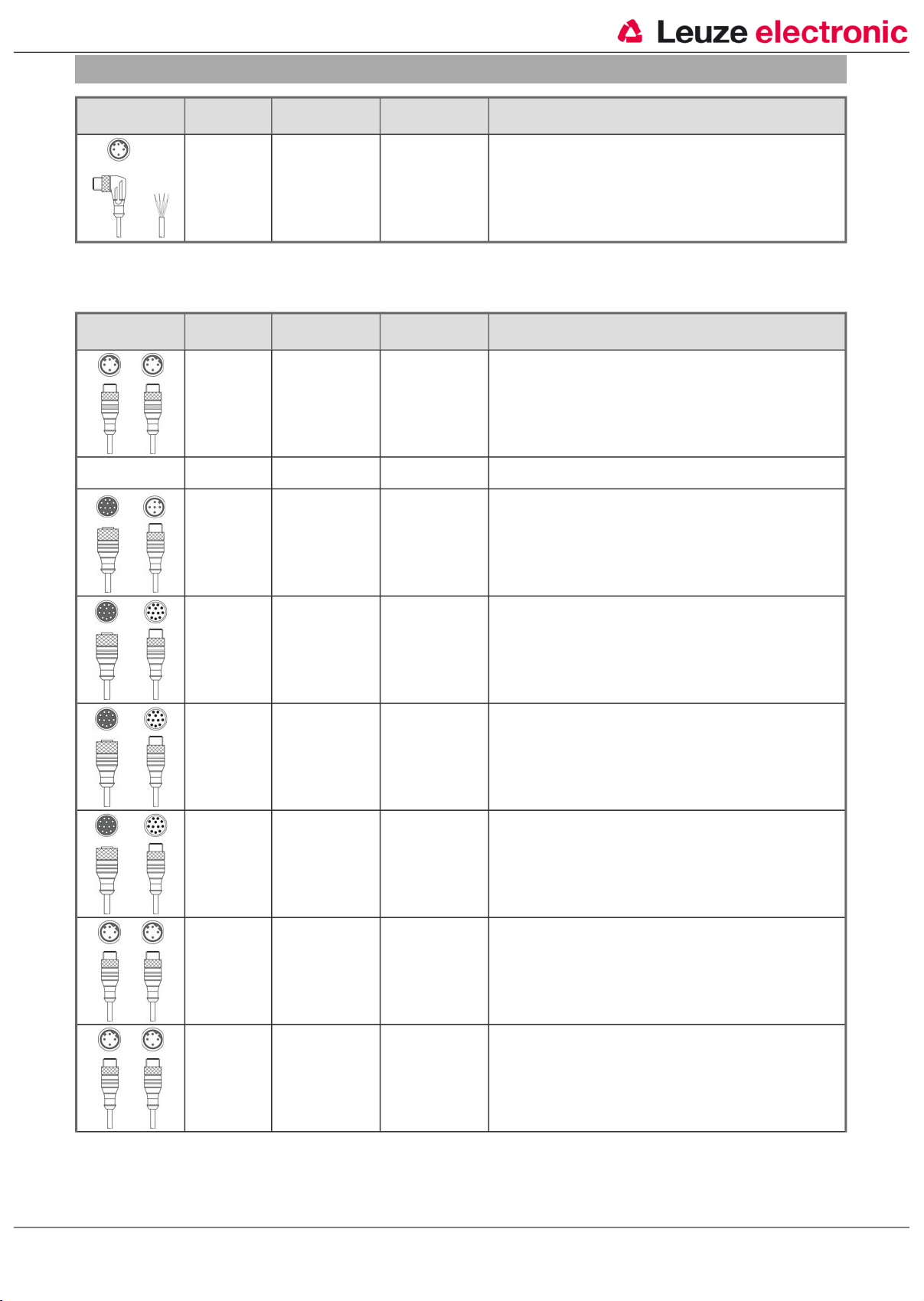

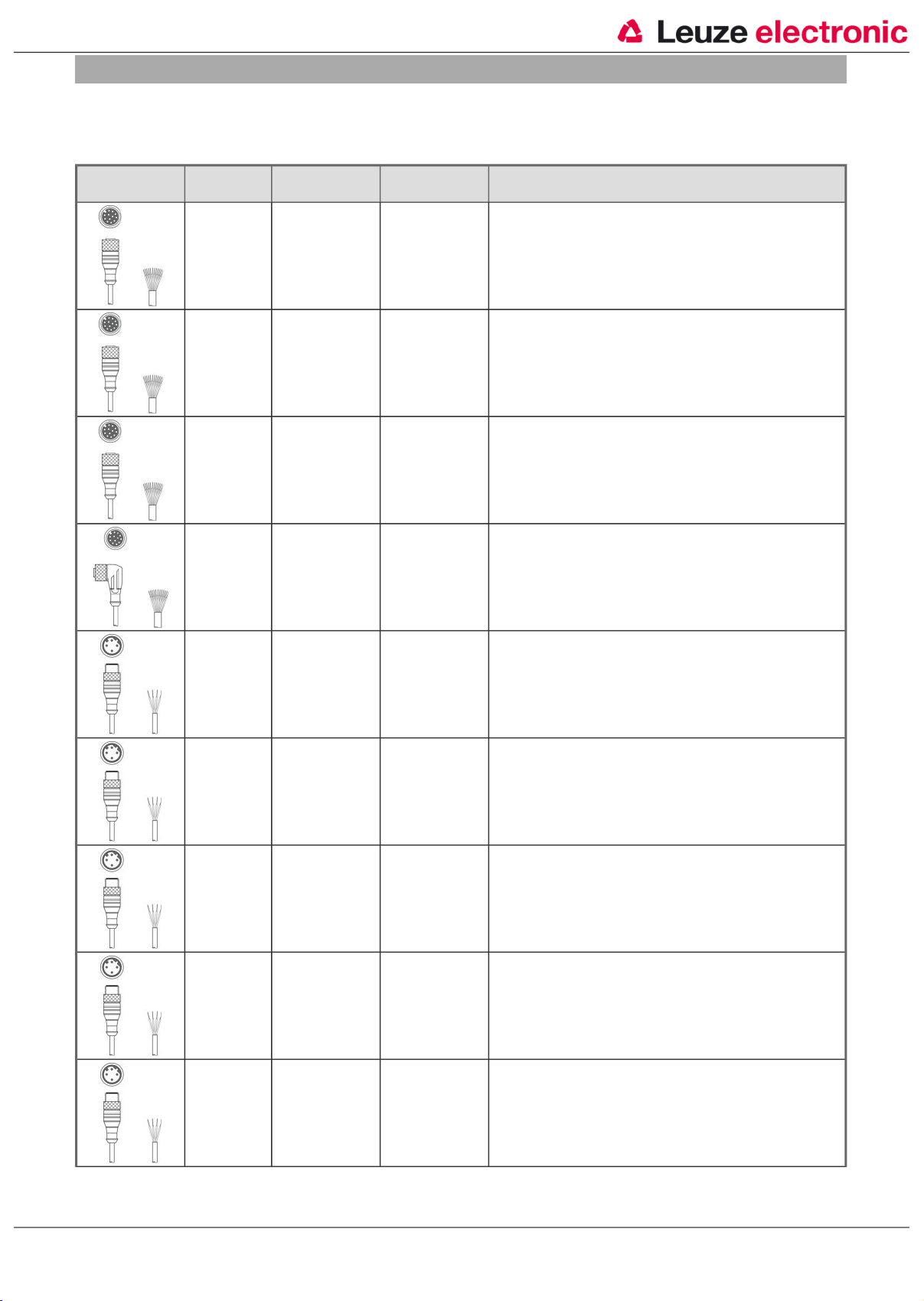

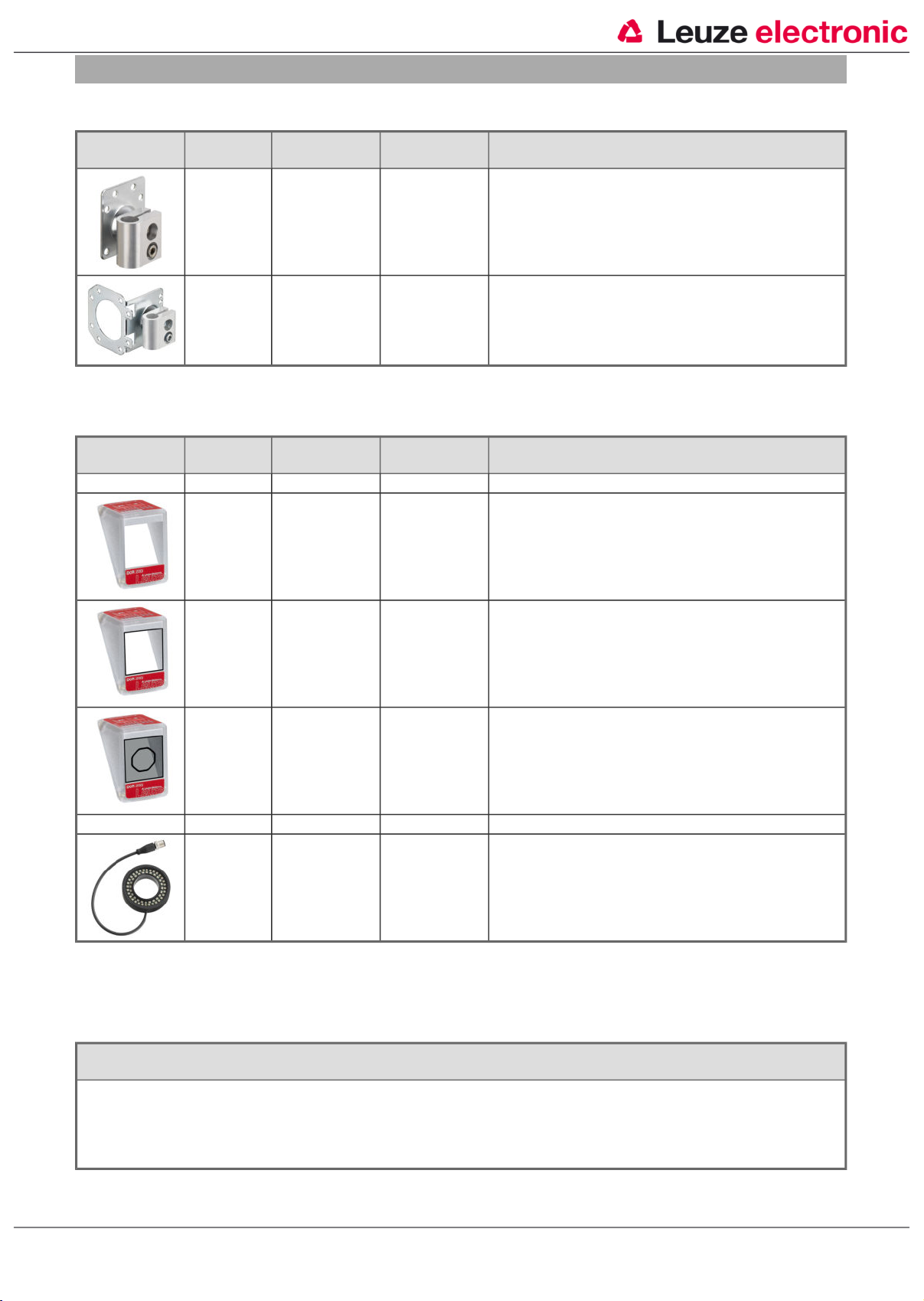

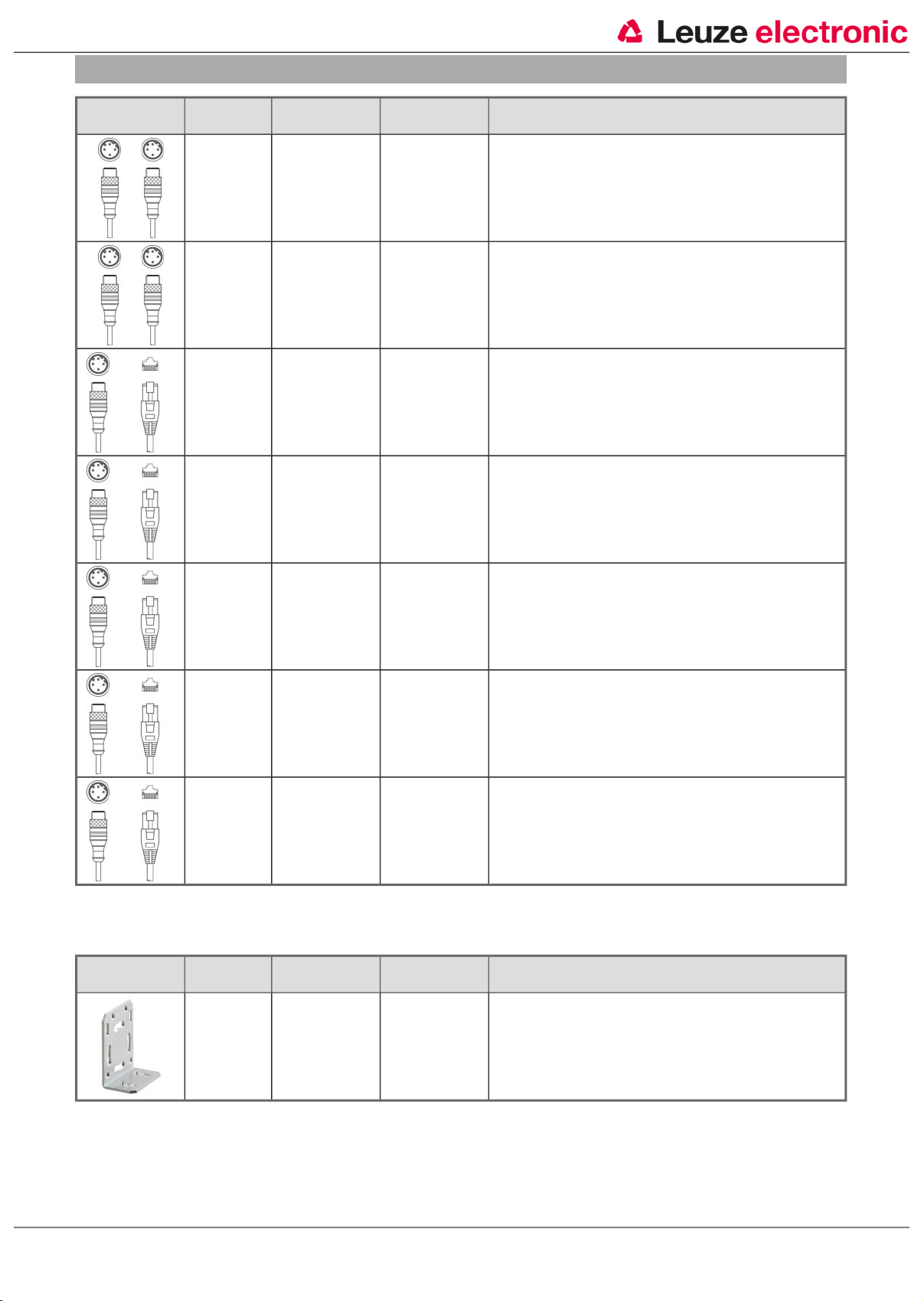

▪ Accessories
▪ Notes
Part no.: 50134528 – DCR 248i FIX-F2-102-R3 – Stationary 2D-code reader
Technical data
Basic data
Series DCR 200i
Functions
Software functions Reading of 2D codes
Read data
Code types, readable Code 39
Reading of 1D codes
Aztec
Data Matrix Code
GS1 Databar
UPC
Codabar
EAN 8/13
Code 32
GS1 Databar Omnidirectional
2/5 Interleaved
PDF417
QR code
GS1 Databar QR code
Code 128
Code 93
EAN 128
Pharma Code
GS1 Databar Stacked
Optical data
Reading distance 70 ... 360 mm
Light source LED, Red
Transmitted-signal shape Pulsed
Camera resolution, horizontal 1,280 px
Camera resolution, vertical 960 px
Chip CMOS
Module size 0.19 ... 0.5 mm
Electronic shutter speed 0.068 ... 5 ms
Camera type Monochrome
Electrical data
Protective circuit Polarity reversal protection
Performance data
Supply voltage 18 ... 30 V, DC
Average power consumption 8 W
Inputs
Number of digital switching inputs 1 Piece(s)
Switching inputs
Type Digital switching input
Voltage type DC
Short circuit protected
eng 2018-02-10
2 / 12
Part no.: 50134528 – DCR 248i FIX-F2-102-R3 – Stationary 2D-code reader
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Type Digital switching output
Voltage type DC
Switching current, max. 100 mA
Switching output 1
Switching element Transistor,
Switching principle +24 V switching
Inputs/outputs selectable
Number of inputs/outputs selectable 2 Piece(s)
Type Inputs/outputs selectable
Voltage type DC
Voltage type DC
Interface
Type RS 232, RS 422, Ethernet, PROFINET
RS 232
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 8 data bits
Stop bit 1 stop bit
Parity None
Transmission protocol <STX><data><CR><LF>
Data encoding ASCII
RS 422
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 7, 8 data bits
Stop bit 1, 2 stop bits
Parity Adjustable
Transmission protocol Adjustable
Data encoding Binary
Ethernet
Architecture Server
Address assignment Manual address assignment
Transmission speed 10 / 100 Mbit/s
Function Process
Switch functionality None
Transmission protocol TCP/IP , UDP
Binary
ASCII
Client
DHCP
eng 2018-02-10
3 / 12
Part no.: 50134528 – DCR 248i FIX-F2-102-R3 – Stationary 2D-code reader
Profinet
Function Process
Conformance class B
Protocol PROFINET RT
Transmission speed 100 Mbit/s
Service interface
Type
Ethernet
Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Connector
Function Signal OUT
Thread size M12
Type Male
Material Metal
No. of pins 12 -pin
Encoding A-coded
Connection 2
Type of connection Connector
Function Data interface
Thread size M12
Type Female
Material Metal
No. of pins 4 -pin
Encoding D-coded
Signal IN
Voltage supply
Data interface
Configuration interface
Mechanical data
Design Cubic
Dimension (W x H x L) 43 mm x 61 mm x 44 mm
Housing material Metal
Plastic, Diecast aluminum, PC
Lens cover material Plastic
Net weight 120 g
Housing color Silver
Type of fastening Mounting thread
Via optional mounting device
Operation and display
Type of display LED
Number of LEDs 10 Piece(s)
Type of configuration Configuration codes
Teach-in
Via web browser
Operational controls Buttons
eng 2018-02-10
4 / 12
