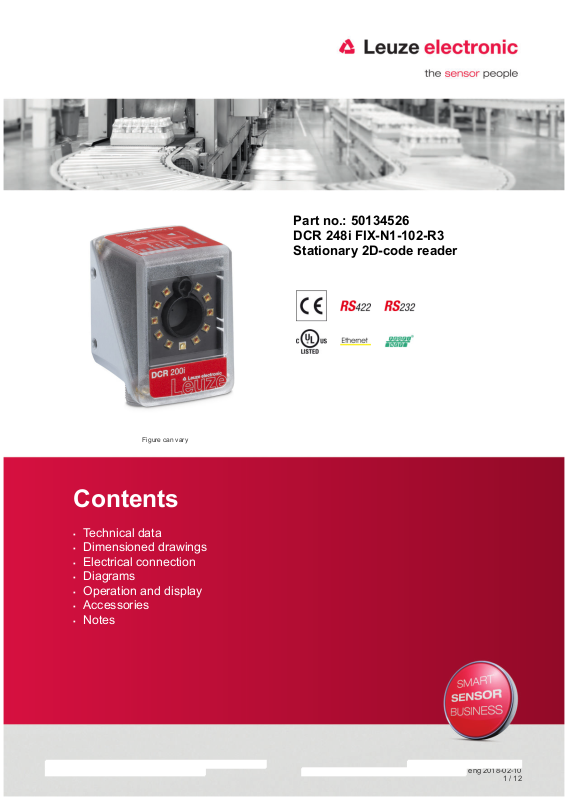

Leuze 50134526 Data Sheet

Figure can vary

Part no.: 50134526
DCR 248i FIX-N1-102-R3
Stationary 2D-code reader

Contents

▪ Technical data
▪ Dimensioned drawings
▪ Electrical connection
▪ Diagrams
▪ Operation and display
▪ Accessories
▪ Notes

Part no.: 50134526 – DCR 248i FIX-N1-102-R3 – Stationary 2D-code reader

Technical data

Basic data

Series DCR 200i

Functions

Software functions Reading of 1D codes

Read data

Code types, readable EAN 128

Reading of 2D codes

Data Matrix Code
Code 128
Pharma Code
QR code
PDF417
Code 32
Code 39
Aztec
GS1 Databar QR code
UPC
Code 93
GS1 Databar Stacked
GS1 Databar Omnidirectional
2/5 Interleaved
EAN 8/13
GS1 Databar
Codabar

Optical data

Reading distance 40 ... 120 mm

Light source LED, Red

Transmitted-signal shape Pulsed

Camera resolution, horizontal 1,280 px

Camera resolution, vertical 960 px

Chip CMOS

Module size 0.127 ... 0.5 mm

Electronic shutter speed 0.068 ... 5 ms

Camera type Monochrome

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage 18 ... 30 V, DC

Average power consumption 8 W

Inputs

Number of digital switching inputs 1 Piece(s)

Switching inputs

Type Digital switching input

Voltage type DC

Polarity reversal protection

eng 2018-02-10

2 / 12

Part no.: 50134526 – DCR 248i FIX-N1-102-R3 – Stationary 2D-code reader

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Type Digital switching output

Voltage type DC

Switching current, max. 100 mA

Switching output 1

Switching element Transistor,

Switching principle +24 V switching

Inputs/outputs selectable

Number of inputs/outputs selectable 2 Piece(s)

Type Inputs/outputs selectable

Voltage type DC

Voltage type DC

Interface

Type RS 232, RS 422, Ethernet, PROFINET

RS 232

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 8 data bits

Stop bit 1 stop bit

Parity None

Transmission protocol <STX><data><CR><LF>

Data encoding ASCII

RS 422

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 7, 8 data bits

Stop bit 1, 2 stop bits

Parity Adjustable

Data encoding Binary

Ethernet

Architecture Server

Address assignment Manual address assignment

Transmission speed 10 / 100 Mbit/s

Function Process

Switch functionality None

Transmission protocol TCP/IP , UDP

Binary

ASCII

Client

DHCP

eng 2018-02-10

3 / 12

Part no.: 50134526 – DCR 248i FIX-N1-102-R3 – Stationary 2D-code reader

Profinet

Function Process

Conformance class B

Protocol PROFINET RT

Transmission speed 100 Mbit/s

Service interface

Type

Ethernet

Connection

Number of connections 2 Piece(s)

Connection 1

Type of connection Connector

Function Signal OUT

Thread size M12

Type Male

Material Metal

No. of pins 12 -pin

Encoding A-coded

Connection 2

Type of connection Connector

Function Configuration interface

Thread size M12

Type Female

Material Metal

No. of pins 4 -pin

Encoding D-coded

Data interface
Signal IN
Voltage supply

Data interface

Mechanical data

Design Cubic

Dimension (W x H x L) 43 mm x 61 mm x 44 mm

Housing material Metal

Plastic, Diecast aluminum, PC

Lens cover material Plastic

Net weight 120 g

Housing color Silver

Type of fastening Via optional mounting device

Mounting thread

Operation and display

Type of display LED

Number of LEDs 10 Piece(s)

Type of configuration Teach-in

Via web browser
Configuration codes

Operational controls Buttons

eng 2018-02-10

4 / 12
