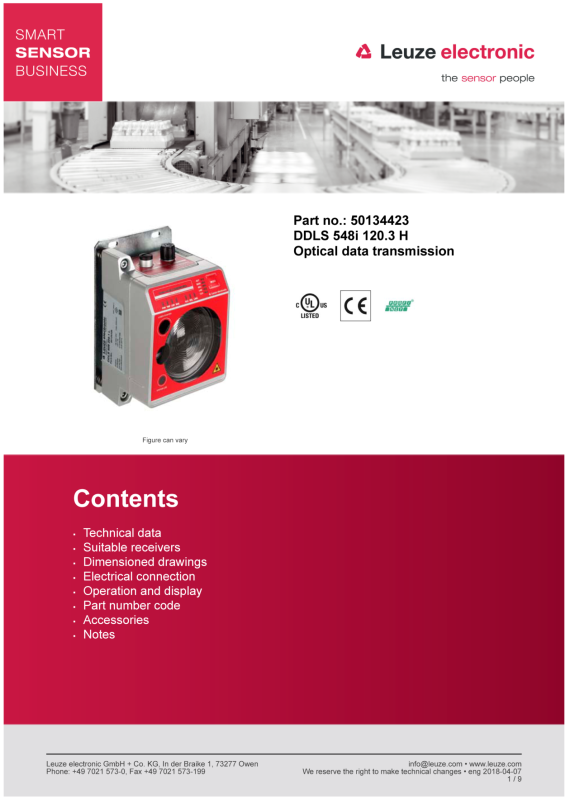

Part no.: 50134423 – DDLS 548i 120.3 H – Optical data transmission
Technical data
Basic data
Series DDLS 500
Special design
Special design Heating
Optical data
Working range 100 ... 120,000 mm
Light source Laser
Usable opening angle, transmitter 1 °
Electrical data
Performance data
Supply voltage 18 ... 30 V, DC
Not influenced by reflective surfaces
Operation of parallel light axes
Remote maintenance via web server
Interface
Type PROFINET
Profinet
Transmission speed 100 Mbit/s
Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Connector
Designation on device POWER
Thread size M12
Type Male
No. of pins 5 -pin
Encoding A-coded
Connection 2
Type of connection Connector
Designation on device BUS
Thread size M12
Type Female
No. of pins 4 -pin
Encoding D-coded
Mechanical data
Dimension (W x H x L) 100 mm x 156 mm x 99.5 mm
Housing material Metal
Net weight 1,185 g
Operation and display
Type of display LED
Bar graph
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
2 / 9
Part no.: 50134423 – DDLS 548i 120.3 H – Optical data transmission
Type of configuration Software
Environmental data
Ambient temperature, operation -35 ... 50 °C
Ambient temperature, storage -35 ... 70 °C
Certifications
Degree of protection IP 65
Certifications c UL US
Test procedure for EMC in accordance with standard EN 1000-6-4
Test procedure for noise in accordance with standard EN 60068-2-64
Test procedure for oscillation in accordance with standard EN 60068-2-6
Test procedure for shock in accordance with standard EN 60068-2-27
Classification
eCl@ss 8.0 27100990
eCl@ss 9.0 27100990
GSDML file
Via web browser
EN 61000-6-2
Suitable receivers
Part no. Designation Article Description
50134424 DDLS 548i 120.4HOptical data
Dimensioned drawings
All dimensions in millimeters
transmission
Working range: 100 ... 120,000 mm
Interface: PROFINET
Connection: Connector, M12
Special design: Heating, Not influenced by reflective surfaces,
Operation of parallel light axes, Remote maintenance via web
server
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
3 / 9
Part no.: 50134423 – DDLS 548i 120.3 H – Optical data transmission
A Middleaxis Transmitter
B Center axis of transmitter and receiver
C Center axis of receiver
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
4 / 9
Part no.: 50134423 – DDLS 548i 120.3 H – Optical data transmission
Electrical connection
Connection 1 POWER
Type of connection Connector
Function Voltage supply
Thread size M12
Type Male
Material Metal
No. of pins 5 -pin
Encoding A-coded
Pin Pin assignment
1 VIN
2 IO1
3 GND
4 IO2
5 FE/SHIELD
Signal IN
Signal OUT
Connection 2 BUS
Type of connection Connector
Function BUS IN
Thread size M12
Type Female
Material Metal
No. of pins 4 -pin
Encoding D-coded
Pin Pin assignment
1 TD+
2 RD+
3 TD-
4 RD-
Operation and display
LE
Ds
LED Display Meaning
1 AUT Off Operating mode not active
Green, continuous light Operating mode 'Automatic'
2 MAN Off Operating mode not active
Green, continuous light Operating mode 'Manual'
3 ADJ Off Operating mode not active
Green, continuous light Operating mode 'Adjust'
4 LAS Off Operating mode not active
Green, continuous light Operating mode 'Alignment-laser mounting support'
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
5 / 9
Part no.: 50134423 – DDLS 548i 120.3 H – Optical data transmission
LED Display Meaning
5 LLC Off Operating mode not active
Green, continuous light LLC without interruption
Red, continuous light LLC interrupted at least once
6 PWR Off No supply voltage
Green, flashing Device ok, initialization phase
Green, continuous light Data transmission active
Red, flashing Data transmission interrupted
Red, continuous light Device error
7 TMP Off Operating temperature OK
Orange, continuous light Operating temperature critical
Red, continuous light Operating temperature exceeded or not met
8 LSR Off With function reserve
Orange, continuous light Device OK, warning set
9 BUS Off No supply voltage
Green, flashing Device waiting for communication to be re-established, no data exchange
Green, continuous light Communication with IO-Controller established, data exchange active
Orange, flashing PROFINET wave function activated, the PWR and BUS LEDs flash in
Red, flashing Parameterization or configuration failed, no data exchange
Red, continuous light Bus error, no communication established to the IO controller
10 OLK Off Fault
Green, continuous light No data transmission
Orange, continuous light Data transmission active
11 ERL Off Link OK
Orange, continuous light Missing link (Ethernet cable connection) on the second device
Red, continuous light No cable-connected link to the connected device
12 LINK Off No cable-connected link to the connected device
Green, continuous light Link OK
Orange, continuous light Data transmission active
13 SIGNAL
QUALITY
2 red, 2 orange and 4 green Received signal level
sync in orange
Part number code
Part designation: DDLS 5XXX YYY.Z A B C
DDLS Optical transceiver for digital data transmission
5XXX Series:
508i: without integrated web server for remote diagnostics
508i: with integrated web server for remote diagnostics
548i: with integrated web server for remote diagnostics
YYY Range for data transmission in m
Z Frequency of the transmitter:
0: Frequency F0
1: Frequency F1
2: Frequency F2
3: Frequency F3
4: Frequency F4
A Option:
L: integrated laser alignment aid (for transmitter/receiver)
B Special equipment:
H: with heating
C Special equipment:
W: transmission optics with larger opening angle (on request)
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
6 / 9
Part no.: 50134423 – DDLS 548i 120.3 H – Optical data transmission
Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50132077 KD U-M12-5A-
V1-020
50132079 KD U-M12-5A-
V1-050
50132080 KD U-M12-5A-
V1-100
50135073 KS ET-M12-4A-
P7-020
50135074 KS ET-M12-4A-
P7-050
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: No
Cable length: 10,000 mm
Sheathing material: PVC
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PUR
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
50135075 KS ET-M12-4A-
P7-100
50135076 KS ET-M12-4A-
P7-150
50135077 KS ET-M12-4A-
P7-300
Connection cable Suitable for interface: Ethernet
Connection cable Suitable for interface: Ethernet
Connection cable Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 30,000 mm
Sheathing material: PUR
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
7 / 9
Part no.: 50134423 – DDLS 548i 120.3 H – Optical data transmission
Connection technology - Interconnection cables
Part no. Designation Article Description
50135080 KSS ET-M12-4A-
RJ45-A-P7-020
50135081 KSS ET-M12-4A-
RJ45-A-P7-050
50135082 KSS ET-M12-4A-
RJ45-A-P7-100
50135083 KSS ET-M12-4A-
RJ45-A-P7-150
50135084 KSS ET-M12-4A-
RJ45-A-P7-300
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Interconnection
cable
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 2,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 5,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 10,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 15,000 mm
Sheathing material: PUR
Suitable for interface: Ethernet
Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin
Connection 2: RJ45
Shielded: Yes
Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3
Cable length: 30,000 mm
Sheathing material: PUR
Connection technology - Connectors
Part no. Designation Article Description
50108991 D-ET1 Connector Suitable for interface: Ethernet
50020501 KD 095-5A Connector Connection: Connector, M12, Axial, Female, A-coded, 5 -pin
50112155 S-M12A-ET Connector Suitable for interface: Ethernet
Connection: RJ45
Connection: Connector, M12, Axial, Male, D-coded, 4 -pin
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
8 / 9
Part no.: 50134423 – DDLS 548i 120.3 H – Optical data transmission
Connection technology - Adapters
Part no. Designation Article Description
50109832 KDS ET-M12 /
RJ45 W-4P
Adapter Suitable for: Ethernet
Number of connections: 2 Piece(s)
Connection 1: Connector, M12, Angled, Female, D-coded, 4 -pin
Connection 2: RJ45
Notes
Observe intended use!
• This product is not a safety sensor and is not intended as personnel protection.
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
For UL applications:
• For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).
WARNING! INVISIBLE LASER RADIATION – LASER CLASS 1M
• Never observe directly using telescope optics!
The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 1M as
well as the U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.
• Looking into the beam path for extended periods using telescope optics may damage the eye's retina. Never look using telescope
optics into the laser beam or in the direction of reflecting beams.
• CAUTION! The use of operating and adjusting devices other than those specified here or the carrying out of differing procedures may
lead to dangerous exposure to radiation!
The use of optical instruments or devices (e.g., magnifying glasses, binoculars) in combination with the device increases the danger
of eye damage.
• Observe the applicable statutory and local laser protection regulations.
• The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
9 / 9
Loading...
