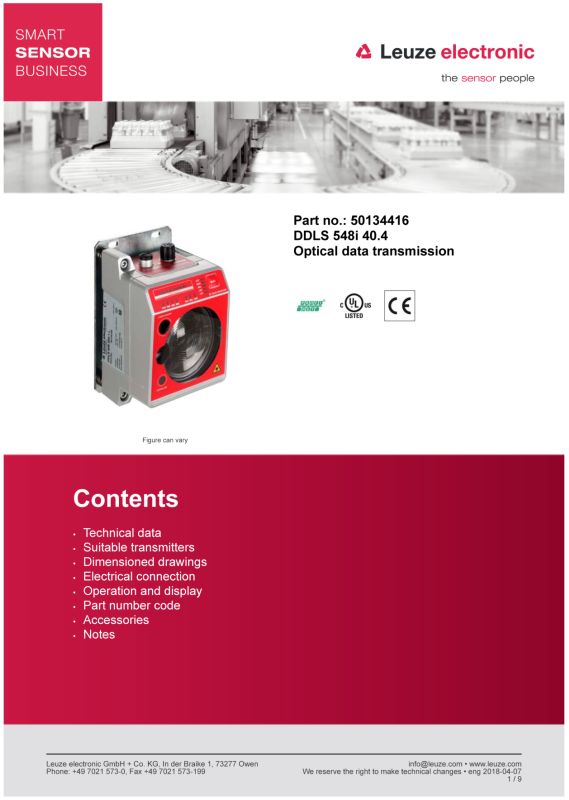

Leuze 50134416 Data Sheet
Part no.: 50134416 – DDLS 548i 40.4 – Optical data transmission
Technical data
Basic data
Series DDLS 500
Special design
Special design Operation of parallel light axes
Optical data
Working range 100 ... 40,000 mm
Light source Laser
Usable opening angle, transmitter 1 °
Electrical data
Performance data
Supply voltage 18 ... 30 V, DC
Not influenced by reflective surfaces
Remote maintenance via web server
Interface
Type PROFINET
Profinet
Transmission speed 100 Mbit/s

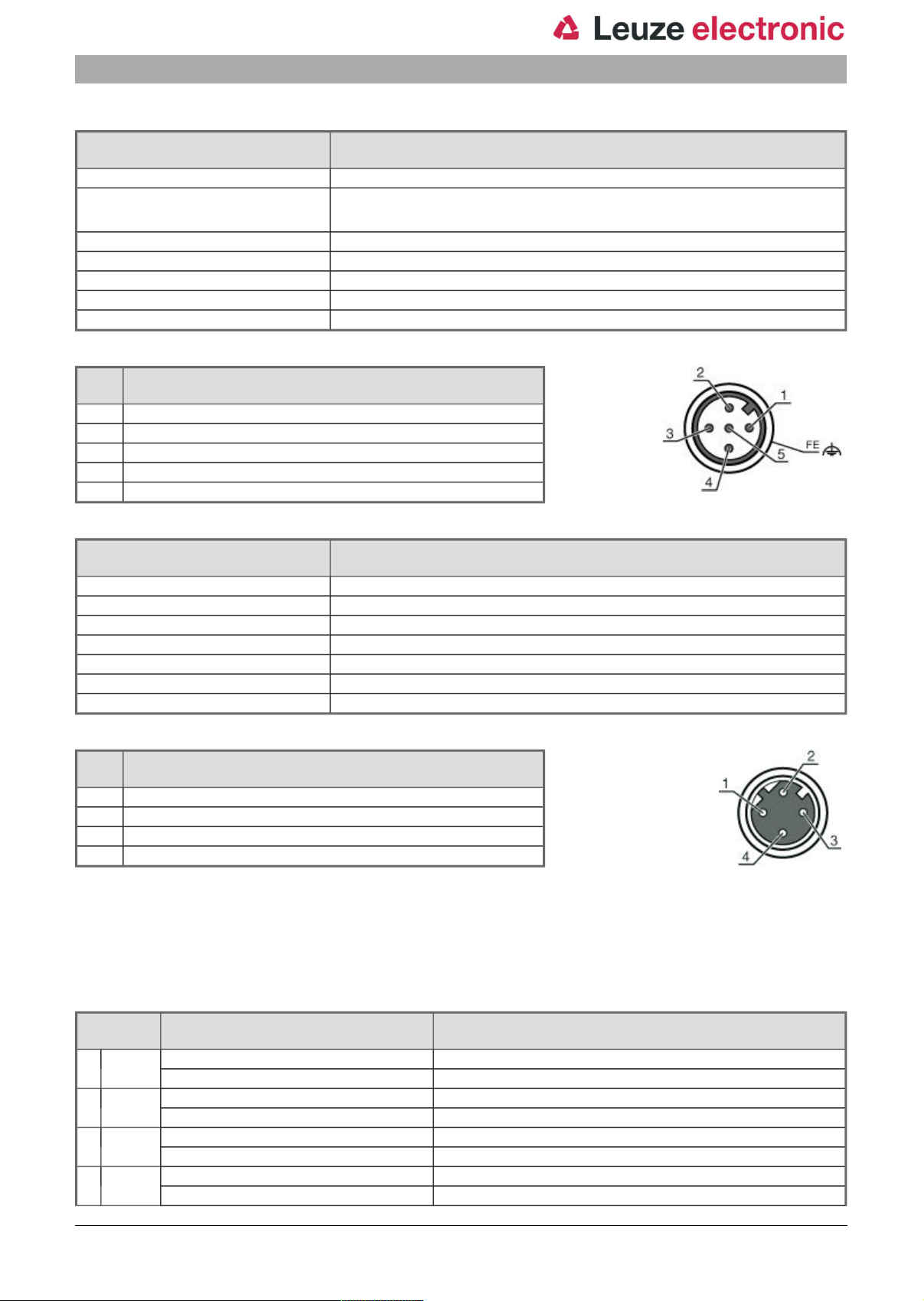

Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Connector
Designation on device POWER
Thread size M12
Type Male
No. of pins 5 -pin
Encoding A-coded
Connection 2
Type of connection Connector
Designation on device BUS
Thread size M12
Type Female
No. of pins 4 -pin
Encoding D-coded
Mechanical data
Dimension (W x H x L) 100 mm x 156 mm x 99.5 mm
Housing material Metal
Net weight 1,185 g
Operation and display
Type of display LED
Bar graph
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
2 / 9
Part no.: 50134416 – DDLS 548i 40.4 – Optical data transmission
Type of configuration Via web browser
Environmental data
Ambient temperature, operation -5 ... 50 °C
Ambient temperature, storage -35 ... 70 °C
Certifications
Degree of protection IP 65
Certifications c UL US
Test procedure for EMC in accordance with standard EN 61000-6-2
Test procedure for noise in accordance with standard EN 60068-2-64
Test procedure for oscillation in accordance with standard EN 60068-2-6
Test procedure for shock in accordance with standard EN 60068-2-27
Classification
eCl@ss 8.0 27100990
eCl@ss 9.0 27100990
GSDML file
Software
EN 1000-6-4
Suitable transmitters
Part no. Designation Article Description
50134415 DDLS 548i 40.3 Optical data

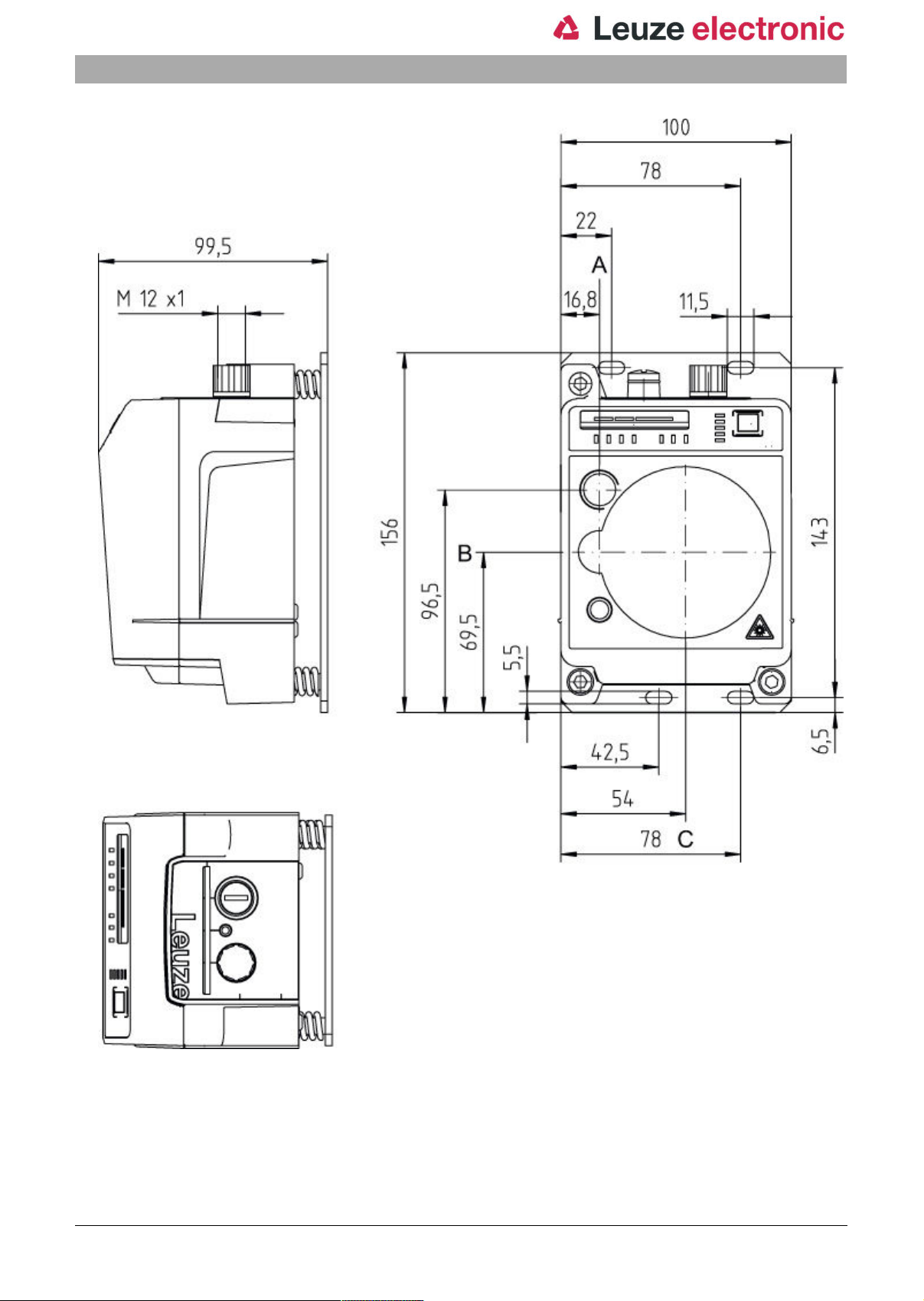

Dimensioned drawings
All dimensions in millimeters
transmission
Working range: 100 ... 40,000 mm
Interface: PROFINET
Connection: Connector, M12
Special design: Operation of parallel light axes, Not influenced
by reflective surfaces, Remote maintenance via web server
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
3 / 9
