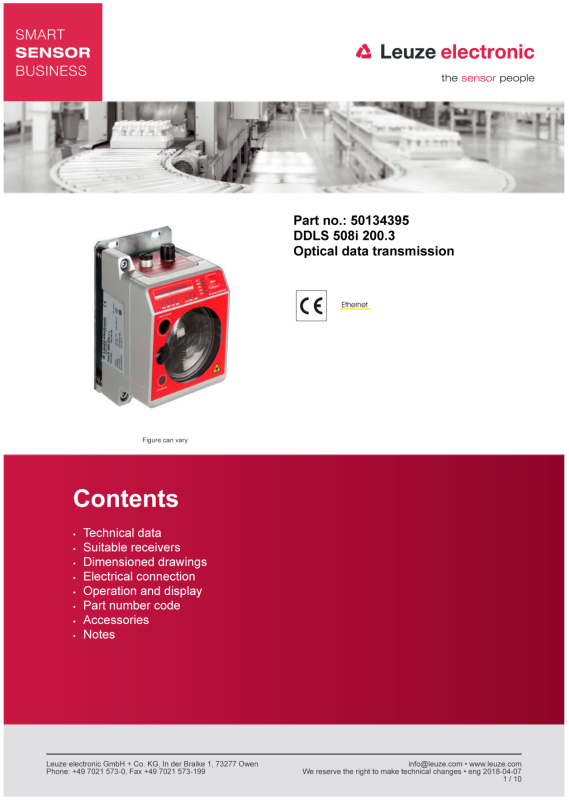

Leuze 50134395 Data Sheet
Part no.: 50134395 – DDLS 508i 200.3 – Optical data transmission
Technical data
Basic data
Series DDLS 500
Special design
Special design Remote maintenance via web server
Optical data
Working range 100 ... 200,000 mm
Light source Laser
Usable opening angle, transmitter 1 °
Electrical data
Performance data
Supply voltage 18 ... 30 V, DC
Inputs
Number of digital switching inputs 1 Piece(s)
Outputs
Number of digital switching outputs 1 Piece(s)
Operation of parallel light axes
Not influenced by reflective surfaces
Interface
Type Ethernet
Ethernet
Transmission speed 100 Mbit/s

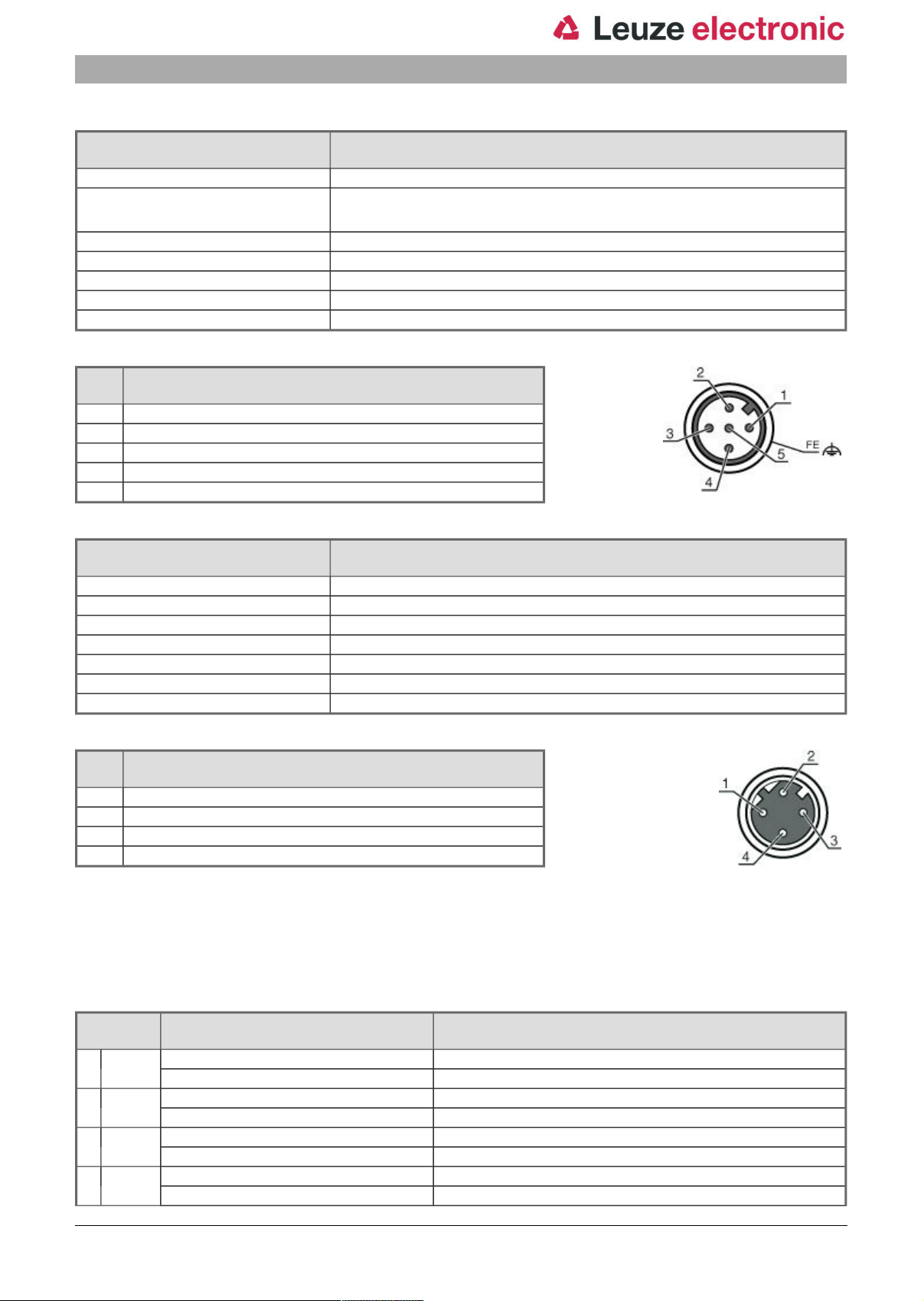

Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Connector
Designation on device POWER
Thread size M12
Type Male
No. of pins 5 -pin
Encoding A-coded
Connection 2
Type of connection Connector
Designation on device BUS
Thread size M12
Type Female
No. of pins 4 -pin
Encoding D-coded
Mechanical data
Dimension (W x H x L) 100 mm x 156 mm x 99.5 mm
Housing material Metal
Net weight 1,185 g
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
2 / 10
Part no.: 50134395 – DDLS 508i 200.3 – Optical data transmission
Operation and display
Type of display Bar graph
Type of configuration Via web browser
Environmental data
Ambient temperature, operation -5 ... 50 °C
Ambient temperature, storage -35 ... 70 °C
Certifications
Degree of protection IP 65
Test procedure for EMC in accordance with standard EN 61000-6-2
Test procedure for noise in accordance with standard EN 60068-2-64
Test procedure for oscillation in accordance with standard EN 60068-2-6
Test procedure for shock in accordance with standard EN 60068-2-27
Classification
eCl@ss 8.0 27100990
eCl@ss 9.0 27100990
LED
Software
EN 1000-6-4
Suitable receivers
Part no. Designation Article Description
50134396 DDLS 508i 200.4 Optical data

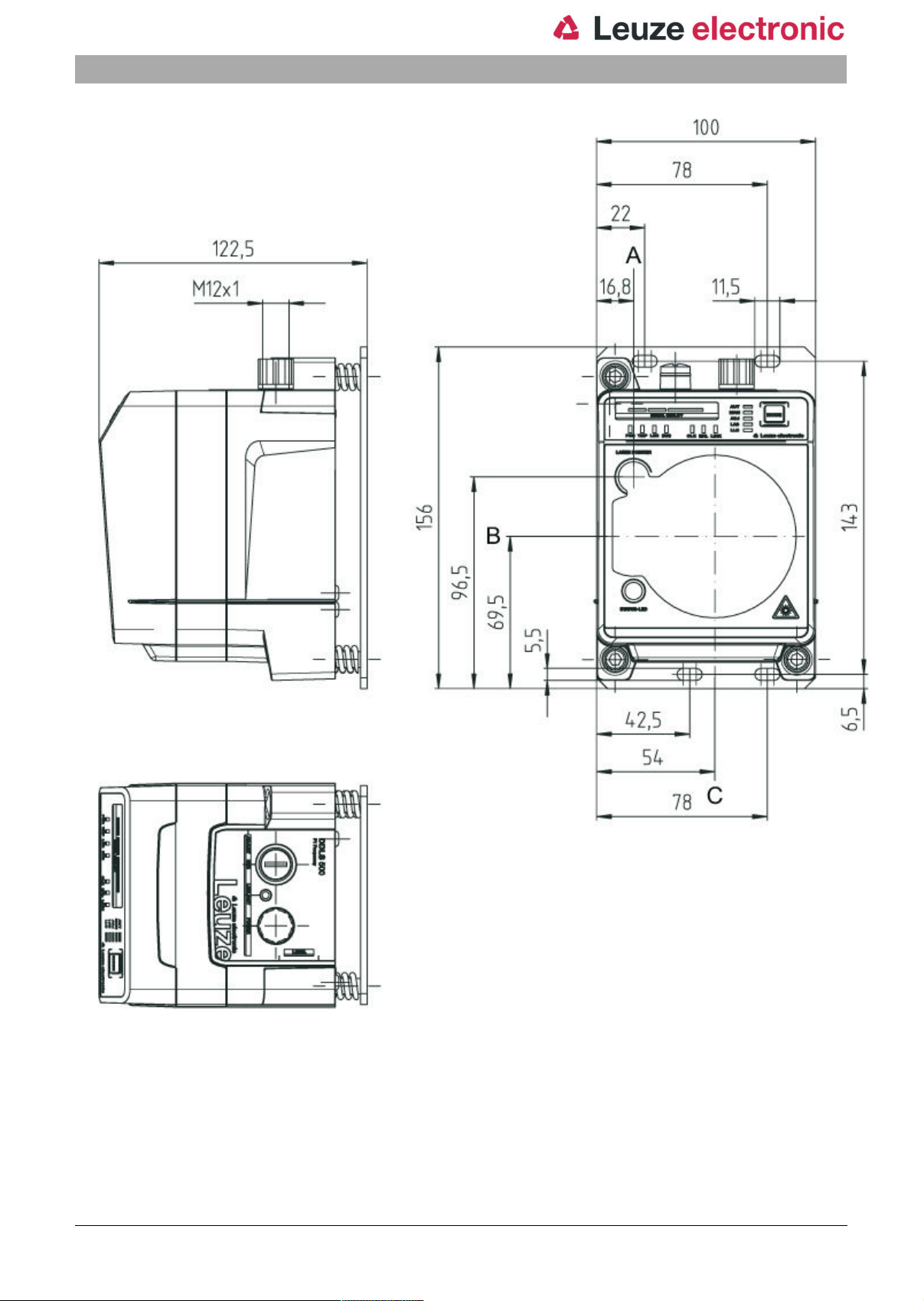

Dimensioned drawings
All dimensions in millimeters
transmission
Working range: 100 ... 200,000 mm
Interface: Ethernet
Connection: Connector, M12
Special design: Operation of parallel light axes, Not influenced
by reflective surfaces, Remote maintenance via web server
