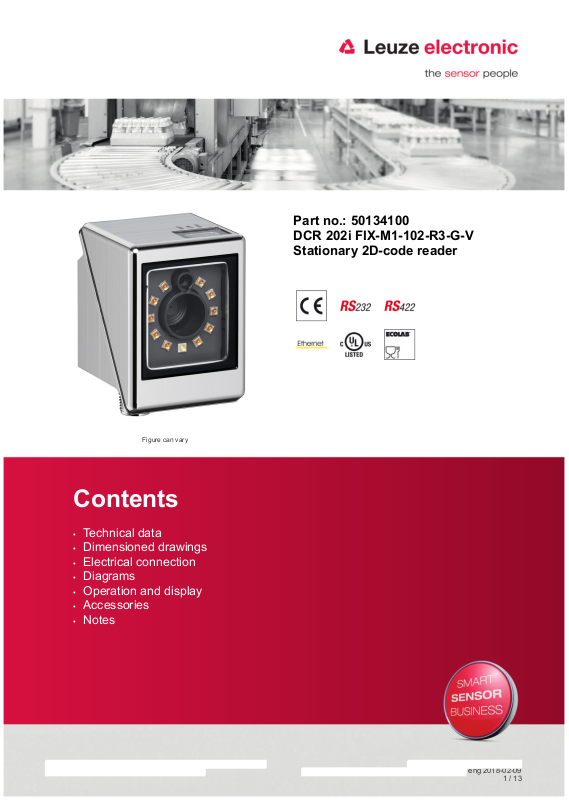

Leuze 50134100 Data Sheet

Figure can vary

Part no.: 50134100
DCR 202i FIX-M1-102-R3-G-V
Stationary 2D-code reader

Contents

▪ Technical data

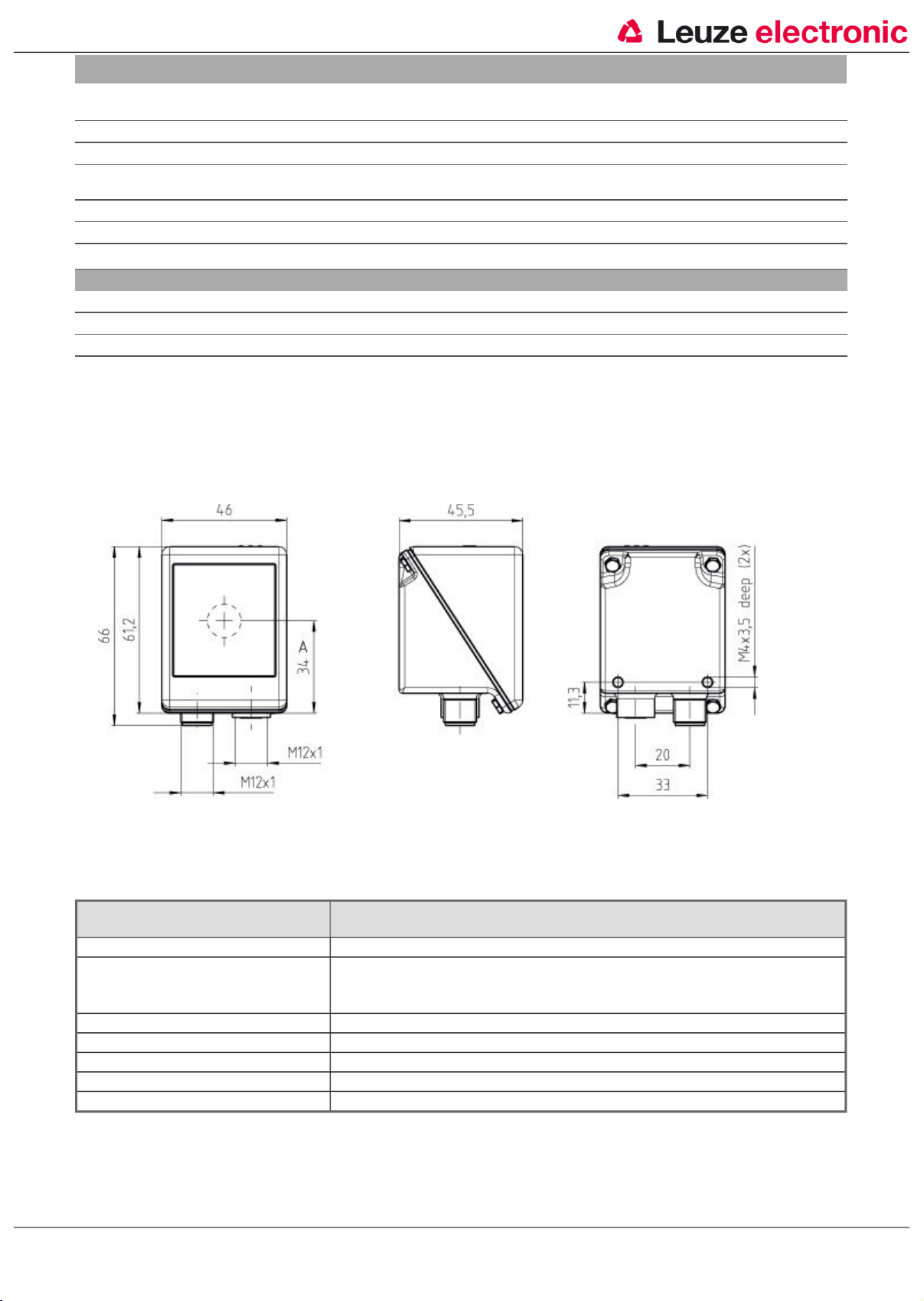

▪ Dimensioned drawings

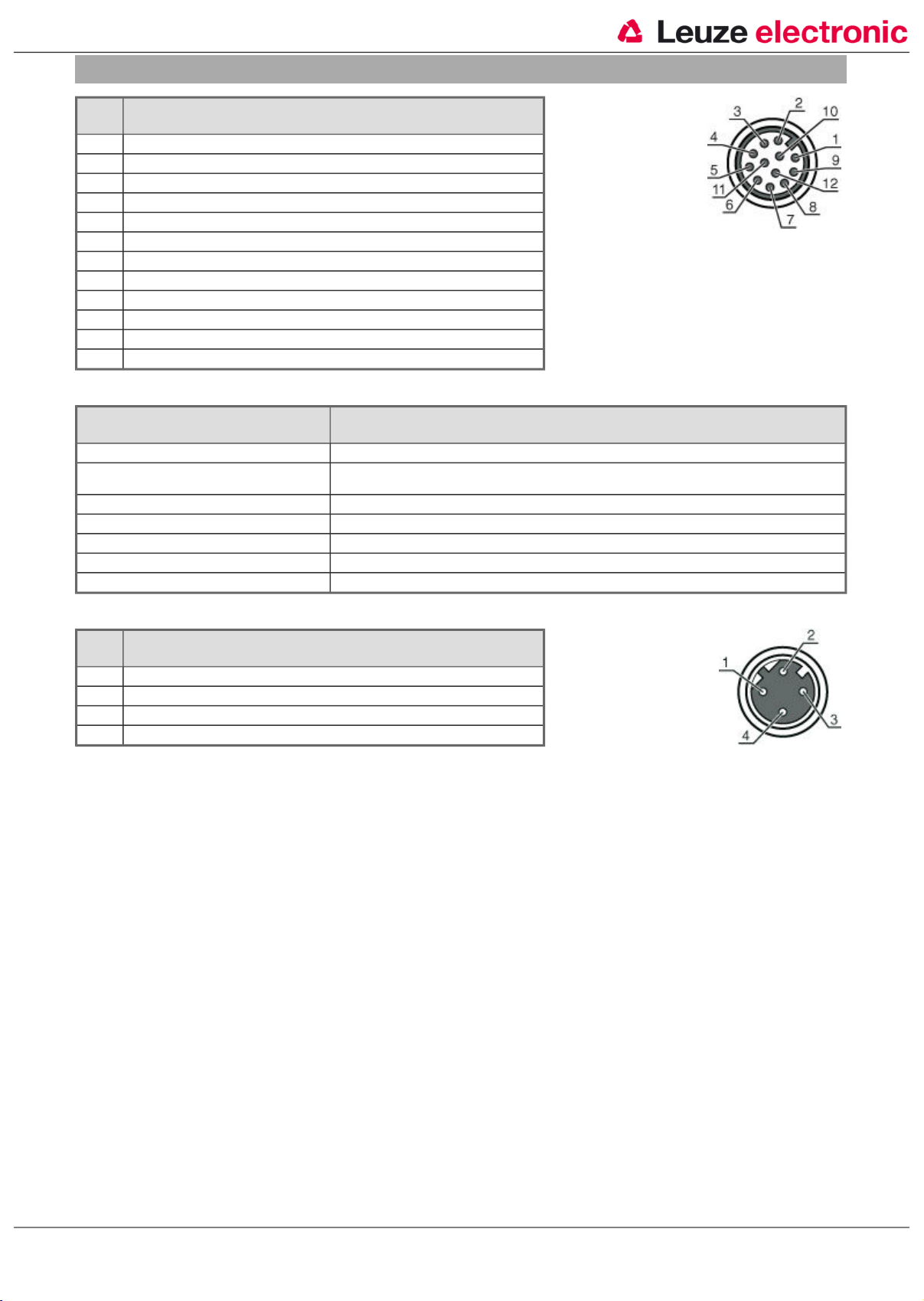

▪ Electrical connection

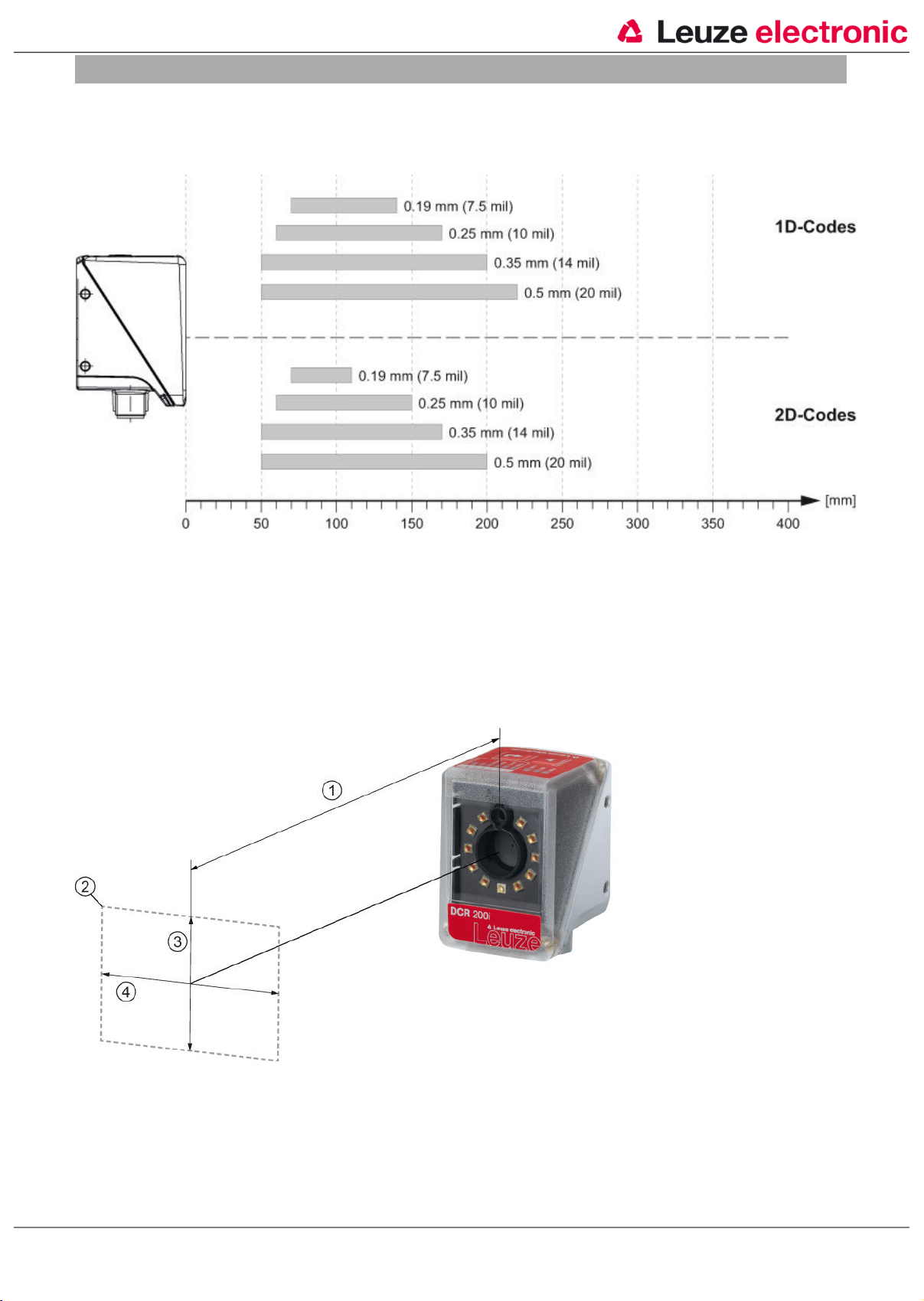

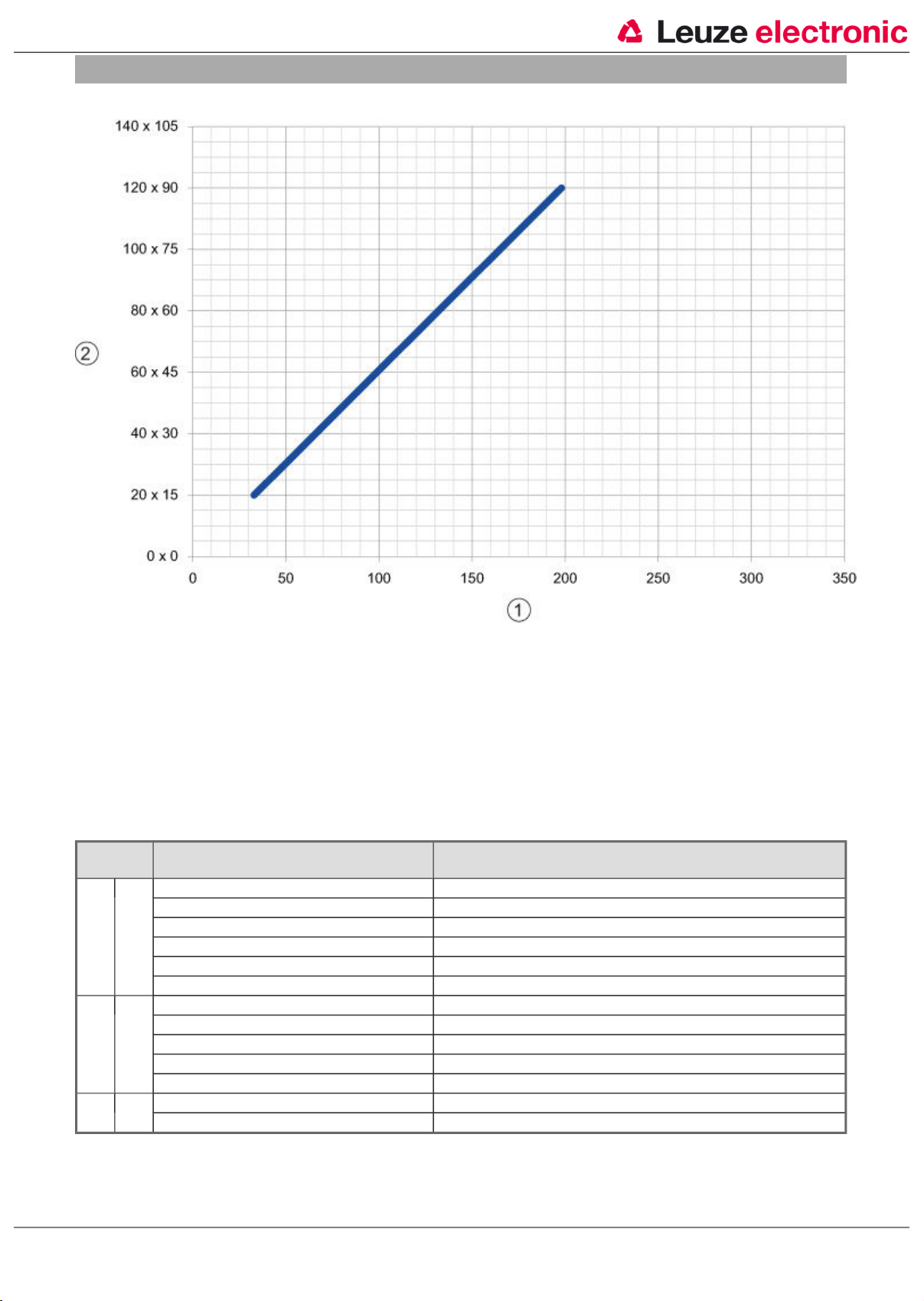

▪ Diagrams
▪ Operation and display

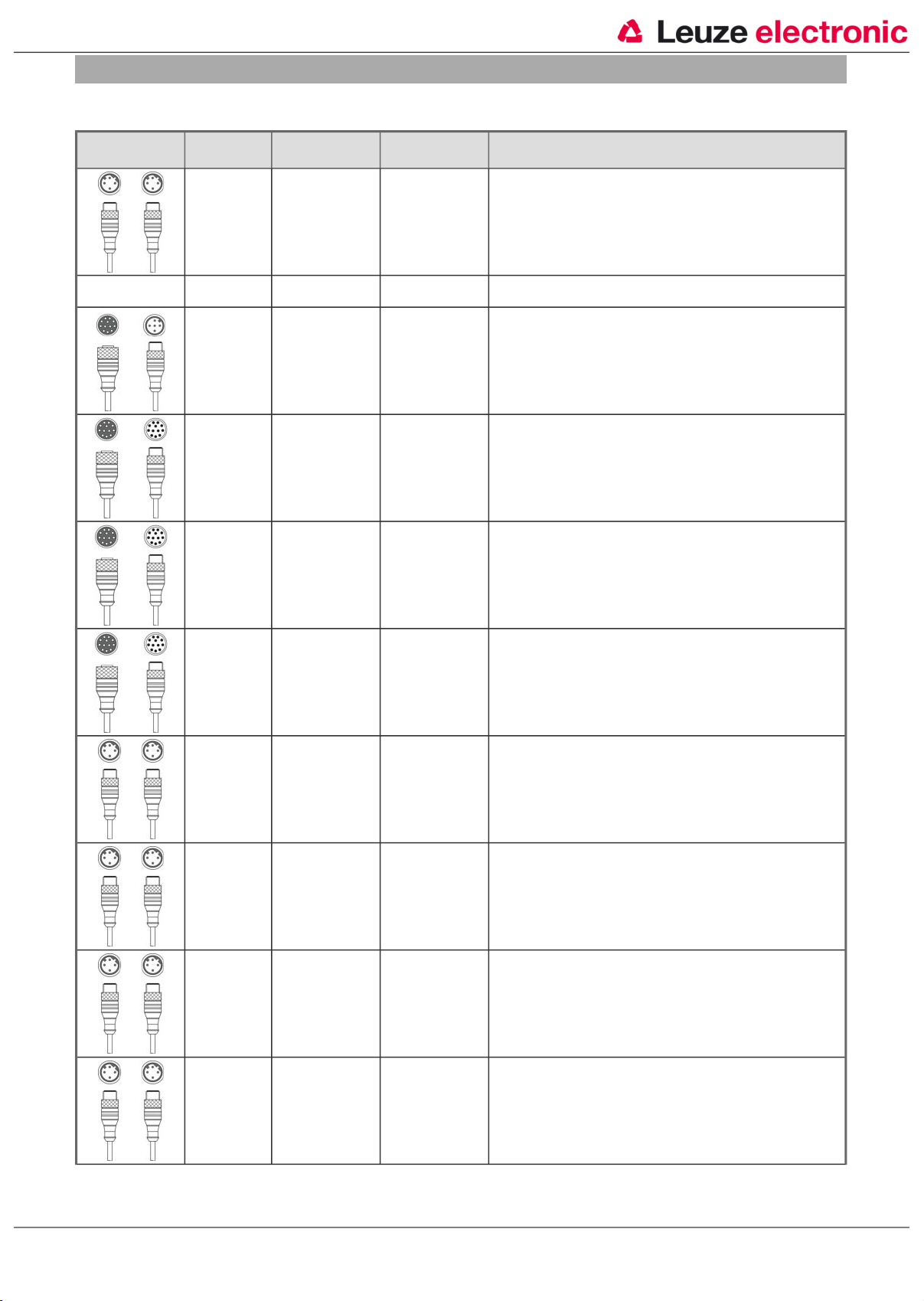

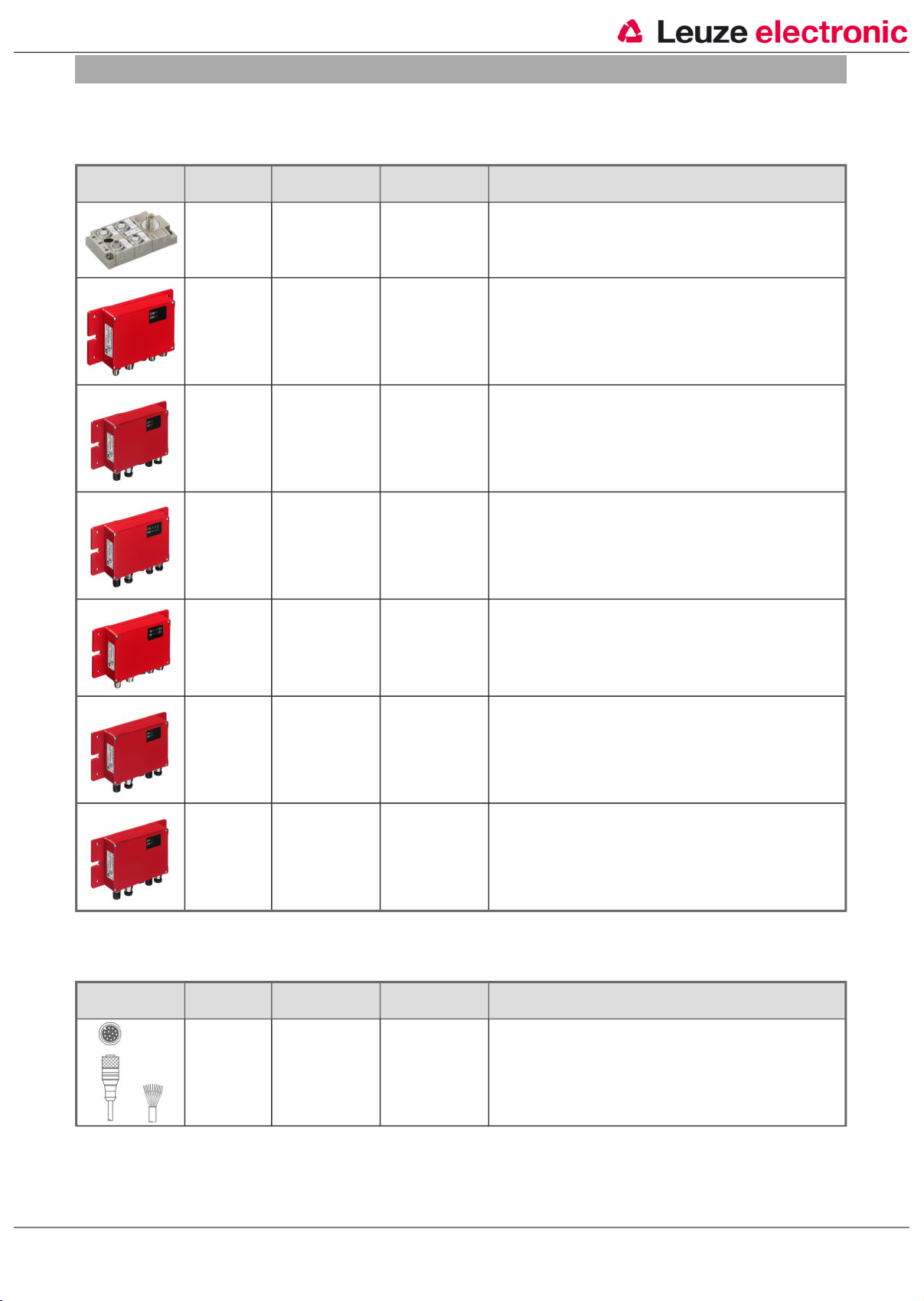

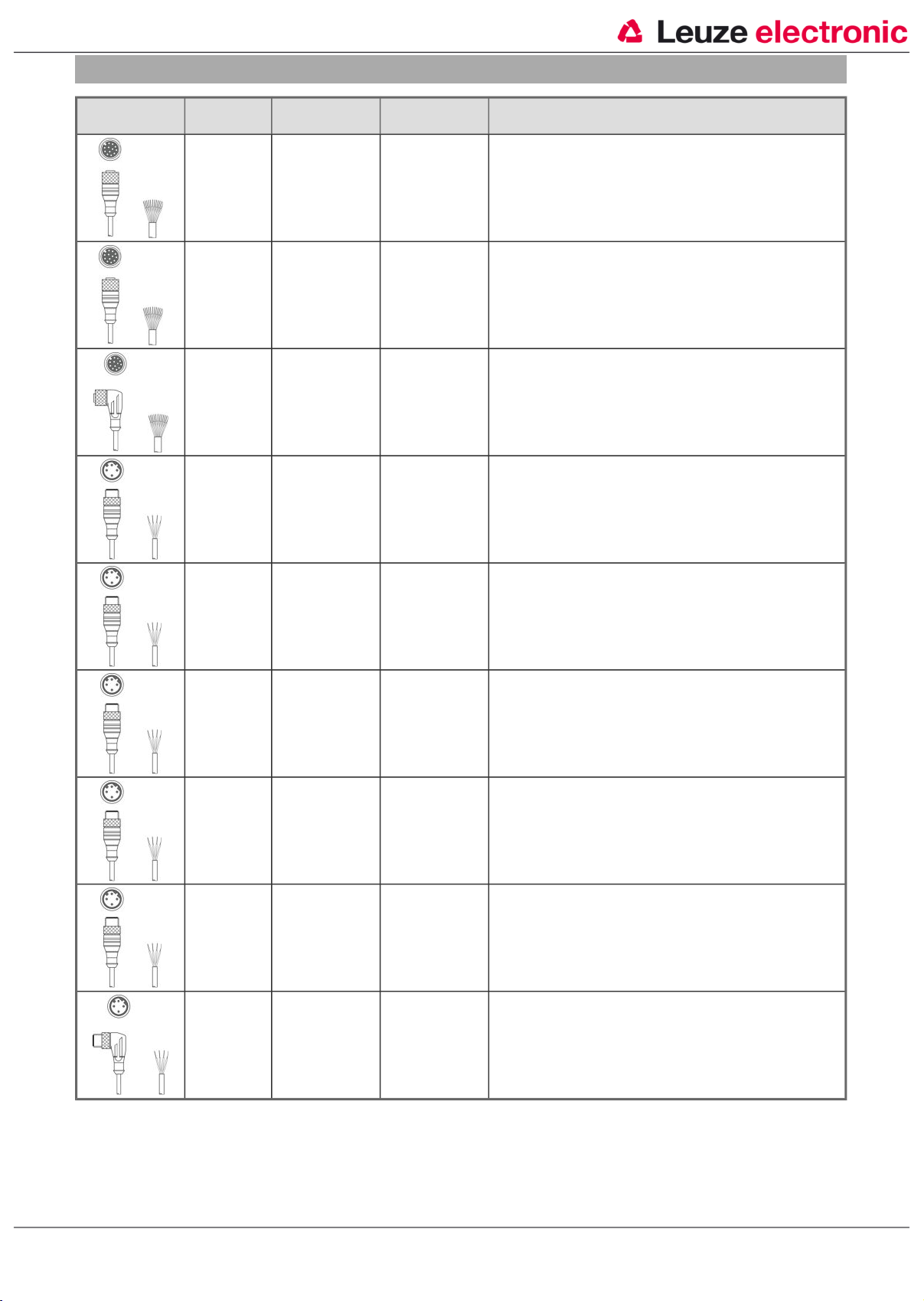

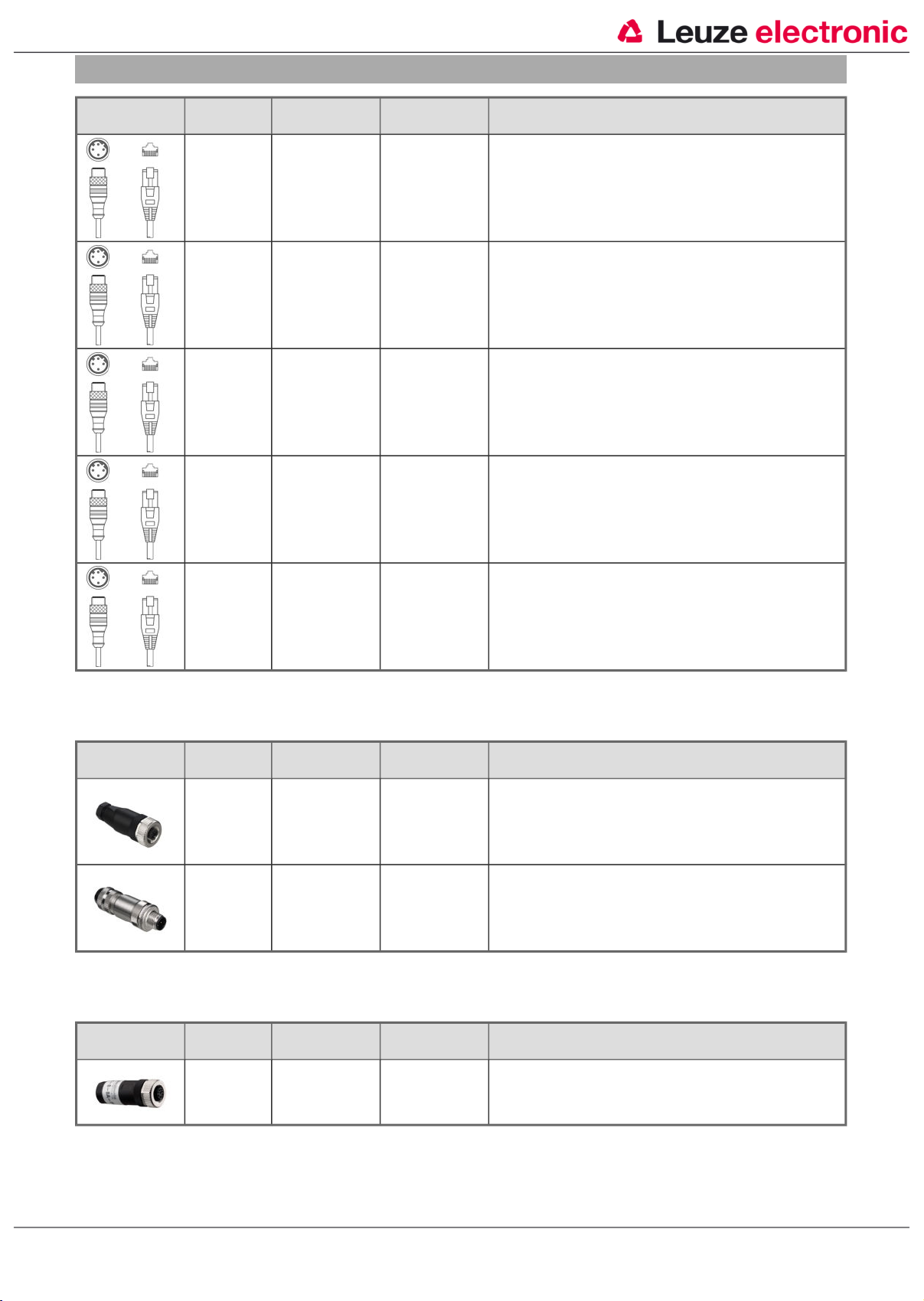

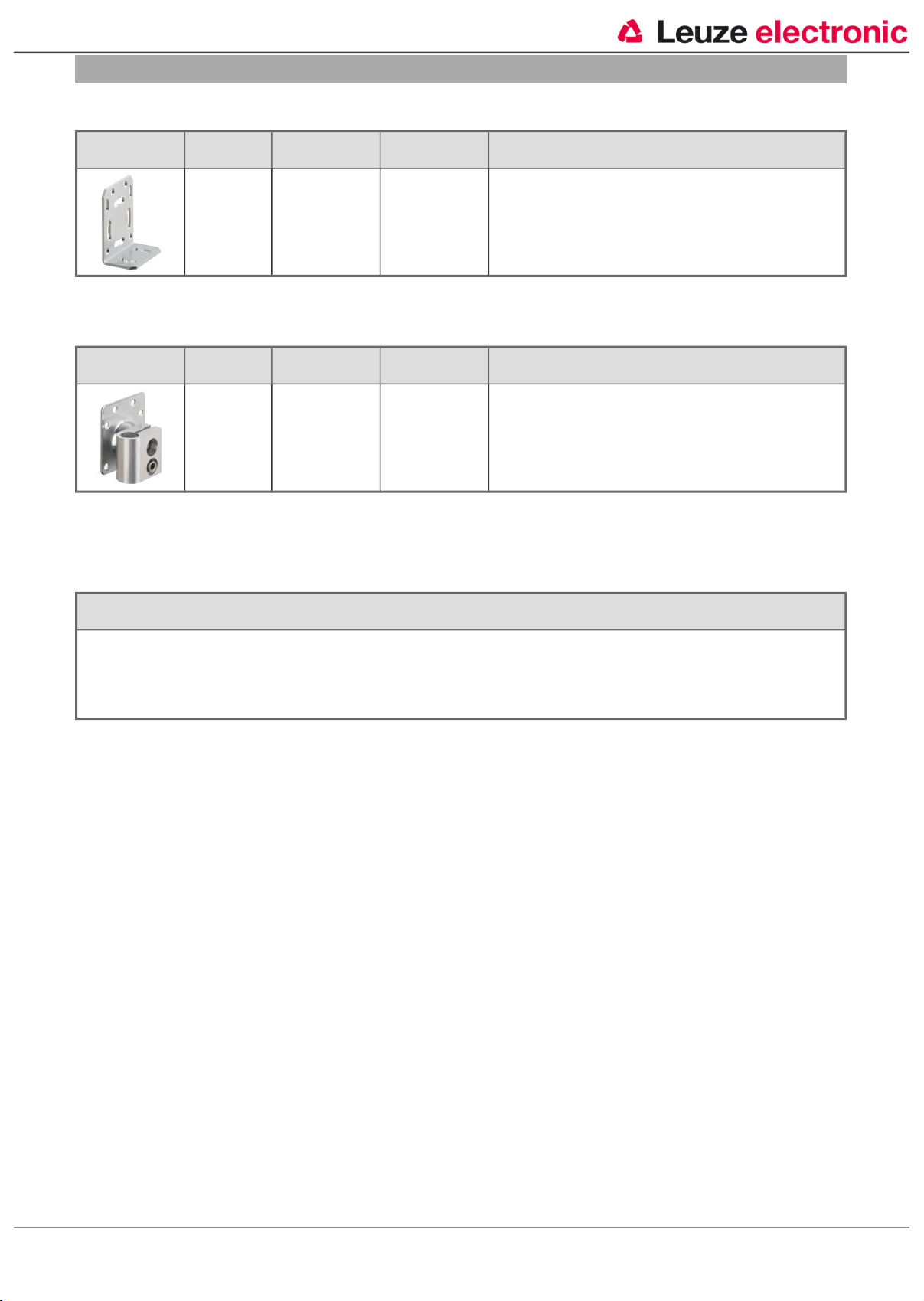

▪ Accessories
▪ Notes

Part no.: 50134100 – DCR 202i FIX-M1-102-R3-G-V – Stationary 2D-code

Technical data

Basic data

Series DCR 200i

Functions

Software functions Reading of 1D codes

Read data

Code types, readable QR code

Reading of 2D codes

Code 39
EAN 8/13
GS1 Databar
GS1 Databar Stacked
Code 128
Aztec
Codabar
Code 93
Data Matrix Code
PDF417
GS1 Databar QR code
EAN 128
UPC
Pharma Code
2/5 Interleaved
GS1 Databar Omnidirectional
Code 32

Optical data

Reading distance 50 ... 220 mm

Light source LED, Red

Transmitted-signal shape Pulsed

Camera resolution, horizontal 1,280 px

Camera resolution, vertical 960 px

Chip CMOS

Module size 0.19 ... 0.5 mm

Electronic shutter speed 0.068 ... 5 ms

Camera type Monochrome

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage 18 ... 30 V, DC

Average power consumption 8 W

Inputs

Number of digital switching inputs 1 Piece(s)

Switching inputs

Type Digital switching input

Voltage type DC

Polarity reversal protection

eng 2018-02-09

2 / 13

Part no.: 50134100 – DCR 202i FIX-M1-102-R3-G-V – Stationary 2D-code

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Type Digital switching output

Voltage type DC

Switching current, max. 100 mA

Switching output 1

Switching element Transistor,

Switching principle +24 V switching

Inputs/outputs selectable

Number of inputs/outputs selectable 2 Piece(s)

Type Inputs/outputs selectable

Voltage type DC

Voltage type DC

Interface

Type RS 232, RS 422, Ethernet

RS 232

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 8 data bits

Stop bit 1 stop bit

Parity None

Transmission protocol <STX><data><CR><LF>

Data encoding Binary

RS 422

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 7, 8 data bits

Stop bit 1, 2 stop bits

Data encoding Binary

Ethernet

Architecture Client

Address assignment DHCP

Transmission speed 100 Mbit/s

Function Process

Switch functionality None

Transmission protocol TCP/IP , UDP

ASCII

ASCII

Server

Manual address assignment

10 Mbit/s

Service interface

Type Ethernet

eng 2018-02-09

3 / 13

Part no.: 50134100 – DCR 202i FIX-M1-102-R3-G-V – Stationary 2D-code

Ethernet

Function Service

Connection

Number of connections 2 Piece(s)

Connection 1

Type of connection Connector

Function Voltage supply

Thread size M12

Type Male

Material Stainless steel

No. of pins 12 -pin

Encoding A-coded

Connection 2

Type of connection Connector

Function Data interface

Thread size M12

Type Female

Material Stainless steel

No. of pins 4 -pin

Encoding D-coded

Data interface
Signal OUT
Signal IN

Configuration interface

Mechanical data

Design Cubic

Dimension (W x H x L) 46 mm x 61 mm x 46 mm

Housing material Stainless steel, V4A

Lens cover material Glass

Net weight 392 g

Housing color Silver

Type of fastening Via optional mounting device

Compatibility of materials ECOLAB

Operation and display

Type of display LED

Number of LEDs 3 Piece(s)

Type of configuration Via web browser

Environmental data

Ambient temperature, operation 0 ... 50 °C

Ambient temperature, storage -20 ... 70 °C

Relative humidity (non-condensing) 90 %

Mounting thread

Configuration codes
Teach-in

Certifications

Degree of protection IP 69K

IP 67

eng 2018-02-09

4 / 13
