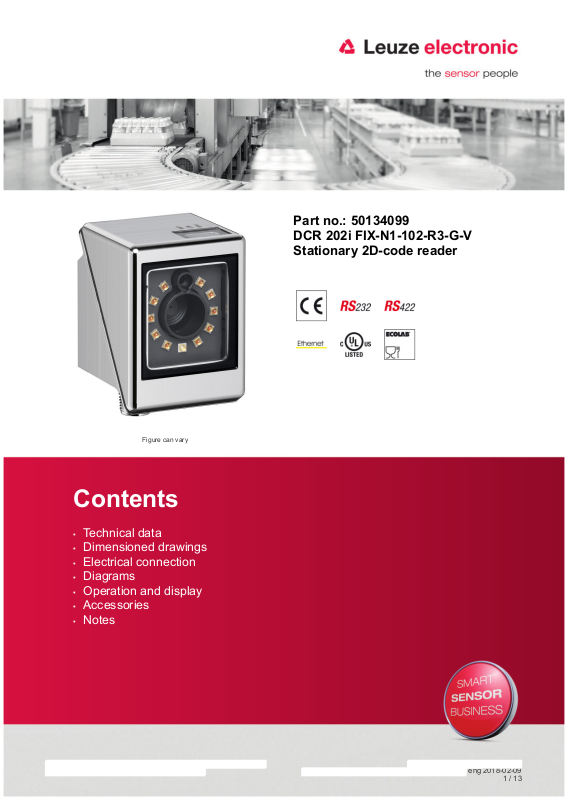

Leuze 50134099 Data Sheet
Figure can vary
Part no.: 50134099
DCR 202i FIX-N1-102-R3-G-V
Stationary 2D-code reader
Contents
▪ Technical data

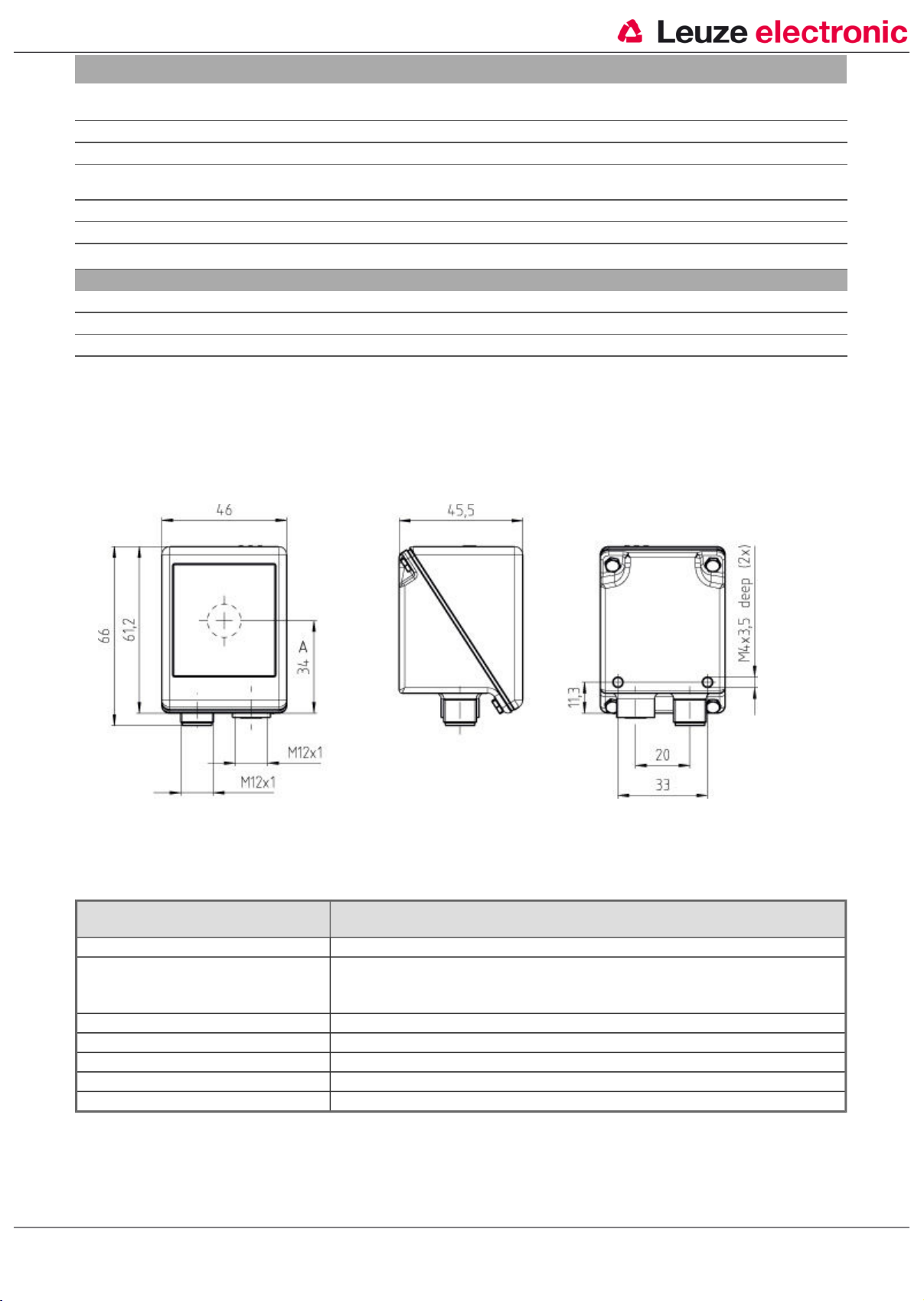

▪ Dimensioned drawings
▪ Electrical connection

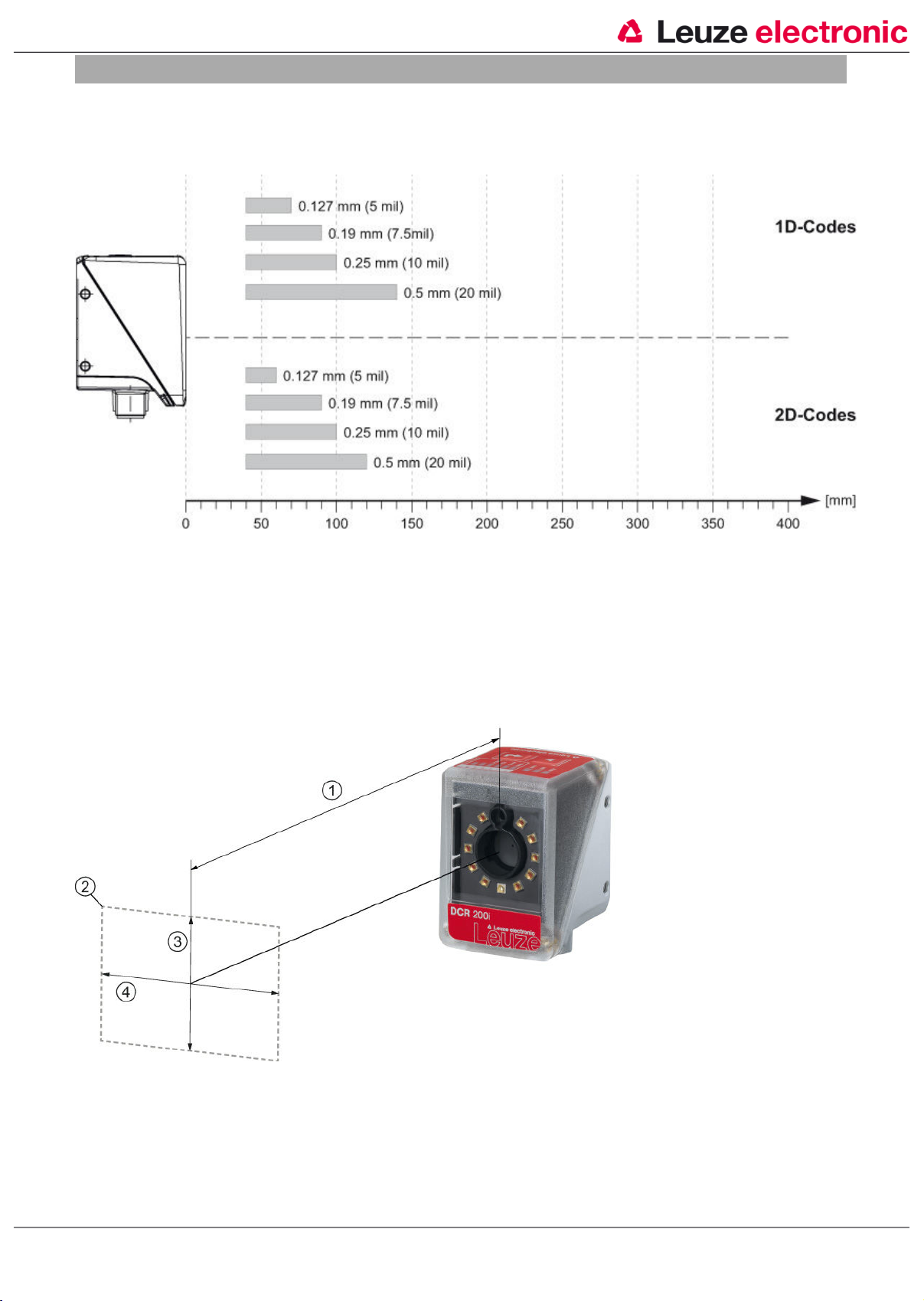

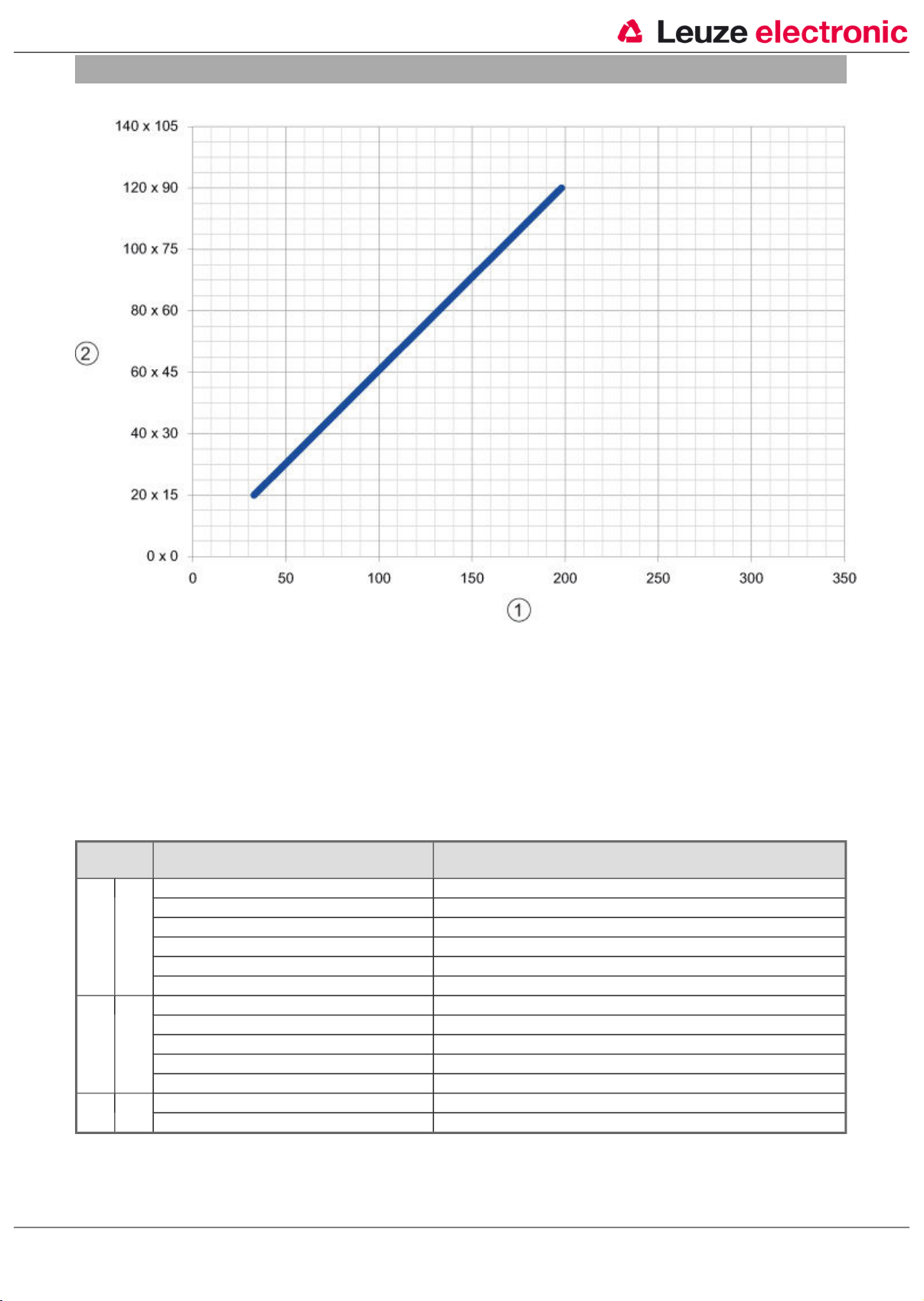

▪ Diagrams
▪ Operation and display

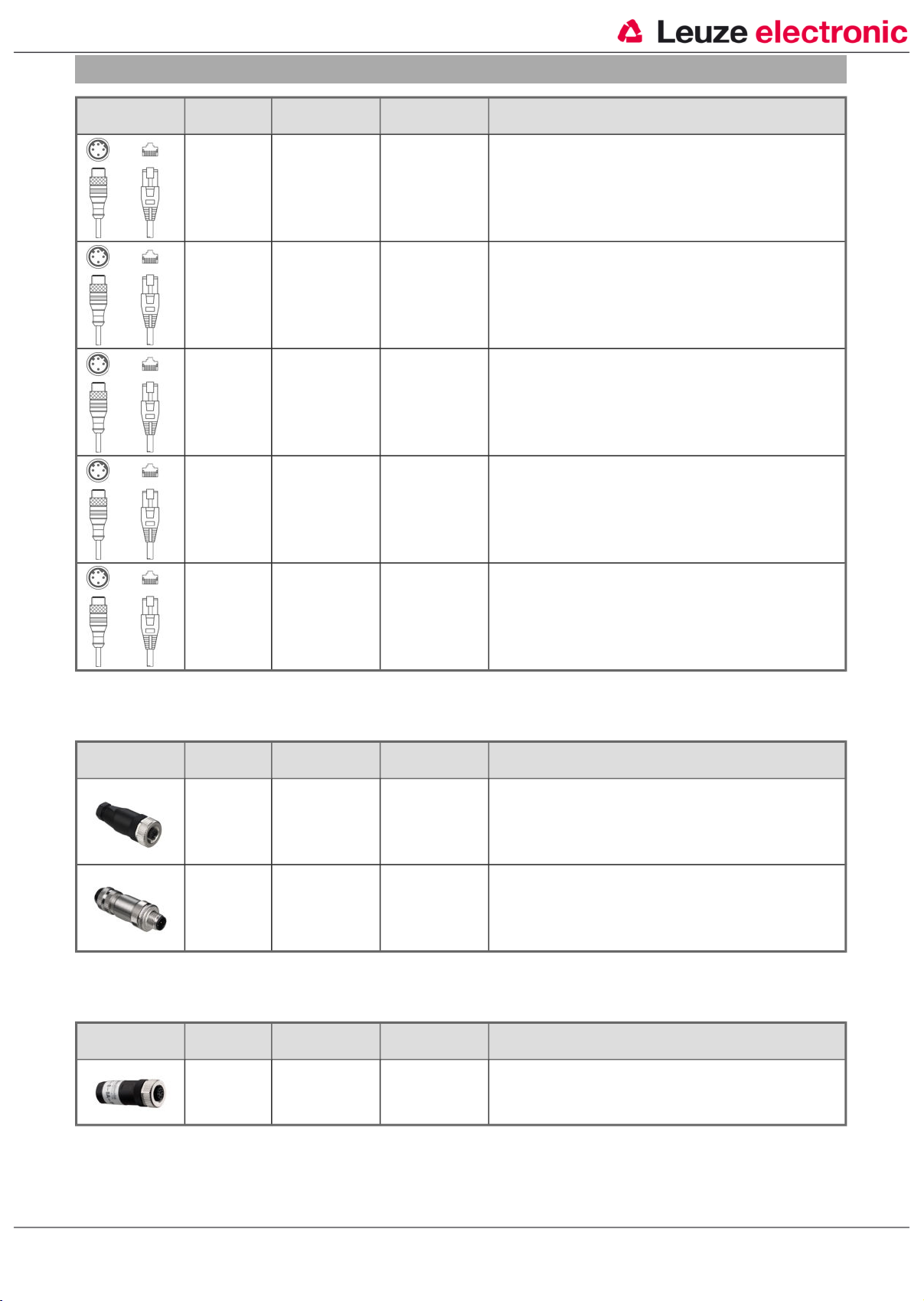

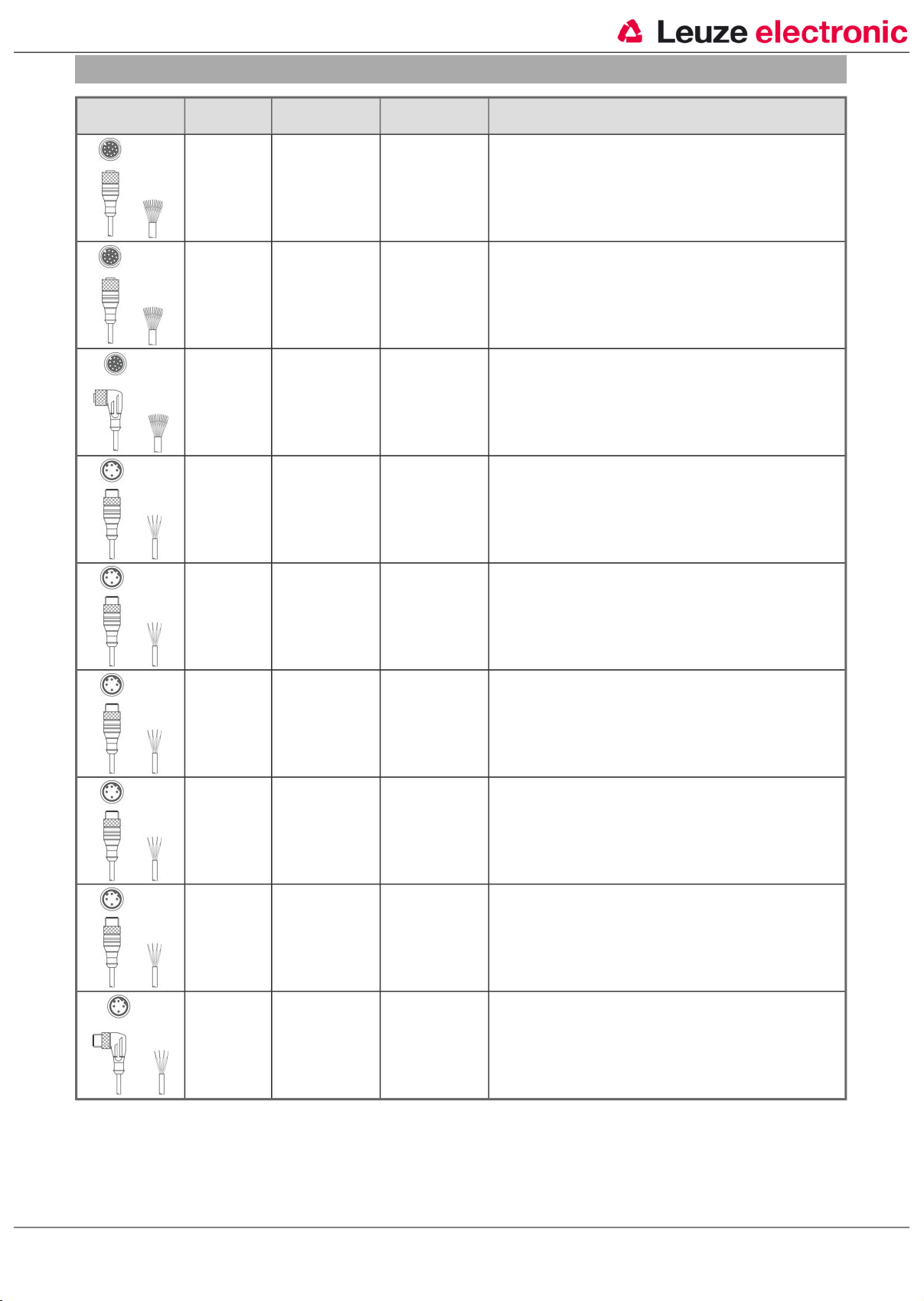

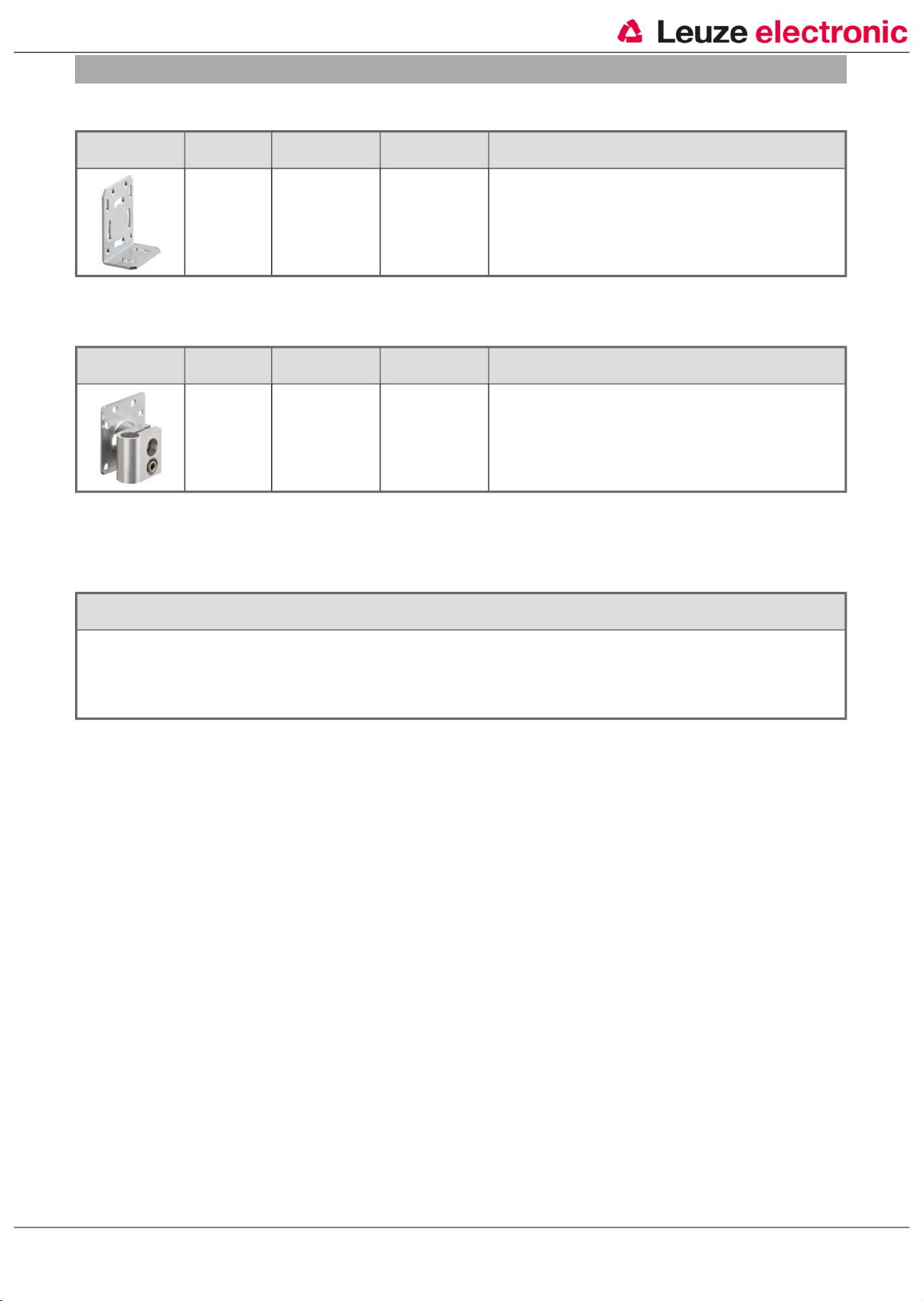

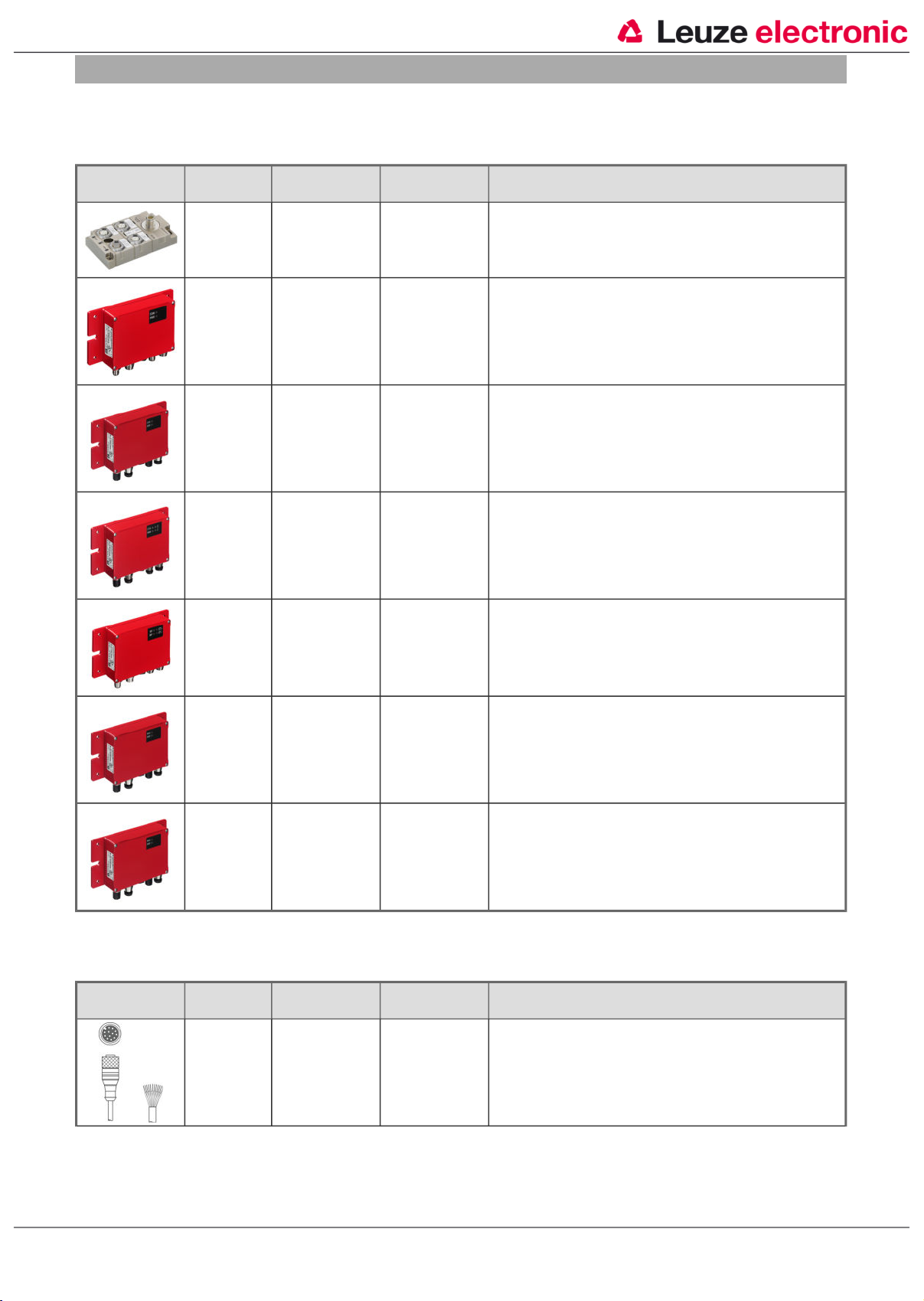

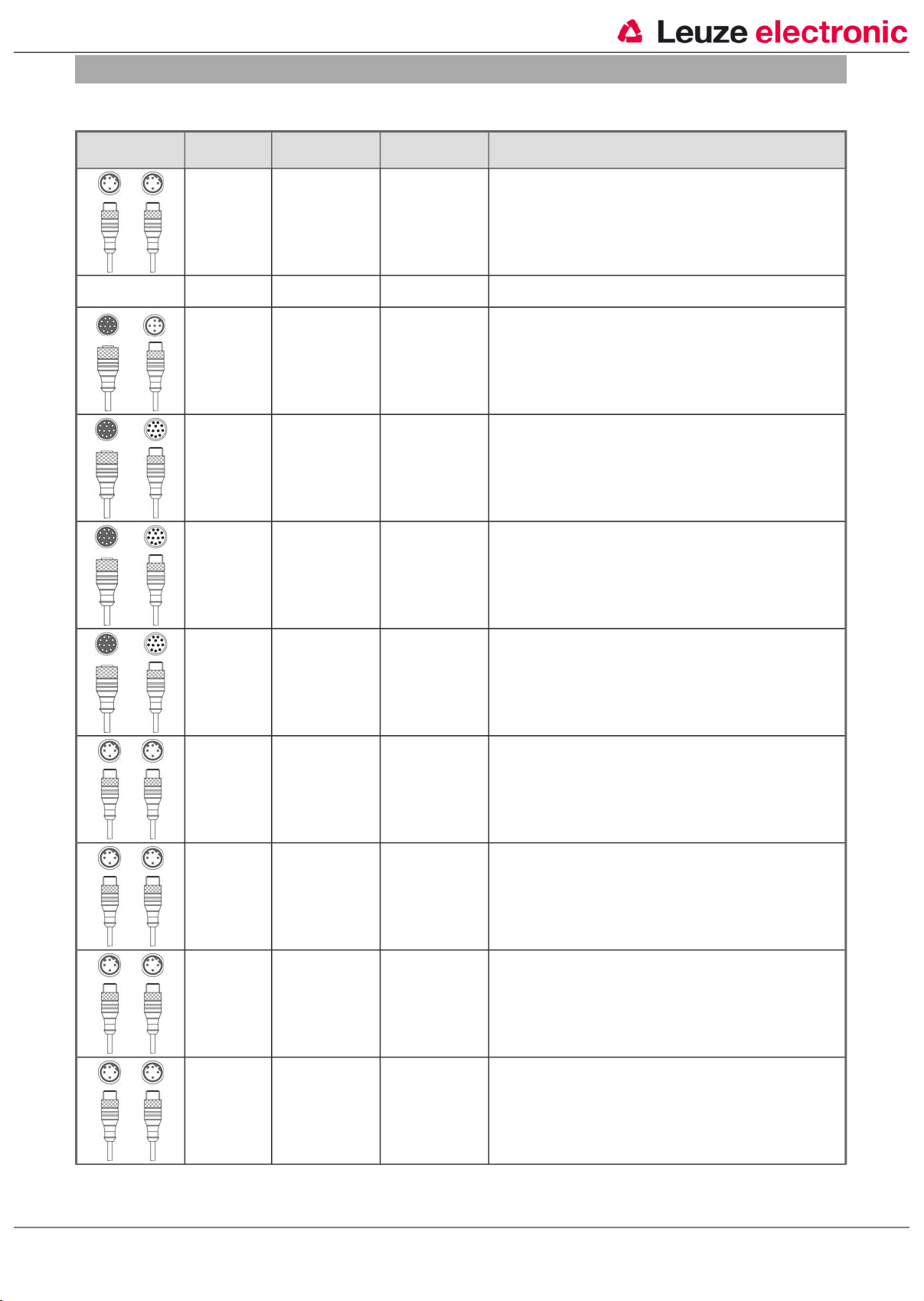

▪ Accessories
▪ Notes
Part no.: 50134099 – DCR 202i FIX-N1-102-R3-G-V – Stationary 2D-code reader
Technical data
Basic data
Series DCR 200i
Functions
Software functions Reading of 1D codes
Read data
Code types, readable GS1 Databar Stacked
Reading of 2D codes
Code 32
UPC
Code 128
Data Matrix Code
EAN 128
2/5 Interleaved
Codabar
GS1 Databar
GS1 Databar QR code
Code 39
EAN 8/13
Code 93
Pharma Code
QR code
Aztec
GS1 Databar Omnidirectional
PDF417
Optical data
Reading distance 40 ... 120 mm
Light source LED, Red
Transmitted-signal shape Pulsed
Camera resolution, horizontal 1,280 px
Camera resolution, vertical 960 px
Chip CMOS
Module size 0.127 ... 0.5 mm
Electronic shutter speed 0.068 ... 5 ms
Camera type Monochrome
Electrical data
Protective circuit Polarity reversal protection
Performance data
Supply voltage 18 ... 30 V, DC
Average power consumption 8 W
Inputs
Number of digital switching inputs 1 Piece(s)
Switching inputs
Type Digital switching input
Voltage type DC
Short circuit protected
eng 2018-02-09
2 / 13
Part no.: 50134099 – DCR 202i FIX-N1-102-R3-G-V – Stationary 2D-code reader
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Type Digital switching output
Voltage type DC
Switching current, max. 100 mA
Switching output 1
Switching element Transistor,
Switching principle +24 V switching
Inputs/outputs selectable
Number of inputs/outputs selectable 2 Piece(s)
Type Inputs/outputs selectable
Voltage type DC
Voltage type DC
Interface
Type RS 232, RS 422, Ethernet
RS 232
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 8 data bits
Stop bit 1 stop bit
Parity None
Transmission protocol <STX><data><CR><LF>
Data encoding Binary
RS 422
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 7, 8 data bits
Stop bit 1, 2 stop bits
Parity Adjustable
Data encoding ASCII
Ethernet
Architecture Client
Address assignment DHCP
Transmission speed 100 Mbit/s
Function Process
Switch functionality None
Transmission protocol TCP/IP , UDP
ASCII
Binary
Server
Manual address assignment
10 Mbit/s
Service interface
Type Ethernet
eng 2018-02-09
3 / 13
Part no.: 50134099 – DCR 202i FIX-N1-102-R3-G-V – Stationary 2D-code reader
Ethernet
Function Service

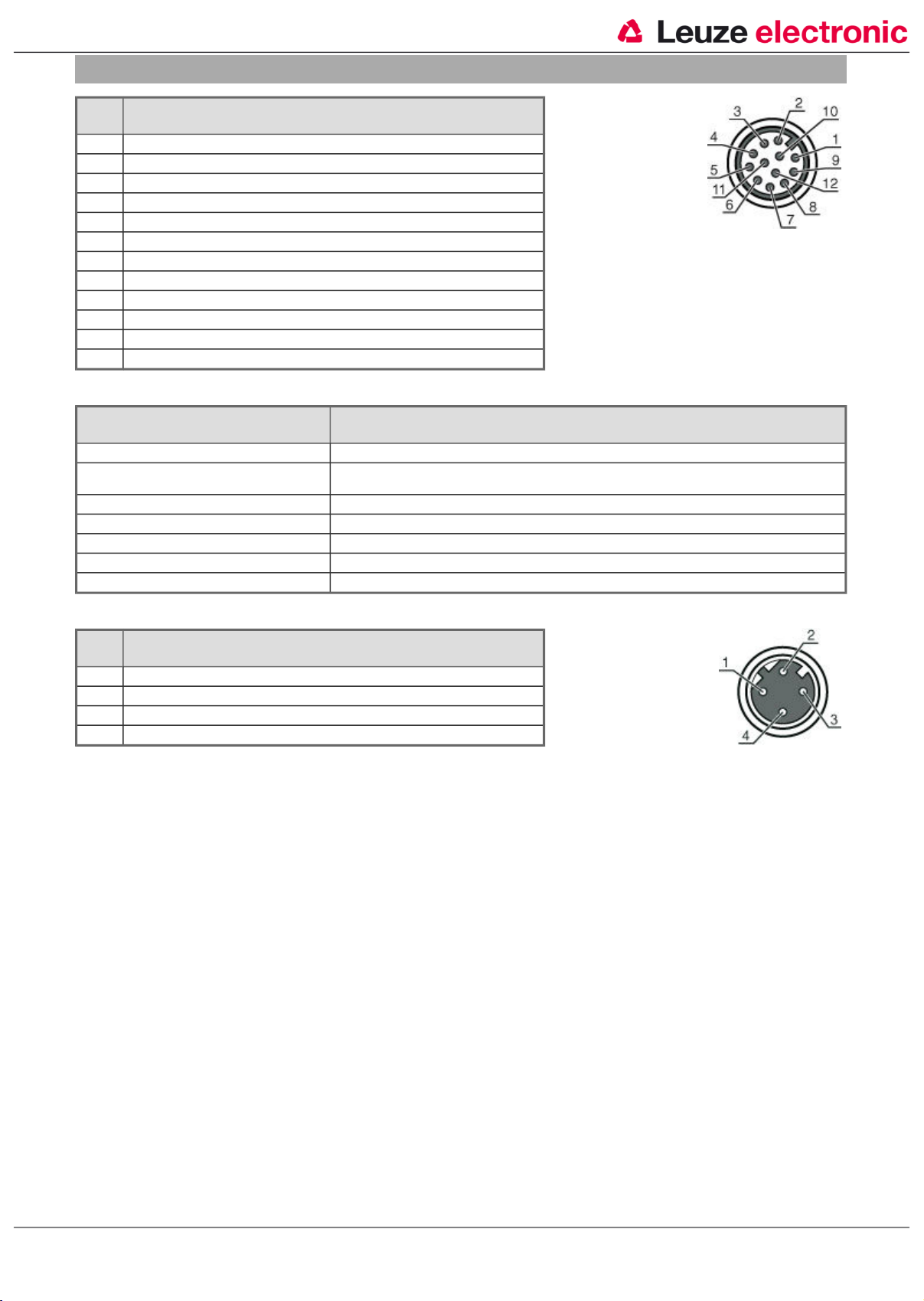

Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Connector
Function Signal IN
Thread size M12
Type Male
Material Stainless steel
No. of pins 12 -pin
Encoding A-coded
Connection 2
Type of connection Connector
Function Data interface
Thread size M12
Type Female
Material Stainless steel
No. of pins 4 -pin
Encoding D-coded
Signal OUT
Voltage supply
Data interface
Configuration interface
Mechanical data
Design Cubic
Dimension (W x H x L) 46 mm x 61 mm x 46 mm
Housing material Stainless steel, V4A
Lens cover material Glass
Net weight 392 g
Housing color Silver
Type of fastening Via optional mounting device
Compatibility of materials ECOLAB
Operation and display
Type of display LED
Number of LEDs 3 Piece(s)
Type of configuration Teach-in
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -20 ... 70 °C
Relative humidity (non-condensing) 90 %
Mounting thread
Configuration codes
Via web browser
Certifications
Degree of protection IP 69K
IP 67
eng 2018-02-09
4 / 13
