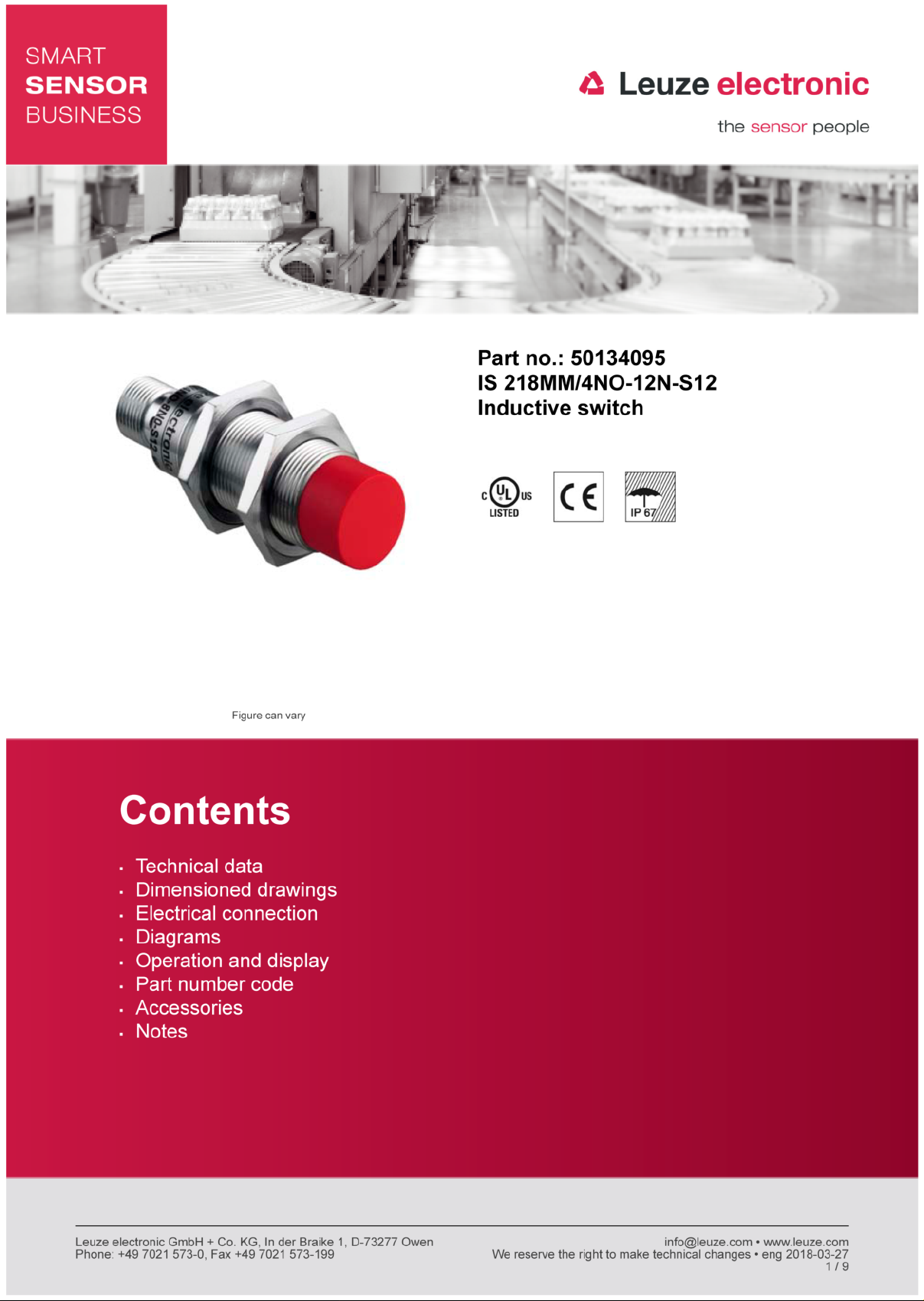

Part no.: 50134095 – IS 218MM/4NO-12N-S12 – Inductive switch

Technical data

Basic data

Series 218

Typ. operating range limit S

Operating range S

Characteristic parameters

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage 10 ... 30 V, DC

Residual ripple 0 ... 20 %, From U

Open-circuit current 0 ... 10 mA

Temperature drift, max. (in % of Sr) 10 %, Over the entire operating temperature range

Repeatability, max. (in % of Sr) 5 %, For UB= 20 … 30 V DC, ambient temperature

Switching hysteresis 10 %

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Voltage type DC

Switching current, max. 200 mA

Switching voltage Low: ≤2V

Residual current, max. 0.1 mA

Voltage drop 2 V

Switching output 1

Switching element Transistor, PNP

Switching principle NO (normally open)

12 mm

0 ... 9.7 mm

Inductive protection Polarity reversal protection

Ta= 23 °C ± 5 °C

Timing

Switching frequency 500 Hz

Readiness delay 60 ms

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Connector

Function Signal OUT

Voltage supply

Thread size M12

Type Male

Material Metal

No. of pins 4 -pin

Encoding A-coded

Mechanical data

Design Cylindrical

eng 2018-03-27

2 / 9

Page 3

Part no.: 50134095 – IS 218MM/4NO-12N-S12 – Inductive switch

Thread size M18 x 1 mm

Dimension (Ø x L) 18 mm x 52 mm

Type of installation Non-embedded

Housing material Metal, Chromed brass

Sensing face material Plastic, Polybutylene (PBT)

Net weight 120 g

Housing color Red, RAL 3000

Type of fastening Via optional mounting device

Standard measuring plate 36 x 36 mm², Fe360

Operation and display

Type of display LED

Number of LEDs 1 Piece(s)

Environmental data

Ambient temperature, operation -25 ... 70 °C

Ambient temperature, storage -25 ... 70 °C

Silver

Mounting thread

Certifications

Degree of protection IP 67

Protection class II

Certifications c UL US

Test procedure for EMC in accordance with standard IEC 61000-4-2

Standards applied IEC 60947-5-2

Correction factors

Aluminum 0.45

Stainless steel 0.75

Copper 0.4

Brass 0.55

Fe360 steel 1

Classification

eCl@ss 8.0 27270101

eCl@ss 9.0 27270101

ETIM 5.0 EC002714

IEC 61000-4-3 IEC 61000-4-4

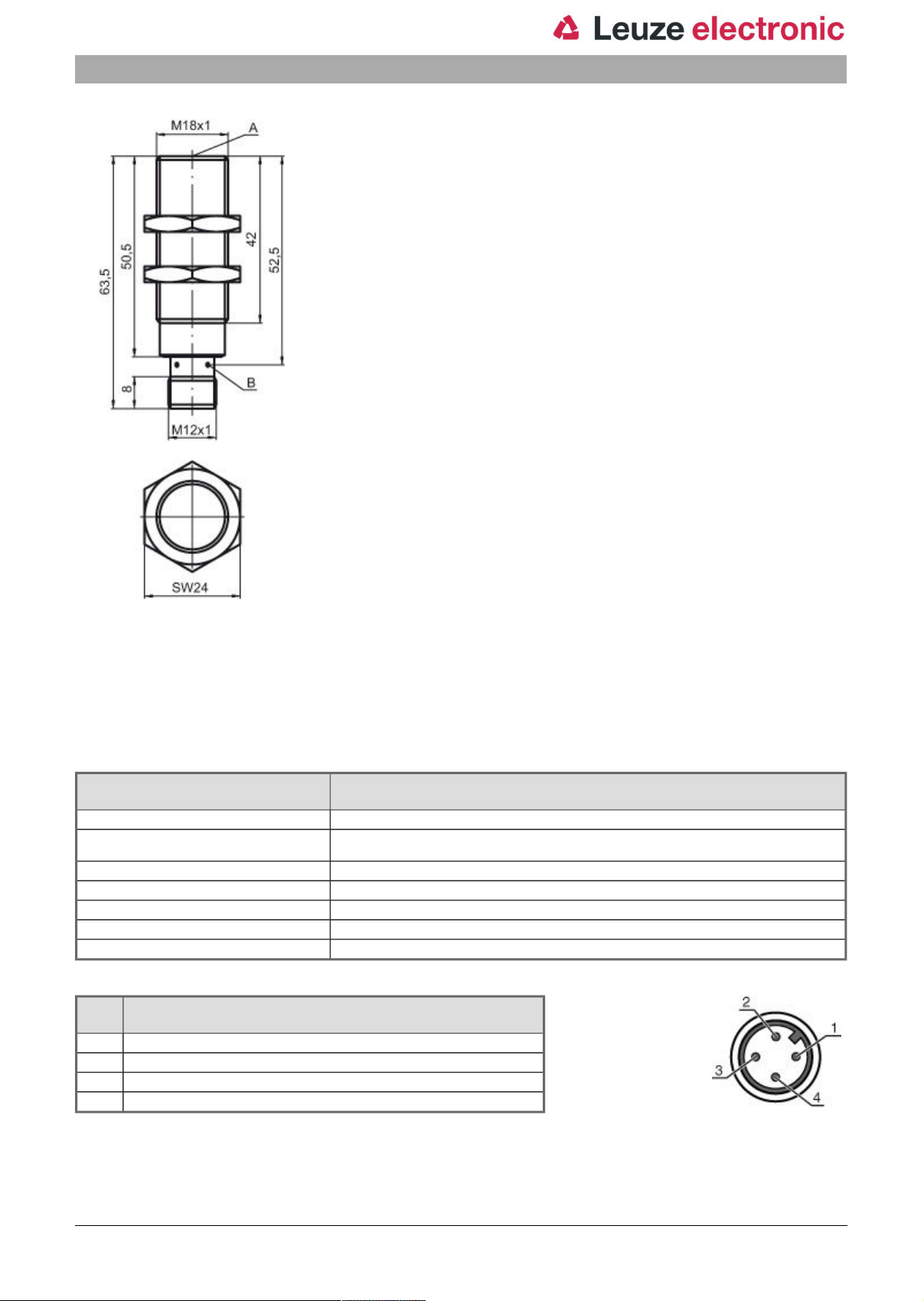

Dimensioned drawings

All dimensions in millimeters

eng 2018-03-27

3 / 9

Page 4

Part no.: 50134095 – IS 218MM/4NO-12N-S12 – Inductive switch

A Active surface B Yellow LED

Electrical connection

Connection 1

Type of connection Connector

Function Signal OUT

Thread size M12

Type Male

Material Metal

No. of pins 4 -pin

Encoding A-coded

Pin Pin assignment

1 V+

2 n.c.

3 GND

4 OUT 1

Voltage supply

eng 2018-03-27

4 / 9

Page 5

Part no.: 50134095 – IS 218MM/4NO-12N-S12 – Inductive switch

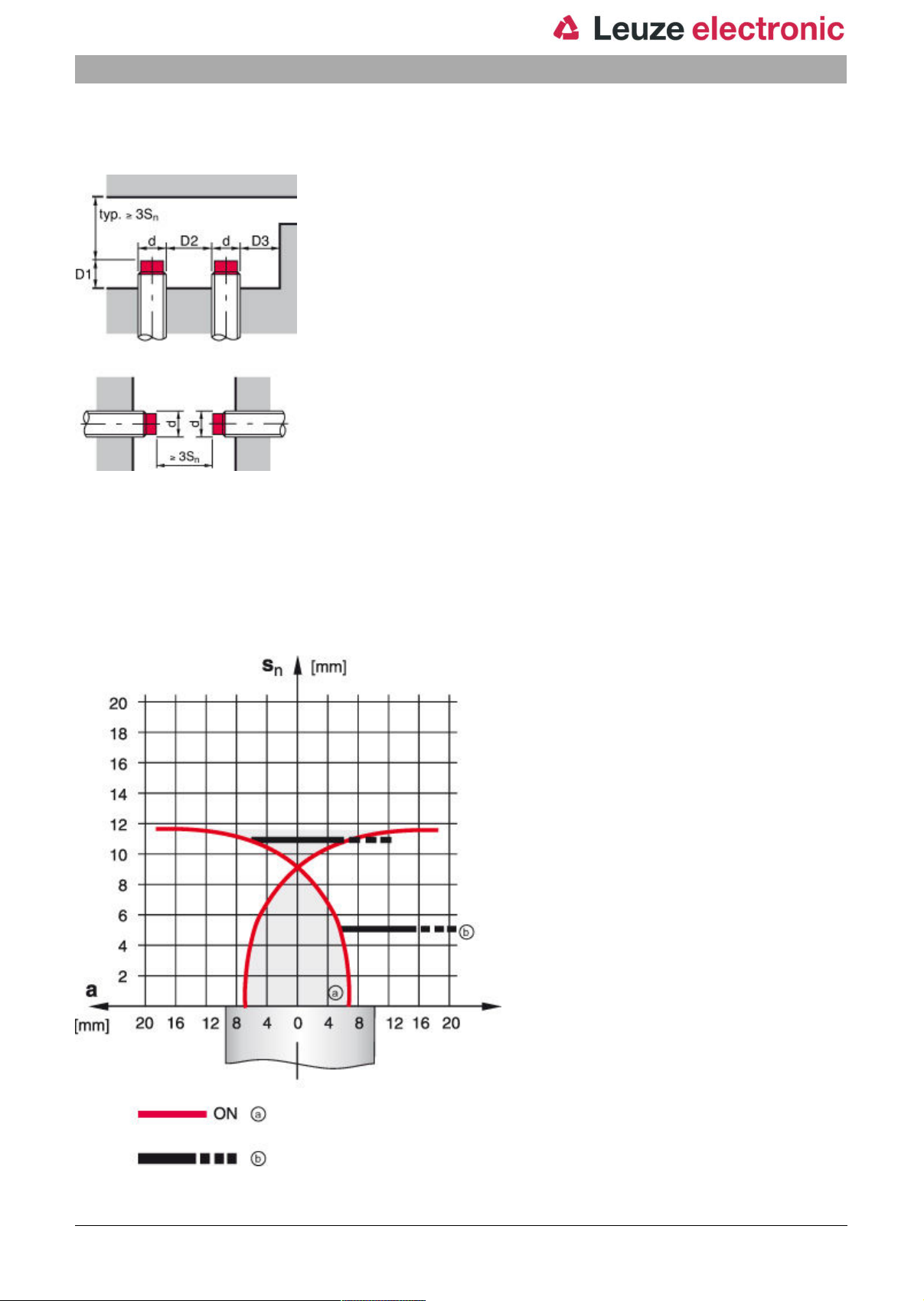

Diagrams

Non-embedded installation

Sn[mm] D1 [mm] 18

D2 [mm] 57 D3 [mm] 27

Types with Sn= 12.0 mm

eng 2018-03-27

5 / 9

Page 6

Part no.: 50134095 – IS 218MM/4NO-12N-S12 – Inductive switch

a Inductive switch b Standard measuring plate

Operation and display

LEDs

LED Display Meaning

1 Yellow, continuous light Switching output/switching state

Part number code

Part designation: ISX YYY ZZ/AAA.BB-CCC-DDD-DDD

ISX Operating principle / construction:

YYY Series:

ZZ Housing / thread:

AAA Output current / supply:

BB Special equipment:

CCC Measurement range / type of installation:

DDD Electrical connection:

IS: inductive switch, standard design ISS: inductive switch, short construction

203: series with Ø 3 mm 204: series with Ø 4 mm 205: series with M5 x 0.5 external thread 206: series with Ø 6.5 mm 208: series with M8 x 1 external thread 212: series with M12 x 1 external thread 218: series with M18 x 1 external thread 230: series with M30 x 1.5 external thread 240: series in cubic design 244: series in cubic design 255: series with 5 x 5 mm² cross section 288: series with 8 x 8 mm² cross section

MM: metal housing (active surface: plastic) / metric thread FM: full-metal housing (active surface: stainless steel AISI 316L) / metric thread

4NO: PNP transistor, NO contact 4NC: PNP transistor, NC contact 2NO: NPN transistor, NO contact 2NC: NPN transistor, NC contact 1NO: relay, NO contact / AC/DC 1NC: relay, NC contact / AC/DC

n/a: no special equipment 5F: food version 5: housing material V2A (1.4305, AISI 303)

1E0: typ. scanning range limit 1.0 mm / embedded installation 1E5: typ. scanning range limit 1.5 mm / embedded installation 2E0: typ. scanning range limit 2.0 mm / embedded installation 3E0: typ. scanning range limit 3.0 mm / embedded installation 4E0: typ. scanning range limit 4.0 mm / embedded installation 5E0: typ. scanning range limit 5.0 mm / embedded installation 6E0: typ. scanning range limit 6.0 mm / embedded installation 8E0: typ. scanning range limit 8.0 mm / embedded installation 10E: typ. scanning range limit 10.0 mm / embedded installation 12E: typ. scanning range limit 12.0 mm / embedded installation 20E: typ. scanning range limit 20.0 mm / embedded installation 22E: typ. scanning range limit 22.0 mm / embedded installation 2N5: typ. scanning range limit 2.5 mm / non-embedded installation 4N0: typ. scanning range limit 4.0 mm / non-embedded installation 8N0: typ. scanning range limit 8.0 mm / non-embedded installation 10N: typ. scanning range limit 10.0 mm / non-embedded installation 12N: typ. scanning range limit 12.0 mm / non-embedded installation 15N: typ. scanning range limit 15.0 mm / non-embedded installation 20N: typ. scanning range limit 20.0 mm / non-embedded installation 25N: typ. scanning range limit 25.0 mm / non-embedded installation 40N: typ. scanning range limit 40.0 mm / non-embedded installation

n/a: cable, PVC, standard length 2000 mm S12: M12 connector, 4-pin, axial 200-S12: cable, PVC, length 200 mm with M12 connector, 4-pin, axial

eng 2018-03-27

6 / 9

Page 7

Part no.: 50134095 – IS 218MM/4NO-12N-S12 – Inductive switch

Note

A list with all available device types can be found on the Leuze electronic website at www.leuze.com.

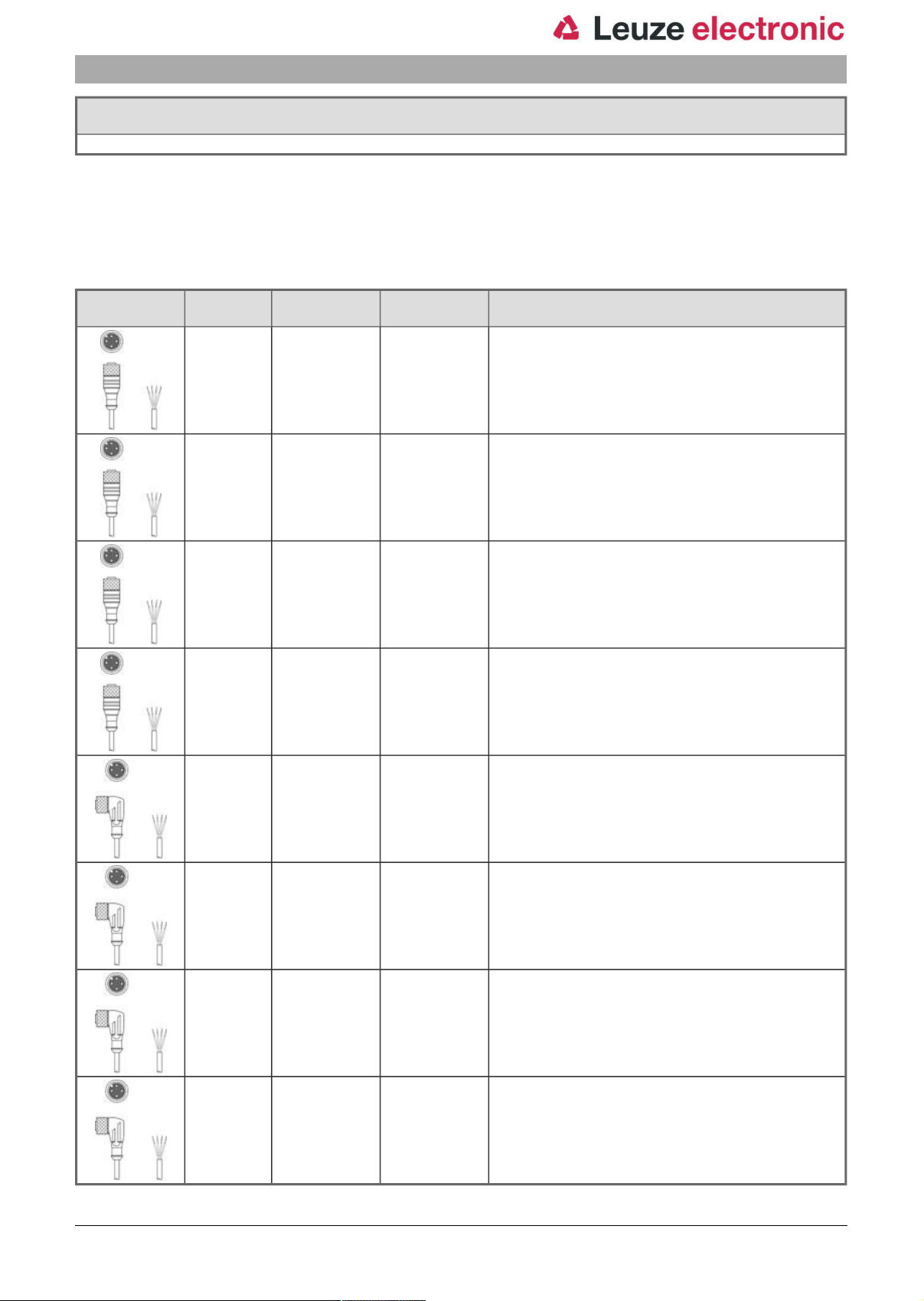

Accessories

Connection technology - Connection cables

Part no. Designation Article Description

50130654 KD U-M12-4A-

P1-020

50130657 KD U-M12-4A-

P1-050

50130648 KD U-M12-4A-

V1-020

50130652 KD U-M12-4A-

V1-050

50130692 KD U-M12-4W-

P1-020

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PUR

50130694 KD U-M12-4W-

P1-050

50130688 KD U-M12-4W-

V1-020

50130690 KD U-M12-4W-

V1-050

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PVC

eng 2018-03-27

7 / 9

Page 8

Part no.: 50134095 – IS 218MM/4NO-12N-S12 – Inductive switch

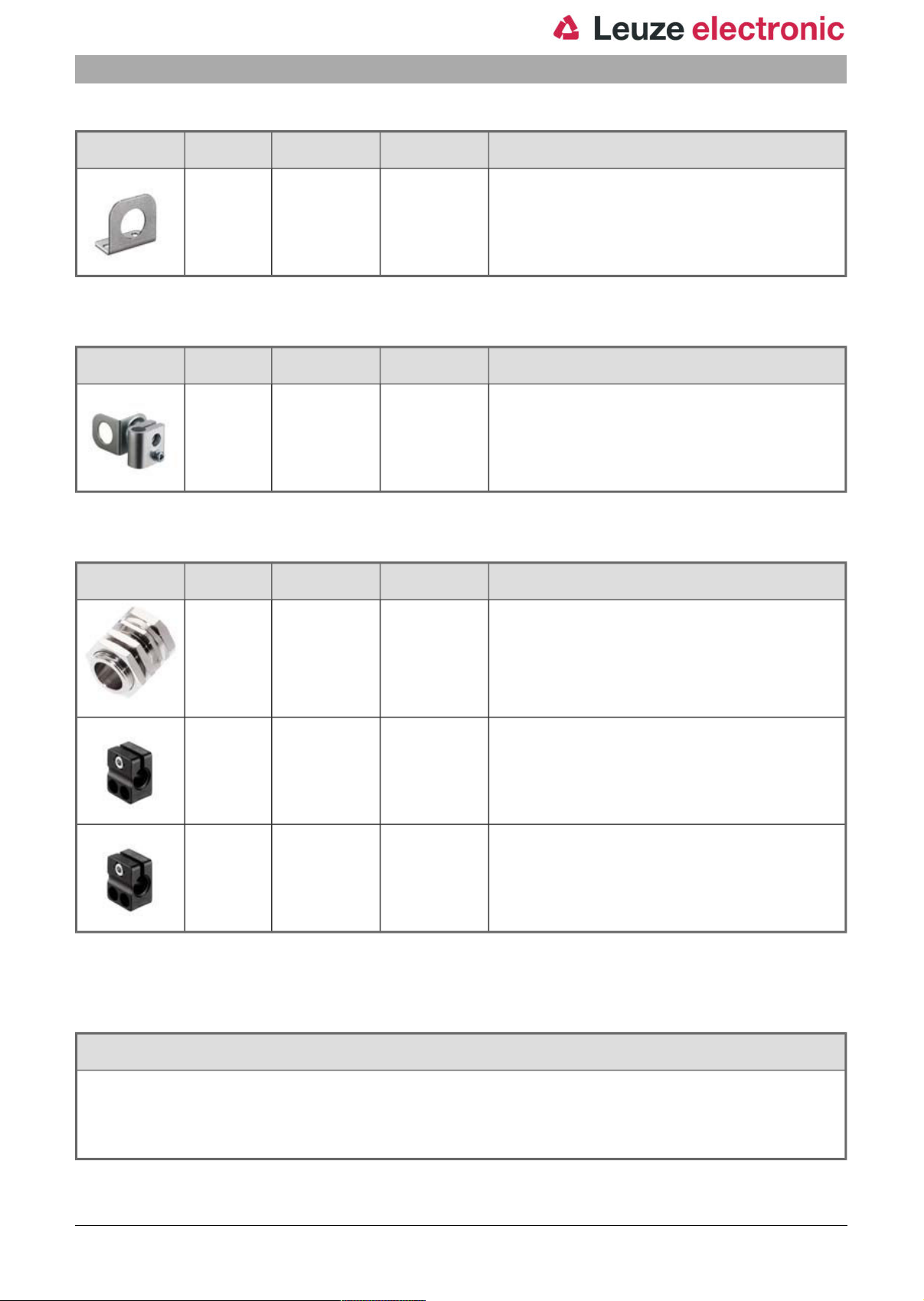

Mounting technology - Mounting brackets

Part no. Designation Article Description

50113548 BT D18M.5 Mounting bracket Diameter, inner: 18 mm

Mounting technology - Rod mounts

Part no. Designation Article Description

50117490 BTU D18M-D12 Mounting system Design of mounting device: Mounting system

Mounting technology - Other

Part no. Designation Article Description

50132729 AC D18M-CS Clamp Contains: 2x M24 mounting nut

50111501 MC 018K Clamp Diameter, inner: 18 mm

Design of mounting device: Angle, L-shape Mounting bracket, at system: Through-hole mounting Mounting bracket, at device: Screw type Type of mounting device: Rigid Material: Stainless steel

Mounting bracket, at system: Through-hole mounting Mounting bracket, at device: Screw type Type of mounting device: Clampable, Adjustable, Turning, 360° Material: Metal

Diameter, inner: 18 mm Design of mounting device: Mounting clamp Mounting bracket, at system: Screw type, Through-hole mounting Mounting bracket, at device: Insertable, Clampable with limit stop Type of mounting device: Clampable, With limit stop Material: Metal

Design of mounting device: Mounting clamp Mounting bracket, at system: Through-hole mounting Mounting bracket, at device: Clampable Type of mounting device: Rigid Material: Plastic

50111502 MC 018K-LS Clamp Diameter, inner: 18 mm

Design of mounting device: Mounting clamp Mounting bracket, at system: Through-hole mounting Mounting bracket, at device: Clampable with limit stop Type of mounting device: Rigid Material: Plastic

Notes

Observe intended use!

• This product is not a safety sensor and is not intended as personnel protection.

• The product may only be put into operation by competent persons.

• Only use the product in accordance with its intended use.

eng 2018-03-27

8 / 9

Page 9

Part no.: 50134095 – IS 218MM/4NO-12N-S12 – Inductive switch

For UL applications:

• For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).
