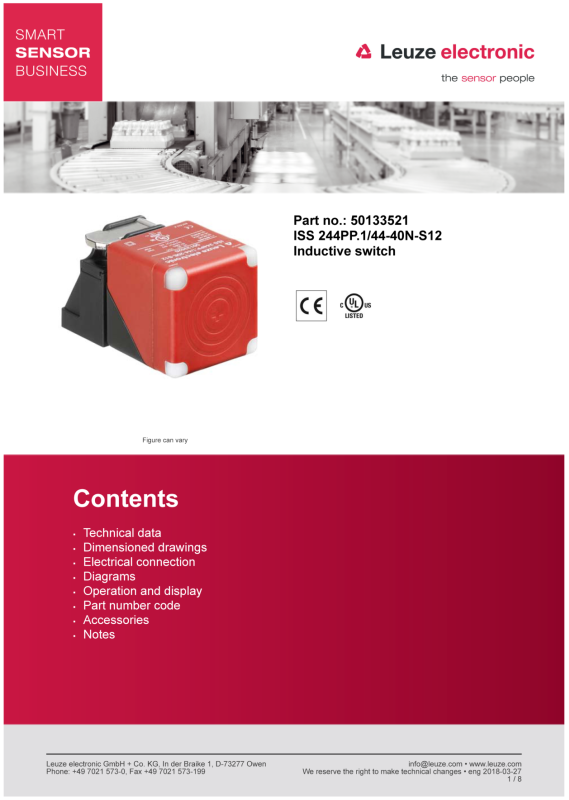

Part no.: 50133521 – ISS 244PP.1/44-40N-S12 – Inductive switch

Technical data

Basic data

Series 244

Typ. operating range limit S

Operating range S

Characteristic parameters

MTTF 1,230 years

Electrical data

Protective circuit Inductive protection

Performance data

Supply voltage 10 ... 30 V, DC

Residual ripple 0 ... 10 %, From U

Open-circuit current 0 ... 30 mA

Repeatability, max. (in % of Sr) 10 %, For UB= 20 … 30 V DC, ambient temperature

Switching hysteresis 15 %

Outputs

Number of digital switching outputs 2 Piece(s)

Switching outputs

Voltage type DC

Switching current, max. 200 mA

Switching voltage Low: ≤2V

Residual current, max. 0.01 mA

Voltage drop 2 V

Switching output 1

Switching element Transistor, PNP

Switching principle NO (normally open)

Switching output 2

Switching element Transistor, PNP

Switching principle NC (normally closed)

40 mm

0 ... 32.4 mm

Short circuit protected Polarity reversal protection

Ta= 23 °C ± 5 °C

Timing

Switching frequency 100 Hz

Readiness delay 100 ms

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Connector

Function Signal OUT

Voltage supply

Thread size M12

Type Male

Material Metal

No. of pins 4 -pin

Encoding A-coded

eng 2018-03-27

2 / 8

Page 3

Part no.: 50133521 – ISS 244PP.1/44-40N-S12 – Inductive switch

Mechanical data

Design Cubic

Dimension (W x H x L) 40 mm x 40 mm x 67 mm

Type of installation Non-embedded

Housing material Plastic, PA 66

Sensing face material Plastic, Polyamide (PA 66)

Net weight 140 g

Housing color Black

Type of fastening Through-hole mounting

Standard measuring plate 120 x 120 mm², Fe360

Operation and display

Type of display LED

Number of LEDs 4 Piece(s)

Environmental data

Ambient temperature, operation -25 ... 85 °C

Ambient temperature, storage -25 ... 85 °C

Red, RAL 3000

Certifications

Degree of protection IP 69K

Protection class II

Certifications c UL US

Test procedure for EMC in accordance with standard IEC 61000-4-4

Standards applied IEC 60947-5-2

Correction factors

Aluminum 0.2

Stainless steel 0.85

Copper 0.1

Brass 0.25

Fe360 steel 1

Classification

eCl@ss 8.0 27270101

eCl@ss 9.0 27270101

ETIM 5.0 EC002714

IP 67

IEC 61000-4-3 IEC 61000-4-2

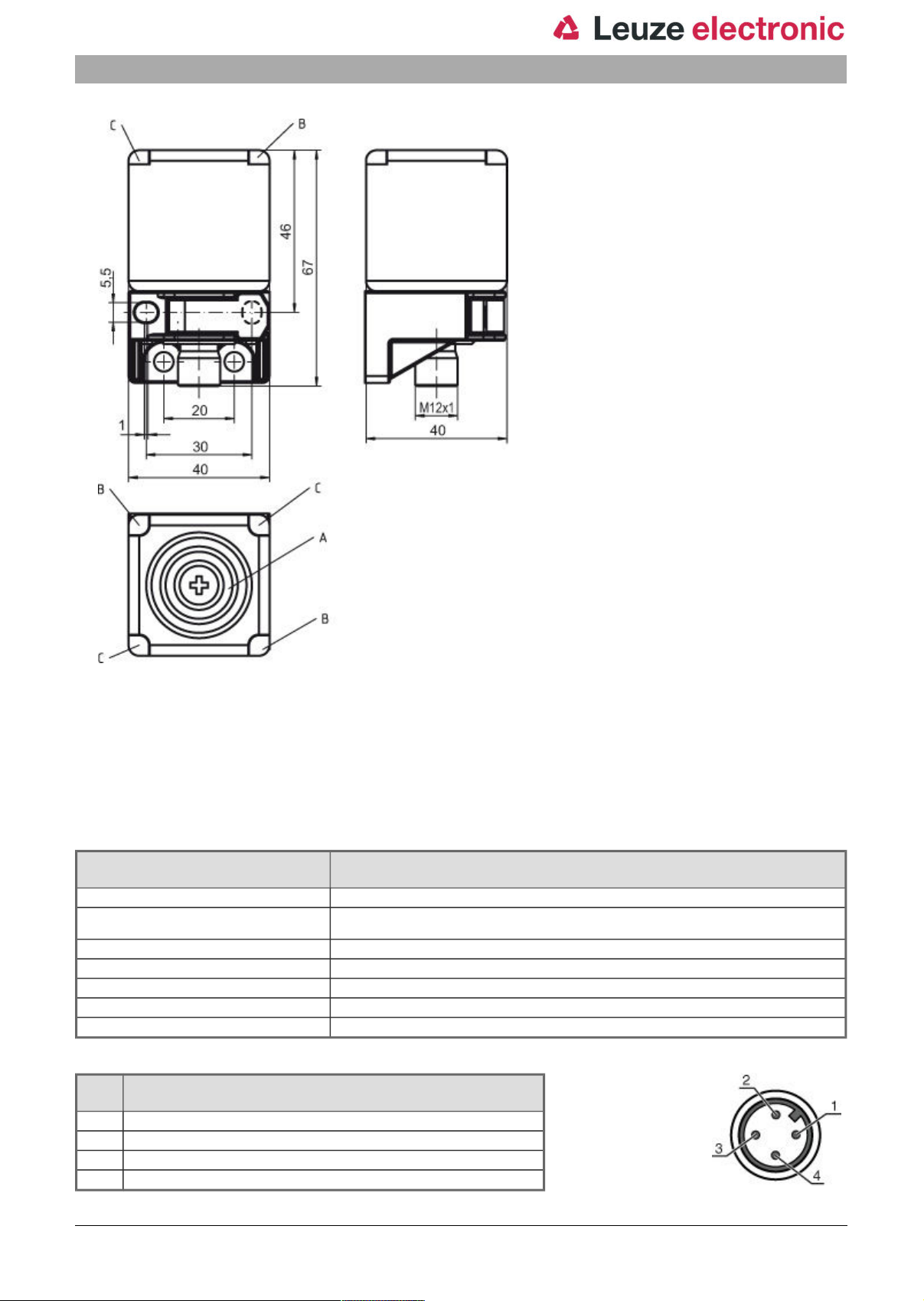

Dimensioned drawings

All dimensions in millimeters

eng 2018-03-27

3 / 8

Page 4

Part no.: 50133521 – ISS 244PP.1/44-40N-S12 – Inductive switch

A Active surface B Yellow LED C Green LED

Electrical connection

Connection 1

Type of connection Connector

Function Signal OUT

Thread size M12

Type Male

Material Metal

No. of pins 4 -pin

Encoding A-coded

Pin Pin assignment

1 V+

2 OUT 2

3 GND

4 OUT 1

Voltage supply

eng 2018-03-27

4 / 8

Page 5

Part no.: 50133521 – ISS 244PP.1/44-40N-S12 – Inductive switch

Diagrams

Non-embedded installation

Sn[mm] D1 [mm] 40

D2 [mm] 160 D3 [mm] 42 D4 [mm] 300

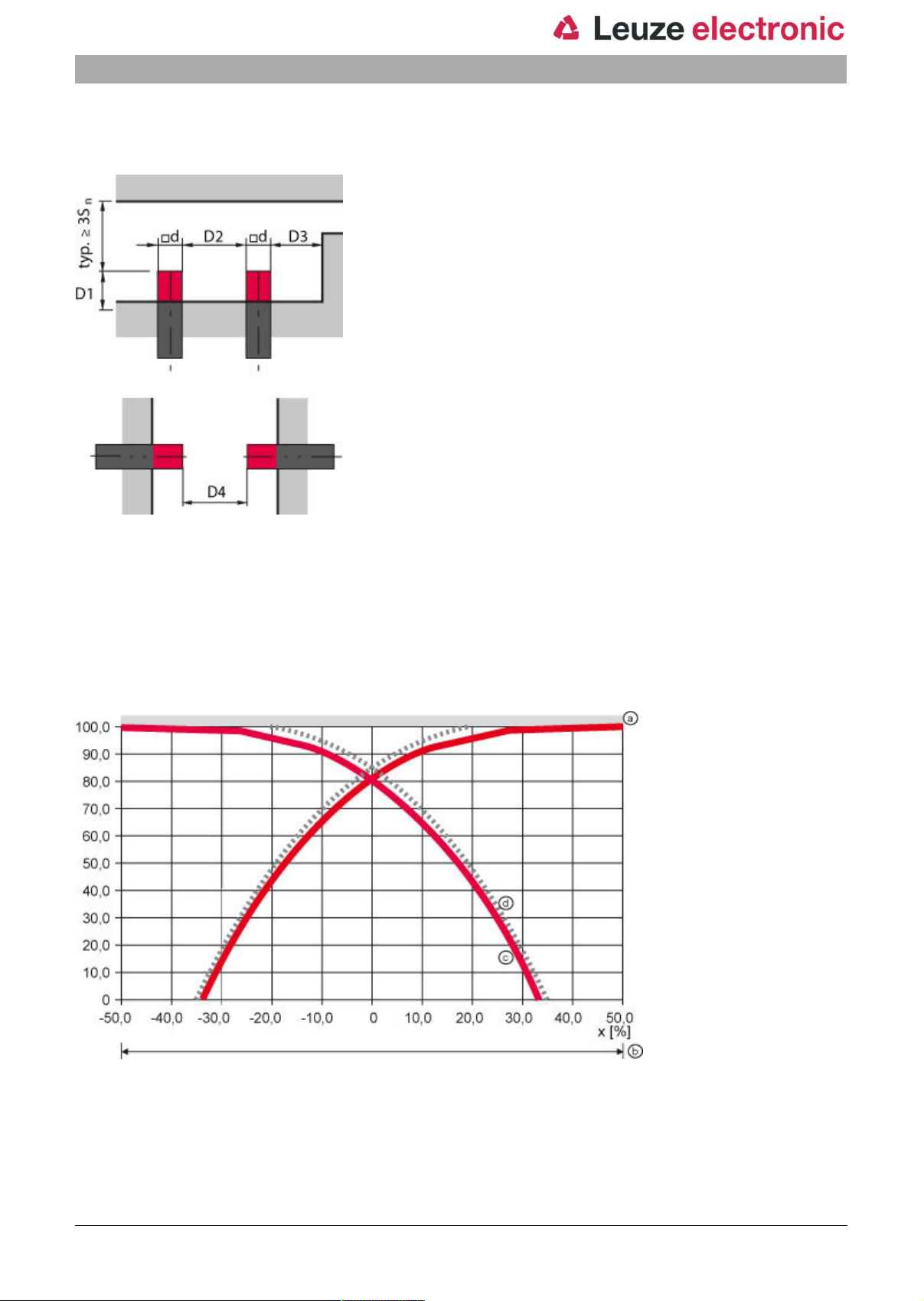

Typical approach curve

a Standard measuring plate b Diameter of the active surface c Switching point d Hysteresis

eng 2018-03-27

5 / 8

Page 6

Part no.: 50133521 – ISS 244PP.1/44-40N-S12 – Inductive switch

Operation and display

LEDs

LED Display Meaning

1 Yellow, continuous light Switching output/switching state

2 Green, continuous light Operational readiness

3 Yellow, continuous light Switching output/switching state

4 Green, continuous light Operational readiness

Part number code

Part designation: ISX YYY ZZ/AAA.BB-CCC-DDD-DDD

ISX Operating principle / construction:

YYY Series:

ZZ Housing / thread:

AAA Output current / supply:

BB Special equipment:

CCC Measurement range / type of installation:

DDD Electrical connection:

IS: inductive switch, standard design ISS: inductive switch, short construction

203: series with Ø 3 mm 204: series with Ø 4 mm 205: series with M5 x 0.5 external thread 206: series with Ø 6.5 mm 208: series with M8 x 1 external thread 212: series with M12 x 1 external thread 218: series with M18 x 1 external thread 230: series with M30 x 1.5 external thread 240: series in cubic design 244: series in cubic design 255: series with 5 x 5 mm² cross section 288: series with 8 x 8 mm² cross section

MM: metal housing (active surface: plastic) / metric thread FM: full-metal housing (active surface: stainless steel AISI 316L) / metric thread

4NO: PNP transistor, NO contact 4NC: PNP transistor, NC contact 2NO: NPN transistor, NO contact 2NC: NPN transistor, NC contact 1NO: relay, NO contact / AC/DC 1NC: relay, NC contact / AC/DC

n/a: no special equipment 5F: food version 5: housing material V2A (1.4305, AISI 303)

1E0: typ. scanning range limit 1.0 mm / embedded installation 1E5: typ. scanning range limit 1.5 mm / embedded installation 2E0: typ. scanning range limit 2.0 mm / embedded installation 3E0: typ. scanning range limit 3.0 mm / embedded installation 4E0: typ. scanning range limit 4.0 mm / embedded installation 5E0: typ. scanning range limit 5.0 mm / embedded installation 6E0: typ. scanning range limit 6.0 mm / embedded installation 8E0: typ. scanning range limit 8.0 mm / embedded installation 10E: typ. scanning range limit 10.0 mm / embedded installation 12E: typ. scanning range limit 12.0 mm / embedded installation 20E: typ. scanning range limit 20.0 mm / embedded installation 22E: typ. scanning range limit 22.0 mm / embedded installation 2N5: typ. scanning range limit 2.5 mm / non-embedded installation 4N0: typ. scanning range limit 4.0 mm / non-embedded installation 8N0: typ. scanning range limit 8.0 mm / non-embedded installation 10N: typ. scanning range limit 10.0 mm / non-embedded installation 12N: typ. scanning range limit 12.0 mm / non-embedded installation 15N: typ. scanning range limit 15.0 mm / non-embedded installation 20N: typ. scanning range limit 20.0 mm / non-embedded installation 25N: typ. scanning range limit 25.0 mm / non-embedded installation 40N: typ. scanning range limit 40.0 mm / non-embedded installation

n/a: cable, PVC, standard length 2000 mm S12: M12 connector, 4-pin, axial 200-S12: cable, PVC, length 200 mm with M12 connector, 4-pin, axial

eng 2018-03-27

6 / 8

Page 7

Part no.: 50133521 – ISS 244PP.1/44-40N-S12 – Inductive switch

Note

A list with all available device types can be found on the Leuze electronic website at www.leuze.com.

Accessories

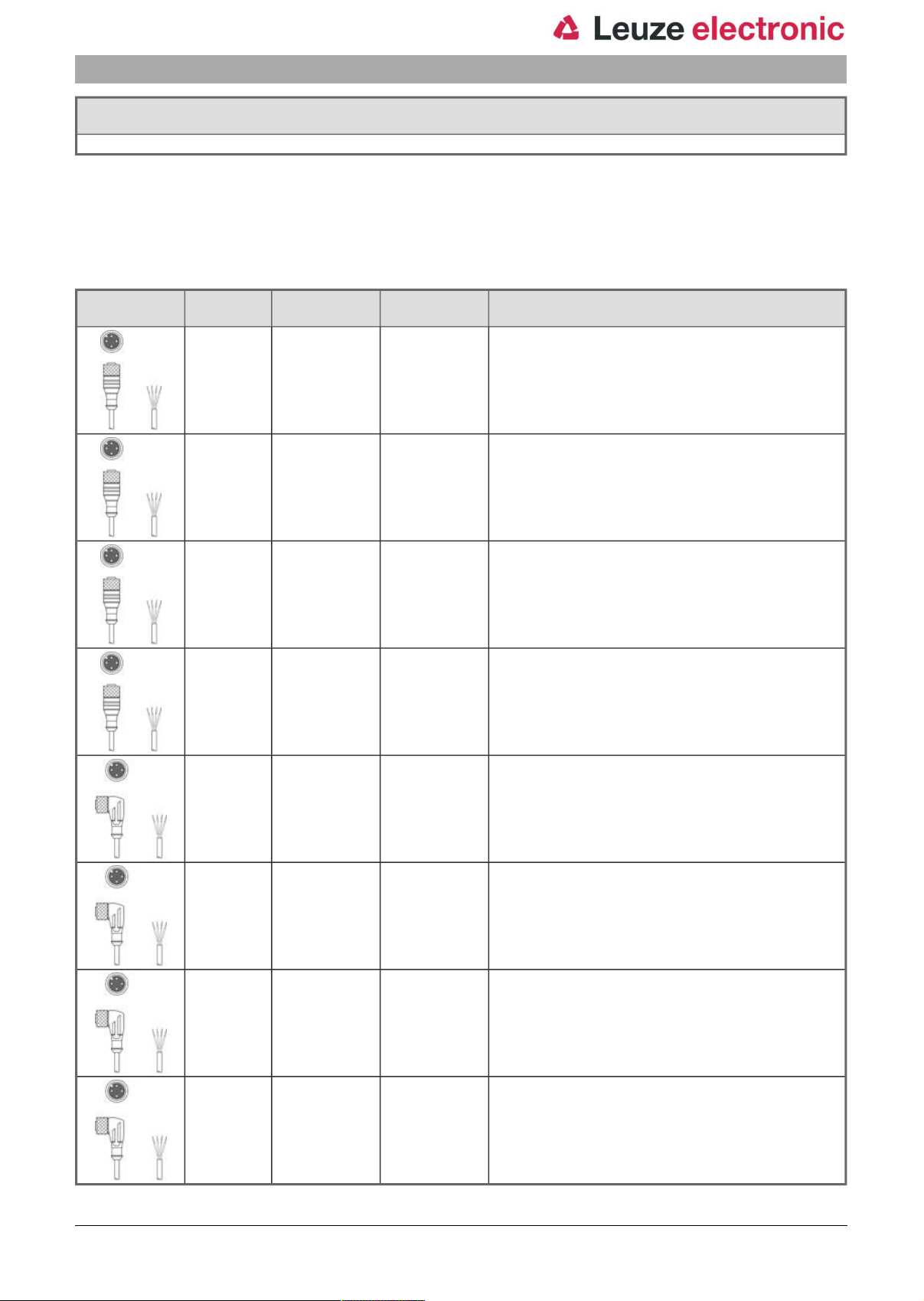

Connection technology - Connection cables

Part no. Designation Article Description

50130654 KD U-M12-4A-

P1-020

50130657 KD U-M12-4A-

P1-050

50130648 KD U-M12-4A-

V1-020

50130652 KD U-M12-4A-

V1-050

50130692 KD U-M12-4W-

P1-020

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PUR

50130694 KD U-M12-4W-

P1-050

50130688 KD U-M12-4W-

V1-020

50130690 KD U-M12-4W-

V1-050

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PVC

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 4 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PVC

eng 2018-03-27

7 / 8

Page 8

Part no.: 50133521 – ISS 244PP.1/44-40N-S12 – Inductive switch

Notes

Observe intended use!

• This product is not a safety sensor and is not intended as personnel protection.

• The product may only be put into operation by competent persons.

• Only use the product in accordance with its intended use.

For UL applications:

• For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).
