Leuze 50133520 Data Sheet
Part no.: 50133520 – ISS 244PP.1/44-20E-S12 – Inductive switch
Technical data
Basic data
Series 244
Typ. operating range limit S
Operating range S
Characteristic parameters
MTTF 1,230 years
Electrical data
Protective circuit Polarity reversal protection
Performance data
Supply voltage 10 ... 30 V, DC
Residual ripple 0 ... 10 %, From U
Open-circuit current 0 ... 30 mA
Repeatability, max. (in % of Sr) 10 %, For UB= 20 … 30 V DC, ambient temperature
Switching hysteresis 15 %
Outputs
Number of digital switching outputs 2 Piece(s)
Switching outputs
Voltage type DC
Switching current, max. 200 mA
Switching voltage Low: ≤2V
Residual current, max. 0.01 mA
Voltage drop 2 V
Switching output 1
Switching element Transistor, PNP
Switching principle NO (normally open)
Switching output 2
Switching element Transistor, PNP
Switching principle NC (normally closed)
a
n
20 mm
0 ... 16.2 mm
Inductive protection
Short circuit protected
B
Ta= 23 °C ± 5 °C
Timing
Switching frequency 100 Hz
Readiness delay 100 ms
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Connector
Function Signal OUT
Voltage supply
Thread size M12
Type Male
Material Metal
No. of pins 4 -pin
Encoding A-coded
eng 2018-03-27
2 / 8
Part no.: 50133520 – ISS 244PP.1/44-20E-S12 – Inductive switch
Mechanical data
Design Cubic
Dimension (W x H x L) 40 mm x 40 mm x 67 mm
Type of installation Embedded
Housing material Plastic, PA 66
Sensing face material Plastic, Polyamide (PA 66)
Net weight 140 g
Housing color Red, RAL 3000
Type of fastening Through-hole mounting
Standard measuring plate 60 x 60 mm², Fe360
Operation and display
Type of display LED
Number of LEDs 4 Piece(s)
Environmental data
Ambient temperature, operation -25 ... 85 °C
Ambient temperature, storage -25 ... 85 °C
Black
Certifications
Degree of protection IP 69K
Protection class II
Certifications c UL US
Test procedure for EMC in accordance with standard IEC 61000-4-2
Standards applied IEC 60947-5-2
Correction factors
Aluminum 0.32
Stainless steel 0.75
Copper 0.29
Brass 0.4
Fe360 steel 1
Classification
eCl@ss 8.0 27270101
eCl@ss 9.0 27270101
ETIM 5.0 EC002714
IP 67
IEC 61000-4-4
IEC 61000-4-3

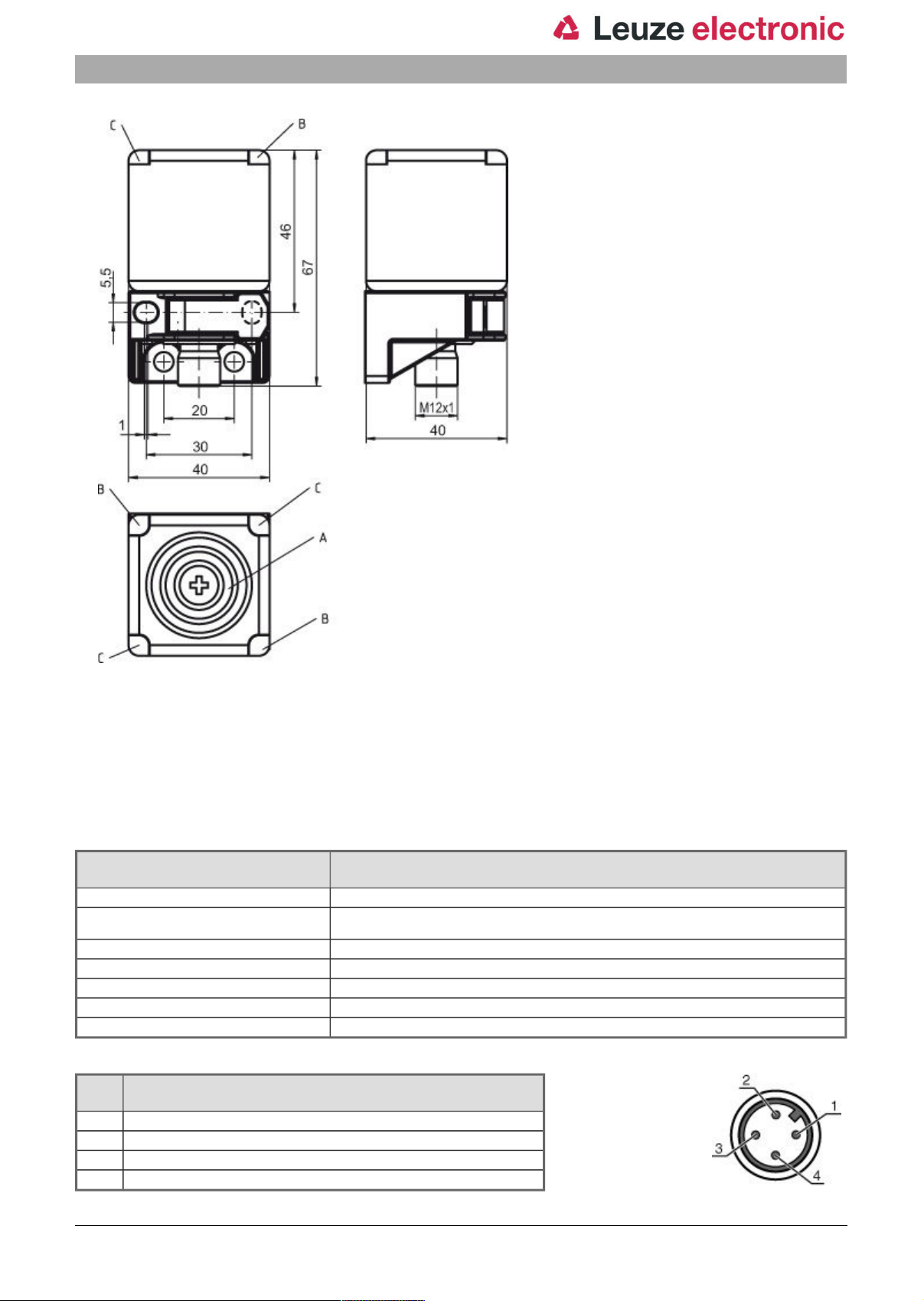

Dimensioned drawings
All dimensions in millimeters
eng 2018-03-27
3 / 8
