Leuze 50132933 Data Sheet
Part no.: 50132933 – DDLS 508 120.3 L H – Optical data transmission
Technical data
Basic data
Series DDLS 500
Special design
Special design Heating
Optical data
Working range 100 ... 120,000 mm
Light source Laser
Usable opening angle, transmitter 1 °
Electrical data
Performance data
Supply voltage 18 ... 30 V, DC
Inputs
Number of digital switching inputs 1 Piece(s)
Outputs
Number of digital switching outputs 1 Piece(s)
Not influenced by reflective surfaces
Integrated laser alignment aid
Operation of parallel light axes
Interface
Type Ethernet
Ethernet
Transmission speed 100 Mbit/s

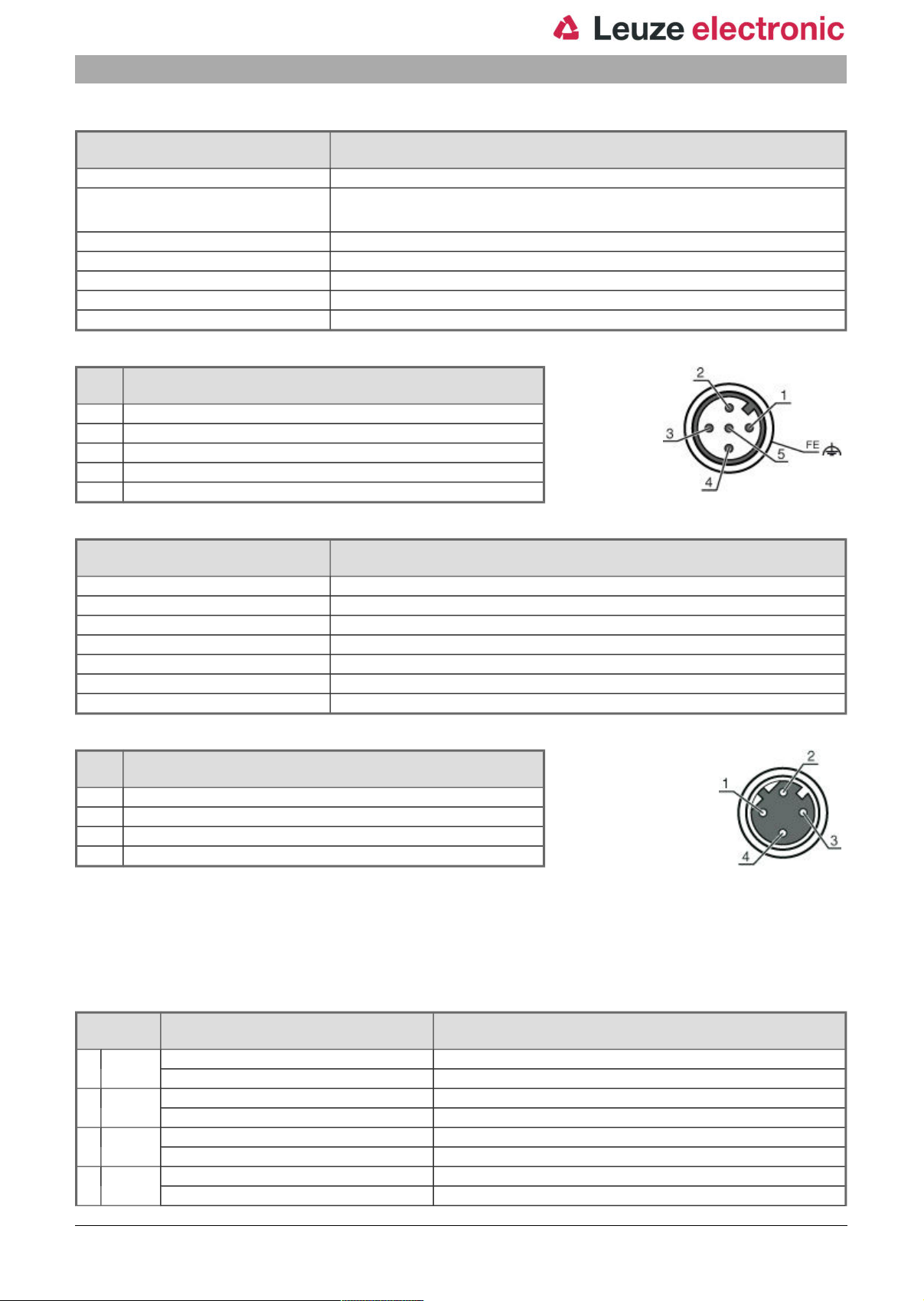

Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Connector
Designation on device POWER
Thread size M12
Type Male
No. of pins 5 -pin
Encoding A-coded
Connection 2
Type of connection Connector
Designation on device BUS
Thread size M12
Type Female
No. of pins 4 -pin
Encoding D-coded
Mechanical data
Dimension (W x H x L) 100 mm x 156 mm x 99.5 mm
Housing material Metal
Net weight 1,185 g
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
2 / 10
Part no.: 50132933 – DDLS 508 120.3 L H – Optical data transmission
Operation and display
Type of display LED
Environmental data
Ambient temperature, operation -35 ... 50 °C
Ambient temperature, storage -35 ... 70 °C
Certifications
Degree of protection IP 65
Certifications c UL US
Test procedure for EMC in accordance with standard EN 1000-6-4
Test procedure for noise in accordance with standard EN 60068-2-64
Test procedure for oscillation in accordance with standard EN 60068-2-6
Test procedure for shock in accordance with standard EN 60068-2-27
Classification
eCl@ss 8.0 27100990
eCl@ss 9.0 27100990
Bar graph
EN 61000-6-2
Suitable receivers
Part no. Designation Article Description
50132934 DDLS 508 120.4 LHOptical data

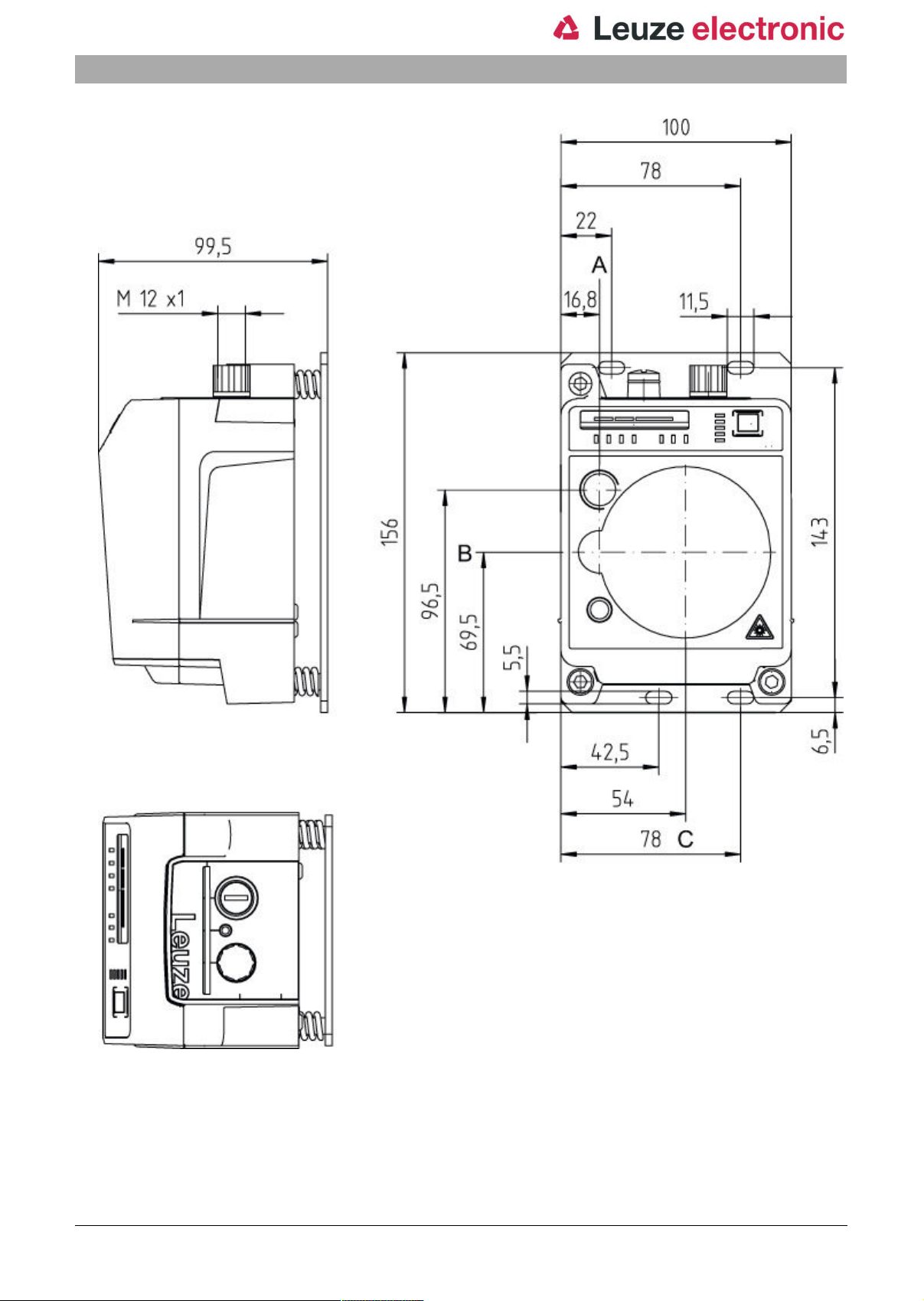

Dimensioned drawings
All dimensions in millimeters
transmission
Working range: 100 ... 120,000 mm
Interface: Ethernet
Connection: Connector, M12
Special design: Integrated laser alignment aid, Heating, Not
influenced by reflective surfaces, Operation of parallel light axes
Leuze electronic GmbH + Co. KG, In der Braike 1, 73277 Owen
eng 2018-04-07
3 / 10
