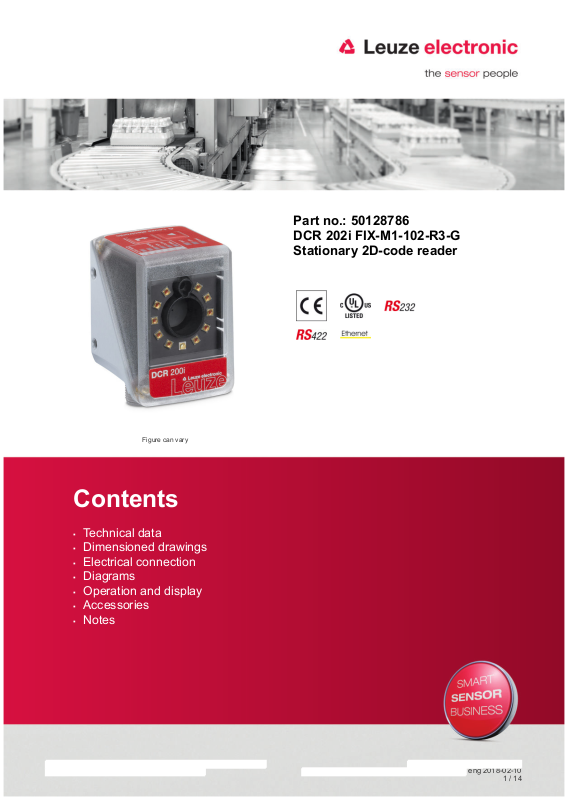

Leuze 50128786 Data Sheet

Figure can vary

Part no.: 50128786 DCR 202i FIX-M1-102-R3-G Stationary 2D-code reader

Technical data

Basic data

Series DCR 200i

Functions

Software functions Reading of 2D codes

Read data

Code types, readable Code 128

Reading of 1D codes

PDF417 Codabar Code 39 EAN 8/13 Data Matrix Code UPC GS1 Databar Omnidirectional GS1 Databar GS1 Databar QR code QR code Pharma Code Code 93 Aztec Code 32 EAN 128 2/5 Interleaved GS1 Databar Stacked

Optical data

Reading distance 50 ... 220 mm

Light source LED, Red

Transmitted-signal shape Pulsed

Camera resolution, horizontal 1,280 px

Camera resolution, vertical 960 px

Chip CMOS

Module size 0.19 ... 0.5 mm

Electronic shutter speed 0.068 ... 5 ms

Camera type Monochrome

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage 18 ... 30 V, DC

Average power consumption 8 W

Inputs

Number of digital switching inputs 1 Piece(s)

Switching inputs

Type Digital switching input

Voltage type DC

Polarity reversal protection

eng 2018-02-10

2 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Type Digital switching output

Voltage type DC

Switching current, max. 100 mA

Switching output 1

Switching element Transistor,

Switching principle +24 V switching

Inputs/outputs selectable

Number of inputs/outputs selectable 2 Piece(s)

Type Inputs/outputs selectable

Voltage type DC

Interface

Type RS 232, RS 422, Ethernet

RS 232

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 8 data bits

Stop bit 1 stop bit

Parity None

Transmission protocol <STX><data><CR><LF>

Data encoding Binary

RS 422

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 7, 8 data bits

Stop bit 1, 2 stop bits

Parity Adjustable

Data encoding ASCII

Ethernet

Architecture Client

Address assignment DHCP

Transmission speed 100 Mbit/s

Function Process

Switch functionality None

Transmission protocol TCP/IP , UDP

ASCII

Binary

Server

Manual address assignment

10 Mbit/s

Service interface

Type Ethernet

eng 2018-02-10

3 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

Ethernet

Function Service

Connection

Number of connections 2 Piece(s)

Connection 1

Type of connection Connector

Function Signal IN

Thread size M12

Type Male

Material Metal

No. of pins 12 -pin

Encoding A-coded

Connection 2

Type of connection Connector

Function Configuration interface

Thread size M12

Type Female

Material Metal

No. of pins 4 -pin

Encoding D-coded

Data interface Voltage supply Signal OUT

Data interface

Mechanical data

Design Cubic

Dimension (W x H x L) 43 mm x 61 mm x 44 mm

Housing material Metal

Lens cover material Glass

Net weight 120 g

Housing color Silver

Type of fastening Via optional mounting device

Operation and display

Type of display LED

Number of LEDs 10 Piece(s)

Type of configuration Teach-in

Operational controls Buttons

Function of the operational control Auto-setup

Environmental data

Ambient temperature, operation 0 ... 50 °C

Ambient temperature, storage -20 ... 70 °C

Relative humidity (non-condensing) 90 %

Plastic, Diecast aluminum, PC

Mounting thread

Configuration codes Via web browser

Adjustment mode Trigger

eng 2018-02-10

4 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

Certifications

Degree of protection IP 65

Protection class III

Certifications c UL US

Test procedure for EMC in accordance with standard EN 61000-6-4

Test procedure for continuous shock in accordance with standard IEC 60068-2-29, test Eb

Test procedure for vibration in accordance with standard IEC 60068-2-6, test Fc

Classification

eCl@ss 8.0 27280103

eCl@ss 9.0 27280103

ETIM 5.0 EC002550

Dimensioned drawings

All dimensions in millimeters

EN 61000-6-2

Electrical connection

Connection 1 PWR / SWIO

Type of connection Connector

Function Signal IN

Data interface Voltage supply Signal OUT

Thread size M12

Type Male

Material Metal

No. of pins 12 -pin

Encoding A-coded

eng 2018-02-10

5 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

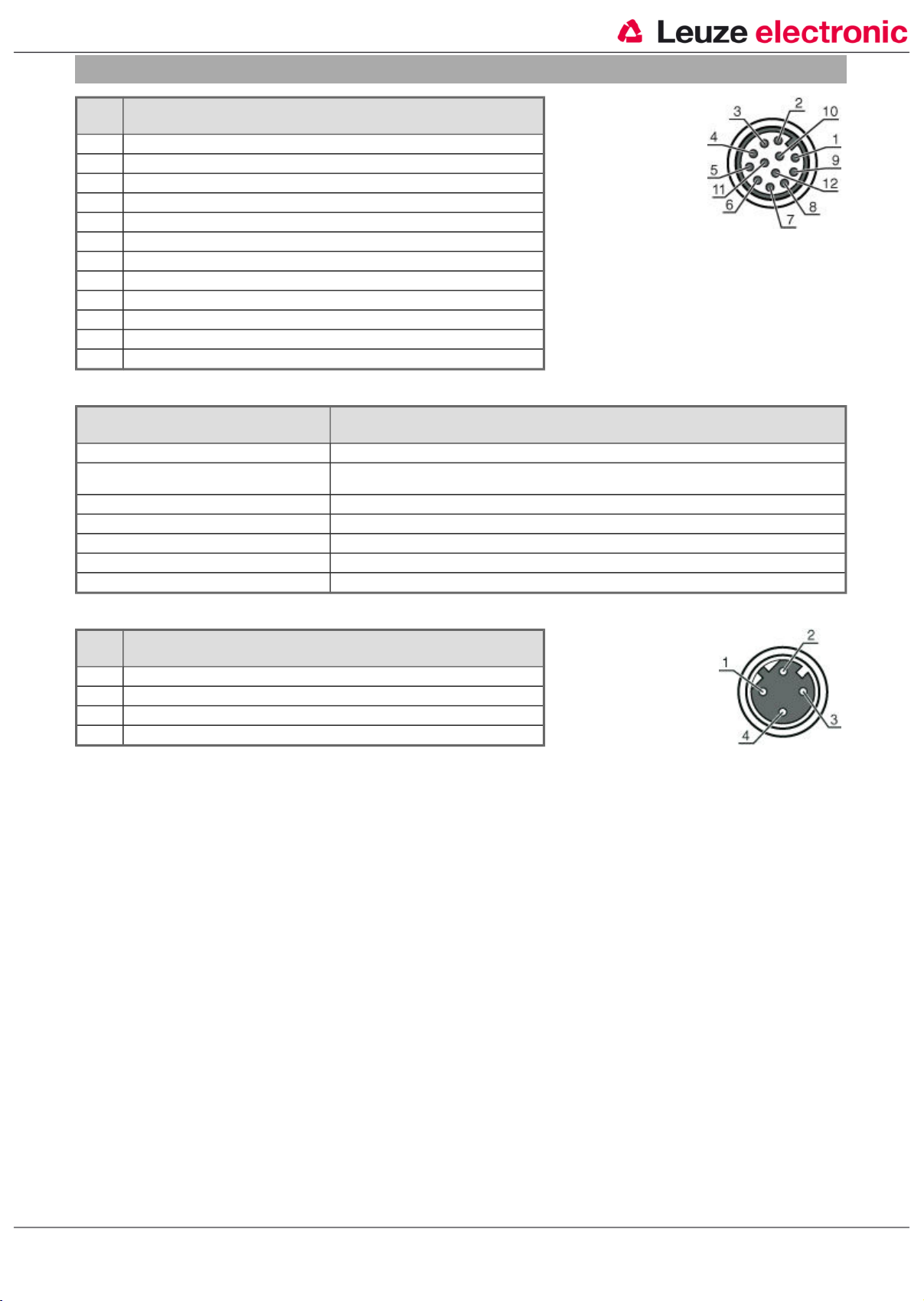

Pin Pin assignment

1 VIN

2 GNDIN

3 SWIN 1

4 SWOUT 2

5 FE

6 GND RS 232 / GND RS 422

7 Rx-

8 Tx-

9 RxD/Rx+

10 TxD/Tx+

11 SWIO 3

12 SWIO 4

Connection 2 HOST

Type of connection Connector

Function Configuration interface

Thread size M12

Type Female

Material Metal

No. of pins 4 -pin

Encoding D-coded

Data interface

Pin Pin assignment

1 TD+

2 RD+

3 TD-

4 RD-

eng 2018-02-10

6 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

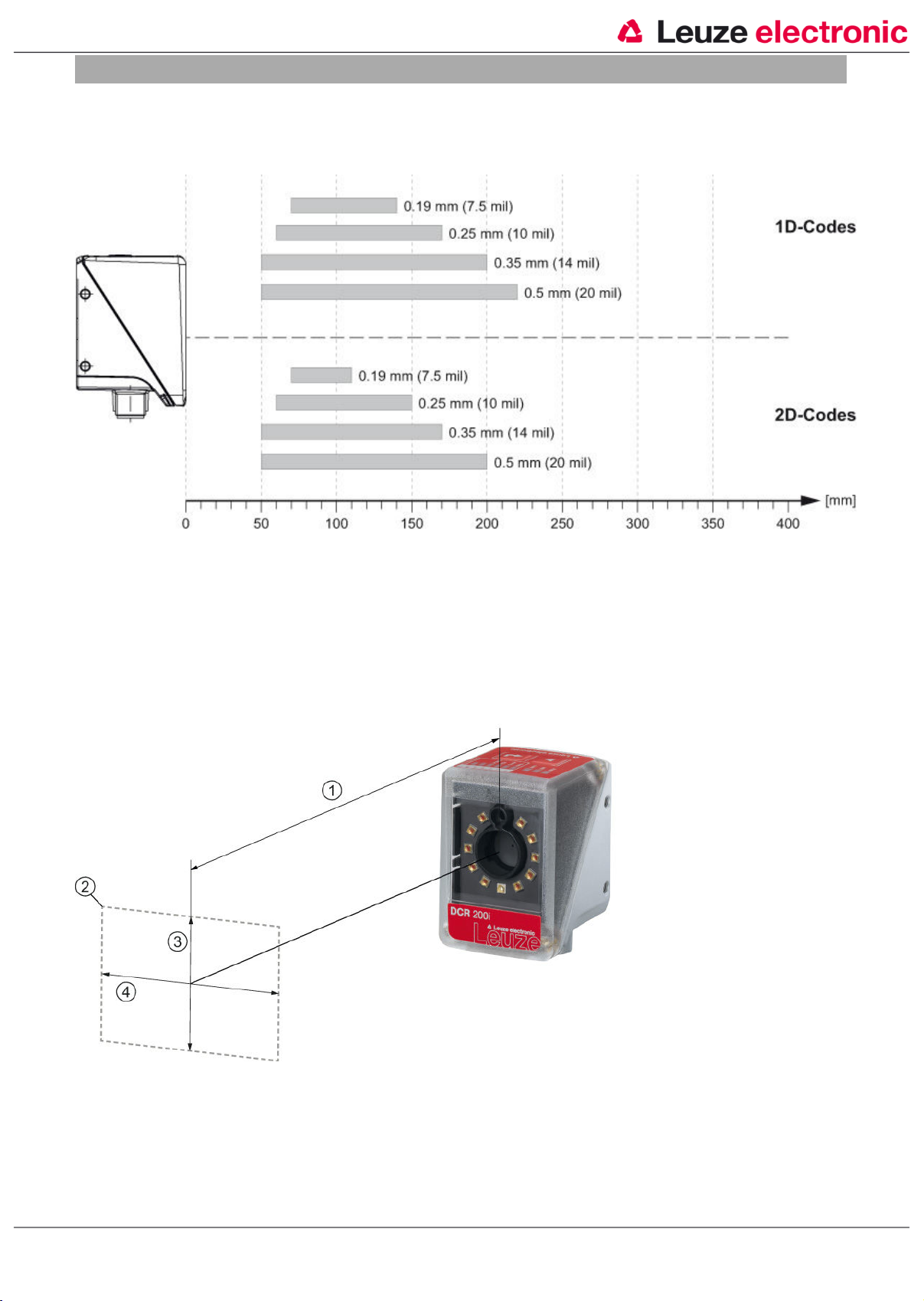

Diagrams

Reading distances

Relationship between camera distance and reading field size

1 Camera distance 2 Reading field 3 Reading field height [mm] 4 Reading field width [mm]

eng 2018-02-10

7 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

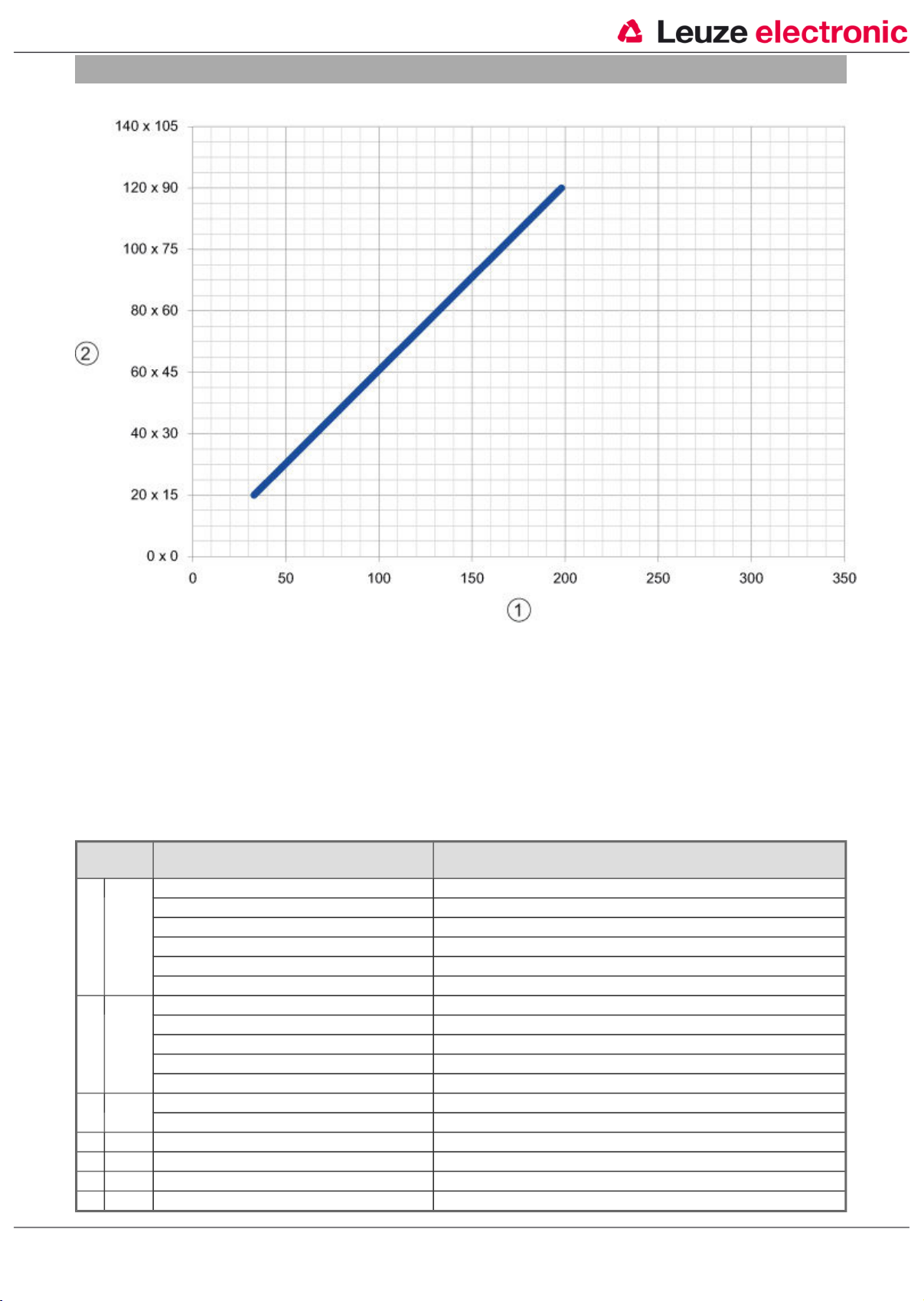

1 Camera distance [mm] 2 Reading field: width x height [mm]

Operation and display

LEDs

LED Display Meaning

1 PWR Off No supply voltage

Green, flashing Initialization

Green, continuous light Operational readiness

Orange, continuous light Service operation

Red, flashing Device OK, warning set

Red, continuous light Device error

2 NET Off No supply voltage

Green, flashing Initialization

Green, continuous light Operational readiness

Red, flashing Communication error

Red, continuous light Network error

3 LINK Green, continuous light Ethernet connection is established

Yellow, flashing Data exchange active

4 TRIG Green, flashing Trigger and display of the read quality

5 AUTO Green, flashing Auto-setup and display of the read quality

6 ADJ Green, flashing Alignment mode and display of the read quality

7 TEACH Green, flashing Teach-in and display of the read quality

eng 2018-02-10

8 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

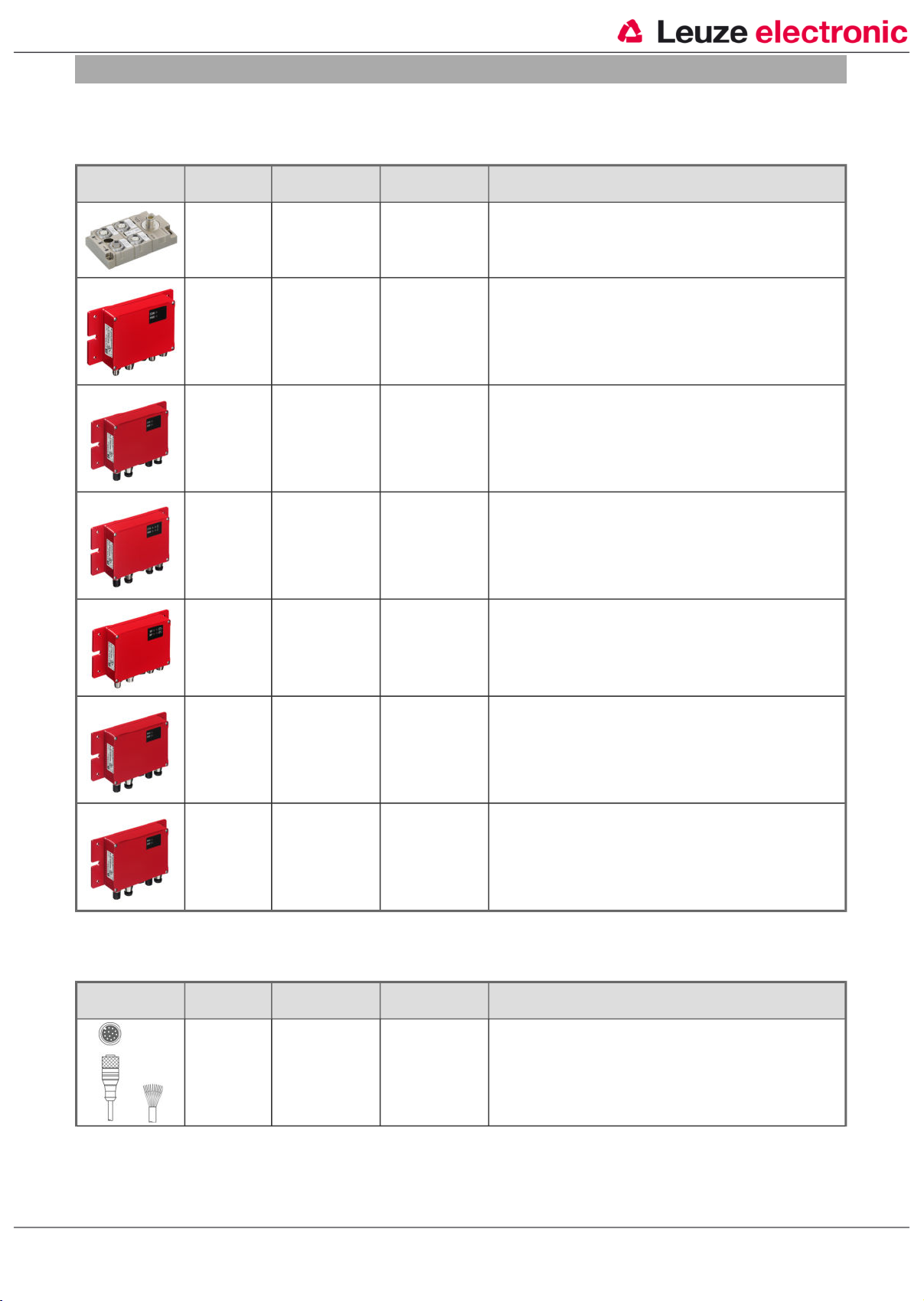

Accessories

Connection technology - Connection unit

Part no. Designation Article Description

50130109 MA 150 Modular

50112893 MA 204i Profibus

Gateway

50114154 MA 235i

CANopen Gateway

50114155 MA 238i EtherCAT

Gateway

50112891 MA 248i Profinet

Gateway

connection unit

Modular connection unit

Supply voltage: 18 ... 30 V Current consumption, max.: 150 mA Connections: 5 Piece(s) Degree of protection: IP 67

Supply voltage: 18 ... 30 V Current consumption, max.: 300 mA Interface: PROFIBUS DP, RS 232 Connections: 6 Piece(s) Degree of protection: IP 65

Supply voltage: 18 ... 30 V Current consumption, max.: 300 mA Interface: CANopen, RS 232 Connections: 6 Piece(s) Degree of protection: IP 65

Supply voltage: 18 ... 30 V Current consumption, max.: 300 mA Interface: EtherCAT, RS 232 Connections: 6 Piece(s) Degree of protection: IP 65

Supply voltage: 18 ... 30 V Current consumption, max.: 300 mA Interface: PROFINET, RS 232 Connections: 6 Piece(s) Degree of protection: IP 65

50114156 MA 255i

DeviceNet Gateway

50114157 MA 258i EtherNet/

IP Gateway

Modular connection unit

Supply voltage: 18 ... 30 V Current consumption, max.: 300 mA Interface: RS 232, DeviceNet Connections: 6 Piece(s) Degree of protection: IP 67

Supply voltage: 18 ... 30 V Current consumption, max.: 300 mA Interface: EtherNet IP, RS 232 Connections: 6 Piece(s) Degree of protection: IP 65

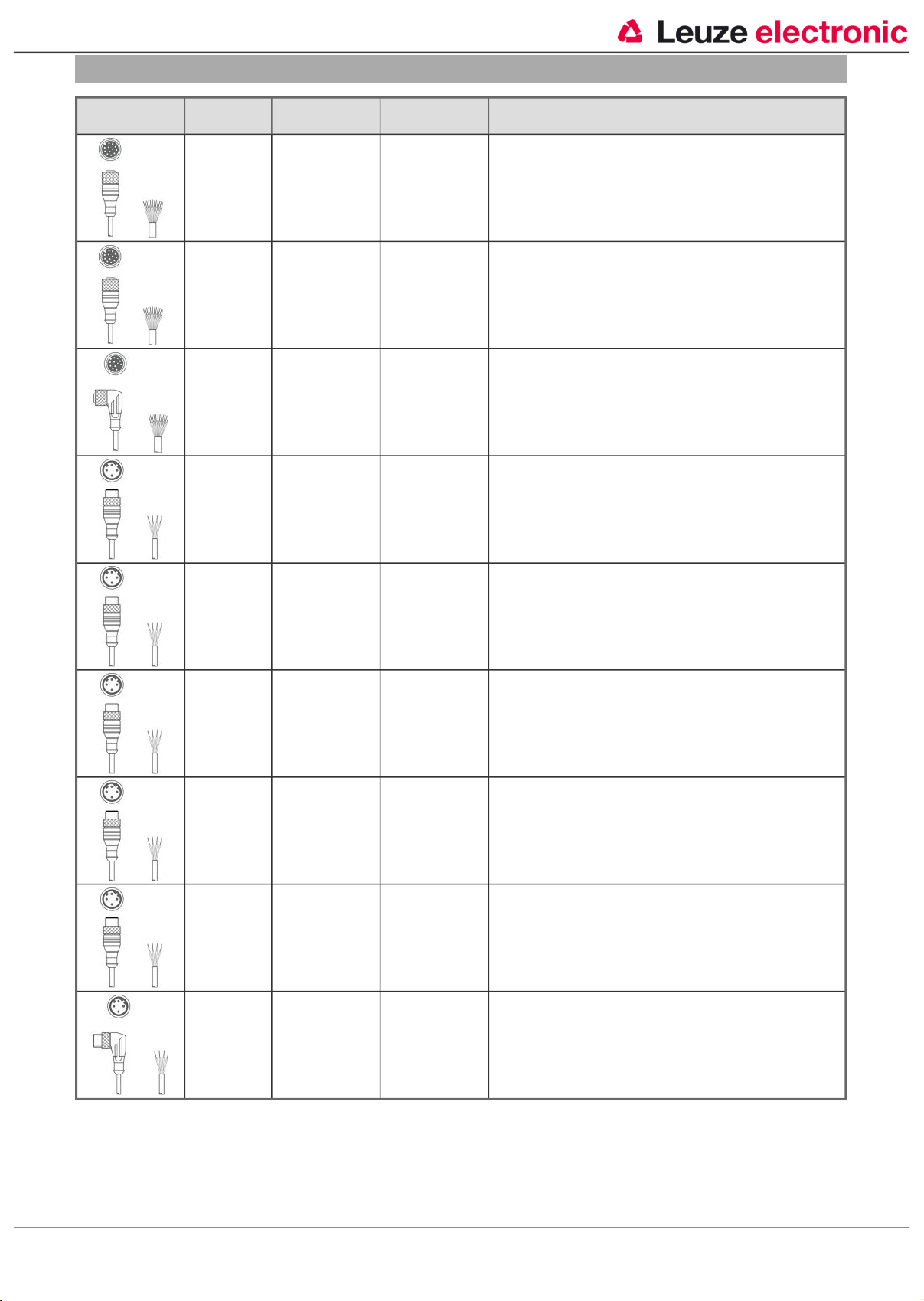

Connection technology - Connection cables

Part no. Designation Article Description

50130281 KD S-M12-CA-

P1-020

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin

Connection 2: Open end Shielded: Yes Cable length: 2,000 mm Sheathing material: PUR

eng 2018-02-10

9 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

Part no. Designation Article Description

50130282 KD S-M12-CA-

P1-050

50130283 KD S-M12-CA-

P1-100

50134943 KD S-M12-CW-

P1-050

50135073 KS ET-M12-4A-

P7-020

50135074 KS ET-M12-4A-

P7-050

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin

Connection 2: Open end Shielded: Yes Cable length: 5,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin

Connection 2: Open end Shielded: Yes Cable length: 10,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 12 -

pin Connection 2: Open end Shielded: Yes Cable length: 5,000 mm Sheathing material: PUR

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 2,000 mm Sheathing material: PUR

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 5,000 mm Sheathing material: PUR

50135075 KS ET-M12-4A-

P7-100

50135076 KS ET-M12-4A-

P7-150

50135077 KS ET-M12-4A-

P7-300

50134942 KS ET-M12-4W-

P7-050

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 10,000 mm Sheathing material: PUR

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 15,000 mm Sheathing material: PUR

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 30,000 mm Sheathing material: PUR

Connection cable Suitable for interface: Ethernet

Connection 1: Connector, M12, Angled, Male, D-coded, 4 -pin Connection 2: Open end Shielded: Yes Cable length: 5,000 mm Sheathing material: PUR

eng 2018-02-10

10 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

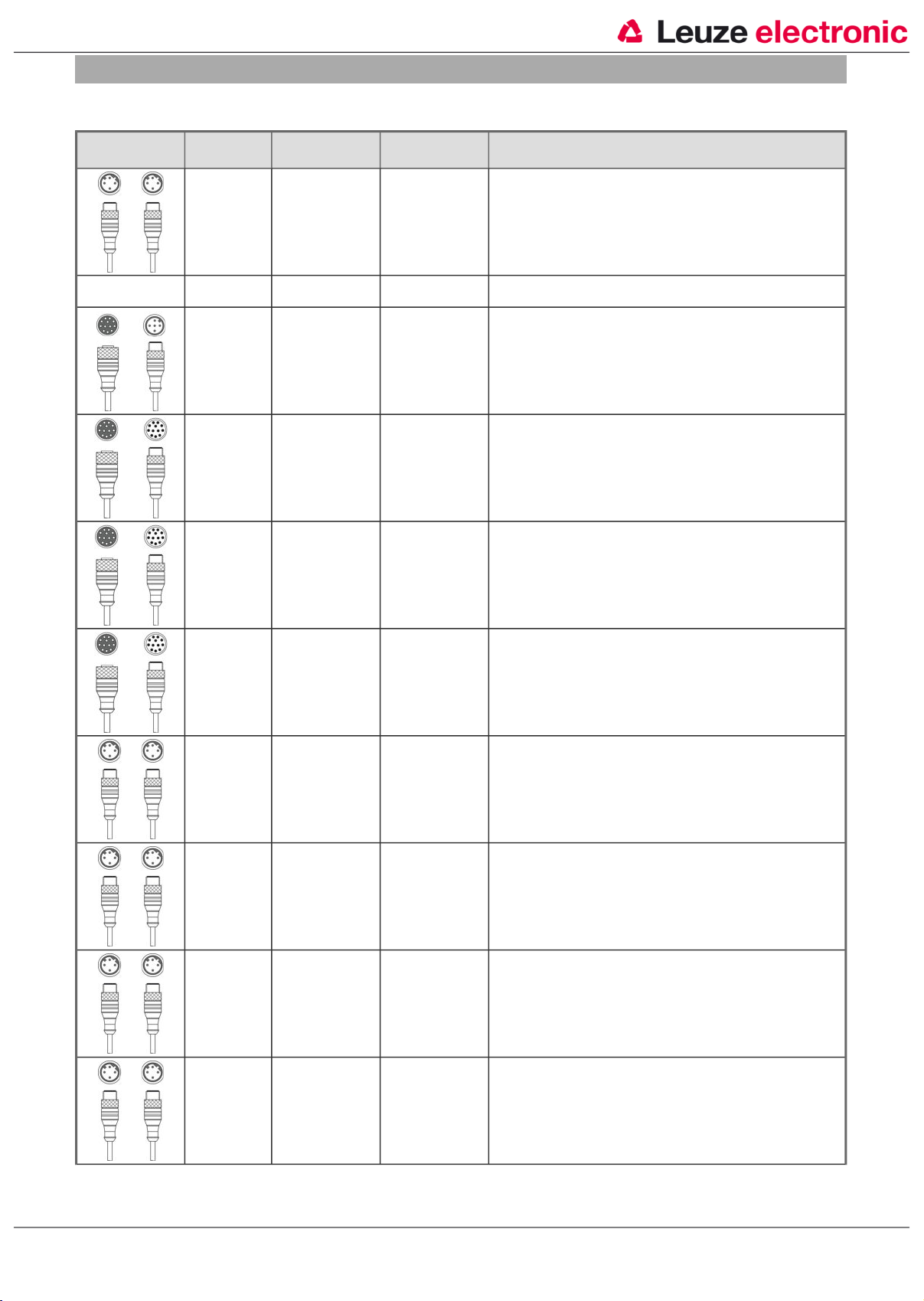

Connection technology - Interconnection cables

Part no. Designation Article Description

50106905 KB

ET-30000-SSA

50132488 KB JST-

M12A-12P-50

50137694 KDS S-M12-CA-

M12-5AP1-004-23X

50130284 KDS S-M12-CA-

M12-CA-P1-020

50130285 KDS S-M12-CA-

M12-CA-P1-050

Interconnection cable

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin Shielded: Yes Cable length: 30,000 mm Sheathing material: PUR

Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin Connection 2: Connector, M12, Axial, Male, A-coded, 5 -pin Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 400 mm Sheathing material: PUR

Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin Connection 2: Connector, M12, Axial, Male, A-coded, 12 -pin Shielded: Yes Cable length: 2,000 mm Sheathing material: PUR

Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin Connection 2: Connector, M12, Axial, Male, A-coded, 12 -pin Shielded: Yes Cable length: 5,000 mm Sheathing material: PUR

50130286 KDS S-M12-CA-

M12-CA-P1-100

50137077 KSS ET-M12-4A-

M12-4A-P7-020

50137078 KSS ET-M12-4A-

M12-4A-P7-050

50137079 KSS ET-M12-4A-

M12-4A-P7-100

50137080 KSS ET-M12-4A-

M12-4A-P7-150

Interconnection cable

Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin Connection 2: Connector, M12, Axial, Male, A-coded, 12 -pin Shielded: Yes Cable length: 10,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin Shielded: Yes Cable length: 1,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin Shielded: Yes Cable length: 10,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: Connector, M12, Axial, Male, D-coded, 4 -pin Shielded: Yes Cable length: 15,000 mm Sheathing material: PUR

eng 2018-02-10

11 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

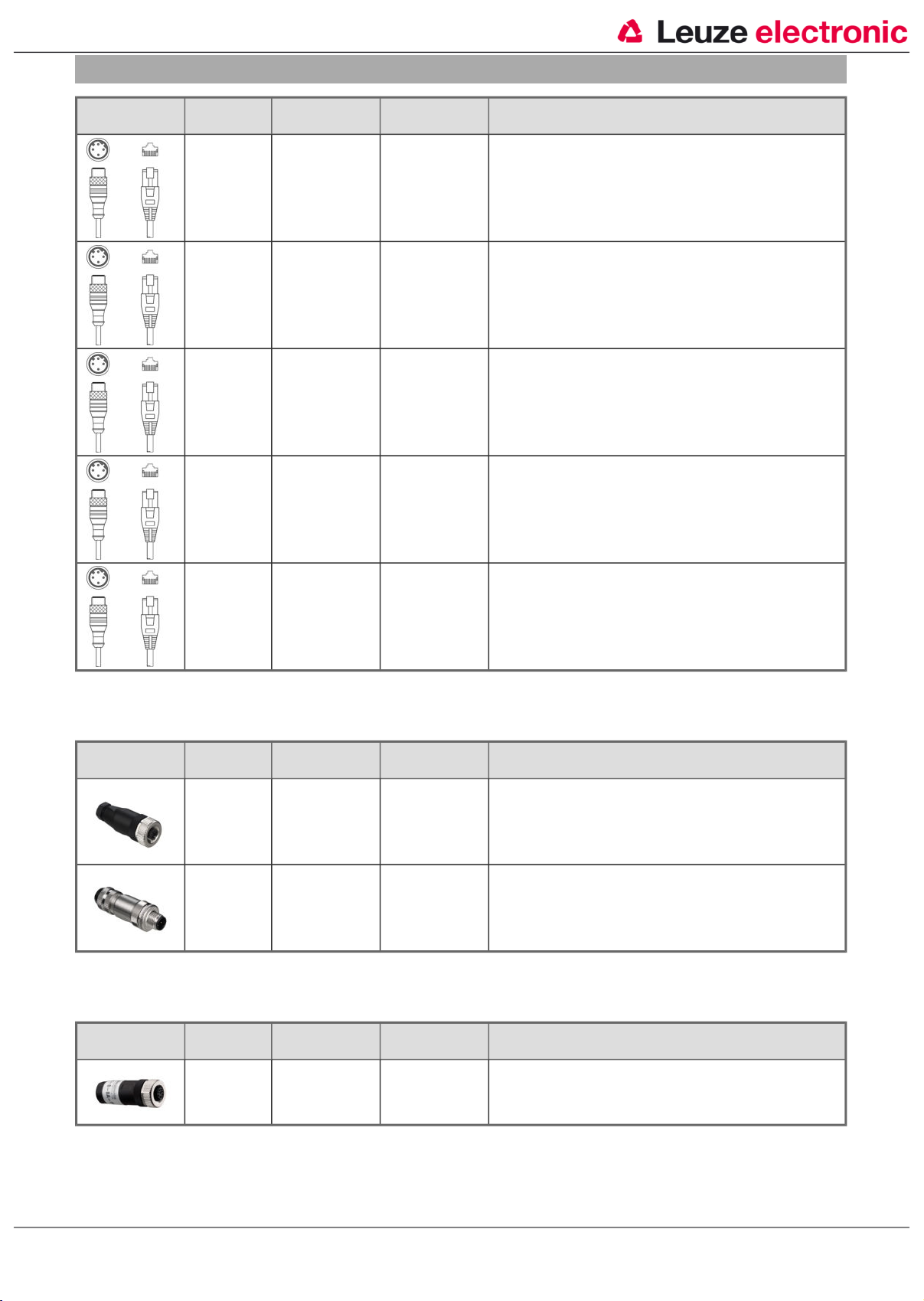

Part no. Designation Article Description

50135080 KSS ET-M12-4A-

RJ45-A-P7-020

50135081 KSS ET-M12-4A-

RJ45-A-P7-050

50135082 KSS ET-M12-4A-

RJ45-A-P7-100

50135083 KSS ET-M12-4A-

RJ45-A-P7-150

50135084 KSS ET-M12-4A-

RJ45-A-P7-300

Interconnection cable

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 2,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 5,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 10,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 15,000 mm Sheathing material: PUR

Suitable for interface: Ethernet Connection 1: Connector, M12, Axial, Male, D-coded, 4 -pin Connection 2: RJ45 Shielded: Yes Cable, crossed: Connection 1, pin 2 <-> connection 2, pin 3 Cable length: 30,000 mm Sheathing material: PUR

Connection technology - Connectors

Part no. Designation Article Description

50132254 D M12A-12P Connector Connection: Connector with solder connection, M12, Axial,

50112155 S-M12A-ET Connector Suitable for interface: Ethernet

Connection technology - Adapters

Part no. Designation Article Description

50132255 D M12A-12P-

PWR

Adapter Number of connections: 2 Piece(s)

Female, A-coded, 12 -pin

Connection: Connector, M12, Axial, Male, D-coded, 4 -pin

Connection 1: Connector, M12, Axial, Female, A-coded, 12 -pin Connection 2: Jack socket

eng 2018-02-10

12 / 14

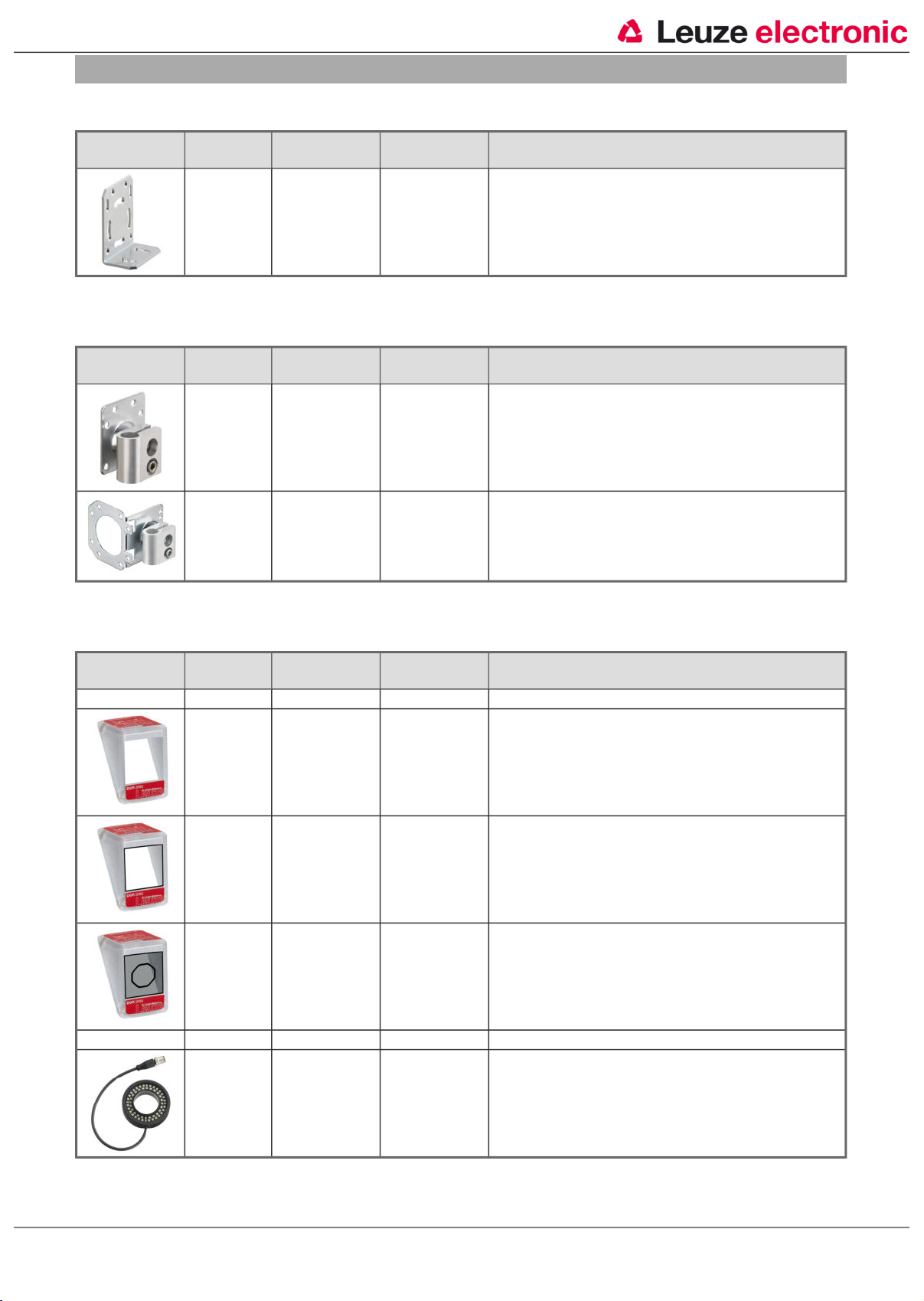

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

Mounting technology - Mounting brackets

Part no. Designation Article Description

50132151 BT 320M Mounting bracket Design of mounting device: Angle, L-shape

Mounting technology - Rod mounts

Part no. Designation Article Description

50132150 BTU 320M-D12 Mounting system Contains: 4x M4 x 6 screws

50132453 BTU 320M-

D12-RL70

Mounting system Contains: 4x M4 x 6 screws

Mounting bracket, at system: Through-hole mounting Mounting bracket, at device: Screw type Type of mounting device: Rigid Material: Metal

Design of mounting device: Mounting system Mounting bracket, at system: For 12 mm rod Mounting bracket, at device: Screw type Type of mounting device: Clampable, Adjustable, Turning, 360° Material: Metal

Design of mounting device: Mounting system Mounting bracket, at system: For 12 mm rod Mounting bracket, at device: Screw type Type of mounting device: Turning, 360°, Adjustable, Clampable Material: Metal

General

Part no. Designation Article Description

50132562 AC-RL-70/40-Diff Vision component

50131462 Cover DCR 200i Cover hood Housing material: Plastic

50131461 Cover DCR 200i-GCover hood Housing material: Plastic

50131460 Cover DCR 200i-PCover hood Housing material: Plastic

50131459 Diffusor DCR 200i Film

50132511 RL-70/

40r-003-M12

Illumination

Optics cover: Plastic

Optics cover: Glass

Optics cover: Glass with polarization filter

eng 2018-02-10

13 / 14

Part no.: 50128786 – DCR 202i FIX-M1-102-R3-G – Stationary 2D-code reader

Notes

Observe intended use!

• This product is not a safety sensor and is not intended as personnel protection.

• The product may only be put into operation by competent persons.

• Only use the product in accordance with its intended use.

eng 2018-02-10

14 / 14

Leuze 50128786 Data Sheet

Contents

Technical data

Dimensioned drawings

Electrical connection

Diagrams

Reading distances

Relationship between camera distance and reading field size

Operation and display

LEDs

Accessories

Notes
