Leuze 50128150 Data Sheet

Part no.: 50128150 – IS 212MM/1NO.3-2E0 – Inductive switch

Technical data

Basic data

Series 212

Typ. operating range limit S

Operating range S

Measurement data

Repeatability 0.5 mm

Electrical data

Protective circuit Polarity reversal protection

Performance data

Supply voltage 10 ... 320 V, AC/DC

Residual ripple 0 ... 20 %, From U

Open-circuit current 0 ... 1 mA

Temperature drift, max. (in % of Sr) 10 %, Over the entire operating temperature range

Repeatability, max. (in % of Sr) 5 %, For UB= 20 … 30 V DC, ambient temperature

Switching hysteresis 20 %

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Voltage type AC/DC

Switching current, max. 200 mA

Switching voltage low: ≤6V

Voltage drop 6 V

Switching output 1

Switching element Relay, NO

Switching principle NO (normally open)

a

n

2 mm

0 ... 1.6 mm

Short circuit protected
Inductive protection

B

Ta= 23 °C ± 5 °C

Timing

Switching frequency 3,000 Hz

Oscillator frequency 350,000 Hz

Readiness delay 10 ms

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Cable

Function Voltage supply

Cable length 2,000 mm

Sheathing material PVC

Cable color Black

Number of conductors 2 -wire

Wire cross section 0.34 mm²

Mechanical data

eng 2018-03-27

2 / 7

Part no.: 50128150 – IS 212MM/1NO.3-2E0 – Inductive switch

Design Cylindrical

Thread size M12 x 1 mm

Dimension (Ø x L) 12 mm x 52 mm

Type of installation Embedded

Housing material Metal, Chromed brass

Sensing face material Plastic, Polybutylene (PBT)

Net weight 93 g

Housing color Silver

Type of fastening Via optional mounting device

Standard measuring plate 12 x 12 mm², Fe360

Operation and display

Type of display LED

Number of LEDs 1 Piece(s)

Environmental data

Ambient temperature, operation -25 ... 70 °C

Mounting thread

Certifications

Degree of protection IP 67

Test procedure for EMC in accordance with standard IEC 61000-4-3

Standards applied IEC 60947-5-2

Correction factors

Aluminum 0.27

Stainless steel 0.78

Copper 0.23

Brass 0.4

Fe360 steel 1

Classification

eCl@ss 8.0 27270101

eCl@ss 9.0 27270101

ETIM 5.0 EC002714

IEC 61000-4-4
IEC 61000-4-2

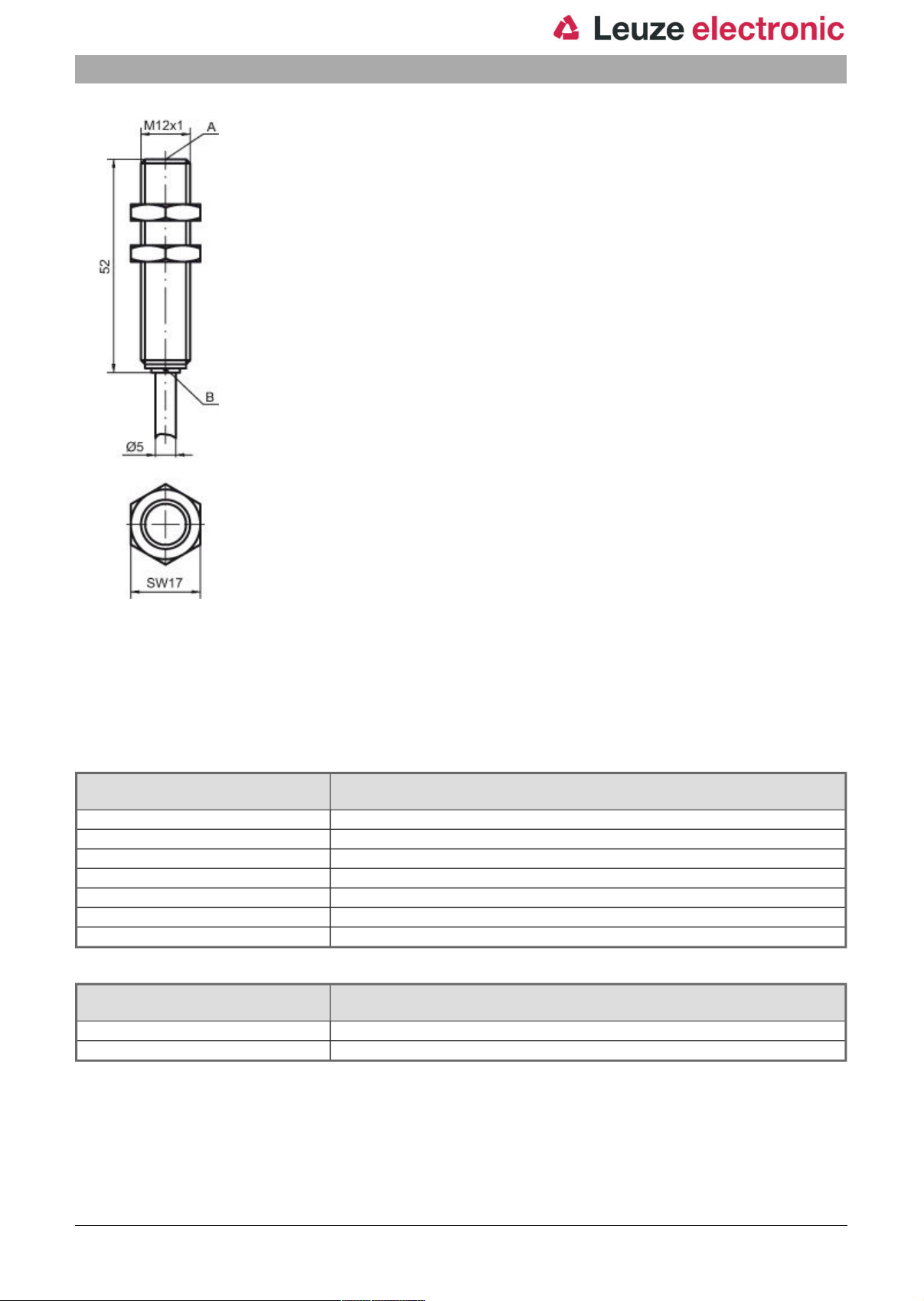

Dimensioned drawings

All dimensions in millimeters

eng 2018-03-27

3 / 7

Part no.: 50128150 – IS 212MM/1NO.3-2E0 – Inductive switch

A Active surface
B Yellow LED

Electrical connection

Connection 1

Type of connection Cable

Function Voltage supply

Cable length 2,000 mm

Sheathing material PVC

Cable color Black

Number of conductors 2 -wire

Wire cross section 0.34 mm²

Conductor color Conductor assignment

Brown V+

Blue 0 V

eng 2018-03-27

4 / 7

Part no.: 50128150 – IS 212MM/1NO.3-2E0 – Inductive switch

Diagrams

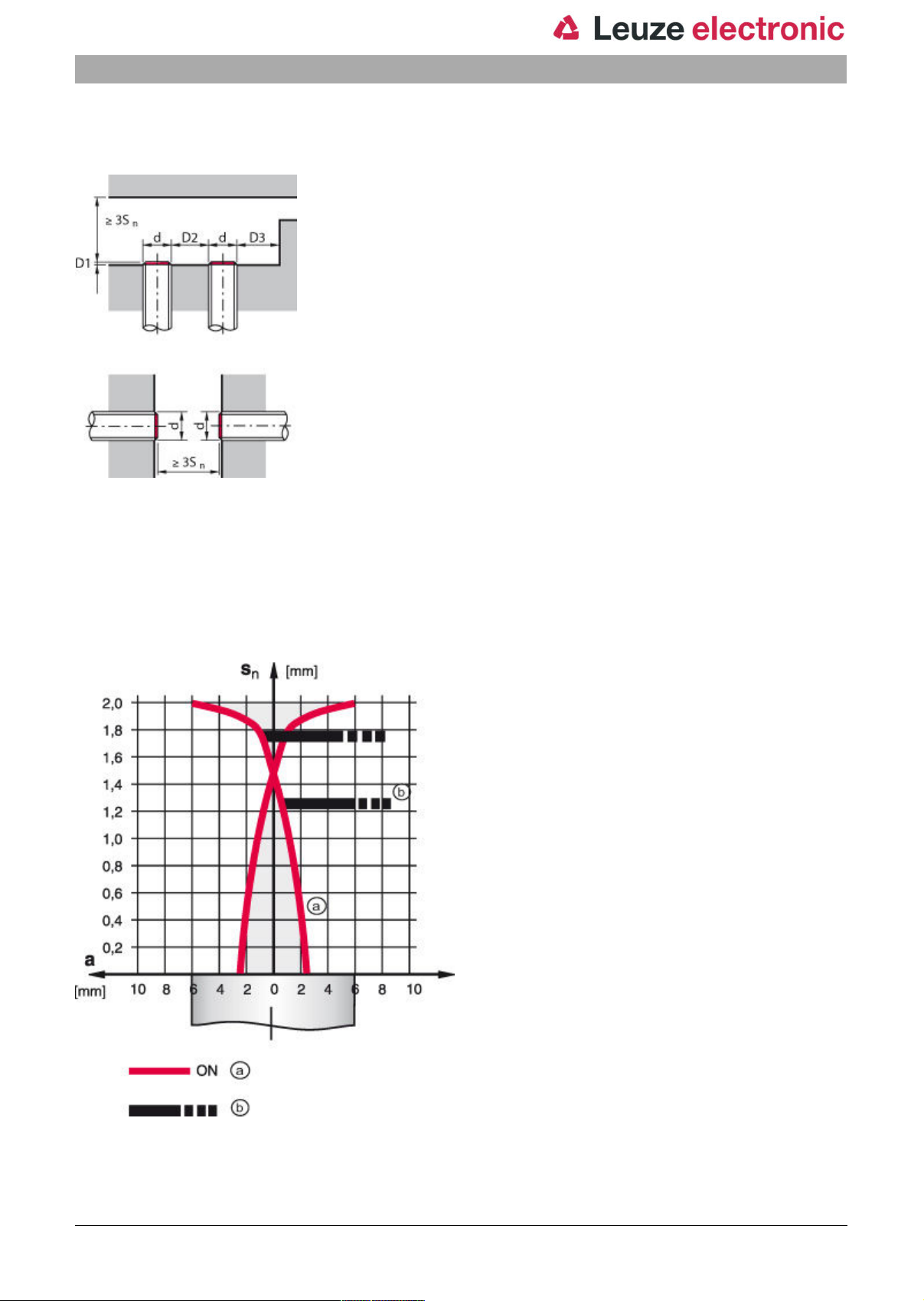

Embedded installation

Sn[mm]
D1 [mm] 0

D2 [mm] 6
D3 [mm] 2

2

Types with Sn= 2.0 mm

a Inductive switch
b

Standard measuring plate

eng 2018-03-27

5 / 7

Part no.: 50128150 – IS 212MM/1NO.3-2E0 – Inductive switch

Operation and display

LEDs

LED Display Meaning

1 Yellow, continuous light Switching output/switching state

Part number code

Part designation: ISX YYY ZZ/AAA.BB-CCC-DDD-DDD

ISX Operating principle / construction:

YYY Series:

ZZ Housing / thread:

AAA Output current / supply:

BB Special equipment:

CCC Measurement range / type of installation:

DDD Electrical connection:

IS: inductive switch, standard design
ISS: inductive switch, short construction

203: series with Ø 3 mm
204: series with Ø 4 mm
205: series with M5 x 0.5 external thread
206: series with Ø 6.5 mm
208: series with M8 x 1 external thread
212: series with M12 x 1 external thread
218: series with M18 x 1 external thread
230: series with M30 x 1.5 external thread
240: series in cubic design
244: series in cubic design
255: series with 5 x 5 mm² cross section
288: series with 8 x 8 mm² cross section

MM: metal housing (active surface: plastic) / metric thread
FM: full-metal housing (active surface: stainless steel AISI 316L) / metric thread

4NO: PNP transistor, NO contact
4NC: PNP transistor, NC contact
2NO: NPN transistor, NO contact
2NC: NPN transistor, NC contact
1NO: relay, NO contact / AC/DC
1NC: relay, NC contact / AC/DC

n/a: no special equipment
5F: food version
5: housing material V2A (1.4305, AISI 303)

1E0: typ. scanning range limit 1.0 mm / embedded installation
1E5: typ. scanning range limit 1.5 mm / embedded installation
2E0: typ. scanning range limit 2.0 mm / embedded installation
3E0: typ. scanning range limit 3.0 mm / embedded installation
4E0: typ. scanning range limit 4.0 mm / embedded installation
5E0: typ. scanning range limit 5.0 mm / embedded installation
6E0: typ. scanning range limit 6.0 mm / embedded installation
8E0: typ. scanning range limit 8.0 mm / embedded installation
10E: typ. scanning range limit 10.0 mm / embedded installation
12E: typ. scanning range limit 12.0 mm / embedded installation
20E: typ. scanning range limit 20.0 mm / embedded installation
22E: typ. scanning range limit 22.0 mm / embedded installation
2N5: typ. scanning range limit 2.5 mm / non-embedded installation
4N0: typ. scanning range limit 4.0 mm / non-embedded installation
8N0: typ. scanning range limit 8.0 mm / non-embedded installation
10N: typ. scanning range limit 10.0 mm / non-embedded installation
12N: typ. scanning range limit 12.0 mm / non-embedded installation
15N: typ. scanning range limit 15.0 mm / non-embedded installation
20N: typ. scanning range limit 20.0 mm / non-embedded installation
25N: typ. scanning range limit 25.0 mm / non-embedded installation
40N: typ. scanning range limit 40.0 mm / non-embedded installation

n/a: cable, PVC, standard length 2000 mm
S12: M12 connector, 4-pin, axial
200-S12: cable, PVC, length 200 mm with M12 connector, 4-pin, axial

Note

A list with all available device types can be found on the Leuze electronic website at www.leuze.com.

eng 2018-03-27

6 / 7

Part no.: 50128150 – IS 212MM/1NO.3-2E0 – Inductive switch

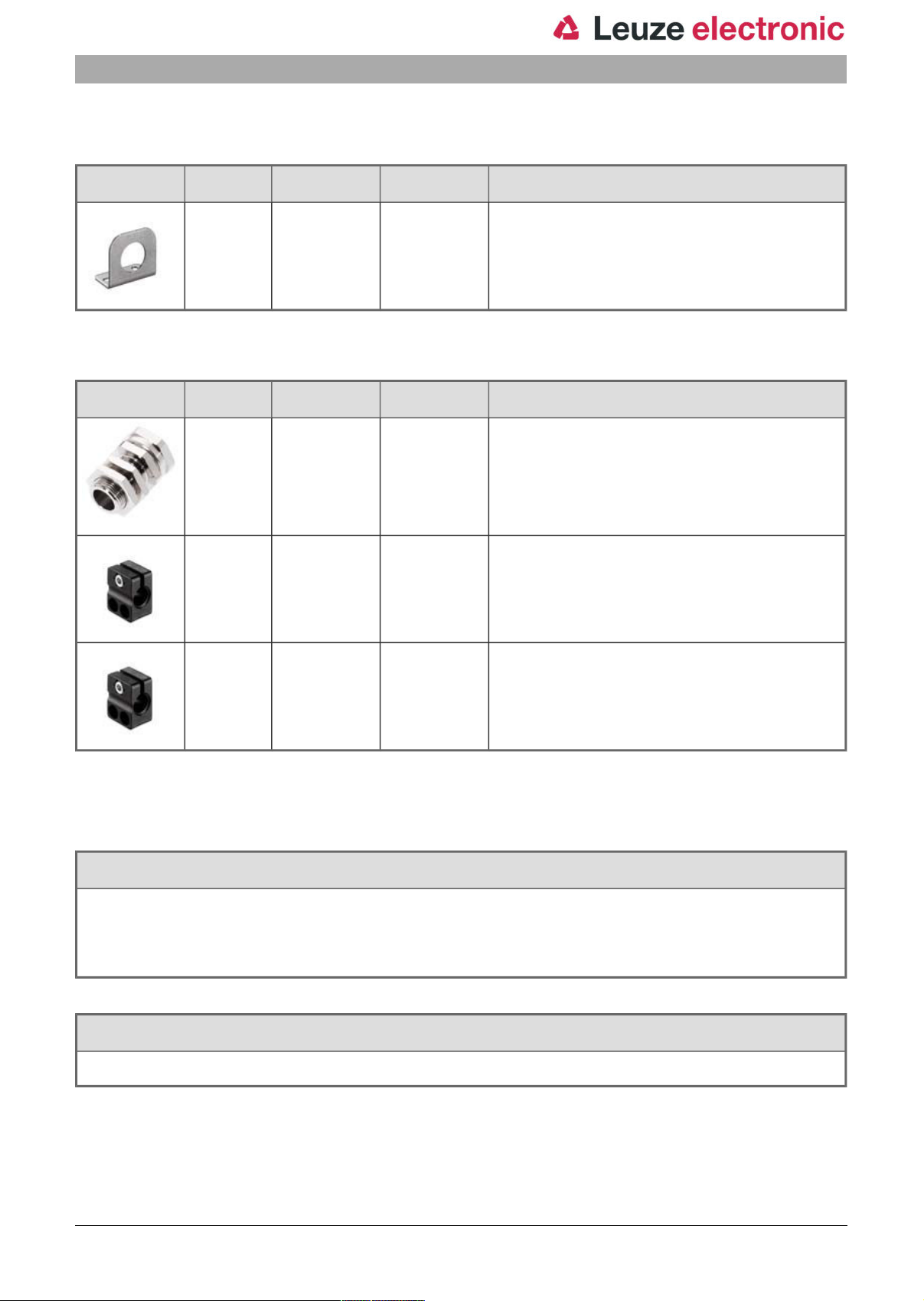

Accessories

Mounting technology - Mounting brackets

Part no. Designation Article Description

50113549 BT D12M.5 Mounting bracket Diameter, inner: 12 mm

Mounting technology - Other

Part no. Designation Article Description

50132728 AC D12M-CS Clamp Contains: 2x M16 mounting nut

50111499 MC 012K Clamp Diameter, inner: 12 mm

50111500 MC 012K-LS Clamp Diameter, inner: 12 mm

Design of mounting device: Angle, L-shape
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Rigid
Material: Stainless steel

Diameter, inner: 12 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Screw type, Through-hole
mounting
Mounting bracket, at device: Insertable, Clampable with limit
stop
Type of mounting device: Clampable, With limit stop
Material: Metal

Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable
Type of mounting device: Rigid
Material: Plastic

Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable with limit stop
Type of mounting device: Rigid
Material: Plastic

Notes

Observe intended use!

• This product is not a safety sensor and is not intended as personnel protection.

• The product may only be put into operation by competent persons.

• Only use the product in accordance with its intended use.
