Part no.: 50121901 – IS 206MP/4NO-2E0,150-S8.3W – Inductive switch

Technical data

Basic data

Series 206

Typ. operating range limit S

Operating range S

Characteristic parameters

MTTF 900 years

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage 10 ... 30 V, DC

Residual ripple 0 ... 20 %, From U

Open-circuit current 0 ... 10 mA

Temperature drift, max. (in % of Sr) 10 %, Over the entire operating temperature range

Repeatability, max. (in % of Sr) 5 %, For UB= 20 … 30 V DC, ambient temperature

Switching hysteresis 10 %

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Voltage type DC

Switching current, max. 200 mA

Switching voltage Low: ≤2V

Residual current, max. 0.1 mA

Voltage drop 2 V

Switching output 1

Switching element Transistor, PNP

Switching principle NO (normally open)

2 mm

0 ... 1.6 mm

Polarity reversal protection Inductive protection

Ta= 23 °C ± 5 °C

Timing

Switching frequency 5,000 Hz

Readiness delay 10 ms

Connection

Number of connections 1 Piece(s)

eng 2018-03-27

2 / 9

Page 3

Part no.: 50121901 – IS 206MP/4NO-2E0,150-S8.3W – Inductive switch

Connection 1

Type of connection Cable with connector

Function Signal OUT

Cable length 150 mm

Sheathing material PVC

Cable color Gray

Wire cross section 0.14 mm²

Thread size M8

Type Male

Material Stainless steel

No. of pins 3 -pin

Encoding A-coded

Design Angled

Mechanical data

Design Cylindrical

Dimension (Ø x L) 6.5 mm x 35 mm

Type of installation Embedded

Housing material Stainless steel, V2A

Sensing face material Plastic, Polyamide (PA 12)

Net weight 10 g

Housing color Silver

Type of fastening Via optional mounting device

Standard measuring plate 6.5 x 6.5 mm², Fe360

Voltage supply

Red, RAL 3000

Operation and display

Type of display LED

Number of LEDs 1 Piece(s)

Environmental data

Ambient temperature, operation -25 ... 70 °C

Ambient temperature, storage -25 ... 70 °C

Certifications

Degree of protection IP 67

Protection class III

Certifications c UL US

Test procedure for EMC in accordance with standard IEC 61000-4-2

Standards applied IEC 60947-5-2

Correction factors

Aluminum 0.3

Stainless steel 0.7

Copper 0.25

Brass 0.4

Fe360 steel 1

IEC 61000-4-3 IEC 61000-4-4

eng 2018-03-27

3 / 9

Page 4

Part no.: 50121901 – IS 206MP/4NO-2E0,150-S8.3W – Inductive switch

Classification

eCl@ss 8.0 27270101

eCl@ss 9.0 27270101

ETIM 5.0 EC002714

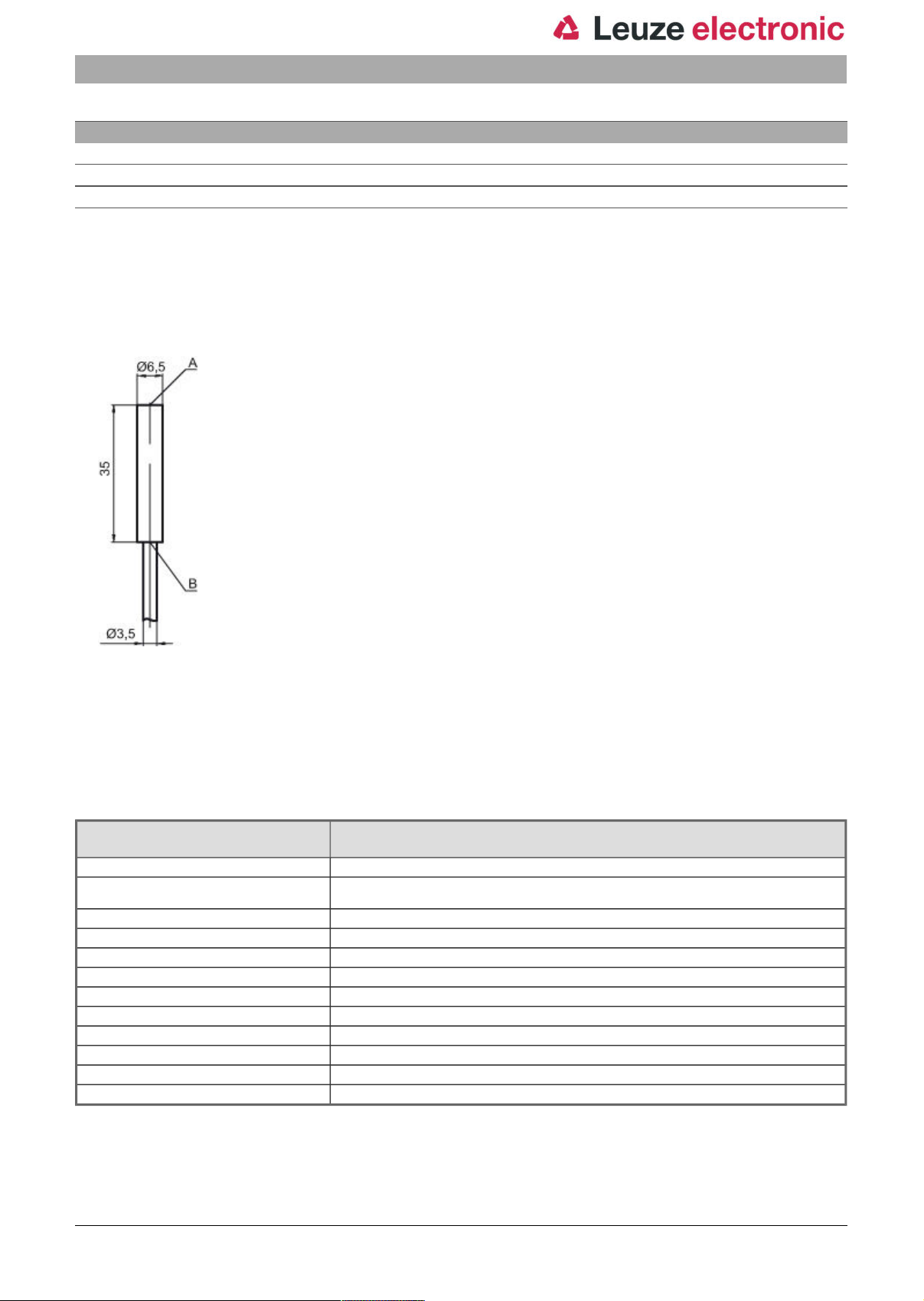

Dimensioned drawings

All dimensions in millimeters

A Active surface B Yellow LED

Electrical connection

Connection 1

Type of connection Cable with connector

Function Signal OUT

Cable length 150 mm

Sheathing material PVC

Cable color Gray

Wire cross section 0.14 mm²

Thread size M8

Type Male

Material Stainless steel

No. of pins 3 -pin

Encoding A-coded

Design Angled

Voltage supply

eng 2018-03-27

4 / 9

Page 5

Part no.: 50121901 – IS 206MP/4NO-2E0,150-S8.3W – Inductive switch

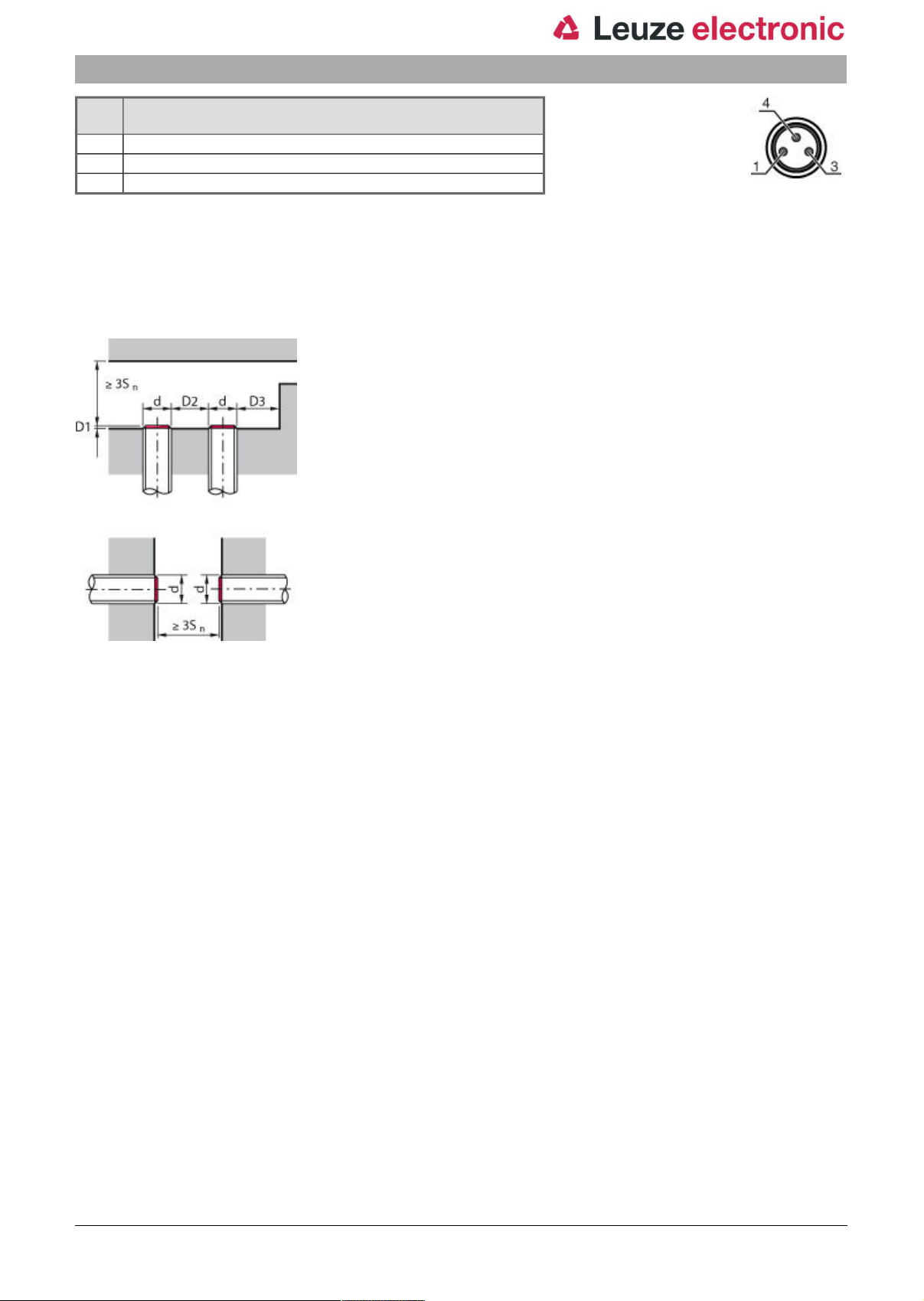

Pin Pin assignment

1 V+

3 GND

4 OUT 1

Diagrams

Embedded installation

Sn[mm] D1 [mm] 0

D2 [mm] 4.5 D3 [mm] 1.75

eng 2018-03-27

5 / 9

Page 6

Part no.: 50121901 – IS 206MP/4NO-2E0,150-S8.3W – Inductive switch

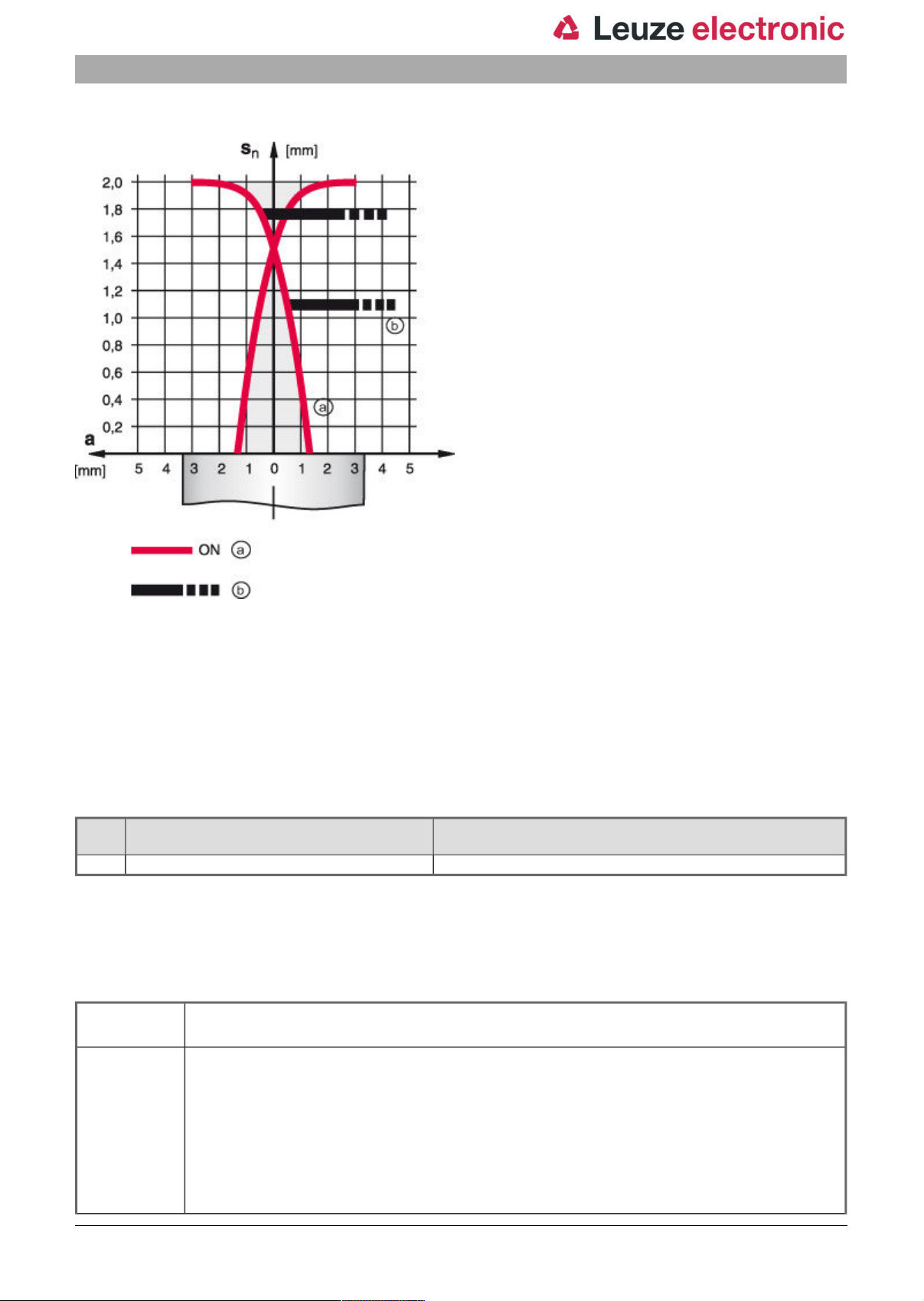

Types with Sn= 2.0 mm

a Inductive switch b Standard measuring plate

Operation and display

LEDs

LED Display Meaning

1 Yellow, continuous light Switching output/switching state

Part number code

Part designation: ISX YYY ZZ/AAA.BB-CCC-DDD-DDD

ISX Operating principle / construction:

YYY Series:

IS: inductive switch, standard design ISS: inductive switch, short construction

203: series with Ø 3 mm 204: series with Ø 4 mm 205: series with M5 x 0.5 external thread 206: series with Ø 6.5 mm 208: series with M8 x 1 external thread 212: series with M12 x 1 external thread 218: series with M18 x 1 external thread 230: series with M30 x 1.5 external thread 240: series in cubic design 244: series in cubic design 255: series with 5 x 5 mm² cross section 288: series with 8 x 8 mm² cross section

eng 2018-03-27

6 / 9

Page 7

Part no.: 50121901 – IS 206MP/4NO-2E0,150-S8.3W – Inductive switch

ZZ Housing / thread:

AAA Output current / supply:

BB Special equipment:

CCC Measurement range / type of installation:

DDD Electrical connection:

MM: metal housing (active surface: plastic) / metric thread FM: full-metal housing (active surface: stainless steel AISI 316L) / metric thread

4NO: PNP transistor, NO contact 4NC: PNP transistor, NC contact 2NO: NPN transistor, NO contact 2NC: NPN transistor, NC contact 1NO: relay, NO contact / AC/DC 1NC: relay, NC contact / AC/DC

n/a: no special equipment 5F: food version 5: housing material V2A (1.4305, AISI 303)

1E0: typ. scanning range limit 1.0 mm / embedded installation 1E5: typ. scanning range limit 1.5 mm / embedded installation 2E0: typ. scanning range limit 2.0 mm / embedded installation 3E0: typ. scanning range limit 3.0 mm / embedded installation 4E0: typ. scanning range limit 4.0 mm / embedded installation 5E0: typ. scanning range limit 5.0 mm / embedded installation 6E0: typ. scanning range limit 6.0 mm / embedded installation 8E0: typ. scanning range limit 8.0 mm / embedded installation 10E: typ. scanning range limit 10.0 mm / embedded installation 12E: typ. scanning range limit 12.0 mm / embedded installation 20E: typ. scanning range limit 20.0 mm / embedded installation 22E: typ. scanning range limit 22.0 mm / embedded installation 2N5: typ. scanning range limit 2.5 mm / non-embedded installation 4N0: typ. scanning range limit 4.0 mm / non-embedded installation 8N0: typ. scanning range limit 8.0 mm / non-embedded installation 10N: typ. scanning range limit 10.0 mm / non-embedded installation 12N: typ. scanning range limit 12.0 mm / non-embedded installation 15N: typ. scanning range limit 15.0 mm / non-embedded installation 20N: typ. scanning range limit 20.0 mm / non-embedded installation 25N: typ. scanning range limit 25.0 mm / non-embedded installation 40N: typ. scanning range limit 40.0 mm / non-embedded installation

n/a: cable, PVC, standard length 2000 mm S12: M12 connector, 4-pin, axial 200-S12: cable, PVC, length 200 mm with M12 connector, 4-pin, axial

Note

A list with all available device types can be found on the Leuze electronic website at www.leuze.com.

Accessories

Connection technology - Connection cables

Part no. Designation Article Description

50130842 KD U-M8-3A-

P1-020

50130844 KD U-M8-3A-

P1-050

50130837 KD U-M8-3A-

V1-020

Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PVC

eng 2018-03-27

7 / 9

Page 8

Part no.: 50121901 – IS 206MP/4NO-2E0,150-S8.3W – Inductive switch

Part no. Designation Article Description

50130832 KD U-M8-3A-

V1-050

50130865 KD U-M8-3W-

P1-020

50130867 KD U-M8-3W-

P1-050

50130860 KD U-M8-3W-

V1-020

50130862 KD U-M8-3W-

V1-050

Connection cable Connection 1: Connector, M8, Axial, Female, 3 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PVC

Connection cable Connection 1: Connector, M8, Angled, Female, 3 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M8, Angled, Female, 3 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PUR

Connection cable Connection 1: Connector, M8, Angled, Female, 3 -pin

Connection 2: Open end Shielded: No Cable length: 2,000 mm Sheathing material: PVC

Connection cable Connection 1: Connector, M8, Angled, Female, 3 -pin

Connection 2: Open end Shielded: No Cable length: 5,000 mm Sheathing material: PVC

Connection technology - Interconnection cables

Part no. Designation Article Description

50130931 KDS U-M8-3A-

M12-3A-P1-020

50130932 KDS U-M8-3A-

M12-3A-P1-050

50130905 KDS U-M8-3A-

M8-3A-P1-020

50130907 KDS U-M8-3A-

M8-3A-P1-050

Interconnection cable

Connection 1: Connector, M8, Axial, Female, 3 -pin Connection 2: Connector, M12, Axial, Male, A-coded, 3 -pin Shielded: No Cable length: 2,000 mm Sheathing material: PUR

Connection 1: Connector, M8, Axial, Female, 3 -pin Connection 2: Connector, M12, Axial, Male, A-coded, 3 -pin Shielded: No Cable length: 5,000 mm Sheathing material: PUR

Connection 1: Connector, M8, Axial, Female, 3 -pin Connection 2: Connector, M8, Axial, Male, 3 -pin Shielded: No Cable length: 2,000 mm Sheathing material: PUR

Connection 1: Connector, M8, Axial, Female, 3 -pin Connection 2: Connector, M8, Axial, Male, 3 -pin Shielded: No Cable length: 5,000 mm Sheathing material: PUR

eng 2018-03-27

8 / 9

Page 9

Part no.: 50121901 – IS 206MP/4NO-2E0,150-S8.3W – Inductive switch

Part no. Designation Article Description

50130900 KDS U-M8-3A-

M8-3A-V1-020

50130920 KDS U-M8-3W-

M8-3A-P1-020

Mounting technology - Other

Part no. Designation Article Description

50111496 MC 006K Clamp Diameter, inner: 6 mm

Interconnection cable

Connection 1: Connector, M8, Axial, Female, 3 -pin Connection 2: Connector, M8, Axial, Male, 3 -pin Shielded: No Cable length: 2,000 mm Sheathing material: PVC

Connection 1: Connector, M8, Angled, Female, 3 -pin Connection 2: Connector, M8, Axial, Male, 3 -pin Shielded: No Cable length: 2,000 mm Sheathing material: PUR

Design of mounting device: Mounting clamp Mounting bracket, at system: Through-hole mounting Mounting bracket, at device: Clampable Type of mounting device: Rigid Material: Plastic

Notes

Observe intended use!

• This product is not a safety sensor and is not intended as personnel protection.

• The product may only be put into operation by competent persons.

• Only use the product in accordance with its intended use.

For UL applications:

• For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).

eng 2018-03-27
