Leuze 50116181 Data Sheet

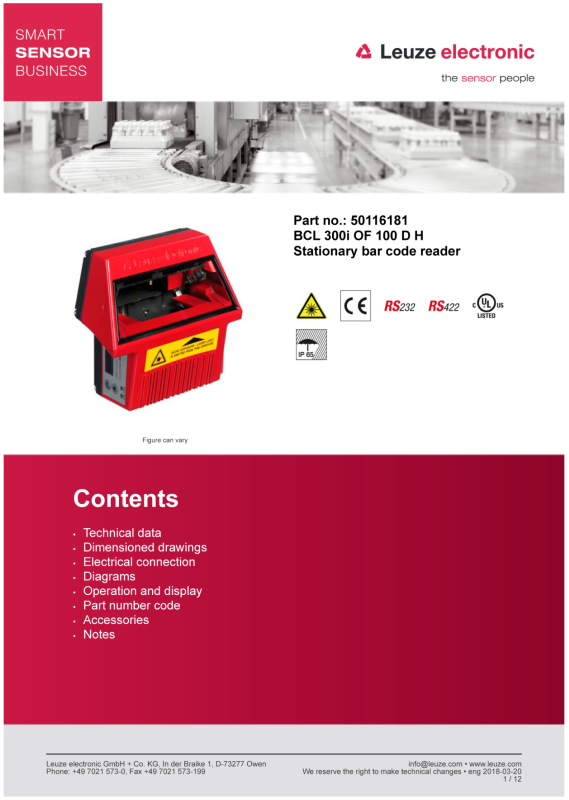

Part no.: 50116181 – BCL 300i OF 100 D H – Stationary bar code reader

Technical data

Basic data

Series BCL 300i

Special design

Special design Heating

Functions

Functions AutoConfig

Characteristic parameters

MTTF 110 years

Alignment mode
Reference code comparison
AutoControl
LED indicator
AutoReflAct
Code fragment technology
Heating

Read data

Code types, readable Codabar

Scanning rate, typical 1,000 scans/s

Bar codes per reading gate, max. number 64 Piece(s)

Optical data

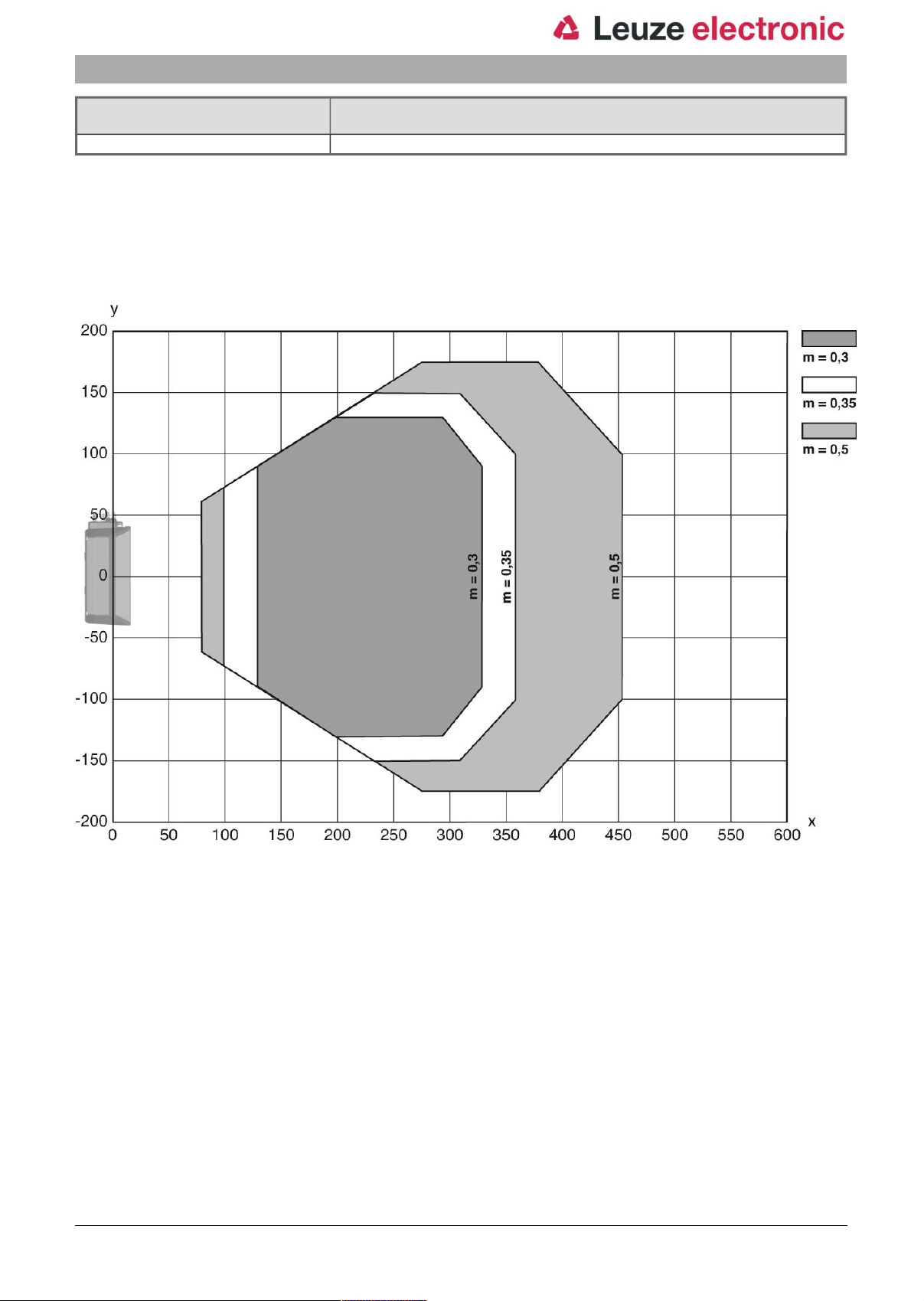

Reading distance 80 ... 455 mm

Light source Laser, Red

Laser light wavelength 655 nm

Laser class 2, IEC/EN 60825-1:2007

Transmitted-signal shape Continuous

Module size 0.3 ... 0.5 mm

Reading method Oscillating-mirror scanner

Beam deflection Via rotating polygon wheel + stepping motor with mirror

Light beam exit Zero position at side at angle less than 90°

Oscillating mirror frequency 10 Hz

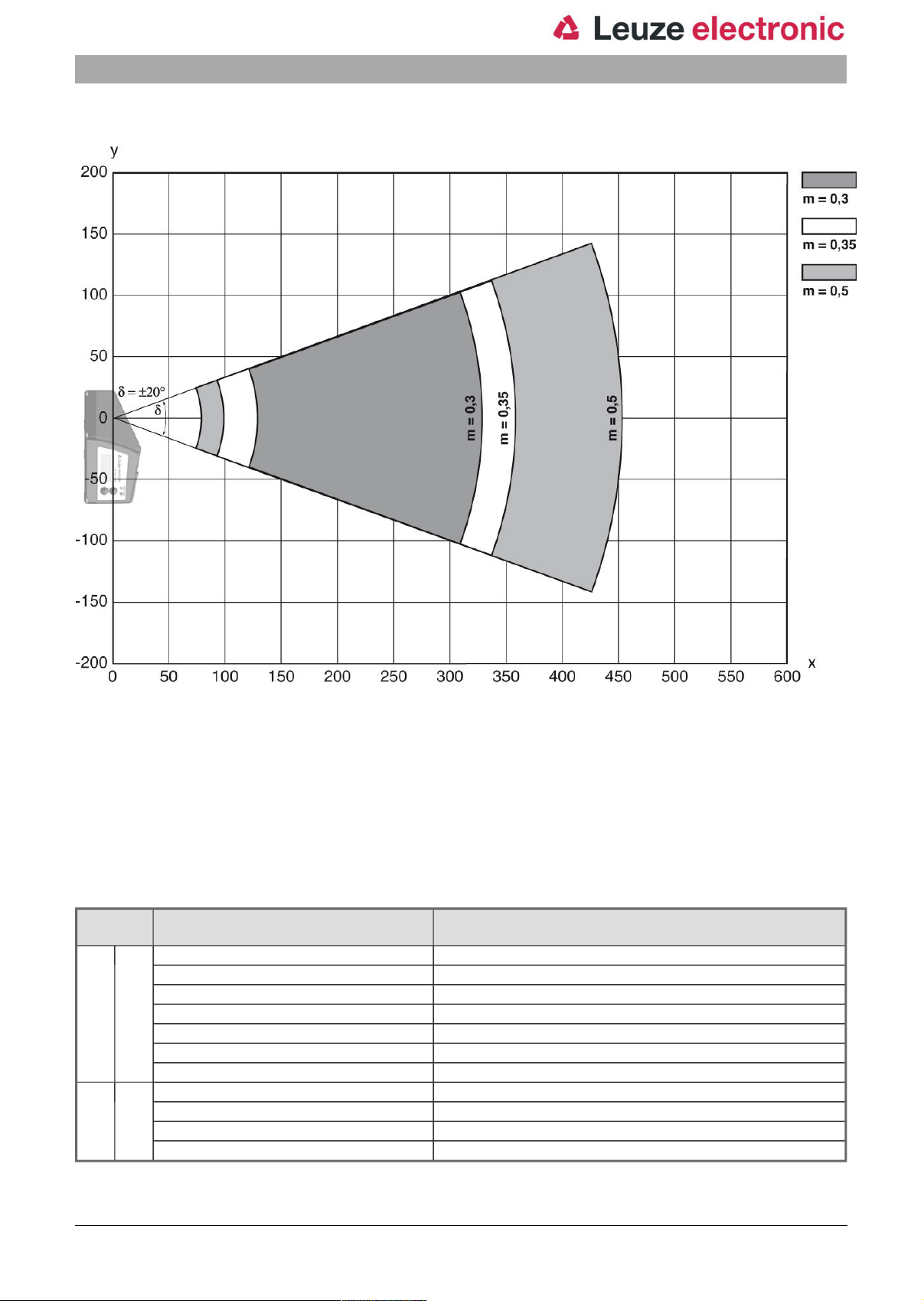

Max. swivel angle 15 °

GS1 Databar Limited
EAN 8/13
GS1 Databar Omnidirectional
2/5 Interleaved
UPC
Code 93
GS1 Databar Expanded
Code 39
Code 128

Electrical data

Protective circuit Polarity reversal protection

Performance data

Supply voltage 18 ... 30 V, DC

Power consumption, max. 45 W

eng 2018-03-20

2 / 12

Part no.: 50116181 – BCL 300i OF 100 D H – Stationary bar code reader

Inputs/outputs selectable

Output current, max. 60 mA

Number of inputs/outputs selectable 2 Piece(s)

Input current, max. 8 mA

Interface

Type RS 232, RS 422

RS 232

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 7,8

Stop bit 1, 2 stop bits

Parity Adjustable

Transmission protocol <STX><data><CR><LF>

Data encoding ASCII

RS 422

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 7, 8 data bits

Stop bit 1, 2 stop bits

Transmission protocol Adjustable

Data encoding ASCII

Service interface

Type USB

USB

Function Service

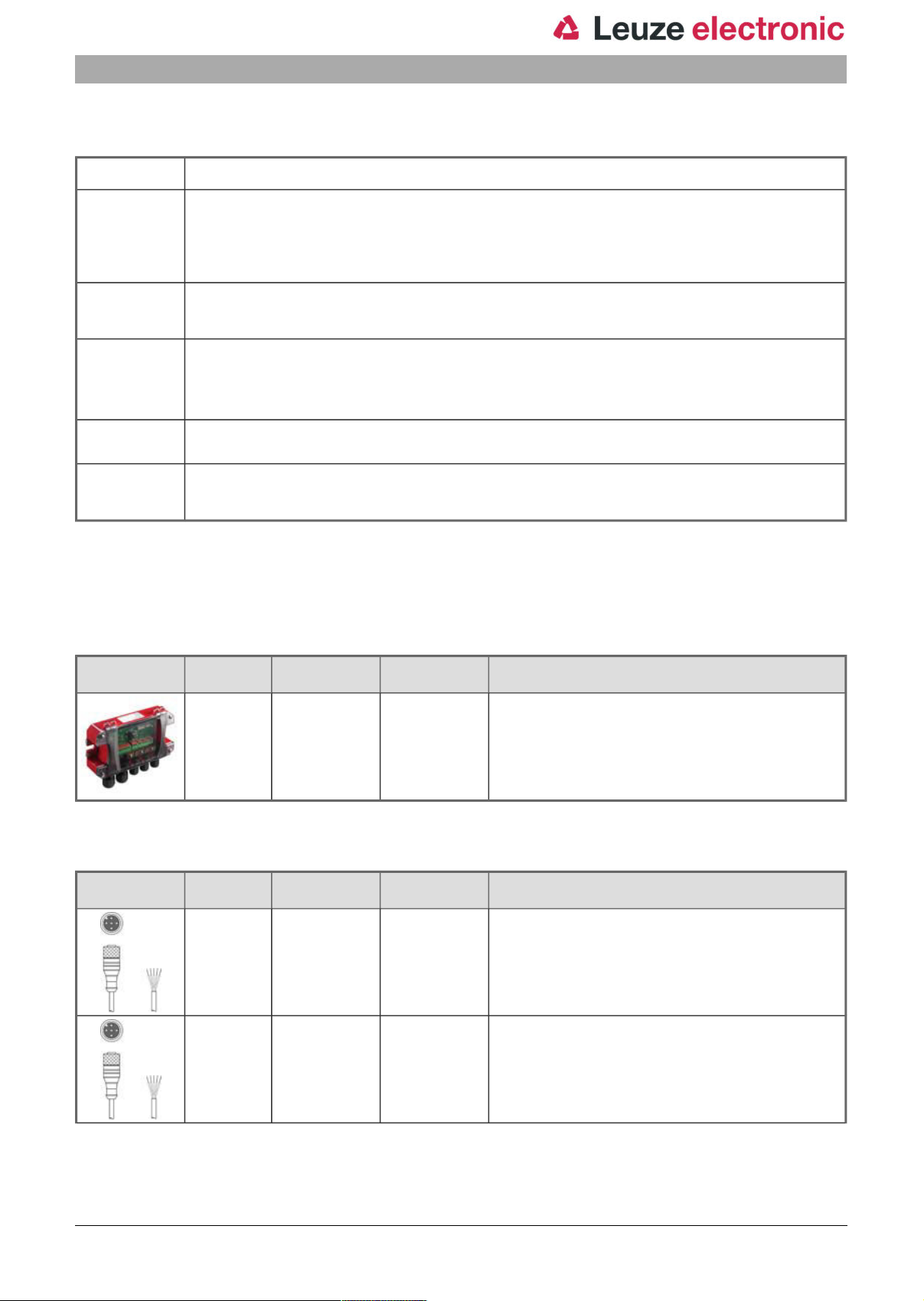

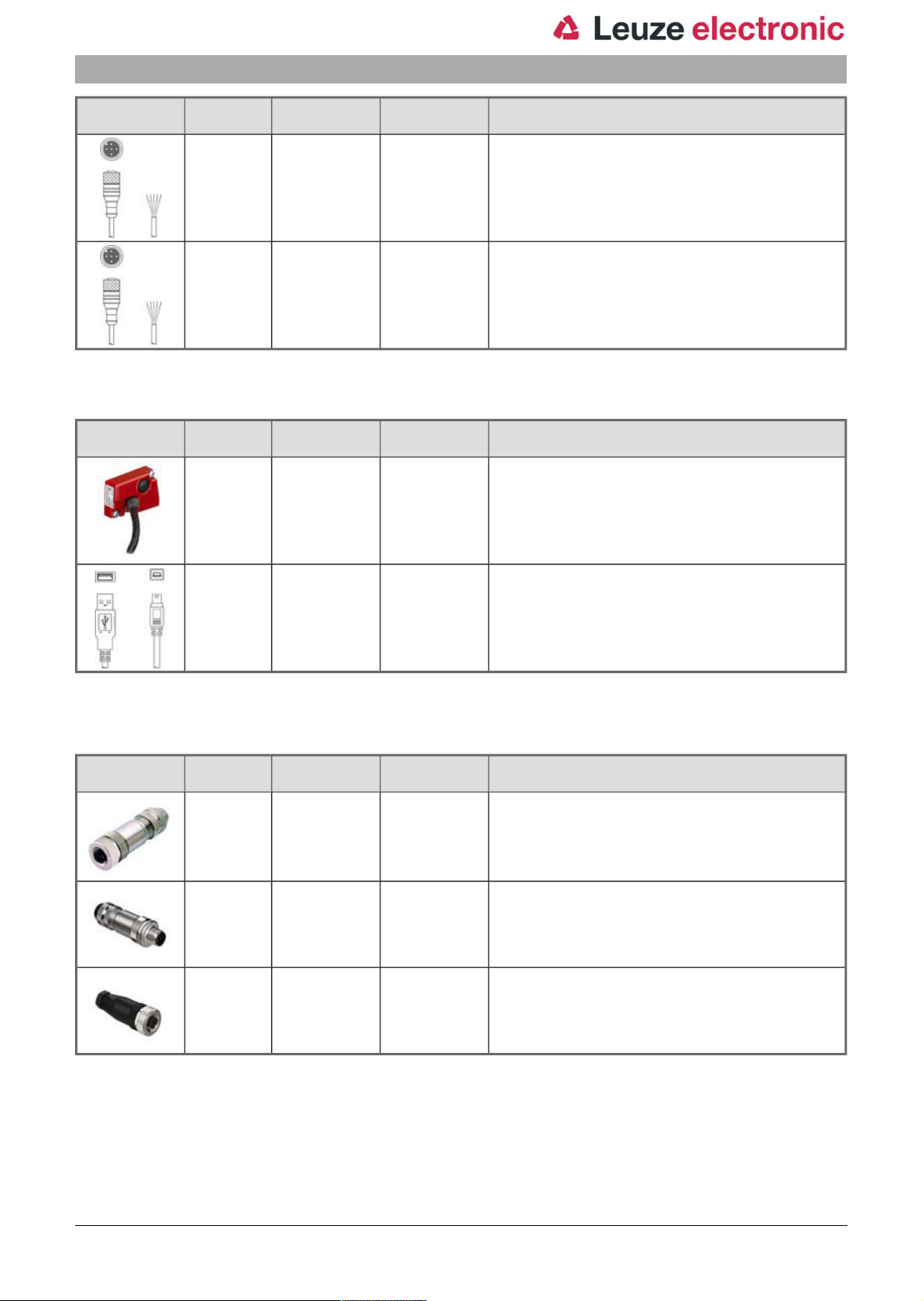

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Plug connector

Function BUS OUT

No. of pins 32 -pin

Type Male

Mechanical data

Design Cubic

Dimension (W x H x L) 125 mm x 58 mm x 110 mm

Housing material Metal, Diecast aluminum

Lens cover material Glass

Net weight 580 g

Configuration via software

Connection to device
Data interface
PWR / SW IN/OUT
Service interface

eng 2018-03-20

3 / 12

Part no.: 50116181 – BCL 300i OF 100 D H – Stationary bar code reader

Housing color Red

Type of fastening Fastening on back

Operation and display

Type of display Monochromatic graphic display, 128 x 32 pixels

Number of LEDs 2 Piece(s)

Type of configuration Via web browser

Environmental data

Ambient temperature, operation -35 ... 40 °C

Ambient temperature, storage -20 ... 70 °C

Relative humidity (non-condensing) 0 ... 90 %

Certifications

Degree of protection IP 65

Protection class III

Certifications c UL US

Test procedure for EMC in accordance with standard EN 61000-4-2, 3, -4, -6

Test procedure for shock in accordance with standard IEC 60068-2-27, test Ea

Test procedure for continuous shock in accordance with standard IEC 60068-2-29, test Eb

Test procedure for vibration in accordance with standard IEC 60068-2-6, test Fc

Black

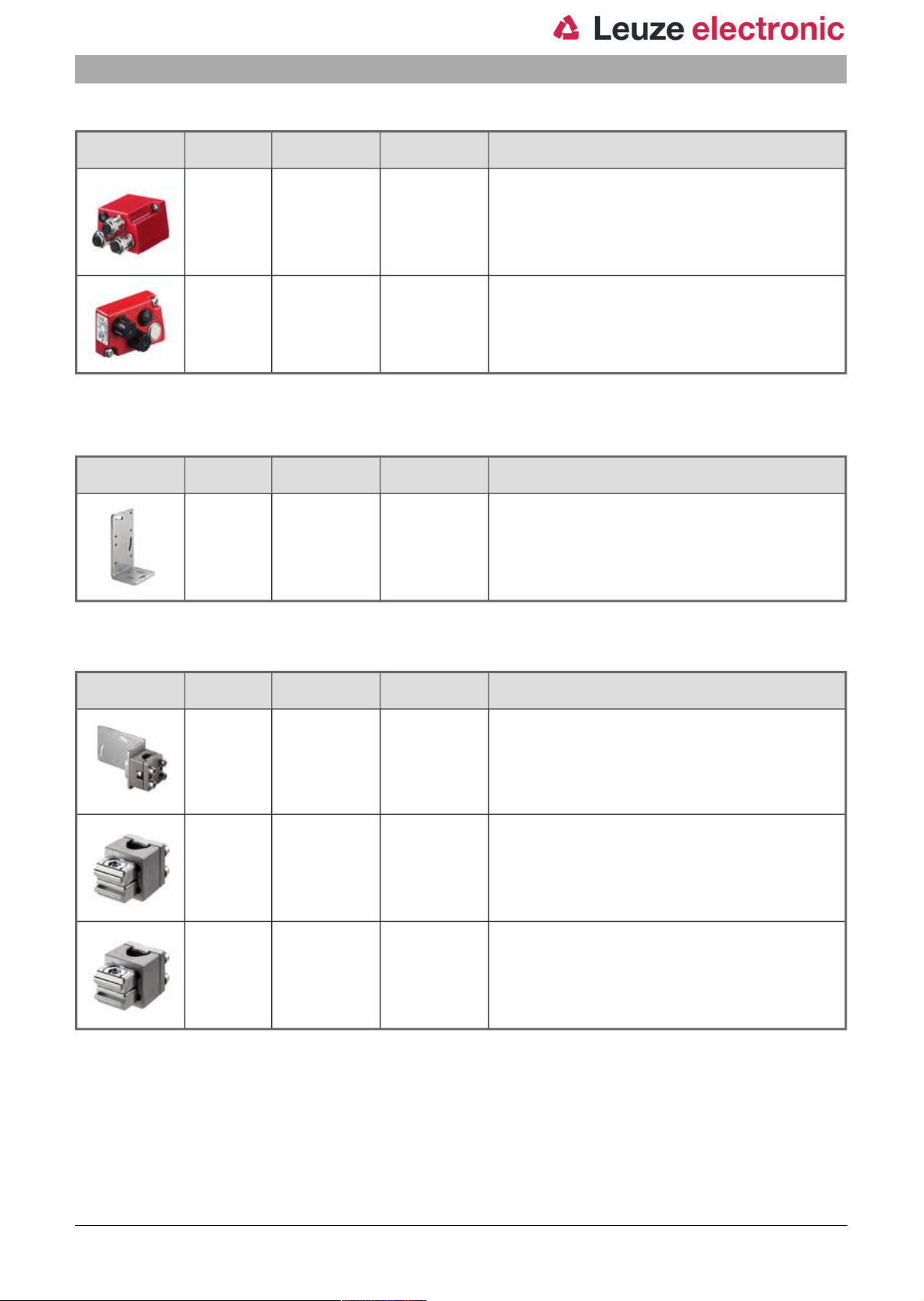

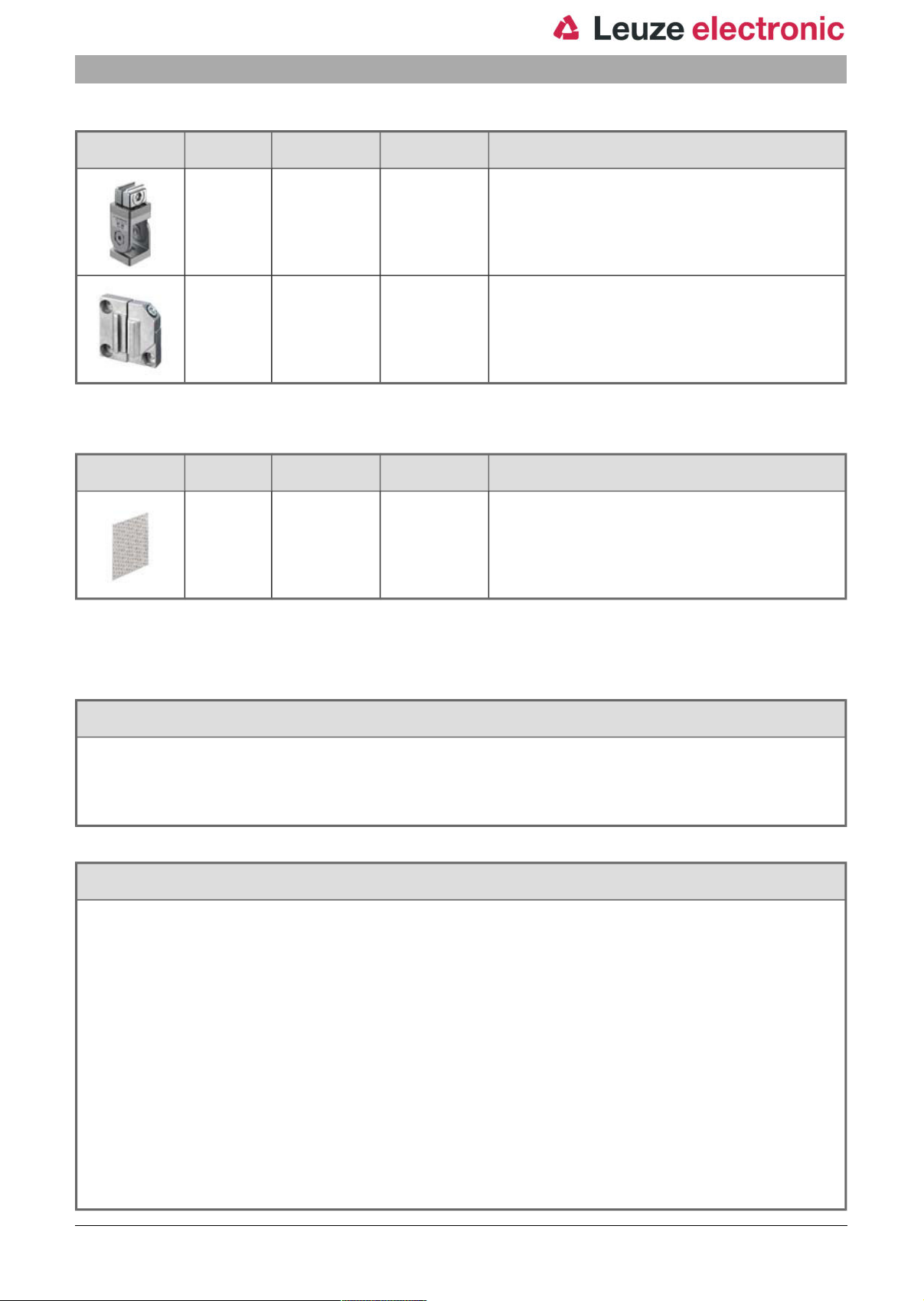

Via optional mounting device
Dovetail grooves

LED

EN 55022

Classification

eCl@ss 8.0 27280102

eCl@ss 9.0 27280102

ETIM 5.0 EC002550

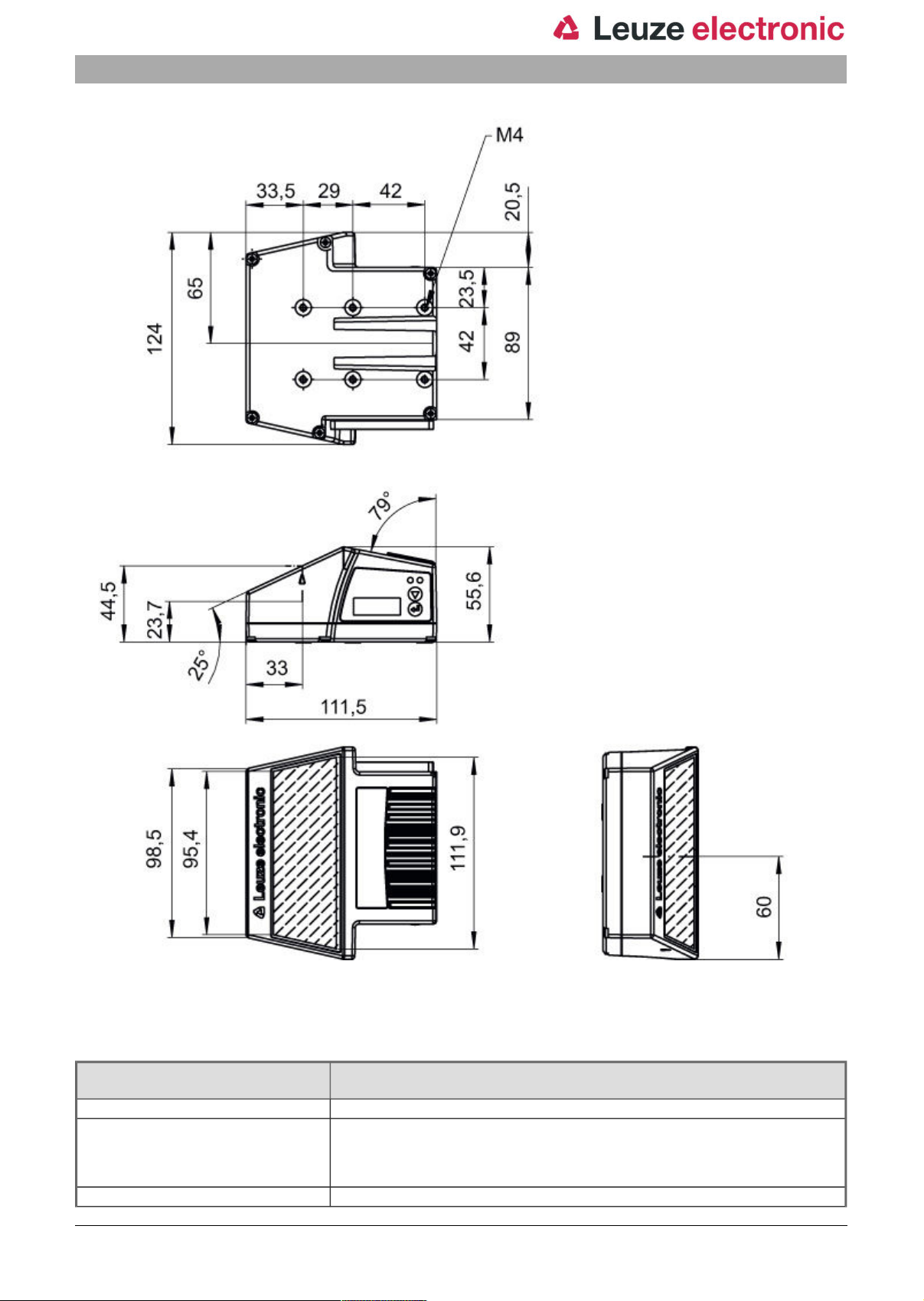

Dimensioned drawings

All dimensions in millimeters
