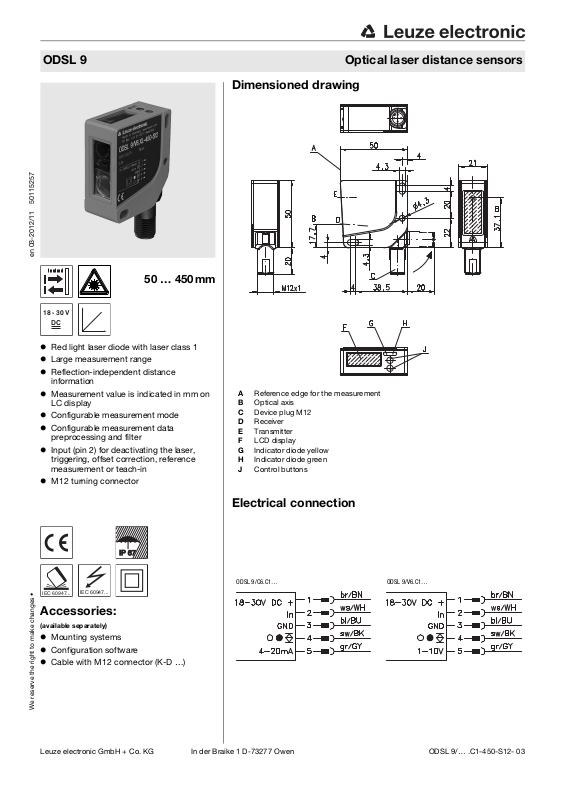

A Reference edge for the measurement
B Optical axis
C Device plug M12
D Receiver
E Transmitter
F LCD display
G Indicator diode yellow
H Indicator diode green
J Control buttons
ODSL 9/C6.C1… ODSL 9/V6.C1…
ODSL 9 Optical laser distance sensors
Dimensioned drawing
en 03-2012/11 50115257
50 … 450mm
Red light laser diode with laser class 1
Large measurement range
Reflection-independent distance
information
Measurement value is indicated in mm on
LC display
Configurable measurement mode
Configurable measurement data
preprocessing and filter
Input (pin 2) for deactivating the laser,
triggering, offset correction, reference
measurement or teach-in
M12 turning connector
Accessories:
(available separately)
Mounting systems
Configuration software
Cable with M12 connector (K-D …)
Electrical connection
We reserve the right to make changes •
Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen
ODSL 9/… .C1-450-S12- 03
ODSL 9
Specifications
Optical data
Measurement range
Resolution 0.1mm
Light source laser
Wavelength 655 nm
Light spot divergent, 1x 1 mm
Laser warning notice see remarks
Error limits (relative to measurement distance)
Absolute measurement accuracy
Repeatability
B/W detection thresh. (6 … 90% rem.) 0.5 %
Temperature compensation yes
Timing
Measurement time 4ms 1)
Response time 12 ms
Delay before start-up 300 ms
Electrical data
Operating voltage U
Residual ripple 15 % of UB
Open-circuit current 180 mA
Switching output push-pull switching output
Signal voltage high/low (UB-2 V)/ 2V
Analog output
Indicators Teach-in on GND Teach-in on +U
Green LED continuous light ready
Yellow LED continuous light object inside teach-in measurement distance
Mechanical data
Housing plastic
Optics cover glass
Weight approx. 50 g
Connection type M12 connector, 5-pin
Environmental data
Ambient temp. (operation/storage) -20°C … +50°C / -30 °C … +70 °C
Protective circuit
VDE safety class
Protection class IP 67
Laser class 1 (acc. to EN 60825-1)
Standards applied IEC 60947-5-2
1) Luminosity coefficient 6 % … 90 %, complete measurement range, "Standard" operating mode, at 20°C,
medium range of U
2) Same object, identical environmental conditions, measurement object 50x 50mm²
3) Typ. ± 0.02 %/K
4) The push-pull switching outputs must not be connected in parallel
5) 1=transient protection, 2=polarity reversal protection, 3=short circuit protection for all outputs
6) Rating voltage 50 VAC
1)
2)
B
5)
6)
, measurement object 50x 50 mm²
B
1)
…C6/V6 18 … 30V DC (incl. residual ripple)
flashing fault teaching procedure
flashing teaching procedure
50 … 450mm
2
at 450mm
±1%
±0.5%
3)
4)
PNP light switching, NPN dark switching
…V6 voltage 1…10V / 0…10V / 1…5V / 0…5V, R
…C6
current 4 … 20mA, RL 500
off no voltage
off object outside teach-in measurement distance
1, 2, 3
II, all-insulated
,
2k
L
B
Tables

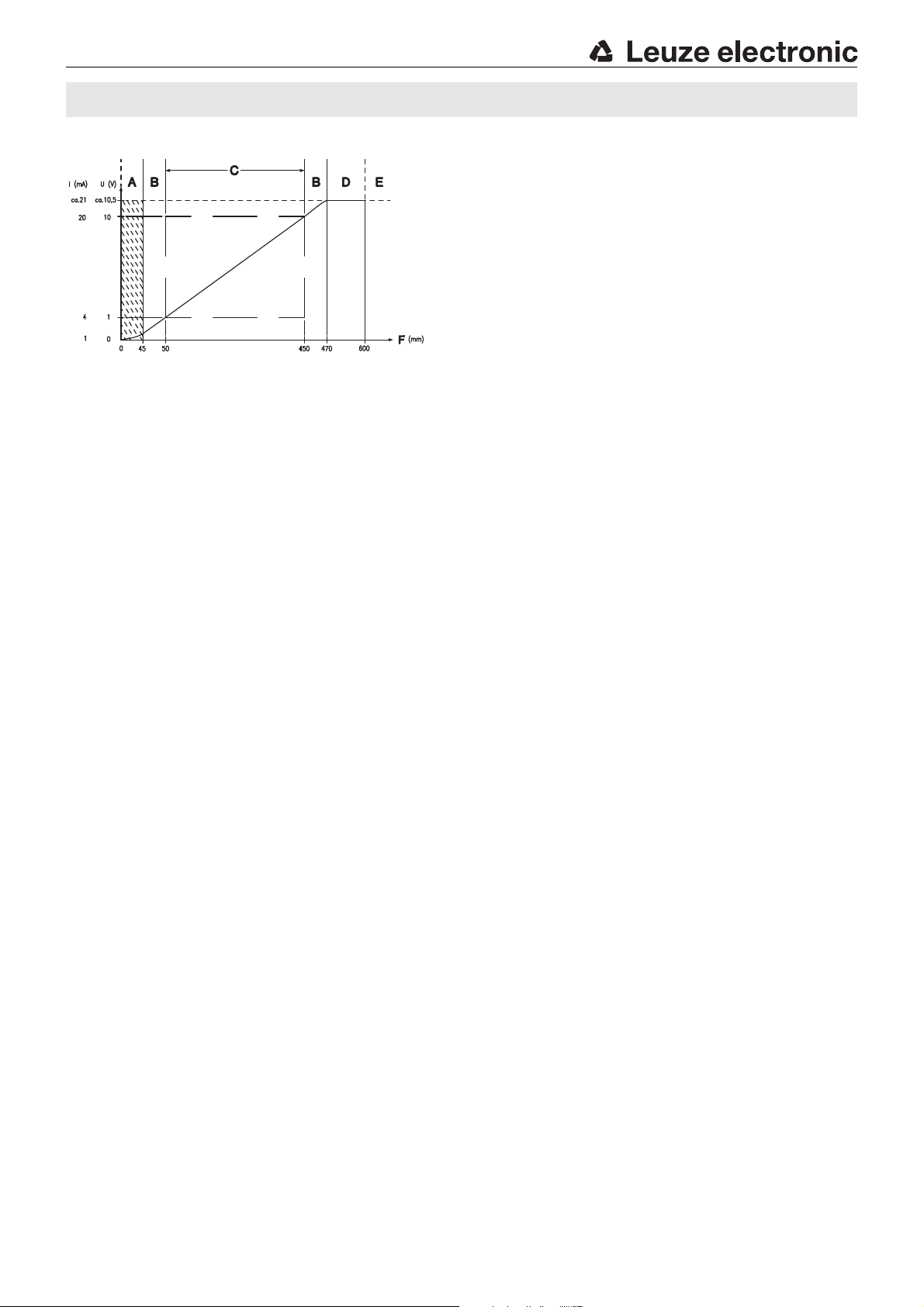

Diagrams
Remarks
Measurement time
depends on the reflectivity
of the measurement
object and on the
measurement mode.
Approved purpose:
This product may only be
used by qualified
Order guide
Designation Part No.
Analog current output
1 teachable push/pull output ODSL 9/C6.C1-450-S12 50115029
Analog voltage output
1 teachable push/pull output ODSL 9/V6.C1-450-S12 50115030
ODSL 9/… .C1-450-S12- 03 2012/11
personnel and must only
be used for the approved
purpose. This sensor is
not a safety sensor and is
not to be used for the
protection of persons.
