Leuze 50113731 Data Sheet
Part no.: 50113731 – AMS 358i 200 H – Optical distance sensor
Technical data
Basic data
Series AMS 300i
Application Positioning of electroplating plants
Functions
Functions Heating
Characteristic parameters
MTTF 48 years
Optical data
Light source Laser, Red
Laser class 2, IEC/EN 60825-1:2007
Collision protection of cranes / gantry cranes
Positioning of skillet systems and side-tracking skates
Positioning of high-bay storage devices
Measurement data
Measurement range 200 ... 200,000 mm
Absolute measurement accuracy 3 mm
Reproducibility (3 sigma) 2.1 mm
Max. traverse rate 10 m/s
Electrical data
Performance data
Supply voltage 18 ... 30 V, DC
Interface
Type EtherNet IP
EtherNet IP
Switch functionality Integrated
Transmission speed 100 Mbit/s
Connection
Number of connections 4 Piece(s)

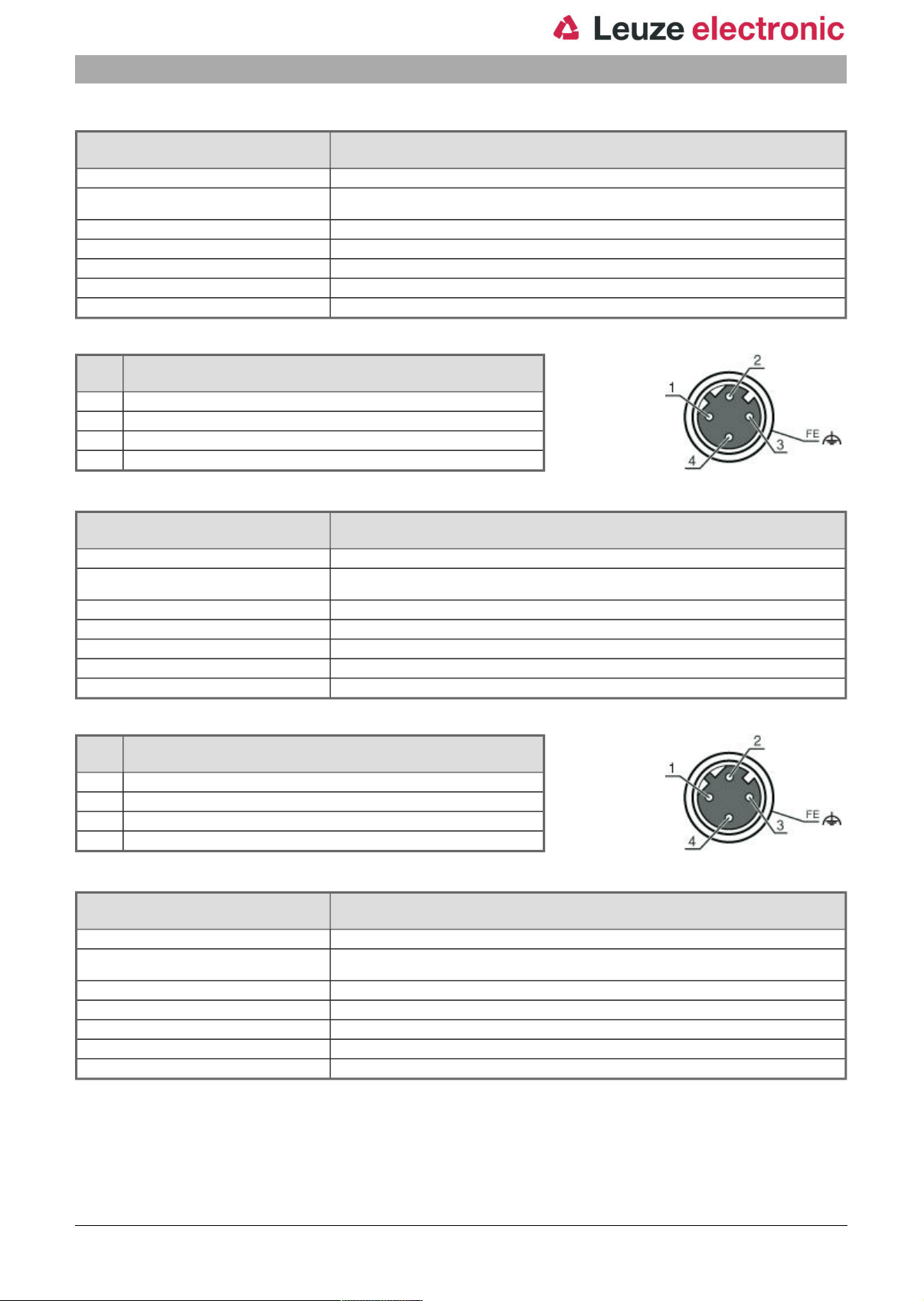

Connection 1
Type of connection Connector
Designation on device BUS IN
Function Data interface
Thread size M12
Type Female
No. of pins 4 -pin
Encoding D-coded
10 Mbit/s
BUS IN
eng 2018-03-27
2 / 13
Part no.: 50113731 – AMS 358i 200 H – Optical distance sensor
Connection 2
Type of connection Connector
Designation on device BUS OUT
Function BUS OUT
Thread size M12
Type Female
No. of pins 4 -pin
Encoding D-coded

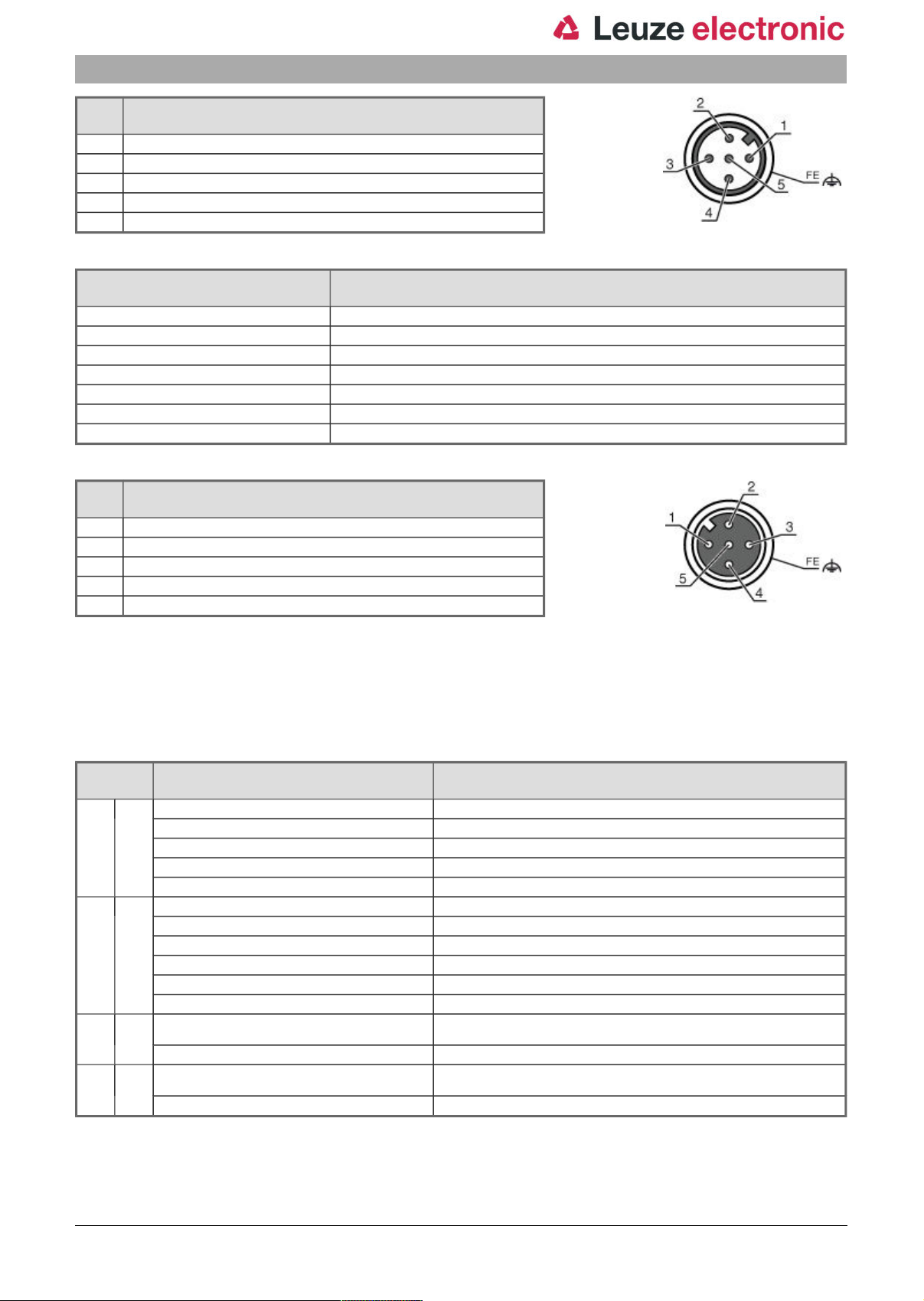

Connection 3
Type of connection Connector
Designation on device PWR
Function PWR / SW IN/OUT
Thread size M12
Type Male
No. of pins 5 -pin
Encoding A-coded
Connection 4
Type of connection Connector
Designation on device SERVICE
Function Service interface
Thread size M12
Type Female
No. of pins 5 -pin
Encoding A-coded
Data interface
Voltage supply
Mechanical data
Design Cubic
Dimension (W x H x L) 84 mm x 166.5 mm x 159 mm
Housing material Metal
Net weight 2,450 g
Type of fastening Through-hole mounting
Operation and display
Type of display LED
Operational controls Membrane keyboard
Environmental data
Ambient temperature, operation -30 ... 50 °C
Ambient temperature, storage -30 ... 70 °C
Relative humidity (non-condensing) 90 %
Certifications
Degree of protection IP 65
Protection class III
Certifications c UL US
LC Display
Classification
eng 2018-03-27
3 / 13
Part no.: 50113731 – AMS 358i 200 H – Optical distance sensor
eCl@ss 8.0 27270801
eCl@ss 9.0 27270801
ETIM 5.0 EC001825

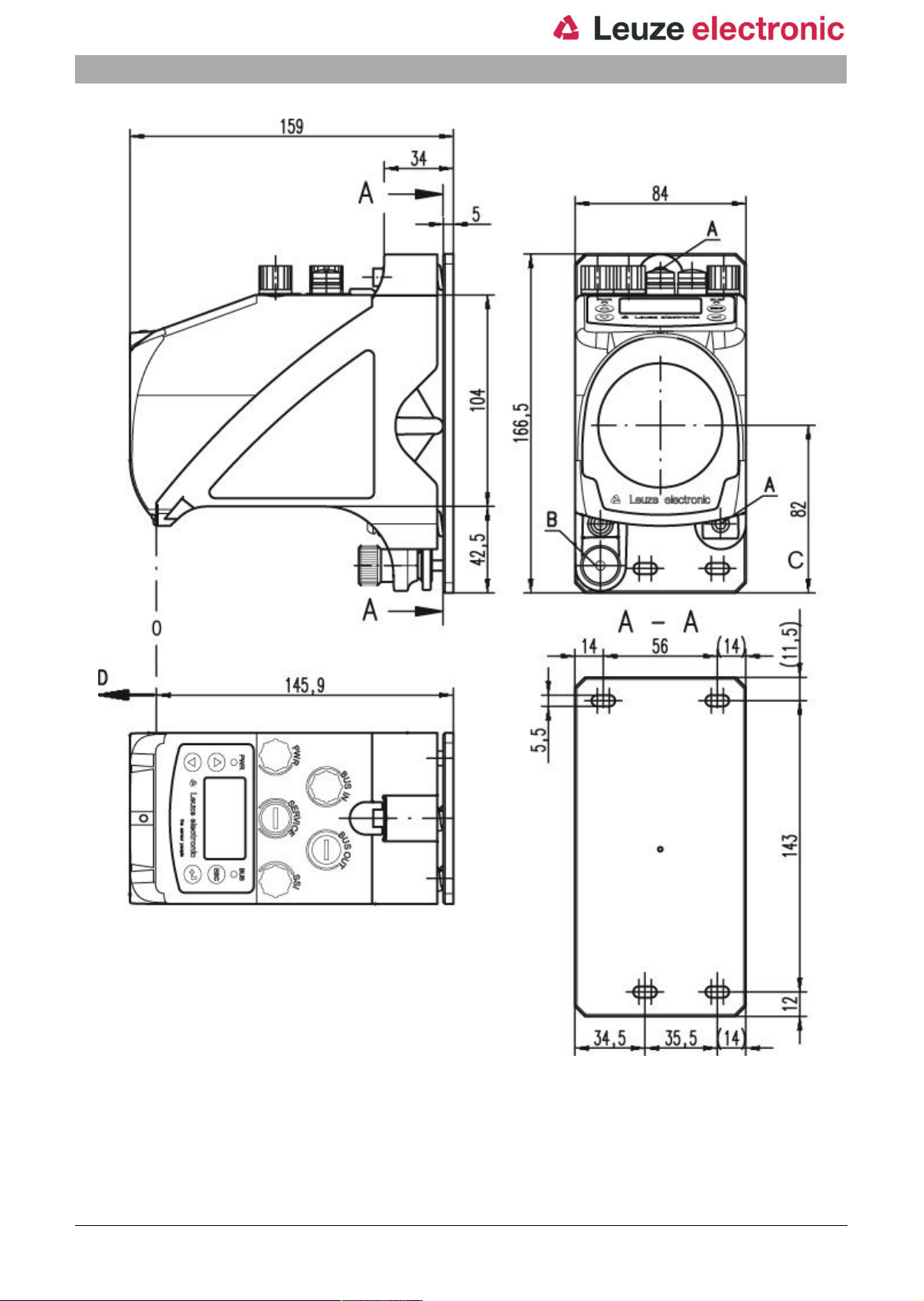

Dimensioned drawings
All dimensions in millimeters
eng 2018-03-27
4 / 13
