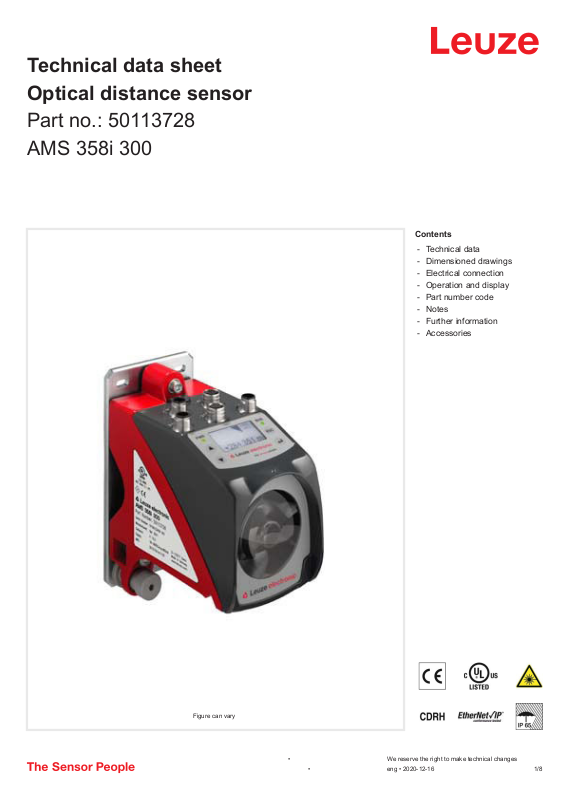

Leuze 50113728 Data Sheet
Technical data sheet
Optical distance sensor
Part no.: 50113728
AMS 358i 300
Contents
-
T
echnical data
-
Dimensioned drawings
-
Electrical connection
-
Operation and display
-
Part number code
-
Notes
-
Further information
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-12-16
1 /8
Optical distance sensor • Part no.: 50113728 • AMS 358i 300
Technical data
Basic data
Series AMS 300i
Application Collision protection of cranes / gantry
cranes
Positioning of electroplating plants
Positioning of high-bay storage devices
Positioning of skillet systems and sidetracking skates
Characteristic parameters
MTTF 31 years
Optical data
Light source Laser, Red
Laser class 2, IEC/EN 60825-1:2007
Measurement data
Measurement range 200 ... 300,000 mm
Accuracy 5 mm
Reproducibility (3 sigma) 3 mm
Max. traverse rate 10 m/s
Electrical data
Performance data
Supply voltage U
B
18 ... 30 V, DC
Interface
Type EtherNet IP
EtherNet IP
Switch functionality
Transmission speed 10 Mbit/s
Integrated
100 Mbit/s
Connection
Number of connections 4 Piece(s)
Connection 1
Function
Type of connection Connector
Designation on device BUS IN
Thread size
Type Female
No. of pins 4 -pin
Encoding D-coded
BUS IN
Data interface
M12
Connection 2
Function BUS OUT
Data interface
Type of connection
Designation on device BUS OUT
Thread size M12
Type Female
No. of pins 4 -pin
Encoding D-coded
Connector
Connection 3
Function PWR / SW IN / OUT
Voltage supply
Type of connection Connector
Designation on device PWR
Thread size M12
Type
No. of pins 5 -pin
Encoding A-coded
Male
Connection 4
Function
Type of connection Connector
Designation on device
Thread size
Type
No. of pins 5 -pin
Encoding A-coded
Service interface
SERVICE
M12
Female
Mechanical data
Design Cubic
Dimension (W x H x L) 84 mm x 166.5 mm x 159 mm
Housing material Metal
Net weight 2,450 g
Type of fastening Through-hole mounting
Operation and display
Type of display LC Display
LED
Operational controls Membrane keyboard
Environmental data
Ambient temperature, operation -5 ... 50 °C
Ambient temperature, storage -30 ... 70 °C
Relative humidity (non-condensing) 90 %
Certifications
Degree of protection IP 65
Protection class III
Certifications c UL US
Classification
Customs tariff number 90318020
eCl@ss 5.1.4 27270801
eCl@ss 8.0 27270801
eCl@ss 9.0 27270801
eCl@ss 10.0 27270801
eCl@ss 11.0 27270801
ETIM 5.0 EC001825
ETIM 6.0 EC001825
ETIM 7.0 EC001825
• We reserve the right to make technical changes
• eng • 2020-12-16
2 /8
Optical distance sensor • Part no.: 50113728 • AMS 358i 300
Dimensioned drawings
All dimensions in millimeters
C
A M 5 screw for alignment
B Knurled nut with WAF 4 hexagon socket and M
5 nut for securing
C Optical axis
D Zero point of the distance to be measured
