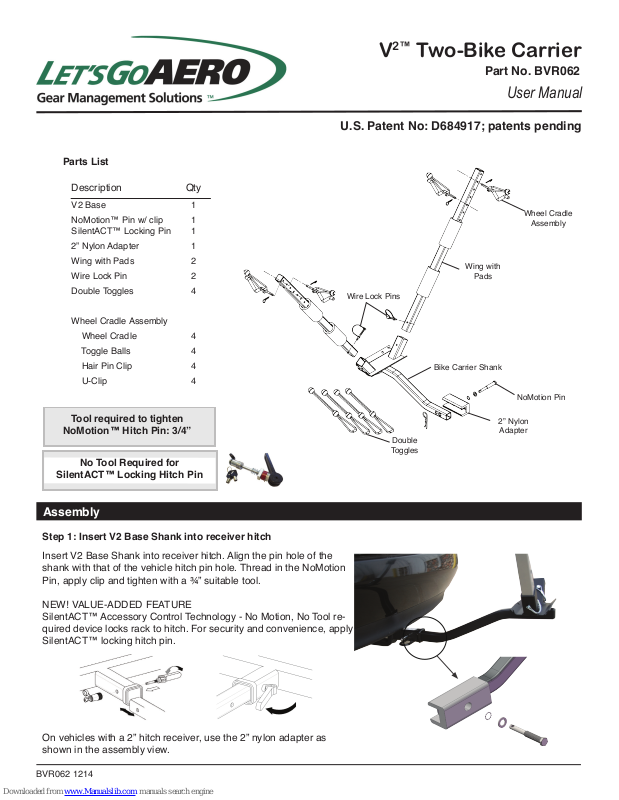

LetsGoAero V2 Two-Bike Carrier, BVR062 User Manual

Parts List

Description Qty

V2™ Two-Bike Carrier

Part No. BVR062

User Manual

U.S. Patent No: D684917; patents pending

V2 Base 1

NoMotion™ Pin w/ clip
SilentACT™ Locking Pin11

2” Nylon Adapter 1

Wing with Pads 2

Wire Lock Pin 2

Double Toggles 4

Wheel Cradle Assembly

Wheel Cradle 4

Toggle Balls 4

Hair Pin Clip 4

U-Clip 4

Tool required to tighten

NoMotion™ Hitch Pin: 3/4”

No Tool Required for

SilentACT™ Locking Hitch Pin

Wheel Cradle

Assembly

Wing with

Pads

Wire Lock Pins

Bike Carrier Shank

NoMotion Pin

2” Nylon

Adapter

Double

Toggles

Assembly

Step 1: Insert V2 Base Shank into receiver hitch

Insert V2 Base Shank into receiver hitch. Align the pin hole of the
shank with that of the vehicle hitch pin hole. Thread in the NoMotion
Pin, apply clip and tighten with a ¾” suitable tool.

NEW! VALUE-ADDED FEATURE
SilentACT™ Accessory Control Technology - No Motion, No Tool re­quired device locks rack to hitch. For security and convenience, apply
SilentACT™ locking hitch pin.

On vehicles with a 2” hitch receiver, use the 2” nylon adapter as
shown in the assembly view.

BVR062 1214

Step 3: Attach Wheel Cradle AssemblyStep 2: Assemble Wings

Slide Wings into the Base pockets and secure the
Wings to the Base with the Wire Lock Pins.

Determine the approximate center-to-center distance
between the hubs of the bike wheels and attach the wheel
cradles to the Wings with the Hair Pin Clips to match this
distance.

Loading TIP: Load bicycle onto the carrier with the bicycle chain facing outward from the Wings and the inside pedal positioned
downward. This helps keep chain lube off the carrier, and provides open space in the lower, center portion of the “V” for the

inside pedal(s) to t easily. Load the second bike so its handle bars face in the opposite direction of the rst bicycle for clearance.

Operation

Securing Bicycles on Carrier

Set bike(s) on wheel cradles. Secure bike(s) to rack starting with the Wheel Toggles. Finish securing with the Double
Toggles.

Double Toggles TIP: The Double Toggles provide a number of ways to achieve Constant Tension™ of your bicycle to the carrier,
using one or both double toggles to capture the fork, chain stay, or seat stay. Loop the Toggle over the pedal, crank, or other
position on bicycle, allowing the elastic feature to pull the bike both down and inward against the Wing pads. The Constant Ten-

sion™ removes both “front to back” and “side-to-side” sway, rmly seating the bicycle during transit.

The V2 Base plate has a Toggle pocket (upwardly angled groove)
on each of the four corners for Double Toggle attachments.

To prevent theft, the Base plate includes four holes for padlock
locations for locking bicycles (bike locks not included with V2
Bike Rack).
