Let's Go Aero VME-V2 User Manual

Download

Page 1

Parts List

Description Qty

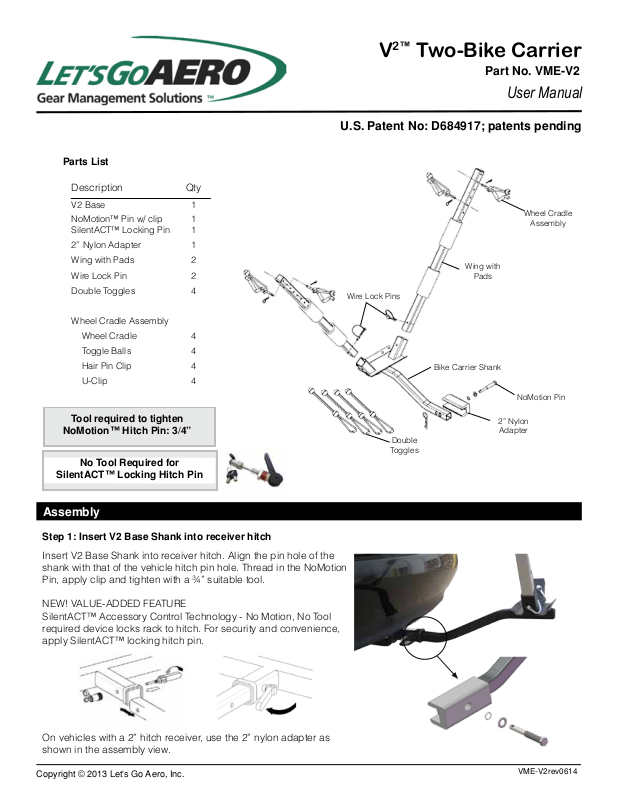

V2™ Two-Bike Carrier

Part No. VME-V2

User Manual

U.S. Patent No: D684917; patents pending

V2 Base 1

NoMotion™ Pin w/ clip SilentACT™ Locking Pin

2” Nylon Adapter 1

Wing with Pads 2

Wire Lock Pin 2

Double Toggles 4

Wheel Cradle Assembly

Wheel Cradle 4

Toggle Balls 4

Hair Pin Clip 4

U-Clip 4

1 1

Tool required to tighten

NoMotion™ Hitch Pin: 3/4”

No Tool Required for

SilentACT™ Locking Hitch Pin

Wheel Cradle

Assembly

Wing with

Pads

Wire Lock Pins

Bike Carrier Shank

NoMotion Pin

2” Nylon Adapter

Double

Toggles

Assembly

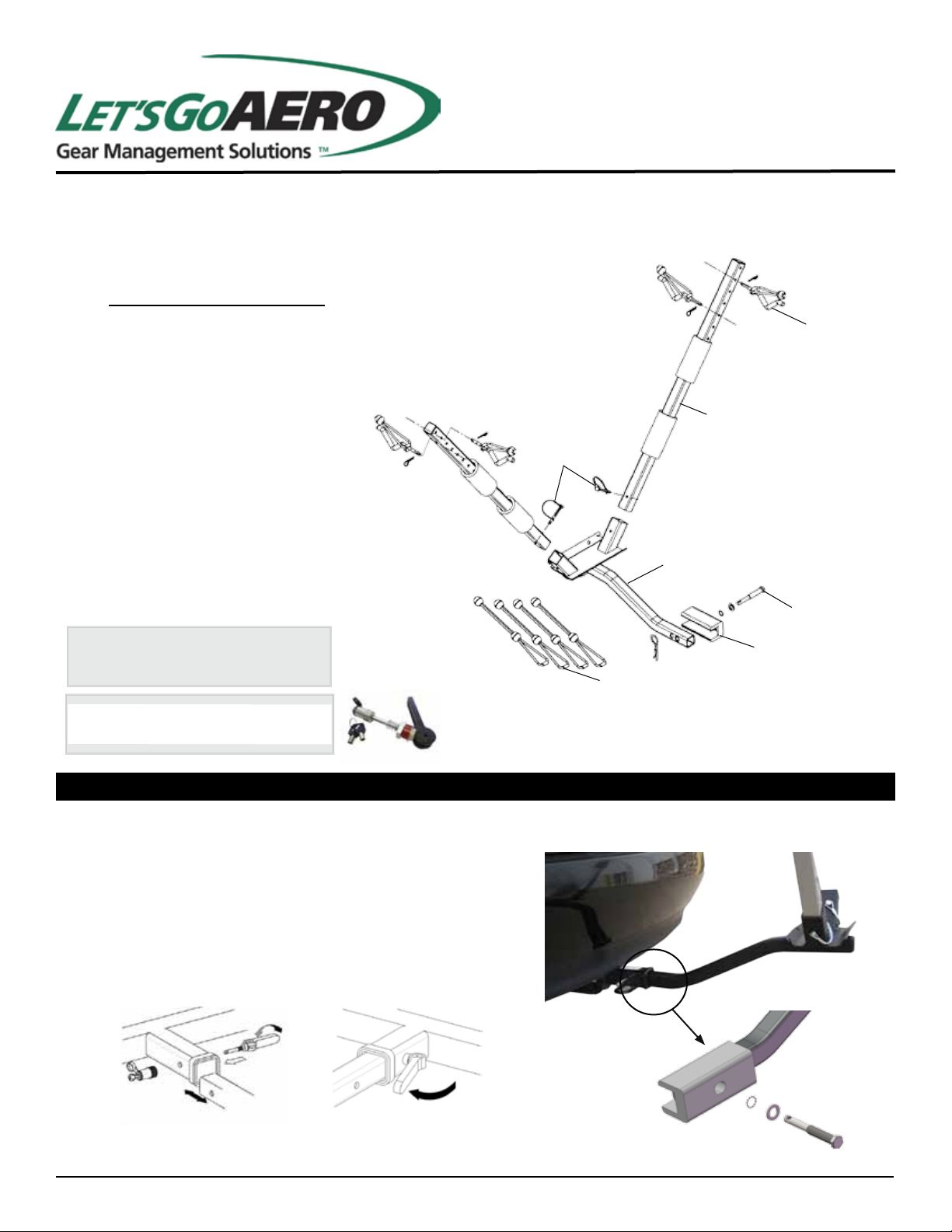

Step 1: Insert V2 Base Shank into receiver hitch

Insert V2 Base Shank into receiver hitch. Align the pin hole of the shank with that of the vehicle hitch pin hole. Thread in the NoMotion Pin, apply clip and tighten with a ¾” suitable tool.

NEW! VALUE-ADDED FEATURE SilentACT™ Accessory Control Technology - No Motion, No Tool required device locks rack to hitch. For security and convenience, apply SilentACT™ locking hitch pin.

On vehicles with a 2” hitch receiver, use the 2” nylon adapter as shown in the assembly view.

VME-V2rev0614

Page 2

V2™ Bike Rack

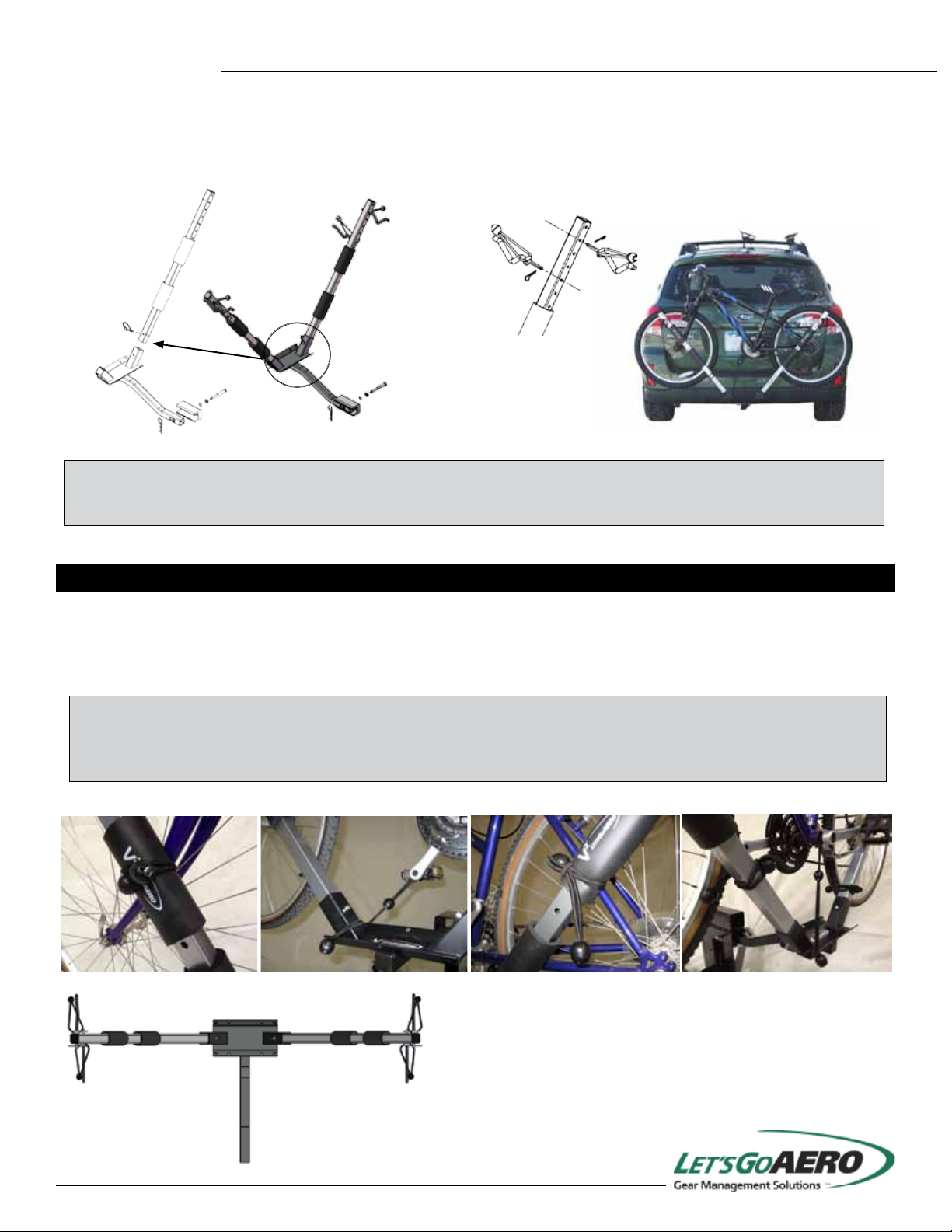

Step 3: Attach Wheel Cradle AssemblyStep 2: Assemble Wings

Slide Wings into the Base pockets and secure the Wings to the Base with the Wire Lock Pins.

Determine the approximate center-to-center distance between the hubs of the bike wheels and attach the wheel cradles to the Wings with the Hair Pin Clips to match this distance.

Loading TIP: Load bicycle onto the carrier with the bicycle chain facing outward from the Wings and the inside pedal positioned downward. This helps keep chain lube off the carrier, and provides open space in the lower, center portion of the “V” for the

inside pedal(s) to t easily. Load the second bike so its handle bars face in the opposite direction of the rst bicycle for clearance.

Operation

Securing Bicycles on Carrier

Set bike(s) on wheel cradles. Secure bike(s) to rack starting with the Wheel Toggles. Finish securing with the Double Toggles.

Double Toggles TIP: The Double Toggles provide a number of ways to achieve Constant Tension™ of your bicycle to the carrier, using one or both double toggles to capture the fork, chain stay, or seat stay. Loop the Toggle over the pedal, crank, or other position on bicycle, allowing the elastic feature to pull the bike both down and inward against the Wing pads. The Constant Ten-

sion™ removes both “front to back” and “side-to-side” sway, rmly seating the bicycle during transit.

The V2 Base plate has a Toggle pocket (upwardly angled groove) on each of the four corners for Double Toggle attachments.

To prevent theft, the Base plate includes four holes for padlock locations for locking bicycles (bike locks not included with V2 Bike Rack).

Page 3

V2™ Bike Rack

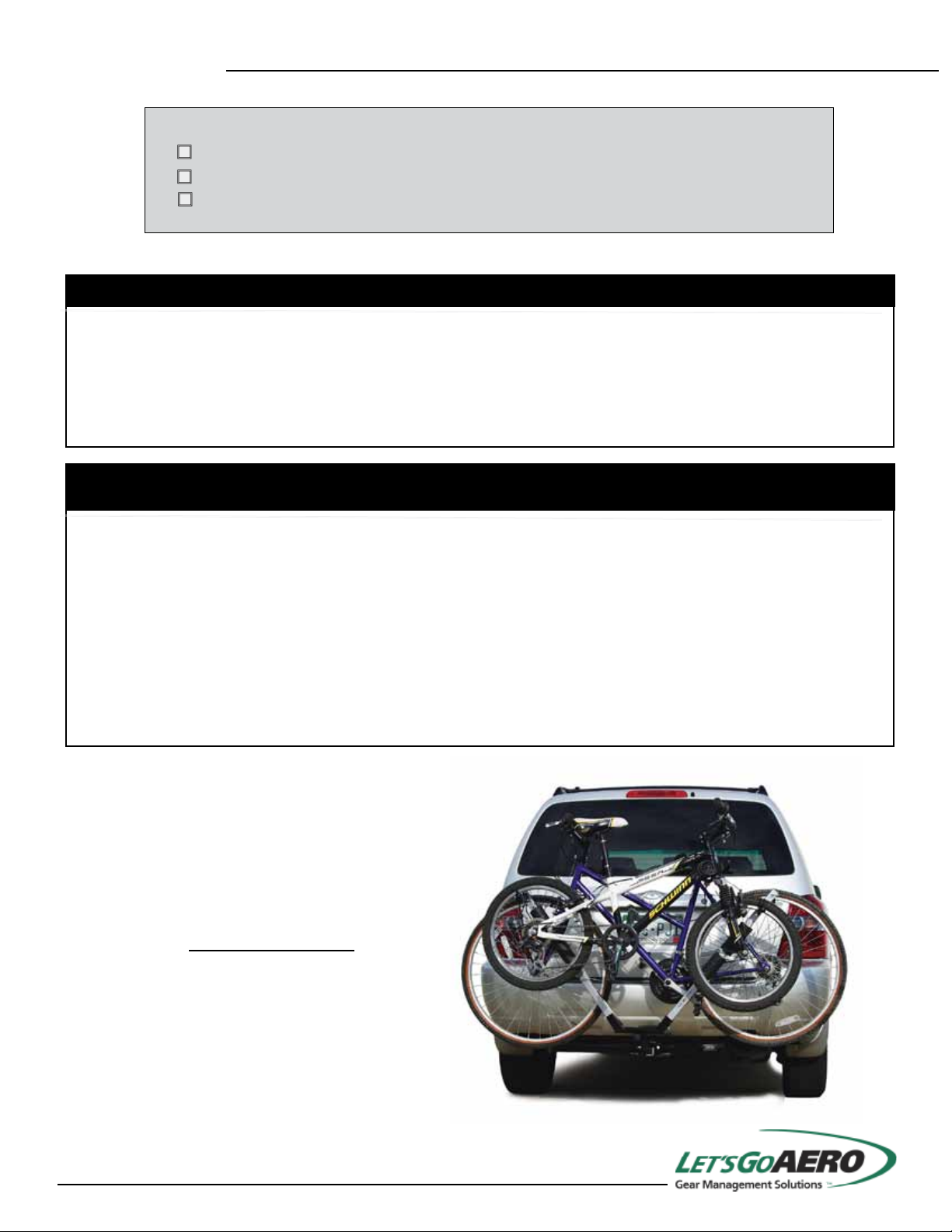

Before Transit:

Attempt to shake the carrier to verify the NoMotion pin is tight in the hitch.

Verify that the safety pins are indeed locking the Wings to the Base Pockets.

Verify the Toggles are securing your bicycles wheels and frame to the carrier as explained earlier.

V2 RACK GUIDELINES

The V2 bicycle carrier’s maximum load weight is 100 lbs. Do not exceed this carrying capacity. Do not exceed the receiver hitch manufacturer’s tongue weight rating.

Do not use this rack and accessories for purposes other than those for which they were designed. Failure to follow the guidelines of the product’s instructions will void the warranty.

Keep bicycle tires away from vehicle’s hot exhaust ow by at least 6 inches.

ONE-YEAR LIMITED WARRANTY

We warrant all LGA brand rack systems and its accessories manufactured by LGA during the time that an original retail purchaser owns the product. This warranty terminates if a purchaser transfers the product to any other person.

Let’s Go Aero warrants this product to be free from defect in material and workmanship for one year (retain your sales receipt for your records). Any product or part thereof found to be defective within that period will be replaced without charge provided

that: (1) the product was not misused; (2) no alterations or modications were made; (3) its failure was not a result of normal

wear expected in the use of the product; (4) the product or part is delivered, freight prepaid, to Let’s Go Aero. Manufacturers only obligation shall be to replace such products or parts proved to be defective. A Return Merchandise Authorization is required prior to return. Please contact Let’s Go Aero toll-free, at 877-464-2376 or 719-630-3800, or via email to [email protected] to get an RMA number.

No warranty is given for LGA products purchased outside of the United States and Canada.

U.S. Patent No: D684917; patents pending

Product Registration:

To expedite any produce service needs and streamline the warranty process if you ever had a claim, we encourage you to register you product with us.

For assistance, contact Let’s Go Aero:

2120 Naegele Road, Colorado Springs, CO 80904 Phone: 877-464-2376 or 719-630-3800 Email: [email protected].

Visit our website at www.LetsGoAero.com
