Lenovo ThinkStation E32, ThinkStation E32 SFF, ThinkStation E32 Tower, ThinkStation D30, ThinkStation S30 Specifications

Product Speciﬁ cations Reference Lenovo® ThinkStation® Workstations

January 2014 - Version 449

(ThinkStation E32 SFF/E32 Tower/D30/S30/C30)

www.lenovo.com/psref for the latest version

Visit

ThinkStation Family

ThinkStation E32 Tower - Overview

Front view

1. External 5.25” Bay for optical

2. External 5.25” Bay for optical or optional 3.5" hard drive bay

3. Media card reader (optional) or optional mSATA SSD drive

4. Power Button

5. Front I/O: 2 USB 3.0 (blue) 1 Headphone 1 Microphone

1

6

2

3

7

4 5

8

Rear view

6. 280 watts Power Supply, 80 PLUS Bronze

7. Rear I/O: 2 USB 2.0 4 USB 3.0(blue) 1 serial (9-pin) 1 RJ-45 (GbE) 1 line-in 1 line-out 1 microphone-in 2 DisplayPort (for Intel HD Graphics) 1 VGA (for Intel HD Graphics)

8. 1 PCIe 3.0 x16 1 PCIe 2.0 x1 1 PCIe 2.0 x16 (x4 elec) 1 PCI

Internal

• One LGA1150 socket, supports one processor from Intel Xeon E3-1200 v3, Core i7-4000, and Core-i5 4000 families

• 4 DIMM sockets, supports up to 32GB ECC or non-ECC UDIMM memory

• Up to three 3.5" hard drive bays, two 3.5" hard drive bays are standard

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

ThinkStation E32 SFF - Overview

1

2

3

4

Front view

1. Power Button

2. Media card reader (optional) or optional mSATA SSD drive

3. Front I/O: 2 USB 3.0 (blue) 1 Headphone 1 Microphone

4. 1 External 5.25” Bay for optical or optional slim optical + 3.5" hard drive bay or optional standalone 3.5" hard drive bay

5

6

7

Rear view

5. 240 watts Power Supply, 80 PLUS Bronze

6. Rear I/O: 2 USB 2.0 4 USB 3.0(blue) 1 serial (9-pin) 1 RJ-45 (GbE) 1 line-in 1 line-out 1 microphone-in 2 DisplayPort (for Intel HD Graphics) 1 VGA (for Intel HD Graphics)

7.* 1 PCIe 3.0 x16 1 PCIe 2.0 x1 1 PCIe 2.0 x16 (x4 elec) 1 PCI

* Discrete graphics adapter is optional

Internal

• One LGA1150 socket, supports one processor from Intel Xeon E3-1200 v3, Core i7-4000, and Core-i5 4000 families

• 4 DIMM sockets, supports up to 32GB ECC or non-ECC UDIMM memory

• Up to two 3.5" hard drive bays and one 2.5" hard drive bay, one 3.5" hard drive bay is standard

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

ThinkStation E32 Platform Speciﬁcations - I of III

Product Speciﬁcations Reference (PSREF)

From factor ThinkStation E32 Tower ThinkStation E32 SFF Chipset

Intel C226 Chipset

Intel AMT Intel Active Management Technology 9 supported on models with Intel Xeon processors Processor One LGA1150 socket,

supports one processor from Intel Xeon E3-1200 v3, Core i7-4000, Core-i5 4000, Core-i3 4000, and Pentium G3000 families, integrated 2-channel DDR3 memory controller, optional integrated processor graphics on selected processors.

The following processors are supported:

# of

Processor Number

Xeon E3-1220 v3 4 4 3.1 GHz 3.5 GHz

Xeon E3-1225 v3 4 4 3.2 GHz 3.6 GHz

Xeon E3-1230 v3 4 8 3.3 GHz 3.7 GHz

Xeon E3-1240 v3 4 8 3.4 GHz 3.8 GHz

Xeon E3-1245 v3 4 8 3.4 GHz 3.8 GHz

Xeon E3-1270 v3 4 8 3.5 GHz 3.9 GHz

Xeon E3-1275 v3 4 8 3.5 GHz 3.9 GHz

Xeon E3-1280 v3 4 8 3.6 GHz 4 GHz

Core i5-4670 4 4 3.4 GHz 3.8 GHz

Core i5-4570 4 4 3.2 GHz 3.6 GHz

Core i7-4770 4 8 3.4 GHz 3.9 GHz

Core i3-4340 2 4 3.6 GHz 4 MB DDR3-1600 Ye s Intel HD Graphics 4600

Core i3-4330 2 4 3.5 GHz 4 MB DDR3-1600 Ye s Intel HD Graphics 4600

Core i3-4130 2 4 3.4 GHz 3 MB DDR3-1600 Ye s Intel HD Graphics 4400

Pentium G3430 2 2 3.3 GHz 3 MB DDR3-1600 Ye s Intel HD Graphics

Pentium G3420 2 2 3.2 GHz 3 MB DDR3-1600 Ye s Intel HD Graphics

Pentium G3220 2 2 3 GHz 3 MB DDR3-1333 Ye s Intel HD Graphics

Cores

# of Threads

Clock Speed

Max Turbo Frequency

Cache

8 MB DDR3-1600 Ye s

8 MB DDR3-1600 Ye s Intel HD Graphics P4600

8 MB DDR3-1600 Ye s

8 MB DDR3-1600 Ye s Intel HD Graphics P4600

8 MB DDR3-1600 Ye s

8 MB DDR3-1600 Ye s Intel HD Graphics P4600

8 MB DDR3-1600 Ye s

6 MB DDR3-1600 Intel HD Graphics 4600

8 MB DDR3-1600 Intel HD Graphics 4600

Memory

speed

ECC Memory Supported

Processor Graphics

Notes: All processors information is provided by Intel and may be changed at any time without notice. The information herein is provided “as-is”.

Intel may update this information in non-scheduled. For latest information, please see http://ark.intel.com/

Memory type 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable

Memory DIMM sockets

Four 240-pin DIMM sockets

Memory capacity Up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed, installed memory speed, and quantity of memory DIMMs

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete Graphics adapters

●

Mixing of ECC and non-ECC is not supported

●

Integrated Intel HD Graphics on Pentium, Core i3, i5, i7 and Xeon E3-12x5 v3 pocessors, uses main memory, works along with discrete graphics to support multi-display, enables three display connectors (2 DisplayPort, 1 VGA) on rear ports (detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Supports the following NVIDIA Quadro, NVS graphics adapters:

Memory

Size

Quadro K2000 2GB 384 1 dual-link DVI-I

Quadro K2000D 2GB 384 1 dual-link DVI-I

Quadro K600 1GB 192 1 dual-link DVI-I

Quadro 410 512MB 192 1 dual-link DVI-I

NVS 510 2GB 192 4 mini DisplayPort

* Quadro K2000 and Quadro K2000D are equipped with 3 onboard display connectors, 4 Displays require a supported DisplayPort 1.2 Multi-Stream capable hub or displays.

CUDA

Processor Cores Display Connectors Max. Displays

2 DisplayPort

1 dual-link DVI-D 1 mini DisplayPort

1 DisplayPort

(with 4 mini DP to DP dongles)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Power

4* 51W

2 41W

2 37W

4 35W

Supported on ThinkStation

E32 Tower E32 SFF

●

● ●



Lenovo

(E32-SPEC-I) September 2013

ThinkStation E32 Platform Speciﬁcations - II of III

Product Speciﬁcations Reference (PSREF)

From factor ThinkStation E32 Tower ThinkStation E32 SFF

Supported on ThinkStation

E32 Tower E32 SFF

● ●

Discrete Graphics adapters

Memory

Size

NVS 315 1024MB 48 DMS59 to dual

NVS 310 512 MB 48 2 DisplayPort 2 19.5W

CUDA

Processor Cores Display Connectors Max. Displays

single-link DVI-I or dual DisplayPort

2 19.5W

Power

● ●

Onboard drive controllers

Four SATA connectors via onboard drive controller in chipset, SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Drive Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Supports the following:

3.5" SATA: SATA 6.0Gb/s, 7200 rpm, up to 3TB (250GB/500GB/1TB/2TB/3TB)

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, up to 1TB (250GB/500GB/1TB)

Hard drive(s)

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s, OPAL-capable on selected models, up to 480GB (128GB/180GB/240GB/256GB/480GB) mSATA: mS ATA SSD, SATA 6.0Gb/s, 24GB or 128GB

(24GB mSATA SSD is only for Intel Smart Response Technology enabled models)

Optical

Media reader (opt)

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high, SATA interface

Optional 29-in-1 media card reader on selected models Optional 29-in-1 media card reader (slim) on selected models

Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

Expansion slots

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

3.0

x16

Slot 1: half-length, full-height, PCIe Slot 2: half-length, full-height, PCIe 2.0 x1

(75w max, near CPU)

Slot 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) Slot 4: half-length, full-height, PCI 2.3

IEEE 1394 adptr (optional)

Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM Keyboard Preferred Pro USB Keyboard (USB connector) Mouse Optical Wheel Mouse, red wheel (USB connector)

Power supply

280 watts with variable speed fan, autosensing, 85% PSU, Climate Savers

®

Computing Bronze, 80 PLUS® Bronze qualiﬁed

Four SATA connectors via onboard drive controller in chipset, SATA 6.0Gb/s, RAID 0, 1 support, supports Intel Smart Response Technology

Bay 2

Bay 1

Bay 3

Bay 4

Image above is for reference only. Model in this image contains optional slim optical +

3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface

Slot 1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) Slot 2: Low Proﬁle, PCIe 2.0 x1 Slot 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) Slot 4: Low Proﬁle, PCI 2.3

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

240 watts with variable speed fan, autosensing, 85% PSU, Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed



Lenovo

(E32-SPEC-II) September 2013

ThinkStation E32 Platform Speciﬁcations - III of III

Product Speciﬁcations Reference (PSREF)

From factor ThinkStation E32 Tower ThinkStation E32 SFF

Security

Mechanical

Serviceability

Environmental certiﬁcations

Warranty ThinkVantage

®

Preloaded operating systems

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

• GREENGUARD

• RoHS-compliant

• EPEAT™ Gold rating

• ENERGY STAR 5.2-compliant

®

certiﬁed

1 or 3-year limited warranty, parts and labor Supports ThinkVantage technologies

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

®

Microsaver®cable; prohibits side cover removal)

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Preloaded OS

Note

Intel AppUp

Windows 7 Windows 8

• •

PC Device Stage • • Evernote • Lenovo Companion • Lenovo Solution Center • • Lenovo Support •

Preloaded applications (only some listed)

ISV certiﬁcations

Norton Internet Security (30 days of virus deﬁnitions)

Norton Studio • Skype • • Cyberlink PowerDVD • • Cyberlink PowerDVD Create • • Cyberlink Power2Go • • Cyberlink Power Producer • • Cyberlink PowerDVD Create • • Cyberlink Power2Go • • Cyberlink Power Producer • •

Microsoft Ofﬁce preloaded, purchase product key to activate

AutoCAD LT • •

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

• •

On models with DVD ROM, DVD±RW and BluRay

On models with DVD±RW

On models with Blu-Ray

• •

Only on models with Xeon processor



Lenovo

(E32-SPEC-III) September 2013

ThinkStation E32 Tower (30A1) - TopSeller (August 2013)

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A10007US

30A10008US

30A10009US

30A1002JUS

30A1002KUS

30A1002LUS

30A1002MUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Xeon E3-1230 v3 (4C/3.3GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Core i5-4570 (4C/3.2GHz/6MB/1600MHz)

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

1600MHz

1600MHz Non-ECC

ECC

Memory

DIMMs

4GBx1

4GBx2

4GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

Intel HD 4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Preconf

RAID Storage Optical

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x500GB 3.5" SATA DVD±RW Media No Switch

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

(30A1-1) August 2013

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Lenovo



ThinkStation E32 Tower (30A1) - TopSeller (August 2013) - II

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A1002NUS

30A1002PUS

30A1002QUS

30A1002RUS

30A1002SUS

30A1002TUS

30A1002UUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1225 v3 (4C/3.2GHz/8MB/1600MHz)

Xeon E3-1240 v3 (4C/3.4GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

4GBx1

8GBx1

4GBx1

8GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Preconf

RAID Storage Optical

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

(30A1-2) August 2013

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Lenovo



ThinkStation E32 Tower (30A1) - TopSeller (August 2013) - III

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A1002VUS

30A1002XUS

30A1002YUS

30A10030US

30A10031US

30A10032US

30A10033US

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Xeon E3-1240 v3 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1275 v3 (4C/3.5GHz/8MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1240 v3 (4C/3.4GHz/8MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

Intel HD

Graphics

Intel HD P4600

Intel HD 4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

Preconf

RAID Storage Optical

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x180GB SATA SSD DVD±RW Media No Switch

No 1x256GB SATA SSD DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x128GB SATA SSD DVD±RW Media No Switch

No 1x180GB SATA SSD DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

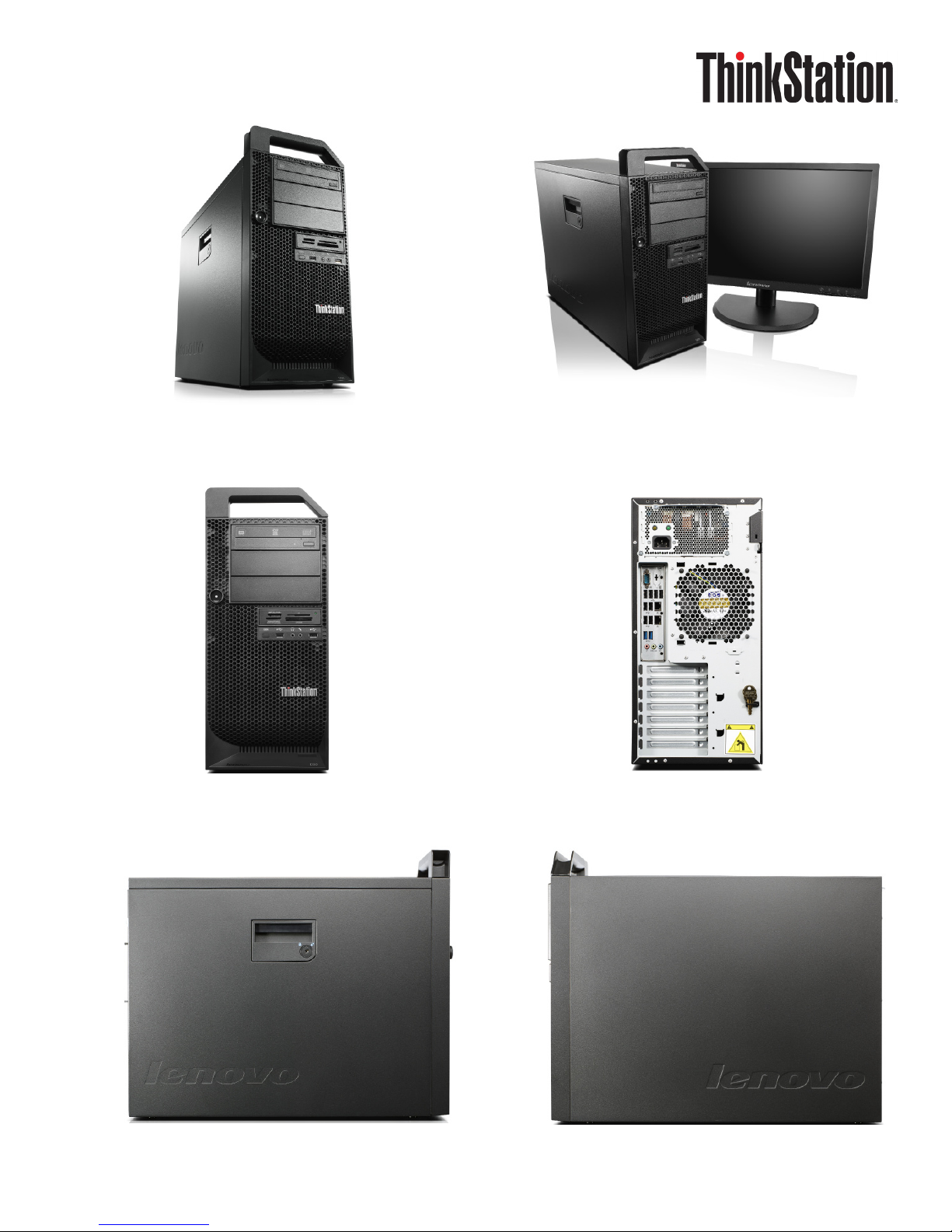

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

(30A1-3) August 2013

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Lenovo



ThinkStation E32 Tower (30A1) - TopSeller (August 2013) - IV

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A10034US

30A10035US

30A10036US

30A1003BUS

30A1003CUS

30A1003DUS

30A1003EUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Core i5-4570 (4C/3.2GHz/6MB/1600MHz)

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

4GBx1

Intel HD

Graphics

Intel HD P4600

Intel HD 4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Preconf

RAID Storage Optical

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No

No 1x500GB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

128GB SATA

SSD+1TB 3.5" SATA

DVD±RW Media No Switch

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A1-4) August 2013



ThinkStation E32 Tower (30A1) - TopSeller (August 2013) - V

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A1003FUS

30A1003GUS

30A1003HUS

30A1003JUS

30A1003KUS

30A1003LUS

30A1003MUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1225 v3 (4C/3.2GHz/8MB/1600MHz)

Xeon E3-1240 v3 (4C/3.4GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

4GBx1

8GBx1

4GBx1

8GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Preconf

RAID Storage Optical

No 1x1TB 3.5 SATA DVD±RW Media No Switch Win8 Pro64

No 1x500GB 3.5 SATA DVD±RW Media No Switch Win8 Pro64

No 1x1TB 3.5 SATA DVD±RW Media No Switch Win8 Pro64

No 1x500GB 3.5 SATA DVD±RW Media No Switch Win8 Pro64

No 1x1TB 3.5 SATA DVD±RW Media No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A1-5) August 2013



ThinkStation E32 Tower (30A1) - TopSeller (August 2013) - VI

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A1003NUS

30A1003QUS

30A1003RUS

30A1003SUS

30A1003TUS

30A1003UUS

30A1003VUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Xeon E3-1240 v3 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1275 v3 (4C/3.5GHz/8MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1240 v3 (4C/3.4GHz/8MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

Intel HD

Graphics

Intel HD P4600

Intel HD 4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

Preconf

RAID Storage Optical

No 1x1TB 3.5 SATA DVD±RW Media No Switch Win8 Pro64

No 1x180GB SATA SSD DVD±RW Media No Switch Win8 Pro64

No 1x256GB SATA SSD DVD±RW Media No Switch Win8 Pro64

No 1x1TB 3.5 SATA DVD±RW Media No Switch Win8 Pro64

No 1x128GB SATA SSD DVD±RW Media No Switch Win8 Pro64

No 1x180GB SATA SSD DVD±RW Media No Switch Win8 Pro64

No 1x1TB 3.5 SATA DVD±RW Media No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A1-6) August 2013



ThinkStation E32 Tower (30A1) - TopSeller (August 2013) - VII

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A1003WUS

30A1003XUS

30A1003YUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

Intel HD

Graphics

Intel HD P4600

Intel HD 4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Preconf

RAID Storage Optical

No 1x1TB 3.5 SATA DVD±RW Media No Switch Win8 Pro64

No

128GB SATA

SSD+1TB 3.5 SATA

DVD±RW Media No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A1-7) August 2013



ThinkStation E32 Tower (30A1) - TopSeller (September 2013)

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A1000RUS

30A1000SUS

30A1002FUS

30A1002GUS

30A1002HUS

30A1002WUS

30A10037US

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i3-4130 (2C/3.4GHz/3MB/1600MHz)

Core i3-4330 (2C/3.5GHz/4MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

4GBx1

Intel HD

Graphics

Intel HD 4400

Intel HD 4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced September 3, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

Preconf

RAID Storage Optical

No 1x500GB 3.5" SATA DVD±RW Media No Switch Win7 Pro64

No 1x500GB 3.5" SATA DVD±RW Media No No

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x128GB SATA SSD DVD±RW Media No Switch

No 1x500GB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

29-in-1

Media reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8) Win7 Pro64 (Downgrade

from Win8)

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A1-8) September 2013



ThinkStation E32 Tower (30A1) - TopSeller (September 2013) - II

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A10038US

30A10039US

30A1003AUS

30A1003PUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i3-4330 (2C/3.5GHz/4MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

4GBx1

Intel HD

Graphics

Intel HD 4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced September 3, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

Preconf

RAID Storage Optical

No 1x500GB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x1TB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x128GB SATA SSD DVD±RW Media No Switch Win8 Pro64

29-in-1

Media reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A1-9) September 2013



ThinkStation E32 Tower (30A0) - August 2013

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A0002TUS

30A0002UUS

30A0002VUS

30A0002WUS

30A0002XUS

30A0002YUS

30A00030US

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Core i5-4570 (4C/3.2GHz/6MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1225 v3 (4C/3.2GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

4GBx1

8GBx1

4GBx1

8GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

Preconf

RAID Storage Optical

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

(30A0-1) August 2013

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Lenovo



ThinkStation E32 Tower (30A0) - August 2013 - II

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A00031US

30A00032US

30A00033US

30A00034US

30A00035US

30A00039US

30A0003AUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Xeon E3-1275 v3 (4C/3.5GHz/8MB/1600MHz)

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Core i5-4570 (4C/3.2GHz/6MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

Intel HD

Graphics

Intel HD P4600

Intel HD 4600

Intel HD P4600

Intel HD 4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Preconf

RAID Storage Optical

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x180GB SATA SSD DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x500GB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A0-2) August 2013



ThinkStation E32 Tower (30A0) - August 2013 - III

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A0003BUS

30A0003CUS

30A0003DUS

30A0003EUS

30A0003FUS

30A0003GUS

30A0003HUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i5-4570 (4C/3.2GHz/6MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1225 v3 (4C/3.2GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1275 v3 (4C/3.5GHz/8MB/1600MHz)

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

4GBx1

8GBx1

4GBx1

8GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

Intel HD 4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Preconf

RAID Storage Optical

No 1x1TB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x180GB SATA SSD DVD±RW Media No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A0-3) August 2013



ThinkStation E32 Tower (30A0) - August 2013 - IV

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A0003JUS

30A0003KUS

30A0003LUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced August 20, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

Preconf

RAID Storage Optical

No 1x180GB SATA SSD DVD±RW Media No Switch Win8 Pro64

No 1x1TB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A0-4) August 2013



ThinkStation E32 Tower (30A0) - September 2013

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A0002QUS

30A0002RUS

30A0002SUS

30A00036US

30A00037US

30A00038US

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i3-4330 (2C/3.5GHz/4MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

4GBx1

Intel HD

Graphics

Intel HD 4600

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced September 3, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

Preconf

RAID Storage Optical

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x500GB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

29-in-1

Media reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8) Win7 Pro64 (Downgrade

from Win8)

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A0-5) September 2013



ThinkStation E32 Tower (30A0) - October 2013

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A0005RSS

30A0005QSS

30A0005QUS

30A0005SUS

30A0005RUS

30A0005SSS

*Model in italics shows that this is a Global Model *DL = Dual Link, SL = Single Link ***IWS= International Warranty Service

Processor

Core i5-4570 4C/3.2 GHz/6 MB/1600MHz Xeon E3-1245 v3 4C/3.4 GHz/8 MB/1600MHz Xeon E3-1245 v3 4C/3.4 GHz/8 MB/1600MHz Core i7-4770 4C/3.4 GHz/8 MB/1600MHz Core i5-4570 4C/3.2 GHz/6 MB/1600MHz Core i7-4770 4C/3.4 GHz/8 MB/1600MHz

Memory

(MHz/type)

1600NHz Non-ECC

1600MHz

ECC

1600MHz

ECC

1600NHz Non-ECC

Memory

DIMMs

8GBx1

4GBx1

8GBx1

4GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

Intel HD 4600

Discrete

graphics

adapters

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

Preconf

**

RAID Storage Optical

● For detailed ThinkStation E32 Tower platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (75W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 75W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1, 5 support,

supports Intel Smart Response Technology

Up to three 3.5" SATA (SATA 6.0Gb/s, 7200rpm)/2.5" SATA (SATA Storage

6.0Gb/s, 10000rpm)/SATA SSD (SATA 6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, 1.6" high,

SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics,

two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45),

three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(opt) Audio High Deﬁnition (HD) Audio, Realtek

Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 280 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers® Computing Bronze, 80 PLUS® Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations

Limited warranty

See footnotes for important warranty information Model(s) announced October 8 or 15, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

No

1x500GB

3.5" SATA

1x500GB

3.5" SATA

1x500GB

3.5" SATA

1x500GB

3.5" SATA

1x500GB

3.5" SATA

1x500GB

3.5" SATA

Chassis

29-in-1

intrusion

Media

reader

DVD±RW Media Switch

9

switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8) Win7 Pro64 (Downgrade

from Win8)

Base warranty (-year)***

3(IWS) 10/15/13

3(IWS) 10/8/13

3(IWS) 10/15/13

3(IWS) 10/8/13

Ann date

(mm/dd/yy)

Drives Bays

Bay 1 Standard, 5.25”, 1.6” high, external, for optical Bay 2 Standard, 5.25”, 1.6” high, external, for optical or: optional, 3.5”, 1” high, 3rd hard drive bay Bay 3 Optional, 3.5”, 1” high, supports one of the following: (1) for optional media card reader, external (2) for optional mSATA drive, internal Bay 4 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 5 Standard, 3.5”, 1” high, internal, 2nd hard drive bay

Notes: Standard optical and hard drive bays are included in models;

optional hard drive bays are available on models with the corresponding hard drives only

Expansion Slots

1: half-length, full-height, PCIe

3.0

x16

(75w max, near CPU) 2: half-length, full-height, PCIe 2.0 x1 3: half-length, full-height, PCIe 2.0 x16 (x4 elec, 75W max) 4: half-length, full-height, PCI 2.3

Mechanical

• Raven black color; metal case

• 6.9"W x 17.0"D x 16.7"H (with handle)

• 175mm W x 431mm D x 425mm H

• 27.56 lb (12.5kg) max conﬁguration

• 25-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal (standard bays)

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A0-6) November 2013



ThinkStation E32 SFF (30A3) - TopSeller (August 2013)

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A30004US

30A30005US

30A30006US

30A3001FUS

30A3001LUS

30A3001RUS

30A3001SUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Xeon E3-1230 v3 (4C/3.3GHz/8MB/1600MHz)

Xeon E3-1240 v3 (4C/3.4GHz/8MB/1600MHz)

Core i5-4570 (4C/3.2GHz/6MB/1600MHz)

Xeon E3-1225 v3 (4C/3.2GHz/8MB/1600MHz)

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Memory

(MHz/type)

1600MHz

1600MHz Non-ECC

ECC

Memory

DIMMs

4GBx1

4GBx2

4GBx1

8GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

Intel HD 4600

Discrete

graphics

adapters

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

● For detailed ThinkStation E32 SFF platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1 support,

supports Intel Smart Response Technology

Up to two 3.5" SATA (SATA 6.0Gb/s, 7200rpm) drives,

Storage

or up to three 2.5" SATA (SATA 6.0Gb/s, 10000rpm)/SATA SSD (SATA

6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Environmental certiﬁcations

ISV certiﬁcations

Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Limited warranty13-year parts and labor

Preconf

**

RAID Storage Optical

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

29-in-1

Media

reader

Drives Bays*

Bay 2

Bay 4

* Image above is for reference only. Model in this image contains optional slim optical + 3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Expansion Slots

1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) 2: Low Proﬁle, PCIe 2.0 x1 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) 4: Low Proﬁle, PCI 2.3

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

1394

adptr

Chassis

intrusion

switch

Bay 1

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8) Win7 Pro64 (Downgrade

from Win8)

Bay 3

See footnotes for important warranty information Model(s) announced August 20, 2013

Lenovo

(30A3-1) August 2013



ThinkStation E32 SFF (30A3) - TopSeller (August 2013) - II

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A3001TUS

30A3001UUS

30A3001VUS

30A3001WUS

30A3001XUS

30A3001YUS

30A30020US

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1225 v3 (4C/3.2GHz/8MB/1600MHz)

Xeon E3-1240 v3 (4C/3.4GHz/8MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

4GBx1

8GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

Intel HD 4600

Intel HD P4600

Discrete

graphics

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xNVS 310

(512MB,

2xDisplayPort,19.5W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

● For detailed ThinkStation E32 SFF platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1 support,

supports Intel Smart Response Technology

Up to two 3.5" SATA (SATA 6.0Gb/s, 7200rpm) drives,

Storage

or up to three 2.5" SATA (SATA 6.0Gb/s, 10000rpm)/SATA SSD (SATA

6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Environmental certiﬁcations

ISV certiﬁcations

Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Limited warranty13-year parts and labor

Preconf

**

RAID Storage Optical

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x180GB SATA SSD DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x180GB SATA SSD DVD±RW Media No Switch

29-in-1

Media reader

Drives Bays*

Bay 2

Bay 4

* Image above is for reference only. Model in this image contains optional slim optical + 3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Expansion Slots

1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) 2: Low Proﬁle, PCIe 2.0 x1 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) 4: Low Proﬁle, PCI 2.3

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

1394

adptr

Chassis

intrusion

switch

Bay 1

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8) Win7 Pro64 (Downgrade

from Win8)

Bay 3

See footnotes for important warranty information Model(s) announced August 20, 2013

Lenovo

(30A3-2) August 2013



ThinkStation E32 SFF (30A3) - TopSeller (August 2013) - III

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A30025US

30A30026US

30A30027US

30A30028US

30A30029US

30A3002AUS

30A3002BUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i5-4570 (4C/3.2GHz/6MB/1600MHz)

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1225 v3 (4C/3.2GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

4GBx1

8GBx1

4GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

Discrete

graphics

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xNVS 310

(512MB,

2xDisplayPort,19.5W)

● For detailed ThinkStation E32 SFF platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1 support,

supports Intel Smart Response Technology

Up to two 3.5" SATA (SATA 6.0Gb/s, 7200rpm) drives,

Storage

or up to three 2.5" SATA (SATA 6.0Gb/s, 10000rpm)/SATA SSD (SATA

6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Environmental certiﬁcations

ISV certiﬁcations

Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Limited warranty13-year parts and labor

Pre-

conf

**

RAID Storage Optical

No 1x500GB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x1TB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x500GB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x1TB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x500GB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Drives Bays*

Bay 2

Bay 4

* Image above is for reference only. Model in this image contains optional slim optical + 3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Expansion Slots

1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) 2: Low Proﬁle, PCIe 2.0 x1 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) 4: Low Proﬁle, PCI 2.3

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Preloaded

OS

Bay 1

Bay 3

See footnotes for important warranty information Model(s) announced August 20, 2013

Lenovo

(30A3-3) August 2013



ThinkStation E32 SFF (30A3) - TopSeller (August 2013) - IV

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A3002CUS

30A3002DUS

30A3002EUS

30A3002FUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Xeon E3-1240 v3 (4C/3.4GHz/8MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

Discrete

graphics

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

● For detailed ThinkStation E32 SFF platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1 support,

supports Intel Smart Response Technology

Up to two 3.5" SATA (SATA 6.0Gb/s, 7200rpm) drives,

Storage

or up to three 2.5" SATA (SATA 6.0Gb/s, 10000rpm)/SATA SSD (SATA

6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Environmental certiﬁcations

ISV certiﬁcations

Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Limited warranty13-year parts and labor

Preconf

**

RAID Storage Optical

No 1x1TB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x180GB SATA SSD DVD±RW Media No Switch Win8 Pro64

No 1x1TB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x180GB SATA SSD DVD±RW Media No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Drives Bays*

Bay 2

Bay 4

* Image above is for reference only. Model in this image contains optional slim optical + 3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Expansion Slots

1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) 2: Low Proﬁle, PCIe 2.0 x1 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) 4: Low Proﬁle, PCI 2.3

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Preloaded

OS

Bay 1

Bay 3

See footnotes for important warranty information Model(s) announced August 20, 2013

Lenovo

(30A3-4) August 2013



ThinkStation E32 SFF (30A3) - TopSeller (September 2013)

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A3001MUS

30A3001NUS

30A3001PUS

30A3001QUS

30A30021US

30A30022US

30A30023US

30A30024US

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i3-4330 (2C/3.5GHz/4MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

1600MHZ Non-ECC

Memory

DIMMs

4GBx1

8GBx1

4GBx1

8GBx1

Intel HD

Graphics

Intel HD 4600

● For detailed ThinkStation E32 SFF platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1 support,

supports Intel Smart Response Technology

Up to two 3.5" SATA (SATA 6.0Gb/s, 7200rpm) drives,

Storage

or up to three 2.5" SATA (SATA 6.0Gb/s, 10000rpm)/SATA SSD (SATA

6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed

Environmental certiﬁcations

ISV certiﬁcations Limited warranty

See footnotes for important warranty information Model(s) announced September 3, 2013

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

1

3-year parts and labor

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Discrete

graphics

**

adapters

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Pre-

conf

RAID Storage Optical

No 1x500GB 3.5" SATA DVD±RW Media No Switch

No 1x1TB 3.5" SATA DVD±RW Media No Switch

No 1x500GB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

No 1x1TB 3.5" SATA DVD±RW Media No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Drives Bays*

Bay 2

Bay 4

* Image above is for reference only. Model in this image contains optional slim optical + 3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1

Bay 3

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Expansion Slots

1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) 2: Low Proﬁle, PCIe 2.0 x1 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) 4: Low Proﬁle, PCI 2.3

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Lenovo

(30A3-5) September 2013



ThinkStation E32 SFF (30A2) - August 2013

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A2001WUS

30A2001XUS

30A2001YUS

30A20020US

30A20021US

30A20022US

30A20023US

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i5-4570 (4C/3.2GHz/6MB/1600MHz)

Xeon E3-1225 v3 (4C/3.2GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1275 v3 (4C/3.5GHz/8MB/1600MHz)

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

4GBx1

8GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

Intel HD 4600

Discrete

graphics

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

● For detailed ThinkStation E32 SFF platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1 support,

supports Intel Smart Response Technology

Up to two 3.5" SATA (SATA 6.0Gb/s, 7200rpm) drives,

Storage

or up to three 2.5" SATA (SATA 6.0Gb/s, 10000rpm)/SATA SSD (SATA

6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Environmental certiﬁcations

ISV certiﬁcations

Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Limited warranty13-year parts and labor

Preconf

**

RAID Storage Optical

No 1x1TB 3.5" SATA DVD±RW No No Switch

No 1x180GB SATA SSD DVD±RW No No Switch

No 1x256GB SATA SSD DVD±RW No No Switch

29-in-1

Media

reader

Drives Bays*

Bay 2

Bay 4

* Image above is for reference only. Model in this image contains optional slim optical + 3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Expansion Slots

1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) 2: Low Proﬁle, PCIe 2.0 x1 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) 4: Low Proﬁle, PCI 2.3

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

1394

adptr

Chassis

intrusion

switch

Bay 1

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8) Win7 Pro64 (Downgrade

from Win8)

Bay 3

See footnotes for important warranty information Model(s) announced August 20, 2013

Lenovo

(30A2-1) August 2013



ThinkStation E32 SFF (30A2) - August 2013 - II

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A20024US

30A20027US

30A20028US

30A20029US

30A2002AUS

30A2002BUS

30A2002CUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Core i5-4570 (4C/3.2GHz/6MB/1600MHz)

Xeon E3-1225 v3 (4C/3.2GHz/8MB/1600MHz)

Xeon E3-1245 v3 (4C/3.4GHz/8MB/1600MHz)

Xeon E3-1275 v3 (4C/3.5GHz/8MB/1600MHz)

Core i5-4670 (4C/3.4GHz/6MB/1600MHz)

Core i7-4770 (4C/3.4GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

4GBx1

8GBx1

Intel HD

Graphics

Intel HD 4600

Intel HD P4600

Intel HD 4600

Discrete

graphics

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

● For detailed ThinkStation E32 SFF platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1 support,

supports Intel Smart Response Technology

Up to two 3.5" SATA (SATA 6.0Gb/s, 7200rpm) drives,

Storage

or up to three 2.5" SATA (SATA 6.0Gb/s, 10000rpm)/SATA SSD (SATA

6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Environmental certiﬁcations

ISV certiﬁcations

Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Limited warranty13-year parts and labor

Preconf

**

RAID Storage Optical

No 1x1TB 3.5" SATA DVD±RW No No Switch

No 1x1TB 3.5" SATA DVD±RW No No Switch Win8 Pro64

No 1x180GB SATA SSD DVD±RW No No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Drives Bays*

Bay 2

Bay 4

* Image above is for reference only. Model in this image contains optional slim optical + 3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Expansion Slots

1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) 2: Low Proﬁle, PCIe 2.0 x1 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) 4: Low Proﬁle, PCI 2.3

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Bay 1

Bay 3

See footnotes for important warranty information Model(s) announced August 20, 2013

Lenovo

(30A2-2) August 2013



ThinkStation E32 SFF (30A2) - August 2013 - III

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A2002DUS

30A2002EUS

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Xeon E3-1280 v3 (4C/3.6GHz/8MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

8GBx1

Intel HD

Graphics

Discrete

graphics

adapters

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

● For detailed ThinkStation E32 SFF platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1 support,

supports Intel Smart Response Technology

Up to two 3.5" SATA (SATA 6.0Gb/s, 7200rpm) drives,

Storage

or up to three 2.5" SATA (SATA 6.0Gb/s, 10000rpm)/SATA SSD (SATA

6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Environmental certiﬁcations

ISV certiﬁcations

Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Limited warranty13-year parts and labor

Preconf

**

RAID Storage Optical

No 1x256GB SATA SSD DVD±RW No No Switch Win8 Pro64

No 1x1TB 3.5" SATA DVD±RW No No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Drives Bays*

Bay 2

Bay 4

* Image above is for reference only. Model in this image contains optional slim optical + 3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Expansion Slots

1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) 2: Low Proﬁle, PCIe 2.0 x1 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) 4: Low Proﬁle, PCI 2.3

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Preloaded

OS

Bay 1

Bay 3

See footnotes for important warranty information Model(s) announced August 20, 2013

Lenovo

(30A2-3) August 2013



ThinkStation E32 SFF (30A2) - September 2013

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A2001UUS

30A2001VUS

30A20025US

30A20026US

* Model in italics shows that this is a Global Model ** DL = Dual Link, SL = Single Link

Processor

Core i3-4330 (2C/3.5GHz/4MB/1600MHz)

Memory

(MHz/type)

1600MHz Non-ECC

Memory

DIMMs

4GBx1

Intel HD

Graphics

Intel HD 4600

Discrete

graphics

adapters

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

● For detailed ThinkStation E32 SFF platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1 support,

supports Intel Smart Response Technology

Up to two 3.5" SATA (SATA 6.0Gb/s, 7200rpm) drives,

Storage

or up to three 2.5" SATA (SATA 6.0Gb/s, 10000rpm)/SATA SSD (SATA

6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Environmental certiﬁcations

ISV certiﬁcations

Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Limited warranty13-year parts and labor

Preconf

**

RAID Storage Optical

No 1x500GB 3.5" SATA DVD±RW No No Switch

No 1x500GB 3.5" SATA DVD±RW No No Switch Win8 Pro64

29-in-1

Media

reader

1394

adptr

Chassis

intrusion

switch

Drives Bays*

Bay 2

Bay 4

* Image above is for reference only. Model in this image contains optional slim optical + 3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Expansion Slots

1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) 2: Low Proﬁle, PCIe 2.0 x1 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) 4: Low Proﬁle, PCI 2.3

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

Bay 1

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8) Win7 Pro64 (Downgrade

from Win8)

Bay 3

See footnotes for important warranty information Model(s) announced September 3, 2013

Lenovo

(30A2-4) September 2013



ThinkStation E32 SFF (30A2) - October 2013

Product Speciﬁcations Reference (PSREF)

Type-

*

model

30A2001TUS

30A2002QUS

30A2002PSS

30A2002QSS

30A2002PUS

*Model in italics shows that this is a Global Model *DL = Dual Link, SL = Single Link ***IWS= International Warranty Service

Processor

Xeon E3-1230 v3 4C/3.3 GHz/8 MB/1600MHz Core i5-4570 4C/3.2 GHz/6 MB/1600MHz Core i7-4770 4C/3.4 GHz/8 MB/1600MHz Core i5-4570 4C/3.2 GHz/6 MB/1600MHz Core i7-4770 4C/3.4 GHz/8 MB/1600MHz

Memory

(MHz/type)

1600MHz

ECC

1600NHz Non-ECC

Memory

DIMMs

4GBx1

8GBx1

4GBx1

8GBx1

Intel HD

Graphics

No

Intel HD 4600

Discrete

graphics

adapters

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

1GB, 1xDVI-I DL,

1xDP, 41W)

Pre-

conf

**

RAID Storage Optical

1x1TB

No

3.5" SATA

1x1TB

No

3.5" SATA

1x180GB

No

SATA SSD

1x1TB

No

3.5" SATA

1x180GB

No

SATA SSD

● For detailed ThinkStation E32 SFF platform speciﬁcations, please see ThinkStation E32 Platform Speciﬁcations sheet

Chipset

Intel AMT

Processor

Intel C226 Chipset

Intel Active Management Technology 9 supported on models with Intel Xeon processors

One LGA1150 socket, integrated 2-channel DDR3 memory controller,

optional integrated Intel HD Graphics on selected processors

Memory 1600MHz UDIMM, DDR3, ECC or non-ECC, 2-channel capable Memory DIMM

sockets

Additional memory disclaimers

Intel HD Graphics in processor (optional)

Discrete graphics adapters

Onboard drive controllers

Four 240-pin DIMM sockets, up to 32GB ECC/non-ECC (8GBx4)

Actual memory operating speed depends on processor memory controller speed,

●

installed memory speed, and quantity of memory DIMMs

Mixing of ECC and non-ECC is not supported

●

Intel Core i5/i7 processors support non-ECC memory only

●

Integrated Intel HD Graphics on selected processors, uses main memory,

works along with discrete graphics to support multi-display,

enables three display connectors (2 DisplayPort, 1 VGA) on rear ports

(detailed information please see Rear ports section)

Two PCI Express x16 slots for discrete graphics adapters:

● One PCI Express 3.0 x16 slot (40W max, near CPU)

● One PCI Express 2.0 x16 slot (x4 electrical, 40W max)

Four SATA connectors via onboard drive controller in chipset,

SATA 6.0Gb/s, RAID

0, 1 support,

supports Intel Smart Response Technology

Up to two 3.5" SATA (SATA 6.0Gb/s, 7200rpm) drives,

Storage

or up to three 2.5" SATA (SATA 6.0Gb/s, 10000rpm)/SATA SSD (SATA

6.0Gb/s) drives;

up to one mSATA SSD drive (SATA 6.0Gb/s)

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner,

1.6" high or slim, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0 (blue), microphone (3.5mm), headphone (3.5mm)

Rear ports

One VGA and two DisplayPort for models with Intel HD Graphics, two USB 2.0, four USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Optional Low Proﬁle FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel I217LM

• Security chip: STMicro ST33ZP24AR28PVSP, TCG 1.2-compliant

• Security slot (in rear for optional Kensington



Microsaver cable;

prohibits side cover removal)

Security

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse

• Serial port I/O control

• USB port disablement (front or all/individual)

• Chassis intrusion switch available on selected models

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 240 watts with variable speed fan, autosensing, 85% PSU,

Environmental certiﬁcations

ISV certiﬁcations

Climate Savers Computing Bronze, 80 PLUS Bronze qualiﬁed

GREENGUARD ENERGY STAR 5.2 qualiﬁed

For the latest list of certiﬁcations, please visit www.lenovo.com/support/ISV

®

certiﬁed/RoHS-compliant/EPEAT™ Gold rating/

Limited warranty13-year parts and labor

29-in-1

Media

reader

DVD±RW Media Switch

DVD±RW No Switch

9

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8) Win7 Pro64 (Downgrade

from Win8)

Base warranty (-year)***

3(IWS) 10/8/13

3(IWS) 10/15/13

3(IWS) 10/8/13

Ann date

(mm/dd/yy)

Drives Bays*

Bay 2

Bay 4

* Image above is for reference only. Model in this image contains optional slim optical + 3.5" 2nd hard dr ive bay with supplemental fan (Bay 2) and optional 2.5" 3rd hard dr ive bay (Bay 3)

Bay 1

Bay 3

Bay 1 Standard, 3.5”, 1” high, internal, primary hard drive bay Bay 2 Standard, 5.25”, 1.6” high, external, for optical, also supports one of the following: (1) 5.25" slim optical (access) and 3.5" 2nd hard drive bay (internal), optional (2) 3.5" 2nd hard drive bay (internal), optional Bay 3 Optional, 2.5”, 0.6” high, internal, 3rd hard drive bay Bay 4 Optional, 3.5”, 0.5” high, supports one of the following: (1) for optional slim media card reader, external (2) for optional mSATA drive, internal (Bay 4 is not available on slim optical models)

Notes: Standard optical and hard drive bays are included in models;

optional optical and hard drive bays are available on models with the corresponding drives only

Expansion Slots

1: Low Proﬁle, PCIe

3.0

x16

(40w max, near CPU) 2: Low Proﬁle, PCIe 2.0 x1 3: Low Proﬁle, PCIe 2.0 x16 (x4 elec, 40W max) 4: Low Proﬁle, PCI 2.3

Mechanical

• Raven black color; metal case

• 13.35"W x 15.0"D x 3.93"H

• 338mm W x 375mm D x 102mm H

• 17.20 lb (7.8kg) max conﬁguration

• 12.9-liter

• Toolless top cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Recessed power button

See footnotes for important warranty information Model(s) announced October 8 or 15, 2013

Lenovo

(30A2-5) November 2013



Lenovo ThinkStation S30

Lenovo ThinkStation S30Lenovo ThinkStation S30

ThinkStation S30 Platform Speciﬁcations - I of IV

Product Speciﬁcations Reference (PSREF)

Text in red shows that these features only apply to MT type 0568, 0569, and 0606 models, text in green shows that the features are supported on other models except MT type 0568, 0569, and 0606 models

Chipset

Intel AMT

Intel C602 Chipset

MT type 0568, 0569, and 0606: Intel Active Management Technology 7 Others MT types: Intel Active Management Technology 8

Processor One LGA2011 socket, supports one processor from Intel Xeon E5-2600 E5-2600 v2, E5-1600, and E5-1600 v2 family,

integrated 4-channel DDR3 memory controller, supports the following:

Processor

Number Xeon E5-2603 4 4 1.8 GHz 10 MB 6.4 GT/s 2 80 W 1066MHz vPro Xeon E5-2609 4 4 2.4 GHz 10 MB 6.4 GT/s 2 80 W 1066MHz vPro Xeon E5-2620 6 12 2 GHz 2.5 GHz 15 MB 7.2 GT/s 2 95 W 1333MHz vPro Xeon E5-2630 6 12 2.3 GHz 2.8 GHz 15 MB 7.2 GT/s 2 95 W 1333MHz vPro Xeon E5-2630L 6 12 2 GHz 2.5 GHz 15 MB 7.2 GT/s 2 60 W 1333MHz vPro Xeon E5-2637 2 4 3 GHz 3.5 GHz 5 MB 8 GT/s 2 80 W 1600MHz vPro Xeon E5-2640 6 12 2.5 GHz 3 GHz 15 MB 7.2 GT/s 2 95 W 1333MHz vPro Xeon E5-2643 4 8 3.3 GHz 3.5 GHz 10 MB 8 GT/s 2 130 W 1600MHz vPro Xeon E5-2650 8 16 2 GHz 2.8 GHz 20 MB 8 GT/s 2 95 W 1600MHz vPro Xeon E5-2650L 8 16 1.8 GHz 2.3 GHz 20 MB 8 GT/s 2 70 W 1600MHz vPro Xeon E5-2660 8 16 2.2 GHz 3 GHz 20 MB 8 GT/s 2 95 W 1600MHz vPro Xeon E5-2665 8 16 2.4 GHz 3.1 GHz 20 MB 8 GT/s 2 115 W 1600MHz vPro Xeon E5-2667 6 12 2.9 GHz 3.5 GHz 15 MB 8 GT/s 2 130 W 1600MHz vPro Xeon E5-2670 8 16 2.6 GHz 3.3 GHz 20 MB 8 GT/s 2 115 W 1600MHz vPro Xeon E5-2680 8 16 2.7 GHz 3.5 GHz 20 MB 8 GT/s 2 130 W 1600MHz vPro Xeon E5-2690 8 16 2.9 GHz 3.8 GHz 20 MB 8 GT/s 2 135 W 1600MHz vPro Xeon E5-1603 4 4 2.8 GHz 10 MB 130 W 1066MHz vPro Xeon E5-1607 4 4 3 GHz 10 MB 130 W 1066MHz vPro Xeon E5-1620 4 8 3.6 GHz 3.8 GHz 10 MB 130 W 1600MHz vPro Xeon E5-1650 6 12 3.2 GHz 3.8 GHz 12 MB 130 W 1600MHz vPro Xeon E5-1660 6 12 3.3 GHz 3.9 GHz 15 MB 130 W 1600MHz vPro

Xeon E5-2603 v2 4 4 1.8 GHz 1.8 GHz 10 MB 6.4 GT/s 2 80 W 1333MHz vPro Xeon E5-2609 v2 4 4 2.5 GHz 2.5 GHz 10 MB 6.4 GT/s 2 80 W 1333MHz vPro Xeon E5-2620 v2 6 12 2.1 GHz 2.6 GHz 15 MB 7.2 GT/s 2 80 W 1600MHz vPro Xeon E5-2630L v2 6 12 2.4 GHz 2.8 GHz 15 MB 7.2 GT/s 2 60 W 1600MHz vPro Xeon E5-2630 v2 6 12 2.6 GHz 3.1 GHz 15 MB 7.2 GT/s 2 80 W 1600MHz vPro Xeon E5-2637 v2 4 8 3.5 GHz 3.8 GHz 15 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2640 v2 8 16 2 GHz 2.5 GHz 20 MB 7.2 GT/s 2 95 W 1600MHz vPro Xeon E5-2643 v2 6 12 3.5 GHz 3.8 GHz 25 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2650L v2 10 20 1.7 GHz 2.1 GHz 25 MB 7.2 GT/s 2 70 W 1600MHz vPro Xeon E5-2650 v2 8 16 2.6 GHz 3.4 GHz 20 MB 8 GT/s 2 95 W 1866MHz vPro Xeon E5-2660 v2 10 20 2.2 GHz 3 GHz 25 MB 8 GT/s 2 95 W 1866MHz vPro Xeon E5-2667 v2 8 16 3.3 GHz 4 GHz 25 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2670 v2 10 20 2.5 GHz 3.3 GHz 25 MB 8 GT/s 2 115 W 1866MHz vPro Xeon E5-2680 v2 10 20 2.8 GHz 3.6 GHz 25 MB 8 GT/s 2 115 W 1866MHz vPro Xeon E5-2690 v2 10 20 3 GHz 3.6 GHz 25 MB 8 GT/s Xeon E5-2695 v2 12 24 2.4 GHz 3.2 GHz 30 MB 8 GT/s 2 115 W 1866MHz vPro Xeon E5-2697 v2 12 24 2.7 GHz 3.5 GHz 30 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-1607 v2 4 4 3 GHz 10 MB 130 W 1600MHz vPro Xeon E5-1620 v2 4 8 3.7 GHz 3.9 GHz 10 MB 130 W 1866MHz vPro Xeon E5-1650 v2 6 12 3.5 GHz 3.9 GHz 12 MB 130 W 1866MHz vPro Xeon E5-1660 v2 6 12 3.7 GHz 4 GHz 15 MB 130 W 1866MHz vPro

# of Cores

# of Threads

Clock Speed

Max Turbo Frequency Cache

Intel QPI Speed

# of QPI Links Max TDP

2 130 W 1866MHz vPro

Memory

Speed Intel vPro technology

Notes:

1. ThinkStation S30 support one processor.

2. Intel Xeon processor numbering system is an alpha numeric representation of product line, product family and version. An ‘L’ sufﬁx will be used to identify a low power processor. More details please see http://www.intel.com/products/processor_number

3. All information is provided by Intel and may be changed at any time without notice. The information herein is provided “as-is”. Intel may update this information in non-scheduled. For latest information, please see http://ark.intel.com/products/family/59138/Intel-Xeon-Processor-E5-Family/server



Lenovo

(S30-SPEC) September 2013

ThinkStation S30 Platform Speciﬁcations - II of IV

Text in red shows that these features only apply to MT type 0568, 0569, and 0606 models, text in green shows that the features are supported on other models except MT type 0568, 0569, and 0606 models

Product Speciﬁcations Reference (PSREF)

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Additional memory disclaimers

Graphics adapters and GPU computing

Actual memory operating speed depends on processor memory

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology (Quadro 5000 and Quadro K5000 SLI), NVIDIA Maximus technology, supports the following NVIDIA Quadro, NVS graphics adapters and Tesla GPU computing processors:

Memory Size CUDA Processor Cores Display Connectors Max. Displays # of slots Power

NVIDIA Quadro and NVS Graphics

Quadro K6000 12GB 2880 1 dual-link DVI-I

Quadro K5000 4GB 1536 1 dual-link DVI-I

Quadro K4000 3GB 768 1 dual-link DVI-I

Quadro K2000 2GB 384 1 dual-link DVI-I

Quadro K2000D 2GB 384 1 dual-link DVI-I

Quadro K600 1GB 192 1 dual-link DVI-I

Quadro 410 512MB 192 1 dual-link DVI-I

Quadro 6000 6GB 448 1 dual-link DVI-I

Quadro 5000 2.5GB 352 1 dual-link DVI-I

Quadro 4000 2GB 256 1 dual-link DVI-I

Quadro 2000 1GB 192 1 dual-link DVI-I

Quadro 2000D 1GB 192 2 dual-link DVI-I 2 1 62W Quadro 600 1GB 96 1 dual-link DVI-I

NVS 510 2048 MB 192 4 mini DisplayPort

NVS 315 1024MB 48 DMS59 to

NVS 310 512 MB 48 2 DisplayPort 2 1 19.5W

NVS 300 512 MB 16 DMS59 to dual single-

NVIDIA Tesla GPU Computing Processors (as part of NVIDIA Maximus Platform)

Tesla K20 5GB 2496 225W

Tesla C2075 6GB 448 225W

* Quadro K4000, K2000, and K2000D are equipped with 3 onboard display connectors, 4 Displays require a supported DisplayPort 1.2 Multi-Stream capable hub or displays

Notes:

1. ThinkStation S30 support NVIDIA Maximus technology. Maximus technology combines the visualization and interactive design capability of NVIDIA Quadro graphics and the high performance computing power of NVIDIA Tesla GPU computing processors in a single workstation. For more information on the latest Maximus certiﬁcations for ThinkStation and how to build Maximus system, please see www.nvidia.com/object/maximus.html

2. CUDA Processor Cores cannot be compared between GPU generations due to several important architectural differences that exist between streaming multiprocessor designs.

1 dual-link DVI-D 2 DisplayPort

2 DisplayPort

1 dual-link DVI-D 1 mini DisplayPort

1 DisplayPort

2 DisplayPort 1 Stereo

2 DisplayPort, 1 Stereo

2 DisplayPort 1 Stereo

2 DisplayPort

1 DisplayPort

(with 4 mini DP to DP dongles)

dual single-link DVI-I or dual DisplayPort

link DVI-I

4 2 225W

4 2 122W

4* 1 80W

4* 1 51W

2 1 41W

2 1 37W

2 2 204W

2 2 152W

2 1 142W

2 1 62W

2 1 40W

4 1 35W

2 1 19.5W

2 1 17.5W



Lenovo

(S30-SPEC) September 2013

ThinkStation S30 Platform Speciﬁcations - III of IV

•

Onboard drive controllers

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Hard drive(s)

Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Drive Bays Two external 5.25” bays for opticals, three internal 3.5” bays for hard drives Media reader (opt)

Front ports

Rear ports IEEE 1394 adptr

(optional) Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply

Security

Mechanical

Expansion slots

Serviceability

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1 support

•

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

Supports the following:

3.5" SATA: SATA 6.0Gb/s, 7200 rpm, up to 4TB

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm, integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, up to 1TB

3.5" SAS: SAS 6.0Gb/s, 15000 rpm, up to 600GB

2.5" SAS: SAS 6.0Gb/s, 15000 rpm, up to 300GB

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s, OPAL-capable on selected models, up to 300GB

Optional 29-in-1 media card reader on selected models

MT type 0568, 0569, and 0606: Two USB 2.0, microphone (3.5mm), headphone (3.5mm) Others MT types: Two USB 3.0, microphone (3.5mm), headphone (3.5mm)

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in) None. Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec

610 watts with 120mm bottom-mounted variable speed fan, universal, Climate Savers

• Security chip:

MT type 0568, 0569, and 0606: STMicroelectronics ST19WP18 for TPM function, TCG 1.2-compliant Others MT types: STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock; padlock prohibits side cover removal)

• Security slot (in rear for optional Kensington

®

Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch (optional)

• Raven black color; metal case

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

Slot 1: full-length, full-height, PCIe 3.0 x16** (near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

* Adapters >75W use auxiliary power connector(s) from PSU

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Product Speciﬁcations Reference (PSREF)

®

Computing Gold, 80 PLUS® Gold qualiﬁed



Lenovo

(S30-SPEC) September 2013

ThinkStation S30 Platform Speciﬁcations - IV of IV

Product Speciﬁcations Reference (PSREF)

ISV certiﬁcations

Environmental certiﬁcations

Warranty 1 or 3-year limited warranty, parts and labor ThinkVantage

®

Preloaded operating systems

Please visit www.lenovo.com/support/ISV

®

GREENGUARD RoHS-compliant

certiﬁed

EPEAT™ Gold rating

Supports ThinkVantage® technologies

One the following, depending on model:

• Windows® 7 Professional 64

• Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

For Windows 7 models:

• Rescue and Recovery

• Norton® Internet Security (30 days of virus deﬁ nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Microsoft® Ofﬁce preloaded; purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

Preloaded applications (only some listed)

• Ulead® DVD MovieFactory® (DVD±RW model(s))

For Windows 8 models:

• Evernote

®

• Norton Internet Security (30 days of virus deﬁnitions)

• Norton Studio

• Skype™

• Microsoft Ofﬁce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))



Lenovo

(S30-SPEC) September 2013

ThinkStation S30 (4352) - TopSeller (June 2013)

Upgrade ROM for

Type-

1

model

4352-55U

4352-57U

4352-58U

4352-59U

4352-62U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Processor(s)

E5-1603 (4C/2.8GHz/10MB/1066)

E5-1620 (4C/3.6GHz/10MB/1600)

• 3-yearlimitedwarranty

• WithnewMTtype4351/4352andbeyond,ThinkStationS30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 0568, 0569, and 0606 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

onboard

drive

controller

No

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x500GB 3.5" SATA DVD±RW 29-in-1 No No Switch

No No 1x500GB 3.5" SATA DVD±RW 29-in-1

No No 1x1TB 3.5" SATA DVD±RW 29-in-1

2

Optical

Product Speciﬁcations Reference (PSREF)

Media reader

1xQuadro 410

(512MB, 1xDVI-I DL*,

1xQuadro K600

(1GB, 1xDVI-I DL,

1xQuadro K600

(1GB, 1xDVI-I DL,

1xQuadro K2000

(2GB, 1xDVI-I DL,

Graphics

adapter(s)

and GPU

computing

1xDP, 37W)

1xDP, 41W)

2xDP, 51W)

Chassis

1394

intrusion

adptr

switch

No Switch

* DL = Dual Link, SL = Single Link

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Chipset

Processor

Intel C602 Chipset

One LGA2011 socket, supports one processor from Intel Xeon E5-2600 and E5-1600 family, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

Optical

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

OPAL-capable on selected models

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(FOR1-4) June 2013



Lenovo

ThinkStation S30 (4352) - TopSeller (June 2013) - II

Upgrade ROM for

Type-

1

model

4352-63U

4352-64U

4352-67U

4352-68U

4352-69U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Processor(s)

E5-1650 (6C/3.2GHz/12MB/1600)

E5-1603 (4C/2.8GHz/10MB/1066)

• 3-yearlimitedwarranty

• WithnewMTtype4351/4352andbeyond,ThinkStationS30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 0568, 0569, and 0606 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

onboard

drive

controller

No

SAS

No

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x1TB 3.5" SATA DVD±RW 29-in-1

No No 1x300GB 3.5" SAS DVD±RW 29-in-1 No No Switch

No No 1x500GB 3.5" SATA DVD±RW 29-in-1

No No 1x500GB 3.5" SATA DVD±RW 29-in-1 No No Switch Win8 Pro64

No No 1x500GB 3.5" SATA DVD±RW 29-in-1

Product Speciﬁcations Reference (PSREF)

Graphics

2

Optical

Media reader

adapter(s)

and GPU

computing

1xQuadro K4000

(3GB, 1xDVI-I DL*,

2xDP, 80W)

1xQuadro 410

(512MB, 1xDVI-I

DL, 1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Chassis

1394

intrusion

adptr

switch

No Switch

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Chipset

Processor

Intel C602 Chipset

One LGA2011 socket, supports one processor from Intel Xeon E5-2600 and E5-1600 family, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

Optical

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

OPAL-capable on selected models

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(FOR2-4) June 2013



Lenovo

ThinkStation S30 (4352) - TopSeller (June 2013) - III

Upgrade

ROM for

Type-

1

model

4352-71U

4352-72U

4352-73U

4352-74U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Processor(s)

E5-1620 (4C/3.6GHz/10MB/1600)

E5-1650 (6C/3.2GHz/12MB/1600)

• 3-yearlimitedwarranty

• WithnewMTtype4351/4352andbeyond,ThinkStationS30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 0568, 0569, and 0606 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

onboard

drive

controller

SAS

No

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x1TB 3.5" SATA DVD±RW 29-in-1

No No 1x300GB 3.5" SAS DVD±RW 29-in-1 No No Switch Win8 Pro64

Product Speciﬁcations Reference (PSREF)

Graphics

2

Optical

Media

reader

adapter(s)

and GPU

computing

1xQuadro K600

(1GB, 1xDVI-I DL*,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

switch

Preloaded

OS

Chipset

Processor

Intel C602 Chipset

One LGA2011 socket, supports one processor from Intel Xeon E5-2600 and E5-1600 family, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

Optical

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

OPAL-capable on selected models

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(FOR3-4) June 2013



Lenovo

ThinkStation S30 (4352) - TopSeller (June 2013) - IV

Upgrade ROM for

Type-

1

model

4352-94U

4352-95U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Processor(s)

E5-1650 (6C/3.2GHz/12MB/1600)

• 3-yearlimitedwarranty

• WithnewMTtype4351/4352andbeyond,ThinkStationS30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 0568, 0569, and 0606 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

onboard

drive

controller

No

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x180GB 2.5" SSD DVD±RW 29-in-1 No No Switch

No No 1x180GB 2.5" SSD DVD±RW 29-in-1 No No Switch Win8 Pro64

Product Speciﬁcations Reference (PSREF)

Graphics

2

Optical

Media

reader

adapter(s)

and GPU

computing

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Chipset

Processor

Intel C602 Chipset

One LGA2011 socket, supports one processor from Intel Xeon E5-2600 and E5-1600 family, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

Optical

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

OPAL-capable on selected models

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(FOR4-4) June 2013



Lenovo

ThinkStation S30 (4352) - TopSeller (September 2013)

Upgrade

ROM for

Type-

model

4352-G3U

4352-G4U

4352-G5U

4352-G6U

4352-G7U

4352-G8U

4352-G9U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

E5-1607 v2 (4C/3GHz/10MB/1600)

E5-1620 v2 (4C/3.7GHz/10MB/1866)

• 3-yearlimitedwarranty

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

8GBx1

onboard

drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x500GB 3.5" SATA DVD±RW Media No No Switch

No 1x500GB 3.5" SATA DVD±RW Media

No 1x1TB 3.5" SATA DVD±RW Media

No 1x1TB 3.5" SATA DVD±RW Media No No Switch

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing***

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor

One LGA2011 socket, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

Hard drives

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

See footnotes for important warranty information Model(s) announced September 10, 2013

®

Computing Gold, 80 PLUS® Gold qualiﬁed

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(4352-5) September 2013



Lenovo

ThinkStation S30 (4352) - TopSeller (September 2013) - II

Upgrade

ROM for

Type-

model

4352-H1U

4352-H2U

4352-H3U

4352-H4U

4352-H5U

4352-H6U

4352-H7U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

E5-1650 v2 (6C/3.5GHz/12MB/1866)

E5-1620 v2 (4C/3.7GHz/10MB/1866)

E5-1650 v2 (6C/3.5GHz/12MB/1866)

E5-2650 v2 (8C/2.6GHz/20MB/1866)

E5-1650 v2 (6C/3.5GHz/12MB/1866)

• 3-yearlimitedwarranty

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

8GBx1

4GBx1

8GBx1

onboard

drive

controller

No

SAS

Pre-conf

RAID Hard drive(s)

No 1x2TB 3.5" SATA Hybrid DVD±RW Media

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch

No 1x2TB 3.5" SATA Hybrid DVD±RW Media No No Switch

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch

No 1x2TB 3.5" SATA Hybrid DVD±RW Media No No Switch

No 1x300GB 3.5" SAS DVD±RW Media No No Switch

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing***

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor

One LGA2011 socket, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

Hard drives

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

See footnotes for important warranty information Model(s) announced September 10, 2013

®

Computing Gold, 80 PLUS® Gold qualiﬁed

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(4352-6) September 2013



Lenovo

ThinkStation S30 (4352) - TopSeller (September 2013) - III

Upgrade

ROM for

Type-

model

4352-H8U

4352-H9U

4352-J1U

4352-J2U

4352-J3U

4352-J4U

4352-J5U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

E5-1607 v2 (4C/3GHz/10MB/1600)

E5-1620 v2 (4C/3.7GHz/10MB/1866)

• 3-yearlimitedwarranty

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

8GBx1

onboard

drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x500GB 3.5" SATA DVD±RW Media No No Switch Win8 Pro64

No 1x500GB 3.5" SATA DVD±RW Media

No 1x1TB 3.5" SATA DVD±RW Media

No 1x1TB 3.5" SATA DVD±RW Media No No Switch Win8 Pro64

No 1x1TB 3.5" SATA DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing***

1xQuadro 410

(512MB, 1xDVI-I DL,

1xDP, 37W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

Preloaded

OS

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor

One LGA2011 socket, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

Hard drives

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

See footnotes for important warranty information Model(s) announced September 10, 2013

®

Computing Gold, 80 PLUS® Gold qualiﬁed

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(4352-7) September 2013



Lenovo

ThinkStation S30 (4352) - TopSeller (September 2013) - IV

Upgrade

ROM for

Type-

model

4352-J6U

4352-J7U

Processor(s)

*

- Xeon E5 Family

E5-1650 v2 (6C/3.5GHz/12MB/1866)

E5-1620 v2 (4C/3.7GHz/10MB/1866)

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

8GBx1

4GBx1

onboard

drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x2TB 3.5" SATA Hybrid DVD±RW Media

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch Win8 Pro64

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing***

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

Preloaded

OS

4352-J8U

4352-J9U

4352-K1U

4352-K2U

4352-K3U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Chipset

E5-1650 v2 (6C/3.5GHz/12MB/1866)

E5-2650 v2 (8C/2.6GHz/20MB/1866)

E5-1650 v2 (6C/3.5GHz/12MB/1866)

• 3-yearlimitedwarranty

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor

One LGA2011 socket, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

Hard drives

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

8GBx1

®

Computing Gold, 80 PLUS® Gold qualiﬁed

No

SAS

®

No 1x2TB 3.5" SATA Hybrid DVD±RW Media No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch Win8 Pro64

No 1x2TB 3.5" SATA Hybrid DVD±RW Media No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch Win8 Pro64

No 1x300GB 3.5" SAS DVD±RW Media No No Switch Win8 Pro64

ALC662 codec

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16** Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

See footnotes for important warranty information Model(s) announced September 10, 2013

(near CPU)

Lenovo

(4352-8) September 2013



ThinkStation S30 (4351) - June 2013

Upgrade ROM for

DIMMs

4GBx1

onboard

drive

controller

No

Type-

1

model

4351-17U

4351-18U

4351-19U

4351-21U

4351-22U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Processor(s)

E5-1603 (4C/2.8GHz/10MB/1066)

E5-1620 (4C/3.6GHz/10MB/1600)

E5-1650 (6C/3.2GHz/12MB/1600)

E5-1603 (4C/2.8GHz/10MB/1066)

• 3-yearlimitedwarranty

• WithnewMTtype4351/4352andbeyond,ThinkStationS30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 0568, 0569, and 0606 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x500GB 3.5" SATA DVD±RW 29-in-1

No No 1x1TB 3.5" SATA DVD±RW 29-in-1

No No 1x500GB 3.5" SATA DVD±RW 29-in-1

2

Optical

Product Speciﬁcations Reference (PSREF)

Media

reader

1xQuadro 410

(512MB, 1xDVI-I DL*,

1xQuadro K600

(1GB, 1xDVI-I DL,

1xQuadro K2000

(2GB, 1xDVI-I DL,

1xQuadro K4000

(3GB, 1xDVI-I DL,

1xQuadro 410

(512MB, 1xDVI-I DL,

Graphics

adapter(s)

and GPU

computing

1xDP, 37W)

1xDP, 41W)

2xDP, 51W)

2xDP, 80W)

1xDP, 37W)

Chassis

1394

intrusion

adptr

switch

No Switch

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Chipset

Processor

Intel C602 Chipset

One LGA2011 socket, supports one processor from Intel Xeon E5-2600 and E5-1600 family, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

Optical

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

OPAL-capable on selected models

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

See footnotes for important warranty information Model(s) announced June 18, 2013

Lenovo

(FOR1-5) June 2013



ThinkStation S30 (4351) - June 2013 - II

Upgrade

ROM for

Type-

1

model

4351-23U

4351-24U

4351-25U

4351-29U

4351-31U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Processor(s)

E5-1620 (4C/3.6GHz/10MB/1600)

E5-1650 (6C/3.2GHz/12MB/1600)

E5-1620 (4C/3.6GHz/10MB/1600)

• 3-yearlimitedwarranty

• WithnewMTtype4351/4352andbeyond,ThinkStationS30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 0568, 0569, and 0606 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

onboard

drive

controller

No

SAS

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x1TB 3.5" SATA DVD±RW 29-in-1

No No 1x300GB 3.5" SAS DVD±RW 29-in-1

2

Optical

Product Speciﬁcations Reference (PSREF)

Media

reader

(1GB, 1xDVI-I DL*,

1xQuadro K2000

(2GB, 1xDVI-I DL,

1xQuadro K4000

(3GB, 1xDVI-I DL,

(1GB, 1xDVI-I DL,

Graphics

adapter(s)

and GPU

computing

1xQuadro K600

1xDP, 41W)

2xDP, 51W)

2xDP, 80W)

1xQuadro K600

1xDP, 41W)

1xQuadro K600

1xDP, 41W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

No Switch

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Chipset

Processor

Intel C602 Chipset

One LGA2011 socket, supports one processor from Intel Xeon E5-2600 and E5-1600 family, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

Optical

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

OPAL-capable on selected models

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(FOR2-5) June 2013



Lenovo

ThinkStation S30 (4351) - September 2013

Upgrade

ROM for

Type-

model

4351-C8U

4351-C9U

4351-D1U

4351-D2U

4351-D3U

4351-D4U

4351-D5U

4351-D6U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

E5-1620 v2 (4C/3.7GHz/10MB/1866)

E5-1607 v2 (4C/3GHz/10MB/1600)

E5-1620 v2 (4C/3.7GHz/10MB/1866)

E5-1650 v2 (6C/3.5GHz/12MB/1866)

E5-1620 v2 (4C/3.7GHz/10MB/1866)

E5-1650 v2 (6C/3.5GHz/12MB/1866)

• 3-yearlimitedwarranty

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

8GBx1

4GBx1

8GBx1

onboard

drive

controller

No

SAS

No

Pre-conf

RAID Hard drive(s)

No 1x500GB 3.5" SATA DVD±RW Media No No Switch

No 1x1TB 3.5" SATA DVD±RW Media

No 1x300GB 3.5 SAS DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

No 1x256GB 2.5" SSD - OPAL DVD±RW Media

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing***

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K5000

(4GB, 1xDVI-I DL,

1xDVI-D DL, 2xDP,

122W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor

One LGA2011 socket, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

Hard drives

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

See footnotes for important warranty information Model(s) announced September 10, 2013

®

Computing Gold, 80 PLUS® Gold qualiﬁed

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(4351-3) September 2013



Lenovo

ThinkStation S30 (4351) - September 2013 - II

Upgrade

ROM for

Type-

model

4351-D7U

4351-D8U

4351-D9U

4351-E1U

4351-E2U

4351-E3U

4351-E4U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

E5-1607 v2 (4C/3GHz/10MB/1600)

E5-1620 v2 (4C/3.7GHz/10MB/1866)

E5-1650 v2 (6C/3.5GHz/12MB/1866)

E5-1620 v2 (4C/3.7GHz/10MB/1866)

E5-1650 v2 (6C/3.5GHz/12MB/1866)

• 3-yearlimitedwarranty

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

8GBx1

4GBx1

8GBx1

onboard

drive

controller

No

SAS

No

Pre-conf

RAID Hard drive(s)

No 1x500GB 3.5" SATA DVD±RW Media No No Switch Win8 Pro64

No 1x1TB 3.5" SATA DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

No 1x300GB 3.5 SAS DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

No 1x256GB 2.5" SSD - OPAL DVD±RW Media

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing***

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K5000

(4GB, 1xDVI-I DL,

1xDVI-D DL, 2xDP,

122W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

Preloaded

OS

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor

One LGA2011 socket, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

Hard drives

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

See footnotes for important warranty information Model(s) announced September 10, 2013

®

Computing Gold, 80 PLUS® Gold qualiﬁed

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(4351-4) September 2013



Lenovo

ThinkStation S30 (4351) - October 2013

Upgrade ROM for

Type-

*

model

4351-98U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

- Xeon E5 Family

E5-1650 v2 6C/3.5GHz/12MB/1866MHz

• 3-yearlimitedwarranty

• For ThinkStation S30 Platform Speciﬁcations, please see ThinkStation S30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

Memory

DIMMs

4GBx1

onboard

drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x1TB 3.5" SATA DVD±RW Media

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing***

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1394

adptr

Chassis

intrusion

switch

No Switch

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor

One LGA2011 socket, integrated 4-channel DDR3 memory controller

UDIMM or RDIMM, ECC, DDR3, 4-channel capable,

Memory

eight 240-pin DIMM sockets, 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

●

Actual memory operating speed depends on processor memory

Additional memory disclaimers

Graphics adapters and GPU computing

Onboard drive controllers

controller speed, installed memory speed, and quantity of memory DIMMs

●

Mixing of RDIMM and UDIMM is not supported

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

●

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1 support;

●

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

Hard drives

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

Optical

Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface

Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports

IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip

STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 610 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

See footnotes for important warranty information Model(s) announced October 15, 2013

®

Computing Gold, 80 PLUS® Gold qualiﬁed

Tower

• Raven black color; metal case

1optical

2optical

3 media

4 disk 5 disk 6 disk

• 6.9"W x 18.1"D x 18.8"H (with handle)

• 175mm W x 460mm D x 478mm H

• 38.5 lb (17.5kg) max conﬁguration

• 31-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support

Bay 1-2: 5.25", 1.6" high, external, for optical Bay 3: 3.5", 1" high, external, for media reader Bay 4-6: 3.5", 1" high, internal, for hard drive

Slot 1: full-length, full-height, PCIe 3.0 x16**

(near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16 (x4 electrical) Slot 3: full-length, full-height, PCIe 3.0 x16** Slot 4: full-length, full-height, 32-bit PCI 2.3 Slot 5: half-length, full-height, PCIe 2.0 x4

** Adapters >75W use auxiliary power connector(s)

from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

(4351-5) November 2013



Lenovo

Lenovo ThinkStation C30

Lenovo ThinkStation C30Lenovo ThinkStation C30

ThinkStation C30 Platform Speciﬁcations - I of IV

Product Speciﬁcations Reference (PSREF)

Text in red shows that these features only apply to MT type 1095 and 1097 models, text in green shows that the features are supported on other models except MT type 1095 and 1097 models

Chipset

Intel AMT

Intel C602 Chipset

MT type 1095 and 1097: Intel Active Management Technology 7 Others MT types: Intel Active Management Technology 8

Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon E5-2600 and Intel Xeon E5-2600 v2 family,

or up to one processor from Intel Xeon E5-1600 v2 family, integrated 4-channel DDR3 memory controller per processor. Supports the following:

Processor Number

Xeon E5-2603 4 4 1.8 GHz 10 MB 6.4 GT/s 2 80 W 1066MHz vPro Xeon E5-2609 4 4 2.4 GHz 10 MB 6.4 GT/s 2 80 W 1066MHz vPro Xeon E5-2620 6 12 2 GHz 2.5 GHz 15 MB 7.2 GT/s 2 95 W 1333MHz vPro Xeon E5-2630 6 12 2.3 GHz 2.8 GHz 15 MB 7.2 GT/s 2 95 W 1333MHz vPro Xeon E5-2630L 6 12 2 GHz 2.5 GHz 15 MB 7.2 GT/s 2 60 W 1333MHz vPro Xeon E5-2637 2 4 3 GHz 3.5 GHz 5 MB 8 GT/s 2 80 W 1600MHz vPro Xeon E5-2640 6 12 2.5 GHz 3 GHz 15 MB 7.2 GT/s 2 95 W 1333MHz vPro Xeon E5-2643 4 8 3.3 GHz 3.5 GHz 10 MB 8 GT/s 2 130 W 1600MHz vPro Xeon E5-2650 8 16 2 GHz 2.8 GHz 20 MB 8 GT/s 2 95 W 1600MHz vPro Xeon E5-2650L 8 16 1.8 GHz 2.3 GHz 20 MB 8 GT/s 2 70 W 1600MHz vPro Xeon E5-2660 8 16 2.2 GHz 3 GHz 20 MB 8 GT/s 2 95 W 1600MHz vPro Xeon E5-2665 8 16 2.4 GHz 3.1 GHz 20 MB 8 GT/s 2 115 W 1600MHz vPro Xeon E5-2667 6 12 2.9 GHz 3.5 GHz 15 MB 8 GT/s 2 130 W 1600MHz vPro Xeon E5-2670 8 16 2.6 GHz 3.3 GHz 20 MB 8 GT/s 2 115 W 1600MHz vPro Xeon E5-2680 8 16 2.7 GHz 3.5 GHz 20 MB 8 GT/s 2 130 W 1600MHz vPro Xeon E5-2690 8 16 2.9 GHz 3.8 GHz 20 MB 8 GT/s 2 135 W 1600MHz vPro

Xeon E5-1603 4 4 2.8 GHz 10 MB 130 W 1066MHz vPro

Xeon E5-2603 v2 4 4 1.8 GHz 1.8 GHz 10 MB 6.4 GT/s 2 80 W 1333MHz vPro Xeon E5-2609 v2 4 4 2.5 GHz 2.5 GHz 10 MB 6.4 GT/s 2 80 W 1333MHz vPro Xeon E5-2620 v2 6 12 2.1 GHz 2.6 GHz 15 MB 7.2 GT/s 2 80 W 1600MHz vPro Xeon E5-2630L v2 6 12 2.4 GHz 2.8 GHz 15 MB 7.2 GT/s 2 60 W 1600MHz vPro Xeon E5-2630 v2 6 12 2.6 GHz 3.1 GHz 15 MB 7.2 GT/s 2 80 W 1600MHz vPro Xeon E5-2637 v2 4 8 3.5 GHz 3.8 GHz 15 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2640 v2 8 16 2 GHz 2.5 GHz 20 MB 7.2 GT/s 2 95 W 1600MHz vPro Xeon E5-2643 v2 6 12 3.5 GHz 3.8 GHz 25 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2650L v2 10 20 1.7 GHz 2.1 GHz 25 MB 7.2 GT/s 2 70 W 1600MHz vPro Xeon E5-2650 v2 8 16 2.6 GHz 3.4 GHz 20 MB 8 GT/s 2 95 W 1866MHz vPro Xeon E5-2660 v2 10 20 2.2 GHz 3 GHz 25 MB 8 GT/s 2 95 W 1866MHz vPro Xeon E5-2667 v2 8 16 3.3 GHz 4 GHz 25 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2670 v2 10 20 2.5 GHz 3.3 GHz 25 MB 8 GT/s 2 115 W 1866MHz vPro Xeon E5-2680 v2 10 20 2.8 GHz 3.6 GHz 25 MB 8 GT/s 2 115 W 1866MHz vPro Xeon E5-2690 v2 10 20 3 GHz 3.6 GHz 25 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2695 v2 12 24 2.4 GHz 3.2 GHz 30 MB 8 GT/s 2 115 W 1866MHz vPro Xeon E5-2697 v2 12 24 2.7 GHz 3.5 GHz 30 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-1607 v2 4 4 3 GHz 10 MB 130 W 1600MHz vPro Xeon E5-1620 v2 Xeon E5-1650 v2 6 12 3.5 GHz 3.9 GHz 12 MB 130 W 1866MHz vPro Xeon E5-1660 v2 6 12 3.7 GHz 4 GHz 15 MB 130 W 1866MHz vPro

Notes:

1. ThinkStation C30 support two processors. When ordering two processors, they must be the same

2. When using Intel Xeon E5-1600 and E5-1600 v2 series processors, max CPU conﬁguration is 1

3. Intel Xeon processor numbering system is an alpha numeric representation of product line, product family and version. An ‘L’ sufﬁx will be used to identify a low power processor. More details please see http://www.intel.com/products/processor_number

4. All information is provided by Intel and may be changed at any time without notice. The information herein is provided “as-is”. Intel may update this information in non-scheduled. For latest information, please see http://ark.intel.com/products/family/59138/Intel-Xeon-Processor-E5-Family/server

# of

Cores

Threads

4 8 3.7 GHz 3.9 GHz 10 MB 130 W 1866MHz vPro

Clock Speed

Max Turbo Frequency Cache

Intel QPI Speed

# of QPI Links Max TDP

Memory

Speed Intel vPro technology



Lenovo

(C30-SPEC) September 2013

ThinkStation C30 Platform Speciﬁcations - II of IV

Product Speciﬁcations Reference (PSREF)

Text in red shows that these features only apply to MT type 1095 and 1097 models, text in green shows that the features are supported on other models except MT type 1095 and 1097 models

UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per processor),

Memory

eight 240-pin DIMM sockets (four DIMM sockets per processor), 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory controller speed, installed memory speed, and quantity of memory DIMMs

●

Over four DIMMs requires dual processors

●

Additional memory disclaimers

Graphics adapters and GPU computing

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

When using processor from Xeon E5-1600 and E5-1600 v2 series, only four DIMM sockets for CPU1 are available and max memory cacpacity is

●

32GB (UDIMM, 8GBx4)/128GB (RDIMM, 32GBx4)

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology, supports the following NVIDIA Quadro, NVS graphics adapters and Tesla GPU computing processors:

Memory Size CUDA Processor Cores Display Connectors Max. Displays # of slots Power

NVIDIA Quadro and NVS Graphics

Quadro K6000 12GB 2880 1 dual-link DVI-I

Quadro K5000 4GB 1536 1 dual-link DVI-I

Quadro K4000 3GB 768 1 dual-link DVI-I

Quadro K2000 2GB 384 1 dual-link DVI-I

Quadro K2000D 2GB 384 1 dual-link DVI-I

Quadro K600 1GB 192 1 dual-link DVI-I

Quadro 410 512MB 192 1 dual-link DVI-I

Quadro 6000 6GB 448 1 dual-link DVI-I

Quadro 5000 2.5GB 352 1 dual-link DVI-I

Quadro 4000 2GB 256 1 dual-link DVI-I

Quadro 2000 1GB 192 1 dual-link DVI-I

Quadro 2000D 1GB 192 2 dual-link DVI-I 2 1 62W Quadro 600 1GB 96 1 dual-link DVI-I

NVS 510 2048 MB 192 4 mini DisplayPort

NVS 315 1024MB 48 DMS59 to

NVS 310 512 MB 48 2 DisplayPort 2 1 19.5W

NVS 300 512 MB 16 DMS59 to dual single-

NVIDIA Tesla GPU Computing Processors (as part of NVIDIA Maximus Platform)

Tesla K20 5GB 2496 225W

Tesla C2075 6GB 448 225W

* Quadro K4000, K2000, and K2000D are equipped with 3 onboard display connectors, 4 Displays require a supported DisplayPort 1.2 Multi-Stream capable hub or displays

Notes:

1. ThinkStation supports NVIDIA SLI Technology with selected NVIDIA Quadro graphics adapters, additional SLI cable is needed. For the latest Quadro SLI certiﬁed list on ThinkStation, please see www.nvidia.com/object/quadro_sli_compatible_systems.html

2. ThinkStation C30 support NVIDIA Maximus technology. Maximus technology combines the visualization and interactive design capability of NVIDIA Quadro graphics and the high performance computing power of NVIDIA Tesla GPU computing processors in a single workstation. For more information on the latest Maximus certiﬁcations for ThinkStation and how to build Maximus system, please see www.nvidia.com/object/maximus.html

3. CUDA Processor Cores cannot be compared between GPU generations due to several important architectural differences that exist between streaming multiprocessor designs.

1 dual-link DVI-D 2 DisplayPort

2 DisplayPort

1 dual-link DVI-D 1 mini DisplayPort

1 DisplayPort

2 DisplayPort 1 Stereo

2 DisplayPort, 1 Stereo

2 DisplayPort 1 Stereo

2 DisplayPort

1 DisplayPort

(with 4 mini DP to DP dongles)

dual single-link DVI-I or dual DisplayPort

link DVI-I

4 2 225W

4 2 122W

4* 1 80W

4* 1 51W

2 1 41W

2 1 37W

2 2 204W

2 2 152W

2 1 142W

2 1 62W

2 1 40W

4 1 35W

2 1 19.5W

2 1 17.5W



Lenovo

(C30-SPEC) September 2013

ThinkStation C30 Platform Speciﬁcations - III of IV

•

Onboard drive controllers

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Hard drive(s)

Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Drive Bays One external 5.25” bays for opticals, three internal 3.5” bays for hard drives Media reader (opt)

Front ports

Rear ports IEEE 1394 adptr

(optional) Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply

Security

Mechanical

Expansion slots

Serviceability

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5 support

•

Three SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

Supports the following:

3.5" SATA: SATA 6.0Gb/s, 7200 rpm, up to 4TB

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm, integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, up to 1TB

3.5" SAS: SAS 6.0Gb/s, 15000 rpm, up to 600GB

2.5" SAS: SAS 6.0Gb/s, 15000 rpm, up to 300GB

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s, OPAL-capable on selected models, up to 300GB mSATA: m S ATA Solid State Drive (SSD), SATA 6.0Gb/s, up to 128GB

None (use USB port)

MT type 1095 and 1097: Two USB 2.0, microphone (3.5mm), headphone (3.5mm) Others MT types: Two USB 3.0, microphone (3.5mm), headphone (3.5mm)

Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin), one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in) None. Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec

800 watts with 80mm side-mounted variable speed fan, universal, Climate Savers

• Security chip:

MT type 1095 and 1097: Nuvoton NPCT421L for TPM function, TCG 1.2-compliant Others MT types: STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock; padlock prohibits side cover removal)

• Security slot (in rear for optional Kensington

®

Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch (optional)

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H (without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

Slot 1: half-length, full-height, PCIe 3.0 x16 (near CPU, x4 elec) Slot 2: full-length, full-height, PCIe 3.0 x16* Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Product Speciﬁcations Reference (PSREF)

®

Computing Gold, 80 PLUS® Gold qualiﬁed



Lenovo

(C30-SPEC) September 2013

ThinkStation C30 Platform Speciﬁcations - IV of IV

Product Speciﬁcations Reference (PSREF)

ISV certiﬁcations

Environmental certiﬁcations

Warranty 1 or 3-year limited warranty, parts and labor ThinkVantage

®

Preloaded operating systems

Please visit www.lenovo.com/support/ISV

®

GREENGUARD RoHS-compliant

certiﬁed

EPEAT™ Gold rating

Supports ThinkVantage® technologies

One the following, depending on model:

• Windows® 7 Professional 64

• Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

For Windows 7 models:

• Rescue and Recovery

• Norton® Internet Security (30 days of virus deﬁ nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Microsoft® Ofﬁce preloaded; purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

Preloaded applications (only some listed)

• Ulead® DVD MovieFactory® (DVD±RW model(s))

For Windows 8 models:

• Evernote

®

• Norton Internet Security (30 days of virus deﬁnitions)

• Norton Studio

• Skype™

• Microsoft Ofﬁce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))



Lenovo

(C30-SPEC) September 2013

ThinkStation C30 (1137) - TopSeller (June 2013)

Upgrade

Type-

1

model

1137-47U

1137-48U

1137-49U

1137-51U

1137-52U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into SATA AHCI connectors (red/orange)

Processor(s)

1xE5-2603 (4C/1.8GHz/10MB/1066)

1xE5-2609 (4C/2.4GHz/10MB/1066)

1xE5-2620 (6C/2GHz/15MB/1333)

1xE5-2650 (8C/2GHz/20MB/1600)

• 3-yearlimitedwarranty

• WithnewMTtype1136/1137andbeyond,ThinkStationC30introducesnewupdatestoimprovethefunctionality and usability:

(These new features are not supported on 1095 and 1097MT models)

  • IntelAMT:upgradestoIntelAMT8fromIntel AMT 7   • NewTPM chip: STMicroelectronics ST33TPM12LPC   • Twofront USB 2.0 ports upgrade to USB3.0

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

ROM for

onboard drive

controller

No

Discrete

drive

controller

Pre-conf

No No 1x500GB 3.5" SATA DVD±RW No

No No 1x1TB 3.5" SATA DVD±RW No

No No 1x1TB 3.5" SATA DVD±RW No No No Switch

RAID Hard drive(s)

Product Speciﬁcations Reference (PSREF)

Graphics

2

Optical

Media

reader

adapter(s)

and GPU

computing

1xQuadro K600

(1GB, 1xDVI-I

DL*, 1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch

* DL = Dual Link, SL = Single Link

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Chipset

Intel C602 Chipset

Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, 4-channel DDR3 memory controller per processor

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

0, 1, 5 support

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

mSATA: m S ATA SSD, SATA 6.0Gb/s

OPAL-capable on selected models

Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port) Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (optional)

Audio High Deﬁnition (HD) Audio, Realtek

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

1 optical

2 disk 3 disk 4 disk

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16*

(near CPU, x4 elec)

Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(ALI1-3) June 2013

ThinkStation C30 (1137) - TopSeller (June 2013) - II

Upgrade

Type-

1

model

1137-53U

1137-54U

1137-55U

1137-56U

1137-57U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into SATA AHCI connectors (red/orange)

Processor(s)

1xE5-2620 (6C/2GHz/15MB/1333)

1xE5-2603 (4C/1.8GHz/10MB/1066)

1xE5-2609 (4C/2.4GHz/10MB/1066)

1xE5-2620 (6C/2GHz/15MB/1333)

• 3-yearlimitedwarranty

• WithnewMTtype1136/1137andbeyond,ThinkStationC30introducesnewupdatestoimprovethefunctionality and usability:

(These new features are not supported on 1095 and 1097MT models)

  • IntelAMT:upgradestoIntelAMT8fromIntel AMT 7   • NewTPM chip: STMicroelectronics ST33TPM12LPC   • Twofront USB 2.0 ports upgrade to USB3.0

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

ROM for

onboard drive

controller

SAS

No

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x300GB 3.5" SAS DVD±RW No No No Switch

No No 1x500GB 3.5" SATA DVD±RW No

No No 1x1TB 3.5" SATA DVD±RW No

Product Speciﬁcations Reference (PSREF)

Graphics

2

Optical

Media reader

adapter(s)

and GPU

computing

1xQuadro K600

(1GB, 1xDVI-I

DL*, 1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Chipset

Intel C602 Chipset

Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, 4-channel DDR3 memory controller per processor

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

0, 1, 5 support

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

mSATA: m S ATA SSD, SATA 6.0Gb/s

OPAL-capable on selected models

Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port) Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (optional)

Audio High Deﬁnition (HD) Audio, Realtek

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

1 optical

2 disk 3 disk 4 disk

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16*

(near CPU, x4 elec)

Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(ALI2-3) June 2013

ThinkStation C30 (1137) - TopSeller (June 2013) - III

Upgrade

Type-

1

model

1137-58U

1137-59U

1137-81U

1137-82U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into SATA AHCI connectors (red/orange)

Processor(s)

1xE5-2650 (8C/2GHz/20MB/1600)

1xE5-2620 (6C/2GHz/15MB/1333)

• 3-yearlimitedwarranty

• WithnewMTtype1136/1137andbeyond,ThinkStationC30introducesnewupdatestoimprovethefunctionality and usability:

(These new features are not supported on 1095 and 1097MT models)

  • IntelAMT:upgradestoIntelAMT8fromIntel AMT 7   • NewTPM chip: STMicroelectronics ST33TPM12LPC   • Twofront USB 2.0 ports upgrade to USB3.0

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

ROM for

onboard drive

controller

No

SAS

No

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x1TB 3.5" SATA DVD±RW No No No Switch Win8 Pro64

No No 1x300GB 3.5" SAS DVD±RW No No No Switch Win8 Pro64

No No 1x180GB 2.5" SSD DVD±RW No No No Switch

No No 1x180GB 2.5" SSD DVD±RW No No No Switch Win8 Pro64

2

Optical

Product Speciﬁcations Reference (PSREF)

Media reader

Graphics

adapter(s)

and GPU

computing

1394 adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Chipset

Intel C602 Chipset

Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, 4-channel DDR3 memory controller per processor

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

0, 1, 5 support

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

mSATA: m S ATA SSD, SATA 6.0Gb/s

OPAL-capable on selected models

Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port) Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (optional)

Audio High Deﬁnition (HD) Audio, Realtek

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

1 optical

2 disk 3 disk 4 disk

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16*

(near CPU, x4 elec)

Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(ALI3-3) June 2013

ThinkStation C30 (1137) - TopSeller (September 2013)

Upgrade

Type-

model

1137-D5U

1137-D6U

1137-D7U

1137-D8U

1137-D9U

1137-E1U

1137-E2U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

1xE5-2603 v2 (4C/1.8GHz/10MB/1333)

1xE5-2609 v2 (4C/2.5GHz/10MB/1333)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2630 v2 (6C/2.6GHz/15MB/1600)

1xE5-2650 v2 (8C/2.6GHz/20MB/1866)

• 3-yearlimitedwarranty

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

8GBx1

ROM for

onboard drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x1TB 3.5" SATA DVD±RW No

No 1x1TB 3.5" SATA Hybrid DVD±RW No No No Switch Win8 Pro64

No 1x1TB 3.5" SATA Hybrid DVD±RW No

No 1x2TB 3.5" SATA Hybrid DVD±RW No

No 1x2TB 3.5" SATA Hybrid DVD±RW No No No Switch Win8 Pro64

**

Optical

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing***

1xNVS 315

(1GB, DMS59 to

DVI-I SL, 19.5W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

Preloaded

OS

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only four DIMM sockets for CPU1 are available and max memory cacpacity is 32GB (UDIMM, 8GBx4)/128GB (RDIMM, 32GBx4)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

0, 1, 5 support

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Hard drive(s)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm, integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port)

Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional) Audio High Deﬁnition (HD) Audio, Realtek

None. Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced September 10, 2013

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

1 optical

2 disk 3 disk 4 disk

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16*

(near CPU, x4 elec)

Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(1137-4) September 2013

ThinkStation C30 (1137) - TopSeller (September 2013) - II

Upgrade

Type-

model

1137-E3U

1137-E4U

Processor(s)

*

- Xeon E5 Family

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

8GBx1

ROM for

onboard drive

controller

SAS

No

Pre-conf

RAID Hard drive(s)

No 1x300GB 3.5" SAS DVD±RW No No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW No No No Switch Win8 Pro64

Product Speciﬁcations Reference (PSREF)

Graphics

**

Optical

Media reader

adapter(s)

and GPU

computing***

1394 adptr

Chassis

intrusion

switch

Preloaded

OS

1137-E5U

1137-E6U

1137-E7U

1137-E8U

1137-E9U

1137-F1U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Chipset

1xE5-1620 v2 (4C/3.7GHz/10MB/1866)

1xE5-1650 v2 (6C/3.5GHz/12MB/1866)

1xE5-2603 v2 (4C/1.8GHz/10MB/1333)

1xE5-2609 v2 (4C/2.5GHz/10MB/1333)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

• 3-yearlimitedwarranty

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only four DIMM sockets for CPU1 are available and max memory cacpacity is 32GB (UDIMM, 8GBx4)/128GB (RDIMM, 32GBx4)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Hard drive(s)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm, integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port)

Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

None. Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

8GBx1

4GBx1

®

Computing Gold, 80 PLUS® Gold qualiﬁed

No

0, 1, 5 support

®

ALC662 codec

No 1x2TB 3.5" SATA Hybrid DVD±RW No No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW No No No Switch Win8 Pro64

No 1x1TB 3.5" SATA DVD±RW No

No 1x1TB 3.5" SATA Hybrid DVD±RW No No No Switch

No 1x1TB 3.5" SATA Hybrid DVD±RW No

1xNVS 315 (1GB,

DMS59 to DVI-I SL,

1xQuadro K600

(1GB, 1xDVI-I DL,

1xQuadro K2000

(2GB, 1xDVI-I DL,

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16* Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

See footnotes for important warranty information Model(s) announced September 10, 2013

19.5W)

1xDP, 41W)

2xDP, 51W)

No Switch

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

1 optical

2 disk 3 disk 4 disk

(near CPU, x4 elec)



Lenovo

(1137-5) September 2013

ThinkStation C30 (1137) - TopSeller (September 2013) - III

Upgrade

Type-

model

1137-F2U

1137-F3U

1137-F4U

1137-F5U

1137-F6U

1137-F7U

1137-F8U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2630 v2 (6C/2.6GHz/15MB/1600)

1xE5-2650 v2 (8C/2.6GHz/20MB/1866)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-1620 v2 (4C/3.7GHz/10MB/1866)

1xE5-1650 v2 (6C/3.5GHz/12MB/1866)

• 3-yearlimitedwarranty

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

8GBx1

ROM for

onboard drive

controller

No

SAS

No

Pre-conf

RAID Hard drive(s)

No 1x1TB 3.5" SATA Hybrid DVD±RW No

No 1x2TB 3.5" SATA Hybrid DVD±RW No

No 1x2TB 3.5" SATA Hybrid DVD±RW No No No Switch

No 1x300GB 3.5" SAS DVD±RW No No No Switch

No 1x256GB 2.5" SSD - OPAL DVD±RW No No No Switch

No 1x2TB 3.5" SATA Hybrid DVD±RW No No No Switch

No 1x256GB 2.5" SSD - OPAL DVD±RW No No No Switch

**

Optical

Product Speciﬁcations Reference (PSREF)

Graphics

Media reader

adapter(s)

and GPU

computing***

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets

64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only four DIMM sockets for CPU1 are available and max memory cacpacity is

32GB (UDIMM, 8GBx4)/128GB (RDIMM, 32GBx4)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

0, 1, 5 support

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support Upgrade ROM

for onboard drive controllers (opt)

Discrete drive controller (opt)

Hard drive(s)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors

on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s,

RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm, integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port)

Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional) Audio High Deﬁnition (HD) Audio, Realtek

None. Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced September 10, 2013

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

1 optical

2 disk 3 disk 4 disk

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16*

(near CPU, x4 elec)

Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(1137-6) September 2013

ThinkStation C30 (1137) - TopSeller (October 2013)

Upgrade

Type-

model

1137-F9U

1137-G1U

*

Processor(s)

- Xeon E5 Family

1xE5-2650 v2 8C/2.6GHz/20MB/1866MHz

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

8GBx1

ROM for

onboard drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x256GB 2.5" SSD - OPAL DVD±RW No No No Switch

No 1x256GB 2.5" SSD - OPAL DVD±RW No No No Switch Win8 Pro64

Product Speciﬁcations Reference (PSREF)

Graphics

**

Optical

Media

reader

adapter(s)

and GPU

computing***

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

1137-G2U

1137-G3U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Chipset

1xE5-2620 v2 6C/2.1GHz/15MB/1600MHz

• 3-yearlimitedwarranty

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only four DIMM sockets for CPU1 are available and max memory cacpacity is 32GB (UDIMM, 8GBx4)/128GB (RDIMM, 32GBx4)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Hard drive(s)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm, integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port)

Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

None. Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

1600MHz

UDIMM

1600MHz

UDIMM

®

Computing Gold, 80 PLUS® Gold qualiﬁed

8GBx1

No

0, 1, 5 support

®

ALC662 codec

No 1x1TB 3.5" SATA Hybrid DVD±RW No No No Switch Win8 Pro64

No 1x1TB 3.5" SATA Hybrid DVD±RW No No No Switch

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16* Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

See footnotes for important warranty information Model(s) announced October 15, 2013

Win7 Pro64 (Downgrade

from Win8)

1 optical

2 disk 3 disk 4 disk

(near CPU, x4 elec)



Lenovo

(1137-7) November 2013

ThinkStation C30 (1136) - June 2013

Upgrade

Type-

1

model

1136-19U

1136-21U

1136-22U

1136-23U

1136-24U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into SATA AHCI connectors (red/orange)

Processor(s)

1xE5-2609 (4C/2.4GHz/10MB/1066)

1xE5-2620 (6C/2GHz/15MB/1333)

1xE5-2630 (6C/2.3GHz/15MB/1333)

1xE5-2620 (6C/2GHz/15MB/1333)

1xE5-2609 (4C/2.4GHz/10MB/1066)

• 3-yearlimitedwarranty

• WithnewMTtype1136/1137andbeyond,ThinkStationC30introducesnewupdatestoimprovethefunctionality and usability:

(These new features are not supported on 1095 and 1097MT models)

  • IntelAMT:upgradestoIntelAMT8fromIntel AMT 7   • NewTPM chip: STMicroelectronics ST33TPM12LPC   • Twofront USB 2.0 ports upgrade to USB3.0

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

ROM for

onboard drive

controller

No

SAS

No

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x500GB 3.5" SATA DVD±RW No

No No 1x1TB 3.5" SATA DVD±RW No

No No 1x300GB 3.5" SAS DVD±RW No

No No 1x500GB 3.5" SATA DVD±RW No

2

Optical

Product Speciﬁcations Reference (PSREF)

Media

reader

(1GB, 1xDVI-I DL*,

1xQuadro K2000

(2GB, 1xDVI-I DL,

1xQuadro K4000

(3GB, 1xDVI-I DL,

1xQuadro K2000

(2GB, 1xDVI-I DL,

(1GB, 1xDVI-I DL,

Graphics

adapter(s)

and GPU

computing

1xQuadro K600

1xDP, 41W)

2xDP, 51W)

2xDP, 80W)

2xDP, 51W)

1xQuadro K600

1xDP, 41W)

Chassis

1394

intrusion

adptr

switch

No Switch

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Chipset

Intel C602 Chipset

Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, 4-channel DDR3 memory controller per processor

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

0, 1, 5 support

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

mSATA: m S ATA SSD, SATA 6.0Gb/s

OPAL-capable on selected models

Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port) Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (optional)

Audio High Deﬁnition (HD) Audio, Realtek

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

1 optical

2 disk 3 disk 4 disk

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16*

(near CPU, x4 elec)

Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(ALI1-4) June 2013

ThinkStation C30 (1136) - June 2013 - II

Upgrade

Type-

1

model

1136-25U

1136-26U

1136-27U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into SATA AHCI connectors (red/orange)

Processor(s)

1xE5-2620 (6C/2GHz/15MB/1333)

1xE5-2630 (6C/2.3GHz/15MB/1333)

1xE5-2620 (6C/2GHz/15MB/1333)

• 3-yearlimitedwarranty

• WithnewMTtype1136/1137andbeyond,ThinkStationC30introducesnewupdatestoimprovethefunctionality and usability:

(These new features are not supported on 1095 and 1097MT models)

  • IntelAMT:upgradestoIntelAMT8fromIntel AMT 7   • NewTPM chip: STMicroelectronics ST33TPM12LPC   • Twofront USB 2.0 ports upgrade to USB3.0

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

ROM for

onboard drive

controller

No

SAS

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x1TB 3.5" SATA DVD±RW No

No No 1x300GB 3.5" SAS DVD±RW No

2

Optical

Product Speciﬁcations Reference (PSREF)

Media

reader

(2GB, 1xDVI-I DL*,

(3GB, 1xDVI-I DL,

(2GB, 1xDVI-I DL,

Graphics

adapter(s)

and GPU

computing

1xQuadro K2000

2xDP, 51W)

1xQuadro K4000

2xDP, 80W)

1xQuadro K2000

2xDP, 51W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

Preloaded

OS

Chipset

Intel C602 Chipset

Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, 4-channel DDR3 memory controller per processor

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

0, 1, 5 support

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s,RAID 0, 1 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

Hard drives

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s,

mSATA: m S ATA SSD, SATA 6.0Gb/s

OPAL-capable on selected models

Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port) Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in)

IEEE 1394 adptr (optional)

Audio High Deﬁnition (HD) Audio, Realtek

None. Optional FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

®

Computing Gold, 80 PLUS® Gold qualiﬁed

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

1 optical

2 disk 3 disk 4 disk

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16*

(near CPU, x4 elec)

Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(ALI2-4) June 2013

ThinkStation C30 (1136) - September 2013

Upgrade

Type-

model

1136-A7U

1136-A8U

1136-A9U

1136-B1U

1136-B2U

1136-B3U

1136-B4U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

1xE5-2609 v2 (4C/2.5GHz/10MB/1333)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2630 v2 (6C/2.6GHz/15MB/1600)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2650 v2 (8C/2.6GHz/20MB/1866)

1xE5-2609 v2 (4C/2.5GHz/10MB/1333)

• 3-yearlimitedwarranty

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

8GBx1

4GBx1

8GBx1

4GBx1

ROM for

onboard drive

controller

No

SAS

No

Pre-conf

RAID Hard drive(s)

No 1x1TB 3.5" SATA DVD±RW No

No 1x1TB 3.5" SATA Hybrid DVD±RW No

No 1x300GB 3.5" SAS DVD±RW No

No 1x256GB 2.5" SSD - OPAL DVD±RW No No No Switch

No 1x2TB 3.5" SATA Hybrid DVD±RW No

No 1x1TB 3.5" SATA DVD±RW No

**

Optical

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing***

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K5000

(4GB, 1xDVI-I DL,

1xDVI-D DL, 2xDP,

122W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Chassis

1394

intrusion

adptr

switch

No Switch

No Switch Win8 Pro64

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only four DIMM sockets for CPU1 are available and max memory cacpacity is 32GB (UDIMM, 8GBx4)/128GB (RDIMM, 32GBx4)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

0, 1, 5 support

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Hard drive(s)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm, integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port)

Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional) Audio High Deﬁnition (HD) Audio, Realtek

None. Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced September 10, 2013

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

1 optical

2 disk 3 disk 4 disk

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16*

(near CPU, x4 elec)

Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(1136-3) September 2013

ThinkStation C30 (1136) - September 2013 - II

Upgrade

Type-

model

1136-B5U

1136-B6U

1136-B7U

1136-B8U

1136-B9U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2630 v2 (6C/2.6GHz/15MB/1600)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2650 v2 (8C/2.6GHz/20MB/1866)

• 3-yearlimitedwarranty

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

8GBx1

4GBx1

8GBx1

ROM for

onboard drive

controller

No

SAS

No

Pre-conf

RAID Hard drive(s)

No 1x1TB 3.5" SATA Hybrid DVD±RW No

No 1x300GB 3.5" SAS DVD±RW No

No 1x256GB 2.5" SSD - OPAL DVD±RW No No No Switch Win8 Pro64

No 1x2TB 3.5" SATA Hybrid DVD±RW No

**

Optical

Product Speciﬁcations Reference (PSREF)

Graphics

Media

reader

adapter(s)

and GPU

computing***

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K5000

(4GB, 1xDVI-I DL,

1xDVI-D DL, 2xDP,

122W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

Preloaded

OS

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only four DIMM sockets for CPU1 are available and max memory cacpacity is 32GB (UDIMM, 8GBx4)/128GB (RDIMM, 32GBx4)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

0, 1, 5 support

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Hard drive(s)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm, integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port)

Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional) Audio High Deﬁnition (HD) Audio, Realtek

None. Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced September 10, 2013

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

1 optical

2 disk 3 disk 4 disk

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16*

(near CPU, x4 elec)

Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(1136-4) September 2013

ThinkStation C30 (1136) - October 2013

Upgrade

Type-

*

model

1136-C5U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

- Xeon E5 Family

1xE5-2620 v2 6C/2.1GHz/15MB/1600MHz

• 3-yearlimitedwarranty

• ForThinkStationC30platformspecications,pleaseseeThinkStationC30 Platform Speciﬁcations sheet

Memory

(MHz/type)

1600MHz

UDIMM

Memory

DIMMs

4GBx1

ROM for

onboard drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x2TB 3.5" SATA DVD±RW No No No Switch

**

Optical

Media reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing***

1394

adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable (4-channel per

processor), eight 240-pin DIMM sockets 64GB max (UDIMM, 8GBx8)/256GB max (RDIMM, 32GBx8)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over four DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only four DIMM sockets for CPU1 are available and max memory cacpacity is 32GB (UDIMM, 8GBx4)/128GB (RDIMM, 32GBx4)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

•

Four SATA connectors via integrated Advanced Host Controller

Onboard drive controllers

Interface (AHCI) in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID

•

Three SATA connectors via integrated Storage Controller Unit (SCU)

0, 1, 5 support

in chipset, SATA 3.0Gb/s, RAID 0, 1, 5 support

Upgrade ROM for onboard drive controllers (opt)

Discrete drive controller (opt)

Hard drive(s)

Optional SAS HDD Enablement Module upgrades the 3 SATA connectors on SCU to 3 SATA/SAS connectors, SATA 3.0Gb/s, SAS 3.0Gb/s, RAID 0, 1 support

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm, integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader None (use USB port)

Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), one serial (9-pin),

one ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional) Audio High Deﬁnition (HD) Audio, Realtek

None. Optional FireWire PCIe adapter on selected models,

1394a-2000, 400Mbps, two 6-pin ports on rear

®

ALC662 codec Speaker Internal speaker for business audio Onboard Ethernet One onboard gigabit ethernet, Intel 82579 Security chip STMicroelectronics ST33TPM12LPC, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 800 watts with 80mm side-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced October 8, 2013

Tower

• Rack-mountable to 3U

• Raven black color; metal case

• 5.1"W x 17.5"D x 16.8"H

• 130mm W x 444mm D x 427mm H

(without rubber feet)

• 40.7 lb (18.5kg) max conﬁguration

• 24-liter

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

1 optical

2 disk 3 disk 4 disk

Bay 1 5.25", 1.6" high, external, for optical Bay 2-4 3.5", 1" high, internal, for hard drive

Slot 1: half-length, full-height, PCIe 3.0 x16 Slot 2: full-length, full-height, PCIe 3.0 x16*

(near CPU, x4 elec)

Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(1136-5) November 2013

Lenovo ThinkStation D30

Lenovo ThinkStation D30Lenovo ThinkStation D30

ThinkStation D30 Platform Speciﬁcations - I of IV

Product Speciﬁcations Reference (PSREF)

Text in red shows that these features only apply to MT type 4223 and 4229 models, text in green shows that the features are supported on other models except MT type 4223 and 4229 models

Chipset

Intel AMT

Intel C602 Chipset

MT type 4223 and 4229: Intel Active Management Technology 7 Others MT types: Intel Active Management Technology 8

Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon E5-2600 and Intel Xeon E5-2600 v2 family,

or up to one processor from Intel Xeon E5-1600 v2 family, integrated 4-channel DDR3 memory controller per processor. Supports the following:

Processor Number

Xeon E5-2603 4 4 1.8 GHz 10 MB 6.4 GT/s 2 80 W 1066MHz vPro Xeon E5-2609 4 4 2.4 GHz 10 MB 6.4 GT/s 2 80 W 1066MHz vPro Xeon E5-2620 6 12 2 GHz 2.5 GHz 15 MB 7.2 GT/s 2 95 W 1333MHz vPro Xeon E5-2630 6 12 2.3 GHz 2.8 GHz 15 MB 7.2 GT/s 2 95 W 1333MHz vPro Xeon E5-2630L 6 12 2 GHz 2.5 GHz 15 MB 7.2 GT/s 2 60 W 1333MHz vPro Xeon E5-2637 2 4 3 GHz 3.5 GHz 5 MB 8 GT/s 2 80 W 1600MHz vPro Xeon E5-2640 6 12 2.5 GHz 3 GHz 15 MB 7.2 GT/s 2 95 W 1333MHz vPro Xeon E5-2643 4 8 3.3 GHz 3.5 GHz 10 MB 8 GT/s 2 130 W 1600MHz vPro Xeon E5-2650 8 16 2 GHz 2.8 GHz 20 MB 8 GT/s 2 95 W 1600MHz vPro Xeon E5-2650L 8 16 1.8 GHz 2.3 GHz 20 MB 8 GT/s 2 70 W 1600MHz vPro Xeon E5-2660 8 16 2.2 GHz 3 GHz 20 MB 8 GT/s 2 95 W 1600MHz vPro Xeon E5-2665 8 16 2.4 GHz 3.1 GHz 20 MB 8 GT/s 2 115 W 1600MHz vPro Xeon E5-2667 6 12 2.9 GHz 3.5 GHz 15 MB 8 GT/s 2 130 W 1600MHz vPro Xeon E5-2670 8 16 2.6 GHz 3.3 GHz 20 MB 8 GT/s 2 115 W 1600MHz vPro Xeon E5-2680 8 16 2.7 GHz 3.5 GHz 20 MB 8 GT/s 2 130 W 1600MHz vPro Xeon E5-2690 8 16 2.9 GHz 3.8 GHz 20 MB 8 GT/s 2 135 W 1600MHz vPro

Xeon E5-1603 4 4 2.8 GHz 10 MB 130 W 1066MHz vPro

Xeon E5-2603 v2 4 4 1.8 GHz 1.8 GHz 10 MB 6.4 GT/s 2 80 W 1333MHz vPro Xeon E5-2609 v2 4 4 2.5 GHz 2.5 GHz 10 MB 6.4 GT/s 2 80 W 1333MHz vPro Xeon E5-2620 v2 6 12 2.1 GHz 2.6 GHz 15 MB 7.2 GT/s 2 80 W 1600MHz vPro Xeon E5-2630L v2 6 12 2.4 GHz 2.8 GHz 15 MB 7.2 GT/s 2 60 W 1600MHz vPro Xeon E5-2630 v2 6 12 2.6 GHz 3.1 GHz 15 MB 7.2 GT/s 2 80 W 1600MHz vPro Xeon E5-2637 v2 4 8 3.5 GHz 3.8 GHz 15 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2640 v2 8 16 2 GHz 2.5 GHz 20 MB 7.2 GT/s 2 95 W 1600MHz vPro Xeon E5-2643 v2 6 12 3.5 GHz 3.8 GHz 25 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2650L v2 10 20 1.7 GHz 2.1 GHz 25 MB 7.2 GT/s 2 70 W 1600MHz vPro Xeon E5-2650 v2 8 16 2.6 GHz 3.4 GHz 20 MB 8 GT/s 2 95 W 1866MHz vPro Xeon E5-2660 v2 10 20 2.2 GHz 3 GHz 25 MB 8 GT/s 2 95 W 1866MHz vPro Xeon E5-2667 v2 8 16 3.3 GHz 4 GHz 25 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2670 v2 10 20 2.5 GHz 3.3 GHz 25 MB 8 GT/s 2 115 W 1866MHz vPro Xeon E5-2680 v2 10 20 2.8 GHz 3.6 GHz 25 MB 8 GT/s 2 115 W 1866MHz vPro Xeon E5-2687W v2 8 16 3.4 GHz 4 GHz 25 MB 8 GT/s 2 150 W 1866MHz Ye s Xeon E5-2690 v2 10 20 3 GHz 3.6 GHz 25 MB 8 GT/s 2 130 W 1866MHz vPro Xeon E5-2695 v2 12 24 2.4 GHz 3.2 GHz 30 MB 8 GT/s 2 115 W 1866MHz vPro Xeon E5-2697 v2 12 24 2.7 GHz 3.5 GHz 30 MB 8 GT/s 2 130 W Xeon E5-1607 v2 4 4 3 GHz 10 MB 130 W 1600MHz vPro Xeon E5-1620 v2 4 8 3.7 GHz 3.9 GHz 10 MB 130 W 1866MHz vPro Xeon E5-1650 v2 6 12 3.5 GHz 3.9 GHz 12 MB 130 W 1866MHz vPro Xeon E5-1660 v2 6 12 3.7 GHz 4 GHz 15 MB 130 W 1866MHz vPro

Notes:

1. ThinkStation D30 support two processors. When ordering two processors, they must be the same

2. When using Intel Xeon E5-1600 and E5-1600 v2 series processors, max CPU conﬁguration is 1

3. Intel Xeon processor numbering system is an alpha numeric representation of product line, product family and version. An ‘L’ sufﬁx will be used to identify a low power processor. More details please see http://www.intel.com/products/processor_number

4. All information is provided by Intel and may be changed at any time without notice. The information herein is provided “as-is”. Intel may update this information in non-scheduled. For latest information, please see http://ark.intel.com/products/family/59138/Intel-Xeon-Processor-E5-Family/server

# of Cores

# of Threads

Clock Speed

Max Turbo Frequency Cache

Intel QPI Speed

# of QPI Links Max TDP

Memory

Speed Intel vPro technology

1866MHz vPro



Lenovo

(D30-SPEC) September 2013

ThinkStation D30 Platform Speciﬁcations - II of IV

Product Speciﬁcations Reference (PSREF)

Text in red shows that these features only apply to MT type 4223 and 4229 models, text in green shows that the features are supported on other models except MT type 4223 and 4229 models

UDIMM or RDIMM, ECC, DDR3, sixteen 240-pin DIMM sockets (eight DIMM sockets per processor),

Memory

8-channel capable (4-channel per processor), 128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory controller speed, installed memory speed, and quantity of memory DIMMs

●

Over eight DIMMs requires dual processors

●

Additional memory disclaimers

Graphics adapters and GPU computing

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

When using processor from Xeon E5-1600 and E5-1600 v2 series, only eight DIMM sockets for CPU1 are available and max memory cacpacity is

●

64GB (UDIMM, 8GBx8)/256GB (RDIMM, 32GBx8)

Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing processors, supports NVIDIA SLI technology, NVIDIA Maximus technology, supports the following NVIDIA Quadro, NVS graphics adapters and Tesla GPU computing processors

Memory Size CUDA Processor Cores Display Connectors Max. Displays # of slots Power

NVIDIA Quadro and NVS Graphics

Quadro K6000 12GB 2880 1 dual-link DVI-I

Quadro K5000 4GB 1536 1 dual-link DVI-I

Quadro K4000 3GB 768 1 dual-link DVI-I

Quadro K2000 2GB 384 1 dual-link DVI-I

Quadro K2000D 2GB 384 1 dual-link DVI-I

Quadro K600 1GB 192 1 dual-link DVI-I

Quadro 410 512MB 192 1 dual-link DVI-I

Quadro 6000 6GB 448 1 dual-link DVI-I

Quadro 5000 2.5GB 352 1 dual-link DVI-I

Quadro 4000 2GB 256 1 dual-link DVI-I

Quadro 2000 1GB 192 1 dual-link DVI-I

Quadro 2000D 1GB 192 2 dual-link DVI-I 2 1 62W Quadro 600 1GB 96 1 dual-link DVI-I

NVS 510 2048 MB 192 4 mini DisplayPort

NVS 315 1024MB 48 DMS59 to

NVS 310 512 MB 48 2 DisplayPort 2 1 19.5W

NVS 300 512 MB 16 DMS59 to dual single-

NVIDIA Tesla GPU Computing Processors (as part of NVIDIA Maximus Platform)

Tesla K20 5GB 2496 225W

Tesla C2075 6GB 448 225W

* Quadro K4000, K2000, and K2000D are equipped with 3 onboard display connectors, 4 Displays require a supported DisplayPort 1.2 Multi-Stream capable hub or displays

Notes:

1. ThinkStation supports NVIDIA SLI Technology with selected NVIDIA Quadro graphics adapters, additional SLI cable is needed. For the latest Quadro SLI certiﬁed list on ThinkStation, please see www.nvidia.com/object/quadro_sli_compatible_systems.html

2. ThinkStation D30 support NVIDIA Maximus technology. Maximus technology combines the visualization and interactive design capability of NVIDIA Quadro graphics and the high performance computing power of NVIDIA Tesla GPU computing processors in a single workstation. For more information on the latest Maximus certiﬁcations for ThinkStation and how to build Maximus system, please see www.nvidia.com/object/maximus.html

3. CUDA Processor Cores cannot be compared between GPU generations due to several important architectural differences that exist between streaming multiprocessor designs.

1 dual-link DVI-D 2 DisplayPort

2 DisplayPort

1 dual-link DVI-D 1 mini DisplayPort

1 DisplayPort

2 DisplayPort 1 Stereo

2 DisplayPort, 1 Stereo

2 DisplayPort 1 Stereo

2 DisplayPort

1 DisplayPort

(with 4 mini DP to DP dongles)

dual single-link DVI-I or dual DisplayPort

link DVI-I

4 2 225W

4 2 122W

4* 1 80W

4* 1 51W

2 1 41W

2 1 37W

2 2 204W

2 2 152W

2 1 142W

2 1 62W

2 1 40W

4 1 35W

2 1 19.5W

2 1 17.5W



Lenovo

(D30-SPEC) September 2013

ThinkStation D30 Platform Speciﬁcations - III of IV

Four SATA connectors via integrated Advanced Host Controller Interface (AHCI) in chipset, two SATA 6.0Gb/s (red),

Onboard drive controllers

Upgrade ROM for onboard drive controllers (optional)

Discrete drive controller (optional)

Hard drive(s)

Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Drive Bays Three external 5.25” bays for opticals, ﬁve internal 3.5” bays for drives Media reader (opt)

Front ports

Rear ports IEEE 1394 adptr (opt)

Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply

Security

Mechanical

Expansion slots

•

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU) in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

•

One of the following upgrade ROM is supported, the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module, SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 10 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5, 10 support

Supports the following:

3.5" SATA: SATA 6.0Gb/s, 7200 rpm, up to 4TB

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm, integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm, up to 1TB

3.5" SAS: SAS 6.0Gb/s, 15000 rpm, up to 600GB

2.5" SAS: SAS 6.0Gb/s, 15000 rpm, up to 300GB

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s, OPAL-capable on selected models, up to 300GB mSATA: m S ATA Solid State Drive (SSD), SATA 6.0Gb/s, up to 128GB

Optional 29-in-1 media card reader on selected models

MT type 4223 and 4229: Two USB 2.0, microphone (3.5mm), headphone (3.5mm) Others MT types: Two USB 3.0, microphone (3.5mm), headphone (3.5mm)

Eight USB 2.0, two USB 3.0 (blue ports), one serial (9-pin), two ethernet (RJ-45), three analog audio ports (line-in, line-out, mic-in) Optiomal FireWire PCIe adapter, 1394a-2000, 400Mbps, one 6-pin port on rear, one 6-pin port on front

®

ALC662 codec

1120 watts with 120mm bottom-mounted variable speed fan, universal, Climate Savers

• Security chip:

MT type 4223 and 4229: Nuvoton NPCT421L for TPM function, TCG 1.2-compliant Others MT types: STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock; padlock prohibits side cover removal)

• Security slot (in rear for optional Kensington

®

Microsaver® cable; prohibits side cover removal)

• Power-on password

• Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch (optional)

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max con guration

• 55-liter

Slot 1: half-length, full-height, PCIe 3.0 x16 (x4 elec, near CPU) Slot 2: full-length, full-height, PCIe 3.0 x16* (for graphics adapter) Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16* (for graphics adapter) Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

* Adapters >75W use auxiliary power connector(s) from PSU

Product Speciﬁcations Reference (PSREF)

®

Computing Gold, 80 PLUS® Gold qualiﬁed



Lenovo

(D30-SPEC) September 2013

ThinkStation D30 Platform Speciﬁcations - IV of IV

• Removable handle on top front

• Toolless side cover removal

Serviceability

ISV certiﬁcations

Environmental certiﬁcations

Warranty 1 or 3-year limited warranty, parts and labor ThinkVantage

®

Preloaded operating systems

Preloaded applications (only some listed)

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Please visit www.lenovo.com/support/ISV GREENGUARD

®

certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

One the following, depending on model:

• Windows® 7 Professional 64

• Windows 7 Professional 64 preinstalled through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

For Windows 7 models:

• Rescue and Recovery

• Norton® Internet Security (30 days of virus deﬁ nitions)

• Adobe® Reader

®

• Adobe Flash® Player

• Microsoft® Ofﬁce preloaded; purchase product key to activate

• Corel® WinDVD® (DVD±RW model(s))

• Ulead® DVD MovieFactory® (DVD±RW model(s))

For Windows 8 models:

• Evernote

®

• Norton Internet Security (30 days of virus deﬁnitions)

• Norton Studio

• Skype™

• Microsoft Ofﬁce 2013 preloaded;

purchase product key to activate

• Cyberlink Power2Go (DVD±RW model(s))

• Cyberlink PowerProducer (DVD±RW model(s))

Product Speciﬁcations Reference (PSREF)



Lenovo

(D30-SPEC) September 2013

ThinkStation D30 (4354) - TopSeller (June 2013)

Upgrade ROM for

Type-

1

model

4354-38U

4354-39U

4354-41U

4354-42U

4354-43U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Chipset

Processor(s)

1xE5-2603 (4C/1.8GHz/10MB/1066)

1xE5-2609 (4C/2.4GHz/10MB/1066)

1xE5-2620 (6C/2GHz/15MB/1333)

• 3-yearlimitedwarranty

• WithnewMTtype4353/4354andbeyond,ThinkStationD30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 4223 and 4229 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Intel C602 Chipset

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, integrated 4-channel DDR3 memory controller per processor

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets, 128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

Onboard drive controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

Upgrade ROM for onboard drive controllers (optional)

One of the following upgrade ROM is supported, the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module, SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support

Discrete drive controller (optional)

Hard drive(s)

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 10 support optional upgrade key for RAID 5 support LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5, 10 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

through downgrade rights in Windows 8 Pro 64-bit

®

Computing Gold, 80 PLUS® Gold qualiﬁed

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

onboard

drive

controller

No

®

ALC662 codec

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x500GB 3.5" SATA DVD±RW 29-in-1

No No 1x1TB 3.5" SATA DVD±RW 29-in-1

2

Optical

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

* Bay 5 is available on models with the SATA or SAS Hard Disk Drive enablement module installed.

Slot 1: half-length, full-height, PCIe 3.0 x16 ( Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

Product Speciﬁcations Reference (PSREF)

Graphics

Media

reader

adapter(s)

and GPU

computing

1xQuadro K600

(1GB, 1xDVI-I DL*,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Chassis

1394

intrusion

adptr

switch

No Switch

* DL = Dual Link, SL = Single Link

x4 elec, near CPU)

Intel AMT

Environmental certiﬁcations

(HOL1-3) June 2013

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)



Lenovo

ThinkStation D30 (4354) - TopSeller (June 2013) - II

Upgrade

ROM for

4GBx1

onboard

drive

controller

Type-

1

model

4354-44U

4354-45U

4354-46U

4354-47U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Processor(s)

1xE5-2620 (6C/2GHz/15MB/1333)

1xE5-2650 (8C/2GHz/20MB/1600)

1xE5-2603 (4C/1.8GHz/10MB/1066)

1xE5-2609 (4C/2.4GHz/10MB/1066)

• 3-yearlimitedwarranty

• WithnewMTtype4353/4354andbeyond,ThinkStationD30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 4223 and 4229 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

SAS

No

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x300GB 3.5" SAS DVD±RW 29-in-1 No No Switch

No No 1x1TB 3.5" SATA DVD±RW 29-in-1 No No Switch

No No 1x500GB 3.5" SATA DVD±RW 29-in-1

No No 1x1TB 3.5" SATA DVD±RW 29-in-1

Product Speciﬁcations Reference (PSREF)

Graphics

2

Optical

Media

reader

adapter(s)

and GPU

computing

1xQuadro K600

(1GB, 1xDVI-I DL*,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Chipset

Intel C602 Chipset Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, integrated 4-channel DDR3 memory controller per processor

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support

Discrete drive controller (optional)

Hard drive(s)

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 10 support

optional upgrade key for RAID 5 support

LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5, 10 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

through downgrade rights in Windows 8 Pro 64-bit

®

Computing Gold, 80 PLUS® Gold qualiﬁed

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

* Bay 5 is available on models with the SATA or SAS Hard Disk Drive enablement module installed.

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(HOL2-3) June 2013

ThinkStation D30 (4354) - TopSeller (June 2013) - III

Upgrade

ROM for

Type-

1

model

4354-48U

4354-49U

4354-51U

4354-52U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Processor(s)

1xE5-2609 (4C/2.4GHz/10MB/1066)

1xE5-2620 (6C/2GHz/15MB/1333)

• 3-yearlimitedwarranty

• WithnewMTtype4353/4354andbeyond,ThinkStationD30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 4223 and 4229 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

onboard

drive

controller

SAS

No

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x1TB 3.5" SATA DVD±RW 29-in-1

No No 1x300GB 3.5" SAS DVD±RW 29-in-1 No No Switch Win8 Pro64

Product Speciﬁcations Reference (PSREF)

Graphics

2

Optical

Media

reader

adapter(s)

and GPU

computing

1xQuadro K2000

(2GB, 1xDVI-I DL*,

2xDP, 51W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

Preloaded

OS

Chipset

Intel C602 Chipset Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, integrated 4-channel DDR3 memory controller per processor

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support

Discrete drive controller (optional)

Hard drive(s)

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 10 support

optional upgrade key for RAID 5 support

LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5, 10 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

through downgrade rights in Windows 8 Pro 64-bit

®

Computing Gold, 80 PLUS® Gold qualiﬁed

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

* Bay 5 is available on models with the SATA or SAS Hard Disk Drive enablement module installed.

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(HOL3-3) June 2013

ThinkStation D30 (4354) - TopSeller (June 2013) - IV

Upgrade

ROM for

Type-

1

model

4354-53U

4354-73U

4354-74U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Processor(s)

1xE5-2650 (8C/2GHz/20MB/1600)

• 3-yearlimitedwarranty

• WithnewMTtype4353/4354andbeyond,ThinkStationD30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 4223 and 4229 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

onboard

drive

controller

No

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x1TB 3.5" SATA DVD±RW 29-in-1 No No Switch Win8 Pro64

No No 1x180GB 2.5" SSD DVD±RW 29-in-1 No No Switch

No No 1x180GB 2.5" SSD DVD±RW 29-in-1 No No Switch Win8 Pro64

2

Optical

Product Speciﬁcations Reference (PSREF)

Media

reader

Graphics

adapter(s)

and GPU

computing

1394 adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Chipset

Intel C602 Chipset Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, integrated 4-channel DDR3 memory controller per processor

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support

Discrete drive controller (optional)

Hard drive(s)

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 10 support

optional upgrade key for RAID 5 support

LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5, 10 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

through downgrade rights in Windows 8 Pro 64-bit

®

Computing Gold, 80 PLUS® Gold qualiﬁed

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

* Bay 5 is available on models with the SATA or SAS Hard Disk Drive enablement module installed.

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(HOL4-3) June 2013

ThinkStation D30 (4354) - TopSeller (September 2013)

Upgrade ROM for

Type-

model

4354-C6U

4354-C7U

4354-C8U

4354-C9U

4354-D1U

4354-D2U

4354-D3U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

1xE5-2603 v2 (4C/1.8GHz/10MB/1333)

1xE5-2609 v2 (4C/2.5GHz/10MB/1333)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2650 v2 (8C/2.6GHz/20MB/1866)

• 3-yearlimitedwarranty

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

RDIMM

Memory

DIMMs

4GBx1

8GBx1

onboard

drive

controller

No

SAS

No

Pre-conf

RAID Hard drive(s)

No 1x500GB 3.5" SATA DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

No 1x2TB 3.5" SATA Hybrid DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

No 1x300GB 3.5" SAS DVD±RW Media No No Switch

No 1x2TB 3.5" SATA Hybrid DVD±RW Media

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

***

Chassis

1394

intrusion

adptr

switch

No Switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8) Win7 Pro64 (Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets, 128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only eight DIMM sockets for CPU1 are available and max memory cacpacity is 64GB (UDIMM, 8GBx8)/256GB (RDIMM, 32GBx8)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

Onboard drive controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

Upgrade ROM for onboard drive controllers (optional)

One of the following upgrade ROM is supported, the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module, SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support

Discrete drive controller (opt)

Hard drive(s)

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced September 10, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(4354-5) September 2013

ThinkStation D30 (4354) - TopSeller (September 2013) - II

Upgrade ROM for

Type-

model

4354-D4U

4354-D5U

4354-D6U

4354-D7U

4354-D8U

4354-D9U

4354-E1U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

1xE5-2650 v2 (8C/2.6GHz/20MB/1866)

1xE5-1620 v2 (4C/3.7GHz/10MB/1866)

1xE5-1650 v2 (6C/3.5GHz/12MB/1866)

1xE5-2603 v2 (4C/1.8GHz/10MB/1333)

1xE5-2609 v2 (4C/2.5GHz/10MB/1333)

• 3-yearlimitedwarranty

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

8GBx1

4GBx1

onboard

drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x1TB 3.5" SATA Hybrid DVD±RW Media No No Switch

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch

No 1x1TB 3.5" SATA Hybrid DVD±RW Media No No Switch

No 1x2TB 3.5" SATA Hybrid DVD±RW Media No No Switch

No 1x500GB 3.5" SATA DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing

1xQuadro K600 (1GB,

1xDVI-I DL, 1xDP, 41W)

1xQuadro K600 (1GB,

1xDVI-I DL, 1xDP, 41W)

1xQuadro K2000 (2GB,

1xDVI-I DL, 2xDP, 51W)

***

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only eight DIMM sockets for CPU1 are available and max memory cacpacity is

64GB (UDIMM, 8GBx8)/256GB (RDIMM, 32GBx8)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support Discrete drive

controller (opt) Hard drive(s)

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced September 10, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(4354-6) September 2013

ThinkStation D30 (4354) - TopSeller (September 2013) - III

Upgrade ROM for

Type-

model

4354-E2U

4354-E3U

4354-E4U

4354-E5U

4354-E6U

4354-E7U

4354-E8U

4354-E9U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2650 v2 (8C/2.6GHz/20MB/1866)

1xE5-1620 v2 (4C/3.7GHz/10MB/1866)

1xE5-1650 v2 (6C/3.5GHz/12MB/1866)

• 3-yearlimitedwarranty

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

8GBx1

onboard

drive

controller

No

SAS

No

Pre-conf

RAID Hard drive(s)

No 1x2TB 3.5" SATA Hybrid DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

No 1x300GB 3.5" SAS DVD±RW Media No No Switch Win8 Pro64

No 1x2TB 3.5" SATA Hybrid DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch Win8 Pro64

No 1x1TB 3.5" SATA Hybrid DVD±RW Media No No Switch Win8 Pro64

No 1x2TB 3.5" SATA Hybrid DVD±RW Media No No Switch Win8 Pro64

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing

1xQuadro K2000 (2GB,

1xDVI-I DL, 2xDP, 51W)

1xQuadro K4000 (3GB,

1xDVI-I DL, 2xDP, 80W)

1xQuadro K4000 (3GB,

1xDVI-I DL, 2xDP, 80W)

***

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

Preloaded

OS

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only eight DIMM sockets for CPU1 are available and max memory cacpacity is

64GB (UDIMM, 8GBx8)/256GB (RDIMM, 32GBx8)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support Discrete drive

controller (opt) Hard drive(s)

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced September 10, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(4354-7) September 2013

ThinkStation D30 (4354) - TopSeller (October 2013)

Upgrade ROM for

Type-

*

model

4354-F1U

4354-F2U

4354-F3U

4354-F4U

4354-F5U

4354-F6U

4354-F7U

4354-F8U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

- Xeon E5 Family

2xE5-2620 v2 6C/2.1GHz/15MB/1600MHz

2xE5-2650 v2 8C/2.6GHz/20MB/1866MHz

• 3-yearlimitedwarranty

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

RDIMM

Memory

DIMMs

8GBx2

onboard

drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x1TB 3.5" SATA Hybrid DVD±RW Media No No Switch

No 1x1TB 3.5" SATA Hybrid DVD±RW Media No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch

No 1x1TB 3.5" SATA Hybrid DVD±RW Media No No Switch

No 1x1TB 3.5" SATA Hybrid DVD±RW Media No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch

**

Optical

29-in-1

Media reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing

1394

***

adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8) Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets, 128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only eight DIMM sockets for CPU1 are available and max memory cacpacity is 64GB (UDIMM, 8GBx8)/256GB (RDIMM, 32GBx8)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology

Onboard drive controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red), two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

Upgrade ROM for onboard drive controllers (optional)

One of the following upgrade ROM is supported, the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module, SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support

Discrete drive controller (opt)

Hard drive(s)

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced October 15, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(4354-8) November 2013

ThinkStation D30 (4354) - TopSeller (October 2013) - II

Upgrade ROM for

Type-

*

model

4354-F9U

4354-G1U

4354-G2U

4354-G3U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

- Xeon E5 Family

2xE5-2637 v2 4C/3.5GHz/15MB/1866MHz

2xE5-2643 v2 6C/3.5GHz/25MB/1866MHz

• 3-yearlimitedwarranty

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

RDIMM

1600MHz

RDIMM

Memory

DIMMs

8GBx2

onboard

drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch Win8 Pro64

**

Optical

29-in-1

Media reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing

1394

***

adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only eight DIMM sockets for CPU1 are available and max memory cacpacity is

64GB (UDIMM, 8GBx8)/256GB (RDIMM, 32GBx8)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support Discrete drive

controller (opt) Hard drive(s)

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced October 15, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(4354-9) November 2013

ThinkStation D30 (4353) - June 2013

Type-

1

model

4353-23U

4353-24U

4353-25U

4353-26U

4353-27U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Chipset

Processor(s)

1xE5-2609 (4C/2.4GHz/10MB/1066)

1xE5-2620 (6C/2GHz/15MB/1333)

1xE5-2630 (6C/2.3GHz/15MB/1333)

1xE5-2620 (6C/2GHz/15MB/1333)

1xE5-2609 (4C/2.4GHz/10MB/1066)

• 3-yearlimitedwarranty

• WithnewMTtype4353/4354andbeyond,ThinkStationD30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 4223 and 4229 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Intel C602 Chipset

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, integrated 4-channel DDR3 memory controller per processor Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support

Discrete drive controller (optional)

Hard drive(s)

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 10 support

optional upgrade key for RAID 5 support

LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5, 10 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

through downgrade rights in Windows 8 Pro 64-bit

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

Memory

DIMMs

4GBx1

®

Computing Gold, 80 PLUS® Gold qualiﬁed

Upgrade ROM for onboard

drive

controller

No

SAS

No

®

ALC662 codec

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x500GB 3.5" SATA DVD±RW 29-in-1

No No 1x1TB 3.5" SATA DVD±RW 29-in-1

No No 1x300GB 3.5" SAS DVD±RW 29-in-1

No No 1x500GB 3.5" SATA DVD±RW 29-in-1

2

Optical

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

* Bay 5 is available on models with the SATA or SAS Hard Disk Drive enablement module installed.

Slot 1: half-length, full-height, PCIe 3.0 x16 ( Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies

Product Speciﬁcations Reference (PSREF)

Graphics

Media

reader

adapter(s)

and GPU

computing

1xQuadro K600

(1GB, 1xDVI-I DL*,

1xDP, 41W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K4000

(3GB, 1xDVI-I DL,

2xDP, 80W)

1xQuadro K2000

(2GB, 1xDVI-I DL,

2xDP, 51W)

1xQuadro K600

(1GB, 1xDVI-I DL,

1xDP, 41W)

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Chassis

1394

intrusion

adptr

switch

No Switch

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

Intel AMT

Environmental certiﬁcations

(HOL1-4) June 2013

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

Win7 Pro64 (Downgrade

from Win8)

x4 elec, near CPU)



Lenovo

ThinkStation D30 (4353) - June 2013 - II

Upgrade

ROM for

Type-

1

model

4353-28U

4353-29U

4353-31U

1 Model in italics shows that this is a Global Model 2 The SSD drives in italics must be plugged into red or orange SATA connectors

Processor(s)

1xE5-2620 (6C/2GHz/15MB/1333)

1xE5-2630 (6C/2.3GHz/15MB/1333)

1xE5-2620 (6C/2GHz/15MB/1333)

• 3-yearlimitedwarranty

• WithnewMTtype4353/4354andbeyond,ThinkStationD30introducesnewupdatestoimprovethefunctionalityandusability:

(These new features are not supported on 4223 and 4229 MT models)  • IntelAMT:upgradestoIntelAMT8fromIntelAMT7

  • NewTPMchip:STMicroelectronics ST33TPM12LPC   • TwofrontUSB2.0portsupgrade to USB3.0

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

onboard

drive

controller

No

SAS

Discrete

drive

controller

Pre-conf

RAID Hard drive(s)

No No 1x1TB 3.5" SATA DVD±RW 29-in-1

No No 1x300GB 3.5" SAS DVD±RW 29-in-1

2

Optical

Product Speciﬁcations Reference (PSREF)

Media

reader

(2GB, 1xDVI-I DL*,

(3GB, 1xDVI-I DL,

(2GB, 1xDVI-I DL,

Graphics

adapter(s)

and GPU

computing

1xQuadro K2000

2xDP, 51W)

1xQuadro K4000

2xDP, 80W)

1xQuadro K2000

2xDP, 51W)

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

* DL = Dual Link, SL = Single Link

Preloaded

OS

Chipset

Intel C602 Chipset Processor Two LGA2011 sockets, supports up to two processors from Intel Xeon

E5-2600 family, integrated 4-channel DDR3 memory controller per processor

Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support

Discrete drive controller (optional)

Hard drive(s)

One the following, depending on model:

LSI SAS 9240-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 10 support

optional upgrade key for RAID 5 support

LSI SAS 9260-8i: SATA 6.0Gb/s, SAS 6.0Gb/s, RAID 0, 1, 5, 10 support

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional 29-in-1 media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black Mouse Optical Wheel Mouse (USB connector), black Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

Preloaded operating systems (OS)

One the following, depending on model:

• Windows 7 Professional 64

• Windows 7 Professional 64 preinstalled

through downgrade rights in Windows 8 Pro 64-bit

®

Computing Gold, 80 PLUS® Gold qualiﬁed

• Windows 8 Pro 64-bit

See footnotes for important warranty information Model(s) announced June 18, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

* Bay 5 is available on models with the SATA or SAS Hard Disk Drive enablement module installed.

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

Intel AMT

Intel Active Management Technology 8 supported

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(HOL2-4) June 2013

ThinkStation D30 (4353) - September 2013

Upgrade

ROM for

Type-

model

4353-C1U

4353-C2U

4353-C3U

4353-C4U

4353-C5U

4353-C6U

4353-C7U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

1xE5-2609 v2 (4C/2.5GHz/10MB/1333)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2630 v2 (6C/2.6GHz/15MB/1600)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2650 v2 (8C/2.6GHz/20MB/1866)

1xE5-2680 v2 (10C/2.8GHz/25MB/1866)

• 3-yearlimitedwarranty

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

8GBx1

onboard

drive

controller

No

SAS

No

Pre-conf

RAID Hard drive(s)

No 1x500GB 3.5" SATA DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

No 1x300GB 3.5" SAS DVD±RW Media

No 1x2TB 3.5" SATA Hybrid DVD±RW Media No No Switch

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing

1xQuadro K600 (1GB,

1xDVI-I DL, 1xDP, 41W)

1xQuadro K2000 (2GB,

1xDVI-I DL, 2xDP, 51W)

1xQuadro K4000 (3GB,

1xDVI-I DL, 2xDP, 80W)

1xQuadro K4000 (3GB,

1xDVI-I DL, 2xDP, 80W)

***

Chassis

1394

intrusion

adptr

switch

No Switch

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Win7 Pro64

(Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only eight DIMM sockets for CPU1 are available and max memory cacpacity is

64GB (UDIMM, 8GBx8)/256GB (RDIMM, 32GBx8)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support Discrete drive

controller (opt) Hard drive(s)

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced September 10, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(4353-3) September 2013

ThinkStation D30 (4353) - September 2013 - II

Upgrade

ROM for

Type-

model

4353-C8U

4353-C9U

4353-D1U

4353-D2U

4353-D3U

4353-D4U

4353-D5U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

1xE5-2609 v2 (4C/2.5GHz/10MB/1333)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2630 v2 (6C/2.6GHz/15MB/1600)

1xE5-2620 v2 (6C/2.1GHz/15MB/1600)

1xE5-2650 v2 (8C/2.6GHz/20MB/1866)

1xE5-2680 v2 (10C/2.8GHz/25MB/1866)

• 3-yearlimitedwarranty

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

1600MHz

UDIMM

Memory

DIMMs

4GBx1

8GBx1

onboard

drive

controller

No

SAS

No

Pre-conf

RAID Hard drive(s)

No 1x500GB 3.5" SATA DVD±RW Media

No 1x1TB 3.5" SATA Hybrid DVD±RW Media

No 1x300GB 3.5" SAS DVD±RW Media

No 1x2TB 3.5" SATA Hybrid DVD±RW Media No No Switch Win8 Pro64

No 1x256GB 2.5" SSD - OPAL DVD±RW Media No No Switch Win8 Pro64

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing

1xQuadro K600 (1GB,

1xDVI-I DL, 1xDP, 41W)

1xQuadro K2000 (2GB,

1xDVI-I DL, 2xDP, 51W)

1xQuadro K4000 (3GB,

1xDVI-I DL, 2xDP, 80W)

1xQuadro K2000 (2GB,

1xDVI-I DL, 2xDP, 51W)

***

Chassis

1394

intrusion

adptr

switch

No Switch Win8 Pro64

Preloaded

OS

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only eight DIMM sockets for CPU1 are available and max memory cacpacity is

64GB (UDIMM, 8GBx8)/256GB (RDIMM, 32GBx8)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support Discrete drive

controller (opt) Hard drive(s)

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced September 10, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(4353-4) September 2013

ThinkStation D30 (4353) - October 2013

Upgrade

ROM for

Type-

model

4353-E3U

* Model in italics shows that this is a Global Model ** The SSD drives in italics must be plugged into red or orange SATA connectors *** DL = Dual Link, SL = Single Link

Processor(s)

*

- Xeon E5 Family

1xE5-2640 v2 8C/2GHz/20MB/1600MHz

• 3-yearlimitedwarranty

• ForThinkStationD30platformspecications,pleaseseeThinkStationD30PlatformSpecications sheet

Memory

(MHz/type)

1600MHz

RDIMM

Memory

DIMMs

4GBx2

onboard

drive

controller

No

Pre-conf

RAID Hard drive(s)

No 1x2TB 3.5" SATA DVD±RW Media No No Switch

**

Optical

29-in-1

Media

reader

Product Speciﬁcations Reference (PSREF)

Graphics

adapter(s)

and GPU

computing

***

1394 adptr

Chassis

intrusion

switch

Preloaded

OS

Win7 Pro64

(Downgrade

from Win8)

Chipset

Intel C602 Chipset

Intel AMT Intel Active Management Technology 8 supported Processor Two LGA2011 sockets, integrated 4-channel DDR3 memory controller per

processor, only one E5-1600 or E5-1600 v2 processor are supported Memory UDIMM or RDIMM, ECC, DDR3, 8-channel capable

(4-channel per processor), sixteen 240-pin DIMM sockets,

128GB max (UDIMM, 8GBx16)/512GB max (RDIMM, 32GBx16)

Actual memory operating speed depends on processor memory

Additional memory disclaimers

●

controller speed, installed memory speed, and quantity of memory DIMMs

Over eight DIMMs requires dual processors

●

Mixing of RDIMM and UDIMM is not supported

●

Maximum memory capacity is also limited by operating system

●

When using processor from Xeon E5-1600 and E5-1600 v2 series,

●

only eight DIMM sockets for CPU1 are available and max memory cacpacity is

64GB (UDIMM, 8GBx8)/256GB (RDIMM, 32GBx8)

Graphics Two PCI Express 3.0 x16 slots for graphics adapters and GPU computing

processors, supports NVIDIA SLI technology, NVIDIA Maximus technology Onboard drive

controllers

Four SATA connectors via integrated Advanced Host Controller Interface

•

(AHCI) controller in chipset, two SATA 6.0Gb/s (red),

two SATA 3.0Gb/s (orange), RAID 0, 1, 5, 10 support

Four SATA connectors via integrated Storage Controller Unit (SCU)

•

controller in chipset, SATA 3.0Gb/s, RAID 0, 1, 5, 10 support Upgrade ROM

for onboard drive controllers (optional)

One of the following upgrade ROM is supported,

the option upgrades the four SATA connectors on SCU controller to:

• ﬁve SATA connectors with optional SATA HDD Enablement Module,

SATA 3.0Gb/s, RAID 0, 1, 5, 10 support

• ﬁve SATA/SAS connectors with optional SAS HDD Enablement Module,

SATA 3.0Gb/s, SAS 3.0 Gb/s, RAID 0, 1, 10 support Discrete drive

controller (opt) Hard drive(s)

None

3.5" SATA: SATA 6.0Gb/s, 7200 rpm

3.5" Hybrid: SATA 6.0Gb/s, 7200 rpm,

integrated 8GB NAND ﬂash

2.5" SATA: SATA 6.0Gb/s, 10000 rpm

3.5" SAS/2.5" SAS: SAS 6.0Gb/s, 15000 rpm

2.5" SSD: Solid State Drive (SSD), SATA 6.0Gb/s

OPAL-capable on some models

mSATA: m S ATA SSD, SATA 6.0Gb/s Optical Supports DVD-ROM, DVD±RW, or Blu-ray Burner, SATA interface Media reader (opt) Optional media card reader on selected models Front ports Two USB 3.0, microphone (3.5mm), headphone (3.5mm) Rear ports Eight USB 2.0, two USB 3.0 (blue), serial (9-pin), two ethernet (RJ-45), three

analog audio ports (line-in, line-out, mic-in) IEEE 1394 adptr

(optional)

Optiomal FireWire PCIe adapter on selected models, 1394a-2000, 400Mbps,

one 6-pin port on rear, one 6-pin port on front Audio High Deﬁnition (HD) Audio, Realtek Speaker Internal speaker for business audio Onboard Ethernet Dual onboard gigabit ethernet, Intel 82579 and 82574 Security chip STMicroelectronics ST33TPM12LPC for TPM function, TCG 1.2-compliant

Keyboard/Mouse 104-key keyboard (USB)/Optical Wheel Mouse (USB) Power supply 1120 watts with 120mm bottom-mounted variable speed fan, universal,

Climate Savers

®

Computing Gold, 80 PLUS® Gold qualiﬁed

See footnotes for important warranty information Model(s) announced October 8, 2013

®

ALC662 codec

Tower

1 optical

2 optical

3 optical

4 media

5 disk* 6 disk 7 disk 8 disk 9 disk

• Raven black color; metal case

• 8.3"W x 23.7"D x 19.1"H (with handle)

• 210mm W x 602mm D x 485mm H

• 60.6 lb (27.5kg) max conﬁguration

• 55-liter

• Removable handle on top front

• Toolless side cover removal

• Toolless disk and optical drive removal

• Toolless adapter retention

• Illuminated front icons

• Rack shelf support or optional rail kit

Bay 1-3: 5.25", 1.6" high, external, for optical Bay 4: 3.5", 1" high, external, for media reader Bay 5-9: 3.5", 1" high, internal, for hard drive*

Slot 1: half-length, full-height, PCIe 3.0 x16 (

x4 elec, near CPU)

Slot 2: full-length, full-height, PCIe 3.0 x16** Slot 3: full-length, full-height, 32-bit PCI 2.3 Slot 4: full-length, full-height, PCIe 3.0 x16** Slot 5: full-length, full-height, PCIe 2.0 x4 Slot 6: half-length, full-height, 32-bit PCI 2.3

** Adapters >75W use auxiliary power connector(s) from PSU

SECURITY

• Security chip (see information on left)

• Side cover lock (ships with two identical keys)

• Padlock loop (in rear for opt padlock;

padlock prohibits side cover removal)

• Security slot (in rear for optional

Kensington® Microsaver® cable; prohibits side cover removal)

• Power-on/Administrator password

• Boot sequence control

• Boot without keyboard, mouse, diskette

• Serial por t I/O enable/disable

• USB 2.0 ports enable/disable individually

• USB 3.0 ports enable/disable concurrently

• Chassis intrusion switch on selected model(s)

ISV certiﬁcations

Please visit www.lenovo.com/support/ISV

Environmental certiﬁcations

GREENGUARD® certiﬁed RoHS-compliant EPEAT™ Gold rating

Supports ThinkVantage® technologies



Lenovo

(4353-5) November 2013

Product Speciﬁ cations Reference (PSREF) withdrawn product books

Product Speciﬁ cations Reference (PSREF)

Disclaimer

Lenovo provides the information in the Product Speciﬁ cations Reference (PSREF) withdrawn product books on an "AS-IS" basis. Because the actual products have been withdrawn from marketing, the information in these withdrawn product books is no longer maintained or updated. The referenced footnote numbering may not correspond with the listed footnotes.

PSREF books for the withdrawn systems:

http://www.lenovo.com/psref/psrefs_withdrawn.html

Availability: All offers subject to avail-

ability. Lenovo reserves the right to alter product offerings and speciﬁ cations at any time, without notice. Lenovo is not responsible for photographic or typographic errors.

Warranty: For a copy of applicable prod-

uct warranties, write to: Warranty Support Dept., EMEA Services, Lenovo, Eisteinova 21, 851 01 Bratislava, Slovakia. Lenovo makes no representation or warranty re-

garding third party products or services.

1

Limited warranty: Support unrelated to

a warranty issue may be subject to ad-

ditional charges.

2

Hard drive: GB = billion by tes, TB = tril-

lion bytes. Accessible capacity is less.

3

Systems with limited onsite service

are designed to be repaired during the

applicable warranty period primarily with

customer-replaceable parts provided

by Lenovo. Lenovo will only send a

technician onsite to perform a repair if

(a) remote telephone diagnosis and/or

customer part replacement are unable

to resolve the problem, or (b) the part is

one of the few designated by Lenovo for

onsite replacement. For a list of onsite

replaceable parts, contact Lenovo. Sup-

port unrelated to a warranty issue may

be subject to additional charges. Support phone list available at www-307.ibm.com/pc/support/site.wss/

document.do?lndocid=MIGR-70552

4

SATA/SAS: The system conﬁ guration

supports the installation of SATA, SAS, or

mixing of SATA and SAS. But mixing of

SATA and SAS disks into one RAID array

will not be supported.

5

Included software may differ from its

retail version (if available), and may not

include user manuals or all program

functionality. License agreements may

apply.

6

Multi-Burner Plus is a DVD±RW device

that reads and writes to DVD-RAM, DVD-

R, DVD-RW, DVD+R, and DVD+RW. It also

reads and writes to CD-R and CD-RW

media. Super Multi-Burner DL also writes

to DVD+R double layer media.

7

Lenovo Services: These services are available for machines normally used for business, professional, or trade purposes, rather than personal, family, or household purposes. Not all machine types and models are covered. Service period begins with the equipment date of purchase. Service must be purchased during the original limited product war-

ranty period. Service levels are response time objectives and are not guarantees. If the machine problem turns out to be a Customer Replaceable Unit (CRU), a part will be express shipped to you for quick replacement. See Lenovo Warranty Services terms and conditions for com-

plete details and restrictions. .

8

RAID: Supported RAID levels for a system will vary from the stated capabilities of the RAID controller due to dependencies on the number and capac-

ity of physical disks in the system and on

customer requirements for performance, fault tolerance, or data

redundancy. RAID levels and requirements:

• RAID 0 (striping) provides increased performance by writing data across

multiple drives.

• RAID 1 (mirroring) provides fault tolerance by writing the data on two

drives.

• RAID 5 (striping with parity) uses distributed parity data to provide fault

tolerance more efﬁ ciently than RAID 1.

Requires three or more drives.

• RAID 10 (or RAID 1+0) combines RAID 1 and RAID 0 to create a stripe of mirrors that is fault tolerant while offering increased performance. Requires four drives.

9

International Warranty Service is avail-

able in any country in which this product

is sold and serviced. Service delivery

methods and parts availability vary by

country, may be different from that in the

country of purchase, and are subject to

change without notice. Fees and restric-

tions may apply in some countries.

14

Response times may vary. May exclude

some holidays. Telephone support may be

subject to additional charges.

20

Operating System: Level of support

varies by operating system. Operating

systems not preloaded on the system

may not provide full feature functionality.

Refer to lenovo.com/pc/support and enter

your machine type and model number for

more information.
