POWERFUL. CERTIFIED. MANAGEABLE.

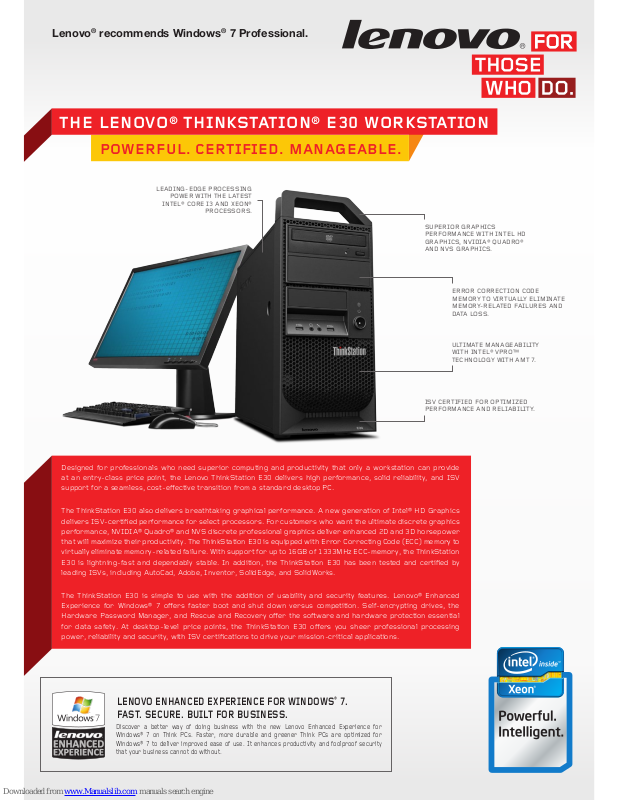

THE LENOVO® THINKSTATION® E30 WORKSTATION
Designed for professionals who need superior computing and productivity that only a workstation can provide
at an entry-class price point, the Lenovo ThinkStation E30 delivers high performance, solid reliability, and ISV
support for a seamless, cost-eective transition from a standard desktop PC.
The ThinkStation E30 also delivers breathtaking graphical performance. A new generation of Intel® HD Graphics
delivers ISV-certified performance for select processors. For customers who want the ultimate discrete graphics
performance, NVIDIA® Quadro® and NVS discrete professional graphics deliver enhanced 2D and 3D horsepower
that will maximize their productivity. The ThinkStation E30 is equipped with Error Correcting Code (ECC) memory to
virtually eliminate memory-related failure. With support for up to 16GB of 1333MHz ECC-memory, the ThinkStation
E30 is lightning-fast and dependably stable. In addition, the ThinkStation E30 has been tested and certified by
leading ISVs, including AutoCad, Adobe, Inventor, SolidEdge, and SolidWorks.
The ThinkStation E30 is simple to use with the addition of usability and security features. Lenovo® Enhanced
Experience for Windows® 7 oers faster boot and shut down versus competition. Self-encrypting drives, the
Hardware Password Manager, and Rescue and Recovery oer the soware and hardware protection essential
for data safety. At desktop-level price points, the ThinkStation E30 oers you sheer professional processing
power, reliability and security, with ISV certifications to drive your mission-critical applications.
Leading-edge Processing
Power with the Latest
inteL® core i3 and Xeon®
Processors.
suPerior graPhics
Performance with inteL hd
graPhics, nVidia® Quadro®
and nVs graPhics.
error correction code
memory to VirtuaLLy eLiminate
memory-reLated faiLures and
data Loss.
isV certified for oPtimized
Performance and reLiabiLity.
uLtimate manageabiLity
with inteL® VPro™
technoLogy with amt 7.
Discover a better way of doing business with the new Lenovo Enhanced Experience for
Windows® 7 on Think PCs. Faster, more durable and greener Think PCs are optimized for
Windows® 7 to deliver improved ease of use. It enhances productivity and foolproof security
that your business cannot do without.
LENOVO ENHANCED EXPERIENCE FOR WINDOWS® 7.
FAST. SECURE. BUILT FOR BUSINESS.
Lenovo® recommends Windows® 7 Professional.
Page 2
HIGH-END PERFORMANCE,
AFFORDABLE PRICE POINT
• The Intel® Xeon® E3 processor family delivers extraordinary
performance gains over previous generation products.
• Genuine Windows® 7 Professional.
• Integrated Intel® HD Graphics or discreet NVIDIA® Quadro® and
NVS graphics for enhanced 2D and 3D performance gains.
• Lenovo® Enhanced Experience 2.0 for faster boot and shut down.
• Workstation performance at desktop price points.
BETTER MANAGEABILITY
AND GREATER SECURITY
• Intel® vPro™ with AMT 7 provides the features of Intel® Standard
Manageability, and also includes:
> KVM Remove Control
> Fast Call for Help
> Remote Scheduled Maintenance
> PC Alarm Clock.
• Error Correcting Code (ECC) memory, to virtually eliminate
memory failures.
• Self-encrypting drives, the Hardware Password Manager, and
Rescue and Recovery for maximum security.
ISV CERTIFIED RELIABILITY
• The ThinkStation E30 is certified by multiple leading ISVs, ensuring
maximum performance and reliability.
• The certification also allows support from ISVs if soware
operational issues occur.
• The ISV certifications on the ThinkStation E30 include AutoCAD,
Adobe, Inventor, SolidWorks, and SolidEdge.
ECO-FRIENDLY WORKSTATION
• Use of 65% post-consumer recycled content and 80 PLUS Bronze
certified 85% ecient power supply.
• GREENGUARD certification to preserve indoor air quality with low
chemical and particle emissions.
• EPEAT Gold certification, for lower toxic material, greenhouse gas
emissions, and electricity consumption.
• TCO certification, indicating low noise and radiation levels, and
minimal environmental impact.
Lenovo® recommends Windows® 7 Professional.
serVice offerings
BASE WARRANTY
• 1 year Onsite Service*
UPGRADE OPTIONS
1
• 1 Yr Priority Support
• 1 Yr Hard Disk Drive Retention
• 2 Yr Onsite 9x5 NBD
2
Service
• 3 Yr Onsite 9x5 NBD
2
Service
• 3 Yr Priority Support + Onsite 9x5 NBD
2
Service
• 3 Yr Onsite 9x5 NBD
2
Service + Hard Disk Drive Retention
VALUE ADDED SERVICES
1
• Lenovo Online Data Backup
• Lenovo Imaging Services
• Lenovo Asset Recovery Services
BASE WARRANTY
• 3 year Onsite Service*
UPGRADE OPTIONS
1
• 3 Yr Priority Support
• 3 Yr Onsite 9x5 NBD
2
Service + Hard Disk Drive Retention
• 4 Yr Priority Support + Onsite 9x5 NBD
2
Service
• 4 Yr Onsite 9x5 NBD
2
Service
• 5 Yr Priority Support + Onsite 9x5 NBD
2
Service
• 5 Yr Onsite 9x5 NBD
2
Service
VALUE ADDED SERVICES
1
• Lenovo Online Data Backup
• Lenovo Imaging Services
• Lenovo Asset Recovery Services
THE LENOVO® THINKSTATION® E30 WORKSTATION
* 1yr or 3yr Onsite
1 Country Availability may vary. Please check with your local service support center for details.
2 Next Business Day
Page 3
SUPPORTED TVT TOOLS
• System Update
• Client Security Solution
• Password Manager
• Rescue and Recovery
• Productivity Center
1
• ThinkVantage Toolbox
2
SUPPORTED OPERATING SYSTEMS
Preloaded:
• Genuine Windows® 7 Professional 64-bit
with Lenovo Enhanced Experience
Supported:
• Genuine Windows® 7 Professional 32-bit
• Genuine Windows® XP Professional
• Genuine Windows® XP x64 Edition
• Red Hat Enterprise Linux 6
software offerings
oPtions and accessories
1 For Windows® XP preload
2 For Windows® 7 preload
THE LENOVO® THINKSTATION® E30 WORKSTATION
MONITORS
NVIDIA® Quadro® NVS 295 Dual DisplayPort™
Graphics Card (45K1669)
• Dual DisplayPort™ supports 2560 x 1600
resolution
• Fan-less design for quieter operation
• NVIDIA’s NVIEW Display Management soware
NVIDIA ® Quadro® 600 96-CUDA Cores 1GB DVI-I,
Dual DisplayPort™ Graphics Card (0A36183)
• One DisplayPort™ and one Dual link DVI-I
• Supports 2560 x 1600 maximum resolution
• 1GB memory frame size, 25.6GB/sec memory
bandwidth
• Supports attachment of optional DisplayPort™
monitor cables
(go to www.lenovo.com/support/displayport-cables)
NVIDIA® Quadro® NVS 450 Quad DisplayPort™, Quad
DVI-D Graphics Card (57Y4398)
• Quad DisplayPort™ supports 2560 x 1600
resolution
• Includes four DisplayPort™ to Single-Link DVI-D
Monitor cables that allows attachment of DVI digital
monitors 1920 x 1200
• NVIDIA’s NVIEW Display Management soware
Lenovo ThinkVision™ L2440p
Wide Monitor (4420HB2)
• 24" wide with 1920 x 1200 resolution maximized
for productivity
• VGA + DVI-D interfaces and USB Hub for
connection flexibility
• EPEAT® Gold certified, TCO compliant, EnergyStar®
5.0 compliant, Greenguard® certified
Lenovo ThinkVision L2321x Wide Monitor (4014HB6)
• 23" wide with 1920 x 1080 resolution for
increased production
• VGA + DisplayPort™ interfaces for easy dual
monitor display
• Full function ergonomic stand
• EPEAT® Gold, TCO Edge and Energy star® 5.0
compliant
GRAPHICS AND MEMORY
NVIDIA® Quadro® FX 380 16-CUDA Cores 256MB Dual
link DVI-I Graphics Card (45K1670)
• Dual Dual link DVI digital 2560 x 1600 or dual VGA
analog 1920 x 1200 maximum resolution
• Includes two DVI-VGA monitor adapters that allows
attachment of VGA analog monitors
• 256MB memory frame size, 22.4GB/sec memory
bandwidth
NVIDIA® Quadro® 2000 192-CUDA Cores 1GB Dual link
DVI-I, Dual DisplayPort™ Graphics Card (57Y4479)
• Three monitor ports: Two DisplayPort™ and one dual
link DVI-I – use any two of three ports.
• DisplayPort™ & Dual link DVI-I digital 2560 x 1600
resolution
• 1GB memory frame size, 41.6GB/sec memory
bandwidth
• Support attachment of optional DisplayPort™
monitor cables
(go to www.lenovo.com/support/displayport-cables)
Ergotron DS100 Quad-Monitor (2x2) Desk Stand
(30R6971)
• View multiple monitors simultaneously for maximum
productivity
• Accomodates various LCD sizes and slides displays
into place so screen edges align
3D Connexion Space Navigator Standard Edition
(41A2545)
• Six degrees of freedom via a flexible controller cap
• Support for Google Earth, Google SketchUp Autodesk®
DWF Viewer as well as 3D design applications from
Solidworks, PTC, UGS, Dassault Systems and Autodesk®
PRODUCTIVITY ACCESSORIES
Low-cost method to boost overall system performance
using DDR3 Error Correcting Code (ECC) or
non-ECC memory
• 43R2033 2GB PC3-10600 DDR3-1333 ECC UDIMM
• 57Y4138 4GB PC3-10600 DDR3-1333 ECC UDIMM
• 57Y4389 1GB PC3-10600 DDR3-1333
Low Halogen UDIMM
• 57Y4390 2GB PC3-10600 DDR3-1333
Low Halogen UDIMM
Ergotron DS100 Dual-Monitor Desk Stand (30R6969)
• View multiple monitors simultaneously for increased
productivity
• Accomodates various LCD sizes and slides displays
into place so screen edges align
ThinkCentre Extend Arm (57Y4352)
• Extend function (410mm, 16.1") to easily move and
adjust the monitor
• 269mm (10.6") vertical adjustment
• Pivot for portrait (vertical) and landscape (horizontal)
viewing, tilt to reduce glare and improve viewing angle
Lenovo® recommends Windows® 7 Professional.
Page 4
©2011 Lenovo. All rights reserved.
Availability: Oers, prices, specifications and availability may change without notice. Lenovo is not responsible for photographic or typographic errors. Warranty: For a copy of applicable warranties,
write to: Warranty Information, 500 Park Oces Drive, RTP, NC, 27709, Attn: Dept. ZPYA/B600. Lenovo makes no representation or warranty regarding third-party products or services.
Trademarks: Lenovo, the Lenovo logo, Rescue and Recovery, ThinkStation, ThinkVantage, and ThinkVision are trademarks or registered trademarks of Lenovo. Microso, Windows, and Vista are
registered trademarks of Microso Corporation. Intel, the Intel logo, Intel Core, Core Inside, Xeon and Xeon Inside are registered trademarks of Intel Corporation in the U.S. and other countries.
Other company, product, and service names may be trademarks or service marks of others. Visit www.lenovo.com/safecomputing periodically for the latest information on safe and eective computing.
WWW.LENOVO.COM
sPecifications
OPERATING SYSTEM PROCESSOR
Preloaded:
Genuine Windows® 7 Professional 64-bit
with Lenovo Enhanced Experience
Genuine Windows® 7 Ultimate 64-bit
Supported:
Genuine Windows® 7 Professional 32-Bit
Genuine Windows® XP Professional
Genuine Windows® XP x64 Edition
Red Hat Enterprise Linux 6
Intel® Xeon®
Intel® Xeon® E3-1280 (3.5GHz, 8MB L3 cache)
Intel® Xeon® E3-1270 (3.4GHz, 8MB L3 cache)
Intel® Xeon® E3-1240 (3.3GHz, 8MB L3 cache)
Intel® Xeon® E3-1230 (3.2GHz, 8MB L3 cache)
Intel® Xeon® E3-1220 (3.1GHz, 8MB L3 cache)
Intel® Xeon® E3-1275 (3.4GHz, 8MB L3 cache)
Intel® Xeon® E3-1245 (3.3GHz, 8MB L3 cache)
Intel® Xeon® E3-1235 (3.2GHz, 8MB L3 cache)
Intel® Xeon® E3-1225 (3.1GHz, 8MB L3 cache)
Intel® Core
Intel® Core i3-2120 (3.3GHz, 3MB L3 cache)
Intel® Core i3-2100 (3.1GHz, 3MB L3 cache)
INTEGRATED GRAPHICS DISCRETE GRAPHICS
Intel® HD Graphics P3000 for
Intel Xeon E3 Processor Family
Intel HD Graphics 3000 for
Intel Core i3 Processor Family
2D Graphics:
NVIDIA® Quadro® NVS 295 – 256MB – 2x DP
NVIDIA® Quadro® NVS 300 – 512MB – DMS59
to 2x DVI
NVIDIA® Quadro® NVS 450 – 512MB – 4x DP
3D Graphics:
NVIDIA Quadro FX380 – 256MB – 2x DVI
NVIDIA Quadro 400 – 512MB – 1x DVI, 1x DP
NVIDIA Quadro 600 – 1GB – 1x DVI, 1x DP
NVIDIA Quadro 2000 – 1GB – 2x DP, 1x DVI
CHASSIS DIMENSIONS (W X D X H) WEIGHT
Tool-less features on front bezel, slots and bays
412 mm x 175 mm x 420 mm 14 Kg (31 lb.)
MEMORY
3
HDD STORAGE - OPTIONAL
4 Available DIMM Slots
ECC:
2GB DDR3 1333MHz UDIMM
4GB DDR3 1333MHz UDIMM
Non-ECC:
2GB DDR3 1333MHz UDIMM
4GB DDR3 1333MHz UDIMM
2 Available Bays for HDD or SSD
3.5” 7200rpm SATA: 250GB, 500GB, 1TB, 2TB
2.5” 10Krpm SATA: 150GB, 300GB, 600GB
DVD-ROM
DVD R/W
Blu-ray R/W
Multi-card reader
ETHERNET AUDIO AUDIO PORTS
Intel® 82579 Gigabit Ethernet Intel® HD audio interface (with Realtek ALC662
codec)
Front – microphone, headphone
Rear – line in, line out, microphone
SPEAKER RJ45 PORT SATA PORTS
Internal mono speaker 1 (rear) 1 SATA (300 MB/s), 1 SATA II (300 MB/s),
2 SATA III (600 MB/s), 1 eSATA
RAID TPM POWER SUPPLY
RAID-0 and RAID-1 supported via
Intel Rapid Storage Technology
Trusted Platform Module (TPM) 1.2 (ST Micro)4280W (85% ecient, auto-sensing)
PORTS SLOTS BAYS
6 rear USB 2.0 Ports
2 front USB 2.0 Ports
1 internal dual USB 2.0 connector
1 rear dual PS/2 port (optional)
1 rear COM Port
2 PCI Slots (v2.3)
1 PCI Express x1 Slot (v2.0)
1 PCI Express x16 Slot (v2.0)
2 internal 3.5”
(2.5” conversion bracket available)
1 external 3.5”
2 external 5.25”
ADAPTERS DONGLES SSD
1 USB 3.0 2-port PCIe adapter
1 IEEE 1394A (firewire) 2-port PCIe adapter
DVI to VGA
DP to DVI, DP to VGA
2.5” Multi-level Cell (MLC): 80GB, 160GB
KEYBOARD MOUSE PRICE
Preferred Pro full-size USB keyboard 800dpi Mouse Starting at USD 600
3 Mixing ECC and non-ECC memory is not supported
4 Disabled for Russia and China
THE LENOVO® THINKSTATION® E30 WORKSTATION
Lenovo® recommends Windows® 7 Professional.
Loading...
