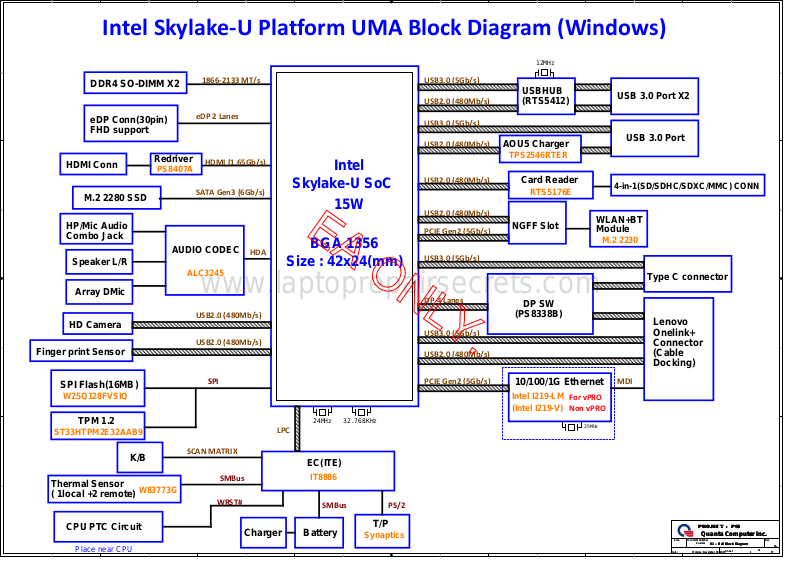

Intel Skylake-U Platform UMA Block Diagram (Windows)
A A
DDR4 SO-DIMM X2
1866-2133 MT/s
USB3.0 (5Gb/s)
USB2.0 (480Mb/s)
eDP Conn(30pin)
eDP 2 Lanes
USB3.0 (5Gb/s)
12MHz
USBHUB
(RTS5412)
USB 3.0 Port X2
FHD support
USB2.0 (480Mb/s)
HDMI Conn
Redriver
PS8407A
M.2 2280 SSD
B B
HP/Mic Audio
Combo Jack
AUDIO CODEC
Speaker L/R
HDMI (1.65Gb/s)
SATA Gen3 (6Gb/s)
HDA
Intel
Skylake-U SoC
15W
BGA 1356
Size : 42x24(mm)
USB2.0 (480Mb/s)
USB2.0 (480Mb/s)
PCIE Gen2 (5Gb/s)
USB3.0 (5Gb/s)
AOU5 Charger
TPS2546RTER
Card Reader
RTS5176E
NGFF Slot
WLAN+BT
Module
ALC3245
USB 3.0 Port
4-in-1(SD/SDHC/SDXC/MMC) CONN
M.2 2230
Type C connector
Array DMic
DP 4 Lanes
USB2.0 (480Mb/s)
HD Camera
C C
Finger print Sensor
USB2.0 (480Mb/s)
USB3.0 (5Gb/s)
USB2.0 (480Mb/s)
DP SW
(PS8338B)
Lenovo
Onelink+
Connector
(Cable
Docking)
SPI Flash(16MB)
SPI
W25Q128FVSIQ
TPM 1.2
ST33HTPM2E32AAB9
K/B
D D
Thermal Sensor
( 1local +2 remote)
W83773G
SCAN MATRIX
SMBus
WRST#
LPC
CPU PTC Circuit
Place near CPU
1
2
3
24MHz
EC(ITE)
IT8886
BatteryCharger
SMBus
32.768KHz
PS/2
T/P
Synaptics
4
PCIE Gen2 (5Gb/s)
5
10/100/1G Ethernet
Intel I219-LM
(Intel I219-V)
6
For vPRO
Non vPRO
25MHz
MDI
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
01 -- Bell Block Diagram
01 -- Bell Block Diagram
01 -- Bell Block Diagram
Sheet
Sheet
Date:
Date:
7
Date:
Sheet
8
RevSize
RevSize
RevSize
of
of
of
1 57Monday, November 09, 2015
1 57Monday, November 09, 2015
1 57Monday, November 09, 2015
1A
1A
1A
Page 2
Vinafix.com
5
www.laptoprepairsecrets.com
IN_D2#20
IN_D220
D D
HDMI
DOCK DP
+VCCIO
C C
eDP_COMPIO and ICOMPO signals should be shorted near
balls and routed with typical impedance <25 mohms
IN_D1#20
IN_D120
IN_D0#20
IN_D020
IN_CLK#20
IN_CLK20
DOCK_DDI2_TXN034
DOCK_DDI2_TXP034
DOCK_DDI2_TXN134
DOCK_DDI2_TXP134
DOCK_DDI2_TXN234
DOCK_DDI2_TXP234
DOCK_DDI2_TXN334
DOCK_DDI2_TXP334
SDVO_CLK20
SDVO_DATA20
EC-DV-06
R242 24.9/F_4
+3V
TP47
4
IN_D2#
IN_D2
IN_D1#
IN_D1
IN_D0#
IN_D0
IN_CLK#
IN_CLK
DOCK_DDI2_TXN0
DOCK_DDI2_TXP0
DOCK_DDI2_TXN1
DOCK_DDI2_TXP1
DOCK_DDI2_TXN2
DOCK_DDI2_TXP2
DOCK_DDI2_TXN3
DOCK_DDI2_TXP3
R721 2.2K_4
EDP_RCOMP
U28A
E55
DDI1_TXN[0]
F55
DDI1_TXP[0]
E58
DDI1_TXN[1]
F58
DDI1_TXP[1]
F53
DDI1_TXN[2]
G53
DDI1_TXP[2]
F56
DDI1_TXN[3]
G56
DDI1_TXP[3]
C50
DDI2_TXN[0]
D50
DDI2_TXP[0]
C52
DDI2_TXN[1]
D52
DDI2_TXP[1]
A50
DDI2_TXN[2]
B50
DDI2_TXP[2]
D51
DDI2_TXN[3]
C51
DDI2_TXP[3]
L13
GPP_E18/DDPB_CTRLCLK
L12
GPP_E19/DDPB_CTRLDATA
N7
GPP_E20/DDPC_CTRLCLK
N8
GPP_E21/DDPC_CTRLDATA
N11
GPP_E22/DDPD_CTRLCLK
N12
GPP_E23/DDPD_CTRLDATA
E52
EDP_RCOMP
SKL_ULT
REV = 1
SKL_ULT
DDI
DISPLAY SIDEBANDS
3
?
Need apply PN
EDP
GPP_E13/DDPB_HPD0
GPP_E14/DDPC_HPD1
GPP_E15/DDPD_HPD2
GPP_E16/DDPE_HPD3
EDP_TXN[0]
EDP_TXP[0]
EDP_TXN[1]
EDP_TXP[1]
EDP_TXN[2]
EDP_TXP[2]
EDP_TXN[3]
EDP_TXP[3]
EDP_AUXN
EDP_AUXP
EDP_DISP_UTIL
DDI1_AUXN
DDI1_AUXP
DDI2_AUXN
DDI2_AUXP
DDI3_AUXN
DDI3_AUXP
GPP_E17/EDP_HPD
EDP_BKLTEN
EDP_BKLTCTL
EDP_VDDEN
?1 OF 20
C47
INT_EDP_TXN0
C46
INT_EDP_TXP0
D46
INT_EDP_TXN1
C45
INT_EDP_TXP1
A45
B45
A47
B47
E45
INT_EDP_AUXN
F45
INT_EDP_AUXP
B52
G50
F50
E48
DOCK_DDI2_AUXN
F48
DOCK_DDI2_AUXP
G46
F46
L9
PCH_HDMI_HPD
L7
PCH_DOCK_DP_HPD
L6
N9
L10
EDP_HPD
R12
PCH_LVDS_BLON
R11
PCH_DPST_PWM
U13
PCH_LCDVCC_EN
2
INT_EDP_TXN0 19
INT_EDP_TXP0 19
INT_EDP_TXN1 19
INT_EDP_TXP1 19
INT_EDP_AUXN 19
INT_EDP_AUXP 19
DOCK_DDI2_AUXN 34
DOCK_DDI2_AUXP 34
PCH_HDMI_HPD 20
PCH_DOCK_DP_HPD 34
EDP_HPD 19
PCH_LVDS_BLON 19
PCH_DPST_PWM 19
PCH_LCDVCC_EN 19
1
+3V4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+VCCIO4,6,16,48,51
+VCCSTPLL4,5,6,9,42,48,51
Reserve EDP_HPD opposites circuit!
+3V
R424
EDP_HPD
*10K_4
R418
100K_4
02
PM_THRMTRIP#
Processor pull-up (CPU)
?
4 OF 20
Need apply PN
JTAG
PROC_TCK
PROC_TDI
PROC_TDO
PROC_TMS
PROC_TRST#
PCH_JTAG_TCK
PCH_JTAG_TDI
PCH_JTAG_TDO
PCH_JTAG_TMS
PCH_TRST#
JTAGX
PDC
3
B61
D60
A61
C60
B59
B56
D59
A56
C59
C61
A59
XDP_TCK0
XDP_TDI_CPU
XDP_TDO_CPU
XDP_TMS_CPU
XDP_TRST#_CPU
JTAG_TCK_PCH
JTAG_TDI_PCH
JTAG_TDO_PCH
JTAG_TMS_PCH
XDP_TRST#_CPU
JTAGX_PCH
XDP_TCK0 16
XDP_TDI_CPU 16
XDP_TDO_CPU 16
XDP_TMS_CPU 16
XDP_TRST#_CPU 2,16
JTAG_TCK_PCH 16
JTAG_TDI_PCH 16
JTAG_TDO_PCH 16
JTAG_TMS_PCH 16
XDP_TRST#_CPU 2,16
JTAGX_PCH 16
2
TP37
EC_PECI29
H_PROCHOT#29,42
B B
+VCCIO
A A
R505 0_4
5
R511 499/F_4
PM_THRMTRIP#29
XDP_BPM016
XDP_BPM116
TP48
R89 49.9/F_4
R79 49.9/F_4
R241 49.9/F_4
R237 49.9/F_4
R510 *51_4
R508 51_4
R494 51_4
R507 51_4
R493 51_4
Close to Chipset
CATERR#
EC_PECI
PROCHOT#
PM_THRMTRIP#
PROC_POPIRCOMP
PCH_OPI_RCOMP
EDRAM_OPIO_RCOMP
EOPIO_RCOMP
JTAGX_PCH
JTAG_TMS_PCH
JTAG_TDI_PCH
JTAG_TDO_PCH
JTAG_TCK_PCH
4
D63
CATERR#
A54
PECI
C65
PROCHOT#
C63
THERMTRIP#
A65
SKTOCC#
C55
BPM#[0]
D55
BPM#[1]
B54
BPM#[2]
C56
BPM#[3]
A6
GPP_E3/CPU_GP0
A7
GPP_E7/CPU_GP1
BA5
GPP_B3/CPU_GP2
AY5
GPP_B4/CPU_GP3
AT16
PROC_POPIRCOMP
AU16
PCH_OPIRCOMP
H66
OPCE_RCOMP
H65
OPC_RCOMP
U28D
SKL_ULT
REV = 1
CPU MISC
SKL_ULT
TO BE REPLACED WITH 1K OHMS FOR SKL .
470 OHM IS FOR I/P
PLACE NEAR CPU
XDP_TMS_CPU
XDP_TDI_CPU
XDP_TDO_CPU
H_PROCHOT#
XDP_TCK0
XDP_TRST#_CPU
Date:
Date:
Date:
R487 1K_4
R509 *51_4
R496
R486 *51_4
R516 1K_4
R485 51_4
R495 51_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
+VCCSTPLL
+VCCIO
*51_4
+VCCSTPLL
02 -- SKYLAKE 1/20(eDP/DDI)
02 -- SKYLAKE 1/20(eDP/DDI)
02 -- SKYLAKE 1/20(eDP/DDI)
Sheet
Sheet
Sheet
1
2 57Monday, November 09, 2015
2 57Monday, November 09, 2015
2 57Monday, November 09, 2015
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
Page 3
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
M_A_DQSN[7:0]17
M_A_DQSP[7:0]17
M_A_DQ[63:0]17
SkyLake ULT Processor (DDR4)
D D
M_B_DQSN[7:0]18
M_B_DQSP[7:0]18
M_B_DQ[63:0]18
+1.2V_SUS6,17,18,46,51
03
Need apply PN
?
U28B
M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
C C
B B
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63
AL71
DDR0_DQ[0]
AL68
DDR0_DQ[1]
AN68
DDR0_DQ[2]
AN69
DDR0_DQ[3]
AL70
DDR0_DQ[4]
AL69
DDR0_DQ[5]
AN70
DDR0_DQ[6]
AN71
DDR0_DQ[7]
AR70
DDR0_DQ[8]
AR68
DDR0_DQ[9]
AU71
DDR0_DQ[10]
AU68
DDR0_DQ[11]
AR71
DDR0_DQ[12]
AR69
DDR0_DQ[13]
AU70
DDR0_DQ[14]
AU69
DDR0_DQ[15]
AF65
DDR1_DQ[0]/DDR0_DQ[16]
AF64
DDR1_DQ[1]/DDR0_DQ[17]
AK65
DDR1_DQ[2]/DDR0_DQ[18]
AK64
DDR1_DQ[3]/DDR0_DQ[19]
AF66
DDR1_DQ[4]/DDR0_DQ[20]
AF67
DDR1_DQ[5]/DDR0_DQ[21]
AK67
DDR1_DQ[6]/DDR0_DQ[22]
AK66
DDR1_DQ[7]/DDR0_DQ[23]
AF70
DDR1_DQ[8]/DDR0_DQ[24]
AF68
DDR1_DQ[9]/DDR0_DQ[25]
AH71
DDR1_DQ[10]/DDR0_DQ[26]
AH68
DDR1_DQ[11]/DDR0_DQ[27]
AF71
DDR1_DQ[12]/DDR0_DQ[28]
AF69
DDR1_DQ[13]/DDR0_DQ[29]
AH70
DDR1_DQ[14]/DDR0_DQ[30]
AH69
DDR1_DQ[15]/DDR0_DQ[31]
BB65
DDR0_DQ[16]/DDR0_DQ[32]
AW65
DDR0_DQ[17]/DDR0_DQ[33]
AW63
DDR0_DQ[18]/DDR0_DQ[34]
AY63
DDR0_DQ[19]/DDR0_DQ[35]
BA65
DDR0_DQ[20]/DDR0_DQ[36]
AY65
DDR0_DQ[21]/DDR0_DQ[37]
BA63
DDR0_DQ[22]/DDR0_DQ[38]
BB63
DDR0_DQ[23]/DDR0_DQ[39]
BA61
DDR0_DQ[24]/DDR0_DQ[40]
AW61
DDR0_DQ[25]/DDR0_DQ[41]
BB59
DDR0_DQ[26]/DDR0_DQ[42]
AW59
DDR0_DQ[27]/DDR0_DQ[43]
BB61
DDR0_DQ[28]/DDR0_DQ[44]
AY61
DDR0_DQ[29]/DDR0_DQ[45]
BA59
DDR0_DQ[30]/DDR0_DQ[46]
AY59
DDR0_DQ[31]/DDR0_DQ[47]
AT66
DDR1_DQ[16]/DDR0_DQ[48]
AU66
DDR1_DQ[17]/DDR0_DQ[49]
AP65
DDR1_DQ[18]/DDR0_DQ[50]
AN65
DDR1_DQ[19]/DDR0_DQ[51]
AN66
DDR1_DQ[20]/DDR0_DQ[52]
AP66
DDR1_DQ[21]/DDR0_DQ[53]
AT65
DDR1_DQ[22]/DDR0_DQ[54]
AU65
DDR1_DQ[23]/DDR0_DQ[55]
AT61
DDR1_DQ[24]/DDR0_DQ[56]
AU61
DDR1_DQ[25]/DDR0_DQ[57]
AP60
DDR1_DQ[26]/DDR0_DQ[58]
AN60
DDR1_DQ[27]/DDR0_DQ[59]
AN61
DDR1_DQ[28]/DDR0_DQ[60]
AP61
DDR1_DQ[29]/DDR0_DQ[61]
AT60
DDR1_DQ[30]/DDR0_DQ[62]
AU60
DDR1_DQ[31]/DDR0_DQ[63]
SKL_ULT
REV = 1
SKL_ULT
DDR0_MA[5]/DDR0_CAA[0]/DDR0_MA[5]
DDR0_MA[9]/DDR0_CAA[1]/DDR0_MA[9]
DDR0_MA[6]/DDR0_CAA[2]/DDR0_MA[6]
DDR0_MA[8]/DDR0_CAA[3]/DDR0_MA[8]
DDR0_MA[7]/DDR0_CAA[4]/DDR0_MA[7]
DDR0_BA[2]/DDR0_CAA[5]/DDR0_BG[0]
DDR0_MA[12]/DDR0_CAA[6]/DDR0_MA[12]
DDR0_MA[11]/DDR0_CAA[7]/DDR0_MA[11]
DDR0_MA[15]/DDR0_CAA[8]/DDR0_ACT#
DDR0_MA[14]/DDR0_CAA[9]/DDR0_BG[1]
DDR0_MA[13]/DDR0_CAB[0]/DDR0_MA[13]
DDR0_CAS#/DDR0_CAB[1]/DDR0_MA[15]
DDR0_WE#/DDR0_CAB[2]/DDR0_MA[14]
DDR0_RAS#/DDR0_CAB[3]/DDR0_MA[16]
DDR0_BA[0]/DDR0_CAB[4]/DDR0_BA[0]
DDR0_MA[2]/DDR0_CAB[5]/DDR0_MA[2]
DDR0_BA[1]/DDR0_CAB[6]/DDR0_BA[1]
DDR0_MA[10]/DDR0_CAB[7]/DDR0_MA[10]
DDR0_MA[1]/DDR0_CAB[8]/DDR0_MA[1]
DDR0_MA[0]/DDR0_CAB[9]/DDR0_MA[0]
DDR1_DQSN[0]/DDR0_DQSN[2]
DDR1_DQSP[0]/DDR0_DQSP[2]
DDR1_DQSN[1]/DDR0_DQSN[3]
DDR1_DQSP[1]/DDR0_DQSP[3]
DDR0_DQSN[2]/DDR0_DQSN[4]
DDR0_DQSP[2]/DDR0_DQSP[4]
DDR0_DQSN[3]/DDR0_DQSN[5]
DDR0_DQSP[3]/DDR0_DQSP[5]
DDR1_DQSN[2]/DDR0_DQSN[6]
DDR1_DQSP[2]/DDR0_DQSP[6]
DDR1_DQSN[3]/DDR0_DQSN[7]
DDR1_DQSP[3]/DDR0_DQSP[7]
NIL-DDR CH A
2 OF 20
DDR0_CKN[0]
DDR0_CKP[0]
DDR0_CKN[1]
DDR0_CKP[1]
DDR0_CKE[0]
DDR0_CKE[1]
DDR0_CKE[2]
DDR0_CKE[3]
DDR0_CS#[0]
DDR0_CS#[1]
DDR0_ODT[0]
DDR0_ODT[1]
DDR0_MA[3]
DDR0_MA[4]
DDR0_DQSN[0]
DDR0_DQSP[0]
DDR0_DQSN[1]
DDR0_DQSP[1]
DDR0_ALERT#
DDR0_PAR
DDR_VREF_CA
DDR0_VREF_DQ
DDR1_VREF_DQ
DDR_VTT_CNTL
AU53
AT53
AU55
AT55
BA56
BB56
AW56
AY56
AU45
AU43
AT45
AT43
BA51
BB54
BA52
AY52
AW52
AY55
AW54
BA54
BA55
AY54
AU46
AU48
AT46
AU50
AU52
AY51
AT48
AT50
BB50
AY50
BA50
BB52
AM70
M_A_DQSN0
AM69
M_A_DQSP0
AT69
M_A_DQSN1
AT70
M_A_DQSP1
AH66
M_A_DQSN2
AH65
M_A_DQSP2
AG69
M_A_DQSN3
AG70
M_A_DQSP3
BA64
M_A_DQSN4
AY64
M_A_DQSP4
AY60
M_A_DQSN5
BA60
M_A_DQSP5
AR66
M_A_DQSN6
AR65
M_A_DQSP6
AR61
M_A_DQSN7
AR60
M_A_DQSP7
AW50
M_A_ALERT#
AT52
M_A_PARITY M_B_ALERT#
AY67
AY68
BA67
AW67
M_A_CLKN0 17
M_A_CLKP0 17
M_A_CLKN1 17
M_A_CLKP1 17
M_A_CKE0 17
M_A_CKE1 17
M_A_CS#0 17
M_A_CS#1 17
M_A_ODT0_CPU 17
M_A_ODT1_CPU 17
M_A_A5 17
M_A_A9 17
M_A_A6 17
M_A_A8 17
M_A_A7 17
M_A_BG#0 17
M_A_A12 17
M_A_A11 17
M_A_ACT# 17
M_A_BG#1 17
M_A_A13 17
M_A_CAS# 17
M_A_WE# 17
M_A_RAS# 17
M_A_BA#0 17
M_A_A2 17
M_A_BA#1 17
M_A_A10 17
M_A_A1 17
M_A_A0 17
M_A_A3 17
M_A_A4 17
M_A_ALERT# 17
M_A_PARITY 17
SM_VREF_CA 17
TP10
SM_VREF_DQ1 18
DDR_PG_CTRL 17
M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63
U28C
AY39
DDR0_DQ[32]/DDR1_DQ[0]
AW39
DDR0_DQ[33]/DDR1_DQ[1]
AY37
DDR0_DQ[34]/DDR1_DQ[2]
AW37
DDR0_DQ[35]/DDR1_DQ[3]
BB39
DDR0_DQ[36]/DDR1_DQ[4]
BA39
DDR0_DQ[37]/DDR1_DQ[5]
BA37
DDR0_DQ[38]/DDR1_DQ[6]
BB37
DDR0_DQ[39]/DDR1_DQ[7]
AY35
DDR0_DQ[40]/DDR1_DQ[8]
AW35
DDR0_DQ[41]/DDR1_DQ[9]
AY33
DDR0_DQ[42]/DDR1_DQ[10]
AW33
DDR0_DQ[43]/DDR1_DQ[11]
BB35
DDR0_DQ[44]/DDR1_DQ[12]
BA35
DDR0_DQ[45]/DDR1_DQ[13]
BA33
DDR0_DQ[46]/DDR1_DQ[14]
BB33
DDR0_DQ[47]/DDR1_DQ[15]
AU40
DDR1_DQ[32]/DDR1_DQ[16]
AT40
DDR1_DQ[33]/DDR1_DQ[17]
AT37
DDR1_DQ[34]/DDR1_DQ[18]
AU37
DDR1_DQ[35]/DDR1_DQ[19]
AR40
DDR1_DQ[36]/DDR1_DQ[20]
AP40
DDR1_DQ[37]/DDR1_DQ[21]
AP37
DDR1_DQ[38]/DDR1_DQ[22]
AR37
DDR1_DQ[39]/DDR1_DQ[23]
AT33
DDR1_DQ[40]/DDR1_DQ[24]
AU33
DDR1_DQ[41]/DDR1_DQ[25]
AU30
DDR1_DQ[42]/DDR1_DQ[26]
AT30
DDR1_DQ[43]/DDR1_DQ[27]
AR33
DDR1_DQ[44]/DDR1_DQ[28]
AP33
DDR1_DQ[45]/DDR1_DQ[29]
AR30
DDR1_DQ[46]/DDR1_DQ[30]
AP30
DDR1_DQ[47]/DDR1_DQ[31]
AY31
DDR0_DQ[48]/DDR1_DQ[32]
AW31
DDR0_DQ[49]/DDR1_DQ[33]
AY29
DDR0_DQ[50]/DDR1_DQ[34]
AW29
DDR0_DQ[51]/DDR1_DQ[35]
BB31
DDR0_DQ[52]/DDR1_DQ[36]
BA31
DDR0_DQ[53]/DDR1_DQ[37]
BA29
DDR0_DQ[54]/DDR1_DQ[38]
BB29
DDR0_DQ[55]/DDR1_DQ[39]
AY27
DDR0_DQ[56]/DDR1_DQ[40]
AW27
DDR0_DQ[57]/DDR1_DQ[41]
AY25
DDR0_DQ[58]/DDR1_DQ[42]
AW25
DDR0_DQ[59]/DDR1_DQ[43]
BB27
DDR0_DQ[60]/DDR1_DQ[44]
BA27
DDR0_DQ[61]/DDR1_DQ[45]
BA25
DDR0_DQ[62]/DDR1_DQ[46]
BB25
DDR0_DQ[63]/DDR1_DQ[47]
AU27
DDR1_DQ[48]
AT27
DDR1_DQ[49]
AT25
DDR1_DQ[50]
AU25
DDR1_DQ[51]
AP27
DDR1_DQ[52]
AN27
DDR1_DQ[53]
AN25
DDR1_DQ[54]
AP25
DDR1_DQ[55]
AT22
DDR1_DQ[56]
AU22
DDR1_DQ[57]
AU21
DDR1_DQ[58]
AT21
DDR1_DQ[59]
AN22
DDR1_DQ[60]
AP22
DDR1_DQ[61]
AP21
DDR1_DQ[62]
AN21
DDR1_DQ[63]
SKL_ULT
REV = 1
?
SKL_ULT
Need apply PN
DDR1_MA[5]/DDR1_CAA[0]/DDR1_MA[5]
DDR1_MA[9]/DDR1_CAA[1]/DDR1_MA[9]
DDR1_MA[6]/DDR1_CAA[2]/DDR1_MA[6]
DDR1_MA[8]/DDR1_CAA[3]/DDR1_MA[8]
DDR1_MA[7]/DDR1_CAA[4]/DDR1_MA[7]
DDR1_BA[2]/DDR1_CAA[5]/DDR1_BG[0]
DDR1_MA[12]/DDR1_CAA[6]/DDR1_MA[12]
DDR1_MA[11]/DDR1_CAA[7]/DDR1_MA[11]
DDR1_MA[15]/DDR1_CAA[8]/DDR1_ACT#
DDR1_MA[14]/DDR1_CAA[9]/DDR1_BG[1]
DDR1_MA[13]/DDR1_CAB[0]/DDR1_MA[13]
DDR1_CAS#/DDR1_CAB[1]/DDR1_MA[15]
DDR1_WE#/DDR1_CAB[2]/DDR1_MA[14]
DDR1_RAS#/DDR1_CAB[3]/DDR1_MA[16]
DDR1_BA[0]/DDR1_CAB[4]/DDR1_BA[0]
DDR1_MA[2]/DDR1_CAB[5]/DDR1_MA[2]
DDR1_BA[1]/DDR1_CAB[6]/DDR1_BA[1]
DDR1_MA[10]/DDR1_CAB[7]/DDR1_MA[10]
DDR1_MA[1]/DDR1_CAB[8]/DDR1_MA[1]
DDR1_MA[0]/DDR1_CAB[9]/DDR1_MA[0]
DDR0_DQSN[4]/DDR1_DQSN[0]
DDR0_DQSP[4]/DDR1_DQSP[0]
DDR0_DQSN[5]/DDR1_DQSN[1]
DDR0_DQSP[5]/DDR1_DQSP[1]
DDR1_DQSN[4]/DDR1_DQSN[2]
DDR1_DQSP[4]/DDR1_DQSP[2]
DDR1_DQSN[5]/DDR1_DQSN[3]
DDR1_DQSP[5]/DDR1_DQSP[3]
DDR0_DQSN[6]/DDR1_DQSN[4]
DDR0_DQSP[6]/DDR1_DQSP[4]
DDR0_DQSN[7]/DDR1_DQSN[5]
DDR0_DQSP[7]/DDR1_DQSP[5]
DRAM_RESET#
DDR_RCOMP[0]
DDR_RCOMP[1]
NIL-DDR CH B
3 OF 20
DDR_RCOMP[2]
PDC
DDR1_CKN[0]
DDR1_CKN[1]
DDR1_CKP[0]
DDR1_CKP[1]
DDR1_CKE[0]
DDR1_CKE[1]
DDR1_CKE[2]
DDR1_CKE[3]
DDR1_CS#[0]
DDR1_CS#[1]
DDR1_ODT[0]
DDR1_ODT[1]
DDR1_MA[3]
DDR1_MA[4]
DDR1_DQSN[6]
DDR1_DQSP[6]
DDR1_DQSN[7]
DDR1_DQSP[7]
DDR1_ALERT#
DDR1_PAR
AN45
AN46
AP45
AP46
AN56
AP55
AN55
AP53
BB42
AY42
BA42
AW42
AY48
AP50
BA48
BB48
AP48
AP52
AN50
AN48
AN53
AN52
BA43
AY43
AY44
AW44
BB44
AY47
BA44
AW46
AY46
BA46
BB46
BA47
BA38
AY38
AY34
BA34
AT38
AR38
AT32
AR32
BA30
AY30
AY26
BA26
AR25
AR27
AR22
AR21
AN43
AP43
AT13
AR18
AT18
AU18
M_B_DQSN0
M_B_DQSP0
M_B_DQSN1
M_B_DQSP1
M_B_DQSN2
M_B_DQSP2
M_B_DQSN3
M_B_DQSP3
M_B_DQSN4
M_B_DQSP4
M_B_DQSN5
M_B_DQSP5
M_B_DQSN6
M_B_DQSP6
M_B_DQSN7
M_B_DQSP7
M_B_PARITY
SM_DRAMRST#
SM_RCOMP_0
SM_RCOMP_1
SM_RCOMP_2
M_B_CLKN0 18
M_B_CLKN1 18
M_B_CLKP0 18
M_B_CLKP1 18
M_B_CKE0 18
M_B_CKE1 18
M_B_CS#0 18
M_B_CS#1 18
M_B_ODT0_CPU 18
M_B_ODT1_CPU 18
M_B_A5 18
M_B_A9 18
M_B_A6 18
M_B_A8 18
M_B_A7 18
M_B_BG#0 18
M_B_A12 18
M_B_A11 18
M_B_ACT# 18
M_B_BG#1 18
M_B_A13 18
M_B_CAS# 18
M_B_WE# 18
M_B_RAS# 18
M_B_BA#0 18
M_B_A2 18
M_B_BA#1 18
M_B_A10 18
M_B_A1 18
M_B_A0 18
M_B_A3 18
M_B_A4 18
M_B_ALERT# 18
M_B_PARITY 18
R162 121/F_4
R165 80.6/F_4
R164 100/F_4
+1.2V_SUS
R166
470_4
DDR3_DRAMRST# 17,18
A A
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
5
4
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
03 -- SKYLAKE 3/20(DDR3-A I/F)
03 -- SKYLAKE 3/20(DDR3-A I/F)
03 -- SKYLAKE 3/20(DDR3-A I/F)
Sheet
Sheet
Date:
Date:
3
2
Date:
Sheet
1
RevSize
RevSize
RevSize
1A
1A
3 57Monday, November 09, 2015
3 57Monday, November 09, 2015
3 57Monday, November 09, 2015
1A
of
of
of
Page 4
Vinafix.com
5
www.laptoprepairsecrets.com
D D
PLTRST#
SYS_RESET#16
RSMRST#16,29
EC_PWROK22,29,30
PCIE_WAKE#25
LANWAKE#23
LAN_DIS#23
EC-SIT-14
C C
TOUCH_EN19
R447 *10K_4
C469 *0.1U/16V_4
R129*0_4
SYS_RESET#
RSMRST#
PROCPWRGD
H_VCCST_PWRGD
SYS_PWROK
EC_PWROK
DSWROK_EC_R
SUSWARN#
SUSACK#
PCIE_WAKE#
LANWAKE#
LAN_DIS#
RSMRST#
SYS_RESET#
EC7
*220P/50V_4
4
EC9
*220P/50V_4
U28K
SYSTEM POWER MANAGEMENT
AN10
GPP_B13/PLTRST#
B5
SYS_RESET#
AY17
RSMRST#
A68
PROCPWRGD
B65
VCCST_PWRGD
B6
SYS_PWROK
BA20
PCH_PWROK
BB20
DSW_PW ROK
AR13
GPP_A13/SUSW ARN#/SUSPW RDNACK
AP11
GPP_A15/SUSACK#
BB15
WAKE#
AM15
GPD2/LAN_WAKE#
AW17
GPD11/LANPHYPC
AT15
GPD7/RSVD
SKL_ULT
REV = 1
SKL_ULT
?
11 OF 20
3
Need apply PN
GPP_B12/SLP_S0#
GPD4/SLP_S3#
GPD5/SLP_S4#
GPD10/SLP_S5#
GPD9/SLP_WLAN#
GPD6/SLP_A#
GPD3/PWRBTN#
GPD1/ACPRESENT
GPD0/BATLOW #
GPP_A11/PME#
GPP_B11/EXT_PW R_GATE#
INTRUDER#
GPP_B2/VRALERT#
SLP_SUS#
SLP_LAN#
2
+3V_DEEP_SUS10,11,14,15,16,17
+VCCSTPLL2,5,6,9,42,48,51
+3V_RTC_213,15
1
+3VS510,12,15,16,19,21,23,25,28,31,32,36,38,41,47,48,49,51
+3V2,10,11,12,13,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+5VS519,26,27,28,32,33,35,37,38,41,42,45,46,47,48,49,51
+VCCIO2,6,16,48,51
04
PCH Pull-high/low(CLG)
AT11
PCH_SLP_S0_N
AP15
BA16
AY16
AN15
AW15
BB17
AN16
BA15
DNBSWON#
AY15
AC_PRESENT_EC
AU13
PM_BATLOW_N_EC
AU11
AP16
INTRUDER#_R
AM10
EXT_PWR_GATE#
AM11
?
R163 1M_4
PCH_SLP_S0_N 16
SUSB# 16,29
SUSC# 16,29
SLP_S5# 16
SLP_LAN# 23
SLP_WLAN# 25
SLP_A# 16,29
DNBSWON# 16,29
AC_PRESENT_EC 29
PM_BATLOW_N_EC 29
+3V_RTC_2
EC-SIT-14
SUSWARN#
SUSACK#
PM_BATLOW_N_EC
PCIE_WAKE#
AC_PRESENT_EC
LANWAKE#
SYS_RESET#
RSMRST#
DSWROK_EC_R
TOUCH_EN
+3V_DEEP_SUS
R114 *10K_4
R128 *10K_4
R144 10K_4
R70 1K_4
R84 10K_4
R124 10K_4
R475 10K_4
R80 10K_4
R91 *100K/F_4
R815 100K/F_4
EC-DV-07
+3VS5
+3V
EXT_PWR_GATE#
RSMRST# DSWROK_EC_R
B B
PLTRST#21,23,24,25,29,30
PLTRST#(CLG)
SYS_PWROK29
A A
R100 *0_4_S
R482 0_4
R224
100K/F_4
PLTRST#
EC18
*220P/50V_4
EC_PWROKSYS_PWROK
R476
100K/F_4
Close to CPU side
H_VCCST_PWRGD trace 0.3" - 1.5"
+VCCIO
HWPG16,21,29,46,49
D24 DB2J40600L
21
+VCCSTPLL
R517
1K_4
H_VCCST_PWRGD_R
C495
*10P/50V_4
R512
*1K_4
R491 60.4_4
H_VCCST_PWRGD
+VCCIO +3VS5+5VS5
R514
15K_4
R500
100K_4
2
1 3
+1.0V_PWRGD_G1
C497
0.1U/16V_4
R60 *20K/F_4
R520
100K_4
+1.0V_PWRGD_G2
Q34
PMBT3904
+3VS5
R522
10K_4
Q36
DMN601K-7
HWPG
R525
100K_4
3
2
1
System PWR_OK(CLG)
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Date:
Date:
5
4
3
2
Date:
04 -- SKYPAKE 5/20(Power Manger)
04 -- SKYPAKE 5/20(Power Manger)
04 -- SKYPAKE 5/20(Power Manger)
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1ACustom
1ACustom
4 57Monday, November 09, 2015
4 57Monday, November 09, 2015
4 57Monday, November 09, 2015
1ACustom
of
of
of
Page 5
Vinafix.com
5
www.laptoprepairsecrets.com
C489
C263
C197
10U/6.3V_4
C219
22U/6.3V_6
C255
22U/6.3V_6
C276
10U/6.3V_4
C493
22U/6.3V_6
22U/6.3V_6
10U/6.3V_4
10U/6.3V_4
C233
22U/6.3V_6
22U/6.3V_6
D D
C C
C247
C198
10U/6.3V_4
C508
22U/6.3V_6
C369
22U/6.3V_6
C196
10U/6.3V_4
C483
22U/6.3V_6
Close CPU
+VCC_CORE
C498
47U/6.3V_8
+VCC_CORE
C280
10U/6.3V_4
C519
47U/6.3V_8
C344
10U/6.3V_4
C516
47U/6.3V_8 R489
47U/6.3V_8
C353
10U/6.3V_4
10U/6.3V_4
C509
C290
C515
47U/6.3V_8
C466
10U/6.3V_4
C213
22U/6.3V_6
10U/6.3V_4
C269
22U/6.3V_6
C504
47U/6.3V_8
C358
10U/6.3V_4
4
SKL_ULT
C232
22U/6.3V_6
C341
10U/6.3V_4
C506
47U/6.3V_8
C467
10U/6.3V_4
22U/6.3V_6
Under CPU
C505
47U/6.3V_8
C481
10U/6.3V_4
+VCC_CORE +VCC_CORE
C364
AK33
AK35
AK37
AK38
AK40
AL33
AL37
AL40
AM32
AM33
AM35
AM37
AM38
AK32
AB62
AC63
AE63
AE62
AG62
AL63
AJ62
A30
A34
A39
A44
G30
K32
P62
V62
H63
G61
+VCC_CORE
U28L
CPU POWER 1 OF 4
VCC_A30
VCC_A34
33A
VCC_A39
VCC_A44
VCC_AK33
VCC_AK35
VCC_AK37
VCC_AK38
VCC_AK40
VCC_AL33
VCC_AL37
VCC_AL40
VCC_AM32
VCC_AM33
VCC_AM35
VCC_AM37
VCC_AM38
VCC_G30
RSVD_K32
RSVD_AK32
VCCOPC_AB62
VCCOPC_P62
VCCOPC_V62
VCC_OPC_1P8_H63
VCC_OPC_1P8_G61
VCCOPC_SENSE
VSSOPC_SENSE
VCCEOPIO
VCCEOPIO
VCCEOPIO_SENSE
VSSEOPIO_SENSE
SKL_ULT
REV = 1
RF RESERVE
3
?
Need apply PN
12 OF 20
C9707 *1U/6.3V_4
C9708 *22U/6.3V_6
C9709 *1U/6.3V_4
C9710 *22U/6.3V_6
VCC_G32
VCC_G33
VCC_G35
VCC_G37
VCC_G38
VCC_G40
VCC_G42
VCC_J30
VCC_J33
VCC_J37
VCC_J40
VCC_K33
VCC_K35
VCC_K37
VCC_K38
VCC_K40
VCC_K42
VCC_K43
VCC_SENSE
VSS_SENSE
VIDALERT#
VIDSCK
VIDSOUT
VCCSTG_G20
PDC
G32
G33
G35
G37
C465
G38
1U/6.3V_4
G40
G42
J30
J33
J37
J40
K33
C349
K35
1U/6.3V_4
K37
K38
K40
K42
K43
E32
E33
B63
A63
D64
G20
?
Layout note: need routing together and ALERT need between CLK and DATA.
CLOSE TO CPU
PLACE THE PU RESISTORS
C239
1U/6.3V_4
C266
1U/6.3V_4
H_CPU_SVIDALRT#
VR_SVID_CLK_R
H_CPU_SVIDDAT
H_CPU_SVIDALRT#
C360
1U/6.3V_4
C259
1U/6.3V_4
2
C218
1U/6.3V_4
C249
1U/6.3V_4
R243 100/F_4
R244 100/F_4
R474 220/F_4
C480
1U/6.3V_4
C203
1U/6.3V_4
C195
1U/6.3V_4
C207
1U/6.3V_4
+VCCSTPLL
56.2/F_4
C490
*0.1U/16V_4
Under CPU
C226
1U/6.3V_4
C279
1U/6.3V_4C293
+VCC_CORE43
+VCCSTG6
+VCCSTPLL2,4,6,9,42,48,51
C296
1U/6.3V_4C277
+VCC_CORE
VCC_SENSE 42
VSS_SENSE 42
+VCCSTG
SVID ALERT
VR_SVID_ALERT# 42
1
05
100- ±1%
pull-up to VCC
near processor.
B B
PLACE THE PU RESISTORS
CLOSE TO VR
PULL UP IS IN THE VR MODULE
VR_SVID_CLK_R
CLOSE TO CPU
PLACE THE PU RESISTORS
H_CPU_SVIDDAT
A A
5
4
3
R488 0_4
2
+VCCSTPLL
R504
*54.9/F_4
+VCCSTPLL
R477
100/F_4
R472 0_4
Date:
Date:
Date:
SVID CLK
VR_SVID_CLK 42
SVID DATA
VR_SVID_DATA 42
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
05 -- SKYPAKE 6/20 (POWER-1)
05 -- SKYPAKE 6/20 (POWER-1)
05 -- SKYPAKE 6/20 (POWER-1)
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
5 57Monday, November 09, 2015
5 57Monday, November 09, 2015
5 57Monday, November 09, 2015
Page 6
Vinafix.com
5
www.laptoprepairsecrets.com
D D
Under CPU
C201
C167
10U/6.3V_4
10U/6.3V_4
Close CPU
C133
10U/6.3V_4
10U/6.3V_4
C C
+VCCSTPLL
+VCCIO
C134
C114
10U/6.3V_4
EC-SIT-09
R784 *0_4
R513 0_4
R161 *0_4_S
R479 *0_6_S
C146
10U/6.3V_4
+VCCSTG
+VCCPLL_OC+1.2V_SUS
+VCCPLL+VCCSTPLL
+1.2V_SUS
C200
1U/6.3V_4
C113
1U/6.3V_4
C199
1U/6.3V_4
Close CPU Under CPU
C193
C173
*1U/6.3V_4
10U/6.3V_4
4
C136
1U/6.3V_4
+VCCSTPLL
+VCCSTG
+VCCPLL_OC
+VCCPLL
AU23
AU28
AU35
AU42
BB23
BB32
BB41
BB47
BB51
AM40
AL23
A18
A22
K20
K21
SKL_ULT
U28N
CPU POWER 3 OF 4
VDDQ_AU23
VDDQ_AU28
VDDQ_AU35
VDDQ_AU42
VDDQ_BB23
VDDQ_BB32
VDDQ_BB41
VDDQ_BB47
VDDQ_BB51
VDDQC
0.12A
VCCST
VCCSTG_A22
VCCPLL_OC
VCCPLL_K20
VCCPLL_K21
SKL_ULT
REV = 1
Need apply PN
?
2A
0.04A
0.12A
14 OF 20
VCCIO
3.1A
VCCIO
VCCIO
VCCIO
VCCIO
VCCIO
VCCIO
VCCSA
4.5A
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCIO_SENSE
VSSIO_SENSE
VSSSA_SENSE
VCCSA_SENSE
AK28
AK30
AL30
AL42
AM28
AM30
AM42
AK23
AK25
G23
G25
G27
G28
J22
J23
J27
K23
K25
K27
K28
K30
AM23
AM22
H21
H20
3
C248
1U/6.3V_4
+VCCSA
C503
1U/6.3V_4
VCCIO_VCCSENSE
VCCIO_VSSSENSE
Under CPU
C204
1U/6.3V_4
C302
1U/6.3V_4
C283
10U/6.3V_4
C257
C216
1U/6.3V_4
1U/6.3V_4
C301
C514
1U/6.3V_4
1U/6.3V_4
C510
C230
10U/6.3V_4
10U/6.3V_4
VSSSA_SENSE 42
VCCSA_SENSE 42
C272
10U/6.3V_4
C513
1U/6.3V_4
C209
10U/6.3V_4
C264
10U/6.3V_4
C501
1U/6.3V_4
C502
10U/6.3V_4
VCCIO_VCCSENSE
VCCIO_VSSSENSE
2
C191
1U/6.3V_4
C223
1U/6.3V_4
C500
10U/6.3V_4
R199 *100/F_4
R196 *100/F_4
Close CPU
C225
1U/6.3V_4
Under CPU
C289
10U/6.3V_4
Close CPU
C205
1U/6.3V_4
C282
10U/6.3V_4
+VCCIO
+VCCIO
C238
1U/6.3V_4
C242
10U/6.3V_4
EC-SIT-32
+VCCIO2,4,16,48,51
+VCCSA42,45
+1.2V_SUS3,17,18,46,51
+VCCSTPLL2,4,5,9,42,48,51
+VCCSTG5
C511
10U/6.3V_4
C499
10U/6.3V_4
1
C512
10U/6.3V_4
C288
10U/6.3V_4
06
Close CPUUnder CPU
+VCCSTG +VCCPLL_OC +VCCPLL+VCCSTPLL
B B
C494
1U/6.3V_4
C190
1U/6.3V_4
C477
1U/6.3V_4
C274
1U/6.3V_4
Close A18 Ball
+VCCSTPLL
C464
*1U/6.3V_4
A A
5
C492
*22U/6.3V_6
+1.2V_SUS
C117
10U/6.3V_4
C123
10U/6.3V_4
4
C132
10U/6.3V_4
C130
10U/6.3V_4
C119
10U/6.3V_4
Close to CPU
C120
10U/6.3V_4
C192
1U/6.3V_4
C135
1U/6.3V_4
3
C206
1U/6.3V_4
C150
1U/6.3V_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
06 -- SKYPAKE 7/20 (POWER-2)
06 -- SKYPAKE 7/20 (POWER-2)
06 -- SKYPAKE 7/20 (POWER-2)
Sheet
Sheet
Date:
Date:
2
Date:
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
6 57Monday, November 09, 2015
6 57Monday, November 09, 2015
6 57Monday, November 09, 2015
Page 7
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
+VCCGT 42,44
?
SKL_ULT
31A
PDC
13 OF 20
Need apply PN
VCCGTX_AK42
VCCGTX_AK43
VCCGTX_AK45
VCCGTX_AK46
VCCGTX_AK48
VCCGTX_AK50
VCCGTX_AK52
VCCGTX_AK53
VCCGTX_AK55
VCCGTX_AK56
VCCGTX_AK58
VCCGTX_AK60
VCCGTX_AK70
VCCGTX_AL43
VCCGTX_AL46
VCCGTX_AL50
VCCGTX_AL53
VCCGTX_AL56
VCCGTX_AL60
VCCGTX_AM48
VCCGTX_AM50
VCCGTX_AM52
VCCGTX_AM53
VCCGTX_AM56
VCCGTX_AM58
VCCGTX_AU58
VCCGTX_AU63
VCCGTX_BB57
VCCGTX_BB66
VCCGTX_SENSE
VSSGTX_SENSE
AA63
AA64
AA66
AA67
AA69
AA70
AA71
AC64
AC65
AC66
AC67
AC68
AC69
AC70
AC71
M62
N63
N64
N66
N67
N69
A48
A53
A58
A62
A66
J43
J45
J46
J48
J50
J52
J53
J55
J56
J58
J60
K48
K50
K52
K53
K55
K56
K58
K60
L62
L63
L64
L65
L66
L67
L68
L69
L70
L71
J70
J69
U28M
CPU POWER 2 OF 4
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT_SENSE
VSSGT_SENSE
SKL_ULT
REV = 1
+VCCGT
C214
1U/6.3V_4
C217
1U/6.3V_4
C265
10U/6.3V_4
C215
10U/6.3V_4
C294
1U/6.3V_4
C211
1U/6.3V_4
D D
C C
B B
C287
10U/6.3V_4
C254
10U/6.3V_4
C258
1U/6.3V_4
C281
1U/6.3V_4
C212
10U/6.3V_4
C297
10U/6.3V_4
C305
1U/6.3V_4
C284
1U/6.3V_4
VCCGT_SENSE42
VSSGT_SENSE42
C234
10U/6.3V_4
C286
10U/6.3V_4
C295
1U/6.3V_4
C260
1U/6.3V_4
C243
10U/6.3V_4
C241
10U/6.3V_4
C235
1U/6.3V_4
C285
1U/6.3V_4
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
N70
N71
R63
R64
R65
R66
R67
R68
R69
R70
R71
T62
U65
U68
U71
W63
W64
W65
W66
W67
W68
W69
W70
W71
Y62
AK42
AK43
AK45
AK46
AK48
AK50
AK52
AK53
AK55
AK56
AK58
AK60
AK70
AL43
AL46
AL50
AL53
AL56
AL60
AM48
AM50
AM52
AM53
AM56
AM58
AU58
AU63
BB57
BB66
AK62
AL61
+VCCGT
Close CPUUnder CPU
C458
47U/6.3V_8
C208
22U/6.3V_6
C245
22U/6.3V_6
C449
47U/6.3V_8
C188
22U/6.3V_6
C250
22U/6.3V_6
C448
47U/6.3V_8
C222
22U/6.3V_6
C236
22U/6.3V_6
C447
47U/6.3V_8
C220
22U/6.3V_6
C187
22U/6.3V_6
C457
47U/6.3V_8
C221
22U/6.3V_6
C231
22U/6.3V_6
C456
47U/6.3V_8
C251
22U/6.3V_6
C186
22U/6.3V_6
07
A A
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
5
4
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
07 -- SKYPAKE 8/20 (POWER-3)
07 -- SKYPAKE 8/20 (POWER-3)
07 -- SKYPAKE 8/20 (POWER-3)
Sheet
Sheet
Date:
Date:
3
2
Date:
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
7 57Monday, November 09, 2015
7 57Monday, November 09, 2015
7 57Monday, November 09, 2015
Page 8
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
08
D D
U28R
SKL_ULT
F8
VSS
G10
VSS
G22
VSS
G43
VSS
G45
VSS
G48
VSS
G5
VSS
G52
VSS
C C
B B
G55
VSS
G58
VSS
G6
VSS
G60
VSS
G63
VSS
G66
VSS
H15
VSS
H18
VSS
H71
VSS
J11
VSS
J13
VSS
J25
VSS
J28
VSS
J32
VSS
J35
VSS
J38
VSS
J42
VSS
J8
VSS
K16
VSS
K18
VSS
K22
VSS
K61
VSS
K63
VSS
K64
VSS
K65
VSS
K66
VSS
K67
VSS
K68
VSS
K70
VSS
K71
VSS
L11
VSS
L16
VSS
L17
VSS
SKL_ULT
REV = 1
GND 3 OF 3
Need apply PN
?
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
18 OF 20
L18
L2
L20
L4
L8
N10
N13
N19
N21
N6
N65
N68
P17
P19
P20
P21
R13
R6
T15
T17
T18
T2
T21
T4
U10
U63
U64
U66
U67
U69
U70
V16
V17
V18
W13
W6
W9
Y17
Y19
Y20
Y21
?
AA65
AA68
AB15
AB16
AB18
AB21
AD13
AD16
AD19
AD20
AD21
AD62
AE64
AE65
AE66
AE67
AE68
AE69
AF10
AF15
AF17
AF63
AG16
AG17
AG18
AG19
AG20
AG21
AG71
AH13
AH63
AH64
AH67
AJ15
AJ18
AJ20
AK11
AK16
AK18
AK21
AK22
AK27
AK63
AK68
AK69
AL28
AL32
AL35
AL38
AL45
AL48
AL52
AL55
AL58
AL64
AD8
AF1
AF2
AF4
AH6
AK8
U28P
A5
VSS
A67
VSS
A70
VSS
AA2
VSS
AA4
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AB8
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AJ4
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AL2
VSS
VSS
VSS
VSS
VSS
AL4
VSS
VSS
VSS
VSS
VSS
VSS
VSS
SKL_ULT
REV = 1
SKL_ULT
GND 1 OF 3
Need apply PN
?
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
16 OF 20
AL65
AL66
AM13
AM21
AM25
AM27
AM43
AM45
AM46
AM55
AM60
AM61
AM68
AM71
AM8
AN20
AN23
AN28
AN30
AN32
AN33
AN35
AN37
AN38
AN40
AN42
AN58
AN63
AP10
AP18
AP20
AP23
AP28
AP32
AP35
AP38
AP42
AP58
AP63
AP68
AP70
AR11
AR15
AR16
AR20
AR23
AR28
AR35
AR42
AR43
AR45
AR46
AR48
AR5
AR50
AR52
AR53
AR55
AR58
AR63
AR8
AT2
AT20
AT23
AT28
AT35
AT4
AT42
AT56
AT58
?
AT63
AT68
AT71
AU10
AU15
AU20
AU32
AU38
AV68
AV69
AV70
AV71
AW10
AW12
AW14
AW16
AW18
AW21
AW23
AW26
AW28
AW30
AW32
AW34
AW36
AW38
AW41
AW43
AW45
AW47
AW49
AW51
AW53
AW55
AW57
AW6
AW60
AW62
AW64
AW66
AW8
AY66
BA10
BA14
BA18
BA23
BA28
BA32
BA36
BA45
U28Q
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AV1
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
B10
VSS
B14
VSS
B18
VSS
B22
VSS
B30
VSS
B34
VSS
B39
VSS
B44
VSS
B48
VSS
B53
VSS
B58
VSS
B62
VSS
B66
VSS
B71
VSS
BA1
VSS
VSS
VSS
VSS
BA2
VSS
VSS
VSS
VSS
VSS
F68
VSS
VSS
SKL_ULT
REV = 1
SKL_ULT
GND 2 OF 3
Need apply PN
?
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
PDC
17 OF 20
BA49
BA53
BA57
BA6
BA62
BA66
BA71
BB18
BB26
BB30
BB34
BB38
BB43
BB55
BB6
BB60
BB64
BB67
BB70
C1
C25
C5
D10
D11
D14
D18
D22
D25
D26
D30
D34
D39
D44
D45
D47
D48
D53
D58
D6
D62
D66
D69
E11
E15
E18
E21
E46
E50
E53
E56
E6
E65
E71
F1
F13
F2
F22
F23
F27
F28
F32
F33
F35
F37
F38
F4
F40
F42
BA41
?
A A
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
5
4
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
8 -- SKYPAKE 9/20 (GND-1)
8 -- SKYPAKE 9/20 (GND-1)
8 -- SKYPAKE 9/20 (GND-1)
Sheet
Sheet
Date:
Date:
3
2
Date:
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
8 57Monday, November 09, 2015
8 57Monday, November 09, 2015
8 57Monday, November 09, 2015
Page 9
Vinafix.com
5
www.laptoprepairsecrets.com
ITP_PMODE16
CFG016
CFG116
CFG216
CFG316
CFG416
CFG516
CFG616
CFG716
CFG816
CFG916
CFG1016
CFG1116
CFG1216
CFG1316
CFG1416
CFG1516
CFG1616
CFG1716
CFG1816
CFG1916
+1.0V_DEEP_SUS
R236 49.9/F_4
R333 *1K_4
D D
C C
EC-SIT-08
B B
4
CFG0
CFG1
CFG2
CFG3
CFG4
CFG5
CFG6
CFG7
CFG8
CFG9
CFG10
CFG11
CFG12
CFG13
CFG14
CFG15
CFG16
CFG17
CFG18
CFG19
CFG_RCOMP
R781*0_4
AL25
AL27
BA70
BA68
E68
B67
D65
D67
E70
C68
D68
C67
F71
G69
F70
G68
H70
G71
H69
G70
E63
F63
E66
F66
E60
E8
AY2
AY1
D1
D3
K46
K45
C71
B70
F60
A52
J71
J68
F65
G65
F61
E61
U28S
CFG[0]
CFG[1]
CFG[2]
CFG[3]
CFG[4]
CFG[5]
CFG[6]
CFG[7]
CFG[8]
CFG[9]
CFG[10]
CFG[11]
CFG[12]
CFG[13]
CFG[14]
CFG[15]
CFG[16]
CFG[17]
CFG[18]
CFG[19]
CFG_RCOMP
ITP_PMODE
RSVD_AY2
RSVD_AY1
RSVD_D1
RSVD_D3
RSVD_K46
RSVD_K45
RSVD_AL25
RSVD_AL27
RSVD_C71
RSVD_B70
RSVD_F60
RSVD_A52
RSVD_TP_BA70
RSVD_TP_BA68
RSVD_J71
RSVD_J68
VSS_F65
VSS_G65
RSVD_F61
RSVD_E61
SKL_ULT
REV = 1
SKL_ULT
RESERVED SIGNALS-1
PDC
?
19 OF 20
3
Need apply PN
RSVD_TP_BB68
RSVD_TP_BB69
RSVD_TP_AK13
RSVD_TP_AK12
RSVD_BB2
RSVD_BA3
RSVD_D5
RSVD_D4
RSVD_B2
RSVD_C2
RSVD_B3
RSVD_A3
RSVD_AW1
RSVD_E1
RSVD_E2
RSVD_BA4
RSVD_BB4
RSVD_A4
RSVD_C4
RSVD_A69
RSVD_B69
RSVD_AY3
RSVD_D71
RSVD_C70
RSVD_C54
RSVD_D54
VSS_AY71
RSVD_TP_AW71
RSVD_TP_AW70
PROC_SELECT#
TP5
TP6
TP4
TP1
TP2
ZVM#
MSM#
2
+1.0V_DEEP_SUS13,15,16,47,48,51
+VCCSTPLL2,4,5,6,42,48,51
+1.8V_DEEP_SUS15,49,51
BB68
BB69
AK13
AK12
BB2
BA3
AU5
AT5
D5
D4
B2
C2
B3
A3
AW1
E1
E2
BA4
BB4
A4
C4
BB5
A69
B69
AY3
D71
C70
C54
D54
AY4
BB3
AY71
AR56
AW71
AW70
AP56
C64
?
R405 0_4
R406 0_4
R490 *100K_4
Cannonlake-U use, SKL-U
un-install.
+1.8V_DEEP_SUS
R427 *0_6
C460
Close to CPU
Placement are required for future platform
compatibility purpose only.
+VCCSTPLL
*1U/6.3V_4
AW69
AW68
AU56
AW48
C7
U12
U11
H11
U28T
RSVD_AW69
RSVD_AW68
RSVD_AU56
RSVD_AW48
RSVD_C7
RSVD_U12
RSVD_U11
RSVD_H11
SKL_ULT
REV = 1
SKL_ULT
?
SPARE
20 OF 20
Need apply PN
RSVD_F6
RSVD_E3
RSVD_C11
RSVD_B11
RSVD_A11
RSVD_D12
RSVD_C12
RSVD_F52
1
09
F6
E3
C11
B11
A11
D12
C12
F52
?
Processor Strapping
CFG3
(Physcial Debug Enable)
DFX Privacy
CFG4
(DP Presence Strap)
A A
5
The CFG signals have a default value of '1' if not terminated on the board.
1 0
Disable: Enable: Set DFX Enable in DFX interface MSR
Disable; No physical DP attached to eDP
4
Enable; An ext DP device is connected to eDP
3
CFG3
CFG4
Circuit
R440 *1K_4
R439 1K_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
9 -- SKYPAKE 12/20 (RSV-1)
9 -- SKYPAKE 12/20 (RSV-1)
9 -- SKYPAKE 12/20 (RSV-1)
Sheet
Sheet
Date:
Date:
2
Date:
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
9 57Monday, November 09, 2015
9 57Monday, November 09, 2015
9 57Monday, November 09, 2015
Page 10
Vinafix.com
5
www.laptoprepairsecrets.com
PCH_SPI1_CLK21
PCH_SPI1_SO21
D D
C C
PCH_SPI1_SI21
PCH_SPI_CS2#_TPM21
SIO_EXT_SMI#29
CL_CLK25
CL_DATA25
CL_RST#25
EC_RCIN#29
EC_IRQ_SERIRQ29
4
PCH_SPI1_CLK
PCH_SPI1_SO
PCH_SPI1_SI
PCH_SPI_IO2
PCH_SPI_IO3
PCH_SPI_CS0#
PCH_SPI_CS2#_TPM
SIO_EXT_SMI#
PCI_SERR#
AW3
AW2
AW13
AY11
AV2
AV3
AU4
AU3
AU2
AU1
M2
M3
J4
V1
V2
M1
G3
G2
G1
U28E
SPI - FLASH
SPI0_CLK
SPI0_MISO
SPI0_MOSI
SPI0_IO2
SPI0_IO3
SPI0_CS0#
SPI0_CS1#
SPI0_CS2#
SPI - TOUCH
GPP_D1/SPI1_CLK
GPP_D2/SPI1_MISO
GPP_D3/SPI1_MOSI
GPP_D21/SPI1_IO2
GPP_D22/SPI1_IO3
GPP_D0/SPI1_CS#
C LINK
CL_CLK
CL_DATA
CL_RST#
GPP_A0/RCIN#
GPP_A6/SERIRQ
SKL_ULT
REV = 1
SKL_ULT
LPC
3
?
Need apply PN
SMBUS, SMLINK
GPP_B23/SML1ALERT#/PCHHOT#
GPP_A14/SUS_STAT#/ESPI_RESET#
GPP_A9/CLKOUT_LPC0/ESPI_CLK
PDC
5 OF 20
GPP_C0/SMBCLK
GPP_C1/SMBDATA
GPP_C2/SMBALERT#
GPP_C3/SML0CLK
GPP_C4/SML0DATA
GPP_C5/SML0ALERT#
GPP_C6/SML1CLK
GPP_C7/SML1DATA
GPP_A1/LAD0/ESPI_IO0
GPP_A2/LAD1/ESPI_IO1
GPP_A3/LAD2/ESPI_IO2
GPP_A4/LAD3/ESPI_IO3
GPP_A5/LFRAME#/ESPI_CS#
GPP_A10/CLKOUT_LPC1
GPP_A8/CLKRUN#
2
+3V_DEEP_SUS4,11,14,15,16,17
R7
SMB_PCH_CLK
R8
SMB_PCH_DAT
R10
SML0ALERT#
R9
SMB_ME0_CLK
W2
SMB_ME0_DAT
W1
SML1ALERT#
W3
SMB_ME1_CLK
V3
SMB_ME1_DAT
AM7
GPP_B23
AY13
BA13
BB13
AY12
BA12
BA11
AW9
CLK_PCI_EC_R
AY9
CLK_PCI_LPC_R
AW11
CLKRUN#
?
R99 22/F_4
R152 22/F_4
SML0ALERT# 11
SMB_ME0_CLK 23
SMB_ME0_DAT 23
SML1ALERT# 11
TP19
LPC_LAD0 25,29
LPC_LAD1 25,29
LPC_LAD2 25,29
LPC_LAD3 25,29
LPC_LFRAME# 25,29
EC_LPCCLK 29
DEBUG_LCLKOUT 25
CLKRUN# 29
Intel LAN : SMBUS 0xC8
+3V2,4,11,12,13,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+3VS54,12,15,16,19,21,23,25,28,31,32,36,38,41,47,48,49,51
EMI(near PCH)
DEBUG_LCLKOUT
EC_LPCCLK
EC8
*18P/50V_4
1
10
EC10
*18P/50V_4
GPIO Pull UP
EC_IRQ_SERIRQ
CLKRUN#
SIO_EXT_SMI#
EC_RCIN#
PCI_SERR#
B B
R74 10K_4 R463 2.2K_4
R75 8.2K/F_4
R432 10K_4
R76 10K_4
R435 10K_4
+3V +3V_DEEP_SUS
SMB_PCH_CLK
SMB_PCH_DAT
SMB_ME1_CLK
SMB_ME1_DAT
SMB_ME0_CLK
SMB_ME0_DAT
R458 2.2K_4
R423 1K_4
R426 1K_4
R206 499/F_4
R417 499/F_4
SMBus/Pull-up(CLG)
+3V_DEEP_SUS
MBCLK_THRM26,29,30
MBDATA_THRM26,29,30
R287 4.7K_4
+3V
SMB_RUN_DAT16,17,18,21,31
A A
SMB_RUN_CLK16,17,18,21,31
5
+3V
R279 4.7K_4
Q26
5
2
6
*2N7002DW
Q27
4 3
1
SSM6N48FU
43
SMB_ME1_CLK
1
SMB_ME1_DAT
+3V
5
SMB_PCH_DAT
2
6
SMB_PCH_CLK
4
CPU heat pipe local thermal sensor
DDR thermal sensor
EC
Touch Pad
XDP
DDR3-L
PCH SPI ROM(CLG)
Need place to TOP
EC-DV-12
+3VS5
Vender P/N
EON
Socket
3
R723 *10K_4
C194 1U/10V_4
Size
TP15
TP9
TP12
TP13
TP11
TP14
PCH_SPI_CS0#_R
PCH_SPI1_CLK_R
PCH_SPI1_SI_R
PCH_SPI1_SO_R
BIOS_WP#
HOLD#
PCH_SPI_CS0# PCH_SPI_CS0#_R
PCH_SPI1_CLK
PCH_SPI1_SO
+3VSPI
PCH_SPI_IO2
R192 0_4
R193 33.2/F_4
R182 33.2/F_4
R184 33.2/F_4
R177 1K/F_4
R174 33.2/F_4
PCH_SPI1_CLK_R
PCH_SPI1_SI_RPCH_SPI1_SI
PCH_SPI1_SO_R
C185
22P/50V_4
R1/R2/R3/R4/R5/R7 close to U15 pin
AKE3DZNKQ00(EN25QH128AHIP)16MB
AKE3DZN0N01 (W25Q128FVSIQ)Winbond 16MB
DFHS08FS023
2
PCH_SPI_CS0#_R 29
PCH_SPI1_CLK_R 29
PCH_SPI1_SI_R 29
PCH_SPI1_SO_R 29
U25
1
CE#
VDD
6
SCK
5
SI
2
SO
HOLD#
3
WP#
VSS
W25Q128FVSIQ
AKE3DZN0Z03
Document Number
Document Number
Document Number
Custom
Custom
Custom
Date:
Date:
Date:
R188 0_4
+3VS5
8
+3VSPI
7
HOLD#
4
PCH_SPI_IO3BIOS_WP#
10 -- SKYPAKE 14/20(SPI/LPC/SMBUS)
10 -- SKYPAKE 14/20(SPI/LPC/SMBUS)
10 -- SKYPAKE 14/20(SPI/LPC/SMBUS)
R198 1K/F_4
R195 33.2/F_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Sheet
Sheet
Sheet
1
C189
0.1U/16V_4
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
10 57Monday, November 09, 2015
10 57Monday, November 09, 2015
10 57Monday, November 09, 2015
Page 11
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
+3V_DEEP_SUS4,10,14,15,16,17
1
+3V2,4,10,12,13,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
11
D D
Functional Strap Definitions
DESIGN NOTE:
WEAK PULL UP RESISTOR PRESENT ON THIS NET
ACZ_SPKR14,22
C C
B B
GSPI1_MOSI14
ACZ_SPKR
GSPI1_MOSI
R404
*20K/F_4
TOP SWAP OVERRIDE
HIGH - TOP SWAP ENABLE
LOW-DISABLED
HIGH: LPC SELECTED FOR SYSTEM FLASH
WEAK INTERNAL PD
+3V_DEEP_SUS
R451
1K_4
R430
*20K/F_4
No Boot:
The signal has a weak internal pull-down.
0 = Disable Intel ME Crypto Transport Layer Security
(TLS) cipher suite (no confidentiality).
1 = Enable Intel ME Crypto Transport Layer Security
(TLS) cipher suite (with confidentiality). Must be
pulled up to support Intel AMT with TLS and Intel
SBA (Small Business Advantage) with TLS.
ACZ_SDOUT14
EN_OVERRIDE29
GPP_B1814SML0ALERT#10
SML1ALERT#10
R150 1K_4
ACZ_SDOUT
ACZ_SDOUT
GPP_B18SML0ALERT#
SML1ALERT#
+3V_DEEP_SUS
R149
*4.7K_4
+3V
R140
*4.7K_4
+3V_DEEP_SUS
R139
10K_4
R421
*10K_4
No Boot:
The signal has a weak internal pull-down.
0 = Enable security measures defined in the Flash
Descriptor.
1 = Disable Flash Descriptor Security (override). This
strap should only be asserted high using external
pull-up in manufacturing/debug environments ONLY.
This function is useful when running ITP/XDP.
No Boot:
The signal has a weak internal pull-down.
0 = Disable No Reboot mode.
1 = Enable No Reboot mode
(PCH will disable the TCO
Timer system reboot feature).
This function is useful when running ITP/XDP.
R175
*20K/F_4
No Boot:
The signal has a weak internal pull-down.
This field determines the destination of accesses to the
BIOS memory range. Also controllable using Boot BIOS
Destination bit (Chipset Configuration Registers: Offset
3410h:Bit 10). This strap is used in conjunction with Boot
BIOS Destination Selection 0 strap.
Bit 10 Boot BIOS Destination
0 SPI
1 LPC
A A
5
4
3
R422
20K/F_4
No Boot:
The signal has a weak internal pull-down.
0 = LPC Is selected for EC.
1 = eSPI Is selected for EC.
Date:
Date:
2
Date:
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
11 -- SKYPAKE 15/20(HDA)
11 -- SKYPAKE 15/20(HDA)
11 -- SKYPAKE 15/20(HDA)
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
11 57Monday, November 09, 2015
11 57Monday, November 09, 2015
11 57Monday, November 09, 2015
Page 12
Vinafix.com
5
www.laptoprepairsecrets.com
H13
G13
B17
BB11
A17
G11
F11
D16
C16
H16
G16
D17
C17
G15
F15
B19
A19
F16
E16
C19
D19
G18
F18
D20
C20
F20
E20
B21
A21
G21
F21
D21
C21
E22
E23
B23
A23
F25
E25
D23
C23
F5
E5
D56
D61
E28
E27
D24
C24
E30
F30
A25
B25
D D
PCIE_RXN4_WLAN25
WLAN
C C
LAN
B B
PCIE_RXP4_WLAN25
PCIE_TXN4_WLAN25
PCIE_TXP4_WLAN25
PCIE_RXN5_SSD24
PCIE_RXP5_SSD24
PCIE_TXN5_SSD24
PCIE_TXP5_SSD24
PCIE_RXN6_SSD24
PCIE_RXP6_SSD24
PCIE_TXN6_SSD24
PCIE_TXP6_SSD24
PCIE_RXN7_SSD24
PCIE_RXP7_SSD24
PCIE_TXN7_SSD24
PCIE_TXP7_SSD24
SATA_RXN124
SATA_RXP124
SATA_TXN124
SATA_TXP124
PCIE_RXN9_LAN23
PCIE_RXP9_LAN23
PCIE_TXN9_LAN23
PCIE_TXP9_LAN23
XDP_PRDY#_CPU16
XDP_PREQ#_CPU16
C470 0.22U/25V/X7R_4
C473 0.22U/25V/X7R_4
C472 0.22U/25V/X7R_4
+3V
C485 0.1U/16V_4
C484 0.1U/16V_4
C475 0.22U/25V/X7R_4
C474 0.22U/25V/X7R_4
EC-SIT-13
C488 0.1U/16V_4
C487 0.1U/16V_4
R464 100/F_4
R143 10K_4
PCIE_TXN4_WLAN_C
PCIE_TXP4_WLAN_C
PCIE_TXN5_SSD_C
PCIE_TXP5_SSD_C
PCIE_TXN6_SSD_C
PCIE_TXP6_SSD_C
PCIE_TXN7_SSD_C
PCIE_TXP7_SSD_C
PCIE_TXN9_LAN_C
PCIE_TXP9_LAN_C
PCIE_RCOMPN
PCIE_RCOMPP
PIRQA#
PCI-E Port Mapping Table
PCI-E Port
Port1
Port2
Port3
Port4
Port5
Port6
A A
Port7
Port8
Port9
Port10
5
Function
Un-used
Un-used
Un-used
WLAN
PCIESSD (Reseve)
PCIESSD (Reseve)
PCIESSD (Reseve)
HDD
LAN
Un-used
CLK RQ Port
Port0
Port1
Port2
Port3
Port4
Port5
4
U28H
PCIE/USB3/SATA
PCIE1_RXN/USB3_5_RXN
PCIE1_RXP/USB3_5_RXP
PCIE1_TXN/USB3_5_TXN
PCIE1_TXP/USB3_5_TXP
PCIE2_RXN/USB3_6_RXN
PCIE2_RXP/USB3_6_RXP
PCIE2_TXN/USB3_6_TXN
PCIE2_TXP/USB3_6_TXP
PCIE3_RXN
PCIE3_RXP
PCIE3_TXN
PCIE3_TXP
PCIE4_RXN
PCIE4_RXP
PCIE4_TXN
PCIE4_TXP
PCIE5_RXN
PCIE5_RXP
PCIE5_TXN
PCIE5_TXP
PCIE6_RXN
PCIE6_RXP
PCIE6_TXN
PCIE6_TXP
PCIE7_RXN/SATA0_RXN
PCIE7_RXP/SATA0_RXP
PCIE7_TXN/SATA0_TXN
PCIE7_TXP/SATA0_TXP
PCIE8_RXN/SATA1A_RXN
PCIE8_RXP/SATA1A_RXP
PCIE8_TXN/SATA1A_TXN
PCIE8_TXP/SATA1A_TXP
PCIE9_RXN
PCIE9_RXP
PCIE9_TXN
PCIE9_TXP
PCIE10_RXN
PCIE10_RXP
PCIE10_TXN
PCIE10_TXP
PCIE_RCOMPN
PCIE_RCOMPP
PROC_PRDY#
PROC_PREQ#
GPP_A7/PIRQA#
PCIE11_RXN/SATA1B_RXN
PCIE11_RXP/SATA1B_RXP
PCIE11_TXN/SATA1B_TXN
PCIE11_TXP/SATA1B_TXP
PCIE12_RXN/SATA2_RXN
PCIE12_RXP/SATA2_RXP
PCIE12_TXN/SATA2_TXN
PCIE12_TXP/SATA2_TXP
SKL_ULT
REV = 1
Function
Un-used
Un-used
WLAN
LAN
SSD(Reserve)
Un-used
4
SKL_ULT
?
PDC
SSIC / USB3
USB2
GPP_E0/SATAXPCIE0/SATAGP0
GPP_E1/SATAXPCIE1/SATAGP1
GPP_E2/SATAXPCIE2/SATAGP2
8 OF 20
3
Need apply PN
USB3_1_RXN
USB3_1_RXP
USB3_1_TXN
USB3_1_TXP
USB3_2_RXN/SSIC_1_RXN
USB3_2_RXP/SSIC_1_RXP
USB3_2_TXN/SSIC_1_TXN
USB3_2_TXP/SSIC_1_TXP
USB3_3_RXN/SSIC_2_RXN
USB3_3_RXP/SSIC_2_RXP
USB3_3_TXN/SSIC_2_TXN
USB3_3_TXP/SSIC_2_TXP
USB3_4_RXN
USB3_4_RXP
USB3_4_TXN
USB3_4_TXP
USB2N_1
USB2P_1
USB2N_2
USB2P_2
USB2N_3
USB2P_3
USB2N_4
USB2P_4
USB2N_5
USB2P_5
USB2N_6
USB2P_6
USB2N_7
USB2P_7
USB2N_8
USB2P_8
USB2N_9
USB2P_9
USB2N_10
USB2P_10
USB2_COMP
USB2_ID
USB2_VBUSSENSE
GPP_E9/USB2_OC0#
GPP_E10/USB2_OC1#
GPP_E11/USB2_OC2#
GPP_E12/USB2_OC3#
GPP_E4/DEVSLP0
GPP_E5/DEVSLP1
GPP_E6/DEVSLP2
GPP_E8/SATALED#
?
H8
G8
C13
D13
J6
H6
B13
A13
J10
H10
B15
A15
E10
F10
C15
D15
AB9
AB10
AD6
AD7
AH3
AJ3
AD9
AD10
AJ1
AJ2
AF6
AF7
AH1
AH2
AF8
AF9
AG1
AG2
AH7
AH8
AB6
AG3
AG4
A9
C9
D9
B9
J1
J2
J3
H2
H3
G4
H1
USB30_RX1-_DOCK
USB30_RX1+_DOCK
USB30_TX1-_DOCK
USB30_TX1+_DOCK
USB30_RX2-_AOU
USB30_RX2+_AOU
USB30_TX2-_AOU
USB30_TX2+_AOU
USB30_RX3-
USB30_RX3+
USB30_TX3-_L
USB30_TX3+_L
C9685 0.1U/16V_4
C9686 0.1U/16V_4
USB30_RX4-
USB30_RX4+
USB30_TX4-
USB30_TX4+
USBP1-
USBP1+
USBP2-
USBP2+
USBP3-
USBP3+
USBP5-
USBP5+
USBP6-
USBP6+
USBP7-
USBP7+
USBP9-
USBP9+
PLACE 'R48' WITHIN 500 MILS
FROM USB2_COMP PIN WITH
TRACE IMPEDANCE LESS THAN 0.5 OHMS
USB2_COMP
TYPE_OC1#
USB_OC1#
USB_OC2#
USB_OC3#
WLAN_OFF#
DEVSLP1
SSD_PEDET#
TPM_INT#
SATA_LED#_R
USB3.0 Port Mapping Table
USB3.0 Function
PORT-1
PORT-2
PORT-3
PORT-4
Onelink+
AOU5
USB HUB
USB TYPE-C
3
USB30_TX3USB30_TX3+
R208 113/F_4
R183 0_4
2
USB30_RX1-_DOCK 33
USB30_RX1+_DOCK 33
USB30_TX1-_DOCK 33
USB30_TX1+_DOCK 33
USB30_RX2-_AOU 28
USB30_RX2+_AOU 28
USB30_TX2-_AOU 28
USB30_TX2+_AOU 28
USB30_RX3- 26
USB30_RX3+ 26
USB30_TX3- 26
USB30_TX3+ 26
USB30_RX4- 36
USB30_RX4+ 36
USB30_TX4- 36
USB30_TX4+ 36
USBP1- 28
USBP1+ 28
USBP2- 26
USBP2+ 26
USBP3- 19
USBP3+ 19
USBP8- 38
USBP8+ 38
USBP5- 37
USBP5+ 37
USBP6- 33
USBP6+ 33
USBP7- 25
USBP7+ 25
USBP9- 19
USBP9+ 19
USB_OC2# 28
WLAN_OFF# 25
DEVSLP1 24
SSD_PEDET# 24
TPM_INT# 21
USB TYPE-C
EC-DV-03
2
Onelink+
AOU5
USB HUB
EC-DV-03
USB TYPE-C
AOU5
USB HUB
Camera
EC-DV-03
SATA_LED#_R
DEVSLP1
SSD_PEDET#
FP
EC-DV-03
Onelink+
TYPE_OC1#
USB_OC1#
USB_OC2#
USB_OC3#
WLAN_OFF#
BTHDD
Touch Panel
USB2.0 Port Mapping Table
USB2.0 Function
PORT-1
PORT-2
PORT-3
PORT-4
PORT-5
PORT-6
PORT-7
PORT-8
PORT-9
PORT-10
AOU5
USB HUB
Camera
Cardreader
TYPE C
Onelink+
BT
FP
Touch Panel
NC
Date:
Date:
Date:
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Document Number
Document Number
Document Number
Custom
Custom
Custom
12 -- SKYPAKE 16/20 (PCIE/USB)
12 -- SKYPAKE 16/20 (PCIE/USB)
12 -- SKYPAKE 16/20 (PCIE/USB)
1
+3V2,4,10,11,13,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+3VS54,10,15,16,19,21,23,25,28,31,32,36,38,41,47,48,49,51
12
+3V
R442 10K_4C471 0.22U/25V/X7R_4
R441 *10K_4
R176 10K_4
+3VS5
R466 10K_4
R468 10K_4
R326 10K_4
R467 10K_4
R448 10K_4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
of
of
Sheet
Sheet
Sheet
1
of
12 57Monday, November 09, 2015
12 57Monday, November 09, 2015
12 57Monday, November 09, 2015
RevSize
RevSize
RevSize
1A
1A
1A
Page 13
Vinafix.com
5
www.laptoprepairsecrets.com
D D
WLAN
LAN
SSD
CLK_PCIE_WLANN25
CLK_PCIE_WLANP25
PCIE_CLKREQ_WLAN#25
CLK_PCIE_LANN23
CLK_PCIE_LANP23
PCIE_CLKREQ_LAN#23
CLK_PCIE_SSDN24
CLK_PCIE_SSDP24
PCIE_CLKREQ_SSD#24
CLK_REQ/Strap Pin(CLG)
C C
+3V
R10310K_4
R10510K_4
R7810K_4
R9210K_4
R10610K_4
R10910K_4
4
PCIE_CLKREQ0#
PCIE_CLKREQ1#
CLK_PCIE_WLANN
CLK_PCIE_WLANP
PCIE_CLKREQ_WLAN#
CLK_PCIE_LANN
CLK_PCIE_LANP
PCIE_CLKREQ_LAN#
CLK_PCIE_SSDN
CLK_PCIE_SSDP
PCIE_CLKREQ_SSD#
PCIE_CLKREQ5#
PCIE_CLKREQ_SSD#
PCIE_CLKREQ_WLAN#
PCIE_CLKREQ_LAN#
PCIE_CLKREQ1#
PCIE_CLKREQ5#
PCIE_CLKREQ0#
U28J
D42
CLKOUT_PCIE_N0
C42
CLKOUT_PCIE_P0
AR10
GPP_B5/SRCCLKREQ0#
B42
CLKOUT_PCIE_N1
A42
CLKOUT_PCIE_P1
AT7
GPP_B6/SRCCLKREQ1#
D41
CLKOUT_PCIE_N2
C41
CLKOUT_PCIE_P2
AT8
GPP_B7/SRCCLKREQ2#
D40
CLKOUT_PCIE_N3
C40
CLKOUT_PCIE_P3
AT10
GPP_B8/SRCCLKREQ3#
B40
CLKOUT_PCIE_N4
A40
CLKOUT_PCIE_P4
AU8
GPP_B9/SRCCLKREQ4#
E40
CLKOUT_PCIE_N5
E38
CLKOUT_PCIE_P5
AU7
GPP_B10/SRCCLKREQ5#
SKL_ULT
REV = 1
A36
B36
C38
D38
C36
D36
A38
B38
C31
D31
C33
D33
A31
B31
A33
B33
A29
B29
C28
D28
A27
B27
C27
D27
U28I
CSI-2
CSI2_DN0
CSI2_DP0
CSI2_DN1
CSI2_DP1
CSI2_DN2
CSI2_DP2
CSI2_DN3
CSI2_DP3
CSI2_DN4
CSI2_DP4
CSI2_DN5
CSI2_DP5
CSI2_DN6
CSI2_DP6
CSI2_DN7
CSI2_DP7
CSI2_DN8
CSI2_DP8
CSI2_DN9
CSI2_DP9
CSI2_DN10
CSI2_DP10
CSI2_DN11
CSI2_DP11
SKL_ULT
REV = 1
SKL_ULT
CLOCK SIGNALS
SKL_ULT
?
10 OF 20
?
PDC
9 OF 20
3
Need apply PN
CLKOUT_ITPXDP_N
CLKOUT_ITPXDP_P
GPD8/SUSCLK
XTAL24_IN
XTAL24_OUT
XCLK_BIASREF
SRTCRST#
TBT
Need apply PN
CSI2_CLKN0
CSI2_CLKP0
CSI2_CLKN1
CSI2_CLKP1
CSI2_CLKN2
CSI2_CLKP2
CSI2_CLKN3
CSI2_CLKP3
CSI2_COMP
GPP_D4/FLASHTRIG
EMMC
GPP_F13/EMMC_DATA0
GPP_F14/EMMC_DATA1
GPP_F15/EMMC_DATA2
GPP_F16/EMMC_DATA3
GPP_F17/EMMC_DATA4
GPP_F18/EMMC_DATA5
GPP_F19/EMMC_DATA6
GPP_F20/EMMC_DATA7
GPP_F21/EMMC_RCLK
GPP_F22/EMMC_CLK
GPP_F12/EMMC_CMD
EMMC_RCOMP
?
RTCX1
RTCX2
RTCRST#
2
+3V_RTC_24,15
+3V2,4,10,11,12,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+1.0V_DEEP_SUS9,15,16,47,48,51
+3VPCU19,22,25,32,33,38,40,41,52
RP1 install for XDP
RP1
2
F43
CK_XDP_N_R
E43
CK_XDP_P_R
BA17
PCH_SUSCLK
E37
XTAL24_IN
E35
XTAL24_OUT
E42
XCLK_BIASREF
AM18
RTC_X1
AM20
RTC_X2
AN18
SRTC_RST#
AM16
RTC_RST#
?
C37
D37
C32
D32
C29
D29
B26
A26
E13
B7
AP2
AP1
AP3
AN3
AN1
AN2
AM4
AM1
AM2
AM3
AP4
AT1
GPP_D4
EMMC_RCOMP
R324 100/F_4
1
4
3
*0_4P2R_4
R480 2.7K/F_4
R465 *60.4/F_4
R410 200/F_4
CK_XDP_N 16
CK_XDP_P 16
TP34
+1.0V_DEEP_SUS
Co-lay 60ohm 1% to GND
for Cannonlake use
RTC_RST# 16
TP36
1
13
B B
RTC Circuitry(RTC)
RTC Clock 32.768KHz
EC-SIT-31
C441 10P/50V_4
C445 10P/50V_4
A A
32.768KHz
Y1
5
RTC_X1
12
R399
10M_4
RTC_X2
+3V_RTC_0
R111 45.3K_4
R81 1K_4
CN6
2
1
3 4
CONN_RTC
RTC Power trace width 20mils.
+3V_RTC_2+3VPCU
R94
1.5K_4
2 1
D7 DB2J40600L
+3V_RTC_1 EC_RTC_RST
4
2 1
D4 DB2J40600L
C116
1U/6.3V_4
R52
20K/F_4
R48
20K/F_4
RTC_RST#
C110
1U/6.3V_4
SRTC_RST#
C109
1U/6.3V_4
RTC_RST#
EC6
RCLAMP0521PATCT
3
2
Q1
DMN601K-7
1
3
RTC_RST#
R55
10K_4
EC_RTC_RST 29
2
External Crystal and Green Clock
EC-SIT-31
C479 10P/50V_4
1
XTAL24_IN
XTAL24_OUT
Date:
Date:
Date:
2
R462
24MHZ +-30PPM
1M_4
Y3
4
3
C478 10P/50V_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
13 -- SKYPAKE 17/20 (CLK)
13 -- SKYPAKE 17/20 (CLK)
13 -- SKYPAKE 17/20 (CLK)
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
13 57Monday, November 09, 2015
13 57Monday, November 09, 2015
13 57Monday, November 09, 2015
Page 14
Vinafix.com
5
www.laptoprepairsecrets.com
CR_EN31
D D
EC-SIT-30
+3V_DEEP_SUS
BT_RADIO_DIS#
R42910K_4
PCH_TEMPALERT#
R42510K_4
SIO_EXT_SCI#
R41510K_4
UART2_TXD
R41649.9K_4
UART2_RXD
R41449.9K_4
C C
+3V_DEEP_SUS
BOARD_ID0
R29110K_4
BOARD_ID1
R194*10K_4
BOARD_ID2
R197*10K_4
BOARD_ID3
R29410K_4
BOARD_ID4
R293*10K_4
BOARD_ID5
R292*10K_4
R830
100K/F_4
R273*10K_4
R18710K_4
R20010K_4
R281*10K_4
R28010K_4
R27410K_4
Touch SKU Non-Touch
BOARD_ID0
B B
Model
TBD
TBD
SIT
FVT
SDV-1
SDV
1
1
0
0
0
BOARD_ID5
0
0 0
1
1
10
BOARD_ID2BOARD_ID3 BOARD_ID4
0
1
1
0
10
BOARD_ID1
01 1
0
0
0
0
0
0
0
0
0
0
0
4
3
2
+3V_DEEP_SUS4,10,11,15,16,17
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
1
14
Skylake (GPIO)
?
REV = 1
SKL_ULT
GPP_D13/ISH_UART0_RXD/SML0BDATA/I2C4B_SDA
GPP_D14/ISH_UART0_TXD/SML0BCLK/I2C4B_SCL
6 OF 20
SKL_ULT
?
7 OF 20
U28F
LPSS ISH
CR_EN
GPP_B1811
GSPI1_MOSI11
LCD_BK_OFF19
CCD_EN19
TOUCH_PANEL_EN19
UART2_RXD27
UART2_TXD27
SIO_EXT_SCI#29
ACZ_SDOUT11
ACZ_SDIN022
ACZ_SPKR11,22
GPP_B18
GSPI1_MOSI
UART2_RXD
UART2_TXD
SIO_EXT_SCI#
ACZ_SYNC
ACZ_BCLK
ACZ_SDOUT
ACZ_SDIN0
ACZ_RST#
ACZ_SPKR
AN8
GPP_B15/GSPI0_CS#
AP7
GPP_B16/GSPI0_CLK
AP8
GPP_B17/GSPI0_MISO
AR7
GPP_B18/GSPI0_MOSI
AM5
GPP_B19/GSPI1_CS#
AN7
GPP_B20/GSPI1_CLK
AP5
GPP_B21/GSPI1_MISO
AN5
GPP_B22/GSPI1_MOSI
AB1
GPP_C8/UART0_RXD
AB2
GPP_C9/UART0_TXD
W4
GPP_C10/UART0_RTS#
AB3
GPP_C11/UART0_CTS#
AD1
GPP_C20/UART2_RXD
AD2
GPP_C21/UART2_TXD
AD3
GPP_C22/UART2_RTS#
AD4
GPP_C23/UART2_CTS#
U7
GPP_C16/I2C0_SDA
U6
GPP_C17/I2C0_SCL
U8
GPP_C18/I2C1_SDA
U9
GPP_C19/I2C1_SCL
AH9
GPP_F4/I2C2_SDA
AH10
GPP_F5/I2C2_SCL
AH11
GPP_F6/I2C3_SDA
AH12
GPP_F7/I2C3_SCL
AF11
GPP_F8/I2C4_SDA
AF12
GPP_F9/I2C4_SCL
SKL_ULT
REV = 1
AW22
AW20
U28G
BA22
HDA_SYNC/I2S0_SFRM
AY22
HDA_BLK/I2S0_SCLK
BB22
HDA_SDO/I2S0_TXD
BA21
HDA_SDI0/I2S0_RXD
AY21
HDA_SDI1/I2S1_RXD
HDA_RST#/I2S1_SCLK
J5
GPP_D23/I2S_MCLK
AY20
I2S1_SFRM
I2S1_TXD
AK7
GPP_F1/I2S2_SFRM
AK6
GPP_F0/I2S2_SCLK
AK9
GPP_F2/I2S2_TXD
AK10
GPP_F3/I2S2_RXD
H5
GPP_D19/DMIC_CLK0
D7
GPP_D20/DMIC_DATA0
D8
GPP_D17/DMIC_CLK1
C8
GPP_D18/DMIC_DATA1
AW5
GPP_B14/SPKR
SKL_ULT
AUDIO
Need apply PN
GPP_D9
GPP_D10
GPP_D11
GPP_D12
GPP_D5/ISH_I2C0_SDA
GPP_D6/ISH_I2C0_SCL
GPP_D7/ISH_I2C1_SDA
GPP_D8/ISH_I2C1_SCL
GPP_F10/I2C5_SDA/ISH_I2C2_SDA
GPP_F11/I2C5_SCL/ISH_I2C2_SCL
GPP_D16/ISH_UART0_CTS#/SML0BALERT#
GPP_D15/ISH_UART0_RTS#
GPP_C12/UART1_RXD/ISH_UART1_RXD
GPP_C13/UART1_TXD/ISH_UART1_TXD
GPP_C14/UART1_RTS#/ISH_UART1_RTS#
GPP_C15/UART1_CTS#/ISH_UART1_CTS#
GPP_A18/ISH_GP0
GPP_A19/ISH_GP1
GPP_A20/ISH_GP2
GPP_A21/ISH_GP3
GPP_A22/ISH_GP4
GPP_A23/ISH_GP5
GPP_A12/BM_BUSY#/ISH_GP6
Need apply PN
SDIO/SDXC
GPP_G0/SD_CMD
GPP_G1/SD_DATA0
GPP_G2/SD_DATA1
GPP_G3/SD_DATA2
GPP_G4/SD_DATA3
GPP_G5/SD_CD#
GPP_G6/SD_CLK
GPP_A17/SD_PW R_EN#/ISH_GP7
GPP_G7/SD_W P
GPP_A16/SD_1P8_SEL
SD_RCOMP
GPP_F23
?
?
AB11
AB13
AB12
W12
W11
W10
W8
W7
BA9
BB9
AB7
AF13
P2
P3
P4
P1
M4
N3
N1
N2
AD11
AD12
U1
U2
U3
U4
AC1
AC2
AC3
AB4
AY8
BA8
BB7
BA7
AY7
AW7
AP13
PCH_TEMPALERT#
ACZ_SYNC
ACZ_SYNC
ACZ_RST#
ACZ_SDOUT
ACZ_BCLK
BOARD_ID0
BOARD_ID1
BOARD_ID2
BOARD_ID3
BOARD_ID4
BOARD_ID5
GPP_A16
R93*1K_4
R7733_4
R11533_4
R15133_4
R11633_4
R204 200/F_4
LED_MIC_MUTE 32
LED_SPK_MUTE 32
LED_ESC_KEY 32
BT_RADIO_DIS# 25
+3V_DEEP_SUS
ACZ_SYNC_AUDIO 22
ACZ_RST#_AUDIO 22
ACZ_SDOUT_AUDIO 22
BIT_CLK_AUDIO 22
C142
*10P/50V_4
EC-FVT-04
CAP_LOCK_LED 32
GPP_A16 27
BU
A A
ID3~5 for stage control
5
0000
0
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
14 -- SKYPAKE 19/20 (GPIO)
14 -- SKYPAKE 19/20 (GPIO)
Date:
Date:
4
3
2
Date:
14 -- SKYPAKE 19/20 (GPIO)
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
14 57Monday, November 09, 2015
14 57Monday, November 09, 2015
14 57Monday, November 09, 2015
Page 15
Vinafix.com
5
www.laptoprepairsecrets.com
D D
C227 1U/6.3V_4
+1.0V_DEEP_SUS
PCH Internal VRM
+VCCDSW_1.0V
+1.0V_DEEP_SUS
+1.0V_DEEP_SUS
+1.0V_DEEP_SUS
C C
EC-SIT-25
B B
+1.0V_DEEP_SUS
+1.0V_DEEP_SUS
+3VS5
+V3.3DX_1.5DX_ADO
+3V_DEEP_SUS
+1.0V_DEEP_SUS
+3V_DEEP_SUS
+1.0V_DEEP_SUS
+1.0V_DEEP_SUS
C820 and C690 close to cpu less then 100 mils
R157 *0_4_S
L21 120/2000MA_6
C262 1U/6.3V_4
C446 1U/6.3V_4
R434 *0_6_S
C253 1U/6.3V_4
C373 1U/6.3V_4
C491 47U/6.3V_8
R335 *0_6_S
C371 1U/6.3V_4
R334 *0_6_S
R207 *0_6_S
C210 1U/6.3V_4
C170 0.1U/16V_4
C9752 0.1P/50V_4
R202 *0_6_S
R201 *0_6_S
C267 1U/6.3V_4
R90 *0_6_S
R428 *0_6_S
R330 *0_6_S
C271 1U/6.3V_4
4
+VCCPRIM
+VCCMPHYAON_1P0
+VCCAMPHYPLL_1P0
+VCCAPLL_1.0V
+VCCPRIM
+V3.3DX_1.5DX_ADO_R
+VCCSPI
+VCCSRAM_1.0V
+VCCPRIM_3.3V
+VCCPRIM_1.0V
+VCCAPLLEBB
U28O
AB19
VCCPRIM_1P0
AB20
VCCPRIM_1P0
P18
VCCPRIM_1P0
AF18
VCCPRIM_CORE
AF19
VCCPRIM_CORE
V20
VCCPRIM_CORE
V21
VCCPRIM_CORE
AL1
DCPDSW_1P0
K17
VCCMPHYAON_1P0
L1
VCCMPHYAON_1P0
N15
VCCMPHYGT_1P0_N15
N16
VCCMPHYGT_1P0_N16
N17
VCCMPHYGT_1P0_N17
P15
VCCMPHYGT_1P0_P15
P16
VCCMPHYGT_1P0_P16
K15
VCCAMPHYPLL_1P0
L15
VCCAMPHYPLL_1P0
V15
VCCAPLL_1P0
AB17
VCCPRIM_1P0_AB17
Y18
VCCPRIM_1P0_Y18
AD17
VCCDSW_3P3_AD17
AD18
VCCDSW_3P3_AD18
AJ17
VCCDSW_3P3_AJ17
AJ19
VCCHDA
AJ16
VCCSPI
AF20
VCCSRAM_1P0
AF21
VCCSRAM_1P0
T19
VCCSRAM_1P0
T20
VCCSRAM_1P0
AJ21
VCCPRIM_3P3_AJ21
AK20
VCCPRIM_1P0_AK20
N18
VCCAPLLEBB
SKL_ULT
REV = 1
SKL_ULT
CPU POWER 4 OF 4
2.899A
2.57A
1.714A
0.03A
0.09A
?
Need apply PN
15 OF 20
3
VCCPGPPA
VCCPGPPB
VCCPGPPC
VCCPGPPD
VCCPGPPE
VCCPGPPF
VCCPGPPG
VCCPRIM_3P3_V19
VCCPRIM_1P0_T1
VCCATS_1P8
VCCRTCPRIM_3P3
VCCRTC_AK19
VCCRTC_BB14
DCPRTC
VCCCLK1
VCCCLK2
VCCCLK3
VCCCLK4
VCCCLK5
VCCCLK6
GPP_B0/CORE_VID0
GPP_B1/CORE_VID1
2
+3V_DEEP_SUS4,10,11,14,16,17
+1.0V_DEEP_SUS9,13,16,47,48,51
+1.8V_DEEP_SUS9,49,51
AK15
AG15
Y16
Y15
T16
AF16
AD15
V19
T1
AA1
AK17
AK19
BB14
BB10
A14
K19
L21
N20
L19
A10
AN11
AN13
?
+VCCPGPPA
+VCCPGPPB
+VCCPGPPC
+VCCPGPPD
+VCCPGPPE
+VCCPGPPF
+VCCPGPPG
+VCCPRIM_1.0V_T1
+VCCATS_1.8V
+VCCRTCPRIM_3.3V
+VCCRTC
DCPRTC
+VCCCLK1
+VCCCLK2
+VCCCLK3
+VCCCLK4
+VCCCLK5
+VCCCLK6
CORE_VID0
CORE_VID1
C453 1U/6.3V_4
R222 *0_6_S
R407 *0_6_S
R390 *0_6_S
R158 *0_4_S
C164 0.1U/16V_4
R470 *0_6_S
R348 *0_6_S
R341 *0_6_S
R331 *0_6_S
R337 *0_6_S
R478 *0_6_S
C476 1U/6.3V_4
+3V_DEEP_SUS
+1.0V_DEEP_SUS
+1.8V_DEEP_SUS
+3V_DEEP_SUS
+3V_RTC_2
+1.0V_DEEP_SUS
TP17
TP16
20mils
+VCCRTCPRIM_3.3V+VCCATS_1.8V +VCCRTC
+VCCPGPPA
+VCCPGPPB
+VCCPGPPC
+VCCPGPPD
+VCCPGPPE
+VCCPGPPG
+VCCPGPPF
R385 *0_6_S
R393 *0_6_S
R216 *0_6_S
R211 *0_6_S
R218 *0_6_S
R205 *0_6_S
R173 *0_6_S
1
+3VS54,10,12,16,19,21,23,25,28,31,32,36,38,41,47,48,49,51
+3V_RTC_24,13
+3V2,4,10,11,12,13,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
15
+3V_DEEP_SUS
+1.8V_DEEP_SUS
+V3.3DX_1.5DX_ADO +1.0V_DEEP_SUS
R155 *0_4_S
A A
5
+3V
C372
*1U/6.3V_4
R308 *0_6_S
C375
*22U/6.3V_6
4
R126 *0_6_S
3
+3V_DEEP_SUS+3VS5
C452
1U/6.3V_4
+VCCPGPPB +VCCPGPPC +VCCPGPPE
C431
*1U/6.3V_4
2
C172
0.1U/16V_4
C244
*1U/6.3V_4
C165
1U/6.3V_4
1U/6.3V_4
1U/6.3V_4
Date:
Date:
Date:
C418
C256
C425
0.1U/16V_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Custom
Custom
Custom
15 -- SKYPAKE 20/20(PCH POWER)
15 -- SKYPAKE 20/20(PCH POWER)
15 -- SKYPAKE 20/20(PCH POWER)
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
15 57Monday, November 09, 2015
15 57Monday, November 09, 2015
15 57Monday, November 09, 2015
Page 16
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
+3V2,4,10,11,12,13,15,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+3V_DEEP_SUS4,10,11,14,15,17
+1.0V_DEEP_SUS9,13,15,47,48,51
+VCCIO2,4,6,48,51
+3VS54,10,12,15,19,21,23,25,28,31,32,36,38,41,47,48,49,51
1
16
EC-FVT-01
D D
C C
CFG39
XDP_PREQ#_CPU12
XDP_PRDY#_CPU12
CFG09
CFG19
CFG29
TP21
XDP_BPM02
XDP_BPM12
CFG49
CFG59
CFG69
CFG79
RSMRST#4,29 CK_XDP_P 13
SMB_RUN_DAT10,17,18,21,31
SMB_RUN_CLK10,17,18,21,31
XDP_TCK02
R232 1K_4
CFG0 PWR_DEBUG
R219 0_4
R233 0_4
R235 0_4
+3V
R2091K_4
CFG3
R2031K_4
HOCK3
SMB_RUN_DAT_XDP
SMB_RUN_CLK_XDP XDP_TRST#
XDP_TCK1
XDP_TCK0
R227*1K_4
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
HOCK3
SYS_RESET#
C270
*0.1U/16V_4
CN3
1
XDP_PRESENT#
2
PROC_PREQ#
3
OBSFN_A1
4
GND2
5
OBSDATA_A0
6
OBSDATA_A1
7
GND4
8
OBSDATA_A2
9
OBSDATA_A3
GND6
OBSFN_B0
OBSFN_B1
GND8
OBSDATA_B0
OBSDATA_B1
GND10
OBSDATA_B2
OBSDATA_B3
GND12
HOOK0
HOOK1
VCC_OBS_AB
HOOK2
HOOK3
GND14
XDP_SDA
XDP_SCL
XDP_TCK1
XDP_TCK0
GND16
*Samtec BSH-030-01
OBSDATA_C0
OBSDATA_C1
CPU XDP
R225 *1K_4
OBSDATA_C2
OBSDATA_C3
OBSDATA_D0
OBSDATA_D1
OBSDATA_D2
OBSDATA_D3
ITPCLK/HOOK4
ITPCLK#/HOOK5
VCC_OBS_CD
HOOK6/RESET#
HOOK7/DBR#
XDP_TRSTn
GND(XDP_PRESENT#)
GND1
OBSFN_C0
OBSFN_C1
GND3
GND5
GND7
OBSFN_D0
OBSFN_D1
GND9
GND11
GND13
GND15
XDP_TDO
XDP_TDI
XDP_TMS
+3V_DEEP_SUS
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
XDP_TDO
XDP_TDI
XDP_TMS
CFG17 9
CFG16 9
CFG8 9
CFG9 9
CFG10 9
CFG11 9
CFG19 9
CFG18 9
CFG12 9
CFG13 9
CFG14 9
CFG15 9
CK_XDP_N 13DNBSWON#4,29
+1.0V_DEEP_SUS+1.0V_DEEP_SUS
ITP_PMODE 9
SYS_RESET# 4,16
TP23
+VCCIO
R220
150/F_4
R221
*10K_4
PWR_DEBUG
+1.0V_DEEP_SUS
C229
0.1U/16V_4
C228
0.1U/16V_4
B B
A A
APS
CN1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
*50501-0180N-001
+3VS5+3V_DEEP_SUS
SUSB# 4,29
SLP_S5# 4
SUSC# 4,29
SLP_A# 4,29
DNBSWON#
R71 *0_4_S
5
RTC_RST# 13
SYS_RESET# 4,16
PCH_SLP_S0_N 4
4
+3V
HWPG4,21,29,46,49
R450 *0_4_S
XDP_TDO
XDP_TDI
XDP_TMS
XDP_TRST#
C463 *0.1U/16V_4
U30
14
VCC
2
1A
1
1OE
5
2A
4
2OE
9
3A
10
3OE
12
4A
13
4OE
*SN74CBTLV3126RGYR
+VCCIO
R449 51_4
Sheet
Sheet
Sheet
XDP_TDO
XDP_TCK0
XDP_TMS
XDP_TDI
XDP_TDO
XDP_TDI
XDP_TCK0
XDP_TCK1
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
16 57Monday, November 09, 2015
16 57Monday, November 09, 2015
16 57Monday, November 09, 2015
3
1B
6
2B
8
3B
11
4B
15
DPAD
7
GND
3
XDP_TDO_CPU 2
XDP_TDI_CPU 2
XDP_TMS_CPU 2
XDP_TRST#_CPU 2
JTAGX_PCH2
JTAG_TMS_PCH2
JTAG_TDI_PCH2
JTAG_TDO_PCH2
JTAG_TCK_PCH2
Document Number
Document Number
Document Number
Date:
Date:
2
Date:
R246 *0_4
R443 *0_4
R245 *0_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
16 -- HSW XDP & APS
16 -- HSW XDP & APS
16 -- HSW XDP & APS
Page 17
Vinafix.com
5
www.laptoprepairsecrets.com
M_A_A[13:0]3
D D
M_A_WE#3
M_A_CAS#3
M_A_RAS#3
TP1
TP3
M_A_ACT#3
M_A_PARITY3
M_A_ALERT#3
DDR3_DRAMRST#3,18
EC-FVT-02
+1.2V_SUS
5
4
M_A_ODT0_CPU3
M_A_ODT1_CPU3
SMB_RUN_CLK10,16,18,21,31
SMB_RUN_DAT10,16,18,21,31
12
M_A_BA#03
M_A_BA#13
M_A_BG#03
M_A_BG#13
M_A_CS#03
M_A_CS#13
M_A_CKE03
M_A_CKE13
M_A_CLKP03
M_A_CLKN03
M_A_CLKP13
M_A_CLKN13
+1.2V_SUS
C28
0.1U/16V_4
+1.2V_SUS
+1.2V_SUS
+3V_DEEP_SUS
R130
10K/F_4
R112
2M_4
+3V
R3
R7
R23
*10K_4
C C
B B
CHA_SA0 CHA_SA1 CHA_SA2
R35
10K_4
*10K_4
R12
10K_4
*10K_4
R19
10K_4
DDR4 SODIMM ODT GENERATION
U3
1.2V Level
DDR_PG_CTRL3
A A
R728 *0_4_S
NC1VCC
2
A
GND3Y
74AUP1G07GW
(to power on VTT)
4
C18 *0.1U/16V_4
R18 240_4
R20 240_4
R36 240_4
R30 240_4
R27 240_4
R22 240_4
R41 240_4
R21 240_4
R24 240_4
DDR_PG 46,51
M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_EVENT#
M_A_EVENT#
CHA_SA0
CHA_SA1
CHA_SA2
M_A_CB0
M_A_CB1
M_A_CB2
M_A_CB3
M_A_CB4
M_A_CB5
M_A_CB6
M_A_CB7
3
R159
1K/F_4
VREF_CA_DIMM0
R26
1K/F_4
M_A_DQ[63:0] 3
M_A_DQSP8
M_A_DQSN8
M_A_DQSP[7:0] 3
M_A_DQSN[7:0] 3
R38
240_4
R37
240_4
+1.2V_SUS
+1.2V_SUS
+1.2V_SUS
2250mA
+1.2V_SUS
EC1 3.3P/50V/C0G_4
C24 1U/6.3V_4
C42 1U/6.3V_4
C26 1U/6.3V_4
C55 1U/6.3V_4
C32 10U/6.3V_4
C48 10U/6.3V_4
C27 10U/6.3V_4
C36 10U/6.3V_4
C35 100P/50V_4
C49 10U/6.3V_4
C59 100P/50V_4
C30 10U/6.3V_4
C47 10U/6.3V_4
C44 1U/6.3V_4
C34 1U/6.3V_4
C50 1U/6.3V_4
C43 1U/6.3V_4
CON2A
144
A0
133
A1
132
A2
131
A3
128
A4
126
A5
127
A6
122
A7
125
A8
121
A9
146
A10/AP
120
A11
119
A12
158
A13
151
A14/WE#
156
A15/CAS#
152
A16/RAS#
162
S2#/C0
165
S3#/C1
114
ACT#
143
PARITY
116
ALERT#
134
EVENT#
108
RESET#
150
BA0
145
BA1
115
BG0
113
BG1
149
S0#
157
S1#
109
CKE0
110
137
139
138
140
155
161
253
254
256
260
166
101
105
100
104
178
199
220
241
DDR4 SODIMM 260 PIN
CKE1
CK0
CK0#
CK1
CK1#
ODT0
ODT1
SCL
SDA
SA0
SA1
SA2
92
CB0
91
CB1
CB2
CB3
88
CB4
87
CB5
CB6
CB7
12
DM0
33
DM1
54
DM2
75
DM3
DM4
DM5
DM6
DM7
96
DM8
8
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
(260P)
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
DQS#0
DQS#1
DQS#2
DQS#3
DQS#4
DQS#5
DQS#6
DQS#7
DQS#8
M_A_DQ1
7
M_A_DQ4
20
M_A_DQ3
21
M_A_DQ2
4
M_A_DQ5
3
M_A_DQ0
16
M_A_DQ6
17
M_A_DQ7
28
M_A_DQ9
29
M_A_DQ13
41
M_A_DQ15
42
M_A_DQ10
24
M_A_DQ12
25
M_A_DQ8
38
M_A_DQ14
37
M_A_DQ11
50
M_A_DQ16
49
M_A_DQ21
62
M_A_DQ22
63
M_A_DQ23
46
M_A_DQ17
45
M_A_DQ20
58
M_A_DQ18
59
M_A_DQ19
70
M_A_DQ24
71
M_A_DQ29
83
M_A_DQ31
84
M_A_DQ26
66
M_A_DQ25
67
M_A_DQ28
79
M_A_DQ30
80
M_A_DQ27
174
M_A_DQ33
173
M_A_DQ37
187
M_A_DQ34
186
M_A_DQ39
170
M_A_DQ36
169
M_A_DQ32
183
M_A_DQ35
182
M_A_DQ38
195
M_A_DQ44
194
M_A_DQ45
207
M_A_DQ43
208
M_A_DQ46
191
M_A_DQ41
190
M_A_DQ40
203
M_A_DQ42
204
M_A_DQ47
216
M_A_DQ48
215
M_A_DQ52
228
M_A_DQ55
229
M_A_DQ54
211
M_A_DQ51
212
M_A_DQ53
224
M_A_DQ50
225
M_A_DQ49
237
M_A_DQ61
236
M_A_DQ57
249
M_A_DQ63
250
M_A_DQ59
232
M_A_DQ56
233
M_A_DQ60
245
M_A_DQ58
246
M_A_DQ62
13
M_A_DQSP0
34
M_A_DQSP1
55
M_A_DQSP2
76
M_A_DQSP3
179
M_A_DQSP4
200
M_A_DQSP5
221
M_A_DQSP6
242
M_A_DQSP7
97
M_A_DQSP8
11
M_A_DQSN0
32
M_A_DQSN1
53
M_A_DQSN2
74
M_A_DQSN3
177
M_A_DQSN4
198
M_A_DQSN5
219
M_A_DQSN6
240
M_A_DQSN7
95
M_A_DQSN8
VREF CA DIMM0 Solution
R14
*0_4_S
R15 2/F_4
C19
0.022U/16V/X7R_4
R13
24.9/F_4
+1.2V_SUS
SM_VREF_CA3
1 2
2
111
112
117
118
123
124
129
130
135
136
141
142
147
148
153
154
159
160
163
103
107
167
171
175
181
185
189
193
197
201
205
209
213
217
223
227
231
235
239
243
247
251
CON2B
VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9
VDD10
VDD11
VDD12
VDD13
VDD14
VDD15
VDD16
VDD17
VDD18
VDD19
1
VSS1
5
VSS2
9
VSS3
15
VSS4
19
VSS5
23
VSS6
27
VSS7
31
VSS8
35
VSS9
39
VSS10
43
VSS11
47
VSS12
51
VSS13
57
VSS14
61
VSS15
65
VSS16
69
VSS17
73
VSS18
77
VSS19
81
VSS20
85
VSS21
89
93
99
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
DDR4 SODIMM 260 PIN
VDDSPD
VREF_CA
(260P)
VPP1
VPP2
VSS48
VSS49
VSS50
VSS51
VSS52
VSS53
VSS54
VSS55
VSS56
VSS57
VSS58
VSS59
VSS60
VSS61
VSS62
VSS63
VSS64
VSS65
VSS66
VSS67
VSS68
VSS69
VSS70
VSS71
VSS72
VSS73
VSS74
VSS75
VSS76
VSS77
VSS78
VSS79
VSS80
VSS81
VSS82
VSS83
VSS84
VSS85
VSS86
VSS87
VSS88
VSS89
VSS90
VSS91
VSS92
VSS93
VSS94
255
257
259
258
VTT
164
2
6
10
14
18
22
26
30
36
40
44
48
52
56
60
64
68
72
78
82
86
90
94
98
102
106
168
172
176
180
184
188
192
196
202
206
210
214
218
222
226
230
234
238
244
248
252
261
GND
262
GND
Place these Caps near So-Dimm0.
+0.6V_DDR_VTT
EC3 3.3P/50V/C0G_4
C37 10U/6.3V_4
C39 10U/6.3V_4
C40 1U/6.3V_4 C65 1U/6.3V_4
C38 1U/6.3V_4
C22 1U/6.3V_4
VREF_CA_DIMM0
C20 0.047U/10V_4
C21 0.1U/16V_4
C14 2.2U/6.3V_4
VREF_CA_DIMM0
+3V_DEEP_SUS4,10,11,14,15,16
+0.6V_DDR_VTT18,46,51
+3V
+2.5V_SUS
+0.6V_DDR_VTT
+2.5V_SUS
+3V
1
+1.2V_SUS3,6,18,46,51
+3V2,4,10,11,12,13,15,16,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+2.5V_SUS18,46,51
0.5A
600mA
C66 1U/6.3V_4EC2 1U/6.3V_4
C67 10U/6.3V_4
C64 10U/6.3V_4
EC4 3.3P/50V/C0G_4
C45 0.1U/16V_4
C46 2.2U/6.3V_4
17
5
4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
DDR4 DIMM0
DDR4 DIMM0
Monday, November 09, 2015 17 57
Monday, November 09, 2015 17 57
Monday, November 09, 2015 17 57
Date:
Date:
3
2
Date:
DDR4 DIMM0
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
Page 18
Vinafix.com
5
www.laptoprepairsecrets.com
M_B_A[13:0]3
D D
M_B_WE#3
M_B_CAS#3
M_B_RAS#3
TP2
TP4
M_B_ACT#3
M_B_PARITY3
+3V
R28
*10K_4
CHB_SA0 CHB_SA1 CHB_SA2
R40
10K_4
C C
B B
R2
10K_4
R16
*10K_4
R29
*10K_4
R39
10K_4
M_B_ALERT#3
DDR3_DRAMRST#3,17
EC-FVT-02
M_B_BA#03
M_B_BA#13
M_B_BG#03
M_B_BG#13
M_B_CS#03
M_B_CS#13
M_B_CKE03
M_B_CKE13
M_B_CLKP03
M_B_CLKN03
M_B_CLKP13
M_B_CLKN13
M_B_ODT0_CPU3
M_B_ODT1_CPU3
SMB_RUN_CLK10,16,17,21,31
SMB_RUN_DAT10,16,17,21,31
+1.2V_SUS
+1.2V_SUS
+1.2V_SUS
C1 *0.1U/16V_4
R8 240_4
R10 240_4
R32 240_4
R34 240_4
R42 240_4
R11 240_4
R33 240_4
R6 240_4
R9 240_4
M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_EVENT#
M_B_EVENT#
CHB_SA0
CHB_SA1
CHB_SA2
M_B_CB0
M_B_CB1
M_B_CB2
M_B_CB3
M_B_CB4
M_B_CB5
M_B_CB6
M_B_CB7
VREF CA DIMM1 Solution
SM_VREF_DQ13
R1
*0_4_S
R4 2/F_4
C13
0.022U/16V/X7R_4
A A
5
1 2
R25
24.9/F_4
+1.2V_SUS
4
144
133
132
131
128
126
127
122
125
121
146
120
119
158
151
156
152
162
165
114
143
116
134
108
150
145
115
113
149
157
109
110
137
139
138
140
155
161
253
254
256
260
166
92
91
101
105
88
87
100
104
12
33
54
75
178
199
220
241
96
R17
1K/F_4
VREF_CA_DIMM1
R5
1K/F_4
4
CON1A
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12
A13
A14/WE#
A15/CAS#
A16/RAS#
S2#/C0
S3#/C1
ACT#
PARITY
ALERT#
EVENT#
RESET#
BA0
BA1
BG0
BG1
S0#
S1#
CKE0
CKE1
CK0
CK0#
CK1
CK1#
ODT0
ODT1
SCL
SDA
SA0
SA1
SA2
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
DM8
3
8
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
(260P)
DDR4 SODIMM 260 PIN
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
DQS#0
DQS#1
DQS#2
DQS#3
DQS#4
DQS#5
DQS#6
DQS#7
DQS#8
M_B_DQ0
7
M_B_DQ4
20
M_B_DQ7
21
M_B_DQ3
4
M_B_DQ1
3
M_B_DQ5
16
M_B_DQ2
17
M_B_DQ6
28
M_B_DQ10
29
M_B_DQ15
41
M_B_DQ9
42
M_B_DQ12
24
M_B_DQ11
25
M_B_DQ14
38
M_B_DQ8
37
M_B_DQ13
50
M_B_DQ17
49
M_B_DQ20
62
M_B_DQ18
63
M_B_DQ19
46
M_B_DQ21
45
M_B_DQ16
58
M_B_DQ23
59
M_B_DQ22
70
M_B_DQ25
71
M_B_DQ29
83
M_B_DQ31
84
M_B_DQ27
66
M_B_DQ28
67
M_B_DQ24
79
M_B_DQ30
80
M_B_DQ26
174
M_B_DQ33
173
M_B_DQ34
187
M_B_DQ38
186
M_B_DQ35
170
M_B_DQ32
169
M_B_DQ39
183
M_B_DQ37
182
M_B_DQ36
195
M_B_DQ44
194
M_B_DQ40
207
M_B_DQ46
208
M_B_DQ42
191
M_B_DQ45
190
M_B_DQ41
203
M_B_DQ47
204
M_B_DQ43
216
M_B_DQ52
215
M_B_DQ49
228
M_B_DQ50
229
M_B_DQ54
211
M_B_DQ48
212
M_B_DQ53
224
M_B_DQ51
225
M_B_DQ55
237
M_B_DQ60
236
M_B_DQ56
249
M_B_DQ59
250
M_B_DQ63
232
M_B_DQ57
233
M_B_DQ61
245
M_B_DQ58
246
M_B_DQ62
13
M_B_DQSP0
34
M_B_DQSP1
55
M_B_DQSP2
76
M_B_DQSP3
179
M_B_DQSP4
200
M_B_DQSP5
221
M_B_DQSP6
242
M_B_DQSP7
97
M_B_DQSP8
11
M_B_DQSN0
32
M_B_DQSN1
53
M_B_DQSN2
74
M_B_DQSN3
177
M_B_DQSN4
198
M_B_DQSN5
219
M_B_DQSN6
240
M_B_DQSN7
95
M_B_DQSN8
M_B_DQ[63:0] 3
M_B_DQSP[7:0] 3
M_B_DQSN[7:0] 3
+1.2V_SUS
3
R43
240_4
M_B_DQSP8
R31
240_4
M_B_DQSN8
EC5 3.3P/50V/C0G_4
C23 1U/6.3V_4
C29 1U/6.3V_4
C33 1U/6.3V_4
C17 1U/6.3V_4
C60 10U/6.3V_4
C62 10U/6.3V_4
C56 10U/6.3V_4
C54 10U/6.3V_4
C41 *10U/6.3V_4
C61 10U/6.3V_4
C31 *10U/6.3V_4
C51 10U/6.3V_4
C25 1U/6.3V_4
C15 1U/6.3V_4
C16 1U/6.3V_4
C53 1U/6.3V_4
2250mA
+1.2V_SUS
+1.2V_SUS
+1.2V_SUS
Place these Caps near So-Dimm1
+0.6V_DDR_VTT
VREF_CA_DIMM1
2
CON1B
111
VDD1
112
VDD2
117
VDD3
118
VDD4
123
VDD5
124
VDD6
129
VDD7
130
VDD8
135
VDD9
136
VDD10
141
VDD11
142
VDD12
147
VDD13
148
VDD14
153
VDD15
154
VDD16
159
VDD17
160
VDD18
163
VDD19
1
VSS1
5
VSS2
9
VSS3
15
VSS4
19
VSS5
23
VSS6
27
VSS7
31
VSS8
35
VSS9
39
VSS10
43
VSS11
47
VSS12
51
VSS13
57
VSS14
61
VSS15
65
VSS16
69
VSS17
73
VSS18
77
VSS19
81
VSS20
85
VSS21
89
VSS22
93
VSS23
99
VSS24
103
VSS25
107
VSS26
167
VSS27
171
VSS28
175
VSS29
181
VSS30
185
VSS31
189
VSS32
193
VSS33
197
VSS34
201
VSS35
205
VSS36
209
VSS37
213
VSS38
217
VSS39
223
VSS40
227
VSS41
231
VSS42
235
VSS43
239
VSS44
243
VSS45
247
VSS46
251
VSS47
C6 3.3P/50V/C0G_4
C12 10U/6.3V_4
C7 10U/6.3V_4
C8 1U/6.3V_4
C9 1U/6.3V_4
C10 1U/6.3V_4
C11 1U/6.3V_4
C3 0.047U/10V_4
C5 0.1U/16V_4
C4 2.2U/6.3V_4
2
1
+1.2V_SUS3,6,17,46,51
+3V2,4,10,11,12,13,15,16,17,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+2.5V_SUS17,46,51
+0.6V_DDR_VTT17,46,51
255
VDDSPD
257
VPP1
259
VPP2
258
VTT
164
2
6
10
14
18
22
26
30
36
40
44
48
52
56
60
64
68
72
78
82
86
90
94
98
102
106
168
172
176
180
184
188
192
196
202
206
210
214
218
222
226
230
234
238
244
248
252
261
262
VREF_CA_DIMM1
+2.5V_SUS
VREF_CA
VSS48
VSS49
VSS50
VSS51
VSS52
VSS53
VSS54
VSS55
VSS56
VSS57
VSS58
VSS59
VSS60
VSS61
VSS62
VSS63
VSS64
VSS65
VSS66
VSS67
VSS68
(260P)
DDR4 SODIMM 260 PIN
VSS69
VSS70
VSS71
VSS72
VSS73
VSS74
VSS75
VSS76
VSS77
VSS78
VSS79
VSS80
VSS81
VSS82
VSS83
VSS84
VSS85
VSS86
VSS87
VSS88
VSS89
VSS90
VSS91
VSS92
VSS93
VSS94
GND
GND
C70 1U/6.3V_4
C68 1U/6.3V_4
C63 10U/6.3V_4
C69 10U/6.3V_4
+3V
EC11 3.3P/50V/C0G_4C52 10U/6.3V_4
C159 0.1U/16V_4
C88 2.2U/6.3V_4
+3V
0.5A
+2.5V_SUS
+0.6V_DDR_VTT
600mA
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
DDR4 DIMM1
DDR4 DIMM1
Monday, November 09, 2015 18 57
Monday, November 09, 2015 18 57
Monday, November 09, 2015 18 57
Date:
Date:
Date:
DDR4 DIMM1
18
RevSize
RevSize
RevSize
1A
1A
1A
of
of
Sheet
Sheet
Sheet
1
of

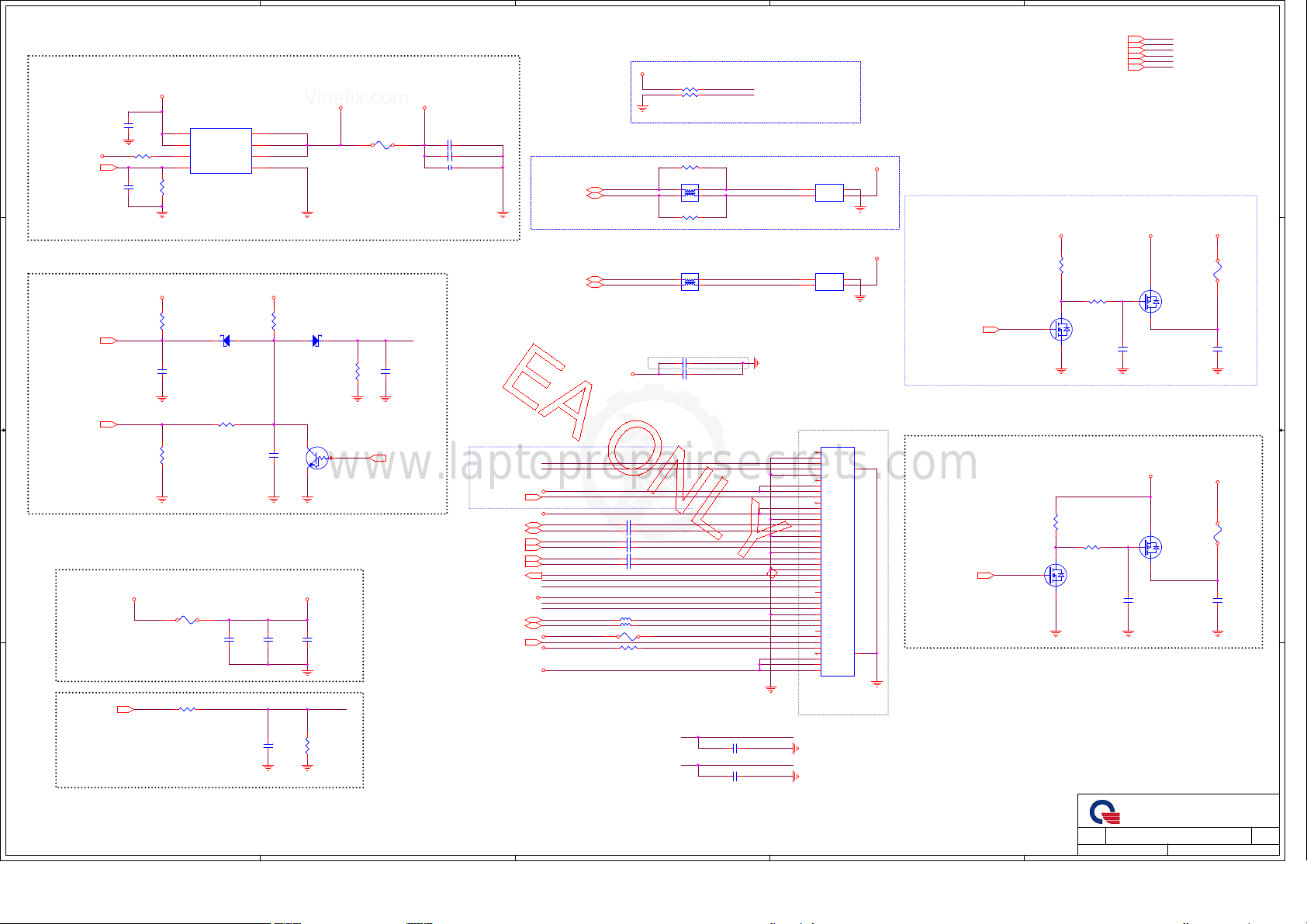

Page 19
Vinafix.com
5
www.laptoprepairsecrets.com
LCDVCC
U24
2
VIN1
3
VIN
FLG#5VOUT
4
EN
RT9715
D18 DB2J40600L
EC-SIT-10
VOUT2
VOUT1
GND
8
7
6
1
R401
*4.7K_4
D19 DB2J40600L
+LCDVCC_L
R388
100K_4
+3V
D D
+3V
PCH_LCDVCC_EN2
*0.1U/16V_4
C417
Back light
C C
EC_LID#29
80mil
C443
1U/6.3V_4
R814 10K_4
R389
100K/F_4
+3VPCU +3V
R395
10K_4
C440
0.1U/16V_4
4
80mil
F8 *0_6_S
DISPON
C416
*47P/50V/NPO_4
+LCDVCC
C419 10U/6.3V_6
C424 *0.01U/16V/X7R_4
C428 0.1U/16V_4
USBP9-12
USBP9+12
EC-DV-09
USBP3-12
USBP3+12
+LCDVCC
3
+3V
R147 *100K_4
R148 *100K_4
R674 0_4
1
4 3
*DLW21SN121SQ2L
R675 0_4
1
4 3
For ESD
SC11 RCLAMP0521PATCT
C426 2.2U/10V_6
CML13
CML1
ACM2012E
eDP only
2
2
EDP_AUXN_C
EDP_AUXP_C
USBP_TP-_C
USBP_TP+_C
USBP_CCD-_C
USBP_CCD+_C
SU2
3
IO2
2
IO1
BC001224Z00
SU1
3
IO2
2
IO1
BC001224Z00
GND
VIN
GND
VIN
+V3DX_TCH_PNL
1
4
+V3.3DX_CAMERA
1
4
2
Touch Panel VCC Control
Reserve
EC-DV-09
TOUCH_PANEL_EN14
2
R47
*10K_4
R737 *100K/F_4
3
Q3
*2N7002W
1
1
+3VPCU13,22,25,32,33,38,40,41,52
+3V2,4,10,11,12,13,15,16,17,18,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+VIN40,41,42,43,44,45,46,47,50,51
+V3.3DX_AUDIO22
+3VS54,10,12,15,16,21,23,25,28,31,32,36,38,41,47,48,49,51
+5VS54,26,27,28,32,33,35,37,38,41,42,45,46,47,48,49,51
+3V+3VS5
1
2
3
C9714
*0.01U/16V/X7R_4
Q15
*AOS3413
+V3DX_TCH_PNL_F
19
+V3DX_TCH_PNL
F1
*0_6
C108
*0.1U/16V_4
PCH_LVDS_BLON2
B B
GFX_PWR_SRC
PCH_DPST_PWM2
A A
+VIN GFX_PWR_SRC
5
R402 2.2K_4
R403
100K_4
F6 FUSE 2A
*10U/25V/X6S_12
R391 0_4
C412
*47P/50V/NPO_4
C413
0.1U/25V_6
C415
40mil
C442
*1U/10V/X7R_6
VADJ_PWM
Q20
*LTC044EUBFS8TL
1 3
C414
0.1U/25V_6
R387
100K_4
CN23
40
40
2
LCD_BK_OFF 14
EC-SIT-14
INT_EDP_AUXP2
DMIC_DATA1_C22
DMIC_CLK1_C22
EC-DV-09
Touch Panel
+V3DX_TCH_PNL
TOUCH_EN4
+LCDVCC
INT_EDP_AUXN2
INT_EDP_TXP02
INT_EDP_TXN02
INT_EDP_TXP12
INT_EDP_TXN12
EDP_HPD2
+V3.3DX_CAMERA
+V3.3DX_AUDIO
LOGO_LED_A#32
+5VS5
GFX_PWR_SRC
C163 0.1U/16V_4
C162 0.1U/16V_4
C421 0.1U/16V_4
C420 0.1U/16V_4
C156 0.1U/16V_4
C155 0.1U/16V_4
R98 600_0.3A
R97 600_0.3A
F7 FUSE 1A
R386 1K/F_4
USBP_TP-_C
USBP_TP+_C
+LCDVCC
EDP_AUXP_C
EDP_AUXN_C
EDP_TXP0_C
EDP_TXN0_C
EDP_TXP1_C
EDP_TXN1_C
EDP_HPD
DISPON
VADJ_PWM
+V3.3DX_CAMERA
USBP_CCD-_C
USBP_CCD+_C
DMIC_DATA1
DMIC_CLK1
+V3.3DX_AUDIO_E
LOGO_LED_A#
+5VS5_LED
GFX_PWR_SRC
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
LCD_CON
39
38
42
42
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
41
4
41
3
2
1
CAMERA VCC Control
+CAM_VCC
Max Current : 800mA
CCD_EN14
EC-DV-13
2
R394
10K_4
R738 100K/F_4
3
Q21
LU1L002SNFS8
1
+3V
1
2
3
C9715
0.01U/16V/X7R_4
+V3.3DX_CAMERA
Q19
AOS3413
+V3.3DX_CAMERA_R
F3
FUSE 1A
C427
0.1U/16V_4
EC-DV-10
DMIC_DATA1
SC2 RCLAMP0521PATCT
DMIC_CLK1
SC1 RCLAMP0521PATCT
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
LCD/CAMERA/Touch Panel
LCD/CAMERA/Touch Panel
LCD/CAMERA/Touch Panel
Sheet
Sheet
Date:
Date:
4
3
2
Date:
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
19 57Monday, November 09, 2015
19 57Monday, November 09, 2015
19 57Monday, November 09, 2015

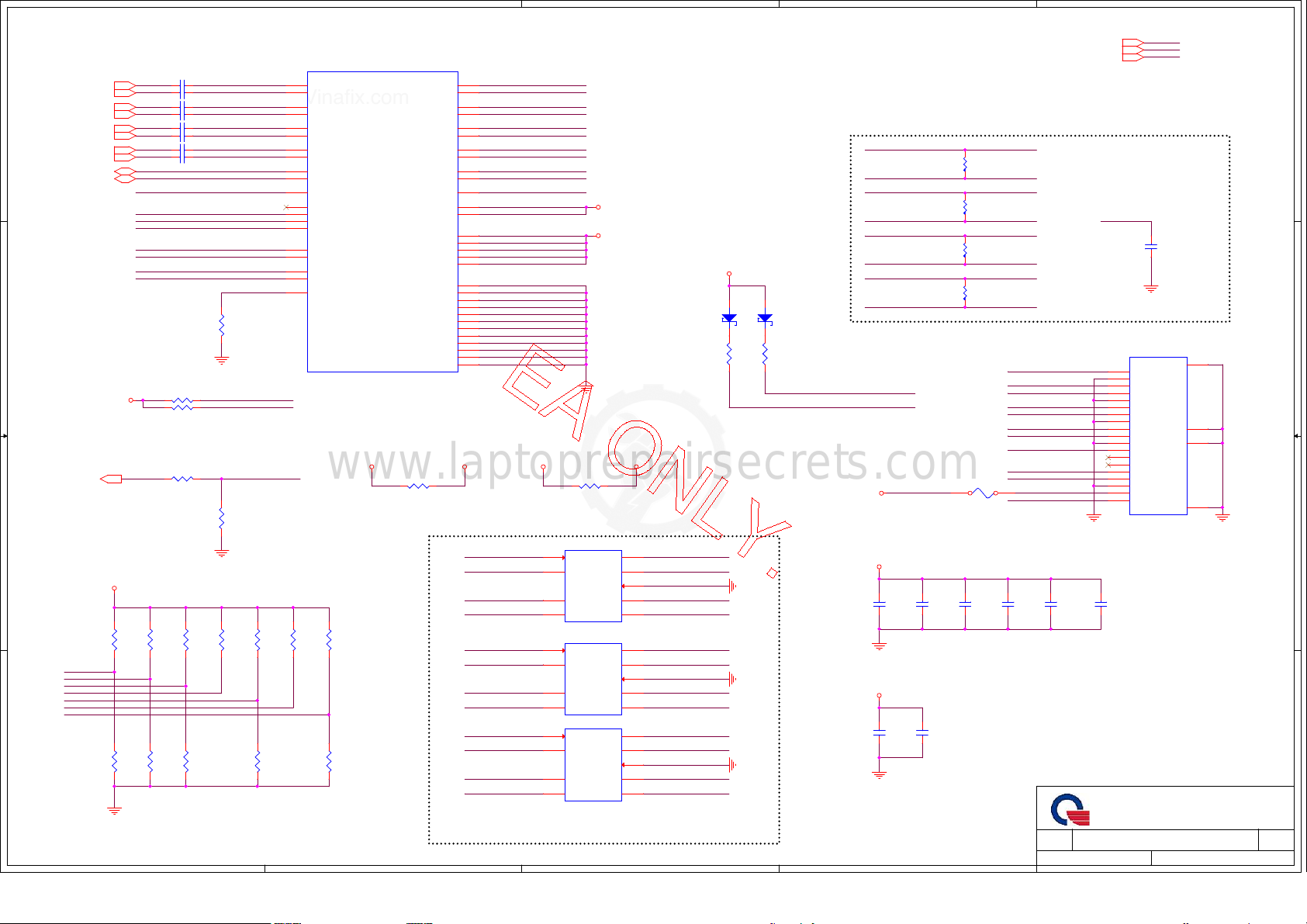

Page 20
Vinafix.com
A
www.laptoprepairsecrets.com
U7
IN_D02
IN_D0#2
IN_D12
4 4
3 3
IN_D1#2
IN_D22
IN_D2#2
IN_CLK2
IN_CLK#2
SDVO_CLK2
SDVO_DATA2
C176 0.1U/16V_4
C177 0.1U/16V_4
C168 0.1U/16V_4
C174 0.1U/16V_4
C160 0.1U/16V_4
C166 0.1U/16V_4
C179 0.1U/16V_4
C182 0.1U/16V_4
IN_D0_C
IN_D0#_C
IN_D1_C
IN_D1#_C
IN_D2_C
IN_D2#_C
IN_CLK_C
IN_CLK#_C
HDMI_HPD_DC
I2C_STL_EN
PRE
ISET
DDCBUF
DCIN_EN
EQ
CFG
HDMI_REXT
R181
4.99K/F_4
6
IN_D0+
7
IN_D0-
4
IN_D1+
5
IN_D1-
1
IN_D2+
2
IN_D2-
9
IN_CLK+
10
IN_CLK-
38
SCL_SRC
39
SDA_SRC
3
HPD_SRC
36
PD#
8
I2C_STL_EN
16
PRE
34
ISET
14
DDCBUF/SDA_CTL
13
DCIN_EN/SCL_STL
17
EQ/I2C_ADDR0
23
CFG/I2C_ADDR1
18
REXT
PS8407ATQFN40GTR2
+3V_HDMI
R132 *2.2K_4
R131 *2.2K_4
SDVO_CLK
SDVO_DATA
HDMI HPD SENSE
R189
4.7K_4
R178
*4.7K_4
HDMI_HPD_DC
R396
20K/F_4
R186
*4.7K_4
R191
*4.7K_4
R180
*4.7K_4
R397
*4.7K_4
R400
*4.7K_4
R398
*4.7K_4
+3V_HDMI
R190
*4.7K_4
R179
*4.7K_4
R392 *0_4_S
R141
*4.7K_4
R142
*4.7K_4
A
PCH_HDMI_HPD2
2 2
PRE
ISET
DDCBUF
DCIN_EN
EQ
CFG
I2C_STL_EN
1 1
B
25
OUT_D0+
24
OUT_D0-
27
OUT_D1+
26
OUT_D1-
30
OUT_D2+
29
OUT_D2-
22
OUT_CLK+
21
OUT_CLK-
32
SCL_SINK
33
SDA_SINK
28
HPD_SINK
11
VDD33[1]
37
VDD33[2]
20
VDDTX15[1]
31
VDDTX15[2]
12
VDDRX15[1]
40
VDDRX15[2]
19
VDDTA15[1]
15
GND1]
35
GND[2]
41
PAD(GND1)
42
PAD(GND2)
43
PAD(GND3)
44
PAD(GND4)
45
PAD(GND5)
46
PAD(GND6)
47
PAD(GND7)
48
PAD(GND8)
49
PAD(GND9)
PAD(GND10)
+3V +3V_HDMI +1.5V +1.5V_HDMI
R110 *0_6_S
50
TX0_HDMI+
TX0_HDMI-
TX1_HDMI+
TX1_HDMI-
TX2_HDMI+
TX2_HDMI-
TXC_HDMI+
TXC_HDMI-
HDMI_SCLK
HDMI_SDATA
HDMI_HPD
+3V_HDMI
+1.5V_HDMI
R153 *0_6_S
U4
TX2_HDMI+
TX2_HDMI-
TX1_HDMI+
TX1_HDMI-
TX0_HDMI+
TX0_HDMI-
TXC_HDMI+
TXC_HDMI-
HDMI_SCLK HDMI_SCLK
HDMI_SDATA
HDMIC_5V HDMIC_5V
HDMI_HPD
6
NC
7
NC
9
NC
10
NC
U8
6
NC
7
NC
9
NC
10
NC
U26
6
NC
7
NC
9
NC
10
NC
5
CH4
4
CH3
3
GND
2
CH2
1
CH1
ESD8004MUTAG
5
CH4
4
CH3
3
GND
2
CH2
1
CH1
ESD8004MUTAG
5
CH4
4
CH3
3
GND
2
CH2
1
CH1
ESD8004MUTAG
For ESD Layout note:Place close to HDMI Conn
B
C
C
DB2J40600L
TX2_HDMI+
TX2_HDMI-
TX1_HDMI+
TX1_HDMI-
TX0_HDMI+
TX0_HDMI-
TXC_HDMI+
TXC_HDMI-
HDMI_SDATA
HDMI_HPD
D
+3V2,4,10,11,12,13,15,16,17,18,19,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+5V22,30,31,33,40,48
+1.5V49,51
E
20
EMI reserve for HDMI
TX2_HDMI+
TX2_HDMITX1_HDMI+
TX0_HDMI+
+5V
D20
R408
2.2K_4
D21
DB2J40600L
R411
2.2K_4
TX0_HDMITXC_HDMI+
TXC_HDMI-
HDMI_SCLK
HDMI_SDATA
+5V
+1.5V_HDMI
+3V_HDMI
C152
0.1U/16V_4
C444
0.1U/16V_4
D
C184
0.1U/16V_4
C422
0.01U/50V_4
R154
110/F_4
R160
110/F_4
R167
110/F_4
R168
110/F_4
C151
0.1U/16V_4
F9FUSE1.1A8V_POLY
C183
0.1U/16V_4
TX2_HDMI+
TX2_HDMI-
TX1_HDMI+
TX1_HDMI-
TX0_HDMI+
TX0_HDMI-
TXC_HDMI+
TXC_HDMI-
HDMI_SCLK
HDMI_SDATA
HDMIC_5V
HDMI_HPD
C180
0.01U/50V_4
Date:
Date:
Date:
HDMIC_5VTX1_HDMI-
EC24
RCLAMP0521PATCT
CN9
SHELL1
1
D2+
2
D2 Shield
3
D2-
4
D1+
5
D1 Shield
6
D1-
7
D0+
8
D0 Shield
9
D0CK+
CK Shield
CKCE Remote
NC
DDC CLK
DDC DATA
GND
+5V
HP DET
HDMI CONN
GND
GND
SHELL2
Sheet
Sheet
Sheet
E
10
11
12
13
14
15
16
17
18
19
C147
0.01U/50V_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
HDMI CONN
HDMI CONN
HDMI CONN
20
23
22
21
RevSize
RevSize
RevSize
1A
1A
20 57Monday, November 09, 2015
20 57Monday, November 09, 2015
20 57Monday, November 09, 2015
1A
of
of
of
Page 21
Vinafix.com
A
www.laptoprepairsecrets.com
B
C
D
E

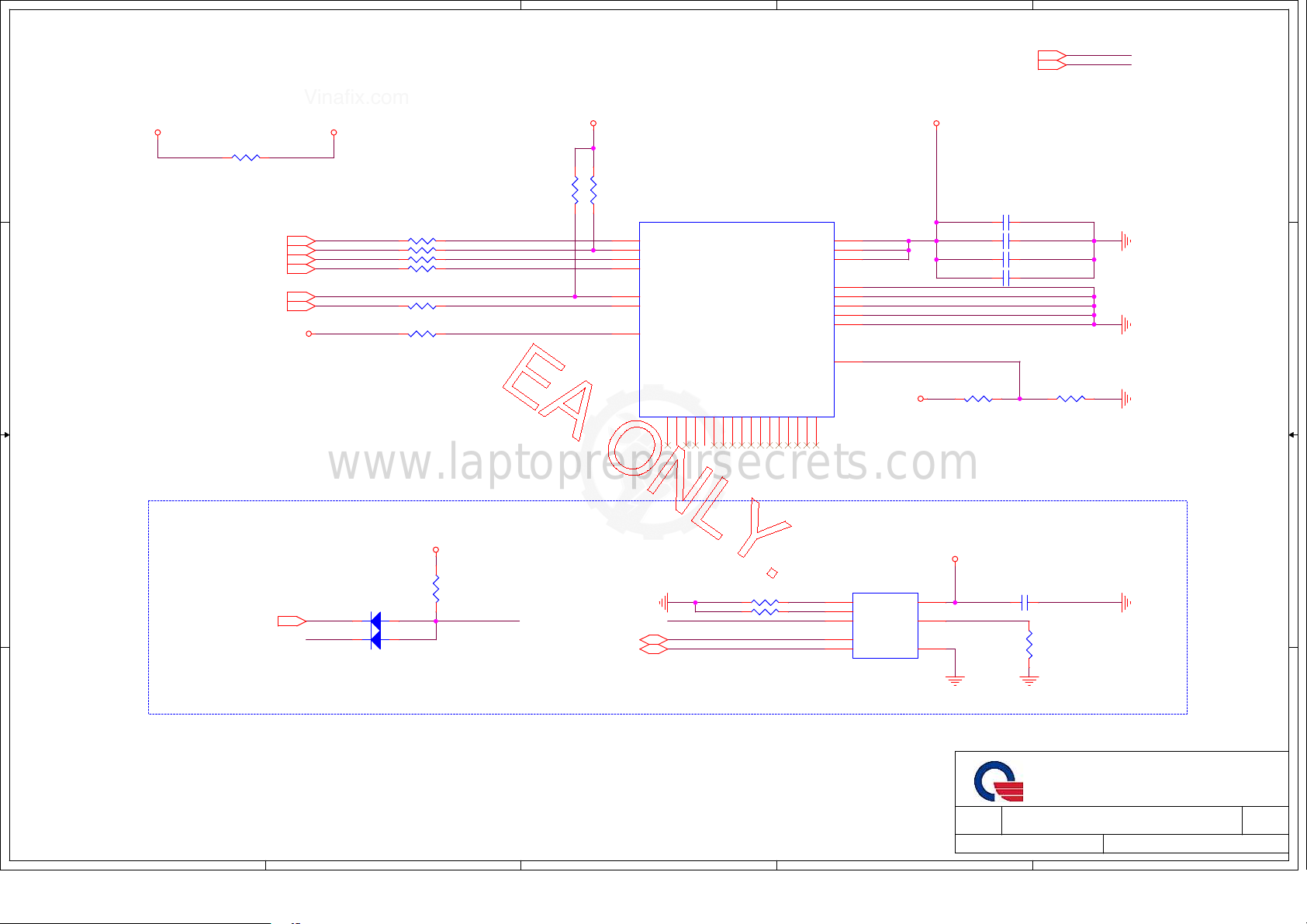

TPM
2nd source: AL33HTPM000
+3V2,4,10,11,12,13,15,16,17,18,19,20,22,24,27,29,30,31,34,35,36,38,40,42,48
+3VS54,10,12,15,16,19,23,25,28,31,32,36,38,41,47,48,49,51
21
TPM_PP
+VCC_TPM
+VCC_TPM+VCC_TPM
C6041 --> close to Pin22
C6040/C6042/C8733 --> close to each power pin
C181 0.1U/16V/X7R_4
C143 10U/6.3V_4
C141 0.1U/16V/X7R_4
C178 0.1U/16V/X7R_4
R170
*0_4
R171
4.7K/F_4
4 4
3 3
+3VS5 +VCC_TPM
R172 *0_4_S
PCH_SPI1_CLK10
PCH_SPI_CS2#_TPM10
PCH_SPI1_SO10
PCH_SPI1_SI10
TPM_INT#12
PLTRST#4,23,24,25,29,30
+VCC_TPM
R120 33.2/F_4
R119 0_4
R113 33.2/F_4
R118 33.2/F_4
R122 0_4
R169 *4.7K/F_4
R121
10K/F_4
SPI_TPM_CLK_R
PCH_SPI_CS2#_TPM_M
SPI_TPM_SO_R
SPI_TPM_SI_R
R95
10K/F_4
19
20
24
21
18
17
U6
SCLK
CS#
MISO
MOSI
PIRQ
ST33HTPM2E32AAD8
RST#
NC
NC
NC15NC
16
25
Thermal pad
NC
27
28
26
NC
6
GPIO
NC
NC4NC
NC5NC
NC
NC12NC
3
10
11
13
14
1
VDD
8
VDD
22
VDD
2
GND
9
GND
23
GND
32
GND
33
7
PP
NC
NC30NC
29
31
RFID
2 2
Reserve
D9
HWPG4,16,29,46,49
1 1
A
PLTRST#
*RB500V-40
D10
*RB500V-40
+3V
R247
*4.7K_4
21
21
B
PROT
SMB_RUN_CLK10,16,17,18,31
SMB_RUN_DAT10,16,17,18,31
C
R276 *100K_4
R277 *100K_4
PROT
*RFIDPCA24S08DP TSSOP
U12
1
L1
2
L2
PROT3WP
6
SCL
SDA5GND
VCC
+3V
8
7
4
D
C275 *0.1U/16V_4
Document Number
Document Number
Document Number
Date:
Monday, November 09, 2015
Date:
Monday, November 09, 2015
Date:
Monday, November 09, 2015
R230
*1K_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
TPM/RFID
TPM/RFID
TPM/RFID
Sheet
Sheet
Sheet
E
21 57
21 57
21 57
RevSize
RevSize
RevSize
1A
1A
of
of
of
1A
Page 22
Vinafix.com
5
www.laptoprepairsecrets.com

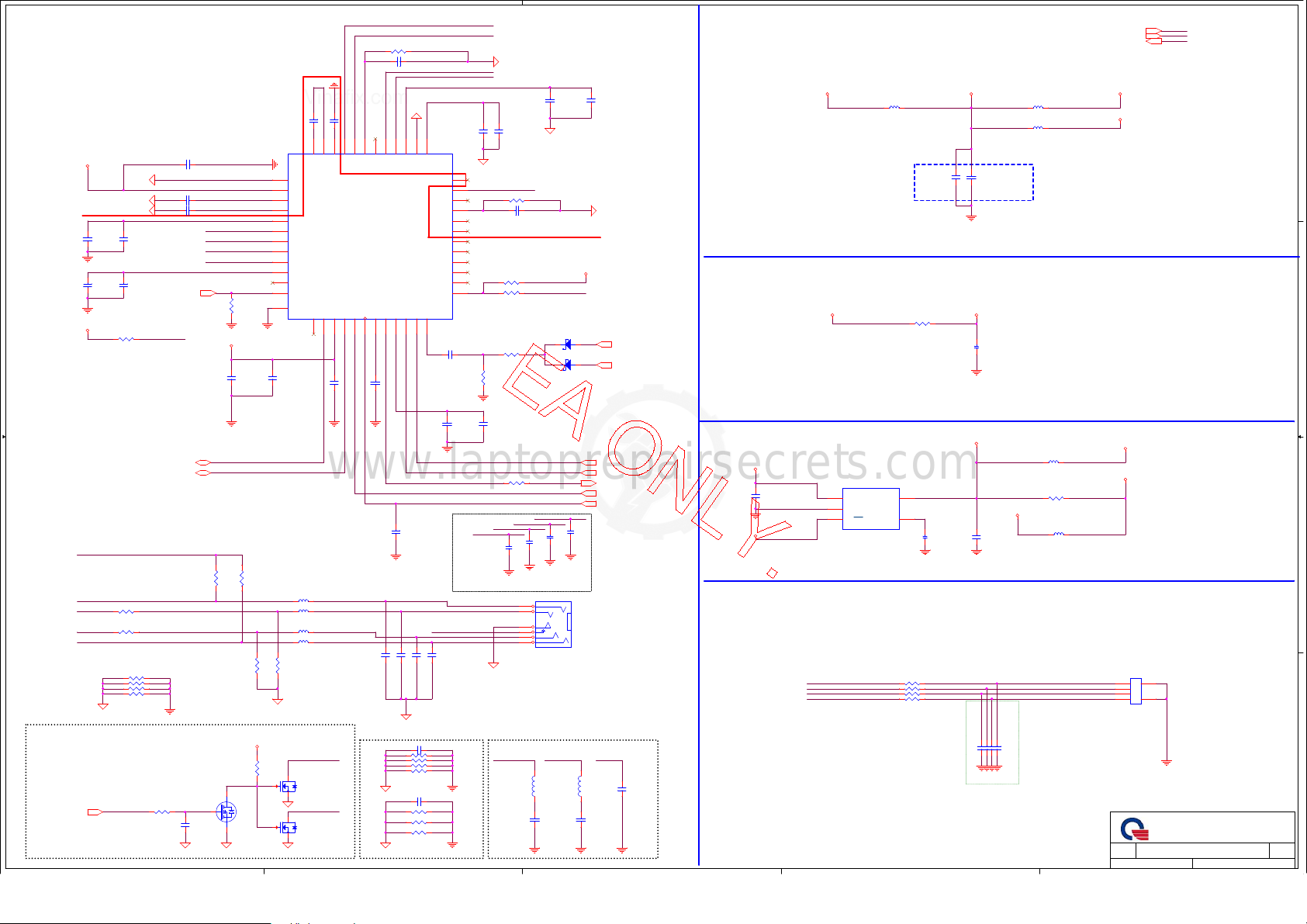

ALC3245
D D
C356 2.2U/6.3V_4
C354 2.2U/6.3V_4
33
34
35
+V3.3DX_AUDIO
Analog
Digital
C376
10U/6.3V_6
C377
10U/6.3V_6
C C
B B
+V3.3DX_AUDIO
Global Headset
(Supported iPhone/Nokia headset, Headphone, Microphone)
C380
0.1U/16V_4
C370
0.1U/16V_4
R354 10K_4
MIC2_VREFO
MIC2_R_C
R316 47/F_4
HPOUT_L
HPOUT_R HP-OUT-R_1
R317 47/F_4
MIC2_L_C MIC2_L
R777 *0_4_S
R775 *0_4_S
R774 *0_4_S
R776 *0_4_S
AGND
Grounding circuit for combo jack MIC R/L pin
A A
EC_PWROK
EC_PWROK4,29,30
AGND
AGND
AGND
R519 1K_4
5
C342 4.7U/6.3V_6
C362 10U/6.3V_6
C363 10U/6.3V_6
NB_MUTE#29
NB_MUTE#
DMIC_CLK1_C19
DMIC_DATA1_C19
AGND AGND
R299
2.2K_4
DMN601K-7
C507
*0.1U/16V_4
C518
10U/6.3V_6
Q13
2
AVDD2
+V5DX_AUDIO_PVDD
AUD_SPK_L+
AUD_SPK_LAUD_SPK_RAUD_SPK_R+
+V5DX_AUDIO_PVDD
NB_MUTE#
R355
*100K_4
DVDD
R515
2.2K_4
R376
*22K_4
3
1
+3VPCU
R521
1M_4
36
CBP
CBN
37
AVSS
38
CPVDD
39
LDO2-CAP
40
AVDD2
41
PVDD1
42
SPK-OUT-L+
43
SPK-OUT-L-
44
SPK-OUT-R-
45
SPK-OUT-R+
46
PVDD2
47
SPDIF-OUT
48
EAPD+PD
49
DGND
I2S/FLOAT1GPIO0/DMIC-CLK2DVDD-IO3GPIO1/DMIC-DATA124SDATA-OUT5BIT-CLK6LDO3-CAP7SDATA-IN8DVDD9SYNC10RESETB11PCBEEP
C521
0.1U/16V_4
L3 *0_4_S
L8 *0_4_S
L10 *0_4_S
L13 *0_4_S
R375
*22K_4
AGND
MIC2_R_C
34
5
Q35A
SSM6N48FU
MIC2_L_C
AGND
61
Q35B
2
SSM6N48FU
AGND
CPVEE
HPOUT-L
C524
0.1U/16V_4
4
R327 *100K_4
C339 4.7U/6.3V_6
28
29
30
31
32
MIC-CAP
HPOUT-R
MIC1-VREFO
LINE1-L/RING2
LINE1-R/SLEEVE
ALC3245-GR
C378 10U/6.3V_6
C385
22P/50V_4
C392RCLAM P0521PATCT
C340RCLAM P0521PATCT
AGND
C320 0.1U/16V_4
R340 *0_4_S
R325 *0_4_S
R374 *0_4_S
R283 *0_4
AGND
C321 0.1U/16V_4
R377 *0_4
R323 *0_4_S
R332 *0_4_S
AGND
4
HPOUT_L
HPOUT_R
MIC2_R_C
MIC2_L_C
+V5DX_AUDIO_AVDD
AGND
25
26
27
U18
VREF
AVSS1
AVDD1
I2S-DIN
LINE1-VREFO
AUX Mode/LINE1-JD1
LDO1-CAP
MIC1-R
MIC1-L
I2S-LRCK
I2S-DOUT
I2S-SCLK
I2S-MCLK
I2S-IN-JD/I2S-OUT-JD
HP-JD/MIC1-JD
12
C386 0.1U/16V_4
+V3.3DX_AUDIO
C379
10U/6.3V_6
HDA_SDIN0_R
C394RCLAM P0521PATCT
C393RCLAM P0521PATCT
AGND
C351
10U/6.3V_6 L6 HCB1005KF-181T15_1.5A_4
C359
2.2U/6.3V_4
24
23
22
21
20
19
18
17
16
15
14
13
For ESD
MIC2_R
HP-OUT-L_2HP-OUT-L_1
SENSE_HP
HP-OUT-R_2
C357
0.1U/16V_4
AGND
MIC2_VREFO
R339 100K_4
C374 10U/6.3V_6
R362 100K_4
R350 200K/F_4
BEEP_RBEEP_C BEEP_D
R360 20K/F_4
DB2J40600L
R534
10K_4
C523
0.1U/16V_4
R361 33_4
BIT_CLK_AUDIO
ACZ_SYNC_AUDIO
ACZ_SDOUT_AUDIO
AGND
External MIC/
Headphone out combo
SC9
SC7
*SURGE SUP
CN19 Audio jack
4
1
5
6
2
3
audio-2sj3108-049111f-6p
HP-OUT-L_2 HP-OUT-R_2
C391
*RCLAMP0521PATCT
C343
0.1U/16V_4
AGND
Analog
Digital
+V3.3DX_AUDIO
SENSE_HP
ACZ_RST#_AUDIO
SC8
*SURGE SUP
*SURGE SUP
DFTJ06FR820
L9
*0.047uH
C395
*RCLAMP0521PATCT
AGND
D16DB2J40600L
D17
SC10
*SURGE SUP
SENSE_HP
L11
*0.047uH
BEEP 29
ACZ_SPKR 11,14
ACZ_RST#_AUDIO 14
ACZ_SYNC_AUDIO 14
ACZ_SDIN0 14
ACZ_SDOUT_AUDIO 14
BIT_CLK_AUDIO 14
SC6RCLAMP 0521PATCT
3
2
+5V20,30,31,33,40,48
+V3.3DX_AUDIO19
1
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,24,27,29,30,31,34,35,36,38,40,42,48
22
CODEC 5V POWER
2.2U/6.3V_4
+5V
+3V
C387
+3V
U21
1
2
G9090-150T11U
L7 *0_6_S
+3.3V_AUDIO_CODEC
Max Current : 419mA
VOUT
VIN
GND
ON/OFF3NC
750mA
5
4
*0.1U/16V_4
+V5DX_AUDIO +V5DX_AUDIO_AVDD
L5 HCB1005KF-181T15_1.5A_4
C355
C361
+V3.3DX_AUDIO+3V
+1.5V_AUDIO
1U/6.3V_4
C517
0.1U/16V_4
close U2004
C347
0.1U/16V_4
+V3.3DX_AUDIO
L4 HCB1005KF-181T15_1.5A_4
R526 *0_4
L14 HCB1608KF_1.5A_6
10U/6.3V_6
R347 *0_6_S
C381
+V5DX_AUDIO_PVDD
AVDD2
DVDD
INT Speaker
CN20
AUD_SPK_R+
AUD_SPK_R- SPK_R-_OUT
AUD_SPK_LAUD_SPK_L+
R381 *0_6_S
R379 *0_6_S
R378 *0_6_S
R380 *0_6_S
For EMI
C399 *680P/50V/X7R_4
C397 *680P/50V/X7R_4
C396 *680P/50V/X7R_4
C398 *680P/50V/X7R_4
SPK_R+_OUT
SPK_L-_OUT
SPK_L+_OUT
For EMI
3
2
INT SPEAKER CONN
1
6
2
3
45
Document Number
Document Number
Document Number
Date:
Date:
Date:
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Audio(ALC283)
Audio(ALC283)
Audio(ALC283)
Sheet
Sheet
Sheet
22 57Monday, November 09, 2015
22 57Monday, November 09, 2015
1
22 57Monday, November 09, 2015
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of

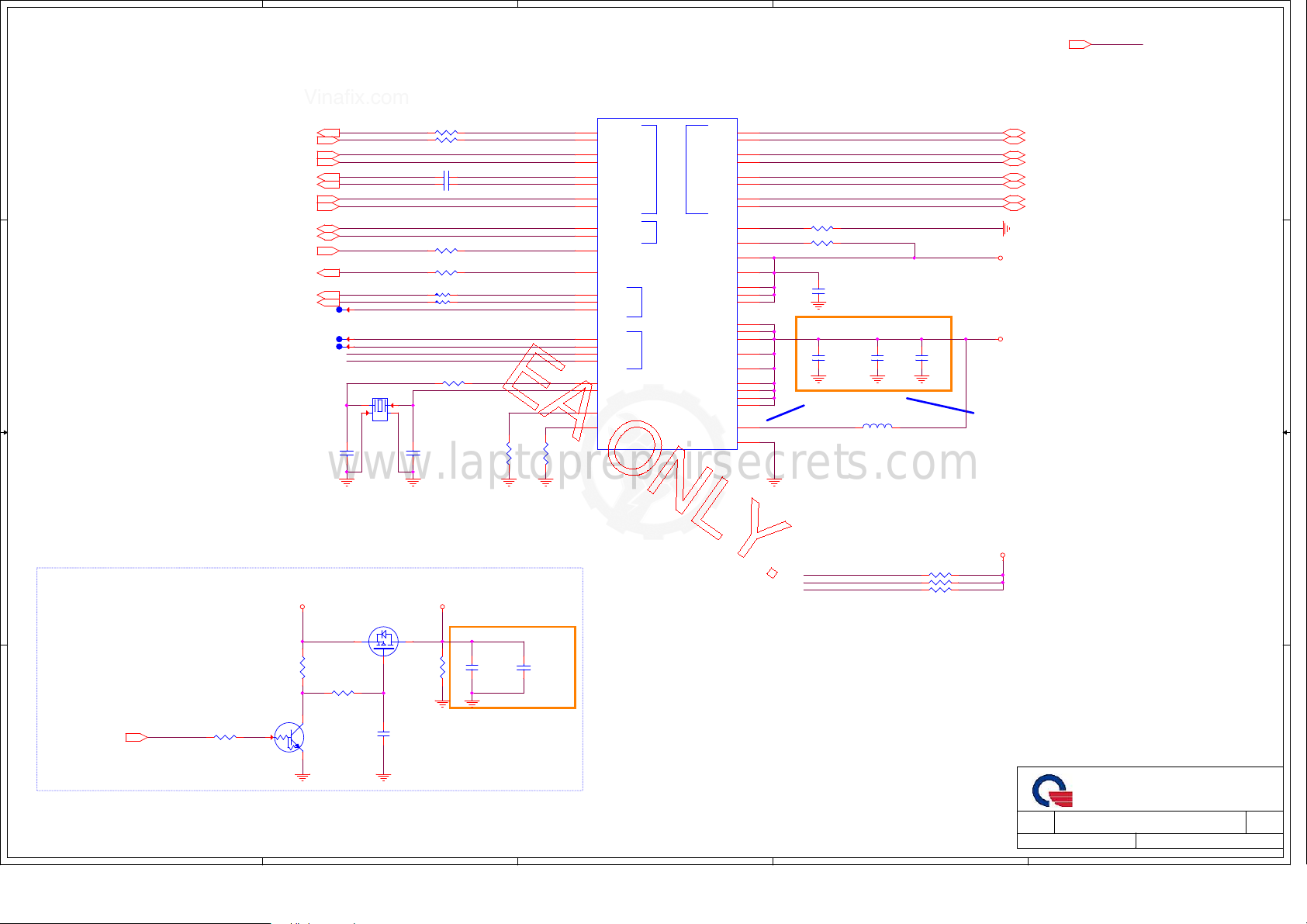

Page 23
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
+3VS54,10,12,15,16,19,21,25,28,31,32,36,38,41,47,48,49,51
1
23
R210
3.01K/F_4
U11
48
CLK_REQ_N
36
PE_RST_N
44
PE_CLKP
45
PE_CLKN
38
PETp
39
PETn
41
PERp
42
PERn
28
SMB_CLK
31
SMB_DATA
3
LAN_DISABLE_N
2
LANWAKE_N
26
LED0
27
LED1
25
LED2
32
JTAG_TDI
34
JTAG_TDO
33
JTAG_TMS
35
JTAG_TCK
9
XTAL_OUT
10
XTAL_IN
30
TEST_EN
12
RBIAS
WGI219LM-QREF
PCIE
SMBUS
JTAG LED
MDI_PLUS0
MDI_MINUS0
MDI_PLUS1
MDI_MINUS1
MDI_PLUS2
MDI
MDI_MINUS2
MDI_PLUS3
MDI_MINUS3
RSVD_NC
RSVD_VCC3P3_1
VDD3P3_IN
VDD3P3_OUT
VDD3P3_15
VDD3P3_19
VDD3P3_29
VDD1P0_47
VDD1P0_46
VDD1P0_37
VDD1P0_43
VDD1P0_11
VDD1P0_40
VDD1P0_22
VDD1P0_16
VDD1P0_8
CTRL_1P0
VSS_EPAD
13
14
17
18
20
21
23
24
6
1
5
4
15
19
29
47
46
37
43
11
40
22
16
8
7
49
MDI0+
MDI0-
MDI1+
MDI1-
MDI2+
MDI2-
MDI3+
MDI3-
R8765 0ohm resistor on SVR_EN_N can be removed from production boards from check list v1.2
R215 0_4
R223 4.7K/F_4
C273
1U/10V_4
Close to PHY
+1.05V_LAN
CTRL_1P0
Idc=330mA
C455
0.1U/25V_4
Keep trace short
and width
LAN_JTAG_TMS
LAN_JTAG_TCK
LAN_DIS#
C306
10U/6.3V_4
L12 4.7UH_650MA_1210
C451
22U/6.3V_6
R265 *10K/F_4
R266 *10K/F_4
R217 *10K_4
LANVCC
+1.05V_LAN
LANVCC
MDI0+ 33
MDI0- 33
MDI1+ 33
MDI1- 33
MDI2+ 33
MDI2- 33
MDI3+ 33
MDI3- 33
D D
PCIE_CLKREQ_LAN#13
PLTRST#4,21,24,25,29,30
CLK_PCIE_LANP13
CLK_PCIE_LANN13
PCIE_RXP9_LAN12
PCIE_RXN9_LAN12
PCIE_TXP9_LAN12
The PHY SMBus address is 0xC8 and default MAC SMBus address is 0xE0
C C
LAN
VPRO: AJ0QREF0000
n-VPRO : AL0SLKJ5000
B B
PCIE_TXN9_LAN12
SMB_ME0_CLK10
SMB_ME0_DAT10
LAN_LED_LNK_ACT#33
LAN_LED_LNK_UP#33
LAN_DIS#4
LANWAKE#4
TP22
TP25
TP24
EC-SIT-31
10P/50V_4
C450
1
2
12
LANVCC
1
R239
10K_4
R748 100K/F_4
R252 332/F_4
R263 332/F_4
Y2
3
4
25MHZ +-10PPM
Q24
AO3413
2
*100K/F_4
R226 *0_4_S
R267 *0_4_S
C304 0.1U/25V_4
C298 0.1U/25V_4
R212 *0_4_S
R213 *0_4_S
R419 *0_4_S
12
C454
10P/50V_4
LANVCC+3VS5
3
R214
PCIE_CLKREQ_LAN#_C
ALL_PCIE_RST#_C
PCIE_RXP9_LAN_C
PCIE_RXN9_LAN_C
PCIE_TXP9_LAN
PCIE_TXN9_LAN
SMB_ME0_CLK
SMB_ME0_DAT
LAN_DIS#_R
LANWAKE#_R
LAN_LED_1000#
LAN_JTAG_TDI
LAN_JTAG_TDO
LAN_JTAG_TMS
LAN_JTAG_TCK
XTAL2
XTAL1
R264
1K_4
Close to PHY
40 mils (Iout=1A)40 mils (Iout=1A)
C246
0.1U/16V/X7R_4
C291
22U/6.3V_6
A A
SLP_LAN#4
5
R238 0_4
2
Q10
LTC044EUBFS8TL
1 3
C278
0.01U/16V/X7R_4
LANVCC
Trace width>60mil,
Trace length<200mil
4
EC-DV-11
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Date:
Monday, November 09, 2015 23 57
Date:
Monday, November 09, 2015 23 57
Date:
Monday, November 09, 2015 23 57
3
2
LAN Intel I219LM
LAN Intel I219LM
LAN Intel I219LM
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
Page 24
Vinafix.com
1
www.laptoprepairsecrets.com

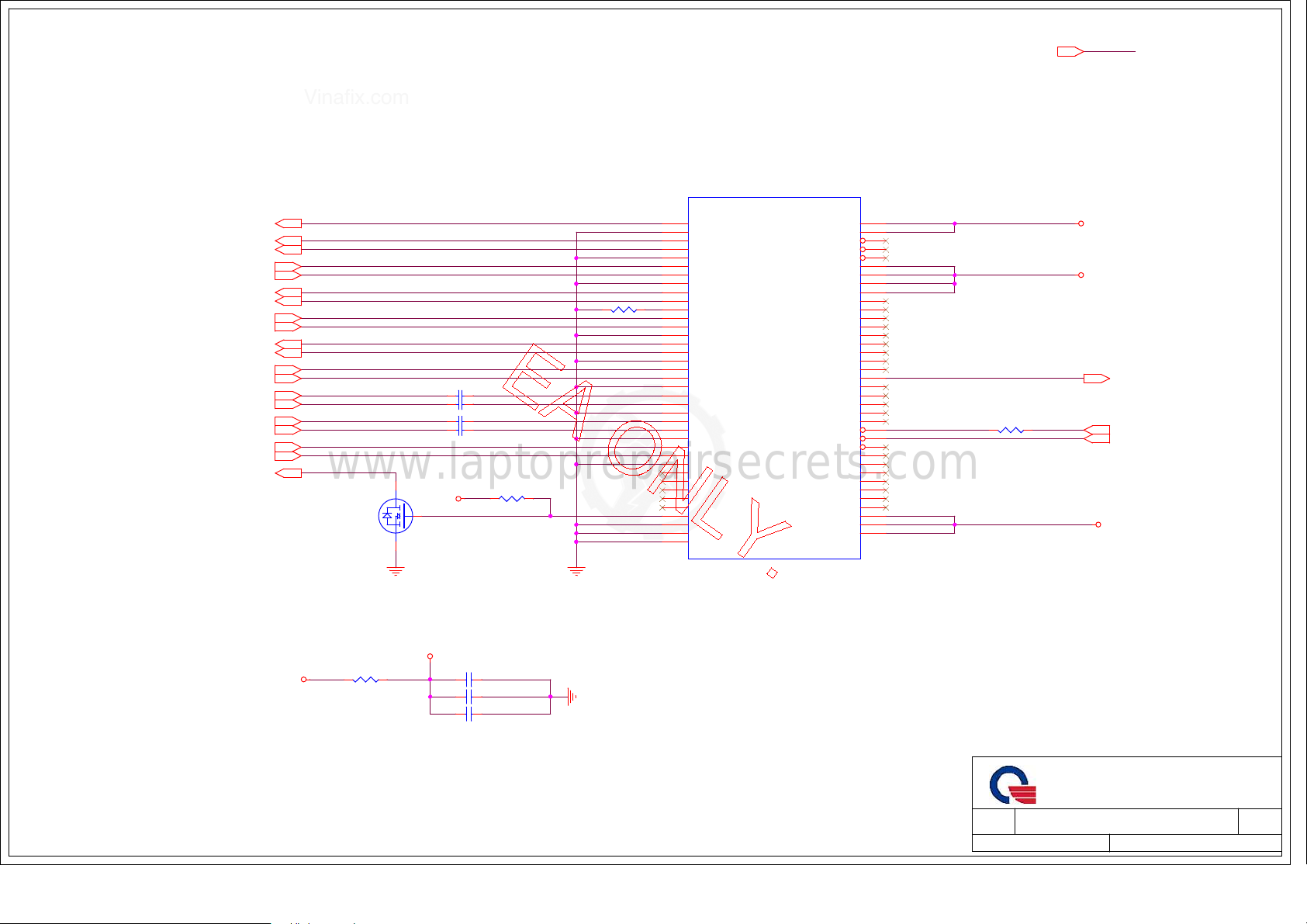

SSD M.2
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,22,27,29,30,31,34,35,36,38,40,42,48
24
CN10
HDD_DETECT#29
PCIE_RXN5_SSD12
PCIE_RXP5_SSD12
PCIE_TXN5_SSD12
PCIE_TXP5_SSD12
PCIE_RXN6_SSD12
PCIE_RXP6_SSD12
PCIE_TXN6_SSD12
PCIE_TXP6_SSD12
PCIE_RXN7_SSD12
PCIE_RXP7_SSD12
PCIE_TXN7_SSD12
PCIE_TXP7_SSD12
SATA_RXP112
SATA_RXN112
SATA_TXN112
A A
SATA_TXP112
CLK_PCIE_SSDN13
CLK_PCIE_SSDP13
SSD_PEDET#12
SATA_RXP1
SATA_RXN1
SATA_TXN1
SATA_TXP1
Q8
3
+3V
2
1
DMN601K-7
SATA_RXP1_C
C2370.01U/16V/X7R_4
SATA_RXN1_C
C2240.01U/16V/X7R_4
SATA_TXN1_C
C2520.01U/16V/X7R_4
SATA_TXP1_C
C2610.01U/16V/X7R_4
R185 10K_4
R240 *0_4_S
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
NGFF- Key M
GND_PRESENCE_IND
GND
PERn3
PERp3
GND
PETn3
PETp3
GND
PERn2
PERp2
GND
PETn2
PETp2
GND
PERn1
PERp1
GND
PETn1
PETp1
GND
PERn0/SATA-R+
PERp0/SATA-RGND
PETn0/SATA-TPETp0/SATA-T+
GND
REFCLKn
REFCLKp
GND
Key
Key
Key
Key
N/C
PEDET_OC-PCIE/GND-SATA
GND
GND
GND
DAS/DSS/LED#1(OD)
3.3Vaux
3.3Vaux
N/C
N/C
3.3Vaux
3.3Vaux
3.3Vaux
3.3Vaux
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
DEVSLP
N/C
N/C
N/C
N/C
N/C
PERST#
CLKREQ#
PEWAKE#
NC
NC
Key
Key
Key
Key
SUSCLK(32kHz)
3.3Vaux
3.3Vaux
3.3Vaux
2280 SSD_NGFF CONN
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
SSD_PLTRST#
R228 *0_4_S
60 mil 1.5A
+V3DX_HDD
+V3DX_HDD
+V3DX_HDD
DEVSLP1 12
PLTRST# 4,21,23,25,29,30
PCIE_CLKREQ_SSD# 13
DC Current rating: 3 A (MAX)
60 mil 1.5A
+3V
R250 *0_8_S
+V3DX_HDD
C299 10U/6.3V_6
C308 0.1U/16V_4
C300 *10U/6.3V_6
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Date:
Date:
1
Date:
SATA/G-sensor
SATA/G-sensor
SATA/G-sensor
Sheet
Sheet
Sheet
24 57Monday, November 09, 2015
24 57Monday, November 09, 2015
24 57Monday, November 09, 2015
RevSize
RevSize
RevSize
1A
1A
of
of
of
1A
Page 25
Vinafix.com
1
www.laptoprepairsecrets.com
2
3
4
5
6
7
8

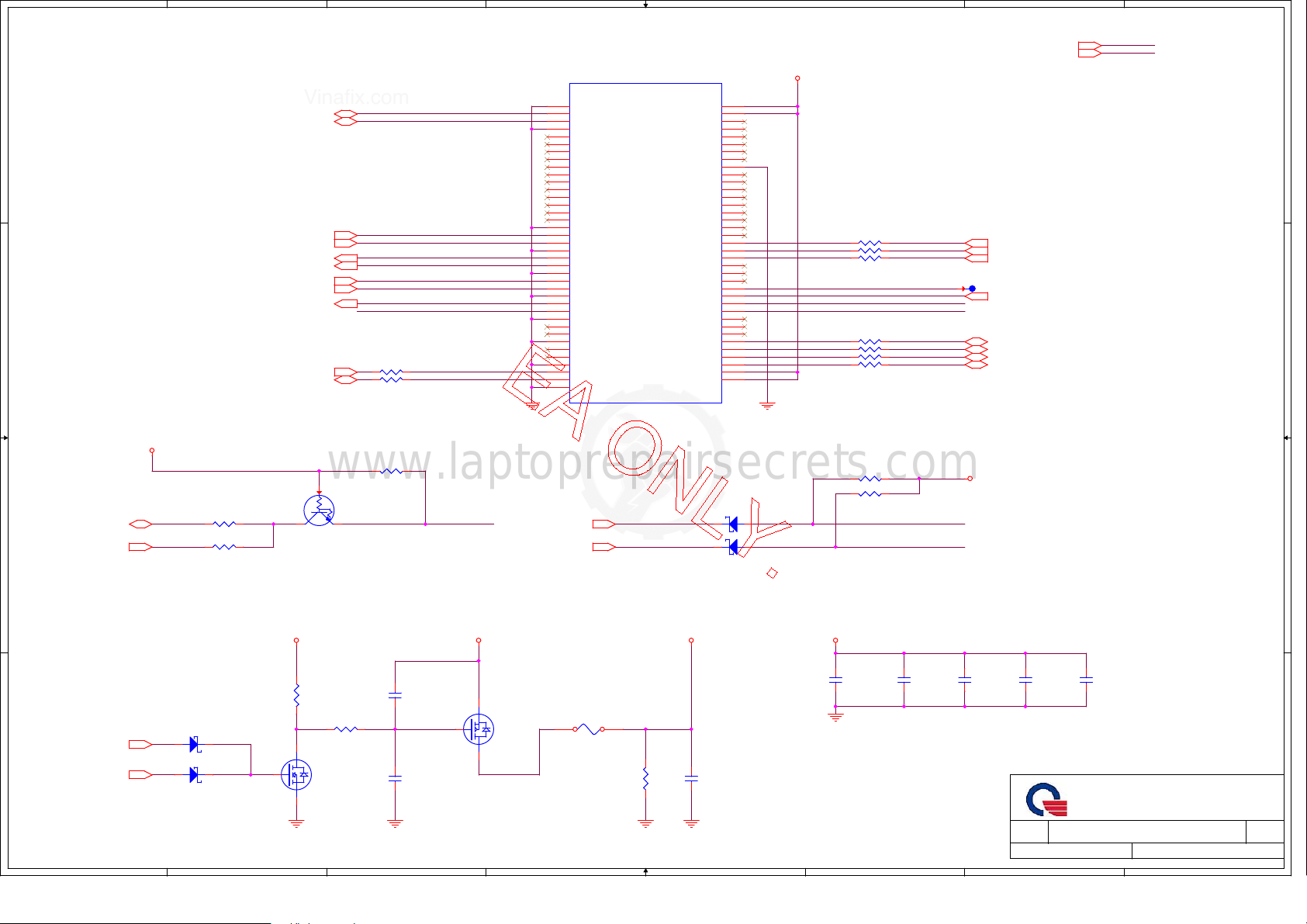

NGFF WiFi/BT connector
M.2 2230
CN8
1
A A
B B
+3.3V_NGFF_WLAN
+3.3V_NGFF_WLAN
LTC044EUBFS8TL
PCIE_WAKE#4
C C
SIO_WAKE_SCI#29
R136 *0_4
R137 *0_4_S
USBP7+12
USBP7-12
PCIE_TXP4_WLAN12
PCIE_TXN4_WLAN12
PCIE_RXP4_WLAN12
PCIE_RXN4_WLAN12
CLK_PCIE_WLANP13
CLK_PCIE_WLANN13
PCIE_CLKREQ_WLAN#13
DEBUG_LCLKOUT10
LPC_LFRAME#10,29
R63 10K_4
2
Q7
13
MINICARD_PME#
DEBUG_LCLKOUT_L
R156*0_4_S
R62*0_4_S
MINICARD_PME#
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75
WLAN_OFF#12
BT_RADIO_DIS#14
NGFF
GND
Slot-A SD
USB_D+
USB_DGND
SDIO CLK(O)(0/1.8V)
SDIO CMD(IO)(0/1.8V)
SDIO DAT0(IO)(0/1.8V)
SDIO DAT1(IO)(0/1.8V)
SDIO DAT2(IO)(0/1.8V)
SDIO DAT3(IO)(0/1.8V)
SDIO Wake(I)(0/1.8V)
SDIO Reset(O)(0/1.8V)
Key
Key
Key
Key
GND
PETp0
PETn0
GND
PERp0
PERn0
GND
REFCLKP0
REFCLKN0
GND
CLKREQ0#(0/3.3V)
PEWake0#(0/3.3V)
GND
Reserved/PETp1
Reserved/PETn1
GND
Reserved/PERp1
Reserved/PERn1
GND
RESERVED
RESERVED
GND
3.3Vaux
3.3Vaux
LED#1 (OD)
PCM_CLK (0/1.8V)
PCM_SYNC (0/1.8V)
PCM_IN (0/1.8V)
PCM_OUT (0/1.8V)
LED#2 (OD)
UART Wake(0/3.3V)
UART Rx (0/1.8V)
UART Tx (0/1.8V)
UART CTS (0/1.8V)
UART RTS (0/1.8V)
RESERVED
RESERVED
RESERVED
COEX3(?)(0/1.8V)
COEX2(?)(0/1.8V)
COEX1(?)(0/1.8V)
SUSCLK(32kHz)(0/3.3V)
PERST0#(0/3.3V)
W_Disable#2(0/3.3V)
W_Disable#1(0/3.3V)
I2C DATA(0/3.3)
I2C CLK(0/3.3)
ALERT(0/3.3)
RESERVED
RESERVED
RESERVED
RESERVED
3.3Vaux
3.3Vaux
WiFi/BT_NGFF CONN
GND
Key
Key
Key
Key
D6 DB2J40600L
D8
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
DB2J40600L
+3.3V_NGFF_WLAN
R133 *0_4_S
R134 *0_4_S
R135 *0_4_S
R66 *0_4_S
R67 *0_4_S
R68 *0_4_S
R69 *0_4_S
R65 10K_4
R64 10K_4
WLANSUSCLK
PLTRST#
BT_OFF_R#
WLAN_OFF_R#
WLAN_OFF_R#
BT_OFF_R#
TP7
+3.3V_NGFF_WLAN
+3VS54,10,12,15,16,19,21,23,28,31,32,36,38,41,47,48,49,51
+3VPCU13,19,22,32,33,38,40,41,52
CL_RST# 10
CL_DATA 10
CL_CLK 10
PLTRST# 4,21,23,24,29,30
LPC_LAD0 10,29
LPC_LAD1 10,29
LPC_LAD2 10,29
LPC_LAD3 10,29
25
+3.3V_NGFF_WLAN
F2FUSE 2A
R61
+3.3V_NGFF_WLAN
C126
0.1U/16V_4
5
+3VPCU +3VS5
R383
10K_4
SLP_WLAN#4
D D
EC_WLAN_EN29
1
D5 DB2J40600L
D3 *DB2J40600L
2
2
3
1
R384 200K_4
T2N7002BK
Q5
C411
*0.022U/25V_4
C410
0.022U/25V_4
3
1
2
3
Q17
AO3413
+3.3V_ NGFF_WLAN
Max Current : 1000mA
*100K/F_4
4
Place caps close to connector.
C128
0.1U/16V_4
6
C127
0.047U/10V_4
C124
0.1U/16V_4
C131
0.047U/10V_4
Date:
Monday, November 09, 2015 25 57
Date:
Monday, November 09, 2015 25 57
Date:
Monday, November 09, 2015 25 57
7
C121
4.7U/6.3V_6
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Wifi/BT NGFF
Wifi/BT NGFF
Wifi/BT NGFF
Sheet
Sheet
Sheet
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
8

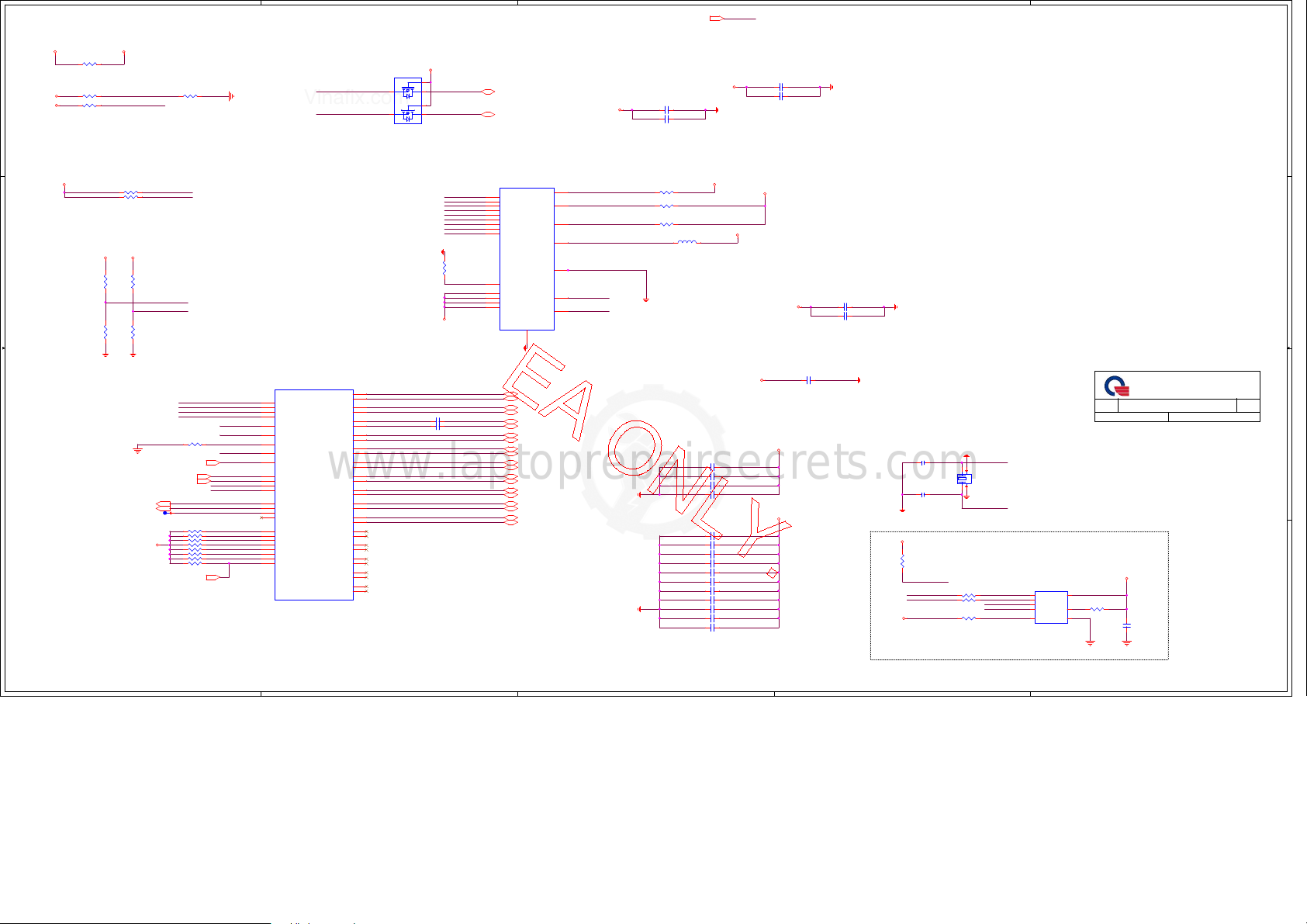

Page 26
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
+5VS54,19,27,28,32,33,35,37,38,41,42,45,46,47,48,49,51
2
1
+5VS5 +5VS5HUB
R543 0_6
D D
C C
+5VS5HUB
+3V_HUB
R544 4.7K_4
R546 10K_4
+3V_HUB
R788 10K_4
R789 10K_4
+5VS5 +5VS5
R557
100K_4
R559
200K/F_4
HUB_BPWR_DET
HUB_SPWR_DET
R558
100K_4
R560
200K/F_4
R545 10K_4
OCP3
OCP4
DP1_PWR
DP2_PWR
The SMBus slave address of RTS 5412 is default set to be 1101 010b
+3V_HUB
Q46
5
HUBGPIO1
HUBGPIO0
EC-SIT-01
4 3
1
2N7002KDW
R803
*0_4_S
AV12_1
AV12_2
AV12_3
AV12_4
AV12_5
AV12_6
AV12_7
AV12_8
DV12_1
MBDATA_THRM 10,29,30
MBCLK_THRM 10,29,30
U52B RTS5411
70
AV12
64
AV12
58
AV12
31
AV12
25
AV12
19
AV12
13
AV12
7
AV12
3
DV12
61
Gang_UpGND
73
DV33
48
DV33
22
DV33
4
DV33
2
6
+3V_HUB
AV33HP0
V33_OUT
V5_IN_SWR
SWR_OUT
HG5V_SWR
DV12/VO12/VO15
E_PAD
77
55
54
5V to 3.3V LDO input
53
V5_IN
52
51
50
49
HUBOUT_3V3
3.3V output
HUBOUT_3V3
V5_IN_HUB
V5_SWR_HUB
DV12_2
DV12_3
DV12_2_LX
C533 0.1U/16V_4
C532 4.7U/6.3V_4X
R811 *0_6_S
R813 *0_6_S
R812 *0_6_S
L20 4.7uh_C_1A
V5_IN_HUB
+3V_HUB
+1.2V_HUB
C535 0.1U/16V_4
C534 10U/6.3V_4
+5VS5HUB
V5_SWR_HUB
C531 0.1U/16V_4
C530 10U/6.3V_4
26
Close to pin 52
+3V_HUB
+1.2V_HUB
C540 10U/6.3V_4
Close to U37
18P/50V/_4C 543
18P/50V/_4C 544
+3V_HUB
R659
10K_4
HUB_SPI_CS_N
HUB_SPI_CS_N HUB_SPI_CS_N_C
R655 0_4
HUB_SPI_SCK
R656 0_4
+3V_HUB
R658 10K_4
31
2 4
HUB_XTLO
Y4
12MHZ_+20PPM
HUB_XTLI
HUB_SPI_SCK_C
HUB_SPI_MOSI
HUB_SPI_MISO
EC-SIT-29
U45
1
CE#
6
SCK
5
SI
2
SO
3
WP#
W25X10CLSNIG
HOLD#
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
USB HUB
USB HUB
USB HUB
Sheet
Sheet
C615
0.1U/16V_4
Sheet
Date:
Date:
Date:
+3V_HUB
8
VDD
7
R657 10K_4
4
VSS
RevSize
RevSize
RevSize
1ACustom
1ACustom
1ACustom
of
of
of
26 57Monday, November 09, 2015
26 57Monday, November 09, 2015
26 57Monday, November 09, 2015
HUB_SPI_MISO
HUB_SPI_MOSI
HUB_SPI_SCK
HUB_SPI_CS_N
B B
A A
DP1_PWR27
DP2_PWR27
+3V_HUB
TP50
R792 6.2K/F_6
HUB_BPWR_DET29
USBHUB_OC1#27
USBHUB_OC2#27
R551 10K_4
R552 10K_4
R553 *4.7K_4
R554 *4.7K_4
R810 *4.7K_4
R809 *4.7K_4
R808 *4.7K_4
R807 *4.7K_4
HUBGPIO729
HUB_SPWR_DET
HUB_BPWR_DET
USBHUB_OC1#
USBHUB_OC2#
HUB_XTLI
HUB_XTLO
HUB_RREF
DP1_PWR
DP2_PWR
DP3_PWR
HUBGPIO0
HUBGPIO1
HUBGPIO2
HUBGPIO3
HUBGPIO4
HUBGPIO5
HUBGPIO6
HUBGPIO7
MISO
47
MOSI
44
SCK
45
SCS
74
XTLI
75
XTLO
1
RREF
76
SPWR_DET
2
BPWR_DET
67
OCP1
10
OCP2
16
OCP3
OCP3
28
OCP4
OCP4
40
DSP1_PWR
41
DSP2_PWR
42
DSP3_PWR
43
DSP4_PWR
32
GPIO0
33
GPIO1
34
GPIO2
35
GPIO3
36
GPIO4
37
GPIO5
38
GPIO6
39
GPIO7
U52A RTS5411
46
USP_DP
USP_DM
USP_SSRX+
USP_SSRXUSP_SSTX+
USP_SSTX-
DSP1_DP
DSP1_DM
DSP1_SSRX+
DSP1_SSRX-
DSP1_SSTX+
DSP1_SSTX-
DSP2_DP
DSP2_DM
DSP2_SSRX+
DSP2_SSRX-
DSP2_SSTX+
DSP2_SSTX-
DSP3_DP
DSP3_DM
DSP3_SSRX+
DSP3_SSRX-
DSP3_SSTX+
DSP3_SSTX-
DSP4_DP
DSP4_DM
DSP4_SSRX+
DSP4_SSRX-
DSP4_SSTX+
DSP4_SSTX-
56
57
63
62
60
59
71
72
68
69
65
66
5
6
11
12
8
9
20
21
17
18
14
15
23
24
29
30
26
27
USB30_TX3+
USB30_TX3-
USB30_RX3+_HUB
USB30_RX3-_HUB
USBP4+
USBP4-
C536 0.1U/16V_4
C537 0.1U/16V_4
USB30_RX3+
USB30_RX3-
USBP2+ 12
USBP2- 12
USB30_TX3+ 12
USB30_TX3- 12
USB30_RX3+ 12
USB30_RX3- 12
DSP1_DP 27
DSP1_DM 27
DSP1_SSRX+ 27
DSP1_SSRX- 27
DSP1_SSTX+ 27
DSP1_SSTX- 27
DSP2_DP 27
DSP2_DM 27
DSP2_SSRX+ 27
DSP2_SSRX- 27
DSP2_SSTX+ 27
DSP2_SSTX- 27
USBP4+ 31
USBP4- 31
FROM SOC
Cardreader
Close to U37.4/ 14/35/53
Close to each p in
+1.2V_HUB
C5450.1U/16V_4
C5470.1U/16V_4
C5490.1U/16V_4
C5510.1U/16V_4
AV12_1
C5460.1U/16V_4
AV12_2
C5480.1U/16V_4
AV12_3
C5500.1U/16V_4
AV12_4
C5520.1U/16V_4
AV12_5
C5530.1U/16V_4
AV12_6
C5540.1U/16V_4
AV12_7
C5550.1U/16V_4
DV12_1
C5560.1U/16V_4
AV12_8
C5570.1U/16V_4
DV12_2
C97490.1U/16V_4
DV12_3
C97500.1U/16V_4
5
4
3
2
1
EC-DV-02

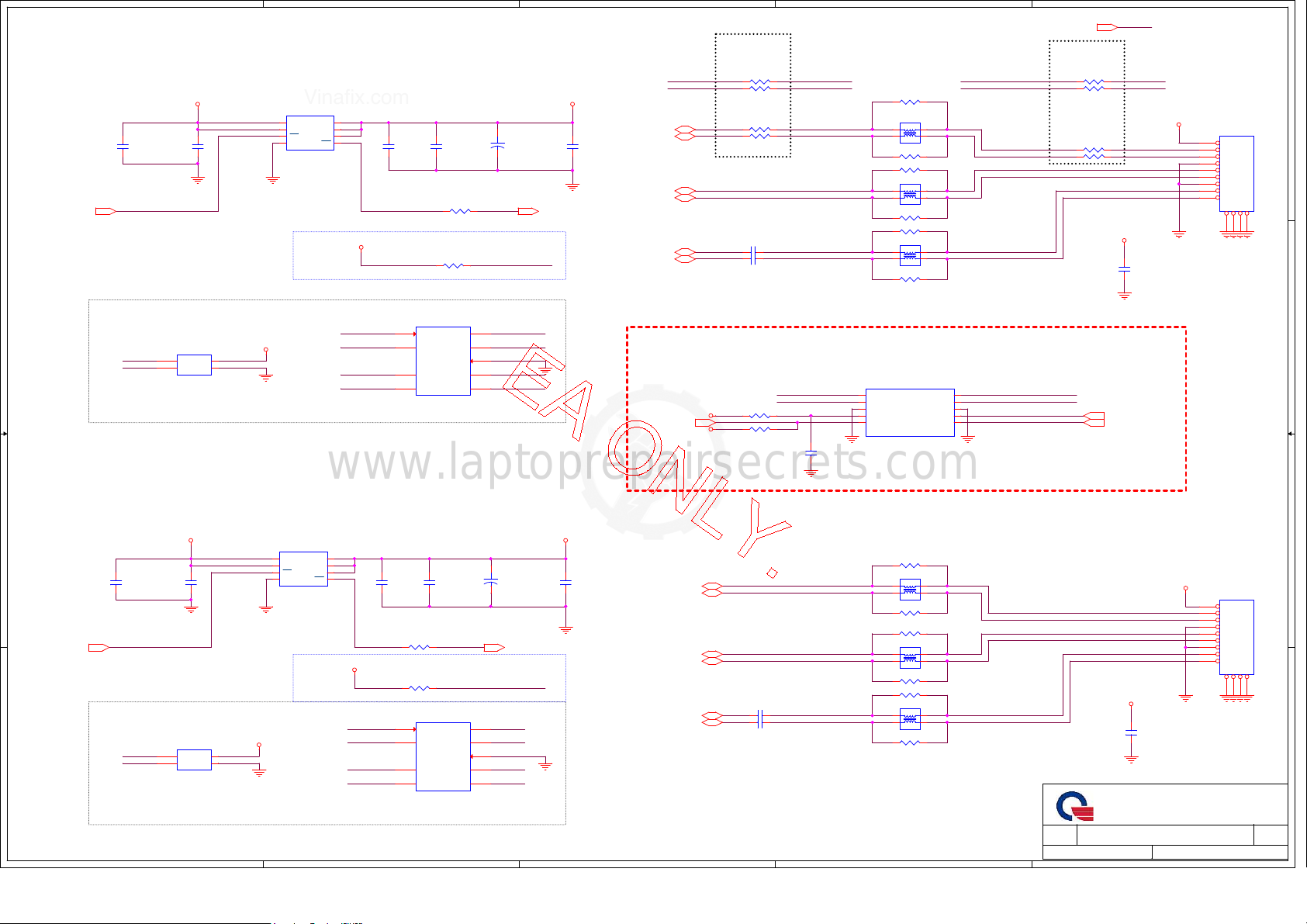

Page 27
Vinafix.com
A
www.laptoprepairsecrets.com
USB 3.0 Port L-side
+5VS5 USB3PWR_0
D D
C384
RCLAMP0521PATCT R446 *0_4
DP1_PWR26
C388
1U/10V/X7R_6
LOW ACTIVE
U33
2
VIN1
3
VIN2
4
EN
1
GND
G547F2P81U
OUT3
OUT2
OUT1
8
7
6
5
OC
60 mils (Iout=1.5A)
+5VS5
B
C486
0.1U/16V_4
C496
0.1U/16V_4
R314 *0_4_S
EC-A-02
R555 100K_4
C482
+
150U/6.3V/ESR25_3528
USBHUB_OC1#
C468
0.1U/16V_4
USBHUB_OC1# 26
C
3 pad design 3 pad design
DSP1_DM
DSP1_DP
DSP1_DM26
DSP1_DP26
DSP1_SSRX-26
DSP1_SSRX+26
DSP1_SSTX-26
DSP1_SSTX+26
R436 *0_4
R444 *0_4
R437 0_4
R445 0_4
C326 0.1U/16V_4
C332 0.1U/16V_4
USBP5-_D
USBP5+_D
USBP5-_R
USBP5+_R
USB30_TX4-_M
USB30_TX4+_M
D
R438 *0_4
CML9
4 3
1
DLW21SN121SQ2L
R253 0_4
*DLW21SN121SQ2L
1
4 3
CML2
R258 0_4
R270 0_4
*DLW21SN121SQ2L
1
4 3
CML4
R284 0_4
E
+5VS54,19,26,28,32,33,35,37,38,41,42,45,46,47,48,49,51
27
USBP5+_DL
USBP5-_DL
2
2
2
USBP5-_C
USBP5+_C
USB30_RX4-_C
USB30_RX4+_C
USB30_TX4-_C
USB30_TX4+_C
R260 *0_4
R254 *0_4
R255 0_4
R261 0_4
USB3PWR_0
USBP5+_CR
USBP5-_CR
USBP5-_CR
USBP5+_CR
EC6026
*TVS
USB3.0 PORT0
USB3PWR_0
CN13
1
VBUS
1
2
D-
2
3
D+
3
4
4
GND
5
SSRX-
5
6
6
SSRX+
7
7
GND
8
8
SSTX-
9
SSTX+
9
13
CONN_USB3.0
11111010121213
Close to connector
C C
U31
2
USBP5-_CR
USBP5+_CR
IO1
3
IO2
CM1224-02SR
GND
VIN
USB3PWR_0
4
1
USB30_RX4-_C
USB30_RX4+_C
USB30_TX4-_C USB30_TX4-_C
USB30_TX4+_C
For ESD
U14
6
NC
7
NC
9
NC
10
NC
5
CH4
4
CH3
3
GND
2
CH2
1
CH1
ESD8004MUTAG
USB30_RX4-_C
USB30_RX4+_C
USB30_TX4+_C
UART for DEBUG
USBP5-_D
GPP_A1614
+3V
R271 *10K_4
R278 *0_4_S
+3V
USBP5+_D
C323
*0.1U/16V_4
HSD2-
7
HSD2+
8
OE
9
VCC
10
SEL
*FSUSB42UMX
U13
6
GND
HSD-
HSD+
1
D+
D-
USBP5+_DL
2
USBP5-_DL
3
4
UART2_RXD
5
UART2_TXD
UART2_RXD 14
UART2_TXD 14
USB 3.0 Port R-side
B B
RCLAMP0521PATCT
DP2_PWR26
C346
LOW ACTIVE
A A
USBP2+_C
USBP2-_C
+5VS5 USB3PWR_1
C345
1U/10V/X7R_6
U35
VIN
IO1
GND
IO2
CM1224-02SR
4
1
2
3
A
USB3PWR_1
U36
2
VIN1
3
VIN2
4
EN
1
GND
G547F2P81U
For ESD
60 mils (Iout=1.5A)
8
OUT3
7
OUT2
6
OUT1
5
OC
+5VS5
C520
0.1U/16V_4
R357 *0_4_S
C522
0.1U/16V_4
EC-A-02
R561 100K_4
U19
USB30_RX3-_C
USB30_RX3+_C
USB30_TX3-_C USB30_TX3-_C
USB30_TX3+_C
6
NC
7
NC
9
NC
10
NC
B
5
CH4
4
CH3
3
GND
2
CH2
1
CH1
ESD8004MUTAG
C529
+
150U/6.3V/ESR25_3528
USBHUB_OC2# 26
USBHUB_OC2#
USB30_RX3-_C
USB30_RX3+_C
USB30_TX3+_C
C525
0.1U/16V_4
USB3.0 PORT1
R523 *0_4
DLW21SN121SQ2L
1
DSP2_DM26
DSP2_DP26
DSP2_SSRX-26
DSP2_SSRX+26
DSP2_SSTX-26
DSP2_SSTX+26
C368 0.1U/16V_4
C367 0.1U/16V_4
USB30_TX3-_M
USB30_TX3+_M
4 3
CML12
R524 *0_4
R346 0_4
*DLW21SN121SQ2L
1
4 3
CML7
R345 0_4
R344 0_4
*DLW21SN121SQ2L
1
4 3
CML6
R343 0_4
2
USBP2-_C
USBP2+_C
USB30_RX3-_C
2
2
USB30_RX3+_C
USB30_TX3-_C
USB30_TX3+_C
USB3PWR_1
EC6027
*TVS
USB3PWR_1
CN17
1
VBUS
1
2
D-
2
3
D+
3
4
4
GND
5
SSRX-
5
6
6
SSRX+
7
7
GND
8
8
SSTX-
9
SSTX+
9
13
CONN_USB3.0
11111010121213
Close to connector
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Date:
Date:
C
D
Date:
USB2.0/USB3.0
USB2.0/USB3.0
USB2.0/USB3.0
Sheet
Sheet
Sheet
E
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
27 57Monday, November 09, 2015
27 57Monday, November 09, 2015
27 57Monday, November 09, 2015

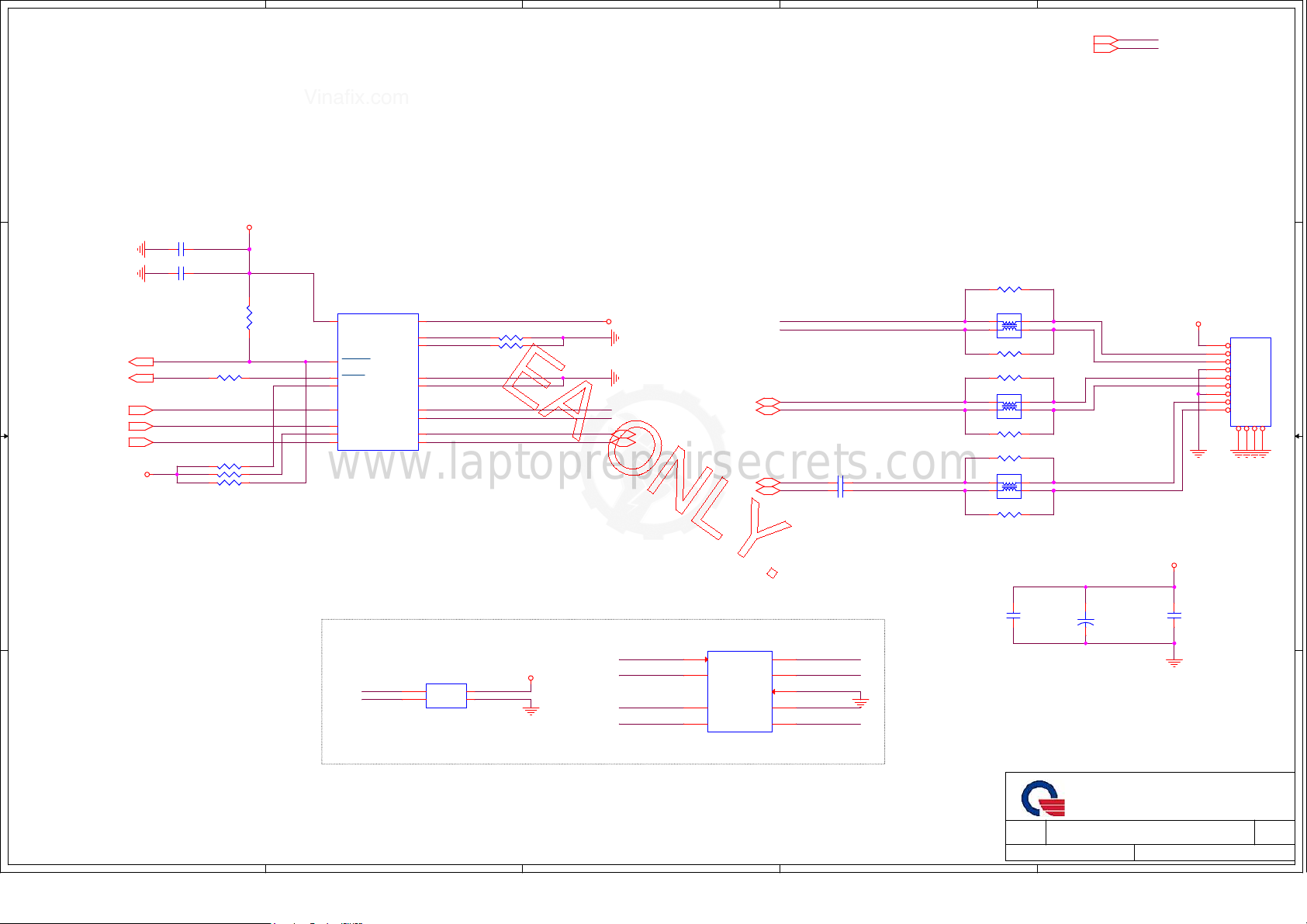

Page 28
Vinafix.com
A
www.laptoprepairsecrets.com
USB 3.0 Port (AOU5)
D D
+5VS5
C352 4.7U/10V/X5R_6
C350 0.1U/16V_4
R285 *10K_4
C C
USB_STATUS#29
USB_OC2#12
USBCHR_ON29
USB_CTL129
USB_CTL329
R832 100K/F_4
+3VS5
R295 10K_4
R286 10K_4
IC current limit is 1.6A
U16
1
IN
9
STATUS
13
FAULT
4
ILIM_SEL
5
EN
6
CTL1
7
CTL2
CTL38DP_OUT
TPS2546RTER
B
OUT
ILIM_LO
ILIM_HI
PAD
GND
DM_IN
DP_IN
DM_OUT
80 mils (Iout=1.6A)
12
15
16
17
14
11
10
2
3
C
D
+5VS54,19,26,27,32,33,35,37,38,41,42,45,46,47,48,49,51
+3VS54,10,12,15,16,19,21,23,25,31,32,36,38,41,47,48,49,51
E
28
R454 *0_4
DLW21SN121SQ2L
1
BUSBP1BUSBP1+
USB30_AOU_T2USB30_AOU_T2+
R453 *0_4
R306 0_4R296 *0_4_S
*DLW21SN121SQ2L
R307 0_4
R268 0_4
*DLW21SN121SQ2L
R257 0_4
BUSBP1BUSBP1+
USB0PWR
USBP1- 12
USBP1+ 12
USB30_RX2-_AOU12
USB30_RX2+_AOU12
USB30_TX2-_AOU12
USB30_TX2+_AOU12
C322 0.1U/16V_4
C315 0.1U/16V_4
R3012M/F_4
R30933K/F_4
4 3
CML10
1
4 3
CML5
1
4 3
CML3
2
2
2
USB3.0 ( with AOU5)
USB0PWR
1
BUSBP1-_C
BUSBP1+_C
USB30_RX2-_AOU_C
USB30_RX2+_AOU_C
USB30_TX2-_C
USB30_TX2+_C
2
3
4
5
6
7
8
9
CN22
VBUS
1
D-
2
D+
3
4
GND
SSRX-
5
6
SSRX+
7
GND
8
SSTXSSTX+
9
11111010121213
13
USB3.0 CONN
B B
C303
Date:
Date:
Date:
0.1U/16V_4
For ESD
U29
B
2
IO1
3
IO2
CM1224-02SR
GND
VIN
BUSBP1-_C
BUSBP1+_C
A A
A
USB0PWR
4
1
USB30_RX2-_AOU_C
USB30_RX2+_AOU_C
USB30_TX2-_C USB30_TX2-_C
USB30_TX2+_C
C
U15
6
NC
7
NC
9
NC
10
NC
5
CH4
4
CH3
3
GND
2
CH2
1
CH1
ESD8004MUTAG
USB30_RX2-_AOU_C
USB30_RX2+_AOU_C
USB30_TX2+_C
D
+
C462
150U/6.3V/ESR25_3528
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
USB0PWR
C292
0.1U/16V_4
USB2.0/USB3.0
USB2.0/USB3.0
USB2.0/USB3.0
Sheet
Sheet
Sheet
E
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
28 57Monday, November 09, 2015
28 57Monday, November 09, 2015
28 57Monday, November 09, 2015

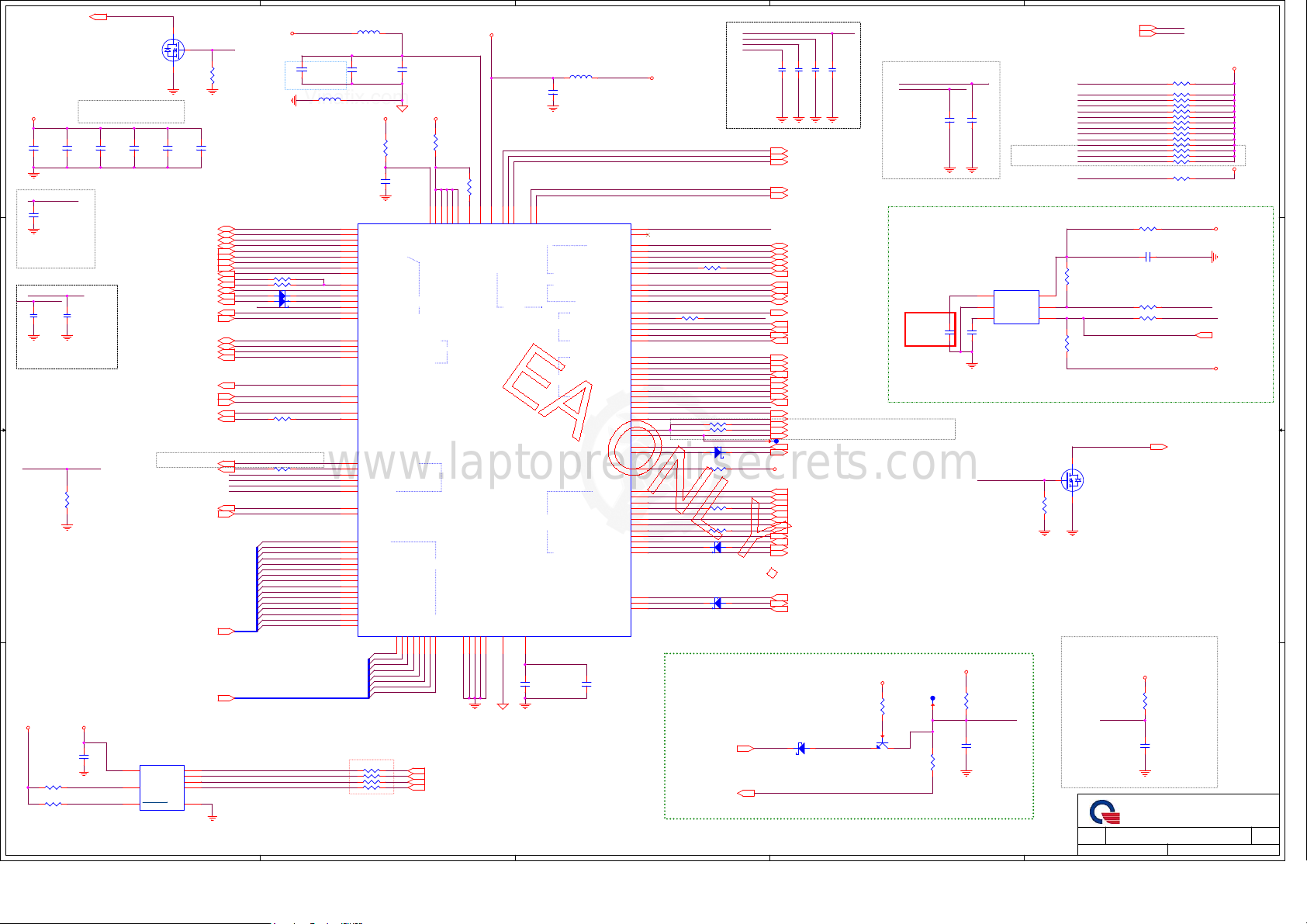

Page 29
Vinafix.com
C330
www.laptoprepairsecrets.com
0.1U/16V_4
5
T2N7002BK
C312
0.1U/16V_4
3
Q56
1
C311
0.1U/16V_4
PLTRST#4,21,23,24,25,30
EC_LPCCLK10
LPC_LFRAME#10,25
HDD_DETECT#24
EC_IRQ_SERIRQ10
SIO_EXT_SMI#10
SIO_EXT_SCI#14
CCG_I2C_SDA34,35
DOCK_PWRON#33
SLP_A#4,16
EC-FVT-03
SUSON_DDR2546,51
PD_VBUS_C_CTRL_EC52
2
HUB_BPWR_DET_L
LPC_LAD010,25
LPC_LAD110,25
LPC_LAD210,25
LPC_LAD310,25
CLKRUN#10
HUBGPIO726
SYS_PWROK4
ADAPTER_ID52
SUSC#4,16
CCG_I2C_SCL34,35
EC_PWROK4,22,30
PAD_RESET#31
RSMRST#4,16
ACAV_IN40
NB_MUTE#22
HOTKEY31
MY[0..15]31
MX[0..7]31
C333
0.1U/16V_4
LID#32
R821
100K_4
VSTBY_FSPI
L16 10_6
For EMI, Close EC. pin74
C528
*100P/50V/NPO_4
L15 FCM1005VF-121T05
R822 *0_4
R497 *0_4
D13 DB2J40600L
D12 DB2J40600L
WRST_8512#
RSMRST#
R518 0_4
R820 *0_4_S
8512_SCE#
8512_SI
8512_SO
8512_SCK
MY0
MY1
MY2
MY3
MY4
MY5
MY6
MY7
MY8
MY9
MY10
MY11
MY12
MY13
MY14
MY15
HUB_BPWR_DET26
C324
0.1U/16V_4
EC_LPCCLK
C310
15P/50V/NPO_4
RSMRST#
LID#
SC14
TVM0G5R5M900R
C316
0.1U/16V_4
SC12
*SURGE SUP
Layout Note:
Place all capacitors close to IT8512.
For ESD
D D
VSTBY_FSPI
EMI suggestion:
Add a 15p bypass
CAP on CLK_PCI_8512
C C
FOR EC auto load code
S5_ON
R530
*100K_4
B B
VSTBY_FSPIVSTBY_FSPI
25mA
A A
C328
*0.1U/16V_4
R473 *10k/ 5%_4
R290 *10k/ 5%_4
EC_SPI_HOLD#
U32
SPI_SI
VCC
SPI_SO
SPI_SCK
WP#
SPI_HOLD7GND
5
2
1
CS#
6
4
8
3
*SPI_FLASH
soic8-8-1_27
AKE37FN0N04
IC FLASH (8P) W25X40CLSSIG (SOIC)
5
8512_SI
8512_SO
8512_SCE#
8512_SCKEC_SPI_WP#
SPI NOR FLASH
4
ITE_AVCC
C526
1000P/16V/X7R_4
10
9
8
7
22
13
6
17
76
126
5
15
23
14
4
16
122
119
123
113
33
109
108
35
107
99
100
101
102
103
105
56
57
36
37
38
39
40
41
42
43
44
45
46
51
52
53
54
55
Auto Load Code
Close to EEPROM
R275 15/F_4
R469 15/F_4
R459 0_4
R272 15/F_4
C527
1U/6.3V_4
VSTBY_FSPI
+3V
+3.3V_RUN_EC
C327
0.1U/16V_4
KSI0/STB#58KSI1/AFD#59KSI2/INIT#60KSI3/SLIN#61KSI462KSI563KSI664KSI7
MX0
MX1
MX2
MX3
MX4
MX5
MX6
MX7
4
R303
*0_6_S
11
VCC(1.8/3.3)
LPC
FSPI
KBMX
65
R259
*0_4_S
LAD0/GPM0(X)
LAD1/GPM1(X)
LAD2/GPM2(X)
LAD3/GPM3(X)
LPCRST#/WUI4/GPD2(Up)
LPCCLK/GPM4(X)
LFRAME#/GPM5(X)
TXD/SOUT0/LPCPD#/GPE6(Dn)
CLKRUN#/GPH0/ID0
GA20/GPB5(X)
SERIRQ/GPM6(X)
ECSMI#/GPD4(Up)
ECSCI#/GPD3(Up)
WRST#
KBRST#/GPB6(X)
RXD/SIN0/PWUREQ#/BBO/SMCLK2ALT/GPC7(Up)
CTX1/SOUT1/SMDAT3/GPH2/ID2
CRX1/SIN1/SMCLK3/GPH1/ID1
CTX0/TMA0/GPB2(Dn)
CRX0/GPC0
GINT/CTS0#/GPD5(Up)
LID_SW#/GPB1
AC_IN#/GPB0
RTS1#/WUI5/GPE5(Dn)
GPE4/BTN#
FDIO3/DSR0#/GPG6
FDIO2/DTR1#/SBUSY/GPG1/ID7
FSCE#
FMOSI
FMISO
FSCK
KSO16/SMOSI/GPC3(Dn)
KSO17/SMISO/GPC5(Dn)
KSO0/PD0
KSO1/PD1
KSO2/PD2
KSO3/PD3
KSO4/PD4
KSO5/PD5
KSO6/PD6
KSO7/PD7
KSO8/ACK#
KSO9/BUSY
KSO10/PE
KSO11/ERR#
KSO12/SLCT
KSO13
KSO14
KSO15
ITE_VSTBY
ITE_VSTBY
R528
*0_4_S
106
114
127
121
74
84
AVCC
VSTBY26VSTBY50VSTBY92VSTBY
VSTBY
VSTBY(PLL)
VHSPI (1.8V/3.3V)
GPIO
ITE8886H
CIR
EXTERNAL SERIAL FLASH
SPI ENABLE
VSS
VSS
VSS27VSS
AVSS
VSS
1
49
75
91
104
PCH_SPI1_SI_R 10
PCH_SPI1_SO_R 10
PCH_SPI_CS0#_R 10
PCH_SPI1_CLK_R 10
82
EGCS#/GPE2(Dn)83EGCLK/GPE3(Dn)
19
EGAD/GPE1(Dn)
VCORE
12
20
L80LLAT/GPE7(Up)
L80HLAT/BAO/GPE0(Dn)
A/D D/A
C319
*1U/6.3V/X5R_4
L2 FC M1005VF-121T05
C329
(For PLL Power)
0.1U/16V_4
U34
IT8886HE
PWRSW/GPB3
XLP_OUT/GPB4
SMCLK0/GPF2
SMDAT0/GPF3
SM BUS
SMCLK1/GPC1(X)
SMDAT1/GPC2(X)
SMCLK2/PECI/GPF6(Up)
SMDAT2/PECIRQT#/GPF7(Up)
PS2CLK0/TMB0/CEC/GPF0(Up)
PS2DAT0/TMB1/GPF1(Up)
PS/2
PS2CLK2/GPF4(Up)
PS2DAT2/GPF5(Up)
HMOSI/GPH6/ID6
TACH2/HDIO2/GPJ0
HSPI
HDIO3/GPJ1
HSCE#/GPH3/ID3(Dn)
HSCK/GPH4/ID4(Dn)
HMISO/GPH5/ID5(Dn)
PWM0/GPA0(Up)
PWM1/GPA1(Up)
PWM2/GPA2(Up)
PWM3/GPA3(Up)
PWM
PWM4/GPA4(Up)
PWM5/GPA5(Up)
PWM6/SSCK/GPA6(Up)
PWM7/RIG1#/GPA7(Up)
TACH0A/GPD6(Dn)
TACH1A/TMA1/GPD7(Dn)
TMRI0/GPC4(Dn)
TMRI1/GPC6(Dn)
SSCE1#/GPG0
SSCE0#/GPG2
RI1#/GPD0(Up)
RI2#/GPD1(Up)
ADC0/GPI0(X)
ADC1/GPI1(X)
ADC2/GPI2(X)
ADC3/GPI3(X)
ADC4/GPI4(X)
ADC5/DCD1#/W UI29/GPI5(X)
ADC6/DSR1#/WUI30/ GPI6(X)
ADC7/CTS1#/WUI31/GPI7(X)
DAC2/TACH0B/GPJ2(X)
DAC3/TACH1B/GPJ3(X)
DAC4/DCD0#/GPJ4(X)
DAC5/RIG0#/GPJ5(X)
CLOCK
C318
0.1U/16V_4
VSTBY0
GPJ7
GPH7
GPJ6
3
110
111
87
88
115
116
117
118
85
86
89
90
93
94
95
96
97
98
24
25
28
29
30
31
32
34
47
48
120
124
125
77
18
21
112
66
67
68
69
70
71
72
73
78
79
80
81
2
3
128
3
VSTBY_FSPI
For ESD
SW_TYPEC_DOCK
SUSON
NBSWON#_R
SMBCLK0
SMBDAT0
MBCLK_THRM
MBDATA_THRM
EC_PECI_L
R502 43_4
HUB_BPWR_DET_L
R8240_4
H_PROCHOT_EC
R759 *0_4
R758 *0_4
S5_ON
D11
DB2J40600L
R298 *0_4_S
R356 *0_4_S
R342 *0_4_S
DNBSWON#_R
D25 DB2J40600L
D14 DB2J40600L
Thermal reset function
PM_THRMTRIP#2
SYS_SHDN#30,50
ACDC_ID
MBCLK_THRM
MBDATA_THRM
WRST_8512#
SC3*SURGE SUP
EC_RTC_RST 13
SW_TYPEC_DOCK 34
EC_LID# 19
BATLED_AMBER_LED_EC 32
SUSON 46,51
SMBCLK0 40
SMBDAT0 40
MBCLK_THRM 10,26,30
MBDATA_THRM 10,26,30
DOCK_ATTACHED_3VPCU# 52
CCG1_I2C_INT# 35
HWPG 4,16,21,46,49
TP_PS2_CLK 31
TP_PS2_DAT 31
TRACK_POINT_RESET# 31
LOGO_LED# 32
VRON 42
FAN_PWM_R 30
S5_PWR_PG 38,41,47,49
MAINON 46,48,49,51
BEEP 22
SIO_WAKE_SCI# 25
FANSIG_R 30
EC_WLAN_EN 25
IMVP_PWRGD 42
TYPEC_OUT_1-5A 37
TYPEC1_CCG1_VBUS_P_CTRL_EC 37
TP39
VSTBY_FSPI
ACDC_ID_DOCK 33,52
ACDC_ID 52
AD_ID 40
DOCK_DETECT1 33
DOCK_DETECT2 33
BATLED_GREEN_LED_EC 32
TEMP_MBAT 40
DNBSWON# 4,16
AC_PRESENT_EC 4
EC_RCIN# 10
PAD_DETECT# 31
D23 *D B2J40600L
SC4*SURGE SUP
SC5*SURGE SUP
SC17*220P/50V/X7R_4
EC_PECI 2
USB_STATUS# 28
USBCHR_ON 28
USB_CTL1 28
USB_CTL3 28
PM_BATLOW_N_EC 4
S5_ON 41,47,49,51
SUSB# 4,16
EN_OVERRIDE 11
MBATV 40
FAN_ID 30
System_AC_IN 52
DOCK_ATTACHED_3V# 33
*MMBT3904-7-F
R819
*4.7K_4
2
For ESD
SMBCLK0
SMBDAT0
EC Reset (reserve)
C365
*0.1U/16V_4
Delay time(ms)=88000 x CMR(uF)
EC-FVT-08
+3V
1 3
Q33
TP26
2
R818
0_4
2
SC16RCLAMP0521PATCT
VSTBY_FSPI
SC15RCLAMP0521PATCT
1
2
3
C366
*0.1U/16V_4
H_PROCHOT_EC
R313
100K_4
C336
1U/6.3V_4
U17
MRDLY
GND
RESET#
CD
*G677L308A31U
EC-SIT-28
EC-FVT-06
6
VCC
5
4
MR#
2
R506
100K_4
HUBGPIO7
HDD_DETECT#
S5_ON
MBCLK_THRM
MBDATA_THRM
SMBCLK0
SMBDAT0
TEMP_MBAT
PAD_RESET#
TRACK_POINT_RESET#
HOTKEY
CCG_I2C_SCL
CCG_I2C_SDA
CCG1_I2C_INT#
HWPG
R322
*10K/F_4
NBSWON#
R328
*10K/F_4
H_PROCHOT#
3
Q30
1
DMN601K-7
Date:
Date:
Date:
1
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,30,31,34,35,36,38,40,42,48
VSTBY_FSPI37,38,52
R823 *10K_4
R229 100K_4
R535 10K_4
R310 4.7K_4
R300 4.7K_4
R533 4.7K_4
R529 4.7K_4
R532 *100K_4
R501 10K_4
R527 *100K_4
R329 10K_4
R662 2.2K_4
R663 2.2K_4
R731 2.2K_4
R531 *10K_4
R318 *22/F_4
C348 *4.7U/6.3V/X5R_4
R321 *0_4
R673 *0_4_S
H_PROCHOT# 2,42
POWER SWITCH
VSTBY_FSPI
R358
NBSWON#_RWRST_8512#
10K_4
C382
0.1U/16V_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
KBC IT8386
KBC IT8386
KBC IT8386
1
Sheet
Sheet
Sheet
29
WRST_8512#
NBSWON#_R
VSTBY_FSPI
+3V
VSTBY_FSPI
NBSWON# 32,33
VSTBY_FSPI
RevSize
RevSize
RevSize
of
of
of
29 57Monday, November 09, 2015
29 57Monday, November 09, 2015
29 57Monday, November 09, 2015
1ACustom
1ACustom
1ACustom

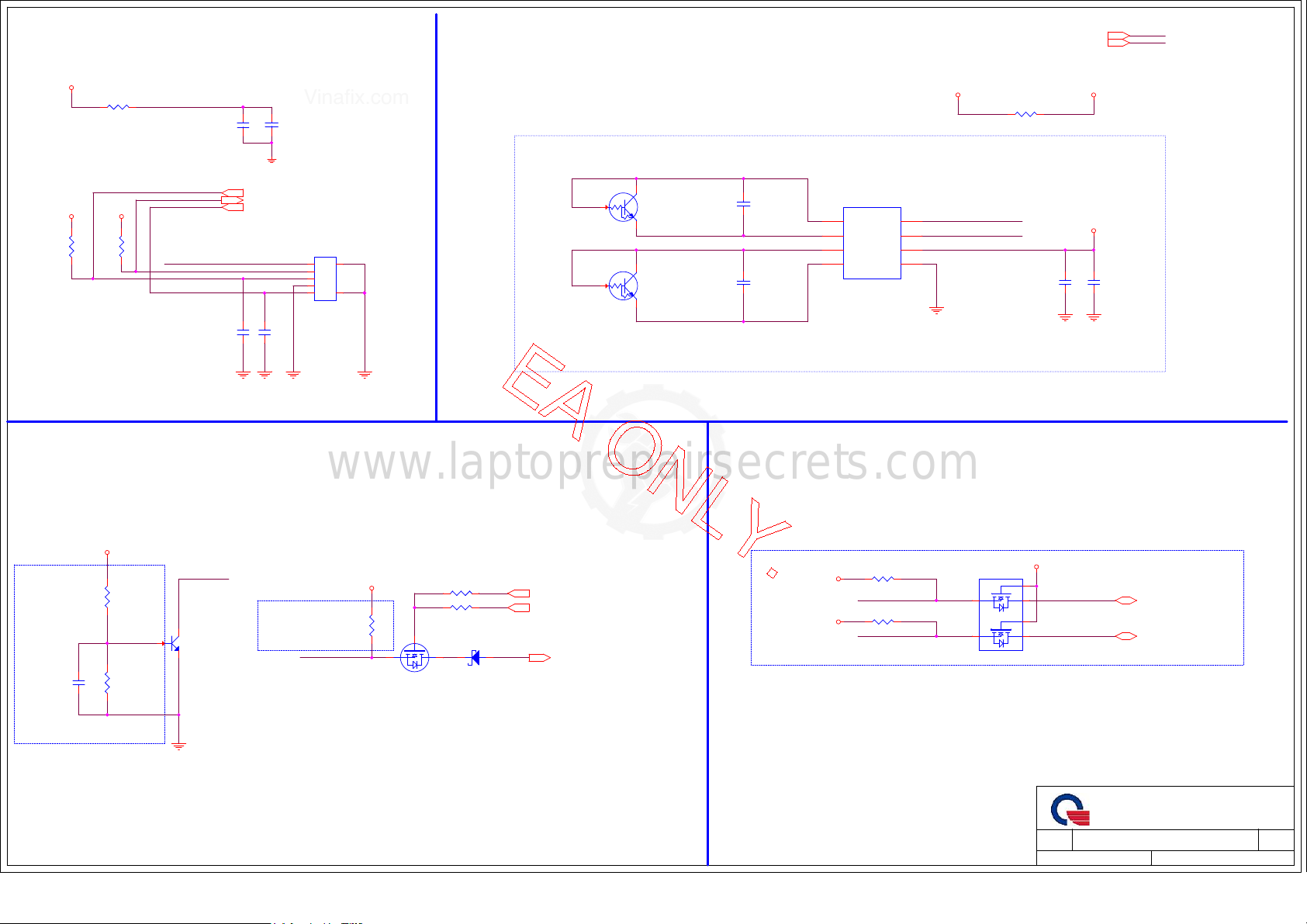

Page 30
Vinafix.com
1
www.laptoprepairsecrets.com
C459
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,29,31,34,35,36,38,40,42,48
+5V20,22,31,33,40,48
+3V_THR
C461
0.1U/16V/X7R_4
30
FAN CONN
+5V
R262 *0_6_S
+3V+3V
R248
10K_4
A A
R249
10K_4
+5V_FAN
1U/10V/X7R_6
+5V_FAN
FAN_ID
FANSIG_R
FAN_PWM_R
C313
C314 *10P/50V/COG_4
C307
0.1U/16V_4
FANSIG_R 29
FAN_ID 29
FAN_PWM_R 29
C309 *UCLAMP0511P.TCT
CN12
1
2
3
4
576
CONN_FAN
Thermal Sensor
Placed near FAN
PMBT3904
Q23
PMBT3904
Q18
Placed near SSD
NOTE:
THS_FAN+
2
1 3
THS_FANTHS_SSD+
2
1 3
THS_SSD-
Place near IC Pin
C202
2200P/50V/X7R_4
C240
2200P/50V/X7R_4
Placed near charger circuit.
U10
1
D1+
SCLK
2
D1-
3
SDA
D2+
VDD
D2-4GND
W83773G
ADDRESS: 98H
+3V +3V_THR
R420 *0_4_S
8
7
6
5
SMB_THRM_CLK
SMB_THRM_DAT
10U/6.3V/X5R_6
CPU PTC circuit
+3V
EC-DV-14
C268
0.1U/16V/X7R_4
1 2
R231
10K_4
R234
470_6_PTC
2
SYS_SHDN-1#
Q9
PMST3904
1 3
(110 degree setting)
SYS_SHDN-1#
R413
18.7K/F_4
+3V
1
2
Q22
DMN601K-7
R412 0_4
R409 *0_4
3
D22 DB2J40600L
EC_PWROK 4,22,29
PLTRST# 4,21,23,24,25,29
SYS_SHDN# 29,50
Placed back of CPU
+3V_THR
+3V_THR
+3V_THR
1
R431 4.7K_4
SMB_THRM_DAT
R433 4.7K_4
SMB_THRM_CLK
Q25
4 3
1
SSM6N48FU
5
MBDATA_THRM 10,26,29
2
6
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Date:
Date:
Date:
Document Number
FAN/Thermal
FAN/Thermal
FAN/Thermal
To EC
MBCLK_THRM 10,26,29
Sheet
Sheet
Sheet
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
30 57Monday, November 09, 2015
30 57Monday, November 09, 2015
30 57Monday, November 09, 2015

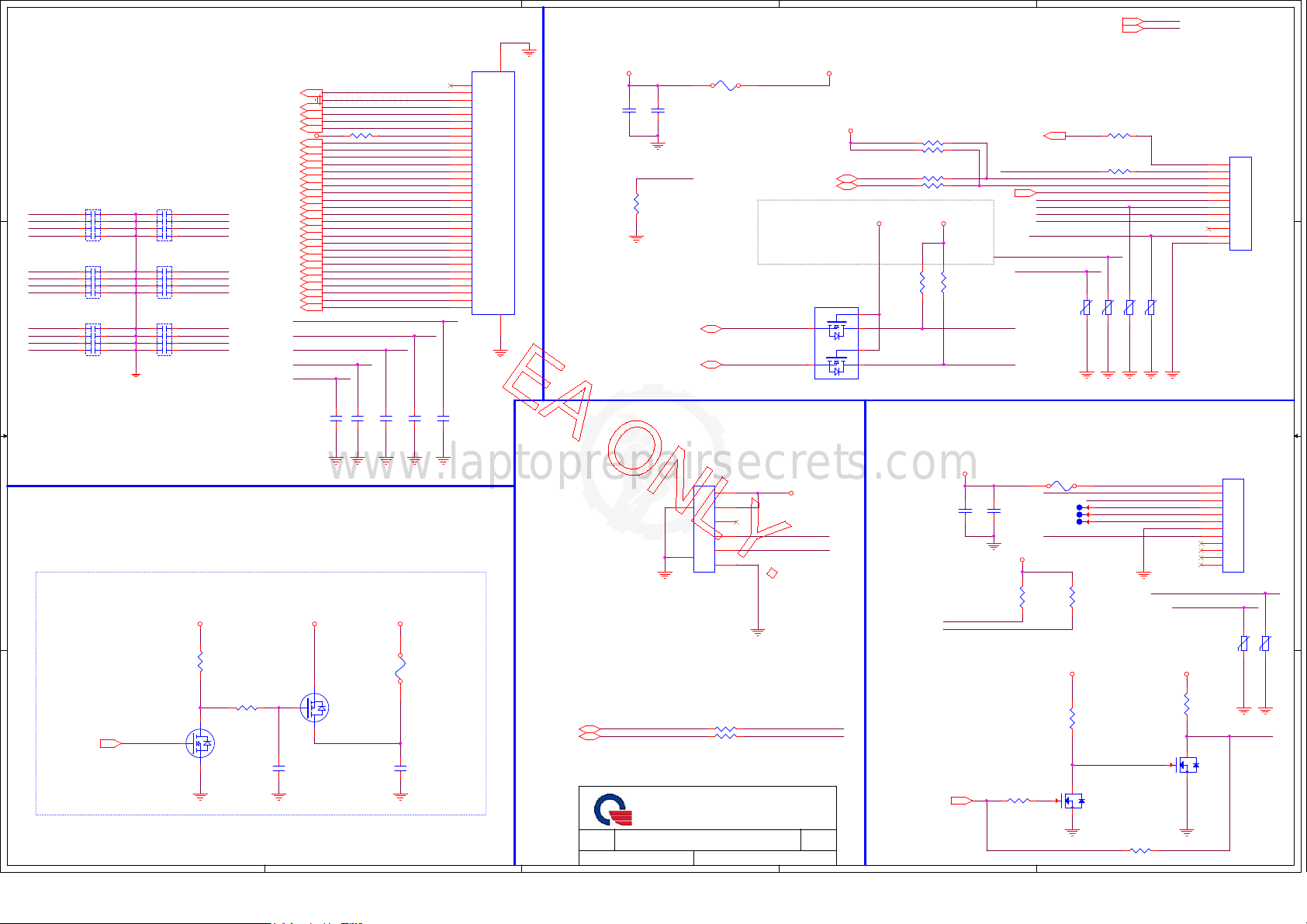

Page 31
Vinafix.com
5
www.laptoprepairsecrets.com
KEYBOARD
CAP_LOCK_LED#_C32
HOTKEY29
MY12
MY10
MY11
MY14
MX6
MX7
MX3
MX2
MY0
MX1
MX4
LED_MIC_MUTE#_C32
LED_SPK_MUTE#_C32
LED_ESC_KEY#_C32
MY1129
MY829
MY1029
MY1229
MY929
MY1329
MY1529
MY529
MY729
MY629
MY329
MY129
MX529
MY229
MY429
MX029
MX229
MY029
MX129
MX429
MY1429
MX629
MX729
MX329
R251 *0_4_S
+3V
CAP_LOCK_LED#_C
HOTKEY
LED_MIC_MUTE#_C
LED_SPK_MUTE#_C
LED_ESC_KEY#_C
C317 *10P/50V/COG_4
C325 *10P/50V/COG_4
D D
For EMI request
CA3
220PX4
1
MX0
3
MY4
5
MY2 MY8
7
MX5
CA5
220PX4
1
MY5
3
MY15
5
MY13
7
MY9
CA4
220PX4
1
MY1
C C
MY3
MY6
MY7
3
5
7
CA6
220PX4
2
7
5
3
1
CA1
220PX4
1
3
5
7
CA2
220PX4
1
3
5
7
8
6
4
2
2
4
6
8
2
4
6
8
4
6
8
2
4
6
8
2
4
6
8
C331 *10P/50V/COG_4
4
HOTKEY
VCC_3V_LED
MY11
MY8
MY10
MY12
MY9
MY13
MY15
MY5
MY7
MY6
MY3
MY1
MX5
MY2
MY4
MX0
MX2
MY0
MX1
MX4
MY14
MX6
MX7
MX3
C334 *10P/50V/COG_4
3
TP Control
34
CN4
34
32
32
31
31
30
30
29
29
28
28
27
27
26
26
25
25
24
24
23
23
22
22
21
21
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
33
33
CONN_KB
C335 *10P/50V/COG_4
C390
0.1U/16V_4
+5V
R368
10K_4
normal Current : 1mA
C389
0.047U/10V_4
PAD_DETECT#_C
to CPU SMB
SMB_RUN_DAT10,16,17,18,21
SMB_RUN_CLK10,16,17,18,21
+5V_TP
+5V_TP
F5FUSE 1A
+3V
TP_PS2_DAT29
TP_PS2_CLK29
EC-DV-15
Q14
4 3
1
SSM6N48FU
2
R367 *4.7K_4
R366 *4.7K_4
R370 *0_4_S
R369 *0_4_S
+3V +3V
R372
2.2K_4
5
2
6
R373
2.2K_4
PAD_DETECT#29
PAD_RESET#29
TP_SDATA
TP_SCLK
TRACK_POINT_RESET#_R
+5V_TP
TP_SDATA
TRACK_POINT_CLK
TRACK_POINT_DAT
TP_SCLK
TRACK_POINT_DAT
TRACK_POINT_CLK
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,29,30,34,35,36,38,40,42,48
+5V20,22,30,33,40,48
R727 *0_4_S
R371 *0_4_S
TP_PS2_DAT_R
TP_PS2_CLK_R
RV6RCLAMP0521PATCT
RV20RCLAMP0521PATCT
RV21RCLAMP0521PATCT
1
Touch pad
PAD_DETECT#_C
TRACK_POINT_RESET#_L
RV7RCLAMP0521PATCT
31
TP@88511-1201
1
2
3
4
5
6
7
8
9
10
11
12
CN18
To Card Reader Board
CN14
1
2
7
3
B B
Card_Reader@50501-0140N-001
4
5
8
6
CR VCC Control
+3VS5 +3V
2
R829
10K_4
R828 100K/F_4
3
Q59
2N7002W
1
1
2
3
C9753
0.01U/16V/X7R_4
Q60
AOS3413
EC-SIT-30
CR_EN14
A A
5
+3V_CR
4
F12
FUSE 1A
C9754
0.1U/16V_4
Date:
Date:
Date:
USBP4USBP4+
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Document Number
Document Number
Document Number
USBP4-26
USBP4+26
R484 *0_4_S
R483 *0_4_S
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
KB/TP/DB
KB/TP/DB
KB/TP/DB
Sheet
Sheet
3
Sheet
+3V_CR
USBP4-_C
USBP4+_C
USBP4-_C
USBP4+_C
TRACK_POINT_RESET#29
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
31 57Monday, November 09, 2015
31 57Monday, November 09, 2015
31 57Monday, November 09, 2015
Track point
normal Current : 1mA
+5V
F4FUSE 1A
+5V
R365
4.7K_4
TP27
TP28
TP29
TRACK_POINT_CLK
R364
4.7K_4
R305
10K_4
TRACK_POINT_RESET#_R1
34
5
Q12A
SSM6N48FU
C337
0.1U/16V_4
TRACK_POINT_CLK
TRACK_POINT_DAT
C338
0.047U/10V_4
TRACK POINT reset signal level shift
R312 *0_4_S
2
+5V_TRACKPOINT
TRACK_POINT_DAT
TRACK_POINT_RESET#_R
MIDDLE
RIGHT
LEFT
Q12B
2
SSM6N48FU
R319 *0_4
1
TP@88511-1201
1
2
3
4
5
6
7
8
9
10
11
12
CN5
TRACK_POINT_DAT
TRACK_POINT_CLK
+5V+5V
R315
10K_4
TRACK_POINT_RESET#_R
61
RV18RCLAMP0521PATCT
RV19RCLAMP0521PATCT

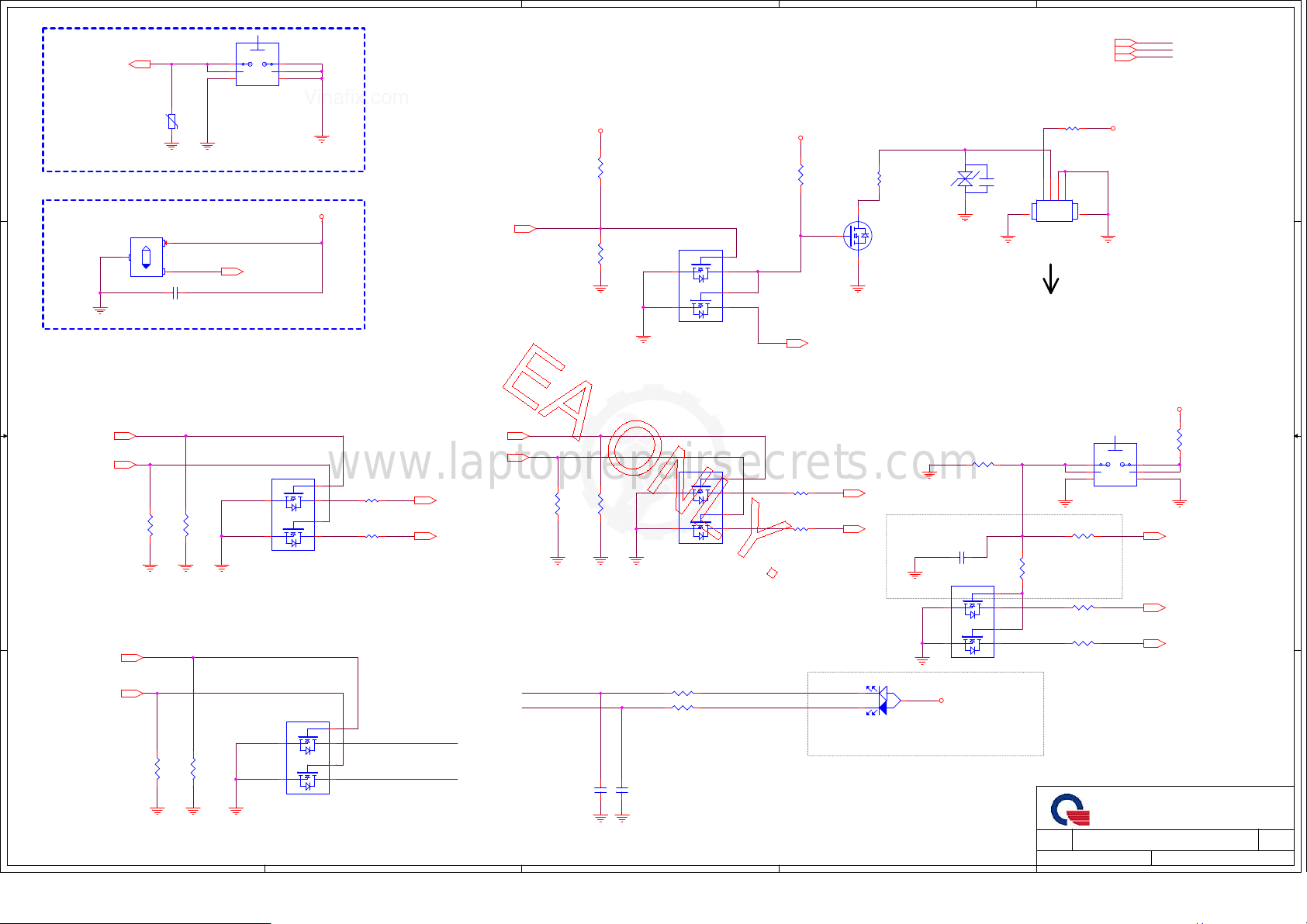

Page 32
Vinafix.com
A
www.laptoprepairsecrets.com
B
C
D
E
SW1
RCLAMP0521PATCT
1
2
5 6
TME-533B-Q-T/R
NBSWON#29,33
4 4
NBSWON#
RV1
Power Switch
LID Switch
APX8132HAI-TRG
2
VDD
S
3
GND
1
LID#
N
OUT
U1
C2 1U/6.3V_4
3 3
LID# 29
3
4
+3VPCU
LED Driver
LOGO_LED#29
+3VS5
R452
100K/J_4
R461
*100K/J_4
Q29
4 3
1
SSM6N48FU
+5VS5
R460
10K/J_4
2
5
2
6
LOGO_LED_A# 19
3
Q32
LU1L002SNFS8
1
LOGO_LED_C#
R492
0_4
12
SC13
RCLAMP0521PATCT
5 6
to C cover logo LED
Physical Reset BTN
LED_MIC_MUTE14
LED_SPK_MUTE14
R457
R456
100K/J_4
R57
100K/J_4
100K/J_4
R51
100K/J_4
2 2
BATLED_GREEN_LED_EC29
BATLED_AMBER_LED_EC29
1 1
A
Q28
4 3
1
SSM6N48FU
Q2
4 3
1
SSM6N48FU
5
R282 560/F_4
2
6
R269 560/F_4
5
2
6
BATLED_GREEN_LED#
BATLED_AMBER_LED#
B
LED_ESC_KEY14
CAP_LOCK_LED14
LED_MIC_MUTE#_C 31
LED_SPK_MUTE#_C 31
Q31
R481
R455
100K/J_4
100K/J_4
BATLED_GREEN_LED# BATLED_GREEN_LED#_R
BATLED_AMBER_LED#
C103 RCLAMP0521PATCT
4 3
1
SSM6N48FU
R46 82.5_6
R50 210_6
C401 RCLAMP0521PATCT
C
5
R256 100_4
2
6
R288 100_4
BATLED_AMBER_LED#_R
GREEN
ORANGE
2
1
EC-SIT-07
LED_ESC_KEY#_C 31
CAP_LOCK_LED#_C 31
EC-SIT-24
C9751 1U/6.3V_4
LED1
C2
3
A
C1
GREEN/ORANG-LED
D
R297 10K_4
Q11
4 3
1
SSM6N48FU
Battery
+3VS5
5
2
6
BAT_EN_SW
R704
1K/F_4
R503 1K/F_4
123
4
R363 *0_4_S
R302 *0_4
R705 *0_4_S
Document Number
Document Number
Document Number
Date:
Date:
Date:
+5VS54,19,26,27,28,33,35,37,38,41,42,45,46,47,48,49,51
+3VPCU13,19,22,25,33,38,40,41,52
+3VS54,10,12,15,16,19,21,23,25,28,31,36,38,41,47,48,49,51
+5VS5
LED_CON
CN15
+3VPCU
SW2
3
4
TME-533B-Q-T/R
1
2
56
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
POWER BUTTON
POWER BUTTON
POWER BUTTON
R304
1K/F_4
BAT_EN 40
EC_PWR_OFF_1# 41
EC_PWR_OFF_2# 41
Sheet
Sheet
Sheet
E
32
of
of
of
32 57Monday, November 09, 2015
32 57Monday, November 09, 2015
32 57Monday, November 09, 2015
RevSize
RevSize
RevSize
1ACustom
1ACustom
1ACustom

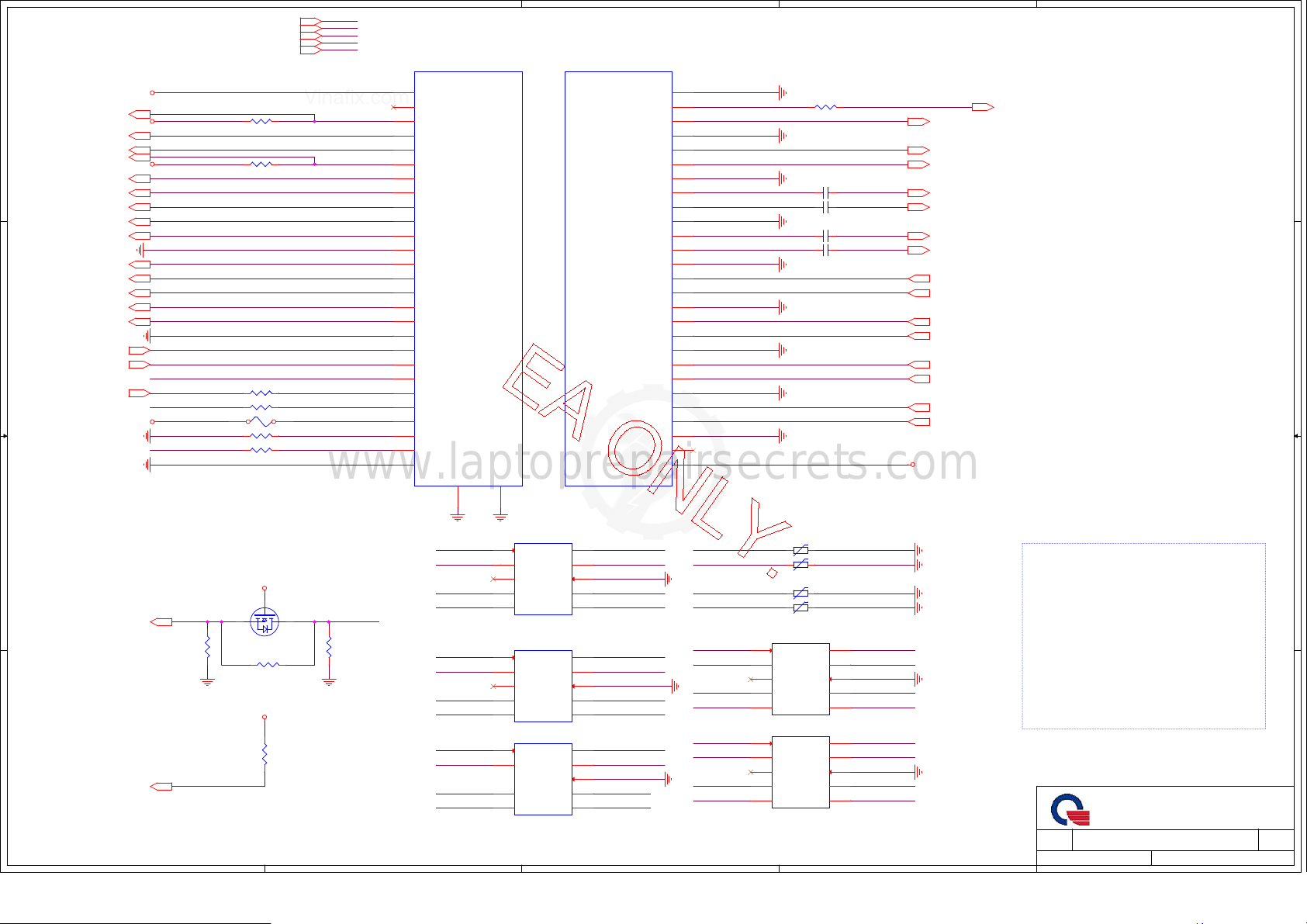

Page 33
Vinafix.com
A
www.laptoprepairsecrets.com
+3VPCU13,19,22,25,32,38,40,41,52
+5V20,22,30,31,40,48
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+5VS54,19,26,27,28,32,35,37,38,41,42,45,46,47,48,49,51
DOCK-PWR20-IN52
DOCK-PWR20-IN
4 4
3 3
DOCK_DETECT129
DOCK_PW R_CONSUM40
+3VPCU
NBSWON#29,32
DOCK_DETECT229
+3VPCU
MDI3-23
MDI3+23
LAN_LED_LNK_ACT#23
MDI2-23
MDI2+23
MDI1-23
MDI1+23
LAN_LED_LNK_UP#23
MDI0-23
MDI0+23
DOC_DP_AUXN34
DOC_DP_AUXP34
DOCK_PW RON#29
DOCK_ATTACHED_3V#
+5VS5
ACDC_ID_DOCK
R351 20K/F_4
R349 20K/F_4
R471 *0_4_S
R311 *0_4_S
F10 FUSE 2A
R102 *0_4_S
R338 *0_4_S
DOC_DP_AUXN
DOC_DP_AUXP
DOCK_HPD_L
DOCK_PW RGOOD#
+5VS5_DOCK
DOCKED#
B
CN2A
1
POWER (20V 5A)
3
RESERVE
5
DOCK DETECT1
7
POWER CONSUMPTION
9
POWER BUTTON
11
DOCK DETECT2
13
LAN MDI 3-
15
LAN MDI 3+
17
RJ45_ACTIVITY
19
LAN MDI 2-
21
LAN MDI 2+
23
GND3
25
LAN MDI 1-
27
LAN MDI 1+
29
RJ45_LINKUP
31
LAN MDI 0-
33
LAN MDI 0+
35
GND6
37
DP_AUX (N)
39
DP_AUX (P)
41
DP HOT PLUG DETECT
43
DOCK_PWRON#
45
DOCK_PWRDCT
47
POWER (5V 1A)
49
DOCKED#
51
ADAPTER ID
53
POWER GND (5A)
Prolink
C
D
E
33
CN2B
DOCKED#
GND
USB2.0 (N)
USB2.0 (P)
GND1
GND2
GND4
GND5
GND7
GND8
GND9
RESERVE
2
4
6
DOCKED2
8
10
USBP6-
12
USBP6+
14
16
USB30_TX1-_DOCK_L
18
USB30_TX1+_DOCK_L
20
22
USB30_RX1-_DOCK_L
24
USB30_RX1+_DOCK_L
26
28
DOCK_DDI2_TXN3_L
30
DOCK_DDI2_TXP3_L
32
34
DOCK_DDI2_TXN2_L
36
DOCK_DDI2_TXP2_L
38
40
DOCK_DDI2_TXN1_L
42
DOCK_DDI2_TXP1_L
44
46
DOCK_DDI2_TXN0_L
48
DOCK_DDI2_TXP0_L
50
52
54
R336 *0_4_S
C175 0_4
C171 0_4
C169 0_4
C161 0_4
ACDC_ID_DOCK
DOCK-PWR20-IN
DOCKED2 52
ACDC_ID_DOCK 29,52
USBP6- 12
USBP6+ 12
USB30_TX1-_DOCK 12
USB30_TX1+_DOCK 12
USB30_RX1-_DOCK 12
USB30_RX1+_DOCK 12
DOCK_DDI2_TXN3_L 34
DOCK_DDI2_TXP3_L 34
DOCK_DDI2_TXN2_L 34
DOCK_DDI2_TXP2_L 34
DOCK_DDI2_TXN1_L 34
DOCK_DDI2_TXP1_L 34
DOCK_DDI2_TXN0_L 34
DOCK_DDI2_TXP0_L 34
POWER GND (5A)
ADAPTER ID
USB3.0 TX(N)
USB3.0 TX(P)
USB3.0 RX(N)
USB3.0 RX(P)
DP_LANE 3(N)
DP_LANE 3(P)
DP_LANE 2(N)
DP_LANE 2(P)
DP_LANE 1(N)
DP_LANE 1(P)
DP_LANE 0(N)
DP_LANE 0(P)
GND.57
GND.58
57
58
Prolink
POWER (20V 5A)
2 2
DP HPD SENSE
RE_DOCK_DP_HPD34
R58
100K_4
1 1
DOCK_ATTACHED_3V#29
DOCK_ATTACHED_3V#
A
+5V
2
Q4 T2N7002BK
1
R778 *0_4
+3VPCU
R289
100K_4
3
DOCK_HPD_L
R56
100K_4
MDI3- MDI3MDI3+ DOC_DP_AUXP
MDI2+ MDI2+
MDI1MDI1+
MDI0MDI0+
USB30_TX1-_DOCK_L
USB30_TX1+_DOCK_L
USB30_RX1-_DOCK_L USB30_RX1-_DOCK_L
USB30_RX1+_DOCK_L
B
6
NC
7
NC
8
GND
9
NC
10
NC
6
NC
7
NC
8
GND
9
NC
10
NC
U9
6
NC
7
NC
9
NC
10
NC
5
CH4
4
CH3
3
GND
2
CH2
1
CH1
ESD8004MUTAGU27
5
CH4
4
CH3
3
GND
2
CH2
1
CH1
ESD8004MUTAGU23
5
CH4
4
CH3
3
GND
2
CH2
1
CH1
ESD8004MUTAG
MDI3+
MDI2-MDI2-
MDI1MDI1+
MDI0MDI0+
USB30_TX1-_DOCK_L
USB30_TX1+_DOCK_L
USB30_RX1+_DOCK_L
C
DOC_DP_AUXN
USBP6USBP6+
DOCK_DDI2_TXN3_L DOCK_DDI2_TXN3_L
DOCK_DDI2_TXN2_L
DOCK_DDI2_TXP2_L
DOCK_DDI2_TXN1_L DOCK_DDI2_TXN1_L
DOCK_DDI2_TXN0_L
DOCK_DDI2_TXP0_L
RV2 *SURGE SUP
RV3 *SURGE SUP
RV4 *SURGE SUP
RV5 *SURGE SUP
6
NC
7
NC
8
GND
9
NC
10
NC
ESD8004MUTAGU5
6
NC
7
NC
8
GND
9
NC
10
NC
ESD8004MUTAGU2
CH4
CH3
GND
CH2
CH1
CH4
CH3
GND
CH2
CH1
5
4
DOCK_DDI2_TXP3_LDOCK_DDI2_TXP3_L
3
2
DOCK_DDI2_TXN2_L
1
DOCK_DDI2_TXP2_L
5
4
DOCK_DDI2_TXP1_LDOCK_DDI2_TXP1_L
3
2
DOCK_DDI2_TXN0_L
1
DOCK_DDI2_TXP0_L
EC-DV-01
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Date:
Date:
D
Date:
POWER BUTTON
POWER BUTTON
POWER BUTTON
Sheet
Sheet
Sheet
E
RevSize
RevSize
RevSize
1ACustom
1ACustom
1ACustom
of
of
of
33 57Monday, November 09, 2015
33 57Monday, November 09, 2015
33 57Monday, November 09, 2015

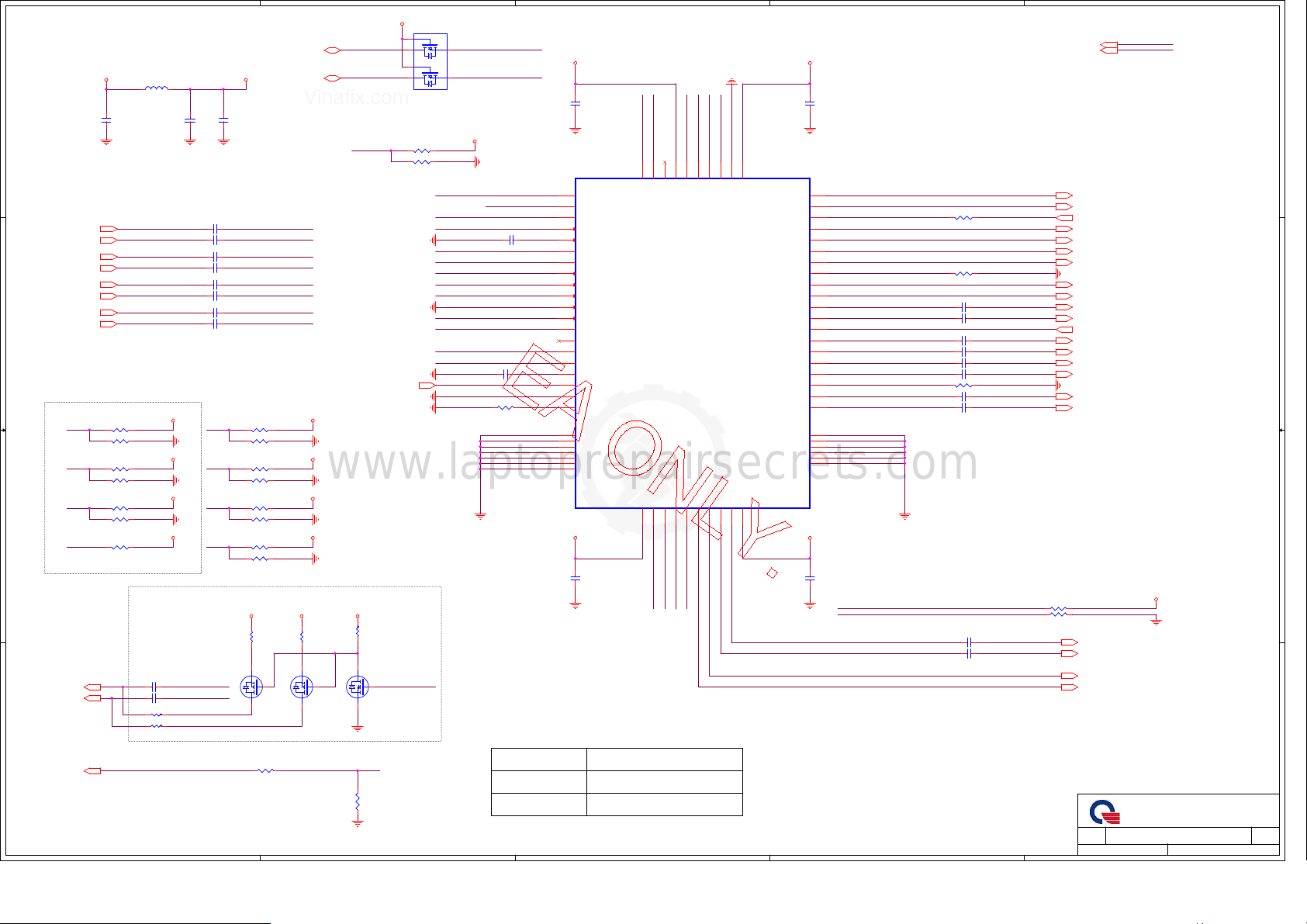

Page 34
Vinafix.com
5
www.laptoprepairsecrets.com
DP SWITCH
EC-DV-04
D D
From CPU side
DOCK_DDI2_TXN32
DOCK_DDI2_TXP32
DOCK_DDI2_TXN22
DOCK_DDI2_TXP22
DOCK_DDI2_TXN12
DOCK_DDI2_TXP12
DOCK_DDI2_TXN02
C C
B B
DOCK_DDI2_TXP02
DOCK_DDI2_AUXP2
DOCK_DDI2_AUXN2
+3V +3V_VCC
L1 HCB1608KF-221T20
C122
0.47UF/10V_X5R_4
DPSW_PEQ
DPSW_PI1
DPSW_PI0
DPSW_CFG0
R562 4.7K_4
R563 4.7K_4
R564 *4.7K_4
R565 *4.7K_4
R566 4.7K_4
R567 *4.7K_4
R568 4.7K_4
1U/10V/X5R_4
EC-SIT-05
EC-SIT-12
Hybrid DDC/AUX
C430 0.1U/16V_4
C429 0.1U/16V_4
R577 *0_4
R575 *0_4
+3V_VCC
+3V_VCC
+3V_VCC
+3V_VCC
DPSW_PC10
DPSW_PC11
DPSW_PC20
DPSW_PC21
DP_AUXP_SCL_R
DP_AUXN_SDA_R
IN_DDC_SCL
IN_DDC_SDA
C138
0.01U/16V/X7R_4
C4320.1U/16V_4
C4330.1U/16V_4
C4340.1U/16V_4
C4350.1U/16V_4
C4360.1U/16V_4
C4370.1U/16V_4
C4380.1U/16V_4
C4390.1U/16V_4
R123 4.7K_4
R104 4.7K_4
R146 *4.7K_4
R145 *4.7K_4
R571 *4.7K_4
R569 *4.7K_4
R572 *4.7K_4
R570 *4.7K_4
DP_D3N_C
DP_D3P_C
DP_D2N_C
DP_D2P_C
DP_D1N_C
DP_D1P_C
DP_D0N_C
DP_D0P_C
1
*AO3413_3A
Q37
3
R573
*10K_4
CCG_I2C_SCL29,35
+3V_VCC
+3V_VCC
+3V_VCC
+3V_VCC
+3V_VCC+3V_VCC +3V_VCC
R576
*10K_4
1
*AO3413_3A
2
2
Q39
3
I2C_CTRL_EN
SW_TYPEC_DOCK29
R574
*4.7K_4
3
Q38
2
*T2N7002BK_300MA
1
4
+3V_VCC
IN_CA_DET
5
2
6
*2N7002KDW
R762 *4.7K_4
R761 0_4
Q52
43
1
+3V_VCC
DPSW_PI1
PCH_DOCK_DP_HPD_R
IN_CA_DET
DP_D0P_C
DP_D0N_C
DPSW_PEQ
DP_D1P_C
DP_D1N_C
DP_D2P_C
DP_D2N_C
DP_D3P_C
DP_D3N_C
EC-FVT-09
DPSW_PI0
DPSW_PI1
I2C_CTRL_EN
C5590.1U/16V_4
C1532.2U/6.3V_6
3
+3V_VCC
C560
0.1U/16V_4C145
DPSW_CFG0
DPSW_PI0
DPSW_PC10
DPSW_PC11
DPSW_PC20
DPSW_PC21
U38
1
PI1/SCL_CTL
2
I2C_CTL_EN
3
IN_HPD
4
IN_CA_DET
5
+3V_VCC
VDD33
6
IN_D0P
7
IN_D0N
8
PEQ
9
IN_D1P
10
IN_D1N
11
GND
12
IN_D2P
13
IN_D2N
14
PD
15
IN_D3P
16
IN_D3N
17
CEXT
18
SW
19
GND1
20
R854.99K/F_4
C154
0.1U/16V_4
REXT
61
THERMAL_PAD
62
THERMAL_PAD1
63
THERMAL_PAD2
64
THERMAL_PAD3
65
THERMAL_PAD4
66
THERMAL_PAD5
67
THERMAL_PAD6
+3V_VCC
56
57
59
60
CFG158CFG0
VDD334
PI0/SDA_CTL
VDD33121IN_DDC_SCL22IN_DDC_SDA23IN_AUXP24IN_AUXN25OUT1_AUXP_SCL26OUT1_AUXN_SDA27OUT2_AUXP_SCL28OUT2_AUXN_SDA29VDD332
DP_AUXN_SDA_R
IN_DDC_SCL
IN_DDC_SDA
DP_AUXP_SCL_R
51
52
PC2153PC2054PC1155PC10
GND2
VDD333
30
+3V_VCC
C561
0.1U/16V_4
PS8338BQFN60GTR-A1
50
OUT1_D0P
49
OUT1_D0N
48
OUT1_HPD
47
OUT1_D1P
46
OUT1_D1N
45
OUT1_D2P
44
OUT1_D2N
43
OUT1_CA_DET
42
OUT1_D3P
41
OUT1_D3N
40
OUT2_D0P
39
OUT2_D0N
38
OUT2_HPD
37
OUT2_D1P
36
OUT2_D1N
35
OUT2_D2P
34
OUT2_D2N
33
OUT2_CA_DET
32
OUT2_D3P
31
OUT2_D3N
+3V_VCC
DOC_DP_AUXN_R
DOC_DP_AUXP_R
73
72
71
70
69
68
C572
0.1U/16V_4
THERMAL_PAD12
THERMAL_PAD11
THERMAL_PAD10
THERMAL_PAD9
THERMAL_PAD8
THERMAL_PAD7
DOC_DP_AUXN_R
DOC_DP_AUXP_R
2
OUT2_CA_DET
DOCK_DDI2_TXP0_R
DOCK_DDI2_TXN0_R
DOCK_DDI2_TXP1_R
DOCK_DDI2_TXN1_R
DOCK_DDI2_TXP2_R
DOCK_DDI2_TXN2_R
OUT1_CA_DET
DOCK_DDI2_TXP3_R
DOCK_DDI2_TXN3_R
R661 0_4
R578 1M_4
C4090.1U/16V_4
C4080.1U/16V_4
C4070.1U/16V_4
C4060.1U/16V_4
C4050.1U/16V_4
C4040.1U/16V_4
R83 1M_4
C4030.1U/16V_4
C4020.1U/16V_4
1
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,29,30,31,35,36,38,40,42,48
+3V_VCC36CCG_I2C_SDA29,35
TYPEC_DDI2_TXP0_L 36
TYPEC_DDI2_TXN0_L 36
TypeC1_DDI1_HPD 35,36
TYPEC_DDI2_TXP1_L 36
TYPEC_DDI2_TXN1_L 36
TYPEC_DDI2_TXP2_L 36
TYPEC_DDI2_TXN2_L 36
TYPEC_DDI2_TXP3_L 36
TYPEC_DDI2_TXN3_L 36
DOCK_DDI2_TXP0_L 33
DOCK_DDI2_TXN0_L 33
RE_DOCK_DP_HPD 33
DOCK_DDI2_TXP1_L 33
DOCK_DDI2_TXN1_L 33
DOCK_DDI2_TXP2_L 33
DOCK_DDI2_TXN2_L 33
DOCK_DDI2_TXP3_L 33
DOCK_DDI2_TXN3_L 33
R579 100K_4
R580 100K_4
C1370.1U/16V_4
C1440.1U/16V_4
DOC_DP_AUXN 33
DOC_DP_AUXP 33
TYPEC_DP_AUXN 36
TYPEC_DP_AUXP 36
+3V_VCC
34
TO TYPEC
TO Onelink+
A A
PCH_DOCK_DP_HPD2
5
R86 *0_4_S
PCH_DOCK_DP_HPD_R
R87
100K_4
4
SW_TYPEC_DOCK
Low
High
Display Priority
USB Type-C
Docking Station
3
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Sheet
Sheet
Date:
Date:
2
Date:
Sheet
1
RevSize
RevSize
RevSize
34 57Monday, November 09, 2015
34 57Monday, November 09, 2015
34 57Monday, November 09, 2015
of
of
of
2ACustom
2ACustom
2ACustom

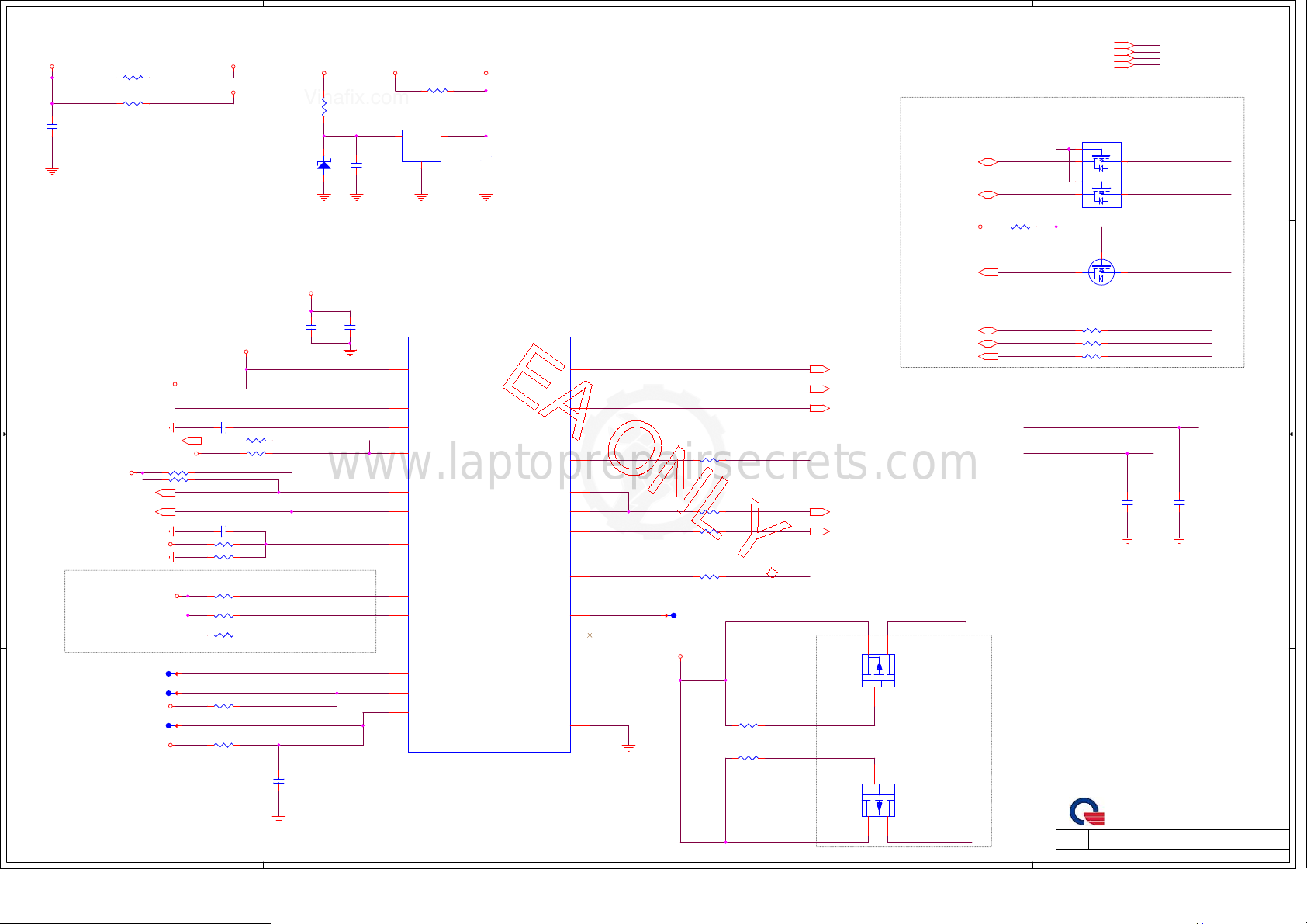

Page 35
Vinafix.com
5
www.laptoprepairsecrets.com
+3V
C583 0.1U/25V_4
R611 100K_4
R612 10K/F_4
R744 2.2K_4
R743 2.2K_4
R745 2.2K_4
R690 *100K/J_4
R691 4.7K/F_4
3V_CCG2_VDDCCG2_PWR
3V_CCG2_VDDIO
3V_CCG2_VDD
C5771U/10V/X5R_4
MASTER_SCL
MASTER_SDA
SWD_IO
SWD_CLK
R6890_4
R72910K_4
D26
3V_CCG2_VDD
CCG_I2C_SCL_D
CCG_I2C_SDA_D
CCG1_I2C_INT_D
CCG1_XRES1
C9699
0.1U/16V_4
2 1
*SMAJ22A
C578
0.1U/16V_4
R700
*0_6
C9696
R669 *0_6_S
D D
C C
B B
C574
1U/10V/X5R_4
R686 *0_6_S
TypeC1_DDI1_HPD34,36
3V_CCG2_VDD
MASTER_SDA36
MASTER_SCL36
VCCPD_VBUS_F
3V_CCG2_VDD
3V_CCG2_VDDIO
R742 2.2K_4
R741 2.2K_4
EC-SIT-28
TP42
TP43
3V_CCG2_VDDIO
TP41
A A
3V_CCG2_VDDIO
EC-DV-05
5
*1u/50V_8
C579
1U/10V/X5R_4
4
+5VS5
R755 *0_6
U50 *RT9058-50GX
1
Vcc
GND
2
Vout
LDO_5V_PVCCPD_VBUS_P
3
C9695
*1U/25V_6
CCG2 Connections
6
VDDD
9
VDDD1
8
VDDIO
7
VCCD
23
HOTPLUG_DET
13
I2C_MSTR_1_SDA
10
I2C_MSTR_1_SCL
17
VBUS_MON
20
I2C_0_SCL
19
I2C_0_SDA
14
I2C_INT
11
SWD _IO
12
SWD_CLK
16
XRES
4
CYPD2122-24LQXITU49
VBUS_P_CTRL
VBUS_C_CTRL
VBUS_DISCHARGE
GPIO10
GPIO7
VCONN1
VCONN2
EPAD
3
2
+5VS54,19,26,27,28,32,33,37,38,41,42,45,46,47,48,49,51
+3VS54,10,12,15,16,19,21,23,25,28,31,32,36,38,41,47,48,49,51
VCCPD_VBUS_P52
VCCPD_VBUS_F38,40,52
1
35
EC-SIT-28
Q57
5
CCG1_I2C_INT#29,35
CCG1_I2C_INT#29,35
TYPEC1_CCG1_CC1
Q45A
NTZD3152PT1G
EC-SIT-03
TYPEC1_CCG1_CC2
2
CCG_I2C_SCL29,34,35
CCG_I2C_SDA29,34,35
3V_CCG2_VDD
CCG_I2C_SCL29,34,35
CCG_I2C_SDA29,34,35
R831 *0_4_S
2
6
3
R825 *0_4
R826 *0_4
R827 *0_4
TYPEC1_CCG1_CC1
TYPEC1_CCG1_CC2
Custom
Custom
Custom
Date:
Date:
Date:
EC-SDV-07
15
PD_VBUS_P_CTRL
18
PD_VBUS_C_CTRL
22
PD_VBUS_DISCHARGE
24
PD_CC1_CONN_CTRL_R
3
RD1
2
CC1
1
CC2
21
PD_CC2_CONN_CTRL_R
5
4
25
R693 200K/F_4
R687 0_4
R688 0_4
R692 200K/F_4
TP49
LDO_5V_L
3
PD_CC1_CONN_CTRL
PD_CC2_CONN_CTRL
R695 100K/J_4
R694 100K/J_4
PD_VBUS_P_CTRL 37
PD_VBUS_C_CTRL 52
PD_VBUS_DISCHARGE 52
TYPEC1_CCG1_CC1 37
TYPEC1_CCG1_CC2 37
PD_CC1_CONN_CTRL
PD_CC2_CONN_CTRL
Q45B
116
4
6
2
2
5
5
NTZD3152PT1G
334
43
1
2N7002KDW
2
1
Q58
T2N7002BK
CCG_I2C_SCL_D
CCG_I2C_SDA_D
CCG1_I2C_INT_D
C9693
390P/50V_4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Doc
Doc
Doc
Monday, November 09, 2015
Monday, November 09, 2015
Monday, November 09, 2015
1
CCG_I2C_SCL_D
CCG_I2C_SDA_D
CCG1_I2C_INT_D
C9694
390P/50V_4
Sheet
35
Sheet
35
Sheet
35
RevSize
RevSize
RevSize
RevCode
RevCode
RevCode
of
57
of
57
of
57

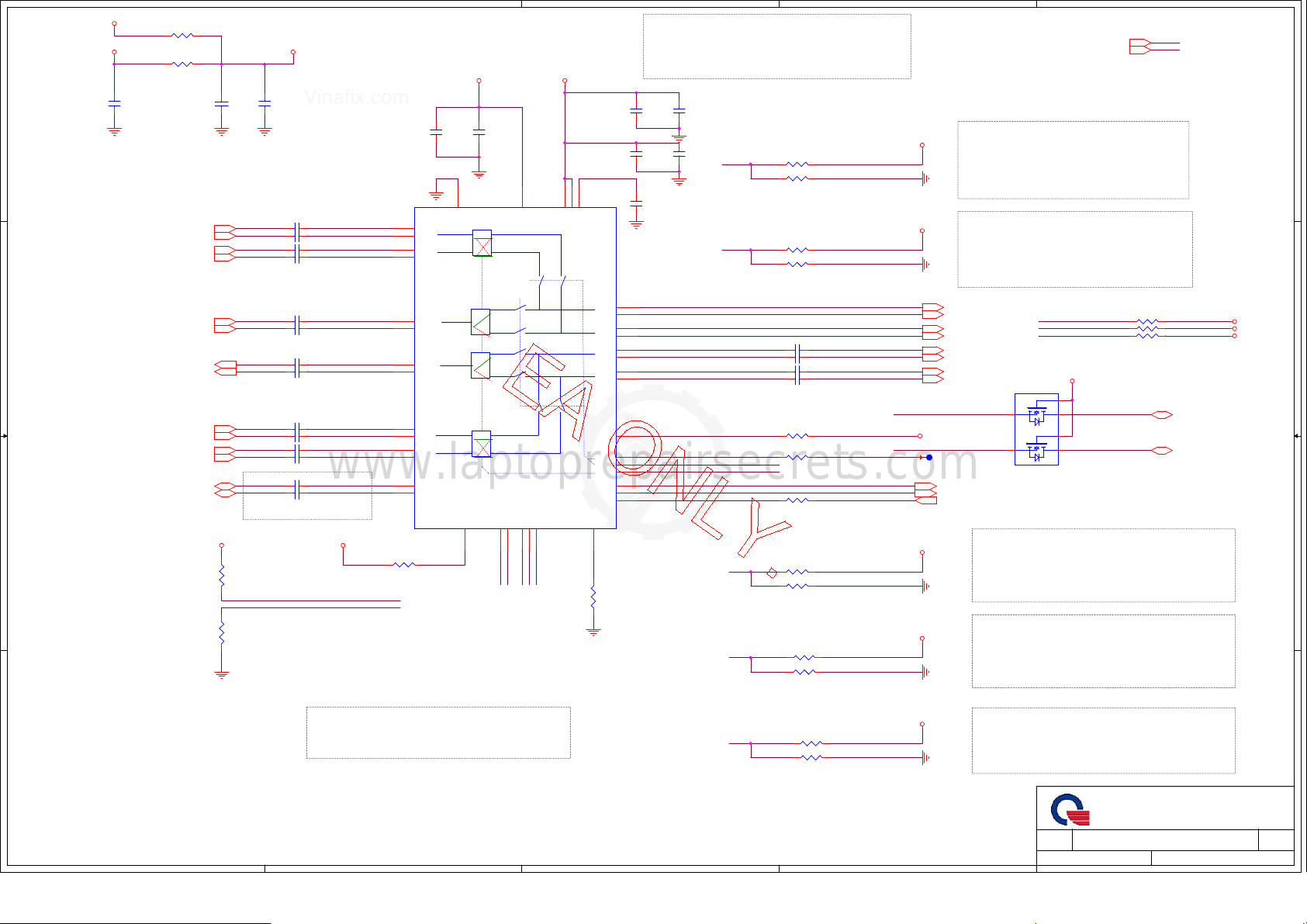

Page 36
Vinafix.com
5
www.laptoprepairsecrets.com
+3V
R750 *0_6
+3VS5 +3V_MUX
R749 0_6
C9717
D D
0.47UF/10V_X5R_4
DisplayPort Source
TYPEC_DDI2_TXP0_L34
TYPEC_DDI2_TXN0_L34
TYPEC_DDI2_TXP3_L34
TYPEC_DDI2_TXN3_L34
C9718
1U/10V/X5R_4
C9716
0.01U/16V/X7R_4
C594 0.1U/16V_4
C596 0.1U/16V_4
C597 0.1U/16V_4
C595 0.1U/16V_4
TYPEC_TXP0
TYPEC_TXN0
TYPEC_TXP3
TYPEC_TXN3
4
C589
0.1U/16V_4
9
10
18
19
U41
ML0p
ML0n
ML3p
ML3n
+3V_MUX +3V_MUX
C590
1U/6.3V_4
41
EPAD
6
VDD33
VDD28VDD
3
3 Level Input:
L: LOW, internal pull down
H: HIGH, external pull up
M: VDD33/2, both external pull-up and pull-down
C588
C587
1U/6.3V_4
0.1U/16V_4
C592
C591
1U/6.3V_4
0.1U/16V_4
20
1
CEXT
C593
2.2U/10V/X5R_4
CDE
CEQ
R621 *4.7K/F_4
R622 *4.7K/F_4
R623 *4.7K/F_4
R624 *4.7K/F_4
2
+3V_MUX
+3V_MUX
+3VS54,10,12,15,16,19,21,23,25,28,31,32,38,41,47,48,49,51
+3V_VCC34
USB Type-C connector facing TX channel
De-emphasis setting; Internal tied to
VDD33/2, 3.3V I/O.
CDE =
L: Programmable DE level#1
H: Programmable DE level#2
M: Programmable DE level#3 (default)
USB Type-C connector facing RX channel
receiver equalization setting; Internal
tied to VDD33/2, 3.3V I/O.
CEQ =
L: Programmable EQ level#1
H: Programmable EQ level#2
M: Programmable EQ level#3 (default)
1
36
30
RX1p
31
USB30_RX4+12
C C
USB30_RX4-12
USB3.0 HOST
USB30_TX4+12
USB30_TX4-12
TYPEC_DDI2_TXP2_L34
DisplayPort Source
TYPEC_DDI2_TXN2_L34
TYPEC_DDI2_TXP1_L34
TYPEC_DDI2_TXN1_L34
TYPEC_DP_AUXP34
TYPEC_DP_AUXN34
C598 0.1U/16V_4
C599 0.1U/16V_4
C602 0.1U/16V_4
C603 0.1U/16V_4
C606 0.1U/16V_4
C607 0.1U/16V_4
C608 0.1U/16V_4
C609 0.1U/16V_4
C610 0_4
C611 0_4
SSRXP
SSRXN
SSTXP
SSTXN
TYPEC_TXP2
TYPEC_TXN2
TYPEC_TXP1
TYPEC_TXN1
TYPEC_DP_AUXP_R
TYPEC_DP_AUXN_R
EC-SIT-04
B B
A A
+3V_VCC
R629
100K_4
R633
100K_4
+3V_MUX
TYPEC_DP_AUXN
TYPEC_DP_AUXP
ADDR1, ADDR0: I2C control bus address LSB; Internal pull down at
150k次㊣20%, 3.3V I/O.
[DPEQ, SSEQ] =
LL: 0x20/0x21(default)
LH: 0x22/0x23
HL: 0x32/0x33
HH: 0x34/0x35
5
SSRXp
4
SSRXn
8
SSTXp
7
SSTXn
15
ML2p
16
ML2n
12
ML1p
13
ML1n
24
AUXp
25
AUXn
R720 4.7K/F_4
PS8740B
I2C_EN
17
SSEQ11CEQ38CDE35DPEQ
SSDE
3
14
SSDE
CDE
CEQ
DPEQ
SSEQ
RX1n
RX2p
RX2n
TX1p
TX1n
TX2p
TX2n
SW2
SW1
SW0
SBU1
SBU2
IN_HPD
REXT
2
REXT_PS
EN
R632
4.99K/F_4
40
39
33
34
37
36
29
23
22
21
27
26
32
TYPEC1_RX1P
TYPEC1_RX1N
TYPEC1_RX2P
TYPEC1_RX2N
TX1P
TX1N
TX2P
TX2N
SW1
SW0
TYPEC1_SBU1
TYPEC1_SBU2
SSDE
SSEQ
DPEQ
C600 0.1U/16V_4
C601 0.1U/16V_4
C604 0.1U/16V_4
C605 0.1U/16V_4
R625 4.7K/F_4
R626 0_4
R672 0_4
R630 *4.7K/F_4
R631 *4.7K/F_4
R634 *4.7K/F_4
R635 *4.7K/F_4
R636 *4.7K/F_4
R637 *4.7K/F_4
TYPEC1_TX1P_C
TYPEC1_TX1N_C
TYPEC1_TX2P_C
TYPEC1_TX2N_C
SW2
TypeC1_DDI1_HPD
SW1
SW0
+3V_MUX
+3V_MUX
+3V_MUX
+3V_MUX
TYPEC1_RX1P 37
TYPEC1_RX1N 37
TYPEC1_RX2P 37
TYPEC1_RX2N 37
TYPEC1_TX1P_C 37
TYPEC1_TX1N_C 37
TYPEC1_TX2P_C 37
TYPEC1_TX2N_C 37
TP46
TYPEC1_SBU1 37
TYPEC1_SBU2 37
TypeC1_DDI1_HPD 34,35
Q50
4 3
1
2N7002KDW
USB HOST facing TX channel
De-emphasis setting; Internal tied to
VDD33/2, 3.3V I/O.
SSDE =
L: Programmable DE level#1
H: Programmable DE level#2
M: Programmable DE level#3 (default)
USB HOST facing RX channel
receiver equalization setting; Internal tied
to VDD33/2, 3.3V I/O.
SSEQ =
L: Programmable EQ level#1
H: Programmable EQ level#2
M: Programmable EQ level#3 (default)
DP Receiver equalization setting;
Internal tied to VDD33/2, 3.3V I/O.
DPEQ =
L: Programmable EQ level#1
H: Programmable EQ level#2
M: Programmable EQ level#3 (default)
+3V_MUX
5
2
6
SW2
SW1
SW0
R697 10K/F_4
R698 2.2K_4
R699 2.2K_4
MASTER_SDA 35
MASTER_SCL 35
+3V_MUX
+3V_MUX
+3V_MUX
PS8740B I2C Control Mode
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
EC-DV-05
Custom
Custom
Custom
Date:
Date:
5
4
3
2
Date:
Quanta Computer Inc.
Document Number
Document Number
Document Number
Doc
Doc
Doc
Sheet
Sheet
Monday, November 09, 2015
Monday, November 09, 2015
Monday, November 09, 2015
Sheet
1
RevSize
RevSize
RevSize
RevCode
RevCode
RevCode
of
57
of
57
of
36
36
36
57

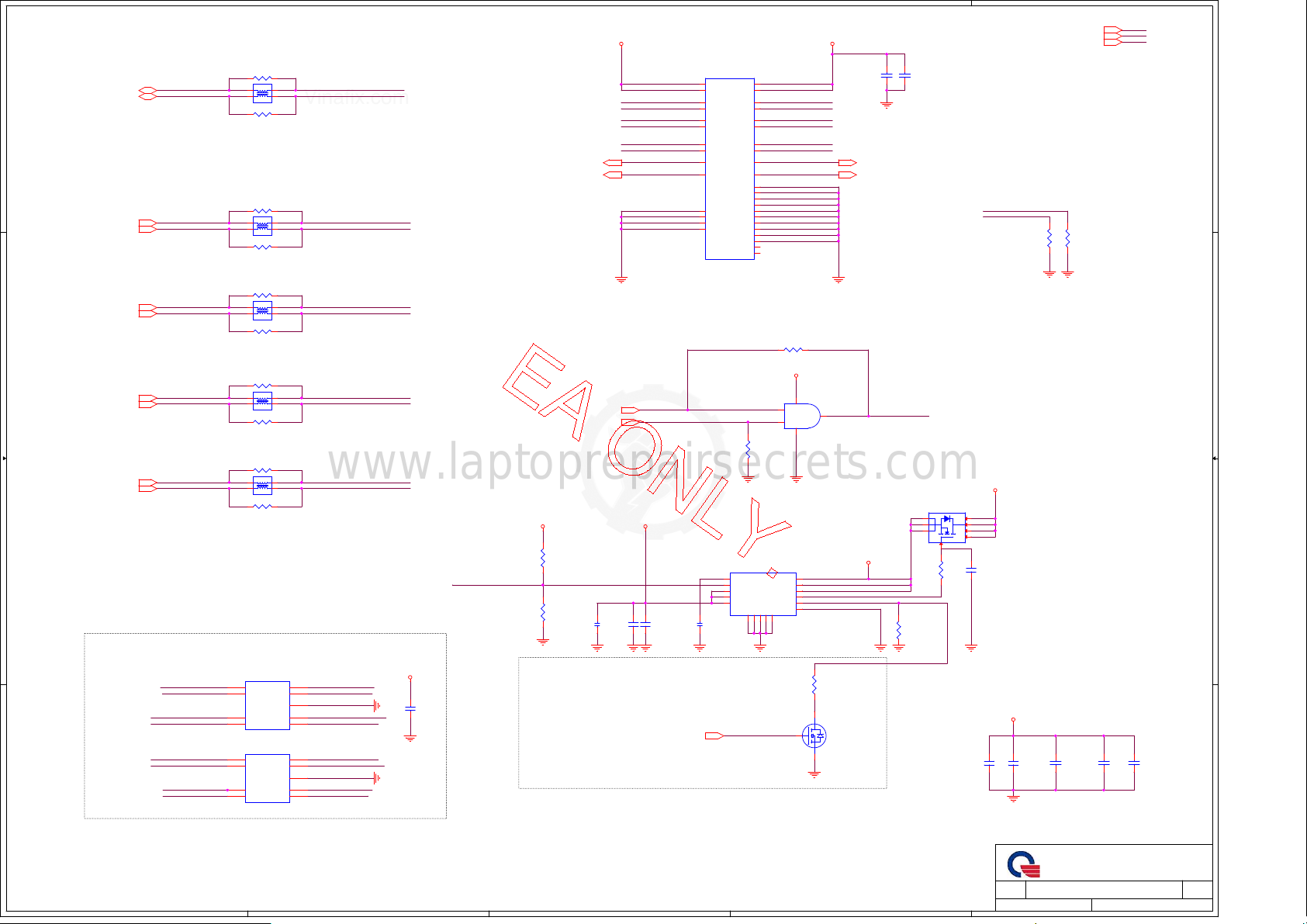

Page 37
Vinafix.com
5
www.laptoprepairsecrets.com
USB2.0 ESD
R638 *0_4
USBP5+12
USBP5-12
D D
4 3
1
L18
DLP11SN900HL2L
R639 *0_4
2
Type C1_HSIO_ ESD
R640 0_4
*DLP11SN900HL2L
RP2
TYPEC1_TX1P_C36
TYPEC1_TX1N_C36
TYPEC1_RX2N36
TYPEC1_RX2P36
C C
TYPEC1_TX2P_C36
TYPEC1_TX2N_C36
TYPEC1_RX1N36
TYPEC1_RX1P36
B B
TYPEC1_TX1P_C TYPEC1_TX1P_R
TYPEC1_TX1N_C
TYPEC1_RX2N
TYPEC1_RX2P
TYPEC1_TX2P_C
TYPEC1_TX2N_C
TYPEC1_RX1N
TYPEC1_RX1P
4 3
1
R641 0_4
R644 0_4
*DLP11SN900HL2L
RP3
4 3
1
R645 0_4
R646 0_4
*DLP11SN900HL2L
RP4
4 3
1
R648 0_4
R651 0_4
*DLP11SN900HL2L
RP5
4 3
1
R652 0_4
2
2
2
2
4
TYPEC_USBP
TYPEC_USBN
TYPEC1_TX1N_R
TYPEC1_RX2N_R
TYPEC1_RX2P_R
TYPEC1_TX2P_R
TYPEC1_TX2N_R
TYPEC1_RX1N_R
TYPEC1_RX1P_R
TYPEC1_USB0_EN
3
TYPEC1_USB0 TYPEC1_USB0
CN21
A4
VBUS
A9
VBUS1
160 mils
C9683
0.1U/25V_4
A2
A3
A6
A7
A10
A11
A8
A5
A1
A12
B1
B12
TX1P
TX1N
DP1
DN1
RX2N
RX2P
RFU1
CC1
GND
GND1
GND2
GND3
C9684
0.022U/25V_4
2 1
TYPEC1_TX1P_R
TYPEC1_TX1N_R
TYPEC_USBP
TYPEC_USBN TYPEC_USBP
TYPEC1_RX2N_R
TYPEC1_RX2P_R
TYPEC1_SBU136 TYPEC1_SBU2 36
TYPEC1_CCG1_CC135 TYPEC1_CCG1_CC2 35
PD_VBUS_P_CTRL35
TYPEC1_CCG1_VBUS_P_CTRL_EC29
R664
*1M/F_4
R666
470K_4
C9681
*10U/6.3V_4
TYPEC1_SBU1 TYPEC1_SBU2
TypeC1_CCG1_CC1 TypeC1_CCG1_CC2
+5VS5+5VS5
C9682
1U/6.3V_4
VBUS2
VBUS3
RX1P
RX1N
DN2
DP2
TX2N
TX2P
RFU2
CC2
GND4
GND5
GND6
GND7
GND8
GND9
GND10
GND11
GND12
GND13
GND14
GND15
TYPE_C_CONN
*MC74VHC1G08DFT2G
R654
*100K/F_2
U46
TPS2592BADRCR
1
dV/dT
2
EN/UVLO
3
VIN
4
VIN
5
VIN
B4
B9
B11
B10
B7
B6
B3
B2
B8
B5
13
14
15
16
17
18
19
20
21
22
23
24
GND12GND13GND14GND15GND
TYPEC1_RX1P_R
TYPEC1_RX1N_R
TYPEC_USBN
TYPEC1_TX2N_R
TYPEC1_TX2P_R
VSTBY_FSPI
U43
1
2
OUT
OUT
OUT
BFET
ILIM
GND
16
R65310K_4
3 5
6
7
8
9
10
11
4
+5V_USBP0_L
TI_BFET#
2
C612
0.1U/25V_4
160 mils
+5V_USBP0_L
TYPEC1_USB0_EN
C613
0.1U/25V_4
R667
93.1K/F_4
Q47
RQ3E100BNFU7TB
1
2
3
4
1
+5VS54,19,26,27,28,32,33,35,38,41,42,45,46,47,48,49,51
TYPEC1_USB052
VSTBY_FSPI29,38,52
TYPEC1_SBU2
TYPEC1_SBU1
R642
2M_4
TYPEC1_USB0
160 mils
5
6
7
8
R665
C9680
0_4
*0.1U/25V_4
R643
2M_4
37
EC-SIT-27
U53
LINE-2
LINE-4
LINE-5
LINE-7
AZ1043-08F
LINE-2
LINE-4
LINE-5
LINE-7
AZ1045-08F
LINE-1
LINE-3
LINE-6
LINE-8
LINE-1
LINE-3
LINE-6
LINE-8
1
TYPEC1_RX1P_RTYPEC1_RX1N_R
2
3
GND
4
TYPEC1_SBU2TypeC1_CCG1_CC1
5
U54
1
2
TypeC1_CCG1_CC2TYPEC1_SBU1
3
GND
4
TYPEC1_RX2P_RTYPEC1_RX2N_R
5
TYPEC1_TX2N_R
9
TYPEC1_TX1N_R TYPEC1_TX1P_R
TYPEC_USBP TYPEC_USBN
TYPEC_USBP TYPEC_USBN
A A
TYPEC1_TX2P_R
8
7
6
9
8
7
6
TYPEC1_USB0
AZ4520-01F
EC6028
Rlim= (Ilim-0.7)/(3*0.00001)
TYPEC_OUT_1-5A29
EC-FVT-08
DMN601K-7
R757
52.3K/F_4
Q51
3
2
1
TYPEC1_USB0
C1019
1000P/50V_4
C1018
0.1U/25V_4
Close to connector CN21
C1020
C1025
22U/25V_8
*22U/25V_8
C1026
*22U/25V_8
EC-DV-05
5
4
3
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Doc
Doc
Doc
C
C
C
Monday, November 09, 2015
Monday, November 09, 2015
Monday, November 09, 2015
Date:
Date:
2
Date:
Sheet
37
Sheet
37
Sheet
37
1
RevSize
RevSize
RevSize
RevCode
RevCode
RevCode
of
57
of
57
of
57
Page 38

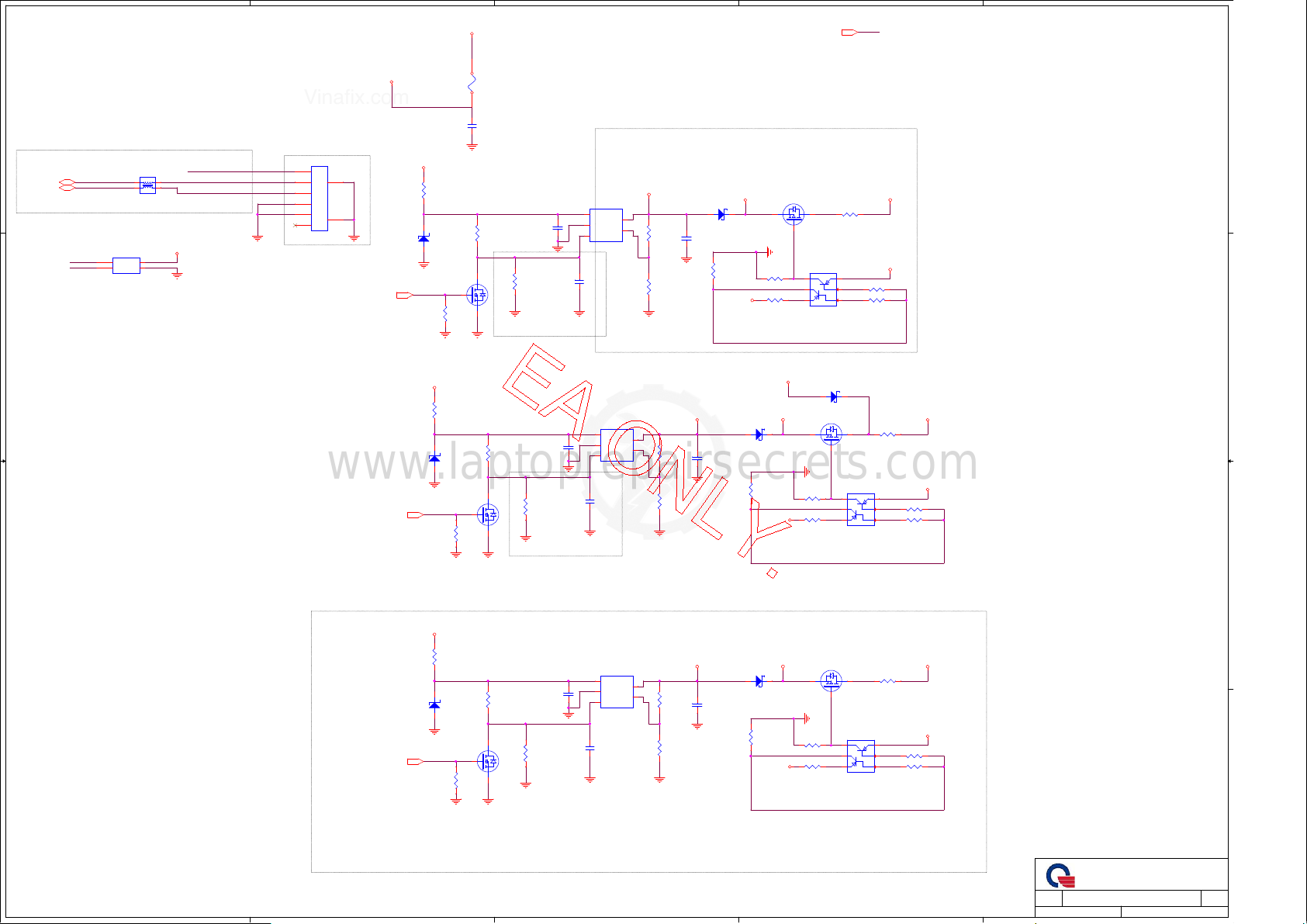

Vinafix.com
5
www.laptoprepairsecrets.com
USB INTERFACE
4
+3V_FP
3
2
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,2 9,30,31,34,35,36,40,42,48
1
38
+3V
D D
EC-SIT-11
USBP8+12
USBP8-12
USBP8+
USBP8-
USBP8-FP_C
USBP8+FP_C
U20
2
IO1
3
IO2
CM1224-02SR
CML14
4 3
1
DLW21SN121SQ2L
4
VIN
1
GND
2
+3V_FP
EC-FVT-05
C C
+3V_FP
USBP8+FP_C
USBP8-FP_C
EC-DV-08
EC-SIT-02
CN25
1
2
3
4
5
6
FP
VCCPD_VBUS_F
7
8
S5_PWR_PG29,38,41,47,49
S5_PWR_PG29,38,41,47,49
PD1
SMAJ22A
2 1
PR11645
VCCPD_VBUS_F
D29
SMAJ22A
PR11642
0_6
SSM3K7002BS
1M_4
2 1
PQ2096
R763
0_6
SSM3K7002BS
R773
*1M_4
F13
FUSE 1A
Dead battery function
C9755
0.1U/16V_4
EC-SIT-26
LDO_5V
PU123
3
VIN
1
OUT
PC5631
0.1U/25V_4
2
GND
ADJ
5
EN
NCP4623HSNADJT1G
4
PR11646
PC5630
10K/F_4
2.2U/6.3V_4
PR11640
9.31K/F_4
PC5632
PR11582
10K/F_4
3
2
1
1U/25V_4
PR11662
10K/F_4
EC-SIT-06
3.54V
R768
R766
10K/F_4
24K/F_4
CCG2_PWR_LD0
C9720
2.2U/6.3V_4
U51
3
VIN
1
OUT
C9721
0.1U/25V_4
2
GND
ADJ
5
EN
NCP4623HSNADJT1G
4
C9719
1U/25V_4
R765
10K/F_4
3
Q54
2
1
R779
10K/F_4
EC-SIT-06
PD2
RB521SM-30T2R
PR11641
1M_4
+5VS5
EC-SVT-01
1
PR11581
1M_4
PR11580
1K_6
+5VS5
D28
RB521SM-30T2R
R767
1M_4
CCG2_35V
PQ2
SSM3J327R
2
IDEA_G_3VLDO
3
PQ2095
Q2
3
6 5
Q1
MMDT2907A-7-F
D27
*RB521SM-30T2R
Q53
SSM3J327R
1
2
R769
1M_4
R771
1K_6
PR11644
*0_6_S
4
PR11638 220K_4
21
PR11639 220K_4
3
CCG2_35V
IDEA_G_3VLDO_CCG2
Q55
Q2
3
6 5
Q1
MMDT2907A-7-F
+5VS5LDO_5V_L
LDO_5V_L
R764
*0_6_S
4
R770 220K_4
21
R772 220K_4
+3VS5CCG2_PWR
CCG2_PWR
B B
VCCPD_VBUS_F
R837
0_6
R844
10K/F_4
C9757
1U/25V_4
R835
D30
SMAJ22A
2 1
S5_PWR_PG29,38,41,47,49
A A
SSM3K7002BS
R836
*1M_4
10K/F_4
3
Q61
2
1
C9756
0.1U/25V_4
EC-FVT-07
U55
3
VIN
OUT
2
GND
ADJ
5
EN
NCP4623HSNADJT1G
1
4
3.54V
R834
R833
10K/F_4
24K/F_4
3V_LDO_EC
C9758
2.2U/6.3V_4
D31
RB521SM-30T2R
R842
1M_4
EC_3V
Q62
SSM3J327R
3
1
EC_3V
IDEA_G_3VLDO_EC
2
R843
1M_4
Q63
Q2
3
6 5
R839
1K_6
Q1
MMDT2907A-7-F
R838
0_6
4
R841 220K_4
21
R840 220K_4
+3VPCUVSTBY_FSPI
VSTBY_FSPI
EC-SVT-01
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
5
4
3
Quanta Computer Inc.
Document Number
Document Number
Document Number
All Power Good
All Power Good
All Power Good
Monday, November 09, 2015
Monday, November 09, 2015
Monday, November 09, 2015
Date:
Date:
2
Date:
Sheet
Sheet
Sheet
1
of
of
of
38 57
38 57
38 57
RevSize
RevSize
RevSize
1A
1A
1A
Page 39

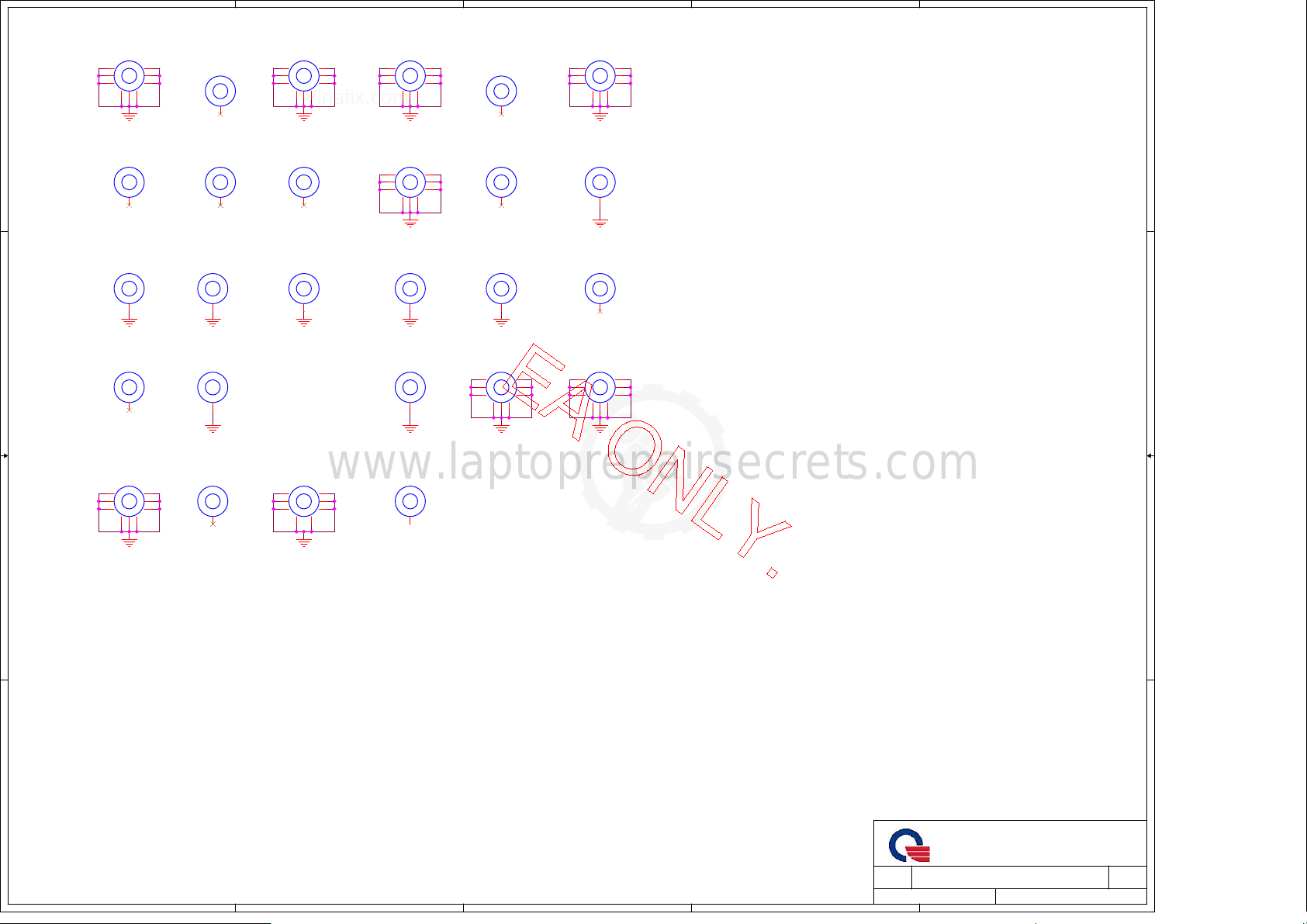

Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
H7
*HG-C236D91P2
2
5
3
6
4
7
1
8
9
D D
H3
*H-C107X91D107X91N
1
H26
*H-TC268IBC150D150PT
1
C C
H14
*H-C276D276N
1
H15
*HG-C236D91P2
2
3
4
1
8
9
5
6
7
H6
*H-C91D91N
1
H12
*H-C276D276N
1
H24
*H-TC268IBC150D150PT
1
H22
H-C236D142P2
1
H16
*H-C107X91D107X91N
1
H8
*HG-C236D91P2
2
5
3
6
4
7
1
8
9
H18
*H-C107X91D107X91N
1
H27
*H-TC268IBC150D150PT
1
H21
*HG-C236D91P2
2
5
3
6
4
7
1
8
H9
*HG-C276D91P2
2
5
3
6
4
7
1
8
9
H19
*HG-C276D91P2
2
5
3
6
4
7
1
8
9
H1
*SPAD-PS8-1NP
1
H25
h-tc236bc130d110p2
1
H28
*H-C91D91N
1
H11
*H-C91D91N
1
H13
*H-C276D276N
1
H20
*H-PS8-2
1
H5
*HG-C276D91P2
2
3
4
1
8
9
H2
*HG-C276D91P2
2
5
3
6
4
7
1
8
9
H23
*H-TC268IBC150D150PT
1
H17
*H-C276D276N
1
H10
5
6
7
*HG-C276D91P2
2
3
4
1
8
5
6
7
9
39
B B
A A
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
5
4
3
Quanta Computer Inc.
Document Number
Document Number
Document Number
Screw Hole
Screw Hole
Screw Hole
Sheet
Sheet
Date:
Date:
2
Date:
Sheet
39 57Monday, November 09, 2015
39 57Monday, November 09, 2015
39 57Monday, November 09, 2015
1
RevSize
RevSize
RevSize
1ACustom
1ACustom
1ACustom
of
of
of
Page 40

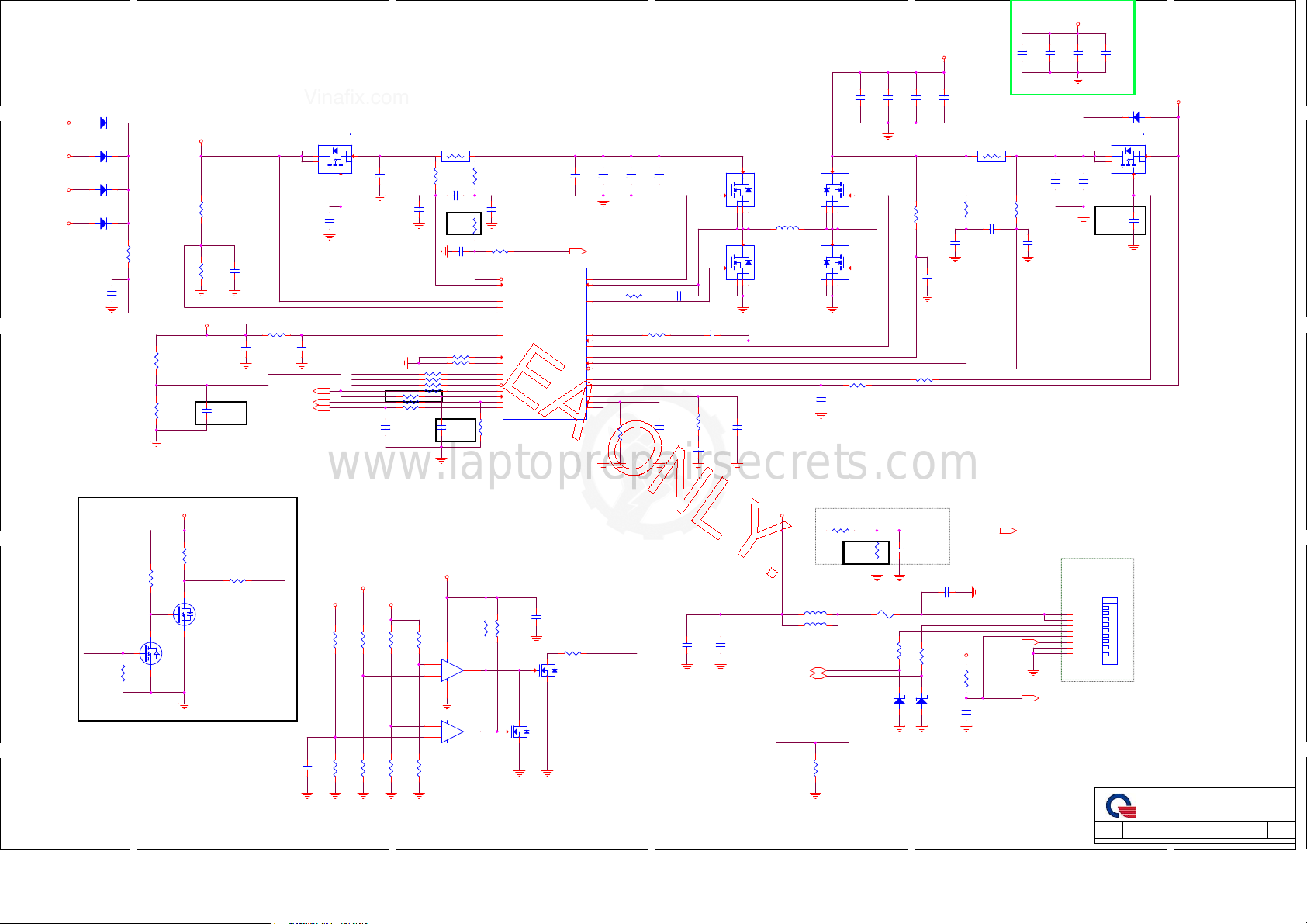

Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
+VIN
For ISN
PC3164
+VIN
1
40
PC3165
PC3162
*10u/25V_6
*10u/25V_6
PC3163
*10u/25V_6
*10u/25V_6
PD2020
+VIN
Vsystem
DA2J10100L
2 1
PD2019
DA2J10100L
2 1
PD2021
DA2J10100L
2 1
PD2022
DA2J10100L
2 1
PC3122
1U/25V_6
TEMP_MBAT
PR11659
*100K/F_4
09/10
PQ2101
*SSM3K7002BS
ACAV_IN29
PC211
*0.1U/25V_4
PMON42
AD_ID29
PQ2080
AON6413
1
3
PC3161
PC5627
4.7u/6.3V/X5R_4
BAT-V +3V
PR235
511K/F_4
PR238
255K/F_4
4
BATGONE
PR195
511K/F_4
PR199
255K/F_4
SMBCLK0
SMBDAT0
H_PROCHOT#
ACAV_IN
52
+VDC_IN1
*0.1U/25V_4
(0.95V-3.5V)
PR3538 100K/F_4
PR3536 *0_4_S
PR3537 *0_4_S
+VDC_IN
PR234
200K/F_4
PR231
475K/F_4
PR3581
1_6
PC5629
10u/25V_6
PC3152
ASGATE
ACIN_SNS
DCIN
VDDP
VDD
PR3531 *0_4_S
PR3532 *0_4_S
PR3533 *0_4_S
PR3534 *0_4_S
09/10
PC3166
1000P/50V_4
PR206
200K/F_4
PR202
475K/F_4
PR3535 *0_4_S
PR3539 *0_4_S
3
2
6
5
+VDC_IN
PR3111
453K/F_4
PR48
1_1206
PR11650
10K/F_4
PR11651
20K/F_4
PR11622
100K/F_4
VDDP
4.7u/6.3V/X5R_4
PC5640
*100P/50V_4
PC5626
PC18
*1000P/50V_4
PR11621
4.7_6
09/10
VDD
PR11657
*100K/F_4
PR11658
*100K/F_4
2
3
2
1
PR11661
*0_4_S
BATGONE TEMP_MBAT
3
PQ2100
*SSM3K7002BS
1
0.1U/25V/X5R_4
VOLTAGE INPUT RANGE +4.2V TO +20V
PR3579
RC1206-R020
21
+VDC_IN2
PR3580
20_6
PC5628
0.1U/25V_4 PQ2073
09/10
*Short_4
PC17
*0.1U/25V_4
I_MON
PC3125
10P/50V_4
PC3151
*0.1U/25V_4
PR50
PR49
1K/F_4
DOCK_PWR_CONSUM
PU119 ISL9237
14
CSIN
CSIN
15
CSIP
CSIP
13
ASGATE
16
ADP
19
ACIN
17
DCIN
8
VDDP
18
VDD
20
OTGEN/CMIN
26
OTG/CMOUT
22
SCL
21
SDA
23
PROCHOT#
24
ACOK
ACOK
25
BDET COMP
BATGONE
30
PSYS
PSYS
29
AMON/BMON
PR2155
4.02K/F_4
UGATE1
PHASE1
LGATE1
LGATE2
PHASE2
UGATE2
PC2108
10u/25V_6
DOCK_PWR_CONSUM 33
11
10
12
BOOT1
9
7
4
BOOT2
6
5
3
VSYS
2
CSOP
1
CSON
32
BGATE
31
VBAT
28
COMP
27
PROG
33
PGND
PC2107
10u/25V_6
UG1
PH1
BT1
PR44 *0_6_S
LG1
LG2
BT2
PR11614 *0_6_S
PH2
UG2
VSYS_SNS
CSOP
CSON
BGDRV
BAT_SNS
PGM
PR11620
187K/F_4
PC2106
10u/25V_6
PC2109
AON7506
10u/25V_6
PC3137 0.1U/25V_4
PC3138 0.1U/25V_4
PC3127
*270p/50V_4
09/10
FSW = 733KHZ
I = 100MA
2 CELLS
PQ2071
PR3023
2K_4
PC3128
4700P/25V_4
52
4
3
1
PL2006
2.2uH_7X7X3
52
PQ2070
AON7506
4
3
1
*0.1U/25V_4
PC3126
*470P/50V_4
BAT-V
+5V
HCB2012KF-800T50
HCB2012KF-800T50
SMBDAT029
SMBCLK029
475K/F_4
84
+
-
PU12A
*BA10393F-GE2
*BA10393F-GE2
-
+
PR211
PU12B
PC191
0.01U/25V/X7R_4
PR229
475K/F_4
1
2
PQ41B
SSM6N15FU
61
7
PR201
*0_4
PQ41A
SSM6N15FU
H_PROCHOT#
34
5
PC175
PC184
10U/25V_8
10U/25V_8
AON7506
PQ2072
AON7506
PC3135
BAT_EN
EL8
EL7
D D
VCCPD_VBUS_F
DOCK-PWR20-IN1
C C
B B
A A
52
1
52
1
PR90
10K/F_4
3
3
PR77
294K/F_4
PR3543
84.5K/F_4
09/10
VBATT2
PC3141
10u/25V_6
4
PH2
4
*0_4_S
Close to EC
PR73
PF2
0501010.WR
1 2
PR84
200/F_4
PD8
PDZ5.6B
PC3142
PC3143
10u/25V_6
10u/25V_6
PR3541
*0_4_S
PC3134
*0.1U/25V_4
PC3131
*0.1U/25V_4
PR3544 *0_4_S
PC56
0.01U/25V/X7R_4
EC19
1000P/50V/X7R_4
VBATT
PR85
200/F_4
100K/F_4
PD9
PDZ5.6B
2 1
2 1
PR3546
PR86
PC3144
1_6
MBATV
10u/25V_6
MBCLK
MBDATA
+3VPCU
PR3542
RC1206-R010
PC3132
1U/25V_4
BGDRV1
BAT_EN32
PC63
0.1U/16V/X7R_4
21
PR3545
1_6
MBATV 29
PC3139
10u/25V_6
PC3133
*0.1U/25V_4
Different
with LZ
series
1
PWR1
2
PWR2
3
I2C_CLK
4
I2C_DATA
5
TEMP
6
ENABLE
7
GND2
8
GND2
TEMP_MBAT 29
1
3
PC3140
10u/25V_6
4700P/25V_4
09/10
PQ2006
AON6413
PC3136
PJP15
10839-l-8p-l
PD2030
*SX34
4
BAT-V
52
5
4
PROJECT : Bell
PROJECT : Bell
PROJECT : Bell
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
+VBATA
+VBATA
Date: Sheet of
Date: Sheet of
Date: Sheet of
3
2
+VBATA
Monday, November 09, 2015 5740
Monday, November 09, 2015 5740
Monday, November 09, 2015 5740
1
RevSize
RevSize
RevSize
1A
1A
1A
Page 41

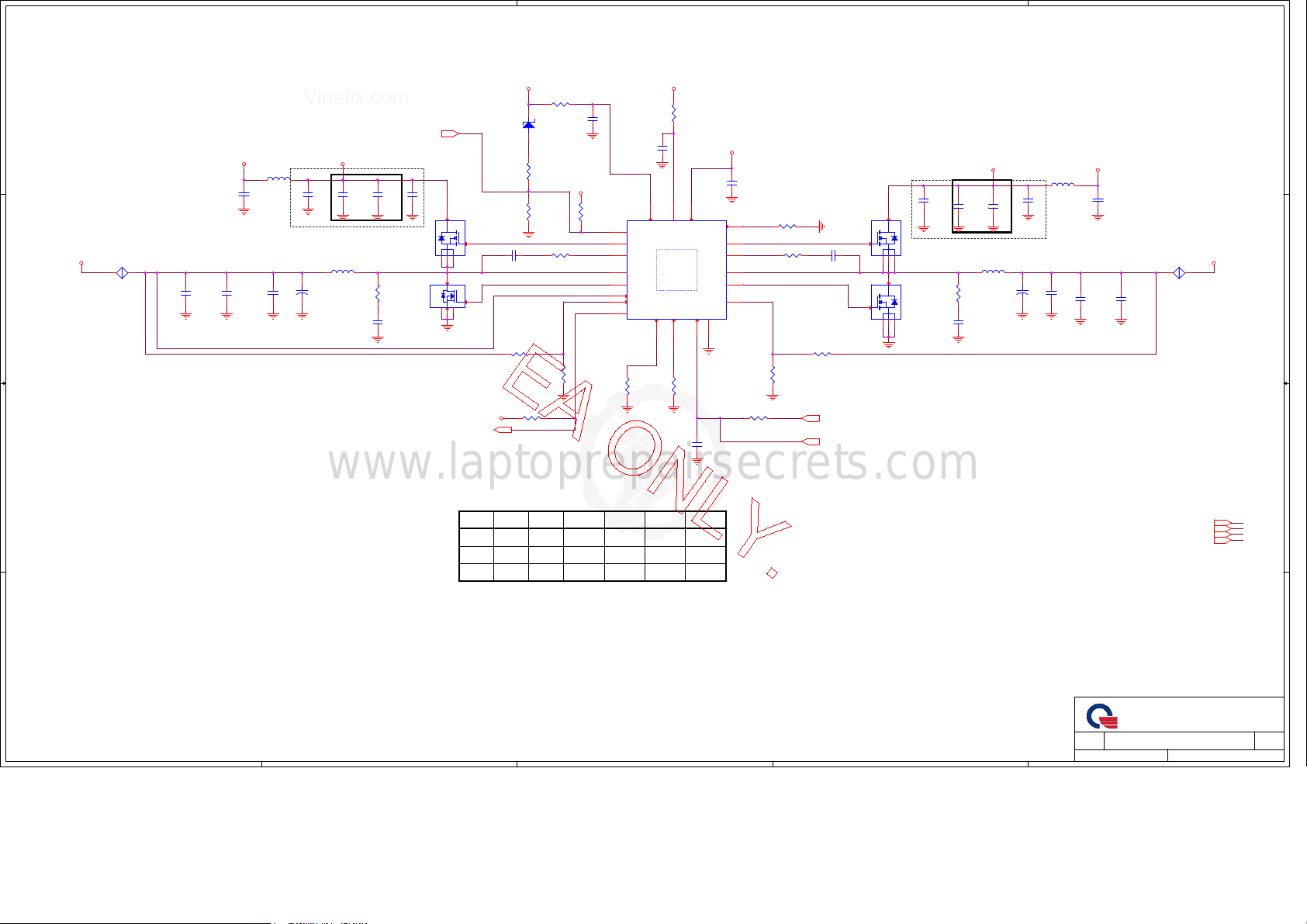

Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
41
+VIN
PR305
PR72
2 1
5V_1
PR89
*10K/F_4
0.1u/25V /X5R_4
PR281
*1K/F_4
PR279
*100K/F_4
PR183
10.2K/F_4
2.2_8
PR70
*0_6_S
PC238
+3VPCU
PR267
*100K/F_4
8230EN01
5V_UG
5V_BOOT
5V_PHASE
5V_LG
5V_VO
5V_FB
8230PG
PR272
143K/F_4
R_TRIP1_5V
4.7u/6.3V/X5R_4
12
18
19
17
16
20
D D
PD6
PQ2093
4
4
S5_PW R_PG29,38,47 ,49
*ZD5.6V
Ven=2.4V
AON7410
PC36
0.1U/25V_4
R1= (Vout-2) * R2 / 2
15.8K/F_4
+3VS5
EC_PWR_OFF_2#32
Place these CAPs
+VIN_5VS5+VIN
PC34
09/10
PL8
2200P/50V_4
10U/25V/X5R_8
PR165
2.2_6
PC131
close to FETs
PC135
10U/25V/X5R_8
PQ2089
AON7400AL
5V_3
PC143
52
0.1U/25V_4
3
1
5
213
EL6
HCB2012K F-800T50
PC54
PC35
2200P/50V_4
2.2uH_7X 7X3
+
PC139
0.1U/16V_4
220U/6.3V_3528
PC133
0.1U/25V_4
PJP19
+5VS5
*SHORTPAD
1 2
C C
+5 Volt +/- 5%
TDC: A
EDP:9A
5V_AUX_R 3V_PHASE
PC53
PC50
22U/6.3V_6
22U/6.3V_6
5V OCP= current limit + Iripple/2 =
(84.5K*10uA/8/7.1mohm) + (4.18A/2)= 16.9A
1
6
PC201
8230_VIN
11
ENLDO
UGATE1
BOOT1
PHASE1
LGATE1
BYP1
FB1
PGOOD
105K/F_4
R_TRIP2_3.3V
VIN
RT8230AGQ W
ENTRIP1
2
ENTRIP1
PR277
*0.1U/16V _4
+3VPCU
PU121
PC5625
8230_3V
15
LDO3
ENTRIP2
4
ENTRIP2
3V_AUX for EC only
PR11618
*0_4_S
+5VPCU
8230_5V
14
TONSEL
LDO5
UGATE2
BOOT2
PHASE2
LGATE2
FB2
ENM
GND
13
21
8230_ENC
PC159
4.7u/6.3V/X5R_4
3
8230TON
8
3V_UG
7
3V_BOOT
9
10
3V_LG
5
10.2K/F_4
3V_FB
PR210
PR75
1K/F_4
PR282
100K/F_4
PR83
3V_15V_2
*0_6_S
Vref=2VVref=2V
R1= (Vout-2) * R2 / 2
PR216
6.65K/F_4
PQ2091
AON7410
PC57
0.1U/25V_4
S5_ON 29,47,49,51
EC_PWR_OFF_1# 32
Place these CAPs
close to FETs
PC189
52
4
3
52
4
3
0.1U/25V_4
1
PQ2092
AON7752
1
3.3V OCP=current limit + Iripple/2 =
(64.9K*10uA/8/14.5mohm) + (2.47A/2)=6.8A
+VIN_3VS5 +VIN
PC59
PC190
10U/25V/X5R_8
09/10
PL11
2.2uH_7X 7X3
PR203
2.2_6
3V_2
PC182
2200P/50V_4
10U/25V/X5R_8
HCB2012K F-800T50
PC58
2200P/50V_4
+
PC169
220U/6.3V_3528
EL9
PC38
PC205
0.1U/25V_4
PJP18
+3VS5
*SHORTPAD
PC44
22U/6.3V_6
1 2
+3.3 Volt +/- 5%
TDC: A
EDP:4.5A
3V_AUX_R
PC39
22U/6.3V_6
0.1U/16V_4
B B
Power On sequencing
ENLD0 ENM REF
LOW LOW
LOW
> 1V
> 1V > 2.3V
A A
5
4
VREG3 VREG5 SMPS1
OFF
OFF
ON ON
ON
ON
OFF OFF
OFF
ON
ON ON
3
SMPS2
OFF OFF
+VIN19,40,42,4 3,44,45,46,47,50,51
+3VPCU13,19,22 ,25,32,3 3,38,40,52
+3VS54,10,12,15,16,19 ,21,23,25,28,31 ,32,36,3 8,47,48,49,51
+5VS54,19,2 6,27,28 ,32,33,3 5,37,38,42,45,46,47,48,49,51
ON
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Nu mber
Document Nu mber
Document Nu mber
V5A_V3P3A
V5A_V3P3A
Date:
V5A_V3P3A
Monday, November 09 , 2015 5741
Date:
Monday, November 09 , 2015 5741
Date:
2
Monday, November 09 , 2015 5741
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
of
of
of
1A
1A
1A
Page 42
Vinafix.com
5
www.laptoprepairsecrets.com
VCC_SENSE5
D D
C C
SWN_SA45
B B
A A
+VCCSTPLL
PR112
100/F_4
+VCCSA
VCCSA_SENSE6
VSSSA_SENSE6
Place close to
VCCSA Inductor
H_PROCHOT#2,29
VR_SVID_DATA5
VR_SVID_ALERT#5
PR185
100/F_4
PR184
100/F_4
PR244
PR248
7.5K/F_4
PR101
1.5K/F_4
PWM_SA45
DRON45
VR_SVID_CLK5
IMVP_PWRGD29
VCCGT_SENSE7
VSSGT_SENSE7
5
PR111
*110/F_4
14K/F_4
PR241
*0_4_S
PR245
VRON29
61.9K/F_4
VSS_SENSE5
PR110
45.3/F_4
PR93
*0_4_S
1000P/50V_4
PR97
*0_4_S
CSN_SA45
1 2
PR186
100K/F_4 NTC
PC215
0.018U/25V_4
PC72
15P/50V_4
PC70
0.01U/25V_4
+VIN
PR250 10K/F_4
+3V
IMVP_PWRGD
PR11665 100K/F_4
PC5642 *100P/50V_4
+VCCGT
TSENSE_GT TSENSE_CORE
PR246
1 2
100K/F_4 NTC
place close to
GT MOSFET
PC79
PR113
0.1U/16V_4
*75/F_4
VR_SVID_DATA
VR_SVID_ALERT#
VR_SVID_CLK
H_PROCHOT#
PC68
1000P/50V_4
PR94
PC69
2.61K/F_4
PR100
1K/F_4
PC73
2200P/50V_4
PC216
PR104 34K/F_4
PC74 1000P/50V_4
PC75
220P/50V_4
PR107 110K/F_4
PR108 51.1K/F_4
PR259 75/F_4
PR258 10/F_4
PR257 *0_4_S
PR256 49.9/F_4
PR228 1K/F_4
PR150
100/F_4
PR149
100/F_4
2200P/50V_4
PR232 *0_4_S
PR233 *0_4_S
PR242
*0_4_S
PR239
61.9K/F_4
PR262
PR263
220P/50V_4
VSP_SA
VSN_SA
CSN_SA
CSP_SA
ILIM_SA
COMP_SA
IOUT_SA
VR_HOT#
SDIO
ALERT#
SCLK
VRMP
PC203
0.01U/25V_4
PR249 *0_4_S
PR251 *0_4_S
PMON40
PR96 20K/F_4
PC214 *100P/50V_4
1000P/50V_4
PR240
1 2
100K/F_4 NTC
place close to
VCORE MOSFET
*0_4_S
*0_4_S
PC77
PC212
4
PC223
1000P/50V_4
PR109
15P/50V_4
IOUT_CORE
49
VSP_1b
48
VSN_1b
45
CSN_1b
44
CSP_1b
46
ILIM_1b
47
COMP_1b
43
IOUT_1b
40
PWM/ADDR_VBOOT
39
DRON
35
VR_HOT#
36
SDIO
37
ALERT#
38
SCLK
12
VRMP
4
PC221
1000P/50V_4
PC219
3300P/50V_4
2K/F_4
PC78
PR106 73.2K/F_4
VR_RDY
0.1U/16V_4
PR236
1.27K/F_4
PC210
3300P/50V_4
PR253
2.67K/F_4
PR255
2.67K/F_4
PR254
1K/F_4
PC80
1500P/50V_4
PC76 1000P/50V_4
PC218 0.1U/16V_4
PR105 38.3K/F_4
COMP_CORE
TSENSE_CORE
ILIM_CORE
34
31
30
27
ILIM_1a
IOUT_1a
COMP_1a
TSENSE_1ph
PSYS
TSENSE_2ph
VR_RDY42EN
51
50
11
41
TSENSE_GT
PMON
VR_EN
PC64
PR95
23.2K/F_4
PR223
49.9/F_4
PR227 604/F_4
PR224 100K/F_4
program IccMax_2ph
VSN_CORE
29
VSN_1a
VSP_2ph
52
VSP_GT
CSN_CORE
VSP_CORE
32
28
VSP_1a
PU14
NCP81206
VSN_2ph
IOUT_2ph
1
IOUT_GT
VSN_GT
PC66 470P/50V_4
PC197
470P/50V_4
PC222
4700P/25V_4
BST_CORE
HG_CORE
CSP_CORE
33
25
26
HG3
CSP_1a
CSN_1a
DIFFOUT_2ph/IccMax_2ph2FB_2ph3ILIM_2ph5CSCOMP_2ph
COMP_2ph
4
DIFFOUT_GT
COMP_GT
FB_GT
PC206 15P/50V_4
PR222
4.7K/F_4
PR247
100K/F_4 NTC
PC220
0.022U/16V_4
24
23
SW3
BST3
LG2/ICCMAX_1a
CSSUM_2ph
6
ILIM_GT
CSCOMP_GT
PR91
12.4K/F_4
PC204
3300P/50V_4
12
PR103
11K/F_4
HG_GT1
15
HG1
BST1
SW1
LG3/ICCMAX_1b
LG1/ROSC
HG2
BST2
SW2
CSP1_2ph
CSREF_2ph
CSP2_2ph
PVCC
EPAD
VCC
53
13
PC209
1U/6.3V_4
3
Place close to
VCORE Inductor
PR260
14K/F_4
PR261
7.5K/F_4
PC217
0.22U/25V_6
14
BST_GT1
16
17
21
22
20
19
10
CSP_GT1
8
CSREF_GT
9
7
CSSUM_GT
18
PR225
2.2_6
+5VS5
3
PR237
1_6
PC71
2.2U/6.3V_4
PR252
PC213
0.22U/25V_6
PR99
14K/F_4
PR102
22.6K/F_4
+5VS5
1_6
SWN_CORE
HG_CORE_L
HG_GT1_L
PC67
0.1U/25V_4
SW_CORE
LG_CORE
SW_GT1
LG_GT1
HG_CORE_L 43
SW_CORE 43
LG_CORE 43
SW_GT1 44
LG_GT1 44
PR219
3.48K/F_4
PC208
0.047U/25V_4
PR82
10/F_4
SWN_CORE 43
HG_GT1_L 44
SWN_GT1
CSN_GT1
2
PR214
68K/F_4
PC202
820P/50V_4
2
+3V 2,4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,48
+VIN 19,40,41,43,44,45,46,47,50,51
+5VS5 4,19,26,27,28,32,33,35,37,38,41,45,46,47,48,49,51
+VCCSA 6,45
+VCCGT 7,44
+VCCSTPLL 2,4,5,6,9,48,51
+VCC_CORE 5,43
CSN_CORE 43
SWN_GT1 44
CSN_GT1 44
165K/F_4
PC207
*390P/50V_4
PR217
Place close to
GT1 Inductor
PR230
1 2
220K/F_4 NTC
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
VCC - RT8175A
VCC - RT8175A
VCC - RT8175A
Monday, November 09, 2015 5742
Monday, November 09, 2015 5742
Monday, November 09, 2015 5742
Date:
Date:
Date:
PR92
75K/F_4
Sheet
Sheet
Sheet
1
42
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
Page 43
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
+VIN19,40,41,42,44,45,46,47,50,51
+VCC_CORE5
1
43
D D
PQ51
AON6370
HG_CORE_L42
SW_CORE42
LG_CORE42
C C
HG_CORE_L
SW_CORE
LG_CORE
PQ48
*AON6794
5
4
213
5
AON6794
4
213
PQ50
09/10
PC83
PC227
10U/25V/X5R_8
4
5
213
PC228
10U/25V/X5R_8
10U/25V/X5R_8
PR212
*2.2_6
PC196
*2200P/50V_4
PC84
10U/25V/X5R_8
+VIN_VCC_CORE
PC85
PC86
2200P/50V_4
0.1U/25V_4
PL13
0.15uH_7X7X3
1 2
3
4
EL11
HCB2012KF-800T50
DCR=0.9m ohm
+VIN
PC231
0.1U/25V_4
+VCC_CORE
TDC : 21A
ICC_MAX :29A
+VCC_CORE
PC194
+
330U/2.5V/ESR15_3528
CSN_CORE
SWN_CORE
B B
A A
5
4
3
CSN_CORE 42
SWN_CORE 42
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
VGG - RT8175A
VGG - RT8175A
VGG - RT8175A
Sheet
Sheet
Date:
Monday, November 09, 2015 5743
Date:
Monday, November 09, 2015 5743
Date:
2
Monday, November 09, 2015 5743
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
Page 44
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
+VIN19,40,41,42,43,45,46,47,50,51
+VCCGT7,42
1
D D
44
+VIN+VIN_VCCGT
+
PC176
*15u/25V_7343
CSN_GT1 42
SWN_GT1 42
12
+
09/10
PC146
33u/25V/ELEC
+VCCGT
+VCCGT
TDC :18A
ICC_MAX :31A
09/10
PC81
PC224
PC229
10U/25V/X5R_8
10U/25V/X5R_8
PR98
*2.2_6
PC65
*2200P/50V_4
PC225
10U/25V/X5R_8
PQ38
*AON6794
PC226
10U/25V/X5R_8
5
4
213
PQ49
AON6370
HG_GT1_L42
SW_GT142
C C
LG_GT142
B B
HG_GT1_L
SW_GT1
LG_GT1
PQ47
AON6794
5
4
213
5
4
213
HCB2012KF-800T50
PC82
0.1U/25V_4
PL12
0.15uH_7X7X3
1 2
3
EL10
2200P/50V_4
4
PC230
CSN_GT1
SWN_GT1
+
PC177
*15u/25V_7343
0.1U/25V_4
PC167
+
330U/2.5V/ESR15_3528
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
<Title>
<Title>
<Title>
B
B
B
Date:
Date:
Date:
A A
5
4
3
2
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document NumberDoc <RevCode>
Document NumberDoc <RevCode>
Document NumberDoc <RevCode>
Sheet
Sheet
Sheet
44 57Monday, November 09, 2015
44 57Monday, November 09, 2015
44 57Monday, November 09, 2015
1
RevSize
RevSize
RevSize
of
of
of
Page 45
Vinafix.com
5
www.laptoprepairsecrets.com
VCCSA
4
3
2
+VIN19,40,41,42,43,44,46,47,50,51
+VCCSA6,42
+5VS54,19,26,27,28,32,33,35,37,38,41,42,46,47,48,49,51
1
D D
+VIN_VCCSA +VIN
09/10
PC158
PQ35
HG_SA_LHG_SA
AON7410
PC55
0.1U/25V_4
PQ32
AON7752
PR188
*0_6_S
C C
PU9
PR189
*0_4_S
PWM_SA42
DRON42
PR194
+5VS5
B B
*0_4_S
2
3
4
PC181
2.2U/6.3V_4
PWM
EN
VCC
8
NCP81253
GND6PAD
9
DRVH
DRVL
BST
SW
1
VGTA_BST1
7
SW_SA
5
LG_SA
PR74
*0_6_S
52
4
3
1
52
4
3
1
PC160
PR71
*2.2_6
PC46
*2200P/50V_4
PC48
10U/25V/X5R_8
10U/25V/X5R_8
DCR=4.2m ohm
PL10
0.47uH/17.5A(PCMC063T-R47MN)
1 2
3
4
0.1U/25V_4
PJP12
*SHORTPAD
PC47
2200P/50V_4
12
PC157
22U/6.3V_6
CSN_SA 42
SWN_SA 42
PC154
22U/6.3V_6
PC168
0.1U/25V_4
+VCCSA_P
PC153
PC152
22U/6.3V_6
22U/6.3V_6
45
VCCSA
TDC:3.7A
EDP:4.5A
+VCCSA
1 2
PC155
22U/6.3V_6
PJP11
*SHORTPAD
PC156
22U/6.3V_6
PROJECT : PS8
PROJECT : PS8
A A
5
4
3
Custom
Custom
Custom
Date:
Date:
Date:
<Title>
<Title>
<Title>
2
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document NumberDoc <RevCode>
Document NumberDoc <RevCode>
Document NumberDoc <RevCode>
Sheet
Sheet
Sheet
45 57Monday, November 09, 2015
45 57Monday, November 09, 2015
45 57Monday, November 09, 2015
RevSize
RevSize
RevSize
of
of
of
1
Page 46
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
VR PAGE: +VDDQ
Fsw=500kHz
+VIN19,40,41,42,43,44,45,47,50,51
+5VS54,19,26,27,28,32,33,35,37,38,41,42,45,47,48,49,51
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42,48
+1.2V_SUS3,6,17,18,51
+0.6V_DDR_VTT17,18,51
46
D D
PC108
HWPG4,16,21,29,49
+1.2V_SUS
PJP7
12
+VDDQ_VLDOIN
*SHORTPAD
+0.6V_DDR_VTT
C C
PJP5
12
*SHORTPAD
PC101
10u/6.3V_6
PR25
*0_4_S
PC94
10u/6.3V_6
PC97
*10u/6.3V_6
VDDQ_VTTSNS
+VDDQ_VTT_OUT
+VDDQ_VTTREF
PC90
0.22u/10V_4
1
2
3
4
5
+VDDQ_VREF
VTTSNS
VLDOIN
VTT
VTTGND
VTTREF
20
PGOOD
TPS51716
VREF
GND
6
7
PR128
PR129
33.2K/F_4
90.9K/F_4
VDDQ_MODE
VDDQ_TRIP
19
MODE
16
18
S317S5
TRIP
VBST
DRVH
PU3
DRVL
VDDQSNS
PGND
REFIN
8
EGND21G122G223G324G425G5
9
10
*0.1U/16V_4
PR130 *0_4
PR127 *0_4_S
PR126 *0_4_S
PC107
*0.1U/16V_4
15
VDDQ_VBST VDDQ_VBST_R
14
VDDQ_DRVH
13
+VDDQ_LX
SW
12
+VDDQ_V5IN
V5IN
11
VDDQ_DRVL
26
PR125
*0_6_S
1u/10V_4
+VDDQ_VTT
SUSON 29,46,51
PR122
*0_6_S
PC92
VIH_OVT = 1.8V
VIL_OVT = 0.5V
VIH_ONS = 1.8V
VIL_ONS = 0.5V
PC96
0.1u/50V_6
MAINON 29,48,49,51
DDR_PG 17,51
4
3
+5VS5
4
3
09/10
PC102
52
PQ20
AON7410
1
52
PQ18
AON7752
1
+VIN_VDDQ +VIN
PC103
PC7
10U/25V/X5R_8
10U/25V/X5R_8
0.1U/25V_4
PL4
1uH_7X7X3
PR28
*2.2_6
+VDDQ_LX_R
PC5
*150p/50V_4
EL2
HCB2012KF-800T50
PC6
2200P/50V_4
+1.2V_SUS
PC100
0.1U/25V_4
09/10
+1.2V_SUS
TDC: A
EDP:5.5A
Imax_VTT = 200mA
PC3
0.1U/16V_4
B B
PC4
0.01u/50V_4
PR21
10K/F_4
VDDQ_REFIN
PR22
20K/F_4
VDDQ_VDDQSNS
PR121
*0_4_S
PC106
+
PC91
*22u/6.3V_6
330U/2.5V/ESR15_3528
PC95
*22u/6.3V_6
+5VS5
PR124
*0_6_S
PC98
4.7U/6.3V_6
PR123
PC99
0.1U/16V_4
10_6
PR20
*0_4_S
+2.5V_PGHWPG
+2.5V_PVIN
+2.5V_SVIN
PC93
1U/10V/X5R_4
PU2
RT8068A
4
PG
9
PVIN
10
PVIN
8
SVIN
11
GND
NC
NC
EN
LX
LX
FB
1
2
3
7
6
5
PC2
0.1U/16V_4
EC-DV-29
PL3
2.2uH/6A_5*5*3
+2.5V_LX +2.5V_P
22P/50V_4
+2.5V_EN
PC89
FB_+2.5V
PR119
47.5K/F_4
PR120
15K/F_4
R1
R2
PR118
*0_2/S
PC87
0.1U/16V_4
PC88
10U/6.3V/X5R_6
PC5635
10U/6.3V/X5R_6
+2.5V_SUS
PJP4
12
*SHORTPAD
+2.5V +/- 5%
TDC:1A
EDP:2A
EC-DV-29
A A
SUSON29,46,51
SUSON_DDR2529,51
EC-DV-21
5
4
PR19
*0_4
PR11647
*0_4_S
3
Vout =0.6(1+R1/R2)
=2.5V
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Date:
Monday, November 09, 2015 5746
Date:
Monday, November 09, 2015 5746
Date:
2
Monday, November 09, 2015 5746
VDDQ - TPS51716
VDDQ - TPS51716
VDDQ - TPS51716
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
Page 47
Vinafix.com
5
www.laptoprepairsecrets.com
V1P0A (RT8237CZQW)
D D
+3VS5
PR151
*100K/F_4
S5_PWR_PG29,38,41,49
S5_ON29,41,49,51
C C
PR153 *0_4_S
PC129
0.1U/16V_4
OCP=A
L ripple current
=(19-1.05)*1.05/(2.2u*290k*19)
=1.555A
Vtrip=10-(1.555/2)*14mohm
=115.12mV
Rlimit=115.12mV/10uA*8=92.09Kohm
*100K/F_4
PR152 *0_4_S
PR65 124K/F_4
PR67 470K/F_4PR156
4
+5VS5
PR168
*0_6_S
PC134
1u/10V_4
7
PGOOD
EN
TRIP
RT8237CZQW
TST
GND
GND13GND14GND15GND
PU5
V5IN
DRVH
VBST
DRVL
GND
4
16
1
8237_EN 8237_VBST
8237_TRIP
8237_TST
3
2
5
12
8237_DRVH
9
10
8
8237_SW +1V_SRC
SW
6
8237_DRVL
11
FB
8237_FB
PR64
*0_6_S
3
PQ28
AON7410
PC32
0.1u/50V_6
PQ25
AON7752
52
4
3
52
4
3
VFB=0.7V
2
+1.0V_DEEP_SUS9,13,15,16,48,51
+VIN19,40,41,42,43,44,45,46,50,51
+5VS54,19,26,27,28,32,33,35,37,38,41,42,45,46,48,49,51
+3VS54,10,12,15,16,19,21,23,25,28,31,32,36,38,41,48,49,51
1
47
09/10
PC122
10U/25V/X5R_8
1
PR146
*4.7_6
1
PC113
+VIN_1VS5 +VIN
PC29
PC30
10U/25V/X5R_8
0.1U/25V_4
PL6
1uH_7X7X3
PR169
4.32K/F_4
PR166
*150p/50V_4
10K/F_4
EL4
HCB2012KF-800T50
PC123
2200P/50V_4
+
PC26
0.1u/50V_6
PC119
330U/2.5V/ESR15_3528
PC126
0.1U/25V_4
09/10
PC28
22U/6.3V_6
PJP9
*SHORTPAD
PC27
*22U/6.3V_6
+1V_S5
TDC : ?A
PEAK : 10A
+1.0V_DEEP_SUS
12
B B
A A
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Date:
Monday, November 09, 2015 5747
Date:
Monday, November 09, 2015 5747
Date:
5
4
3
2
Monday, November 09, 2015 5747
+1.0V_DEEP_SUS
+1.0V_DEEP_SUS
+1.0V_DEEP_SUS
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
Page 48
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
+3VS5
Imax=5.26A
Pd: ?W
D D
C C
B B
A A
+3V +5V
MAINON
MAINON29,46,49,51
PR196
*0_4
PR221
*0R_8_S
+3V_S2
PC195
*10U/6.3V_6
+5VS5
PR198
*0_4_S
PC171
1U/6.3V_4
+3VS5
PC172
*0.1U/16V_4
MAINON_VCCIO
+1.0V_DEEP_SUS
PC188
0.1U/16V_4
PC179
0.1U/16V_4
PC173
*0.1U/16V_4
PC174
0.1U/16V_4
13
14
4
3
PC178
*0.1U/16V_4
1000P/50V_4
MAINON_G51
PU10
*AOZ1335DI
1
VIN
2
VIN
9
VIN
3
VBIAS
4
ON
VOUT1
VOUT1
VBIAS
ON1
PC198
1
VIN12VIN1
PU11
RT9740AGQW
CT1
12
VOUT
GND
7
VIN26VIN2
OUT2
OUT2
GND
GND
ON2
CT2
10
PC199
1000P/50V_4
PQ42
AON7410
5 2
PR88
*0_4_S
8
5
+5VS5
8
9
11
15
5
PC128
0.1U/16V_4
PC180
*0.1U/16V_4
4
PR78
*0_4_S
PC62
*0.1U/16V_4
<= 65usec full
load ready
TDC:0.16A
PR170
*0_6_S
+3V2,4,10,11,12,13,15,16,17,18,19,20,21,22,24,27,29,30,31,34,35,36,38,40,42
+5V20,22,30,31,33,40
+5VS54,19,26,27,28,32,33,35,37,38,41,42,45,46,47,49,51
+3VS54,10,12,15,16,19,21,23,25,28,31,32,36,38,41,47,49,51
+VCCSTPLL2,4,5,6,9,42,51
+VCCIO2,4,6,16,51
48
+VCCSTPLL
Imax=1.58A
Pd: ?W
+5V_S2
PR218
PC192
0.1U/16V_4
PR190
*0_4_S
1
3
*0_6_S
PC200
*10U/6.3V_6
MAINON
PC185
0.1U/16V_4
PC186
*10U/6.3V_6
SUSON_G151
+VCCIO+VCCIO_P
PJP14
12
*SHORTPAD
+VCCIO
TDC : ?A
PEAK : 3.8A
<= 65usec full
load ready
SUSON_G1
PR177
*0_4_S
+VCCSTG_ON
PR167
*0_4_S
PC151
*1000P/50V_4
PQ30
AON7410
0.1U/16V_4
+1.0V_DEEP_SUS
52
4
3
PC149
1
+VCCSTPLL_P
PC132
0.1U/16V_4
PC150
*10U/6.3V_6
+1.0V_DEEP_SUS9,13,15,16,47,51
5
4
3
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
<Title>
<Title>
<Title>
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document NumberDoc <RevCode>
Custom
Document NumberDoc <RevCode>
Custom
Document NumberDoc <RevCode>
Custom
Sheet
Sheet
Date:
Date:
2
Date:
Sheet
1
RevSize
RevSize
RevSize
of
of
of
48 57Monday, November 09, 2015
48 57Monday, November 09, 2015
48 57Monday, November 09, 2015
Page 49
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
V1P8A (RT8068A)
PR154
D D
+3VS5
C C
PJP10
12
*SHORTPAD
4.7U/6.3V/X5R_4
+3VS5
S5_PWR_PG29,38,41,47
PC140
10K/F_4
PR66
10_6
PC141
0.1U/16V_4
PR157
*0_4_S
8068_PG
8068_PVIN
8068_SVIN
PC33
1U/10V/X5R_4
S5_ON29,41,47,51
PU6
RT8068A
4
PG
9
PVIN
10
PVIN
8
SVIN
11
GND
NC
LX
LX
NC
FB
EN
PC125
0.1U/16V_4
1
8068_LX 1.8V_P
2
3
7
6
5
12
PR155
*0_4_S
PC130
22P/50V_4
8068_EN
PL9
PCMB053T--1R0MS
FB_1.8V
PR162
20K/F_4
PR160
10K/F_4
PR178
*0_2/S
R1
R2
Vout =0.6(1+R1/R2)
=1.8V
PC161
0.1U/16V_4
PC165
10U/6.3V/X5R_6
PC166
10U/6.3V/X5R_6
PC164
10U/6.3V/X5R_6
PJP13
*SHORTPAD
12
Fsw : 900KHz
PEAK : 0.27A
OCP : 4.8A
+1.8V_DEEP_SUS
49
+1.5V +/- 5%
TDC:1A
1.8V_S5
PU4
RT8068A
4
PG
9
PVIN
10
PVIN
8
SVIN
11
GND
MAINON29,46,48,51
1
NC
2
LX
3
LX
7
NC
6
FB
5
EN
10_6
PR63
*0_4_S
+1.5V_PG
+1.5V_PVIN
+1.5V_SVIN
PC116
1U/10V/X5R_4
B B
HWPG4,16,21,29,46
+5VS5
A A
PR148
*0_6_S
4.7U/6.3V_6
PC117
PR147
PC118
0.1U/16V_4
EC-DV-28
PL5
22P/50V_4
PR59
*0_4_S
PC20
0.1U/16V_4
2.2uH/6A_5*5*3
PC112
+1.5V_EN
FB_+1.5V
R1
R2
Vout =0.6(1+R1/R2)
=1.5V
PR141
15K/F_4
PR142
10K/F_4
PR140
*0_2/S
+1.5V_LX +1.5V_P
PC110
10U/6.3V_6
PC111
0.1U/16V_4
EDP:2A
+1.5V
12
PC5637
10U/6.3V/X5R_6
PJP8
*SHORTPAD
EC-DV-28
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
<Title>
<Title>
<Title>
B
B
B
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document NumberDoc <RevCode>
Document NumberDoc <RevCode>
Document NumberDoc <RevCode>
RevSize
RevSize
RevSize
5
4
of
of
Sheet
Sheet
Date:
Date:
3
2
Date:
Sheet
1
of
49 57Monday, November 09, 2015
49 57Monday, November 09, 2015
49 57Monday, November 09, 2015
Page 50
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
D D
SYS_SHDN#29,30
21
PD15
DA2J10100L
PR197
100K_6
PR192
10K_6
PD16
*DA2J10100L
PD14
DA2J10100L
PR181
549K/F_4
21
Vsystem
21
+VIN
+3VS5 +5VS5 VCCGT VCC
C C
PQ40
PMST3904
B B
2
1 3
PMST3906
PQ44
PC170
1U/25V/X5R_6
1 2
1 2
PR11625
470_6_PTC
PR193
1 2
470_6_PTC
1 2
PR11624
470_6_PTC
PR163
1 2
470_6_PTC
1 2
PR134
470_6_PTC
PR243
1 2
470_6_PTC
1 2
PR133
470_6_PTC
PR264
1 2
470_6_PTC
1 2
PR131
470_6_PTC
PR187
470_6_PTC
1 2
PR161
470_6_PTC
12
50
V1P0AVCCSA
PR164
470_6_PTC
1 2
PR144
470_6_PTC
12
VINACINDockingType-C
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
<Title>
<Title>
Custom
Custom
Custom
<Title>
Document NumberDoc <RevCode>
Document NumberDoc <RevCode>
Document NumberDoc <RevCode>
4
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
of
of
Sheet
Sheet
Sheet
of
50 57Monday, November 09, 2015
50 57Monday, November 09, 2015
50 57Monday, November 09, 2015
3
RevSize
RevSize
RevSize
A A
Date:
Date:
Date:
5
Charger Batt INVDDQ
2
1
Page 51
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
DISCHARGE
51
2
+1.2V_SUS
3
2
1
PR180
22R_8
DIS11
3
PQ36
SSM3K7002BS
1
PR116
22R_8
DIS3
PQ17
SSM3K7002BS
2
+3VS5 +5VS5
PR171
22R_8
DIS14
31
2
PQ31
SSM3K7002BS
2
+VIN+VCCSTPLL
PR205
1M_4
3
PQ39
SSM3K7002BS
1
PR182
22R_8
DIS15
31
PQ34
SSM3K7002BS
SUSON_G1
PR204
1M_4
PC183
*2200P/50V_4
DDR_PG17,46
MAINON29,46,48,49,51
SUSON_G1 48
SUSON_DDR2529,46
PR11636 0_4
PR11637 *0_4
PQ2098
LTC044EUBFS8TL
2
PQ9
LTC044EUBFS8TL
PR27
22R_8
DIS2
PQ10
SSM3K7002BS
+2.5V_SUS
2
PR16
22R_8
DIS10
3
PQ7
SSM3K7002BS
1
+VIN
PR11649
1M/F_6
DIS_+VDDQ_1
PR11648
1 3
PR24
1M/F_6
PR23
1M/F_6
1M/F_6
+0.6V_DDR_VTT
3
2
1
2
+VIN
DIS_DDR_VTT
1 3
D D
SUSON29,46
C C
S5_ON29,41,47,49
B B
2
PQ46
LTC044EUBFS8TL
PQ37
LTC044EUBFS8TL
2
+VIN
PR207
1M/F_6
DIS_+VDDQ
PR208
1M/F_6
1 3
+VIN
PR200
1M/F_4
S5_ON_R
PR191
1M/F_4
1 3
PR213
*22R_8
DIS22
3
2
PQ45
*SSM3K7002BS
1
+1.0V_DEEP_SUS +1.8V_DEEP_SUS
PR174
22R_8
DIS12
3
2
PQ33
SSM3K7002BS
1
+VCCIO+VIN +1.5V +VIN
PR209
1M/F_4
PQ43
LTC044EUBFS8TL
MAINON29,46,48,49,51
A A
5
2
MAINON_R
PR215
1M/F_4
1 3
4
PR117
22R_8
DIS1
3
2
PQ15
SSM3K7002BS
1
PR81
22R_8
DIS21
3
2
PQ12
SSM3K7002BS
1
PR76
1M_4
MAINON_G
3
PQ13
SSM3K7002BS
PR79
1M_4
2
1
3
PC60
*2200P/50V_4
MAINON_G 48
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
<Title>
<Title>
<Title>
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document NumberDoc
Custom
Document NumberDoc
Custom
Document NumberDoc
Custom
Sheet
Sheet
Date:
Date:
2
Date:
Sheet
1
RevSize
RevSize
RevSize
<RevCode>
<RevCode>
<RevCode>
of
of
of
51 57Monday, November 09, 2015
51 57Monday, November 09, 2015
51 57Monday, November 09, 2015
Page 52
Vinafix.com
5
www.laptoprepairsecrets.com
For 40V Protection
TYPEC1_USB0
PF3
D D
C C
1 2
0466005.NRHF
EC22
1000P/50V/X7R_4
2 1
LDO_5V_P
PD13
*SMAJ22A
PC3155
*1U/25V_6
VCCPD_VBUS_P
84
5
+
6
-
7
PU120B
BA10393F-GE2
PR11605
*464K/F_4
VCCPD_VBUS_P
EC6025
1000P/50V/X7R_4
12
VDS: 100V
PR11617
*100K/F_4
PC3168
0.1u/50V_6
84
3
+
1
DC10
2
-
PU120A
BA10393F-GE2
PR135
137K/F_4
Low: <22V , High: >22V
3 4
PR296
100K/F_4
PC3159
*0.1u/50V_6
PR11607
*0_4_S
4
PR11623
RC1206-R010
21
PQ1 *AOD409
1
PR297
*100K/F_4
PD_VBUS_DISCHARGE35
VCCPD_VBUS_F
PR11634
*4.7K_8
PC3154
*2200P/50V_4
PR289
100K/F_4
PR3582
*2.2_6
PQ2085
SSM3K7002BS
PC3167
VCCPD_VBUS_F
PR284
470_6
PD_VBUS_DISCHG_N1
3
2
1
*0.1u/50V_6
PQ2083
AON7403
6
7
8
SSM3K7002BS
EC-DV-18
For TypeC
15
2
3
4
PD_VBUS_C_R1
PR287
100K/F_4
PQ2086
VBUS_Q_VINT20
12
PR283
402K/F_4
09/10
PD_VBUS_C_N1
3
2
1
3
VBUS_Q_VINT20
PQ2086_2
09/10
2
VBUS_Q_VINT20PD_VBUS_C_R1
PR4
*0_6
09/10
PD2028
DA2J10100L
2 1
2 1
PD2027
DA2J10100L
PQ2082
*PMST3906
2
PR11632
100K/F_4
PR9
*100K/F_4
PR6
*100K/F_4
PQ2086_2
3
PQ16
SSM3K7002BS
1
R739 560K/F_4
R740 100K/F_4
PC5641 0.1U/25V_4
Vsystem
09/10
PQ26
AON6413
1
52
3
PC5633
4
*0.1U/25V_4
PC3157
1U/25V_4
+VDC_IN
For Type-C exist then AD IN
PC5638
0.1U/25V_4
09/10
DOCK_ATTACHED
DOCK_ATTACHED_BT_OP#
4
PR11615
*0_4
VSTBY_FSPI
PU34
MC74VHC1G08DFT2G
3 5
1
2
PR11616
100K/F_4
PD_VBUS_C_CTRL 35
PD_VBUS_C_CTRL_EC 29
System_AC_IN29
PR291
100K/F_4
100K/F_4
PR293
1
For Dock For System
DOCK-PWR20-IN
PF4
1 2
DOCK-PWR20-IN2 DOCK-PWR20-IN1
0466005.NRHF
EC21
1000P/50V/X7R_4
B B
HCB2012KF-800T50
DOCKED233
09/10
150K/F_4
DOCK_ATTACHED
PC3156
A A
*1000P/50V_4
51K/F_4
5
EL12
HCB2012KF-800T50
EL5
PD12
SMAJ22A
DOCK-PWR20-IN1
12
R536
R539
DOCK-PWR20-IN1
2 1
+3VPCU
3
2
1
PR540
100K_4
09/10
PR11635
*0_4_S
PR542
100K_4
DOCK_ATTACHED_BT_OP#
PQ2084
SSM3K7002BS
PD27*DA2J10100L
21
PD26DA2J10100L
21
R537 150K/F_4
1 2
R538 51K/F_4
PQ2069
AON6413
1
3
4
PC3160
*0.1U/25V_4
PR541
100K_4
DOCK_ATTACHED_3VPCU# 2 9
Vsystem
09/10
DOCK-PWR20_P
52
PR11606
*4.7K_8
+VDC_IN
DOCK_ATTACHED_BT_OP# 52
PR11
220K_4
PR7
220K_4
PQ4
4
2 1
UMT1NGTN
AD on Dock
AD on Sys
AD on Type-C
Power Source
4
PQ6
AON7403
6
7
8
4
IDEA_GD
3
Q2
65
Q1
PR5
1K_6
+VDC_IN
15
2
3
PR8
1M_4
PD2032
DA2J10100L
21
09/10
PR13
1M_4
DOCK-PWR20_P
DC-IN
System Adaptor
ACDC_ID29
Priority: Dock > DC_IN > Type-C
Case2 Case3 Case4 Case5 Case6 Case7
Case1
1
0Cable Dock
0
0
Batt
Batt
0
0
0
0
1
00
0
AD on
Sys
0
0
0 0
1
AD on
Type-C
AD on
Dock
1
1
1
2
3
4
5
PJP16
000
1
00
AD on
Sys
AD-PWR20-IN
EC20
1000P/50V/X7R_4
ACDC_ID
PF1
1 2
0466005.NRHF
PR11608
PESD5V0S1UA
EL3
HCB2012KF-800T50
ADPIN2 Vsystem
EL1
HCB2012KF-800T50
+3VPCU +VDC_IN
PR11610
750/F_6
PQ2087A
SSM6N15FU
34
PD2029
5
12
*0_4
Case8 Case9 Case10 Case11 Case12
11
1
AD on
Type-C
3
0
0
1
1
AD on
Sys
1
1
1
0
AD on
Dock
1
1
0
1
AD on
Dock
PD11
SMAJ22A
ADAPTER_ID_P
AD on
Sys
2 1
PR11611
1M_4
PR11609
1M_4
1
0
1
1
09/10
*4.7K_8
PR11633
1
1
1
1
AD on
Dock
PC11
*0.1U/25V_4
+VAD
ADAPTER_ID_P 52
61
2
PQ2087B
SSM6N15FU
PR11653
220K_4
PR11663
220K_4
AON7403
6
7
8
PQ2099
3
4
Q2
65
2 1
Q1
UMT1NGTN
ADAPTER_ID 29
ACDC_ID_DOCK29,33
2
1 2
3
1
AON6413
1
3
PC5634
*0.1U/25V_4
2
PQ19
SSM3K7002BS
PQ22
PR26
52
4
*0_4_S
PQ11
15
2
3
Vsystem
PR32
100K_4
09/10
PR29
100K/F_4
4
IDEA_GD
PR11654
1K_6
PR11656
1M_4
PD2033
DA2J10100L
09/10
21
PR11655
1M_4
+VDC_INVsystem +VAD
PC105
0.1U/25V_4
PC5639
0.22U/25V_4
09/10
DOCK_ATTACHED_BT_OP# 52
+3VPCU
R733
09/10
750/F_6
3
PQ2097
PD2031
1
12
SSM3K7002BS
2
ADAPTER_ID_P 52
Custom
Custom
Custom
Date:
Date:
Date:
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Doc
Doc
Doc
Monday, November 09, 2015
Monday, November 09, 2015
Monday, November 09, 2015
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
RevCode
RevCode
RevCode
of
57
of
57
of
52
52
52
57
R734
*0_4
PESD5V0S1UA
Page 53
Vinafix.com
5
www.laptoprepairsecrets.com
4
3
2
1
G3 to S0 S0 S0 to S3 S4/S5
+3V_RTC
SRTC_RST#
RTC_RST#
D D
EC-GPO
S5_ON
T1
9 ms
+3VS5
+5VS5
+3V_DEEP_SUS(as +3VS5)
+1.8V_DEEP_SUS
+1.0V_DEEP_SUS
EC-GPI
S5_PWR_PG
>10mS
48
EC-GPO
C C
EC-GPO
RSMRST#
DSWROK_EC(Ignored in non-DS)
Tied together
tPCH03
>10ms
EC_SUSACK#(Ignored in non-DS)EC-GPO
EC-GPI
NBSWON#
SUSC#EC-GPI
EC-GPO
SUSON
+1.35VSUS
+VCCSTPLL
B B
EC-GPO
SUSB#EC-GPI
MAINON
+3V +5V +0.65V_DDR_VTT
tPCH28 >30 us
+1.0V(VCCIO)
EC-GPI
EC-GPO
HWPG
VRON
+VCORE
+VCCGT
A A
EC-GPI
EC-GPO
IMVP_PWRGD
EC_PWROK
PLTRST#
5
tPCH33
99 ms
4
3
2
Date:
Date:
Date:
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Intel POWER UP SEQUENCE
Monday, November 09, 2015 53 57
Monday, November 09, 2015 53 57
Monday, November 09, 2015 53 57
Sheet
Sheet
Sheet
1
RevSize
RevSize
RevSize
1A
1A
1A
of
of
of
Page 54
Vinafix.com
5
www.laptoprepairsecrets.com
EC
EC
ECEC
NO.
NO.
D D
2015
NO.NO.
PG. DESCRIPTION
PG.PG.
33EC-DV-01
DATE
DATEPG.
DATEDATE
07/21
4
PART
PART
PART PART
REFERENCE
REFERENCE
REFERENCEREFERENCE
PQ2069,PQ6,EL5,EL12,PQ4
3
DESCRIPTION
DESCRIPTIONDESCRIPTION
Move Dock power switch to page 52
2
1
C530,C531,C532,C533,C534,C535,C536,C537
,C538,C539,C540,C541,C542,C543,C544,C545
,C546,C547,C548,C549,C550,C551,C552,C553
26EC-DV-02
07/21
,C554,C555,C556,C557,C558,L17,R543,R544
USB3.0 two ports change to USB HUB solution
,R545,R546,R547,R548,R549,R550,R551,
R552,R553,R554,R555,R556,R557,R558,R559
,R560,U37,Y4,R555,R561
EC-DV-03 07/2112
C C
EC-DV-04 34 07/21
EC-DV-05 35~37 07/21
EC-DV-06 2 07/31
U28
U38 and Page 34 Related Parts
U49 and Page 35/36/37 Related Parts
R721
EC-DV-07 4 07/31 R128
EC-DV-08 38 07/31 CN25,R751,R752
12,19EC-DV-09
DV-STAGE
B B
EC-DV-12 10 08/02
19EC-DV-10 07/31
07/31
07/3123EC-DV-11
08/0219EC-DV-13
08/0230EC-DV-14
08/0231EC-DV-15
F1,C108,Q15,C9714,R737,R47,Q3
CN23
R239,R748,C278
R723
R394,R378,C9715
D22,R231
R372,R373
EC-DV-16 40 08/14 Page 40
EC-DV-17
EC-DV-18
41 08/14 Page 41
52 08/14 Page 52
USB OC & PORT change
Change DP design from DP repeater to DP 1to 2 switch
Add USB Type-C solution
Add R721 resistor for DDI port C HW Strap
Remove the pull up resistor
Add FPR_swipe solution
Reserve USB Touch Panel Function
Change LCD Connector to 40 Pin
Fine tune LAN power soft start circuit
Reserve a pull up resistor
Fine tune Camera power soft start circuit
Fine tune the thermistor citciuit
Change TP SMBUS pull up to 3.3V
Charger IC solution change to ISL9237HRZ-T
3V/5V IC solution change to RT8230AGQW (Support 5V output 9A)
All power switch Move to page 52
A A
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
RevSize
RevSize
RevSize
1ACustom
1ACustom
1ACustom
of
of
of
5
4
Document Number
Document Number
Document Number
Date:
Date:
3
2
Date:
EC LIST
EC LIST
EC LIST
Sheet
Sheet
Sheet
54 57Monday, November 09, 2015
54 57Monday, November 09, 2015
54 57Monday, November 09, 2015
1
Page 55
Vinafix.com
2015
www.laptoprepairsecrets.com
5
EC
EC
ECEC
NO.
NO.
NO.NO.
EC-FVT-01
4
PART
PART
DATE
PG. DESCRIPTION
PG.PG.
16
DATEPG.
DATEDATE
08/14
PART PART
REFERENCE
REFERENCE
REFERENCEREFERENCE
CN3
3
DESCRIPTION
DESCRIPTIONDESCRIPTION
XDP CONNECTOR PIN DEFINE CHANGED
2
1
D D
EC-FVT-02
EC-FVT-03
EC-FVT-04
EC-FVT-05
EC-FVT-06
EC-FVT-07
EC-FVT-08
FVT-STAGE
EC-FVT-09
C C
EC-FVT-10 45
EC-SIT-01 26
EC-SIT-02 38
EC-SIT-03 35
EC-SIT-04 36
EC-SIT-05 34
EC-SIT-06 38
B B
EC-SIT-07 32
EC-SIT-08 9
EC-SIT-09 6
SIT-STAGE
EC-SIT-10 19
EC-SIT-11 38
EC-SIT-12 34
EC-SIT-13 12
EC-SIT-14 4,19
A A
17,18
29,46
14
38
29 R662,R663
35,38
29,37
34
08/14
08/14
08/14
08/14
08/17
08/17
08/17
08/17
08/17
45EC-FVT-11
08/17
09/14
09/14
09/14
09/14
09/14
09/14
09/14
09/14
09/14
09/24
09/25
09/25
09/25
09/25
C1,C18
U34,PR19 and PR11647
U28
U51 AND RELATE PARTS
R759,Q51,R757
Q52,R761,R762
PL5,PC5637
PL3,PC5635
U52 AND RELATE PARTS
CN25
Q45
C610.C611
R568,R104,R123,R562,R563,R566
PC5631,C9721,R779
LED1
R781
R784,R513
U24,R814
CN25,CML14,U28
R573~R577,Q37~Q39
C470~C475
R815
Change DDR3_DRAMRST# C to 0.1u
CHANGE DDR3 2.5V POWER SEQUENCE TO MEET SPEC.
MOVE CAP_LOCK_LED TO BIOS CONTROL
REMOVE 8 PIN FP CONNECTOR
REMOVE DOUBLE PU FOR CCG_I2C_SCL/DATA
Separate DEAD BATTERY/CCG2 AND EC POWER
ADD 1.5A CONTROL FOR TYPEC USB POWER OUTPUT SELECT
RESERVE I2C INTERFACE FOR DP SWITCH
Improve +1.5V circuit
Improve +2.5V_SUS circuit
Change to 4 port solution due to reserve to support TS panel
FINGER PRINT PIN DEFINE CHANGE
Q45 CHANGE TO P-MOS TO MEET CRB.
Change to 0 ohm
POP for auto detect type- c and onelink DP plug-in / FINE TUNE FOR VENDOR SUGGESTION
RESERVE SOFT START FOR CCG2 DEAD BATTERY CIRCULT.
Change LED pin define.
FOR VSS TIE TO GND
FOR POWER SEQUENCE(RESERVE)
FOR ECSL source
USB PORT 8 P/N REVERSE
REMOVE FOR NON-HDMI SUPPORT
POP
FOR TOUCH PANEL ENABLE PIN
5
4
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
Date:
Date:
3
2
Date:
EC LIST
EC LIST
EC LIST
Sheet
Sheet
Sheet
55 57Monday, November 09, 2015
55 57Monday, November 09, 2015
55 57Monday, November 09, 2015
1
RevSize
RevSize
RevSize
1ACustom
1ACustom
1ACustom
of
of
of
Page 56
Vinafix.com
5
www.laptoprepairsecrets.com
EC
EC
ECEC
NO.
NO.
NO.NO.
PG. DESCRIPTION
PG.PG.
DATE
DATEPG.
DATEDATE
2015
EC-SIT-15
D D
40
09/30
4
PART
PART
PART PART
REFERENCE
REFERENCE
REFERENCEREFERENCE
1. PR11661
2. PC5640
3. PR73
3
DESCRIPTION
DESCRIPTIONDESCRIPTION
1. Modify function for battery gone
2. Reserve bypass capacitor
3. Adjust battery detect voltage
2
1
EC-SIT-16
EC-SIT-17
EC-SIT-18
EC-SIT-19
EC-SIT-20
EC-SIT-21
C C
41
43
44
45 PC160, PC48
46
47
09/30
09/30
09/30
09/30
09/30
09/30
PC34、、、、PC135、、、、PC59、、、、PC190
PC227、、、、PC83、、、、PC228、、、、PC84
PC226、、、、PC229、、、、PC224、、、、PC225, PC146
1. PC102, PC7
2. Remove PJP6 *SHORTPAD
1. PC122, PC30
2. PC28
Change capacitor for VIN transient
Change capacitor for VIN transient
Change capacitor for VIN transient
Change capacitor for VIN transient
1. Improve VIN transient
2. EE request to increase "+1.2V_SUS" plane
1. Improve VIN transient
2. Improve ripple
1. PR283, PQ26, PQ2069, PR540, R537,
EC-SIT-22
SIT-STAGE
52
09/30
R536, PR32, PQ22, delet PR4, PR6, PR9
and PQ2082, add PC5638, PC5639
2. Add PD2032, PD2033, PQ2099, PR11653
1. Not shutdown when DCIN and DOCK switch
2. Avoid leakage voltage
, Pr11654, PR11655, PR11656, PR11663
EC-SIT-23 09/3052 R733, PR11611
EC-SIT-24 32 09/30 C9751
EC-SIT-25 15 09/30 L21,C9752
EC-SIT-26 38 10/01 PR11664
B B
EC-SIT-27 37 10/02 U53,U54,EC6028
EC-SIT-28 29,35 10/02 R662,R663,R731,Q57,Q58
EC-SIT-29 26 10/06 R655~R659,C615,U45
Modify DOCK ID detect
Reserve for LG battery issue.
POP FOR RF SOLUTION
FOR DEAD BATTERY FUNCTION/ CC1,2 RISING SAME AS CCG2 3V
ESD CHANGED SLOUTION
TO SOLVE LEAKAGE PROBLEM
POP TO LET EC CAN CONTROL USB HUB BY SMBUS INTERFACE/ RESERVE
TO FINE TUNE STRENGTH
EC-SIT-30 14,38 10/06 R828,R829,Q59,Q69,C9753,C9754,R830
EC-SIT-31 13,23 10/06 C441,C445,C450,C454,C478,C479
EC-SIT-32
A A
5
6 10/08 R196,R199
4
3
LET BIOS CAN TURN ON/OFF FP BY THEMSELVES
FINE TUNE TO MEET VENDOR SUGGESTION
Does not apply when rails are merged form PDDG info.
Date:
Date:
2
Date:
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
Document Number
Document Number
Document Number
EC LIST
EC LIST
EC LIST
Sheet
Sheet
Sheet
RevSize
RevSize
RevSize
1ACustom
1ACustom
1ACustom
of
of
of
56 57Monday, November 09, 2015
56 57Monday, November 09, 2015
56 57Monday, November 09, 2015
1
Page 57
Vinafix.com
5
www.laptoprepairsecrets.com
EC
EC
ECEC
NO.
NO.
NO.NO.
PG. DESCRIPTION
PG.PG.
DATE
DATEPG.
DATEDATE
2015
EC-SVT-01
D D
C C
38
11/09
4
PART
PART
PART PART
REFERENCE
REFERENCE
REFERENCEREFERENCE
C9756~C9758,D30,D31,Q61~Q63
R833~R844,U55
3
DESCRIPTION
DESCRIPTIONDESCRIPTION
Add for dead battery (EC)
2
1
SVT-STAGE
B B
A A
PROJECT : PS8
PROJECT : PS8
PROJECT : PS8
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
RevSize
RevSize
RevSize
1ACustom
1ACustom
1ACustom
of
of
of
5
4
Document Number
Document Number
Document Number
Date:
Date:
3
2
Date:
EC LIST
EC LIST
EC LIST
Sheet
Sheet
Sheet
57 57Monday, November 09, 2015
57 57Monday, November 09, 2015
57 57Monday, November 09, 2015
1
Loading...
