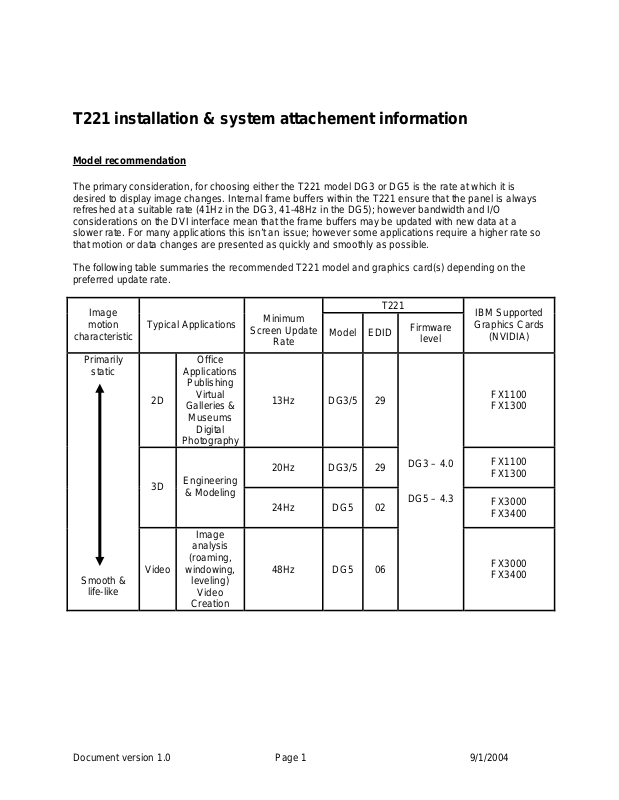

T221 installation & system attachement information

Model recommendation

The primary consideration, for choosing either the T221 model DG3 or DG5 is the rate at whi ch it is desired to display image changes. Internal frame buffers within the T221 ensure that the panel is always refreshed at a suitable rate (41Hz in the DG3, 41-48Hz in the DG5); ho wever bandwidth and I/O considerations on the DVI interface mean that the frame buffers may be updated with new data at a slower rate. For many applications this isn’t an issue; however some applications require a higher rate so that motion or data changes are presented as quickly and smoothly as possible.

The following table summaries the recommended T221 model and graphics card(s) depending on the preferred update rate.


motion

characteristic

Primarily

static

Smooth &

life-like

Typical Applications

Video

Office

Applications

Publishing

Virtual

Galleries &

Museums

Digital

Photography

Engineering

& Modeling


analysis

(roaming,

windowing,

leveling)

Video

Creation

Minimum

Screen Update

Rate

13Hz DG3/5 29

20Hz DG3/5 29

24Hz DG5 02

48Hz DG5 06

Model EDID

T221

Firmware

level

DG3 – 4.0

DG5 – 4.3

IBM Supported

Graphics Cards

(NVIDIA)

FX1100 FX1300

FX3000 FX3400

Document version 1.0 Page 1 9/1/2004

Graphics cards

• IBM certified graphics cards

The above cards are only supported when purchased as part of a standard or special bid model of A Pro, M Pro or Z Pro IntelliStations. Possible differences in video BIOS and/or device drivers mean that non IBM versions of these cards may not operate with the T221 as expected

• IBM certified graphics cards (EOL)

Supported on earlier, standard M Pro or Z Pro IntelliStation models. Possible differences in video BIOS and/or device drivers mean that non IBM versions of these cards may not operate with the T221 as expected

• Other, non-IBM certified graphics cards It is possible to attach the T221 to other graphics cards, however IBM support cannot be

provided for all possible options. The suppliers of the following cards claim to support the T221; they should be contacted direct for further information

o AGP

NVIDIA Quadro FX 4000 (special bid only) NVIDIA Quadro FX 3000 NVIDIA Quadro FX 2000 (special bid only) NVIDIA Quadro FX 1100 (supercedes the FX 1000) NVIDIA Quadro4 980 XGL

o PCI-express

NVIDIA Quadro FX3400 NVIDIA Quadro FX1300

o PCI

NVIDIA Quadro FX 600 (special bid only)

o AGP

NVIDIA Quadro4 900 XGL ATI FireGL4

o PCI

Matrox HR256

Document version 1.0 Page 2 9/1/2004

Installation

It's important to use the correct graphics card BIOS & device driver level when attaching the T221 When not pre-loaded, these are available from the IBM technical support web site (see http://www-

1.ibm.com/support/docview.wss?rs=0&q=9503&uid=psg1MIGR-39635) or the card supplier's support site

and are summarized below

NVIDIA Quadro FX 3400 Standard NVIDIA Quadro FX 1300 Standard NVIDIA Quadro FX 4000 Standard NVIDIA Quadro FX 3000 Standard NVIDIA Quadro FX 2000 Standard NVIDIA Quadro FX 1100 Standard NVIDIA Quadro FX 600 Standard NVIDIA Quadro4 980 XGL 4.28.20.19.15 (IBM) NVIDIA Quadro4 900 XGL 4.25.00.29.25 (IBM) ATI FireGL4 1.26 (IBM) 6.12.10.2090 (IBM) 1.9.16 (ATI)

Note: The above device driver levels are the minimum required, it is generally advantageous to use the latest level available.

Graphics card BIOS

Device driver (minimum level)

Windows XP Windows 2000 Linux

61.76 (IBM) 61.11 (NVIDIA)

Configuration

The input flexibility offered by the T221, allows it to be driven in a number of different ways. There are a total of 4x single-link DVI inputs, however, operation from a single DVI input as a single monitor with a single desktop is the most simple and is typical of industry standard monitor attachment. The bandwidth of a single-link DVI channel is limited to a maximum pixel clock frequency of 165MHz, for the T221’s 3840x2400 resolution, this corresponds to an update rate of 13Hz

Note: Internal frame buffers in the T221 retime the input data and display it at a fixed 41Hz (for the DG3) or 41-48Hz (for the DG5).

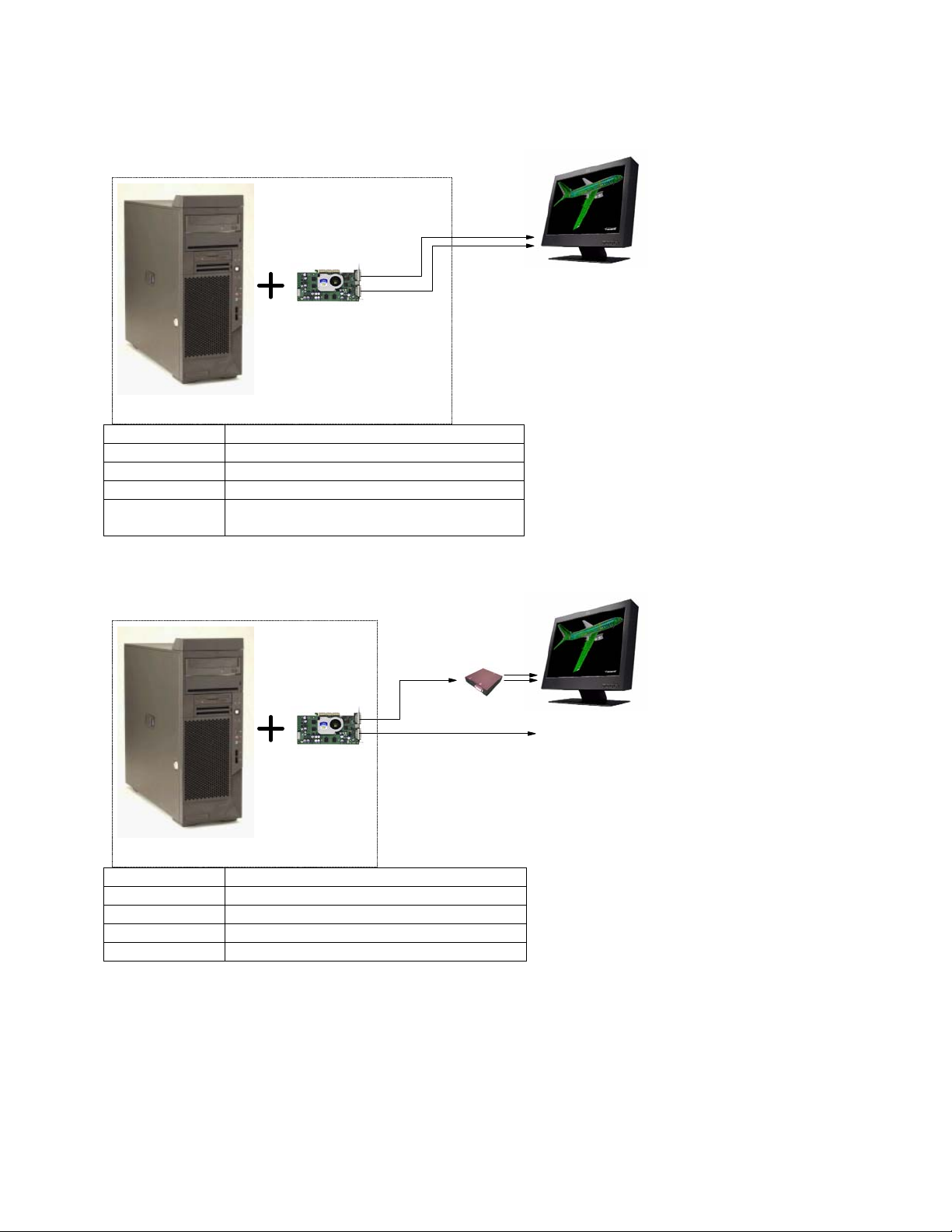

By driving more than one input, the update rate can be increased. This is summarized below.

Document version 1.0 Page 3 9/1/2004

T221 Model

9503-DG3 9503-DG5

Inputs Single-link DVI (each, max 4)

- 165MHz pixel clock limit

- 495MB/sec (24bit RGB)

Internal panel

41Hz 41-48Hz refresh rate Main high resolution modes (recommended)

1x DVI input = 3840x2400@13Hz

2x DVI input = 3840x2400@20Hz

4x DVI input = 3840x2400@41Hz

Single-link DVI (each, max 4)

- 165MHz pixel clock limit

- 495MB/sec (24bit RGB) Dual-link DVI (1x), via converter box

- 330MHz pixel clock limit

- 990MB/sec (24bit RGB)

Dual-link DVI modes 1x DVI input = 3840x2400@24Hz

Single-link DVI modes 1x DVI input = 3840x2400@13Hz

2x DVI input = 3840x2400@20Hz 2x DVI input = 3840x2400@24Hz 4x DVI input = 3840x2400@48Hz

Document version 1.0 Page 4 9/1/2004
