Lenovo T2014 User Guide

T2014 Flat Panel Monitor
User’s Guide

Product numbers

60C2-HAR1-WW

First Edition (August 2014)

© Copyright Lenovo 2014.
LENOVO products
are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights

, reproduction and disclosure.

to use

LIMITED AND RESTRICTED RIGHTS NOTICE: If products
pursuant a General Services Administration "GSA" contract
set forth in Contract No. GS-35F-05925.

, data, computer software, and services have been developed exclusively at private expense and

, data, computer software, or services are delivered

, use, reproduction, or disclosure is subject to restrictions

Contents

Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

General Safety guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Chapter 1. Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Shipping contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Notice for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Types of adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Monitor controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Cable lock slot. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Setting up your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Connecting and turning on your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Registering your option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Chapter 2. Adjusting and using your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Comfort and accessibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Arranging your work area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Positioning your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Quick tips for healthy work habits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Accessibility information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Adjusting your monitor image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Using the direct access controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Using the On-Screen Display (OSD) controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Selecting a supported display mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Understanding power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Caring for your monitor

Detaching the monitor base and stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9

Chapter 3. Reference information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Monitor specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Manual image setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Manually installing the monitor driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Installing the monitor driver in Windows 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing the monitor driver in Windows 8. . . . . . . . . . . .

Installing the monitor driver in Windows 8.1 . . . . . . . . . . . . . . .

Installing the monitor driver in Windows 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Getting further help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Service information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Customer responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Service parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Appendix A. Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Registering your option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Online technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Telephone technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Appendix B. Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Recycling information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Contents ii

Safety information

General Safety guidelines

For tips to help you use your computer safely, go to:

http://www.lenovo.com/safety

Before installing this product, read the Safety Information.

iii

ííí

Chapter 1. Getting started

This User’s Guide contains detailed information on the your Flat Panel Monitor. For a quick
overview, please see the Setup Poster that was shipped with your monitor.

Shipping contents

The product package should include the following items:

• Setup Poster

• Flat Panel Monitor

ower Cord

• P

• Analog Interface Cable

Notice for use

To set up your monitor, please see the illustrations below.

Note: Do not touch the monitor within the screen area. The screen area is glass and can be
damaged by rough handling or excessive pressure.

1. Carefully lay the monitor on a flat surface.

2.Assemble the base with the monitor's stand.

Note: To attach a standard 100mm mounting bracket, see "Wall Mounting

(Optional)" on page

2-10.

Chapter 1. 1-1

Product overview

Types of adjustments

Tilt

This section will provide information on adjusting monitor positions, setting user controls, and
using the cable lock slot.

Please see the illustration below for an example of the tilt range.

Monitor controls

Your monitor has controls on the front which are used to adjust the display.

-5°

22°

For information on how to use these controls, please see "Adjusting your monitor image"on
page 2-3.

Chapter 1. 1-2

Cable lock slot

Your monitor is equipped with a cable lock slot located on the rear of your monitor (in the
lower position).

Chapter 1. 1-3

Setting up your monitor

This section provides information on how to set up your monitor.

Connecting and turning on your monitor

Note: Be sure to read the Safety information located on page iii before carrying out this

procedure.

1. Power off your computer and all attached devices, and unplug the computer power cord.

2. Connect the cables according to below icon indication.

3. Connect one end of the analog signal cable to the monitor D-SUB connector and the other
end to the computer.

Chapter 1. 1-4

4. Connect the digital cable to the DVI connector of the monitor and the other end on the
back of the computer.

5. Insert the power cord into the monitor, then plug the monitor power cord and the computer
cord into grounded electrical outlets.

Note: A cert

ified power supply cord has to be used with this equipment. The relevant national
installation and or equipment regulations shall be considered. A certified power supply cord
not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation
H05VV-F 3G 0.75mm2 or H05VVH2-F2 3G0.75mm2) shall be used. Alternative a flexible
cord be of synthetic rubber according to IEC 60245 (designation H05RR-F 3G 0.75mm2) shall
be used.

Chapter 1. 1-5

Place the cables into the cable management indicated in below figure.

6.

Power on the monitor and the computer

7.

.

Chapter 1. 1-6

8.

When you install the monitor driver, download the driver that corresponds to your
monitor model from the Lenovo website http://support.lenovo.com/T2014A. Refer to
the “

Manually Install Monitor Driver” section to install the driver.

9. To optimize your monitor image, press the Automatic Image Setup key.

Automatic image setup requires that the monitor is warmed up for at least 15 minutes.
This is not required for normal operation.

Note: If automatic image setup does not establish the image that you prefer, perform manual
image setup. See "Manual image setup"on page 3-4.

Registering your option

Thank you for purchasing this Lenovo™ product. Please take a few moments to

register your Product and provide us with information that will help Lenovo to better

serve you in the future. Your feedback is valuable to us in developing product and

services that are important to you, as well as in developing better ways to

communicate with you. Register your option on the following Web site:

http://www.lenovo.com/register

Lenovo will send you information and updates on your registered product unless you

indicate on the Web site questionnaire that you do not want to receive further

information.

Chapter 1. 1-7

Chapter 2. Adjusting and using your monitor

This section will give you information on adjusting and using your monitor.

Comfort and accessibility

Good ergonomic practice is important to get the most from your personal computer
and to avoid discomfort. Arrange your workplace and the equipment you use to suit
your individual needs and the kind of work that you perform. In addition, use
healthy work habits to maximize your performance and comfort while using your
computer. For more detailed information on any of these topics, visit the Healthy
Computing Web site at: http://www.lenovo.com/healthycomputing/.

Arranging your work area

Use a work surface of appropriate height and available working area to allow you to
work in comfort.

Organize your work area to match the way you use materials and equipment. Keep
your work area clean and clear for the materials that you typically use and place the
items that you use most frequently, such as the computer mouse or telephone, within
the easiest reach.

Equipment layout and setup play a large role in your working posture. The following
topics describe how to optimize equipment setup to achieve and maintain good
working posture.

Positioning your monitor

Position and adjust your computer monitor for comfortable viewing by considering
the following items:

• Viewing distance: Optimal viewing distances for
approximately 510mm to 760mm (20 in to 30 in) and can vary depending on
ambient light and time of day. You can achieve
repositioning your monitor or by modifying
viewing distance that is most comfortable for

• Moni

• Tilt: Adju

• General lo

The following are some other tips for comfortable viewing of your monitor:

• U

tor height: Position the monitor so your head and neck are in
and neutral (vertical, or upright) position. If your monitor does not have height
adjustments, you might have to
base of the monitor to achieve th
position the monitor such that the top of the sc
eye-height when you are comfortably seated. H
monitor height so the line of site between your eyes and the center the monitor
suits your preferences
muscles are in a relaxed state.

the tilt of your monitor to optimize the appearance

st

content and to accommodate your preferred head and neck posture.

cation: Position your monitor to avoid glare or reflections

from overhead lighting or nearby windows.

se adequate lighting for the type of work you

for visual distance and comfortable viewing when your eye

monitors range from

different viewing distances by

your posture or chair position. Use a

you.

a comfortable

place books or other sturdy objects under the

e desired height. A general guideline is to

reen is at or slightly below your

owever, be sure to optimize you

of the screen

on the screen

are performing.

r

Chapter 2. 2-1

• Use the monitor brightness, contrast controls, if equipped to optimize the image
on your screen to meet your visual preferences.

eep your monitor screen clean so you can focus on the screen’s contents.

• K

Any concentrated and sustained visual activity can be tirin
periodically look away from your
your eye muscles to relax. If you have questions on eye fatigue or visual discomfort,
consult a vision care specialist for advice.

monitor screen and focus on a far object to allow

Quick tips for healthy work habits

The following information is a summary of some important factors to consider to help
you remain comfortable and productive while you use your computer.

• Good posture starts with equipment setup: The layout of your work area and
setup of your computer equipment have a large effect on your posture while
using your computer. B
equipment by following the
2-1 so you can maintain a comfortable and productive posture. Al
use the adjustment capabilities of your compute
to best suit your

• Mino

• Sh

r changes in posture can help avoid discomfort: The longer you sit and
work with your computer,
posture. Avoid assuming any one posture
Periodically make minor modifications in your
discomforts that might aris
furniture or eq

ort, periodic breaks help
primarily a static activity, it is particularly important to take short breaks from
your work. Periodically, stand up from your
of water, or
from work gives your body a welcome change in posture and helps to ensure you
remain comfortable and productive while you do work.

preferences now and as your preferences change over time.

uipment provide to accommodate changes in posture.

otherwise take a short break from using your computer. A short break

e sure to optimize the position and orientation of your

tips outlined in "Arranging your work area"on page

the more important it is to observe your working

e. Make use of any adjustments that your office

ensure healthy computing: Because computing is

g for your eyes. Be sure to

the

so, be sure to

r components and office furniture

for an extended period of time.

posture to help deter any

work area, stretch, walk for a drink

Accessibility information

Lenovo is committed to providing greater access to information and technology to

people with disabilities. With assistive technologies, users can access information in

the way most appropriate to their disability. Some of these technologies are already

provided in your operating system; others can be purchased through vendors or

accessed at:

https://lenovo.ssbbartgroup.com/lenovo/request_vpat.php

Chapter 2. 2-2

Adjusting your monitor image

This section describes the control features to adjust your monitor image.

Using the direct access controls

The direct access controls can be used when the On Screen Display (OSD) is not
displayed.

Table 2-1. Direct access controls

Icon Control Description

Input Change Switches the video input source

DDC-CI

Exit Exit from menu

Image Setup Activates automatic image adjustment

Brightness Direct access to Brightness adjustment

Menu Enter menu

Press and hold for 10 seconds to enable or disable
the DDC-CI function

Chapter 2. 2-3

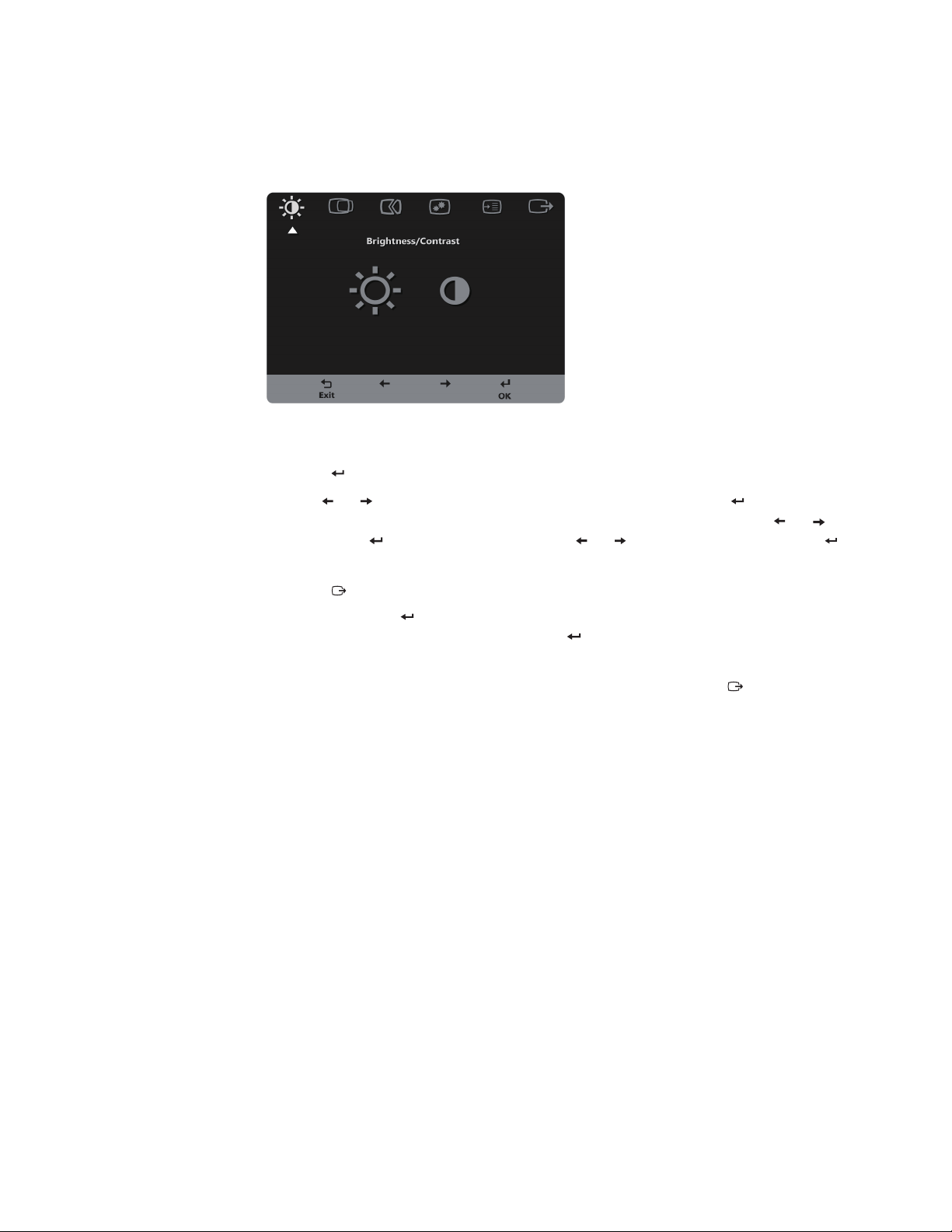

Using the On-Screen Display (OSD) controls

To adjust the settings, the user controls can be viewed through the OSD.

To use the controls:

1. Press

2. Use
function. If there is a sub-menu, you can move between options using
then press

to save.

3. Press

4. Press and hold
adjustments to the OSD. Press and hold

allow adjustments to the OSD.

5. Enables DDC/CI by default. Use OSD Exit Key, Press and hold for 10 seconds
to disable / enable DDC/CI function. The words "DDC/CI disable" shows on the
screen.

to open the main OSD menu.

or to move among the icons. Select an icon and press to access that

or ,

to select that function. Use or to make adjustments. Press

to move backwards through the sub-menus and exit from the OSD.

for 10 seconds to lock the OSD. This will prevent accidental

for 10 seconds to unlock the OSD and

Chapter 2. 2-4

Table 2-2. OSD functions

Controls and Controls and

OSD Icon on Main Adjustments Adjustments

Menu Submenu Description (Analog) (DVI)

Brightness/

Contrast

Adjusts overall screen
brightness

Brightness

Adjusts difference between
light and dark areas

Contrast

Same as Analog

Image Position

Image Setup

Image Properties

Horizontal Position

Vertical Position

Automatic

Manual

Color

Moves image left or right.

Moves image up or down.

Optimizes image (size, position, phase and clock).

Manually optimizes image. See "Manual image
setup"on page 3-4.

• Clock

• Phase

• Save

Adjusts intensity of red, green, and blue.

Preset mode

• Neutral

• sRGB

• Reddish

• Bluish

Controls Locked 

not required for

DVI input

Same as Analog

Input signal

Custom

• Red: Increases or decreases the saturation of
’red’ in the image.

• Green: Increases or decreases the saturation of
’green’ in the image.

• Blue: Increases or decreases the saturation of
’blue’ in the image.

• Save: Saves the custom color choices.

This monitor can accept video signals through
three different connectors. Most desktop
computers use a D-SUB connector. Select digital
among OSD Controls when you use DVI
connector.

- Selects D-SUB (Analog)

- Selects DVI (Digital)

Chapter 2. 2-5

Table 2-2. OSD functions

Controls and Controls and

OSD Icon on Main Adjustments Adjustments

Menu Submenu Description (Analog) (DVI)

• Selects type of scaled image. Same as Analog

•

Off(1:1):Same Aspect Ratio with input
signal.

• On(Expand): Expand image to full screen..

Shows resolution, refresh rate, and product details. Same as Analog

Note: This screen does not allow any changes to
the settings.

Changes languages of menu.

Note: The language chosen only affects the
language of the OSD. It has no effect on any
software running on the computer.

Adjusts menu location.

Same as Analog

Default
Default returns the menu position to the default
settings.

Custom

• Horizontal: Changes the horizontal position of
the OSD.

•Vertical:Changes thevertical position of the
OSD.

Options

Scaling

Information

Menu Language

Menu Position

Exit

Factory default

Accessibility

Save

• Save the custom position choices.

• Cancel

• Reset

Reset monitor to the original settings.

Changes button repeat rate and menu time-out setting.

Button repeat rate:

Select or to change.

• Off

• Default

• Slow

Menu time out: Sets the length of time the
OSD will remain active after the last time a button
is pressed.

Exit from menu.

Chapter 2. 2-6

Selecting a supported display mode

The display mode the monitor uses is controlled by the computer. Therefore, refer to
your computer documentation for details on how to change display modes.

The image size, position and shape might change when the display mode changes.
This is normal and the image can be readjusted using automatic image setup and the
image controls.

Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or
Flat Panel technology is inherently flicker-free.

Note: If your system has previously been used with a CRT monitor and is currently
configured to a display mode outside the range of this monitor, you may need to
reattach the CRT monitor temporarily until you have re-configured the system;
preferably to 1600X900 at 60 Hz, which is the Native Resolution Display mode.

The display modes shown below have been optimized at the factory.

Table 2-3. Factory set display modes

Addressability

640X350 70Hz

640X480

700X570

720X400 70Hz

800X600 56Hz 60Hz 72Hz 75Hz

832X624 75Hz

1024X768 60Hz 70Hz 75Hz

1366X768 60Hz

1152X864 75Hz

1280X1024 60Hz 70Hz 75Hz

1440X900 60Hz

1600X900 60Hz 75Hz

Refresh rate

60Hz 72Hz 75Hz

50Hz

Chapter 2. 2-7

Understanding power management

Power management is invoked when the computer recognizes that you have not used
your mouse or keyboard for a user-definable period. There are several states as
described in the table below.

For optimal performance, switch off your monitor at the end of each working day, or
whenever you expect to leave it unused for long periods during the day.

Table 2-4. Power indicator

State Power Indicator Screen Operation Compliance

On Green Normal

Standby/Suspend Amber Blank Press a key or ENERGY STAR

Off Off Blank Press the power ENERGY STAR

Restoring

move the mouse

There may be a
slight delay
before the image
reappears.

Note: Standby
also occurs if
there is no image
output to the
monitor.

button

There may be a
slight delay
before the image
reappears.

Chapter 2. 2-8

Caring for your monitor

Be sure to turn off the power before you perform any maintenance on the monitor.

Do not:

• Apply water or liquid directly to your monitor.

• Use solvents or abrasives.

• Use flammable cleaning materials to clean your monitor or any other electrical
equipment.

• Touch the screen area of your monitor with sharp or abrasive items. This type of
contact may cause permanent damage to your screen.

• Use any cleaner which contains an anti-static solution or similar additives. This
may harm the coating of the screen area.

Do:

• Lightly dampen a soft cloth with water and use this to gently wipe the covers and
the screen.

• Remove grease or finger marks with a damp cloth and a little mild detergent.

Detaching the monitor base and stand

Step 1: Put the display on a flat table with the back side up.

Step 2: Press the hook shown as following figure, meanwhile pull the base away

from the stand.

Step 3: Lift up the hinge cover and remove it.

Step 4: Remove the t wo screws counterclockwise,

take off the bracket.

Chapter 2. 2-9

Wall Mounting (Optional)

Refer to the instructions that come with the base mounting kit. To convert your LCD
display from a desk-mounted to a wall-mounted display, do the following:

Step 1: Verify that the Power button is turned Off, then disconnect the power cord.

Step 2: Lay the LCD display face down on a towel or blanket.

3: Remove the base from the monitor, refer to "Detaching the monitor base and

Step
stand".

Step 4: Attach the mounting bracket from the 100mm standard
mounting compatible , Mounting Screw M4 x 10 mm.

mounting holes

Step 5: Attach the LCD display to the wall, following the instructions in the wall­mounting kit.

For use only with UL Listed Wall Mount Bracket with minimum weight/load: 8kg

Chapter 2. 2-10

Chapter 3. Reference information

This section contains monitor specifications, instructions to manually install the
monitor driver, troubleshooting information, and service information.

Monitor specifications

e 3-1. Monitor specifications for type

Tabl

Dimensions Depth 189.8 mm (7.47 in.)

Height 352.1 mm (13.86 in.)

Width 473.0 mm (18.62 in.)

Panel Size 19.5 in.

Backlight LED

Aspect ratio 16:9

Stand Tilt Range: -5~ 22

100mm standard

Supported 100 mm x 100 mm (3.94 in. x 3.94 in.)

mounting compatible

Image Viewable image size 494.1 mm (19.5 in.)

-model 60C2-HAR1-WW

Maximum height 236.3 mm (9.30 in.)

Maximum width 433.9 mm (17.08 in.)

Pixel pitch 0.2712 mm (0.0107 in.)

Power input Supply voltage 90-264VAC (100~240VAC+/-10%)

Max supply current 1.5 A -

Power consumption Normal operation <22W

Note: Power consumption Standby/Suspend <0.5W (Analog), <0.5W (Digital)
figures are for the monitor
and the power supply
combined

Video input (Analog) Input signal Analog Direct Drive, 75 ohm 0.7V

Off <0.5W at 100Vac & 240Vac

Note: without USB/
Webcam/external
speaker

Horizontal
addressability

Vertical addressability 900 lines (max)

1600 pixels (max)

--

Clock frequency 205 MHz

Chapter 3. 3-1

e 3-1. Monitor specifications for type-model 60C2-HAR1-WW

Tabl

Video input (DVI) Interface DVI

Input signal VESA TMDS (Panel Link™)

Horizontal
addressability

Vertical addressability 900 lines (max)

Clock frequency 165 MHz

Communications VESA DDC CI

Supported Display Modes Horizontal frequency 30 kHz - 83 kHz

Vertical frequency 50 Hz - 75 Hz

Native Resolution 1600 x 900 at 60 Hz

Temperature Operating 0 to 45 C (32 to 113 F)

Storage -20 to 60 C (-4 to 140 F)

Shipping -20 to 60 C (-4 to 140 F)

Humidity Operating 10% to 80% non-condensing

Storage 5% to 95% non-condensing

Shipping 5% to 95% non-condensing

1600 pixels (max)

--

Chapter 3. 3-2

Troubleshooting

If you have a problem setting up or using your monitor, you might be able to solve it
yourself. Before calling your dealer or Lenovo, try the suggested actions that are
appropriate to your problem.

Table 3-2. Troubleshooting

Problem Possible cause Suggested action Reference

The words "Out
of Range" are
shown on the
screen, and the
power indicator
is flashing green.

The image
quality is
unacceptable.

The power
indicator is not
lit and there is
no image.

Screen is blank
and power
indicator is
amber.

The system is set to a
display mode which
is not supported by
the monitor.

The video signal cable
is not connected with
the monitor or system
completely.

The color settings
may be incorrect.

The automatic image
setup function was
not performed.

• The monitor’s
power switch is
not switched on.

• The power cord is
loose or
disconnected.

• There is no power
at the outlet.

The monitor is in
Standby/Suspend
mode.

If you are replacing an
old monitor, reconnect it
and adjust the display
mode to within the
specified range for your
new monitor.

If using a Windows
system, restart the system
in safe mode, then select a
supported display mode
for your computer.

If these options do not
work, contact the Support
Center.

Be sure the signal cable is
firmly plugged into the
system and monitor.

Select another color
setting from the OSD
menu.

Perform automatic image
setup.

• Be sure the power
cord is connected
properly.

• Be sure the outlet has
power.

• Power on the
monitor.

• Try using another
power cord.

• Try using another
electrical outlet.

• Press any key on the
keyboard or move
the mouse to restore
operation.

• Check the Power
Options settings on
your computer.

"Selecting a
supported display
mode"on page 2-7

"Connecting and
turning on your
monitor"on page 1-4

"Adjusting your
monitor image"on
page 2-3

"Adjusting your
monitor image"on
page 2-3

"Connecting and
turning on your
monitor"on page 1-4

"Understanding
power
management"on
page 2-8

Chapter 3. 3-3

Table 3-2. Troubleshooting

Problem Possible cause Suggested action Reference

The power
indicator is
amber, but there
is no image.

The video signal cable
is loose or
disconnected from the
system or monitor.

Be sure the video cable is
connected with the
system properly.

"Connecting and
turning on your
monitor"on page 1-4

One or more of
the pixels appear
discolored.

• Fuzzy lines
in text or a
blurry
image.

• Horizontal
or vertical
lines
through the
image.

The monitor
brightness and
contrast are at the
lowest setting.

This is a characteristic
of the LCD
technology and is not
an LCD defect.

• Image setup has
not been
optimized.

• Your system
Display
Properties setting
have not been
optimized.

Adjust the brightness and
contrast setting on the
OSD menu.

If there are more than five
pixels missing, contact
the Support Center.

Adjust the resolution
settings on your system
to match the native
resolution for this
monitor: 1600 x900 at
60

Hz.

Perform automatic image
setup. If automatic image
setup does not help,
perform manual image
setup.

When working in the
native resolution, you
may find additional
improvements by
adjusting the Dots Per
Inch (DPI) setting on your
system.

"Adjusting your
monitor image"on
page 2-3

Appendix A."Service
and Support"on page
A-1

"Adjusting your
monitor image"on
page 2-3

"Selecting a
supported display
mode"on page 2-7

See the Advanced
section of your
system’s display
properties.

Manual image setup

If automatic image setup does not establish the image that you prefer, perform
manual image setup.

Note: Have your monitor powered on for about 15 minutes, until the monitor warms
up.

1. Press

2. Use

3. Use or to select manual and press to access.

4. Use

• Clock (pixel frequency) adjusts the number of pixels scanned by one

• Phase adjusts the phase of the pixel clock signal. With a wrong phase

5. When the image no longer looks distorted, save the Clock and Phase adjustments.

6. Press

at the bottom of the monitor to open the OSD menu.

or to select and press to access.

or to select Clock and Phase adjustment.

horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the picture does not have the correct width.

adjustment, the picture has horizontal disturbances in light picture.

to leave the OSD menu.

Chapter 3. 3-4

Manually installing the monitor driver

Below are steps for manually installing the monitor driver in , Microsoft
Windows 7, Microsoft Windows 8, Microsoft Windows 8.1, Microsoft
Windows 10.

Installing the monitor driver in Windows 7

To use the Plug and Play feature in Microsoft Windows 7, do the following:

1. Turn off the computer, all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow your computer to start the
Windows 7 operating system.

From the Lenovo website http://support.lenovo.com/T2014A, find the corresponding

4.
monitor driver and download it to a PC to which this monitor is connected (such as a desktop).

Open the Display Properties window by clicking Start, Control Panel and

5.
Hardware and Sound icon. and then click the Display icon.

Click the Change the display settings tab.

6.

Click the Advanced Settings icon.

7.

Click the Monitor tab.

8.

Click the Properties button.

9.

Click the Driver tab.

10.

Click Update Driver, then click Browse the computer to find the driver program.

11.

Select Pick from the list of device driver program on the computer.

12.

Click the Hard Disk button. By clicking the Browse button, browse and point to the

13.
following path:

X\ Monitor Drivers

(where X indicates "the folder in
(such as a desktop)).

14.

Select the "lent2014a.inf" file and click the Open button. Click the OK button.

15.

In the new window, select LEN T2014A and click Next.

After the installation is complete, delete all downloaded files and close all windows.

16.

Restart the system. The system will automatically select the maximum refresh

17.
rate and corresponding Color Matching Profiles.

which the downloaded driver is located"

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1600 x 900 at a refresh rate of 60 Hz, or 640
x 480 at a refresh rate of 60 Hz.

Chapter 3. 3-5

Installing the monitor driver in Windows 8

To use the Plug and Play feature in Microsoft Windows 8, do the following:

1. Turn off the computer, all attached devices.

2. Ensure that the monitor is connected correctly.

3.

Turn on the monitor and then the system unit. Allow your computer to start the
Windows 8 operating system.

From the Lenovo website http://support.lenovo.com/T2014A, find the corresponding

4.
monitor driver and download it to a PC to which this monitor is connected (such as a desktop).

On the Desktop, move mouse to bottom-right corner of screen, choose

5.

Control Panel, then double click the icon of Hardware and Sound

click

Setting

,

and then click

Display.

Click the Change the display settings tab.

6.

Click the Advanced Settings icon.

7.

Click the Monitor tab.

8.

Click the Properties button.

9.

Click the Driver tab.

10.

Click Update Driver, then click Browse the computer to find the driver program.

11.

Select Pick from the list of device driver program on the computer.

12.

Click the Hard Disk button. By clicking the Browse button, browse and point to the

13.
following path:

X\ Monitor Drivers

(where X indicates "the folder in
(such as a desktop)).

14.

Select the "lent2014a.inf" file and click the Open button. Click the OK button.

15.

In the new window, select LEN T2014A and click Next.

After the installation is complete, delete all downloaded files and close all windows.

16.

Restart the system. The system will automatically select the maximum refresh

17.
rate and corresponding Color Matching Profiles.

which the downloaded driver is located"

double

,

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display

quality. Lenovo recommends using either 1600 x 900 at a refresh rate of 60 Hz, or 640
x 480 at a refresh rate of 60 Hz.

Chapter 3. 3-6

Installing the monitor driver in Windows 8.1

To use the Plug and Play feature in Microsoft Windows 8.1, do the following:

1. Turn off the computer, all attached devices.

2. Ensure that the monitor is connected correctly.

Turn on the monitor and then the system unit. Allow your computer to start the

3.
Windows 8.1 operating system.

From the Lenovo website http://support.lenovo.com/T2014A, find the corresponding

4.
monitor driver and download it to a PC to which this monitor is connected (such as a desktop).

On the Desktop, move mouse to bottom-right corner of screen, choose

5.
click

Control Panel

,

then double click the icon of

Hardware and Sound

Setting

,

and then click

Display.

Click the Change the display settings tab.

6.

Click the Advanced Settings icon.

7.

Click the Monitor tab.

8.

Click the Properties button.

9.

Click the Driver tab.

10.

Click Update Driver, then click Browse the computer to find the driver program.

11.

Select Pick from the list of device driver program on the computer.

12.

Click the Hard Disk button. By clicking the Browse button, browse and point to the

13.
following path:

X\ Monitor Drivers

(where X indicates "the folder in
(such as a desktop)).

Select the "lent2014a.inf" file and click the Open button. Click the OK button. In

14.

15.

the new window, select LEN T2014A and click Next.

After the installation is complete, delete all downloaded files and close all windows.

16.

Restart the system. The system will automatically select the maximum refresh

17.
rate and corresponding Color Matching Profiles.

which the downloaded driver is located"

double

,

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display

quality. Lenovo
x 480 at a refresh rate of 60 Hz.

recommends using either 1600 x 900 at a refresh rate of 60 Hz, or 640

Chapter 3. 3-7

Installing the monitor driver in Windows 10

To use the Plug and Play feature in Microsoft Windows 10, do the following:

1. Turn off the computer, all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow your computer to start the Windows
10 operating system.

4.

From the Lenovo website http://support.lenovo.com/T2014A find the corresponding
monitor driver and download it to a PC to which this monitor is connected (such as a
desktop).

5. On the Desktop, move mouse to bottom-left corner of screen, right-click choose Control
Panel, then double click the icon of Hardware and Sound, and then click Display.

6. Click the Change the display settings tab.

7. Click the Advanced Settings icon.

8. Click the Monitor tab.

9. Click the Properties button.

10. Click the Driver tab.

11. Click Update Driver, then click Browse the computer to find the driver program.

12. Select Pick from the list of device driver program on the computer.

13. Click the Hard Disk button. By clicking the Browse button, browse and point to the
following path:

X:\Monitor Drivers\Windows 10

(where X indicates "the folder in which the downloaded driver is located" (such as a
desktop)).

14.

Select the "lent2014a.inf" file and click the Open button. Click the OK button.

15.

In the new window, select LEN T2014A and click Next.

16. After the installation is complete, delete all downloaded files and close all windows.

17. Restart the system. The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.

On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality.
Lenovo recommends using either 1600 x 900 at a refresh rate of 60 Hz, or 640 x 480 at a
refresh rate of 60 Hz.

Getting further help

If you still can’t solve your problem, please contact the Lenovo Support Center. For more
information on contacting the Support Center, please see Appendix A."Service and Support"on

page A-1

Chapter 3. 3-8

Service information

Customer responsibilities

The warranty does not apply to a product which has been damaged due to accident,
misuse, abuse, improper installation, usage not in accordance with product
specifications and instructions, natural or personal disaster, or unauthorized
alterations, repairs or modifications.

The following are examples of misuse or abuse and not covered by warranty:

• Images burned onto the screen of a CRT monitor. Burned image is preventable by
utilizing a moving screen saver or power management.

• Physical damage to covers, bezel, base and cables.

• Scratches or punctures on monitor screens.

Service parts

The following parts are for use by Lenovo service, or Lenovo aurthorized dealers, to
supprot the customer warranty. Parts are for service use only. The table below
shows information for model 60C2-HAR1-WW.

Table 3-3. List of service parts

FRU (FIELD DESCRIPTION Machine COLOR

REPLACEABLE UNIT)

PART NUMBER

Type/Model(MTM)

03T8540

03X8000

(pick up from LT2013p)

03T8478

(pick up from E2223s)

03T8541 T2014-FRU Stand

T2014-FRU Monitor
(DVI)

T2014-Analog cable RB
(1.8m, RoHS)

T2014 - DVI cable

(1.8m, RoHS)

and Base

60C2 RB

60C2

60C2

60C2

RB

RB

pter 3. 3-9

Cha

Appendix A. Service and Support

The following information describes the technical support that is available for your product,
during the warranty period or throughout the life of your product. Refer to the Lenovo Limited
Warranty for a full explanation of Lenovo warranty terms.

Registering your option

Register to receive product service and support updates, as well as free and discounted
computer accessories and content. Go to: http://www.lenovo.com/register

Online technical support

Online technical support is available during the lifetime of a product at:
http://www.lenovo.com/support

Product replacement assistance or exchange of defective components also is available during
the warranty period. In addition, if your option is installed in a Lenovo computer, you might be
entitled to service at your location. A Lenovo technical support representative can help you
determine the best alternative.

Telephone technical support

Installation and configuration support through the Customer Support Center will be available
until 90 days after the option has been withdrawn from marketing. After that time, the support
is cancelled, or made available for a fee, at Lenovo’s discretion. Additional support is also
available for a nominal fee.

Before contacting a Lenovo technical support representative, please have the following
information available: option name and number, proof of purchase, computer manufacturer,
model, serial number and manual, the exact wording of any error message, description of the
problem, and the hardware and software configuration information for your system.

Your technical support representative might want to walk you through the problem while you
are at your computer during the call.

Telephone numbers are subject to change without notice. The most up-to-date telephone list
for Lenovo Support is always available at: http://www.lenovo.com/support/phone

Country or Region Telephone Number

Argentina 0800-666-0011

(Spanish, English)

Australia 1-800-041-267

(English)

Austria

Belgium Warranty service and support: 02-339-36-11

0810-100-654 (For local rate
(German)

(Dutch, French)

)

Bolivia 0800-10-0189

(Spanish)

Appendix A. A-1

Country or Region Telephone Number

Brazil Calls made from within the Sao Paulo region: 11-3889-8986

Calls made from outside the Sao Paulo region: 0800-701-4815
(Portuguese)

Brunei Darussalam Dial 800-1111

(English)

Canada 1-800-565-3344

(English, French)

Chile 800-361-213

(Spanish)

China Technical Support Line: 400-100-6000

(Mandarin)

China (852) 3516-8977
(Hong Kong S.A.R.) (Cantonese, English, Mandarin)

China 0800-807 / (852) 3071-3559
(Macau S.A.R.) (Cantonese, English, Mandarin)

Colombia 1-800-912-3021

(Spanish)

Costa Rica 0-800-011-1029

(Spanish)

Croatia 385-1-3033-120

(Croatian)

Cyprus 800-92537

(Greek)

Czech Republic 800-353-637

(Czech)

Denmark Warranty service and support: 7010-5150

(Danish)

Dominican Republic 1-866-434-2080

(Spanish)

Ecuador 1-800-426911-OPCION 4

(Spanish)

Egypt Primary: 0800-0000-850

Secondary: 0800-0000-744
(Arabic,English)

El Salvador 800-6264

(Spanish)

Estonia 372-66-0-800

(Estonian, Russian, English)

Finland Warranty service and support: [phone]

(Finnish)

France Warranty service and support: 0810-631-213 (hardware)

(French)

Germany Warranty service and support: 0800-500-4618 (toll-free)

(German)

Greece Lenovo Business Partner

(Greek)

Appendix A. A-2

Country or Region Telephone Number

Guatemala Dial 999-9190, wait for operator, and request to reach 877-404-9661

(Spanish)

Honduras Dial 800-0123

(Spanish)

Hungary [phone]

(English, Hungarian)

India Primary: 1800-419-4666 (Tata)

Secondary: 1800-3000-8465 (Reliance)
Email: [email protected]
(English and Hindi)

Indonesia 1-803-442-425

62 213-002-1090 (Standard Charges Apply)
(English, Bahasa Indonesia)

Ireland Warranty service and support: 01-881-1444

(English)

Israel Givat Shmuel Service Center: [phone]

(Hebrew, English)

Italy Warranty service and support: [phone]

(Italian)

Japan 0120-000-817

(Japanese, English)

Kazakhstan 77-273-231-427 (Standard Charges Apply)

(Russian, English)

Korea 080-513-0880 (Collect call)

02-3483-2829 (Toll Call)
(Korean)

Latvia 371-6707-360

(Latvian, Russian, English)

Lithuania 370 5278 6602

(Italian, Russian, English )

Luxembourg ThinkServer and ThinkStation: 352-360-385-343

ThinkCentre and ThinkPad: 352-360-385-222
(French)

Malaysia 1-800-88-0013

03-7724-8023 (Standard Charges Apply)
(English)

Malta 356-21-445-566

(English, Italian, Maltese Arabic)

Mexico 001-866-434-2080

(Spanish)

Netherlands 020-513-3939

(Dutch)

New Zealand 0508-770-506

(English)

Nicaragua 001-800-220-2282

(Spanish)

Norway 8152-1550

(Norwegian)

Appendix A. A-3

Country or Region Telephone Number

Panama Lenovo Customer Support Center: 001-866-434 (toll-free)

(Spanish)

Peru 0-800-50-866 OPCION 2

(Spanish)

Philippines 1-800-8908-6454 (GLOBE subscribers)

1-800-1441-0719 (PLDT subscribers)
(Tagalog, English)

Poland Laptops and tablets branded with logo Think: 48-22-273-9777

ThinkStation and ThinkServer: 48-22-878-6999
(Polish, English )

Portugal 808-225-115 (Standard Charges Apply)

(Portuguese)

Romania 4-021-224-4015

(Romanian)

Russia [phone]

[phone] (Standard Charges Apply)
(Russian)

Singapore 1-800-415-5529

6818-5315 (Standard Charges Apply)

(English, Mandarin, Bahasa Malaysia)
Slovakia ThinkStation and ThinkServer: 421-2-4954-5555
Slovenia 386-1-2005-60

(Slovenian)
Spain 34-917-147-833

(Spanish)
Sri Lanka 9477-7357-123 (Sumathi Information systems)

(English)
Sweden Warranty service and support: 077-117-1040

(Swedish)
Switzerland Warranty service and support: 0800-55-54-54

(German, French, Italian)
Taiwan 0800-000-702

(Mandarin)
Thailand 001-800-4415-734

([phone] (Standard Charges Apply)

(Thai, English)
Turkey 444-04-26

(Turkish)
United Kingdom Standard warranty support: 03705-500-900 ( local rate)

Standard warranty support: 08705-500-900

(English)
United States 1-800-426-7378

(English)
Uruguay 000-411-005-6649

(Spanish)
Venezuela 0-800-100-2011

(Spanish)

Appendix A. A-4

Country or Region Telephone Number

Vietnam 120-11072 (Toll Free)

84-8-4458-1042 (Standard Charges Apply)

(Vietnamese, English)

Appendix A. A-5

Appendix B. Notices

Lenovo may not offer the products, services, or features discussed in this document in all
countries. Consult your local Lenovo representative for information on the products and
services currently available in your area. Any reference to a Lenovo product, program, or
service is not intended to state or imply that only that Lenovo product, program, or service
may be used. Any functionally equivalent product, program, or service that does not infringe
any Lenovo intellectual property right may be used instead.
However, it is the user 's responsibility to evaluate and verify the operation of any other
product, program, or service.

Lenovo may have patents or pending patent applications covering subject matter described in
this document. The furnishing of this document does not give you any license to these patents.
You can send license inquiries, in writing, to:

Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing

LENOVO PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of
express or implied warranties in certain transactions, therefore, this statement may not apply
to you.

This information could include technical inaccuracies or typographical errors. Changes are
periodically made to the information herein; these changes will be incorporated in new editions
of the publication. Lenovo may make improvements and/or changes in the product(s) and/or
the program(s) described in this publication at any time without notice.

The products described in this document are not intended for use in implantation or other life
support applications where malfunction may result in injury or death to persons. The
information contained in this document does not affect or change Lenovo product
specifications or warranties. Nothing in this document shall operate as an express or implied
license or indemnity under the intellectual property rights of Lenovo or third parties. All
information contained in this document was obtained in specific environments and is presented
as an illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it believes
appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for convenience only
and do not in any manner serve as an endorsement of those Web sites. The materials at those
Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at
your own risk.

Any performance data contained herein was determined in a controlled environment.
Therefore, the result obtained in other operating environments may vary significantly. Some
measurements may have been made on development-level systems and there is no guarantee
that these measurements will be the same on generally available systems. Furthermore, some
measurements may have been estimated through extrapolation. Actual results may vary. Users
of this document should verify the applicable data for their specific environment.

Appendix B. B-1

Recycling information

Lenovo encourages owners of information technology (IT) equipment to responsibly recycle
their equipment when it is no longer needed. Lenovo offers a variety of programs and services
to assist equipment owners in recycling their IT products. For information on recycling
Lenovo products, go to:

http://www.lenovo.com/lenovo/environment/recycling

Collecting and recycling a disused Lenovo computer or monitor

Trademarks

If you are a company employee and need to dispose of a Lenovo computer or monitor that is
the property of the company, you must do so in accordance with the Law for Promotion of
Effective Utilization of Resources. Computers and monitors are categorized as industrial waste
and should be properly disposed of by an industrial waste disposal contractor certified by a
local government. In accordance with the Law for Promotion of Effective Utilization of
Resources, Lenovo Japan provides, through its PC Collecting and Recycling Services, for the
collecting, reuse, and recycling of disused computers and monitors. For details, visit the
Lenovo Web site at http://www.lenovo.com/recycling/japan. Pursuant to the Law for
Promotion of Effective Utilization of Resources, the collecting and recycling of home-used
computers and monitors by the manufacturer was begun on October 1, 2003. This service is
provided free of charge for home-used computers sold after October 1, 2003. For details, visit
the Lenovo Web site at http://www.lenovo.com/recycling/japan.

Disposing of Lenovo computer components
Some Lenovo computer products sold in Japan may have components that contain heavy

metals or other environmental sensitive substances. To properly dispose of disused
components, such as a printed circuit board or drive, use the methods described above for
collecting and recycling a disused computer or monitor.

The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo
The Lenovo logo
ThinkCenter
ThinkPad
ThinkVision
Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of companies.

Other company, product, or service names may be trademarks or service marks of others.

Appendix B. B-2
