ThinkVision Pro2840m Flat Panel Monitor

User’s Guide

Page 2

Product Number

60B4-RAR6-WW

First Edition (April 2014)

LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure. LIMITED AND RESTRICTED RIGHTS NOTICE: IF products, data, computer software, or services are delivered pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

Page 3

Product Number ................................................................................................................................................................................................................... i

Contents ................................................................................................................................................................................................................................ ii

Safety information ...............................................................................................................................................................................................................iii

Safety and Maintenance Guidelines .................................................................................................................................................................................. iv

Chapter 1 Getting started ............................................................................................................................................................................................... 1-1

Shipping contents ........................................................................................................................................................................................................... 1-1

Product overview ........................................................................................................................................................................................................... 1-2

Types of adjustments ..................................................................................................................................................................................................... 1-2

User controls ................................................................................................................................................................................................................... 1-3

Cable lock slot ................................................................................................................................................................................................................. 1-4

Setting up your monitor ................................................................................................................................................................................................ 1-4

Connecting and turning on your monitor ................................................................................................................................................................... 1-4

Registering your option ................................................................................................................................................................................................. 1-7

Chapter 2 Adjusting and using your monitor................................................................................................................................................................ 2-1

Comfort and accessibility .............................................................................................................................................................................................. 2-1

Arranging your work area .............................................................................................................................................................................................. 2-1

Quick tips for healthy work habits ................................................................................................................................................................................ 2-2

Accessibility information................................................................................................................................................................................................ 2-2

Adjusting your monitor image ...................................................................................................................................................................................... 2-3

Using the direct access controls .................................................................................................................................................................................... 2-3

Using the On-Screen Display (OSD) controls ............................................................................................................................................................... 2-3

Selecting a supported display mode ............................................................................................................................................................................ 2-6

Understanding power management ........................................................................................................................................................................... 2-7

Caring for your monitor ................................................................................................................................................................................................. 2-7

Detaching the monitor stand ........................................................................................................................................................................................ 2-8

Chapter 3 Reference information .................................................................................................................................................................................. 3-1

Monitor specifications ................................................................................................................................................................................................... 3-1

Troubleshooting .............................................................................................................................................................................................................. 3-2

Manually installing the monitor driver ........................................................................................................................................................................ 3-4

Service information ........................................................................................................................................................................................................ 3-7

Appendix A Service and Support ................................................................................................................................................................................... A-2

Online technical support .............................................................................................................................................................................................. A-2

Telephone technical support ....................................................................................................................................................................................... A-2

Worldwide telephone list ............................................................................................................................................................................................. A-2

Appendix B Notices ......................................................................................................................................................................................................... B-6

Recycling information ....................................................................................................................................................................................................B-2

Collecting and recycling a disused Lenovo computer or monitor ............................................................................................................................B-2

Disposing of Lenovo computer components..............................................................................................................................................................B-3

Trademarks ......................................................................................................................................................................................................................B-3

Turkish statement of compliance .................................................................................................................................................................................B-4

ii © Copyright Lenovo 2014

Page 4

Safety information

General Safety guidelines

For tips to help you use your computer safety, go to: http://www.lenovo.com/safety Before installing this product, read the Safety Information.

iii

Page 5

Safety and Maintenance Guidelines

Important Safety Information

The power cord is designed for use with your monitor. To use a different cord, use only a power source and connection compatible with this monitor.

WARNING: Always connect your monitor, the computer, and other equipment to a grounded (earthed) power outlet. To reduce the risk of electric shock or damage to your equipment, do not disable the power cord grounding feature. The grounding plug is an important safety feature.

WARNING: For your safety, be sure that the grounded power outlet you plug the power cord into is easily accessible to the operator and located as close to the equipment as possible. To disconnect power from the equipment, unplug the power cord from the power outlet by grasping the plug firmly. Never pull on the cord.

CAUTION: To protect your monitor, as well as your computer, connect all power cords for your computer and its peripheral devices (such as a monitor, printer, or scanner) to a surge protection device such as a power strip with surge protection or uninterruptible power supply (UPS). Not all power strips provide surge protection; the power strips must be specifically labelled as having this ability. Use a power strip whose manufacturer offers a damage replacement policy, so you can replace your equipment if surge protection fails.

CAUTION: A certified power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm² or H05VVH2-F2 3G 0.75mm²) shall be used. An alternative flexible cord is synthetic rubber.

Safety Precautions

■Use only a power source and connection compatible with this monitor, as indicated on the label/back plate of the monitor.

■Be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the electrical outlet, and the total ampere rating of the products connected to the power cord does not exceed the rating of the power cord. Look on the power label to determine the ampere rating (Amps or A) for each device.

■ Install your monitor near a power outlet that you can easily reach. Disconnect the monitor by grasping the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.

■ Do not allow anything to rest on the power cord. Do not walk on the cord.

■ While using VESA mount application, the AC Inlet must face to down side. Do not face any other position.

Maintenance Guidelines

To enhance the performance and extend the life of your monitor:

■ Do not open your monitor cabinet or attempt to service this product yourself. If your monitor is not operating properly or has been dropped or damaged, contact your Lenovo authorized dealer, reseller, or service provider.

■ Adjust only those controls that are described in the operating instructions.

■ Turn your monitor off when not in use. You can substantially increase the life expectancy of the monitor by using a

screen saver program and turning off the monitor when not in use.

■ Keep your monitor in a well-ventilated area, away from excessive light, heat, or moisture.

■ Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered.

Never push objects of any kind into cabinet slots or other openings.

■ Unplug the monitor from the power outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

■ Do not drop the monitor or place it on an unstable surface.

■ When removing the monitor base, you must lay the monitor face down on a soft area to prevent it from getting

scratched, defaced, or broken.

Cleaning the Monitor

The monitor is a high-quality optical device that requires special care when cleaning. To clean the monitor, follow these steps:

1. Turn off the computer and the monitor.

2. Unplug your monitor from the power outlet before cleaning.

CAUTION: Do not use benzene, thinner, ammonia, or any volatile substance to clean the monitor screen or cabinet. These chemicals may damage the monitor. Do not use liquid or aerosol cleaners. Never use water to clean an LCD screen.

3. Wipe the screen with a dry, soft, clean cloth. If the screen requires additional cleaning, use an antistatic screen

cleaner.

4. Dust the monitor housing. Use a damp cloth to clean the cabinet. If the cabinet requires additional cleaning, use a

clean cloth dampened with isopropyl alcohol.

5. Plug in the monitor.

6. Turn on the monitor and the computer.

iv © Copyright Lenovo 2014

Page 6

Chapter 1 Getting started

This User’s Guide contains detailed information on the ThinkVision Pro2840m Flat Panel Monitor. For a quick overview, please see the Setup Poster that was shipped with your monitor.

Shipping contents

The product package should include the following items:

● Information Flyer

● Flat Panel Monitor

● Power Cord

● DP v1.2 Cable

● HDMI Cable

● USB 2.0 Cable

● USB 3.0 Cable

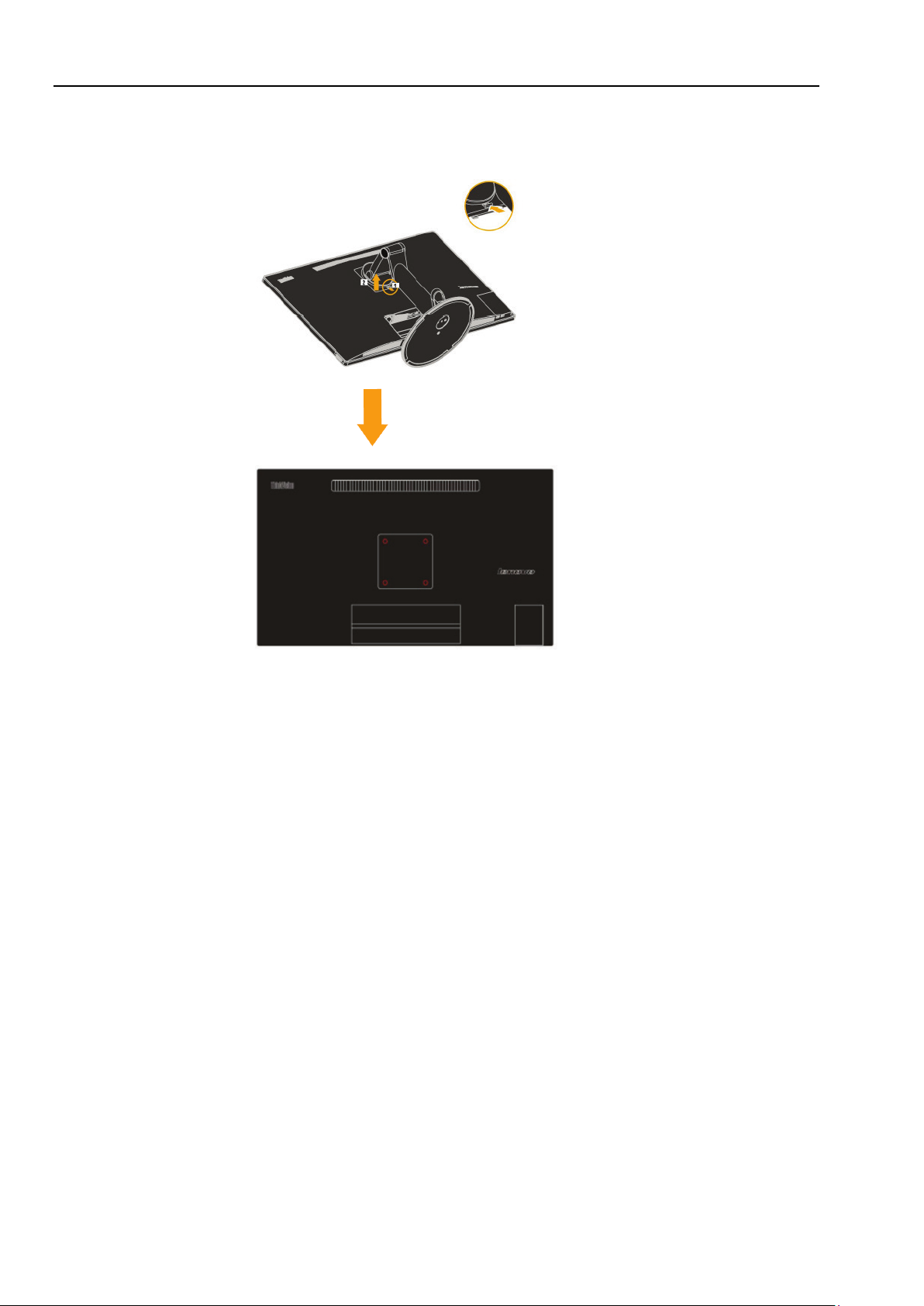

Note: To attach a VESA mount, please see “

Detaching the monitor stand” on page 2-8.

Chapter 1. Getting started 1-1

Page 7

Product overview

This section will provide information on adjusting monitor positions, setting user controls, and using the cable lock slot.

Types of adjustments

Tilt

Please see the illustration below for an example of the tilt range.

Swivel

With the built-in pedestal, you can tilt and swivel the monitor for the most comfortable viewing angle.

Height Adjustment

After pressing the top of the monitor, you can adjust the height of the monitor.

1-2 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 8

Monitor Pivot

User controls

- Adjust height to the top position before rotation the monitor.

- Rotate clockwise until the monitor stops at 90°.

Your monitor has controls on the front which are used to adjust the display.

For information on how to use these controls, please see “Adjusting your monitor image” on page 2-3.

Chapter 1. Getting started 1-3

Page 9

Cable lock slot

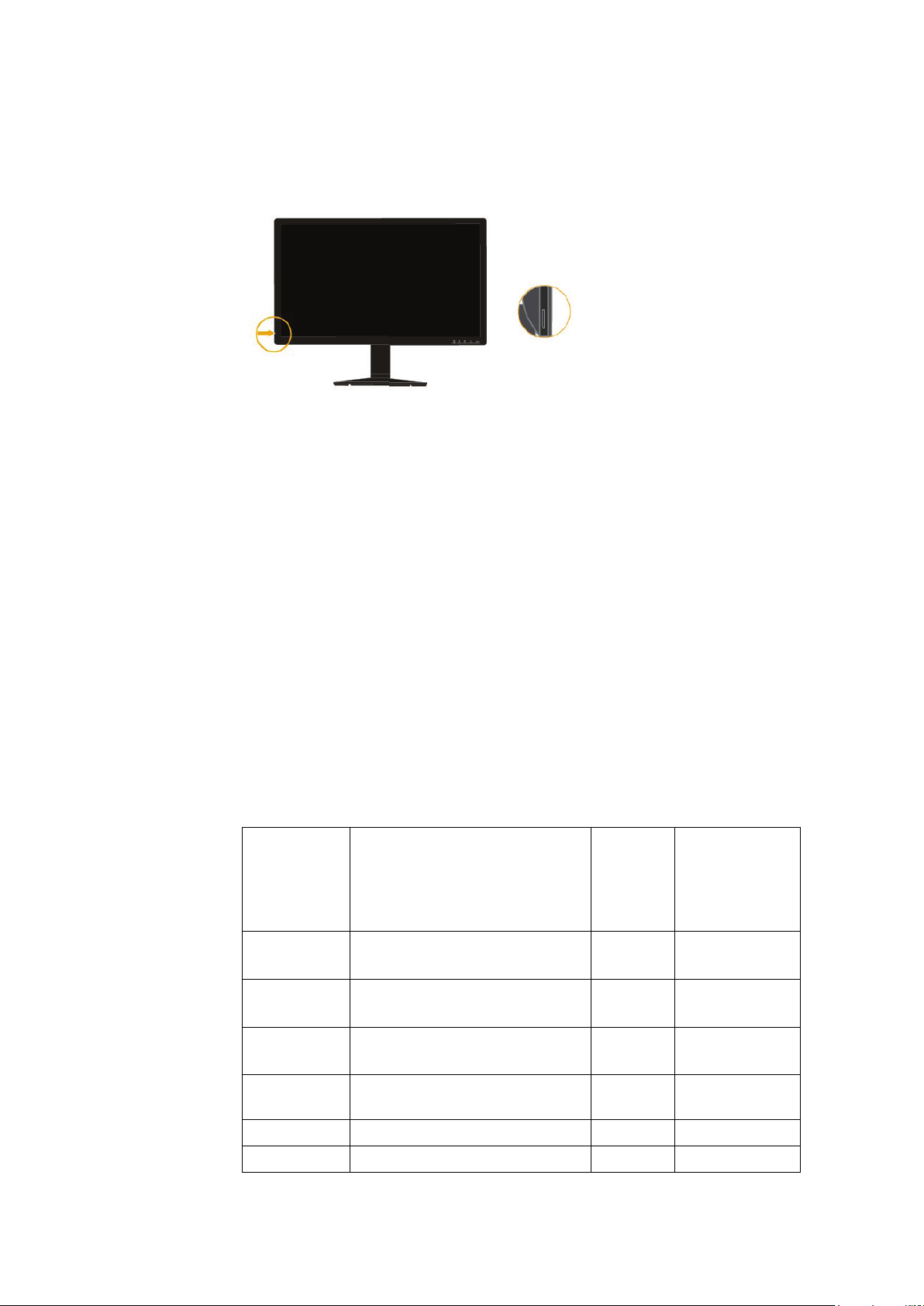

Your monitor is equipped with a cable lock slot located on the rear of your monitor. Please follow the instructions that came with the cable lock to attach it.

Setting up your monitor

This section provides information to help you set up your monitor.

Connecting and turning on your monitor

Note: Be sure to read the Safety Information located in the Monitor Safety, troubleshooting and Warranty Guide

before carrying out this procedure.

1. Power off your computer and all attached devices, and unplug the computer power cord.

2. Connect one end of the DP cable to the DP connector on the back of the computer, and the other end to the DP connector on the monitor.

1-4 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 10

3. Connect one end of the USB 2.0 cable to the USB connector on the back of the computer, and the other end to the USB connector on the monitor.

4. Connect one end of the USB 3.0 cable to the USB connector on the back of the computer, and the other

end to the upstream USB connector on the monitor.

5. Connect one end of the HDMI cable to the HDMI connector on the back of the computer, and the

other end to the HDMI connector on the monitor.

Chapter 1. Getting started 1-5

Page 11

6. Plug the monitor power cord and the computer cord into grounded electrical outlets.

Note: A certified power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm² or H05VVH2-F2 3G 0.75mm²) shall be used. Alternative a flexible cord be of synthetic rubber according to IEC 60245 (designation H05RR-F 3G 0.75mm²) shall be used.

7. Power on the monitor and the computer.

8. To install the monitor driver, you must download it from Lenovo website，

(http://support.lenovo.com/Pro2840mD) and follow the instructions on page 3-4.

1-6 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 12

Registering your option

Thank you for purchasing this Lenovo® product. Please take a few moments to register your product and provide us with information that will help Lenovo to better serve you in the future. Your feedback is valuable to us in developing products and services that are important to you, as well as in developing better ways to communicate with you. Register your option on the following Web site:

http://www.lenovo.com/register Lenovo will send you information and updates on your registered product unless you indicate on the Web site questionnaire that you do not want to receive further information.

Chapter 1. Getting started 1-7

Page 13

Chapter 2 Adjusting and using your monitor

This section will give you information on adjusting and using your monitor.

Comfort and accessibility

Good ergonomic practice is important to get the most from your personal computer and to avoid discomfort. Arrange your workplace and the equipment you use to suit your individual needs and the kind of work that you perform. In addition, use healthy work habits to maximize your performance and comfort while using your computer.

Arranging your work area

Use a work surface of appropriate height and available working area to allow you to work in comfort.

Organize you work area to match the way you use materials and equipment. Keep your work area clean and clear for the materials that you typically use and place the items that you use most frequently, such as the computer mouse or telephone, within the easiest reach.

Equipment layout and setup play a large role in your working posture. The following topics describe how to optimize equipment setup to achieve and maintain good working posture.

Positioning and viewing your monitor Position and adjust your computer monitor for comfortable viewing by considering the following items:

● Viewing distance: Optimal viewing distances for monitors range from approximately 510mm to 760mm (20 in to 30 in) and can vary depending on ambient light and time of day. You can achieve different viewing distances by repositioning your monitor or by modifying your posture or chair position. Use a viewing distance that is most comfortable for you.

● Monitor height: Position the monitor so your head and neck are in a comfortable and neutral (vertical, or upright) position. If your monitor does not have height adjustments, you might have to place books or other sturdy objects under the base of the monitor to achieve the desired height. A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated. However, be sure to optimize your monitor height so the line of site between your eyes and the centre of the monitor suits your preferences for visual distance and comfortable viewing when your eye muscles are in a relaxed stated.

● Tilt : Adjust the tilt of your monitor to optimize the appearance of the screen content and to accommodate your preferred head and neck posture.

● General location: Position your monitor to avoid glare or reflections on the screen from overhead lighting or nearby windows.

The following are some other tips for comfortable viewing of your monitor:

● Use adequate lighting for the type of work you are performing.

● Use the monitor brightness, contrast, and image adjustment controls, if equipped, to optimize

the image on your screen to meet your visual preferences.

● Keep your monitor screen clean so you can focus on the screen’s contents.

Any concentrated and sustained visual activity can be tiring for your eyes. Be sure to periodically look away from your monitor screen and focus on a far object to allow your eye muscles to relax. If you have questions on eye fatigue or visual discomfort, consult a vision care specialist for advice.

1-1 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 14

Quick tips for healthy work habits

The following information is a summary of some important factors to consider to help you remain comfortable and productive while you use your computer.

● Good posture starts with equipment setup: The layout of your work area and the setup of your computer equipment have a large effect on your posture while using your computer. Be sure to optimize the position and orientation of your equipment by following the tips outlined in “Arranging your work area ” on page 2-1 so you can maintain a comfortable and productive posture. Also, be sure to use the adjustment capabilities of your computer components and office furniture to best suit your preferences now and as your preferences change over time.

● Minor changes in posture can help avoid discomfort: The longer you sit and work in front of your computer, the more important it is to observe your working posture. Avoid as summing any one posture for an extended period of time. Periodically make minor modifications in your posture to help deter any discomforts that might arise. Make use of any adjustments that your office furniture or equipment provide to accommodate changes in posture

● Short, periodic breaks help ensure healthy computing: Because computing is primarily a static activity, it is particularly important to take short breaks from your work. Periodically, stand up in front of your work area, stretch, walk for a drink of water, or otherwise take a short break from using your computer. A short break from work gives your body a welcome change in posture and helps to ensure you remain comfortable and productive while you do work.

Accessibility information

Lenovo is committed to providing greater access to information and technology to people with disabilities. With assistive technologies, users can access information in the way most appropriate to their disability. Some of these technologies are already provided in your operating system; others can be purchased through vendors or accessed at :

https://lenovo.ssbbartgroup.com/lenovo/request_vpat.php

Chapter 2. Adjusting and Using your monitor 1-2

Page 15

Adjusting your monitor image

This section describes the user control features used to adjust your monitor image.

Using the direct access controls

The direct access controls can be used when the On Screen Display (OSD) is not displayed.

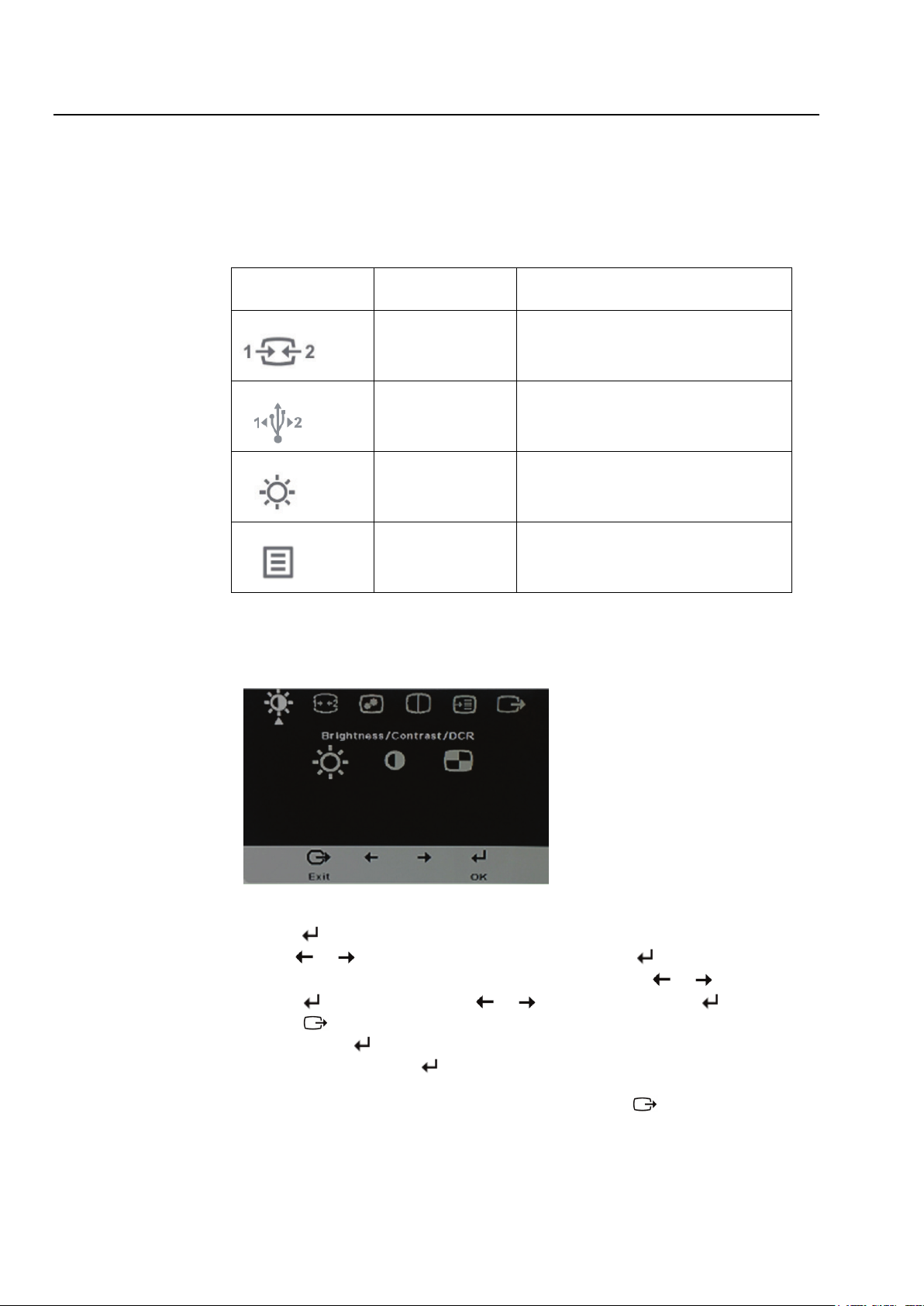

Table 2-1 Direct access controls

Icon Control Description

Input Change Switches the video input source.

Input Change Switches the USB signal input source.

Brightness

Main menu Open main OSD menu

Using the On-Screen Display (OSD) controls

The settings adjustable with the user controls are viewed through the On-Screen Display (OSD), as shown below.

To use the controls:

1. Press

2. Use

function. If there is a sub-menu, you can move between options using

press

3. Press to move backwards through the sub-menus and exit from the OSD.

4. Press and hold

to the OSD. Press and hold the OSD.

5. Enables DDC/CI by default. Use OSD Exit Key, press and hold the

disable/enable DDC/CI function. The words " DDC/CI Disable/DDC/CI/Enable" shows on the screen.

to open the main OSD menu.

or to move among the icons. Select an icon and press to access that

to select that function. Use or to make adjustments. Press to save.

for 10 seconds to lock the OSD. This will prevent accidental adjustments

for 10 seconds to unlock the OSD and allow adjustments to

Direct access to Brightness adjustment.

or , then

buttons for 10 seconds to

1-3 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 16

－＋

Adjusts intensity of red, green, and

colour choices.

Table. 2-2 OSD functions

OSD Icon on Main

Brightness/Contrast

Input Signal

Image Properties

Submenu Description

Brightness

Adjusts overall brightness

Contrast

Adjusts difference between light

and dark areas.

DCR

mDP

HDMI

MHL

Enable dynamic contrast ratio.

Select mDP Signal

Select DP Signal

Select HDMI Signal

Select MHL Signal

blue. Preset mode

● Neutral

● sRGB

● Reddish

● Bluish

Custom

● Red: Increases or decreases the

saturation of ‘red’ in the image.

● Green: Increases or decreases

Colour

the saturation of ‘green’ in the image.

● Blue: Increases or decreases the

saturation of ‘blue’ in the image.

● Save: Saves the custom

Controls and

Adjustments

Off

Image Properties

PBP Setup

Scaling

PBP Setup

● OFF(1:1)

● ON(Expand)

● Single Mode

● PBP Mode

Source Selection:

Select Left and Right signal.

PBP Source

Chapter 2. Adjusting and Using your monitor 1-4

Page 17

OSD will remain active after the last time a button is pressed.

Table 2-2 OSD functions

OSD Icon on Main

Options

Submenu

Information

Menu Language

Menu Position

Default

Custom

Factory Default

Description

Shows resolution, refresh rate, and product details.

Note: This screen does not allow any changes to the settings.

This section lists the languages supported by your monitor.

Note: The language chosen only affects the language of the OSD. It has no effect on any software running on the computer.

Menu position adjusts menu location on the screen.

Returns the menu position to the default settings.

● Horizontal: Changes the horizontal position of the OSD

● Vertical: Changes the vertical position of the OSD.

● Save

● Cancel

● Reset

Resets monitor to the original factory settings.

Controls button and menu settings for accessibility preferences.

Options

Exit

Button repeat rate:

Select

Accessibility

or to change.

● Off

● Default

● Slow

Menu time out: Sets the length of time the

Select DP1.1 or DP1.2

DP1.1/DP1.2

● DP 1.2

Exit the main menu.

1-5 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 18

Addressability

Refresh rate

640x480

60Hz

720x400

70Hz

800x600

60Hz

1024x768

60Hz

1280x720

60Hz

1280x768

60Hz

1280x800

60Hz

1280x1024

60Hz

1360x768

60Hz

1440x900

60Hz

1600x900

60Hz

1680x1050

60Hz

1920x1080

60Hz

1920x1200

60Hz

1920x2160

60Hz

2560x1440

60Hz

2560x1600

60Hz

3840x2160

30Hz,60Hz

Addressability

Refresh rate

640x480

60Hz

720x400

70Hz

800x600

60Hz

1280x720

60Hz

1280x768

60Hz

1280x800

60Hz

1280x1024

60Hz

1360x768

60Hz

1440x900

60Hz

1600x900

60Hz

1680x1050

60Hz

1920x1080

60Hz

1920x1200

60Hz

1920x2160

60H

2560x1440

60Hz

2560x1600

60Hz

3840x2160

24Hz,25Hz,30Hz

Selecting a supported display mode

The display mode the monitor uses is controlled by the computer. Therefore, refer to your computer documentation for details on how to change display modes.

The image size, position and shape might change when the display mode changes. This is normal and the image can be readjusted using automatic image setup and the image controls.

Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or Flat Panel technology is inherently flicker-free.

Note: If your system has previously been used with a CRT monitor and is currently configured to a display mode outside the range of this monitor, you may need to re-attach the CRT monitor temporarily until you have re-configured the system; preferably to 3840x2160 at 60Hz, which is the Native Resolution Display mode.

The display modes shown below have been optimized at the factory.

Table 2-3.Factory set display modes

DP/mDP

HDMI

Chapter 2. Adjusting and Using your monitor 1-6

Page 19

Addressability

Refresh rate

640x480

60Hz

720x400

70Hz

800x600

60Hz

1024x768

60Hz

1280x720

60Hz

1440x480i

60Hz

1440x576i

50Hz

720x480p

60Hz

720x576p

50Hz

1280x720p

50Hz,60Hz

1920x1080p

24Hz,25Hz,30Hz,

1920x1080i

50Hz,60Hz

Press a key or move the mouse.

monitor.

before the image reappears.

MHL

Understanding power management

Power management is invoked when the computer recognizes that you have not using your mouse or keyboard for a user-definable period. There are several states as described in the table below.

For optimal performance, switch off your monitor at the end of each working day, or whenever you expect to leave it unused for long periods during the day.

Table2-4.Power indicator

State Power Indicator Screen Restoring Operation Compliance

On Steady green Normal

Standby/

Suspend

Off Off Off

Caring for your monitor

Be sure to turn off the power before you perform any maintenance on the monitor.

Do not:

● Apply water or liquid directly to your monitor.

● Use solvents or abrasives.

● Use flammable cleaning materials to clean your monitor or any other electrical equipment.

● Touch the screen area of your monitor with sharp or abrasive items. This type of contact may cause permanent

damage to your screen.

Steady amber Blank

There may be a slight delay reappears. Note: Standby also occurs if there is no image output to the

Press power key to switch on There may be a slight delay

ENERGY

STAR

ENERGY

STAR

1-7 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

● Use any cleaner which contains an anti-static solution or similar additives. This may harm the coating of the

screen area.

Do:

● Lightly dampen a soft cloth with water and use this to gently wipe the covers and the screen.

● Remove grease or finger marks with a damp cloth and a little mild detergent.

Page 20

Detaching the monitor stand

After placing the monitor face down on a clean surface or soft cloth, push the hook of the stand and lift the stand up to remove it from the monitor .

Chapter 2. Adjusting and Using your monitor 1-8

Page 21

665.90 mm (26.22 in.)

Pivot

Yes (clock wise 90 degree)

VESA mount

Supported

100 mm (3.94 in.)

Max supply current

1.5A

Off

0.5W

Altitude Test

Operation

8000 ft

Shipping

-20° to 60°C (-4° to 140° F)

Shipping

5% to 95%

Chapter 3 Reference information

This section contains monitor specifications, instructions to manually install the monitor driver, troubleshooting information, and service information.

Monitor specifications

Table 3-1. Monitor specifications for type-model 60B4-RAR6-WW

Dimensions Height

Depth With

Stand


Power input Supply voltage

Power consumption

Note: Power consumption figures

are for the monitor and the power supply combined.

Video input (Digital)

Tilt range

Swivel

Lift

Viewable image size

Maximum height

Maximum width

Pixel pitch

Max Consumption

Typical Consumption

Standby/Suspend

Input signal

Horizontal addressability

Vertical addressability

Clock frequency

526.43 mm (20.72 in.)

289.35mm (11.39 in.)

Range: -5°/+25°

Range: -45°/+45°

Range: 110mm

711.20 mm (28.00 in.)

341.28mm (13.44 in.)

620.93 mm (24.45 in.)

0.16mm (0.0063 in.) (V)

100-240 VAC, 60/50 Hz

65W

60W

≦1.2W

≦

3840 pixels (max)

2160 lines (max)

10.8Gpbs(max)

Video input (Digital)

Communications VESA DDC CI

Supported Display Modes

(VESA Standard modes between noted ranges)

Temperature Operating

Humidity Operating

2-1 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Input signal

Horizontal addressability

Vertical addressability

Clock frequency

Horizontal frequency

Vertical frequency

Native Resolution

Storage

MHL/HDMI

3840 pixels (max)

2160 lines (max)

10.8Gpbs(max)

26 kHz – 140 kHz

24 Hz – 70 Hz

3840 x 2160 at 60 Hz

0° to 40°C (32° to 104° F)

-20° to 60°C (-4° to 140° F)

10% to 80%

5%° to 95%

Page 22

Troubleshooting

The image quality is

power cord.

If you have a problem setting up or using your monitor, you might be able to solve it yourself. Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your problem.

Table3-2.Troubleshooting

Problem Possible cause Suggested action Reference

The words” Out of

Range” are shown

on the screen, and

the power indicator

is flashing green.

The image quality is

unacceptable.

The power indicator

is not lit and there is

no image.

The system is set to a display mode which is not supported by the monitor.

The video signal cable is not connected with the monitor or system completely.

The color settings may be incorrect.

The automatic image setup function was not performed.

● The monitor’s power switch is not switched on.

● The power cord is loose or disconnected.

● There is no power at the outlet.

● If you are replacing an old monitor, reconnect it and adjust the display mode to within the specified range for your new monitor.

● If using a Windows system, restart the system in safe mode, then select a supported display mode for your computer.

● If these options do not work, contact the Customer Support Centre.

Be sure the signal cable is firmly plugged into the system and monitor.

Select another colour setting from the OSD menu.

Perform automatic image setup. “Adjusting your monitor

● Be sure the power cord is connected properly.

● Be sure the outlet has power.

● Power on the monitor.

● Try using another

● Try using another electrical

outlet.

“Selecting a supported display mode” on page 2-6

“Connecting and turning on your monitor” on page 1-4

“

Adjusting your monitor

image” on page 2-3

“Connecting and turning on your monitor ” on page 1-4

Chapter 3. Reference information 2-2

Page 23

Press any key on the keyboard

The power the pixels appear

If there are more than five pixels

image.

●

● Your system Display

image.

●

● Your system Display

image.

●

● Your system Display

when

● Adjust graphic card resolution

Table3-2.Troubleshooting(continued)

Problem Possible cause Suggested action Reference

Screen is blank and power indicator is steady amber or flashing green

The power indicator is green, but there is no image.

indicator is green, but there is no image.

One or more of

discoloured

● Fuzzy lines in text or a blurry image.

● Horizontal or vertical lines through the

The monitor is in Standby/Suspend mode

The video signal cable is loose or disconnected from the system or monitor.

The monitor brightness and contrast are at the lowest setting.

This is a characteristic of the LCD technology and is not an LCD defect.

Image setup has not

been optimized

Properties setting have not been optimized.

●

or move the mouse to restore operation.

● Check the Power options settings on your computer.

Be sure the video cable is connected with the system properly.

Adjust the brightness and contrast setting on the OSD menu.

missing, contact the Customer Support Centre.

Adjust the resolution settings on your system to match the native resolution for this monitor:

3840 x 2160 at 60 Hz.

“Understanding power management” on page 2-7

“Connecting and turning on your monitor ” on page 1-4

“Adjusting your monitor image” on page 2-3

Appendix A, “Service and Support” on page A-2

“Adjusting your monitor image” on page 2-3

● Fuzzy lines in text or a blurry image.

● Horizontal or vertical lines through the

● Fuzzy lines in text or a blurry image.

● Horizontal or vertical lines through the

The image is not acceptable switching to dual mode

Image setup has not

been optimized

Properties setting have not been optimized.

Image setup has not

been optimized

Properties setting have not been optimized.

It has not set the optimum resolution for each mode

Perform automatic image setup. If automatic image setup does not help, perform manual image setup.

When working in the native resolution, you may find additional improvements by adjusting the Dots Per Inch (DPI) setting on your system.

● Use ThinkVision Duo

software to optimize the dual screen operation

manually

“Selecting a supported display mode” on page 2-6

See the Advanced section of your system’s display properties.

“Using the direct access controls” on page 2-3

2-3 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 24

Manually installing the monitor driver

Below are steps for manually installing the monitor driver in Microsoft Windows 8.1, Microsoft Windows 8, Microsoft Windows 7.

Installing the monitor driver in Windows 8.1 To install the device driver in Microsoft® Windows 8.1, do the following: Note: You must download the driver of your operation system from the Lenovo website

(http://support.lenovo.com/Pro2840mD)

1. Turn off the computer and all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then turn on the computer. Allow your computer to boot into

Windows 8.1 operating system.

4. On the Desktop, move mouse to low-right corner of screen, choose Setting, double click Control Panel, and

then double click the icon of Hardware and Sound, and then clicking Display.

5. Click the Change the display settings tab.

6. Click the Advanced Settings icon.

7. Click the Monitor tab.

8. Click the Properties button.

9. Click the Driver tab.

10. Click Update Driver, then click Browse the computer to find the driver program.

11. Select Pick from the list of device driver program on the computer.

12. Click the Have Disk button. Click the Browse button and navigate to the directory that you put your

download drivers in.

13. Select the “Pro2840m.inf” file and click the Open button. Click the OK button.

14. Select ThinkVision Pro2840mD and click Next. The files will be copied from the directory to

your hard disk drive.

15. Close all open windows.

16. Restart the system. The system will automatically select the maximum refresh rate and corresponding

Colour Matching Profiles.

The system will automatically select the maximum refresh rate and corresponding color matching

profiles.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality.

Lenovo recommends using either 3840 x 2160 at a refresh rate of 60 Hz, or 640 x 480 at

refresh rate of 60 Hz.

Chapter 3. Reference information 2-4

Page 25

Installing the monitor driver in Windows 8

To use the Plug and Play feature in Microsoft Windows 8, do the following:

Note: You must download the driver of your operation system from the Lenovo website

(http://support.lenovo.com/Pro2840mD)

1.Turn off the computer and all attached devices.

2.Ensure that the monitor is connected correctly.

3.Turn on the monitor and then turn on the computer. Allow your computer to boot into Windows 8 operating system.

4.On the Desktop, move mouse to low-right corner of screen, choose Setting, double click Control Panel, then double click the icon of Hardware and Sound, and then clicking Display.

5.Click the Change the display settings tab.

6.Click the Advanced Settings icon.

7.Click the Monitor tab.

8.Click the Properties button.

9.Click the Driver tab.

10.Click Update Driver, then click Browse the computer to find the driver program.

11.Select Pick from the list of device driver program on the computer.

12. Click the Have Disk button. Click the Browse button and navigate to the directory that you

put your download drivers in.

13.Select the " Pro2840m.inf "file and click the Open button. Click the OK button.

14. Select ThinkVision Pro2840mD and click Next. The files will be copied from the directory to

your hard disk drive.

15. Close all open windows.

16. Restart the system. The system will automatically select the maximum refresh rate and corresponding Colour Matching Profiles.

The system will automatically select the maximum refresh rate and corresponding color matching profiles.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 3840 x 2160 at a refresh rate of 60 Hz, or 640 x 480 at a refresh rate of 60 Hz.

2-5 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 26

Installing the monitor driver in Windows 7

To use the Plug and Play feature in Microsoft Windows 7, do the following:

Note: You must download the driver of your operation system from the Lenovo website

(http://support.lenovo.com/Pro2840mD)

1. Turn off the computer and all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then turn on the computer. Allow your computer to boot into Windows 7 operating system.

4. Open the Display Properties window by clicking Start, Control Panel and then click the

Hardware and Sound icon.

5. Click the Display icon.

6. Click the Adjust Resolution button.

7. Click the Advanced Settings button.

8. Click the Monitor tab.

9. Click the Properties button.

10. Click the Driver tab.

11. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on Update Driver and then click the "Browse my computer for driver software" button.

12. Select “Let me pick from a list of device drivers on my computer”.

13. Click the Have Disk button. Click the Browse button and navigate to the directory that you put your download drivers in.

14. Select the “Pro2840m.inf” file and click the Open button. Click the OK button.

15. Select ThinkVision Pro2840mD and click Next. The files will be copied from the directory to

your hard disk drive.

16. Close all open windows.

17. Restart the computer.

The system will automatically select the maximum refresh rate and corresponding color matching profiles.

Chapter 3. Reference information 2-6

Page 27

03T8531

60B4-RAR6-WW

03T8508

60B4-RAR6-WW

Service information

Product numbers

The product number for your monitor is located on the side of the display bezel as shown below.

Customer responsibilities

The warranty does not apply to a product which has been damaged due to accident, misuse, abuse, improper installation, usage not in accordance with product specifications and instructions, natural or personal disaster, or unauthorized alterations, repairs or modifications.

The following are examples of misuse or abuse and not covered by warranty:

● Images burned on to the screen of a CRT monitor. Burned image is preventable by utilizing a

● Physical damage to covers, bezel, base and cables.

● Scratches or punctures on monitor screens.

Getting further help

If you still can’t solve your problem, please contact the Customer Support Center. For more information on contacting the Customer Support Center, please see Appendix A, “Service and Support” on page A-2.

moving screen saver or power management.

Service parts

The following parts are for use by Lenovo service, or Lenovo authorized dealers to support the customer warranty. Parts are for service use only. The table below shows information for model 60B4-RAR6-WW.

Table 3-3. List of service parts

FRU (Field

Replaceable Unit)

Part number

03T8503

03T8504

03T8505

03T8506

Description colour

Pro2840m -FRU Monitor (HDMI) Raven Black

Pro2840m USB 3.0 cable (1.8m, RoHS, type A to type B)

USB 2.0 cable (1.8m, RoHS, type A to type B)

HDMI cable (1.8m, RoHS) Raven Black

DP v1.2 cable (1.8m RoHS DP to DP)

Pro2840m -FRU Stand and Base

Raven Black

Machine Type

Model (MTM)

60B4-RAR6-WW

2-7 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 28

Appendix A Service and Support

The following information describes the technical support that is available for your product, during the warranty period or throughout the life of the product. Refer to your Lenovo Statement of Limited Warranty for a fully explanation of Lenovo warranty terms.

Registering your option

Register to receive product service and support updates, as well as free and discounted computer Accessories and content. Go to: http://www.lenovo.com/support

Online technical support

Online technical support is available during the life of your product through the Lenovo Support Web site at http://www.lenovo.com/ support

Product replacement assistance or exchange of defective components also is available during the warranty period, assistance for replacement or exchange of defective components is available. In addition, if your option is installed in a Lenovo computer, you might be entitled to service at your location. Your technical support

representative can help you determine the best alternative.

Telephone technical support

Installation and configuration support through the Customer Support Center will be withdrawn or made available for a fee, at Lenovo’s discretion, 90 days after the option has been withdrawn from marketing, Additional support offerings, including step-by-step installation assistance, are available for a nominal fee.

To assist the technical support representative, have available as much of the following information as possible:

● Option name

● Option number

● Proof of purchase

● Computer manufacturer, model, serial number, and manual

● Exact wording of the error message (if any)

● Description of the problem

● Hardware and software configuration information for your system

If possible, be at your computer. Your technical support representative might want to walk you through the problem during the call.

Worldwide telephone list

Phone numbers are subject to change without notice. For the most current phone Numbers, go to

http://www.lenovo.com/support/phone

A-2 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 29

Africa

Africa: +44 (0) 1475-555-055

Business Partner

Argentina

0800-666-0011 (Spanish)

Australia

131-426 (English )

Austria

Warrant service and support: 01-211-454-610 (German )

Belgium

Warrant service and support: 02-225-3611 (Dutch, French)

Bolivia

0800-10-0189 ( Spanish)

Brazil

Sao Paulo region: (11) 3889-8986

(Brazilian Portuguese)

Brunei

801-1041 (English , Bahasa Melayu)

Canada

Toronto:416-383-3344

(English , French)

Chile

Toll Free: 188-800-442-488

(Spanish )

China

86-10-58851110

(Mandarin)

China (Hong Kong S.A.R.)

(852)3071-3561 (Cantonese, English, Mandarin)

China

ThinkCentre Commercial PC: 795-9892

(Cantonese, English, Mandarin)

Colombia

1-800-912-3021 (Spanish)

Costa Rica

0-800-011-1029( Spanish )

Croatia

0800-0426

Cyprus

+357-22-841100

Czech Republic

+420-2-7213-1316

Denmark

Warranty service and support: 7010-5150 (Danish)

Dominican Republic

1-866-434-2080(Spanish )

Ecuador

1-800-426911(Spanish )

Egypt

+202-35362525

El Salvador

800-6264 (Spanish)

Estonia

+372 6776793 +372 66 00 800

Finland

Warranty service and support: +358-800-1-4260(Finnish)

France

Warranty service and support (hardware): 0810-631-213

(French)

Tegucigalpa: 232-4222

(Spanish)

+36-1-382-5716

(English, Hungarian)

1800-425-2666

(English )

021 5238 823

(English, Bahasa Indonesia)

Country or Region Telephone Number

South Africa: +27-11-3028888 and 0800110756 Central Africa: Contact the nearest Lenovo

Outside Sao Paulo region: 0800-701-4815

Outside Toronto: 1-800-565-3344

800-361-213

800-990-8888

(Macau S.A.R.)

Germany Warranty service and support: 01805-00-46-18 (German )

Greece +30-210-680-1700

Guatemala 1800-624-0051 (Spanish )

Honduras

Multimedia Home PC: 0800-336

Warranty service and support (software): 0810-631-020

San Pedro Sula: 552-2234

Hungary

India

Indonesia

+36-1-382-5720

+91-80-2535-9182

Local number only: 001-803-606-282 DID (Direct Inward Dialing): +603 8315 6859

Service and Support A-3

Page 30

Givat Shmuel Service and Center: +972-3-531-3900 (Hebrew, English)

Toll Free: 0120-20-5550

Overseas calls: +81-44-200-8666(Japanese)

Local number only: 1800-88-1889

(English, Bahasa Melayu)

Lenovo Customer Support Center: 001-866-434-2080 (Toll Free)

Country or Region Telephone Number

Ireland Warranty service and support: 01-881-1444 (English)

Israel

Italy Warranty service and support: +39-800-820094 (Italian)

Japan

Kazakhstan

Kingdom of Saudi Arabia 800 85 000 52 (Standard Charges Apply)

Korea 1588-6782 (Korea)

Latvia +371 7070360

Lithuania +370 5 278 66 00

Luxembourg +352-360-385-343(French)

Malaysia

Malta +35621445566

Mexico 001-866-434-2080(Spanish)

Middle East +44 (0)1475-555-055

International: +81-46-266-4716 The above numbers will be answered with a Japanese language voice prompt. For telephone support in English, please wait for the Japanese voice prompt to end, and an operator will answer. Please say “English support please”, and your call will be transferred to an English-speaking operator. PC software: 0120-558-695

Call center: +77273231427(Standard charges Apply) (Russian , English)

DID: +603 8315 6855

Netherlands +31-20-514-5770 (Dutch)

New Zealand 0800-733-222 (English )

Nicaragua 001-800-220-1830 (Spanish)

Norway Warranty service and support: 8152-1550(Norwegian)

Panama

Peru 0-800-50-866 (Spanish)

Philippines 1800-1601-0033 (English, Filipino)

Poland +48-22-878-6999 (Polski)

Portugal +351-21-892-7046 (Portuguese)

Romania +4-021-224-4015

Russia Moscow: +7-(495)-258-6300

Singapore Local number only: 800-6011-343 DID: +603 8315 6859 (English)

Slovakia +421-2-4954-5555

206-6047(Spanish)

Toll Free: +8-800-200-6300 (Russian)

A-4 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Slovenia +386-1-200-50-60 (Slovenian)

Spain 91-714-7983,0901-100-000 (Spanish)

Page 31

Country or Region Telephone Number

Sri Lanka +9411 2493547 +9411 2493548 (English)

Sweden Warranty service and support: 077-117-1040 (Swedish)

Switzerland Warranty service and support: 0800-55-54-54 (German, French,

Italian)

Taiwan 886-2-8723-9799,0800-000-700 (Mandarin)

Thailand Local number only: 1-800-060-066

66 2273 4088

DID: +603 8315 6857 (Thai, English)

Turkey 02123360366

00800448825165 (Turkish)

Ukraine 044 362 42 81 (Standard Charges Apply)

United Arab Emirates 800035702810 (Standard Charges Apply)

United Kingdom Standard warranty support: 08705-500-900 (English)

United States 1-800-426-7378 (English)

Uruguay 000-411-005-6649 (Spanish)

Venezuela 0-800-100-2011 (Spanish)

Vietnam For Northern Area and Hanoi City: 844 3 946 2000 or 844 3 942 6457

For Southern Area and Ho Chi Minh City: 848 3 829 5160 or 844 3

942 6457(Vietnamese, English)

Service and Support A-5

Page 32

Appendix B Notices

Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead. However, it is the user’s responsibility to evaluate and verify the operation of any other product, program, or service.

Lenovo may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing to:

Lenovo (United States),inc.

1009 Think Place – Building One Morrisville, NC 27560 U.S.A. Attention: Lenovo Director of Licensing

LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

The products described in this document are not intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. The information contained in this document does not affect or change Lenovo product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of Lenovo or third parties. All information contained in this document was obtained from specific environments and presented as an illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it believe appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.

Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements

A-6 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 33

will be the same on generally available systems. Furthermore,some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.

Recycling information

Lenovo encourage owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to:

http://www.lenovo.com/lenovo/environment/recycling

Collecting and recycling a disused Lenovo computer or monitor

If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources. Computers and monitors are categorized as industrial waste and should be properly disposed of by an industrial waste disposal contractor certified by a local government. In accordance with the Law for Promotion of Effective Utilization of Resources, Lenovo Japan provides, through its PC Collecting and Recycling Services, for the collecting, reuse, and recycling of disused computers and monitors. For details, visit the Lenovo Web site at

www.ibm.com/jp/pc/service/recycle/pcrecycle/. Pursuant to the Law for Promotion of Effective Utilization of Resources, the collecting and recycling of home-used computers and monitors by the manufacturer was begun in October 1,

2003. This service is provided free of charge for home-used computers sold after

October 1, 2003. For details, visit the Lenovo Web site at

www.ibm.com/jp/pc/service/recycle/personal/.

A-2 ThinkVision Pro2840m Flat Panel Monitor User’s Guide

Page 34

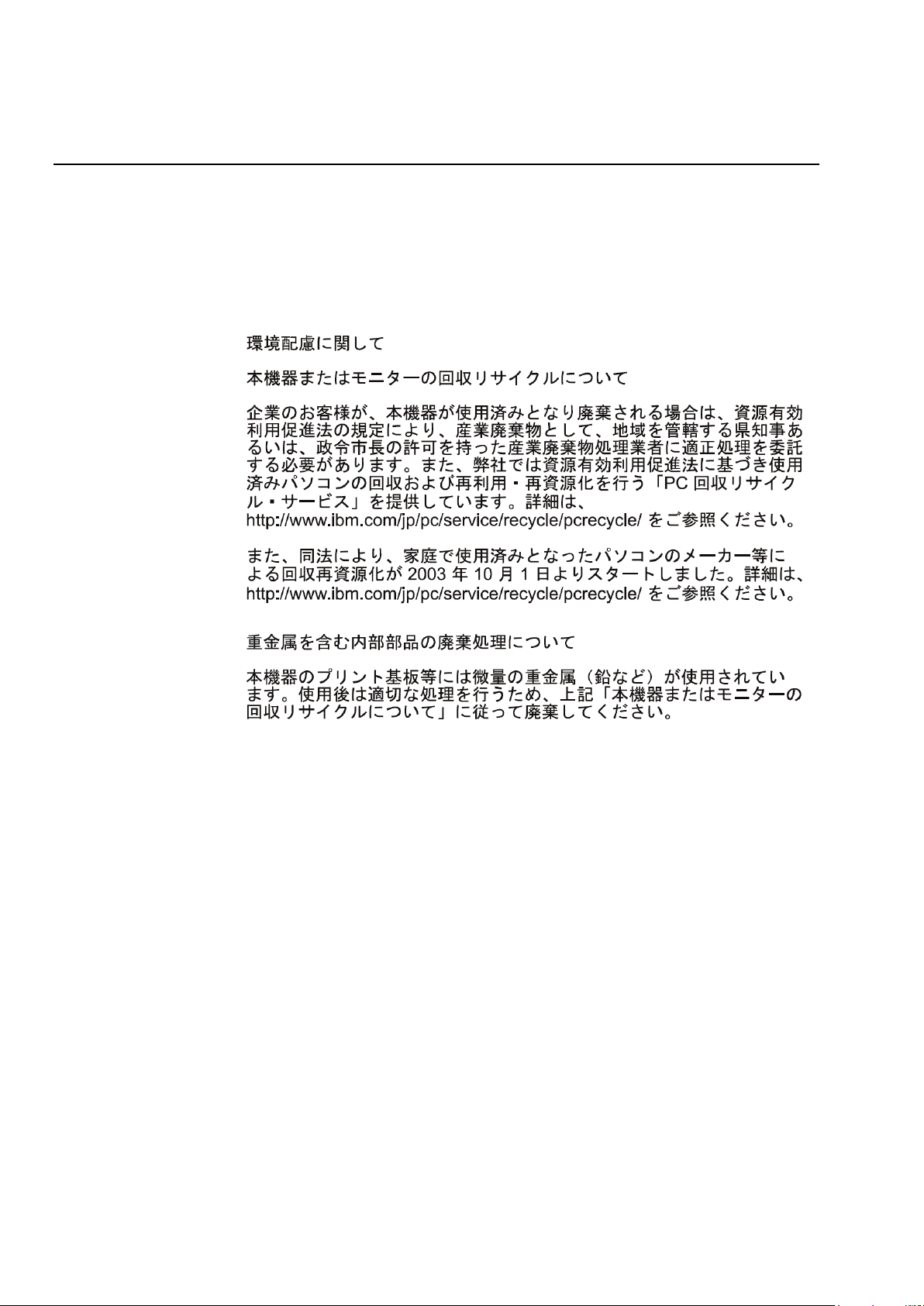

Disposing of Lenovo computer components

Some Lenovo computer products sold in Japan may have components that contain heavy metals or other environmental sensitive substances. To properly dispose of disused components, such as a printed circuit board or drive, use the methods described above for collecting and recycling a disused computer or monitor.

Trademarks

The following terms are trademarks of Lenovo in the United States, other countries, or both:

Lenovo

The Lenovo logo

ThinkCentre

ThinkPad

ThinkVision

Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of companies.

Other company, product, or service names may be trademarks or service marks of others.

Notices A-3

Page 35

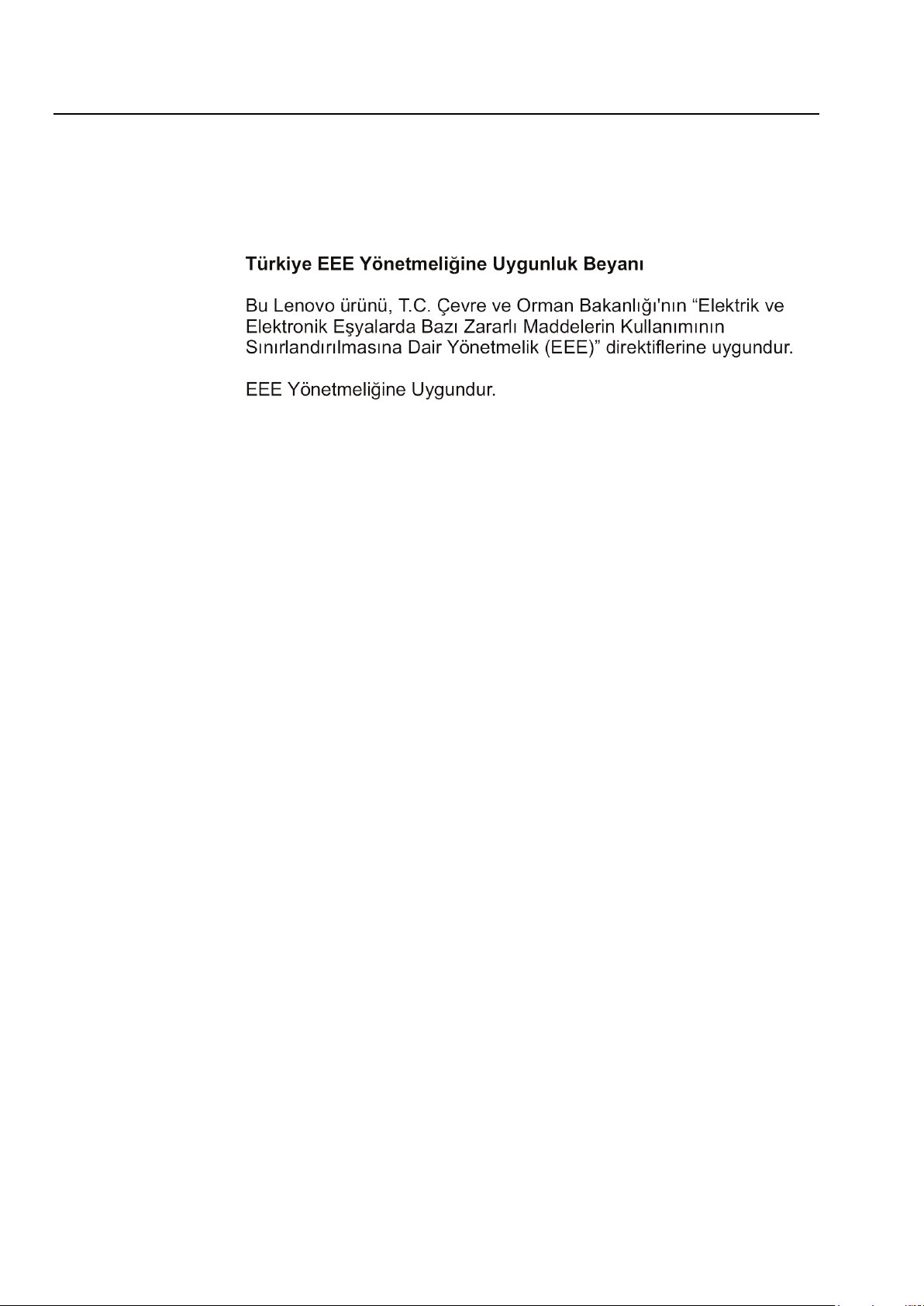

Turkish statement of compliance

The Lenovo product meets the requirements of the Republic of Turkey Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (EEE).

Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both.

A-4 ThinkVision Pro2840m Flat Panel Monitor User’s Guide
