Page 1

Lenovo ideapad FLEX 4

FLEX 4-1130

User Guide

Read the safety notices and important tips in the included manuals before using your computer.

Page 2

Notes

Before using the product, be sure to read Lenovo Safety and General Information Guide ﬁrst.

The latest electronic compliance and environmental information are available from the Lenovo compliance information Web sites.

- To view compliance information go to: hp://www.lenovo.com/compliance

To download environmental information go to: hp://www.lenovo.com/ecodeclaration

Some instructions in this guide may assume that you are using Windows® 10. If you are using another Windows operating system, some operations may be slightly diﬀerent. If you are using other operating systems, some operations may not apply to you.

The features described in this guide are common to most models. Some features may not be available on your computer or your computer may include features that are not described in this user guide.

The illustrations in this manual may diﬀer from the actual product. Please refer to the actual product.

Regulatory Notice

For details, refer to Guides & Manuals at hp://support.lenovo.com.

First Edition (July 2016)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

Page 3

Contents

Chapter 1. Getting to know your computer .................................................................................... 1

Top view Left-side view Right-side view Bottom view

Chapter 2. Starting to use Windows 10......................................................................................... 15

Configuring the operating system for the first time Operating system interface Putting the computer to sleep or shutting it down Task and desktop management Connecting to a wireless network Get Started app Touch screen operation

Chapter 3. Recovery system .......................................................................................................... 24

Push-button reset

Chapter 4. Troubleshooting............................................................................................................ 26

Frequently asked questions Troubleshooting

Trademarks................................................................................................................................

......................................................................................................................................................... 1

................................................................................................................................................ 9

............................................................................................................................................ 12

................................................................................................................................................. 14

.............................................................................. 15

........................................................................................................................ 15

................................................................................ 17

................................................................................................................ 19

............................................................................................................ 20

............................................................................................................................................ 20

.............................................................................................................................. 21

......................................................................................................................................... 24

....................................................................................................................... 26

.......................................................................................................................................... 28

...... 31

Page 4

Page 5

Chapter 1. Getting to know your computer

Top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Note: The dashed areas indicate parts that are not visible externally.

Attention:

• When closing the display panel, be careful not to leave pens or any other objects in between the display

panel and the keyboard. Otherwise, the display panel may be damaged.

Page 6

Chapter 1. Getting to know your computer

Integrated camera

Built-in microphone

Wireless LAN antennas

Multi-touch screen

Touchpad

Note: You can enable/disable the touchpad by pressing F6 ( ).

Use the camera for video communication or taking photos.

Captures sound which can be used for video conferencing, voice narration, or audio recording.

Connect to a wireless LAN adapter to send and receive wireless radio signals.

The LCD display with LED backlight provides brilliant visual output. Multi-touch function is available on this display.

The touchpad functions as a conventional mouse. One piece multi-touch ClickPad: To move the pointer on the screen, slide your fingertip over the pad in the direction in which you want the pointer to move. Left-click area: Clicking in this area corresponds to the functions of clicking the left button on a conventional mouse. Right-click area: Clicking in this area corresponds to the functions of clicking the right button on a conventional mouse.

Page 7

Chapter 1. Getting to know your computer

 Using the keyboard

Function key combinations

Through the use of the function keys, you can change operational features instantly. To use this

function, press and hold Fn

The following describes the features of each function key.

Fn + B: Activates the break function.

Fn + P: Activates the pause function.

Fn + C: Enables/disables the scroll lock.

Fn + S: Activates the system request.

Fn + : Activates the Pgup key function.

Fn + : Activates the Pgdn key function.

Fn + : Activates the home key function.

Fn + : Activates the end key function.

hen press one of the function keys

; t

Page 8

Chapter 1. Getting to know your computer

Hotkeys

You can access certain system settings quickly by pressing the appropriate hotkeys.

: Mutes/unmutes the sound. : Enables/disables Airplane mode.

: Decreases the volume level. :

: Increases the volume level. : Locks the screen.

: Enables/disables the microphone. :

Refreshes the desktop or the

currently active window.

: Enables/disables the touchpad. : Increases the display brightness.

Note: You can use the Lenovo Setting to enable/disable the hotkey function.

Enables/disables the integrated came

Toggles the display between the comput display device.

: Decreases the display brightness.

ra.

er and an external

Page 9

Chapter 1. Getting to know your computer

 Positioning the display panel

The display panel can be opened to any angle up to 360 degrees.

Notebook Mode

Suitable for tasks that require a keyboard and mouse (such as creating documents, writing  e-mails, and so on).

Page 10

Chapter 1. Getting to know your computer

Stand Mode (Theater Mode)

Suitable for tasks that require little or no touch (such as viewing photos or playing videos).

Ta b l e t M o d e

Suitable for tasks that require touching the screen often (such as surfing the Web, playing games, and so on).

Page 11

Chapter 1. Getting to know your computer

Tent Mode (Presentation Mode)

Suitable for tasks that require limited interaction with the touch screen (such as displaying graphs or PowerPoint presentations).

Attention:

• Do not open the display with too muc

Note: The keyboard and touchpad are automatically locked when the screen is opened beyond 190 degrees

(approximately).

h force, otherwise the panel or hinges may be damaged.

Page 12

Chapter 1. Getting to know your computer

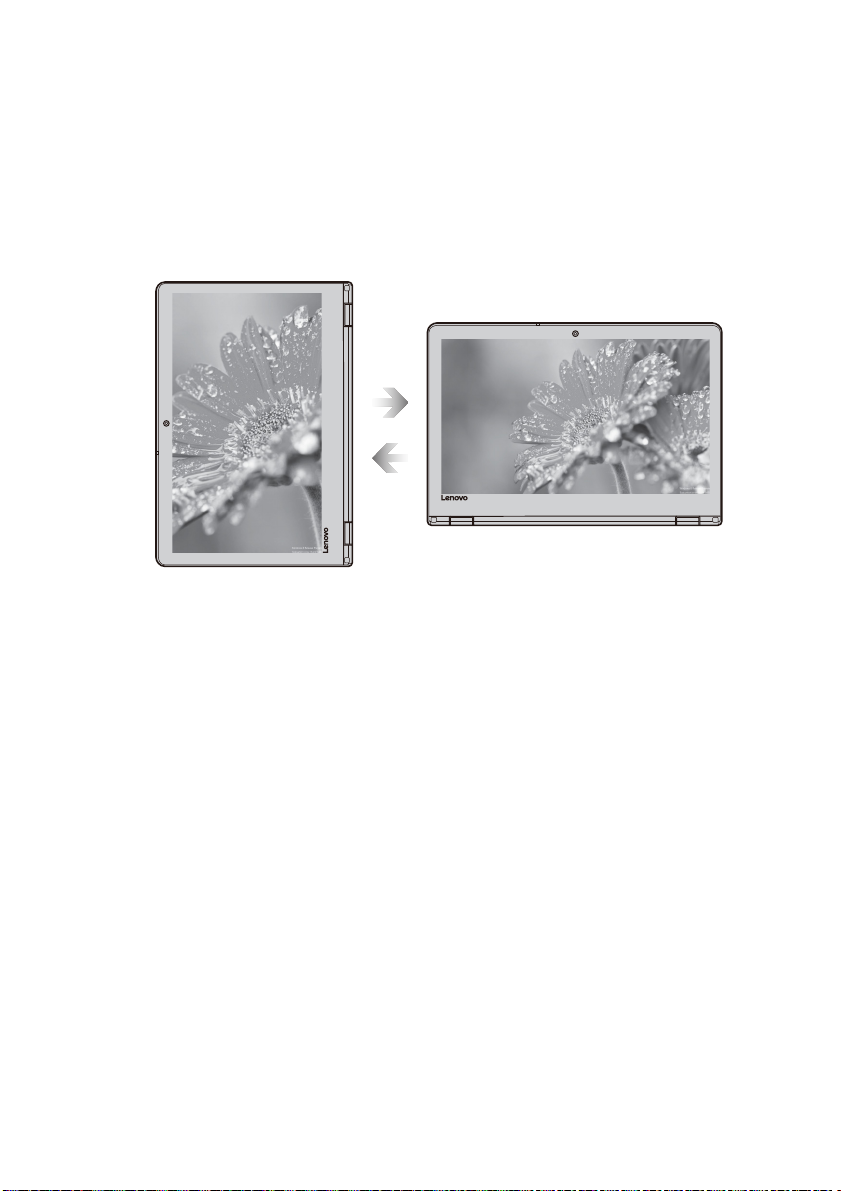

 Screen orientation

You can rotate the display panel to your preferred orientation. The orientation of the display automatically changes (alternating between portrait and l

andscape modes) depending on how you hold it.

Landscape

Portrait

Page 13

Chapter 1. Getting to know your computer

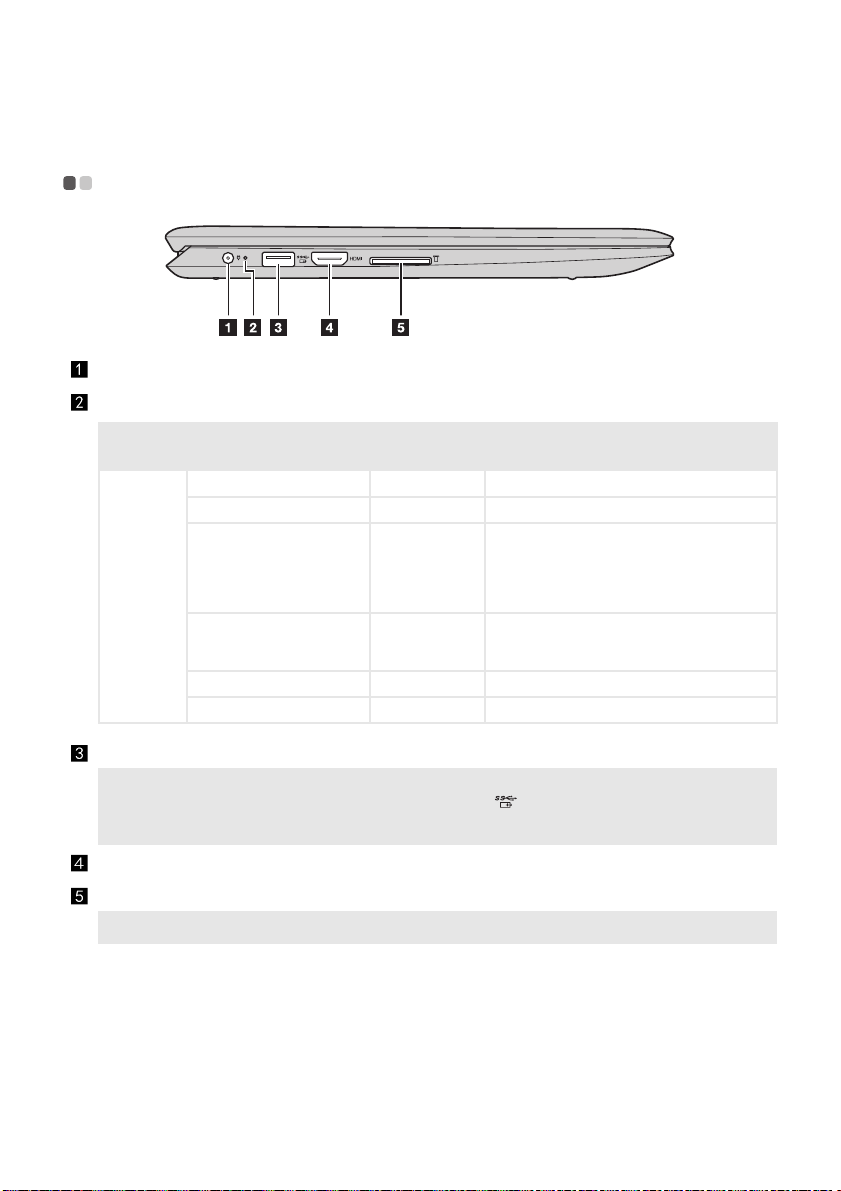

Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

AC power adapter jack

Connects to the AC power adapter.

Battery status indicator

Indicator Indicator status

On (solid white) Charging The battery has more than 80% charge.

On (solid amber) Discharging The battery has between 5% and 20% charge.

Battery status indicator

USB 3.0 port

Notes:

• If the battery charge is more than 20%, the USB port with a mark supports charging of an external

USB device, even when the computer is turned off.

• For details, see “Connecting USB device” on page 10.

HDMI port

Memory card slot

Note: For details, see “Using memory cards (not supplied)” on page 11.

Blinking slowly (white) Charging

Blinking slowly (amber) Charging

Blinking quickly (amber) Discharging The battery has less than 5% charge.

Off Discharging The battery has more than 20% charge.

Connects to USB devices.

Connects to devices with HDMI input such as a TV or an external display.

Accepts memory cards (not supplied).

Charge

status

Meaning

The battery has between 20% and 80% charge. When the battery reaches 80% charge, the light will stop blinking. However, charging will continue until the battery is fully charged.

The battery has less than 20% charge. When the battery charge reaches 20%, the blinking color will change to white.

Page 14

Chapter 1. Getting to know your computer

 Connecting USB device

You can connect a USB device to your computer by inserting its USB plug (Type A) into the USB port on your computer.

The first time you plug a USB device into a particular USB port on your computer, Windows automatically installs a driver for that device. After the driver has been installed, you can disconnect and reconnect the device without performing any additional steps.

Note: Typically, Windows detects a new device after it has been connected, and then installs the driver

automatically. However, some devices may require you to install the driver before connecting. Check the documentation provided by the device’s manufacturer before connecting the device.

Before disconnecting a USB storage device, make sure your computer has finished transferring data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows notification area to remove the device before disconnecting.

Note: If your USB device uses a power cord, connect the device to a power source before connecting it.

Otherwise, the device may not be recognized.

Page 15

Chapter 1. Getting to know your computer

 Usi

ng memory cards (not supplied)

Your computer supports the following types of memory cards:

• Secure Digital (SD) card

• Secure Digital High Capacity (SDHC) card

• Secure Digital eXtended Capacity (SDXC) card

• MultiMediaCard (MMC)

Notes:

• Insert on

• This card read

ly one card in the slot at a time.

er does not support SDIO devices (e.g., SDIO Bluetooth, etc.).

Inserting a memory card

Insert the memory card until it touches the bottom of the slot.

Removing a memory card

Gently pull the memory card out of the memory card slot.

Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject

media utility to avoid data corruption.

Page 16

Chapter 1. Getting to know your computer

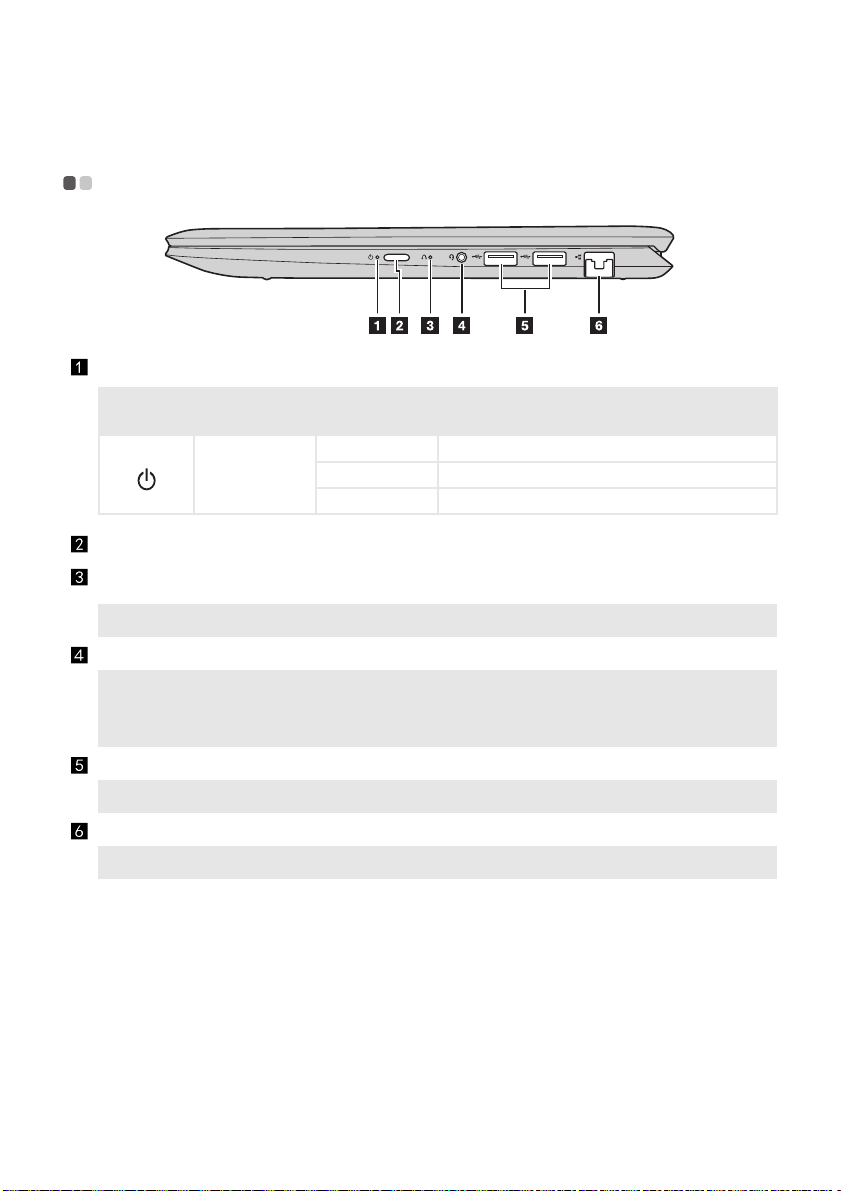

Right-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Power status indicator

Symbol Indicator

Power status

indicator

Power button

Novo button

Note: For details, see “Recovery system” on page 24.

Combo audio jack

Notes:

• The combo audio jack does not support conventional microphones.

• The recording function might not be supported if third-party headphones or headsets are connected,

due to different industry standards.

USB ports

Note: For details, see “Connecting USB device” on page 10.

RJ-45 port

Note: For details, see “Connecting network cables” on page 13.

Indicator

status

On (solid white) The computer is powered on.

Blinking The computer is in sleep mode.

Off The computer is powered off.

Press this button to turn on the computer.

When the computer is off, press this button to start the recovery system or the BIOS setup utility, or to enter the boot menu.

Connects to headsets.

Connect to USB devices.

Connects the computer to an Ethernet network.

Meaning

Page 17

Chapter 1. Getting to know your computer

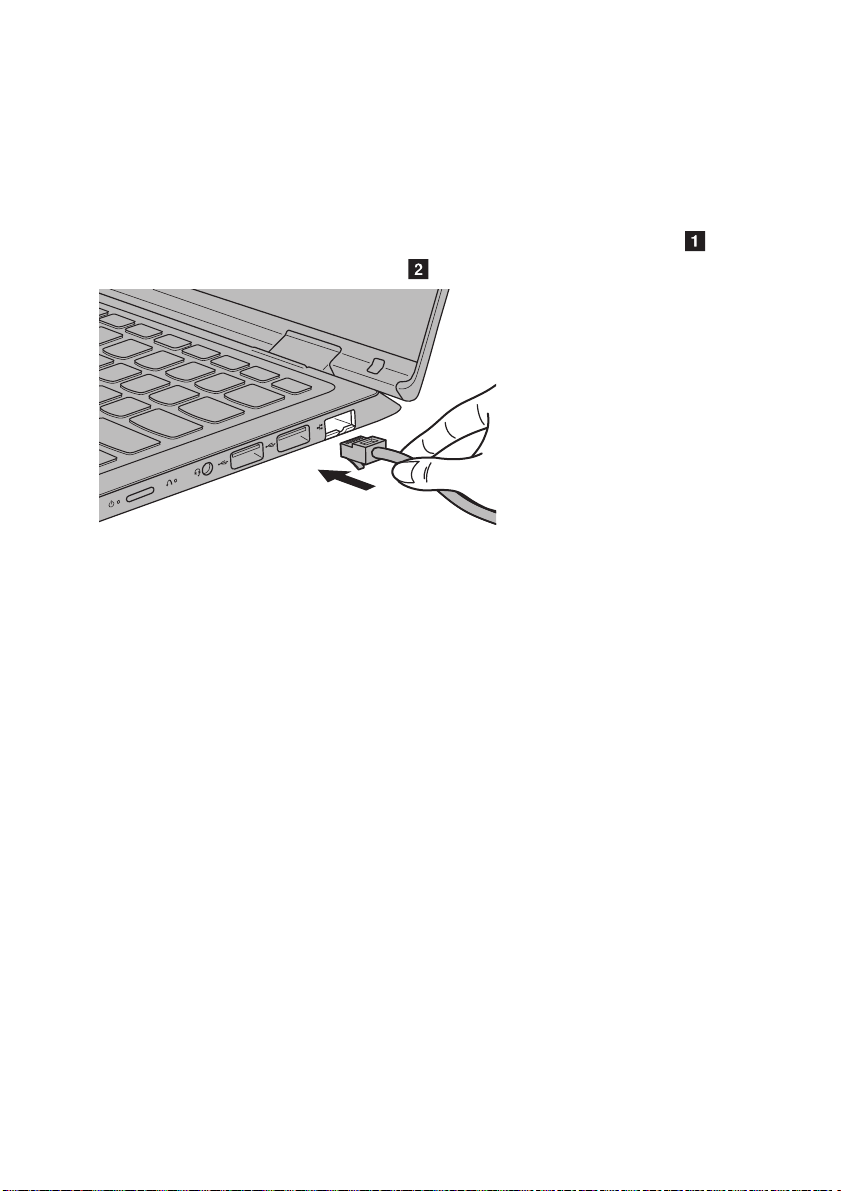

 Connecting network cables

To insert a network cable, do the following:

1 Hold one connector of the network cable to press the RJ-45 cover down gently .

2 Insert the connector into the RJ-45 port .

Software configuration

Consult your Internet Service Provider (ISP) for details on how to configure your computer.

Page 18

Chapter 1. Getting to know your computer

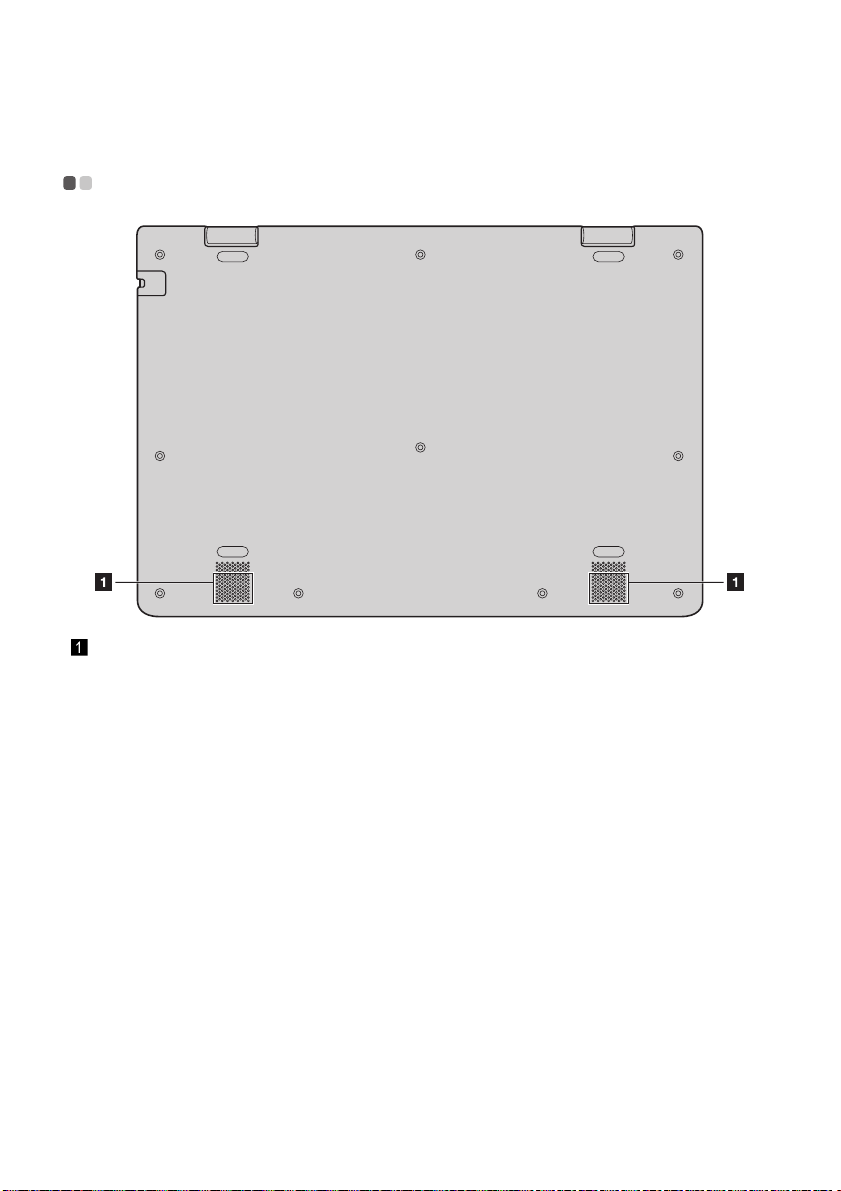

Bottom view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Speakers

Provide audio output.

Page 19

Chapter 2. Starting to use Windows 10

Note: Windows® 10 has an updated version. If you are using the updated version, some operations may be

different. Please refer to the actual product.

Configuring the operating system for the first time - - - - - - - - - - - -

You may need to configure the operating system when it is first used. The configuration process may include the procedures below:

• Accepting the end user license agreement

• Configuring the Internet connection

• Registering the operating system

• Creating a user account

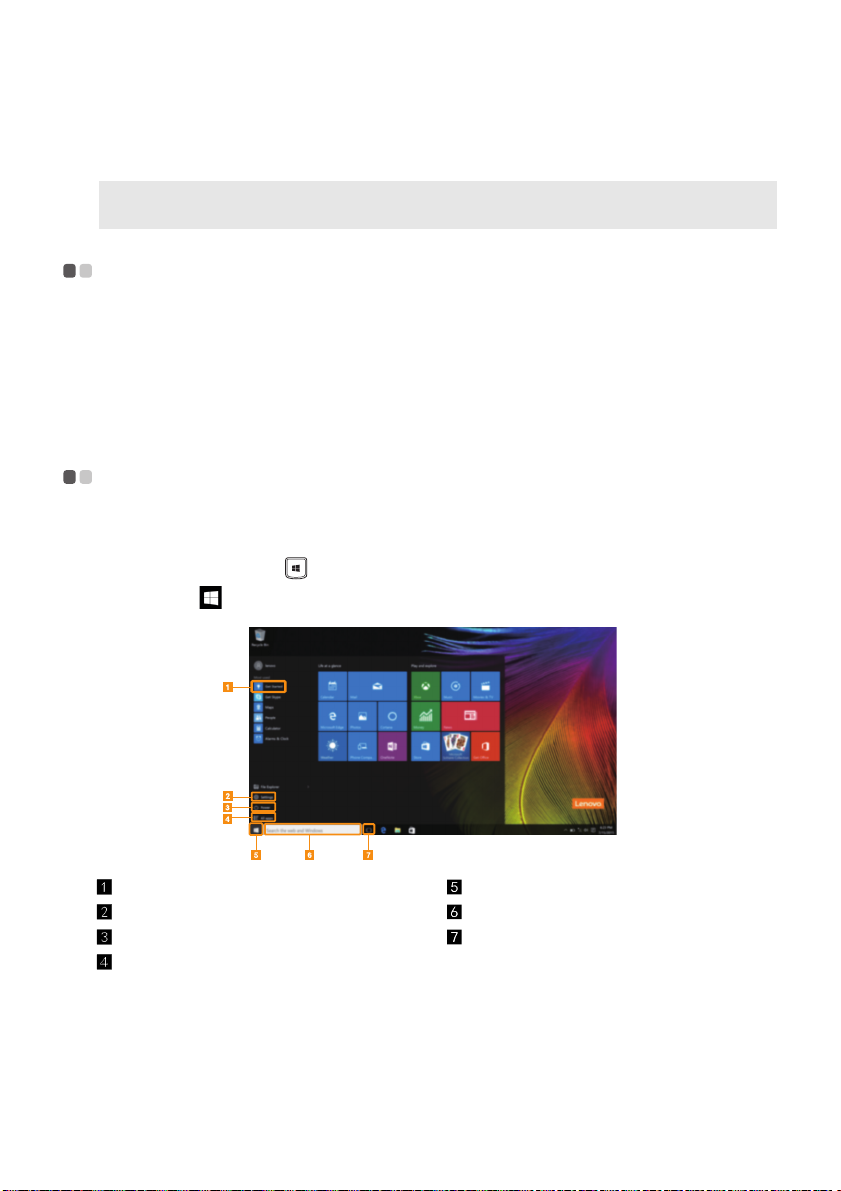

Operating system interface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Windows 10 comes with a powerful and useful start menu. To open the start menu, do one of the following:

• Press the Windows key

Select Start

•

on t

on the keyboard.

he lower-left corner of the desktop.

Get Started app Start button

Settings button Search box

Power button Task view button

All apps button

Page 20

Chapter 2. Starting to use Windows 10

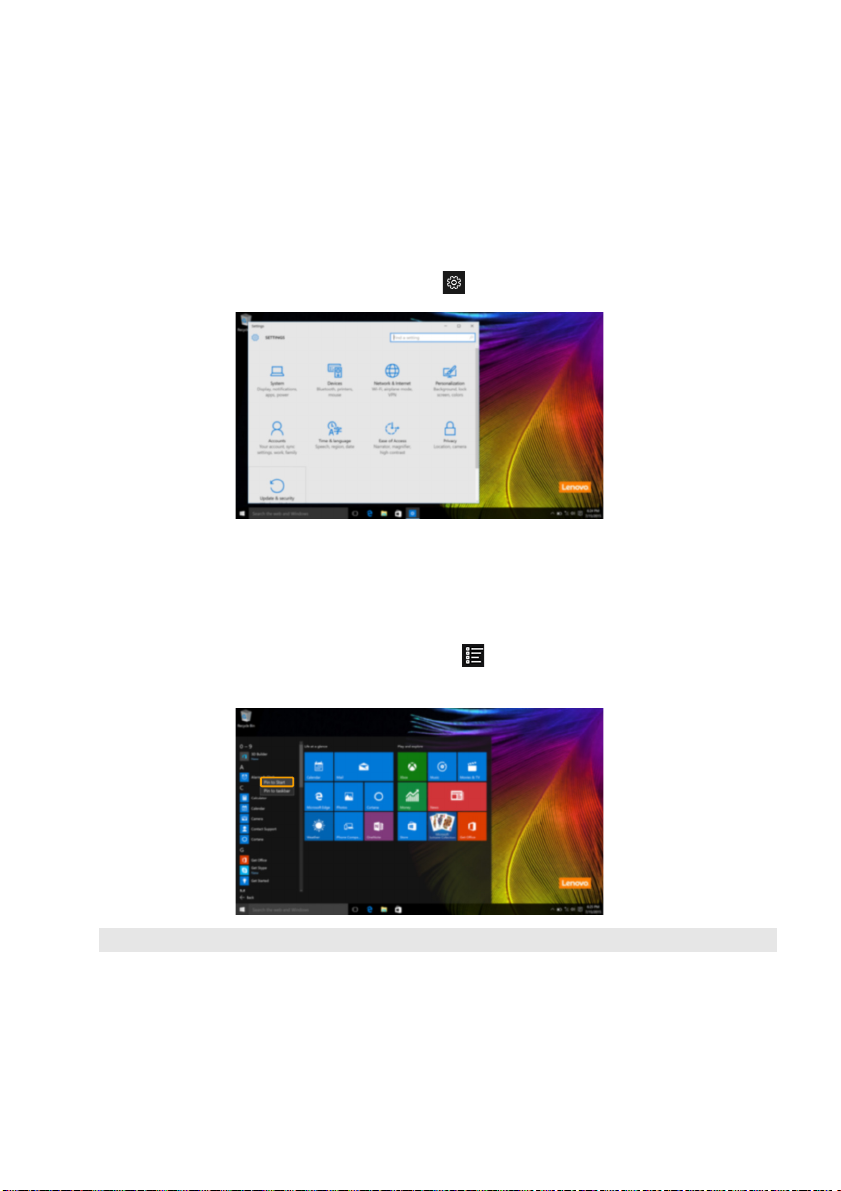

 Settings

Settings lets you perform basic tasks. You can also search for more settings with the settings search box in the upper-right corner. To open the settings, do the following:

tti

• Open the start menu, and then select Se

ngs .

 Personalize the start menu

You can personalize the start menu with your favorite apps. To personalize the start menu, do the following:

1 Open the start menu, and then select All apps to display the apps list. 2 Right click the app you want to add to the start menu, and then select Pin to Start.

Note: You can also drag apps from the Most used or All apps columns to add them to the start menu.

Page 21

Chapter 2. Starting to use Windows 10

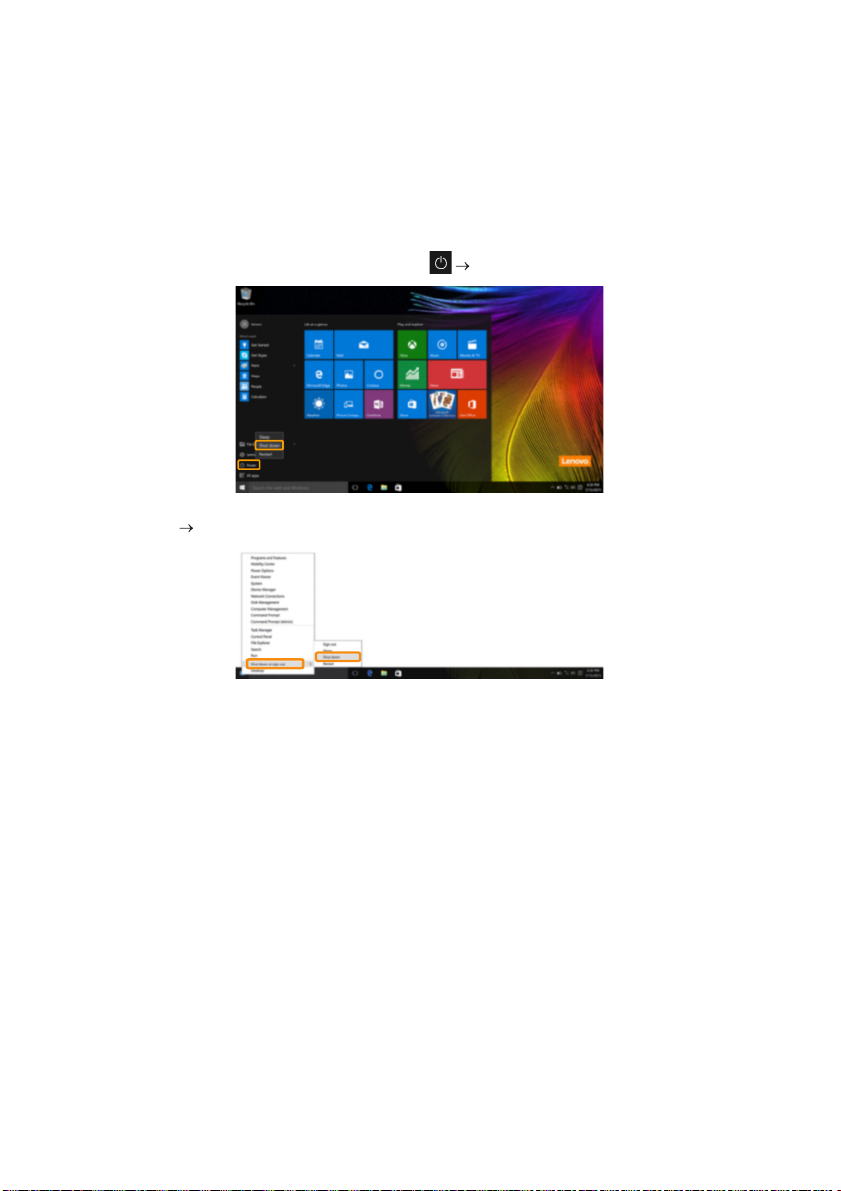

Putting the computer to sleep or shutting it down - - - - - - - - - - - - - -

When you have finished working with your computer, you can put it to sleep or shut it down.

 Putting your computer to sleep

If you will be away from your computer for only a short time, put the computer to sleep. When the computer is in sleep mode, you can quickly w startup process. To put the computer to sleep, do one of the following:

• Close the display lid.

• Press the Power button.

• Open the start menu, and then select Power

Note: Wait until the power indicator light starts blinking (indicating that the computer is in sleep mode)

before you move your computer. Moving your computer while the hard disk is spinning can damage the hard disk, causing loss of data.

o wake the computer, do one of the following:

rd. (N

• Press any key on the keyboa

• Press the Power button.

otebook mode only)

ake it to resume use, bypassing the

Sleep.

Page 22

Chapter 2. Starting to use Windows 10

 Shutting down the computer

If you are not going to use your computer for a long time, shut it down. To shut down the computer, do one of the following:

• Open the start menu, and then select Power

Shut down.

•

Press and hold or right-click the Star sign out

Shut down.

t button in the lower-left corner and select Shut down or

Page 23

Chapter 2. Starting to use Windows 10

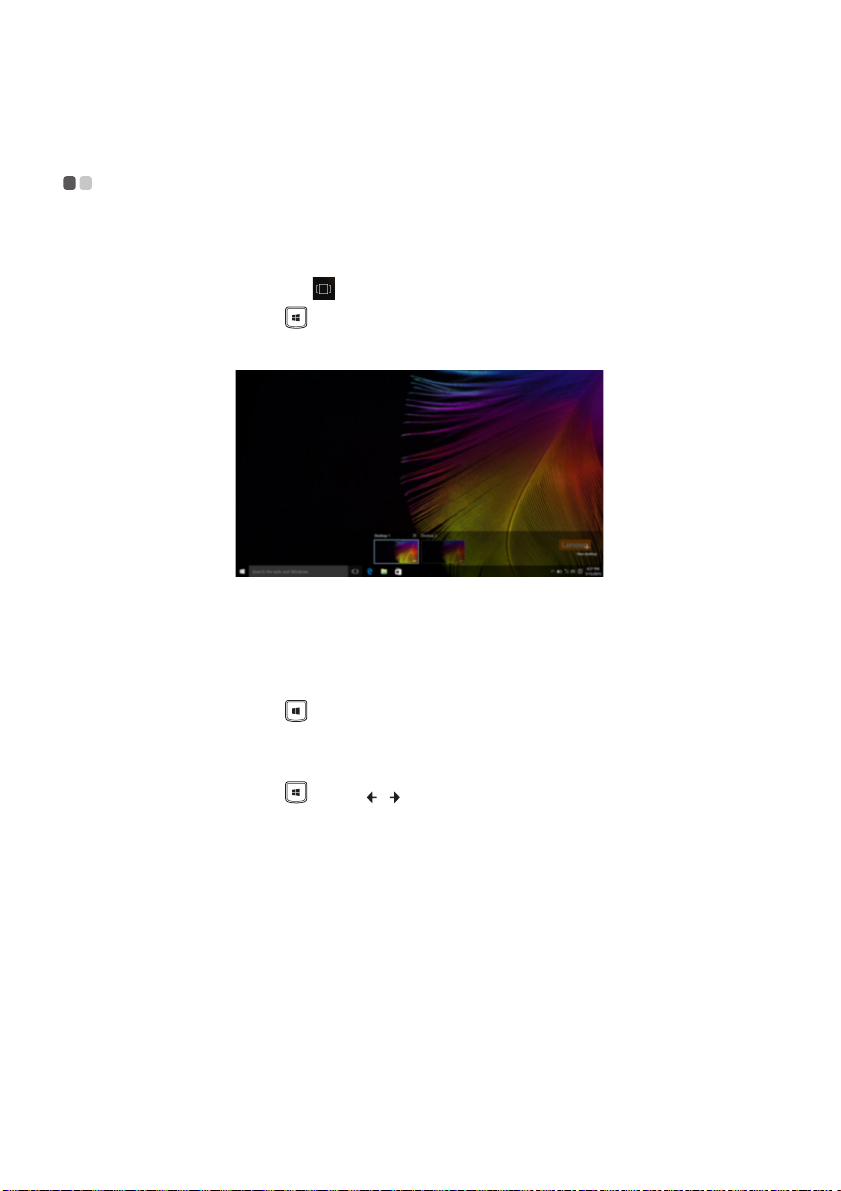

Task and desktop management - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

 Ta s k v i e w

To open the task view, do one of the following:

• Select the Task view button

• Press the Windows key

• Swiping in from the left edge of the screen.

 Virtual desktop management

Windows 10 supports the ability to create, manage and switch between virtual desktops. To create a new virtual desktop, do one of the following:

• Open the task view, and then select New desktop.

• Press the Windows key + Ctrl + D.

To switch between different desktops, do one of the following:

• Open t

• Press the Windows key + Ctrl +

he task view and select the desktop you want active.

+ T

the task bar.

ab.

/ to scroll through the desktops you’ve created.

Page 24

Chapter 2. Starting to use Windows 10

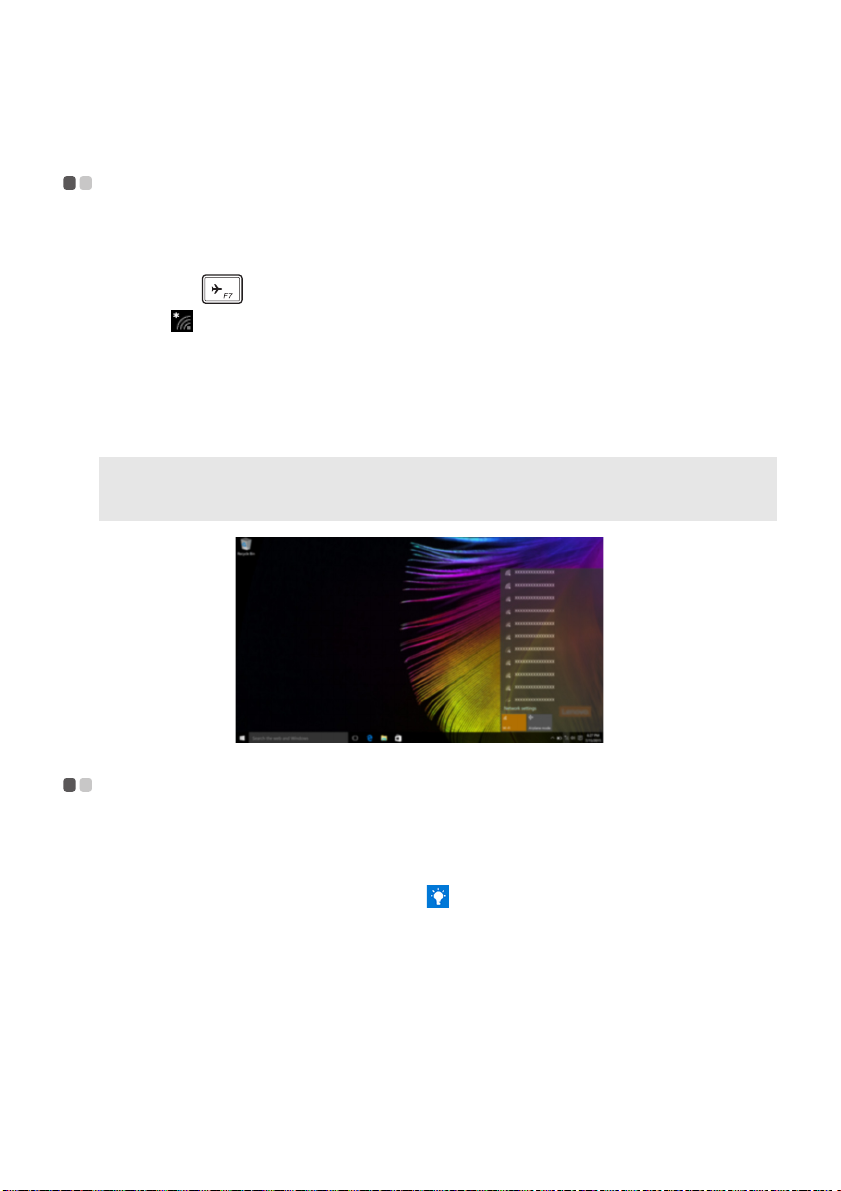

Connecting to a wireless network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Enabling wireless connection

To enable wireless functions, do the following:

1 Press F7 ( ) to disable airplane mode.

2 Click on the lower-right corner of the task bar to open the network configuration page.

Connecting to a wireless network

After wireless has been enabled, the computer will automatically scan for available wireless networks and display them in the wireless network list. To connect to a wireless network, click the network name in the list, and then click Connect.

Note: Some networks require a network security key or passphrase for connection. To connect to one of

those networks, ask the network administrator or the Internet service provider (ISP) for the security key or passphrase.

Get Started app - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Windows 10 also provides the Get Started app to explain the new features of Windows 10.  You can find it on the start menu. To open the Get Started app, do one of the following:

tarted .

• Open the start menu and select Ge

•Press Fn + F1 (depending on y

t S

our keyboard layout).

Page 25

Chapter 2. Starting to use Windows 10

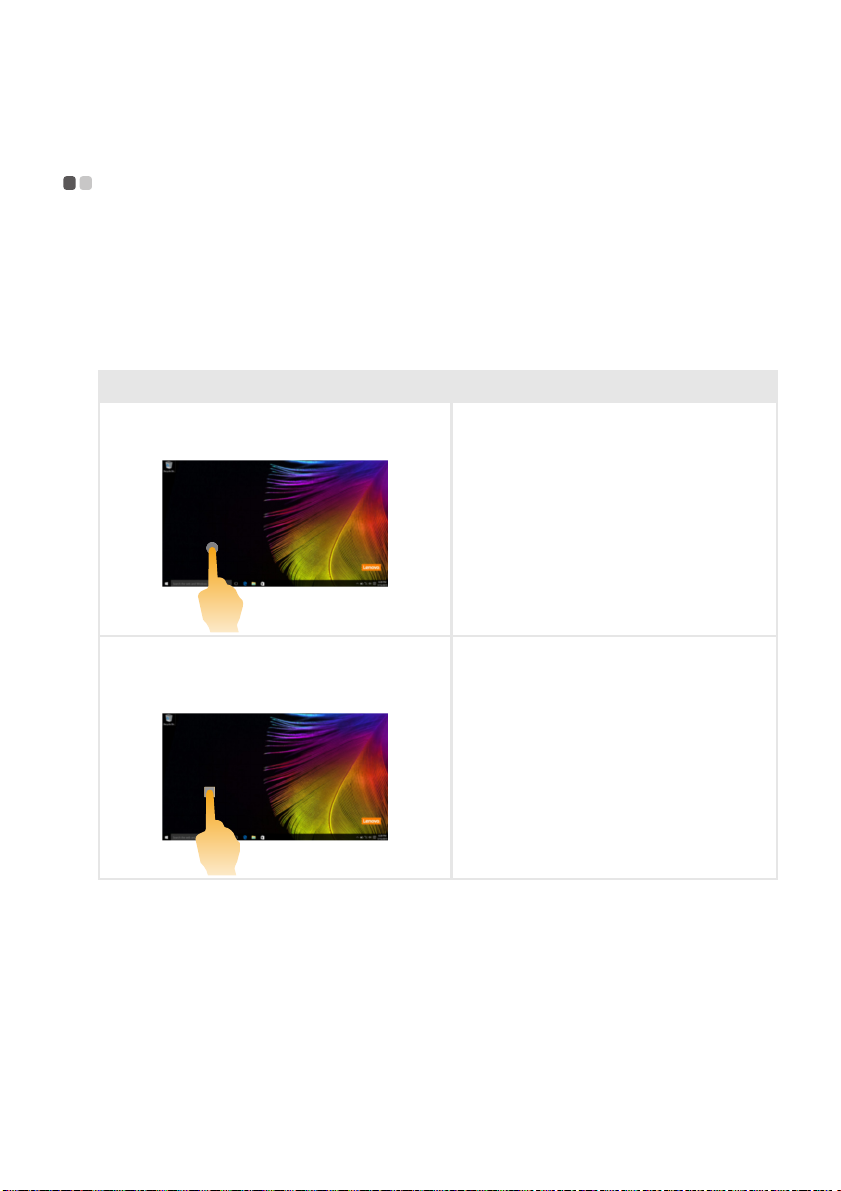

Touch screen operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The display panel can accept inputs like a tablet, using the multi-touch screen, or like a traditional notebook computer, using the keyboard and touchpad.

 Multi-touch gestures

You can touch the screen with one or more fingertips to perform a variety of tasks.

Frequently used gestures Tasks performed

Ta p

Tap once on an item.

Performs an action, such as starting an app, opening a link, or performing a command. Similar to left-clicking with a mouse.

Press and hold

Press your finger down and leave it there for a moment.

Enables you to see detailed information before selecting an action. Can also open a menu with more options. Similar to rightclicking with a mouse.

Page 26

Chapter 2. Starting to use Windows 10

(continued)

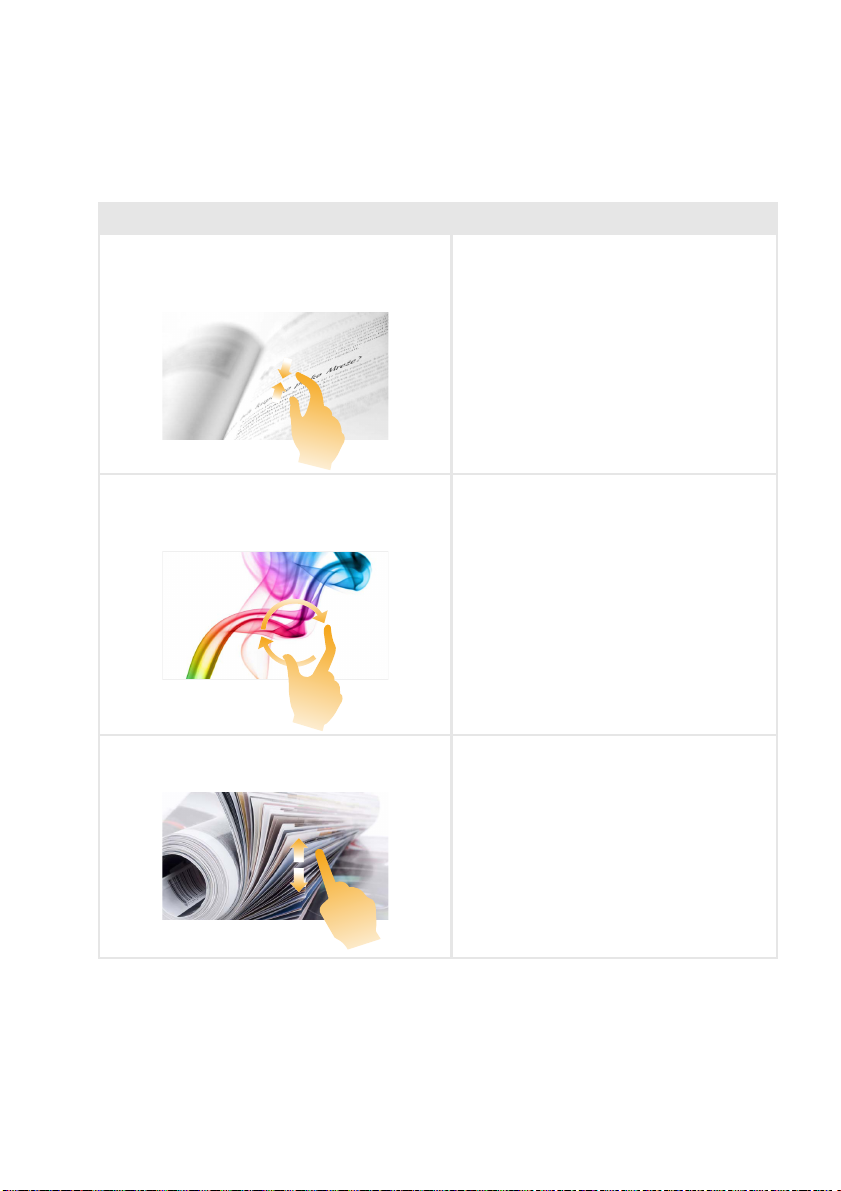

Frequently used gestures Tasks performed

Zoom

Move two fingers together or apart while touching the screen.

Rotate

Place two or more fingers on an item and then turn your hand.

Zooms in and out on visual apps, such as pictures and maps. Can also jump to the beginning or end of a list.

Rotates an object (Note: Not all items can be rotated, depending upon the app.).

Slide

Drag your finger across the screen.

Pans or scrolls through lists and pages. Can also move an object or be used to draw or write, depending upon the app. Similar to pressing and holding to pan and to scrolling with a mouse.

Page 27

Chapter 2. Starting to use Windows 10

(continued)

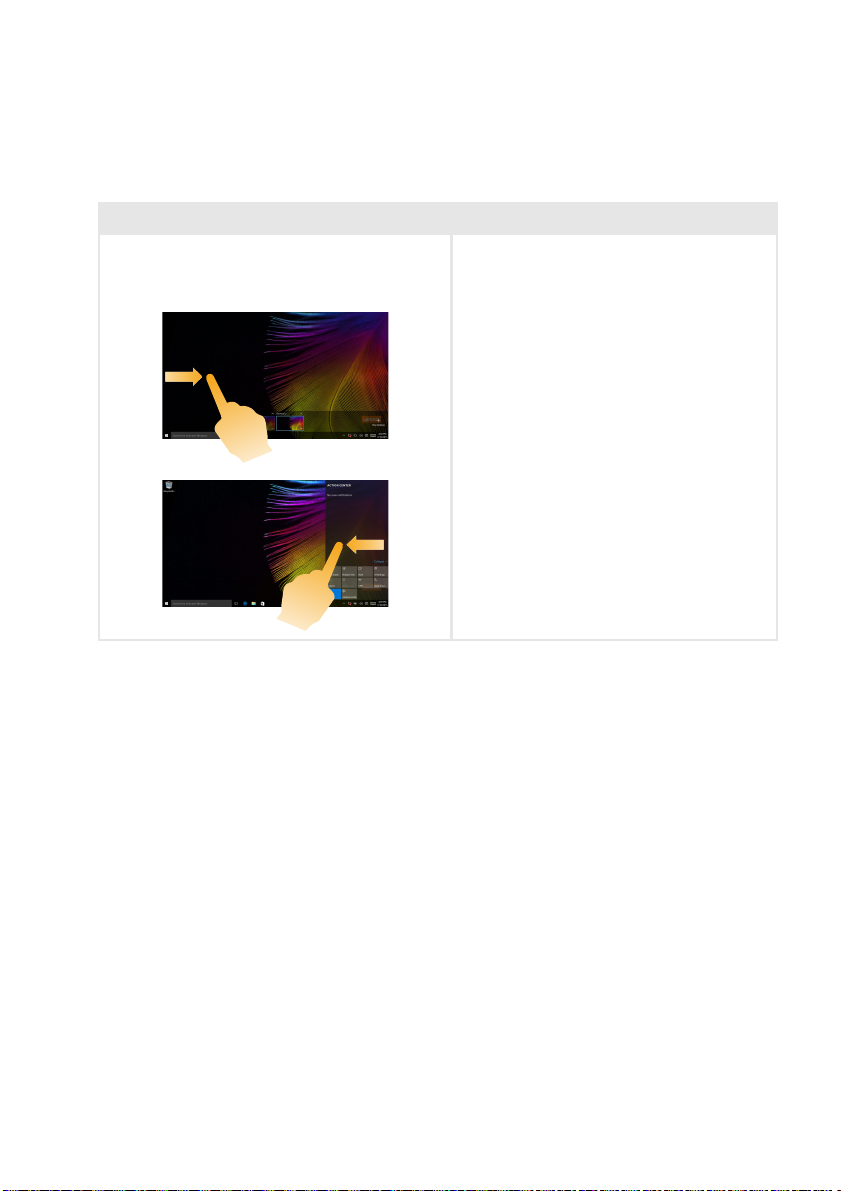

Frequently used gestures Tasks performed

Swipe

Start from left/right edge of the screen, then swipe inwards toward the center.

Swiping in from the left edge of the screen can open the task view.

Swiping in from the right edge of the screen displays the action center.

Page 28

Chapter 3. Recovery system

Push-button reset - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Push-button reset is a built-in recovery tool that enables users to restore their operating system to its original state. This preserves their data and important customizations, without the need to back up their data in advance. The following Push-button reset features are available to users from multiple locations within Windows:

Refreshing the computer

Fixes software problems by reinstalling the factory default configuration. This preserves the user’s data, important settings, and any Windows Store apps previously purchased from the Windows Store.

Resetting the computer

Prepares the computer for recycling or transfer of ownership. This reinstalls the factory default configuration and returns all user data and applications to the state of their original Out-of-Box Experience (OOBE).

 Using Push-button reset

Push-button reset can be launched using one of the following methods:

• Novo button:

- Shut down the computer and wait at least five seconds. Press the Novo button and then sele

ct System Recovery.

•Settings:

- Se

ttings Update & security Recovery Advanced startup select Restart now.

For more instructions, see the Windows Help and Support file on your computer.

When I purchased my computer, it included a copy of Windows. How can I determine whether the

opy of Windows is preinstalled by Lenovo?

On the outside of the sales package of your co configuration information for your computer. Check the printed string next to OS. If it contains

Windows or WIN, the copy of Windows was preinstalled by Lenovo.

How can I determine whether the Windows running on my computer is Compact technology

bled?

ena

Compact technology is normally enabled on copies of eMMC) -only computer models. To check your computer,

mputer, you should find a label containing

Windows 10 Update running on SSD (or

1 Right-click the Start button in the lower-left corner and select Disk Management. 2 The Disk Management program starts.

If W

im Boot is labeled on the Windows partition (as illustrated), Compact technology is enabled

on your copy of Windows.

Page 29

Chapter 3. Recovery system

Where can I find drivers for the various hardware devices of my computer?

If your computer is preinstalled with a Windows operating system, first check the installation program on the C partition of your hard disk. If you cannot find the drivers for all the hardware

devices that you need there, download the drivers from the Lenovo consumer support website

Note: The Lenovo support Web site contains the latest drivers.

Page 30

Chapter 4. Troubleshooting

Frequently asked questions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

This section lists frequently asked questions by category.

 Finding information

What safety precautions should I follow when using my computer?

Read and follow all safety precautions included in Lenovo Safety a

Note: To v iew Len ovo Safety and General Information Guide, select the User Manuals icon on the desktop. You

can also download it from the Lenovo Support Web site.

What is the address of the Lenovo support Web site?

http://support.lenovo.com

Where can I find warranty information?

Visit the Lenovo Support Web site and type the serial number for your computer to look up

arranty information.

 Lenovo preinstalled operating system and software

What is the Lenovo preinstalled operating system?

Some Lenovo computers come with copies of the operating system installed at factory. Lenovo provides com such a computer, you can use your computer out of the box and do not need to install a separate operating system.

What is Lenovo preinstalled software?

This is software (developed by Lenovo or other software vendors) installed and licensed at

ry for your convenience. The license for some preinstalled software may be for trial

facto versions. When the trial period expires, you may need to purchase a license if you want to continue to use the software.

puters with preinstalled operating system for your convenience. If you purchased

nd General Information Guide.

Note: If a license agreement is displayed when you first start the software, read the agreement carefully. If

you don’t accept the terms of the agreement, do not use the software.

 BIOS setup utility

What is the BIOS setup utility?

The BIOS setup utility is ROM-based software. It com provides options for setting boot devices, security, hardware mode, and other preferences.

How can I start the BIOS setup utility?

To start the BIOS setup utility:

municates basic computer information and

1 Shut down the computer. 2 Press the Novo button and then select BIOS Setup.

Page 31

Chapter 4. Troubleshooting

How can I change the boot mode? (on select models)

There are two boot modes: UEFI First an BIOS setup utility and set boot mode to UEFI First or Legacy Support on the boot menu.

When do I need to change the b

The default boot mode for y Windows operating system on your computer, you must change the boot mode to Legacy Support. The legacy Windows operating system cannot be installed if you don't change the boot mode.

oot mode? (on select models)

our computer is UEFI First mode. If you need to install a legacy

d Legacy Support. To change the boot mode, start the

 Getting help

How can I contact the customer support center?

See “Chapter 3. Getting help and service” of Lenovo Safety an

d General Information Guide.

Page 32

Chapter 4. Troubleshooting

Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Display problems

When I turn on the computer, nothing appears on the screen.

When I turn on the

omputer, only a white

c cursor appears on a blank screen.

The screen goes blank

e the computer is on.

whil

Sleep problems

The critical low-battery error message appears, and the computer immediately turns off.

The computer enters sleep mo

de immediately after

Power-on self-test (POST).

• If the screen is blank, make sure that:

- The AC power adapter is connected to the computer, and lugged into a working electrical outlet.

- The computer power is on. Press the Power button again for

nfirmation.

hese items are properly set, and the screen remains blank,

• If t

have the computer serviced.

• Restore back

entire contents of your hard disk to its original factory contents using Push-button reset. If you still see only the cursor on the screen, have the computer serviced.

• Your screen saver or power management may be enabled. Do

one of the following to resume from sleep mode:

- Press any key on the keyboard. (Notebook mode only)

- Press the Power button.

e battery power is getting low. Connect the AC power

• Th

adapter to the computer.

• Make sur

- The battery pack is charged.

- The operating temperature is within the acceptable range.

See “Chapt Safety and General Information Guide.

ed-up files to your Windows environment or the

e that:

er 2. Use and care Information” in the Lenovo

Note: If the battery pack is charged and the temperature is within range, have the computer serviced.

The computer does not return from sleep mode, and the computer does not work.

our computer is in sleep mode, connect the AC power

• If y

adapter to the computer, then press the Power button.

he system still does not return from sleep mode, stops

• If t

responding, or cannot be turned off, reset the computer. Unsaved data may be lost. To reset the computer, press and hold the Power button for eight seconds or more. If the computer is still not reset, remove the AC power adapter.

Page 33

Display panel problems

The screen is blank. • Do the following:

- If you are using the AC power adapter or the battery pack,

Chapter 4. Troubleshooting

The screen is unreadable

distorted.

Incorrect characters appe

ar on the screen.

Sound problems

No sound can be heard from the speakers even when the volume is  turned up.

Battery pack problems

Your computer shuts down before the battery status indicator shows empty.

-or-

Your computer operates after the battery st indicator shows empty.

atus

e battery status indicator is on, press F12 (

and th make the screen brighter.

- If the power indicator is blinking, press the Power button to

esume from sleep mode.

- If the problem persists, follow the solution in the next

roblem “The screen is unreadable or distorted.”

• Make sure that:

- The screen resolution and color quality are correctly set.

- The monitor type is correct.

• Is the operating system or programs installed correctly? If

they are installed and configured correctly, have the computer serviced.

• Make sur

- The Mute function is off.

- The combo audio jack is not being used.

- Speakers are selected as the playback device.

• Re

e that:

charge the battery.

) to

Page 34

Chapter 4. Troubleshooting

Trademarks

The following terms are trademarks or registered trademarks of Lenovo in the United States, other countries, or both.

Lenovo ideapad

Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both.

Other company, products, or service names may be trademarks or service marks of others.

Page 36

en-US

Rev. RP01
