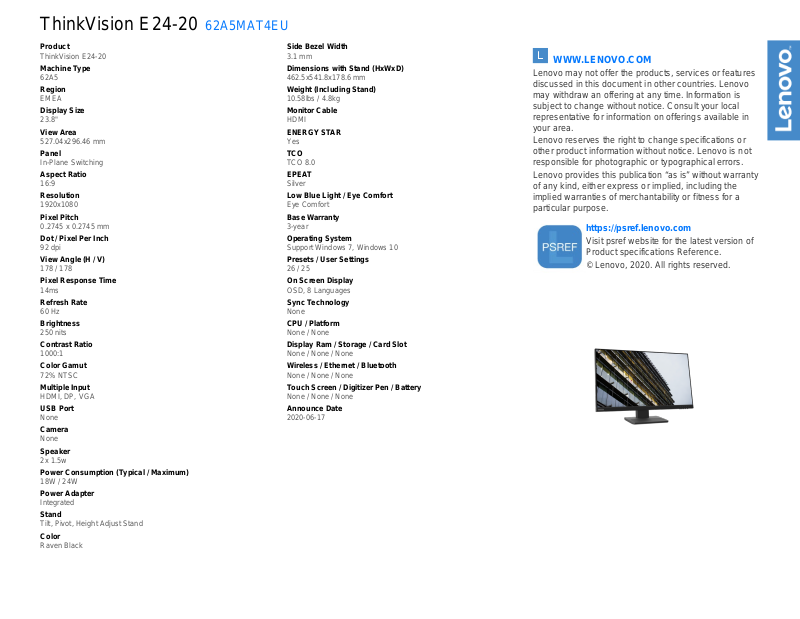

ThinkVision E24-20 62A5MAT4EU

Product

ThinkVision E24-20

Machine Type

62A5

Region

EMEA

Display Size

23.8"

View Area

527.04x296.46 mm

Panel

In-Plane Switching

Aspect Ratio

16:9

Resolution

1920x1080

Pixel Pitch

0.2745 x 0.2745 mm

Dot / Pixel Per Inch

92 dpi

View Angle (H / V)

178 / 178

Pixel Response Time

14ms

Refresh Rate

60 Hz

Brightness

250 nits

Contrast Ratio

1000:1

Color Gamut

72% NTSC

Multiple Input

HDMI, DP, VGA

USB Port

None

Camera

None

Speaker

2x 1.5w

Power Consumption (Typical / Maximum)

18W / 24W

Power Adapter

Integrated

Stand

Tilt, Pivot, Height Adjust Stand

Color

Raven Black

Side Bezel Width

3.1 mm

Dimensions with Stand (HxWxD)

462.5x541.8x178.6 mm

Weight (Including Stand)

10.58lbs / 4.8kg

Monitor Cable

HDMI

ENERGY STAR

Yes

TCO

TCO 8.0

EPEAT

Silver

Low Blue Light / Eye Comfort

Eye Comfort

Base Warranty

3-year

Operating System

Support Windows 7, Windows 10

Presets / User Settings

26 / 25

On Screen Display

OSD, 8 Languages

Sync Technology

None

CPU / Platform

None / None

Display Ram / Storage / Card Slot

None / None / None

Wireless / Ethernet / Bluetooth

None / None / None

Touch Screen / Digitizer Pen / Battery

None / None / None

Announce Date

2020-06-17

WWW.LENOVO.COM

Lenovo may not offer the products, services or features discussed in this document in other countries. Lenovo may withdraw an offering at any time. Information is subject to change without notice. Consult your local representative for information on offerings available in your area.

Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors.

Lenovo provides this publication “as is” without warranty of any kind, either express or implied, including the implied warranties of merchantability or fitness for a particular purpose.

https://psref.lenovo.com

Visit psref website for the latest version of Product specifications Reference.

ThinkVision E24-20

DISPLAY

Panel Size

23.8-inch

Screen Dimensions

527.04 mm x 296.46 mm

Panel Type

3-side NearEdgeless In-Plane Switching

Backlight

WLED

Aspect Ratio

16:9

Resolution

1920 x 1080

Pixel Pitch

0.2745 x 0.2745 mm

Dot/Pixel Per Inch (DPI/PPI)

Viewing angle (H x V @ CR 10:1)

178°/ 178°

Response Time

14ms

Refresh Rate

60 Hz

Brightness (typical)

250 cd/m2

Contrast Ratio (typical)

1000:1

Dynamic Contrast Ratio (typical)

3M:1

Color Gamut

72% NTSC (CIE 1931)

Color Support (typical)

16.7 Million

Color Depth

8-bit

Anti-glare

Yes

CONNECTIVITY

Video Signal

1 x HDMI 1.4 1 x DP 1.2 1 x VGA

MULTI-MEDIA

Integrated Speakers

Yes (2 x 1.5W)

POWER

Power Consumption (typ./max)

18W / 24W

Power Consumption Sleep/O Mode

< 0.5W

Power Consumption Switch O-Mode

< 0.5W

ENERGY STAR Power Consumption (Pon/E

12.98W / 40.98kWh

TEC

)

Power Supply

Internal

Voltage Required

AC 90 to 264 V (47-63 Hz)

MECHANICAL

Tilt Angle (front/back)

-5° / 22°

Lift (max range)

155 mm

Pivot

-90° / 90°

VESA Mount Capability

Yes (100 x 100 mm)

Kensington Lock Slot

Yes

Bezel Color

Raven Black

Bezel Width (side)

3.1 mm

Bezel Width (top/bottom)

3.1 / 20.9 mm

DIMENSION

Size Packed (D x H x W, mm/inch)

145.0 x 397.0 x 638.0 mm

5.71 x 15.63 x 25.12 inches

Size Unpacked w/ Stand (D x H x W, mm/inch) (lowest position)

178.6 x 317.1 x 541.8 mm

7.03 x 12.48 x 21.33 inches

Size Unpacked w/ Stand (D x H x W, mm/inch) (highest position)

178.6 x 462.5 x 541.8 mm

7.03 x 18.21 x 21.33 inches

Size Unpacked w/o Stand (head only)(D x H x W, mm/inch)

41.7 x 326.4 x 541.8 mm

1.64 x 12.85 x 21.33 inches

Weight Packed (kg/lbs.)

5.70 kg / 12.57 lbs.

Weight Unpacked (kg/lbs.)

4.80 kg / 10.58 lbs.

Weight (Monitor Head Only) (kg/lbs.)

3.10 kg / 6.83 lbs.

WHAT’S IN THE BOX

Monitor with stand 1 x Power cable (1.8 m) 1 x HDMI cable (1.8 m) Quick setup guide

CERTIFICATION

ENERGY STAR Certiﬁcation

Yes

CCC

Yes

TCO

8.0

TCO Edge

2.0

EPEAT

Silver

RoHS (2011/65/EU)

Yes

Windows Certiﬁcation

Windows 7, Windows 10

China Energy Eciency Standard Tier 1

TÜV Rheinland Eye Comfort Yes

Depe nds on many facto rs such as the processing c apab ility of p eripheral d evices , file at tribute s, and other fa ctors re lated to sys tem conf iguration and operating environments.

© 2020 Lenovo. All rights reserve d. These produ cts are av ailable while supplies last. Prices shown are su bject to c hange without n otice. For any question s concerning price, please co ntact yo ur Lenovo Account E xecutive . Lenovo is not responsible for photographic or typ ographic errors. War ranty : For a copy of applicable warranties, write to: Warranty Info rmatio n, 50 0 Park Of fice s Drive, RTP, NC 27709, Attn: D ept. ZPYA/B60 0. Lenovo m akes no representation or warranty regarding third-party products or services. Trademarks: Lenovo, the Lenovo logo, Rescue and Recovery, ThinkPad, ThinkCentre, ThinkStation, ThinkVantage, and ThinkVision are trademarks or registe red trademarks of Lenovo. Microsoft, Windows , and Vista are registere d trade marks of Micros oft Co rporation. I ntel, th e Intel lo go, Inte l Inside, Intel C ore, an d Core In side are tradem arks of I ntel Corporation in the U .S. and/or oth er countries . Other company, product, and se rvice n ames may be trademark s or ser vice ma rks of oth ers.

Specifications may vary depending upon region.
