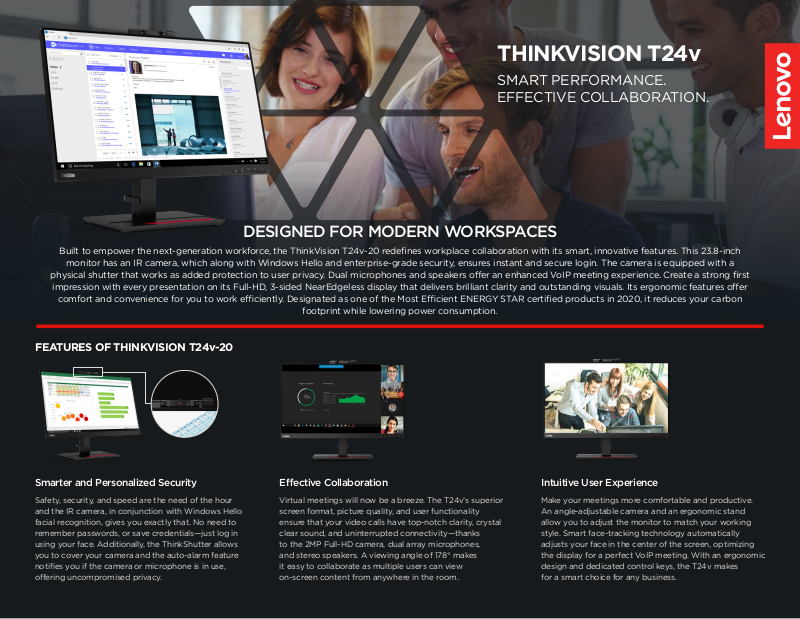

Lenovo 61FCMAT6UK Product Data Sheet

THINKVISION T24v

SMART PERFORMANCE.
EFFECTIVE COLLABORATION.

DESIGNED FOR MODERN WORKSPACES

Built to empower the next-generation workforce, the ThinkVision T24v-20 redefines workplace collaboration with its smart, innovative features. This 23.8-inch

monitor has an IR camera, which along with Windows Hello and enterprise-grade security, ensures instant and secure login. The camera is equipped with a

physical shutter that works as added protection to user privacy. Dual microphones and speakers oer an enhanced VoIP meeting experience. Create a strong first

impression with every presentation on its Full-HD, 3-sided NearEdgeless display that delivers brilliant clarity and outstanding visuals. Its ergonomic features oer

comfort and convenience for you to work eciently. Designated as one of the Most Ecient ENERGY STAR certified products in 2020, it reduces your carbon

footprint while lowering power consumption.

FEATURES OF THINKVISION T24v-20

Smarter and Personalized Security

Safety, security, and speed are the need of the hour
and the IR camera, in conjunction with Windows Hello
facial recognition, gives you exactly that. No need to
remember passwords, or save credentials—just log in
using your face. Additionally, the ThinkShutter allows
you to cover your camera and the auto-alarm feature
notifies you if the camera or microphone is in use,
oering uncompromised privacy.

Eective Collaboration

Virtual meetings will now be a breeze. The T24v’s superior
screen format, picture quality, and user functionality
ensure that your video calls have top-notch clarity, crystal
clear sound, and uninterrupted connectivity—thanks
to the 2MP Full-HD camera, dual array microphones,
and stereo speakers. A viewing angle of 178° makes
it easy to collaborate as multiple users can view
on-screen content from anywhere in the room.

Intuitive User Experience

Make your meetings more comfortable and productive.
An angle-adjustable camera and an ergonomic stand
allow you to adjust the monitor to match your working
style. Smart face-tracking technology automatically
adjusts your face in the center of the screen, optimizing
the display for a perfect VoIP meeting. With an ergonomic
design and dedicated control keys, the T24v makes
for a smart choice for any business.

ThinkVision T24v-20

DISPLAY

Panel Size

23.8-inch

Screen Dimensions

527.04 x 296.46 mm

Panel Type

3-side NearEdgeless
In-Plane Switching

Backlight

WLED

Aspect Ratio

16:9

Resolution

1920 x 1080

Pixel Pitch

0.2745 x 0.2745 mm

Dot/Pixel Per Inch (DPI/PPI)

93

Viewing Angle (H x V @ CR 10:1)

178° / 178°

Response Time

4ms (extreme mode)

Refresh Rate

60 Hz

Brightness (typical)

250 cd/m

Brightness (peak)

250 cd/m

Contrast Ratio (typical)

1000:1

Dynamic Contrast Ratio (typical)

3M:1

2

2

Color Gamut

72% NTSC (CIE 1931)

Color Support (typical)

16.7 Million

Anti-glare

Yes

CONNECTIVITY

Video Signal

1 x HDMI 1.4
1 x DP 1.2
1 x VGA

Audio Signal

1 x Audio combo (3.5 mm; in/out)

USB Hub

Yes

USB Upstream

1 X USB 3.2 Gen1

USB Downstream

2 x USB 3.2 Gen1 (1 x BC 1.2)

MULTI-MEDIA

Integrated Webcam

Yes

Integrated Microphone

Yes

Integrated Speakers

Yes (2 x 3W)

POWER

Power Consumption
(typical/max)

13W / 44W

Power Consumption
Sleep/O Mode

< 0.5W

Power Consumption
Switch-o Mode

< 0.3W

ENERGY STAR Power
Consumption (Pon/E

11.36W / 35.68kWh

TEC

)

Power Supply

Internal

Voltage Required

AC 100 to 240 V (50-60 Hz)

MECHANICAL

Tilt Angle (front/back)

-5° / 35°

Swivel Angle (left/right)

+45° / -45°

Lift (max range)

150 mm

Pivot

-90° / 90°

VESA Mount Capability

Yes (100 x 100 mm)

Tiny Bracket Support

Yes (sold separately)

Kensington Lock Slot

Yes

Cable Management

Yes

Bezel Color

Raven Black

Bezel Width (side)

1.8 mm

Bezel Width (top/bottom)

1.8 / 22.0 mm

DIMENSION

Size Packed (D x H x W, mm/inch)

418.0 x 187.0 x 644.0 mm

16.46 x 7.36 x 25.35 inches

Size Unpacked w/ Stand
(D x H x W, mm/inch)
(lowest position)

205.0 x 434.0 x 539.8 mm

8.07 x 17.0 x 21.2 inches

Size Unpacked w/ Stand
(D x H x W, mm/inch)
(highest position)

205.0 x 584.0 x 539.8 mm

8.07 x 23.0 x 21.2 inches

Size Unpacked w/o Stand
(head only) (D x H x W, mm/inch)

48.35 x 344.3 x 539.8 mm

1.9 x 13.55 x 21.25 inches

Min. Distance from Table to Panel
(lowest pixel at bottom
of screen, mm)

114.1 mm

Max. Distance from Table to Panel
(highest pixel at top
of screen, mm)

560.56 mm

Weight Packed (kg/lbs.)

7.86 kg/17.33 lbs.

Weight Unpacked (kg/lbs.)

5.94 kg/13.10 lbs.

Weight (monitor head only)
(kg/lbs.)

3.48kg/7.67 lbs.

Full Container Load
(40' STD / 20' STD)

1012/440 units

WHAT’S IN THE BOX

Monitor with stand
1 x Power cable (1.8 m)
1 x DP cable (1.8 m)
1 x USB Type-A to Type-B cable (1.8 m)
Quick setup guide

CERTIFICATION

ENERGY STAR Rating

8.0

CCC

Yes

TCO

8.0

TCO Edge

2.0

EPEAT

Silver

RoHS (EU 2002/95/EC)

Yes

Windows Certification

Windows 7, Windows 10

China Energy Eciency Standard

Tier 1

TÜV Rheinland Eye Comfort

Yes

Depe nding on many factors such as the processing ca pability of peri pheral devices , file attributes , and other factors related to system configuration and operating environ ments , the actual transfer rate using the var ious US B
conne ctors on this device will vary a nd is typically sl ower than the data rate s as defined by the respective USB specifications: - 5 Gb it/s for USB 3.1 Gen1; 10 Gbit/s for USB 3 .1 Gen2 & 20 Gbit /s for USB 3.2.

© 2020 Lenovo. All rights rese rved. T hese pro ducts a re availab le while supplies last. Prices shown are subje ct to change without notice. For any questions co ncerni ng price , please c ontact yo ur Lenovo Account Exe cutive.
Lenovo is not respon sible for photogra phic or t ypographic er rors. War ranty: For a copy of ap plicable warra nties, write to: Warra nty Information , 500 Pa rk Off ices Drive, RTP, NC 2770 9, Attn: D ept. ZPYA/ B600 . Lenovo makes
no representation or warranty regarding third-party products or services. Trademarks: Lenovo, the Lenovo logo, Rescue and Recovery, ThinkPad, ThinkCentre, ThinkStation, ThinkVantage, and ThinkVision are trademarks
or regis tered tra demar ks of Lenovo. Microsof t, Windows, and Vista are registere d trademarks of M icrosof t Corporation . Intel, the Intel lo go, Intel I nside, Intel Core, and Core Inside a re trademarks of I ntel Corporatio n in the U. S.
and/or oth er countries. Other com pany, produ ct, and s ervice names may be trade marks o r service marks of others .

Specifications may var y depending up on regio n.
